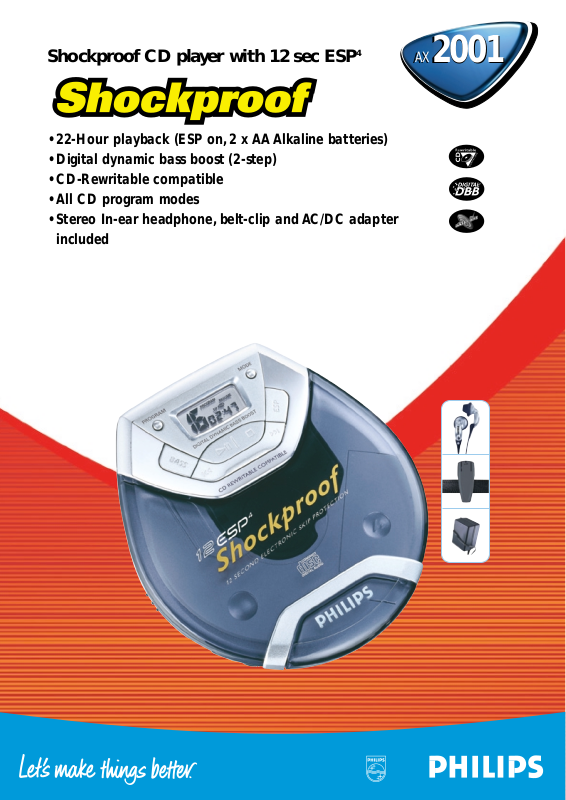

Philips AX2001 User Manual

AX2001

Shockproof CD player with 12 sec ESP

• 22-Hour playback (ESP on, 2 x AA Alkaline batteries)

• Digital dynamic bass boost (2-step)

• CD-Rewritable compatible

• All CD program modes

• Stereo In-ear headphone, belt-clip and AC/DC adapter included

Standard product information Amplifier/ system

• Output power (in-ear headphone) 2 x 2.3mW RMS

• 1-Bit D/A convertor for pure sound reproduction

• Dynamic bass boost

• Rotary volume control

• S/N ratio (A weighted):>100 dB

• Frequency response:20 Hz - 20 kHz

• Acoustic feedback

CD player

• 30-Track programmable, shuffle, repeat 1/all and introscan

• Search forward/ backward with sound

• Resume and hold

ESP4- Fourth generation

electronic skip protection

• Electronic skip protection with 12 second memory

LCD display

• Indications for track,time, 2-stage DBB, CD functions and battery status

Connections

• Headphone/line out Stereo,3.5 mm

• DC in 4.0 mm,4.5V, centre ‘+’

Power supply

• Batteries 2 x 1.5V, type

AA/LR6/UM3 cell

• Battery playing time 22 hours (ESP on,

Alkaline batteries)

• Automatic power switch-off

General

• Material High temperature

resistant plastic

• Weight 211 g (excluding

batteries)

• Product dimensions 135 mm L x 125 mm W

x 30 mm H

• D-box dimensions /00 (mm) 245 L x 140 W x 49 H

• D-box dimensions /01 /05 /13 (mm) 245 L x 140 W x 54 H

• Master carton dimensions /00 (mm) 304 L x 253 W x 156 H

• Master carton dimensions /01 /05 /13 (mm) 334 L x 253 W x 156 H

• Master carton quantity 6

Accessories

• AC/DC adapter

• Stereo in-ear headphone

• Belt-clip

Shockproof

Fourth generation electronic skip protection for continous music play with 12 second music buffer and upto five times faster shock recovery than conventional systems.

22-Hour playback (ESP on, 2 x AA Alkaline batteries)

Powersaving technology extends battery playing time to 22 hours with two regular LR6-size (AA) alkaline batteries.

Digital dynamic bass boost (2-step)

Enhances bass at low,mid and high volume,to give deep,rich sounds .

CD-Rewritable compatible

Ensures that both CD-Recordable and CD-Rewritable discs, made by any CD-Recorder,can be played.

All CD program modes

Let you enjoy various CD program modes (repeat one/ repeat all/ shuffle/ repeat shuffle/ introscan).

Heat resistant body

Unique composite material enables the CD player to withstand very high temperature.

1-Bit D/A converter

Advanced digital conversion technology ensures crystal-clear sound.

Hold

Locks all buttons to prevent interruption of play or change of program settings.

Resume

Bookmark function that ensures the CD starts precisely from the point it was stopped.

Automatic power off

Automatically switches off the CD player at the end of a compact disc.

CD next/ previous

Plays the next or previous track at the touch of a button.

CD music search

Searches the CD at high speed while still producing low-volume sound so you know exactly when to stop.

Repeat one/ all

Repeat the current track or the total CD.

Shuffle

Plays disc selection randomly,giving you each time a new sequence of tracks.

30-track programmable

Stores up to 30 of your favourite tracks for playing back in your order of preference.

Acoustic feedback

Confirms any key-push with friendly beep to acknowledges that a command has been given.

http://www.philips.com

Shockproof CD player with 12 sec ESP

AX2001
