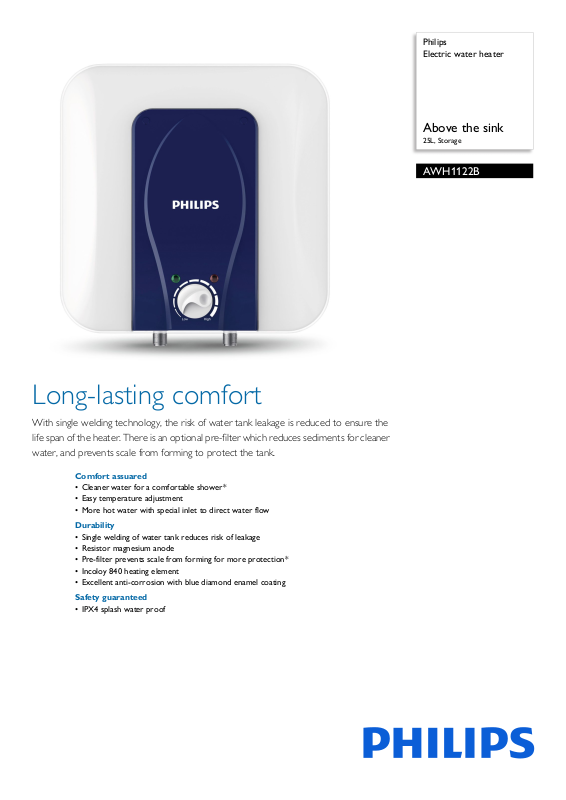

Page 1
Philips
Electric water heater
Above the sink
25L, Storage
AWH1122B
Long-lasting comfort
With single welding technology, the risk of water tank leakage is reduced to ensure the
life span of the heater. There is an optional pre-filter which reduces sediments for cleaner
water, and prevents scale from forming to protect the tank.
Comfort assuared
• Cleaner water for a comfortable shower*
• Easy temperature adjustment
• More hot water with special inlet to direct water flow
Durability
• Single welding of water tank reduces risk of leakage
• Resistor magnesium anode
• Pre-filter prevents scale from forming for more protection*
• Incoloy 840 heating element
• Excellent anti-corrosion with blue diamond enamel coating
Safety guaranteed
• IPX4 splash water proof
Page 2
AWH1122B/90
Electric water heater
Above the sink 25L, Storage
Specifications
General specifications
•Capacity: 25L
• Heating element: Incoloy 840
• Resistor magnesium anode
• Max water heating temperature: 75 °C
• Max water pressure: 8 bar
• Safety valve
• Voltage and frequency: 230V, 50Hz
•Waterproof: IPX4
Filter specifications
• Filter model: AWP9820
• Replacement filter cartridge: AWP182, AWP183
• Filtration capacity: 27000L
• Main filter media: MMSAP
•
Highlights
Pre-filter
The pre-filter effectively reduces rust, sediments and
particles so that you can enjoy cleaner water for
showering. It can be taken apart for a regular rinse
to prolong the lifetime and maximize the value*.
Anti-scale pre-filter
The pre-filter comes with anti-scale media that can
effectively prevent scale from forming, further
protecting the water tank***.
Easy temperature adjustment
With the mechanical knob, the temperature can be
adjusted easily by up to 75 degrees Celsius.
Blue diamond enamel coating
The heater comes with excellent corrosion
resistance, thanks to the blue diamond enamel
coating of not just the water tank, but the water inlet
and outlet as well.
Incoloy 840 heating element
Incoloy 840 heating element offers great resistance
to oxidization and carbonization in high temperature
environment, ensuring the life span of the heater.
IPX4 splash water proof
IPX4 splash water proof for worry-less regular
cleaning.
More hot water
With a special design of the inlet, the incoming flow
of cold water is dispersed at the bottom, while the
hot water is pushed to the upper space inside the
tank. It avoids immediate direct contact of the hot
and the cold water, which allows more hot water to
be available.
Resistor magnesium anode
Resistor magnesium anode provides thorough
protection for the water tank, even when the inlet
water quality is not ideal**.
Less risks of leakage
There are multiple weldings of water tank with
conventional water heater, each imposing risk of
leakage. Philips water heater adopts single welding
technology which lowers down the risk for more
durability.
Issue date 2021-04-20
Version: 3.0.1
12 NC: 8670 001 67064
EAN: 48 97099 30215 5
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* * The pre-filter is an optional accessory.
* ** The magnesium anode is consumable. For optimal performance,
it's recommended to regularly inspect it every 6 months and replace
it when needed.
* *** 50% anti-scale rate with 27 tons of water.
