Page 1
Water Heater
Electrical
Instant
AWH1006/51(55L A)
User manual
Руководство пользователя
Page 2
Page 3
TABLE OF CONTENTS
EN
1. Buyer must-read
2. Product function
3. Applicable water quality range
4. Technical performance parameters
5. Name of parts
6. Appearance and structure
7. Product dimensions
8. Installation and opearation
8.1 Precautions before installation
8.2 Installation steps
8.3 Method of use
1
3
3
3
4
4
5
5
5
6
8

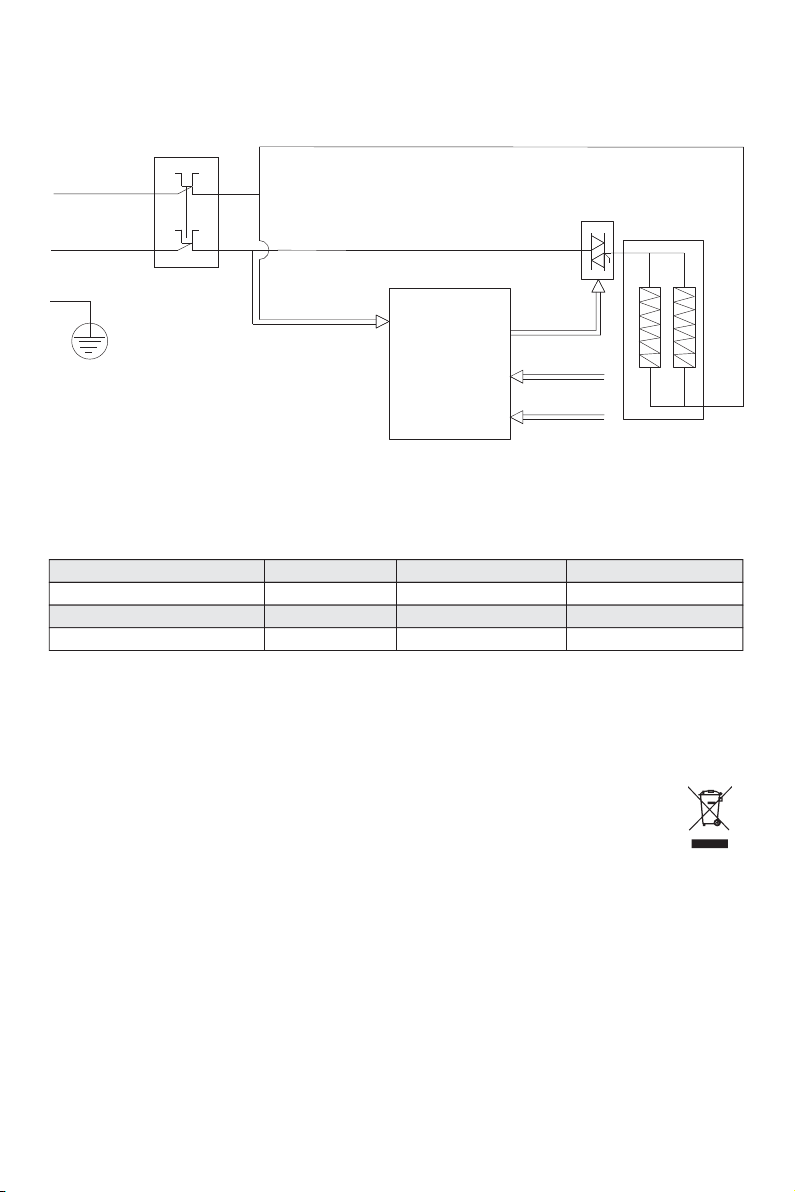

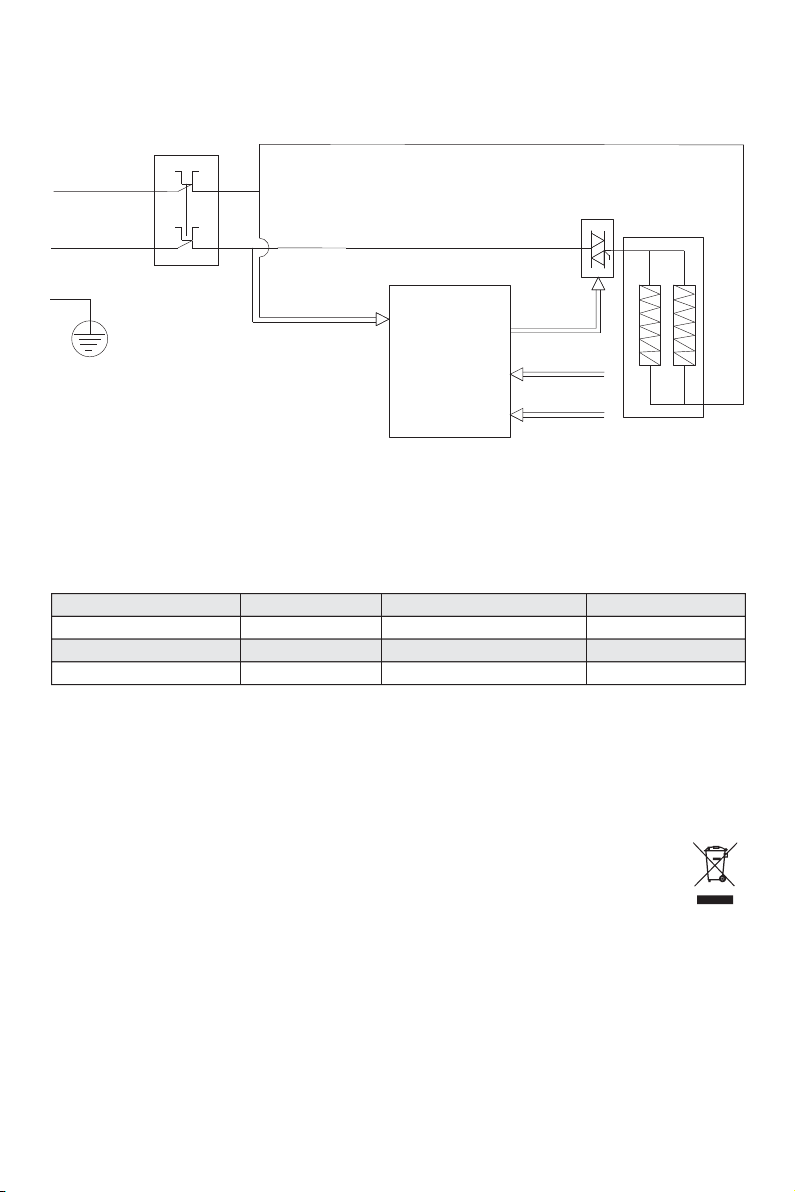

11. Electrical schematic diagrams
12. Packing list
13. Service Life
14. Disposal Rules
15. Guarantee & Service
11
11
11
11
11
9. Maintenance
10.Troubleshooting
10
10
Page 4
1. BUYER MUST-READ
Please read this manual carefully before use and preserve the instruction manual for future reference.
Requirement that if not followed, could result in serious accident.
The following contents are closely related to safety issue, please follow the requirement strictly.
WARNING
Requirements that, if not followed,
couldresult in serious injury or death.
This symbol indicates: Please pay attention!
It is used in conjunction with the above
attention, please read it carefully and strictly
comply with it.
This symbol indicates, that improper use may cause
minor injuries to the user or damage to property.
PROHIBITIONS
This symbol indicates that
this operation is prohibited!
ATTENTION
Note
This symbol indicates
Please follow the
instructions!
SAFETY REGULATIONS
●nal injury or
death.
● electric
shock.
● The installation and commissioning or maintenance must be carried out by factory authorized personnel to
ensure that the machine is in normal working condition. Personal installation or maintenance without factory
authorization resulting in the product cannot reach the normal state or performance, the factory is not
responsible.
● Special groups such as children, the elderly, and the disabled should be supervised by normal adults.
● work must be
carried out by authorized service people.
WARNING
● Check and make sure the ground wire is well connected with ground otherwise the faulty and leakage can
cause electric shock.
●follow the regulations can
● Please make sure to use 220V~50Hz power supply for electric water heater.
● equipped with this
such a device. When it is disconnected, the minimum distance between all touch points is 3mm. Whether the
electric meter capacity, leakage protection switch, electric wire can meet the power requirements of the
water heater, see the "Technical performance parameters", Leakage protection switch must be installed in a
dry place 1.6 meters above the ground and ensure that water does not splash in this location while in use.
● Do not use power strips or removable sockets.
● Electric water heater must be installed indoors, where the ambient temperature is above 0C°. When the
ambient temperature is below 5 C°, please make sure to take anti-freezing measures to prevent water leakage
and electricity
●
your bo
rature to stabilize before use.
●
due to the deterioration over time.
EN 1
Page 5
● In case of any abnormal condition of the grounding system other than the water heater, immediately stop
using the water heater, disconnect all connections with the power supply circuit, and call the service hotline
ersonnel.
●ion
fault, please immediately disconnect the power supply and contact professional after-sales service personnel
(refer to the "Troubleshooting" section) Do not repair by yourself; incorrect repair methods may endanger
personal safety or lead to property damage.
● ew device is installed, check the water inlet pipe joint and water heater to make sure no leakage
befoower switch can be connected.
● Children should be supervised to ensure that they cannot play with or approach the appliance.personnel.
CAUTION
● The plumbing installation should be done in accordance with the regulations of the city where it is located;
otherwise, it will cause water leakage.
● Do not apply pressure to the connection part of the device, which may cause cracking, water leakage, falling,
etc.
● This home water heater is applied for domestic water use, and if used for commercial purposes, it may shorten
the service life of the water heater.
●
maintenance according to the usage conditions. If there is any abnormality, stop using it immediately and call
the company's service hotline to report for repair.
● If any parts are soaked in water, they should be inspected or repaired by professionals before use.
● Do not spray umes around the product.
● The water discharged from the water heater (including after heating by electricity) cannot be used for
drinking.
● Whe
power should not be connected until you make sure the water outlet runs normal so as not to damage the
water heater oring and maintaining.
● During the use of the water heater, the temperature of the power cable will rise, you will feel slightly hot,
which is a normal phenomenon and can be used normally. If the power cord is damaged and needs to be
replaced, a special power cord must be repaired and replaced by authorized personnel.
PROHIBITIONS
●
cutouts.
● Do not touch the power supply with wet hands or spray water on the earth leakage protection switch or the
appliance so as to prevent the electrical components from getting wet. The leakage protection switch should
be installed in a place where it will not be splashed by water and out of the reach of children. If it is accidentally
soaked, it must be inspected and approved by authorized personnel before it can be used again.
●ear the water heater.
● Power must be disconnected before any installation or operation or maintenance.
●
service work must be carried out by authorized personnel.
● Do ed to direct sunlight.
● Do not install the water heater in an environment where it may freeze, as freezing will cause the tank and
water pipes to break which may cause leaks.
● Do not connect to pipes other than water mains.
● Do not use the outlet water of other water heaters as the water inlet of this water heater.
NOTE: The above terms and conditions are subject to interpretation by the Company as permitted by law.
at are
hermal
EN 2
Page 6
2. PRODUCT FUNCTION
● LED display shows the current water temperature a
●
Multiple protection against leakage, over temperat
● High quality cast aluminum heater, water and electricity separated, anti-rust, anti-corrosion, anti-fouling, long
service life.
● Intelligent microcomputer heating system, constant temperature, set the temperature on demand, energy
saving and power saving.
● Inst
nd set water temperature.
3. APPLICABLE WATER QUALITY RANGE
4. TECHNICAL PERFORMANCE PARAMETERS
Parameter
Rated Power, W
Rated Voltage, V
Rated Frequency, Hz
Rated pressure, MPa
Minimum Pressure, MPa
Temperature range, ℃
Wire Requirements
Model
5500
220~
50
0.6
IPX4
0.05
30-55
2.5mm² copper wire
EN 3
Page 7
5. NAME OF PARTS
1.Heater 2.Thermal circuit breaker 3.Bottom shell
6.Flow sensor
7.Silicon controlled
10.Decorative cover
8.Shell 9.Display panel

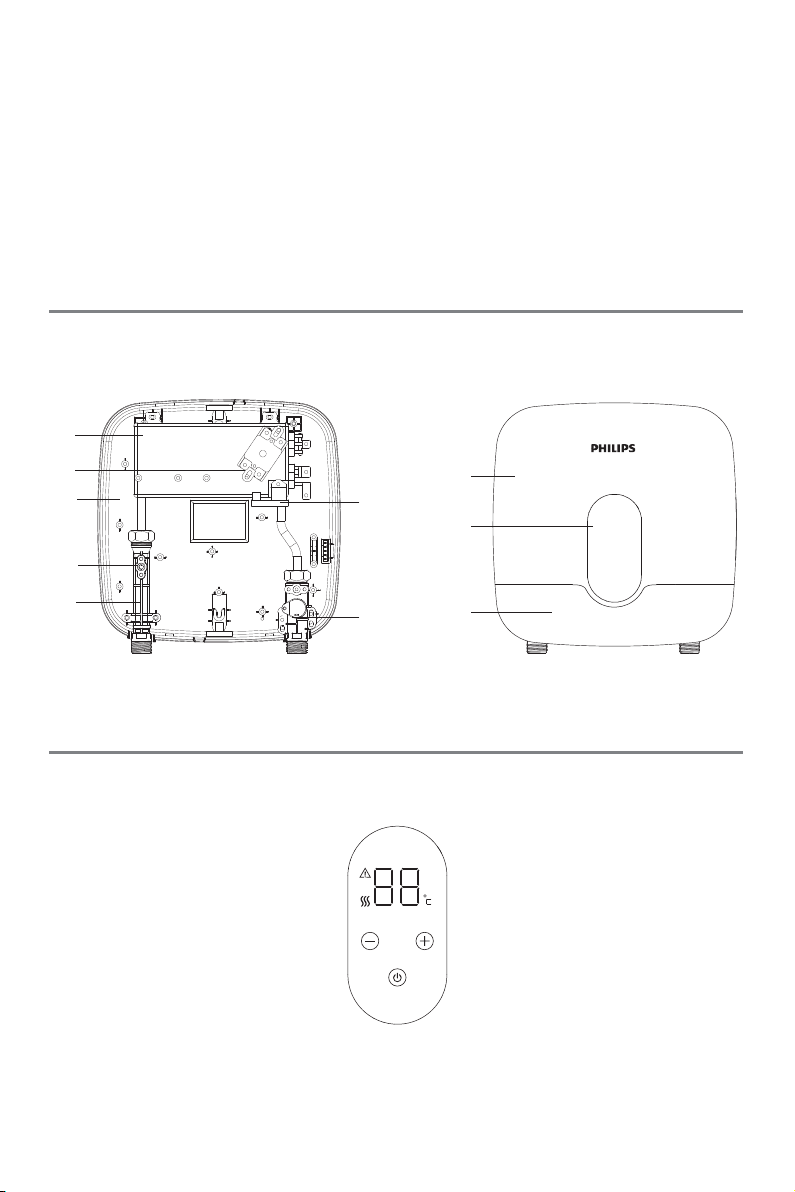

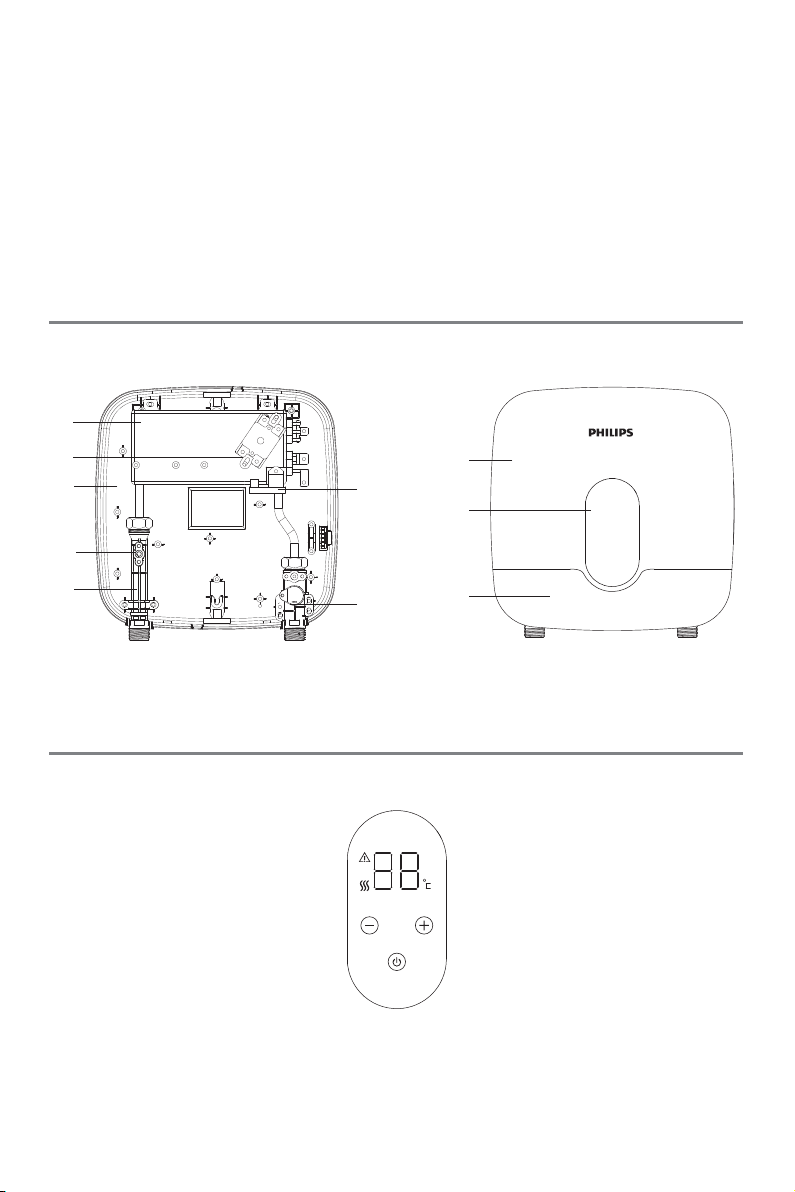

6. APPERANCE AND STRUCTURE
Parts of the appliance are as below:
1
2
3
4
5
Note:This diagram is for illustration purposes only. Please refer to the actual product for accuracy.
The operation panel is as below:
7
6
8
9
10
Figure B
EN 4
Page 8

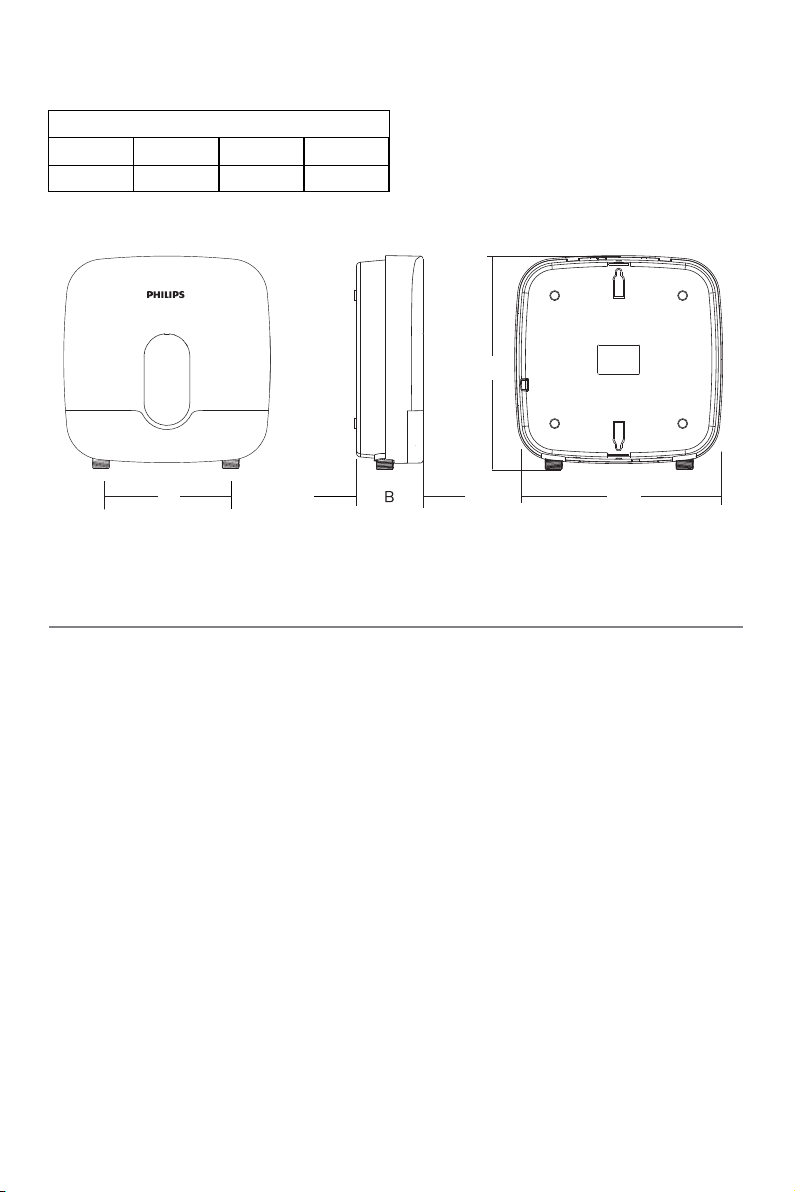

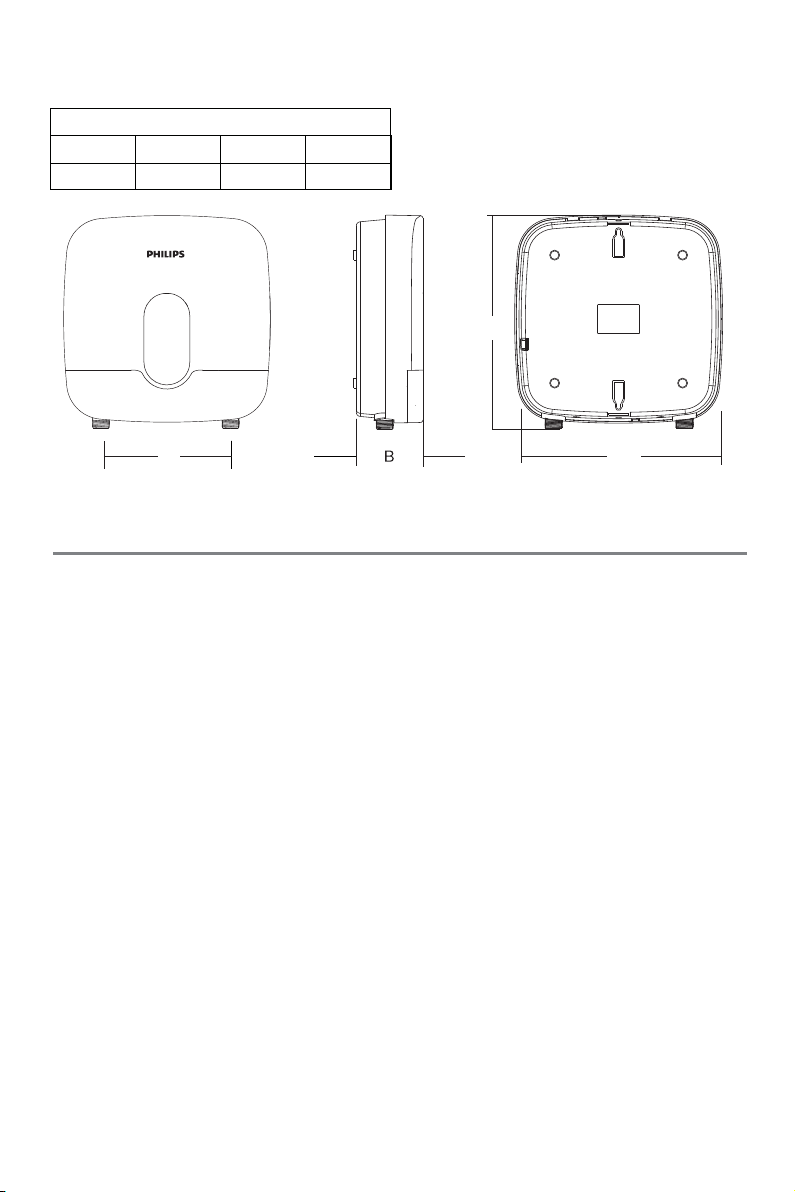

7. PRODUCT DIMENSIONS
Main Dimensi ons, mm
156
79
B
C
255
D
248
C
A
Figure C
D
8. INSTALLATIONAND OPEARATION
8.1 Precautions before installation
The electric water heater should be positioned and installed according to the user's environmental conditions and
comprehensive consideration of the following factors:
●
●
●
● Try to avoid places prone to vibration;
●
the hot water pipeline should be insulated to reduce the heat loss of the pipeline;
●
● To facilitate future repairs, maintenance, relocation, etc., a certain space must be reserved around the installation
● The bearing capacity of the installation surface should be no less than 4 times the total mass of the electric water
heater to ensure safety;
●
devices;
● The location of the leakage protection switch should be placed in a safe place where there will be no risk of electric
shock and where water cannot be splashed. Check the leakage protection switch used in the electric water heater by
visual inspection and using specialized measuring devices (phase meter, test pen, grounding resistance meter, etc.) to
ensure that the live wire and neutral wire are installed correctly and grounded reliably, and ensure that the grounding
● Check whether the capacity of the electricity meter, wires, and leakage protection switch meets the requirements of
the electric water heater;
●
0.6 MPa. Check the tap water pressure witha pressure gauge, if the tap water pressure is greater than 0.6 MPa,
a pressure reducing valve should be installed on the inlet pipe;
● Electric water heaters should be installed indoors where the ambient temperature is above 0
℃.
EN 5
Page 9
8.2 INSTALLATION STEPS
NOTICE:
The water heater must be installed by the company's authorized personnel.The supplied accessories must be used
during installation; unauthorized replacement is not allowed. If the above rules are not complied with, the
company will not be liable for any direct or indirect losses caused thereby.
Step 1:Installation preparation
●
instruments.
● Check whether the electric water heater is in good condition, and whether the accompanying documents and
accessories are complete.
● Read this manual carefully to understand the functions, operation methods, installation requirements and installation
methods of the electric water heater.
● Check the user's power supply, it must be 220V- 50Hz power supply;The location of the leakage protection switch
should be placed in a safe place where there will be no danger of electric shock and where water cannot be splashed.
Check the leakage protection switch used in the electric water heater by visual inspection and using specialized
measuring devices (phase meter, test pen, grounding resistance meter, etc.) to ensure that the live wire and neutral
wire are installed correctly and grounded reliably; Check whether the electric meter capacity, leakage protection
switch, electric wire can meet the power requirements of the water heater, see the "technical performance
parameters"; Check the tap water pressure with a pressure gauge, if the tap water pressure is greater than 0.6 MPa, a
pressure reducing valve should be installed on the inlet pipe.
●
direct sunlight, rain and wind;Try to avoid places prone to vibration;Try to shorten the distance between the electric
reduce the heat loss of the pipeline;The bearing capacity of the installation surface should not be less than 4 times the
under the electric water heater to ensure safety.
● For thosedo not meet the installation requirements of electric water heaters, professional installation personnel
be refused.
Step 2. Installation operation
● The installation of the electric water heater should use the attached accessories, and professional installation
personnel should not replace, omit or modify at will.
● During installation, attention should be paid not to damage the safety structure of the building.
●
● The water heater must be installed vertically.
●
CAUTION:
The ground wire must be reliably grounded, otherwise it may cause safety accidents.
The leakage protection switch must be installed in a dry place where cannot be sprayed by water.
EN 6
Page 10

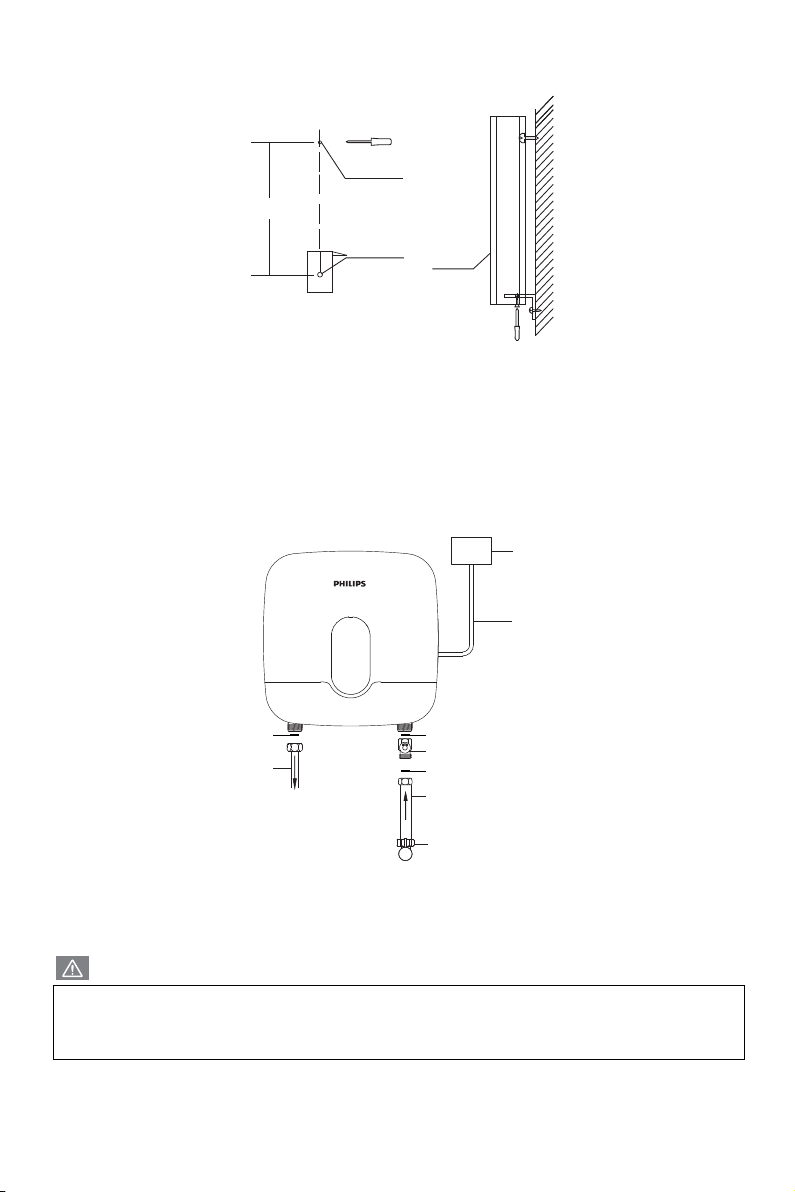

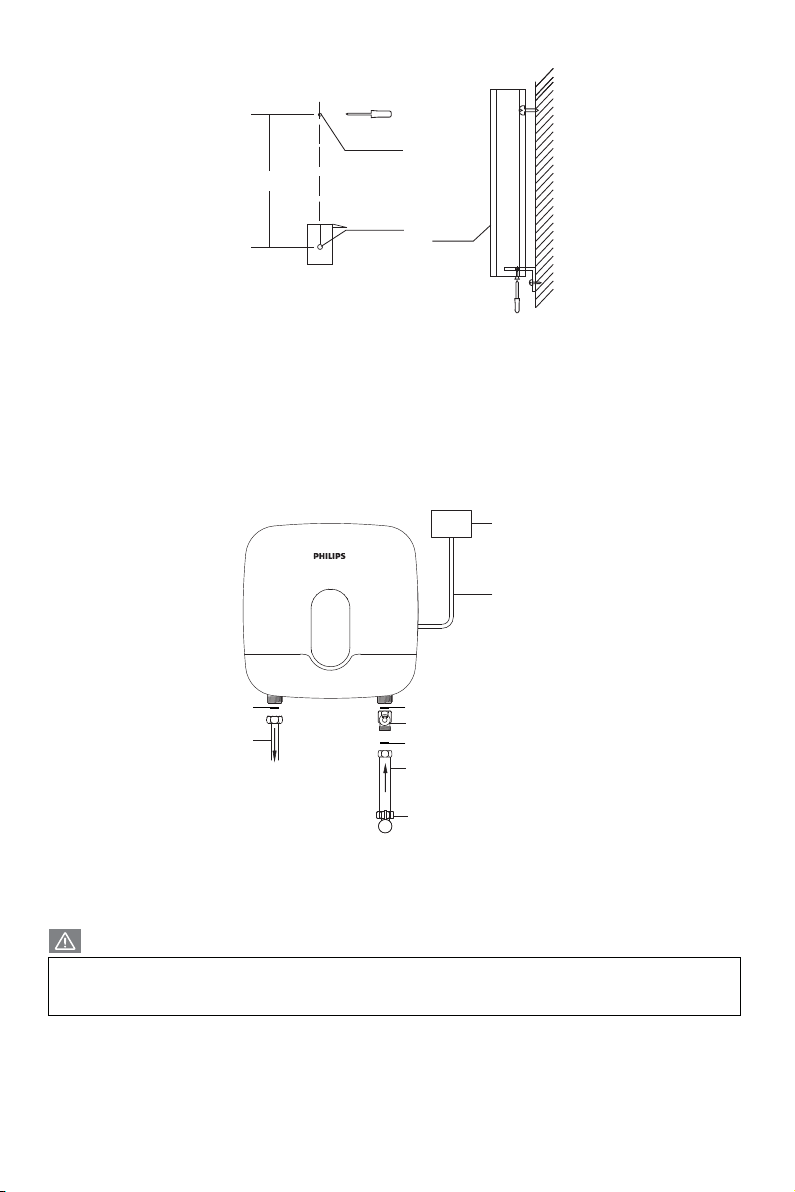

233mm
Hit screw
Hit screw
Machine
Figure D
● ：Lift the water heater and insert the installation bracket into the installation holes on its back.
you can release your grip to prevent it from falling.
●
Leakage protection switch
Power cord
Hot water outlet
Flow valve
Cooling water inlet
Figure E
CAUTION
●
●
installation.
EN 7
Page 11
8.3 Method of use
CAUTION:
Notes before connected to the power:
● Check whether the leakage protection switch is installed in a suitable position and whether it can operate.
●
● Check whether there is any water leakage at each interface, and then turn on the appliance only when
wa
● Whe
body under the water to avoid being scalded by hot water.
● Users are requested to maintain good habits: it is recommended to turn on the water before turning on
the
● Turn on the power
supply has been connected, and the water heater will enter the standby state.
● Power on
，，the water heater will
start up, and after displaying the current set temperature for 3 seconds, it will automatically switch to display the
current outlet water temperature, and the water heater will start heating .
● Operation
During the working process, you can press the " "button or " " button to adjust the set temperature. Each time
you press the " " button or " " button, the temperature will increase or decrease by one degree. Press the " "
button or " " button continuously for 1.5 For more than 1 second, the temperature setting value increases or
decreases continuously, and the temperature setting value range: 30‒55°C.
● Power off

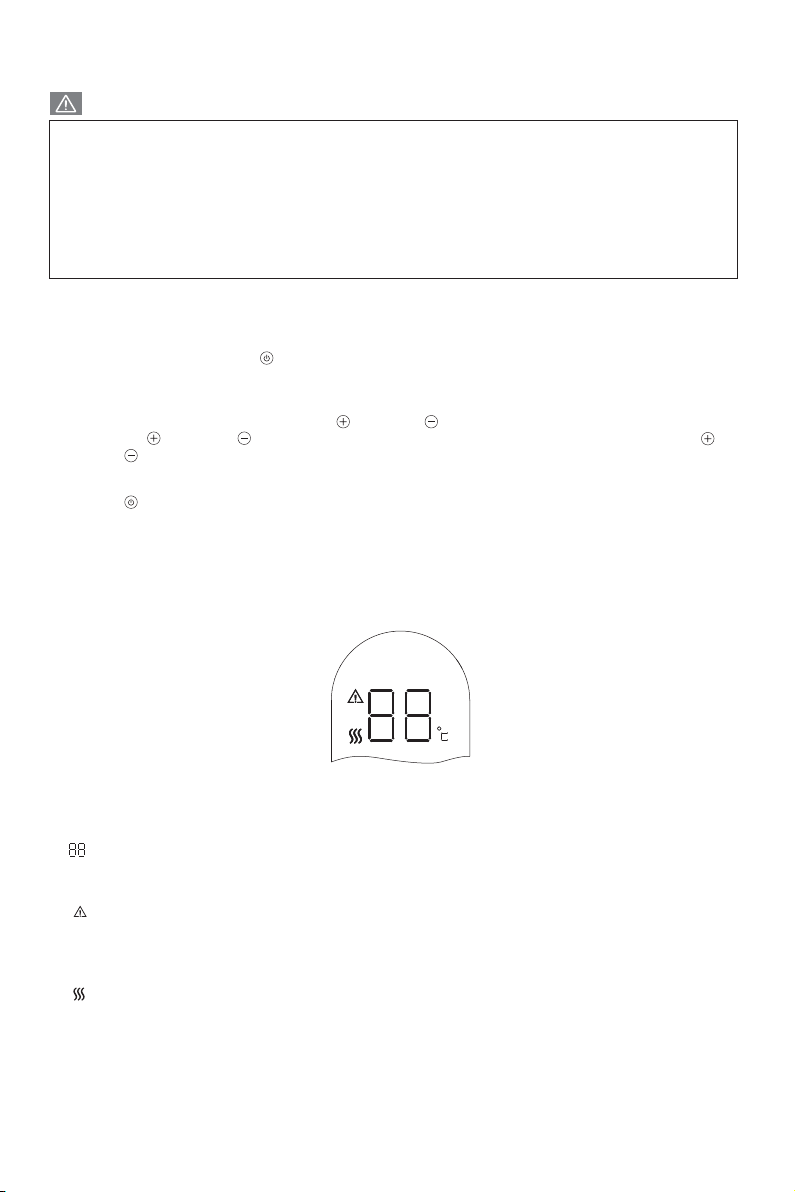

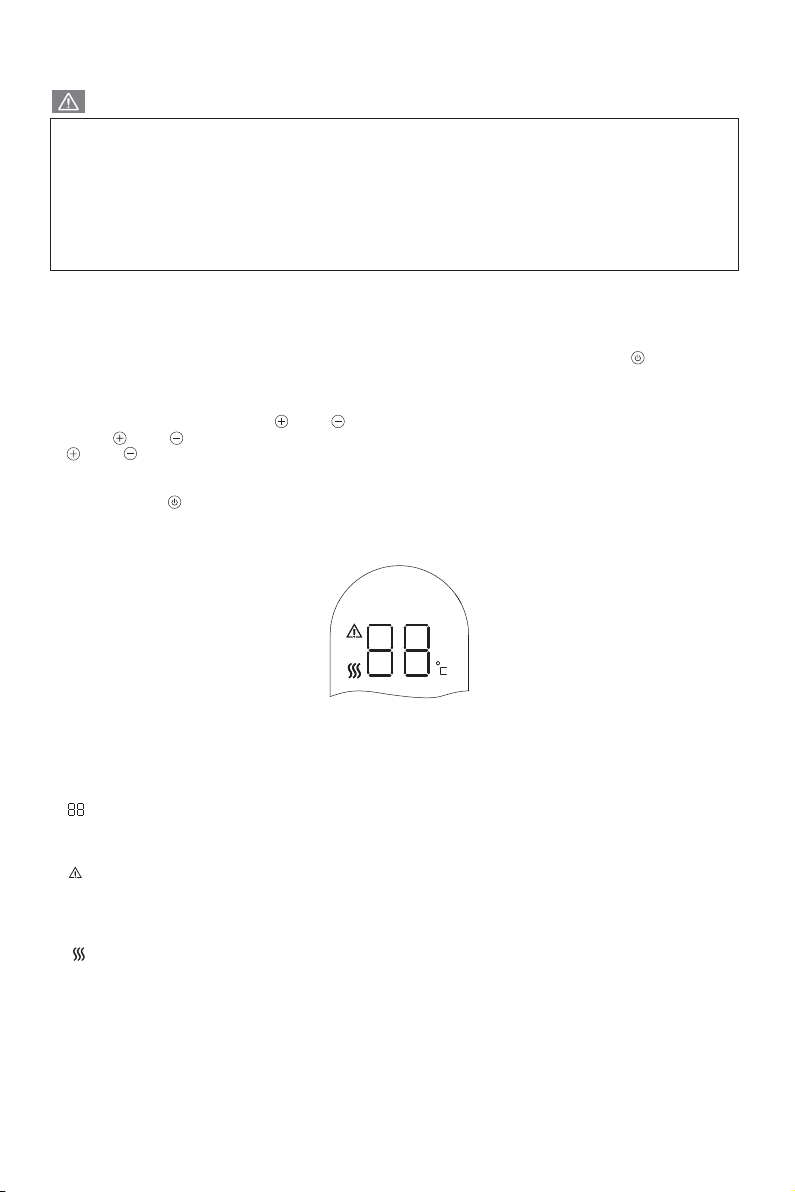

Introduction about the display
Figure F
●
The normal display temperature of the water heater in Celsius is "°C".
The fault code display: When the water heater encounters a malfunction, it displays the fault codes (EC, HE, E5, E1).
● " ℃ " , Temperature unit
● " " , Protection state display
When the water heater is operating normally, it will be steadily lit to indicate the entry into protection state. When the
malfunction, it displays the fault codes (EC, HE, E5, E1).
● " " , Heating state display
operation of the water heater; when the characters are not illuminated, it indicates that the water heater is not in
operation.
EN 8
Page 12

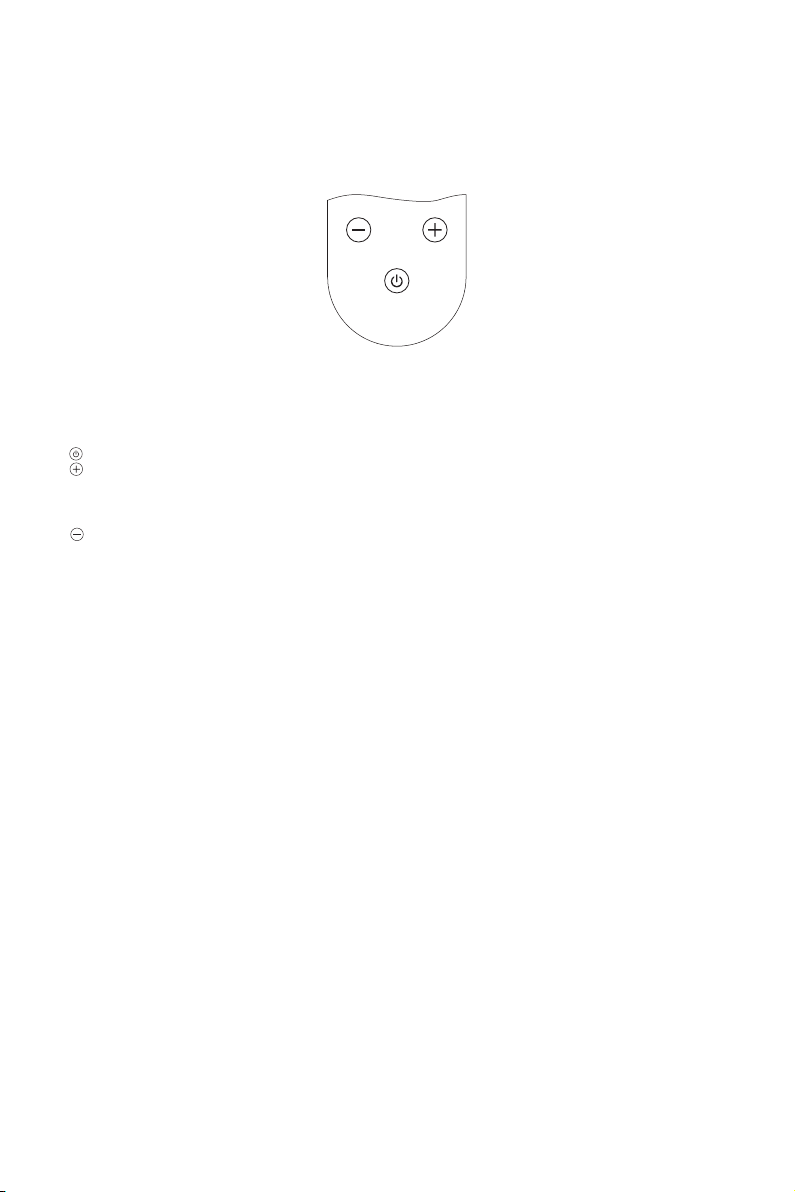

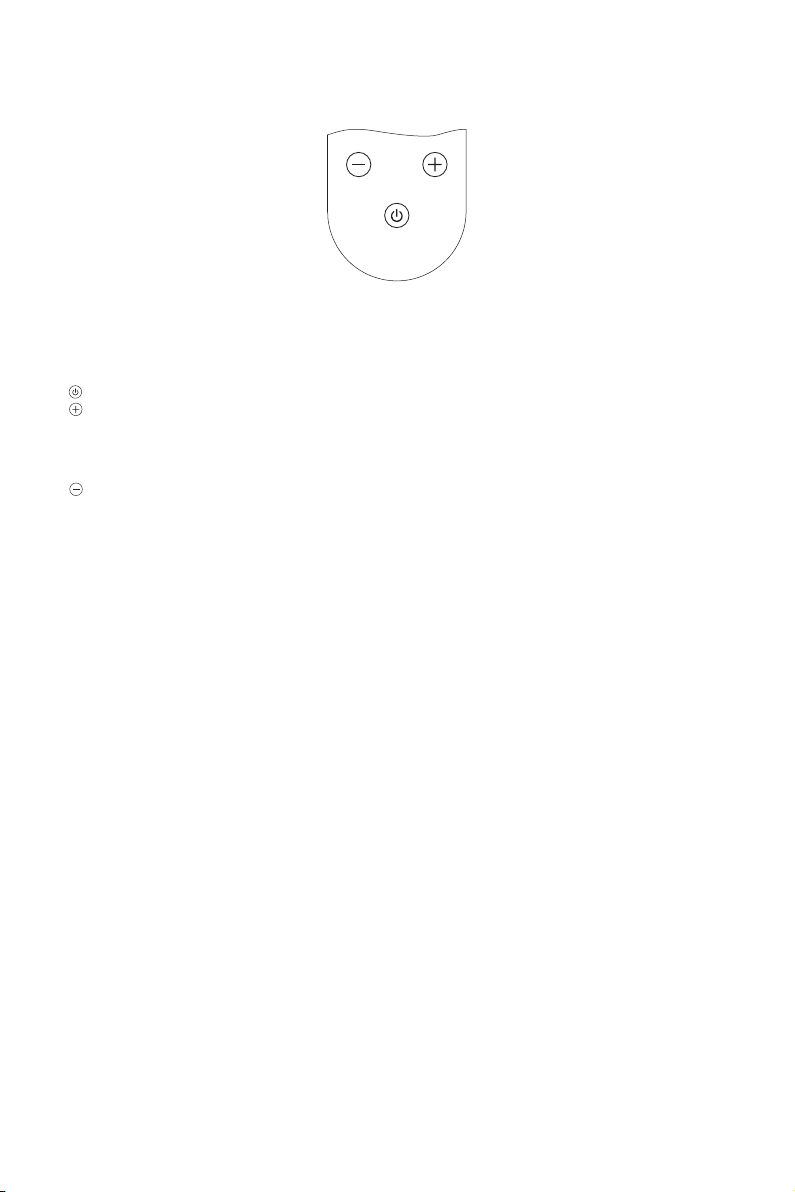

Introduction about Button:
● " " , "Power button"：
● " " , "Heating button"：
current set temperature value, press this button again to enter the set temperature, press once, the set temperature
will increase by1°C, press this button for more than 1.5 seconds , the temperature setting value increases continuously,
the temperature setting range: 30-55°C.
● " " , "Cooling button"：
current set temperature value, press this button again to enter the set temperature, press once, the set temperature
and the temperature setting range: 55-30°C.
EN 9
Page 13
9.MAINTENANCE
●t in time.
● Regularly (once a week) check whether the leakage protection switch can operate normally.
●eet
the requirements of the electricity supply.
● Ple
● Rers to avoid clogging.
●of the
soft
●connect the water heater from the power before carrying out any maintenance and repairs.
Professionals not authorized by the company are not allowed to modify or repair the water heater.
10.TROUBLESHOOTING
SYMPTOMS REASONS TROUBLESHOOTING METHODS
1.Connected to the power
reconnect
4.Disconnect the leakage protection switch
and reconnect
5.Contact local service center
1.Set the temperature higher
1.Set the temperature lower
2.Clean the shower head
3.Increase the water pressure
1.Replace the leakage protection switch
2.Contact local service center
Contact after-sales maintenanceCommunication fail
1.Please use cold water to pass through the
pipe to lower the temperature or cool it
down naturally to remove the
over-temperature indication.
2.Please contact after sales if above
operation does not work.
Water does not heat up
Water temperature is
not high enough
The water temperature
is too high
Flow too small from
the hot water tap
Trip
Display" "
Display" "
4.Microcomputer is dead
5.Heating tube is broken
1.Temperature was set too low
1.Temperature was set too high
2.Shower head clogged
3.Too low water pressure
1.Low capacity or faulty of the
leakage protection switch
2.Electrical leakage
Display" "
Display" "
Zero-crossing detection fault
Contact after-sales for repair
Contact after-sales for repair
EN 10
Page 14
11.ELECTRICAL SCHEMATIC DIAGRAMS
Thermal
circuit breaker
L(Firing line)
given for any changes in wiring.
Power input
Electric
control panel
Figure H
Silicon
controlled
Flow rate sensor
sensor
Heating wire
12. PACKING LIST
Complete machine
Colloidal particle
Installable hanging board Flow valve
1X
1X
1X
3X
Tapping screw
3X
2X
1X
13. SERVICE LIFE
The service life of the water heater is 8 years, provided that the relevant installation and operation requlations
are observed.
14. DISPOSAL RULES
accordance with the rules,regulations
the end of the device's useful life, take it to a collection point for recycling, if this is required by the
rules and regulations in your area. This will help avoid possible consequences for the environment and
human health,and will also encourage the reuse of product components information about where
and how you can dispose of the appliance can be obtained from your local authorities.
15. GUARANTEE & SERVICE
center in your country. lf there is no customer care center in your country, go to a local dealer. Within two years
from the date of purchase, you will receive free warranty service for any damage caused by the manufacturing
door-to-door service. Please show the proof of purchase to the service personnel during maintenance.
EN 11
Page 15
ОГЛАВЛЕНИЕ
RU
1. Необходимые сведения
для покупателей
2. Назначение изделия
3. Допустимое качество воды
4. Технические характеристики
5. Устройство прибора
6. Внешний вид и конструкция
7. Габариты изделия
8. Установка и эксплуатация
8.1. Меры предосторожности
перед установкой
8.2. Порядок установки
8.3. Порядок использования
1
11. Электрические схемы
12. Упаковочный лист
3
13. Срок эксплуатации
3
3
14. Правила утилизации
4
15. Гарантия и обслуживание
4
5
5
5
6
8
11
11
11
11
11
9. Техническое обслуживание
10. Устранение неполадок
10
10
Page 16
1. Необходимые сведения для покупателей
ПРЕДУПРЕЖДЕНИЕ
ЗАПРЕТЫ
ВНИМАНИЕ
Примечание.
ПРАВИЛА БЕЗОПАСНОСТИ
●
●
●
●
●
ПРЕДУПРЕЖДЕНИЕ
●
●
●
●
●
●
●
●
RU 1
Page 17
●
●
●
●
ОСТОРОЖНО!
●
●
●
●
●
●
●
●
●
ЗАПРЕТЫ
●
●
●
●
●
●
●
●
●
ПРИМЕЧАНИЕ.
RU 2
Page 18
2. НАЗНАЧЕНИЕ ИЗДЕЛИЯ
Функциональные преимущества:
●
●
●
●
●
3. ДОПУСТИМОЕ КАЧЕСТВО ВОДЫ
4. ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
5500
50
0,6
IPX4
0,05
30–55
RU 3
Page 19
5. УСТРОЙСТВО ПРИБОРА
6. ВНЕШНИЙ ВИД И КОНСТРУКЦИЯ
1
2
3
4
5
Панель управления
8
7
9
6
10
RU 4
Page 20
7. ГАБАРИТЫ ИЗДЕЛИЯ
156
79
B
C
255
D
248
C
A
D
8. УСТАНОВКА И ЭКСПЛУАТАЦИЯ
8.1. Меры предосторожности перед установкой
●
●
●
●
●
●
●
●
●
●
●
●
●
RU 5
Page 21
8.2. ПОРЯДОК УСТАНОВКИ
УВЕДОМЛЕНИЕ
Шаг 1. Подготовка к установке
●
●
●
●
●
●
Шаг 2. Установка и эксплуатация
●
●
●
●
●
ОСТОРОЖНО!
RU 6
Page 22
●
●
ОСТОРОЖНО!
●
●
RU 7
Page 23
8.3. Порядок использования
ОСТОРОЖНО!
Перед подключением электропитания:
●
●
●
●
●
● Включите электропитание
● Включение устройства
● Эксплуатация
● Отключите питание.
Дисплей
●
●
●
(EC, HE, E5, E1).
●
RU 8
Page 24
Кнопки
●
●
●
RU 9
Page 25
9. ОБСЛУЖИВАНИЕ
●
●
●
●
●
●
●
10. УСТРАНЕНИЕ НЕПОЛАДОК
СИМПТОМЫ ПРИЧИНЫ СПОСОБЫ УСТРАНЕНИЯ НЕПОЛАДОК
RU 10
Page 26
11. ЭЛЕКТРИЧЕСКИЕ СХЕМЫ
12. УПАКОВОЧНЫЙ ЛИСТ
13. СРОК ЭКСПЛУАТАЦИИ
14. ПРАВИЛА УТИЛИЗАЦИИ
15. ГАРАНТИЯ И ОБСЛУЖИВАНИЕ
В течение двух лет
RU 11
Page 27
Page 28
Register your product and learn more via the website link below:
www.philips.com/water
Speci�cations are subject to change without prior notice
© 2023 AquaShield
All rights reserved.
Philips and the Philips Shield Emblem are registered trademarks of
Koninklijke Philips N.V. and are used under license.
This product has been manufactured by and is sold under the responsibility of
Hong Kong AquaShield Health Technology Company Limited
and Hong Kong AquaShield Health Technology Company Limited
is the warrantor in relation to this product.
Rev A AUG 23
Loading...
