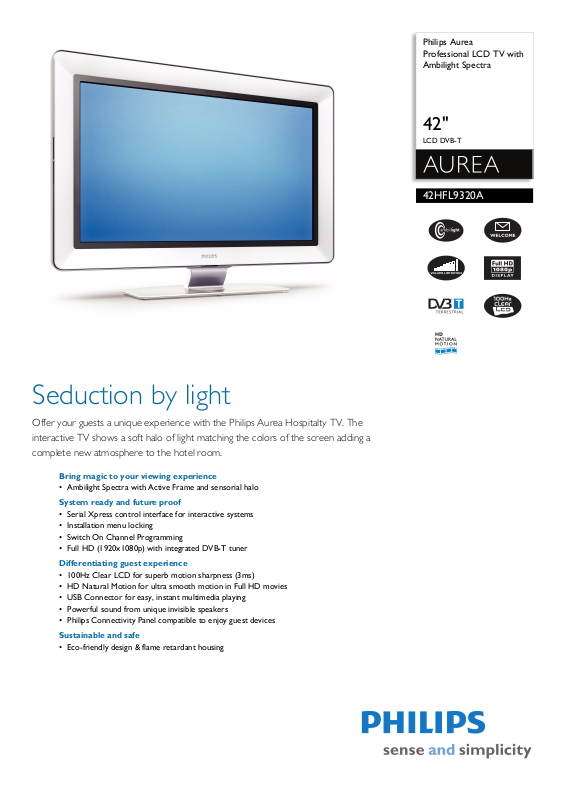

Page 1
Philips Aurea
Professional LCD TV with
Ambilight Spectra
42"
LCD DVB-T
42HFL9320A
Seduction by light
Offer your guests a unique experience with the Philips Aurea Hospitalty TV. The
interactive TV shows a soft halo of light matching the colors of the screen adding a
complete new atmosphere to the hotel room.
Bring magic to your viewing experience
• Ambilight Spectra with Active Frame and sensorial halo
System ready and future proof
• Serial Xpress control interface for interactive systems
• Installation menu locking
• Switch On Channel Programming
• Full HD (1920x1080p) with integrated DVB-T tuner
Differentiating guest experience
• 100Hz Clear LCD for superb motion sharpness (3ms)
• HD Natural Motion for ultra smooth motion in Full HD movies
• USB Connector for easy, instant multimedia playing
• Powerful sound from unique invisible speakers
• Philips Connectivity Panel compatible to enjoy guest devices
Sustainable and safe
• Eco-friendly design & flame retardant housing
Page 2
Professional LCD TV with Ambilight Spectra
42" LCD DVB-T
Specifications
42HFL9320A/10
Picture/Display
• Diagonal screen size: 42 inch / 107 cm
• Aspect ratio: Widescreen
• Display screen type: LCD Full HD W-UXGA Act.
matrix
• Panel resolution: 1920x1080p
• Viewing angle: 176º (H) / 176º (V)
• Brightness: 550 cd/m²
• Color processing: 4 trillion colors (14bit RGB)
• Contrast ratio (typical): 1200:1
• Screen enhancement: Anti-Reflection coated
screen
• Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Active Control, Jagged Line
Suppression, Progressive Scan, Widescreen Plus,
Dynamic contrast enhancement, Pulse Killer Chip,
100Hz Clear LCD, 1080p 24/25/30Hz processing,
1080p 50/60Hz processing, Double frame rate,
HD Natural Motion, Perfect Pixel HD Engine
• Response time (typical): 3 (BEW equiv.) ms
• Dynamic screen contrast: 8000:1
Supported Display Resolution
• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
1080i 50, 60Hz
720p 50, 60Hz
1080p 24, 25, 30Hz
1080p 24, 50, 60Hz
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz
Via HDMI/DVI
input
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: DVB COFDM 2K/8K
• Video Playback: PAL, SECAM, NTSC
• DVB: DVB Terrestrial *
Sound
• Sound System: BBE, Virtual Dolby Digital
• Sound Enhancement: Digital Signal Processing,
Dynamic Bass Enhancement, Graphic Equaliser
• Output power (RMS): 2x12W
Loudspeakers
• Built-in speakers: 26
• Loudspeaker types: 2x12 invisible microdrivers, 2
integrated subwoofers
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB
• Ext 3: Audio L/R in, YPbPr
• Ext 4: HDMI v1.3
• Ext 5: HDMI v1.3
• Ext 6: HDMI v1.3
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in, USB
• HDMI features: Cable equalization, Category 1
and 2 cables, Compressed audio, Multirate pref.
format support, PC format support, Resolutions
720p, 1080i, 1080p
• Other connections: Analog audio Left/Right out,
S/PDIF out (coaxial), Common Interface
• Connectivity Enhancements: Serial Xpress
interface, UART 3.5 mm mini-jack
Convenience
• Ease of Installation: Plug & Play, Automatic Tuning
System (ATS), PLL Digital Tuning, Automatic
Channel Install(ACI), Auto Program Naming,
Autostore, Cloning of TV settings via USB,
Security menu access, Keyboard lock-out
• Ease of Use: Auto Volume Leveller (AVL), Delta
Volume per preset, 1 channel list analog/digital,
On Screen Display, Program List, Side Control,
Graphical User Interface
• Comfort: Hotel Guest features, Welcome
message, Switch on channel, Volume limitation,
Sleep timer
• Multimedia: Digital media reader (browser), USB
autobreak-in
• Teletext: 1200 page Hypertext
• Teletext enhancements: Program information
Line, Habit Watch
• Electronic Program Guide: 8 day Electronic
Program Guide, Now + Next EPG
• Screen Format Adjustments: 4:3, 6 Widescreen
Modes, Movie expand 14:9, Movie expand 16:9,
Widescreen, Subtitle and Heading Shift, Super
Zoom, unscaled (1080p dot by dot), Auto Format
• Picture in Picture: Text dual screen
• Firmware upgradeable: Firmware auto upgrade
wizard, Firmware upgradeable via USB
• Other convenience: Convertible to consumer TV,
Kensington lock
• Remote control type: RC4450
Multimedia Applications
• Multimedia connections: USB
• Playback Formats: MP3, JPEG Still pictures,
Slideshow files (.alb)
Ambilight
• Ambilight Features: Ambilight Spectra, Auto
adaptive to video content
• Dimming Function: 10 steps with Aurea Navigator
• Ambilight light system: LED wide color
Power
• Mains power: AC - 220 - 240 V +/- 10%
• Ambient temperature: 5 °C to 35 °C
• Power consumption: 231 W
• Standby power consumption: 0.8 W
Dimensions
• Set dimensions (W x H x D):
1121
x 715 x 129 mm
• Set dimensions with stand (H x D): 810 x 305 mm
• VESA wall mount compatible: 600 x 400 mm
• Box dimensions (W x H x D):
1354
x 1211 x 339 mm
• Product weight: 39.6 kg
• Product weight (+stand): 48.5 kg
• Weight incl. Packaging: 51 kg
• Color cabinet: Precision Chrome and translucent
Pearl
Accessories
• Included Accessories: Remote Control, Power
cord, Tabletop swivel stand, Wall mounting
bracket, Warranty Leaflet
• Optional accessories: Set up Remote RC2573GR
•
Page 3
Professional LCD TV with Ambilight Spectra
42" LCD DVB-T
42HFL9320A/10
Product highlights
Full HD with DVB-T tuner
With state-of-the-art LCD screen technology this TV has
the full high-definition widescreen resolution of 1920 x
1080p. It allows the best possible picture quality from
any format of HD input signal. It produces a brilliant
flickerfree, vibrant and sharp image that will provide
guests with an enhanced viewing experience. With the
integrated DVB-T tuner the TV can offer Digital
Terrestrial TV channels, next to the existing analog
channels. It also allows guests to listen to digital radio
stations.
Eco-friendly design
Sustainability is integral to the way Philips does business.
Philips TVs are designed and produced according to our
EcoDesign principles aimed at minimizing overall
environmental impact, through lower power
consumption, removal of hazardous substances, lower
weight, more efficient packaging and better recyclability.
Philips TVs also have a special housing of flame retardant
material. Independent tests carried out by emergency fire
services have shown that whereas TVs can sometimes
intensify fires caused by external sources, Philips TVs will
not contribute to the fire.
100Hz Clear LCD
100Hz Clear LCD creates e xt re me mo ti on sharpness for
clear and vibrant images even with fast on-screen motion.
The Double Frame Rate Insertion works with a high
100Hz refresh rate. It increases the sharpness of motion
reproduction to more than twice that of conventional
LCD, resulting in a response time of 3 milliseconds
(measured in Perceived Blur-Edge-Width; BEW). This
unique Philips technology brings motion sharpness of LCD
displays to an unprecedented level.
Issue date 2009-02-20
Version: 2.0.4
12 NC: 8670 000 48453
EAN: 87 12581 45755 6
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
HD Natural Motion
Philips invented HD Natural Motion to eliminate
juddering effects that are visible with movie based picture
content. HD Natural Motion estimates motion in the
picture and corrects juddering movements in both
broadcast and recorded movie material (such as DVD
and Blu-ray Disc). The resulting smooth motion
reproduction and excellent sharpness take the viewing
experience to a higher level. HD Natural Motion removes
judder from SD and HD pictures, including 1080p, for a
motion performance that surpasses the cinema!
Invisible speakers
An invisible sound system that blends perfectly with the
design of the Aurea. Although invisible from the outside
and extremely compact inside, there are no compromises
to the performance of the sound. The new revolutionary
micro speaker array uses 12 speakers per side to radiate
the sound through an invisible thin slot at the front of the
TV. They give a clear and spacious sound stage
complementary to the rich viewing experience. The bass
frequencies are generated by 2 powerful subwoofers
integrated in the back of the TV.
Ambilight Spectra
The sensorial halo of Ambilight Spectra adds a magical
dimension to the viewing experience. The Active Frame
extends the light and atmosphere of the image far
outside the screen in a soft kaleidoscope of colors. You
feel fully immersed in the images, viewing becomes a
more intensive experience than you could ever imagine.
The compact LED technology enables a total of 126
power LEDs to be placed around the screen. This creates
a multitude of segments that fuse into one soft surround
of light in the Active Frame, directly enveloping the screen
and flowing seamlessly into a soft halo on the wall.
Switch On Channel Programming
Perfect for in-house advertising or information channels
as it allows to show a predefined channel when the TV is
turned on.
* For information on DVB-T enrolled countries please ask your
Philips contact.
