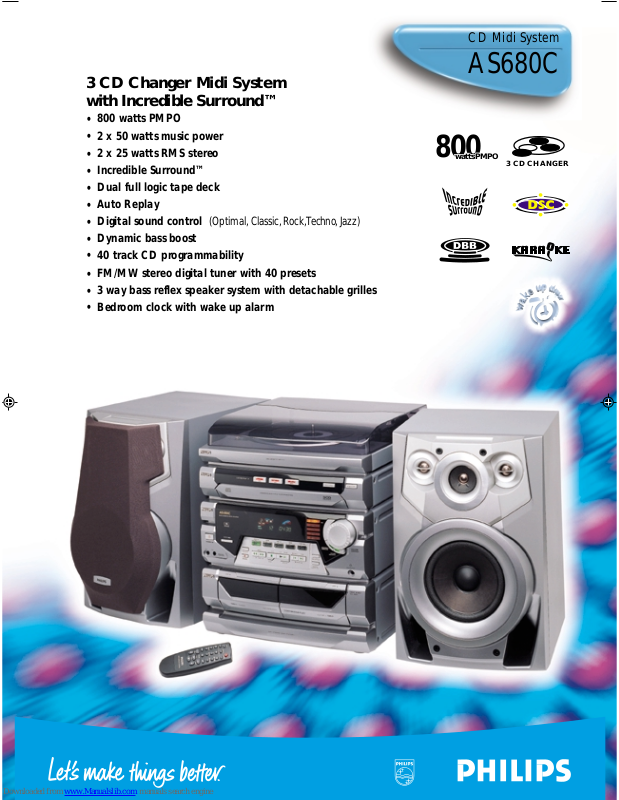

Page 1
3 CD Changer Midi System
with Incredible Surround™
800 watts PMPO
•
• 2 x 50 watts music power
2 x 25 watts RMS stereo
•
Incredible Surround™
•
Dual full logic tape deck
•
Auto Replay
•
Digital sound control (Optimal, Classic, Rock, Techno, Jazz)
•
Dynamic bass boost
•
• 40 track CD programmability
FM/MW stereo digital tuner with 40 presets
•
3 way bass reflex speaker system with detachable grilles
•
• Bedroom clock with wake up alarm
CD Midi System
AS680C
800
wattswatts
PMPO
PMPO
3 CD CHANGER
Page 2
AS680C
CD Midi System
amplifier
• 800 watts PMPO
• 2 x 50 watts music power
• 2 x 25 watts RMS, ±10% THD, 3 ohm, 1kHz
• Incredible Surround™
• digital sound control
(optimal, classic, rock, techno, jazz)
• dynamic bass boost
compact disc player
• motorized front loading 3 CD changer
• digital servo technology
• bit-check D/A converter
• 40 track CD random program
• play mode (repeat/shuffle/program)
• change 2 discs while playing 1
tuner
• FM/MW stereo digital tuner with 40 presets
• auto store for tuner
tape deck
• dual full logic tape deck
• auto reverse
• high speed dubbing
• CD synchro recording
• continuous play
• automatic recording level control
• automatic tape type selection
• electronic speed control and full auto stop
loudspeaker boxes
• 3-way bass reflex
• 6.25" woofer
• 2.5" tweeter
• detachable grilles
connections
• stereo headphones : 3.5mm stereo jack
• video/aux : cinch type sockets
general
• fluorescent tube display
• clock/timer
• wake up with CD, tuner or tape
• 23-key remote control
3 CD changer midi system
standard product information
Product Dimensions:
363mm W x 422mm H x 375mm D (electronics)
285mm W x 421mm H x 300mm D (speakers)
Package Dimensions:
794mm W x 478mm H x 654mm D
Speaker weight : 5.5 kg each
Sett weight : 10 kg
Carton contains: CD Midi System, Multi-Function Remote Control,
Batteries, Operating instructions, Warranty information, FM antenna,
AM antenna
Printed in Singapore
Date printed : May 1998
Specifications subject to change without notice.
Incredible Surround™ is a Trademark of Philips Consumer Electronics
Company
Incredible Surround™
Incredible Surround™ magnifies the
virtual distance between the speakers.
Press the Incredible Surround™ button
and the room will be full of good stereo
music. No need to move the speakers
away from the center unit. For those who
don't want to rearrange their lives to fit
their hifi.
2
AUX
CD
TAPE 1/2
TUNER
CD DIRECT
DBB
DSC
INC. SURR.
REPEAT
SHUFFLE
PROGRAM
É
Ç
ë
í
Å
á
á
VOLUME
PLAY
STOP
PREV. NEXT
123
DIGITAL REMOTE CONTROL
/21m/21 /22 /30 /34
Asia Pacific
Australia/NZ
Middle East/S Africa
Latam
•
Europe
E Europe
tuner
FM65.81-74MHz
FM87.5-108MHz
•
MW522-1602kHz •
FM75 ohm clickfit •
mains supply
120/230V 50~60Hz •
230V/50Hz
general
made in sticker
•
