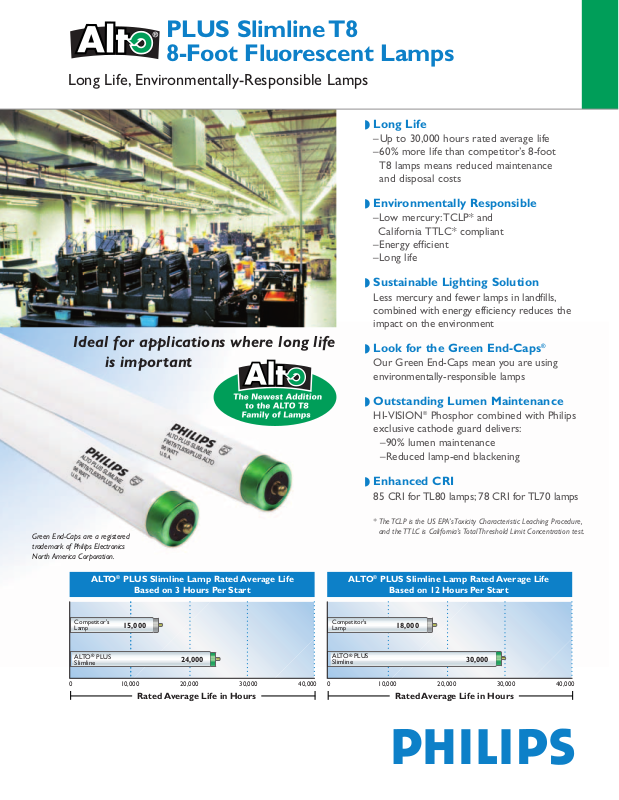

Philips Alto Plus Slimline 8 User Manual

Ideal for applications where long life

is important

◗ Long Life

–Up to 30,000 hours rated average life –60% more life than competitor’s 8-foot

T8 lamps means reduced maintenance and disposal costs

◗ Environmentally Responsible

–Low mercury:TCLP* and

California TTLC* compliant –Energy efficient –Long life

◗ Sustainable Lighting Solution

Less mercury and fewer lamps in landfills, combined with energy efficiency reduces the impact on the environment

◗ Look for the Green End-Caps

Our Green End-Caps mean you are using environmentally-responsible lamps

◗ Outstanding Lumen Maintenance

HI-VISION®Phosphor combined with Philips exclusive cathode guard delivers:

–90% lumen maintenance –Reduced lamp-end blackening

◗ Enhanced CRI

85 CRI for TL80 lamps; 78 CRI for TL70 lamps

* The TCLP is the US EPA’s Toxicity Characteristic Leaching Procedure,

and the TTLC is California’s Total Threshold Limit Concentration test.

ALTO® PLUS Slimline Lamp Rated Average Life

Based on 3 Hours Per Start

0 40,00030,00020,00010,000 0 40,00030,00020,00010,000

24,000

ALTO® PLUS Slimline

15,000

Competitor's Lamp

18,000

Competitor's Lamp

30,000

ALTO® PLUS Slimline

ALTO® PLUS

Slimline

Lamp

Rated Average

Life

Based on 12 Hours Per Start

Rated Average Life in Hours Rated Average Life in Hours

PLUS Slimline T8 8-Foot Fluorescent Lamps

Long Life, Environmentally-Responsible Lamps

Green End-Caps are a registered trademark of Philips Electronics North America Corporation.

† This fluorescent lamp is better for the environment because

of its reduced mercury content. All fluorescent lamps contain mercury for effective operation, however, Philips lamps with ALTO

Lamp Technology average 70% less mercury than the 2001 industry average for fluorescent lamps up to sixty inches which are not TCLP-compliant.

†

Electrical,Technical and Ordering Data (Subject to change without notice)

Product Color Nominal Rated Average Life (Hrs.)

(1)

Approx. Number Ordering Package Temp. Length 3-Hr. 12-Hr. Initial Design Lumen 046677- Code Quantity (Kelvin) (In.) Start Start Lumens Lumens

(2)

CRI Maintenance

38800-9 F96T8/TL830/PLUS ALTO 24 3000K 96 24,000 30,000 5900 5490 85 95% 38801-7 F96T8/TL835/PLUS ALTO 24 3500K 96 24,000 30,000 5900 5490 85 95% 38802-5 F96T8/TL841/PLUS ALTO 24 4100K 96 24,000 30,000 5900 5490 85 95% 38803-3 F96T8/TL850/PLUS ALTO 24 5000K 96 24,000 30,000 5780 5375 85 95% 38805-8 F96T8/TL735/PLUS ALTO 24 3500K 96 24,000 30,000 5700 5190 78 95% 38806-6 F96T8/TL741/PLUS ALTO 24 4100K 96 24,000 30,000 5700 5190 78 95%

ALTO®PLUS Slimline 8-Foot T8 Fluorescent Lamps

1) Rated average life based on Instant Start systems at 3 hours and 12 hour s per start respectively. Rated average life under specified test conditions with lamps turned off and restarted no more frequently than once ever y

3 operating hours. Lamp life is appreciably longer if lamps are started less frequently.

2) Approximate lumens at 40% of rated average life (6000 hours).

Lamp meets US Federal Minimum Efficiency Standards.

Philips Lighting Company 200 Franklin Square Drive■P. O. Box 6800 Somerset, NJ 08875-6800 1-800-555-0050 www.lighting.philips.com/nam

A Division of Philips Electronics North America Corporation

Printed in USA 1/03 P-3554-D

Philips Lighting 281 Hillmount Road Markham, Ontario Canada L6C 2S3 1-800-555-0050 www.lighting.philips.com/nam

A Division of Philips Electronics Ltd.

E E

E E E

ALTO PLUS Slimline 8-Foot T8 System—Lamp Specification Lamps shall be Philips ALTO PLUS Slimline 8-Foot T8 Lamps having:

◗ Color rendering index of ___ (78 or 85) ◗T8 diameter bulb ◗ Single pin bases ◗ Color temperature of _______K (3000, 3500, 4100, 5000) ◗ Nominal wattage of 59 ◗ Powered by electronic ballasts designed for F96T8 lamps

Cost of Ownership Savings

ALTO PLUS Slimline 8-foot T8 Fluorescent Lamps vs. Standard 8-foot T8 Lamps

General Overview

ALTO PLUS Slimline 8-foot T8 fluorescent lamps provide up to 60% longer life than standard 8-foot T8 products. With an incremental cost as little as $1.00 per lamp, benefits and financial impact can be significant.

Benefits

By using ALTO PLUS Slimline 8-foot T8 lamps the lamp replacement and labor costs are extended by an extra 2 years on a facility that operates an average of 4,000 hours per year. For example, a standard 8-foot T8 product, with a rated average life expectancy of 15,000 hours, will last nearly 4 years (15,000 hours rated average life / 4,000 hours per year = 3 3/4 years). Conversely, ALTO PLUS Slimline 8-foot T8 lamps will operate for 6 years due to their rated average life expectancy of 24,000 hours (24,000 hours rated average life/4,000 hours per year = 6 years).

Financial Impact

With the extended life expectancy of 2 years and the benefits of Philips’ exclusive ALTO TCLP-compliant low mercury technology, the positive financial impact of installing ALTO PLUS Slimline 8-foot T8 lamps will provide cost of ownership savings per lamp as follows:

Incremental Cost $ (1.00) Material Cost Avoidance

$4.00

Labor Cost Avoidance

$3.72

Disposal Cost Avoidance

$0.72

Cost of Ownership Sa

vings $ 7.44

A Material Cost Avoidance is the annualized

acquisition cost per lamp (average cost per lamp of $7.50 for standard 8-Foot T8 product / 3 3/4 years = $2.00 per year). By installing ALTO PLUS Slimline 8-Foot T8 lamps, a material cost per lamp of $4.00 is avoided due to the extra 2 years of life expectancy. Note that the average cost per lamp may vary.

B Labor Cost Avoidance is the annualized labor

replacement cost per lamp (labor replacement cost per lamp of $7.00 / 3 years = $1.86 per year). By installing ALTO PLUS Slimline 8-Foot T8 lamps, a labor replacement cost per lamp of $3.72 is avoided due to the extra 2 years life expectancy.Note that the labor replacement cost per lamp may vary.

C Disposal Cost Avoidance is based on an

average of $.09 per foot for lamp recycling or $.72 per 8-foot lamp. Philips Lighting Company encourages the recycling of all fluorescent lamps.
