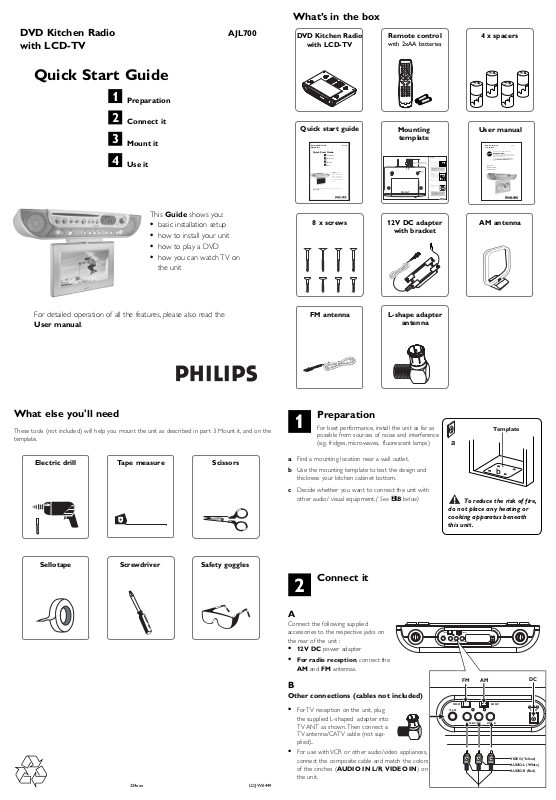

Philips AJL700/37 Quick Start Guide
What’s in the box
FMANT AMANT
VIDEO INAUDIO INR
L
TV ANT
DC-12V
VIDEO (Yellow)
AUDIO-L (White)
AUDIO-R (Red)
FM AM
DC
DVD Kitchen Radio AJL700
with LCD-TV
Quick Start Guide
1
Preparation
2
Connect it
3
Mount it
4
Use it
This Guide shows you:
• basic installation setup
• how to install your unit
• how to play a DVD
• how you can watch TV on
the unit
DVD Kitchen Radio
with LCD-TV
Quick start guide
Remote control
with 2xAA batteries
DISC
CLOCKSETCLOCKSET PICTURE
Mounting
template
Kitchen DVD/TV/CD AJL 700
Clock Radio
Quick Start Guide
1
Preparation
2
Connect it
3
Mount it
4
Use it
This guideshows you:
• basic installation setup
• how to install your unit
• how to play a DVD
• how you can watch TV on
the unit
For detailed operation of all the features,please also read the
User guide.
DC
FRONT
8 x screws 12V DC adapter
with bracket
VIDEOINAUDIOLINRTV
AV
SHUFFLE
PROGERASE/WRITE
VOL
FM
AM
ANT
Recommended depth of cabinet
at the rear to allow for connections
4 x spacers
User manual
THANK YOU FOR CHOOSING PHILIPS!
NEED HELP FAST?
Read your Quick-Start guide and/or owner's manual first for quick tips
that make using your Philips product more enjoyable. If you have read
your instructions and still need assistance,
you may access our online help at
www.p4c.philips.com
or call 1-888-PHILIPS(744-5477) while with your
product.
AJL 700
DVD Kitchen Radio
with LCD-TV
Mount it
Ask a friend to help you mount the unit as it is quite heavy.
A
•
Cut the template to fit inside the cabinet.
A
Template
•Align the template border marked "FRONT"
along the front edge of your cabinet.
•Use adhesive tape to fix the template.
•Drill 1/4 inch holes (size X.X mm diameter, X
inch),as markedXon the template.
•Remove the template when you finish drilling.
Tip
– Use a nail to start each drill hole.
– Hold your drill firmly at 90o with the cabinet bottom and drill holes at
low speed.
– Clear wood shavings.
Use 1/4"
drill
B
Using the spacers
B
On the spacers,there are 4 pairs of notch length
Spacer
options.Depending on the thickness of you cabi-
L (Low)
L••H (4 heights)
net bottom (with/ without an overhang),these
Arrow
H
L
notch lengths correspond to the 4 notch height in
the space holders,and allow you to adjust to the
best height to help you mount the unit.
•Measure the height of the cabinet bottom
and/overhang.
•Tu rn t he spacer counterclockwise to determine
which of the 4 heights is most suitable:High ••
Low
•Insert the spacer s accordingly.
C
Manuallyfasten the 4screws down into the
•
C
spacer holder holes to mount your set.If the
overhang is more than 1 1/4 inch,use longer
screws (not included).
Tip
To prevent damage to your set,do not use an electric drill
to secure screws when mounting!
– Hold the unit horizontally when installing it,since the CD tray may
open if the unit is shaken.
– Use the cable manager to manage excess power cord length.
User manual
Manuel d'utilisation
Manual del usuario
AM antenna
For detailed operation of all the features, please also read the
User manual.
What else you'll need
These tools (not included) will help you mount the unit as described in part 3 Mount it, and on the
template.
Electric drill
Ta pe measure
Scissors
FM antenna
L-shape adapter
antenna
Preparation
1
a Find a mounting location near a wall outlet.
b Use the mounting template to test the design and
thickness your kitchen cabinet bottom.
c Decide whether you want to connect the unit with
other audio/ visual equipment. ( See B below)
For best performance, install the unit as far as
possible from sources of noise and interference
(e.g. fridges, microwaves, fluorescent lamps)
2
Template
a
b
To r educe the risk of fire,
do not place any heating or
cooking apparatus beneath
this unit.
Sellotape
W
Screwdriver
Safety goggles
Connect it
2
A
Connect the following supplied
accessories to the respective jacks on
the rear of the unit :
12V DC power adapter
•
• For radio reception, connect the
AM and FM antennas.
B
Other connections (cables not included)
• For TV reception on the unit, plug
the supplied L-shaped adapter into
TV ANT as shown. Then connect a
TV antenna/CATV cable (not supplied)..
• For use with VCR or other audio/video appliances,
connect the composite cable and match the colors
324xxx LC/JW-0449
of the cinches (AUDIO IN L/R, VIDEO IN) on
the unit.
FMANT AMANT
TVANT
L
VIDEOINAUDIO INR
DC-12V
Mount it
AM
3
A
Cut the template to fit inside the cabinet.
•
• Align the template border marked "FRONT" along the
front edge of your cabinet.
• Use adhesive tape to fix the template.
• Drill 1/4 inch holes, as marked X on the template.
• Remove the template when you finish drilling.
Ask a friend to help out. An extra hand to hold the unit makes mounting easier and
quicker.
A
Template
C
Manually fasten the 4 long screws down into the spacer holder holes to mount your set. Start
•
screwing at opposite corners of the unit for better suppor t.
C
Tip
Tip
– Clean the bottom of the cabinet surface and also empty your cabinet before mounting.
– Place the unit in a clean, safe place when drilling to avoid wood shavings dropping into the
ventilation slots.
– Use a nail to start each drill hole.
– Drill from the bottom upwards if you do not have enough room inside the cabinet.
– Hold your drill firmly at 90owith the cabinet bottom and drill holes at low speed.
– Clear wood shavings.
B
Using the spacers
On the spacers, there are 4 pairs of notch length
options. Depending on the thickness of you cabinet bottom (with/ without an overhang), these notch lengths
correspond to the 4 notch height in the space holders,
and allow you to adjust to the best height to help you
mount the unit.
B
Spacer
L (Low)
Arrow
• Measure the height of the cabinet bottom and/over-
hang.
• Tu rn the spacer counterclockwise to determine
which of the 4 heights is most suitable: Low • •
High. Align to the arrow indication.
• Insert the spacers accordingly.
L••H (4 heights)
H
To prevent damage to your
set, do not use an electric
drill to secure screws when
mounting!
– If the overhang is more than 1 1/4 inch, use
longer screws (not included).
D
Using the adapter bracket
Find a suitable place to mount the adaptor bracket.
1 Use 2 small screws (supplied) to mount the bracket.
2 Inser t the adapter into the bracket as shown.
L
3 Use the adapter bracket to wrap and secure the
power cord so that excess cord does not hang
down.
1
2
4
3
Use it
4
A
Power supply
• Connect the power plug to the wall outlet.
• Press POWER (or STANDBY.ON) to switch on.
B
Using the TV screen
1 Press PUSH at the bottom the set to release the TV panel. .
2 Pull down the panel (maximum 115º).
3 Tu rn around the panel to find the screen.
4 Adjust the screen to a suitable angle (maximum 270º).
For full details, please read and follow the instructions inside the User manual.
POWER
D
How to watch TV on the unit
1 Press TV once or more to select TV or CATV mode .
2 In CATV, press ENTER on the remote control selects
HRC, IRC, STD or AUTO mode.
3 The first time you use the TV, press and hold AUTO
PROG /RADIO PROG on the set until the channel
number starts running.
• Available channels are programmed.
4 Use the Numeric Keypad (0-9) on the remote con-
trol to select the channel number directly.
maximum
115
DISC
AV
SHUFFLE
PROGERASE/WRITE
Tip
– Swivel with care to avoid breakage. Screen rotates a maximum
0
270
only.
C
How to play a DVD /CD
• Select DVD source.
• Insert a DVD/CD.
• Press PLAY/PAUSE to star t disc playback.
Insert a12cm disc
DISC
AV
SHUFFLE
PROGERASE/WRITE
CLOCKSETCLOCKSET PICTURE
PUSH
270 maximum
E
Improve radio reception
Position the antenna as far as possible from a TV,VCR or radiation source.
FM:
Keep the FM antenna as horizontal as possible . Fix the antenna’s end to
the wall.
AM:
Position vertically. If necessary, use 2 small screws (supplied) to fix the
antenna to a flat, hard and stable place.
