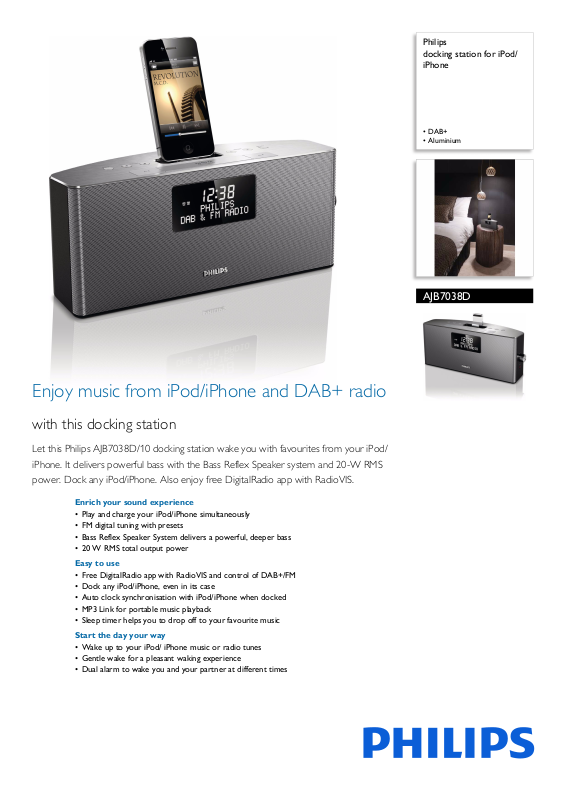

Page 1
Philips
docking station for iPod/
iPhone
•DAB+
• Aluminium
AJB7038D
Enjoy music from iPod/iPhone and DAB+ radio
with this docking station
Let this Philips AJB7038D/10 docking station wake you with favourites from your iPod/
iPhone. It delivers powerful bass with the Bass Reflex Speaker system and 20-W RMS
power. Dock any iPod/iPhone. Also enjoy free DigitalRadio app with RadioVIS.
Enrich your sound experience
• Play and charge your iPod/iPhone simultaneously
• FM digital tuning with presets
• Bass Reflex Speaker System delivers a powerful, deeper bass
• 20 W RMS total output power
Easy to use
• Free DigitalRadio app with RadioVIS and control of DAB+/FM
• Dock any iPod/iPhone, even in its case
• Auto clock synchronisation with iPod/iPhone when docked
• MP3 Link for portable music playback
• Sleep timer helps you to drop off to your favourite music
Start the day your way
• Wake up to your iPod/ iPhone music or radio tunes
• Gentle wake for a pleasant waking experience
• Dual alarm to wake you and your partner at different times
Page 2
Docking station for iPod/iPhone
DAB+ Aluminium
Highlights
AJB7038D/10
Free DigitalRadio app
Tune in to radio extras with RadioVIS – a
po
werful feature provided by RadioDNS, an
organisation that links DAB stations with the
Internet. With RadioVIS, radio becomes a
richer experience with real time Internet
content. It specifies how web information is
added to radio function, giving you DAB
broadcasts accompanied by vivid slideshows of
news, traffic updates, commercials and more,
deepening the information radio stations
provide. To enjoy RadioVis, simply go to the
Apple App Store to download the free Philips
DigitalRadio app. The app also hands you full
control of all DAB+ and FM radio.
Play and charge your iPod/iPhone
Enjoy your favourite MP3 music while charging
your iPod/iPhone! The dock lets you connect
your portable device directly to the Docking
entertainment system so you can listen to your
favourite music in superb sound. It also charges
your iPod/iPhone while it plays so you can
enjoy your music and not have to worry about
your portable player battery running out. The
Docking entertainment system automatically
charges your portable device while it is
docked.
FM digital tuning with presets
Digital FM radio offers you additional music
options to your music collection on your
Philips audio system. Simply tune into the
station that you want to preset, press and hold
the preset button to memorise the frequency.
With preset radio stations that can be stored,
you can quickly access your favourite radio
station without having to manually tune the
frequencies each time.
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep
bass experience from a compact loudspeaker
box system. It differs from a conventional
loudspeaker box system in the addition of a
bass pipe that is acoustically aligned to the
woofer to optimise the low frequency roll-off
of the system. The result is deeper controlled
bass and lower distortion. The system works
by causing the air mass in the bass pipe to
vibrate like a conventional woofer. Combined
with the response of the woofer, the system
extends the overall low frequency sounds to
create a completely new dimension of deep
bass.
Auto clock synchronisation
When connected and docked, this docking
system will automatically synchronise the clock
with your iPod/iPhone within a few seconds.
With this convenient feature, you do not need
to set the time manually.
Dock iPod/iPhone in its case
Smartly designed spring-loaded docking port
e
ffortlessly accommodates any iPod or iPhone,
without special adapters. What's more, it
works even when most protective cases are on
– just dock your iPod or iPhone as it is. Now
you can truly have fuss-free enjoyment of your
music.
Page 3
Docking station for iPod/iPhone
DAB+ Aluminium
Specifications
AJB7038D/10
iPod compatibility
• Compatible with: iPod touch, iPod touch 2nd
Generation, iPod classic, iPod nano 3rd
Generation, iPod nano 4th Generation, iPod 5th
Generation, iPod with colour display, iPod nano,
iPod mini, iPod nano 1st Generation, iPod nano
2nd Generation
iPhone compatibility
• Compatible with: iPhone 3G, iPhone 3GS, iPhone
4, iPhone 4S
iPod/iPhone App
• App name: HomeStudio, Free download from App
store
• Compatibility: Dock radio f
Touch, iPhone
• 5-day weather forecast
• Playback: album/track navigatio
• Clock: analogue display, digital display
• Alarm: multiple alarms, sleep timer
• Radio: FM radio, preset, scan, tune
or iPod/iPhone, iPod
n, playback controls
Audio Playback
• Playback mode: Charging iPod, Charging iPhone,
Fast forward and reverse, Next and Previous track,
Play and Pause
Tuner/Reception/Transmission
• Tuner bands: DAB (Band III), FM
• Frequency range: (FM) 87.5–108 MHz
• Station presets: 20
• Auto digital tuning
• DAB: info display, menu, smart scan
Convenience
•Clock/Version: Digital
• Alarms: Dual alarm time, Buzzer Alarm, Radio
Alarm, Repeat alarm (snooz
• User convenience: Sleep Timer
• Backlight colour: Blue
• Display Type: LCD
• Display Enhancements: Brightness Control
e)
Sound
• Sound System: Stereo
• Volume control: rotary (digital)
• Equalizer settings: Classic, Jazz, Pop, Rock
• Output power (RMS): 20 W
Loudspeakers
• Built-in speakers: 2
Power
• Mains power: 100-240 V
Dimensions
• Product dimensions (WxDxH): 288 x 118 x
112 mm
• Packaging dimensions (WxDxH): 319 x 180 x 144
mm
Accessories
• Included accessories: AC-DC Adapter, User
Manual, Warranty certificate
•
Issue date 2013-05-10
Version: 3.0.3
12 NC: 8670 000 87169
EAN: 87 12581 63511 4
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
