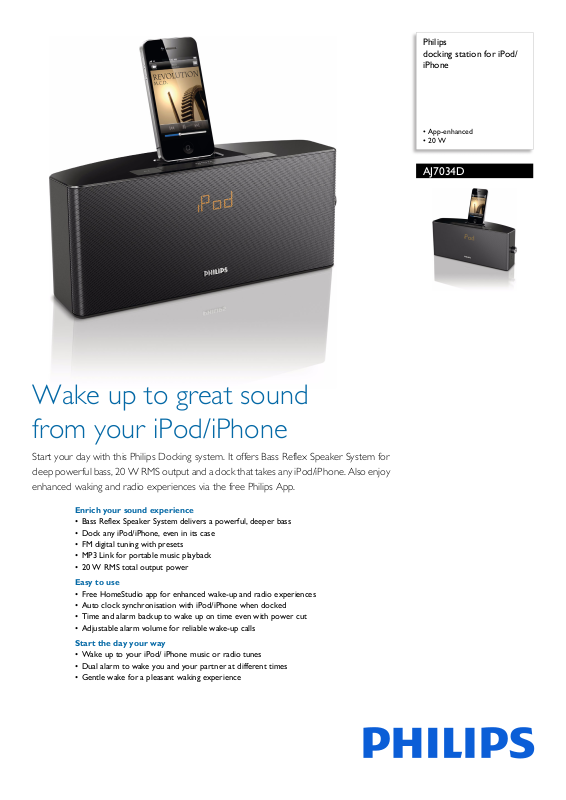

Page 1
Philips
docking station for iPod/
iPhone
•App-enhanced
•20 W
AJ7034D
Wake up to great sound
from your iPod/iPhone
Start your day with this Philips Docking system. It offers Bass Reflex Speaker System for
deep powerful bass, 20 W RMS output and a dock that takes any iPod/iPhone. Also enjoy
enhanced waking and radio experiences via the free Philips App.
Enrich your sound experience
• Bass Reflex Speaker System delivers a powerful, deeper bass
• Dock any iPod/iPhone, even in its case
• FM digital tuning with presets
• MP3 Link for portable music playback
• 20 W RMS total output power
Easy to use
• Free HomeStudio app for enhanced wake-up and radio experiences
• Auto clock synchronisation with iPod/iPhone when docked
• Time and alarm backup to wake up on time even with power cut
• Adjustable alarm volume for reliable wake-up calls
Start the day your way
• Wake up to your iPod/ iPhone music or radio tunes
• Dual alarm to wake you and your partner at different times
• Gentle wake for a pleasant waking experience
Page 2
Docking station for iPod/iPhone
App-enhanced 20 W
Highlights
AJ7034D/05
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep
bass experience from a compact loudspeaker
box system. It differs from a conventional
loudspeaker box system in the addition of a
bass pipe that is acoustically aligned to the
woofer to optimise the low frequency roll-off
of the system. The result is deeper controlled
bass and lower distortion. The system works
by causing the air mass in the bass pipe to
vibrate like a conventional woofer. Combined
with the response of the woofer, the system
extends the overall low frequency sounds to
create a completely new dimension of deep
bass.
Dock iPod/iPhone in its case
works even when most protective cases are on
– just dock your iPod or iPhone as it is. Now
you can truly have fuss-free enjoyment of your
music.
FM digital tuning with presets
Digital FM radio offers you additional music
options to your music collection on your
Philips audio system. Simply tune into the
station that you want to preset, press and hold
the preset button to memorise the frequency.
With preset radio stations that can be stored,
you can quickly access your favourite radio
station without having to manually tune the
frequencies each time.
Free HomeStudio app
from the Apple App Store to enjoy a host of
exciting features. Advanced alarm set up, for
example, gives you greater flexibility in alarm
settings - including alarm volume, duration,
date and sound. You also get better user
interface when you listen to the radio, with
easy-to-use station preset functions.
Adjustable alarm volume
Philips clock radios let you rise and shine the
way you want to. An adjustable alarm volume
allows you to set the loudness of your wake up
call. Whether you need a louder alarm to get
out of bed on time, or prefer a softer alarm for
gentle rousing, the adjustable volume gives you
the flexibility to start the day your way.
Smartly designed spring-loaded docking port
effortlessly accommodates any iPod or iPhone,
without special adapters. What's more, it
There's no better way to wake up or listen to
the radio than with the free Philips
HomeStudio app. Simply download the app
Page 3
Docking station for iPod/iPhone
App-enhanced 20 W
Specifications
AJ7034D/05
iPod compatibility
• Compatible with: iPod touch, iPod touch 2nd
Generation, iPod touch 2nd Gen 8/16/32 GB, iPod
touch 4th generation, iPod classic, iPod nano 1st
Generation, iPod nano 2nd Generation, iPod nano
3rd Generation, iPod nano 4th Generation, iPod
nano 5th Generation, iPod nano 6th generation,
iPod 5th Generation, iPod mini
iPhone compatibility
• Compatible with: iPhone, iPhone 3G, iPhone 3GS,
iPhone 4, iPhone 4S
iPod/iPhone App
• App name: HomeStudio, Free download from App
store
• Compatibility: Dock radio f
Touch, iPhone
• 5-day weather forecast
• Playback: album/track navigatio
• Clock: analogue display, digital display
• Alarm: multiple alarms, sleep timer
• Radio: FM radio, preset, scan, tune
or iPod/iPhone, iPod
n, playback controls
Audio Playback
• Cradle playback mode: Charging iPhone, Charging
iPod, Fast forward and reverse, Next and Previous
track, Play and Pause
Tuner/Reception/Transmission
• Tuner Bands: FM Stereo
• Auto digital tuning
• Station presets: 20
• Antenna: FM Antenna
Convenience
• Clock/Version: Digital
• Alarms: Dual alarm time, Buzzer Alarm, Radio
Alarm, Repeat alarm (snooz
• User convenience: Sleep Timer
• Backlight colour: Amber
• Display Type: LED
e)
Sound
• Output power (RMS): 20 W
• Sound System: Stereo
• Volume Control: rotary
Loudspeakers
• Built-in speakers: 2
• Main Speaker: Bass Reflex Speaker System
Connectivity
• MP3-Link: Yes, 3.5 mm jack
Power
• Mains power
• Power supply: 100-240 V, 47-63 Hz
Dimensions
• Product dimensions (WxDxH): 283 x 112 x
118 mm
• Weight: 1.36 kg
• Packaging dimensions (WxDxH): 319 x 144 x 180
mm
• Weight incl. Packaging: 1.73 kg
• Master carton dimensions: (WxDxH) 298 x 327 x
5 mm
37
• Master carton weight: 7.55 kg
• Master carton quantity: 4
Accessories
• Included accessories: Warranty certificate, Quick
Use Guide
•
Issue date 2013-06-08
Version: 3.0.5
12 NC: 8670 000 84821
EAN: 87 12581 62601 3
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
