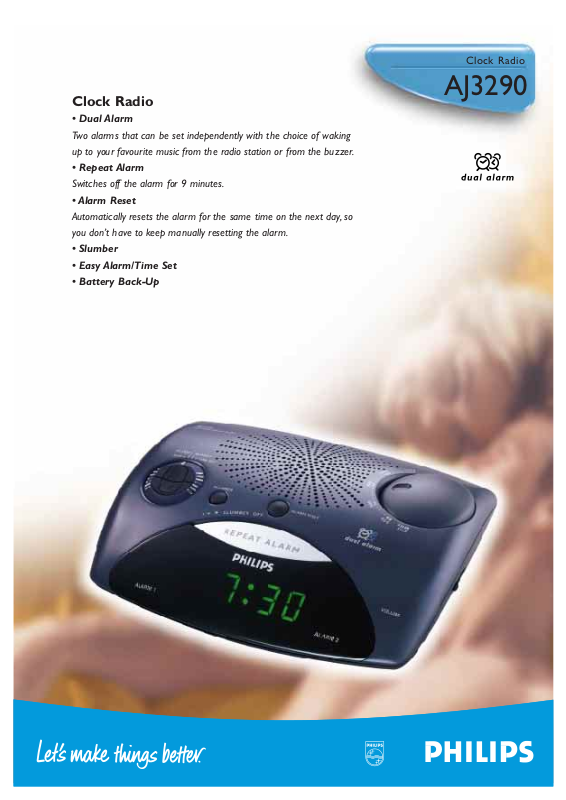

Philips AJ3290 User Manual
Clock Radio
AJ3290
Clock Radio
• Dual Alarm
Two alarms that can be set independently with the choice of waking
up to your favourite music from the radio station or from the buzzer.
• Repeat Alarm
Switches off the alarm for 9 minutes.
• Alarm Reset
Automatically resets the alarm for the same time on the next day, so
you don’t have to keep manually resetting the alarm.
• Slumber
• Easy Alarm/Time Set
• Battery Back-Up
Clock Radio
AJ3290
Product Highlights
• Wake Up to Radio or Buzzer
Gives you the choice of waking up to your favourite radio station or alarm
buzzer.
• FM/MW or FM/LW Tuner
Gives you a wide selection of radio stations to choose from.
• Slumber
Lets you enjoy up to 59 minutes of radio entertainment while going to sleep.
After the pre-set time the radio switches off automatically.
• LED
Soft, easy-to-read green backlit display.
• Battery Back-Up
A 9-Volt battery (not included) ensures that clock and alarm settings are
maintained in the event of a mains interrupt or failure. Should this happen the
display will not illuminate but the alarm and clock settings remain active.
• Radio On/Off Switch
Clock/Alarm
• Electronic clock
• Wake up by radio or buzzer
• Alarm : Dual alarm (radio & buzzer),
: Slumber function, Repeat alarm (9 minutes)
• Time/alarm setting : Fast forward/slow reverse
Tuner
• FM/AM tuning
• Wavebands /04 : FM/LW
/00, /01, /05 : FM/MW
• Frequency ranges : FM 87.5 - 108 MHz
: MW 525 - 1607 kHz
: LW 148.5 - 284 kHz
Amplifier
• Max. output power (RMS)
(±1 dB ; D < 10%) : 80 m Watts
Sound System
• Loud speaker : 64 mm (2.5")
Display
• Green LED : 0.6" (15 mm) digit height
• Clock indication : 24 hours
/01, /13 : 12 hours with pm indication
Power Supply
• AC mains /01 : 120/230 V, 50/60 Hz (switchable)
/00, /04, /05 : 230 V, 50 Hz
• Backup battery : 6F22, 9 V (not included)
General
• Material : Polystyrene
• Weight : 0.75 Kg
• Dimensions : 192 mm W x 52 mm H x 152 mm D
• Packaging dimensions : 235 mm W x 75 mm H x 176 mm D
• Packaging dimensions : 235 mm W x 75 mm H x 176 mm D
(for /05) : 270 mm W x 75 mm H x 176 mm D
• Quantity /mastercarton : 4
Standard product information
http://www.philips.com
98-03-30
Subject to modification without notice
© 1998 Philips Electronics N.V.
All Rights Reserved
