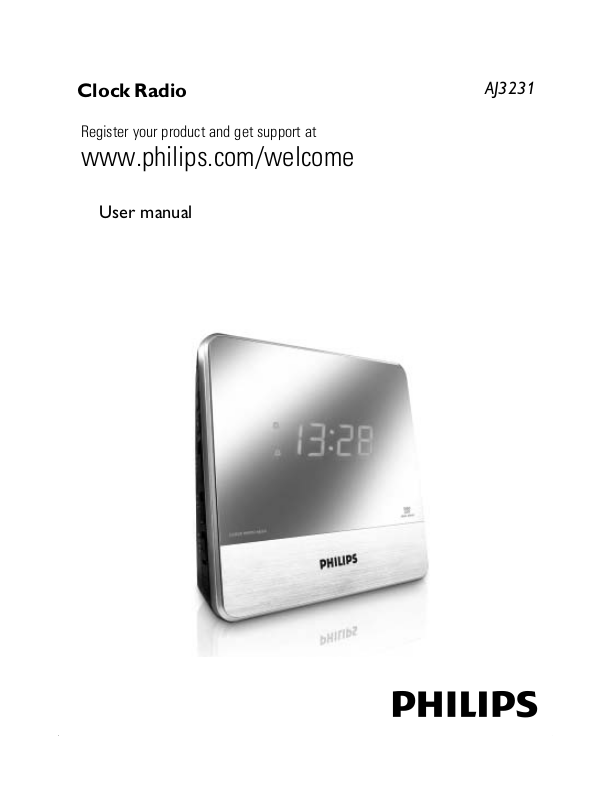

Philips AJ3231-05 User Manual
Clock Radio
Register your product and get support at
www.philips.com/welcome
User manual
AJ3231
&
%
#
9
7
^
@
!
0
4
3
8
$
6
5
2
1
Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type
of plug proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an
appropriate plug fitted in its place. If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard
should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral
(N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:
• Connect the blue wire to the terminal marked N or coloured black.
• Connect the brown wire to the terminal marked L or coloured red.
• Do not connect either wire to the earth terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over
the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act 1956
and The Performer’s Protection Acts 1958 to 1972.Protection Acts 1958 to 1972.
Congratulations on your purchase, and welcome to Philips! To fully benefit from the
English
support that Philips offers, register your product at www.philips.com/welcome.
CONTROLS
1 ALARM 1, ALARM 2
–
RADIO activates the radio for alarm 1 or alarm 2
–
BUZ activates the buzzer for alarm 1 or alarm 2
–
OFF switches off the alarm 1 or alarm 2
2 Clock control
- SET TIME :
- CLOCK:
- SET AL 1:
- SET AL 2:
3 UP / DOWN:
4 DISPLAY - show the clock/ alarm times and status of the set
5 Battery door -
6 VOL - adjusts the sound level
7 Frequency indicator - shows the radio frequency of your selected waveband
8 BAND (MW/FM/AUX) - select MW/FM waveband or switch to the AUX source
9 TUNING - tunes to radio stations
0 REPEAT ALARM (SLEEP OFF)
-
switches off the active alarm for a 6-7 minute period
-
switches off the radio sleep function
! SLEEP -
@ ALARM RESET # RADIO ON/OFF -
$ BRIGHTNESS -
% Mains lead ^
Pigtail aerial- improves FM reception
&
AUX- connects external audio source.
sets the clock time
to run on clock time
sets the alarm time for alarm 1
sets the alarm time for alarm 2
adjusts the hours/ minutes for the clock and alarm times
opens to store a 9 volt 6F22 type battery (not included) for
clock memory backup
activates the radio for sleep function
-
adjusts the sleep period
stops the active alarm for 24 hours
switches the radio on/off
changes the brightness of the display illumination
for AC mains supply
