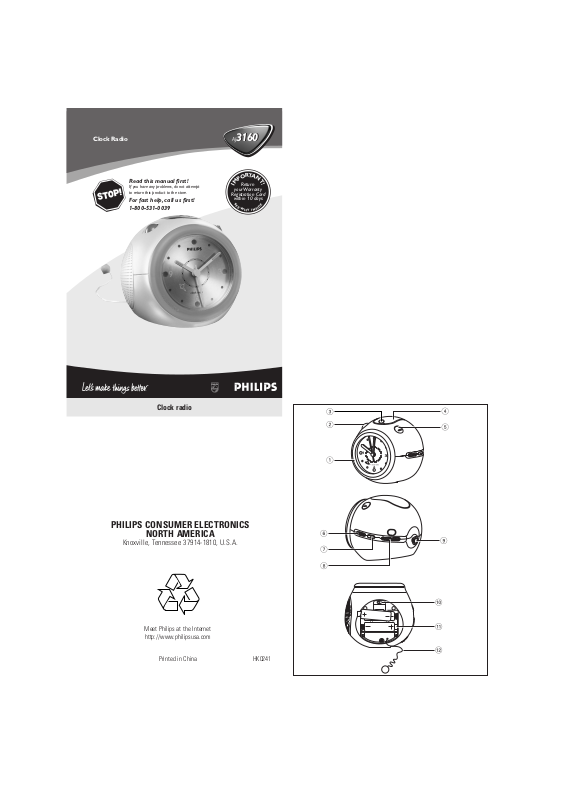

Page 1
Printed in China HK0241
Meet Philips at the Internet
http://www.philipsusa.com
Clock radio
PHILIPS CONSUMER ELECTRONICS
NORTH AMERICA
Knoxville, Tennessee 37914-1810, U.S.A.
Clock Radio
Read this manual first!
If you have any problems, do not attempt
to return this product to the store.
For fast help, call us first!
1-800-531-0039
S
E
E
W
H
Y
I
N
S
I
D
E
I
M
P
O
R
T
A
N
T
!
Return
your Warranty
Registration Card
within 10 days
AJ3160
AJ3160
Page 2
Know these ssaaffeettyy symbols
Cet « éclair à pointe de flèche » indique qu’un matériau non
isolé, situé à l’intérieur de l’unité, risque de provoquer un
choc électrique. Pour la sécurité de chacun, nous vous prions de ne pas retirer le boîtier de ce produit.
Le « point d’exclamatio » attire votre attention sur des suects
risquant de provoquer des problémes de fonctionnement et
d’entretien si vous ne lisez pas les informations s’y reportant.
DANGER: NE PAS EXPOSER CET ÉQUIPEMENT A LA PLUIE NI A UNE
HUMIDITÉ EXCESSIVE POUR ÉVITER LES RISQUES D’INCENDIE ET DE
CHOC ÉLECTRIQUE.
ATTENTION:Pour éviter les chocs électriques, introduire la lame la
plus large de la fiche dans la borne correcpondante de la prise et
pousser jusqu'au fond.
Connaissez ces symboles de ssééccuurriittee
ATTENTION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
UN TECHNICIEN QUALIFIE.
LE COUVERCLE (NI LE PANNEAU ARRIERE). CET APPAREIL NE COMPORTE AUCUNE
ATTENTION: POUR REDUIRE LE RESQUE DE CHOC ELECTRIQUE, NE PAS ENLEVER
PIECE POUVANT TRE REPAREE PAR L’UTILISATEUR. CONFIER SON ENTRETIEN A
This “bolt of lightning” indicates uninsulated material
within your unit which may cause an electrical shock. For
the safety of everyone in your household, please do not
remove product covering.
The “exclamation point” calls attention to features for
which you should read the enclosed literature closely to prevent operating and maintenance problems.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION: To prevent electric shock, match wide blade of plug to wide
slot, and fully insert.
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
DO NOT OPEN
SAFETY SÉCURITE
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer´s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9.
Only use attachments/accessories specified by the man-
ufacturer.
10.
Use only with the cart, stand, tripod, brack-
et, or table specified by the manufacturer or
sold with the apparatus. When a car t is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
11.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been
dropped.
12 .
Battery usage CAUTION – To prevent batter y
leakage which may result in bodily injury, proper ty damage,
or damage to the unit:
● Install all batteries correctly, + and - as marked on the
unit.
● Do not mix batteries (old and new or carbon and alka-
line, etc.).
● Remove batteries when the unit is not used for a long
time.
EL 6474-E004: 02/8
Page 3
English
FUNCTIONAL OVERVIEW
1
ALARM 2 - adjusts alarm time
2
RADIO ON/OFF -switches radio on/off
3
ALARM INDICTOR
4
REPEAT ALARM - LIGHT
- switches off the alarm for a 5 minute period
- switches display backlight on/off
5
ALARM OFF/ON - switches alarm on/off.
6 VOLUME - adjusts the sound level
7 BAND - select FM-AM waveband
8 TUNING - tunes to radio stations
9
PULL-TIME SET - adjusts clock time
0
RADIO•ALARM•BUZZ - selects alarm mode
!
Battery compartment
@
Coil antenna - aerial for FM reception
INSTALLING BATTERIES (not included)
1 Open the battery door and insert 3 batteries (preferably alkaline) type R6, UM3
or AA as indicated in the compartment.
A : One battery for clock
B : Two batteries for radio
2 Pull the FM coil antenna out through the slot in the door.
3 Close the door.
• Remove the batteries from the set if they are exhausted or not be used for a
long time.
Batteries contain chemical substances, so they should be disposed of
properly.
SETTING THE CLOCK
1. Pull out PULL-TIME SET and turn it to set the clock. Always push PULLTIME SET back after setting the clock.
2. To read the time in the dark, press REPEAT ALARM - LIGHT. The clock lights
up as long as REPEAT ALARM - LIGHT is pressed.
RADIO OPERATION
1
Press RADIO ON/OFF to switch on the radio.
2
Adjust the BAND switch to select your waveband.
3
Use TUNING to find your radio station
.
To improve reception:
For FM, extend and position the coil antenna fully to obtain optimum reception.
For AM, the set is provided with a built-in aerial. Direct the aerial
by adjusting the position of your clock radio .
4
Adjust the sound using VOLUME
.
5
Press RADIO ON/OFF to switch off the radio.
Note :
The radio turns off automatically 80 minutes of playback to save battery power.
U
SING THE ALARM
1 Set the
RADIO•ALARM•BUZZ
switch (at the bottom) to RADIO or BUZZ.
™ Important! If you want the radio alarm to wake you up, FIRST CHECK if you
have tuned to a station and adjusted the volume loud enough.
2 Tu rn
ALARM 2
ring anti-clockwise to set the alarm time (one click of the dial is 10
minutes.)
3 Push ALARM OFF/ON to switch on the alarm.
™ The alarm indicator is shown on the top
• The radio or buzzer alarm sounds at the preset time. The alarm stops automatically
after 50 minutes.
• Buzz option - increases its beep tone frequency.
4 To doze for a few more minutes, press
REPEAT ALARM - LIGHT
. The alarm
stops and sounds again after about 5 minutes.
5 To stop the alarm, push ALARM OFF/ON to the OFF position.
MAINTENANCE
•
Do not expose the set to humidity, rain, sand or excessive heat caused by
heating equipment or direct sunlight.
•
To clean your set, use a dry cloth or chamois leather. Do not use cleaning products, which contain benzene, thinner, etc. as these may harm the housing.
ENVIROMENTAL INFORMATION
We have reduced the packaging to its minimum using only paper and cardboard.
Your set consists of materials which can be recycled if disassembled by a special-
ized company. Please observe local regulations on the disposal of packing
materials and old equipment.
The set complies with the FCC-Rules, Part 15.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Page 4
TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer
or service center.
WARNING: Under no circumstances should you try to repair the set yourself, as this
will invalidate the warranty. Do not open the set as there is a risk of
electric shock!
Problem
– Possible
• Remedy
No sound/power
–Volume not adjusted
• Adjust volume
– Batteries exhausted/wrong battery polarity
• Insert fresh batteries/correctly.
– Radio switches off by itself after 80 minutes.
• This is not a problem, but the power-saving mode. Press the RADIO ON/OFF
button again if you want to continue listening to the radio.
Occasional cracking sound during FM broadcast
–Weak signal
• Extend Coil antenna fully
Occasional cracking/hiss sound during AM broadcast
– Electrical interference from TV, computer, fluorescent lamps, mobile phones, etc.
•Move set away from other electrical equipment.
TROUBLESHOOTING
Alarm does not function
– ALARM OFF/ON not set
• Set ALARM OFF/ON to ON.
– Radio not tuned to a radio station
•Tune to a station.
–Volume too low for radio
•Increase the volume.
– No batteries for radio/alarm is installed
• Insert all batteries
The typeplate and production number are located inside the battery
compartment.
