User manual
Always there to help you
Register your product and get support at

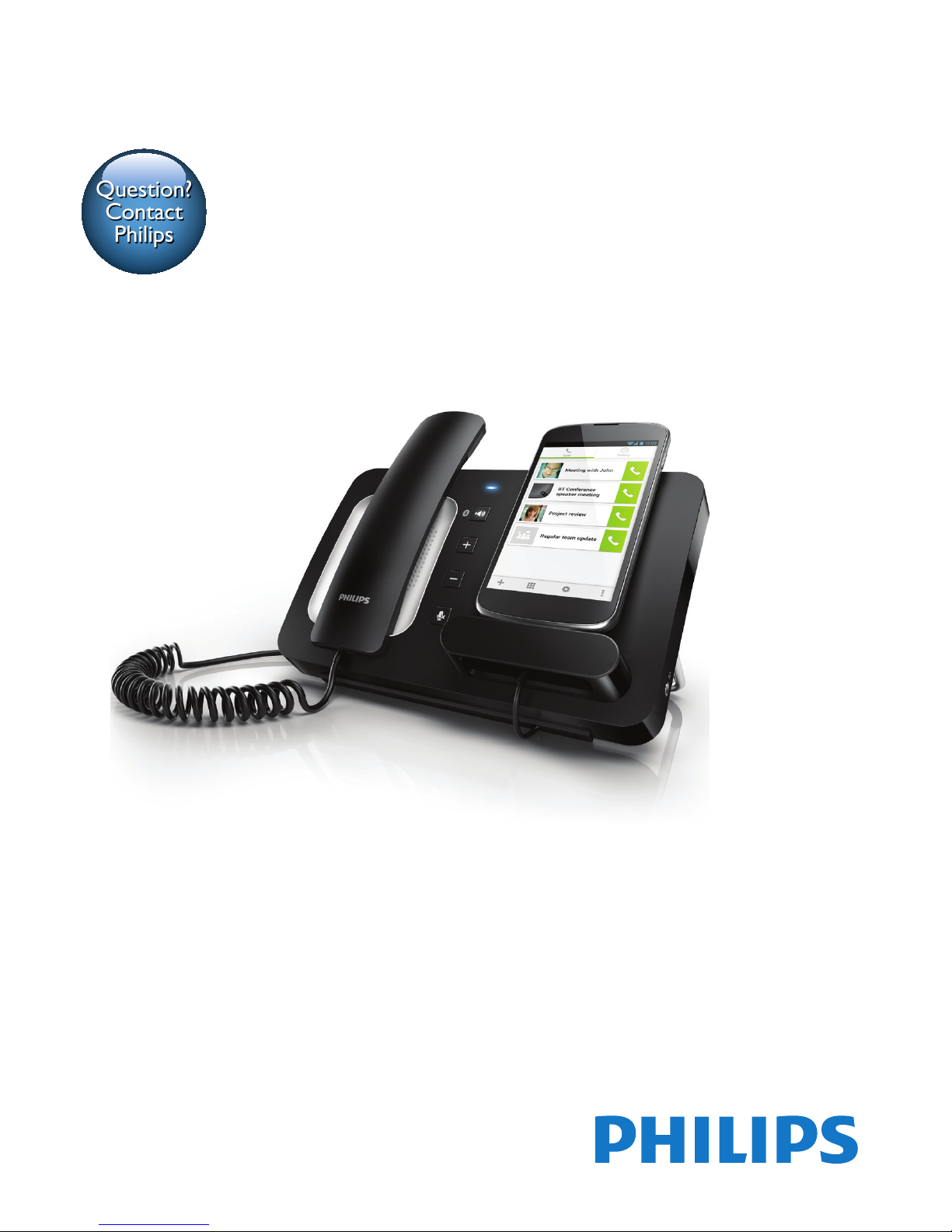

AECP3000
Question?
Contact
Philips
1
English
EN
Contents
1 Important 2
Important safety information 2
Notice 3
2 Your WeCall phone 5
Introduction 5
What's in the box 5
Product overview 6
3 Get started 7
Connect the handset 7
Place the WeCall phone 7
Connect power 7
Connect to a Bluetooth-enabled device 8
4 Use the WeCall phone 9
Use as a speaker phone 9
Use together with the WeCall App
(for iPhone or Android phone) 9
Use as a Bluetooth or PC speaker 10
Charge your mobile device 10
Listen through the headphone 12
5 Product information 13
6 Troubleshooting 14
2 EN
1 Important
Important safety information
The translation of this document
is for reference only.
In the event of any inconsistency between
the English version and the translated version,
the English version takes precedence.
This 'bolt of lightning' indicates
uninsulated material within the device
may cause an electrical shock. For the
safety of everyone in your household,
please do not remove the covering.
The 'exclamation mark' calls attention
to features for which you should read
the enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of re or electric
shock, the device should not be exposed to rain
or moisture and objects lled with liquids, such
as vases, should not be placed on the device.
CAUTION: To prevent electric shock,
fully insert the plug. (For regions with
polarized plugs: To prevent electric shock,
match wide blade to wide slot.)
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation
openings. Install in accordance with
the manufacturer's instructions.
h Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
ampliers) that produce heat.
i Protect the power cord from
being walked on or pinched,
particularly at plugs.
j Apparatus shall not be exposed
to dripping or splashing.
k Do not place any sources of
danger on the apparatus (e.g. liquid
lled objects, lighted candles).
l Only use attachments/accessories
specied by the manufacturer.
m Unplug this apparatus during
lightning storms or when unused
for long periods of time.
n Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to
rain or moisture, does not operate
normally, or has been dropped.
o Where the MAINS plug or an
appliance coupler is used as the
disconnect device, the disconnect
device shall remain readily operable.
Hearing safety
Listen at a moderate volume.
3
English
EN
• Using headphones at a high volume can
impair your hearing. This product can
produce sounds in decibel ranges that may
cause hearing loss for a normal person,
even for exposure less than a minute. The
higher decibel ranges are offered for those
that may have already experienced some
hearing loss.
• Sound can be deceiving. Over time your
hearing 'comfort level' adapts to higher
volumes of sound. So after prolonged
listening, what sounds 'normal' can actually
be loud and harmful to your hearing. To
guard against this, set your volume to a safe
level before your hearing adapts and leave
it there.
To establish a safe volume level:
• Set your volume control at a low setting.
• Slowly increase the sound until you can
hear it comfortably and clearly, without
distortion.
Listen for reasonable periods of time:
• Prolonged exposure to sound, even
at normally 'safe' levels, can also cause
hearing loss.
• Be sure to use your equipment reasonably
and take appropriate breaks.
Be sure to observe the following guidelines
when using your headphones.
• Listen at reasonable volumes for
reasonable periods of time.
• Be careful not to adjust the volume as your
hearing adapts.
• Do not turn up the volume so high that
you can't hear what's around you.
• You should use caution or temporarily
discontinue use in potentially hazardous
situations.
About replacement of parts/
accessories
Visit www.philips.com/support to order
replacement parts/accessories.
Notice
Hereby, WOOX Innovations declares
that this product is in compliance with
the essential requirements and other
relevant provisions of Directive 1999/5/
EC. You can nd the Declaration of
Conformity on www.philips.com/support.
Any changes or modications made to this
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Philips and the Philips’ Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
and are used by WOOX Innovations Limited
under license from Koninklijke Philips N.V.”
Specications are subject to change without
notice. WOOX reserves the right to change
products at any time without being obliged
to adjust earlier supplies accordingly.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin
symbol is attached to a product it
means that the product is covered by
the European Directive 2002/96/EC.
Please inform yourself about the
local separate collection system for
electrical and electronic products.
Please act according to your local rules and
do not dispose of your old products with
your normal household waste. Correct
disposal of your old product helps to
4 EN
prevent potential negative consequences
for the environment and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy
to separate into three materials: cardboard
(box), polystyrene foam (buffer) and
polyethylene (bags, protective foam sheet.)
Your system consists of materials which
can be recycled and reused if disassembled
by a specialized company. Please observe
the local regulations regarding the
disposal of packaging materials, exhausted
batteries and old equipment.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
WOOX Innovations is under license.
Skype is a trademark of Skype or its related
companies. Although this product has been
tested and met our certication standards
for audio and video quality, it is not endorsed
by Skype, Skype Communications S.a.r.l.
or any of their related companies.
No emergency calls with Skype
Skype is not a replacement for your
ordinary telephone and can't be
used for emergency calling.
Note
• The type plate is located on the back of the device.
5
English
EN
2 Your WeCall
phone
To fully benet from the support that
Philips offers, register your product
at www.philips.com/welcome.
Introduction
This Bluetooth conference speaker
(WeCall phone) allows you to:
• connect to a Bluetooth enabled
smartphone and make a mobile or
VoIP call directly through the WeCall
phone.
• connect to a Bluetooth enabled PC/
Mac and make a VoIP call directly
through the WeCall phone.
• connect to a Bluetooth enabled
iPhone or Android phone and
make a conference call through
the WeCall phone with the
help of the WeCall App.
• enjoy music from a Bluetooth-
enabled mobile device or a PC/Mac.
• charge your iPhone, Android
phone, or other mobile devices
such as an MP3 player.
What's in the box
Check and identify that the following are
included with your WeCall phone:
• WeCall phone
• Power adapter
• 1 x Android docking assembly
(adapter with USB cable)
• 1 x 30-pin docking adapter
• 1 x lightning docking adapter
• Printed materials
6 EN
Product overview
a Handset
b indicator
• Show the Bluetooth connection status.
c
• Answer an incoming mobile call.
• End an ongoing mobile call.
• Press and hold for more than 2
seconds to manually pair with
a Bluetooth enabled device.
d +/-
• Adjust volume during a call or music
play.
• Press and hold for more than
5 seconds to remove existing
pairing information.
e
• Mute the built-in microphones of the
WeCall phone during a call so that the
other party cannot hear you.
f Dock for your mobile phone
g
• Headphone socket.
h 5V 1A
• Power socket.
c
d
e
a
f
gihj
k
b
i CHARGING
• Socket for charging your mobile
devices, such as your iPhone, Android
phone, or MP3 player.
j
• Socket for handset connection.
k Table stand for the WeCall phone
7
English
EN
3 Get started
Caution
• Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in
this chapter in sequence.
Connect the handset
• Connect the handset to the socket on
the back of the WeCall phone.
Place the WeCall phone
• With the support of the table stand, place
the WeCall phone on a hard and at table
close to an AC outlet.
Connect power
Caution
• Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the back
or the underside of the unit.
• Risk of electric shock! When you unplug the AC power
cord, always pull the plug from the socket. Never pull
the cord.
• Before you connect the AC power cord, ensure that
you have completed all the other cable connections.
• Connect the power adapter to:
• the 5V 1A socket on the back of the
WeCall phone.
• the wall outlet.
» The indicator ashes blue.
8 EN
Connect to a Bluetoothenabled device
You can pair the WeCall phone with a
Bluetooth-enabled mobile device (such
as your mobile phone or tablet) or PC/
Mac. Then you can enjoy music from the
WeCall phone, or use it as a speaker phone
when you make mobile or VoIP calls.
Note
• The effective operation range between the WeCall
phone and your Bluetooth-enabled device is
approximately 10 meters (30 feet).
• As a power-saving feature, if there is no device available
for pairing and connection, the Bluetooth indicator on
the speaker turns off automatically in 5 minutes. You can
press to enable Bluetooth on the speaker again.
1 Enable Bluetooth on your Bluetooth
device.
2 Select 'WeCallPhone Philips' on your
Bluetooth-enabled device and if necessary
input '0000' as the pairing password.
» After successful pairing and connection,
the indicator turns solid blue and the
WeCall phone beeps.
Note
• To pair with a new Bluetooth-enabled device, you can:
• 1. Hold both +/- on the WeCall phone for more than 5
seconds to remove the existing Bluetooth connection.
• 2. Disable the Bluetooth function on the currently
connected device.
• The WeCall phone can memorize up to 4 paired
devices. When you pair with another Bluetooth-enabled
device, the rst memorized device will be overridden.
9
English
EN
4 Use the WeCall
phone
Use as a speaker phone
1 Make a mobile or VoIP call on your mobile
phone, or a VoIP call (such as a SkypeTM
call) on your tablet or PC/Mac.
2 Use the WeCall phone as a speaker phone
during the call.
Tip
• When there is an incoming mobile call, you can pick up
the handset or press to answer the call.
• During a mobile call, you can hang up the handset or
press to end the call.
• During a mobile call, you can press to mute the
built-in microphones of the WeCall phone so that the
other party cannot hear you.
• During a mobile or VoIP call, you can use +/- on the
WeCall phone to adjust volume.
Use together with the WeCall
App (for iPhone or Android
phone)
1 Download Philips WeCall to your iPhone
or Android phone.
2 Set up a Bluetooth connection between
the WeCall phone and your iPhone
or Android phone (see 'Connect to a
Bluetooth-enabled device' on page 8).
10 EN

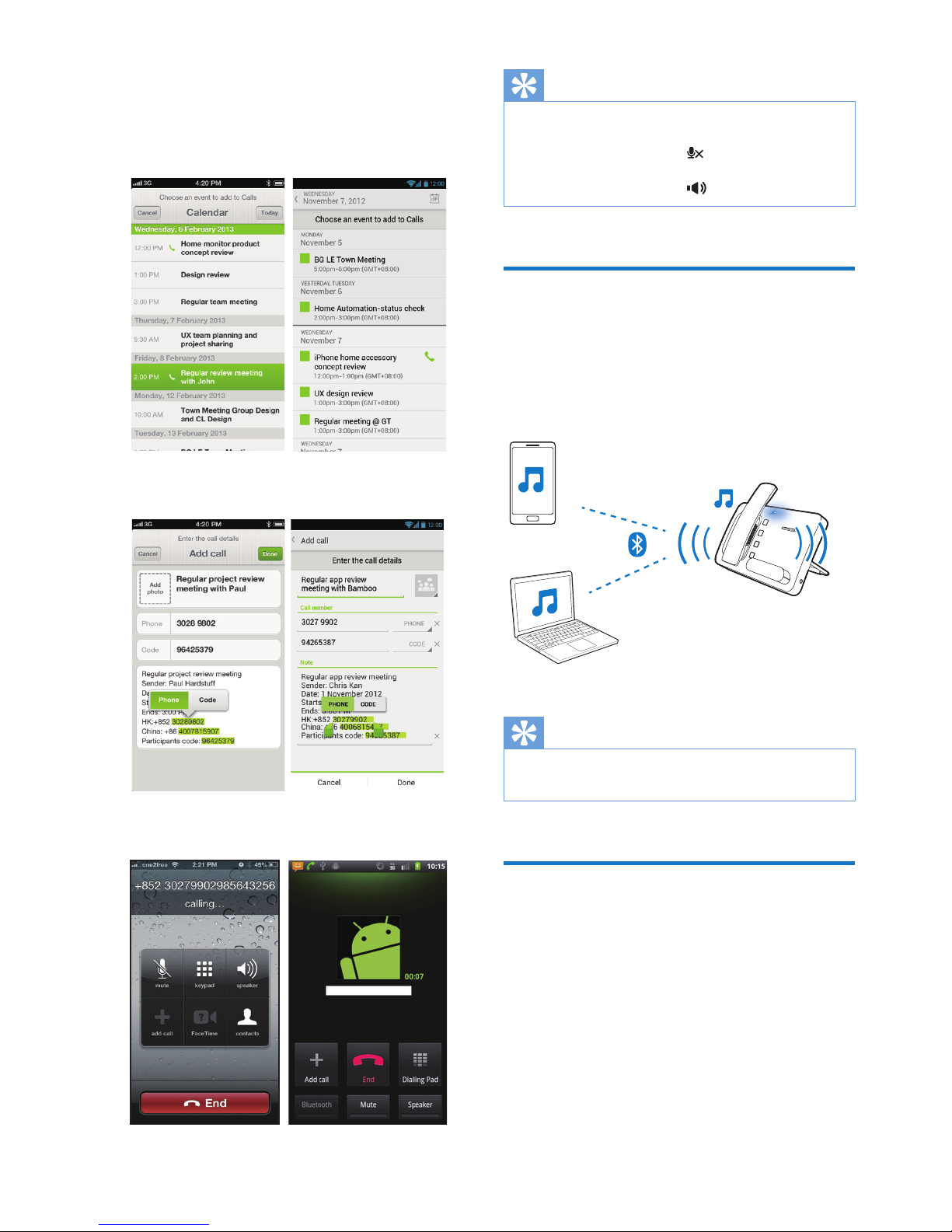

3 Run Philips WeCall and impor t meetings
from your calendar.
• The potential conference calls will be
highlighted. Choose one of them.
4 Conrm the telephone number and code.
5 Make a conference call.
Tip
• During a call, you can use +/- on the WeCall phone to
adjust volume.
• During a call, you can press to mute the WeCall
phone so that the other party cannot hear you.
• During a call, you can press to end the call.
Use as a Bluetooth or PC
speaker
• Start audio play on the Bluetooth-enabled
device and then listen from the WeCall
phone.
Tip
• During audio play, you can use +/- on the WeCall
phone to adjust volume.

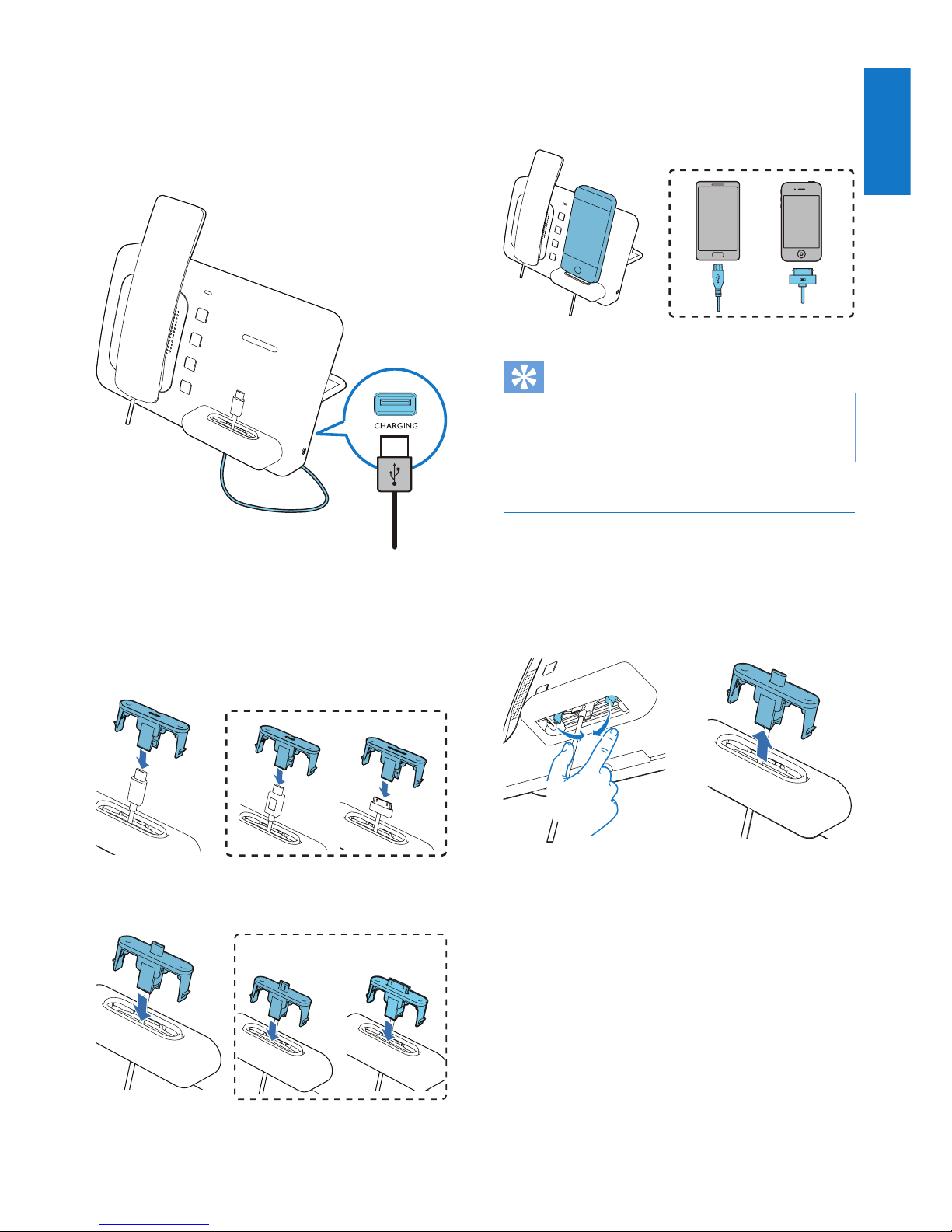

Charge your mobile device
You can charge your mobile device, such
as your iPod/iPhone, Android phone or
MP3 player, through the 5V 500mA USB
socket on the the WeCall phone.
1 For an Android phone or mobile device
with a micro USB socket, connect the type
A side of the supplied Android docking
assembly to the CHARGING socket on
the back of the WeCall phone.
11
English
EN
• For an iPod/iPhone with a 30-pin/lightning
connector, connect the type A side of
the corresponding Apple USB cable (not
supplied) to the CHARGING socket on
the back of the WeCall phone.
1 Lead the USB cable through the table
stand and the hole in the dock, then
connect it to the matching docking adapter.
2 Plug the docking assembly into the dock.
3 Dock you mobile device.
» The WeCall phone starts to charge
your mobile device.
Tip
• The above step 2 is not required for Android users, as
the Android docking adapter is assembled with a USB
cable by default.

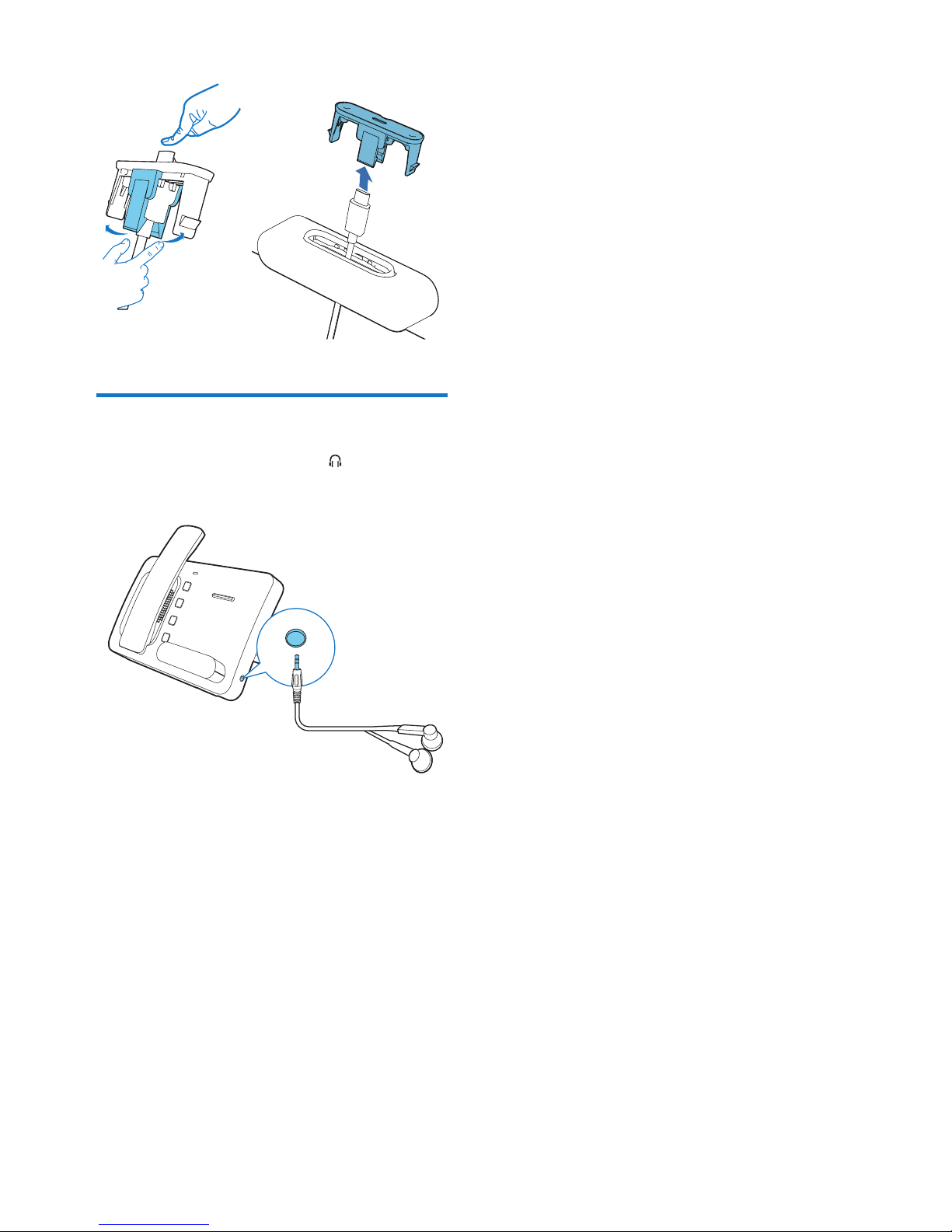

To detach a docking adapter and cable
1 Hold both the left and rights sides of the
docking adapter to unlock and pull it out
of the dock.
2 Release the inner locks and detach the
cable from the docking adapter.
12 EN
Listen through the headphone
• Plug a headphone into the socket on the
WeCall phone.
13
English
EN
5 Product
information
Amplier
Rated Output Power 2W RMS
Frequency Response 80Hz -16k
Hz, ±3dB
Signal to Noise Ratio >75dB
Bluetooth
Bluetooth®
version
V2.1 + EDR
Frequency band 2.402-2.480 GHz
ISM Band
Range 10m (free space)
Speakers
Speaker Impedance 8ohm
Speaker Driver 1" speaker
Sensitivity >84dB/1W/1m
General Information
DC Power Input Input: 5 VDC, 1 A
Dimensions
- Main Unit (w x h x d)
215 x 60 x
142 mm
Weight
- Main Unit
0.37 kg
14 EN
6 Troubleshooting
Warning
• Never remove the casing of this device.
To keep the warranty valid, never try
to repair the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the device is nearby and the
model number and serial number are available.
No power
• Make sure that the power adapter is
securely connected to both the power
supply and the WeCall phone.
• Make sure that there is power at the AC
outlet.
No sound
• Press +/- on the WeCall
phone to adjust volume.
• Adjust volume on the connected device,
such as your mobile phone, tablet, or PC/
Mac.
• Check the Bluetooth connection to the
WeCall phone.
• Check whether you have started audio
play or any call on the connected device.
• Unplug the headphone.
Failed to set up Bluetooth connection
• Check whether the WeCall phone
is connected to AC power.
• Make sure that the WeCall phone and
your Bluetooth-enabled device are within
the effective operation range, that is,
approximately 10 meters (30 feet).
• Remove any obstacle between the WeCall
phone and your Bluetooth-enabled device.
• Check the Bluetooth setting on your
device to be connected with the WeCall
phone (see the user manual of the specic
device for details).
• Hold both +/- on the WeCall phone for
more than 5 seconds to reset, and then
try again.
• If there is any issue with the Bluetooth
connection to a PC/Mac, upgrade the
Bluetooth driver of your PC or the iOS
version of your Mac.
• After rst-time pairing with a Mac,
the WeCall phone may be shown as
disconnected. It is a not a malfunction. You
just need to make VoIP calls or play music
through the WeCall phone directly to
activate the Bluetooth connection.
2014 © WOOX Innovations Limited.
All rights reserved.
This product was brought to the market by WOOX
Innovations Limited or one of its affiliates, further referred
to in this document as WOOX Innovations, and is the
manufacturer of the product. WOOX Innovations is the
warrantor in relation to the product with which this booklet
was packaged. Philips and the Philips Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
AECP3000_12_UM_V1.0
Loading...
