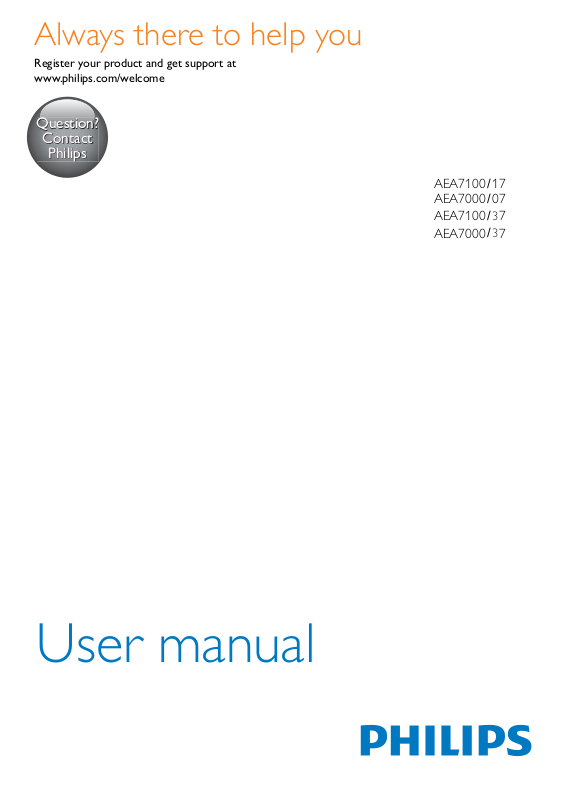

Philips AEA7100MIC User Manual

Always there to help you

www.philips.com/welcome

Question?

Contact

Philips

AEA7100 /17

AEA7000 /07

AEA7100 / 37

AEA7000 / 37

User manual

Contents

1	Important	2
	Safety	2
	Notice	3

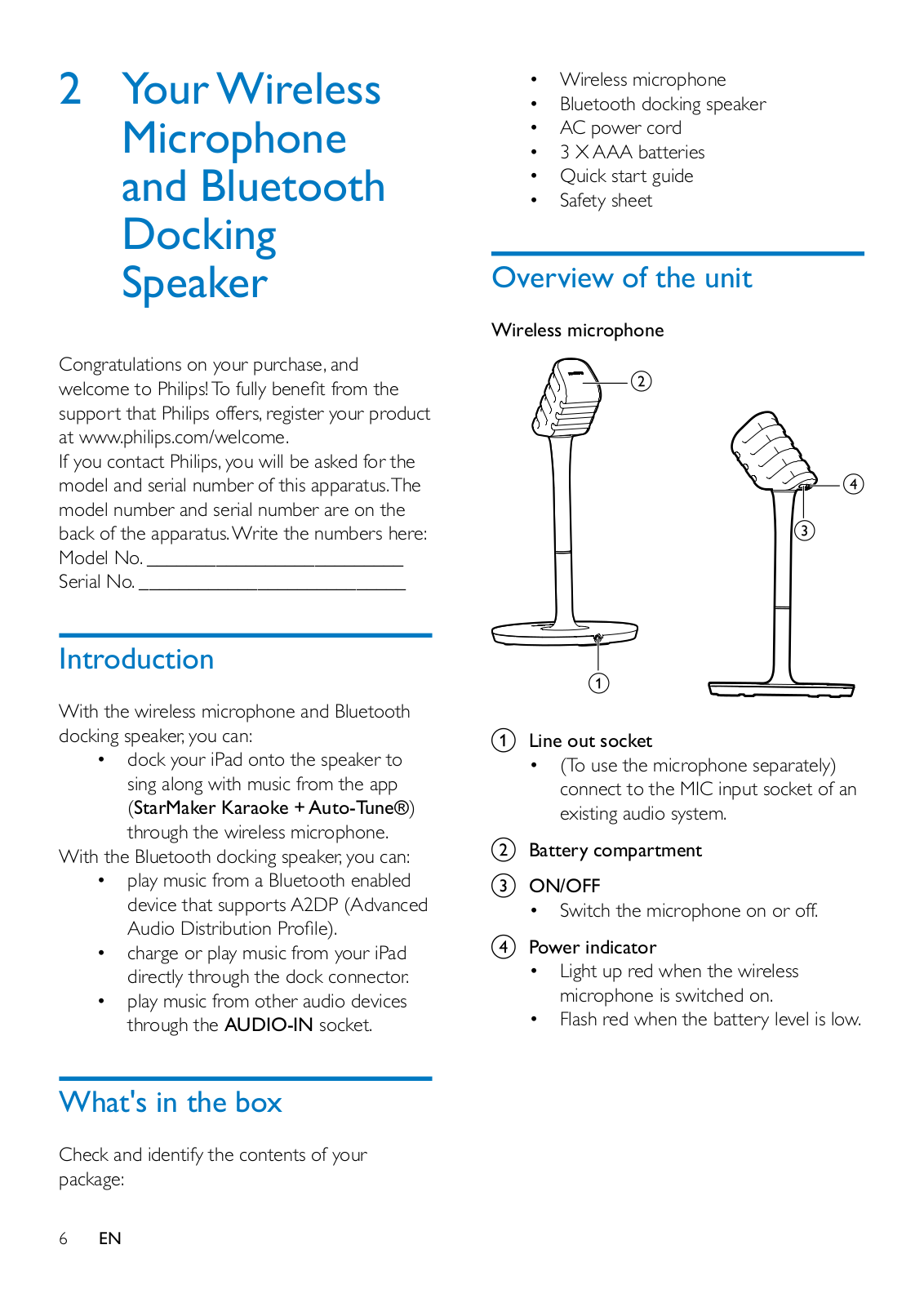

2	Your Wireless Microphone and
	Bluetooth Docking Speaker	6
	Introduction	6
	What's in the box	6

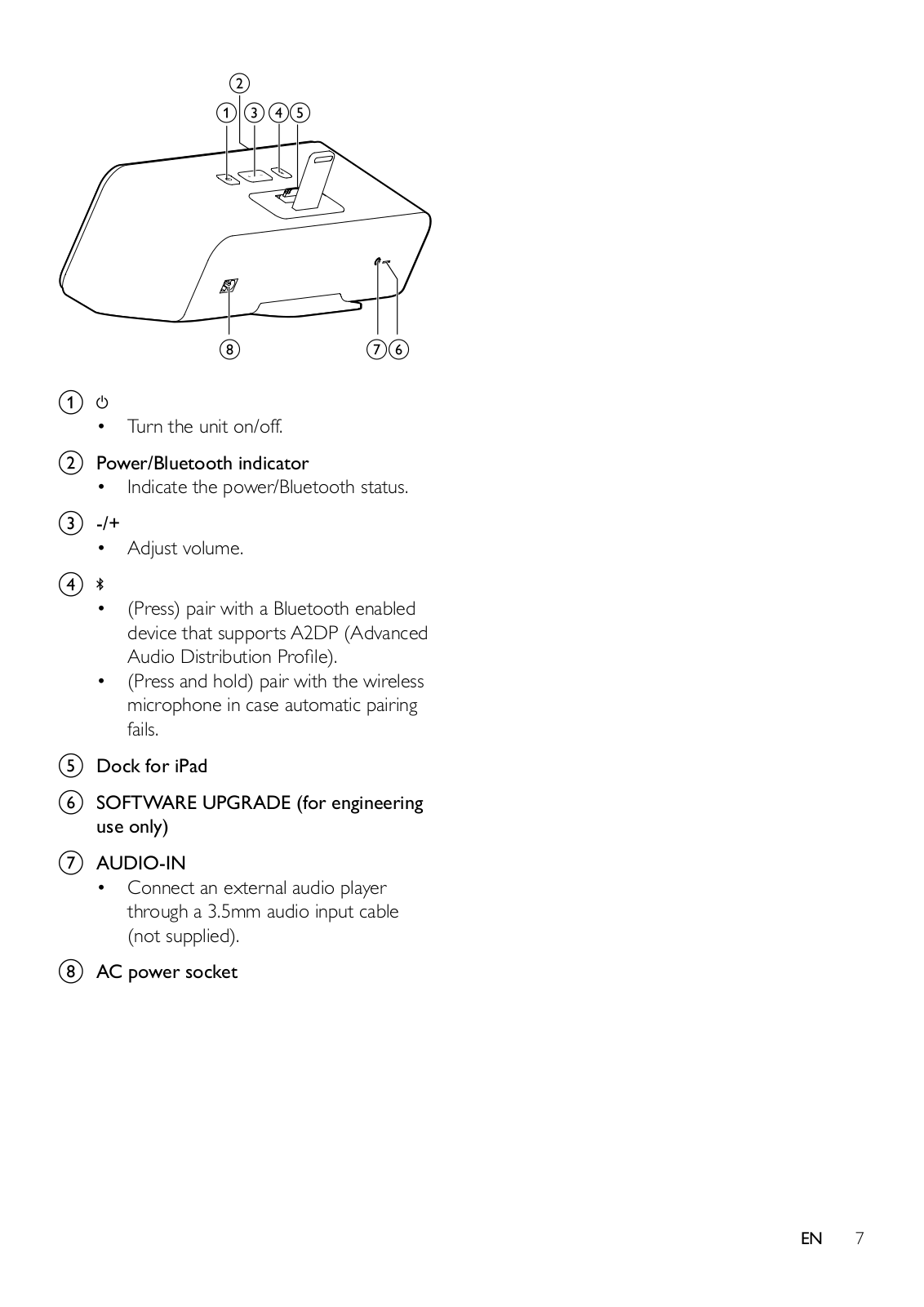

	Overview of the unit	6

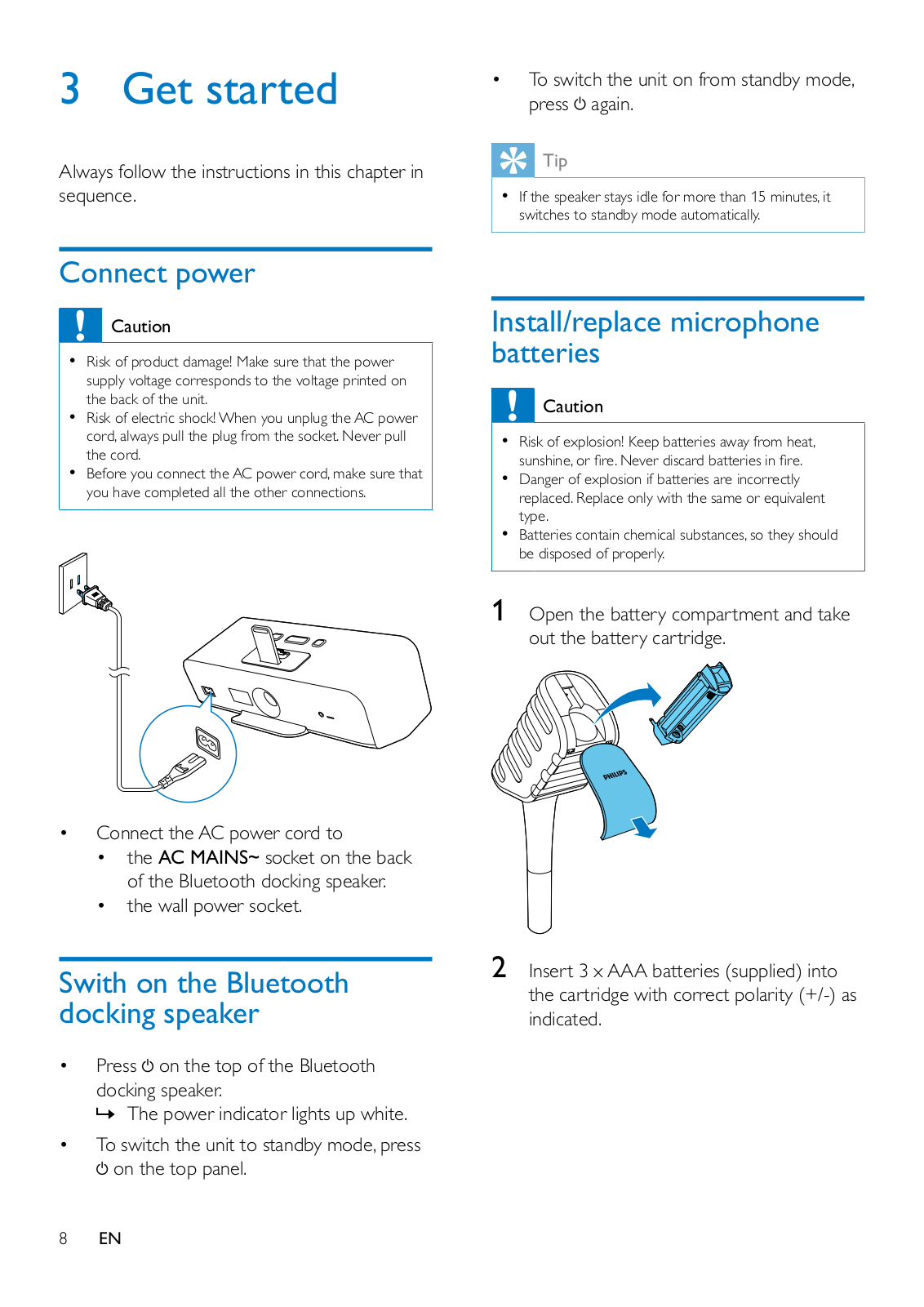

3	Get started	8
	Connect power	8
	Swith on the Bluetooth docking speaker	8

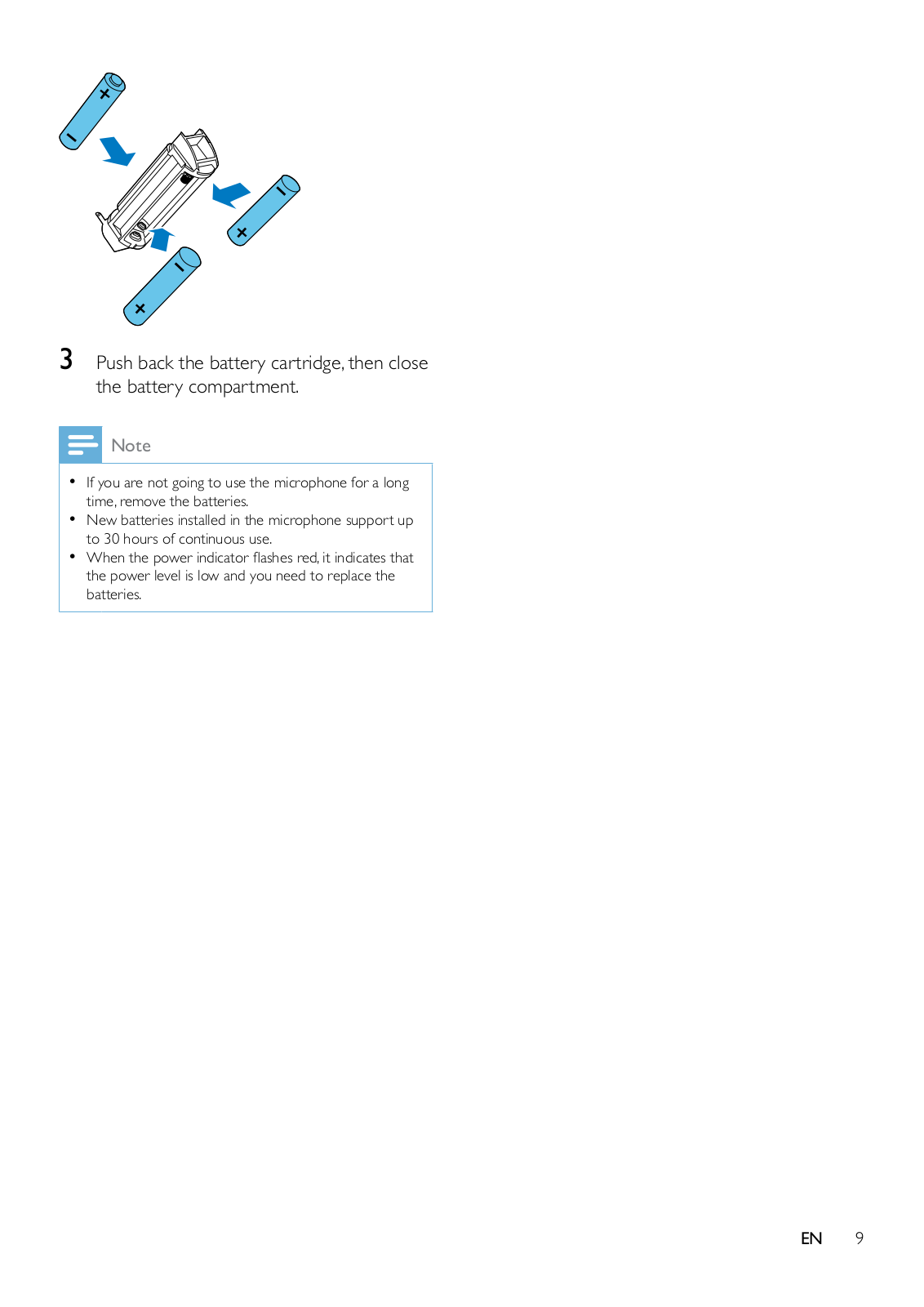

	Install/replace microphone batteries	8

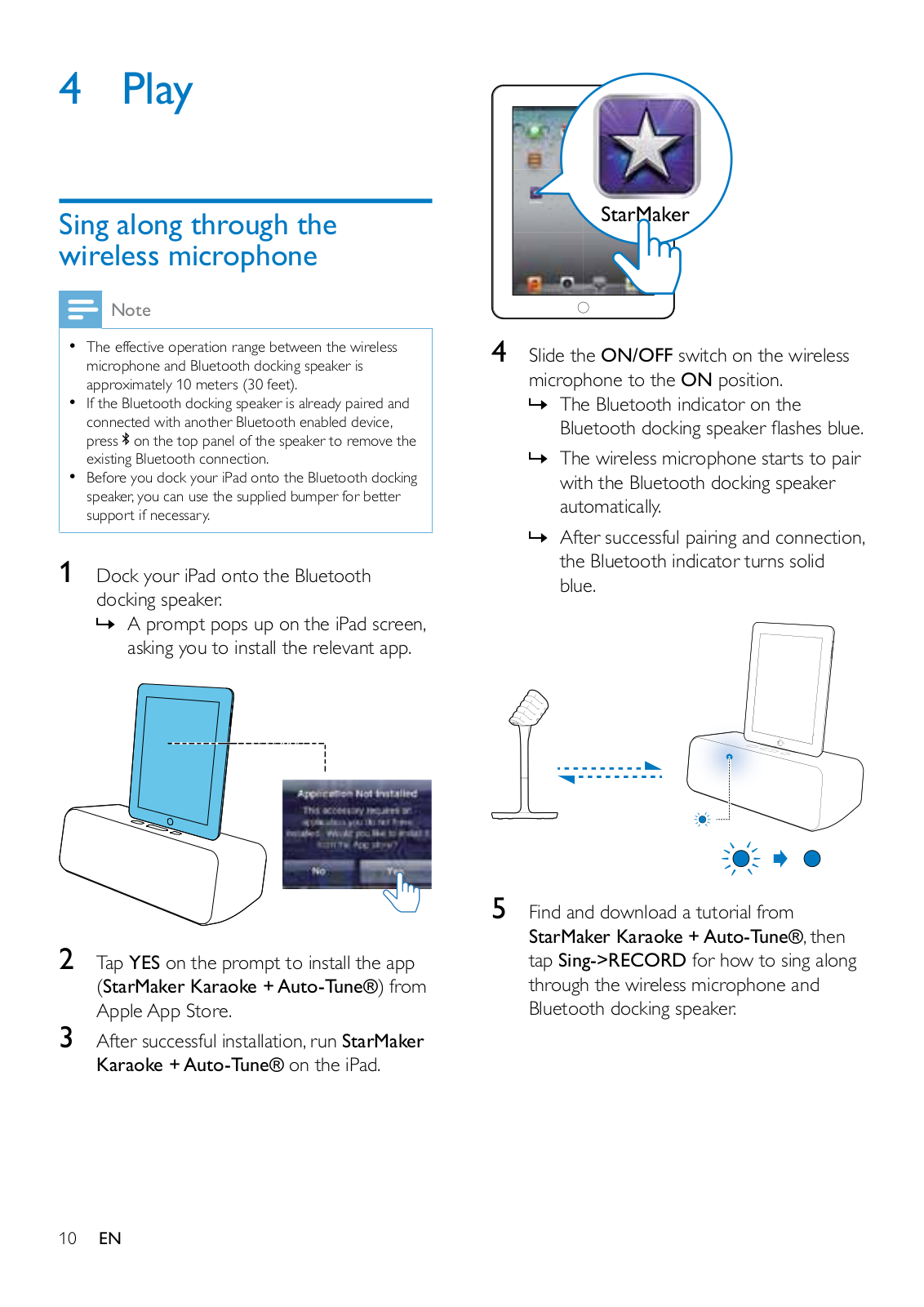

4	Play	10
	Sing along through the wireless
	microphone	10

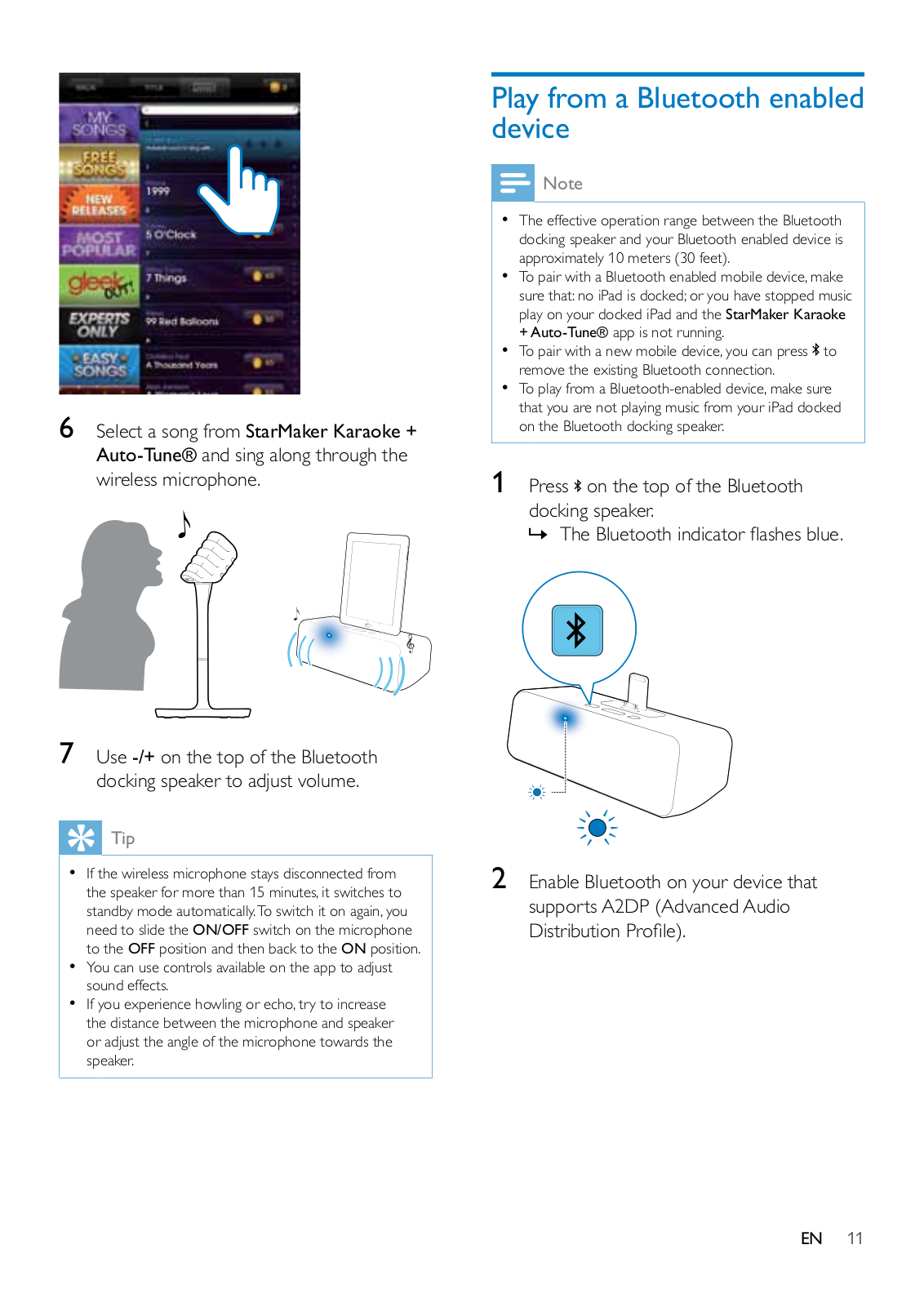

	Play from a Bluetooth enabled device	11

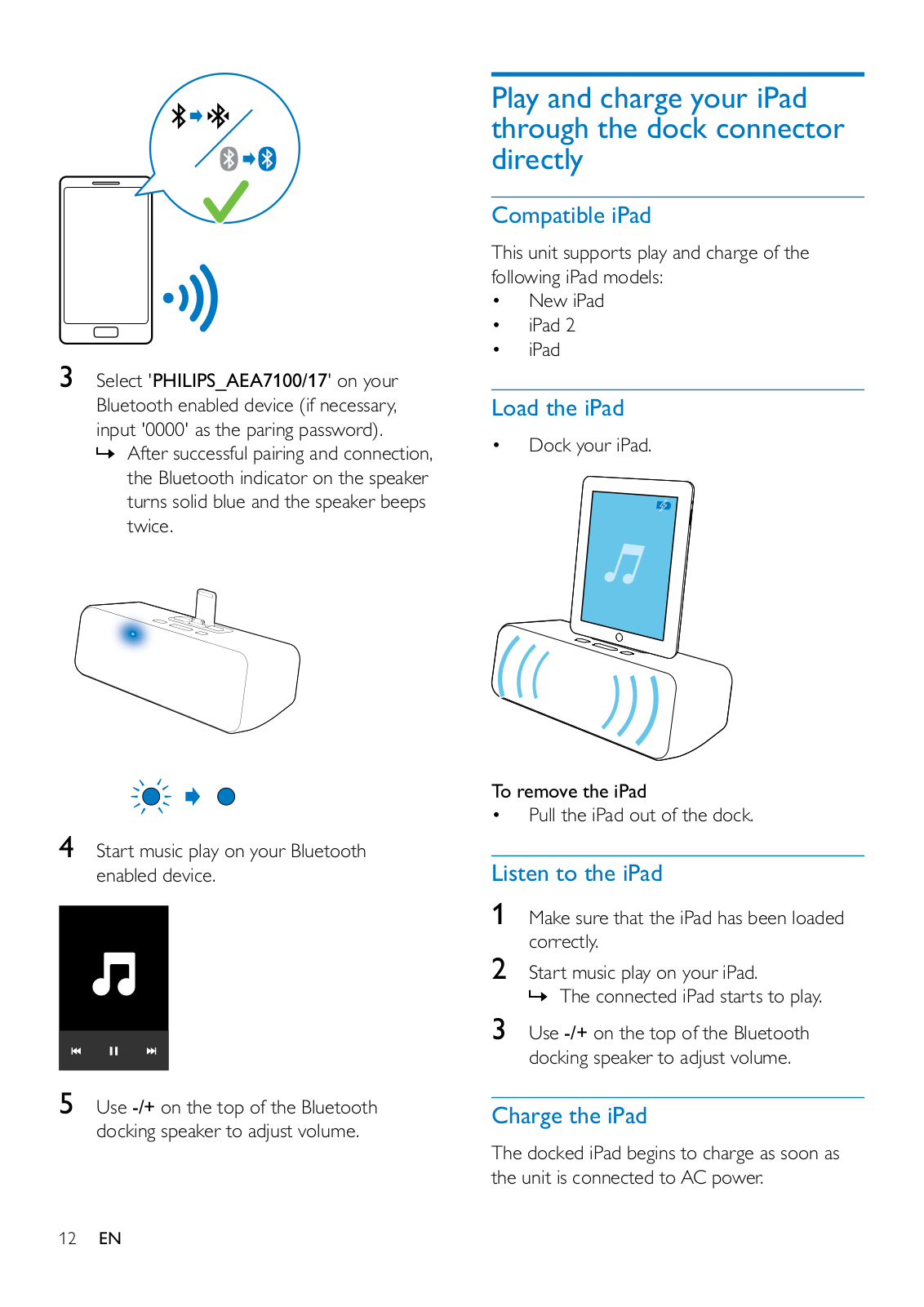

	Play and charge your iPad through the
	dock connector directly	12

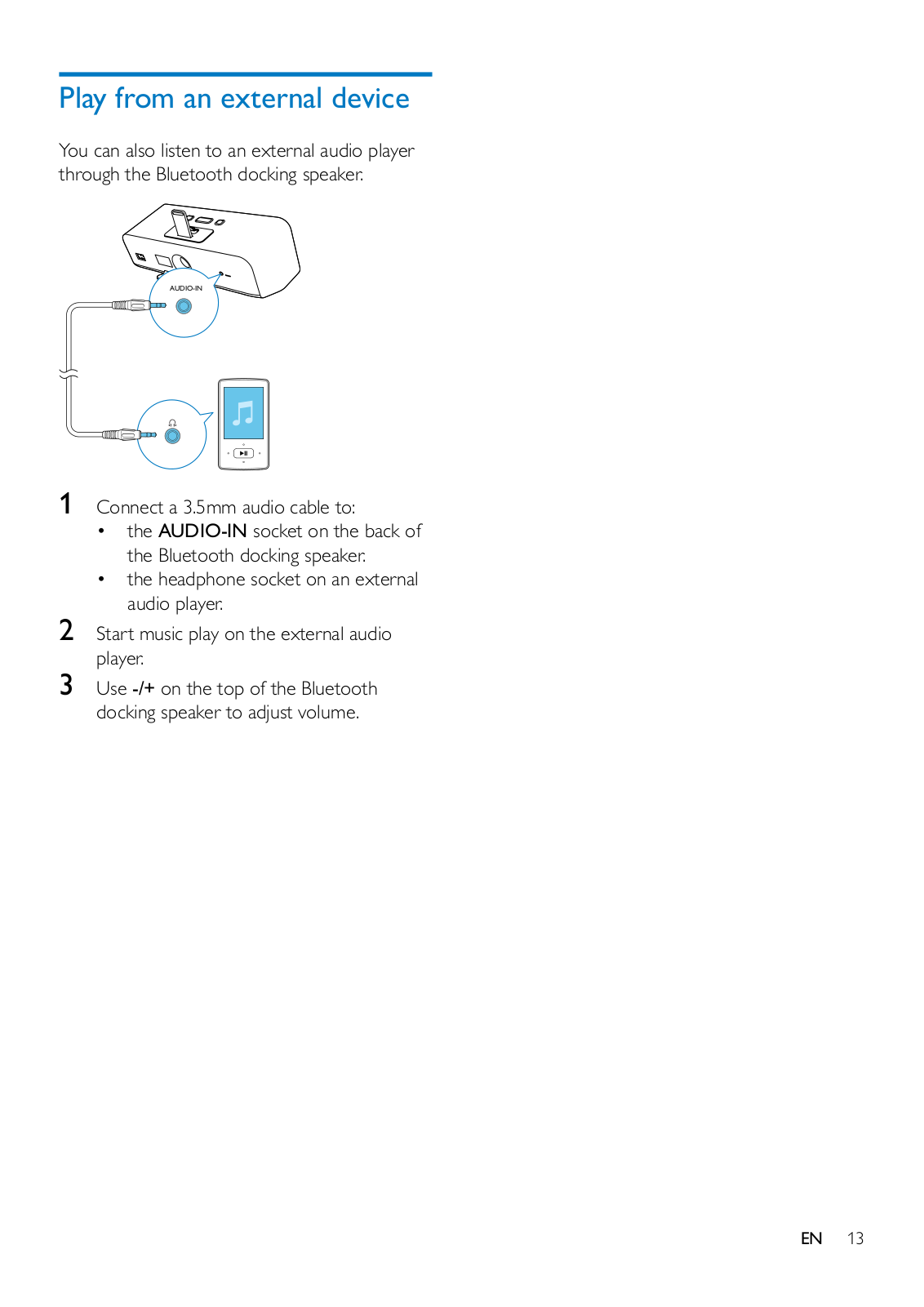

	Play from an external device	13

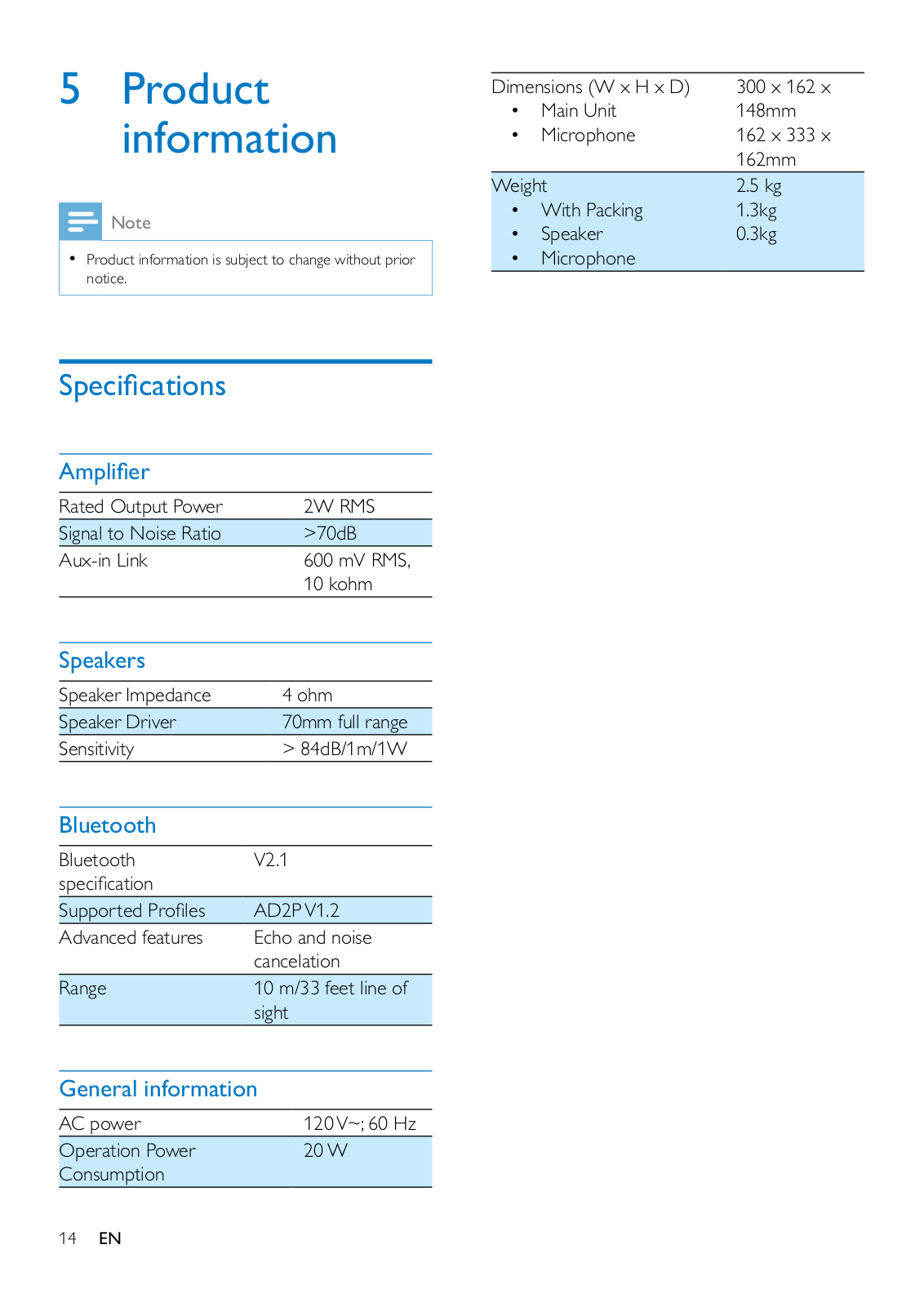

5	Product information	14
	Specifications	14

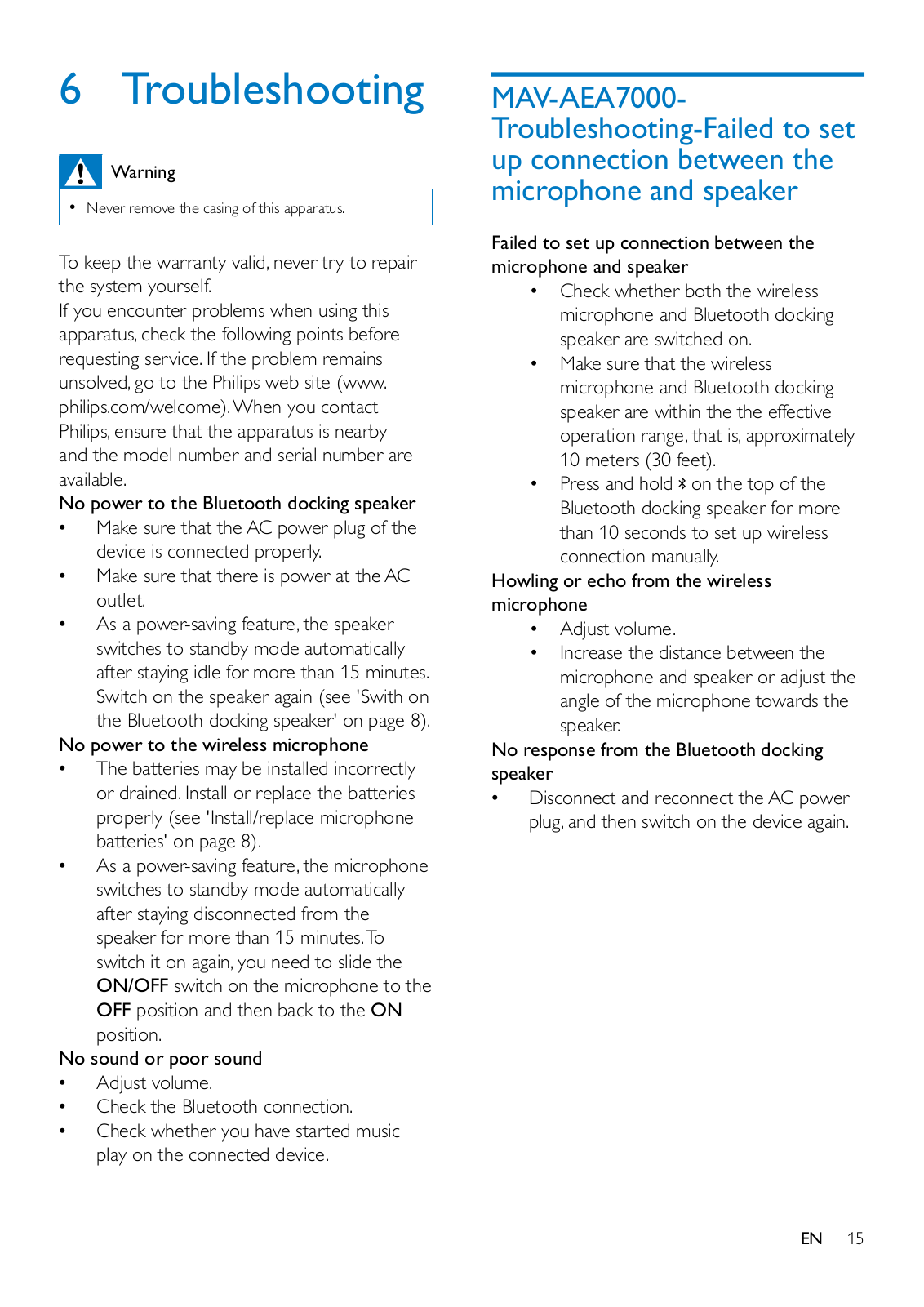

6	Troubleshooting	15
	MAV-AEA7000-Troubleshooting-
	Failed to set up connection between
	the microphone and speaker	15

EN 1

1 Important

Safety

This 'bolt of lightning' indicates uninsulated material within the device may cause an electrical shock. For the safety of everyone in your household, please do not remove the covering.

The 'exclamation mark' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING:To reduce the risk of fire or electric shock, the device should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on the device.

CAUTION:To prevent electric shock, fully insert the plug. (For regions with polarized plugs:To prevent electric shock, match wide blade to wide slot.)

Important Safety Instructions

ARead these instructions.

BKeep these instructions.

CHeed all warnings.

DFollow all instructions.

EDo not use this apparatus near water.

FClean only with dry cloth.

GDo not block any ventilation openings. Install in accordance with the manufacturer's instructions.

2 EN

HDo not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

IDo not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.A grounding type plug has two blades and a third grounding prong.The wide blade or the

third prong are provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

JProtect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

KOnly use attachments/accessories specified by the manufacturer.

LUse only with the cart, stand, tripod, bracket,or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

MUnplug this apparatus during lightning storms or when unused for long periods of time.

NRefer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

OBattery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit:

•Install all batteries correctly, + and - as marked on the unit.

•Remove batteries when the unit is not used for a long time.

•Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/ hazardouswaste/perchlorate.

PApparatus shall not be exposed to dripping or splashing, keep it away from direct sunlight,naked flames or heat.

QWhere the MAINS plug or an appliancecoupler is used as the disconnect device, the disconnect device shall remainreadily operable.

Warning

•Never remove the casing of this apparatus.

•Never lubricate any part of this apparatus.

•Never place this apparatus on other electrical equipment.

•Keep this apparatus away from direct sunlight, naked flames or heat.

•Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

Risk of overheating! Never install this apparatus in a confined space.Always leave a space of at least four inches around this apparatus for ventilation. Ensure curtains or other objects never cover the ventilation slots on this apparatus.

Information about the use of batteries:

Caution

•Risk of leakage: Only use the specified type of batteries.

Do not mix new and used batteries. Do not mix different brands of batteries. Observe correct polarity. Remove batteries from products that are not in use for a longer period of time. Store batteries in a dry place.

•Risk of injury:Wear gloves when handling leaking batteries. Keep batteries out of reach of children and pets.

•Risk of explosion: Do not short circuit batteries. Do not expose batteries to excessive heat. Do not throw batteries into the fire. Do not damage or disassemble batteries. Do not recharge non-rechargeable batteries.

Notice

Notice of compliance

Modifications

The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC & RSS compliance statement

This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

AThis device may not cause harmful interference, and

BThis device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement

This equipment complies with FCC’s and IC’s

RF radiation exposure limits set forth for an uncontrolled environment.The antenna(s) used for this transmitter must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with

EN 3

any other antenna or transmitter. Installers must ensure that 20cm separation distance will be maintained between the device (excluding its handset) and users.

FCC rules

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Canada:

This Class B digital apparatus complies with Canadian ICES-003.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries.

The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.

Your product contains batteries, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries.The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Please visit www.recycle.philips.com for additional information on a recycling center in your area.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of

packaging materials, exhausted batteries and old equipment.

“Made for iPad” means that an electronic accessory has been designed to connect specifically to iPad, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPad may affect wireless performance.

iPad is a trademark of Apple Inc., registered in the U.S. and other countries.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Philips is under license.

4 EN
