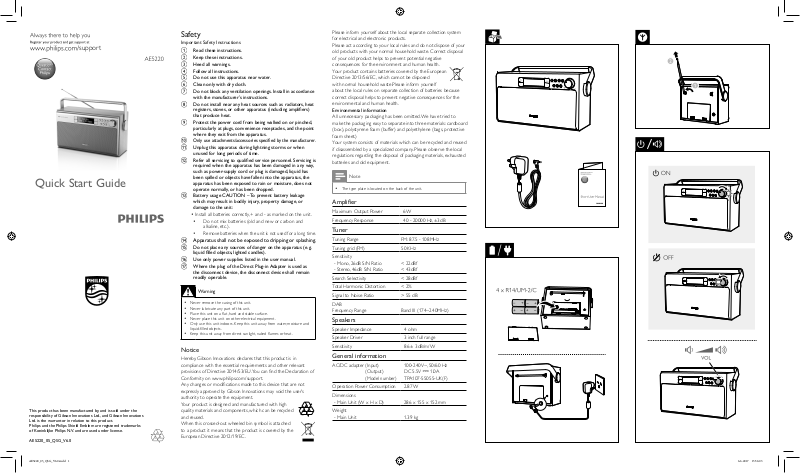

Quick Start Guide
This product has been manufactured by, and is sold under the
responsibility of Gibson Innovations Ltd., and Gibson Innovations
Ltd. is the warrantor in relation to this product.
Philips and the Philips Shield Emblem are registered trademarks
of Koninklijke Philips N.V. and are used under license.
AE5220_05_QSG_V6.0
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
i Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specied by the manufacturer.
k Unplug this apparatus during lightning storms or when
unused for long periods of time.
l Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
m Battery usage CAUTION – To prevent battery leakage
which may result in bodily injury, property damage, or
damage to the unit:
• Install all batteries correctly, + and - as mar ked on the unit.
• Do not mix batteries (old and new or carbon and
alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
n Apparatus shall not be exposed to dripping or splashing.
o Do not place any sources of danger on the apparatus (e.g.
liquid lled objects, lighted candles).
p Use only power supplies listed in the user manual.
q Where the plug of the Direct Plug-in Adapter is used as
the disconnect device, the disconnect device shall remain
readily operable.
Warning
• Never remove the casing of this unit.
• Never lubricate any part of this unit.
• Place this unit on a at, hard and stable surface.
• Never place this unit on other electrical equipment.
• Only use this unit indoors. Keep this unit away from water, moisture and
liquid-lled objects.
• Keep this unit away from direct sunlight, naked ames or heat.
Notice
Hereby, Gibson Innovations declares that this product is in
compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU. You can nd the Declaration of
Conformity on www.philips.com/support.
Any changes or modications made to this device that are not
expressly approved by Gibson Innovations may void the user’s
authority to operate the equipment.
Your product is designed and manufactured with high
quality materials and components, which can be recycled
and reused.
When this crossed-out wheeled bin symbol is attached
to a product it means that the product is covered by the
European Directive 2012/19/EC.
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of your
old products with your normal household waste. Correct disposal
of your old product helps to prevent potential negative
consequences for the environment and human health.
Your product contains batteries covered by the European
Directive 2013/56/EC, which cannot be disposed
with normal household waste.Please inform yourself
about the local rules on separate collection of batteries because
correct disposal helps to prevent negative consequences for the
environmental and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to
make the packaging easy to separate into three materials: cardboard
(box), polystyrene foam (buffer) and polyethylene (bags, protective
foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Note
• The type plate is located on the back of the unit.
Amplier
Maximum Output Power 6 W
Frequency Response 40 - 20000 Hz, ±3dB
Tuner
Tuning Range FM: 87.5 - 108MHz
Tuning grid (FM) 50 KHz
Sensitivity
- Mono, 26dB S/N Ratio
- Stereo, 46dB S/N Ratio
Search Selectivity < 28dBf
Total Harmonic Distortion < 2%
Signal to Noise Ratio > 55 dB
DAB
Frequency Range Band III (174~240MHz)
< 22dBf
< 43dBf
Speakers
Speaker Impedance 4 ohm
Speaker Driver 3 inch full range
Sensitivity 86 ± 3dB/m/W
General information
AC/DC adapter (Input)
(Output)
(Model number)
Operation Power Consumption 2.87 W
Dimensions
- Main Unit (W x H x D) 286 x 155 x 152 mm
Weight
- Main Unit 1.39 kg
100-240V~, 50/60 Hz
DC 5.5V 1.0A
TPA107-55055-UK(F)
AE5220_05_QSG_V6.0.indd 1 6-6-2017 15:56:03
Tune to DAB radio stations
1 Press SOURCE repeatedly to
select DAB radio.
2 Press SCAN/SELECT to start
full scan.
3 Press TUNING +/- to navigate
through the available DAB stations.
Tune to FM radio stations
1 Press SOURCE repeatedly to select
FM radio.
2 Press TUNING +/- to tune to a
radio station.
3 Press and hold TUNING +/- to tune
to the next strongest radio station.
Store DAB/FM radio stations
automatically
In DAB mode, press SCAN/SELECT to start full
scan of all available DAB radio stations (no station
stored to presets).
In FM mode, press SCAN/SELECT to store all
available FM radio stations to presets.
Store DAB/FM radio stations manually
1 Tune to a DAB/FM radio station.
2 Press PROGRAM to activate programming mode.
3 Press PRESET +/- to select a preset number.
4 Press PROGRAM to conrm.
5 Repeat steps 1 to 4 to store other DAB/FM stations.
Tip: At step 2, you can also press and hold preset key 1 , 2
or 3 to save the current station to the corresponding
position directly.
Select a preset DAB/FM radio station
In DAB/FM mode, press numeric keys 1 , 2 or 3 to
select preset station 1, 2 or 3, or press PRESET
+/- repeatedly to select your desired preset number.
www.philips.com/support
To download the full user manual, visit
www.philips.com/support.
When the battery is low, ‘Low battery’
appears. Replace batteries or connect to
AC power.
