Philips AD905W Users manual

IFU AD905W	Author: JDR/EDN
	Date: 30/11/2002

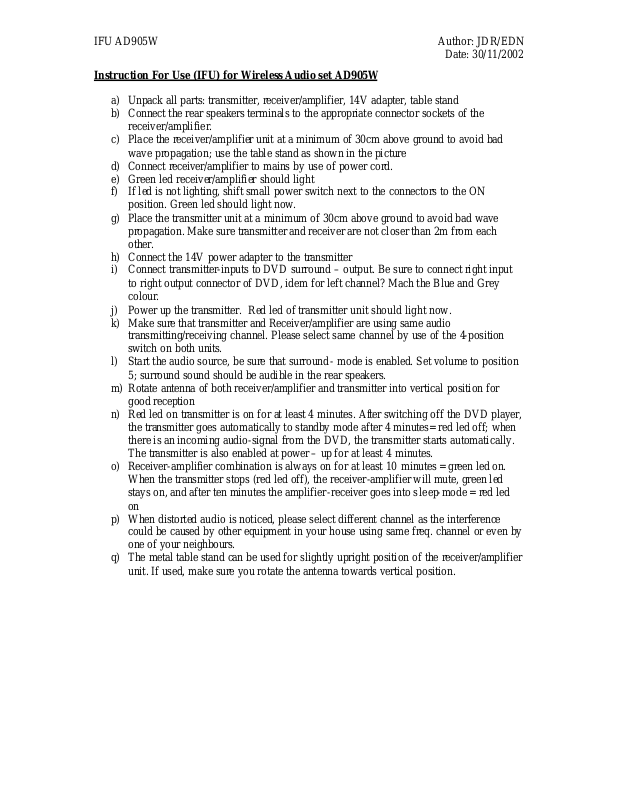

Instruction For Use (IFU) for Wireless Audio set AD905W

a)Unpack all parts: transmitter, receiver/amplifier, 14V adapter, table stand

b)Connect the rear speakers terminals to the appropriate connector sockets of the receiver/amplifier.

c)Place the receiver/amplifier unit at a minimum of 30cm above ground to avoid bad wave propagation; use the table stand as shown in the picture

d)Connect receiver/amplifier to mains by use of power cord.

e)Green led receiver/amplifier should light

f)If led is not lighting, shift small power switch next to the connectors to the ON position. Green led should light now.

g)Place the transmitter unit at a minimum of 30cm above ground to avoid bad wave propagation. Make sure transmitter and receiver are not closer than 2m from each other.

h)Connect the 14V power adapter to the transmitter

i)Connect transmitter-inputs to DVD surround – output. Be sure to connect right input to right output connector of DVD, idem for left channel? Mach the Blue and Grey colour.

j)Power up the transmitter. Red led of transmitter unit should light now.

k)Make sure that transmitter and Receiver/amplifier are using same audio transmitting/receiving channel. Please select same channel by use of the 4-position switch on both units.

l)Start the audio source, be sure that surround - mode is enabled. Set volume to position 5; surround sound should be audible in the rear speakers.

m)Rotate antenna of both receiver/amplifier and transmitter into vertical position for good reception

n)Red led on transmitter is on for at least 4 minutes. After switching off the DVD player, the transmitter goes automatically to standby mode after 4 minutes= red led off; when there is an incoming audio-signal from the DVD, the transmitter starts automatically. The transmitter is also enabled at power – up for at least 4 minutes.

o)Receiver-amplifier combination is always on for at least 10 minutes = green led on. When the transmitter stops (red led off), the receiver-amplifier will mute, green led stays on, and after ten minutes the amplifier-receiver goes into s leep-mode = red led on

p)When distorted audio is noticed, please select different channel as the interference could be caused by other equipment in your house using same freq. channel or even by one of your neighbours.

q)The metal table stand can be used for slightly upright position of the receiver/amplifier unit. If used, make sure you rotate the antenna towards vertical position.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

1. GENERAL

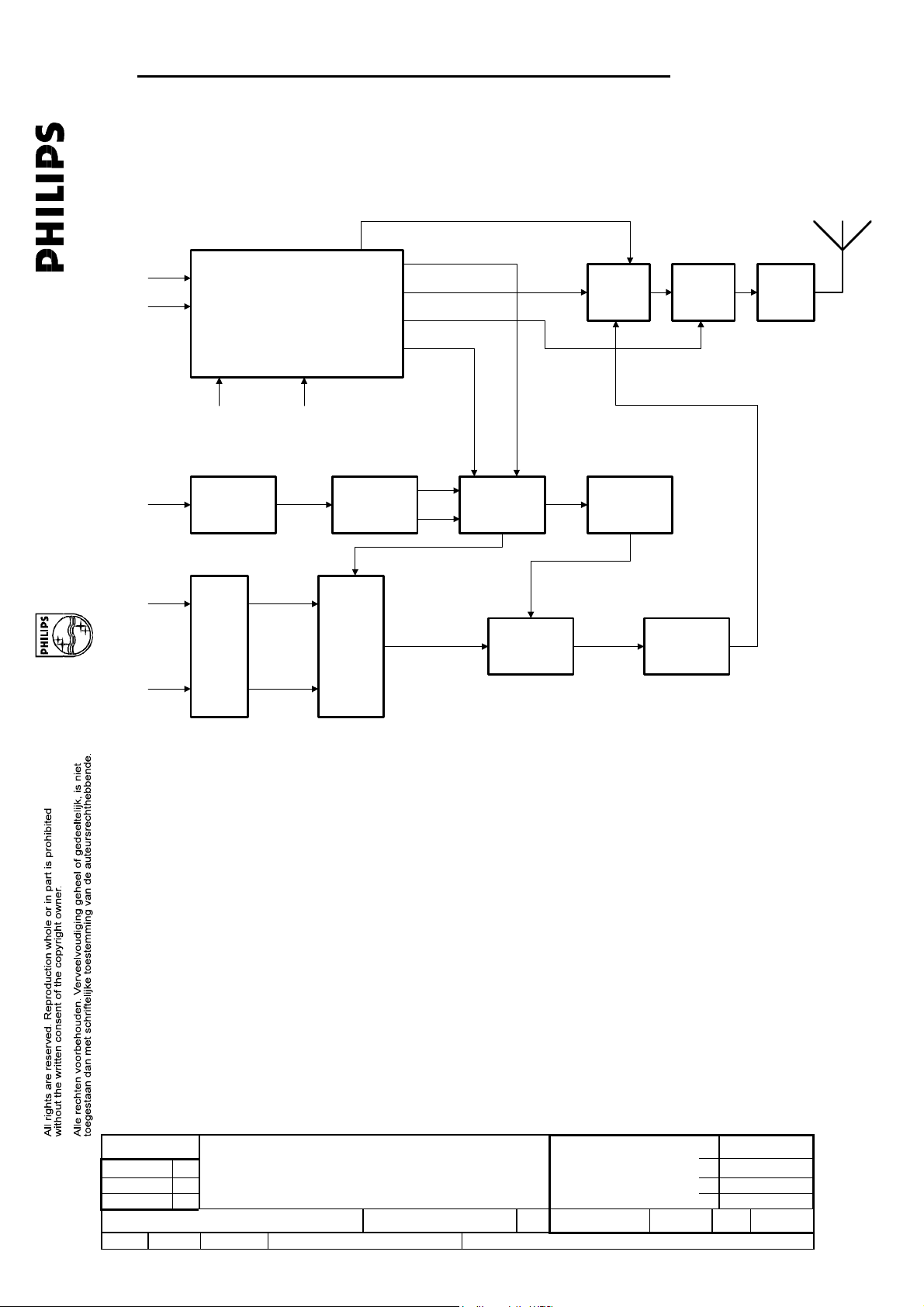

The Mark-3 transmitter is designed specifically for use with a TV set as a surround signal (Digital Dolby or ProLogic) transmitter towards wireless surround speakers.

As such the transmitter can be connected via a cable assy. towards the TV set. Audio, supply and I²C signals can be extracted out of the TV chassis. The transmitter is designed for high quality stereo audio from 20Hz to 20kHz and has a compander to enable high S/N ratios.

The basic version is intended for the European freq. band of 863-865 MHz. Derived versons are available for 433 and 914 MHz.

The pilot and subcarrier frequency have been set to 23.4375 kHz and 46.875 kHz. (3th harmonic related to 15.625 kHz). This way interference whistling in TV sets with 15625 Hz is avoided. Further the translitter has improved pulling behaviour which results in additional immunity to picking up stray EM-fields from the TV hardware.

The Mark-3 module needs proper I²C signals from the host controller at hex C6 to properly set the synthesiser and other functions on board of the Tx. For details on I2C commands to send refer to our document " I2C commands for Mark-3 Transmitter" archived under 3104 217 07110 sheet 112.

2. USED TECHNOLOGIES AND DIMENSIONS

The design platform is MentorGraphics with CE design rules acc. UAND1829 & UAND1833. The pb technology used is class 5 on FR4 1.6mm thickness, 2 layers

	Component management system :	LSDB
	Archiving system :	PALS / CORDIS
	Stuffing technologies :	SMD in 0603/0805 size and SMD elcaps
		manual for some remaining components

The pb is set up as 1/6 of a 141 by 240 mm workboard .

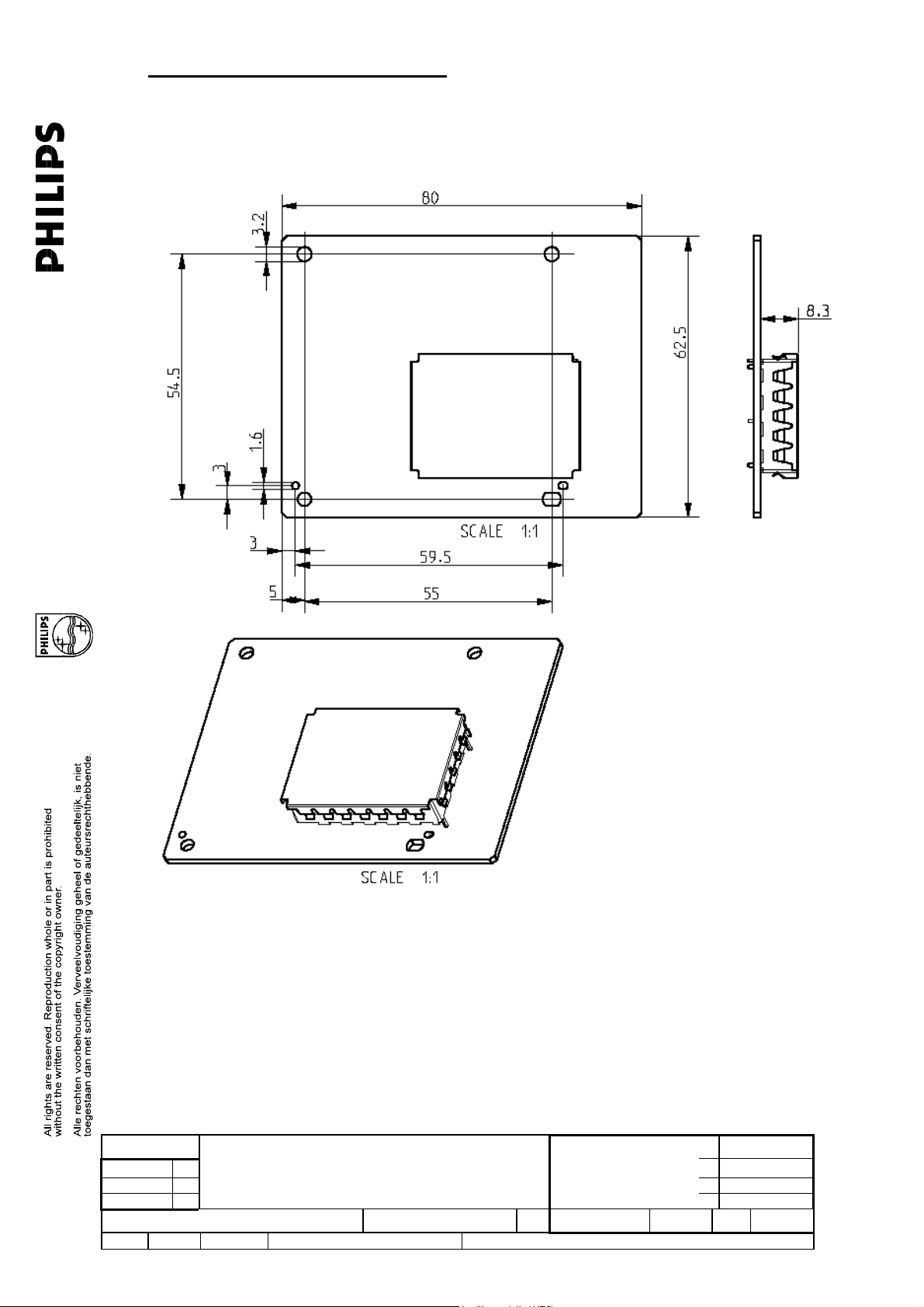

The exact dimensioning is 80mm by 62.5mm per unit. See last sheet for sketch drawing.

3. INPUTS / OUTPUTS

The connectable transmitter has to be connected to the driving set by a shielded 8 fold flatcable . Connector type at transmitter side : 8-fold jst type EH vertical

Wire function	Jst on pcb , pin no
R input	1
Signal ground	2
L input	3
Supply input +12V	4
Power ground + shield wire	5
Power ground	6
SCL of I2C	7
SDA of I2C	8

Note : drain wire of shield connected to pin 5 (as wiring of MG98 cable)

Input sensitivity for max deviation (50 kHz) : 0.42 Vrms
Input impedance :					typ. 12 kohm
Driving impedance (from TV source) : < 100 ohm
3XX000				Mark 3 Wireless Transmitter					3104 217 0711			0		2002-02-04
		1										0		2002-02-22
		2			version 0.3							0		2002-03-05
		3
Name: Felix			Elsen			PDSL_L		5	190 - 1	10					A4
PL					Or. date 2002-	01-12	Koninklijk PHILIPS		Electronics N.V. All rights reserved
