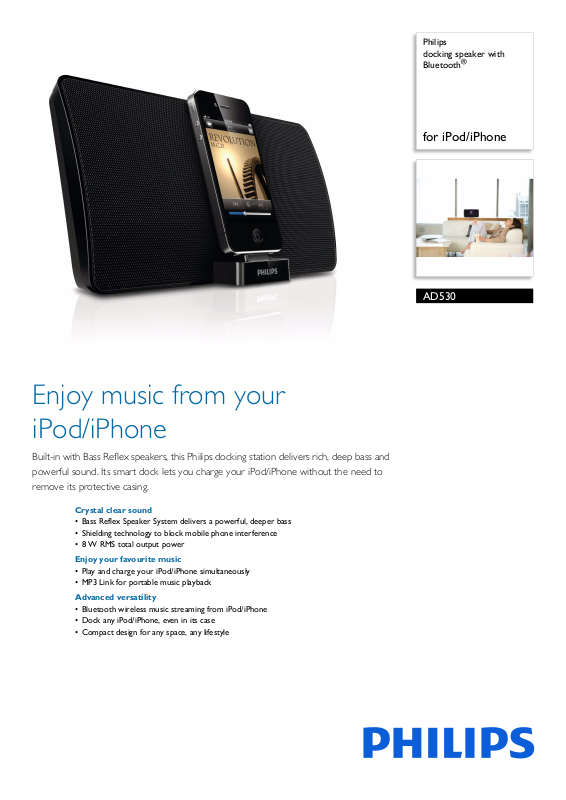

Philips AD530/05 leaflet

Philips
docking speaker with
Bluetooth

®

for iPod/iPhone

AD530

Enjoy music from your
iPod/iPhone

Built-in with Bass Reflex speakers, this Philips docking station delivers rich, deep bass and
powerful sound. Its smart dock lets you charge your iPod/iPhone without the need to
remove its protective casing.

Crystal clear sound

• Bass Reflex Speaker System delivers a powerful, deeper bass

• Shielding technology to block mobile phone interference

• 8 W RMS total output power

Enjoy your favourite music

• Play and charge your iPod/iPhone simultaneously

• MP3 Link for portable music playback

Advanced versatility

• Bluetooth wireless music streaming from iPod/iPhone

• Dock any iPod/iPhone, even in its case

• Compact design for any space, any lifestyle

AD530/05

docking speaker with Bluetooth®

for iPod/iPhone

Specifications

iPod compatibility

• Compatible with: iPod classic, iPod mini, iPod nano
1st generation, iPod nano 2nd generation, iPod
nano 3rd generation, iPod nano 4th generation,
iPod nano 5th generation, iPod nano 6th
generation, iPod touch, iPod touch 2nd generation,
iPod touch 3rd generation, iPod touch 4th
generation

iPhone compatibility

• Compatible with: iPhone, iPhone 3G, iPhone 3GS,
iPhone 4, iPhone 4S

Sound

• Sound system: stereo

• Volume control: up/down

• Output power: 8 W RMS

Connectivity

• MP3 Link: 3.5 mm stereo line in

• Bluetooth profiles: A2DP

• Bluetooth range: line of sight, 10 m or 30 ft

• Bluetooth version: 2.1

Power

• Power supply: 100 - 240 V AC, 50/60 Hz

Accessories

•AC/DC Adapter

Convenience

• Charging device: iPod, iPhone

Dimensions

• Product dimensions (WxDxH): 260 x 103 x
131 mm

• Packaging dimensions (WxDxH): 354 x 136 x 167
mm

• Product weight: 1.8 kg

• Weight incl. Packaging: 1.3 kg

•

Highlights

Bluetooth music streaming

Bluetooth is a short range wireless communication
technology that is both robust and energy-efficient.
The technology allows easy wireless connection to
other Bluetooth devices, so you can play your
favourite music from your iPod or iPhone on your
Philips audio system - conveniently, anytime you
want.

Bass Reflex Speaker System

Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimise the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by causing the air mass in the bass pipe
to vibrate like a conventional woofer. Combined
with the response of the woofer, the system extends
the overall low frequency sounds to create a
completely new dimension of deep bass.

MP3 Link

The MP3 link connectivity allows direct playback of
MP3 content from portable media players. Besides
the benefit of enjoying your favourite music in the
superior sound quality delivered by the audio
system, the MP3 link is also extremely convenient as
all you have to do is to plug your portable MP3 player
into the audio system.

Dock iPod/iPhone in its case

Issue date 2017-04-05

Version: 3.0.4

12 NC: 8670 000 89499
EAN: 87 12581 64258 7

© 2017 Koninklijke Philips N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.

www.philips.com

Smartly designed spring-loaded docking port
effortlessly accommodates any iPod or iPhone,
without special adapters. What's more, it works
even when most protective cases are on – just dock
your iPod or iPhone as it is. Now you can truly have
fuss-free enjoyment of your music.
