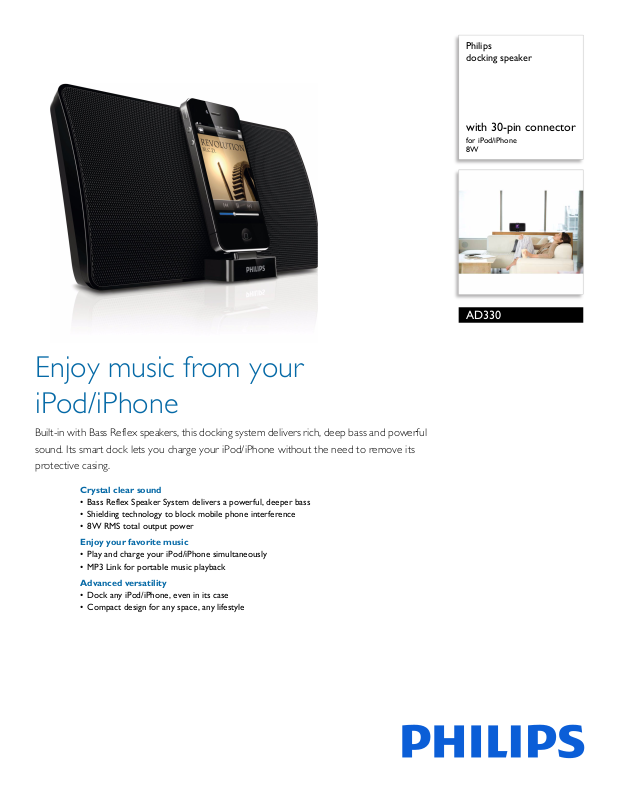

Philips AD330-37 User Manual

Philips
docking speaker

with 30-pin connector

for iPod/iPhone
8W

AD330

Enjoy music from your
iPod/iPhone

Built-in with Bass Reflex speakers, this docking system delivers rich, deep bass and powerful
sound. Its smart dock lets you charge your iPod/iPhone without the need to remove its
protective casing.

Crystal clear sound

• Bass Reflex Speaker System delivers a powerful, deeper bass

• Shielding technology to block mobile phone interference

• 8W RMS total output power

Enjoy your favorite music

• Play and charge your iPod/iPhone simultaneously

• MP3 Link for portable music playback

Advanced versatility

• Dock any iPod/iPhone, even in its case

• Compact design for any space, any lifestyle

Docking speaker

with 30-pin connector for iPod/iPhone, 8W

AD330/37

Specifications

iPod compatibility

• Compatible with: iPod classic, iPod mini, iPod nano
1st generation, iPod nano 2nd generation, iPod nano
3rd generation, iPod nano 4th generation, iPod nano
5th generation, iPod nano 6th generation, iPod
touch, iPod touch 2nd generation, iPod touch 3rd
generation, iPod touch 4th generation

iPhone compatibility

• Compatible with: iPhone, iPhone 3G, iPhone 3GS,
iPhone 4, iPhone 4S

Sound

• Sound system: stereo

• Volume control: up/down

• Output power: 8 W RMS

Connectivity

• MP3 Link: 3.5mm stereo line in

Power

• Power supply: 100 - 240V AC, 50/60Hz

Accessories

•AC/DC Adaptor

Convenience

• Charging device: iPod, iPhone

Dimensions

• Product dimensions (WxDxH): 260 x 103 x 131 mm

• Packaging dimensions (WxDxH): 354 x 136 x 167
mm

• Product weight: 1.8 kg

• Weight incl. Packaging: 1.3 kg

•

Highlights

Bass Reflex Speaker System

Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box system
in the addition of a bass pipe that is acoustically aligned
to the woofer to optimize the low frequency roll-off
of the system. The result is deeper controlled bass and
lower distortion. The system works by resonating the
air mass in the bass pipe to vibrate like a conventional
woofer. Combined with the response of the woofer,
the system extends the overall low frequency sounds
to create a whole new dimension of deep bass.

MP3 Link

Issue date 2014-06-11

Version: 3.1.2

12 NC: 8670 000 93794
EAN: 00 60958 52286 41

© 2014 Koninklijke Philips N.V.
All Rights reserved.

Specifications are subject t
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.

www.philips.com

o change without notice.

The MP3 link connectivity allows direct playback of
MP3 content from portable media players. Besides the
benefit of enjoying your favorite music in the superior
sound quality delivered by the audio system, the MP3
link is also extremely convenient as all you have to do
is to plug your portable MP3 player to the audio
system.

Dock iPod/iPhone in its case

Smartly designed spring-loaded docking port
effortlessly accommodates any iPod or iPhone,
without special adaptors. What’s more, it works even
when most protective cases are on – just dock your
iPod or iPhone as it is. Now you can truly have fuss­free enjoyment of your music.
