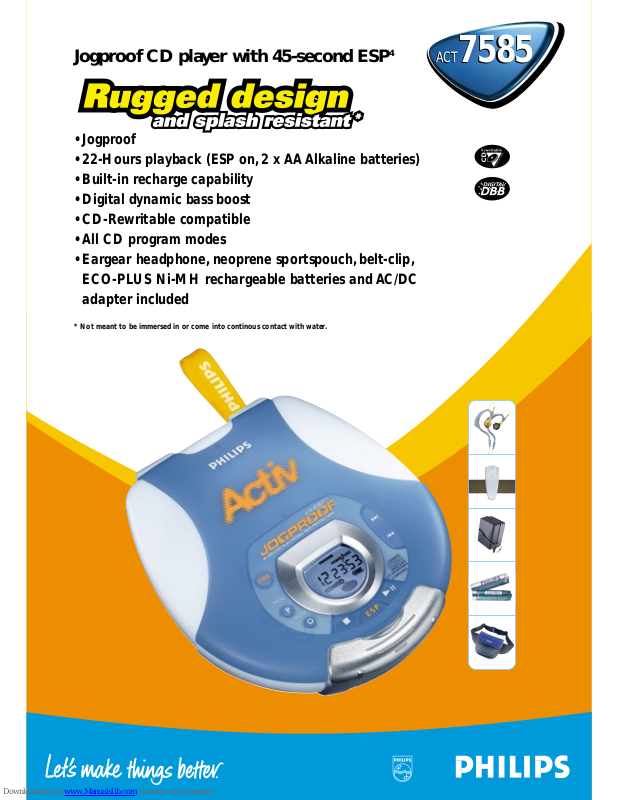

Philips AT7585, ACT7585/00, ACT7585/17 Specifications
Jogproof CD player with 45-second ESP
4
• Jogproof
• 22-Hours playback (ESP on, 2 x AA Alkaline batteries)
• Built-in recharge capability
• Digital dynamic bass boost
• CD-Rewritable compatible
• All CD program modes
• Eargear headphone, neoprene spor tspouch, belt-clip,
ECO-PLUS Ni-MH rechargeable batteries and AC/DC
adapter included
* Not meant to be immersed in or come into continous contact with water.
ACT7585
ACT7585
Standard product information
Amplifier/ system
• Output power (in-ear headphone)
2 x 3mW RMS
• 1-Bit D/A convertor for pure sound
reproduction
• Digital dynamic bass boost
• Rotary volume control
• S/N ratio (A weighted) >100 dB
• Frequency response 20 Hz - 20 kHz
• Acoustic feedback
CD player
• 30-Track programmable,shuffle, repeat 1/all and
introscan
• Search forward/backward with sound
• Resume and hold
ESP4- Fourth generation
electronic skip protection
• Electronic skip protection with 45 second
memory
LCD display
Indications for track,time, 2-stage DBB,CD functions,ESP and battery status
Connections
Headphone/line out:stereo,3.5 mm
DC in:4.0 mm, 4.5V,centre ‘+’
Power supply
• Batteries 2 x 1.5V,type
AA/LR6/UM3 cell
• Battery playing time 22 hours (ESP on,
Alkaline) /11 hours
(Ni-MH)
• Built-in battery recharge function for
ECO-PLUS Ni-MH batteries
• Automatic power switch-off
General
• Material High temperature
resistant plastic
• Weight 300g (excluding
batteries)
• Product dimensions
(mm) 142 L x 133 W x 32 H
• D-box dimensions
(mm) 244 L x 145 W x 79H
• Master carton dimensions
(mm) 252 L x 248 W x 161H
• Master carton quantity 3
Accessories
• Stereo in-ear headphone
• AC/DC adapter
• ECO-PLUS rechargeable Ni-MH batteries
• Joggable neoprene pouch with wearing belt
• Belt-clip
Rugged design and splash resistant *
Made for outdoor fun,with rubber gaskets and splash
resistant seals that keep out water, moisture and dir t.
Jogproof
Fourth generation electronic skip protection for
continous music play with 45 second music buffer and
upto five times faster shock recovery than conventional
systems.
22-Hours playback (ESP on, 2 x AA Alkaline
batteries)
Powersaving technology extends battery playing time
to 22 hours with two regular LR6-size (AA) alkaline
batteries.
Built-in recharge capability
Built-in recharge capability for ECO-PLUS Ni-MH
batteries (batteries AY3362 included).
Digital dynamic bass boost
Enhances bass at low,mid and high volume, to give
deep,ric h sounds .
CD-Rewritable compatible
Ensures that both CD-Recordable and CD-Rewritable
discs, made by any CD-Recorder, can be played.
All CD program modes
Let you enjoy various CD program modes (repeat one/
repeat all/ shuffle/ introscan).
ECO-PLUS Ni-MH rechargeable battery
Durable and environmental friendly rechargeable
battery type which is quick and easy to c harge.
Heat resistant body
Unique composite material enables the CD player to
withstand very high temperature.
1-Bit D/A converter
Advanced digital conversion technology ensures
crystal-clear sound.
Hold
Bookmark function that ensures the CD starts
precisely from the point it was stopped.
Resume
Ensures the CD starts precisely from the point it was
stopped.
Automatic power off
Automatically switches off the CD player at the end
of a compact disc.
CD next/ previous
Plays the next or previous track at the touch of
a button.
CD music search
Searches the CD at high speed while still producing
low-volume sound so you know exactly when to stop.
Repeat one/ all
Repeat the current track or the total CD.
Shuffle
Plays disc selection randomly,giving you each time
a new sequence of tracks.
30-track programmable
Stores up to 30 of your favourite tracks for playing
back in your order of preference.
Acoustic feedback
Confirms any key-push with friendly beep to
acknowledges that a command has been given.
Printed in Hong Kong 2001-02-01
Specifications subject to modification
without notice
© 2001 Koninklijke Philips Electronics N.V.
All rights reserved
http://www.philips.com
