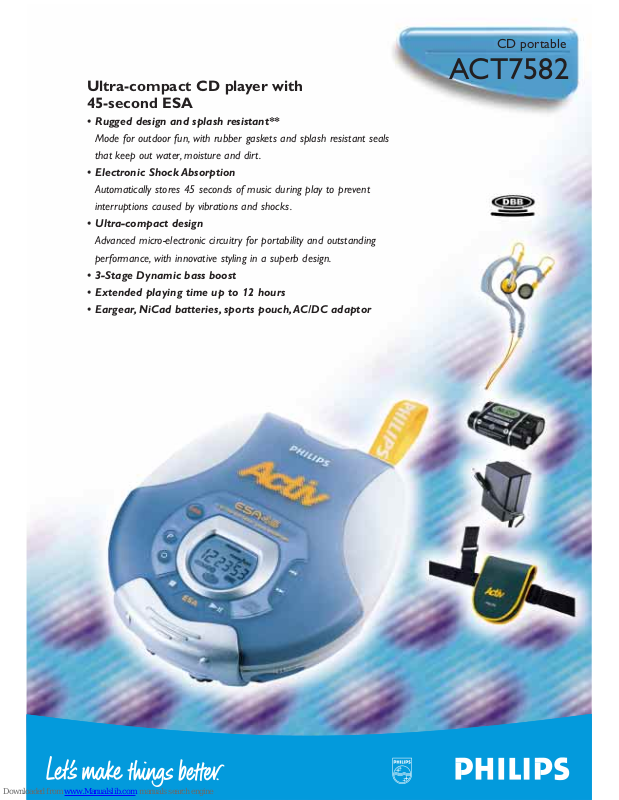

Philips ACT7582/00, ACT7582/05, ACT7582/14 Specification Sheet
CD portable
ACT7582
Ultra-compact CD player with
45-second ESA
• Rugged design and splash resistant**
Mode for outdoor fun, with rubber gaskets and splash resistant seals
that keep out water, moisture and dirt.
• Electronic Shock Absorption
Automatically stores 45 seconds of music during play to prevent
interruptions caused by vibrations and shocks.
• Ultra-compact design
Advanced micro-electronic circuitry for portability and outstanding
performance, with innovative styling in a superb design.
• 3-Stage Dynamic bass boost
• Extended playing time up to 12 hours
• Eargear, NiCad batteries, sports pouch, AC/DC adaptor
CD portable
ACT7582
Amplifier/system
• Output power (headphone) 2 x 12 mW RMS
• 3-stage Dynamic Bass Boost
• Automatic power switch-off
• Rotary volume control
• Built-in battery recharger function for NiCad battery
• Acoustic feedback
CD player
• Electronic Shock Absorption (ESA) with 45-second memory
• 99-track programmable, shuffle, repeat 1/all and introscan
• Search forward/backward with sound
• 1-Bit D/A convertor for pure sound reproduction
• S/N ratio (A weighted) : > 85 dB
• Frequency response : 20 Hz - 20 kHz.
• Resume and hold
Display
• 6-digit LCD
• Indications for track, time, DBB, CD functions, battery and ESA
Connections
• Headphone/line out : stereo, 3.5 mm
• DC in : 4 mm, 4.5 V, centre ‘+’
Power supply
• Batteries : 2 x 1.5 V, type AA/LR6/UM3 cell
• Typical playing time : 12 hours
• External supply /00 : 230 V AC to 4.5 V DC
/01, /11 : 120/230 V AC (switchable) to 4.5 V DC
General
• Material : High temperature resistant plastic
• Weight : 230 g (excluding batteries)
• Dimensions : 131.8mm W x 30mm H x 143.3mm D
• Quantity/mastercarton : 3
Accessories
• AC/DC adaptor
• Eargear
• Rechargeable battery pack
• Sports pouch
Optional accessories (contact your dealer or service
centre)
• AY 3501 Car cassette adaptor
• AY 3545 Cigarette lighter adaptor
Standard product information
1999-01-11
Printed in Hong Kong
Subject to modification without notice
© 1998 Koninklijke Philips Electronics N.V.
All Rights Reserved
http://www.philips.com
Product highlights
• 3-Stage Dynamic bass boost
Enhances bass tone frequencies to give three levels of deep, rich sounds.
• Large LCD
Large LCD ensures that all CD function displays are bigger and brighter for
easier viewing.
• Feedback tone
Confirms any key-push with friendly beep.
• Play mode
Let’s you enjoy various track repeat modes (one/all/shuffle) or a combination
of each. Introscan plays 8 seconds of each track automatically.
• Next/previous track search
Two-button control that puts you immediately at the start of the previous
track or next track.
• Search with sound
Produces audible “bits” of sound while you search backwards or forwards
within a CD track.
• Hold
Prevents accidental interruption of play or changing of the setting.
• Resume
Ensures the CD starts precisely from the point it was stopped.
• Automatic power off
Automatically switches off the CD player at the end of a compact disc.
• 1-Bit D/A converter
Advanced digital conversion technology ensures crystal-clear sounds for pure
listening pleasure.
• Other CD features include:
Large LCD, 99-track programming, shuffle, repeat one/all and introscan
functions, and feedback beep to confirm key-push operation.
** Not meant to be immersed in or come into continous contact with water
