CorePro LEDspot

LightingLighting

Reflectors

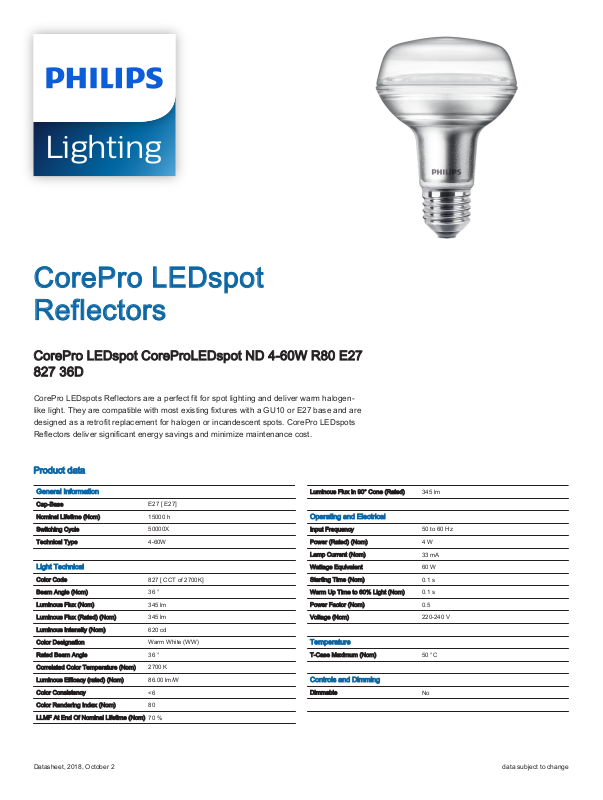

CorePro LEDspot CoreProLEDspot ND 4-60W R80 E27
827 36D

CorePro LEDspots Reflectors are a perfect fit for spot lighting and deliver warm halogen-

like light. They are compatible with most existing fixtures with a GU10 or E27 base and are

designed as a retrofit replacement for halogen or incandescent spots. CorePro LEDspots

Reflectors deliver significant energy savings and minimize maintenance cost.

Product data

General Information

Cap-Base E27 [ E27]

Nominal Lifetime (Nom) 15000 h

Switching Cycle 50000X

Technical Type 4-60W

Light Technical

Color Code 827 [ CCT of 2700K]

Beam Angle (Nom) 36 °

Luminous Flux (Nom) 345 lm

Luminous Flux (Rated) (Nom) 345 lm

Luminous Intensity (Nom) 620 cd

Color Designation Warm White (WW)

Rated Beam Angle 36 °

Correlated Color Temperature (Nom) 2700 K

Luminous Efficacy (rated) (Nom) 86.00 lm/W

Color Consistency <6

Color Rendering Index (Nom) 80

LLMF At End Of Nominal Lifetime (Nom) 70 %

Luminous Flux in 90° Cone (Rated) 345 lm

Operating and Electrical

Input Frequency 50 to 60 Hz

Power (Rated) (Nom) 4 W

Lamp Current (Nom) 33 mA

Wattage Equivalent 60 W

Starting Time (Nom) 0.1 s

Warm Up Time to 60% Light (Nom) 0.1 s

Power Factor (Nom) 0.5

Voltage (Nom) 220-240 V

Temperature

T-Case Maximum (Nom) 50 °C

Controls and Dimming

Dimmable No

Datasheet, 2018, October 2 data subject to change

D

C

200

400300

500

600

0

40

80

20

60

700 800

100

[nm]

Intensity (%)

CorePro LEDspot Reflectors

Approval and Application

Suitable For Accent Lighting Yes

Energy Efficiency Label (EEL) A+

Energy Consumption kWh/1000 h 4 kWh

Product Data

Full product code 871869681183200

Order product name CorePro LEDspot CoreProLEDspot ND 4-60W R80

E27 827 36D

Dimensional drawing

R80 5-60W 345lm 36D 2700K E27 No

EAN/UPC - Product 8718696811832

Order code 929001891502

Numerator - Quantity Per Pack 1

Numerator - Packs per outer box 6

Material Nr. (12NC) 929001891502

Net Weight (Piece) 0.144 kg

Product D C

CorePro LEDspot CoreProLEDspot ND 4-60W R80 E27 827

36D

80 mm 112 mm

Photometric data

LEDspot CorePro 1.8-30W E14 R39 827 36D ND
