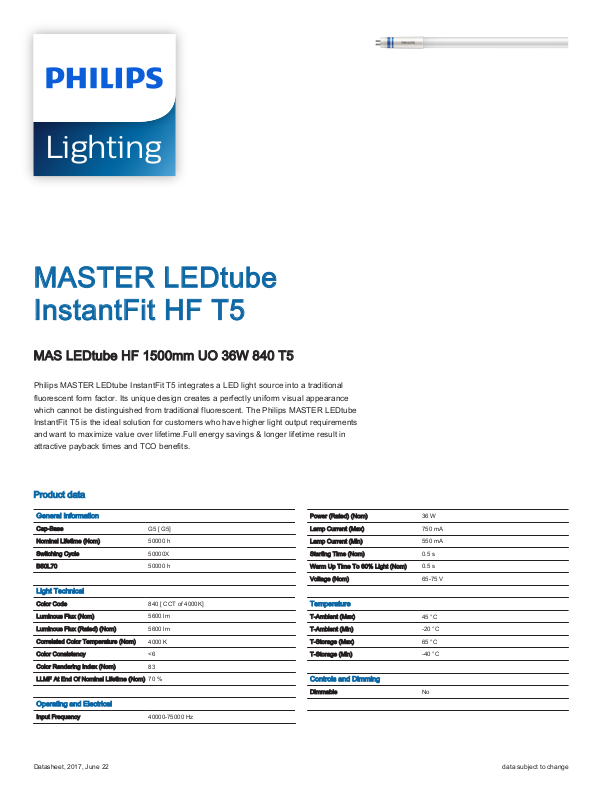

MASTER LEDtube
InstantFit HF T5
MAS LEDtube HF 1500mm UO 36W 840 T5
Philips MASTER LEDtube InstantFit T5 integrates a LED light source into a traditional fluorescent form factor. Its unique design creates a perfectly uniform visual appearance which cannot be distinguished from traditional fluorescent. The Philips MASTER LEDtube InstantFit T5 is the ideal solution for customers who have higher light output requirements and want to maximize value over lifetime.Full energy savings & longer lifetime result in attractive payback times and TCO benefits.
Product data
General Information
Cap-Base |
G5 [ G5] |
|
|
Nominal Lifetime (Nom) |
50000 h |
|
|
Switching Cycle |
50000X |
|
|
B50L70 |
50000 h |
|
|
Light Technical
Color Code |
840 [ CCT of 4000K] |
|
|
Luminous Flux (Nom) |
5600 lm |
|
|
Luminous Flux (Rated) (Nom) |
5600 lm |
|
|
Correlated Color Temperature (Nom) |
4000 K |
|
|
Color Consistency |
<6 |
|
|
Color Rendering Index (Nom) |
83 |
|
|
LLMF At End Of Nominal Lifetime (Nom) |
70 % |
|
|
Operating and Electrical
Input Frequency |
40000-75000 Hz |
|
|
Power (Rated) (Nom) |
36 W |
|
|
Lamp Current (Max) |
750 mA |
|
|
Lamp Current (Min) |
550 mA |
|
|
Starting Time (Nom) |
0.5 s |
|
|
Warm Up Time To 60% Light (Nom) |
0.5 s |
|
|
Voltage (Nom) |
65-75 V |
|
|
Temperature
T-Ambient (Max) |
45 °C |
|
|
T-Ambient (Min) |
-20 °C |
|
|
T-Storage (Max) |
65 °C |
|
|
T-Storage (Min) |
-40 °C |
|
|
Controls and Dimming
Dimmable No
Datasheet, 2017, June 22 |
data subject to change |
MASTER LEDtube InstantFit HF T5
Mechanical and Housing
Product Length |
1500 mm |
|
|
Approval and Application
Energy Saving Product |
Yes |
|
|
Energy Efficiency Label (EEL) |
A++ |
|
|
Approval Marks |
TUV CE marking RoHS compliance KEMA Keur |
|
certificate |
|
|
Energy Consumption kWh/1000 h |
42 kWh |
|
|
Product Data
Full product code |
871869670603900 |
|
|
Dimensional drawing
|
A3 |
|
A2 |
|
A1 |
D1 |
D2 |
Order product name |
MAS LEDtube HF 1500mm UO 36W 840 T5 |
|
|
EAN/UPC - Product |
8718696706039 |
|
|
Order code |
929001346202 |
|
|
Numerator - Quantity Per Pack |
1 |
|
|
Numerator - Packs per outer box |
10 |
|
|
Material Nr. (12NC) |
929001346202 |
|
|
Net Weight (Piece) |
0.170 kg |
|
|
Product |
D1 |
D2 |
A1 |
A2 |
A3 |
|
|
|
|
|
|
MAS LEDtube HF 1500mm UO 36W 15.2 mm 21 mm 1447.8 mm 1454.9 mm 1462 mm 840 T5
TLED 230V 37-80W 5600lm 160D 4000K G5 ND
Photometric data
General Uniform Lighting
|
|
1 X TLED 36W 4000K 160D 9290013462 |
|
|
1 x 5600 lm |
Polar intensity diagram |
Quantity estimation diagram |
UGR diagram |
|
Utilisation factor table |
Luminance Table |
CalcuLuX Photometrics 4.5 |
Philips Lighting B.V. |
Page: 1/1 |
100
(%) |
80 |
|
|
|
|
|
|
Intensity |
|
|
|
|
|
|
|
60 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
40 |
|
|
|
|
|
|
|
20 |
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
200 |
300 |
400 |
500 |
600 |
700 |
800 |
|
|
|
|
|
|
|
[nm] |
Datasheet, 2017, June 22 |
2 |
data subject to change |
