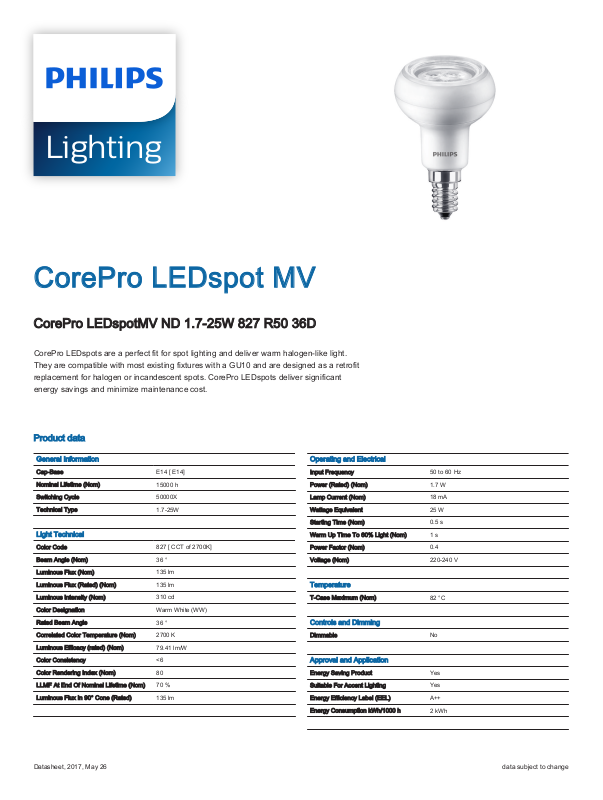

CorePro LEDspot MV
LightingLighting
CorePro LEDspotMV ND 1.7-25W 827 R50 36D
CorePro LEDspots are a perfect fit for spot lighting and deliver warm halogen-like light.
They are compatible with most existing fixtures with a GU10 and are designed as a retrofit
replacement for halogen or incandescent spots. CorePro LEDspots deliver significant
energy savings and minimize maintenance cost.
Product data
General Information
Cap-Base E14 [ E14]
Nominal Lifetime (Nom) 15000 h
Switching Cycle 50000X
Technical Type 1.7-25W
Light Technical
Color Code 827 [ CCT of 2700K]
Beam Angle (Nom) 36 °
Luminous Flux (Nom) 135 lm
Luminous Flux (Rated) (Nom) 135 lm
Luminous Intensity (Nom) 310 cd
Color Designation Warm White (WW)
Rated Beam Angle 36 °
Correlated Color Temperature (Nom) 2700 K
Luminous Efficacy (rated) (Nom) 79.41 lm/W
Color Consistency <6
Color Rendering Index (Nom) 80
LLMF At End Of Nominal Lifetime (Nom) 70 %
Luminous Flux In 90° Cone (Rated) 135 lm
Operating and Electrical
Input Frequency 50 to 60 Hz
Power (Rated) (Nom) 1.7 W
Lamp Current (Nom) 18 mA
Wattage Equivalent 25 W
Starting Time (Nom) 0.5 s
Warm Up Time To 60% Light (Nom) 1 s
Power Factor (Nom) 0.4
Voltage (Nom) 220-240 V
Temperature
T-Case Maximum (Nom) 82 °C
Controls and Dimming
Dimmable No
Approval and Application
Energy Saving Product Yes
Suitable For Accent Lighting Yes
Energy Efficiency Label (EEL) A++
Energy Consumption kWh/1000 h 2 kWh
Datasheet, 2017, May 26 data subject to change
C
D
200
400300
500
600
0
40
80
20
60
700 800
100
[nm]
Intensity (%)
2016-02-16
1 x R50 5W 2700K 36D 9290012358
1 x 320 lm
Light output ratio 1.10
Service upward 0.00
Service downward 1.10
Imax 732 cd
BS (1/2I
max
)o2 x 18
BS (1/2E0)o2 x 16
Polar intensity diagram
(cd)
0-180o90-270
o
0
o
180
o
30oo30
60oo60
90oo90
120oo120
150
300
450
600
750
γ
Cartesian intensity diagram
(cd)
0
200
400
600
800
1000
-60o-40o-20o0o20o40o60oγ
o
0-180
o
90-270
Beam diagram
h
h(m)
(m) (lx)VBA1/2I
max
1
/2E
0
E0d(m)
1.0
2.0
3.0
4.0
5.0
3.0 2.0 1.0 0.0 1.0 2.0 3.0 (m)
1.0 732 0.65 0.57
1.5 326 0.97 0.86
2.0 183 1.30 1.15
2.5 117 1.62 1.43
3.0 81 1.95 1.72
3.5 60 2.27 2.01
4.0 46 2.60 2.29
4.5 36 2.92 2.58
o
2 x 18
maxI2
/
1
Visual impact diagram
Accent
factor
2
5
10
15
30
50
100
Eh(lx)25 50 100 250500 1000
4
m
3
m
2
m
1
m
Accent Lighting - Spots
CalcuLuX Photometrics 4.5 Philips Lighting B.V. Page: 1/1
CorePro LEDspot MV
Product Data
Full product code 871869657849000
Order product name CorePro LEDspotMV ND 1.7-25W 827 R50 36D
EAN/UPC - Product 8718696578490
Order code 929001235802
Numerator - Quantity Per Pack 1
Dimensional drawing
R50 220-240V 3W-25W 104lm 2700K E14 ND
Photometric data
Numerator - Packs per outer box 6
Material Nr. (12NC) 929001235802
Net Weight (Piece) 0.045 kg
Product D C
CorePro LEDspotMV ND 1.7-25W 827 R50 36D 51 mm 81 mm
© 2017 Philips Lighting Holding B.V. All rights reserved. Philips Lighting reserves the right to make changes in specifications
and/or to discontinue any product at any timewithout notice or obligation and will not be liable for any consequences resulting
from the use of this publication.
www.lighting.philips.com
2017, May 26 - data subject to change
