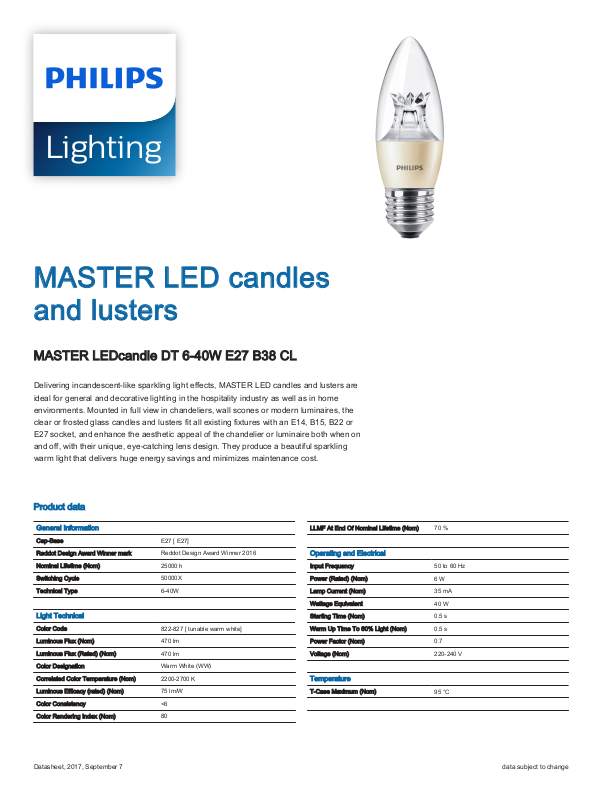

Philips 8718696474792 User Manual
MASTER LED candles
LightingLighting
and lusters
MASTER LEDcandle DT 6-40W E27 B38 CL
Delivering incandescent-like sparkling light effects, MASTER LED candles and lusters are
ideal for general and decorative lighting in the hospitality industry as well as in home
environments. Mounted in full view in chandeliers, wall scones or modern luminaires, the
clear or frosted glass candles and lusters fit all existing fixtures with an E14, B15, B22 or
E27 socket, and enhance the aesthetic appeal of the chandelier or luminaire both when on
and off, with their unique, eye-catching lens design. They produce a beautiful sparkling
warm light that delivers huge energy savings and minimizes maintenance cost.
Product data
General Information
Cap-Base E27 [ E27]
Reddot Design Award Winner mark Reddot Design Award Winner 2016
Nominal Lifetime (Nom) 25000 h
Switching Cycle 50000X
Technical Type 6-40W
Light Technical
Color Code 822-827 [ tunable warm white]
Luminous Flux (Nom) 470 lm
Luminous Flux (Rated) (Nom) 470 lm
Color Designation Warm White (WW)
Correlated Color Temperature (Nom) 2200-2700 K
Luminous Efficacy (rated) (Nom) 75 lm/W
Color Consistency <6
Color Rendering Index (Nom) 80
LLMF At End Of Nominal Lifetime (Nom) 70 %
Operating and Electrical
Input Frequency 50 to 60 Hz
Power (Rated) (Nom) 6 W
Lamp Current (Nom) 35 mA
Wattage Equivalent 40 W
Starting Time (Nom) 0.5 s
Warm Up Time To 60% Light (Nom) 0.5 s
Power Factor (Nom) 0.7
Voltage (Nom) 220-240 V
Temperature
T-Case Maximum (Nom) 95 °C
Datasheet, 2017, September 7 data subject to change
C
D
200
400300
500
600
0
40
80
20
60
700 800
100
[nm]
Intensity (%)
MASTER LED candles and lusters
Controls and Dimming
Dimmable Yes
Mechanical and Housing
Bulb Finish Clear
Approval and Application
Suitable For Accent Lighting No
Energy Efficiency Label (EEL) A+
Energy Consumption kWh/1000 h 6 kWh
Dimensional drawing
Product Data
Full product code 871869647479200
Order product name MASTER LEDcandle DT 6-40W E27 B38 CL
EAN/UPC - Product 8718696474792
Order code 929001157902
Numerator - Quantity Per Pack 1
Numerator - Packs per outer box 10
Material Nr. (12NC) 929001157902
Net Weight (Piece) 0.063 kg
Product D C
MASTER LEDcandle DT 6-40W E27 B38 CL 38 mm 112 mm
Candle 220-240V 6W-40W 470lm 2700K E27 D
Photometric data
DT 6-40W, 9-60W, ND 6.5-40W, 9.5-60W 2200-2700K A60 CL
2Datasheet, 2017, September 7 data subject to change
