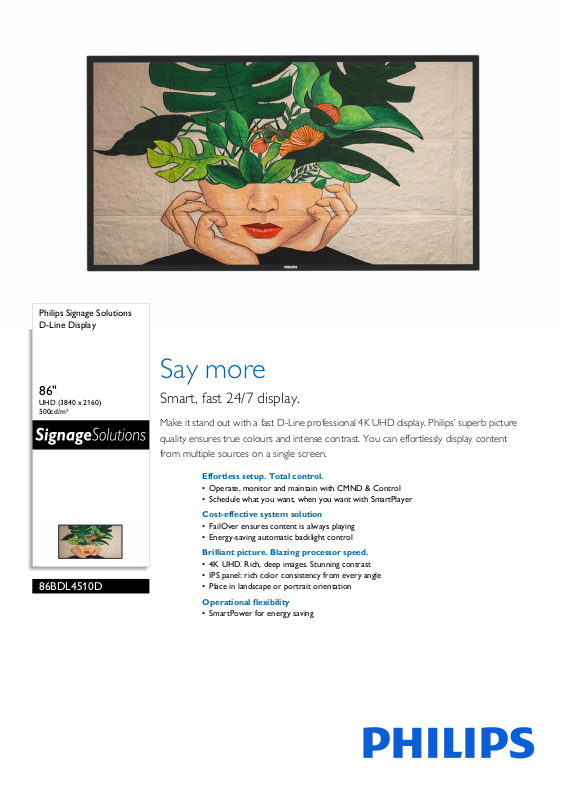

Page 1
Philips Signage Solutions
D-Line Display
Say more
86"
UHD (3840 x 2160)
500cd/m²
86BDL4510D
Smart, fast 24/7 display.
Make it stand out with a fast D-Line professional 4K UHD display. Philips’ superb picture
quality ensures true colours and intense contrast. You can effortlessly display content
from multiple sources on a single screen.
Effortless setup. Total control.
• Operate, monitor and maintain with CMND & Control
• Schedule what you want, when you want with SmartPlayer
Cost-effective system solution
• FailOver ensures content is always playing
• Energy-saving automatic backlight control
Brilliant picture. Blazing processor speed.
• 4K UHD. Rich, deep images. Stunning contrast
• IPS panel: rich color consistency from every angle
• Place in landscape or portrait orientation
Operational flexibility
• SmartPower for energy saving
Page 2
86BDL4510D/75
D-Line Display
86" UHD (3840 x 2160), 500cd/m²
Highlights
CMND & Control
Run your display network over a local (LAN)
connection. CMND & Control allows you to
perform vital functions like controlling inputs
and monitoring display status. Whether you're
in charge of one screen or 100.
FailOver
From waiting room to meeting room, never
show a blank screen. FailOver lets your Philips
Professional Display switch automatically
between primary and secondary inputs
ensuring content keeps playing even if the
primary source goes down. Simply set a list of
alternate inputs to be sure your business is
always on.
SmartPower
The backlight intensity can be controlled and
pre-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.
Page 3
86BDL4510D/75
D-Line Display
86" UHD (3840 x 2160), 500cd/m²
Specifications
Picture/Display
• Diagonal screen size: 85.6 inch / 217.4 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @60Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Aspect ratio: 16:9
• Response time (typical): 8 ms
• Pixel pitch: 0.4935 x 0.4935 mm
• Display colors: 1.07 G Billion
• Viewing angle (H / V): 178 / 178 degree
• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfi
3D Co
MA deinterlacing, Dynamic contrast enhancement,
Progressive scan
• Panel technology: IPS
lter, Motion compens. deinterlacing, 3D
Connectivity
• Video input: HDMI 2.0 (x3), Display Port1.2 (x1),
DVI-I (x 1), USB 2.0 (x2)
• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)
• Audio input: 3.5 mm jack
• Audio output: 3.5mm jack
• Other connections: OPS
• External control: RJ45, RS232C (in/out) 2.5 mm
k, IR (in/out) 3.5 mm jack
c
ja
Supported Display Resolution
• Computer formats
Res
olution Refresh rate
1920 x 1080 60Hz
1280 x 1024 60Hz
1024 x 768 60Hz
1280 x 720 60Hz
1440 x 900
00 x 900 60Hz
16
1680 x 1050 60Hz
3840 x 2160 30, 60Hz
640 x 480 60Hz
800 x 600 60Hz
deo formats
• Vi
olution Refresh rate
Res
1080p 50, 60Hz
1080i 50, 60Hz
2160p 24, 30, 60Hz
480i 60Hz
480p 60Hz
576i 50Hz
60 Hz
576p 50Hz
720p 50,60 Hz
Dimensions
•Set dimensions (W x H x D):
1929.0 x 1100.0 x 69.5(D@Wall mount) /
(D@Handle) mm
91.8
• Set dimensions in inch (W x H x D):
4 x 43.31 x 2.74(D@Wall mount) /
75.9
3.61(D@Han
• Bezel width: 15.5 mm (Even bezel)
• Product weight (lb): 110.67 lb
• Product weight: 50.2 kg
• VESA Mount: 600(H)x400(V) mm, M8
dle) inch
Convenience
• Placement: Landscape (24/7), Portrait (24/7)
• Keyboard control: Hidden, Lockable
Signal loop through: IR Loopthrough, DisplayPort,
•
HDMI, RS
• Network controllable: RJ45, RS232
• Energy saving functions: Smart Power
• Screen saving functions: Pixel Shift, Low Bright
232
Power
• Standby power consumption: <0.5 W
• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
• Consumption (Typical): 290 W
• Consumption (Max): 520 W
• Energy Label Class: G
Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 - 80% RH (No
nden
sation)
co
• Humidity range (storage) [RH]: 5 - 95% RH (No
sation)
conden
Sound
• Built-in speakers: 2 x 10W RMS
Accessories
• Included accessories: Quick start guide, RS232
cable, AC Power Cord, IR sensor cable (1.8M),
Remote Control & AAA Batteries
• Included Accessories: RS232
d
aisy-chain cable, AC
Switc
h Cover, Philips logo (x1), Screws, USB
ver (x1)
Co
Multimedia Applications
• USB Playback Audio: AAC, HEAAC, MPEG
• USB Playback Picture: BMP, JPEG, PNG
• USB Playback Video: MPEG, H.263, H.2
VP8
64, H.265,
Miscellaneous
• On-Screen Display Languages: English, French,
German, Spanish, Polish, Turkish, Russian, Italian,
Simplified Chinese, Traditional Chinese, Arabic,
Japanese, Danish, Dutch, Finnish, Norwegian,
Portuguese, Swedish
• Regulatory approvals: CE, RoHS, BSMI, CB, CCC,
, EMF
, EnergyStar 8.0, ETL, FCC, Class A, PSB,
CU
VCCI
• Warranty: 3 year warranty
•
Issue date 2022-04-21
Version: 1.0.1
12 NC: 8670 001 68884
EAN: 87 12581 76907 9
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
