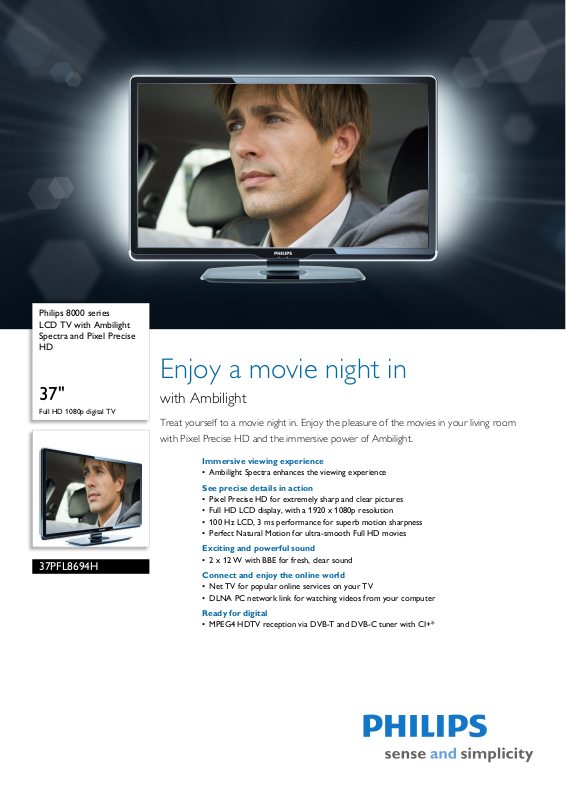

Philips 8000 series LCD TV with Ambilight Spectra and Pixel Precise HD

Enjoy a movie night in

37"

Full HD 1080p digital TV

37PFL8694H

with Ambilight

Treat yourself to a movie night in. Enjoy the pleasure of the movies in your living room with Pixel Precise HD and the immersive power of Ambilight.

Immersive viewing experience

• Ambilight Spectra enhances the viewing experience

See precise details in action

• Pixel Precise HD for extremely sharp and clear pictures

• Full HD LCD display, with a 1920 x 1080p resolution

• 100 Hz LCD, 3 ms performance for superb motion sharpness

• Perfect Natural Motion for ultra-smooth Full HD movies

Exciting and powerful sound

• 2 x 12 W with BBE for fresh, clear sound

Connect and enjoy the online world

• Net TV for popular online services on your TV

• DLNA PC network link for watching videos from your computer

Ready for digital

• MPEG4 HDTV reception via DVB-T and DVB-C tuner with CI+*

Page 2

LCD TV with Ambilight Spectra and Pixel Precise HD

37" Full HD 1080p digital TV

Highlights

37PFL8694H/12

Ambilight Spectra

Add a new dimension to your viewing e

xperience with Ambilight Spectra. This patented Philips technology enlarges the screen further by projecting a glow of light from the back of the screen onto the surrounding wall. Ambilight automatically adjusts the colour and brightness of the light surrounding the TV to match the picture, creating an immersive viewing experience. With Ambilight Spectra movies truly come to life!

Net TV

Experience a rich selection of online services with Net TV. Enjoy movies, pictures, infotainment and other online content directly on your TV whenever you like. Simply connect your TV directly to your home network through the Ethernet connection, and navigate and select what you want to watch with the TV remote control. The Philips menu gives you access to popular Net TV services fitted for your TV screen. Additionally, with the DLNA certified PC network you can watch videos or access pictures stored on your computer using your TV remote control.

Full HD LCD display 1920 x 1080p

The Full HD screen has the widescreen resoluti

on of 1920 x 1080p. This is the highest resolution of HD sources for the best possible picture quality. It is fully future-proof as it supports 1080p signals from all sources, including the most recent sources such as Bluray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colours.

Perfect Natural Motion

Enjoy the action without any judder. Perfect Nat

ural Motion estimates motion in the picture and corrects juddering movements in both broadcast and pre-recorded movie material (including 1080p movies and 24p True Cinema on Blu-ray and DVD). The result is even smoother and quieter pictures with excellent sharpness, regardless of how quick the action gets on-screen. Enjoy motion performance that surpasses cinema quality!

100 Hz LCD (3 ms)

100 Hz LCD creates extreme motion sharpness for clear and vibrant images even with fast on-screen motion. The Double Frame

Rate Insertion works with a high 100 Hz refresh rate. It increases the sharpness of motion reproduction to more than twice that of conventional LCD, resulting in a performance with a response time of 3 milliseconds (measured in Perceived BlurEdge-Width: BEW). This unique Philips technology takes motion sharpness of LCD displays to an unprecedented level.

2 x 12 W with BBE

BBE high definition sound is the core sound e

nhancement technology (licensed by BBE Sound) that will enable you to experience real natural music and speech intelligibility with rich and clear audible vocals.

DLNA PC network link for video

DLNA PC network link lets you watch videos, view

pictures and listen to music from your PC

MPEG4 DVB-T/C tuner with CI+*

HDTV allows you to watch TV in the best p

ossible picture and sound quality, without an additional set-top box. Thanks to the built-in tuner that supports DVB-Terrestrial and DVBCable signals for both MPEG-2 and MPEG-4 formats, you receive high definition TV programmes in exceptional quality. Moreover, with Common Interface Plus (CI+) you benefit from premium high definition content directly on your TV.

Page 3

EXT 2

(RGB/CVBS)

EXT 1

(RGB/CVBS)

SPDIF OUT

AUDIO

VGA

TV ANTENNA

HDMI 3

AUDIO IN: LEFT / RIGHT HDMI 1 / DVI HDMI 2 / DVI HDMI 3 / DVI

VGA

EXT 3

HDMI 2 HDMI 1

OUT

NETWORK

LCD TV with Ambilight Spectra and Pixel Precise HD

37" Full HD 1080p digital TV

Specifications

37PFL8694H/12

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 80,000:1

• Response time (typical): 3 ms

• Viewing angle: 176º (H)/176º (V)

• Diagonal screen size: 37 inch / 94 cm

• Display screen type: LCD Full HD W-UXGA Act. rix

mat

• Panel resolution: 1920 x 1080p

• Picture enhancement: Pixel precise HD, Perfect

tural Motion, 3/2 - 2/2 motion pull down, 3D

Na Combfilter, Active Control + Light sensor, Digital Noise Reduction, Dynamic contrast enhancement, Luminance Transient Improver, Progressive Scan, 2D/3D noise reduction, 100 Hz LCD

• Screen enhancement: Anti-Reflection coated

reen

• Colour processing: 4 trillion colours (14-bit RGB)

Ambilight

• Ambilight Features: Ambilight Spectra, Lounge light

mode

• Dimming Function: Manual and via Light Sensor

• Ambilight light system: LED-wide colour

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60 Hz 800 x 600 60 Hz 1024 x 768 60 Hz 1280 x 1024 60 Hz 1360 x 768 60 Hz

1600 x 1200 60 Hz 1920 x 1080 60 Hz

deo formats

• Vi

Resolution Refresh rate 480i 60 Hz 480p 60 Hz 576i 50 Hz 576p 50 Hz

720p 50, 60 Hz 1080i 50, 60 Hz 1080p 24, 25, 30, 50, 60 Hz

Sound

• Output power (RMS): 2 x 12 W

• Sound Enhancement: Incredible Surround, Treble

d Bass Control

• Sound System: Nicam Stereo, BBE

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Sleep Timer

• Ease of Installation: Auto Programme Naming, atic Channel Install (ACI), Automatic

Autom Tuning System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug and Play

• Ease of Use: Auto Volume Leveller (AVL), Delta

lume per preset, Programme List, Settings

Vo assistant Wizard, One-stop Home button, Favourite programme selection

• Electronic Programme Guide: Now + Next EPG,

8-day Electr

onic Programme Guide*

• Remote Control: Universal

• Remote control type: RC4495

• Screen Format Adjustments: Auto Format, Movie

xpand 16:9, Super Zoom, Widescreen, unscaled

e (1080p dot by dot)

• Teletext: 1000-page Smart Text

• Teletext enhancements: 4 favourite pages

• Firmware upgradeable: Firmware auto upgrade

d, Firmware upgradeable via USB

wizar

• Multimedia: DLNA media Browser, Internet

browser, Net T

V services, USB media browser

• Smart mode: Game, Movie, Personal, Energy

aving, Standard, Vivid

Multimedia Applications

• Multimedia connections: Ethernet-UTP5, USB

• Playback Formats: MP3, LPCM, WMA v2 up to

9.2, JPEG Still pictures, MPEG1, MPEG2, MPEG4,

v AVI, H.264/MPEG-4 AVC, MPEG-Programmestream PAL, WMV9/VC1

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• DVB: DVB-T MPEG4*, DVB-C MPEG4*

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in, RGB

• Ext 2 Scart: Audio L/R, CVBS in, RGB

• Ext 3: YPbPr, Audio L/R in

• Front/Side connections: HDMI v1.3, S-video in,

CVBS in, Audio L/R in,

Headphone out, USB

• PC network link: DLNA 1.0 certified

• Other connections: Analogu

e audio Left/Right out, PC Audio in, PC-In VGA, S/PDIF out (coaxial), Common Interface

•HDMI 1: HDMI v1.3

•HDMI 2: HDMI v1.3

•HDMI 3: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, Remote ontrol pass-through, System audio control,

c System standby

Power

• Ambient temperature: 5°C to 35°C

• Mains power: 220 - 240 V, 50 Hz

• Power consumption: 220 W

• Standby power consumption: 0.15 W

Dimensions

•Set dimensions (W x H x D): 886 x 542 x 88 mm

• Set dimensions with stand (W x H x D):

6 x 598 x 260 mm

• Weight incl. Packaging: 22.7 kg

• Product weight: 14.5 kg

• Product weight (+stand): 18.7 kg

•Box dimensions (W x H x D):

11 x 644 x 265 mm

• Colour cabinet: Black deco front with brilliant

rl speakers

pea

• VESA wall mount compatible: 200 x 200 mm

Accessories

• Included Accessories: Tabletop swivel stand,

Power cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

Issue date 2009-07-15

Version: 8.1.5

12 NC: 8670 000 53229 EAN: 87 12581 48578 8

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* DVB-T, supported in selected countries only * DVB-C in selected countries and for selected operators only. Most

up to date information is available on the type plate of the TV.

* Net TV, service offering is dependent on country and subject to
