Philips 7FF1AW-37 User Manual

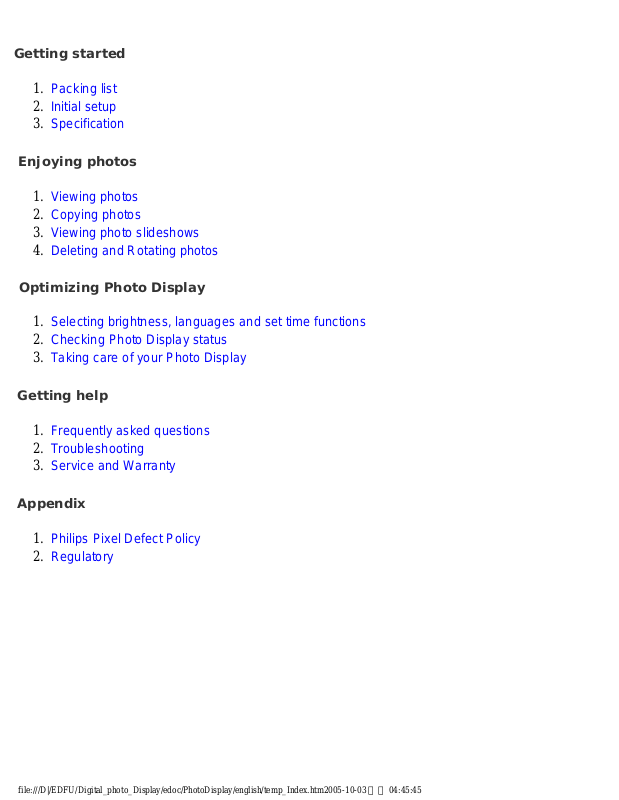

Getting started

1. Packing list

2. Initial setup

3. Specification

Enjoying photos

1. Viewing photos

2. Copying photos

3. Viewing photo slideshows

4. Deleting and Rotating photos

Optimizing Photo Display

1. Selecting brightness, languages and set time functions

2. Checking Photo Display status

3. Taking care of your Photo Display

Getting help

1. Frequently asked questions

2. Troubleshooting

3. Service and Warranty

Appendix

1. Philips Pixel Defect Policy

2. Regulatory

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/temp_Index.htm2005-10-03 下午 04:45:45

Packing List

•

Packing list

•

Initial setup

•

Specification

Getting started

Packing List

Digital Photo Display Photo display Stand

Quick start guide User manual CD

Power adaptor

USB cable to Digital Camera

(female A type plug)

USB Cable to PC

(male A type plug)

What else you'll need

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/a1_pack.htm (1 of 2)2005-10-03 下午 04:45:53

Packing List

Power outlet Digital Photos on camera, memory card or PC

RETURN TO TOP OF THE PAGE

All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/a1_pack.htm (2 of 2)2005-10-03 下午 04:45:53

Initial setup

•

Packing list

•

Initial setup

•

Specification

Getting started

Initial setup

Philips digital photo display can be placed either vertically or horizontally to fit the photos on display. Its internal rechargeable battery provides you the freedom to pass it around and show photos without the power cord. Or, you can place it somewhere in the room for constant photo display by connecting it to the main.

A. Removing the protective bag/film on parts B. Attaching the Photo Display stand

•

Place head of stand into socket

•

Rotate clockwise until stand locks in-place

C. Connecting to a power source

•

Connect the supplied power cable from Photo Display to a power outlet . The internal battery will start charging and the battery LED turn orange.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/a2_initial.htm (1 of 3)2005-10-03 下午 04:45:55

Initial setup

Locate control keys

•

Use your photo display by pressing the control keys in the back.

•

LCD display also shows the function icon for each key at the same position.

Previous/Left Switch view Setup Next/ Right Show/ Hide icon Photo setting Up Copy Confirm Down Delete Escape

C. Turning on Photo Display

•

Slide the power switch up to the ON position. The power LED will be green and the Startup screen will appear.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/a2_initial.htm (2 of 3)2005-10-03 下午 04:45:55

Initial setup

D. Choose your preferred language

•

Press the key (the 3rd key from the left on the rear of Photo Display) A menu with general settings for Photo Display will appear.

•

Use the or key to highlight Language and press the key to select.

•

Use the or key to choose your preferred language. Press to confirm your selection. The new setting will be effective immediately.

•

Press again to leave the Language menu.

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/a2_initial.htm (3 of 3)2005-10-03 下午 04:45:55

Specification

•

Packing list

•

Initial setup

•

Specification

Getting started

Specification

Picture/Display

Effective display area: 137 x 91 mm (5.4" x 3.6"), 6.5" diagonal

Vertical dot pitch: 0.1905 mm

Horizontal dot pitch: 0.1905 mm

Resolution: 720 x 480 pixels

Brightness: 200 nits

Viewing angle (CR>5): Horizontal (-85°~85°), Vertical (-85°~85°)

Backlight Half-Life time: 20,000 hours

Connectivity

Card reader: Built-in Secure digital (SD), Multimedia card (MMC), Memory stick (MS, MS Pro), Compact flash (CF) type I only.

Convenience

Photo format supported: Up to 12M pixels, JPEG photos following EXIF and DCF standards

Memory size: 50 photos or more Placement supported: Landscape, Portrait Control buttons: 6 buttons Display mode Automatic slideshow, Full-Screen browse, Thumbnail browse

Setup menu:

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/a3_spec.htm (1 of 4)2005-10-03 下午 04:45:55

Specification

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/a3_spec.htm (2 of 4)2005-10-03 下午 04:45:55

Specification

Photo menu:

OSD languages: English, French, German, Italian, Spanish, Simplified Chinese, Russian, Japanese

Plug & Play compatibility: Windows 2000/XP or later, Mac OS X or later, Linux

Accessories

Included accessories: AC power adaptor, USB cables, Quick start guide

User manual: Yes (in CD-ROM)

Power

Power LED indicator Green (power on), Off (power off)

Battery LED indicator Orange (charging), Off (not charging)

Power mode supported Battery powered, AC powered

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/a3_spec.htm (3 of 4)2005-10-03 下午 04:45:55

Specification

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/a3_spec.htm (4 of 4)2005-10-03 下午 04:45:55

Viewing Photos

•

Viewing photos

•

Copying photos

•

Viewing photo slideshows

•

Deleting and Rotating photos

Enjoying photos

Viewing Photos

When there is no memory card in photo display, and neither a digital camera is connected to photo display, it displays photos stored in local memory. When a memory card is inserted or digital camera is actively connected to Photo Display, it will display photos from most recently connected media or device in a "Last-in, First-display" order.

You can choose from three Photo Display viewing modes. Press ( the 1st key from the left on the rear of Photo Display) to toggle among the three viewing

modes; use

to view the previous photo and to view the next photo.

(

and are the first two keys from the right on the rear of Photo Display.)

THUMBNAIL-List of photos.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b1_view.htm (1 of 6)2005-10-03 下午 04:45:57

Viewing Photos

Each icon represents the function of the corresponding key in the rear of Photo Display.

B Source of photos on screen

Camera Compact flash Memory stick

SD, MMC Photo Display

C Current Photo

D Current Photo number

Slideshow icon (If shown, this photo will be shown in slideshow.)

F Current photo number, same as D

G Total photo count

H Resolution of current photo (in pixels).

I Date current photo was taken

J Source of displayed photos.

SLIDESHOW- Automatic, Rotating display of photos.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b1_view.htm (2 of 6)2005-10-03 下午 04:45:57

Viewing Photos

BROWSE—Manual viewing of photos one-by-one. (Displays size and date)

Each icon represents the function of the corresponding key in the rear of Photo Display.

B Source of photos on screen

Camera Compact flash Memory stick

SD, MMC Photo Display

C Current Photo number

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b1_view.htm (3 of 6)2005-10-03 下午 04:45:57

Viewing Photos

D Total photo count

E Resolution of current photo (in pixels)

F Date current photo was taken

RETURN TO TOP OF THE PAGE

Viewing photos on Photo Display

•

Remove any memory card or digital camera connection from photo Display. Photos stored in the Photo Display will appear.

Viewing digital camera photos from a memory card

•

Insert the memory card into the slot in the frame:

•

For Compact Flash card, firmly slide card in the larger slot end first and face DOWN.

•

For SD, MMC, or Memory Stick card, slide card in the smaller slot end first and face UP until it locks in-place.

After a few seconds photos on the memory card will display.

How to remove a memory card:

•

To remove Compact Flash card, pull out the card slowly.

•

To remove SD, MMC, or Memory Stick card, push the card again to unlock and then pull out the card.

Viewing PC photos from a memory card

(NOTE: Only support PC photos in JPEG format.)

•

Connect your memory card to your PC (Some Notebook PCs have memory card slot built-in or you may need a separate

memory card reader to connect your memory card to PC.)

•

Make sure the memory card is empty. Remove photos stored in \DCIM\ subdirectories of this memory card, if any.

(If there are photos in \DCIM\ subdirectories of your memory card, Photo Display may only display these photos)

•

Copy your PC photos onto the root directory of the memory card. (The root directory is simply represented as “\” on the memory card)

•

Safely remove your memory card from PC

•

Make sure Photo Display is ON.

•

Insert the memory card into Photo Display

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b1_view.htm (4 of 6)2005-10-03 下午 04:45:57

Viewing Photos

(If you turn on Photo Display after memory card is inserted, the photos in the root directory will be copied to Photo Display automatically.)

•

After a few seconds photos in the root directory of your memory card will appear.

A CF Card B SD/ MMC/MS Card

Viewing photos from a digital camera

•

Connect the supplied USB cable to Digital Camera to Photo Display.

•

Connect your digital camera to the USB cable that came with the camera.

•

Connect the two USB cables and switch on camera in play mode.

(Note: Some cameras do not support direct playback)

After a few seconds photos on your digital camera will appear.

Supplied USB cable to Digital Camera (female A type plug)

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b1_view.htm (5 of 6)2005-10-03 下午 04:45:57

Viewing Photos

B Camera's own USB cable

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b1_view.htm (6 of 6)2005-10-03 下午 04:45:57

Copying Photos

•

Viewing photos

•

Copying photos

•

Viewing photo slideshows

•

Deleting and Rotating photos

Enjoying photos

Copying Photos

You can copy photos stored on a memory card, digital camera or PC to Photo Display. Photo Display will then internally store a resized copy of the original photo. This resized copy will remain inside Photo Display until you delete it from Photo Display.

Photo Display's internal memory will store 50 or more resized photos. Please see the Deleting and Rotating Photos section to learn how to delete photos stored in Photo Display.

Copying from a digital camera or a memory card

You may copy photos one by one in Browse mode or several photos at once in Thumbnail mode.

Copying photo one by one in Browse mode

•

Change view mode to Browse.

•

Connect the digital camera or insert the memory card into Photo Display. Photos from digital camera or memory card will appear.

Note: Some cameras do not support direct playback. Please use memory card instead in such cases.

•

With the photo for copy shown on screen, press the key (the 4th key from the left on the rear of Photo Display). Four different orientations of the selected photo will appear.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b2_copy.htm (1 of 6)2005-10-03 下午 04:45:58

Copying Photos

•

Use the or key to select the desired photo orientation and then press the

key.

Do not remove the memory card or disconnect the camera before the copy screen disappears upon completion. If a warning message shows up indicating no free space for more photos, you may need to remove some already stored photos first before copying more photos.

•

After the copy screen disappears upon completion, a resized copy of the photo is stored inside Photo Display.

•

You may move to other photos and continue this process until all the photos you want are copied to Photos Display.

Copy several photos at once in Thumbnail mode

•

Change view mode to Thumbnail.

•

Connect the digital camera or insert the memory card into Photo Display. Photos from digital camera or memory card will appear.

Note: Some cameras do not support direct playback. Please use memory card instead in such cases.

•

Highlight the photo for copy in Thumbnail mode and press the key (the 4th key from the left on the rear of Photo Display).

A multi-photo copy screen with small photos from current thumbnail screen will appear.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b2_copy.htm (2 of 6)2005-10-03 下午 04:45:58

Copying Photos

•

Use the or key to move, to add photos to copy list, to remove photos from copy list, and then press the to confirm the copy list. Photos on the copy list are shown with a small copy icon

•

You may move to other Thumbnail pages and continue this process until all the photos you want are copied to Photo Display.

Automatically copying PC Photos to Photo Display with memory card (recommended)

NOTE: Only support PC photos in JPEG format.

•

Connect your memory card to your PC. (Some Notebook PCs have memory card slot built-in or you may need a separate memory card reader to connect your memory card to PC.)

•

Copy your PC photos onto the root directory of the memory card. (The root directory is simply represented as “\” on the memory card)

•

Safely remove your memory card from PC.

•

Make sure Photo Display is OFF.

•

Insert the memory card into Photo Display.

•

Turn on Photo Display.

•

After a few seconds, all photos in root directory of your memory card will be automatically added to Photo Display. Photos in the root directory will stay intact after copying.

Copying from/to PC directly

Requirements for a Windows system:

-Windows 2000/XP or later

Requirements for a Mac System:

-Mac OS X or later

•

Connect the supplied PC USB cable to Photo Display.

•

Connect the PC USB cable plug to the PC.

•

PC will then recognize Photo Display as a mass storage device. (like a camera)

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b2_copy.htm (3 of 6)2005-10-03 下午 04:45:58

Copying Photos

To copy from PC to Photo Display

•

Select photos to be transferred to Photo Display and copy these photos directly under the root directory of Photo Display. NOTE: Only JPEG format photos are supported. Sub-directories are not supported. The number of photos accepted in this directory may be limited due to limited internal memory on Photo Display. Therefore, it is highly recommended to put the photos on a memory card and copy the photos to Photo display from that memory card.

•

Disconnect the USB cable. For Windows 2000 systems, remember to safely remove hardware before disconnection

After a few seconds, all photos in the the root directory will be automatically added to Photo Display and the the root directory will be emptied.

To copy from Photo Display to PC

•

Copy the photos on Photo Display to PC the same way you transfer the contents of a digital camera to PC. All photos are stored in the sub-directories of the \DCIM\on the Photo Display drive.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b2_copy.htm (4 of 6)2005-10-03 下午 04:45:58

Copying Photos

Copying from one Photo Display to another Photo Display

•

Turn on both Photo Displays.

•

Connect the source Photo Display - the one with the photos to be copied - with supplied USB cable to PC.

•

Connect the destination Photo Display - the one to which you want to transfer photos - with the supplied USB cable to Digital Camera.

•

Connect the two USB cables together.

Destination Photo Display will recognize a digital camera as the photo source. Source Photo Display will show its connection status as if it were connected to PC.

Destination Photo Display Source Photo Display

•

Select and copy photos from Source Photo Display, the way you copy photos from a memory card.

Copying from Photo Display to a digital camera or a memory card

This operation is not supported. Photo Display cannot write to external memory cards or digital cameras.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b2_copy.htm (5 of 6)2005-10-03 下午 04:45:58

Copying Photos

RETURN TO TOP OF THE PAGE

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b2_copy.htm (6 of 6)2005-10-03 下午 04:45:58

Viewing Photo Slideshows

•

Viewing photos

•

Copying photos

•

Viewing photo slideshows

•

Deleting and Rotating photos

Enjoying photos

Viewing Photo Slideshows

When you set the Photo Display view mode to Slideshow, it will automatically rotate the photo displayed on screen. You may handpick the photos for slideshow and choose slideshow frequency -– for example, how long a photo remains on screen – transition effect – how next photo replaces current one on screen – and sequential or random photo display. You may also select to show all slideshow photos in either vertical or horizontal orientation to match how you place the Photo Display.

Picking photos for slideshow

Note: This function only applies to photos stored on Photo Display's internal memory.

•

Change view mode to Browse or Thumbnail.

•

Press the key (the 4th key from the left on the rear of Photo Display).

A menu with specific settings for the selected photo will appear.

•

Press the key to select Show in slideshow setting and use the or key to decide if you want to display this photo in the Slideshow mode.

Default setting is Yes for Show in slideshow.

•

Press the to confirm. Now your selected setting is confirmed.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b3_slideshow.htm (1 of 6)2005-10-03 下午 04:45:59

Viewing Photo Slideshows

•

Press to leave this menu.

Choosing slideshow frequency

Note: This function applies to photos stored on all media.

•

Press the key (the 3rd key from the left on the rear of Photo Display). A menu with general settings for Photo Display will appear.

•

Press the key to select Slideshow settings and use the or key to move to the Frequency item. Next press the

key again to select Frequency settings.

•

Use the or key to highlight the interval a photo remains on screen and press to confirm.

•

Now your selected setting is confirmed.

•

Press to leave this menu.

file:///D|/EDFU/Digital_photo_Display/edoc/PhotoDisplay/english/b3_slideshow.htm (2 of 6)2005-10-03 下午 04:45:59

+ 53 hidden pages
