Page 1

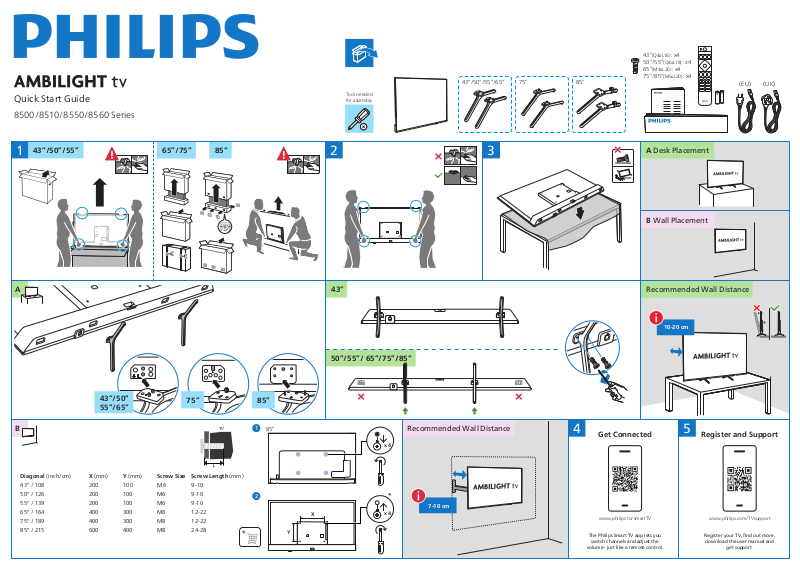

Quick Start Guide
8500/8510/8550/8560 Series
Tool needed
for assembly
43”/50”/55”/65” 75” 85”
43”(Q4xL16) : x4
50”/55”(Q4xL18) : x4
65”(M4xL20) : x4
75”/85”(M5xL20) : x4
(EU)
(UK)
1
43”/50”/55”
65”/75” 85”
2 3
A Desk Placement
B Wall Placement
A
43”/50”
55”/65”
75” 85”
43”
50”/55”/ 65”/75”/85”
Recommended Wall Distance
10-20 cm
B
Diagonal (inch/cm) X (mm) Y (mm) Screw Size Screw Length (mm)
43” / 108 200 100 M6 9-10
50" / 126 200 100 M6 9-10
55" / 139 200 100 M6 9-10
65" / 164 400 300 M8 12-22
75" / 189 400 300 M8 12-22
85" / 215 600 400 M8 24-28
TV
L
1
85”
x4
2
X
*
Y
*
x4
Recommended Wall Distance
7-10 cm
4 5
Get Connected
www.philips.to/smartTV
The Philips Smart TV app lets you
switch channels and adjust the
volume - just like a remote control.
Register and Support
www.philips.com/TVsupport
Register your TV, �nd out more,
download the user manual and
get support
Page 2
1
2 3
1 2
3 4
3
< = 1m
To install batteries,
slide the battery
door up.
Use 2x AAA
LR03 1.5V (included)
43”/50”/55”/65”/75”
Click
Slide battery door
back in place.
COMMON INTERFACE
USB 1/2
(43”/50”/55”)
HDMI 2/3
CAM
FSC Logo
H:12mm
85”
CAM
COMMON INTERFACE
USB 2
HDMI 3
POWER
(EU)
POWER
(UK)
DIGITAL
AUDIO OUT
TOSLINK
NETWORK
ROUTER
SAT (EU)
(43”/50”/55”)
COAXIAL
TV ANTENNA
(43”/50”/55”)
SATELLITE
COAXIAL
HDMI 1
eARC
TV ANTENNA
(65”/75”)
SAT (EU)
(65”/75”)
USB 1/2
(65”/75”)
Ultra High-speed
HDMI cable
COAXIAL
SATELLITE
COAXIAL
HDMI eARC
POWER (EU) POWER (UK) HDMI 2HDMI 1
DIGITAL
AUDIO OUT
TOSLINK
USB 1
NETWORK
ROUTER
SAT (EU)
COAXIAL
TV ANTENNA
SATELLITE
ARC/eARC
HDMI cable
COAXIAL
Ultra High-speed
ROUTER
Recommended wall distance for the best Ambilight Experience
TV
Wall
7 to 10 cm
B
cm
10 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
10 to 20 cm
A
ROUTER
English Read the safety instructions. Français Lisez les consignes de sécurité. Português Leia as instruções de segurança.
Български Прочетете инструкциите за
безопасност.
Čeština Přečtěte si bezpečnostní pokyny.
Hrvatski Pročitajte sigurnosne upute.
Dansk Læs sikkerhedsforskrifterne.
Deutsch Lesen Sie die Sicherheitshinweise.
Ελληνικά Διαβάστε τις οδηγίες ασφαλείας.
Eesti Lugege ohutusnõudeid.
Español Lea las instrucciones de seguridad.
Italiano Leggere le istruzioni di sicurezza.
Κазакша Қорғаныстық нұсқаулар.
Latviešu Izlasiet drošības norādījumus.
Lietuvių Perskaitykite saugos instrukcijas.
Magyar Olvassa el a biztonsági utasításokat.
Nederlands Lees de veiligheidsvoorschriften.
Norsk Les sikkerhetsforskriftene.
Polski Zapoznaj się z instrukcjami
bezpieczeństwa.
Română Citiţi instrucţiunile de siguranţă.
Русский Читайте инструкции по технике
безопасности.
Srpski Pročitajte bezbednosna uputstva.
Slovenščina Preberite varnostna navodila.
Slovenský Prečítajte si bezpečnostné pokyny.
Suomi Lue turvaohjeet.
HDMI eARC
Svenska Läs säkerhetsinstruktionerna.
Türkçe Güvenlik talimatlarını okuyun.
Українська Читайте інструкції з техніки безпеки.
All registered and unregistered trademarks are property of their respective owners.
Speci�cations are subject to change without notice.
Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
and are used under license.
This product has been manufactured by and is sold under the responsibility of TP Vision
Europe B.V., and TP Vision Europe B.V. is the warrantor in relation to this product.
2025© TP Vision Europe B.V. All rights reserved.
www.philips.com/welcome
