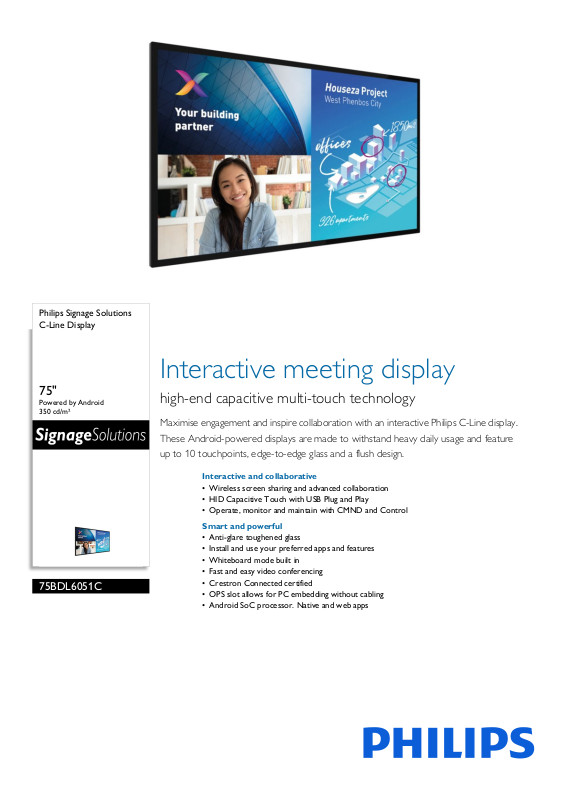

Page 1

Philips Signage Solutions C-Line Display

Interactive meeting display

75"

75BDL6051C

high-end capacitive multi-touch technology

Maximise engagement and inspire collaboration with an interactive Philips C-Line display. These Android-powered displays are made to withstand heavy daily usage and feature up to 10 touchpoints, edge-to-edge glass and a flush design.

Interactive and collaborative

• Wireless screen sharing and advanced collaboration

• HID Capacitive Touch with USB Plug and Play

• Operate, monitor and maintain with CMND and Control

Smart and powerful

• Anti-glare toughened glass

• Install and use your preferred apps and features

• Whiteboard mode built in

• Fast and easy video conferencing

• Crestron Connected certified

• OPS slot allows for PC embedding without cabling

• Android SoC processor. Native and web apps

Page 2

75BDL6051C/00

C-Line Display

75" Powered by Android, 350 cd/m²

Highlights

Wireless screen sharing

Display four feeds on the one screen. Wireless s

creen sharing allows you to connect multiple devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices or use our optional HDMI interact dongles to cast directly to the screen without needing to connect to your secured/ protected network.

HID Capacitive Touch

Capacitive Touch gives you the cutting edge app

earance of edge to edge glass with a bezel width of just 1.5 mm! Create a memorable in

teractive experience with up to 10 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content — making it ideal for education, public venues, corporate, hospitality and retail settings.

CMND and Control

Run your display network over a local (LAN) connection. CMND and Control allows you to

perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

Whiteboard mode built in

Inspire agile collaboration with whiteboard mode. Simpl display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on the screen can then be captured for easy printing or file sharing.

Fast and easy video conference

Ready to use video conferencing software m

akes one-to-one or group video calls easier than ever. Simply use your own camera or add the optional Logitech Meetup bundle for an allin-one ConferenceCam solution.

Crestron Connected certified

Integrate this Philips Professional Display to your Crestron netw via your laptop, desktop or mobile device. Switch the display on and off, schedule content, manage settings and easily connect external devices. Crestron Connected reliable and secure enterprise level solution for system control.

y activate this feature to turn your

ork for full remote control

provides a fast,

OPS slot

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Control your display via an Internet connec

tion. Android-powered Philips Professional Displays are optimised for native Android apps and you can install web apps directly to the display too. A new Android OS ensures the software is kept secure and stays up to date with the latest specification for longer.

Page 3

75BDL6051C/00

C-Line Display

75" Powered by Android, 350 cd/m²

Specifications

Picture/Display

• Diagonal screen size: 74.5 inch / 189.3 cm

• Panel resolution: 3840 x 2160

• Optimum resolution: 3840 x 2160 @ 60 Hz

• Brightness: 350 cd/m²

• Contrast ratio (typical): 1000:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 8 ms

• Pixel pitch: 0.4935 (H) x 0.4935 (V)

• Display colours: 1.07 billion

• Viewing Angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down, tio

n compens. deinterlacing, 3D MA

Mo deinterlacing, Dynamic contrast enhancement, Progressive scan

• Operating system: Android 9

Connectivity

• Video input: Display Port1.2 (x 1), DVI-I (x 1),

HDMI 2.0 (x 4), USB-C, USB 2.0 (x 2), USB 3.0 (x 2)

• Video output: DisplayPort 1.2 (x 1), DVI - D (x 1),

2.0 (x 2)

• Audio input: 3.5 mm jack

• Audio output: 3.5 mm Jack (x 2)

• Other connections: OPS, micro SD

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

Supported Display Resolution

• Computer formats Re

solution Refresh rate 1920 x 1200 60 Hz 1920 x 1080 60 Hz 1680 x 1050 60 Hz 1600 x 1200 60 Hz 1600 x 900 60 Hz 1440 x 1050 60 Hz 1440 x 900 60, 75 Hz 1400 x 1050 60, 75 Hz 1366 x 768 60 Hz 1360 x 768 60 Hz 1280 x 1024 60, 67, 75 Hz 1280 x 960 60 Hz 1280 x 800 60, 75 Hz 1280 x 768 60 Hz, 75 Hz 1280 x 720 60, 70 Hz 1152 x 900 66 Hz 1152 x 864 60, 70, 75 Hz 1024 x 768 60, 70 Hz 960 x 720 75 Hz 848 x 480 60 Hz 832 x 624 75 Hz 800 x 600 56, 60, 72, 75 Hz 720 x 400 70 Hz 640 x 350 70 Hz 640 x 480 60, 67, 72, 75 Hz

deo formats

• Vi Re

solution Refresh rate 1080p 50, 60 Hz 576p 50 Hz 480p 60 Hz 1080i 50, 60 Hz 4K x 2K 50, 60 Hz 720p 50, 60 Hz

• UHD Formats: 3840 x 2160, 24, 25, 30, 60 3840 x 2160, 50 Hz

Dimensions

•Set dimensions (W x H x D):

1703.80 x 982.00 x 84.20 (@wall mount),

0 (@max) mm

99.7

• Set dimensions in inch (W x H x D):

8 x 38.66 x 3.31 (@wall mount),

67.0

3.93 (@max) inch

• Bezel width: 1.50 mm(even)

• Product weight (lb): 143.52 lb

• Product weight: 65.1

Hz,

VESA Mount: 600(H)x400(V) mm, M8

•

• Smart Insert mount: 6*M4*L6(200x100)

Convenience

• Placement: Landscape, Landscape (18/7), Portrait (12/7)

• Keyboard control: Hidden, Lockable

• Signal loop through: RS232, IR Loop through,

layPort

Disp

•

Network controllable: RJ45, RS232

• Energy-saving functions: Smart Power

• Screen-saving functions: Pixel Shift, Low Bright

• Ease of installation: Smart Insert

• DPMS power saving system

Power

• Standby power consumption: <0.5 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (Typical): 240 W

• Consumption (Max): 340 W

• Energy Label Class: G

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• Altitude: 0 ~ 3000 m

• MTBF: 50,000 hour(s)

Sound

• Built-in speakers: 2 x 20 W RMS

Accessories

• Included Accessories: Philips logo (x 1), RS232 Daisy chain cable (x 1), AAA batteries (x 1),

ning cloth (x 1), DVI-I Cable (1.8 m) (x 1),

Clea HDMI Cable (3 (x 1), M2 Screw (x 2), M3 screw (x 2), Power cable (x 3), Quick start guide (x 1), Remote control (x 1), RS232 cable (3 m) (x 1), Touch Pen (x 2),

to B cable (3 m) (x 1), USB Cover (x 1)

USB

m) (x 1), IR sensor cable (1.8 m)

Multimedia Applications

• USB Playback Audio: AAC, M4A, MP3, WMA

• USB Playback Picture: BMP, JPEG, JPG, PNG

• USB Playback Video: ASF, AVI, FLV, MKV, MP4, MPEG, MPG,

TS, VOB, WEBM, WMV, DAT

Miscellaneous

• On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

• Regulatory approvals: CE, RoHS, CB, VCCI, CU, EAC, EMF,

•Warranty: 3 year warranty

L, FCC, Class A, PSB

Issue date 2022-04-21

Version: 3.0.1

12 NC: 8670 001 70216 EAN: 87 12581 77087 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

Internal Player

•CPU: MTK5680

• Storage: 32 GB eMMc

• Wi-Fi: AP(WC0SR2511-88112BU),

WCT5GM2511MT7668AU)

STA(

• Micro SD Card: Support to 1TB

• RAM: DDR4 4 GB

Multi-touch Interactivity

• Touch points: 10 simultaneous touch points

•
