Philips 75BDL4150D/00 Product Data Sheet

Page 1

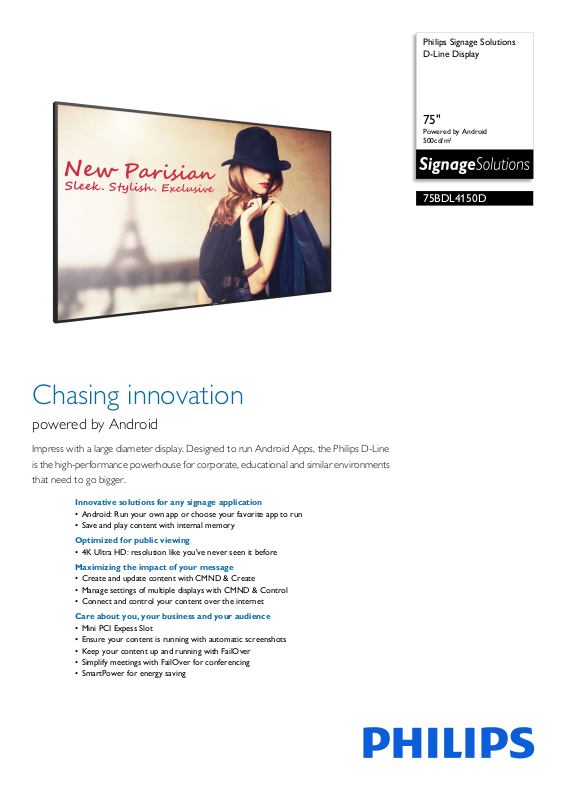

Philips Signage Solutions D-Line Display

75"

75BDL4150D

Chasing innovation

Impress with a large diameter display. Designed to run Android Apps, the Philips D-Line is the high-performance powerhouse for corporate, educational and similar environments that need to go bigger.

Innovative solutions for any signage application

• Android: Run your own app or choose your favorite app to run

• Save and play content with internal memory

Optimized for public viewing

• 4K Ultra HD: resolution like you've never seen it before

Maximizing the impact of your message

• Create and update content with CMND & Create

• Manage settings of multiple displays with CMND & Control

• Connect and control your content over the internet

Care about you, your business and your audience

• Mini PCI Expess Slot

• Ensure your content is running with automatic screenshots

• Keep your content up and running with FailOver

• Simplify meetings with FailOver for conferencing

• SmartPower for energy saving

Page 2

75BDL4150D/00

D-Line Display

75" Powered by Android, 500cd/m²

Highlights

WIth Android OS integrated into the display, you can w the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.

4K Ultra HD Resolution

See your Signage Solutions like never before th conventional Full HD display. 3840 x 2160 pixels provide and image so refined, so lifelike, it's a window to a new world.

Mini PCI Slot

With a mini PCI express slot built in, you can e

asily extend display connectivity to include 4G LTE modules. This is also a great way to enhance machine to machine communication. Result: a world of configuration possibilities, such as adding product features or expanding signal-handling capabilities.

Internal Memory

Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

ork with the most developed OS on

anks to four times the resolution of a

Proof of Play

Content is king, and with the automatic s

creenshot feauture, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.

FailOver

Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

FailOver for Meeting Rooms

Using FailOver, simplify your presentations and videoconfe conference room is not in use, background content can run from whatever input source you choose. When the meeting starts and you need to share a presentation or your screen, simply connect your computer and the display automatically switches inputs and shows what's on your screen, with no need to manually switch inputs.

SmartBrowser (2018)

Connect and control your content over the i

nternet with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show

rencing. When a meeting or

content in both landscape and portrait mode, with fullHD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist

SmartPower

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

CMND & Control

With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.

CMND & Create

Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.

Page 3

75BDL4150D/00

D-Line Display

75" Powered by Android, 500cd/m²

Specifications

Picture/Display

• Diagonal screen size: 74.5 inch / 189.3 cm

• Panel resolution: 3840 x 2160

• Optimum resolution: 3840 x 2160 @120Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 6 ms

• Pixel pitch: 0.429 x0 .492 mm

• Display colors: 1.07 Billion

• Viewing angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co MA deinterlacing, Dynamic contrast enhancement, Progressive scan

• Operating system: Android 7.1.2

lter, Motion compens. deinterlacing, 3D

Connectivity

• Video input: DisplayPort, DVI-D, HDMI (x3), VGA

(Analog D-Sub)

• Video output: DisplayPort

• Audio input: 3.5 mm jack

• Audio output: 3.5mm jack, Speakers Connection

• Other connections: mPCIe

USB power outlet (5 V. 2 amp), OPS, USB, type A, USB 2.0, USB 3.0

• External control: RJ45, RS232C (in/out) 2.5 mm

jac

micro SD, micro USB,

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 3840 x 2160 60Hz 1920 x 1080 60Hz 1600 x 1200 60Hz 1360 x 768 12

80 x 1024 60Hz 1280 x 800 60Hz 1280 x 768 60Hz 1024 x 768 60, 75Hz 640 x 480 60, 72, 75Hz 720 x 400 70Hz 800 x 600 60, 75Hz

deo formats

• Vi olution Refresh rate

Res 2160p 30,50, 60Hz 1080p 50, 60Hz 1080i 25, 30Hz

60Hz

720p 50, 60Hz 576i 25, 50Hz 576p 25, 50Hz 480i 30, 60Hz 480p 30, 60Hz

Dimensions

•Set dimensions (W x H x D):

1676.6 x 955.0 x 73.8 mm

• Set dimensions in inch (W x H x D): 1 x 37.60 x 2.91 inch

66.0

• Bezel width: 12.5 mm (T/L/R/B)

• Product weight (lb): 119.71 lb

• Product weight: 54.3 kg

• VESA Mount: 600(H)x400(V) mm, M8

• Smart Insert mount: 100 x 200 mm, 100 x 100mm

Convenience

• Placement: Landscape, Portrait

• Tiled Matrix: Up to 15 x 15

• Keyboard control: Hidden, Lockable

• Signal Loop Through: IR Loopthrough

• Network controllable: RJ45, RS232

• Energy saving functions: Smart Power

• Screen saving functions: Pixel Shift, Low Bright

• Ease of installation: Smart Insert

• Picture in picture: PIP

Power

• Standby power consumption: <0.5 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (Typical): 220W +/- 10% W

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 %~ 80%(operation),10%-

torage) %

90%(s

• Altitude: 0 ~ 3000 m

• MTBF: 50,000 hour(s)

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Included accessories: Remote Control, Batteries

for remote control, Quick start guide, RS232 cable, AC Power Cord, HDMI cable, IR sensor cable

(1.8M)

•

Included Accessories: RS232 daisy-chain cable, SD

ver

card c

Multimedia Applications

• USB Playback Audio: AAC, M4A, MP3, WMA

• USB Playback Picture: BMP, JPEG, JPG, PNG

• USB Playback Video: ASF, AVI, DAT, FLV, MKV, MP4, MPEG, MPG, TS, VOB,

WEBM, WMV

Miscellaneous

• On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

• Regulatory approvals: CE, FCC, Class B, UL/cUL,

ck, RoHS, GOST, BSMI, CB

C-T

• Warranty: 3 year warranty

Internal Player

• CPU: Dual-Core Cortex-A72 @2GHz, QuadCore Cortex-A53 @ 1.5GHz

• GPU: ARM Mali-T860 MP4

• Memory: 4GB DDR3

• Storage: 64G eMMc

•

Issue date 2018-07-27

Version: 1.2.1

12 NC: 8670 001 54212 EAN: 87 12581 75241 5
