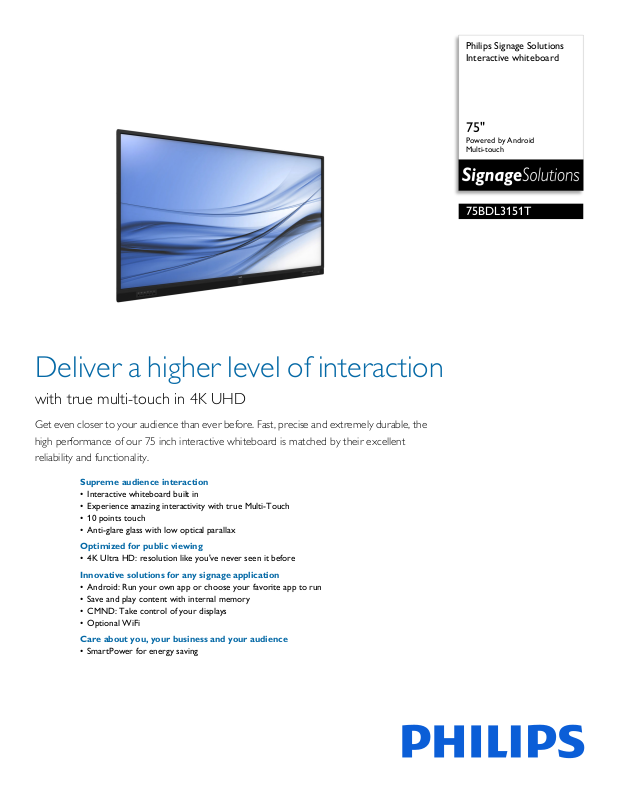

Page 1

Philips Signage Solutions Interactive whiteboard

75"

75BDL3151T

Deliver a higher level of interaction

with true multi-touch in 4K UHD

Get even closer to your audience than ever before. Fast, precise and extremely durable, the high performance of our 75 inch interactive whiteboard is matched by their excellent reliability and functionality.

Supreme audience interaction

• Interactive whiteboard built in

• Experience amazing interactivity with true Multi-Touch

• 10 points touch

• Anti-glare glass with low optical parallax

Optimized for public viewing

• 4K Ultra HD: resolution like you've never seen it before

Innovative solutions for any signage application

• Android: Run your own app or choose your favorite app to run

• Save and play content with internal memory

• CMND: Take control of your displays

• Optional WiFi

Care about you, your business and your audience

• SmartPower for energy saving

Page 2

75BDL3151T/00

Interactive whiteboard

Multi-Touch

Plug & Play

75" Powered by Android, Multi-touch

Highlights

Interactive whiteboard

Improve classroom learning, participation and c

ollaboration with our 75-inch multi-touch display with built in whiteboard. Switch seamlessly between writing, drawing, videos, presentations and internet.

Plug & Play Multi-Touch

A brand new level of interactivity is now available thanks to integrated touch technology. More flexibility and optimum simultaneous touch performance coupled with excellent operability opportunities to give you the ultimate in user interaction. The Multi-Touch displays are enabled with automatic touch recognition. The USB connector is HID compliant, providing true plug-and-play operation.

With Android integrated into the touch display, y

ou can work with the most dveloped OS on the planet, and save your own app directly into the display. This also means, for the built-in apps, like the browser, it's touch capable right out of the box. Just connect the power and you've got

immediate interactivity. You can also use the built-in scheduler to daypart your apps and content based on the time of day. And, using the auto orientation feature, switching from portrait to landscape content is as simple as turning the display.

Anti-glare glass

With this integrated touch display, the anti-glare gl

ass with low optical parallax allows for the most immersive touch experience. With little to no glare and low reflection on the display, images are crystal clear with pure color and great clarity.

4K Ultra HD Resolution

See your Signage Solutions like never before t

hanks to four times the resolution of a conventional Full HD display. 3840 x 2160 pixels provide and image so refined, so lifelike, it's a window to a new world.

SmartPower

The backlight intensity can be controlled and pre-set by the system to reduce the power

consumption by up to 50%, which saves substantially on energy costs.

Internal Memory

Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

CMND

A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

Page 3

75BDL3151T/00

Interactive whiteboard

75" Powered by Android, Multi-touch

Specifications

Picture/Display

• Diagonal screen size: 74.5 inch / 189.3 cm

• Panel resolution: 3840 x 2160

• Optimum resolution: 3840 x 2160 @ 60Hz

• Brightness: 490 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic contrast ratio: 500,000:1

• Surface treatment: Anti-G

• Aspect ratio: 16:9

• Response time (typical): 8 ms

• Pixel pitch: 0.429 x 0.429 mm

• Display colors: 1.07Billon

• Viewing angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfilter, Motion compens. deinterlacing,

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

• Panel technology: IPS

lare coating

Interactivity

• Multi-touch technology: Infrared touch

• Touch points: 10 simultaneous touch points

• Plug and play: HID compliant

• Protection glass: 5 mm tempe

Glare, Anti-Reflective

red safety glass, Anti-

Connectivity

• Video input: Composite (RCA), HDMI, HDMI (x4),

VGA(Analog D-Sub) x2

• Video output: HDMI, VGA (Analog D-Sub)

• Audio input: Audio Left/Right (RCA), 3.5mm jack

2), 3.5 mm jack

• Audio output: SPDIF

• Other connections: OPS, USB power outlet (5 V. 2

amp), USB(T

ype A) X4, USB(Type B) X2

Supported Display Resolution

• Computer formats

Resolution Refresh rate 1024 x 768 60, 75Hz 1280 x 1024 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1360 x 768 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 3840 x 2160 60Hz 640 x 480 60, 72, 75Hz 720 x 400 70Hz 800 x 600 60, 75Hz

deo formats

• Vi

Resolution Refresh rate 1080p 50, 60Hz 1080i 25, 30Hz 480i 30, 60Hz 576i 25, 50Hz 720p 50, 60Hz 2160p 30,50, 60Hz

480p 30, 60Hz 576p 25, 50Hz

Convenience

• Placement: Landscape (16/7)

• Signal Loop Through: IR Loopthrough

• Network controllable: RS232, RJ45

• Picture performance: Advanced color control

• Screen saving functions: Pixel Shift, Low Brightness

• Keyboard control: Hidden, Lockable

• Remote control signal: Lockable

• Energy saving functions: Smart Power

• Other convenience: Carrying handles

• Ease of installation: Smart Insert

• Memory: 8GB eMMC

• Picture in picture: PIP

Dimensions

• Bezel width: 21.7 mm

• Set dimensions (W x H x D):

9.7 x 1072.8 x 99.0 mm

173

• Set dimensions in inch (W x H

68.49 x 42.24 x 3.90 inch

• VESA Mount: 400(H)x400(V), M8

• Product weight: 64.7 kg

• Product weight (lb): 142.64 lb

• Smart Insert mount: 100 x 200 mm

x D):

Sound

• Built-in speakers: 2 x 15W RMS

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Relative humidity: 20 ~ 80%(Operational),10 orage) %

90%(St

• MTBF: 50,000 hour(s)

• Altitude: 0 ~ 3000 m

• Temperature range (storage): -20 ~ 60 °C

Power

• Mains power: 100 ~ 240 VAC, 50/60Hz

• Standby power consumption: <0.5W

• Consumption (Typical): 350 W

• Power Saving Features: Smart Power

Accessories

• Included accessories: AC Power Cord, RS232 cable,

USB cable, Remote Control, Batteries for remote control, Quick start guide, HDMI cable, VGA cable

• Included Accessories: OPS Android player(CRD50),

uch Pen x2

Miscellaneous

• On-Screen Display Languages: Arabic, English,

French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese, Portuguese

• Regulatory approvals: CE, BSMI, CB, EPA, FCC,

Class B

• Warranty: 3 year warranty

Multimedia Applications

• USB Playback Audio: AAC, M4A, MP3, WMA

• USB Playback Picture: BMP, JPE

• USB Playback Video: 3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, TS, VOB, WMV3

•

G, JPG, PNG

Issue date 2018-04-01

Version: 2.0.1

12 NC: 8670 001 45507 EAN: 87 12581 74635 3

Specifications are subject t Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
