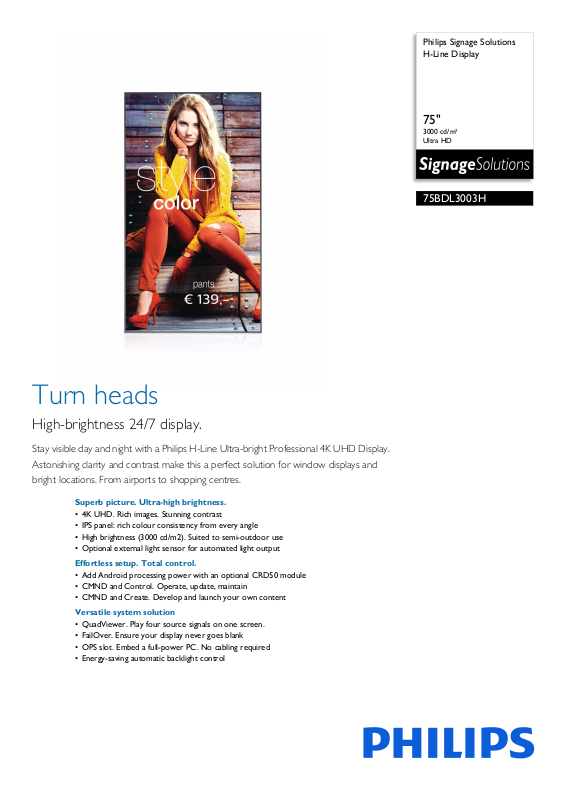

Philips 75BDL3003H-00 User Manual

Philips Signage Solutions
H-Line Display

75"

3000 cd/m²
Ultra HD

75BDL3003H

Turn heads

High-brightness 24/7 display.

Stay visible day and night with a Philips H-Line Ultra-bright Professional 4K UHD Display.
Astonishing clarity and contrast make this a perfect solution for window displays and
bright locations. From airports to shopping centres.

Superb picture. Ultra-high brightness.

• 4K UHD. Rich images. Stunning contrast

• IPS panel: rich colour consistency from every angle

• High brightness (3000 cd/m2). Suited to semi-outdoor use

• Optional external light sensor for automated light output

Effortless setup. Total control.

• Add Android processing power with an optional CRD50 module

• CMND and Control. Operate, update, maintain

• CMND and Create. Develop and launch your own content

Versatile system solution

• QuadViewer. Play four source signals on one screen.

• FailOver. Ensure your display never goes blank

• OPS slot. Embed a full-power PC. No cabling required

• Energy-saving automatic backlight control

75BDL3003H/00

H-Line Display

75" 3000 cd/m², Ultra HD

Highlights

Optional CRD50 module

Embed an Android System-on-Chip (SoC) into
y

our Philips Professional Display. The optional
CRD50 module is an OPS device that enables
Android processing power without the need
for cables. Simply slide into the OPS slot, which
contains all the connections needed to run the
module (including power supply).

CMND and Control

Run your display network over a local (LAN)
connection. CMND and Control allows you to
perform vital functions like controlling inputs
and monitoring display status. Whether you're
in charge of one screen or 100.

CMND and Create

Take control of your content with CMND and
Create

. A drag-and-drop interface makes it
simple to publish your own content, whether
it's a daily specials board or branded corporate
information. Preloaded templates and

integrated widgets ensure that your stills, text
and video will be up and running in no time.

FailOver

From waiting room to meeting room, never
show a blank screen. FailOver lets your Philips
Professional Display switch automatically
between primary and secondary inputs,
ensuring that content keeps playing even if the
primary source goes down. Simply set a list of
alternative inputs to be sure your business is
always on.

OPS slot

Integrate a full-power PC or Android-powered
CRD50 module directly into your Philips
Professional Display. The OPS slot contains all

the connections you need to run your slot-in
solution, including a power supply.

High brightness (3000 cd/m2).

Make a big impact in bright or semi-outdoor
l

ocations. This ultra-high-brightness 3000 cd/
m2 display is pe
large, busy areas that are subject to high
ambient light.

QuadViewer

Turn a single Philips Professional Display into a
bezel-free 2 x 2 videowall. By connecting four
i

ndependent sources, you can effortlessly play
multiple channels at once. Simply tell the
display which zone should play which content.
Ideal for situations like broadcast control
rooms, where feeds from multiple cameras
need to be clearly visible.

rfect for attracting attention in

75BDL3003H/00

H-Line Display

75" 3000 cd/m², Ultra HD

Specifications

Picture/Display

• Diagonal screen size: 74.5 inch / 189.3 cm

• Panel technology: IPS

• Optimum resolution: 3840 x 2160 @ 60 Hz

• Brightness: 3000 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 8 ms

• Pixel pitch: 0.429 x 0.429 mm

• Display colours: 1.07 Billion

• Viewing Angle (H / V): 89 / 89 degree

• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfi

3D Co
contrast enhancement, Motion compens.
deinterlacing, Progressive scan

• Panel resolution: 3840 x 2160

lter, 3D MA deinterlacing, Dynamic

Connectivity

• Video input: VGA (Analogue D-Sub), DisplayPort

(1.2), DVI-D, Component (RCA), Composite
(RCA), HDMI (x 2)

• Video output: DisplayPort, DVI-I, VGA (Analogue

)

D-Sub

•

Audio input: 3.5-mm jack, Audio Left/Right (RCA)

• Audio output: 3.5 mm jack, External speaker

nn

ector

co

• External control: RS232C (in/out) 2.5 mm jack,

, IR (in/out) 3.5 mm jack

RJ45

• Other connections: AC-out, OPS, USB

Dimensions

• Bezel width: 15.3 mm

• Set dimensions (W x H x D):

x 955.6 x 142.4 mm

1681.2

• Set dimensions in inch (W x H x D):

9 x 37.62 x 5.61 inch

66.1

• VESA Mount: 600 x 400 mm, M8

• Product weight: 54.1 kg

• Product weight (lb): 119.27 lb

• Smart insert height: 300 mm

• Smart insert width: 136 mm

Convenience

• Placement: Landscape (24/7), Portrait (24/7)

• Network controllable: RS232, HDMI (One Wire),

• Signal Loop Through: RS232, DisplayPort, IR Loop

LAN (R

J45)

ugh

thro

• Energy-saving functions: Smart Power

• Remote control signal: Lockable

• Keyboard control: Hidden, Lockable

• Ease of installation: Smart Insert

• Other convenience: Carrying handles

• Screen-saving functions: Pixel Shift, Low Brightness

• Picture in picture: PIP

• Picture performance: Advanced colour control

Power

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (Typical): 200 W

• Standby power consumption: <0.5 W

Sound

• Built-in speakers: 2 x 10 W RMS

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Temperature range (storage): -20 ~ 60

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

• Altitude: 0 ~ 3000 m

°C

Accessories

• Included accessories: AC Power Cord, Batteries
for remote control, Remote Control, User manual
on CD-ROM, RS232 cable, HDMI cable, IR sensor
cable (1.8 M), Quick start guide, VGA cable

• Optional accessories: IR Light Motion Sensor

RD41)

(C

•

Included Accessories: RS232 daisy-chain cable

Miscellaneous

• On-Screen Display Languages: English, French,
German, Italian, Polish, Russian, Spanish, Turkish,
Simplified Chinese, Traditional Chinese, Arabic,
Japanese, Portuguese

• Regulatory approvals: CE, BSMI, CB, FCC, Class B

• Warranty: 3-year warranty

Multimedia Applications

• USB Playback Audio: AAC, AIF, AIFF, ASF, LPCM,
M3U, M4A, MP3, MP4, WAV, WMA, PLS

• USB Playback Picture: BMP, GIF, JPEG, PNG

• USB Playback Video: M2TS, M4V, MK3D, MKV,
MP4, MPEG,

MPG, M

TS, TS, TTS, VOB, WMV

Supported Display Resolution

• Computer formats
Resolution Refresh rate
1024 x 768 60 Hz
1280 x 1024 60 Hz
1280 x 768 60 Hz
1280 x 800 60 Hz
1360 x 768 60 Hz
1600 x 1200 60 Hz
1920 x 1080 60 Hz
1920 x 1200 60 Hz
3840 x 2160 30Hz
3840 x 2160 60 Hz
640 x 480 60, 67, 72, 75 Hz
720 x 400 70 Hz
800 x 600 60, 72, 75 Hz

deo formats

• Vi
Re

solution Refresh rate
1080i 25, 30 Hz
1080p 50, 60 Hz
3840 x 2160 30Hz
3840 x 2160 60 Hz
480i 30, 60 Hz
480p 60 Hz
576i 25, 50 Hz
576p 50 Hz
720p 50, 60 Hz

•

Issue date 2019-03-13

Version: 3.0.1

12 NC: 8670 001 45634
EAN: 87 12581 74653 7
