Philips 700 series User manual

HealthyWhite

700 series

Rechargeable

sonic toothbrush

ENGLISH 4

FRANÇAIS 13

HX6700series

ENGLISH

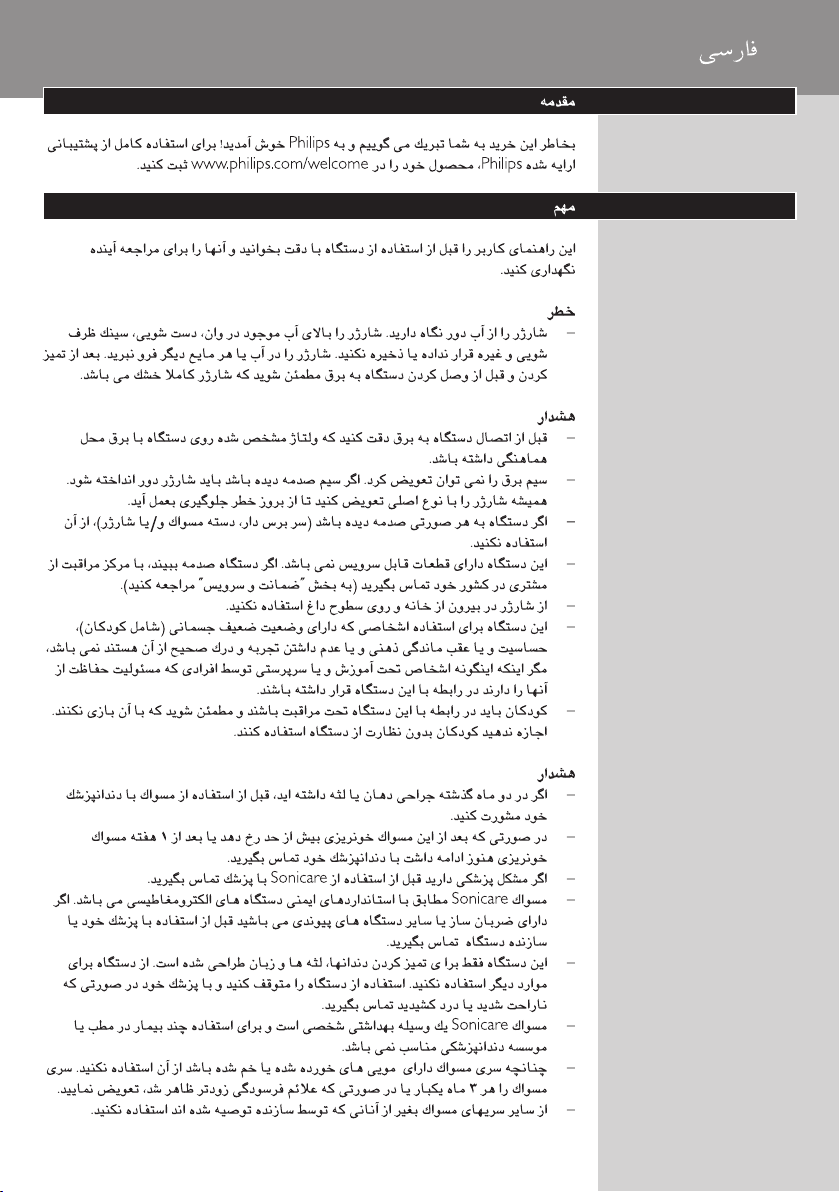

Introduction

Congratulations on your purchase and welcome to Philips! To fully benet

from the support that Philips offers, register your product at www.philips. com/welcome.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

Keep the charger away from water. Do not place or store it over or

near water contained in a bathtub, washbasin, sink etc. Do not immerse the charger in water or any other liquid. After cleaning, make sure the charger is completely dry before you connect it to the mains.

Warning

Check if the voltage indicated on the appliance corresponds to the

local mains voltage before you connect the appliance. The mains cord cannot be replaced. If the mains cord is damaged,

discard the charger. Always have the charger replaced with one of the original type in order to avoid a hazard. If the appliance is damaged in any way (brush head, toothbrush handle

and/or charger), stop using it. This appliance contains no serviceable par ts. If the appliance is

damaged, contact the Consumer Care Center in your country (see chapter ‘Guarantee and service’). Do not use the charger outdoors or near heated surfaces.

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the

appliance.

Caution

If you have had oral or gum surgery in the previous 2 months, consult

your dentist before you use the toothbrush. Consult your dentist if excessive bleeding occurs after using this

toothbrush or if bleeding continues to occur after 1 week of use. If you have medical concerns, consult your doctor before you use the

Sonicare. The Sonicare toothbrush complies with the safety standards for

electromagnetic devices. If you have a pacemaker or other implanted device, contact your physician or the device manufacturer of the implanted device prior to use. This appliance has only been designed for cleaning teeth, gums and

tongue. Do not use it for any other purpose. Stop using the appliance and contact your doctor if you experience any discomfort or pain. The Sonicare toothbrush is a personal care device and is not intended

for use on multiple patients in a dental practice or institution. Stop using a brush head with crushed or bent bristles. Replace the

brush head every 3 months or sooner if signs of wear appear.

ENGLISH 5

Do not use other brush heads than the ones recommended by the

manufacturer. If your toothpaste contains peroxide, baking soda or other bicarbonate

(common in whitening toothpastes), thoroughly clean the brush head and the handle with soap and water after each use. Otherwise the plastic may crack. Do not clean brush heads, the handle, the charger and the charger

cover in the dishwasher.

Electromagnetic elds (EMF)

This Philips appliance complies with all standards regarding electromagnetic

elds (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientic evidence

available today.

The Sonicare (Fig. 1)

A Hygienic travel cap B Brush head C Interchangeable colour code ring D Handle with soft grip E On/off button F Brushing modes G Charge light indicator

Deluxe charge indicator (specic types only)

Standard charge indicator (specic types only)

H Standard charger (specic types only)

H1 Charger cover with brush head holder

H2 Travel charger

I Deluxe charger (specic types only)

I1 Charger cover with brush head holder

I2 Travel charger

I3 Charger base with cord wrap facility

Getting started

Changing the colour code ring

Sonicare brush heads come with interchangeable colour code rings to identify your brush head. To change the colour code ring:

1 Pull the colour code ring from the bottom of the brush head.

ENGLISH6

2 To attach a new ring, slip one edge of the new ring over the bottom

of the brush head. Then press down on the other side to snap the ring into place.

Attaching the brush head

1 Align the brush head so the bristles face the front of the handle.

2 Firmly press the brush head down onto the metal shaft until it stops.

Note: There is a small gap between the colour code ring and the handle.

Charging the Sonicare

1 Put the plug of the charger in the wall socket.

2 Place the handle on the charger.

The battery charge indicator next to the battery symbol ashes to

indicate that the toothbrush is charging.

Battery charge indicator

The battery charge indicator shows the approximate remaining battery charge.

Deluxe charge indicator (specic types only):

Solid green: 50-100%

Flashing green: 10-49%

Flashing yellow: less than 10%

Standard charge indicator (specic types only):

Solid green: 50-100%

Flashing green: less than 50%

Note: When the battery is low, you hear 3 beeps after the completion of the

brushing cycle and the battery charge indicator ashes for 30 seconds.

Note: To keep the battery fully charged, you may keep your Sonicare on the charger when not in use. It takes 24 hours to charge the battery fully.

Using the Sonicare

Brushing instructions

1 Wet the bristles and apply a small amount of toothpaste.

ENGLISH 7

2 Place the toothbrush bristles against the teeth at a slight angle

towards the gumline.

3 Press the on/off button to switch on the Sonicare.

4 Apply light pressure to maximise Sonicare’s effectiveness and let the

Sonicare toothbrush do the brushing for you.

5 Gently move the brush head slowly across the teeth in a small back

and forth motion so the longer bristles reach between your teeth. Continue this motion throughout the brushing cycle.

Note: To make sure you brush evenly throughout the mouth, divide your mouth into 4 sections using the Quadpacer feature (see chapter ‘Features’).

6 Begin brushing in section 1 (outside upper teeth) and brush for 30

seconds before you move to section 2 (inside upper teeth). Continue brushing in section 3 (outside lower teeth) and brush for 30 seconds before you move to section 4 (inside lower teeth).

7 After you have completed the brushing cycle, you can

spend additional time brushing the chewing surfaces of your teeth and areas where staining occurs. You can also brush your tongue, with the toothbrush switched on or off, as you prefer.

The Sonicare is safe to use on:

Braces (brush heads wear out sooner when used on braces)

Dental restorations (llings, crowns, veneers)

Note: You can switch off the toothbrush at any time by pressing and holding the on/off button for 2 seconds.

Clean and White mode brushing instructions

The Clean and White mode consists of 2 minutes of Clean mode to clean the whole mouth and an additional 30 seconds of White mode to focus on the visible front teeth.

1 Brush the rst 2 minutes as instructed in steps 1-6 above.

2 After the 2 minutes of Clean mode, the White mode begins with

a change in brushing sound and motion. That is your signal to start brushing the visible upper front teeth for 15 seconds

3 At the next beep and pause, move to the visible lower front teeth

for the nal 15 seconds of brushing.

Brushing modes

The Sonicare automatically starts in the default Clean mode. To select a different brushing mode:

1 Press the on/off button to toggle between modes.

The green LED indicates the selected mode.

Note: You can only switch between modes when the toothbrush is switched on.

Clean mode

Standard mode for superior teeth cleaning.

ENGLISH8

Sensitive mode (specic types only)

Gentle yet thorough cleaning for sensitive gums and teeth.

Clean and White mode

2 minutes of Clean mode with an additional 30 seconds of White mode to focus on the visible front teeth.

Note: When the Sonicare is used in clinical studies, the default 2-minute Clean mode must be selected. However, in whitening/stain reduction studies, the Clean and White mode must be selected. The handle should be fully charged and the Easy-start feature deactivated.

Features

Easy-start

This Sonicare comes with the Easy-start feature activated. The Easy-start feature gently increases power over the rst 14

brushings to help you get used to brushing with the Sonicare.

Note: Each of the rst 14 brushings must last at least 1 minute to move

through the Easy-start ramp-up cycle properly.

Note: When the Clean and White mode is selected, the Easy-start feature is inactive.

Deactivating or activating the Easy-start feature

1 Attach the brush head to the handle.

2 Place the handle in the plugged-in charger.

To deactivate Easy-star t:

Press and hold the on/off button for 2 seconds. You hear 1 beep to indicate

that the Easy-start feature has been deactivated.

To activate Easy-star t:

Press and hold the on/off button for 2 seconds. You hear 2 beeps to

indicate that the Easy-start feature has been activated.

Note: Use of the Easy-start feature beyond the initial ramp-up period is not recommended and reduces the effectiveness of the Sonicare toothbrush in removing plaque.

Smartimer

The Smartimer indicates that your brushing cycle is complete by automatically switching off the toothbrush at the end of the brushing cycle. Dental professionals recommend brushing no less than 2 minutes twice a day. If you want to pause or stop brushing during the 2-minute brushing cycle, press and hold the on/off button for 2 seconds. Press the on/off button again and the Smartimer picks up where you left off. The Smartimer automatically resets to the beginning of a 2-minute cycle if:

you stop brushing for 30 seconds or longer.

you put the handle in the charger.

ENGLISH 9

Quadpacer (select models)

The Quadpacer is an interval timer that has a shor t beep and pause

to remind you to brush the 4 sections of your mouth evenly and

thoroughly. When you use the two-minute Clean or Sensitive mode, you hear a

short beep and a pause in brushing action at 30, 60 and 90 seconds.

When you use the Clean and White mode, you hear and feel a change

in the brush head sound and motion after 2 minutes of Clean mode. Then move the brush head to the visible upper front teeth and brush

them for 15 seconds. At the nal beep and pause, move to the visible

lower front teeth and brush them for 15 seconds.

Cord wrap facility (specic types only)

If your Sonicare type includes the deluxe charger cover and base, the travel charger is pre-installed inside the cover. If you want to shorten the mains cord, you can store excess cord in the cord wrap facility in the charger base.

1 To separate the charger cover from the charger base, press the two

grey snap bars on the charger base and pull the white charger cover upwards.

2 Wrap excess mains cord around the grey charger base as shown in

the picture. Make sure you wrap the cord on the inside of the two snap levers.

3 When you have stored the excess cord, guide the mains cord

through the small groove in the rear of the grey charger base.

4 To reattach the charger cover, press it down over the charger base

until it snaps into place.

Tip: For extra convenience during travel, you can remove the travel charger and use it without the charger cover and charger base.

ENGLISH10

Cleaning

Do not clean brush heads, the handle, the charger or the charger covers in the dishwasher.

Toothbrush handle

1 Remove the brush head and rinse the metal shaft area with warm

water.

Do not push on the rubber seal on the metal shaft with sharp objects, as this may cause damage.

2 Wipe the entire surface of the handle with a damp cloth.

Brush head

1 Rinse the brush head and bristles after each use.

2 Remove the brush head from the handle and rinse the brush head

connection at least once a week with warm water.

Charger

1 Unplug the charger before you clean it.

2 Wipe the surface of the charger with a damp cloth.

Storage

If you are not going to use the appliance for a long time, unplug it, clean

it and store it in a cool and dry place away from direct sunlight. You can

use the cord wrap facility (specic types only) to store the mains cord

in an organised way. You can store brush heads on the pegs at the back of the charger.

Replacement

Brush head

Replace Sonicare brush heads every 3 months to achieve optimal results. Use only Sonicare ProResults replacement brush heads.

ENGLISH 11

Disposal

Do not throw away the appliance with the normal household waste

at the end of its life, but hand it in at an ofcial collection point for

recycling. By doing this, you help to preserve the environment. The built-in rechargeable battery contains substances that may pollute

the environment. Always remove the battery before you discard and

hand in the appliance at an ofcial collection point. Dispose of the battery at an ofcial collection point for batteries. If you have trouble

removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable battery

Please note that this process is not reversible.

1 To deplete the rechargeable battery of any charge, remove the

handle from the charger, switch on the Sonicare and let it run until it stops. Repeat this step until you can no longer switch on the Sonicare.

2 Insert a athead (standard) screwdriver into the slot located at the

bottom of the handle and turn it anticlockwise to release the bottom cap.

3 Hold the handle upside down and push down on the shaft to release

the internal components of the handle.

4 Insert the screwdriver under the circuit board, next to the battery

connections, and twist to break the connections. Remove the circuit board and pry the battery from the plastic carrier.

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer

Care Centre in your country (you nd its phone number in the worldwide guarantee leaet). If there is no Consumer Care Centre in your country, go

to your local Philips dealer.

ENGLISH12

Guarantee restrictions

The terms of the international guarantee do not cover the following:

Brush heads

Damage caused by misuse, abuse, neglect, alterations or unauthorised

repair. Normal wear and tear, including chips, scratches, abrasions,

discolouration or fading.

Frequently asked questions

This chapter lists the questions most frequently asked about the appliance.

If you cannot nd the answer to your question, contact the Consumer

Care Center in your country.

Question Answer

Why doesn’t the Sonicare work? You may need to recharge the Sonicare. Charge the Sonicare for at

least 24 hours.

The socket may not be live. The electricity supply to sockets in mirror cabinets over washbasins or shaver sockets in bathrooms may be cut off when the light is switched off

You may need to reattach or replace the brush head.

Why do I feel a tickling sensation when I use the Sonicare?

The brush head chatters against my teeth. What can I do about this?

Why does the Sonicare seem less powerful?

Why does the Sonicare seem to change power during brushing?

Do I need a special charger if I travel with the Sonicare?

You may experience a slight tickling/tingling sensation when you

use the Sonicare for the rst time. As you become accustomed to

brushing with the Sonicare, this sensation diminishes.

To avoid this, keep the brush head properly oriented, with the bristles placed on the gumline at a slight angle.

You may need to charge the Sonicare.

The Easy-start feature may be on. Deactivate the Easy-start feature (See chapter ‘Features’).

You may need to replace the brush head.

You may be in the Clean and White brushing mode. If this is the case, the toothbrush starts in the Clean mode for 2 minutes and then changes to the White mode for 30 seconds. The Clean and White mode has a different sound and brush movement.

No, you do not need a special charger. The Sonicare charger can be

used with common worldwide voltages between 100-240V AC, at

either 50 or 60Hz. A simple plug adapter is all that is required.

FRANÇAIS

Introduction

Félicitations pour votre achat et bienvenue dans l’univers Philips ! Pour proter pleinement de l’assistance Philips, enregistrez votre produit sur le

site à l’adresse suivante : www.philips.com/welcome.

Important

Lisez attentivement ce mode d’emploi avant d’utiliser l’appareil et

conservez-le pour un usage ultérieur.

Danger

Ne mettez en aucun cas le chargeur en contact avec de l’eau. Ne le

placez pas et ne le rangez pas sur ou près d’une baignoire, d’un lavabo

ou d’un évier. N’immergez en aucun cas le chargeur dans l’eau ou dans

tout autre liquide. Après nettoyage, assurez-vous que le chargeur est parfaitement sec avant de le brancher sur secteur.

Avertissement :

Avant de brancher l’appareil, vériez que la tension indiquée sur

l’appareil correspond à la tension secteur locale.

Le cordon d’alimentation de cet appareil ne peut pas être remplacé.

Si celui-ci est endommagé, le chargeur devra être mis au rebut et remplacé par un chargeur de même type pour éviter tout accident.

Si l’appareil (tête de brosse, manche de la brosse à dents et/ou

chargeur) est endommagé, cessez de l’utiliser. L’appareil ne contient aucune pièce réparable. S’il est endommagé,

contactez le Service Consommateurs de votre pays (voir le chapitre « Garantie et service »).

N’utilisez pas le chargeur à l’extérieur ou près de surfaces chauffantes.

Cet appareil n’est pas destiné à être utilisé par des personnes

(notamment des enfants) dont les capacités physiques, sensorielles ou intellectuelles sont réduites, ou par des personnes manquant d’expérience ou de connaissances, à moins que celles-ci ne soient sous

surveillance ou qu’elles n’aient reçu des instructions quant à l’utilisation

de l’appareil par une personne responsable de leur sécurité. Veillez à ce que les enfants ne puissent pas jouer avec l’appareil.

Attention

Si vous avez reçu des soins bucco-dentaires, notamment au niveau des

gencives, au cours des deux derniers mois, consultez votre dentiste avant d’utiliser cette brosse à dents. Consultez votre dentiste si vos gencives saignent de manière excessive

après utilisation de cette brosse à dents ou si le saignement persiste après une semaine d’utilisation.

Si vous avez des problèmes de santé, consultez votre médecin avant

d’utiliser la brosse à dents Sonicare.

La brosse à dents Sonicare est conforme aux normes de sécurité

relatives aux appareils électromagnétiques. Si vous avez des questions

concernant l’utilisation de la brosse à dents Sonicare avec un

stimulateur cardiaque ou tout autre dispositif implanté, contactez votre médecin traitant ou le fabricant de ce dispositif avant utilisation. Cet appareil a été conçu exclusivement pour le brossage des dents,

des gencives et de la langue. Ne l’utilisez jamais à d’autres ns. Si son

FRANÇAIS14

utilisation devait s’avérer inconfortable ou douloureuse, cessez d’utiliser l’appareil et consultez votre médecin.

La brosse à dents Sonicare est un appareil de soins personnel et n’est

pas destinée à être utilisée sur plusieurs patients dans les cabinets ou établissements dentaires. Cessez d’utiliser une tête de brosse dont les poils sont écrasés ou

tordus. Remplacez la tête de brosse tous les 3 mois ou plus tôt si vous constatez des signes d’usure.

N’utilisez pas d’autres têtes de brosse que celles recommandées par le

fabricant. Si votre dentifrice contient du peroxyde, du bicarbonate de soude ou

un autre type de bicarbonate (couramment utilisés dans les dentifrices

blanchissants), veillez à bien nettoyer la tête de brosse et le manche avec de l’eau savonneuse après chaque utilisation. Dans le cas contraire,

le plastique pourrait se ssurer.

Ne mettez pas les têtes de brosse, le manche, le chargeur et le

couvercle du chargeur au lave-vaisselle.

Champs électromagnétiques (CEM)

Cet appareil Philips est conforme à toutes les normes relatives aux champs

électromagnétiques (CEM). Il répond aux règles de sécurité établies sur la base des connaissances scientiques actuelles s’il est manipulé correctement et conformément aux instructions de ce mode d’emploi.

Sonicare (g. 1)

A Capuchon de protection hygiénique B Tête de brosse C Anneau de couleur interchangeable D Manche confort E Bouton marche/arrêt F Modes de brossage G Voyant de charge

Témoin de charge Deluxe (certains modèles uniquement)

Témoin de charge Standard (certains modèles uniquement)

H Chargeur Standard (certains modèles uniquement)

Couvercle du chargeur H1 avec support pour tête de brosse

Chargeur de voyage H2

I Chargeur Deluxe (certains modèles uniquement)

Couvercle du chargeur I1 avec support pour tête de brosse

Chargeur de voyage I2

Socle du chargeur I3 avec range-cordon

Pour démarrer

Changement de l’anneau de couleur

Les têtes de brosse Sonicare sont fournies avec des anneaux de couleur

interchangeables, qui vous permettent de les identier.

Pour changer l’anneau de couleur :

+ 30 hidden pages
