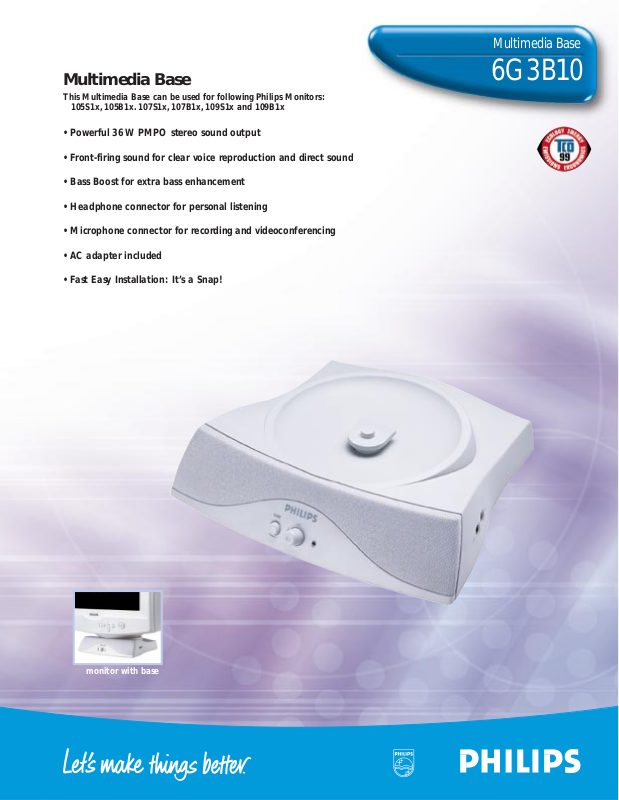

Philips 6G3B10 User Manual

Multimedia Base

This Multimedia Base can be used for following Philips Monitors:

105S1x, 105B1x. 107S1x, 107B1x, 109S1x and 109B1x

• Powerful 36 W PMPO stereo sound output

• Front-firing sound for clear voice reproduction and direct sound

• Bass Boost for extra bass enhancement

• Headphone connector for personal listening

• Microphone connector for recording and videoconferencing

• AC adapter included

• Fast Easy Installation: It’s a Snap!

Multimedia Base

6G3B10

monitor with base

Product Number 6G3B10 Technical Specifications

Compatibility

The Multimedia Base is compatible with the following monitor:

• 105S1x

• 105B1x

• 107S1x

• 107B1x

• 109S1x

• 109B1x

Amplifier

• RMS Power 2x1.5W

• PMPO Power 36 Watts

• Input Signal Level 340 mV RMS

• Bass Boost

Speakers

• Unit Diameter 2"

• Impedance 4Ω

• Frequency Response 140Hz -20kHz

• Dual Passive Bass Pipes

Option

USB Hub PCUH411 Clip-On Option

Adapter

• Input (6G3B10/74) 108~132 VA C, 60Hz,0.1A (10W)

• Output: 9 VDC, 600mA

Regulatory Approvals

•UL

• CSA

•CE

• TCO ’99

Physical Specifications

• Dim.(Excl. Swivel)(WxHxD)(mm) 239 x 54 x 208

• Dim.(Excl. Swivel)(WxHxD)(inch) 9.4" x 2.1" x 8.2"

• Additional Height for Monitor 28 mm/1.1" (Multimedia Base-Normal

Base)

• Weight 0.9 kg/2.0 lbs.

• Additional Weight for Monitor 0.5 kg/1.1 lbs. (Multimedia Base-Normal

Base)

• Power Consumption 5 Watts

• UPC Code 0 37849 89239 8

• Carton Dimensions (WxHxD)(mm) 239 x 54 x 208

• Carton Dimensions (WxHxD)(inch) 12.8" x 9.8" x 4.5"

• Carton Weight 1.4 kg/3.1 lbs.

Connections and Cables

• Headphone Connection 3.5mm jack

• Microphone Input 3.5mm jack

• Microphone Output 3.5mm jack

• Audio Cable 1.8M,3.5mm jack to 3.5mm jack

This monitor fulfills all Nutek requirements regarding power management All trademarks acknowledged.

INTERNET ADDRESS: http://www.pcstuff.philips.com FAX INFORMATION SYSTEM: (423) 521-4341 TECHNICAL SUPPORT: (877) 835-1838 (USA)

(903) 242-4804 (outside USA)

Multimedia Base

6G3B10

Specifications subject to change without notice

The Multimedia Base replaces the easily removable standard pedestal of the monitor. The Multimedia Base increases the height of the product by only 1.1"(3 cm).
