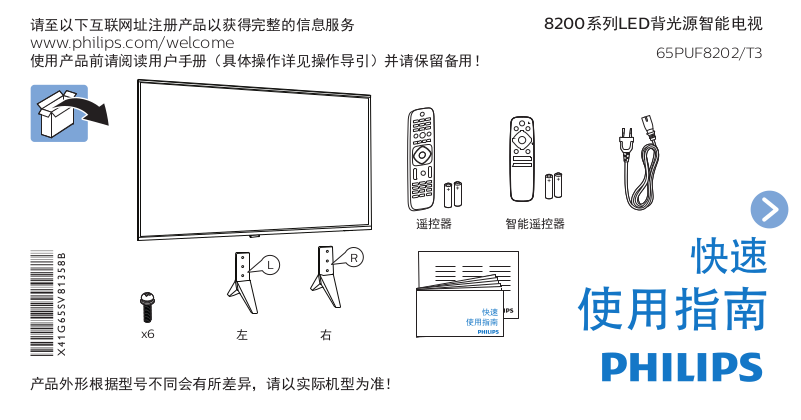

请至以下互联网址注册产品以获得完整的信息服务

www.philips.com/welcome

使用产品前请阅读用户手册（具体操作详见操作导引）并请保留备用！

遥控器 智能遥控器

8200系列LED背光源智能电视

65PUF8202/T3

L

x6

X41G65SV81358B

产品外形根据型号不同会有所差异，请以实际机型为准！

左 右

R

快速

使用指南

快速

使用指南

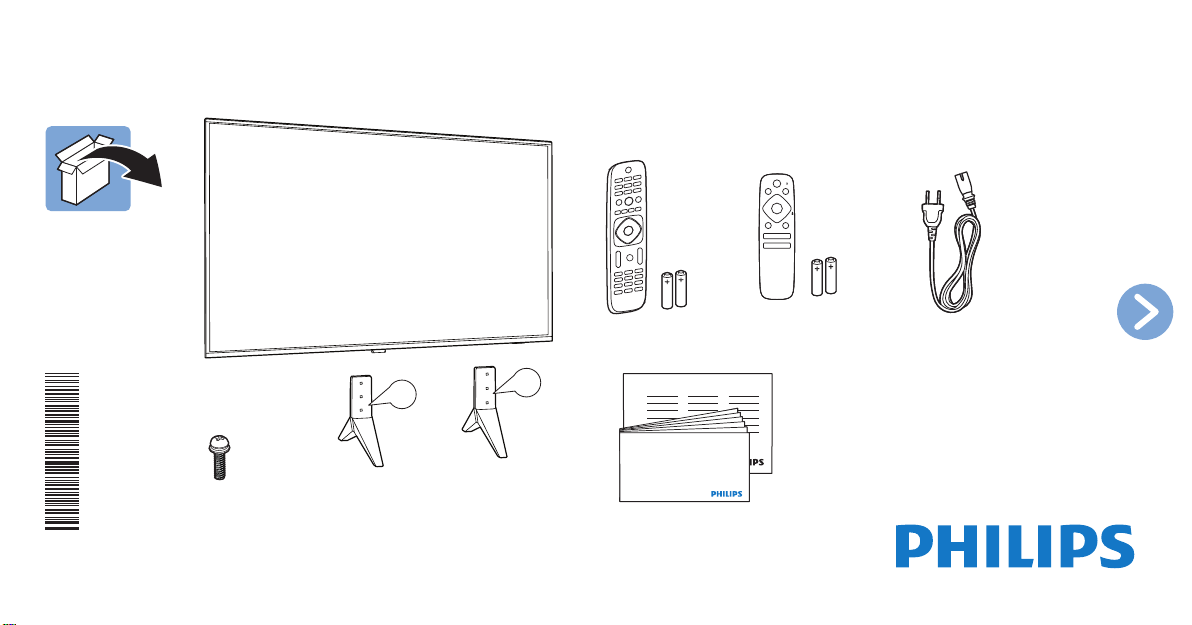

您的产品包装箱内物品摆放位置

以上图示仅供参考，具体请以实际为准！

遥控器放置在保丽龙
的上部，如图示。

底座放置在保丽龙的
上部，如图示。

底座放置在保丽龙的
上部，如图示。

附件包

附件包放置在保丽龙的上部，如图示。
*附件包内包含快速使用指南，保修
卡，底座螺丝，电源线，电池。

2

目录

您的产品包装箱内物品摆放位置 2
重要信息 4
安装底座 7
连接 10
电池安装方式 13
打开电视 14
操作导引 14
电子电气产品有害物质限制使用标识要求 16

3

重要信息

安全
环境温度：5到45摄氏度
小心触电或发生火灾！

•• 切勿让电视机与雨或水接触。切勿将液体容
器（例如花瓶）放置在电视机旁边或上面。
如果将液体洒到了电视机表面或内部，请
立即断开电视机的电源。请与Philips•客户
服务中心联系，对电视机进行检查后再行使
用。

•• 切勿将电视机、遥控器或电池放在明火或其
它热源（包括直射的阳光）附近。为避免火
焰蔓延，请始终使蜡烛或其它明火远离电视
机、遥控器和电池。

4

•• 切勿向电视机上的通风槽或其它开口中插入
任何物体。

•• 旋转电视机时，请确保电源线不会绷紧。电
源线绷紧会使电源连接变松，进而产生火
花。

小心短路或起火！

•• 切勿将遥控器或电池暴露在雨中、水中或过
热的环境中。

•• 请避免电源插头产生拉力。松动的电源插头
可能产生火花或者导致起火。

小心人身伤害或电视机损坏！

小心伤害儿童！

•• 需由两个人搬运重量超过25千克的电视机。

•• 将电视机安装在机座上时，请仅使用提供的
机座。将机座牢固地固定到电视机上。将电
视机放在水平、平坦且可承受电视机和机座
总重量的表面上。

•• 采用壁挂方式安装电视时，请仅使用可
承受电视机重量的壁挂安装托架。将壁
挂安装托架固定到可承受电视机和壁挂
安装托架总重量的墙壁上。TPV Display
Technology(Xiamen)Co.,Ltd.对由于安装
不当而造成的事故、人身伤害或损失不负任
何责任。

请遵循以下注意事项，以避免因电视机掉落而
导致儿童受伤：

•• 切勿将电视机放在由可拉动的布或其它材料
覆盖的表面上。

•• 确保电视机的任何部分均位于表面边缘以
内。

•• 将电视机放在较高的家具（如书柜）上时，
一定要将家具和电视机都固定到墙壁或适当
的支撑物上。

•• 告知儿童爬上家具触摸电视机可能带来的危
险。

小心误食电池！

•• 此产品的遥控器含有电池，有可能被孩童误
食，请将电池放于孩童无法接触的位置。

5

小心过热！

小心人身伤害、起火或电源线损坏！

•• 切勿将电视机安装在封闭空间内。•始终在
电视机周围留出至少4英寸或10厘米的空间
以便通风。确保窗帘或其它物体不会遮挡电
视机上的通风槽。

小心损坏电视机！

•• 在将电视机连接到电源插座上之前，请确保
电源电压与电视机背面印刷的值相匹配。如
果电压不同，切勿将电视机连接到电源插座
上。

•• 电视长期不使用的情况下，请切断电源。

6

•• 切勿将电视机或任何物体放在电源线上。

•• 电源插头作为断开装置，应当保持能方便地
操作。

•• 断开电源线时，应始终握住插头，而不能拉
电缆。

•• 雷雨天气来临之前，请断开电视机与电源插
座及天线的连接。•在雷雨天气里，切勿触
摸电视机、电源线或天线的任何部分。

•• 接入本设备的有线网络天线必须与保护接地
隔离，否则可能会引起着火等危险！

小心听力损害！

•• 避免在高音量下或长时间使用耳机或听筒。

1

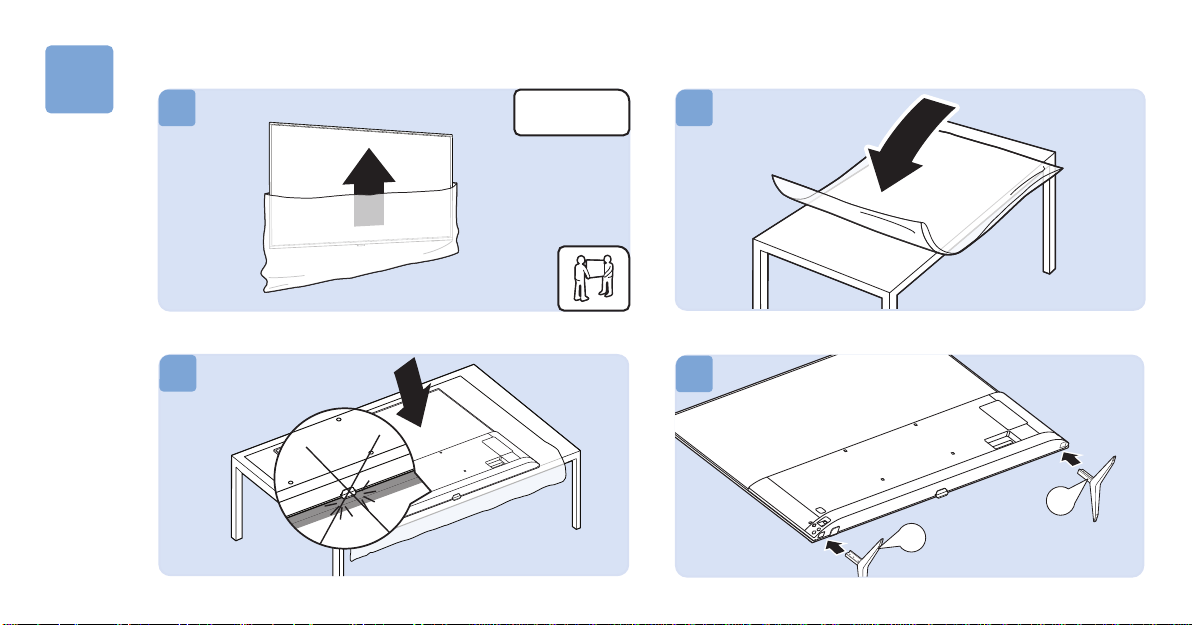

安装底座

1

65” 20.25kg

2

3

*取出电视机。

*请将电视机底部边缘靠近台面边缘 , 将下巴放置于台面外。

4

右

*确保平整台面上无杂物后铺上软布。

R

右

*将底座按照图示对齐放置(注意区分左右支撑) , R、L在底座上有标识。

左

L

左

7

5

x6

L

左

右

R

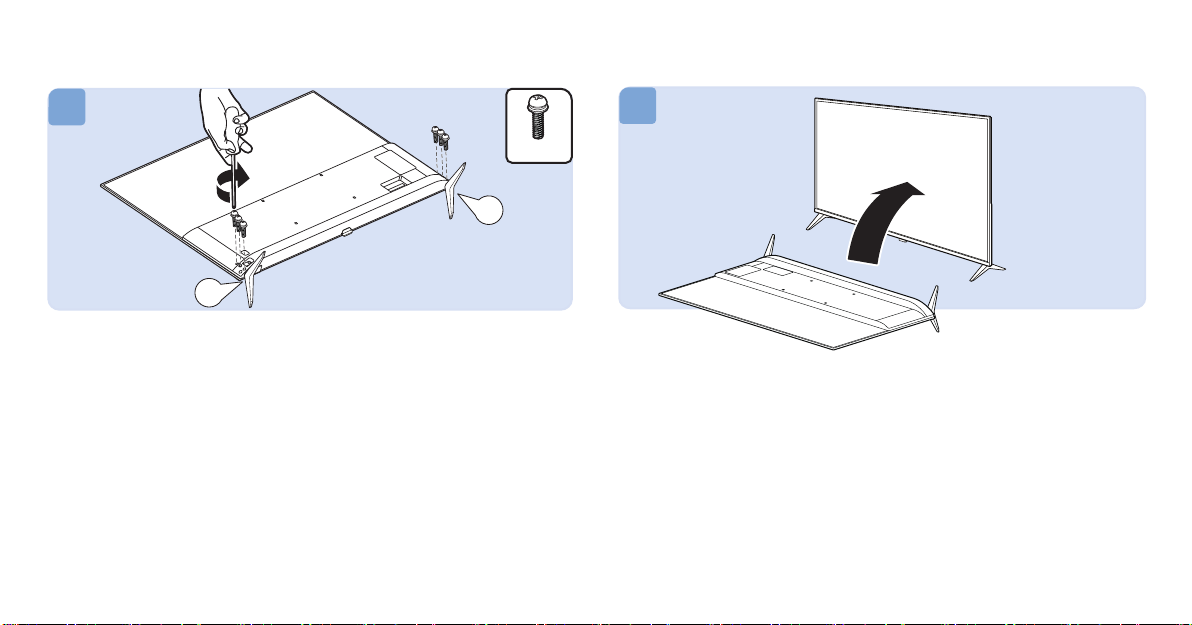

*按照图示将螺丝锁紧。 *将电视扶起放好。

8

6

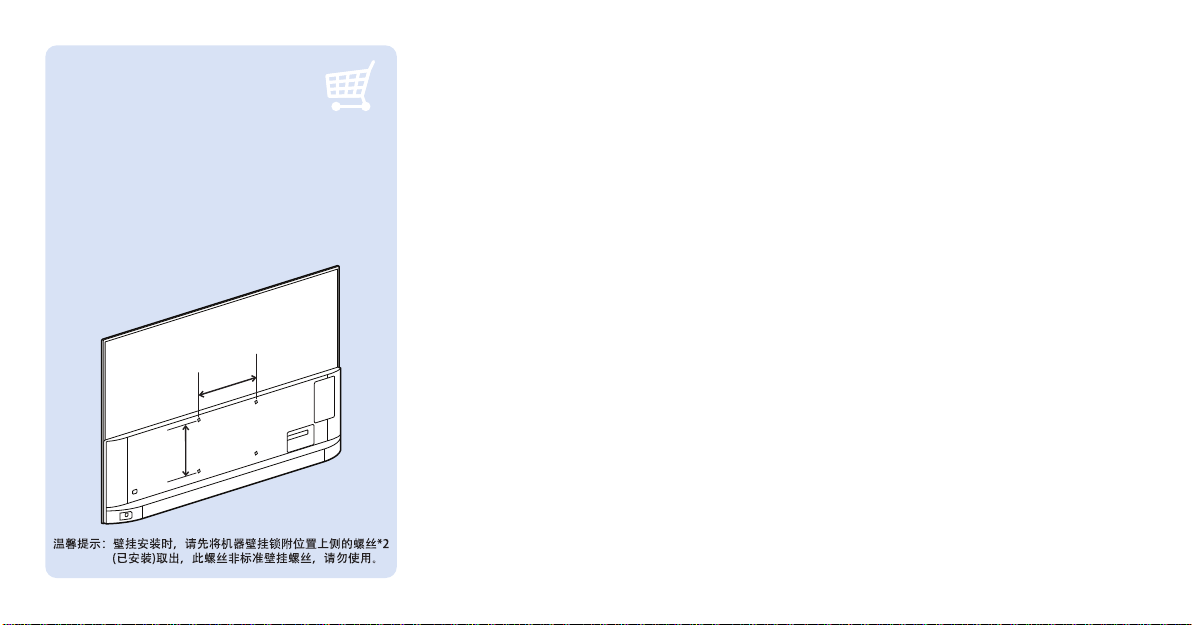

VESA (x,y)
65” 400x200 M6

(壁挂配件需另外购买)

建议螺丝有效螺牙长度14-16MM (不含垫片)

x

y

9

2

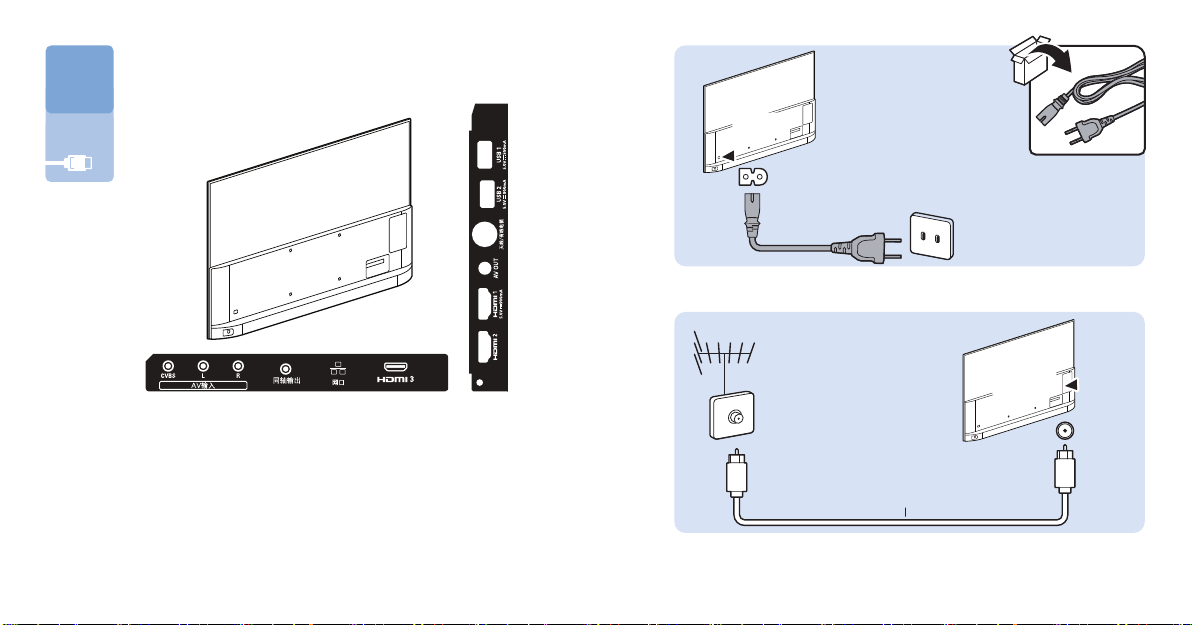

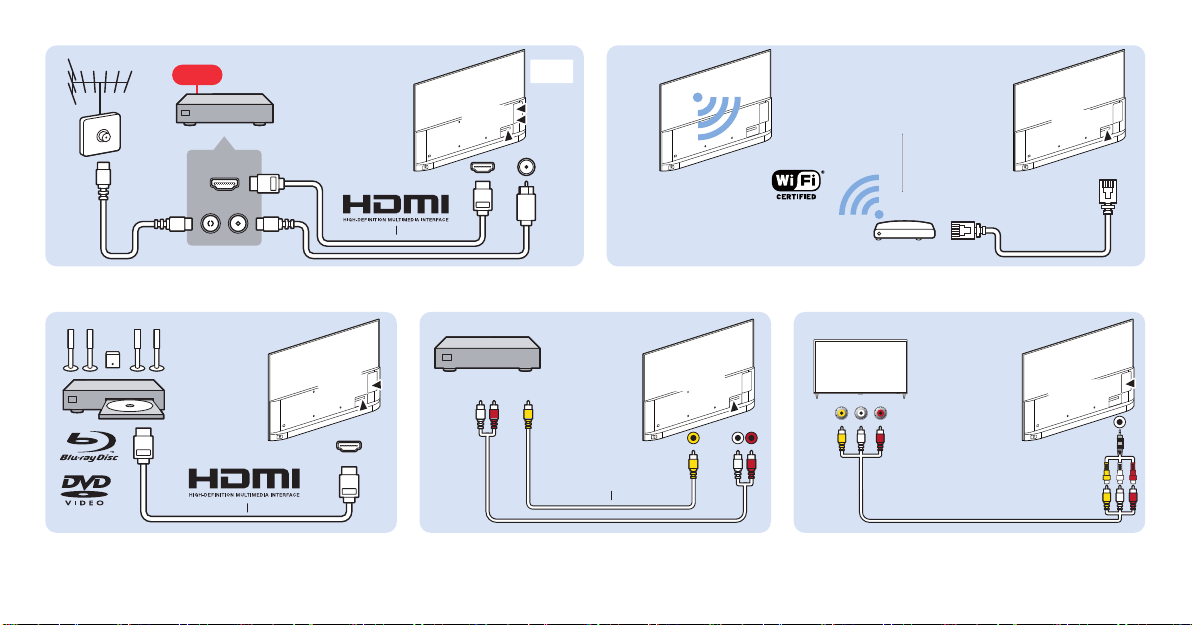

连接

备注：由于用户装修时电源的地线与有线信号的地线
电压有差异，可能造成有线信号与电视机连接处会有
发热的情况，情况严重时会导致事故发生，为了避免
不安全事故的发生及提高观看电视的安全性，电视机
内置集成天线隔离器。

10

POWER

天线/

有线电视

电缆

REC

HDMI

IN

OUT

®

HDMI

天线/

有线电视

音像输出设备

或

INTERNET

网口

HDMI

®

AV输入 AV OUT

CVBS L/R

VIDEO L - AUDIO - R

AV OUT

11

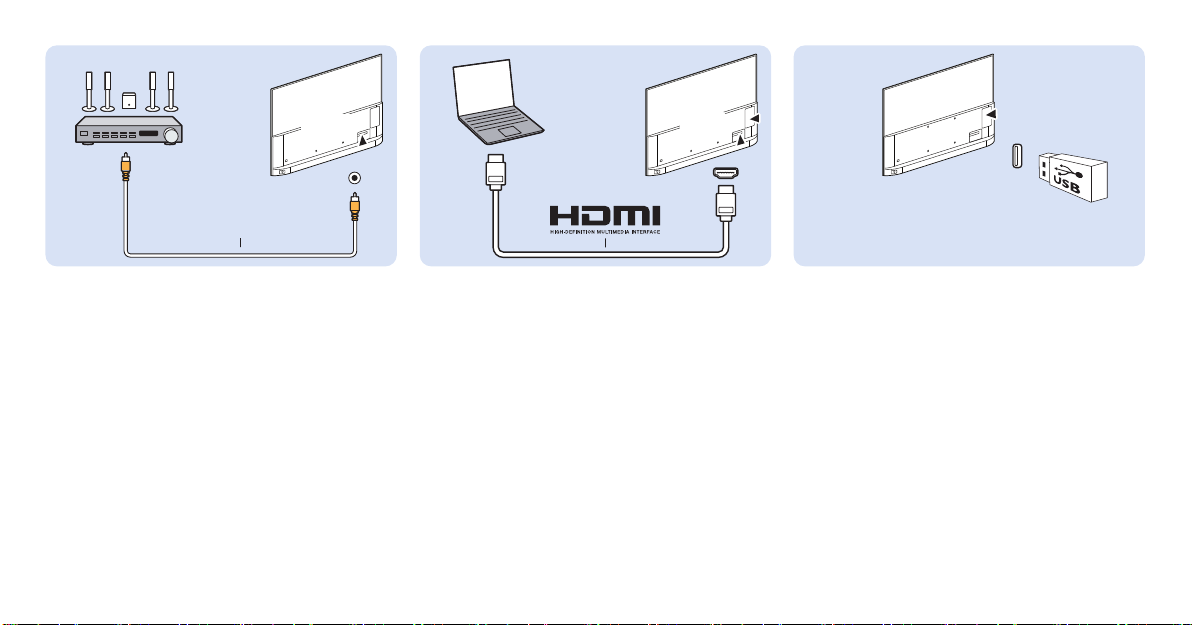

USB

同轴输出

HDMI

®

同轴输出

12

2

3

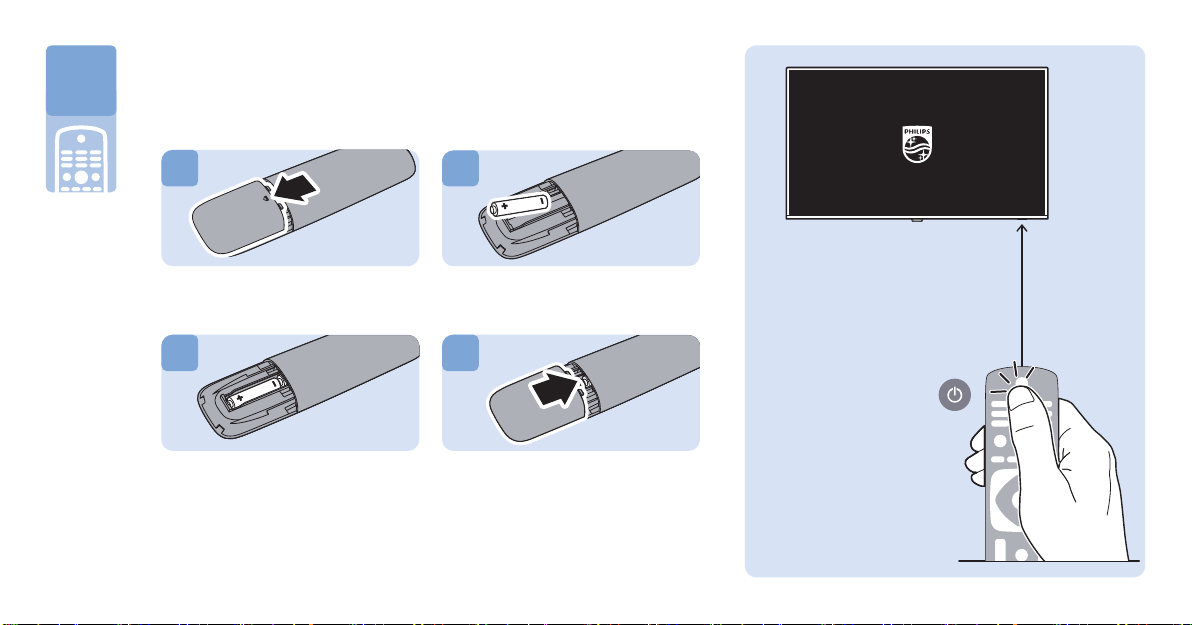

电池安装方式

1

43

13

4

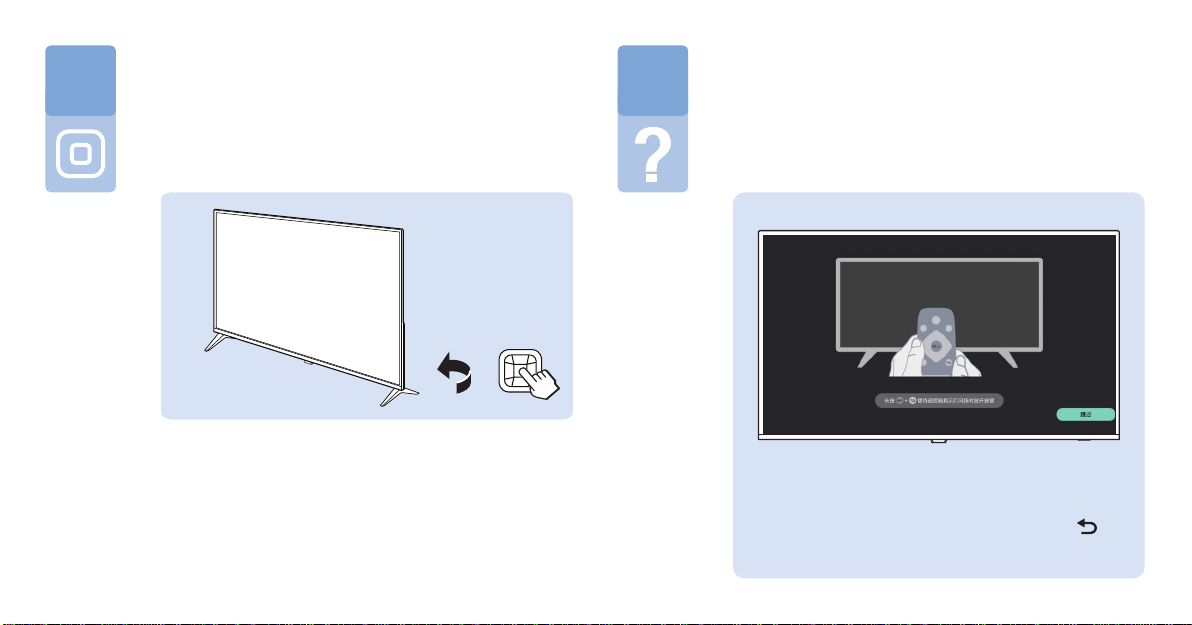

打开电视 操作导引

5

按下电视背面多功能方向键的中间
键，打开电视机。

14

请按照提示，进行电视设置。

注：智能遥控器需进行配对后方可正常使用。
同时按住智能遥控器的配对键（确认键+ ）,
智能遥控器指示灯闪烁，此时松开配对键。

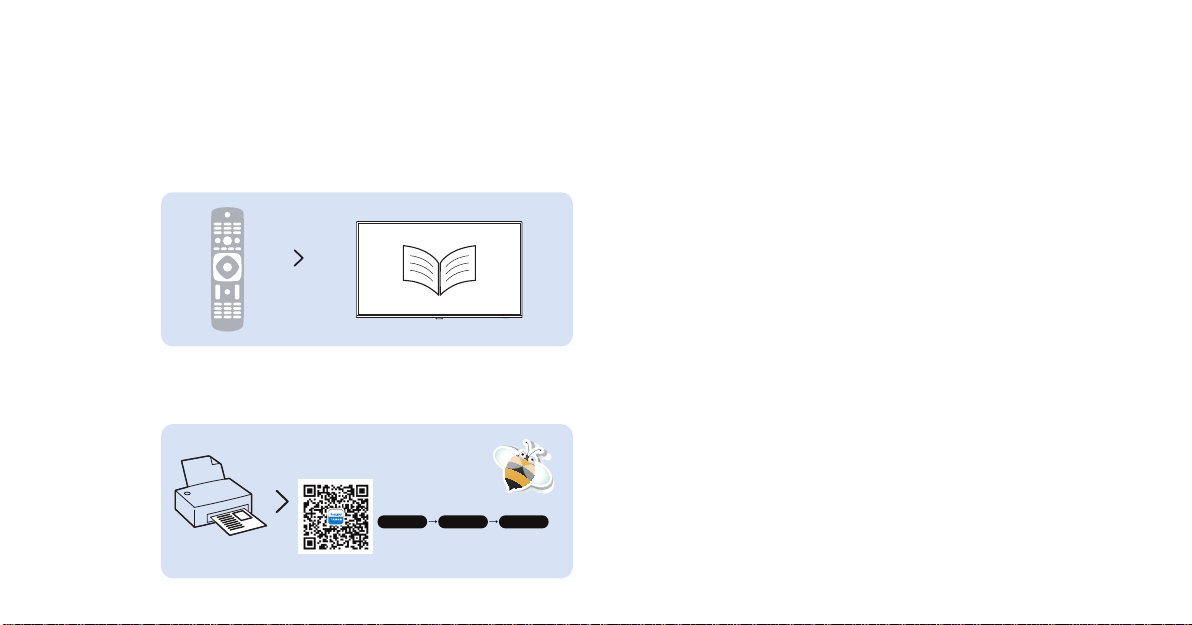

选择帮助，查看用户手册。

按“帮助”键

更多操作信息请参考•PHILIPS support
网站。

马上扫码，报装报修，
一步搞定，简单三步，
加入飞利浦电视俱乐部，享额外延保专属权益！

扫码关注

热线电话：4008 800 008

www.philips.com.cn

飞你不可

注册会员

15

6

电子电气产品有害物质限制使用标识要求

本产品有害物质名称及含量

有害物质

零部件名称

金属外框 ○ ○ ○ ○ ○ ○
后壳 ○ ○ ○ ○ ○ ○

LCD面板
电路板组件* × ○ ○ ○ ○ ○

底座 ○ ○ ○ ○ ○ ○
电源线 × ○ ○ ○ ○ ○
其他线材 × ○ ○ ○ ○ ○
遥控器 × ○ ○ ○ ○ ○
*：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。
本表格根据•SJ/T 11364•的规定编制

○：表示该有害物质在该部件所有均质材料中的含量均在•GB/T 26572规定的限量要求以下。
×：表示该有害物质至少在该部件的某一均质材料中的含量超出•GB/T 26572规定的限量要求。
备注：以上打“×”的部件，应功能需要，部分有害物质含量超过GB/T 26572规定的限量要求，但符合欧盟RoHS•法规

要求（属于豁免部分）。

16

CCFL
LED

铅(Pb) 汞(Hg) 镉(Cd) 六价铬•

(Cr(VI))

× × ○ ○ ○ ○
× ○ ○ ○ ○ ○

多溴联苯•

(PBB)

多溴二苯醚•

(PBDE)

该电子电气产品含有某些有害物质，在环保使用期限内可以放心使用，超过环保使用期限之后则应该进
入回收循环系统。

《废弃电器电子产品回收处理管理条例》提示性说明

为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品
回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。

17

所有注册和未注册的商标是其各自所有者的财产。规格如有变更，恕不另行通知。
Philips 和 Philips 盾牌图形是皇家飞利浦有限公司的注册商标，其使用需遵循皇家飞利浦有限公司的许可。

出版日期：2017年10月

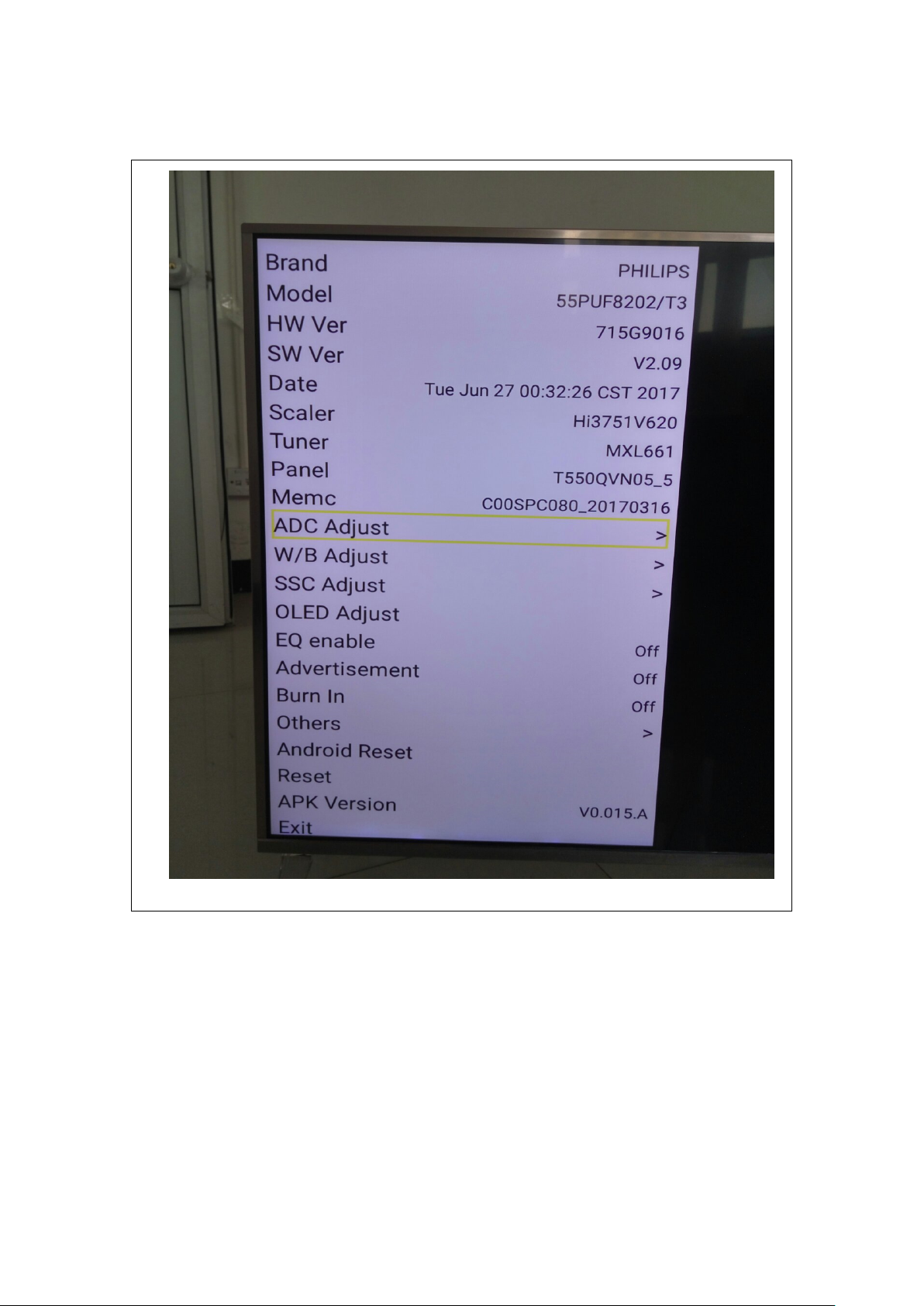

工厂模式调整：应用选单/选项 +1999+回看

项目名称

功能说明

备注

Brand

机种品牌

不可调整

Model

机种型号

不可调整

HW Ver

硬体版号

不可调整

SW Ver

软体版号

不可调整

Date

软体发布日期

不可调整

Scaler

主芯片型号

不可调整

Tuner

高频头型号

不可调整

Panel

液晶屏型号

不可调整

Memc

倍频功能

不可调整

ADC Adjust

ADC 调整

免调

W/B Adjust

白平衡调整

不建议调整

SSC Adjust

展频调整

不建议调整

OLED Adjust

OLED 调整

EQ enable

声音参数调整

不建议调整

Advertisement

广告

ON/Off

Burn in

拷机模式

ON/Off

Others

工厂菜单

不建议调整

Reset

复位

APK Versin

APK 模式

不建议调整

Exit

退出工厂模式

软体升级步骤：

例如 V1.01 版本：

EBONY_hi3751v620_V1.01

1. 将软体拷贝到 U 盘的根目录下；

2. 将 U 盘插到电视的 USB3.0 口

3. 断电上电即可升级。

 软体名格式：EBONY_hi3751v620_V**

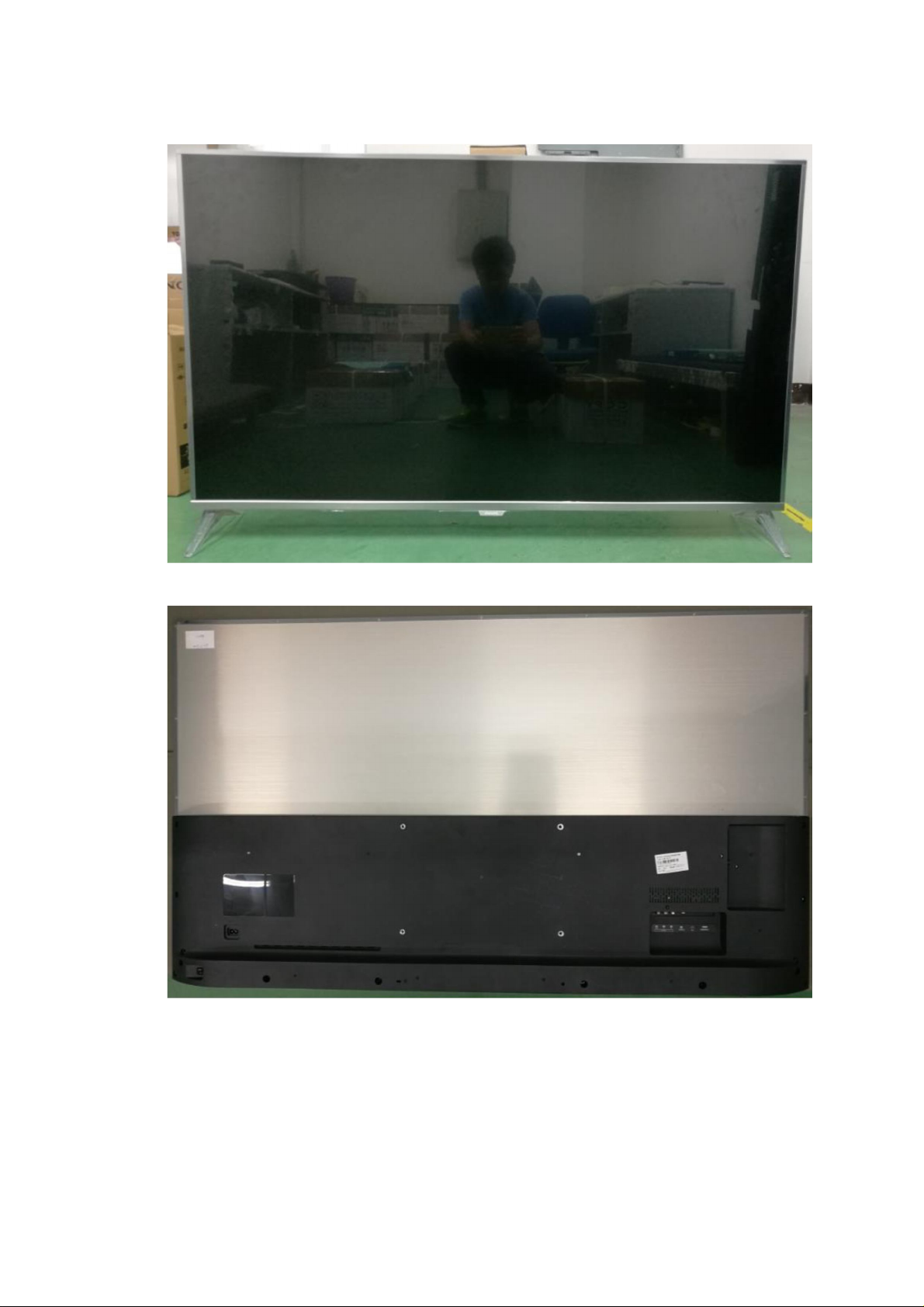

1. 正视图

2. 后视图

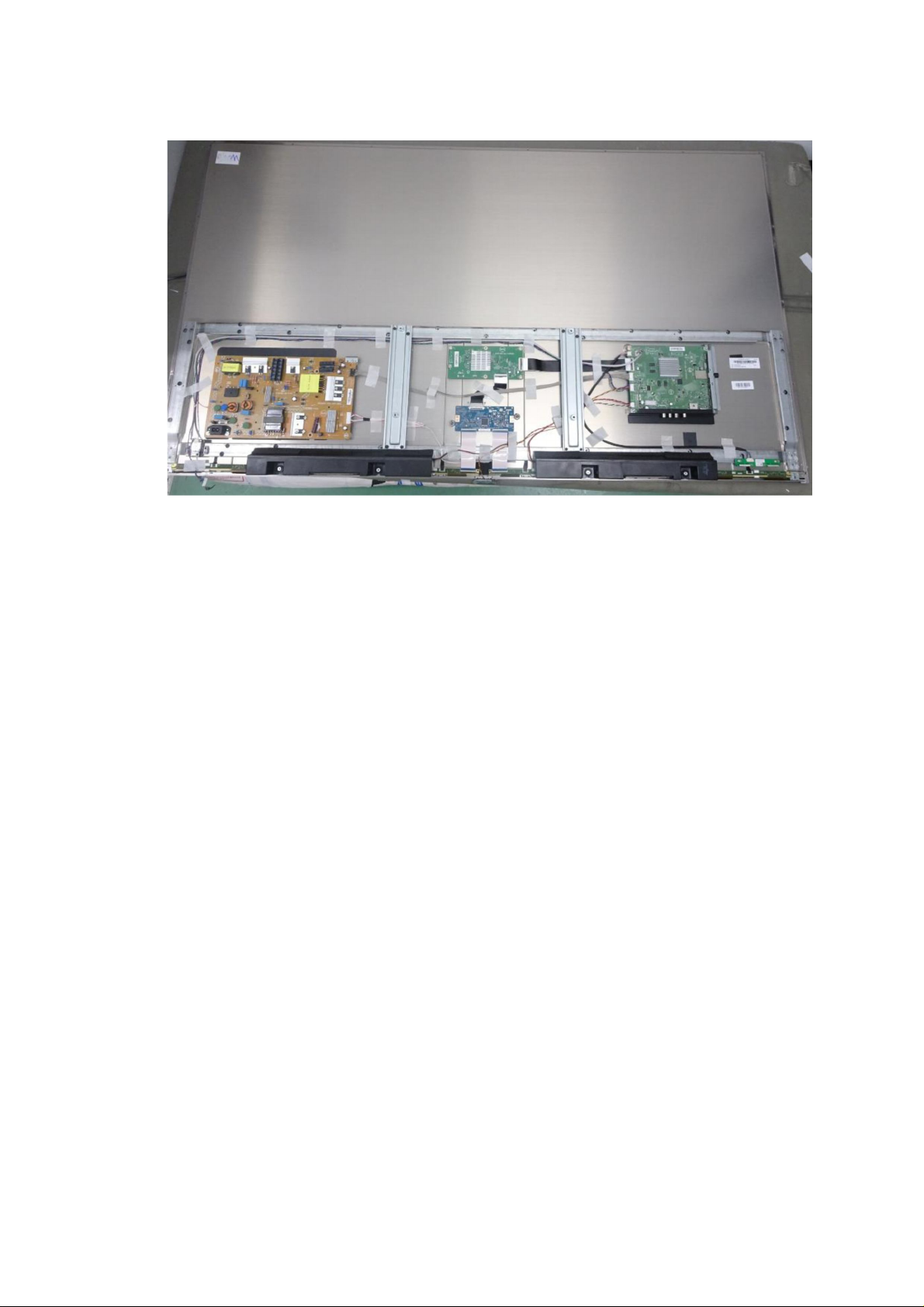

3. 内部结构图

主要IC管脚及内部方框图

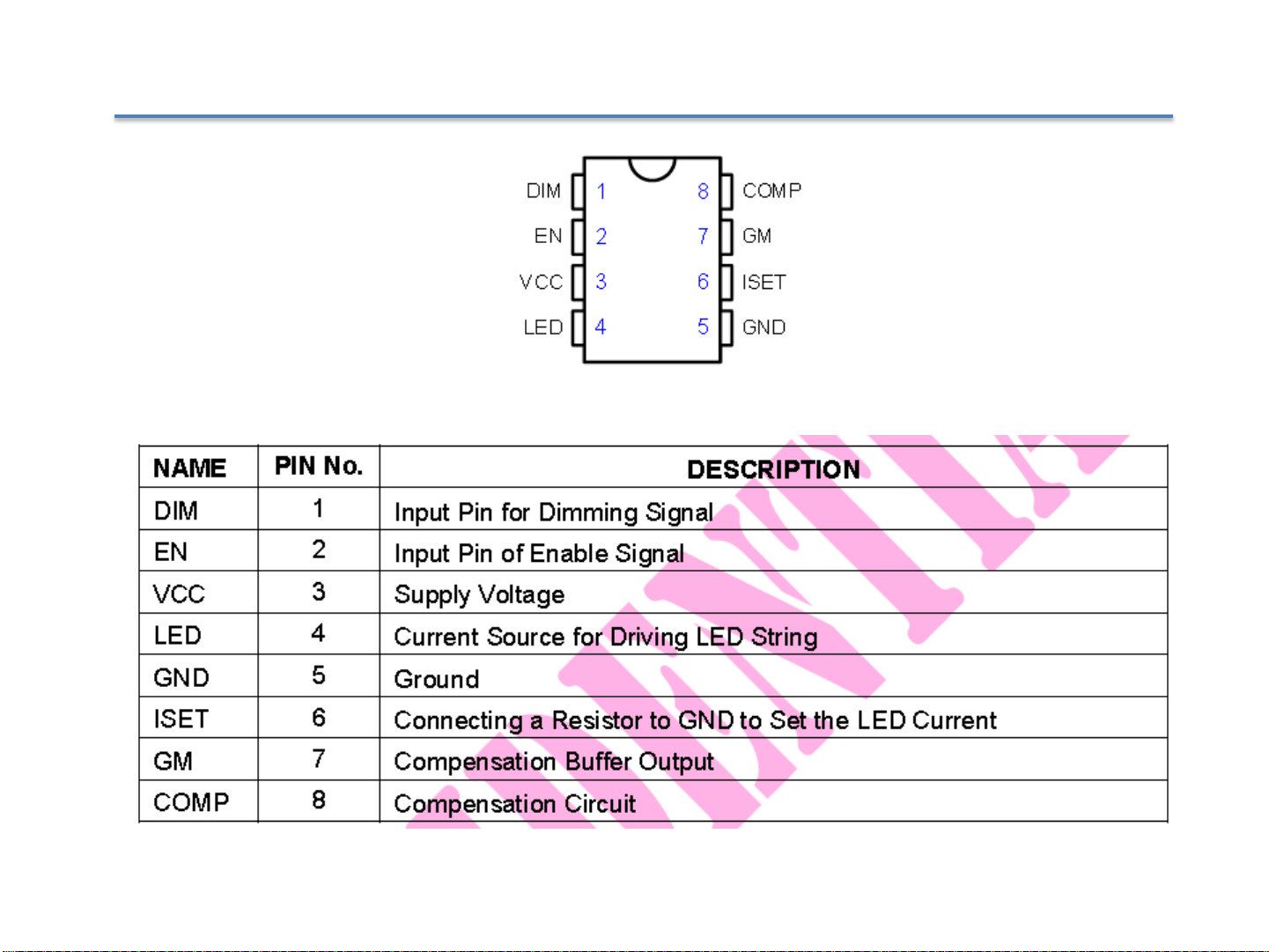

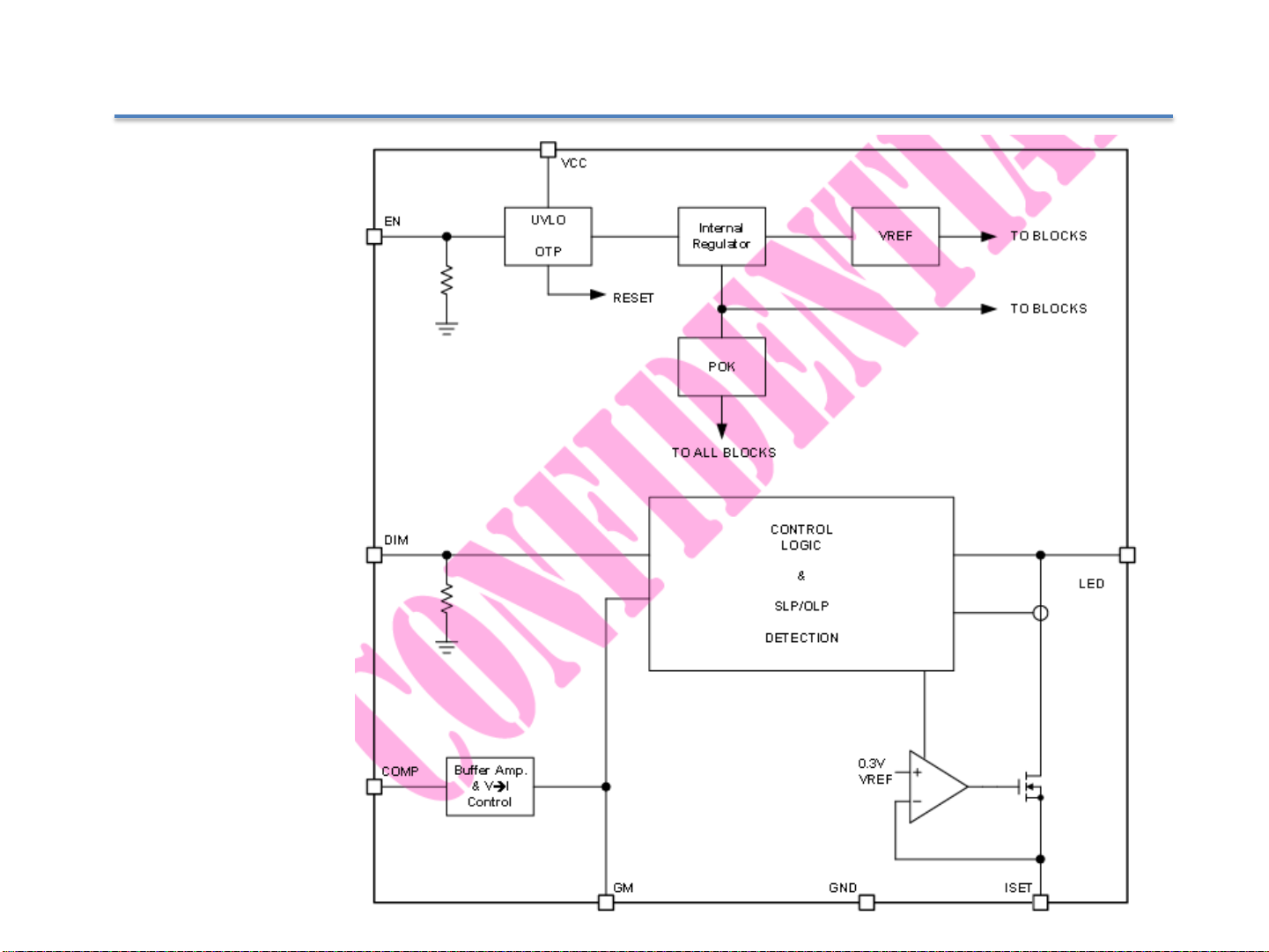

LED DRIVER TPV101AD DIP-8

PIN DESCRIPTIONS

LED DRIVER TPV101AD DIP-8

BLOCK DIAGRAM

PIN DESCRIPTIONS

PFC LD7591T GS SOP-8

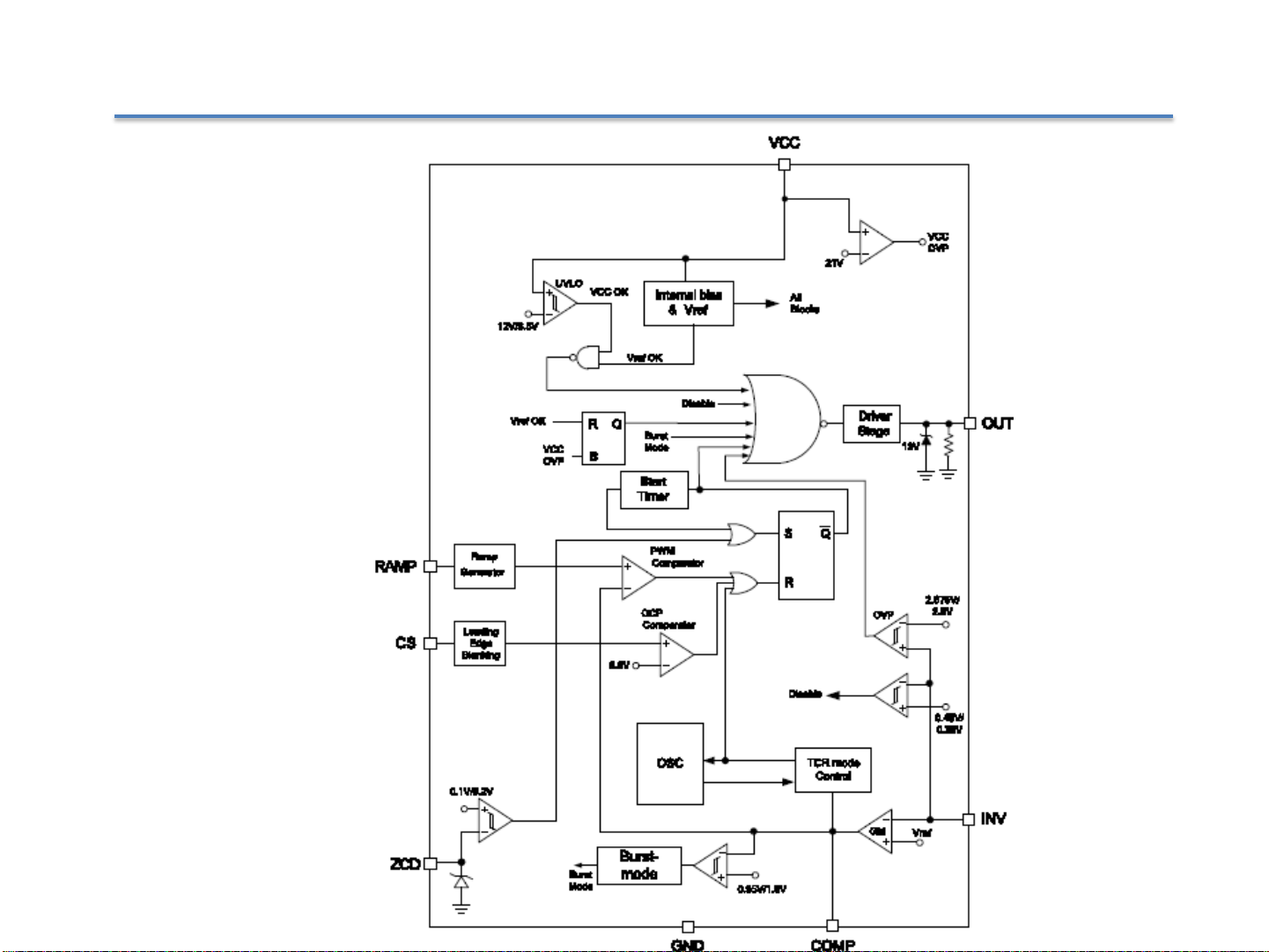

BLOCK DIAGRAM

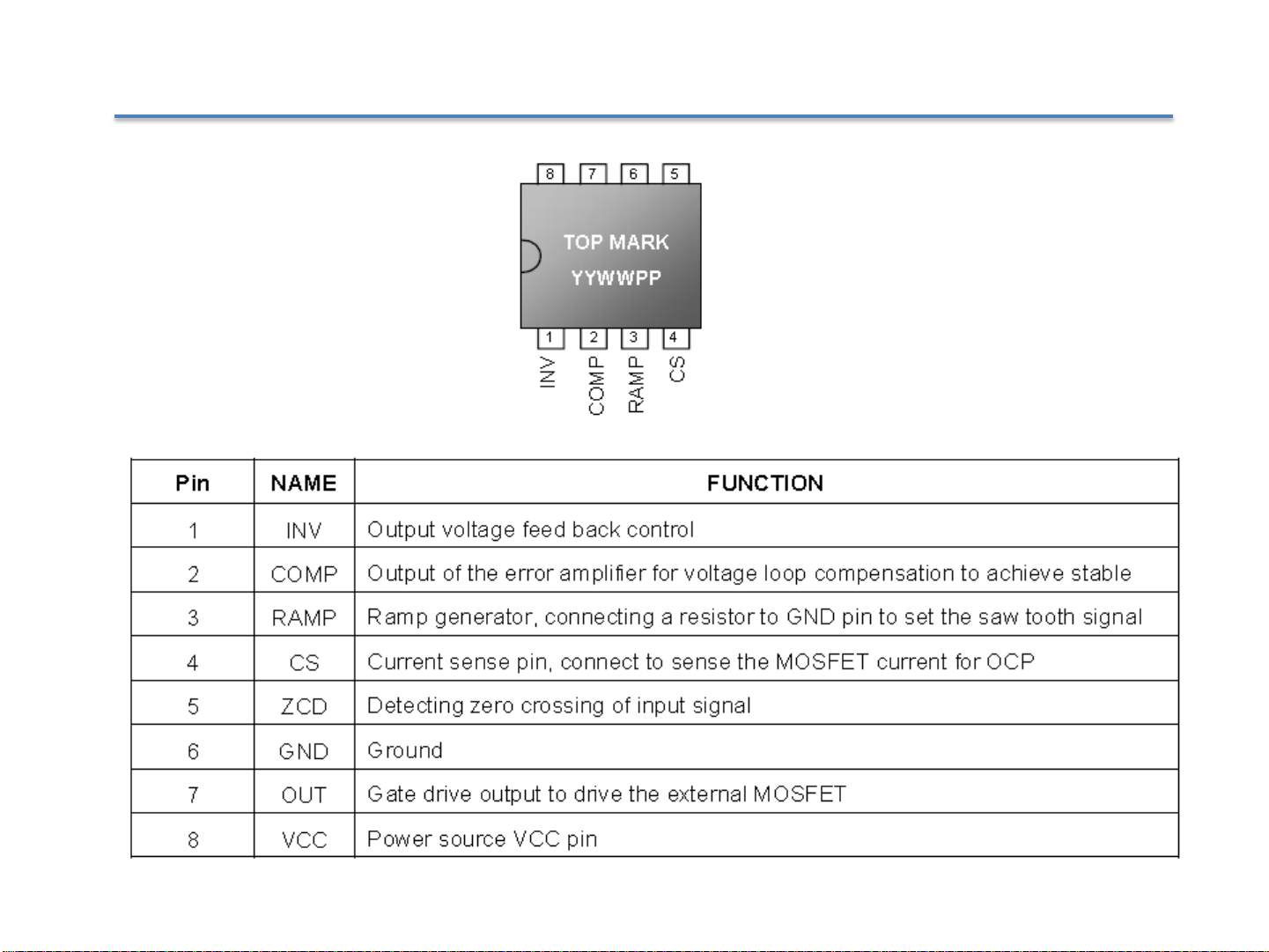

PFC LD7591T GS SOP-8

PIN DESCRIPTIONS

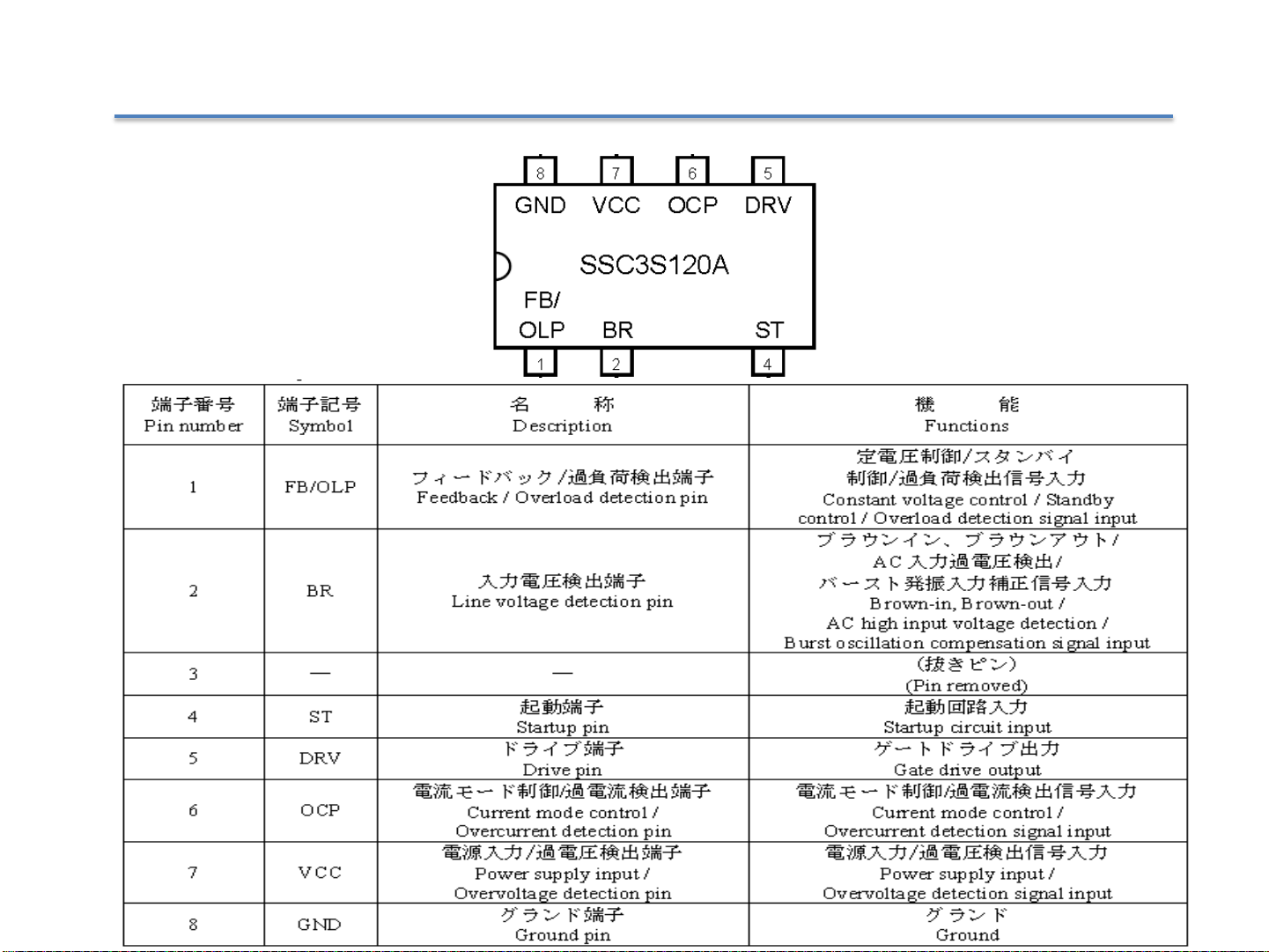

AC/DC SSC3S121A SOP8

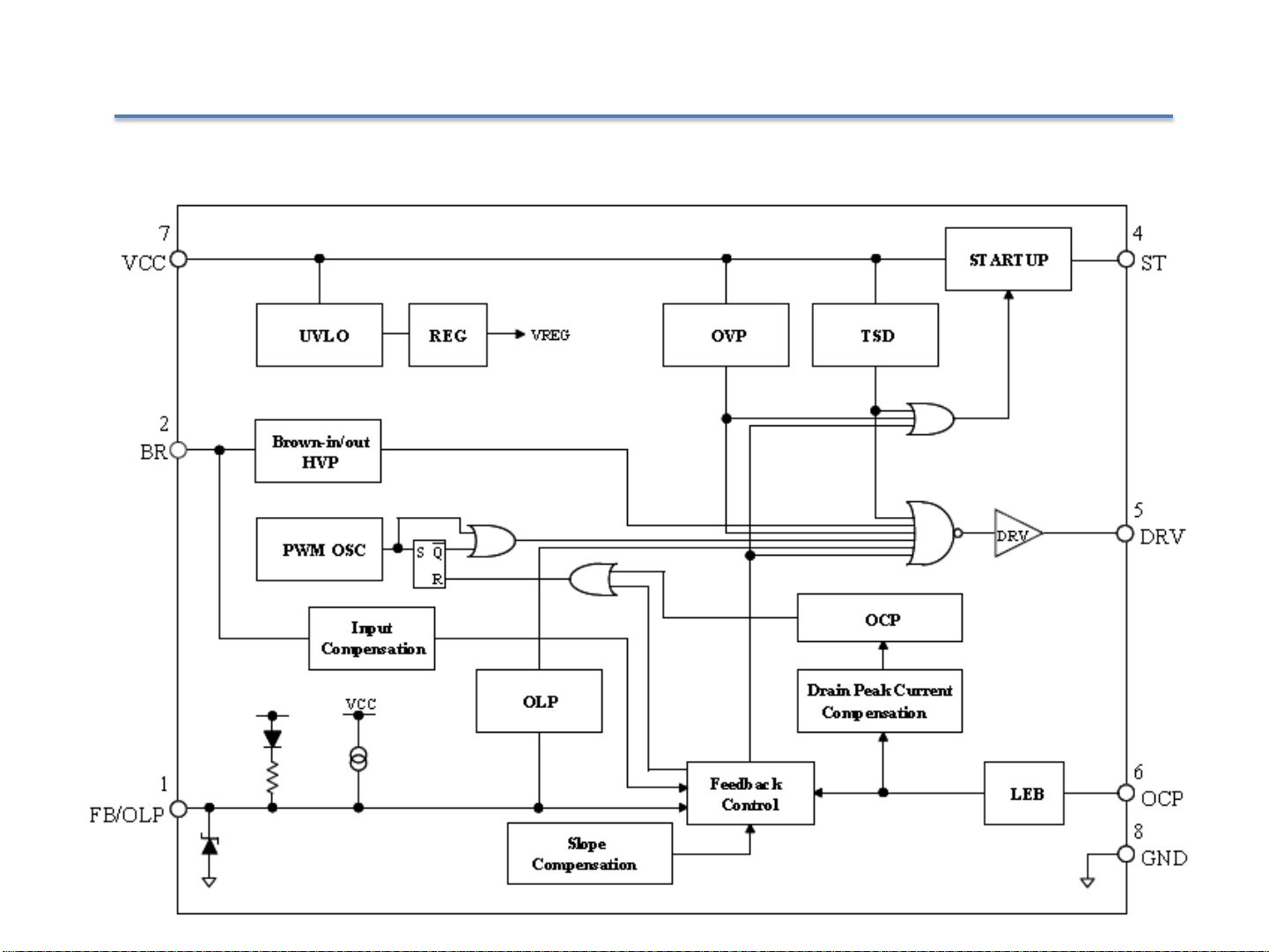

BLOCK DIAGRAM

AC/DC SSC3S121A SOP8

The End
Thank You!

版本 发布日期 变更说明 对外机种名

首次发布

A00 12/7/2017

65PUF8202/T3

对内机种名 Scalar

E65H47NDCVPHNNX Hi3751ARBCV6200M00 Wirebond BGA-7

屏 主板板号

SEL650WY(AD0-001) SN SKYWORTH 715G9016M01B00004T

电源板板号 按键板板号 遥控板板号

715G8807P01001002S 715G7088K01000004K 715G8009R02000004Y

转接板板号 LOG灯板板号

715G9044T01000004N 715G8046T01000004Y

层次 点位 物料 物料描述 组件数量

SPEAKER 6 OHM 10W 390*43*56MM 100MM BOX

SPEAKER 6 OHM 10W 390*43*56mm 100mm BOX

395GW20008DT118000

395GW20010DT133000

398GM08WCPHN0000HL

398GR08WCPHN0000HT

708GXA668130WPX1CH

1 0M1G1030 5120 SCREW 14
1 041G 68508 A control card 0.100
1 085T 583123 1 GP GASKET_ELECTRIC 2
1 0M1G 130 6 47 CR3 SCREW M3 6 9
1 0M1G 960 8 47 CR3 SCREW N/A 8 2
1 0M1G1030 6 47 CR3 SCREW M3 6 20
1 0M1G1030 6 47 CR3 SCREW M3 6 8
1 0Q1G 130 6 47 CR3 SCREW 3x6 1
1 0Q1G 130 6120 SCREW (T3X6) 1
1 0Q1G 930 6 47 CR3 SCREW 2
1 E31701 317GAAWF669TCL WIFI USB IEEE 802.11 b/g/n W82R2510 1
1 E31702 317GABTM514TCL BLUE TOOTH MODULE BT31R151A 1
1 SP01 378G0100396BLA
1 SP02 378G0100396BRA
1 ECN408 395G279W0510110000 V-by-One FFC 0.5mm 140mm HISI V510 175*7 1
1 ECN402 395G279W0510120000 V-by-One FFC 51P 0.5mm 270mm HISI V620+1 1
1 ECN01 395GH20002XT019000 HARNESS 2P pitch2.0-2P pitch1.25 200mm 1
1 ECN601 395GH20004DT134000 HARNESS 4P P2.0-2P P2.5+2P P2.5 320/160 1
1 ECN601 395GH20004GT134000 HARNESS 4P P2.0-2P P2.5+2P P2.5 320/160 1
1 ECN401 395GH20014RT164000 HARNESS 14P P2.0-2P P2.0+13P P1.25+4P P1 1
1 ECN401 395GH20014XT164000 HARNESS 14P P2.0-2P P2.0+13P P1.25+4P P1 1
1 ECN702 395GH20016AT113000 HARNESS 16P pitch2.0(BLK)-16P Pitch2.0 7 1
1 ECN702 395GH20016RT113000 HARNESS 16P pitch2.0(BLK)-16P Pitch2.0 7 1
1 ECN105
1 ECN105 395GW20008XT118000 HARNESS 8P pitch2.0-8P pitch1.25 600mm 1
1 ECN106
1 ECN106 395GW20010XT133000 HARNESS 10P Pitch2.0-6P Pitch1.25 1300 1
1 RC02
1 RC01
1
2 052G 1185 TAPE 90
2 Q07G 2NMV 68 WOODEN PALLET 0.083
2 Q44G6002159114 PAPER BOARD 0.250
2 Q44G9003 96 CORNER PAPER 0.667
2 Q45G 77 5 PE PACKING 367
2 Q50G 4 10 TIE (Y1900221) 92
2 Q50G060046502A00JY PACKAGE_BUCKLE 4
2 Q52G1301 9 BIG TAPE FOR PHILIPS 175
2 X44GSLIP160114 SLIPSHEET 0.083
1 E750 750TB7650YAD21N000 LCD SEL650WY(AD0-001) SN SKYWORTH 1
1 A15T116640200000Z1 BKT_POWER_TOP 1
1 CBPRH9EDX5 CONVERSION --NA 1
2 Z40G0002ALL01A OTHER LABEL 1
2 SMTRH9EDX5 MAIN BOARD FOR SMT 1
3 040G 45762420A LABEL 25x6mm 1
3 040G 45762420A LABEL 25x6mm 1
3 U709 056G 563156 IC G9141T11U SOT23-5 1
3 U103 056G 581 9 IC G5250K1T1U SOT23-5 1
3 U407 056G 643 36 IC G690L293T73Uf 2.93V SOT-23 1
3 U104 056G 665528 IC IC G5250M1T1U 1A SOT23-5 1

HARNESS 8P pitch2.0-8P pitch1.25 600mm 1

HARNESS 10P Pitch2.0-6P Pitch1.25 1300 1

REMOTE PHILIPS HOF-16K-GJ15176 chinese 1
REMOTE PHILIPS YKF346-006 chinese 1
PHILIPS 40(168 CH) 1

1
1

3 U502 056G 665918 IC STMPS2171STR SOT23-5L 1
3 Q502 057G 417511 MMBT3904 1
3 Q704 057G 417511 MMBT3904 1
3 Q404 057G 417511 MMBT3904 1
3 Q505 057G 417511 MMBT3904 1
3 Q506 057G 417511 MMBT3904 1
3 Q706 057G 417511 MMBT3904 1
3 Q703 057G 417511 MMBT3904 1
3 Q603 057G 417511 MMBT3904 1
3 Q503 057G 417511 MMBT3904 1
3 Q702 057G 417511 MMBT3904 1
3 Q701 057G 417511 MMBT3904 1
3 Q601 057G 417512 MMBT3906 1
3 Q501 057G 417512 MMBT3906 1
3 Q602 057G 417512 MMBT3906 1
3 Q705 057G 763 79 MOSFET AO4449 -7A -30V SO-8 1
3 Q403 057G 763 79 MOSFET AO4449 -7A -30V SO-8 1
3 RP401 061G 1260008JT RST NET 0R 5% 1/16W 1
3 RP402 061G 1260008JT RST NET 0R 5% 1/16W 1
3 RP422 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP421 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP412 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP428 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP410 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP406 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP419 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP423 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP425 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP429 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP408 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP418 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP411 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP409 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP417 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP407 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP416 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP430 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP426 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP405 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP424 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP427 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP404 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP413 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP420 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP414 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP403 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 RP415 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1
3 R4024 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R118 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R103 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R4134 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1

3 R116 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R115 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R4023 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R726 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R4030 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R119 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R526 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R104 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R4021 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R4080 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 R636 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1
3 R637 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1
3 R4103 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4101 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4114 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4119 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4091 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4113 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4117 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4095 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4096 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4094 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4112 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4109 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4085 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4084 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4102 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R4099 061G04021001FT RST CHIP R 1Kohm 1/16W +/-1% 1
3 R737 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 1
3 R4008 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 1
3 R4026 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 1
3 R755 061G04021003FY RST CHIP 100K 1/16W 1% 1
3 R713 061G04021003FY RST CHIP 100K 1/16W 1% 1
3 R736 061G04021003FY RST CHIP 100K 1/16W 1% 1
3 R704 061G04021003FY RST CHIP 100K 1/16W 1% 1
3 R4035 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R719 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R4040 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R134 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R706 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R154 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R712 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R4060 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R507 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R108 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R643 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R148 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R730 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R4034 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R753 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R120 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1

3 R4017 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R624 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R156 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R539 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R551 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R4038 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R745 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R107 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R114 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R4042 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R4043 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R4019 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R520 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R518 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R531 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R506 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R4044 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R705 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R620 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R756 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R4010 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R503 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R110 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R612 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R533 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R645 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R720 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R731 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R4011 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 R709 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R142 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R535 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R618 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R143 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R644 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R532 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R4012 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R545 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R546 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R534 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R544 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R746 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R739 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R510 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R521 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R519 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R522 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R631 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R543 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R622 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R608 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1

3 R627 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R609 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R540 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R621 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R504 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R4039 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R109 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R4037 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R511 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R642 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R632 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R4133 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R527 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 R629 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
3 R646 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
3 R4076 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
3 R628 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
3 R4018 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
3 R648 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
3 R4073 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
3 R4041 061G0402105 JY RST 0402 1M 5% 1/16W RC0402JR-071ML 1
3 R750 061G04021202FY RST CHIP 12K 1/16W 1% YAGEO 1
3 R718 061G04021212FF RST 0402 12.1K 1% 1/16W FENGHUA 1
3 R729 061G04021212FF RST 0402 12.1K 1% 1/16W FENGHUA 1
3 R144 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1
3 R145 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1
3 R703 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1
3 R757 061G04021302FY RST CHIP 13K 1/16W 1% YAGEO 1
3 R707 061G04021302FY RST CHIP 13K 1/16W 1% YAGEO 1
3 R727 061G04021502FY RST CHIPR 15K +-1% 1/16W YAGEO 1
3 R751 061G04021502FY RST CHIPR 15K +-1% 1/16W YAGEO 1
3 R638 061G0402152 JY RST CHIPR 1.5KOHM +-5% 1/16W YAGEO 1
3 R740 061G04021692FY RST 0402 16.9K 1% 1/16W - 1
3 R501 061G0402183 JY RST CHIP 18K 1/16W 5% YAGEO 1
3 R4108 061G04022000FY RST CHIP 200R 1/16W 1% 1
3 R4090 061G04022000FY RST CHIP 200R 1/16W 1% 1
3 R734 061G0402202 JY RST CHIPR 2KOHM 1/16W YAGEO 1
3 R716 061G0402202 JY RST CHIPR 2KOHM 1/16W YAGEO 1
3 R735 061G0402202 JY RST CHIPR 2KOHM 1/16W YAGEO 1
3 R723 061G0402202 JY RST CHIPR 2KOHM 1/16W YAGEO 1
3 R4077 061G0402202 JY RST CHIPR 2KOHM 1/16W YAGEO 1
3 R743 061G0402202 JY RST CHIPR 2KOHM 1/16W YAGEO 1
3 R633 061G0402203 JY RST CHIPR 20KOHM +-5% 1/16W YAGEO 1
3 R634 061G0402203 JY RST CHIPR 20KOHM +-5% 1/16W YAGEO 1
3 R4079 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN 1
3 R4052 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1
3 R4055 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1
3 R4053 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1
3 R4063 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1
3 R733 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 1
3 R563 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1

3 R557 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R558 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R564 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R559 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R570 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R565 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R571 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R566 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R572 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R567 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R573 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R552 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R553 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R568 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R574 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R554 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R560 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R569 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R575 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R555 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R561 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R556 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R562 061G0402229 JF RST CHIPR 2R2 +-5% 1/16W FENGHUA 1
3 R4093 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1
3 R4118 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1
3 R4092 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1
3 R4100 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1
3 R4111 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1
3 R4110 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1
3 R747 061G04022402FY RST CHIPR 24K +-1% 1/16W YAGEO 1
3 R749 061G04022702FT RST 0402 27K 1% 1/16W 1
3 R537 061G04022702FT RST 0402 27K 1% 1/16W 1
3 R714 061G04022702FT RST 0402 27K 1% 1/16W 1
3 R744 061G0402273 JY RST CHIPR 27K OHM +-5% 1/16W YAGEO 1
3 R758 061G04023000FY RST CHIP 300R 1/16W 1%YAGEO 1
3 R708 061G04023000FY RST CHIP 300R 1/16W 1%YAGEO 1
3 R635 061G0402303 JY RST CHIP R 30Kohm 1/16W +/-5% YAGEO 1
3 R502 061G0402303 JY RST CHIP R 30Kohm 1/16W +/-5% YAGEO 1
3 R505 061G0402304 JF RST 0402 300K 5% 1/16W FENGHUA 1
3 R536 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R160 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4006 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4086 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R172 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R538 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4068 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R171 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4083 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4116 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R548 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R513 061G0402330 JY RST 0402 33R 5% 1/16W - 1

3 R606 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R605 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4141 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4105 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4089 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4082 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4064 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4104 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4107 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R514 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4087 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4007 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4020 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R549 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R625 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R4098 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R155 061G0402331 JY RST CHIPR 330 OHM +-5% 1/16W YAGEO 1
3 R153 061G0402331 JY RST CHIPR 330 OHM +-5% 1/16W YAGEO 1
3 R742 061G0402333 JY RST CHIPR 33KOHM £«-5£¥ 1/16W YAGEO 1
3 R728 061G04023900FY RST CHIP 390R 1/16W 1% 1
3 R550 061G0402433 JY RST CHIPR 43KOHM +-5% 1/16W YAGEO 1
3 R105 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R721 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R4097 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R4088 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R517 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R106 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R4106 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R702 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R711 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R732 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R4028 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R530 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R512 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R647 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R542 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R4029 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R4115 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R741 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO 1
3 R4022 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO 1
3 R4071 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO 1
3 R516 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO 1
3 R4015 061G0402474 JY RST CHIP 470K 1/16W 5% YAGEO 1
3 R4016 061G0402474 JY RST CHIP 470K 1/16W 5% YAGEO 1
3 R515 061G0402479 JY RST CHIPR 4.7 OHM +-5% 1/16W YAGEO 1
3 R102 061G04025103FF RST 0402 510K 1% 1/16W FENGHUA 1
3 R4014 061G0402561 JY RST CHIP 560R 1/16W 5% YAGEO 1
3 R4013 061G0402561 JY RST CHIP 560R 1/16W 5% YAGEO 1
3 R547 061G0402623 JY RST CHIP R 62K 1/16W +/-5% YAGEO 1
3 R4075 061G04026801FY RST CHIP 6K8 1/16W 1% 1
3 R725 061G04026812FY RST CHIP 68.1K 1/16W 1% YAGEO 1

3 R141 061G04027509FY RST CHIP 75R 1/16W 1% 1
3 R4009 061G04027509FY RST CHIP 75R 1/16W 1% 1
3 R630 061G0603103 JY RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO 1
3 R149 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO 1
3 R135 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO 1
3 R4139 061G0805000 JY RST 0805 0.05R MAX 1/8W RC0805JR-070RL 1
3 R4138 061G0805000 JY RST 0805 0.05R MAX 1/8W RC0805JR-070RL 1
3 R4072 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO 1
3 R752 061G08052208FT RST 0805 2.2R 1% 1/8W 1
3 R701 061G08052208FT RST 0805 2.2R 1% 1/8W 1
3 R157 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1
3 R601 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1
3 R604 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1
3 R603 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1
3 R602 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1
3 C4008 065G040210031J F CAP 0402 10PF 5% 50V NP0 1
3 C4194 065G040210232K F CAP 0402 1NF 10% 50V X7R 1
3 C4213 065G040210232K F CAP 0402 1NF 10% 50V X7R 1
3 C101 065G040210232K F CAP 0402 1NF 10% 50V X7R 1
3 C104 065G040210232K F CAP 0402 1NF 10% 50V X7R 1
3 C4175 065G040210232K F CAP 0402 1NF 10% 50V X7R 1
3 C4156 065G040210232K F CAP 0402 1NF 10% 50V X7R 1
3 C4058 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1
3 C102 065G040210332K F CAP 0402 10NF 10% 50V X7R 1
3 C722 065G040210332K F CAP 0402 10NF 10% 50V X7R 1
3 C750 065G040210332K F CAP 0402 10NF 10% 50V X7R 1
3 C735 065G040210332K F CAP 0402 10NF 10% 50V X7R 1
3 C4103 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4081 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4099 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4064 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4154 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4195 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4038 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C743 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4128 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4044 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C617 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4143 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C510 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C505 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4179 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4185 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C726 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4207 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4033 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4074 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4069 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4034 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C615 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4164 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1

3 C4159 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C172 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4080 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4040 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4141 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4130 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4076 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C133 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4041 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4178 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C110 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4101 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4199 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C171 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4039 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4162 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4072 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4161 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4071 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4210 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4030 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4204 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4114 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4024 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4059 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4018 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4182 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4176 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4091 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C716 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4140 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4035 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4085 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4142 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4087 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4031 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4205 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4115 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4183 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4163 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C130 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4157 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4032 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4067 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4206 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4211 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4144 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4055 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4020 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4061 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4186 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1

3 C727 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4192 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4208 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4029 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4124 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4214 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4209 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4078 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C175 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4132 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4037 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4042 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C134 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4077 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4036 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C128 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C740 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4063 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4152 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4187 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4201 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4113 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4153 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4023 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4202 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C109 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4180 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C715 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C176 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4173 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4043 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4166 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C755 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4200 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4021 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4072 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4161 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4071 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4210 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4030 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4204 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4208 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4021 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4200 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C755 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4166 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C617 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4041 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C133 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4076 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4130 065G040210412K F CAP 0402 100NF 10% 16V X7R 1

3 C4035 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4209 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4214 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4124 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4162 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4039 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4141 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4087 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4142 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4183 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4115 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4205 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4031 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4211 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4206 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4067 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4032 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4157 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C130 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4163 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C171 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4199 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4101 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C110 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4178 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4192 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C727 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4186 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4061 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4020 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4055 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4144 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4103 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4081 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4040 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4080 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C172 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4159 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4164 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C615 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4034 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4069 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4074 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4033 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4207 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C726 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4185 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4179 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C505 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C510 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4143 065G040210412K F CAP 0402 100NF 10% 16V X7R 1

3 C4029 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4078 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C175 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4132 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4037 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4042 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C134 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4077 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4036 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C128 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C740 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4063 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4152 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4187 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4201 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4024 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4059 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4018 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4182 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4176 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4091 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C716 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4140 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4085 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4044 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4128 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C743 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4038 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4195 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4154 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4064 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4099 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4113 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4153 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4023 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4202 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C109 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4180 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C715 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C176 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4173 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4043 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C4114 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C703 065G040210425K F CHIP 0402 0.1UF 25V X5R 1
3 C766 065G040210425K F CHIP 0402 0.1UF 25V X5R 1
3 C4126 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4070 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4131 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4125 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4127 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4090 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1

3 C4105 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4110 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4106 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4062 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4075 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4094 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4088 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4109 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4093 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4060 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4095 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4102 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4123 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4068 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4117 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4122 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4116 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4108 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4107 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4079 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4133 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4096 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4118 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4119 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4092 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4100 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4129 065G040210506K A CAP 0402 1uF 10% 6.3V X6S CL05X105KQ5NNN 1
3 C4068 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4133 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4079 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4107 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4108 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4129 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4100 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4092 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4123 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4110 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4105 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4062 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4126 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4090 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4106 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4070 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4127 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4131 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4125 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4075 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4119 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4118 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4096 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4060 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1

3 C4095 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4102 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4117 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4122 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4116 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4094 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4088 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4109 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4093 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
3 C4149 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C141 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4155 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C721 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4215 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C760 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C637 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4158 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4191 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4212 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4167 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4011 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4145 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4193 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4147 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C640 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C506 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4190 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C762 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4168 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4170 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4196 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C749 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C751 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4012 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4148 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4174 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4169 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C639 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4177 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4160 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C636 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C4189 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C638 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C758 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C507 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C143 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C641 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C635 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C107 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C734 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C759 065G040210605M A CAP 0402 10UF 20% 6.3V X5R CL05A106MQ5N 1

3 C4046 065G040218031J F AP 0402 18PF J 50V NPO 1
3 C4045 065G040218031J F AP 0402 18PF J 50V NPO 1
3 C126 065G040222031J F CAP 0402 22PF 5% 50V NP0 1
3 C4049 065G040222031J F CAP 0402 22PF 5% 50V NP0 1
3 C127 065G040222031J F CAP 0402 22PF 5% 50V NP0 1
3 C4050 065G040222031J F CAP 0402 22PF 5% 50V NP0 1
3 C4010 065G040222131J F CAP 0402 220PF J 50V NPO 1
3 C4009 065G040222131J F CAP 0402 220PF J 50V NPO 1
3 C4015 065G040222232K F CAP 0402 2.2NF K 50V X7R 1
3 C129 065G040222232K F CAP 0402 2.2NF K 50V X7R 1
3 C4016 065G040222232K F CAP 0402 2.2NF K 50V X7R 1
3 C744 065G0402224A5K F CAP 0402 220NF 10% 10V X5R 1
3 C744 065G0402224A5K T CAP 0402 220nF 10% 10V X5R LMK105 BJ224 1
3 C139 065G040233031J F CAP 0402 33PF 5% 50V NP0 1
3 C146 065G040233031J F CAP 0402 33PF 5% 50V NP0 1
3 C768 065G040247131J F CAP 0402 470PF 5% 50V NP0 1
3 C706 065G040247131J F CAP 0402 470PF 5% 50V NP0 1
3 C142 065G040247232K F CAP 0402 4.7NF 10% 50V X7R - 1
3 C140 065G040247232K F CAP 0402 4.7NF 10% 50V X7R - 1
3 C501 065G040247312K F CAP 0402 47NF 10% 16V X7R 1
3 C4006 065G040247312K F CAP 0402 47NF 10% 16V X7R 1
3 C131 065G040247312K F CAP 0402 47NF 10% 16V X7R 1
3 C4007 065G040247312K F CAP 0402 47NF 10% 16V X7R 1
3 C4198 065G0402474A5K F CAP 0402 470NF 10% 10V X5R 1
3 C4197 065G0402474A5K F CAP 0402 470NF 10% 10V X5R 1
3 C4181 065G0402474A5K F CAP 0402 470NF 10% 10V X5R 1
3 C4188 065G0402474A5K F CAP 0402 470NF 10% 10V X5R 1
3 C4172 065G0402474A5K F CAP 0402 470NF 10% 10V X5R 1
3 C4171 065G0402474A5K F CAP 0402 470NF 10% 10V X5R 1
3 C4150 065G0402474A5K F CAP 0402 470NF 10% 10V X5R 1
3 C4151 065G0402474A5K F CAP 0402 470NF 10% 10V X5R 1
3 C4171 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1
3 C4150 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1
3 C4151 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1
3 C4172 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1
3 C4188 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1
3 C4181 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1
3 C4197 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1
3 C4198 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1
3 C623 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C611 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C4053 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C633 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C609 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C624 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C610 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C608 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C625 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C626 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C736 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1
3 C177 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1

3 C502 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1

CAP 0805 10uF 10% 16V X5R CL21A106KOQNNN

CAP 0805 10uF 10% 16V X5R CL21A106KOQNNN

CAP 0805 10uF 10% 16V X5R CL21A106KOQNNN

CAP 0805 10uF 10% 16V X5R CL21A106KOQNNN

3 C174 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1
3 C728 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1
3 C631 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1
3 C191 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1
3 C752 065G060310605M A CAP 0603 10uF 20% 6.3V X5R CL10A106MQ8NN 1
3 C763 065G060310605M A CAP 0603 10uF 20% 6.3V X5R CL10A106MQ8NN 1
3 C752 065G060310605M T CAP 0603 10UF 20% 6.3V X5R 1
3 C763 065G060310605M T CAP 0603 10UF 20% 6.3V X5R 1
3 C4052 065G060322422K F CAP 0603 220NF 10% 25V X7R 1
3 C4052 065G060322422K Y CAP 0603 220N 25V X7R 10% 1
3 C612 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1
3 C606 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1
3 C618 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1
3 C601 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1
3 C612 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5% 1
3 C606 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5% 1
3 C618 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5% 1
3 C601 065G060347131J Y CAP CHIP 0603 470P 50V NP0 +/-5% 1
3 C772 065G0603475A5K A CAP 0603 4.7uF 10% 10V X5R CL10A475KP8NN 1
3 C710 065G0603475A5K A CAP 0603 4.7uF 10% 10V X5R CL10A475KP8NN 1
3 C701 065G080510615K A
3 C764 065G080510615K A
3 C702 065G080510615K A
3 C765 065G080510615K A
3 C616 065G0805106A5K M CAP 0805 10UF 10% 10V X5R 1
3 C173 065G0805106A5K M CAP 0805 10UF 10% 10V X5R 1
3 C741 065G0805106A5K M CAP 0805 10UF 10% 10V X5R 1
3 C742 065G0805106A5K M CAP 0805 10UF 10% 10V X5R 1
3 C164 065G0805106A5K M CAP 0805 10UF 10% 10V X5R 1
3 C165 065G0805106A5K M CAP 0805 10UF 10% 10V X5R 1
3 C165 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K 1
3 C164 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K 1
3 C742 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K 1
3 C741 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K 1
3 C616 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K 1
3 C173 065G0805106A5K T CAP 0805 10uF 10% 10V X5R LMK212 BJ106K 1
3 C729 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C746 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C754 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C747 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C753 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C719 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C718 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C737 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C731 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C732 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C614 065G080547432K F 0805 0.47UF K 50V X7R 1
3 C603 065G080547432K F 0805 0.47UF K 50V X7R 1
3 C614 065G080547432K M CAP 0805 470nF 10% 50V X7R GRM21BR71H474 1
3 C603 065G080547432K M CAP 0805 470nF 10% 50V X7R GRM21BR71H474 1

1
1
1
1

3 C714 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1

SCALER Hi3751ARBCV6200M00 Wirebond BGA-7

3 C756 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C738 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C724 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C713 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C757 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C725 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C739 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C771 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1
3 C708 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1
3 C769 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1
3 C709 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1
3 C707 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1
3 C770 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1
3 C123 067G311R1013LT EC SMD 100uF 20% 16V 6.3*5.3 2000 hr 210 1
3 C634 067G311R1013LT EC SMD 100uF 20% 16V 6.3*5.3 2000 hr 210 1
3 C4051 067G311R2213CT EC SMD 220UF 20% 16V 6.3*7.7 - 1
3 HDCP-U406 070GHDCP500HDC HDCP CODE 1
3 FB601 071G 56121 TA CHIP BEAD 0805 120R/3A HCB2012KF-121T30 1
3 FB744 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60 1
3 FB607 071G 59G301 M1 CHIP BEAD 0603 300R 25%,2A 1
3 L401 073G 6322910M CHIP IND 2.2UH 10% 15mA 1.15R MGFI1608C2 1
3 D602 093G 6432P SWITCHING LL4148 0.15A 100V MINI-MELF 1
3 D101 093G 6433S witching diode BAV99 1
3 D503 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323 1
3 D502 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323 1
3 CN402 311GF050Z51ADC FFC CONN 0.5mm 51P R/A F05036-51P-E 1
3 U711 356G056313200C00HF LDO AZ1117CH-1.2TRG1 1A 1.2V SOT-223 1
3 U705 356G0563263424 LDO AZ1084CS2-3.3TRE1 5A 3.3V TO-263 1
3 U703 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223 1
3 U707 356G056351500C00HF LDO AZ1117CD-3.3TRG1(cu) 1A 3.3V TO-252 1
3 U101 356G0566024600 Silicon Tuner MxL661-AG-R 1
3 U401 356G0568770609M000
3 U402 356G0615004608 DRAM K4B4G1646E-BCMA 4Gb FBGA-96 1
3 U403 356G0615004608 DRAM K4B4G1646E-BCMA 4Gb FBGA-96 1
3 U404 356G0615004608 DRAM K4B4G1646E-BCMA 4Gb FBGA-96 1
3 U405 356G0615004608 DRAM K4B4G1646E-BCMA 4Gb FBGA-96 1
3 U402 356G0615004621 DRAM NT5CC256M16EP-EK 4Gb VFBGA-96 1
3 U403 356G0615004621 DRAM NT5CC256M16EP-EK 4Gb VFBGA-96 1
3 U404 356G0615004621 DRAM NT5CC256M16EP-EK 4Gb VFBGA-96 1
3 U405 356G0615004621 DRAM NT5CC256M16EP-EK 4Gb VFBGA-96 1
3 U601 356G061613300A AUDIO AD82588B-LG48NAY 2x15W stereo E-LQ 1
3 U602 356G061613600B AUDIO AD22650-QH14NAR Ver.B - TSSOP-14 - 1
3 U104 356G0667005010 Power Switch AP2171DWG-7 SOT25 1
3 U406 356G3333008606 EMMC THGBMHG6C1LBAIL 8GB P-WFBGA153 1
3 U406 356G3333008608 EMMC KLM8G1GETF-B041 8GB FBGA-153 1
3 U503 356G74LS016064000C Logic 74HC4052PW (cu) TSSOP-16 1
3 U502 356GD563005600 DC/DC G524D3T11U 1.5A 5.5 SOT-23-5 1
3 U708 356GD563006610 DC/DC TPS563201DDCR 17V 3A SOT-23-6 1
3 U706 356GD563008140 DC/DC TPS54328DDAR 3A 0.76~7V DDA 1
3 U702 356GD563008140 DC/DC TPS54328DDAR 3A 0.76~7V DDA 1

1

3 U704 356GD563008141 DC/DC TPS54528DDAR 5A ADJ DDA 1
3 U701 356GD563010205 DC/DC SY8366QNC 6A 28V QFN3x3-10 1
3 U712 356GD563010205 DC/DC SY8366QNC 6A 28V QFN3x3-10 1
3 Q504 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V 1
3 R748 361G04021871FY RST 0402 1.87K 1% 1/16W RC0402FR-071K87 1
3 R717 361G04022492FY RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 1
3 R738 361G04022492FY RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 1
3 R146 361G04025108FF RST 0402 5.1ohm 1% 1/16W RC-02W5R1FT 1
3 R147 361G04025108FF RST 0402 5.1ohm 1% 1/16W RC-02W5R1FT 1
3 R152 361G04025108FF RST 0402 5.1ohm 1% 1/16W RC-02W5R1FT 1
3 R138 361G04025108FF RST 0402 5.1ohm 1% 1/16W RC-02W5R1FT 1
3 R137 361G04025108FF RST 0402 5.1ohm 1% 1/16W RC-02W5R1FT 1
3 R151 361G04025108FF RST 0402 5.1ohm 1% 1/16W RC-02W5R1FT 1
3 R4027 361G06031330FY RST 0603 133Ω 1% 1/10W N/A 1
3 C4226 365G040210231J000T CAP 0402 1nF 5% 50V NP0 UMK105 CG102JV-F 1
3 C4057 365G040210231J000T CAP 0402 1nF 5% 50V NP0 UMK105 CG102JV-F 1
3 C4025 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
3 C4048 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
3 C4022 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
3 C4027 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
3 C4047 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
3 C4019 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
3 C4084 365G040222506K000M CAP 0402 2.2uF 10% 6.3V X6S GRM155C80J22 1
3 C4066 365G040222506K000M CAP 0402 2.2uF 10% 6.3V X6S GRM155C80J22 1
3 C4082 365G040222506K000M CAP 0402 2.2uF 10% 6.3V X6S GRM155C80J22 1
3 C4065 365G040222506K000M CAP 0402 2.2uF 10% 6.3V X6S GRM155C80J22 1
3 C4225 365G040222506K000M CAP 0402 2.2uF 10% 6.3V X6S GRM155C80J22 1
3 C4083 365G040222506K000M CAP 0402 2.2uF 10% 6.3V X6S GRM155C80J22 1
3 C4013 365G040247505M000A CAP 0402 4.7UF 20% 6.3V X5R CL05A475MQ5 1
3 C4014 365G040247505M000A CAP 0402 4.7UF 20% 6.3V X5R CL05A475MQ5 1
3 C4135 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4089 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4134 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4104 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4086 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4136 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4097 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4137 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4073 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4111 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4120 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C4203 365G060322605M000A CAP 0603 22uF 20% 6.3V X5R CL10A226MQ8N 1
3 C4165 365G060322605M000A CAP 0603 22uF 20% 6.3V X5R CL10A226MQ8N 1
3 C4146 365G060322605M000A CAP 0603 22uF 20% 6.3V X5R CL10A226MQ8N 1
3 C4184 365G060322605M000A CAP 0603 22uF 20% 6.3V X5R CL10A226MQ8N 1
3 C4112 365G060322606M000M CAP 0603 22UF 20% 6.3V X6S GRM188C80J226 1
3 C4098 365G060322606M000M CAP 0603 22UF 20% 6.3V X6S GRM188C80J226 1
3 C4121 365G060322606M000M CAP 0603 22UF 20% 6.3V X6S GRM188C80J226 1
3 C602 365G080510432K00SA CAP 0805 100nF 10% 50V X7R CL21B104KBCSF 1
3 C607 365G080510432K00SA CAP 0805 100nF 10% 50V X7R CL21B104KBCSF 1
3 C619 365G080510432K00SA CAP 0805 100nF 10% 50V X7R CL21B104KBCSF 1

3 C613 365G080510432K00SA CAP 0805 100nF 10% 50V X7R CL21B104KBCSF 1

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

SMD CHOKE 75R 25% 280mA 75R BW21S7511B01

3 C503 365G0805106A5KD00A CAP 0805 10uF 10% 10V X5R CL21A106KPCLQ 1
3 C733 365G0805106A5KD00A CAP 0805 10uF 10% 10V X5R CL21A106KPCLQ 1
3 C720 365G0805106A5KD00A CAP 0805 10uF 10% 10V X5R CL21A106KPCLQ 1
3 C103 365G120647182K000F CAP 1206 470PF 10% 1KV X7R 1206B471K102 1
3 C122 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C114 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C116 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C118 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C115 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C117 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C121 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C112 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C113 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C120 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C119 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 1
3 C604 367G311F101GLT EC SMD 100uF 20% 35V 8*10 2000 hr 850mA 1
3 C605 367G311F101GLT EC SMD 100uF 20% 35V 8*10 2000 hr 850mA 1
3 MAC-U406 370G0MAC642CNT Buy key CNTV腾讯版MAC for 海 1
3 HDCP2-U406 370GHDCP603PHP CD CD HDCP2.2 code for Wifi Miracast 1
3 FB410 371G042B221C00 CHIP BEAD 0402 220R 25% FCM1005KF-221T05 1
3 FB411 371G042B221C00 CHIP BEAD 0402 220R 25% FCM1005KF-221T05 1
3 FB403 371G042P121M02
3 FB404 371G042P121M02
3 FB401 371G042P121M02
3 FB405 371G042P121M02
3 FB406 371G042P121M02
3 FB402 371G042P121M02
3 FB101 371G042U102C00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0 1
3 L701 373G253S146D00 SMD CHOKE 2.2uH 30% 4.6A 0.014R SWPA6045 1
3 L706 373G253S146D00 SMD CHOKE 2.2uH 30% 4.6A 0.014R SWPA6045 1
3 L704 373G253S146D00 SMD CHOKE 2.2uH 30% 4.6A 0.014R SWPA6045 1
3 L702 373G253S146D00 SMD CHOKE 2.2uH 30% 4.6A 0.014R SWPA6045 1
3 L703 373G253S146D00 SMD CHOKE 2.2uH 30% 4.6A 0.014R SWPA6045 1
3 L603 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 1
3 L604 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 1
3 L601 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 1
3 L602 373G253S193D00 SMD CHOKE 22uH 20% 1.8 0.089 SWPG6045G2 1
3 L101 373G253S239D00
3 L705 373G253S256D00 SMD CHOKE 2.2uH 30% 2.95A 0.030R SWPG40 1
3 CN603 388G078G111ACL0001 RCA R/A 3P 1*1 Orange 10.5 1
3 CN605 388G302F5B1FCL PHONE JACK R/A 5P 1*1 BLACK 8.5mm 1
3 CN502 388G340FJ05FXH0001 HDMI R/A 19P 1*1 BLACK 8.4mm 1
3 CN501 388G340FJ05FXH0001 HDMI R/A 19P 1*1 BLACK 8.4mm 1
3 CN506 388G340FJ05FXH0001 HDMI R/A 19P 1*1 BLACK 8.4mm 1
3 X101 393G022S60100J CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18 1
3 X101 393G022S661CEC CRYSTAL IB-F-16.0000M-18-2030-2085-40-TR 1
3 X401 393G022S670CEC CRYSTAL K-F-24.000M-12-2020-4085-50 24.0 1
3 X401 393G022SA8200J CRYSTAL NXK24.000AE12F-KAB8 24MHz 12pF 1
3 ZD703 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 1
3 ZD704 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 1

1
1
1
1
1
1

1

3 ZD701 393G039S96500T00HF ZENER BZT52-B5V6S_R1_00001 5.6V 0.2W S0D 1

Q49G03WB1TF0HF0000

Q52G170100700B00XW

Q55G02SP1VT0HF0000

X51G03UV0DB0HF0000

Q52G170100700B00XW

3 D501 393G060S03000T00HF SCHOTTKY BAT54C_R1_00001 0.2A 30V SOT-2 1
3 D601 393G060S93400T00HF HF SS0520_R1_00001 0.5A 20V SOD-123 1
3 D501 393G060SA1300T SCHOTTKY BAT54C 0.2A 30V SOT-23 1
3 709T9016MXS001000X COMSUMPTIVE ASSY 1
4
4 055G 100610 Solder Paste 0.562
4 051G 200 1 OIL FOR DISAPPEAR 0.223
4
4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021
4 Q55G 100622 TIN STICK(SAC0507) 0.100
4 Q52G 1174 3A TAPE 80
4 Q09G6012 1 PIN 0.036
4
4
4 Q05G6054 1 SHEET 0.172
3 E715 715G9016M01B00004T MAIN PCB FR4 DS 193*159*1.6 1
3 E715 715G9016M01B00004Y MAIN PCB FR4 DS 193*159*1.6 1
3 P40GD000813 9A A4 PALLET LABEL -for A4 paper 0.008
3 CN102 088G352E912AXH USB A TYPE R/A 9P 1*1 BLUE 6.96mm 1
3 CN601 311GW200A04ABX AFER 2.0mm 4P 1
3 CN105 311GW200C08ABL WAFER 2.0mm 8P R/A B2000W08HTKB 1
3 CN106 311GW200C10AAL WAFER 2.0mm 10P 1
3 CN401 311GW200C14BBX CONN 2.0mm 14P R/A W2010-14RVA-S04 1
3 CN702 311GW200C16BBX ONN 2.0mm 16P R/A W2010-16RVA-S04,B200 1
3 CN111 388G078G137ACL0001 RCA JACK 6P 1*3 Y/W/R -- 1
3 CN104 388G342GFB6AKX RJ45 R/A 15P 1*1 BLACK 11.2 1
3 CN103 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4 1
3 FCN101 388G510G502FCL RF RF Shielding 5P 1*1 GRAY 9.5 1
3 TU101 388G510H402FHC0001 RF IFP-013R-03 5P 1*1 W 11.2 1
3 HS401 P90G0025 1 HEAT SINK 45 45 10 1
3 HS601 Q90G6119 6 HEAT SINK 25 10 1
1 IOPFHXA3 IO BOARD ASSY 1
2 Z40G0002ALL01A OTHER LABEL 1
2 709T9044OXM001000X COMSUMPTIVE ASSY 1
3 051G 200 1 OIL FOR DISAPPEAR 0.108
2 SMTIOPFHXA3 IO BOARD FOR SMT 1
3 C105 065G040210322K M MLCC 0402 CAP 0.01uF 25V X7R 1
3 C96 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 709T9044OXS001000X COMSUMPTIVE ASSY 1
4 055G 23520 .leaning Naphtha 0.310
4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.020
4 055G 100610 Solder Paste 0.560
4 Q09G6012 1 PIN 0.010
4 Q05G6054 1 SHEET 0.050
4
3 E715 715G9044T01000004N DAUGHTER PCB FR4 DS 175*78*1.6 1
3 C73 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C108 065G060310522K M CAP 0603 1UF 10% 25V X7R NA 1
3 C130 065G040210322K M MLCC 0402 CAP 0.01uF 25V X7R 1
3 C19 065G040210412K F CAP 0402 100NF 10% 16V X7R 1

Water-based Cleaning Agent 0.470

MESH PRINTTING_PAPER 3.022

Solder Paste 1.448
UV glue 1.171

MESH PRINTTING_PAPER 0.860

3 C122 065G040210322K M MLCC 0402 CAP 0.01uF 25V X7R 1
3 C99 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C76 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C104 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C81 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C100 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C75 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C94 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C71 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C42 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C59 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C13 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 R98 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 C70 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C68 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 R55 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 C125 065G040210412K F CAP 0402 100NF 10% 16V X7R 1
3 C96 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R57 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 C73 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C19 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R59 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 C99 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C17 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C76 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R33 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 C104 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C55 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C81 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C80 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C100 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C75 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C94 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C120 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C71 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C42 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C102 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C59 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R123 361G04021871FY RST 0402 1.87K 1% 1/16W RC0402FR-071K87 1
3 C13 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C127 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C70 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C50 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 R41 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1
3 C68 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C125 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 UM1 356G0568413601 SCALER PH50 TFBGA-413 1
3 C83 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 R35 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 C128 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 R19 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1

3 L3 373G253S256D00 SMD CHOKE 2.2uH 30% 2.95A 0.030R SWPG40 1
3 R43 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1
3 R1 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R44 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1
3 R2 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R42 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1
3 R4 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 U4 356GD563006610 DC/DC TPS563201DDCR 17V 3A SOT-23-6 1
3 C44 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C103 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 C129 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R4041 061G0402105 JY RST 0402 1M 5% 1/16W RC0402JR-071ML 1
3 C106 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R97 061G04022702FT RST 0402 27K 1% 1/16W 1
3 C113 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R124 061G04022702FT RST 0402 27K 1% 1/16W 1
3 C40 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C98 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 U1 056G 643 36 IC G690L293T73Uf 2.93V SOT-23 1
3 C67 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4045 065G040220031J F CAP 0402 20PF 5% 50V NP0 1
3 C86 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R46 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 C116 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R45 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 C89 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R126 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 C74 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R125 061G0402273 JY RST CHIPR 27K OHM +-5% 1/16W YAGEO 1
3 C88 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R120 061G0402273 JY RST CHIPR 27K OHM +-5% 1/16W YAGEO 1
3 C43 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C4046 065G040220031J F CAP 0402 20PF 5% 50V NP0 1
3 C101 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R60 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 C29 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R61 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 C97 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R26 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 C93 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R58 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 C72 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C91 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C79 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C3 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C57 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R27 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1
3 R121 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1
3 C21 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C84 065G060310522K M CAP 0603 1UF 10% 25V X7R NA 1
3 U3 356GD563008140 DC/DC TPS54328DDAR 3A 0.76~7V DDA 1

3 R127 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN 1
3 C69 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R129 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN 1
3 C10 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C34 365G060322605M000A CAP 0603 22uF 20% 6.3V X5R CL10A226MQ8N 1
3 C85 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 L1 373G253S146D00 SMD CHOKE 2.2uH 30% 4.6A 0.014R SWPA6045 1
3 C95 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R21 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
3 CN2 311GW125D03ACJ WAFER 1.25mm 3P V/T 1.25T-11-3PB 1
3 C30 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C32 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C63 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C31 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C62 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C112 065G040210332K F CAP 0402 10NF 10% 50V X7R 1
3 C22 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 R128 061G04022322FT RST 0402 23.2K 1% 1/16W TZAI YUAN 1
3 C107 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C82 067G311R2213CT EC SMD 220UF 20% 16V 6.3*7.7 - 1
3 U6 056G2233 31 FLASH MX25L1606EM2I-12G 16Mb SOP-8(200m 1
3 R49 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1
3 C48 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C49 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 C46 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C33 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 CN408 311GF050Z51ADC FFC CONN 0.5mm 51P R/A F05036-51P-E 1
3 C7 065G040210425K Y CAP 0402 100nF 10% 25V X5R 1
3 R7 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 C12 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
3 C111 365G0805106A5KD00A CAP 0805 10uF 10% 10V X5R CL21A106KPCLQ 1
3 R53 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 C60 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 R4072 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO 1
3 C4051 067G311R2213CT EC SMD 220UF 20% 16V 6.3*7.7 - 1
3 Q404 057G 417511 MMBT3904 1
3 Q403 057G 763 79 MOSFET AO4449 -7A -30V SO-8 1
3 R83 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R4071 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO 1
3 R4077 061G0402202 JY RST CHIPR 2KOHM 1/16W YAGEO 1
3 C4053 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 R4073 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 1
3 C4052 065G060322422K Y CAP 0603 220N 25V X7R 10% 1
3 C109 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C110 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C47 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C115 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 C16 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
3 C2 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1
3 R54 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 C9 365G040222505M000T CAP 0402 2.2UF 20% 6.3V X5R JMK105BJ225M 1

3 CN1 311GW125D03ACJ WAFER 1.25mm 3P V/T 1.25T-11-3PB 1

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

3 C64 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C20 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 C124 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 040G 45762420A LABEL 25x6mm 1
3 C121 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R25 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 C39 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R3 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 FB2 371G042P121M02
3 C58 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C92 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C77 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 FB1 371G042P121M02
3 C118 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 FB3 371G042P121M02
3 C126 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R31 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1
3 R30 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1
3 C41 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R96 061G04021003FY RST CHIP 100K 1/16W 1% 1
3 C65 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 1
3 CN407 311GF050Z51ADC FFC CONN 0.5mm 51P R/A F05036-51P-E 1
3 C123 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 R36 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 C117 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 1
3 R38 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1
3 C119 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1
3 R28 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1
3 R20 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R5 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R62 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R6 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R8 061G0402330 JY RST 0402 33R 5% 1/16W - 1
3 R39 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1
3 R4042 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R122 061G04022402FY RST CHIPR 24K +-1% 1/16W YAGEO 1
3 R56 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
3 R100 361G04022492FY RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 1
3 R101 061G04021212FF RST 0402 12.1K 1% 1/16W FENGHUA 1
3 R40 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1
3 C66 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 R74 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 R75 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1
3 C87 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 C90 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1
3 L2 373G253S256D00 SMD CHOKE 2.2uH 30% 2.95A 0.030R SWPG40 1
3 U5 356GD563006610 DC/DC TPS563201DDCR 17V 3A SOT-23-6 1
3 C61 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
3 X401 393G022SA8200J CRYSTAL NXK24.000AE12F-KAB8 24MHz 12pF 1
3 C56 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1

1

1

1

3 C78 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1

Q52G170100700B00XW

P33E1155XGRZ1C0100

P34E31070GM01G0100

P34E3108XND01C00BZ

3 C45 065G0402105A5K A CAP 0402 1uF 10% 10V X5R CL05A105KP5NNNC 1
2 X90G20200020000AHG HEAT SINK -- -- -- 1

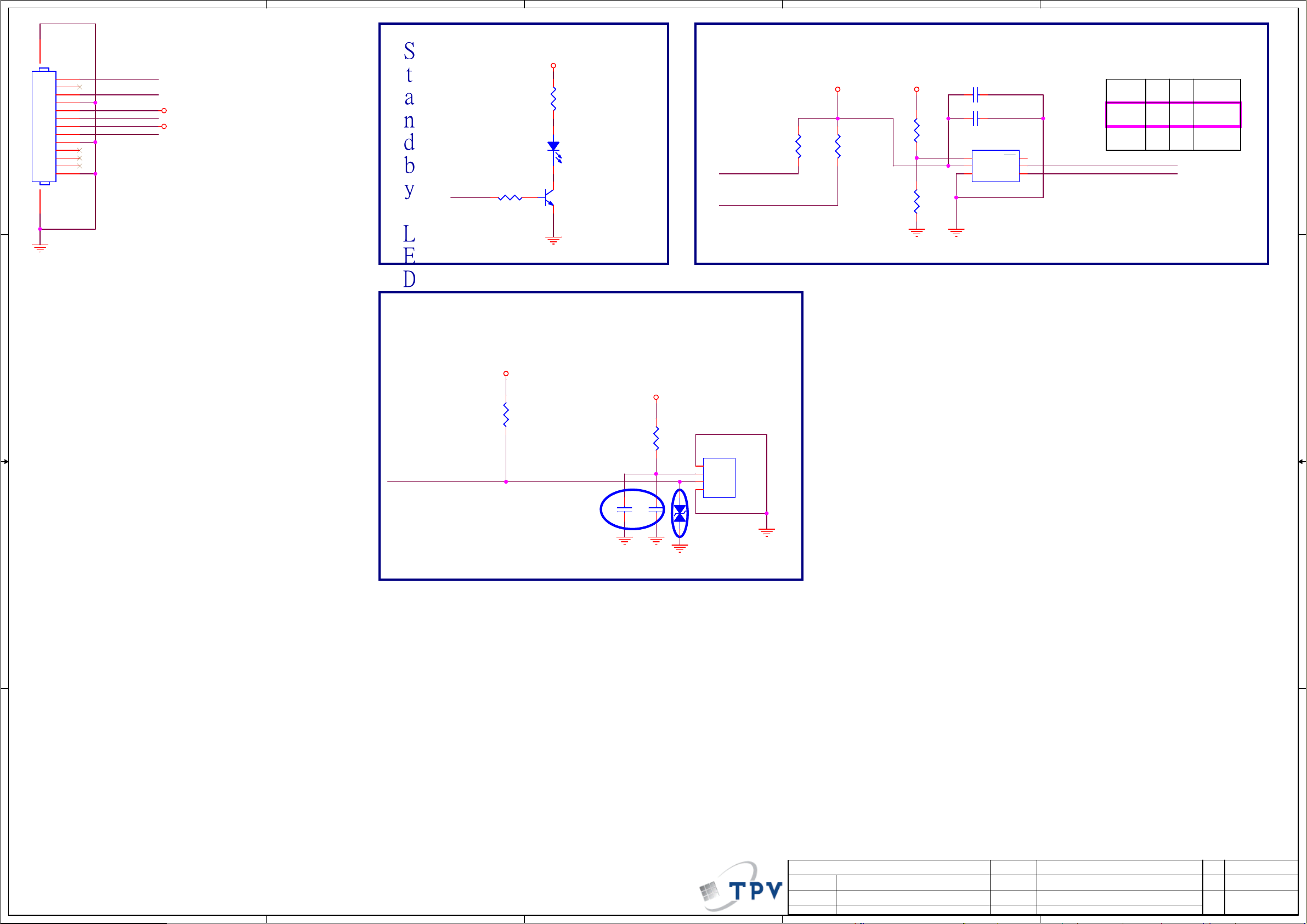

1 IRPFGAAD IR BOARD G8009-R1A-000-0040 1
2 SMTIRPFGAAD .R BOARD FOR SMT 1
3 Q201 057G 477904 T TRA BC847BW 100mA/45V SOT-323 1
3 R204 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1
3 R202 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN 1
3 R201 061G0402272 JT RST CHIP 2K7 1/16W 5% TZAI YUAN 1
3 C202 065G0402105A5K M CAP 0402 1UF 10% 10V X5R 1
3 C201 065G0402105A5K M CAP 0402 1UF 10% 10V X5R 1
3 ZD201 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 1
3 CN201 311GW125D13ACL CONN 1.25mm 13P V/T B1254W13VUM2 1
3 U201 356GS927036600 SMD IR RECEIVER TSOP75436TR 36 KHz 1
3 Q201 357G0761A0300T SMALLTRAN BTC4081S3 150mA 45V SOT-323 1
3 LED201 381G0A1500R1GP LED R GPSS008RC4 1
3 E715 715G8009R02000004Y IR PCB FR4 DS 35.7*26*0.8mm 1

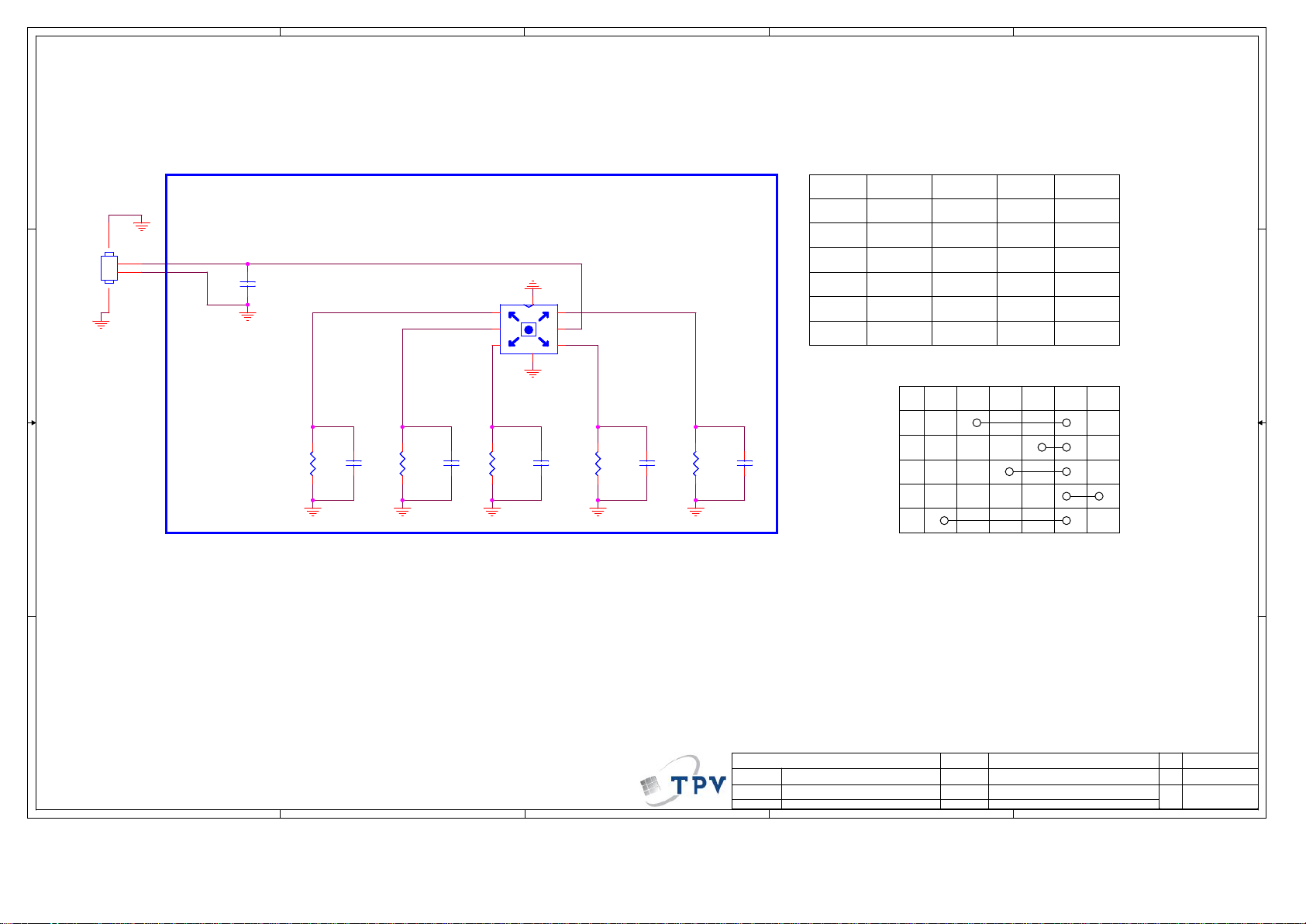

1 KEPFEAA9 KEY BOARD 1
2 SMTKEPFEAA9 KEY BOARD FOR SMT 1
3 R01 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W 1
3 R01 061G06031201FT RST CHIP 1K2 1/10W 1% 1
3 R01 061G06031201FY RST CHIPR 1.2KOHM +-1% 1/10W 1
3 R05 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA 1
3 R05 061G06031502FT RST CHIP 15K 1/10W 1% 1
3 R05 061G06031502FY RST CHIP 15K 1/10W 1% 1
3 R04 061G06032201FT RST CHIP 2K2 1/10W 1% 1
3 R04 061G06032201FY RST CHIP 2K2 1/10W 1% 1
3 R02 061G06034709FT RST CHIP 47R 1/10W 1% 1
3 R03 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA 1
3 R03 061G06036801FT RST CHIP 6K8 1/10W 1% 1
3 R03 061G06036801FY RST CHIP 6K8 1/10W 1% 1
3 C06 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1
3 C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R 1
3 CN01 311GW125D02ADX WAFER 1.25mm 2P R/A S1315-02RVB-S03-K 1
3 SW01 377G060902C0CJ CHIP TACT SW 6P 6mm 160g SMD 1
3 SW01 377G060902C0HC CHIP TACT SW 6P 6mm 160g SMD 1
3 709T70880XS001 COMSUMPTIVE ASSY 1
4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021
4 055G 23520 .leaning Naphtha 0.012
4 055G 100610 Solder Paste 0.022
4 Q05G6054 1 SHEET 0.010
4 Q09G6012 1 PIN 0.010
4
3 E715 715G7088K01000004K KEY PCB FR4 DS 22*29.5*1.6mm 1
1 P33E0738XJL01T0100 KEY_FUNCTION 1
1 P33E1000XLQ01C0100 LENS_IR 1
1 P33E1085ADT01L0100 Case_holder 1
1 P33E1144ADT01L0100 DECO_LOGO 1
1
1
1

MESH PRINTTING_PAPER 0.034

DECO_LOGO 1
REAR_COVER NA 1
BASE NA 1

1

P34E3109XND01C00BZ

361G0058109MYW008A

361G0058109MYW008A

361G0058109MYW008A

1 P40GD000813 9A A4 PALLET LABEL -for A4 paper 0.100

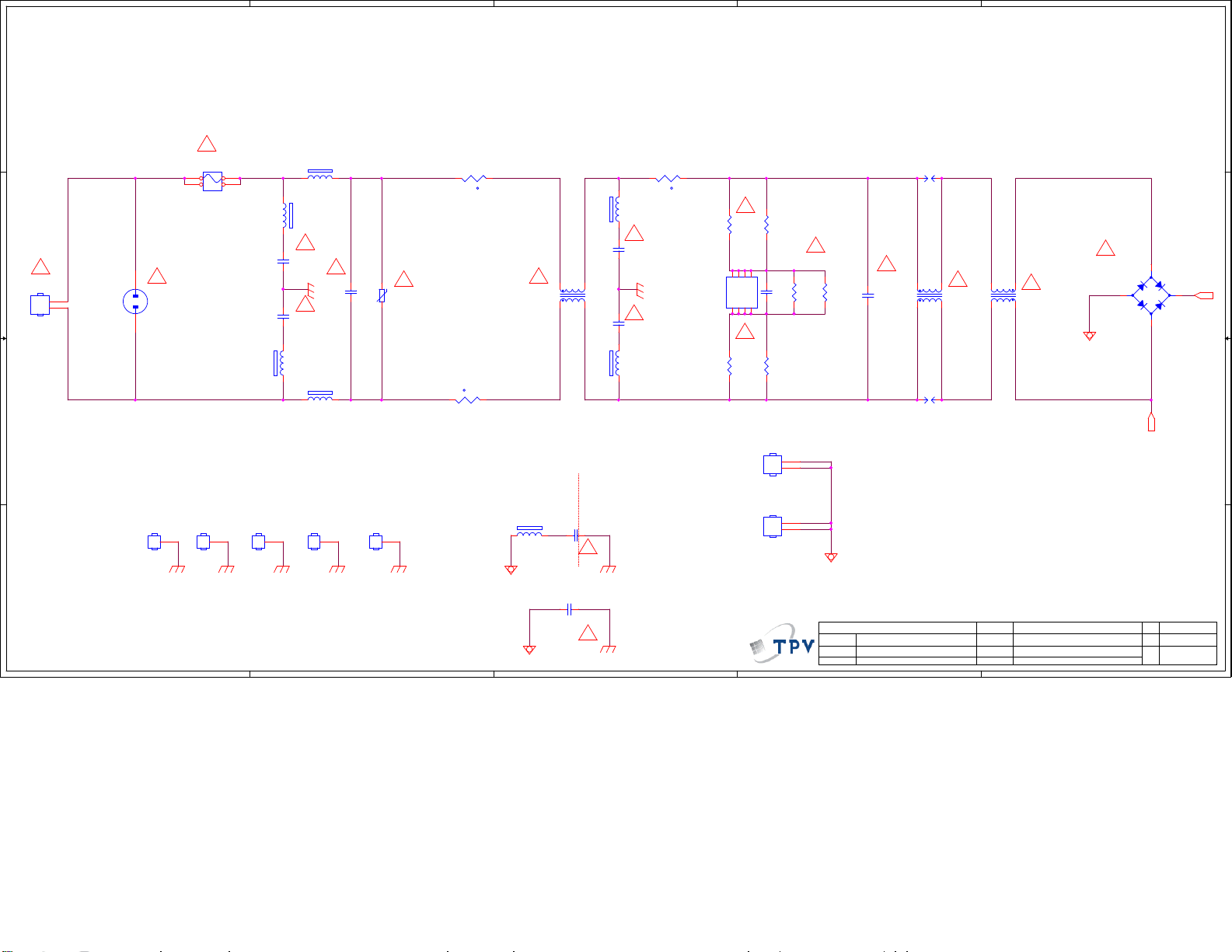

1 PLTVHI722XABU ADAPTER BOARD 715G8807P 1
2 Z40G0002ALL01A OTHER LABEL 1
2 CN8601 033G380212B YH L WAFER 12.0mm 12P 1
2 U9103 056G 139 9 IC EL817M(X) photocoupler DIP-4 1
2 U9102 056G 139 9 IC EL817M(X) photocoupler DIP-4 1
2 U8102 056G 139 9 IC EL817M(X) photocoupler DIP-4 1
2 C8188 067G515Z221 9K EC 220UF 20% 100V 10*35 5000 hr 1
2 L8101 073G 253191 HP CHOKE COIL 1.1uH VOC 1
2 L9101 073G 253191 HP CHOKE COIL 1.1uH VOC 1
2 BD9801 093G 50460518 BRIDGE KBP208G-C 2A 800V KBP 1
2 CN9101 311GW200C16CBX CONN 2.0mm 16P R/A W2010-16RVA-SB4 1
2 U8101 356G0379016223M000 AC/DC LCS701LG eSIP-16K 1
2 U8106 356G0700008604 LED DRIVER TPV101AD DIP-8 1
2 U8105 356G0700008604 LED DRIVER TPV101AD DIP-8 1
2 RV9901 361G0046681KZE VARISTOR 680V 10% 1
2 NR9901
2 NR9903
2 NR9902
2 C9902 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L2 1
2 C9901 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L2 1
2 C8109 363G211J2735CE CAP MPP 27nF 5% 1KV 18*6*11MM B32652A027 1
2 C9806 363G211K105GCE CAP MPP 1uF 10% 450V 18*7*12.5mm B32672P 1
2 C9819 363G211K105GCE CAP MPP 1uF 10% 450V 18*7*12.5mm B32672P 1
2 C9804 367G215X680PKZ000S EC 68uF 20% 450V 12.5*50 2000 hr 620mA 1
2 C9803 367G215X680PKZ000S EC 68uF 20% 450V 12.5*50 2000 hr 620mA 1
2 C9110 367G515L222FKZ EC 2200uF 20% 25V 12.5x30 6000 hr 4A EV 1
2 C9109 367G515L222FKZ EC 2200uF 20% 25V 12.5x30 6000 hr 4A EV 1
2 FB9902 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 1
2 FB9901 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 1
2 L9903 373G0174301H00 LINE FILTER 0.25mH MIN 2A LCL-11010 HA 1
2 L9901 373G0174362X00 LINE FILTER 12mH MIN 2A 3LFT20117-123M- 1
2 L9902 373G0174362X00 LINE FILTER 12mH MIN 2A 3LFT20117-123M- 1
2 L9801 373G0174422H00 PFC CHOKE 170uH 10% 5.0A GL-13604 HA 1
2 L9102 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 1
2 T9102 380GL32P175H02 X'FMR 330uH 10% 6.5uH EQ40 BCK-14075-H 1
2 T8101 380GL52P350H00 X'FMR 830uH 12% 145uH EE42 BCK-74201-HA 1
2 CN9902 387G050147P0HC AC V/T 2P 14mm 1
2 BD9901 393G0050460602 BRIDGE GBJ1008-FUC 10A 800V GBJ 1
2 705TAF84036 Fuse Assy (F9901) 1
3 084G 34 14 FUSE -- -- -- 2
3 F9901 084G 41 7 FUSE 5A 250V 0215005M LITTELFUSE 1
2 705TAH57119 TRANSISTOR Assy (Q9101 ASS"Y) 1
3 051G 200 1 OIL FOR DISAPPEAR 0.018
3 Q9101 057G 667956 MOSFET TK13A65U(STA4,X.M) 13A 650V SC-67 1
3 0M1G1730 8120 SCREW M3 8 1
3 HS9101 X90G070810100000SY HEAT SINK 1
2 705TAH93063 Diode Assy (D9106, D9116, D9117 ASS'Y) 1
3 051G 200 1 OIL FOR DISAPPEAR 0.054
3 0M1G1730 8120 SCREW M3 8 3

BASE NA 1

NTCR 1R 20% 3.6W SCK15018MTY503 1
NTCR 1R 20% 3.6W SCK15018MTY503 1
NTCR 1R 20% 3.6W SCK15018MTY503 1

3 D9117 393G0060615TUB SCHOTTKY FMET-24010 40A 100V TO-220F 1
3 D9106 393G0060615TUB SCHOTTKY FMET-24010 40A 100V TO-220F 1
3 D9116 393G0060615TUB SCHOTTKY FMET-24010 40A 100V TO-220F 1
3 HS9102 Q90T0236003A0000SY HEAT SINK 1
2 705TXG93038 Diode Assy ( D8104 D8105 ASSY ) 1
3 051G 200 1 OIL FOR DISAPPEAR 0.036
3 D8105 093G 220 24 DIODE FMX-23S SANKEN 1
3 D8104 093G 220 24 DIODE FMX-23S SANKEN 1
3 0M1G1730 8120 SCREW M3 8 2
3 HS8101 Q90G0219003A0000BF HEAT SINK 1
2 705TXH57077 TRANSISTOR Assy (Q9801 D9802 ASSY) 1
3 051G 200 1 OIL FOR DISAPPEAR 0.036
3 Q9801 057G 667954 MOSFET TK18A60V 18A 600V SC-67 1
3 D9802 093G 52905 DIODE FMNS-1106S TO-220 1
3 0M1G1730 8120 SCREW M3 8 2
3 HS9801 Q90T0236003A0000SY HEAT SINK 1
2 709T86720XM001 COMSUMPTIVE ASSY 1
3 051G 200 1 OIL FOR DISAPPEAR 0.091
3 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.079
3 055G 23520 .leaning Naphtha 0.100
3 055G 23524 WELDING FLUX WITHOUT PB 3.889
3 Q49G 51100 Water-based Cleaning Agent 2
3 Q51G 6 4509 GLUE_RTV 0.440
3 Q55G 100622 TIN STICK(SAC0507) 0.100
3 Q55G 100655 Sn-Cu Solder 11.600
2 PLHI722XABUSMT ADAPTER BOARD FOR SMT 1
3 U9901 056G 665142 Discharge IC CAP004DG-TL SOP-8 1
3 Q9109 057G 417912 T SMALLTRAN 2SA1797 -3A -50V PCP 1
3 R8151 061G0805000 JT RST 0805 0.05R MAX 1/8W 1
3 R8152 061G0805000 JT RST 0805 0.05R MAX 1/8W 1
3 R8164 061G08051001FT RST CHIP 1K 1/8W 1% 1
3 R9121 061G08051001FT RST CHIP 1K 1/8W 1% 1
3 R9157 061G08051002FT RST CHIP 10K 1/8W 1% 1
3 R9805 061G08051002FT RST CHIP 10K 1/8W 1% 1
3 R9109 061G08051002FT RST CHIP 10K 1/8W 1% 1
3 R9814 061G08051002FT RST CHIP 10K 1/8W 1% 1
3 R9816 061G08051003FY RST CHIP 100K 1/8W 1% 1
3 R9107 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN 1
3 R8114 061G08051200FT RST CHIP 120R 1/8W 1% 1
3 R8116 061G08051201FT RST CHIP R 1K2 1/8W +/-1% 1
3 R9116 061G08051201FT RST CHIP R 1K2 1/8W +/-1% 1
3 R9115 061G08051201FT RST CHIP R 1K2 1/8W +/-1% 1
3 R8124 061G08051302FY RST CHIP 13K 1/8W 1% 1
3 R9119 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 1
3 R9158 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 1
3 R8119 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 1
3 R9815 061G08051502FT RST CHIP 15K 1/8W 1% 1
3 R9801 061G08051502FT RST CHIP 15K 1/8W 1% 1
3 R8108 061G08051502FY RST CHIP 15K 1/8W 1% 1
3 R9811 061G08051912FT RST CHIPR 19K1 +-1% 1/8W TZAI YUAN 1
3 R9807 061G08052001FT RST CHIP 2K 1/8W 1% 1

3 R9154 061G08052002FT RST CHIP 20K 1/8W 1% 1
3 R8617 061G08052200FT RST 0805 220R 1% 1/8W TZAI YUAN 1
3 R8111 061G0805224 JY RST CHIPR 220K +-5% 1/8W YAGEO 1
3 R9813 061G08052702FF RST CHIPR 27KOHM +-1% 1/8W FENGHUA 1
3 R9164 061G08053001FT RST CHIP R 3K 1/8W +/-1% 1
3 R9156 061G08053001FT RST CHIP R 3K 1/8W +/-1% 1
3 R9153 061G08053001FT RST CHIP R 3K 1/8W +/-1% 1
3 R8120 061G08053001FT RST CHIP R 3K 1/8W +/-1% 1
3 R8115 061G08053001FY RST CHIP R 3K 1/8W +/-1% 1
3 R8125 061G08053902FT RST CHIP 39K 1/8W 1% 1
3 R8113 061G08054700FY RST CHIP 470R 1/8W 1% 1
3 R9102 061G08054702FT RST CHIP 47K 1/8W 1% 1
3 R8105 061G08054702FY RST CHIP 47K 1/8W 1% 1
3 R9118 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA 1
3 R8106 061G0805479 JY 2ST CHIP 4R7 1/8W 5% YAGEO 1
3 R9160 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN 1
3 R8122 061G08056202FY RST 0805 62K 1% 1/8W - 1
3 R8121 061G08056202FY RST 0805 62K 1% 1/8W - 1
3 R8123 061G08057501FF RST CHIPR 7.5KOHM +-1% 1/8W FENGHUA 1
3 R8109 061G08059102FY RST CHIP R 91KOHM +-1% 1/8W 1
3 R9819 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1
3 R8166 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1
3 RJ917 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ904 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ913 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ905 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ903 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ911 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ909 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ902 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ906 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ910 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ901 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ907 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ914 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ915 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 RJ912 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA 1
3 R8174 061G12060007JT RST CHIPR MAX 0R05 1/4W 1206 1
3 R9802 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1
3 R9817 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 1
3 R8155 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 1
3 R9820 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 1
3 R9810 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 1
3 R9806 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 1
3 R9108 061G12061009FT RST CHIP R 10ohm 1/4W +/-1% 1
3 R8110 061G1206123 JT RST CHIP 12K 5% 1/4W TZAI YUAN 1
3 R8177 061G1206154 JT RST CHIPR 150KOHM +-5% 1/4W TZAI YUAN 1
3 R8118 061G1206154 JT RST CHIPR 150KOHM +-5% 1/4W TZAI YUAN 1
3 R9155 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 1
3 R8104 061G1206225 JT RST CHIPR 2.2MOHM +-5% 1/4W TZAI YUAN 1
3 R8107 061G1206229 JY RST 1206 2.2R 5% 1/4W 1

3 R8103 061G1206245 JF RST CHIPR 2M4 +-5% 1/4W FENGHUA 1

CAP 0805 47pF 5% 50V NP0 CC0805JRNPO9BN4

3 R8102 061G1206245 JF RST CHIPR 2M4 +-5% 1/4W FENGHUA 1
3 R9166 061G12062709FT RST 1206 27R 1% 1/4W TZAI YUAN 1
3 R9167 061G12062709FT RST 1206 27R 1% 1/4W TZAI YUAN 1
3 R9168 061G12062709FT RST 1206 27R 1% 1/4W TZAI YUAN 1
3 R9165 061G12062709FT RST 1206 27R 1% 1/4W TZAI YUAN 1
3 R9171 061G12062709FT RST 1206 27R 1% 1/4W TZAI YUAN 1
3 R9170 061G12062709FT RST 1206 27R 1% 1/4W TZAI YUAN 1
3 R9172 061G12062709FT RST 1206 27R 1% 1/4W TZAI YUAN 1
3 R9169 061G12062709FT RST 1206 27R 1% 1/4W TZAI YUAN 1
3 R9803 061G1206330 JT RST CHIP R 33ohm 1/4W +/-5% 1
3 R9104 061G1206331 JT RST CHIPR 330 OHM +-5% 1/4W TZAI YUAN 1
3 R9812 061G12064700FT RST 1206 470R 1% 1/4W TZAI YUAN 1
3 R9135 061G1206475 JT RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN 1
3 R9159 061G1206510 JF RST CHIPR 51 OHM +-5% 1/4W FENGHUA 1
3 R8159 061G12065101FT RST 1206 5.1KR 1% 1/4W 1
3 R8117 061G1206513 JT RST CHIPR 51 KOHM +-5% 1/4W TZAI YUAN 1
3 R9162 061G1206624 JT RST CHIPR 620 KOHM +-5% 1/4W TZAI YUAN 1
3 R9161 061G1206624 JT RST CHIPR 620 KOHM +-5% 1/4W TZAI YUAN 1
3 R9163 061G1206624 JT RST CHIPR 620 KOHM +-5% 1/4W TZAI YUAN 1
3 R9905 061G1206754 JY RST CHIPR 750 KOHM +-5% 1/4W YAGEO 1
3 R9904 061G1206754 JY RST CHIPR 750 KOHM +-5% 1/4W YAGEO 1
3 R9901 061G1206754 JY RST CHIPR 750 KOHM +-5% 1/4W YAGEO 1
3 R9902 061G1206754 JY RST CHIPR 750 KOHM +-5% 1/4W YAGEO 1
3 R9120 061G12069101FT RST 1206 9.1K 1% 1/4W TZAI YUAN 1
3 C9811 065G080510231J F CAP 0805 1NF 5% 50V NPO 1
3 C8107 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% 1
3 C8120 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1
3 C9147 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1
3 C8123 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1
3 C8125 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1
3 C8121 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1
3 C9814 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1
3 C9809 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1
3 C9815 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1
3 C9816 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1
3 C8103 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1
3 C8104 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1
3 C8130 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1
3 C8110 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1
3 C9143 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1
3 C8128 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1
3 C9141 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1
3 C9112 065G080522232K F CAP 0805 2.2NF 10% 50V X7R 1
3 C9121 065G080522432K Y CAP 0805 220nF 10% 50V X7R CC0805KKX7R9B 1
3 C9128 065G080522522K M CAP 0805 2.2UF 10% 25V X7R 1
3 C9127 065G080522522K M CAP 0805 2.2UF 10% 25V X7R 1
3 C8105 065G080533432K M CAP 0805 330NF 10% 50V X7R GRM219R71H33 1
3 C9807 065G080547031J Y
3 C9810 065G080547131J M CAP 0805 470pF 5% 50V NP0 GRM2165C1H471J 1
3 C8106 065G080547232K M CAP 0805 4.7nF 10% 50V X7R GRM216R71H472 1

1

3 C8101 065G080547232K Y CAP 0805 4.7nF 10% 50V X7R CC0805KRX7R9B 1
3 C9812 065G080547332K Y CAP 0805 47nF 10% 50V X7R CC0805KRX7R9BB 1
3 C9813 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R 1
3 C8136 065G080547525K M CAP 0805 4.7uF 10% 25V X5R GRM21BR61E475 1
3 C8137 065G080547525K M CAP 0805 4.7uF 10% 25V X5R GRM21BR61E475 1
3 C9104 065G080568131J F CAP 0805 680PF 5% 50V NPO 1
3 C8614 065G080568232K Y CAP CHIP 0805 6.8nF 50V X7R +/-10% 1
3 C8119 065G120610272K F CAP 1206 1NF 10% 500V X7R 1
3 C8111 065G120622272K Y CAP 1206 2.2NF 10% 500V X7R CC1206KKX7RB 1
3 C9152 065G120633272K Y CAP CHIP 1206 3.3NF K 500V X7R 1
3 C9151 065G120633272K Y CAP CHIP 1206 3.3NF K 500V X7R 1
3 U9104 356G0158003600 Shunt Regu TL431G-AE2-R SOT23-3 1
3 U8103 356G0158003600 Shunt Regu TL431G-AE2-R SOT23-3 1
3 U9801 356G0379008218 PFC LD7591T GS SOP-8 1
3 U9101 356G0379008607 AC/DC SSC3S121A SOP8 1
3 Q9102 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 1
3 Q9108 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V 1
3 Q9802 357G0763600602 MOSFET MTN127KN3 0.033A 600V SOT-23 1
3 R8148 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8135 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8140 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8138 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8147 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8137 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8146 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8142 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8136 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8145 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8139 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R8141 361G12061808FT RST 1206 1.8R 1% 1/4W SMD12061R8F 1
3 R9114 361G12063308FF RST 1206 3.3R 1% 1/4W RS-06L3R30FT 1
3 R9127 361G12063308FF RST 1206 3.3R 1% 1/4W RS-06L3R30FT 1
3 D9110 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 1
3 D9108 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 1
3 D8155 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 1
3 ZD8113 393G039S65200T ZENER BZT52-B20 20V 0.5W SOD-123 1
3 ZD8110 393G039S95300T00HF HF BZT52-B9V1_R1_00001 9.1V 0.41W 1
3 ZD8102 393G039S95300T00HF HF BZT52-B9V1_R1_00001 9.1V 0.41W 1
3 ZD8103 393G039S96400T00HF ZENER BZT52-B13_R1_00001 13V 0.41W SOD-1 1
3 ZD8112 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C 1
3 ZD9109 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W 1
3 ZD9111 393G039SA1500T ZENER BZT52-B30 30V 0.41W SOD-123 1
3 ZD9112 393G039SA1500T ZENER BZT52-B30 30V 0.41W SOD-123 1
3 ZD8120 393G039SA2700T ZENER BZT52-B27 27V 0.41W SOD-123 1
3 ZD9106 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 1
3 ZD9107 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 1
3 ZD8104 393G039SA3500T ZENER BZT52-B33 33V(Type) 410mW SOD-123 1
3 D8107 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1
3 D9102 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1
3 D9804 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1
3 D8114 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1

3 D8106 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1
3 D9805 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1
3 D8111 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1
3 D9806 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1
3 D8112 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1
3 D8113 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1
3 709T86720XS001 COMSUMPTIVE ASSY 1
4 Q05G6054 1 SHEET 0.051
4 051G 100502 Surface Mount Adhesives 0.032
4 055G 23520 .leaning Naphtha 0.317
4 Q09G6012 1 PIN 0.011
4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021
3 PLHI722XABUAI ADAPTER BOARD FOR AI 1
4 NR9902 006G 31 4 EYELET 2
4 NR9901 006G 31 4 EYELET 2
4 NR9903 006G 31 4 EYELET 2
4 BD9901 006G 31 4 EYELET 2
4 T9102 006G 31500 EYELET 4
4 L9801 006G 31500 EYELET 4
4 CN9902 006G 31500 EYELET 2
4 T8101 006G 31500 EYELET 4
4 C9803 006G 31502 EYELET 1
4 C9804 006G 31502 EYELET 1
4 L9901 006G 31502 EYELET 4
4 RV9901 006G 31502 EYELET 2
4 C9902 006G 31502 EYELET 2
4 C9901 006G 31502 EYELET 2
4 L9902 006G 31502 EYELET 4
4 040G 45762420A LABEL 25x6mm 1
4 Q8181 057G 566503 DIGITAL TRAN BT169D 0.5 400V TO-92 1
4 R8101 061G 30310852T SY RST FUSE 0.1R 5% 1W 1
4 C9817 065G 1K10193T CAP CER 100PF 10% 1KV R 1
4 C9116 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING 1
4 C9123 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING 1
4 C8113 065G 1M10333S CAP CER 10NF 20% 1KV Y5U 1
4 C9802 065G 1M10333S CAP CER 10NF 20% 1KV Y5U 1
4 C9820 065G306K10123R CAP Y1 100PF 10% 250V Y5P 1
4 C9916 065G306K10123R CAP Y1 100PF 10% 250V Y5P 1
4 C9914 065G306K22123R CAP Y1 220PF 10% 250V Y5P 1
4 C9913 065G306K22123R CAP Y1 220PF 10% 250V Y5P 1
4 C9818 065G306K33123R CAP Y1 330PF 10% 250V Y5P 1
4 C9917 065G306K33123R CAP Y1 330PF 10% 250V Y5P 1
4 C9103 067G 3154707KT EC 47uF 20% 50V 10*7 3000 hr 420mA ER1H4 1
4 C8118 067G 5154709KT EC 47UF 20% 100V 10*12 1
4 C9115 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1
4 C9113 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1
4 C9150 067G315M2207KB EC 22uF 20% 50V 6.3*7 3000 hr 360mA ER1H 1
4 C9808 067G315M2207KB EC 22uF 20% 50V 6.3*7 3000 hr 360mA ER1H 1
4 FB8101 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A 1
4 FB9803 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1
4 FB9907 071G 55 29 FERRITE BEAD 1

4 FB9903 071G 55 29 FERRITE BEAD 1
4 FB9802 071G 55 29 FERRITE BEAD 1
4 FB9906 071G 55 29 FERRITE BEAD 1
4 FB9805 071G 55 29 FERRITE BEAD 1
4 D8101 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41 1
4 D9103 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41 1
4 J941 095G 90 23 JUMP WIRE - - 1
4 J927 095G 90 23 JUMP WIRE - - 1
4 J901 095G 90 23 JUMP WIRE - - 1
4 J940 095G 90 23 JUMP WIRE - - 1
4 J920 095G 90 23 JUMP WIRE - - 1
4 J916 095G 90 23 JUMP WIRE - - 1
4 J902 095G 90 23 JUMP WIRE - - 1
4 J923 095G 90 23 JUMP WIRE - - 1
4 J922 095G 90 23 JUMP WIRE - - 1
4 J909 095G 90 23 JUMP WIRE - - 1
4 J910 095G 90 23 JUMP WIRE - - 1
4 J934 095G 90 23 JUMP WIRE - - 1
4 J926 095G 90 23 JUMP WIRE - - 1
4 J924 095G 90 23 JUMP WIRE - - 1
4 J921 095G 90 23 JUMP WIRE - - 1
4 J906 095G 90 23 JUMP WIRE - - 1
4 J914 095G 90 23 JUMP WIRE - - 1
4 J930 095G 90 23 JUMP WIRE - - 1
4 J929 095G 90 23 JUMP WIRE - - 1
4 J938 095G 90 23 JUMP WIRE - - 1
4 J918 095G 90 23 JUMP WIRE - - 1
4 J937 095G 90 23 JUMP WIRE - - 1
4 J932 095G 90 23 JUMP WIRE - - 1
4 J907 095G 90 23 JUMP WIRE - - 1
4 J928 095G 90 23 JUMP WIRE - - 1
4 J915 095G 90 23 JUMP WIRE - - 1
4 J933 095G 90 23 JUMP WIRE - - 1
4 J936 095G 90 23 JUMP WIRE - - 1
4 J935 095G 90 23 JUMP WIRE - - 1
4 J905 095G 90 23 JUMP WIRE - - 1
4 J904 095G 90 23 JUMP WIRE - - 1
4 J917 095G 90 23 JUMP WIRE - - 1
4 J911 095G 90 23 JUMP WIRE - - 1
4 J908 095G 90 23 JUMP WIRE - - 1
4 J919 095G 90 23 JUMP WIRE - - 1
4 J903 095G 90 23 JUMP WIRE - - 1
4 J913 095G 90 23 JUMP WIRE - - 1
4 J931 095G 90 23 JUMP WIRE - - 1
4 J925 095G 90 23 JUMP WIRE - - 1
4 J939 095G 90 23 JUMP WIRE - - 1
4 J912 095G 90 23 JUMP WIRE - - 1
4 R9140 361G152M39052T00TZ RST MOF 39R 5% 2W MOF2WS39RJT52 1
4 R9150 361G152M39052T00TZ RST MOF 39R 5% 2W MOF2WS39RJT52 1
4 R9141 361G152M75352T00TZ RST MOF 75K 5% 2W - 1
4 R9804 361G212F27552T00TZ RST MGF 2.7M 1% 1/2W MGUL1/2W2M7FT52 1

4 R9808

361G2SWJ15852T00TZ

361G2SWJ15852T00TZ

361G2SWJ24852T00TZ

PWR PCB FR2 CTI>600 SS 185mm*322mm*1.6mm

Q52G170100700B00XW

Q52G15010TV0070WXW

Q52G1501150523AWBK

4 R9809
4 R9101
4 SG9902 362G0010501LST SPARK GAP -- 20% 1
4 SG9901 362G0010501LST SPARK GAP -- 20% 1
4 SG9902 362G0010501MIT SPARK GAP 500V -20/+30% 1
4 SG9901 362G0010501MIT SPARK GAP 500V -20/+30% 1
4 C9801 365G001J47063T CAP CER 47PF 5% 1KV SL CC45SL3AD470JYSN 1
4 C9907 365G001J47063T CAP CER 47PF 5% 1KV SL CC45SL3AD470JYSN 1
4 C8112 365G001J47063T CAP CER 47PF 5% 1KV SL CC45SL3AD470JYSN 1
4 C9145 365G001J47063T CAP CER 47PF 5% 1KV SL CC45SL3AD470JYSN 1
4 D9101 393G005260652T RECTIFIER SARS02V1 1.2A 800V AXIAL 1
4 709T86720XA001 COMSUMPTIVE ASSY 1
5 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.040
4 E715 715G8807P01001002H
4 E715 715G8807P01001002S PWR PCB FR2 CTI>600 SS 185*322*1.6mm 1
2 HS8104 Q90G629500600000SY HEAT SINK 1
2 HS8103 X90G201001400000BF HEAT SINK 1
2 HS8102 X90G201001400000BF HEAT SINK 1

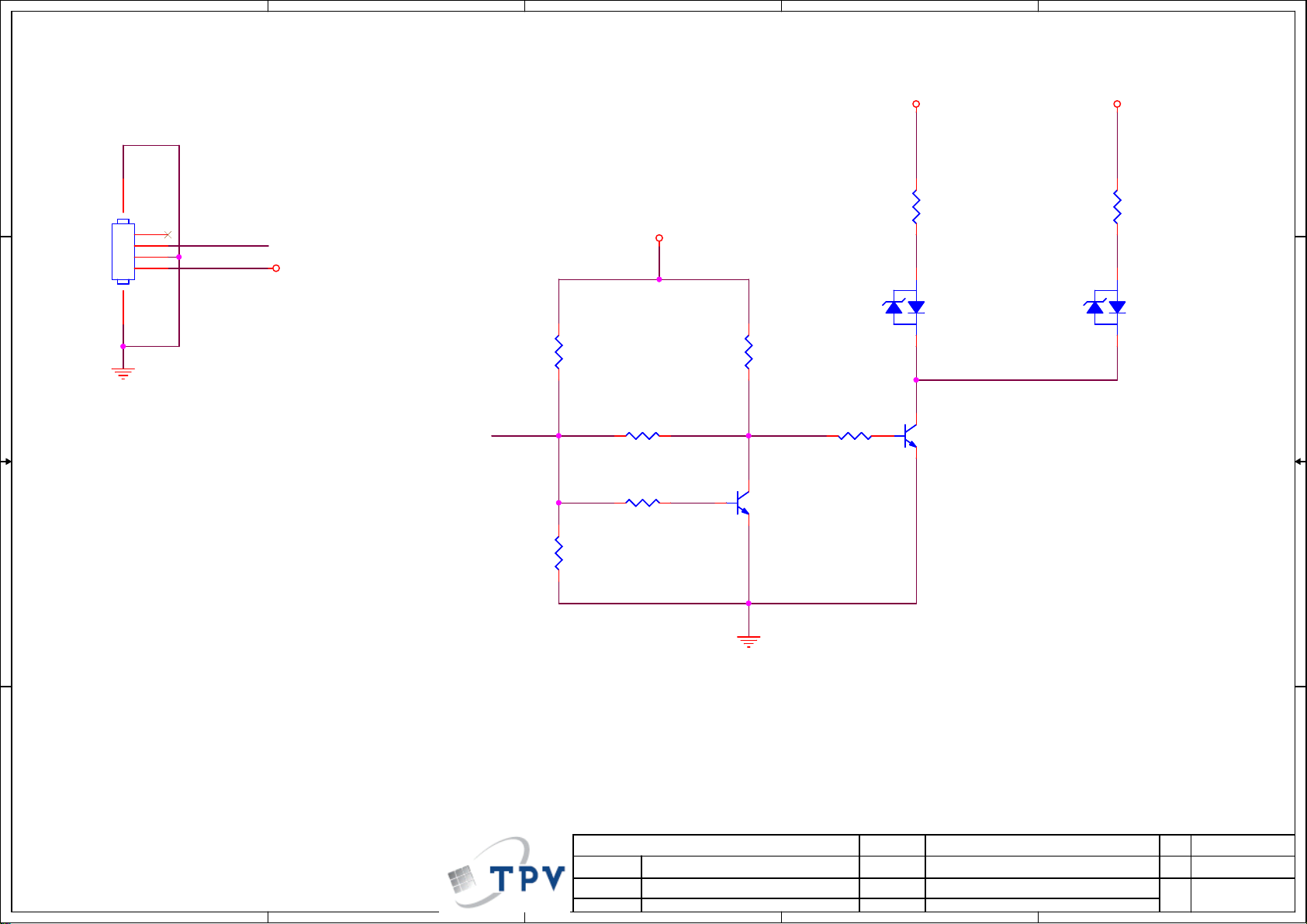

1 PTPFFAAN OPTION BOARD 715G8046-T0A 1
2 SMTPTPFFAAN OPTION BOARD FOR SMT 1
3 LED201 081G 15W 1 EL CHIP LED WHITE 99-113UNC/2223010/TR8 1
3 Q201 357G0761A0300T SMALLTRAN BTC4081S3 150mA 45V SOT-323 1
3 709T80460XS001 COMSUMPTIVE ASSY 1
4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021
4 055G 23520 .leaning Naphtha 0.009
4 055G 100610 Solder Paste 0.016
4 Q05G6054 1 SHEET 0.001
4 Q09G6012 1 PIN 0.001
4
3 E715 715G8046T01000004Y DAUGHTER PCB FR4 DS 39*8.5*0.8mm 1
3 Q201 057G 477904 T TRA BC847BW 100mA/45V SOT-323 1
3 CN1204 311GW125D04ADX CONN 1.25mm 4P R/A S1315-04RVB-S03-K 1
3 E715 715G8046T01000004K DAUGHTER PCB FR4 DS 39x8.5x0.8mm 1
3 R205 061G0402000 JT RST 0402 0.05R MAX 1/16W - 1
3 R201 061G0402100 JT ST CHIP 10R 1/16W 5% TZAI YUAN 1
3 R206 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 1
1 Q11G701100500100JY PCB-SUPPORT D2.9xH14.97 3
1 Q40G0001624 4A 产线需求的栈板LABEL 0.100
1 Q49G 51500 HF Cleaning Naphtha 4.822
1 Q52G130118600000YY TAPE 20
1
1
1 Q52G160119100A00YY TAPE 24
1 T01G000800000000XL SCREW P1.6*3.5 3.5 2
1 T35T8002001A1C01XD LIGHT_GUIDE NA 1
1 T52G20010010000ABK TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 2
1 X15T2699301000GMBL BKT_IO_BTM 1
1 X15T283710100000Z1 BKT_IO_SIDE 1
1 X15T286310100000AJ BKT_SPEAKER 4
1 X15T288210100000AJ BKT_VESA 2

RST NWR 0.15R 5% 2W NKNP2WS0R15JT52 1
RST NWR 0.15R 5% 2W NKNP2WS0R15JT52 1
RST NWR 0.24R 5% 2W NKNP2WS0R24JT52 1

MESH PRINTTING_PAPER 0.025

TAPE_INSULATING 80
TAPE_INSULATING 88

1

1 X40G000881350A OTHER LABEL 1

X44GXA6681301A0THX

X45G990110700000WN

392GB1JA1A372E00CH

1 X40G2017055X0200XY IO LABEL 1
1 X40G2017065X0300ZA IO LABEL 1
1 X41G75DV81302A SHEET-FLYER Opening sheet for China 1
1 X44GXA661010BL CUSHION-TL N/A Non-region(Global) 1
1 X44GXA662010BL CUSHION-TR N/A Non-region(Global) 1
1 X44GXA663010BL CUSHION-BL N/A Non-region(Global) 1
1 X44GXA664010BL CUSHION-BR N/A Non-region(Global) 1
1 X44GXA666240FB CUSHION-die cut Carton N/A Non-region(Gl 1
1 X44GXA66701EPE CUSHION-FRONT N/A Non-region(Global) 1
1
1
1 X52G09010050000ABK X52G09010050000ABKER,SECURITY,ETC…) 500
1 X52G1801482P0000ZA INSULATING SHEET 1
1 E08901 089G214A15N HL AC POWER CORD 1500 1
1 E08901 089G214A15N IS AC POWER CORD 1500 1
1 E09201
1 X40G000881328A OTHER LABEL 开机必读标签 1
1 X41G65SV81358B QSG 65PUF8202/T3 1
1 X41G78DV81311F WARRANTY CARD TPV address china 1
1 X45G880113600000X1 MANUAL PE BAG 290*195 1
1 040G 58162435A MANUAL P/N LABEL 1
1 Q40G000162493B CEL LABEL G2 2.0 54X79.2 1
1 X40G000181310C CARTON LABEL 1
1 X40G065081358B RATING LABEL 65PUF8202/T3 二级能 1
1 0M1G1030 8120 SCREW M3 8 3

ARTWORK CARTON 65PUF8202/T3 TOP CHINA 1
PROTECT BAG 1200*1800 1

BATTERY 1.5V 2P PHA7S2/237499 2

5

4

3

2

1

CONTENTS

01. Cover

02. Power tree & Boot Strap

03. IO INTERFACE

D D

04. SOC POWER

05. GND & VBO RX&TX

06. VBO RX Connector

07. VBO TX CONNECTOR

REVISION HISTORY

Author

Ver

2017/01/23

2017/03/08 Rain.Rui

2017/05/02 Rain.Rui

Rain.Rui

Reviser reason

A

First Version Finish

B Add test point

C For 75" ME ,connector change position;

V by one connector:311GF050A51ADJ-->311GF050Z51ADC;
Connector location rename,CN401->CN407，CN402->CN408;

FNDate

08. POWER SUPPLY & LOCAL DIMMING

09. POWER CONNECTOR

C C

PCB Size : 175x 78mm
2 Layers

356G0568413600：Hi3251ARBCV510

B B

A A

Custom

Custom

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

絬 隔 瓜 絪 腹 CBPRG9EDA1 A

絬 隔 瓜 絪 腹 CBPRG9EDA1 A

絬 隔 瓜 絪 腹 CBPRG9EDA1 A

Key Component

Key Component

Key Component

5

4

3

Date

Date

Date

01-Cover

01-Cover

01-Cover

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G9044-T0A-000-0040

715G9044-T0A-000-0040

715G9044-T0A-000-0040

of

1 9Wednesday, May 03, 2017

of

1 9Wednesday, May 03, 2017

of

1 9Wednesday, May 03, 2017

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

1

Custom

<称爹>

<称爹>

<称爹>

5

D D

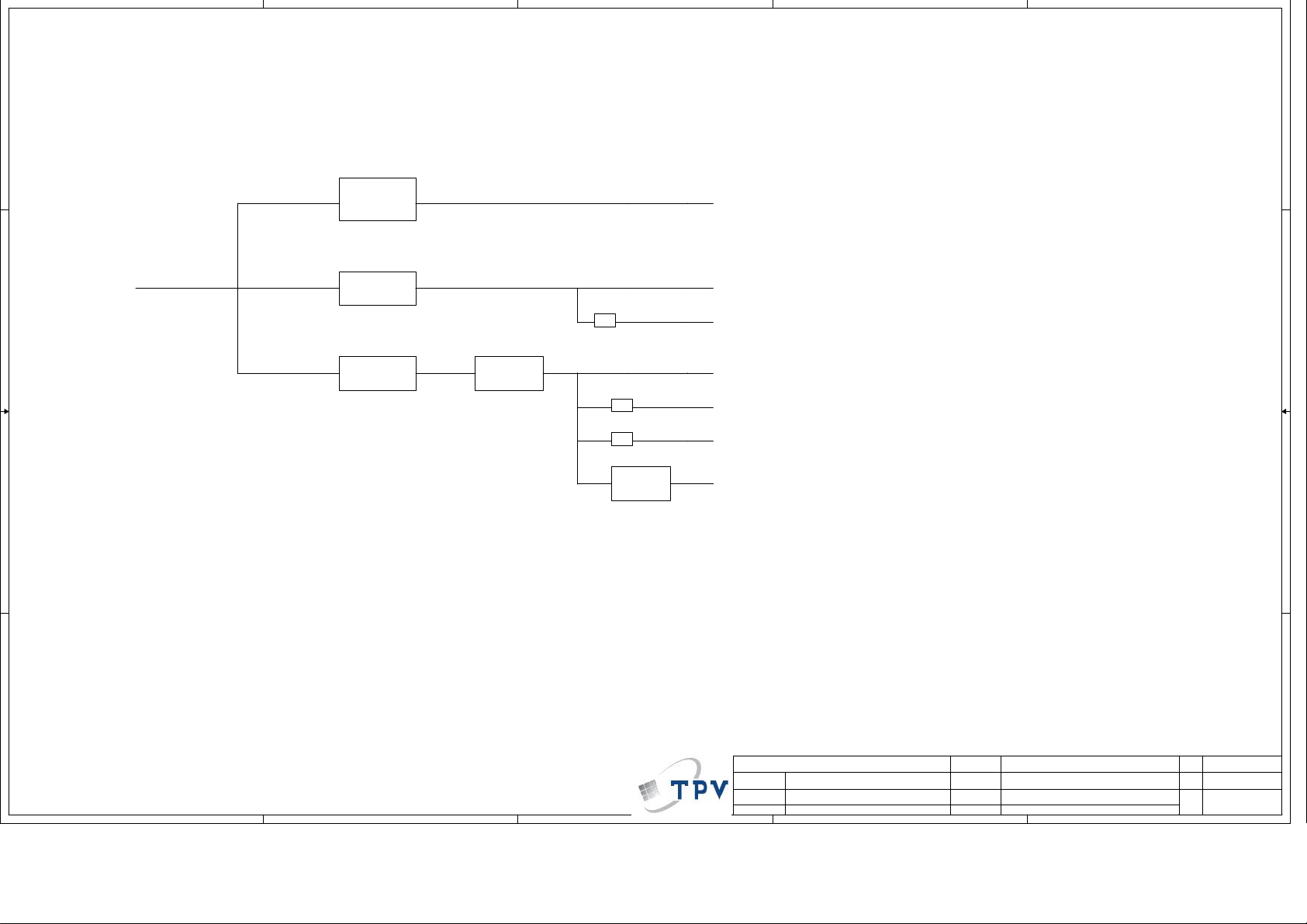

Power Tree

4

3

2

1

4K2K:4A PMOS

12V0

C C

B B

DC DC 2.5A
RT9724A

DC DC 2.5A
RT9724A

1.7A Max

LDO 1A

AZ1084

DVDD33

0.01A

FB

0.01A

FB

0.01A

FB

LDO 1A

AZ1084

TCON
VCC_PANEL

VDD

AVDD11_PLL

DVDD33

AVDD33_PLL

AVDD33_DDR_PLL

1V5_DDR3

0.4A
DDR PHY

,AVDD11_COMB
,AVDD11_VBORX

,AVDD33_COMB0.4A
,AVDD33_VBO_RX

A A

B

B

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRG9EDA1 B

絬 隔 瓜 絪 腹 CBPRG9EDA1 B

絬 隔 瓜 絪 腹 CBPRG9EDA1 B

Key Component

Key Component

Key Component

5

4

3

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

02-Block Diagram

02-Block Diagram

02-Block Diagram

Date

Date

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP SmartTV

China/AP SmartTV

China/AP SmartTV

715G9044-T0A-000-0040

715G9044-T0A-000-0040

715G9044-T0A-000-0040

of

2 9Monday, January 23, 2017

of

2 9Monday, January 23, 2017

of

2 9Monday, January 23, 2017

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

1

B

<称爹>

<称爹>

<称爹>

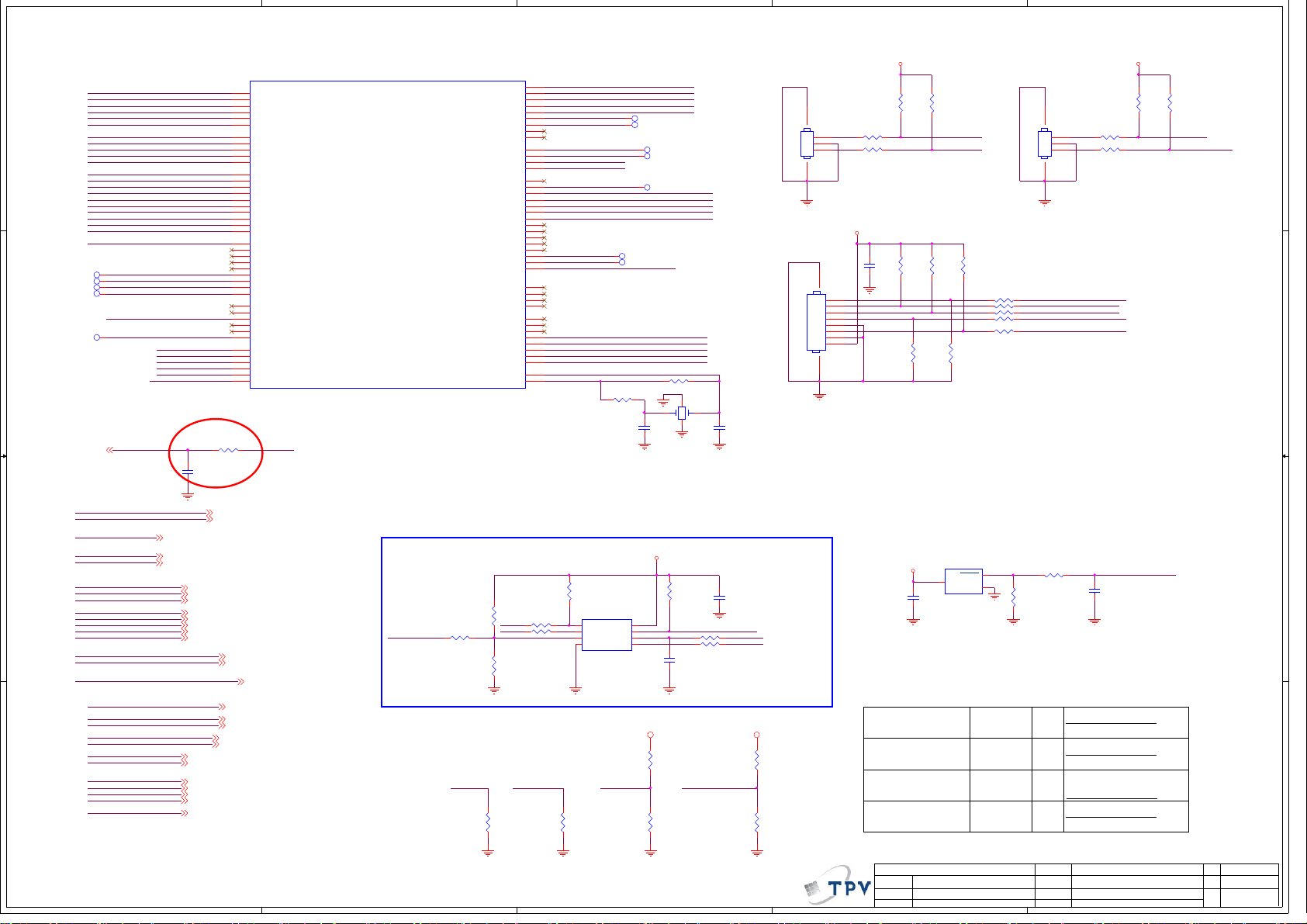

5

R19 1K

C2

2.2UF 6.3V

P5

INX_I2CS_SCL/EXT_PWM0_IN

E18

INX_GPIO03/EXT_PWM1_IN

AB12

INX_DIM7/EXT_PWM0_OUT

AB13

INX_DIM4/EXT_PWM1_OUT

N4

INX_I2C_HSC_SCL/BRI_PWM0

F18

INX_CHIP_VDET/BRI_PWM1

N2

INX_3D_LR_O/DIMM_SPI0_DI

N1

INX_TCON13/DIMM_PWM1/DIMM_SPI0_DO

M2

INX_TCON12/DIMM_PWM0/DIMM_SPI0_CLK

M1

INX_TCON15/DIMM_PWM3/DIMM_SPI0_CSN

N3

INX_I2C_HSC_SDA/DIMM_VSYNC_PSD2

AB2

I2C1_SDA/LDEN_IN

AC2

I2C1_SCL/AGP_PSD

L1

INX_TCON10/TCON_TP2/I2C3_MSDA/GPIO3_3

L2

INX_TCON11/TCON_POL2/I2C3_MSCL/GPIO3_4

AB1

SOC_3D_EN/GPIO15_4

AA2

SOC_3D_SYNC_IN/INX_I2C_BUSTHROUGH_PSD

AA1

SOC_3D_SYNC_OUT/IR_SYNC_OUT

L5

INX_TCON3/TCON_CKV/GPIO2_3

K4

INX_TCON0/TCON_STV2/GPIO2_0/TCON_3D_SYNC_IN

L4

INX_TCON1/TCON_3D_SYNC_OUT_PSD/TCON_RES2

Y3

PMC0

T23

INX_TST_AGE/GPIO11_3

P2

INX_I2C_BUSTHROUGH/GPIO14_5/SOC_3D_EN_PSD

U21

INX_SPIC1_SCL/GPIO5_4

V22

INX_SPIC1_SDA/GPIO5_5

Y2

EXT_PWM0_IN/GPIO15_6/SET_MODE_PSD

AB14

INX_BANK_SEL/GPIO13_0/PMU_EN/DIMM_PWM4

AB15

INX_DETECT_I2C/GPIO13_1/DIMM_PWM5

Y1

GLASS_CTRL/GPIO15_5

P3

AGP/GPIO14_0

R4

GSP/GPIO14_1

R5

SET_MODE/GPIO14_2

U22

INX_INT_R20/GPIO11_0

R22

INX_INT_R21/GPIO11_1

R23

INX_TESTPIN/GPIO11_2/DIMM_SPI1_DI

Y21

TCON_SFC_DI

V20

TCON_SFC_DO

T20

TCON_SFC_CLK

AA22

TCON_SFC_CSN

R20

INX_SPIC0_SDA/TCON_SFC_HOLDN

Y22

INX_SPIC0_SCL/TCON_SFC_WPN

PMC0PMC0_VDD

EXT_PWM0_IN
EXT_PWM1_IN
EXT_PWM0_OUT
EXT_PWM1_OUT

D D

BRI_PWM0
BRI_PWM1

DIMM_SPI0_DI
DIMM_PWM1/DIMM_SPI0_DO
DIMM_PWM0/DIMM_SPI0_CLK
DIMM_PWM3/DIMM_SPI0_CSN
DIMM_VSYNC

I2C1_SDA
I2C1_SCL
I2C3_MSDA
I2C3_MSCL
SOC_3D_EN
SOC_3D_SYNC_IN
SOC_3D_SYNC_OUT
TCON_3D_EN
TCON_3D_SYNC_IN
TCON_3D_SYNC_OUT

PMC0

GP15_6A1 TP
DIMM4A1 TP
DIMM5A1 TP
GP15_5A1 TP

DIMM_PWM4
DIMM_PWM5

PANEL_PWR

PMC0_VDD

DIMM_SPI1_DI

SPI_DO
SPI_DI
SPI_CK
SPI_CZ

SPI_HOLDN
SPI_WPN

C C

SPI3A1 TP

8

4

RESTIN

FUNC_SEL

POR_SEL

ROMBOOT_SEL/INX_DIM0

PWRLOCK_SEL0/INX_DIM1

GPIO9_3/INX_DIM3
GPIO9_2/INX_DIM2
GPIO9_5/INX_DIM5

UM1C

TCON_RES13_GVON/GPIO4_1/INX_I2C_MSCL

DIMM_PWM2/INX_I2C_READY/GPIO10_2/INX_TCON14

LR_SYNC_OUT/GPIO2_5/TCON_OE2/INX_TCON5

DIMM_PWM6/I2C2_MSDA/INX_TST_PGM

DIMM_PWM7/I2C2_MSCL/INX_GPIO07

SOC_3D_SYNC_OUT_PSD2/GPIO14_4/INX_I2CS_SDA

MISC Interface of

DIMM_SPI1_CSN/GPIO11_6/JTAG_TCK/INX_MASTER_DEMURA_WPN

GPIO5_2/JTAG_TRSTN/MASTER_DEMURA_DO

DIMM_SPI1_CLK/GPIO11_4/JTAG_TDI/INX_3DEN_IN

DIMM_SPI1_DO/GPIO11_5/JTAG_TMS/INX_SPIC0_EN

GPIO9_6/INX_DIM6

UART1_TXD
UART1_RXD

UART0_TXD/UART2_TXD

UART0_RXD/UART2_RXD

GPIO3_2/TCON_TP1/INX_TCON9

GPIO3_1/TCON_POL1/INX_TCON8

GPIO3_0/INX_TCON7

GPIO2_4/TCON_STV1/INX_TCON4

GPIO2_6/TCON_OE1/INX_TCON6

GPIO8_1/INX_GPIO17
GPIO8_3/INX_GPIO15
GPIO8_2/INX_GPIO12
GPIO8_0/INX_GPIO14

GPIO12_4/SLAVE_DEMURA_CS

GPIO12_6/SLAVE_DEMURA_CLK

GPIO12_5/SLAVE_DEMURA_SDI

GPIO12_7/SLAVE_DEMURA_SDO

GPIO5_1/MASTER_DEMURA_CSN

GPIO5_0/MASTER_DEMURA_CLK

GPIO5_3/MASTER_DEMURA_DI

GPIO4_0/JTAG_TDO/INX_I2C_MSDA

XOUT

Hi3251ARBCV5 10

3

Y23
AC12
N5
AA14
AC15
AC13
Y14
AA13
Y13

J18
K19
G18
H18

W23
M4
M5
L3
K3
K2
K1
J5
F16
F15
F14
E14
AC14
W13
P4

H19
E16
F17
F19

T21
V21
U20
R21
V23
U23
W22
T22

R1

XIN

R2

DIMM_PWM6
DIMM_PWM7

UART1_TXD
UART1_RXD

UART0_TXD
UART0_RXD

DIMM_PWM2

XIN
XOUT

R4042

100OHM

RESTIN

FUN_SEL

POR_SEL

ROMBOOT_SEL

FLASH_REWORK_SEL

TS4A1TP
TS3A1TP

UART1A1TP
UART1B1TP

DIMM2A1TP

WP_OUT

BIT_SEL
MSE_EN

DIMM6A1TP
DIMM7A1TP

DF1

JTAG_TRSTN
DIMM_SPI1_CS/JTAG_TCK
DIMM_SPI1_CLK/JTAG_TDI

JTAG_TDO

DIMM_SPI1_DO/JTAG_TMS

R4041 1M

X401

24

24MHZ

1

C4045

18PF 50V

LD_EN

3

CN1

45

1

R5 33 OHM 1/16 W

2
3

R7 33 OHM 1/16 W

CONN

DF0

DVDD33

910

CN3

1
2
3
4
5
6
7
8

NC/CONN

C4046

18PF 50V

2

DVDD33 DVDD33

R1

R2

4.7K1/16 W

4.7K1/16 W

UART0_RXD

UART0_TXD

CN2

CONN

45

1
2
3

R6 33 OHM 1/16W

R8 33 OHM 1/16W

UART0

R10

R11

R9

C1

NC/10uF 16 V

NC/4.7K1/1 6W

R17

NC/1K

NC/4.7K1/1 6W

R18

NC/10K

NC/4.7K1/1 6W

R12 NC/ 0R05 OHM
R13 NC/ 0R05 OHM
R14 NC/ 0R05 OHM
R15 NC/ 0R05 OHM

R16 NC/ 33 OHM 1/16W

JTAG_TRSTN
DIMM_SPI1_CLK/JTAG_TDI
DIMM_SPI1_DO/JTAG_TMS
DIMM_SPI1_CS/JTAG_TCK

JTAG_TDO

JTAG

1

R3

R4

4.7K1/16 W

4.7K1/16 W

I2C1_SCL

I2C1_SDA

I2C DEBUG

Crystal

Close to IC

I2C3_MSDA
I2C3_MSCL

EXT_PWM0_IN

I2C1_SDA

B B

I2C1_SCL

EXT_PWM0_OUT
BRI_PWM0

BRI_PWM1

DIMM_PWM1/DIMM_SPI0_DO
DIMM_SPI0_DI
DIMM_PWM0/DIMM_SPI0_CLK
DIMM_PWM3/DIMM_SPI0_CSN
DIMM_VSYNC

EXT_PWM1_IN
EXT_PWM1_OUT

EXT_PWM0_IN

I2C1_SDA
I2C1_SCL

EXT_PWM0_OUT
BRI_PWM0
BRI_PWM1

DIMM_PWM1/DIMM_SPI0_DO
DIMM_SPI0_DI
DIMM_PWM0/DIMM_SPI0_CLK
DIMM_PWM3/DIMM_SPI0_CSN
DIMM_VSYNC

6

6,7,8
6,7,8

SOC_3D_EN

TCON_3D_EN

SOC_3D_SYNC_IN
SOC_3D_SYNC_OUT

TCON_3D_SYNC_IN
TCON_3D_SYNC_OUT

DF0
DF1

BIT_SEL

WP_OUT

A A

LD_EN
MSE_EN

PANEL_PWR

DF0
DF1

BIT_SEL
WP_OUT
LD_EN
MSE_EN

PANEL_PWR

I2C3_MSDA
I2C3_MSCL

7
7
8

8
8
8
8
8

EXT_PWM1_IN
EXT_PWM1_OUT

SOC_3D_EN

TCON_3D_EN

SOC_3D_SYNC_ IN
SOC_3D_SYNC_ OUT

TCON_3D_SYNC_ IN
TCON_3D_SYNC_ OUT

7
7

7
7
7,8
7

8

7
7

[SPI Flash] 2MB

R24

R36

1K

NC/4.7K1/1 6W

U6

1

CS#

2

SO/SIO1

3

WP#
GND4SI/SIO0

MX25L1606 EM2I-12G

R26

10K

SPI_CZ

R27 10 OHM

SPI_DO

SPI_WPN

R29 NC/ 1K

7
6

6

7,8

6
6

7
7

R32
NC/10K

R28 10 OHM

R35

1K

DVDD33

R25

4.7K1/16 W

8

VCC

7

HOLD#

6

SCLK

5

C8
NC/10Pf

DVDD33 DVDD33

R33

10K

R37

NC/1K

R30 10 OHM
R31 10 OHM

FLASH_REWORK_SELPOR_SELFUN_SEL ROMBOOT_SEL

C7
100NF 25V

SPI_HOLDN

SPI_CK
SPI_DI

R34

NC/10K

R38

1K

RESET

U1
G690L293T73Uf

DVDD33

3

C3

100nF 16 V

2

1

R20 10 0OHM

R21

100K

C4

NC

RESET

Vcc

GND

Hi3251V510 Boot Strap Selection

FUNCTION MODE

ROMBOOT SEL

POWER ON RESET SEL

PWRLOCK_SEL0

FUNC_SEL

ROMBOOT SEL

PWRLOCK_SEL0

0:NORMAL FUCNTION

DS

1:TEST MODE

0:BOOT FROM ROM

DS

1:BOOT FROM FLASH

0:RESET FROM RESTIN PIN

USPOR_SEL

1:RESET FROM INTERNAL POP SIGNAL

0:UART

DS

1:I2C

RESTIN

Custom

Custom

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

絬 隔 瓜 絪 腹 TBD A

絬 隔 瓜 絪 腹 TBD A

絬 隔 瓜 絪 腹 TBD A

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

Key Component

Key Component

Key Component

03-Tuner Input/Demodulator

03-Tuner Input/Demodulator

03-Tuner Input/Demodulator

Date

Date

5

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G90 44-T0A-000-0 040

715G90 44-T0A-000-0 040

715G90 44-T0A-000-0 040

of

3 9Tuesday, Feb ruary 21, 2017

of

3 9Tuesday, Feb ruary 21, 2017

of

3 9Tuesday, Feb ruary 21, 2017

1

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

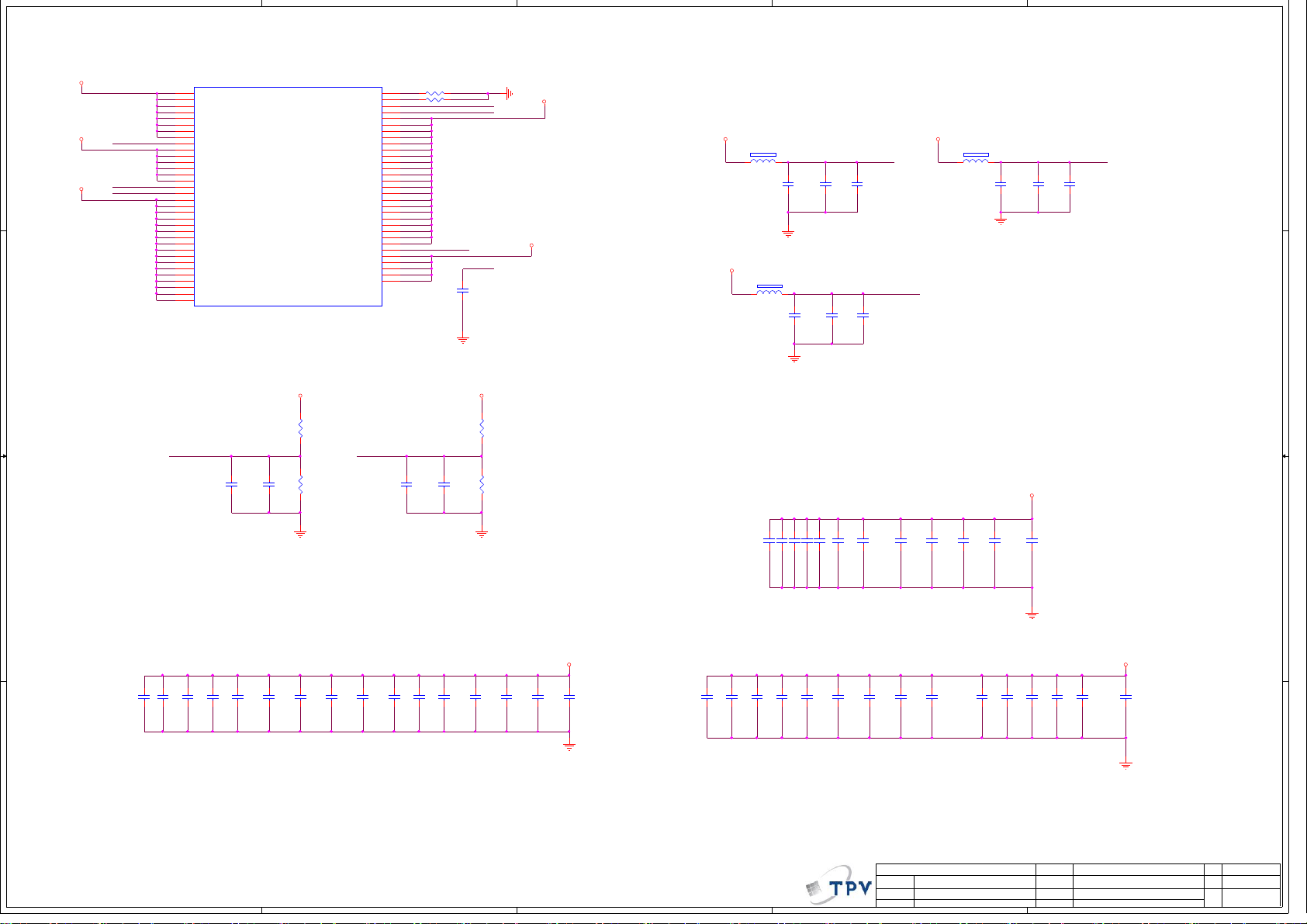

5

4

3

2

1

VDD_1V1

VDD_1V1

D D

C C

DVDD33

1V5_DDR3

AVDD11_PLL
DVDD33

AVDD33_PLL
AVDD33_DDR_PLL

AA17
AA18
AA19
AB17
AB18
AB19
AC17
AC18
AC19

J9
J10
J11
J12
J13

U9
U10
U11

N8

W10

F8

F9
F10
F11
F12

L8
R16
U18

W16
W17
W18

V18
Y17
Y18
Y19

AVDD11_COMB_1
AVDD11_COMB_2
AVDD11_COMB_3
AVDD11_COMB_4
AVDD11_COMB_5
AVDD11_VBO_RX_1
AVDD11_VBO_RX_2
AVDD11_VBO_RX_3
AVDD11_PLL
AVDD33_VBO_RX
AVDD33_COMB_1
AVDD33_COMB_2
AVDD33_COMB_3
AVDD33_COMB_4
AVDD33_COMB_5
AVDD33_PLL
AVDD33_DDR_PLL
VDDIO_CK_DDR
VDDIO_DDR_1
VDDIO_DDR_2
VDDIO_DDR_3
VDDIO_DDR_4
VDDIO_DDR_5
VDDIO_DDR_6
VDDIO_DDR_7
VDDIO_DDR_8
VDDIO_DDR_9
VDDIO_DDR_10
VDDIO_DDR_11
VDDIO_DDR_12
VDDIO_DDR_13
VDDIO_DDR_14
VDDIO_DDR_15
VDDIO_DDR_16

UM1B

Hi3251ARBCV5 10

MISC Interface of

DDR_ZQ
KGD_ZQ

KGD_VREF_CA

KGD_VREF_DQ

VDD_21
VDD_20
VDD_19
VDD_18
VDD_17
VDD_16
VDD_15
VDD_14
VDD_13
VDD_12
VDD_11
VDD_10

VDD_9
VDD_8
VDD_7
VDD_6
VDD_5
VDD_4
VDD_3
VDD_2

VDD_1
DVDD33_6
DVDD33_5
DVDD33_4
DVDD33_3
DVDD33_2
DVDD33_1

AB23
AC22
AB22
AC21
V6
V5
V4
V3
V2
V1
U14
U8
U6
U5
U4
U3
U2
U1
T14
T13
T12
T11
T10
T9
T8
L6
N16
N15
M16
M15
L15

R39 24 0R 1%
R40 24 0R 1%

KGD_VREF_CA
KGD_VREF_DQ

RES

VDD_1V1

VDD_1V1 DVDD3 3

FB1

1 2

120R

C9

2.2UF 6.3V

DVDD33

DVDD33

RES

C15

NC/1UF 10V

DVDD33

FB3

1 2

120R

C16

2.2UF 6.3V

AVDD11_PLL AVDD3 3_PLL

C10

C11

NC/100nF 1 6V

100nF 16 V

AVDD33_DDR_PL L

C17

C18

NC/100nF 1 6V

100nF 16 V

FB2

1 2

120R

C12

2.2UF 6.3V

C13

100nF 16 V

C14

NC/100nF 1 6V

1V5_DDR31V5_DDR3

R41
1K 1/16W 1 %

R42
1K 1/16W 1 %

KGD_VREF_CAKGD_VREF_DQ

C20

C19

100nF 16 V

1UF 10V

R43
1K 1/16W 1 %

C21

100nF 16 V

C22

1UF 10V

R44
1K 1/16W 1 %

VDD_1V1

C29

C28

C27

C26

C25

C24

C23

NC/100nF 1 6V

NC/100nF 1 6V

B B

NC/2.2UF 6.3 V

NC/100nF 1 6V

NC/100nF 1 6V

NC/100nF 1 6V

100nF 16 V

C30

1UF 10V

C31

10uF 6.3V

C32

10uF 6.3V

C33

10uF 6.3V

C34

22uF 6.3V

1V5_DDR3 DVDD33

C36

C35

NC/100nF 1 6V

NC/100nF 1 6V

A A

5

C38

C37

C39

NC/10uF 6.3 V

NC/1UF 10V

100nF 16 V

C40

100nF 16 V

C41

100nF 16 V

C42

100nF 16 V

C43

100nF 16 V

4

C44

1UF 10V

C45

1UF 10V

C46

1UF 10V

C47

1UF 10V

C48

1UF 10V

C49

10uF 6.3V

C50

10uF 6.3V

C55

100nF 16 V

C56

100nF 16 V

100nF 16 V

絬 隔 瓜 絪 腹 C BPRG9EDA1 B

絬 隔 瓜 絪 腹 C BPRG9EDA1 B

絬 隔 瓜 絪 腹 C BPRG9EDA1 B

Key Component

Key Component

Key Component

C59

C58

100nF 16 V

100nF 16 V

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

04-YPbPr/Ethernet/USB Inputs

04-YPbPr/Ethernet/USB Inputs

04-YPbPr/Ethernet/USB Inputs

Date

Date

Date

2

C60

1UF 10V

C61

1UF 10V

C54

C51

NC/100nF 1 6V

3

C53

C52

NC/2.2UF 6.3 V

NC/2.2UF 6.3 V

NC/1UF 10V

C57

C62

1UF 10V

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

C63

1UF 10V

C65

C64

10uF 6.3V

1UF 10V

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G90 44-T0A-000-0 040

715G90 44-T0A-000-0 040

715G90 44-T0A-000-0 040

of

4 9Monday, Ja nuary 23, 2 017

of

4 9Monday, Ja nuary 23, 2 017

of

4 9Monday, Ja nuary 23, 2 017

Custom

Custom

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

1

称爹

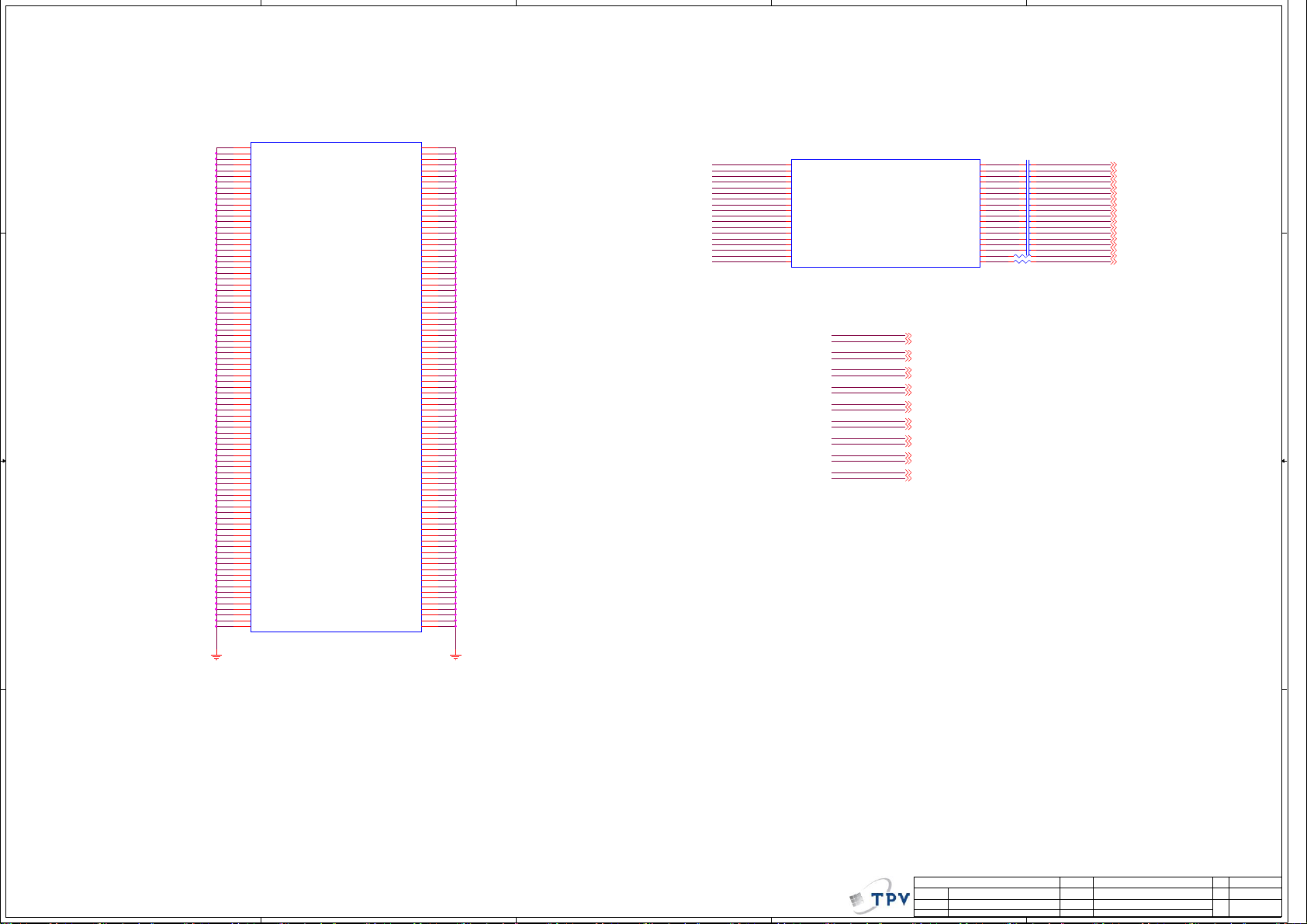

5

4

3

2

1

GND & VBO RX&TX

D D

M8

AVSS_PLL

B1

VSS1

B23

VSS2

C2

VSS3

C4

VSS4

C6

VSS5

C8

VSS6

C10

VSS7

C12

VSS8

C14

VSS9

C16

VSS10

C18

VSS11

C20

VSS12

C22

VSS13

D2

VSS14

D4

VSS15

D6

VSS16

D8

VSS17

D10

VSS18

D12

VSS19

D14

VSS20

D16

VSS21

D18

VSS22

D20

VSS23

D22

VSS24

E3

VSS25

E4

VSS26

E5

VSS27

E6

VSS28

E7

VSS29

E8

VSS30

E9

VSS31

E10

VSS32

E11

VSS33

E12

VSS34

E13

C C

B B

VSS35

E15

VSS36

E17

VSS37

E19

VSS38

E20

VSS39

E21

VSS40

F5

VSS41

F7

VSS42

F13

VSS43

F20

VSS44

F21

VSS45

G5

VSS46

G6

VSS47

G19

VSS48

H5

VSS49

H6

VSS50

H20

VSS51

H21

VSS52

J3

VSS53

J4

VSS54

J6

VSS55

J8

VSS56

J14

VSS57

J15

VSS58

J19

VSS59

K6

VSS60

K8

VSS61

K9

VSS62

K10

VSS63

K11

VSS64

K12

VSS65

K13

VSS66

K14

VSS67

K15

VSS68

K20

VSS69

K21

VSS70

L9

VSS71

L10

VSS72

L11

VSS73

L12

VSS74

L13

VSS75

L14

VSS76

L19

VSS77

M3

VSS78

M6

VSS79

M9

VSS80

M10

VSS81

M11

VSS82

M12

VSS83

M13

VSS84

UM1A

Hi3251ARBCV510

MISC Interface of

VSS169
VSS168
VSS167
VSS166
VSS165
VSS164
VSS163
VSS162
VSS161
VSS160
VSS159
VSS158
VSS157
VSS156
VSS155
VSS154
VSS153
VSS152
VSS151
VSS150
VSS149
VSS148
VSS147
VSS146
VSS145
VSS144
VSS143
VSS142
VSS141
VSS140
VSS139
VSS138
VSS137
VSS136
VSS135
VSS134
VSS133
VSS132
VSS131
VSS130
VSS129
VSS128
VSS127
VSS126
VSS125
VSS124
VSS123
VSS122
VSS121
VSS120
VSS119
VSS118
VSS117
VSS116
VSS115
VSS114
VSS113
VSS112
VSS111
VSS110
VSS109
VSS108
VSS107
VSS106
VSS105
VSS104
VSS103
VSS102
VSS101
VSS100

VSS99
VSS98
VSS97
VSS96
VSS95
VSS94
VSS93
VSS92
VSS91
VSS90
VSS89
VSS88
VSS87
VSS86
VSS85

AC20
AC16
AC1
AB21
AB20
AB16
AA23
AA21
AA20
AA16
AA15
AA12
AA10
AA8
AA6
AA4
Y20
Y16
Y15
Y12
Y10
Y8
Y6
Y4
W21
W20
W19
W15
W14
W12
W11
W9
W8
W7
W6
W5
W4
W3
W2
W1
V19
U19
U16
U15
U13
U12
T19
T18
T16
T15
T6
T5
T4
T3
T2
T1
R19
R18
R15
R14
R13
R12
R11
R10
R9
R8
R6
R3
P15
P14
P13
P12
P11
P10
P9
P8
P6
N14
N13
N12
N11
N10
N9
N6
M14

VBO_RX0P
VBO_RX0N
VBO_RX1P
VBO_RX1N
VBO_RX2P
VBO_RX2N
VBO_RX3P
VBO_RX3N
VBO_RX4P
VBO_RX4N
VBO_RX5P
VBO_RX5N
VBO_RX6P
VBO_RX6N
VBO_RX7P
VBO_RX7N
VBO_RXHPN
VBO_RXLOCKN

AC10
AB10
AA11

AC4
AB4
AA5

Y5
AC6
AB6
AA7

Y7
AC8
AB8
AA9

Y9

Y11
AA3
AB3

VBO_RX0P
VBO_RX0N
VBO_RX1P
VBO_RX1N
VBO_RX2P
VBO_RX2N
VBO_RX3P
VBO_RX3N
VBO_RX4P
VBO_RX4N
VBO_RX5P
VBO_RX5N
VBO_RX6P
VBO_RX6N
VBO_RX7P
VBO_RX7N
VBORX_HPN
VBORX_LOCKN

UM1D

Hi3251ARBCV510

MISC Interface of

VBOTX0_LOCKN/P2P_SDLO CK

VBO_RXHPN
VBO_RXLOCKN

VBO_RX0N
VBO_RX0P

VBO_RX1N
VBO_RX1P

VBO_RX2N
VBO_RX2P

VBO_RX3N
VBO_RX3P

VBO_RX4N
VBO_RX4P

VBO_RX5N
VBO_RX5P

VBO_RX6N
VBO_RX6P

VBO_RX7N
VBO_RX7P

VBO_TX0P
VBO_TX0N
VBO_TX1P
VBO_TX1N
VBO_TX2P
VBO_TX2N
VBO_TX3P
VBO_TX3N
VBO_TX4P
VBO_TX4N
VBO_TX5P
VBO_TX5N
VBO_TX6P
VBO_TX6N
VBO_TX7P
VBO_TX7N

VBOTX0_HPN/INX_TCON2

6

VBO_RXHPN

6

VBO_RXLOCKN

6

VBO_RX0N

6

VBO_RX0P

6

VBO_RX1N

6

VBO_RX1P

6

VBO_RX2N

6

VBO_RX2P

6

VBO_RX3N

6

VBO_RX3P

6

VBO_RX4N

6

VBO_RX4P

6

VBO_RX5N

6

VBO_RX5P

6

VBO_RX6N

6

VBO_RX6P

6

VBO_RX7N

6

VBO_RX7P

A10

C66 100nF 16V

B10

C67 100nF 16V

C11

C68 100nF 16V

D11

C69 100nF 16V

A12

C70 100nF 16V

B12

C71 100nF 16V

C13

C72 100nF 16V

D13

C73 100nF 16V

A14

C74 100nF 16V

B14

C75 100nF 16V

C15

C76 100nF 16V

D15

C77 100nF 16V

A16

C78 100nF 16V

B16

C79 100nF 16V

C17

C80 100nF 16V

D17

C81 100nF 16V

K5

R45 100OHM

F6

R46 100OHM

VBO_TX0P
VBO_TX0N
VBO_TX1P
VBO_TX1N
VBO_TX2P
VBO_TX2N
VBO_TX3P
VBO_TX3N
VBO_TX4P
VBO_TX4N
VBO_TX5P
VBO_TX5N
VBO_TX6P
VBO_TX6N
VBO_TX7P

VBO_TX7N
VBOTX_HPN
VBOTX_LOCKN

VBO_TX0P
VBO_TX0N
VBO_TX1P
VBO_TX1N
VBO_TX2P
VBO_TX2N
VBO_TX3P
VBO_TX3N
VBO_TX4P
VBO_TX4N
VBO_TX5P
VBO_TX5N
VBO_TX6P
VBO_TX6N
VBO_TX7P
VBO_TX7N
VBOTX_HPN
VBOTX_LOCKN

7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7

A A

Custom

Custom

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRG9EDA1 B

絬 隔 瓜 絪 腹 CBPRG9EDA1 B

絬 隔 瓜 絪 腹 CBPRG9EDA1 B

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

Key Compon ent

Key Compon ent

Key Compon ent

05-HDMI/MHL Inputs

05-HDMI/MHL Inputs

05-HDMI/MHL Inputs

Date

Date

5

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G9044-T0A-000-0040

715G9044-T0A-000-0040

715G9044-T0A-000-0040

of

5 9Monday, January 23, 2017

of

5 9Monday, January 23, 2017

of

5 9Monday, January 23, 2017

1

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

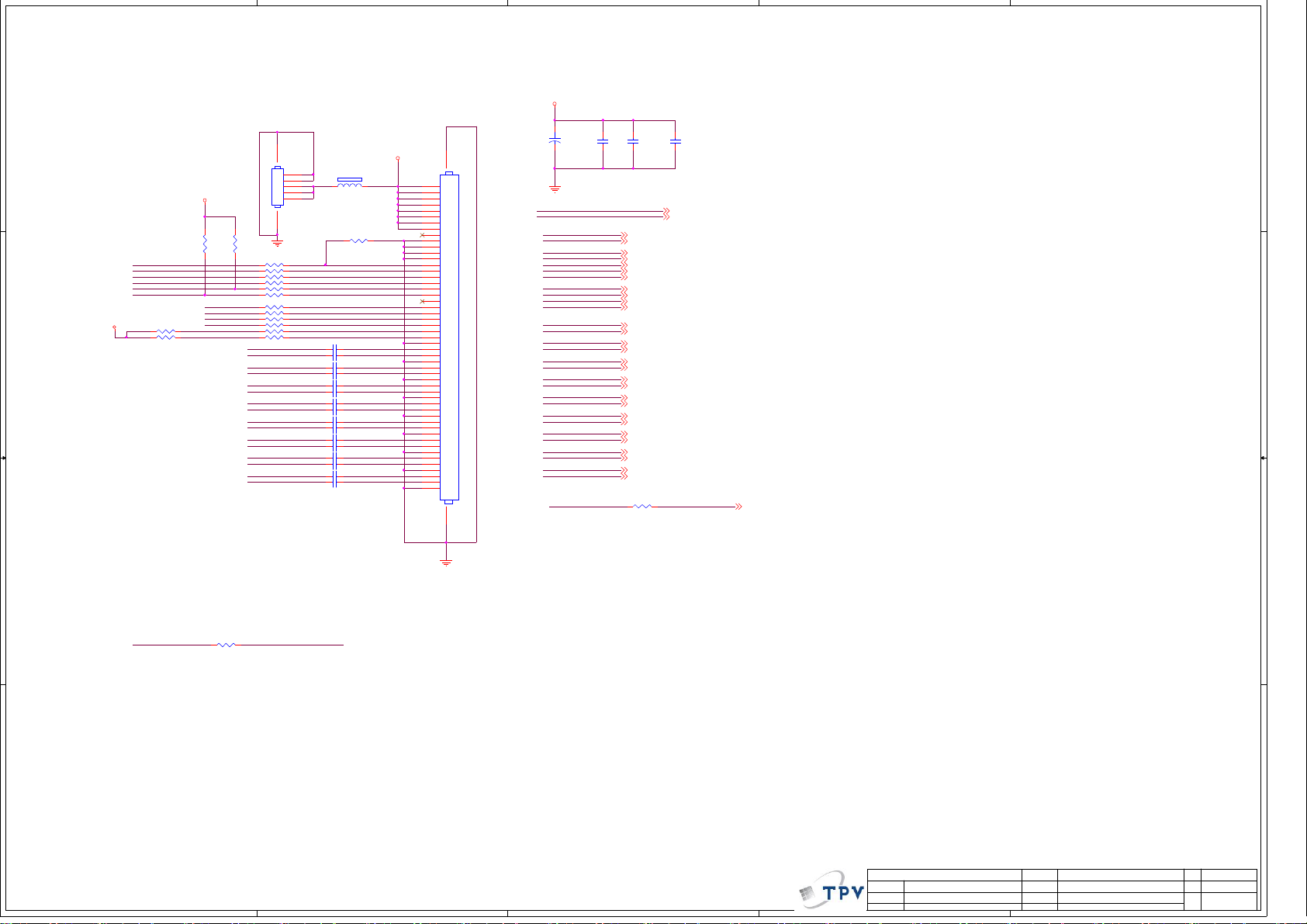

5

VBO RX Connector

4

12V_VCC

3

2

1

D D

SYNC_3D_OUT
SYNC_3D_IN
3D_EN_IN

12V_VCC

CN407

CONN 51P

5253

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

CN703

67

1
2
3
4

DVDD33

NC/CONN

R47

R48

4.7K1/16W

EXT_PWM0_IN

SOC_3D_SYNC_OUT
SOC_3D_SYNC_IN

3D_EN/VDP_VSYNC
I2C1_SDA
I2C1_SCL

DVDD33

R59 10K

C C

B B

R61 10K

4.7K1/16W

LVDS_Format
LD_EN_IN
AGP

VBO_RXHPN
VBO_RXLOCKN

FFC CONNECTOR 0.5PICTH 51P
311GF050A51ADJ

5

R132 NC/0R05 O HM
R50 100OHM
R51 100OHM
R52 100OHM
R53 100OHM
R54 100OHM

R55 100OHM
R56 100OHM
R57 100OHM
R58 100OHM
R60 100OHM
R62 100OHM

VBO_RX0N
VBO_RX0P

VBO_RX1N
VBO_RX1P

VBO_RX2N
VBO_RX2P

VBO_RX3N
VBO_RX3P

VBO_RX4N
VBO_RX4P

VBO_RX5N
VBO_RX5P

VBO_RX6N
VBO_RX6P

VBO_RX7N
VBO_RX7P

FB744

1 2

NC/120R 6A

R49 0R05 OHM

C86 100nF 16V
C87 100nF 16V

C88 100nF 16V
C89 100nF 16V

C90 100nF 16V
C91 100nF 16V

C92 100nF 16V
C93 100nF 16V

C94 100nF 16V
C95 100nF 16V

C96 100nF 16V
C97 100nF 16V

C98 100nF 16V
C99 100nF 16V

C100 100nF 16V
C101 100nF 16V

C82

C83

+

220UF 16V

10uF 25 V

SOC_3D_SYNC_IN
SOC_3D_SYNC_OUT

EXT_PWM1_OUT

EXT_PWM0_IN

SYNC_3D_IN
SYNC_3D_OUT
3D_EN/VDP_VSYNC
I2C1_SDA
I2C1_SCL

LVDS_Format
LD_EN_IN
AGP
8b_10b_ Sel

VBO_RXHPN8b_10b_ Sel
VBO_RXLOCKN

VBO_RX0N
VBO_RX0P

VBO_RX1N
VBO_RX1P

VBO_RX2N
VBO_RX2P

VBO_RX3N
VBO_RX3P

VBO_RX4N
VBO_RX4P

VBO_RX5N
VBO_RX5P

VBO_RX6N
VBO_RX6P

VBO_RX7N
VBO_RX7P

3D_EN_IN SOC_3D_ EN

EXT_PWM1_OUT
EXT_PWM0_IN

SYNC_3D_IN
SYNC_3D_OUT
3D_EN/VDP_VSYNC
I2C1_SDA
I2C1_SCL

LVDS_Format
LD_EN_IN
AGP
8b_10b_ Sel

VBO_RXHPN
VBO_RXLOCKN

VBO_RX0N
VBO_RX0P

VBO_RX1N
VBO_RX1P

VBO_RX2N
VBO_RX2P

VBO_RX3N
VBO_RX3P

VBO_RX4N
VBO_RX4P

VBO_RX5N
VBO_RX5P

VBO_RX6N
VBO_RX6P

VBO_RX7N
VBO_RX7P

R149 NC/0R05 O HM

C84
1uF 25V

0603SMT 1206

C85

100nF 1 6V

SOC_3D_SYNC_IN
SOC_3D_SYNC_OUT

3
3

7
7
7
3,7,8
3,7,8

7
7
7
7

5
5

5
5

5
5

5
5

5
5

5
5

5
5

5
5

5
5

3
3

3

SOC_3D_EN

SOC_3D_SYNC_OUT

A A

5

R134 NC/0R05 OHM

EXT_PWM1_OUT

Custom

Custom

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRG 9EDA1 B

絬 隔 瓜 絪 腹 CBPRG 9EDA1 B

絬 隔 瓜 絪 腹 CBPRG 9EDA1 B

G9044-T 0A-000-0040-170 123

G9044-T 0A-000-0040-170 123

G9044-T 0A-000-0040-170 123

Key Component

Key Component

Key Component

06-Hi3751V6 20 Input/eMMC

06-Hi3751V6 20 Input/eMMC

06-Hi3751V6 20 Input/eMMC

Date

Date

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G904 4-T0A-000 -0040

715G904 4-T0A-000 -0040

715G904 4-T0A-000 -0040

of

6 9Tuesda y, May 02, 201 7

of

6 9Tuesda y, May 02, 201 7

of

6 9Tuesda y, May 02, 201 7

1

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

5

4

3

2

1

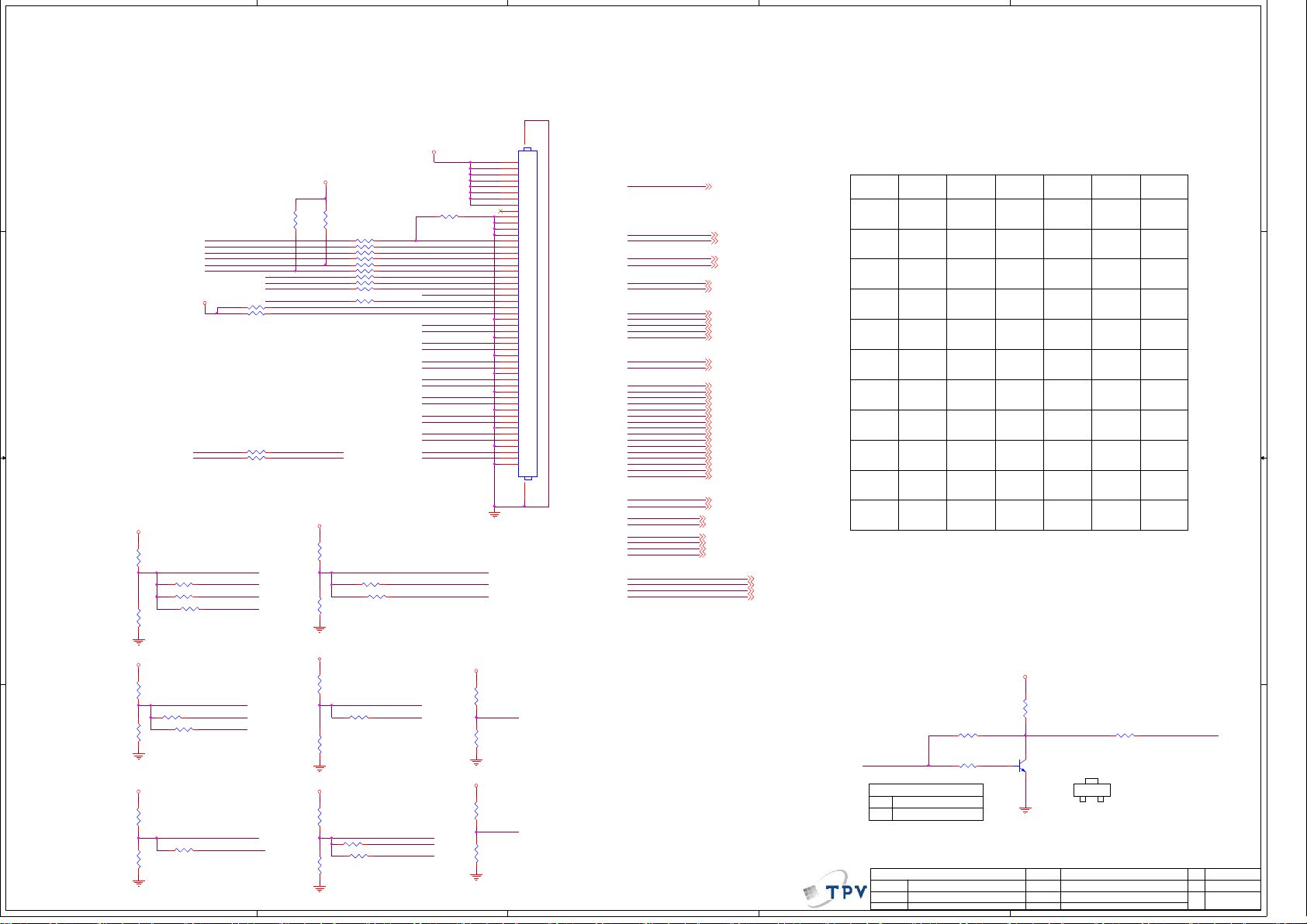

VB1 Connector

D D

PANEL_POWER

DVDD33

R64

R63

4.7K1/16W

WP_OUT

BIT_SEL

LD_EN

MSE_EN

4.7K1/16W
R66 NC/100OHM
R67 NC/100OHM
R68 NC/100OHM
R69 NC/100OHM
R70 NC/100OHM
R71 NC/100OHM
R72 NC/100OHM
R144 NC/100OHM
R73 NC/100OHM

R145 NC/100OHM

DIMM_BRI_PWM0

TCON_3D_SYNC_IN
TCON_3D_SYNC_OUT
GPLUSEN/TCON_3D_EN
I2C3_MSDA
I2C3_MSCL

DVDD33

R74 4.7K1/1 6W
R75 4.7K1/1 6W

C C

86" panel(LC860EQN):

PIN 17:35,input format mode H(2-Division);
PIN 21:31,bit sel,10bit,H or NC(Internal H);
PIN 22;30,local dimming on,H,must be control;
PIN 23:29,AGP,H(Default) or NC;

75" panel(LC750EQY-SKA1):

PIN 20:32,bit sel,10bit,NC;
PIN 23:29,AGP,H or NC;

DVDD33

VB1_SDA
VB1_SCL

R79
NC/4.7K1/16W

R90

NC/0R05 OHM

R137

NC/0R05 OHM

NC/0R05 OHM

I2C1_SDA

R135 NC/0R05 OHM

I2C1_SCL

R136 NC/0R05 OHM

DVDD33

R77

B B

NC/4.7K1/16W

R88

NC/0R05 OHM

R133

NC/0R05 OHM

R142

NC/0R05 OHM

R148

NC/0R05 OHM

DF0/SYNC_3D_IN

EXT_PWM1_IN

SYNC_3D_OUT

DF0

R150

R65 NC/0R05 OHM

GND/PWM_OUT
DF0/SYNC_3D_IN
DF1/SYNC_3D_OUT
LVDS_Format
VB1_SDA
VB1_SCL

8b_10b_ Sel
LD_EN/LR_O
AGP

VBOTX_HPN
VBOTX_LOCKN

VBO_TX0N
VBO_TX0P

VBO_TX1N
VBO_TX1P

VBO_TX2N
VBO_TX2P

VBO_TX3N
VBO_TX3P

VBO_TX4N
VBO_TX4P

VBO_TX5N
VBO_TX5P

VBO_TX6N
VBO_TX6P

VBO_TX7N
VBO_TX7P

GPLUSEN/TCON_3D_EN

3D_EN/VDP_VSYNC

CONN 51P

CN408

51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

52 53

FFC CONNECTOR 0.5PICTH 51P
311GF050V51ADC

3D_EN/VDP_VSYNC

I2C1_SDA
I2C1_SCL

I2C3_MSDA
I2C3_MSCL

SYNC_3D_IN
SYNC_3D_OUT

WP_OUT
LVDS_Format
LD_EN
AGP
8b_10b_ Sel

VBOTX_HPN
VBOTX_LOCKN

VBO_TX0P
VBO_TX0N
VBO_TX1P
VBO_TX1N
VBO_TX2P
VBO_TX2N
VBO_TX3P
VBO_TX3N
VBO_TX4P
VBO_TX4N
VBO_TX5P
VBO_TX5N
VBO_TX6P
VBO_TX6N
VBO_TX7P
VBO_TX7N

EXT_PWM0_OUT
BRI_PWM0

DF0
DF1

WP_OUT
LD_EN_IN

BIT_SEL
MSE_EN

EXT_PWM1_IN
TCON_3D_ENTCON_3D_EN
TCON_3D_SYNC_IN
TCON_3D_SYNC_OUT

3D_EN/VDP_VSYNC

I2C1_SDA
I2C1_SCL

I2C3_MSDA
I2C3_MSCL

SYNC_3D_IN
SYNC_3D_OUT

WP_OUT
LVDS_Format
LD_EN
AGP
8b_10b_ Sel

VBOTX_HPN
VBOTX_LOCKN

VBO_TX0P
VBO_TX0N
VBO_TX1P
VBO_TX1N
VBO_TX2P
VBO_TX2N
VBO_TX3P
VBO_TX3N
VBO_TX4P
VBO_TX4N
VBO_TX5P
VBO_TX5N
VBO_TX6P
VBO_TX6N
VBO_TX7P
VBO_TX7N

EXT_PWM0_OUT
BRI_PWM0

DF0
DF1

WP_OUT
LD_EN_IN
BIT_SEL
MSE_EN

6

3,6,8
3,6,8

3
3

6
6

3,7
6
3,8
6
6

5
5

5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5

3
3

3
3

3,7
6
3
3

EXT_PWM1_IN
TCON_3D_EN
TCON_3D_SYNC_IN
TCON_3D_SYNC_OUT

VBO TX CONNECTOR CONFIG

INNOLUX

Samsung

14/38

(RT1,RT15 ON)

NC

15/37

(RT2 NC)

NC

16/36

(RT3 NC)

NC

17/35

(RT4 NC)

NC

18/34

(RT5 NC) (RT5 ON)

NC

19/33

(RT6 NC)

NC

20/32

(RT7 NC)

3D_EN
(RT31 NC,
RT8&RT32 ON)

21/31

3D_L/R_O

22/30

(RT35 NC,
RT9&RT36 ON)

3D_L/R_I
(RT10&RT39 ON)

23/29

GND
(RT43 ON)

24/28

3
3,8
3
3

NC

(RT1 NC)

DF0

(RT164&RT17 NC,

RT2&RT18 ON)

DF1
(RT22 NC,
RT3&RT21 ON)

PCID_EN

(RT26&RT4 ON)

NC
(RT5 NC)

NC
(RT6 NC)

NC
(RT7 NC)

BIT_SEL
(RT32 NC,
RT8&RT31 ON)

NC
(RT9 NC)

AGP OR NSB
(RT10 NC)

GND
(RT43 ON)

AUOLGPin(RX/TX)

GNDGND

(RT1,RT15 ON)

(RT1,RT15 ON)

NC

3D_L/R_O 3D_L/R_O

(RT17&RT18 NC,

(RT2 NC)

RT2&RT16 ON)

3D_L/R_I

NC

(RT21 NC,

(RT3 NC)

RT3&RT22 ON)

3D_EN

NC

(RT26&RT4 ON)

(RT4 NC)

SDA

(RT5 ON)

SCL
(RT6 ON)

(RT6 ON)

WP
(RT7 ON) (RT7 NC)

NC
(RT8 NC)

NC
(RT9 NC)

RT9&RT35 ON)

NC
(RT10 NC)

GND

GND

SDA

SCL

NC

NC
(RT8 NC)

LD_EN
(RT36 NC

NC
(RT10 NC)

NC

PWM_IN
(RT15 NC,
RT1&RT14 ON)

PWM_OUT
(RT16&RT18 NC,
RT2&RT17 ON)

Gplus Mode
(RT22 NC,
RT3&RT21 ON)

Gplus EN
(RT26&RT4 ON)

SDA
(R257 ON)

SCL
(R317 ON)

NC

(RT7 NC)

BIT_SEL
(RT32 NC,
RT8&RT31 ON)

Data format
(RT36 NC
RT9&RT35 ON)

(RT10 NC)

MSE
(RT11&RT42 ON)(RT43 ON) (RT11 NC)

CSOTLG_S

GND

(RT1,RT15 ON)

(RT17&RT18 NC,
RT2&RT16 ON)

3D_L/R_I
(RT21 NC,
RT3&RT22 ON)

3D_EN
(RT26&RT4 ON)

SDA

(RT5 ON)

SCL

(RT6 ON)

WP
(RT7 ON)

NC
(RT8 NC)

SET_MOD
(RT9 NC)

BIST_ENAGP OR NSB
(RT10 NC)

GND

(RT43 ON)

DVDD33

R78

NC/4.7K1/16W

R89

NC/0R05 OHM

A A

DVDD33

5

R80

NC/4.7K1/16W

R91

NC/0R05 OHM

R146

NC/0R05 OHM

R147

NC/0R05 OHM

NC/0R05 OHM

DF1/SYNC_3D_OUT

SYNC_3D_IN

TCON_3D_SYNC_OUT

R140

DF1

AGP

DVDD33

DVDD33

R81

4.7K1/16W

R92

NC/0R05 OHM

R83

4.7K1/16W

R94

NC/0R05 OHM

For 86 ->75 NC

R138

NC/0R05 OHM

For 86 ->75 NC

R139

NC/0R05 OHM

R143

0R05 OHM

LVDS_Format

TCON_3D_EN

LD_EN/LR_O

TCON_3D_SYNC_IN

LD_EN_IN

4

DVDD33

DVDD33

R82

NC/4.7K1/16W

8b_10b_ Sel

R93

NC/0R05 OHM

R84

NC/4.7K1/16W

WP_OUT

R95

NC/0R05 OHM

DVDD33

R76

NC/10K

R85 NC/100OHM

BRI_PWM0

BRI_PWM0

Back light OFF

0

1

Back light ON

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRG9EDA1 B

絬 隔 瓜 絪 腹 CBPRG9EDA1 B

絬 隔 瓜 絪 腹 CBPRG9EDA1 B

Key Component

Key Component

Key Component

Date

Date

3

Date

2

R87 NC/4.7K1/16W

G9044-T 0A-000-0040-170 123

G9044-T 0A-000-0040-170 123

G9044-T 0A-000-0040-170 123

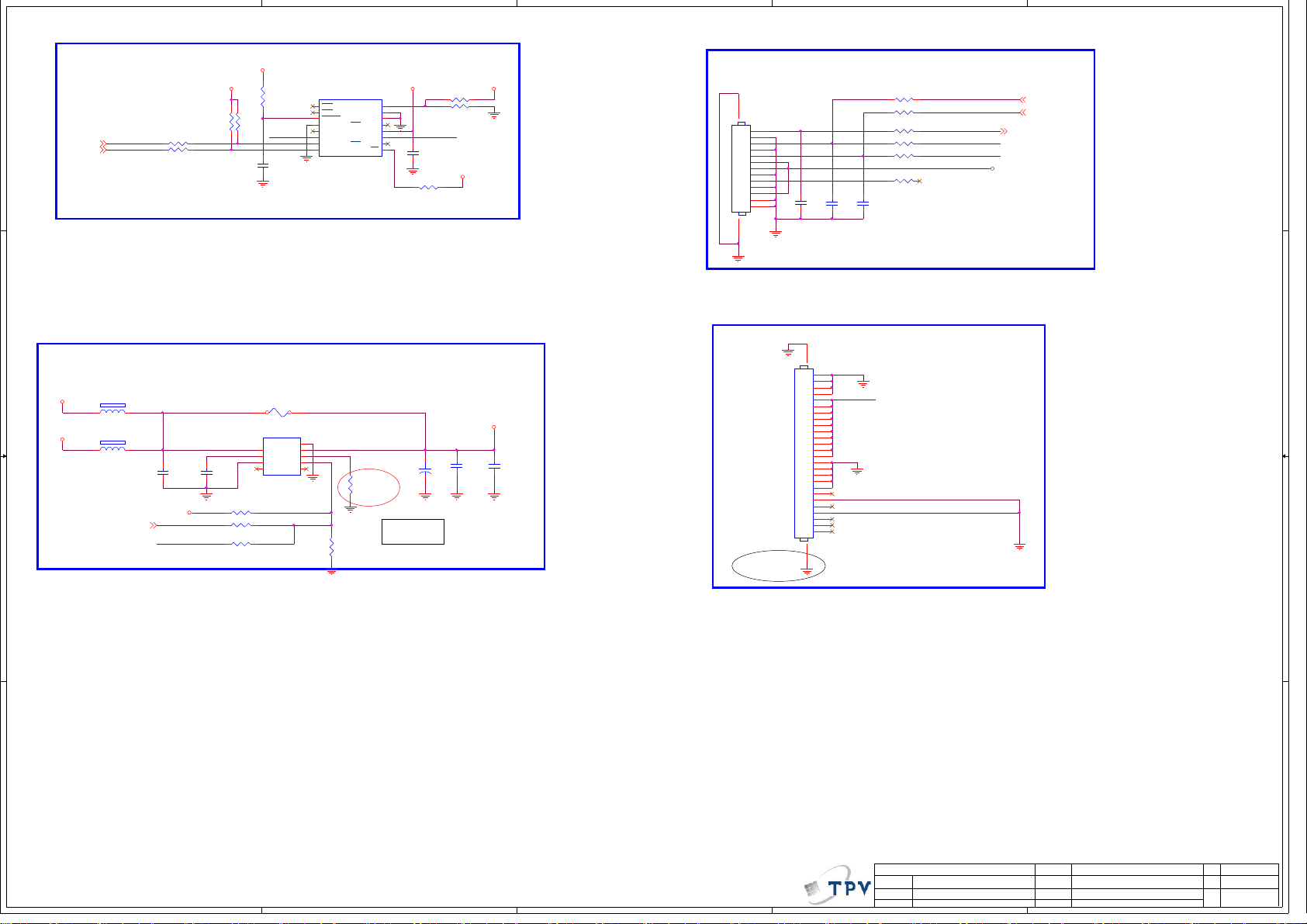

07-Hi3751V6 20 GPIO/KEY/IR/VB1

07-Hi3751V6 20 GPIO/KEY/IR/VB1

07-Hi3751V6 20 GPIO/KEY/IR/VB1

Q1
NC/MMBT3904

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

R86 NC/0R05 OHM

C

EB

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G904 4-T0A-000 -0040

715G904 4-T0A-000 -0040

715G904 4-T0A-000 -0040

of

7 9Tuesda y, May 02, 201 7

of

7 9Tuesda y, May 02, 201 7

of

7 9Tuesda y, May 02, 201 7

DIMM_BRI_PWM0EXT_PWM0_OUT

Custom

Custom

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

1

称爹

5

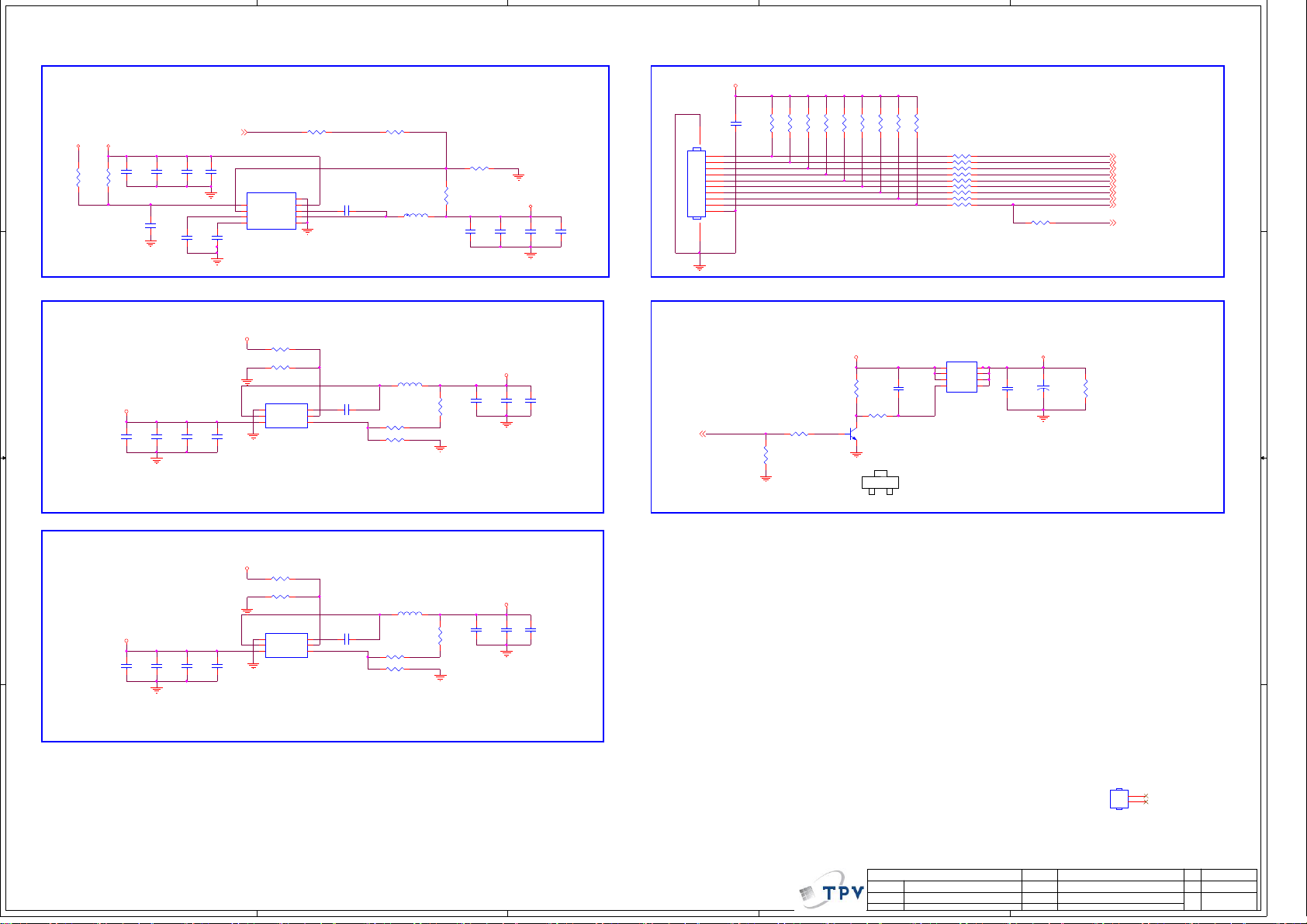

POWER SUPPLY

4

3

2

1

POWER CONNECTOR & LOCAL DIMMING

R109

R104

10K

R105

10K

R106

10K

R107

10K

R108

10K

R110

10K

10K

R111 33 OHM 1/16W
R112 33 OHM 1/16W
R113 33 OHM 1/16W
R114 33 OHM 1/16W
R115 33 OHM 1/16W
R116 33 OHM 1/16W
R117 33 OHM 1/16W
R118 33 OHM 1/16W
R119 33 OHM 1/16W

DIMM_PWM1/DIMM_SPI0_DO
DIMM_SPI0_DI
DIMM_PWM0/DIMM_SPI0_CLK
DIMM_PWM3/DIMM_SPI0_CSN
BRI_PWM1
DIMM_VSYNC

I2C1_SDA
I2C1_SCL
LD_EN

TCON_3D_EN

R141

NC/0R05 OHM

3

DIMM_PWM1/DIMM_SPI0_DO

3

DIMM_SPI0_DI

3

DIMM_PWM0/DIMM_SPI0_CLK

3

DIMM_PWM3/DIMM_SPI0_CSN

3

BRI_PWM1

3

DIMM_VSYNC

3,6,7

I2C1_SDA

3,6,7

I2C1_SCL

3,7

LD_EN

3,7

TCON_3D_EN

1112

1
2
3
4
5
6
7
8
9
10

CONN

DVDD33

C114

100nF 1 6V

R102

10K

R103

10K

2.5A DC-DC For VDD

D D

DVDD33

12V_VCC

R98

R99

10K

NC/10K

C102

10uF 25 V

1206

C103

10uF 25 V

1206

C108
1uF 16V

C104

100nF 1 6V

C109

1UF 10V

PMC0_VDD

C105

10nF 25 V

C112

10NF 50V

1
2
3

PMC0_VDD

U3
TPS5 4328DDAR

E-PAD

EN

VIN

VFB

VBST

VREG5

SW

SS4GND

R96 100K 1%

3

9
8
7

C106 100nF 16V

6
5

R97 27K 1/16W 1%

R1

L1

2.2uH

373G253S146D00

R100

R101

12.1K 1%

R2

C107

22UF

0805

24.9K 1%

VDD_1V1

C110

C111

22UF

10uF 10 V

0805 0805

C113

100nF 1 6V

CN6

Vout = 0.765x(R1+R2)/R2

12V_VCC

C C

12V_VCC

C120

10uF 25 V

1206

C121

100nF 1 6V

C119

10uF 25 V

1206

R120 27K 1/16W

R121 10K

U4

1

GND

VBST

2

SW

EN

VIN3VFB

TPS5 63201DDCR

C122
10nF 25 V

Vout = 0.768x(R1+R2)/R2

6

C116 100nF 16V

5
4

373G253S256D00

L2

2.2uH

R1

R123 1.87K 1%

R124 27K 1/16W 1%

R2

R122

24K 1%

C117

22UF

1V5_DDR3

C115

22UF

08050805

C118

100nF 1 6V

Panel Power

High: Panel Power On
Low : Panel Power Off

3

PANEL_PWR

PANEL_PWR

R4077 NC/2K OHM

R4078

NC

R4071

NC/47K

R4073

NC/100K

Q404
NC/MMBT3904

C

B

E

C4052

NC/220N 25V

0603

Q403

1

S

D

2

S

D

3

S

D

4

G

D

NC/AO4449 -7 A/-30V

PANEL_POWER12V_VCC

8
7
6

C4053

5

NC/0.1uF

0603 0805

C4051

+

NC/220UF 16V

SMT

R4072

NC/1K

C129

100nF 1 6V

12V_VCC

R125 27K 1/16W

R126 10K

U5

1

GND

VBST

2

SW

EN

VIN3VFB

TPS5 63201DDCR

C130
10nF 25 V

Vout = 0.768x(R1+R2)/R2

6

C126 100nF 16V

5
4

373G253S256D00

L3

2.2uH

R128 23.2K 1%

R129 10K 1% 1/16W

R2

4

R127

10K 1% 1/16 W

C123

22UF

DVDD33

C124

22UF

08050805

C125

100nF 1 6V

Heat Sink

HS1

1
2

HEAT SINK

X90G20200020000AHG

Custom

Custom

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRG 9EDA1 B

絬 隔 瓜 絪 腹 CBPRG 9EDA1 B

絬 隔 瓜 絪 腹 CBPRG 9EDA1 B

G9044-T 0A-000-0040-170 123

G9044-T 0A-000-0040-170 123

G9044-T 0A-000-0040-170 123

Key Component

Key Component

Key Component

08-Hi3751V6 20 Power/GND

08-Hi3751V6 20 Power/GND

08-Hi3751V6 20 Power/GND

Date

Date

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

POWER SUPPLY

POWER SUPPLY

POWER SUPPLY

715G904 4-T0A-000 -0040

715G904 4-T0A-000 -0040

715G904 4-T0A-000 -0040

of

8 9Wednesd ay, May 03, 20 17

of

8 9Wednesd ay, May 03, 20 17

of

8 9Wednesd ay, May 03, 20 17

1

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

B B

12V_VCC

C127

C128

10uF 25 V

10uF 25 V

1206R11206

A A

5

5

4

3

2

1

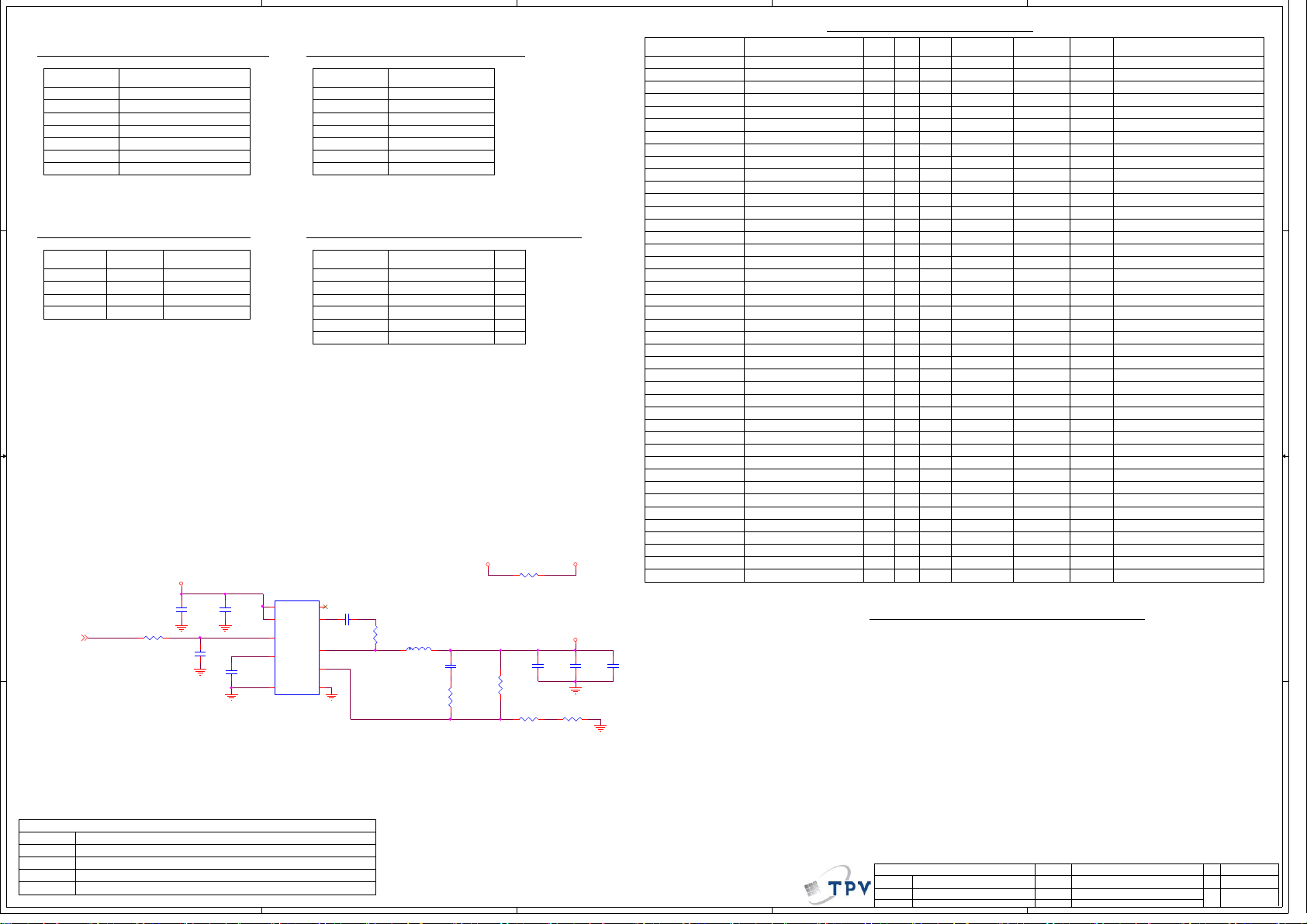

Hi3751V620 GPIO Pin Table

Hi3751V620 Absolute DC VoltageHi3751V620 Recommended DC Voltage

Voltage

3.3 V

D D

1.5 V 1.425 V ~ 1.575 V

1.2 V 1.045V ~ 1.25V

1.1 V (Core)

1.1 V (CPU)

1.1 V (GPU)

Recom mended DC Voltage

3.135 V ~ 3.6 V

1.71 V ~ 1.98 V1.8 V

1.045V ~ 1.25V

TBD

TBD

Voltage

3.3 V (DVDD33) 4 .6 V

1.8 V

1.5 V 4.6 V

1.2 V

1.1 V (CPU)

1.1 V (GPU)

Absolute Max. Rating s

4.6 V

1.8 V

1.8 V1.1 V (Core)

1.8 V

1.8 V

MHL_CD_SENSE

BOOT_SEL1 Boot Sel 1

3137_RSTN

USB3_PWR_EN

PMC4_GPU

- -

LD_EN Local Dimming Enable

I2C0_SCL I2C0 Clock

I2C0_SDA I2C0 Data

Hi3751V620 ADC Pin Table

Pad NO.

LS_ADC0

LS_ADC1

LS_ADC2

LS_ADC3

C C

ADC Voltage = 0 V~ ? V

AH3

AG5

AG4

AH4

FunctionADC #

Key 0

Key 1

Hi3751V620 Ripple Voltage Specification

Voltage

LDO_1V2

1.1V (Core)

1.1V (CPU) mV

1.1V (GPU) mV

Vp-p U nit.

<=20(20MHz),&<=80(Full)3.3 V

<=80(Full band)

<=20(20MHz),&<=80(Full)

<=80(Full band)

<=80(Full band)

<=80(Full band)

mV

mV

mV

mV

I2C1_SCL

I2C1_SDA

IR_IN

KEY0_IN Key 0 Function

KEY1_IN Key 1 Function

UART0_RXD

UART0_TXD

I2C2_SCL

I2C2_SDA

FUNC_SEL

POR_SEL

SYS_RSTN

BL_ON_OFF

PWR_ON_OFF

AUD_MUTE Audio Amplifier Mute

LOGO

3D_EN/VDP_VSYNC

SYNC_3D_IN Sync 3D In

SYNC_3D_OUT Sync 3D Out

BL_BR_CTRL

ABMI_ON_OFF

MHL_VBUS_EN

BT_WU

BT_RST

B B

LED_B

GPIO Pin Name # Internal

MHL_CD_SENSE/STB_GPIO21_2

CI_REGN/BOOT_SEL1

AGC_RF_SEL/JTAG_MUX1/GPIO11_0

SFC_WPN_IO2/GPIO1_7/SPI2_DO

SFC_CS1N/GPIO2_3/SPI2_CSN

SFC_HOLDN_IO3/GPIO2_2/PMC4

SFC_DIO/GPIO1_6/PWM0

SFC_DOI/GPIO2_1/PWM2/SPI2_DI

SFC_CLK/GPIO2_0/SPI2_CLK

PMC0/GPIO12_4

PMC1/GPIO12_6

I2C0_SCL/GPIO11_6

I2C0_SDA/GPIO11_7

I2C1_SCL/GPIO1_5/SPI1_DI/SPI3_DI

I2C1_SDA/GPIO1_4/SPI1_CSN/SPI3_CSN

IRIN/STB_GPIO19_0

LS_ADC0/STB_GPIO18_4

LS_ADC1/STB_GPIO18_5

LS_ADC3/STB_GPIO18_7

UART1_RXD/UART0_RXD/STB_GPIO19_1

UART1_TXD/UART0_TXD/STB_GPIO19_2

UART2_RXD/I2C2_SCL/GPIO3_0

UART2_TXD/I2C2_SDA/GPIO3_1

FUNC_SEL

POR_SEL

RESTIN

BLK_ON/GPIO1_3

STANDBY/STB_GPIO19_5

AMP_MUTE/STB_GPIO19_5

POWEN/GPIO1_0

LED_PWM/STB_GPIO19_4

EN_3D/VDP_VSYNC/GPIO00_7

SYNC_3D_IN/SPI0_DI/GPIO0_2

SYNC_3D_OUT/SPI0_CSN/GPIO0_1

BRI_PWM0/GPIO0_3

BRI_PWM3/GPIO0_6/SPI1_CLK

STB_GPIO18_1

STB_GPIO18_3

GPIO9_4

GPIO9_6

GPIO2_1

Pad
NO.

AH25

U31

AJ30

G28

F29

F27

G27

G26

F28

AJ4

AK2

AK3

AL3

D23

C23

AE3

AH3

AG5

AH4

AF3

AE4

AL4

AM2

AD5

AE2

AD2

G25

AE5

AL2

F26

AD1

E22

E23

D24

G24

F25

AD4

AH26

AB33

AA33

G26

I/OSignal

I
I
O
O I/O

O I/O

O I/O
I/O
I/O
I/O
I/O

I I/O

I I/O

I I/O

O I/O

O I/O

I/O
I/O

I I/O

O I/O

I I/O

I
O
O

I/O
TYPE

I/O

I/O
I/O

I/OO
I/OO
I/OO
I/OO

I/OO

I/O
I/O
I/O
I/O

I/OI

I/O
I/O
I/OI
I/OI

I/OO
I/OO
I/OO
I/OO
I/OO

I/OO
I/OO
I/OO

I/OO
I/OO
I/O
I/O
I/O

pull-up/down?

? ?

Default after
RESET

??

Standby
Mode

Y

Function

MHL Cable Hotplug Detect

N

Demodulator Reset N

N

N

USB Power Control

N

USB Power ControlWIFI_WOL

N

GPU Voltage Fine Tune

N

WiFi ResetWIFI_RST

N

N

N

Core Voltage Fine TunePMC0_VDD

N

CPU Voltage Fine TunePMC1_CPU

N

N

I2C1 Clock

N

I2C1 Data

N

IR Input

N

Y

Y

Audio Amplifier Reset NAUD_RSTN

Y1.5 V

UART RX / VGA DDC SDA

Y

UART TX / VGA DDC SCL

Y

I2C2 Clock

N

I2C2 Data

N

Function Select

N

POR Select

N

Reset Input

N

Back Light ON/OFF

N

System Power ON/OFF

Y

Y

Panel T-CON On / OffTCON_PWR

N

Lighting Logo

Y

3D Enable

N

N

N

Back Light Brightness Control

N

AmbiLight ON/OFF

N

Y

DDR3 Power ON/OFFDDR_PWREN

MHL VBUS Enable

Y

N Bluetooth Wake Up

N Bluetooth Reset

Blue LEDN

A A

Impedance Control Table

LVDS/VB1

LVDS/VB1 Data and Clock differential pair trace impedance 100 Ohm.

5

Custom

Custom

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

絬 隔 瓜 絪 腹 C BPRG9EDA1

絬 隔 瓜 絪 腹 C BPRG9EDA1

絬 隔 瓜 絪 腹 C BPRG9EDA1

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

G9044-T0A-000-0040-170123

Key Component

Key Component

Key Component

9-Voltage Spec/GPIO Table

9-Voltage Spec/GPIO Table

9-Voltage Spec/GPIO Table

Date

Date

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G90 44-T0A-000-0 040

715G90 44-T0A-000-0 040

715G90 44-T0A-000-0 040

of

9 9Monday, Ja nuary 23, 2 017

of

9 9Monday, Ja nuary 23, 2 017

of

9 9Monday, Ja nuary 23, 2 017

1

Custom

Size

Size

Size

B

B

B

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

5

4

3

2

1

CONTENTS

01. Cover

02. Block Diagram

03. Tuner Input/Demodulator

D D

04. AV/Ethernet/USB Inputs

05. HDMI / MHL Inputs

06. Hi3751V620 Input/eMMC

07. Hi3751V620 GPIO/KEY/IR/VB1

08. Hi3751V620 Power/GND

09. Hi3751V620 DDR III-1

10. Hi3751V620 DDR III-2

11. AmbiLight

12. Audio Amp/SPK/SPDIF/Audio Output

13. System Power

14. IC Voltage Spec./GPIO Table

C C

PCB Size : 193 x 159mm

REVISION HISTORY

Author

Ver

2017/1/4 Rain.Rui

2017/2/9 Rain.Rui

2017/4/11 Rain.Rui

2017/4/25 Rain.Rui

2017/5/8 Rain.Rui

2017/5/25 Rain.Rui

Reviser reason

A

715G9016-M0A-B00-0040 Finish

B Add ambilight power input;

Delete ambilight bridge:U411;
Delete CN701 co-layout design;
Swap CN608 pin2 and pin4;
Add ZD703 and ZD704 for ESD

C Change to 3.3V power pull high,R754,R760,R761;

For service,add LED indicator,add R4314,R4315,R4316,LED1,LED2;
For EMI IR

V by one connector:311GF050A51ADJ-->311GF050Z51ADC;

D

Swap CN105 PIN6 and PIN7;

E

For AMP EMI solution,C602/C607/C613/C619 need change to 100nF,365G080510432K00SA.
TU101:388G510H402FHC->388G510H402FHC0001;
EMI solution:R4079 ->22ohm,C4058->1nf（need confirm

For HDMI impedance issue,HDMI trace need add resistor：R552~R575

F

）

FNDate

2 Layers

With Dolby Vision P/N is
Hi3751ARBCV7200M00
Hi3751ARBCV7300M00
Without Dolby Vision P/N is
Hi3751ARBCV6200M00
Hi3751ARBCV6300M00

B B

Hi3751ARBCV6200M00 P/N is
356G0568770609
Hi3751ARBCV6300M00 P/N is
356G0568770608
Hi3751ARBCV7200M00 P/N is
356G0568770607

A A

Hi3751ARBCV7300M00 P/N is
356G0568770606

Custom

Custom

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 F

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 F

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 F

Key Component

Key Component

Key Component

5

4

3

Date

Date

Date

01-Cover

01-Cover

01-Cover

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G9016-M0F-B00-0040

715G9016-M0F-B00-0040

715G9016-M0F-B00-0040

of

1 14Monday, June 12, 2017

of

1 14Monday, June 12, 2017

of

1 14Monday, June 12, 2017

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

1

Custom

<称爹>

<称爹>

<称爹>

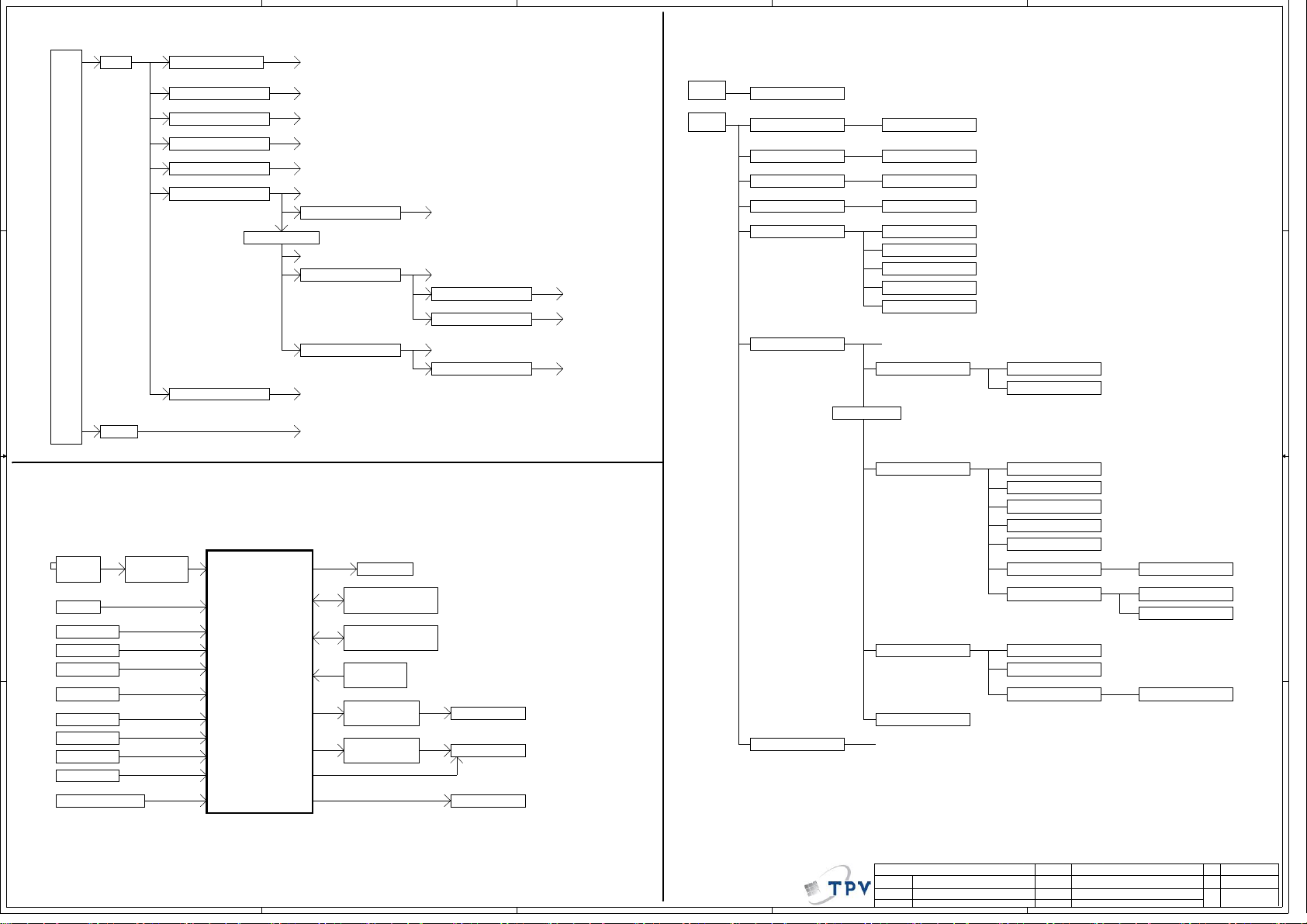

Power Tree

P12V PANEL T-CON Power

5

Q403 AO4449

4

3

2

1

Main Board Power System

U702 TPS54328DDAR

Max. 3A

D D

U704 TPS54528DDAR

Max. 5A

U706 TPS54328DDAR

Max. 3A

U706 TPS563201DDCR

Max. 3A

AC
to
DC
Power

U701 SY8366QNC

Max. 6A

1V1_VDD

1V1_CPU

1V1_GPU

1V5_DDR3

5V_STB

U703 AZ1117CH-3.3TRG1

Max. 1A

P12V

3V3_STB

U601 AD83586B

Q403 AO3407A PANEL T-CON Power

U704 TPS54528DDAR U401 Hi3751V620

U706 TPS54328DDAR

Q705 AO4449

VCC_5V

U705 AZ1084CS2-3.3TRG1

Max. 5A

C C

U707 AZ1117CH-3.3TRG1

Max. 1A

U712 SY8366QNC

Max. 6A

5V_USB

VCC_3V3

U709 G9141T11U

Max. 0.6A

U711 AZ1117CH-1.2TRG

Max. 1A

3V3_TU

U710 G912T63U

Max. 1A

VCC_1V8

1V2_LDO

U701 SY8366QNC

1V2_DEM

U705 AO4449

Audio AmplifierAU_12V

System Block Diagram

AMP_VCC

1V1_VDD

1V1_CPU

1V1_GPU

1V5_DDR3

5V_STB

U703 AZ1117CH-3.3TRG1

VCC_5V

For Audio AmplifierAU_12V

U401 Hi3751V620

U401 Hi3751V620

U401 Hi3751V620

For Hi3751V620 CoreU702 TPS54328DDAR

For Hi3751V620 CPU

For Hi3751V620 GPU

For Hi3751V620U708 TPS563201DDCR

For K4B4G1646E-BCMAU402 K4B4G1646E-BCMA

For K4B4G1646E-BCMAU403 K4B4G1646E-BCMA

For K4B4G1646E-BCMAU404 K4B4G1646E-BCMA

For K4B4G1646E-BCMAU405 K4B4G1646E-BCMA

3V3_STB

U401 Hi3751V620 For Hi3751V620

U407 G690L293T73Uf

VCC_3V3

U401 Hi3751V620

U406 THGBMHG6C1LBAIL

U601 AD83586B

For Reset IC

For Hi3751V620U705 AZ1084CS2-3.3TRG1

For eMMC

For Audio Amplifier

U602 AD22650-QH14NAT For Audio driver

U411 SC18IS602BIPW For Ambi Light

Tuner

B B

MxL661

YPbPr

HDMI (ARC)

HDMI

HDMI / MHL

RJ-45

USB 3.0

USB 2.0

USB 2.0

USB 2.0

A A

YPbPr Audio In

VIF

YPbPr+CVBS

Demodulator
ATBM7831

TMDS

TMDS

TMDS

USB 3.0

USB 2.0 Port0

USB 2.0 Port1

USB 2.0 Port2

R/L

Hi3751V620
/
Hi3751V720

VB1

iNAND FLASH / eMMC
THGBMHG6C1LBAIL

DDR IIII x4
K4B4G1646E-BCMA

RESET IC
G690L293T73Uf

Audio Amplifier

R/L

AD83586B

Audio Driver
AD22650-QH14NAT

CVBS

IEC958

LCD PANEL

R/L

R/LR/L

Speaker Output

AV+R/L Output

SPDIF Output

U712 SY8366QNC

U707 AZ1117CH-3.3TRG1 For TunerU101 MxL661

3V3_TU

U502 STMPS2171STR For MHL Power

5V_USB

For USB

U711 AZ1117CH-1.2TRG U401 Hi3751V620

U709 G9141T11U

1V2_LDO

VCC_1V8

For Hi3751V620

U401 Hi3751V620

For Hi3751V620

U406 THGBMHG6C1LBAIL

For eMMC

U102 ATBM7831 For Demodulator

U710 G912T63U U102 ATBM7831

1V2_DEM

For Demodulator

Custom

Custom

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

Key Component

Key Component

Key Component

02-Block Diagram

02-Block Diagram

02-Block Diagram

Date

Date

5

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G90 16-M0F-B00-00 40

715G90 16-M0F-B00-00 40

715G90 16-M0F-B00-00 40

of

2 14Monday, Ju ne 12, 201 7

of

2 14Monday, Ju ne 12, 201 7

of

2 14Monday, Ju ne 12, 201 7

1

Custom

Size

Size

Size

Rev

Rev

Rev

A

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

5

4

3

2

1

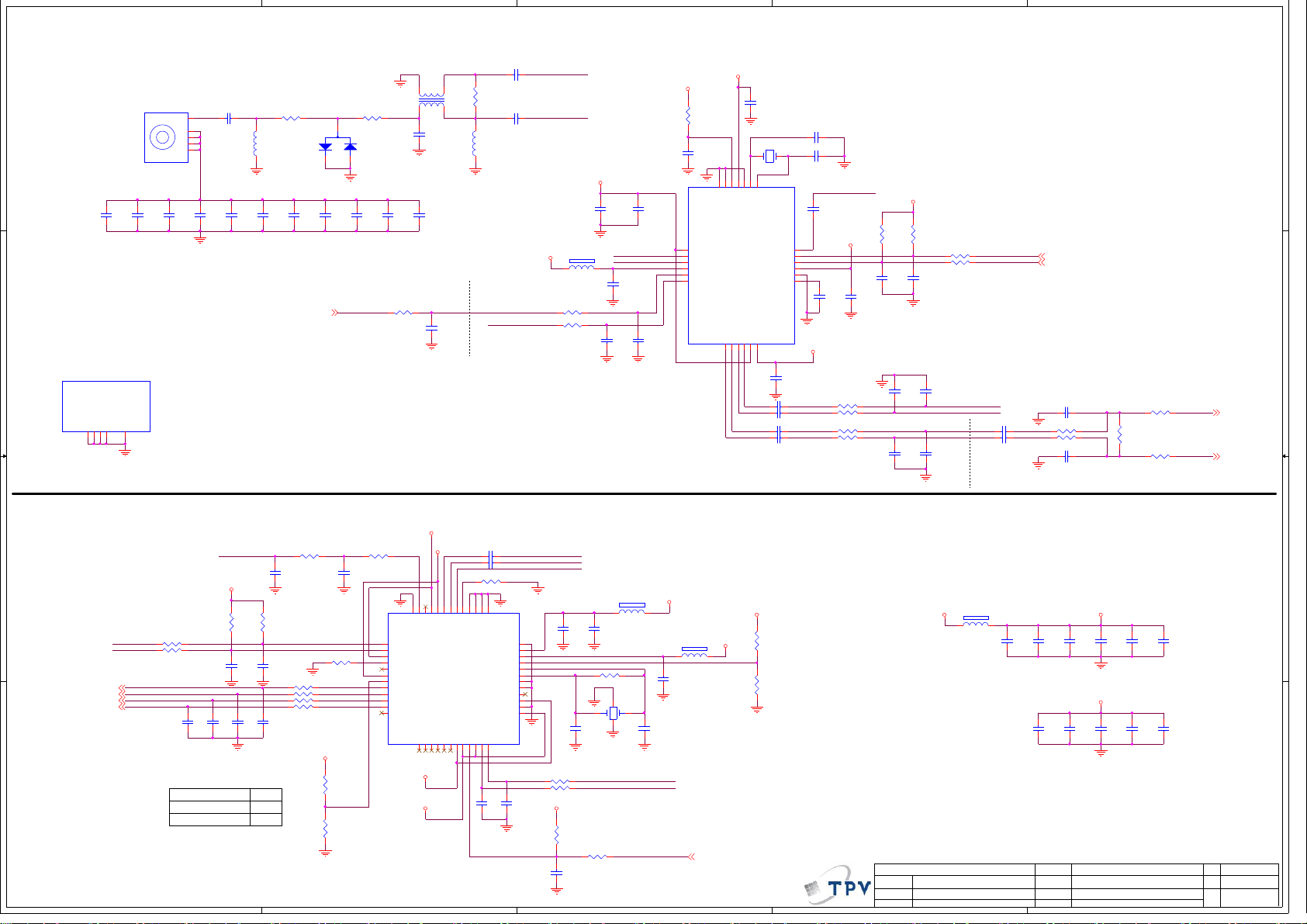

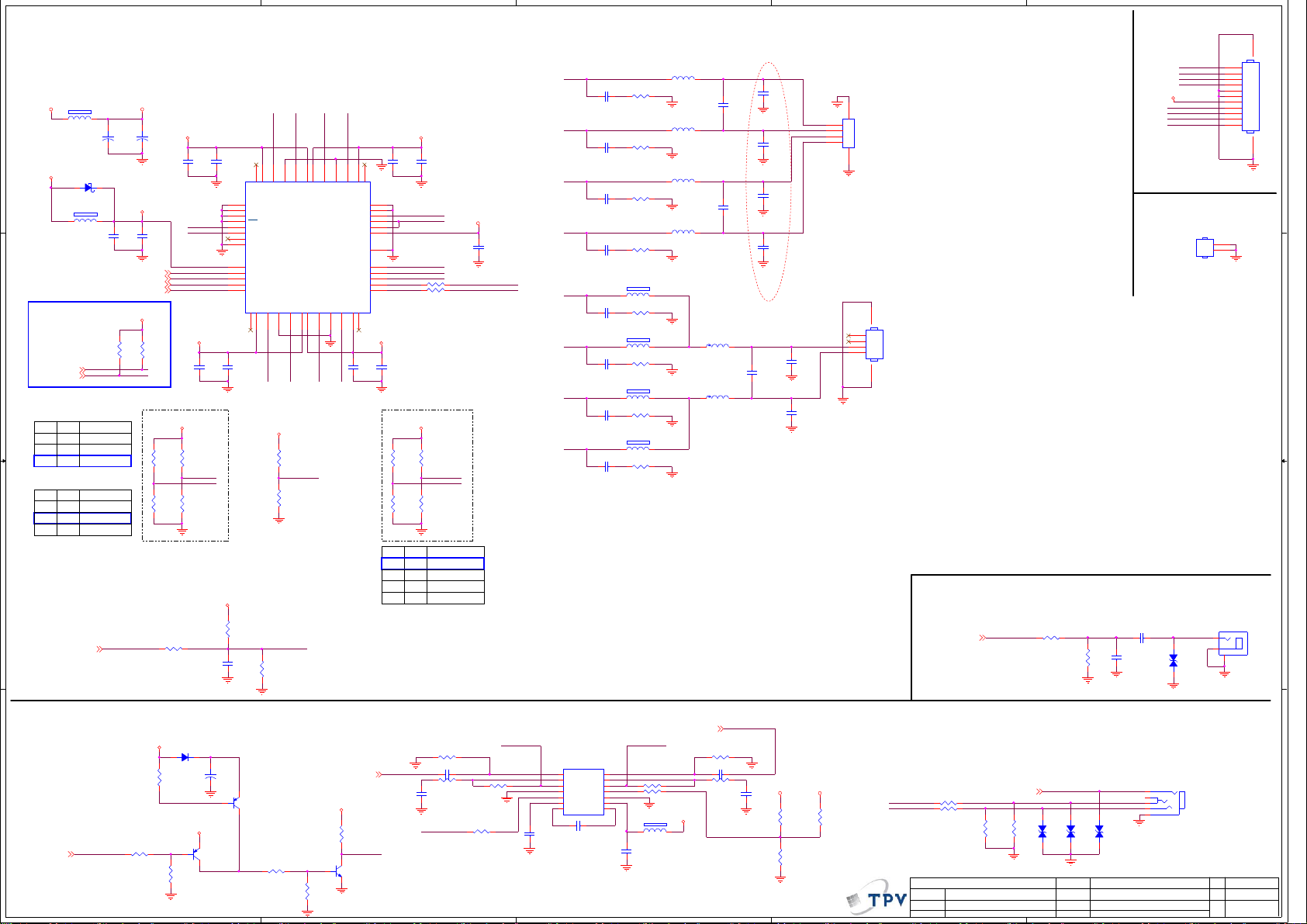

I2C address is 0xC0

1

VDD_3p3

2

LNA_INP

3

LNA_INN

4

VDD_1p8

5

AGC_2/GPO_3

6

AGC_1

1V8_TU

C102

20

21

22

23AS24

25

E-PAD

VDD_1p8

RESET_N

GND_XTAL

U101

MxL661-AG-R

IF_OUTP_2/GPO_17IF_OUTN_2/GPO_28IF_OUTP_19IF_OUTN_110VDD_3p311VDD_1p8

10NF 50V

X101

1 2

16MHz

XTAL_N19XTAL_P

CLK_OUT

GND_DIG
VDD_1p2

12

C137 4 .7NF 50V
C138 4 .7NF 50V

C140 4 .7NF 50V
C142 4 .7NF 50V

R102

510K 1%

C107

1UF 10V

IFP&IFN trace shield with GND

VDD_IO

C106 NC

C108 NC

SDA
SCL

C134

100nF 16 V

18
17
16
15
14
13

1V8_TU

TUNER_CLK_OUT

C111

NC/4.7NF 50 V

SDA_TLNA_INP
SCL_T

3V3_TU

C129

C130

2.2nF 50V

100nF 16 V

R112 0R05 OHM
R113 0R05 OHM

R115 0R05 OHM
R118 0R05 OHM

3V3_TU

R105

4.7K1/16W

C126

22PF 50V

C135

NC/33PF 50V

C144

NC/47PF 50V

R106

4.7K1/16W

R107 1 00OHM
R108 1 00OHM

C127

22PF 50V

C136

NC/33PF 50V

IF_N
IF_P

C145

NC/47PF 50V

I2C3_SDA

I2C3_SDA

I2C3_SCL

I2C3_SCL

IF Trace
space/trace/space/trace/space(mil)
8 / 6 / 5 / 6 / 8

IF_OUTN_T
IF_OUTP_T

C141 1 UF 10V
C143 1 UF 10V

C139 3 3PF 50V

R116 0R05 OHM
R119 0R05 OHM

C146 3 3PF 50V

6
6

R114 1 00OHM

R117

NC/330 OHM 1/16W

R120 1 00OHM

IFN

IFP

6

IFN

6

IFP

RF Input
(Side)

D D

388G510H402FHC->388G510H402FHC0001

TU_GND

C112

4.7nF 1KV

1206

CHANGE NAME

TU101

RF CONN

C113

4.7nF 1KV

1206

5

4
3
2
1

C115

C114

4.7nF 1KV

4.7nF 1KV

1206 1206

C103

470pF 1KV

1206

C116

4.7nF 1KV

1206

R103 0R05 OHM

L102

NC/330nH

C117

C118

4.7nF 1KV

4.7nF 1KV

R104 0R05 OHM

3

D101

BAV99

1

2

C119

C120

4.7nF 1KV

4.7nF 1KV

12061206 1206

1206 1206 1206

C121

4.7nF 1KV

4

1

C105

NC

C122

4.7nF 1KV

3

2

L101

75R

C101 1 NF

R101

NC/1K 1/16 W 1%

C104 1 NF

L103

NC/0.56uH

High voltage isolation

Close to U401

RF_AGC

R109 10K

RF_AGC

C C

Shield Cover

FCN101
RF CONN

11223344ANT

5

6

C131

47NF 16V

IF_AGC_TUXG

DEM_IF_AGC

IF_AGC trace shield with GND

1V8_TU

R110 1K

R111 1K

LNA_INP

LNA_INN

FB101

1 2

1000

3V3_TU

C109

100nF 16 V

C128

100nF 16 V

C132

10NF 50V

LNA_INN

C110

100nF 16 V

C133

100nF 16 V

3V3_TU

388G510G502ACL

Close to U401

Demodulator (DVB-T2)

For AP region

B B

SDA_T

R125 NC

SCL_T

R126 NC

6

DEM_TSI1_SYNC

6

DEM_TSI1_VLD

6

DEM_TSI1_CLK

6

DEM_TSI1_D0

A A

DEM_TSI1_SYNC
DEM_TSI1_VLD
DEM_TSI1_CLK
DEM_TSI1_D0

5

External OSC/CLK

External XTAL

C161

10PF 50V

DEM_IF_AGC

3V3_DEM

C162

10PF 50V

R123

4.7K1/16W

C158

NC

C163

NC

Pin 7STATUS

High

Low

R173 200R

C194

100nF 16 V

R124

4.7K1/16W

C159

NC

R130 3 3 OHM 1/16W
R131 3 3 OHM 1/16W
R132 8 2R
R133 8 2R

C180

NC

R128 NC

3V3_DEM

R163

NC

R164

2K7

R121 10K

C149

100nF 16 V

1V2_DEM

3V3_DEM

C147 1 00nF 16V
C148 1 00nF 16V

R122 NC

38

40

41

42

44

45

48

49

ATB

TIFP43TIFN

CVDD46GPO247GPO3

VDD33

U102

CLK_IO

SIFQP39SIFQN

DISEQC_OUT

TEST_MODE

E-PAD

1

GPO7

2

GPO6

3

CVDD

4

GPO5

5

GPO4

6

VDD33

7

STATUS

8

9
10
11
12

ATBM7831

TSSYNC
TSVLID
TSCLK
TS0
TS1

TS213TS314TS415TS516TS617TS718VDD3319CVDD20RESET21CVDD22SCLS23SDAS

3V3_DEM

1V2_DEM 3V3_ DEM

4

SIFIP37SIFIN

AVDD33

CAVDD

ADDR

XTALO

DISEQC_IN

GPO1

VDD33

CVDD

24

C188

NC

GND

XTALI

C189

NC

IF_OUTN_T
IF_OUTP_T

TUNER_CLK_OUT

36
35
34
33

DEMO_ADDR

32

DEM_XOUT

31

DEM_XIN

30
29
28
27
26
25

R165 3 3 OHM 1/16W
R166 3 3 OHM 1/16W

R167

51K

C190

1UF 10V

1 2

C151

C150

100nF 16 V

10NF 50V

R162 NC

24

1

C181

12PF 50V

R168 0R05 OHM

X102

24MHz

FB102

120R

3V3_DEM

FB104

1 2

120R

C160

10NF 50V

3

C182

12PF 50V

I2C3_SDA
I2C3_SCL

DEM_RSTN

3

1V2_DEM

DEM_RSTN

3V3_DEM

6

R127

NC

R129

4.7K1/16W

FB103

1 2

120R

C152

100nF 16 V

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5 A

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

Key Component

Key Component

Key Component

03-Tuner Input/Demodulator

03-Tuner Input/Demodulator

03-Tuner Input/Demodulator

Date

Date

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

C153

100nF 16 V

C183

100nF 16 V

Sheet

Sheet

Sheet

3V3_DEM3V3_TU

C155

C154

100nF 16 V

100nF 16 V

1V2_DEM

C184

C185

100nF 16 V

100nF 16 V

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G90 16-M0F-B00-00 40

715G90 16-M0F-B00-00 40

715G90 16-M0F-B00-00 40

of

3 14Monday, Ju ne 12, 201 7

of

3 14Monday, Ju ne 12, 201 7

of

3 14Monday, Ju ne 12, 201 7

C156

100nF 16 V

C186

100nF 16 V

C157

22uF 6.3V

0603

C187

100nF 16 V

Custom

Custom

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

1

称爹

5

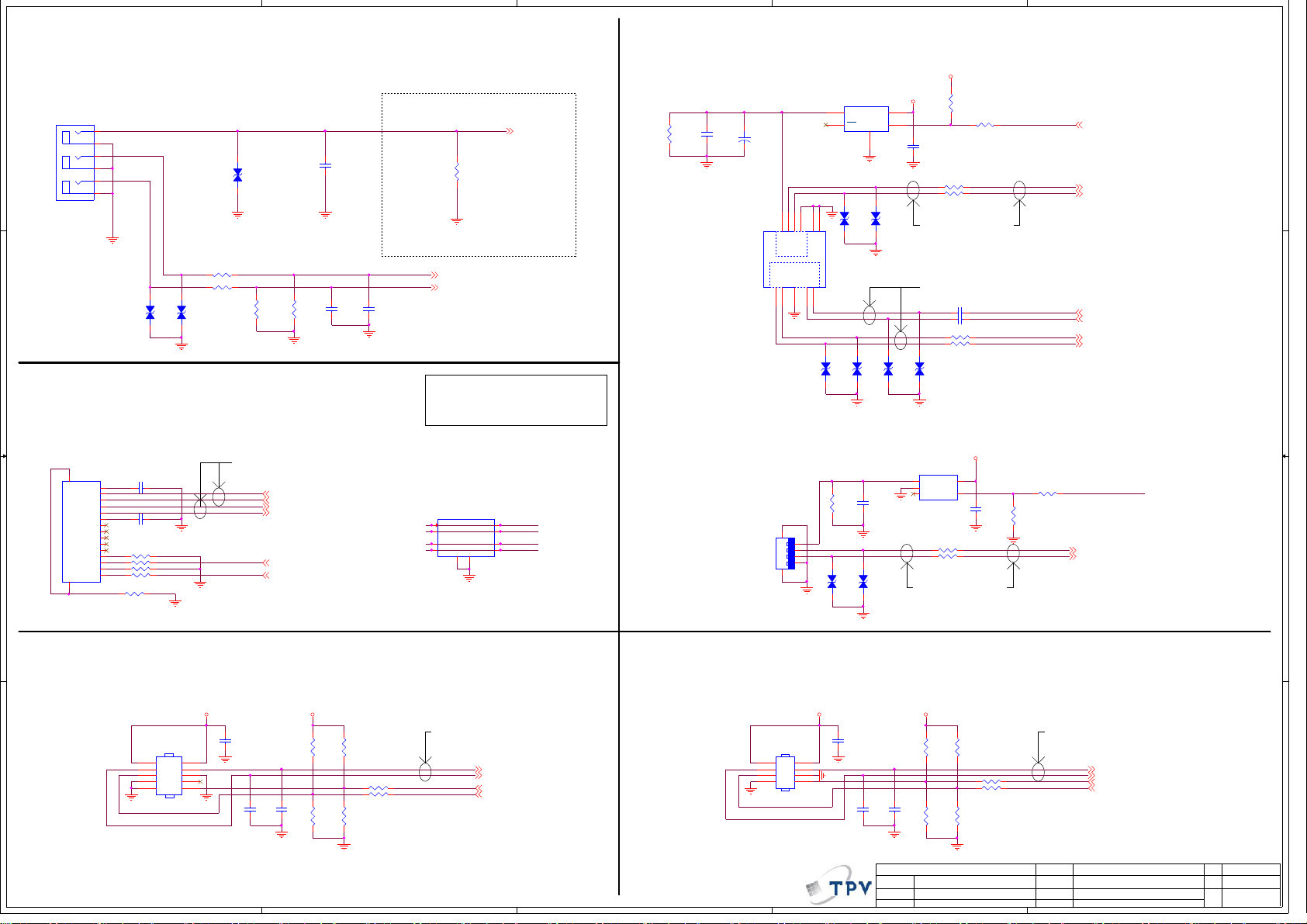

AV Input
(Down)

D D

C C

CN111

2

A

1

4

B

3

6

C

5

RCA JACK

388G078G137ACL0001

Change component IO to AV
Rain

YPbPr_L

YPbPr_R

12

ZD106

NC/MLVG0402

R142 10K

R143 10K

12

ZD107

NC/MLVG0402

12

ZD103

NC/MLVG0402

R144

12K 1/16 W

R145

12K 1/16 W

C168

NC/10PF 50V

C169

NC/330PF 50 V

Ethernet Input
(Down)

4

Place close to U401

AV_AU_L

AV_AU_R

C170

NC/330PF 50 V

FE

AV_CVBSY

R141

75R 1/16W 1%

6

AV_AU_L

6

AV_AU_R

space/trace/space/trace/space(mil)
10 / 6 / 5 / 6 / 10

Differential 100 +- 10 ohms
Common Mode 50 +- 5 ohms
FE-T and FE-R separate > 30mil

AV_CVBS

6

3

USB 3.0 Port
(Side)

C164

R135

47K

0603

+

10uF 10V

0805

CN102

USB CONN 9P

088G352E912AXH

C123
100UF 16V

1D+3

4D-2

VCC

GND

USB2.0

USB3.0

RXN5RXP6GND7TXN8TXP

USB_RXP
USB_RXN

USB_DM
USB_DP

11

HAND110HAND2

9

USB_TXP
USB_TXN

12

ZD108

NC/MLVG0402

U103
G5250K1T1U

5

OUT

3

OC

12

ZD104

NC/MLVG0402

12

NC/MLVG0402

ZD109

GND

2

4

IN

1

EN

12

ZD105

NC/MLVG0402

12

NC/MLVG0402

2

5V_USB

C165

10uF 10V

0805

Run As 90 Ohm +/-15%
Differential Pairs

Run As 90 Ohm +/-15%
Differential Pairs

12

ZD111

ZD110

NC/MLVG0402

VCC_3V3

R136

NC/4.7K1/16W

R134 100OHM

R137 5.1R 1/16W
R138 5.1R 1/16W

C171 1 00nF 16V
C172 1 00nF 16V

R146 5.1R 1/16W
R147 5.1R 1/16W

1

USB trace run 90 Ohm differential pairs
space/trace/space/trace/space(mil)
12 / 9 / 5 / 9 / 12

USB3_PWR_EN

USB3_DM
USB3_DP

USB3_TXP
USB3_TXN

USB3_RXP
USB3_RXN

USB3_PWR_EN

USB3_DM
USB3_DP

USB3_TXP
USB3_TXN

USB3_RXP
USB3_RXN

6

6
6

6
6

6
6

100M Ethernet

USB 2.0 Port

CN104

RJ45 15P

16

1

C175 1 00nF 16V

TCT P1

2

TH1

TD+ P2

3

TD- P3

4

RD+ P4

5

RD- P5

6

C176 1 00nF 16V

RCT P6

7

NC P7

8

NC P8

9

NC P9

10

NC P10

11

NC P11

12

R153 330 OHM 1/16W

Y- P12

13

R154 100OHM

Y+ P13

14

R155 330 OHM 1/16W

B B

G- P14

15

G+ P15

TH2

17

388G342GFB6AKX

R156 100OHM

R157 0 R05

1206

Run as Differential Pairs

FE_TX+

FE_TX+

FE_TX-

FE_TX-

FE_RX+

FE_RX+

FE_RX-

FE_RX-

FEPHYLED1

FEPHYLED0

FEPHYLED1

FEPHYLED0

6
6
6
6

6

6

U105
NC/AZ1045-04F.R7G

1

IN1

2

IN2

4

IN3

5

IN4

GND

GND

3

8

10

FE_RX-

NC

9

FE_RX+

NC

7

FE_TX-

NC

6

FE_TX+

NC

(Side)

CN103

USB CONN

388G352F6B3AXH

1
2

C173

R149

10uF 10V

47K

0603

0805

1

1234

2
3
4

ZD112

NC/MLVG0402

1 2

ZD113

NC/MLVG0402

1 2

6 5

5V_USB

U104
AP2171DWG-7

5

OUT

IN

GND

4

FLG3EN

R151 5 .1R 1/16W
R152 5 .1R 1/16W

Run as 90 Ohm +/-15%
Differential Pairs

C174

1UF16V

0603

R148 100OHM

R150

NC/10K

USB2_DM2
USB2_DP2

USB2_DM2
USB2_DP2

USB3_PWR_EN

6
6

USB 2.0 Port for BT
(Internal)

C191

CN106

2
4
6
8

A A

10

CONN

10P S/T 2.0mm
311GW200C10AAL

5

1UF16V

0603

1
3
5
7
9

C192

C193

NC/22PF 50V

NC/22PF 50V

R169

NC/4.7K1/1 6W

R174

NC

R170

NC/4.7K1/1 6W

R171 33 OHM 1/16W
R172 33 OHM 1/16W

R175

NC

4

Run as 90 Ohm +/-15%
Differential Pairs

USB2_DM0
USB2_DP0

BT_WU WIFI_RST
BT_RST

USB2_DM0
USB2_DP0

BT_WU
BT_RST

6
6

6
6

USB 2.0 Port for WIFI
(Internal)

5V_USB

C177

CN105

2
4
6
8

CONN

8P R/A 2.0mm
311GW200C08ABL

3

1UF16V

0603

1
3
5
7

VCC_3V3VCC_3V35V_USB

Run as 90 Ohm +/-15%

R159

R158

NC/4.7K1/1 6W

NC/4.7K1/1 6W

R161 NC/33 OHM 1/16W
R160 33 OHM 1/16W

C178

C179

R176

NC/22PF 50V

NC/22PF 50V

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5 A

Key Component

Key Component

Key Component

Date

Date

Date

2

R177

NC

NC

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

04-AV/Ethernet/USB Inputs

04-AV/Ethernet/USB Inputs

04-AV/Ethernet/USB Inputs

Differential Pairs

USB2_DM1
USB2_DP1
WIFI_WOL

OEM MODEL

OEM MODEL

OEM MODEL

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

715G90 16-M0F-B00-00 40

PCB NAME

715G90 16-M0F-B00-00 40

PCB NAME

715G90 16-M0F-B00-00 40

Sheet

4 14Monday, Ju ne 12, 201 7

Sheet

4 14Monday, Ju ne 12, 201 7

Sheet

4 14Monday, Ju ne 12, 201 7

of

of

of

USB2_DM1
USB2_DP1
WIFI_WOL
WIFI_RST

6
6
6
6

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

1

称爹

<称爹>

<称爹>

<称爹>

Custom

Custom

Custom

5

4

3

2

1

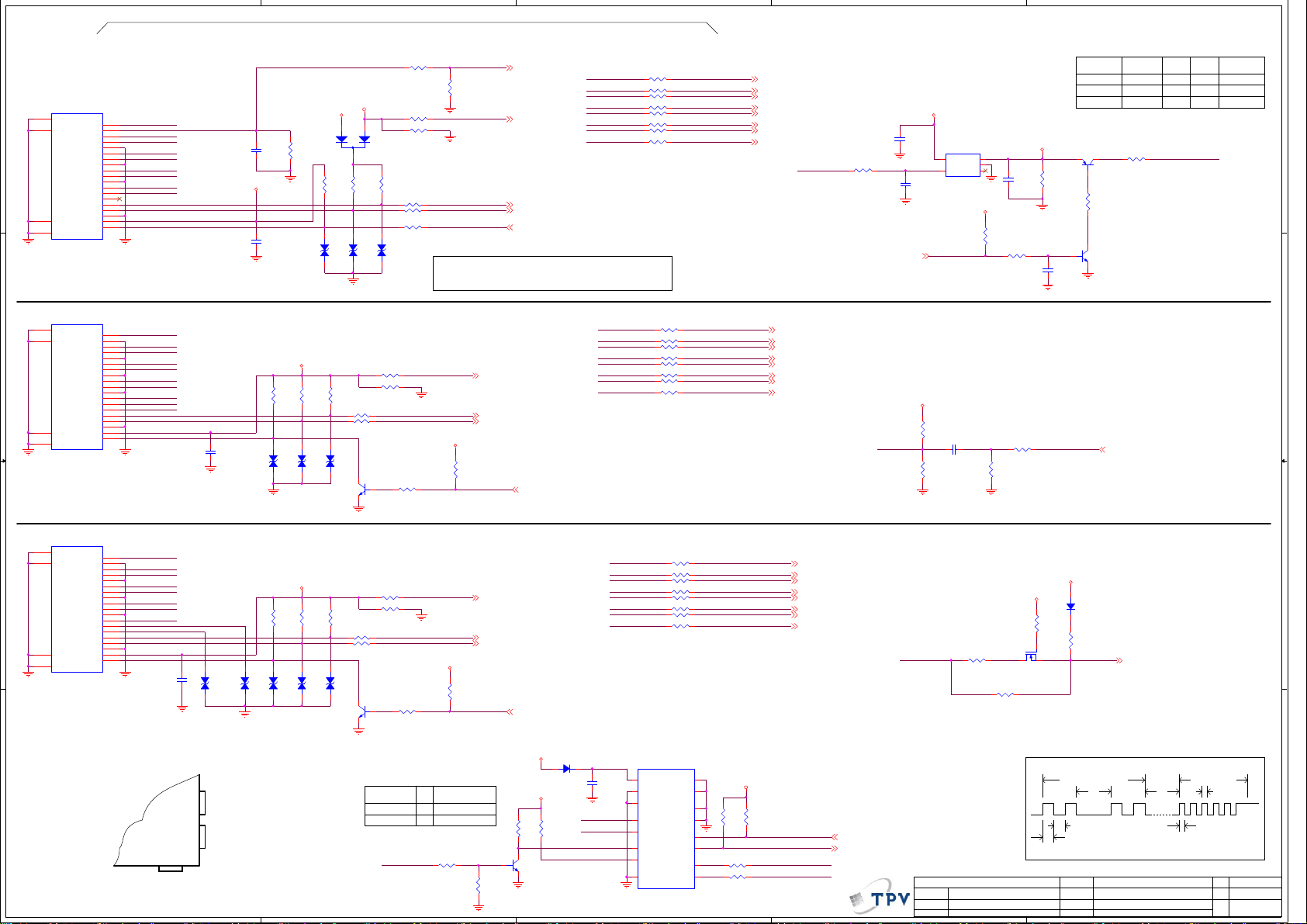

Run As 100 Ohm Differential Pairs

space/trace/space/trace/space(mil)
8 / 6 / 5 / 6 / 8

CD SENSE

PNP

Output

MHL Mode

HDMI Mode

No Source

R512

4.7K1/16W

Q502
MMBT3904

Input detect

R506

control

H

OFF

ON

L

L

ON

HDMI0_HTP_CBUS

1K

1K

10K

33 OHM 1/16W

HDMI0_D0+/-

MHL

MHL_CD_SENSE

R502

30K OHM

HDMI0_DET

HDMI0_SCL
HDMI0_SDA

HDMI0_HTP_CBUS

space/trace/space/gnd/space/trace/space(mil)
4 / 12 / 4 / 5 / 4 / 12 / 4

Differential 100 +- 10 ohms
Common Mode 30 +- 5 ohms

MHL_CD_SENSE

HDMI0_DET

HDMI0_SCL
HDMI0_SDA

HDMI0_HTP_CBUS

6

6

6
6

6

HDMI0_RX2P_IN

HDMI0_RX2N_IN
HDMI0_RX1P_IN

HDMI0_RX1N_IN
HDMI0_RX0P_IN

HDMI0_RX0N_IN
HDMI0_RXCP_IN

HDMI0_RXCN_IN

R552 2R2 +-5% 1/16W

R553 2R2 +-5% 1/16W
R554 2R2 +-5% 1/16W

R555 2R2 +-5% 1/16W
R556 2R2 +-5% 1/16W

R557 2R2 +-5% 1/16W
R558 2R2 +-5% 1/16W

R559 2R2 +-5% 1/16W

HDMI0_RX2P

HDMI0_RX2N
HDMI0_RX1P

HDMI0_RX1N
HDMI0_RX0P

HDMI0_RX0N
HDMI0_RXCP

HDMI0_RXCN

HDMI0_RX2P

HDMI0_RX2N
HDMI0_RX1P

HDMI0_RX1N
HDMI0_RX0P

HDMI0_RX0N
HDMI0_RXCP

HDMI0_RXCN

6

6
6

6
6

6
6

6

CD_SENSE

MHL 2.0 Voltage Charge

Current limit TYP. 1.5A

VCC_5V

C502

U502

1UF16V

STMPS2171STR

0603

5

IN

R507 100OHM

MHL_VBUS_EN

C504

NC

4

MHL_VBUS_EN

5VBUS

Q501

R508

NC/10K 1/10W

0603

C506

1UF 10V

MMBT3906

1

OUT

2

GND

FAULT3EN

3V3_STB

7

C503

10uF 10V

0805

R516

47K

R517

4.7K1/16W

R501 18K

5VBUS

CN506 HDMI 19P

20

D D

SHLD0

TMDSD2+

22

DSHLD0

SHLD2

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+

CSHLD0
TMDSC-

CEC

NC
SCL
SDA

DDC_GND

23

VCC5

SHLD3

21

HPD

SHLD1

388G340FJ05FXH0001

1

HDMI0_RX2P_IN

2

CD_SENSE

3

HDMI0_RX2N_IN

4

HDMI0_RX1P_IN

5
6

HDMI0_RX1N_IN

7

HDMI0_RX0P_IN

8
9

HDMI0_RX0N_IN

10

HDMI0_RXCP_IN

11
12

HDMI0_RXCN_IN

13

CEC

14
15

HDMI0SCL

16

HDMI0SDA

17
18

HDMI0_5V

19

HDMI0_HPD

5VBUS

C501

47NF 16V

C505

100nF 16V

HDMI 1(1.4)(MHL)

5V_STB

1

D501

R505

BAT54CH

300K

R509

NC/1K

12

ZD501

NC/MLVG0402

3

12

2

R510

10K

ZD502

NC/MLVG0402

R503

R504

R511

10K

R513
R514 33 OHM 1/16W

R515 4.7R

12

ZD503

NC/MLVG0402

(Side)

NPN

Output
control

OFF

ON

ON

HDMI0_DET

Input detect

H

H

L

CN501 HDMI 19P

20

SHLD0

22

C C

SHLD2

23

SHLD3

21

SHLD1

388G340FJ05FXH0001

HDMI 2(1.4)(Debug)
(Side)

Change debug function to HDMI2(CN501),move ARC function to HDMI3(CN502);
Rain

CN502 HDMI 19P

20

SHLD0

22

B B

SHLD2

23

SHLD3

21

SHLD1

388G340FJ05FXH0001

HDMI 3(2.0a)(ARC)
(Down)

Change debug function to HDMI2(CN501),move ARC function to HDMI3(CN502);
Rain

A A

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+

CSHLD0
TMDSC-

DDC_GND

VCC5

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+

CSHLD0
TMDSC-

DDC_GND

VCC5

1

HDMI1_RX2P_IN

2
3

HDMI1_RX2N_IN

4

HDMI1_RX1P_IN

5
6

HDMI1_RX1N_IN

7

HDMI1_RX0P_IN

8
9

HDMI1_RX0N_IN

10

HDMI1_RXCP_IN

11
12

HDMI1_RXCN_IN

13

CEC

SCL
SDA

HPD

CEC

SCL
SDA

HPD

CEC

14

UART_SEL

NC

15

HDMI1SCL

16

HDMI1SDA

17
18

HDMI1_5V

19

HDMI1_HPD

1

HDMI2_RX2P_IN

2
3

HDMI2_RX2N_IN

4

HDMI2_RX1P_IN

5
6

HDMI2_RX1N_IN

7

HDMI2_RX0P_IN

8
9

HDMI2_RX0N_IN

10

HDMI2_RXCP_IN

11
12

HDMI2_RXCN_IN

13

CEC

14

HDMI_ARC

NC

15

HDMI2SCL

16

HDMI2SDA

17
18

HDMI2_5V

19

HDMI2_HPD

C509

NC/100N16V

C508

NC/100N16V

12

ZD504

NC/MLVG0402

12

ZD508

NC/MLVG0402

HDMI1_5V

R520

1K

12

ZD505

NC/MLVG0402

HDMI2_5V

R533

1K

12

ZD509

NC/MLVG0402

R521

10K

12

ZD506

NC/MLVG0402

R534

10K

12

ZD510

NC/MLVG0402

R518

R519

R522

10K

R523

NC/33 OHM 1/16W

R524 NC/33 OHM 1/16W

12

ZD507

NC/MLVG0402

Q503
MMBT3904

R531

R532

R535

10K

R536

33 OHM 1/16W

R538 33 OHM 1/16W

12

ZD511

NC/MLVG0402

Q505
MMBT3904

R530

R542

HDMI1_DET

1K

10K

HDMI1_SCL
HDMI1_SDA

HDMI1_5V

R527

10K

HDMI2_DET

HDMI2_SCL
HDMI2_SDA

HDMI2_5V

HDMI1_HOTPLUG

R540

10K

HDMI2_HOTPLUG

4.7K1/16W

1K

10K

4.7K1/16W

HDMI1_DET

HDMI1_SCL
HDMI1_SDA

HDMI2_DET

HDMI2_SCL
HDMI2_SDA

6

6
6

HDMI1_HOTPLUG

6

6
6

HDMI2_HOTPLUG

Factory UART And HDMI I2C Switch

5V_STB

CN502/HD MI3

5

CN506/HD MI1

CN501/HD MI2

HDMI Pin14

NC

+12V

UART_SEL

4

S0

HDMI Function

H

L

Debug Mode

R547 62K

Channel

R550

43K 1/16W

5V_STB

R545

10K

Q506
MMBT3904

R546

10K

6

6

D503

BAS316WS

HDMI1_RX2P_IN

HDMI1_RX2N_IN
HDMI1_RX1P_IN

HDMI1_RX1N_IN
HDMI1_RX0P_IN

HDMI1_RX0N_IN
HDMI1_RXCP_IN

HDMI1_RXCN_IN

C510

100nF 16V

HDMI1SDA

HDMI1SCL

S0

S1

HDMI2_RX2P_IN

HDMI2_RX2N_IN
HDMI2_RX1P_IN

HDMI2_RX1N_IN
HDMI2_RX0P_IN

HDMI2_RX0N_IN
HDMI2_RXCP_IN

HDMI2_RXCN_IN

16

7

8

13

3

10

9

6

R560 2R2 +-5% 1/16W

R561 2R2 +-5% 1/16W
R562 2R2 +-5% 1/16W

R563 2R2 +-5% 1/16W
R564 2R2 +-5% 1/16W

R565 2R2 +-5% 1/16W
R566 2R2 +-5% 1/16W

R567 2R2 +-5% 1/16W

R568 2R2 +-5% 1/16W

R569 2R2 +-5% 1/16W
R570 2R2 +-5% 1/16W

R571 2R2 +-5% 1/16W
R572 2R2 +-5% 1/16W

R573 2R2 +-5% 1/16W
R574 2R2 +-5% 1/16W

R575 2R2 +-5% 1/16W

U503
74HC4052PW

VCC

VEE

GND

1Z

2Z

S0

S1

/E

3

12

1Y0

1

2Y0

14

1Y1

5

2Y1

15

1Y2

2

2Y2

11

1Y3

4

2Y3

HDMI1_RX2P

HDMI1_RX2N
HDMI1_RX1P

HDMI1_RX1N
HDMI1_RX0P

HDMI1_RX0N
HDMI1_RXCP

HDMI1_RXCN

HDMI2_RX2P

HDMI2_RX2N
HDMI2_RX1P

HDMI2_RX1N
HDMI2_RX0P

HDMI2_RX0N
HDMI2_RXCP

HDMI2_RXCN

5V_STB

R544

R543

10K

10K

R548 33 OHM 1/16W

R549 33 OHM 1/16W

HDMI1_RX2P

HDMI1_RX2N
HDMI1_RX1P

HDMI1_RX1N
HDMI1_RX0P

HDMI1_RX0N
HDMI1_RXCP

HDMI1_RXCN

HDMI2_RX2P

HDMI2_RX2N
HDMI2_RX1P

HDMI2_RX1N
HDMI2_RX0P

HDMI2_RX0N
HDMI2_RXCP

HDMI2_RXCN

UART0_TXD

UART0_RXD

HDMI1_SDA

HDMI1_SCL

6

6
6

6
6

6
6

6

ARC Function

HDMI ARC
DC voltage level = 4V
Signal voltage p-p = 500 mV +-100mV (Test need add 55 ohm terminal resistor to GND)
Tr,Tf <= 60 ns

VCC_5V

R525

6

6
6

6
6

6
6

6

UART0_TXD

UART0_RXD

NC/10K

C507 1UF 10V

R528

NC/39K 1/16W 5%

CEC Function

CEC

7

7

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

Key Compon ent

Key Compon ent

Key Compon ent

05-HDMI/MHL Inputs

05-HDMI/MHL Inputs

05-HDMI/MHL Inputs

Date

Date

Date

2

R539

R526 0R05 OHM

R529

NC

100OHM

R541

5V_STB

Q504
2N7002K

NC/100OHM

ARC_OUTHDMI_ARC

ARC_OUT

3V3_STB

D502

BAS316WS

R551

100OHM

R537

27K 1/16W 1%

HDMI_CEC

MHL CBUS Wake Pu lse Sequence

Wake Pulse Sequence

T2

T1

T1 = 18~22 ms (typ. 20)
T2 = 54~66 ms (typ. 60)

T1

T3 = 100~1000 ms
T4 = 80~120 us (typ. 100)

OEM MODEL

OEM MODEL

OEM MODEL

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

715G9016-M0F-B00-0040

PCB NAME

715G9016-M0F-B00-0040

PCB NAME

715G9016-M0F-B00-0040

Sheet

of

5 14Monday, June 12, 2017

Sheet

of

5 14Monday, June 12, 2017

Sheet

of

5 14Monday, June 12, 2017

HDMI_CEC

6

6

Discovery Pulse

T4

T3

T4

Custom

Custom

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

1

称爹

5

4

3

2

1

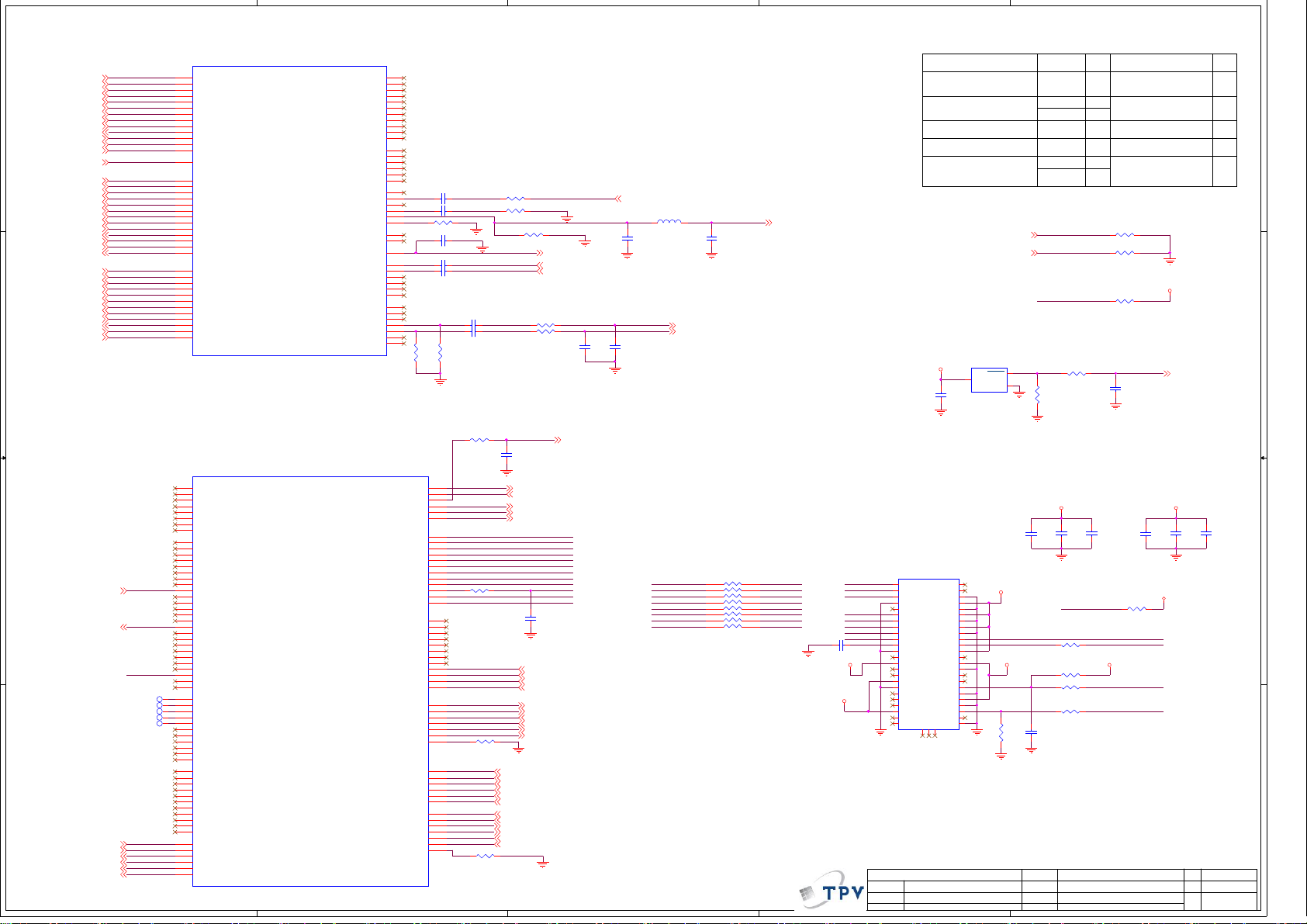

HDMI Input

BT_WU

BT_RST

HDMI0_RX0N
HDMI0_RX0P
HDMI0_RX1N
HDMI0_RX1P
HDMI0_RX2N
HDMI0_RX2P
HDMI0_RXCN
HDMI0_RXCP
HDMI0_DET
HDMI0_HTP_CBUS
HDMI0_SCL
HDMI0_SDA
MHL_CD_SENSE

HDMI_CEC

HDMI1_RX0N
HDMI1_RX0P
HDMI1_RX1N
HDMI1_RX1P
HDMI1_RX2N
HDMI1_RX2P
HDMI1_RXCN
HDMI1_RXCP
HDMI1_DET
HDMI1_HOTPLUG
HDMI1_SCL
HDMI1_SDA
ARC_OUT

HDMI2_RX0N
HDMI2_RX0P
HDMI2_RX1N
HDMI2_RX1P
HDMI2_RX2N
HDMI2_RX2P
HDMI2_RXCN
HDMI2_RXCP
HDMI2_DET
HDMI2_HOTPLUG
HDMI2_SCL
HDMI2_SDA

BT_WU

BT_RST

BOOT_SEL1

TP1
TP2
TP3
TP4
TP5

HDMI0_RX0N
HDMI0_RX0P
HDMI0_RX1N
HDMI0_RX1P
HDMI0_RX2N
HDMI0_RX2P

D D

C C

B B

A A

HDMI0_RXCN
HDMI0_RXCP
HDMI0_DET

5

HDMI0_HTP_CBUS
HDMI0_SCL
HDMI0_SDA
MHL_CD_SENSE

HDMI_CEC

HDMI1_RX0N
HDMI1_RX0P
HDMI1_RX1N
HDMI1_RX1P
HDMI1_RX2N
HDMI1_RX2P
HDMI1_RXCN
HDMI1_RXCP
HDMI1_DET

5

HDMI1_HOTPLUG
HDMI1_SCL
HDMI1_SDA

5

ARC_OUT

HDMI2_RX0N
HDMI2_RX0P
HDMI2_RX1N
HDMI2_RX1P
HDMI2_RX2N
HDMI2_RX2P
HDMI2_RXCN
HDMI2_RXCP
HDMI2_DET

5

HDMI2_HOTPLUG
HDMI2_SCL
HDMI2_SDA

4

IF Input

IFP
IFN

3

RF_AGC

3

DEM_RSTN

3

I2C3_SCL

3

I2C3_SDA

IFP
IFN
RF_AGC
DEM_RSTN
I2C3_SCL
I2C3_SDA

5

U401F

AN27

5

HDMI0_RX0N

AM27

5

HDMI0_RX0P

AL28

5

HDMI0_RX1N

AK28

5

HDMI0_RX1P

AN29

5

HDMI0_RX2N

AM29

5

HDMI0_RX2P

AL26

5

HDMI0_RXCN

AK26

5

HDMI0_RXCP

AJ26

5

HDMI0_DET/STB_GPIO2 0_0

AJ27

CBUS_PAD

AJ24

5

HDMI0_SCL/STB_GPIO 20_4

AJ25

5

HDMI0_SDA/STB_GPIO2 0_3

AH25

5

MHL_CD_SENSE/STB_GPIO 21_2

AH20

5

HDMI_CEC/STB_GPIO2 1_1

AN23

5

HDMI1_RX0N

AM23

5

HDMI1_RX0P

AL24

5

HDMI1_RX1N

AK24

5

HDMI1_RX1P

AN25

5

HDMI1_RX2N

AM25

5

HDMI1_RX2P

AL22

5

HDMI1_RXCN

AK22

5

HDMI1_RXCP

AJ22

5

HDMI1_DET/STB_GPIO2 0_1

AH22

HDMI1_HOTPLUG/ STB_GPIO19_6

AH23

5

HDMI1_SCL/STB_GPIO 20_6

AJ23

5

HDMI1_SDA/STB_GPIO2 0_5

AH27

ARC_PAD

AN19

5

HDMI2_RX0N

AM19

5

HDMI2_RX0P

AL20

5

HDMI2_RX1N

AK20

5

HDMI2_RX1P

AN21

5

HDMI2_RX2N

AM21

5

HDMI2_RX2P

AL18

5

HDMI2_RXCN

AK18

5

HDMI2_RXCP

AJ20

5

HDMI2_DET/STB_GPIO2 0_2

AJ21

HDMI2_HOTPLUG/ STB_GPIO19_7

AJ19

5

HDMI2_SCL/STB_GPIO 21_0

AH19

5

HDMI2_SDA/STB_GPIO2 0_7

Hi3751ARBCV620 0M00

U401D

P32

CI_DQ0/GPI O8_3

R28

CI_DQ1/GPI O8_4

P33

CI_DQ2/GPI O8_5

AD30

CI_DQ3/GPI O8_6

AE33

CI_DQ4/GPI O8_7

AC30

CI_DQ5/GPI O9_0

AD29

CI_DQ6/GPI O9_1

AD33

CI_DQ7/GPI O9_2

R33

CI_ADR0/GPIO 15_0

R30

CI_ADR1/GPIO 15_1

R31

CI_ADR2/GPIO 15_2

T28

CI_ADR3/SIM0_D ET

V32

CI_ADR4/SIM0_C LK

T30

CI_ADR5/SIM0_PW REN

U28

CI_ADR6/GPIO 10_2

U29

CI_ADR7/GPIO 10_6

AB33

4

CI_ADR8/GPIO 9_4

AA31

CI_ADR9/GPIO 9_5

AC32

CI_ADR10

AA30

CI_ADR11/G PIO15_3

V31

CI_ADR12/G PIO5_4

Y30

CI_ADR13/G PIO9_3

AA33

CI_ADR14/G PIO9_6

P29

CI_CDN/GPIO 9_7

AB30

CI_CEN/GPIO1 5_4

AB31

CI_OEN/GPIO 10_0

V30

CI_WEN/GPIO1 0_1

U32

CI_RST/GPIO10 _3

AA29

CI_IORDN/G PIO10_4

AB32

CI_IOWRN/G PIO10_5

U31

CI_REGN/BOO T_SEL1

V33

CI_RDY/SIM0_RST

T31

CI_WAITN/SIM0_DATA

T33

JTAG_TMS/TSI0_D0/GPIO 4_1

P28

JTAG_TRSTN/TSI0_D1/G PIO4_2

R32

JTAG_TCK/TSI0_D2/G PIO4_3

AD31

JTAG_TDI/TSI0_D3/ GPIO4_4

AD32

JTAG_TDO/TSI0_D4 /GPIO4_5

AC29

TSI0_D5/GPIO 4_6

AC31

TSI0_D6/GPIO 4_7

AB29

TSI0_D7/GPIO 5_0

U30

TSI0_CLK/GPIO5 _1

T32

TSI0_VLD/GPIO5 _2

R29

TSI0_SYNC/GPIO5 _3

W30

TSO0_D0/GPIO 7_0

AA32

TSO0_D1/GPIO 7_1

W29

TSO0_D2/GPIO 7_2

V29

TSO0_D3/GPIO 7_3

Y31

TSO0_D4/GPIO 7_4

Y32

TSO0_D5/GPIO 7_5

W31

TSO0_D6/GPIO 7_6

T29

TSO0_D7/GPIO 7_7

W32

TSO0_CLK/GPIO 8_0

W33

TSO0_VLD/GPIO 8_1

Y29

TSO0_SYNC/GPIO8 _2

AG32

3

IFP

AG33

3

IFN

AJ31

RF_TAGC/JTAG_MUX0/GPIO 10_7

AJ30

AGC_RF_SEL/JTAG_ MUX1/GPIO11_0/PWM1

AH31

TUNER_SCL/I2C3 _SCL/GPIO11_1

AJ32

TUNER_SDA/I2C3_ SDA/GPIO11_2

Hi3751ARBCV620 0M00

VGA_RP
VGA_GP

VGA_GN1
VGA_GN2
VGA_GN3

VGA_HS0

VGA_VS0
VGA_DDC_SCL/G PIO15_5
VGA_DDC_SDA/GPI O15_6

CVBS_VCOM

VDAC1_OUT

BG_RES_10K

SPDIF_OUT/GPIO3_ 4

LINEIN_R1

LINEIN_L1

LINEIN_R2

LINEIN_L2

LINEIN_R3

HDMI & AFE & AUDIO

LINEIN_L3

HEADPHONE_R1

HEADPHONE_L1

LINEOUT_R2
LINEOUT_L2
LINEOUT_R3
LINEOUT_L3

SFC_WPN_IO2/G PIO1_7/SPI2_DO

SFC_CS1N/GPIO2 _3/SPI2_CSN

SFC_HOLDN_IO 3/GPIO2_2/PMC4

SFC_DOI/GPIO2 _1/PWM2/SPI2_DI

SFC_CLK/GPIO2_ 0/SPI2_CLK

TSI1_D3/SD_CDATA0/ GPIO6_0
TSI1_D2/SD_CDATA1/ GPIO5_7
TSI1_D7/SD_CDATA2/ GPIO6_4
TSI1_D6/SD_CDATA3/ GPIO6_3

TSI1_D4/SD_CCL K_OUT/GPIO6_1

TSI1_D5/SD_CCMD/ GPIO6_2
TSI1_D1/SD_CWPR /GPIO5_6

TSI1_VLD/PMC2/GPI O6_6

TSI1_SYNC/SD_CARD_ PWREN/GPIO6_7

FEPHYLED0/ROMBOOT_SEL

FEPHYLED1/SFC_ADDR_MOD

CI & CA & IF & SFC & EMMC & SD & FE & USB

AJ14

SOG

AN15
AL14
AN13

VGA_BP

AK14
AM13
AM15
AJ13
AH14
AJ12
AH13

AH15

SOY

AL16

YP

AL15

PBP

AN17

PRP

AK15

YN1

AK16

YN2

AH16

CVBS0

AJ16

CVBS1

AM17

CVBS2

AJ17
AJ15
AH17

AK31

MIC_N

AK32

MIC_P

AL10

AM31
AN31
AM32
AN32
AL30
AJ29

AG28

SGND

AM33
AL31
AL33
AL32
AK33
AK30

SFC_DIO/GPIO1 _6/PWM0

EMMC_D0/GPIO3_ 0
EMMC_D1/GPIO3_ 3
EMMC_D2/GPIO3_ 2
EMMC_D3/GPIO3_ 6
EMMC_D4/GPIO3_ 5
EMMC_D5/GPIO3_ 7
EMMC_D6/GPIO4_ 0
EMMC_D7/GPIO3_ 1

EMMC_DQS/GPIO2_ 4

EMMC_CLK/GPIO2_ 7

EMMC_CCMD/GPIO2_6

EMMC_RSTN/GPIO2_5

SD_CARD_DETN

TSI1_CLK/GPIO6 _5

TSI1_D0/PMC3/GPI O5_5

FE_TXN

FE_TXP
FE_RXN
FE_RXP

FE_REXT

USB2_DP0
USB2_DM0
USB2_DP1
USB2_DM1
USB2_DP2
USB2_DM2

USB3_DP3
USB3_DM3
USB3_TXP
USB3_TXN
USB3_RXP
USB3_RXN

USB2_RBIAS

4

C4006 47NF 1 6V

C4007 47NF 1 6V

R4008 10K 1%

C4008 10PF 50V

C4011 1UF 10 V
C4012 1UF 10 V

C4013 4.7UF 6 .3V
C4014 4.7UF 6 .3V

R4016

R4015

470K

470K

G28
F29
F27
G27
G26
F28

AM7
AL8
AM8
AL7
AN7
AN6
AM6
AL9
AM5
AN4

R4020 33 O HM 1/16W

AM4
AN9

AG30
AE29
AF30
AE32
AE31
AE30
AF32
AF31
AG29
AH30
AF29
AH29

AK12
AL12
AM11
AN11
AK10
AJ10
AD16

R4026 10K 1%

H33
H32
J30
J31
K32
K33

L31
L30
N31
N30
M33
M32
L24

R4027 133R 1/10 W 1%

R4006 33 OHM 1/16W

R4007 33 OHM 1/16W

R4019

1K

USB3_PWR_EN
WIFI_WOL

WIFI_RST
LED_B
LD_EN

DEM_TSI1_CLK
DEM_TSI1_VLD
DEM_TSI1_SYNC
DEM_TSI1_D0

FE_TX­FE_TX+
FE_RX­FE_RX+
FEPHYLED0
FEPHYLED1

USB2_DP0
USB2_DM0
USB2_DP1
USB2_DM1
USB2_DP2
USB2_DM2

USB3_DP
USB3_DM
USB3_TXP
USB3_TXN
USB3_RXP
USB3_RXN

R4009 75R 1/16W 1%

SPDIF_OUT

AV_AU_R
AV_AU_L

R4013 560R
R4014 560R

PMC4_GPU

C4019

2.2UF 6.3V

USB3_PWR_EN
WIFI_WOL

WIFI_RST
LED_B
LD_EN

EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3
EMMC_D4
EMMC_D5
EMMC_D6
EMMC_D7
EMMC_DQS
EMMC_CLK
EMMC_CMD
EMMC_RSTN

C4026

NC/10PF 50V

DEM_TSI1_CLK
DEM_TSI1_VLD
DEM_TSI1_SYNC
DEM_TSI1_D0

FE_TX­FE_TX+
FE_RX­FE_RX+
FEPHYLED0
FEPHYLED1

USB2_DP0
USB2_DM0
USB2_DP1
USB2_DM1
USB2_DP2
USB2_DM2

USB3_DP
USB3_DM
USB3_TXP
USB3_TXN
USB3_RXP
USB3_RXN

0603

AV Input/Output

AV_CVBS

VDAC1_OUT

12

SPDIF_OUT

4

AV_AU_R

4

AV_AU_L

C4015

2.2nF 5 0V

13

PMC4_GPU

4
4

4
7
7

3
3
3
3

4
4
4
4
4
4

Ethernet Input

USB 2.0 Input

4
4
4
4
4
4

4
4
4
4
4
4

USB 3.0 Input

AV_CVBS

L401 2.2UH

C4009

220PF 50 V

LINE_OUT_R2
LINE_OUT_L2

C4016

2.2nF 5 0V

3

4

EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D7
EMMC_D6
EMMC_D5
EMMC_D3
EMMC_D4

LINE_OUT_R2
LINE_OUT_L2

Change component IO to AV
Rain

AV_CVBS_OUT

C4010

220PF 50 V

12
12

1

8

RP401 0 R

RP402 0 R

2

7

3

6

4

5

1

8

2

7

3

6

4

5

12

AV_CVBS_OUT

iNAND Flash/eMMC

NF_D0
NF_D1
NF_D2
NF_D7
NF_D6
NF_D5
NF_D3
NF_D4

NF_D0
NF_D1
NF_D2

NF_D3
NF_D4
NF_D5
NF_D6
NF_D7

C4027 2.2UF 6.3V

VCC_1V8

VCC_3V3

E10

F10

G3

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3 /5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3 /5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3 /5 A

Key Component

Key Component

Key Component

Date

Date

Date

2

Boot Strap Selection

FUNCTION MODE

ROMBOOT SEL

BOOT DEVICE SEL

POWER ON RESET SEL

JTAG SEL

JTAG_MUX

3V3_STB

C4018

100nF 1 6V

8GB e-MMC

U406
THGBM HG6C1LB AIL

A3

DAT0

A4
A5
A6
A7
B2
B3
B4
B5
B6
C2
C4
C5
C6
D4
E5
E6
E7
E8
E9

F5

NC

DAT1

NC

DAT2

Vssq

VSS

Vccq

NC

Vssq

DAT3

Vccq

DAT4

Vssq

DAT5

Vccq

DAT6

Vssq

DAT7

CLK

VDDI

CMD

Vssq

Vccq

NC

NC

Vccq

Vcc
Vss

A1 index

NC

NC
Vcc

NC

Vss

RSTN

NC

VSS

NC

Vcc
Vss

NC
Vcc

DS

NC

NC

Vss

NC

NCB1NCC1NC

N1

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

06-Hi3751V6 20 Input/eMMC

06-Hi3751V6 20 Input/eMMC

06-Hi3751V6 20 Input/eMMC

FUNC_SEL

POR_SEL

U407
G690L2 93T73Uf

RESET

3

Vcc

GND

P10

VCC_1V8

P7
P6
P5
P4
P3
N5
N4
N2
M6
M5
M4
K10
K9
K8
K7
K6
K5
J5
J10
H10
H5
G10
G5

FUNC_SEL

ROMBOOT_SEL 0:BO OT FROM ROM

BOOT_SEL0

BOOT_SEL1

POR_SEL

JTAG_SEL

JTAG_MUX0

JTAG_MUX1

Chip Config

FUNC_SEL

7

POR_SEL

7

BOOT_SEL1

2

R4017 100OHM

1

R4018

100K

VCC_3V3

C4021

C4020

100nF 1 6V

100nF 1 6V

EMMC_CMD

NF_CMD

R4021 0R05 OHM

R4022 47K

NF_RSTN

R4023 0R05 OHM

R4024 0R05 OHM

R4025

C4028

NC

NC/33K 1/16W

OEM MODEL

OEM MODEL

OEM MODEL

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

715G901 6-M0F-B00- 0040

PCB NAME

715G901 6-M0F-B00- 0040

PCB NAME

715G901 6-M0F-B00- 0040

Sheet

of

6 14Monday, June 12, 2017

Sheet

of

6 14Monday, June 12, 2017

Sheet

of

6 14Monday, June 12, 2017

0:NORMAL FUNCTION

DS

1:TEST

DS

1:BOOT FROM FLASH

DS

00:SPI FLASH
01:RESERVED

DS

1X:eMMC

0:reset from RESTIN pin

US

1:reset from internal POR signal

0:regist ers control J TAG

DS

1:JTAG_MUX0/1 control JTAG

S

00:A53 JATG
01:DSP JTAG
10:DDRC JTAG

S

11:A53 JTAG

R4010 1K

R4011 1K

R4012 10K

SYS_RSTN

C4017

NC

C4022

2.2UF 6.3V

R4133 10K

EMMC_CLK
EMMC_CMD

VCC_1V8VCC_3V3

EMMC_RSTN

EMMC_DQS

Layout trace
NF_D3 B2, C1
NF_D4 A2, B3
NF_D5 B4, C3, D2, E1
NF_D6 B5, C5
NF_D7 A8, B6, B7
C4027 C1, C2

1

VCC_3V3

VCC_1V8

C4023

100nF 1 6V

VCC_1V8

SYS_RSTN

C4024

100nF 1 6V

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

0

0

10

0

0

7

C4025

2.2UF 6.3V

<称爹>

<称爹>

<称爹>

Custom

Custom

Custom

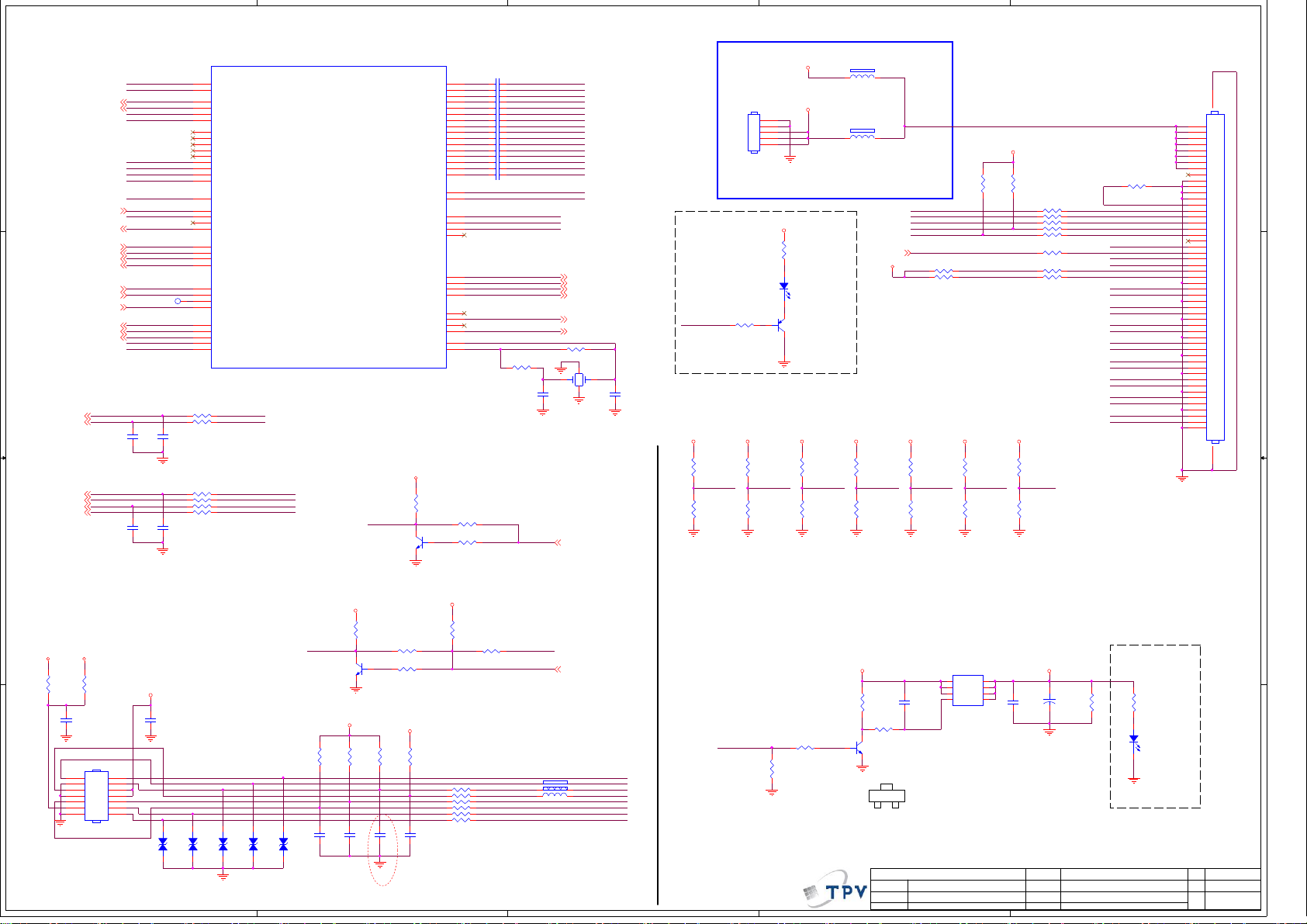

5

U401E

PMC0
PMC1

12

I2C0_SCL

12

D D

C C

I2C0_SDA

KEY0_IN

12

AUD_RSTN

UART0_RXD

5

UART0_TXD

11

I2C2_SCL

11

I2C2_SDA

FUNC_SEL
POR_SEL

SYS_RSTN

13

BL_ON_OFF

13

PWR_ON_OFF

12

AUD_MUTE

I2C0_SCL
I2C0_SDA
I2C1_SCL
I2C1_SDA

I2S1_BCLK
I2S1_DOUT
I2S1_MCLK
I2S1_WS

IR_IN

KEY0_IN
KEY1_IN

AUD_RSTN

UART0_RXD
UART0_TXD
I2C2_SCL

FUNC_SEL
POR_SEL

SYS_RSTN

BL_ON_OFF
PWR_ON_OFF
AUD_MUTE
TCON_PWR
LOGO

AJ4

PMC0/GPIO12_ 4

AK2

PMC1/GPIO12_ 6

AK3

I2C0_SCL/G PIO11_6

AL3

I2C0_SDA/GPI O11_7

D23

I2C1_SCL/G PIO1_5/SPI1_DI /SPI3_DI

C23

I2C1_SDA/GPI O1_4/SPI1_CSN/SPI3 _CSN

AM1

I2S0_BCLK/G PIO12_1

AN2

I2S0_DIN0/ GPIO12_5

AN3

I2S0_DOUT0/ GPIO12_3

AM3

I2S0_MCLK/GPIO 12_0

AL5

I2S0_WS/GPIO 12_2

AJ1

I2S1_BCLK/G PIO15_7

AJ3

I2S1_DOUT/I2 S1_DIN/GPIO13_ 2

AK1

I2S1_MCLK/BOO T_SEL0

AJ2

I2S1_WS/GPIO 12_7

AE3

IRIN/STB_GPIO19 _0

AH3

11

LS_ADC0/STB_GPIO 18_4

AG5

LS_ADC1/STB_GPIO 18_5

AG4

LS_ADC2/STB_GPIO 18_6

AH4

LS_ADC3/STB_GPIO 18_7

AF3

5

UART1_RXD/UART0_RXD /STB_GPIO19_1/VGA_ DDC_SDA/DBGI2C_SDA

AE4

UART1_TXD/UART0_TXD/STB_GPIO 19_2/VGA_DDC_ SCL/DBGI2C_SCL

AL4

UART2_RXD//I2C2 _SCL/GPIO13_ 0/I2S0_DIN1

AM2

UART2_TXD/I2S1_D OUT1/I2C2_SDA/GPIO 13_1/I2S0_D OUT1

AD5

6

TP6

6

JTAG_SEL

AD2

RESTIN

G25

BLK_ON/GPIO 1_3

AE5

STANDBY/STB_GPIO19_3

AL2

AMP_MUTE/STB_GPIO19_5

F26

POWEN/GPIO1_ 0

AD1

LED_PWM/STB_GPIO19 _4

FUNC_SEL

AE2

6

POR_SEL

AJ9

BRI_PWM2/GPIO0 _5/SPI1_DO/SCN_EN /SPI3_DO

Hi3751ARBCV620 0M00

C4047

2.2UF 6.3V

C4049

22PF 50V

3V3_STB

C4055

100nF 1 6V

12

R4043 1K
R4044 1K

C4048

2.2UF 6.3V

R4052 22 OHM 1/16W
R4053 22 OHM 1/16W
R4055 22 OHM 1/16W
R4063 22 OHM 1/16W

C4050

22PF 50V

KEY_IN

12

ZD402

ZD401

NC/MLVG0402

NC/MLVG0402

13

PMC0_VDD

13

PMC1_CPU

12

I2S_BCLK

12

I2S_DOUT

12

I2S_MCLK

12

I2S_WS

B B

VCC_5V VCC_3 V3

A A

R4134

0R05 OHM

C4054

NC/100N16V

PMC1_CPU

I2S_BCLK
I2S_DOUT
I2S_MCLK
I2S_WS

R4135

NC

CN401

2

1

4

3

6

5

8

7

10

9

12

11

14

13

CONN

14P R/A 2.0mm
311GW200C14BBX

12

ZD403

NC/MLVG0402

PMC0
PMC1

I2S1_BCLK
I2S1_DOUT
I2S1_MCLK
I2S1_WS

12

ZD404

NC/MLVG0402

12

ZD405

NC/MLVG0402

LED_BLUE

R4074

NC/6K8 1%

C4056

NC/10N 50V

Keypad / IR / LED

5

4

VBO_TX0P
VBO_TX0N
VBO_TX1P
VBO_TX1N
VBO_TX2P
VBO_TX2N
VBO_TX3P
VBO_TX3N
VBO_TX4P
VBO_TX4N
VBO_TX5P
VBO_TX5N
VBO_TX6P
VBO_TX6N
VBO_TX7P
VBO_TX7N

VBO_HPN

VBO_LOCKN

EN_3D/VDP_VSYNC/G PIO0_7

SYNC_3D_IN/SPI0 _DI/GPIO0_2

SYNC_3D_OUT/SPI0 _CSN/GPIO0_1

VSYNC_GLSS/SPI0_ CLK/GPIO0_0

BRI_PWM0/GPIO0 _3

BRI_PWM1/GPIO0 _4/SPI0_DO/LD_ EN

BRI_PWM3/GPIO0 _6/SPI1_CLK/SPI3_ CLK

STB_GPIO18_0
STB_GPIO18_1
STB_GPIO18_2
STB_GPIO18_3

V-BY-ONE & I2S & I2C & XTAL & IR & ADC

3V3_STB

LED_RED

VCC_5V

R4066

NC/1K

R4068 33 OHM 1/16W

R4070 NC/4.7K1/16W

Q402
NC/MMBT3904

3V3_STB

R4075

6K8 1%

C4057

NC/10N 50V

R4076

100K

C4058

1nF 5% 5 0V

4

VCC_3V3

R4140

NC/4.7K1/16W

C4226

NC/10N 50V

space/trace/space/trace/space(mil)
10 / 6 / 5 / 6 / 10

VB1 Output

C4029 100 nF 16V

D26
C26

C4030 100 nF 16V

B27

C4031 100 nF 16V

A27

C4032 100 nF 16V

D28

C4033 100 nF 16V
C4034 100 nF 16V

C28
B29

C4035 100 nF 16V

A29

C4036 100 nF 16V

D30

C4037 100 nF 16V

C30

C4038 100 nF 16V
C4039 100 nF 16V

B31
A31

C4040 100 nF 16V

C33

C4041 100 nF 16V

C32

C4042 100 nF 16V

E33

C4043 100 nF 16V
C4044 100 nF 16V

E32

G21
F22

E22
E23
D24
G22

G24
F24
E24
F25

AD3
AD4
AF4
AH26

AG2

XIN

AG1

XOUT

R4054

NC/2K OHM

R4064 33 OHM 1/16W

R4065 NC/4.7K1/16W

Q401
NC/MMBT3904

3V3_STB

R4067

NC/4.7K1/16W

R4079
R4141 33 OHM 1/16W
R4080 1K
R4081 NC/1K
R4082 33 OHM 1/16W
R4083 33 OHM 1/16W

3D_EN/VDP_VSYNC
SYNC_3D_IN
SYNC_3D_OUT

BL_BR_CTRL

AMBI_ON_OFF
AMBI_SPI_DATA
AMBI_SPI_CLK

DDR_PWREN

MHL_VBUS_EN

XIN
XOUT

R4042

100OHM

R4069 NC

FB410 FB411 -->371G042P221D00

100OHM

FB411 220 R
FB410 220 R

EMI solution:R4079 ->22ohm,C4058->1nf（need confirm

VBO_TX0P
VBO_TX0N
VBO_TX1P
VBO_TX1N
VBO_TX2P
VBO_TX2N
VBO_TX3P
VBO_TX3N
VBO_TX4P
VBO_TX4N
VBO_TX5P
VBO_TX5N
VBO_TX6P
VBO_TX6N
VBO_TX7P
VBO_TX7N

VBO_HPN
VBO_LOCKN

Ambilight SPI reserve
Rain

R4041 1M

1

C4045

18PF 50V

Crystal

LED_R

LED_R

LED_R

LED_B

LED_B

1 2
1 2

BL_BR_CTRL
AMBI_ON_OFF
AMBI_SPI_DATA
AMBI_SPI_CLK

DDR_PWREN

MHL_VBUS_EN

X401

24

24MHZ

3

LED_RED
LED_BLUE
IR_IN
LOGOLIGHT_LOGO
KEY0_IN
KEY1_IN
I2C0_SCL
I2C0_SDA

3

P12V

PANEL_POWER

CN703

1
2
3
4
5

CONN 5P

Reserved for large size TV.
Rain

R4315

47K 1/16W

1

VCC_3V3

12

23

R4314
470 OHM 1/16W

LED1
GPTS0603 3GC1-PB

Q707
LBC857BWT1 G

For service:

13
11
11
11

13

5

VBO_LOCKN

Must put LED on TOP layer

C4046

18PF 50V

VCC_3V3

R4045

NC/4.7K1/16W

DF0/SYNC_3D_IN

R4056

NC/0R05 OHM

13

R4046

NC/4.7K1/16W

DF1/SYNC_3D_OUT

R4057

NC/0R05 OHM

R4047

NC/4.7K1/16W

3D_EN

R4058

NC/0R05 OHM

Panel Power

6

High: Panel Power On
Low : Panel Power Off

TCON_PWR

）

3

R4077 2K OHM

R4078

NC

2

FB745

1 2

120R 6A

FB744

1 2

NC/120R 6A

SYNC_3D_IN
SYNC_3D_OUT
3D_EN/VDP_VSYNC
I2C1_SDA
I2C1_SCL

LD_EN

LD_EN

VCC_3V3

R4037 10K
R4039 10K

VCC_3V3

VCC_3V3 VCC _3V3

R4048

NC/4.7K1/16W

AGP

R4059

NC/0R05 OHM

P12V PANEL_POWER

R4071

47K

R4073

100K

Q404
MMBT3904

C

E

B

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

Key Component

Key Component

Key Component

Date

Date

Date

2

VCC_3V3VCC_3 V3 VCC_3V3

R4049

NC/4.7K1/16W

LVDS_Format

R4060

NC/0R05 OHM

Q403

1
2
3
4

C4052

AO4449 - 7A/-30V

220N 25V

0603

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

07-Hi3751V6 20 GPIO/KEY/IR/VB1

07-Hi3751V6 20 GPIO/KEY/IR/VB1

07-Hi3751V6 20 GPIO/KEY/IR/VB1

6

S
S
S
G

R4028

4.7K1/16W

VBO_HPN
VBO_LOCKN

R4050

NC/4.7K1/16W

8b_10b_ Sel

R4061

NC/0R05 OHM

8

D

7

D

6

D

5

D

VCC_3V3

R4029

4.7K1/16W

R4031 NC/100OHM
R4032 NC/100OHM
R4033 NC/100OHM
R4034 100OHM
R4035 100OHM

R4036 100OHM

R4038 100OHM
R4040 100OHM

R4051

NC/4.7K1/16W

LD_EN/LR_O

R4062

NC/0R05 OHM

C4051

C4053

+

220UF 16V

0.1uF

0603 0805

SMT

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G901 6-M0F-B00- 0040

715G901 6-M0F-B00- 0040

715G901 6-M0F-B00- 0040

of

7 14Monday, June 12, 2017

of

7 14Monday, June 12, 2017

of

7 14Monday, June 12, 2017

1

VB1 Connector

R4030 0R05 OHM

DF0/SYNC_3D_IN
DF1/SYNC_3D_OUT
3D_EN
VB1_SDA
VB1_SCL

LVDS_Format
LD_EN/LR_O
AGP
8b_10b_ SelI2C2_SDA

VBO_TX0N
VBO_TX0P

VBO_TX1N
VBO_TX1P

VBO_TX2N
VBO_TX2P

VBO_TX3N
VBO_TX3P

VBO_TX4N
VBO_TX4P

VBO_TX5N
VBO_TX5P

VBO_TX6N
VBO_TX6P

VBO_TX7NPMC0_VDD
VBO_TX7P

CN402

FFC CONNECTOR 0.5PICTH 51P
311GF050V51ADC change to 311GF050A51ADJ

-->311GF050Z51ADC

For service:

R4316

R4072

22K 1/10W

1K

12

LED2
GPTS0603 3GC1-PB

Must put LED on TOP layer

1

CONN 51P

51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

52 53

Custom

Custom

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

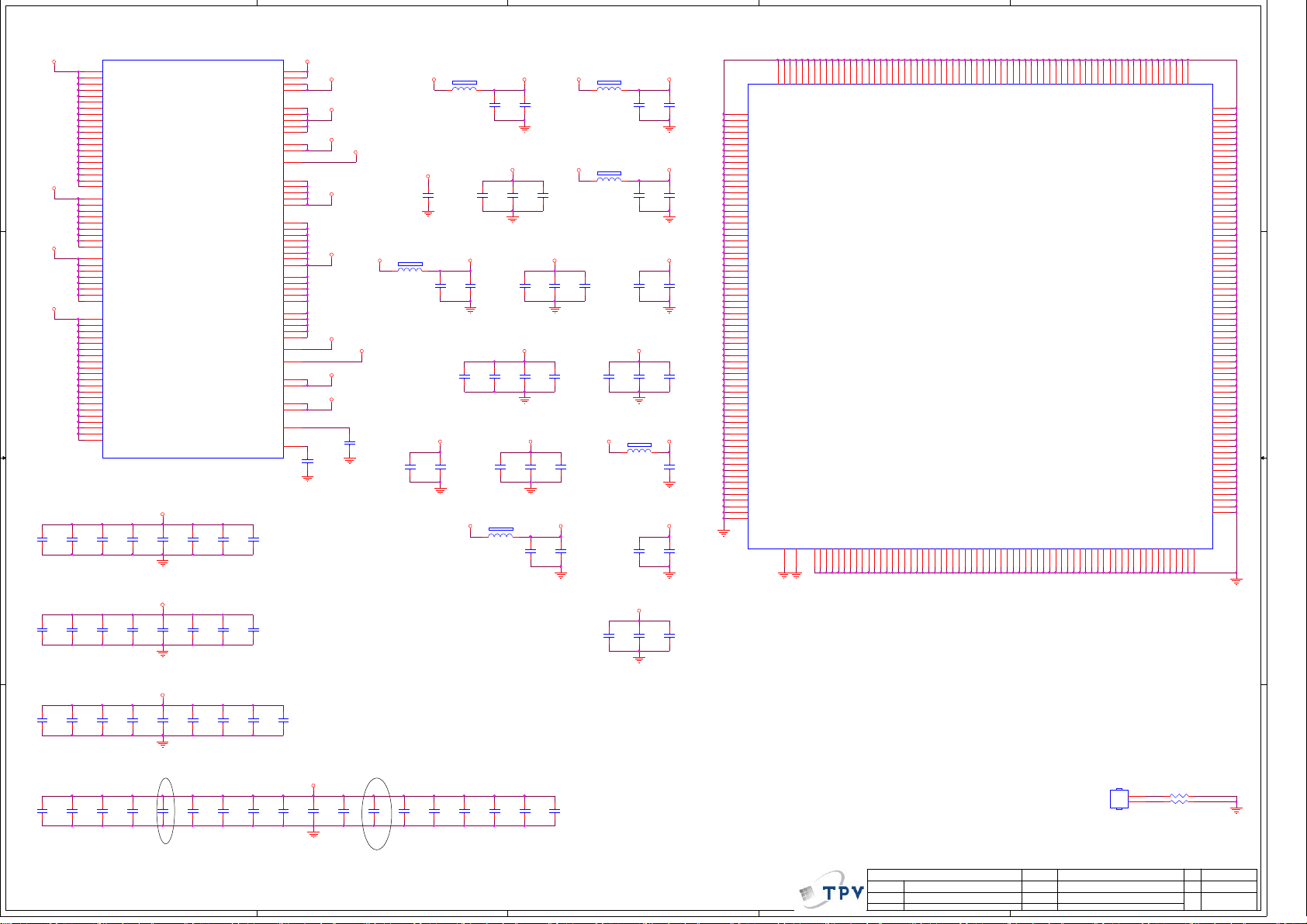

5

4

3

2

1

1V1_VDD

D D

1V1_CPU

1V1_GPU

1V5_DDR3

C C

AC11
AC12
AC13
AC14

AB11

AE10
AE11
AE12
AE13

P15
P16
P17
R14
R15
R16
R17
T13
T14
T15
T16
U12
U13
U14
U15
V12
V13

V14
W12
W13

R23

R25

T23

T25

U23

U25

V23

V25

E5
F4
F5
F6
F7
G6
G7
G8
G9

G10

H7
H8
H9

H10

J7
J8
J9
K7
K8

J13

R9

U401C

VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9
VDD10
VDD11
VDD12
VDD13
VDD14
VDD15
VDD16
VDD17
VDD18
VDD19
VDD20

VDD_CPU1
VDD_CPU2
VDD_CPU3
VDD_CPU4
VDD_CPU5
VDD_CPU6
VDD_CPU7
VDD_CPU8
VDD_CPU9

VDD_GPU1
VDD_GPU2
VDD_GPU3
VDD_GPU4
VDD_GPU5
VDD_GPU6
VDD_GPU7
VDD_GPU8

VDDIO_DDR1
VDDIO_DDR2
VDDIO_DDR3
VDDIO_DDR4
VDDIO_DDR5
VDDIO_DDR6
VDDIO_DDR7
VDDIO_DDR8
VDDIO_DDR9
VDDIO_DDR10
VDDIO_DDR11
VDDIO_DDR12
VDDIO_DDR13
VDDIO_DDR14
VDDIO_DDR15
VDDIO_DDR16
VDDIO_DDR17
VDDIO_DDR18
VDDIO_DDR19
VDDIO_CK_DDR0
VDDIO_CK_DDR1

POWER

AVDD_DDR0_PLL 1
AVDD_DDR0_PLL 2
AVDD_DDR1_PLL 1
AVDD_DDR1_PLL 2

AVDD11_PLL_ AFE
AVDD11_HDMIRX1
AVDD11_HDMIRX2

AVDD11_VBO_1
AVDD11_VBO_2
AVDD11_VBO_3

AVDD33_HDMIRX1
AVDD33_HDMIRX2

AVDD33_VBO_1
AVDD33_VBO_2
AVDD33_VBO_3

PVDD33_CODEC

DVDD33_STANDBY1
DVDD33_STANDBY2

DVDD1833_ EMMC1
DVDD1833_ EMMC2

DVDD11_LDO 1_OUT

Hi3751ARBCV620 0M00

1V1_VDD

C4095

C4091

C4092

100nF 1 6V

1UF 10V

B B

C4105

C4106

1UF 10V

1UF 10V

C4093

1UF 10V

C4107

1UF 10V

C4094

1UF 10V

C4108

1UF 10V

1V1_GPU

1UF 10V

C4109

1UF 10V

C4096

1UF 10V

C4110

1UF 10V

C4097

10uF 6. 3V

0603

C4111

10uF 6. 3V

0603

AVDD11_FE

AVDD11_AFE

AVDD11_QAM

AVDDREF

AVDD11_PLL

DVDD11_USB3
AVCC11_USB2

DVDD33_1
DVDD33_2
DVDD33_3
DVDD33_4
DVDD33_5
DVDD33_6
DVDD33_7
DVDD33_8

AVDD33_FE
AVDD33_AFE1
AVDD33_AFE2

AVDD33_USB2
AVDD33_USB3

AVDD33_PLL

AVREF

C4098

22uF 6. 3V

0603

C4112

22uF 6. 3V

0603

AVDD_DDR0_PLL

J15

AVDD_DDR1_PLL

J11
N9
T8

AC17
AC19
AC18
AC21
AC22

Y23
AA23

U11

N23
M23
M20
M21
M22

R27
T27
W28
Y28
AA28
AD28
AE28
AH28

AE16
AE19
AE18
AE21
AE22

M25
N25
J22
J23
J24

V10

AF28

AC4
AC5

AK8
AK9

AA11

LDO_1V1_ OUT

AC25

C4084

2.2UF 6.3V

1V2_LDO

AVDDREF

1V1_VDD

VCC_3V3

AVDD33_PLL

3V3_STB

VCC_1V8

AVDD11_PLL

1V1_VDD

PVDD33_CODEC

C4083

2.2UF 6.3V

1V2_LDO

FE_1V2

FB404

1 2

120R

USB_3V3

C4085

100nF 1 6V

VCC_3V3

FB401

1 2

120R

HDMI_1V2 & AFE_1V2

C4063

100nF 1 6V

AVDD11_PLL

C4069

100nF 1 6V

VCC_3V3

C4086

10uF 6. 3V

0603 0603

VCC_3V3

C4070

1UF 10V

C4076

100nF 1 6V

1 2

AVDD_DDR0_PLL

C4059

100nF 1 6V

1V2_LDO

C4064

100nF 1 6V

VBO_1V1 & USB_1V1

VCC_3V3

C4077

100nF 1 6V

VBO_3V3

C4087

100nF 1 6V

FB406

120R

C4065

2.2UF 6.3V

VCC_3V3

C4060

1UF 10V

1V1_VDD

C4071

100nF 1 6V

C4078

100nF 1 6V

C4088

1UF 10V

PVDD33_CODEC

C4099

100nF 1 6V

C4066

2.2UF 6.3V

C4072

100nF 1 6V

C4079

1UF 10V

1 2

1V2_LDO

1 2

C4073

10uF 6. 3V

0603

HDMI_3V3 & AFE_3V3

VCC_3V3

C4089

10uF 6. 3V

C4100

1UF 10V

FB402

120R

FB403

120R

VCC_3V3

C4080

100nF 1 6V

FB405

1 2

120R

3V3_STB

C4101

100nF 1 6V

C4061

100nF 1 6V

C4067

100nF 1 6V

FE_3V3

C4074

100nF 1 6V

C4081

100nF 1 6V

C4103

100nF 1 6V

C4102

1UF 10V

AVDD_DDR1_PLLVCC_3V3

AVDDREF

VCC_3V3

AVDD33_PLL

VCC_1V8

C4062

1UF 10V

C4068

1UF 10V

C4075

1UF 10V

C4082

2.2UF 6.3V

C4090

1UF 10V

C4104

10uF 6. 3V

0603

C4225

2.2UF 6.3V

AA12
AA13
AA14
AA15
AA16
AA17
AA18
AA19
AA20
AA21

AB12
AB13
AB14
AB15
AB16
AB17
AB18
AB19
AB20
AB21
AB22
AB23
AB26
AB28

AC15
AC16
AC28

AN33

V21

V20

V19

V18

V17

V16

V15

U22

U21

U20

U19

U18

U17

U16

T22

T21

T20

T19

T18

T17

T12

T11

R22

R21

R20

R19

R18

R13

R12

R11

P23

P22

P21

P20

P19

P18

P14

P13

P12

P11

N22

N21

N20

N19

N18

N17

N16

N15

N14

VSS99

VSS98

VSS97

VSS96

VSS95

VSS153

VSS152

VSS151

VSS150

VSS149

VSS148

VSS147

VSS146V6VSS145V4VSS144V3VSS143

VSS142

VSS141

VSS140

VSS139

VSS138

VSS137

VSS136U8VSS135U7VSS134U5VSS133

VSS132

VSS131

VSS130

VSS129

VSS128

VSS127

VSS126

VSS125T6VSS124T3VSS123

VSS122

VSS121

VSS120

VSS119

VSS118

VSS117

VSS116

VSS115R7VSS114R3VSS113

VSS112

VSS111

VSS110

VSS109

VSS108

VSS107

VSS106

VSS105

VSS104

V22

VSS154

V28

VSS155

W8

VSS156

W14

VSS157

W15

VSS158

W16

VSS159

W17

VSS160

W18

VSS161

W19

VSS162

W20

VSS163

W21

VSS164

W22

VSS165

Y3

VSS166

Y12

VSS167

Y13

VSS168

Y14

VSS169

Y15

VSS170

Y16

VSS171

Y17

VSS172

Y18

VSS173

Y19

VSS174

Y20

VSS175

Y21

VSS176

AA7

VSS177

AA8

VSS178
VSS179
VSS180
VSS181
VSS182
VSS183
VSS184
VSS185
VSS186
VSS187
VSS188

AB2

VSS189
VSS190
VSS191
VSS192
VSS193
VSS194
VSS195
VSS196
VSS197
VSS198
VSS199
VSS200
VSS201
VSS202
VSS203

AC3

VSS204
VSS205
VSS206
VSS207

AD6

VSS208

AE6

VSS209

AF5

VSS210

AG3

VSS211

AG6

VSS212

AH5

VSS213

AH6

VSS214

AJ5

VSS215

AK4

VSS216

AK6

VSS217

AK7

VSS218

AM9

VSS219

AN1

VSS220
VSS221

AVSS33_CODEC

AVSS_QAM2

AGNDREF

AVSS_AFE1

AVSS_QAM1

Y22

AC26

AVSS_HDMIRX4

AVSS_HDMIRX3

AVSS_HDMIRX2

AVSS_HDMIRX1

AVSS_AFE2

AA22

AE23

AE20

AD18

AC23

AC20

AD19

AG31

AVSS_HDMIRX12

AVSS_HDMIRX11

AVSS_HDMIRX10

AVSS_HDMIRX9

AVSS_HDMIRX8

AVSS_HDMIRX7

AVSS_HDMIRX6

AVSS_HDMIRX5

AJ28

AL19

AL17

AK29

AK27

AK25

AK23

AK21

AK19

U401B

GND

Hi3751ARBCV620 0M00

AVSS_USB3_2

AVSS_USB3_1

AVSS_PLL

AVSS_HDMIRX18

AVSS_HDMIRX17

AVSS_HDMIRX16

AVSS_HDMIRX15

AVSS_HDMIRX14

AVSS_HDMIRX13

V11

N29

M31

M30

AL29

AL27

AL25

AL23

AL21

AVSS_VBO_11

AVSS_VBO_10

AVSS_VBO_9

AVSS_VBO_8

AVSS_VBO_7

AVSS_VBO_6

AVSS_VBO_5

AVSS_VBO_4

AVSS_VBO_3

AVSS_VBO_2

AVSS_VBO_1

AVSS_USB3_3

E25

B33

B32

A33

A32

D31

D29

D27

C31

C29

C27

VSS103P9VSS102P6VSS101

AVSS_VBO_20

AVSS_VBO_19

AVSS_VBO_18

AVSS_VBO_17

AVSS_VBO_16

AVSS_VBO_15

AVSS_VBO_14

AVSS_VBO_13

AVSS_VBO_12

K24

K23

K22

E31

E30

E29

E28

E27

E26

VSS94

VSS100

VSS3

VSS2

VSS1A1AVSS33_FE4

AVSS33_FE3

AVSS33_FE2

AVSS33_FE1

A22

A15

A13

AL13

AL11

AK11

AE17

M18

N13

N12

N11

M19

VSS93

VSS85

VSS92

VSS91

VSS90

VSS89N7VSS88N4VSS87N2VSS86

VSS8

VSS7

VSS6B6VSS5B3VSS4

B21

B16

B14

M17

VSS84

M16

VSS83

M15

VSS82

M14

VSS81

M13

VSS80

M12

VSS79

M11

VSS78

M7

VSS77

M4

VSS76

M1

VSS75

L29

VSS74

L26

VSS73

L20

VSS72

L19

VSS71

L18

VSS70

L17

VSS69

L16

VSS68

L15

VSS67

L14

VSS66

L13

VSS65

L12

VSS64

L11

VSS63

L7

VSS62

L5

VSS61

L4

VSS60

L2

VSS59

K31

VSS58

K30

VSS57

K26

VSS56

K4

VSS54

K1

VSS53

J29

VSS52

J14

VSS51

J5

VSS49

J2

VSS48

H31

VSS47

H19

VSS46

H6

VSS45

H4

VSS44

G20

VSS43

G19

VSS42

G17

VSS41

G16

VSS40

G14

VSS39

G13

VSS38

G11

VSS37

G3

VSS36

F21

VSS35

F14

VSS34

F12

VSS33

F10

VSS32

F3

VSS31

E17

VSS30

E15

VSS29

E10

VSS28

E6

VSS27

E4

VSS26

D22

VSS25

D18

VSS24

D17

VSS23

D16

VSS22

D15

VSS21

D8

VSS20

D5

VSS19

D4

VSS18

D2

VSS17

C19

VSS16

C18

VSS15

VSS14

VSS13

VSS12

VSS11C3VSS10C1VSS9

C17

C12

C10

1V1_CPU

C4113

C4114

100nF 1 6V

100nF 1 6V

A A

C4122

1UF 10V

C4123

1UF 10V

C4115

100nF 1 6V

C4124

100nF 1 6V

5

C4116

1UF 10V

C4125

1UF 10V

C4118

C4117

1UF 10V

1UF 10V

C4126

C4127

470NF 10V

1UF 10V

For high temperature:C4126,C4133 change to 065G060347412K F

C4119

1UF 10V

C4128

100nF 1 6V

C4120

10uF 6. 3V

0603

C4129

1UF 10V

C4121

22uF 6. 3V

0603

1V5_DDR3

C4130

100nF 1 6V

C4131

1UF 10V

C4132

100nF 1 6V

C4133

470NF 10V

4

C4134

10uF 6. 3V

0603

C4135

10uF 6. 3V

0603

C4136

10uF 6. 3V

0603

C4137

10uF 6. 3V

0603

C4138

NC/10uF 6.3 V

0603

C4139

NC/10uF 6.3 V

0603

Heat Sink

HS401

1

R4136 NC

2

R4137 NC

HEAT SINK

P90G0025 1

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3 /5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3 /5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3 /5 A

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

Key Component

Key Component

Key Component

08-Hi3751V6 20 Power/GND

08-Hi3751V6 20 Power/GND

08-Hi3751V6 20 Power/GND

Date

Date

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G901 6-M0F-B00- 0040

715G901 6-M0F-B00- 0040

715G901 6-M0F-B00- 0040

of

8 14Monday, June 12, 2017

of

8 14Monday, June 12, 2017

of

8 14Monday, June 12, 2017

1

0603
0603

Custom

Custom

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

5

4

3

2

1

DDR A

1V5_DDR3

R9

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

U402

K4B4G1 646E-BCMA

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

VREF_DQ

VREF_CA

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

UDQS
UDQS

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

LDQS
LDQS

H9

LDM
UDM

ODT

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

H1

DDR_VREF_DQ _0

M8

DDR_VREF_CA_ 0DDR0_DQ14

E3

DDR0_DQ0

F7

DDR0_DQ1

F2

DDR0_DQ2

F8

DDR0_DQ3

H3

DDR0_DQ4

H8

DDR0_DQ5

G2

DDR0_DQ6

H7

DDR0_DQ7

D7

DDR0_DQ8

C3

DDR0_DQ9

C8

DDR0_DQ10

C2

DDR0_DQ11

A7

DDR0_DQ12

A2

DDR0_DQ13

B8

DDR0_DQ14

A3

DDR0_DQ15

F3

DDR0_DQS0_ P

G3

DDR0_DQS0_ N

C7

DDR0_DQS1_ P

B7

DDR0_DQS1_ N

E7

DDR0_DM0

D3

DDR0_DM1

K1

DDR_ODT0_ A

G9

C4141

100nF 1 6V

C4148

1UF 10V

1V5_DDR3

C4142

100nF 1 6V

1V5_DDR3

C4149

1UF 10V

DDR_VREF_DQ _0

R4085

1Kohm 1/16W +/-1%

DDR_VREF_CA_ 0

R4094

1Kohm 1/16W +/-1%

C4143

100nF 1 6V

C4150

470NF 10V

C4154

100nF 1 6V

C4157

100nF 1 6V

C4144

100nF 1 6V

C4151

470NF 10V

C4155

1UF 10V

C4158

1UF 10V

C4145

1UF 10V

C4152

100nF 1 6V

C4146

22uF 6. 3V

0603

C4153

100nF 1 6V

1V5_DDR3

R4088

4.7K1/16W

C4156

1NF

DDR_ADDR0_A
DDR_ADDR1_A
DDR_ADDR2_A
DDR_ADDR3_A
DDR_ADDR4_A
DDR_ADDR5_A
DDR_ADDR6_A
DDR_ADDR7_A
DDR_ADDR8_A
DDR_ADDR9_A
DDR_ADDR10_ A
DDR_ADDR11_ A
DDR_ADDR12_ A
DDR_ADDR13_ A
DDR_ADDR14_ A

DDR_BA0_A
DDR_BA1_A
DDR_BA2_A

DDR0_CLK0_ P
DDR0_CLK0_ N

DDR_CKE_A

DDR_CS0N_A

DDR_RASN_A
DDR_CASN_A
DDR_WEN_A

DDR_RESETN_A

R4092

240R 1%

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

U401A

DDR0_ADDR0
DDR0_ADDR1
DDR0_ADDR2
DDR0_ADDR3
DDR0_ADDR4

D D

DDR0_CLK0_ P
DDR0_CLK0_ N

C C

DDR0_ADDR5
DDR0_ADDR6
DDR0_ADDR7
DDR0_ADDR8
DDR0_ADDR9
DDR0_ADDR10
DDR0_ADDR11
DDR0_ADDR12
DDR0_ADDR13
DDR0_ADDR14

DDR0_BA0
DDR0_BA1
DDR0_BA2

DDR0_CSN
DDR0_CKE

DDR0_RASN

DDR0_WEN

DDR0_RESETN

R4086 33 OHM 1/16W
R4087 33 OHM 1/16W

DDR0_DQS0_ P
DDR0_DQS0_ N
DDR0_DQS1_ P
DDR0_DQS1_ N
DDR0_DQS2_ P
DDR0_DQS2_ N
DDR0_DQS3_ P
DDR0_DQS3_ N

C6
A9
B5
E7
C9
B4
C8
A4
B8
C7
F9
A7
D9
D6
B7

C4
E9
D7

B2

A2

D10

A6
E8
A3

C5

B10
A10

C20
B20
B19
A19
C13
B13
B12
A12

DDR0_A0
DDR0_A1
DDR0_A2
DDR0_A3
DDR0_A4
DDR0_A5
DDR0_A6
DDR0_A7
DDR0_A8
DDR0_A9
DDR0_A10
DDR0_A11
DDR0_A12
DDR0_A13
DDR0_A14

DDR0_BA0
DDR0_BA1
DDR0_BA2

DDR0_ODT

DDR0_CS_N
DDR0_CKE

DDR0_RAS_N
DDR0_CAS_N
DDR0_WE_N

DDR0_RESETN

DDR0_CLK0_ P
DDR0_CLK0_ N

DDR0_DQS0_ P
DDR0_DQS0_ N
DDR0_DQS1_ P
DDR0_DQS1_ N
DDR0_DQS2_ P
DDR0_DQS2_ N
DDR0_DQS3_ P
DDR0_DQS3_ N

DDR0

Hi3751ARBCV620 0M00

DDR0_DQ0
DDR0_DQ1
DDR0_DQ2
DDR0_DQ3
DDR0_DQ4
DDR0_DQ5
DDR0_DQ6
DDR0_DQ7
DDR0_DQ8

DDR0_DQ9
DDR0_DQ10
DDR0_DQ11
DDR0_DQ12
DDR0_DQ13
DDR0_DQ14
DDR0_DQ15
DDR0_DQ16
DDR0_DQ17
DDR0_DQ18
DDR0_DQ19
DDR0_DQ20
DDR0_DQ21
DDR0_DQ22
DDR0_DQ23
DDR0_DQ24
DDR0_DQ25
DDR0_DQ26
DDR0_DQ27
DDR0_DQ28
DDR0_DQ29
DDR0_DQ30
DDR0_DQ31

DDR0_DM0

DDR0_DM1

DDR0_DM2

DDR0_DM3

DDR0_ZQ

C22

DDR0_DQ0

E18

DDR0_DQ1

D21

DDR0_DQ6

F18

DDR0_DQ3

E21

DDR0_DQ4

C16

DDR0_DQ7

D20

DDR0_DQ2

B17

DDR0_DQ5

F19

DDR0_DQ8

B22

DDR0_DQ11

A18
A21

DDR0_DQ9

D19

DDR0_DQ12

C21

DDR0_DQ13

B18

DDR0_DQ10

E20

DDR0_DQ15

C14

DDR0_DQ18

E12

DDR0_DQ21

C15

DDR0_DQ22

F11

DDR0_DQ23

A16

DDR0_DQ20DDR0_ODT

D11

DDR0_DQ17

F15

DDR0_DQ16

E11

DDR0_DQ19

D12

DDR0_DQ26

E16

DDR0_DQ31

C11

DDR0_DQ24

B15

DDR0_DQ25

D13

DDR0_DQ30

F16

DDR0_DQ27

E13

DDR0_DQ28

F17

DDR0_DQ29

F20

DDR0_DM0

E19

DDR0_DM1

E14

DDR0_DM2

D14

DDR0_DM3

F8

R4093

240R 1%

DDR0_ADDR6

DDR0_ADDR4
DDR0_ADDR1

DDR0_ADDR10
DDR0_ADDR14
DDR0_ADDR11
DDR0_ADDR8

DDR0_ADDR0
DDR0_BA2
DDR0_CASN
DDR0_RASN

DDR0_RESETN
DDR0_ADDR13
DDR0_ADDR9
DDR0_ADDR2

DDR0_BA0
DDR0_ADDR3
DDR0_ADDR5
DDR0_ADDR7

DDR0_BA1
DDR0_ADDR12DDR0_CASN

DDR0_CKE

DDR0_ODT

DDR0_CSN

DDR0_WEN

DDR0_CLK0_ P

1

RP403 33R

RP404 33R

RP405 33R

RP406 33R

RP407 33R

RP408 33R

RP409 33R

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

R4089 33 OHM 1/16W

R4090 200R 1%

DDR_ADDR6_A

DDR_ADDR4_A
DDR_ADDR1_A

DDR_ADDR10_ A
DDR_ADDR14_ A
DDR_ADDR11_ A
DDR_ADDR8_A

DDR_ADDR0_A
DDR_BA2_A
DDR_CASN_A
DDR_RASN_A

DDR_RESETN_A
DDR_ADDR13_ A
DDR_ADDR9_A
DDR_ADDR2_A

DDR_BA0_A
DDR_ADDR3_A
DDR_ADDR5_A
DDR_ADDR7_A

DDR_BA1_A
DDR_ADDR12_ A

DDR_CKE_A

DDR_ODT0_ A

DDR_CS0N_A

DDR_WEN_A

DDR0_CLK0_ N

VDD

C4140

100nF 1 6V

VDDQ

C4147

1UF 10V

1V5_DDR3

1V5_DDR3

R4084

1Kohm 1/16W +/-1%

R4091

1Kohm 1/16W +/-1%

DDR B

1V5_DDR3

R9

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

U403

K4B4G1 646E-BCMA

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

VREF_DQ

VREF_CA

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

UDQS
UDQS

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

LDQS
LDQS

H9

LDM
UDM

ODT

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

H1

DDR_VREF_DQ _1

M8

DDR_VREF_CA_ 1DDR_ADDR4_B

E3

DDR0_DQ16

F7

DDR0_DQ17

F2

DDR0_DQ18

F8

DDR0_DQ19

H3

DDR0_DQ20

H8

DDR0_DQ21

G2

DDR0_DQ22

H7

DDR0_DQ23

D7

DDR0_DQ24

C3

DDR0_DQ25

C8

DDR0_DQ26

C2

DDR0_DQ27

A7

DDR0_DQ28

A2

DDR0_DQ29

B8

DDR0_DQ30

A3

DDR0_DQ31

F3

DDR0_DQS2_ P

G3

DDR0_DQS2_ N

C7

DDR0_DQS3_ P

B7

DDR0_DQS3_ N

E7

DDR0_DM2

D3

DDR0_DM3

K1

DDR_ODT1_ B

G9

C4160

1UF 10V

C4167

1UF 10V

1V5_DDR3

C4161

100nF 1 6V

1V5_DDR3

C4168

1UF 10V

DDR_VREF_DQ _1

R4096

1Kohm 1/16W +/-1%

DDR_VREF_CA_ 1

R4101

1Kohm 1/16W +/-1%

C4162

100nF 1 6V

C4169

1UF 10V

C4173

100nF 1 6V

C4176

100nF 1 6V

C4163

100nF 1 6V

C4170

1UF 10V

C4174

1UF 10V

C4177

1UF 10V

C4164

100nF 1 6V

C4171

470NF 10V

C4165

22uF 6. 3V

0603

C4172

470NF 10V

1V5_DDR3

R4097

4.7K1/16W

C4175

1NF

DDR_ADDR0_B
DDR_ADDR1_B
DDR_ADDR2_B
DDR_ADDR3_B

DDR_ADDR5_B
DDR_ADDR6_B
DDR_ADDR7_B
DDR_ADDR8_B
DDR_ADDR9_B
DDR_ADDR10_ B
DDR_ADDR11_ B
DDR_ADDR12_ B
DDR_ADDR13_ B
DDR_ADDR14_ B

DDR_BA0_B
DDR_BA1_B
DDR_BA2_B

DDR0_CLK0_ P
DDR0_CLK0_ N

DDR_CKE_B

DDR_CS1N_B

DDR_RASN_B
DDR_CASN_B
DDR_WEN_B

DDR_RESETN_B

R4100

240R 1%

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

1

DDR0_ADDR1
DDR0_ADDR4

DDR0_ADDR6

DDR0_ADDR8
DDR0_ADDR11
DDR0_ADDR14

B B

A A

DDR0_ADDR10

DDR0_RASN
DDR0_CASN
DDR0_BA2
DDR0_ADDR0

DDR0_ADDR2
DDR0_ADDR9
DDR0_ADDR13
DDR0_RESETN

DDR0_ADDR7
DDR0_ADDR5
DDR0_ADDR3
DDR0_BA0

DDR0_CKE

DDR0_ADDR12
DDR0_BA1

DDR0_CSN

DDR0_ODT

DDR0_WEN

RP410 33R

RP411 33R

RP412 33R

RP413 33R

RP414 33R

RP415 33R

RP416 33R

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

R4098 33 OHM 1/16W

DDR_ADDR1_B
DDR_ADDR4_B

DDR_ADDR6_B

DDR_ADDR8_B
DDR_ADDR11_ B
DDR_ADDR14_ B
DDR_ADDR10_ B

DDR_RASN_B
DDR_CASN_B
DDR_BA2_B
DDR_ADDR0_B

DDR_ADDR2_B
DDR_ADDR9_B
DDR_ADDR13_ B
DDR_RESETN_B

DDR_ADDR7_B
DDR_ADDR5_B
DDR_ADDR3_B
DDR_BA0_B

DDR_CKE_B

DDR_ADDR12_ B
DDR_BA1_B

DDR_CS1N_B

DDR_ODT1_ B

DDR_WEN_B

VDD

C4159

100nF 1 6V

VDDQ

C4166

100nF 1 6V

1V5_DDR3

1V5_DDR3

R4095

1Kohm 1/16W +/-1%

R4099

1Kohm 1/16W +/-1%

DDRA

512MB

2GB

1.5GB 256MB

DDRB

512MB

256MB

5

DDRC

512MB

512MB

DDRD

512MB

512MB

R4138 0R05 1/8W
R4139 0R05 1/8W

4

0805
0805

Custom

Custom

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

Key Component

Key Component

Key Component

09-Hi3751V6 20 DDR III-1

09-Hi3751V6 20 DDR III-1

09-Hi3751V6 20 DDR III-1

Date

Date

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G901 6-M0F-B00- 0040

715G901 6-M0F-B00- 0040

715G901 6-M0F-B00- 0040

of

9 14Monday, June 12, 2017

of

9 14Monday, June 12, 2017

of

9 14Monday, June 12, 2017

1

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

5

4

3

2

1

DDR C

1V5_DDR3

R9

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

U404

K4B4G1 646E-BCMA

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

VREF_DQ

VREF_CA

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

UDQS
UDQS

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

LDQS
LDQS

H9

LDM
UDM

ODT

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

H1

DDR_VREF_DQ _2

M8

DDR_VREF_CA_ 2

E3

DDR1_DQ0

F7

DDR1_DQ1

F2

DDR1_DQ2

F8

DDR1_DQ3

H3

DDR1_DQ4

H8

DDR1_DQ5

G2

DDR1_DQ6

H7

DDR1_DQ7

D7

DDR1_DQ8

C3

DDR1_DQ9

C8
C2

DDR1_DQ11

A7

DDR1_DQ12

A2

DDR1_DQ13

B8
A3

DDR1_DQ15

F3

DDR1_DQS0_ P

G3

DDR1_DQS0_ N

C7

DDR1_DQS1_ P

B7

DDR1_DQS1_ N

E7

DDR1_DM0

D3

DDR1_DM1

K1

DDR_ODT0_ C

G9

C4179

100nF 1 6V

C4186

100nF 1 6V

1V5_DDR3

C4180

100nF 1 6V

1V5_DDR3

C4187

100nF 1 6V

DDR_VREF_DQ _2

R4103

1Kohm 1/16W +/-1%

DDR_VREF_CA_ 2

R4112

1Kohm 1/16W +/-1%

C4181

470NF 10V

C4188

470NF 10V

C4192

100nF 1 6V

C4195

100nF 1 6V

C4182

100nF 1 6V

C4189

1UF 10V

C4193

1UF 10V

C4196

1UF 10V

C4183

100nF 1 6V

C4190

1UF 10V

C4184

22uF 6. 3V

0603

C4191

1UF 10V

1V5_DDR3

R4106

4.7K1/16W

C4194

1NF

DDR_ADDR0_C
DDR_ADDR1_C
DDR_ADDR2_C
DDR_ADDR3_C
DDR_ADDR4_C
DDR_ADDR5_C
DDR_ADDR6_C
DDR_ADDR7_C
DDR_ADDR8_C
DDR_ADDR9_C
DDR_ADDR10_ C
DDR_ADDR11_ C
DDR_ADDR12_ C
DDR_ADDR13_ C
DDR_ADDR14_ C

DDR_BA0_C
DDR_BA1_C
DDR_BA2_C

DDR1_CLK0_ P
DDR1_CLK0_ N

DDR_CKE_CDDR_O DT0_C

DDR_CS0N_C

DDR_RASN_C
DDR_CASN_C
DDR_WEN_C

DDR_RESETN_C

R4110

240R 1%

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

U401G

DDR1_ADDR0
DDR1_ADDR1
DDR1_ADDR2
DDR1_ADDR3
DDR1_ADDR4

D D

DDR1_CLK0_ P
DDR1_CLK0_ N

C C

DDR1_ADDR5
DDR1_ADDR6
DDR1_ADDR7
DDR1_ADDR8
DDR1_ADDR9
DDR1_ADDR10
DDR1_ADDR11
DDR1_ADDR12
DDR1_ADDR13
DDR1_ADDR14

DDR1_BA0
DDR1_BA1
DDR1_BA2

DDR1_CSN
DDR1_CKE

DDR1_RASN
DDR1_CASN DDR1_DQ14
DDR1_WEN

DDR1_RESETN

R4104 33 OHM 1/16W
R4105 33 OHM 1/16W

DDR1_DQS0_ P
DDR1_DQS0_ N
DDR1_DQS1_ P
DDR1_DQS1_ N
DDR1_DQS2_ P
DDR1_DQS2_ N
DDR1_DQS3_ P
DDR1_DQS3_ N

W6

U6
AA2
AB6

V2

Y5

V5
AB4

W3

AA3

Y2

W4

T5
AA5

Y1

AA4

V1

Y6

AB3

AB1

T4

Y4

W5

AB5

AA6

U3

U4

G1
G2

H2

H3

P3

P2

R2

R1

DDR1_A0
DDR1_A1
DDR1_A2
DDR1_A3
DDR1_A4
DDR1_A5
DDR1_A6
DDR1_A7
DDR1_A8
DDR1_A9
DDR1_A10
DDR1_A11
DDR1_A12
DDR1_A13
DDR1_A14

DDR1_BA0
DDR1_BA1
DDR1_BA2

DDR1_ODT

DDR1_CS_N
DDR1_CKE

DDR1_RAS_N
DDR1_CAS_N
DDR1_WE_N

DDR1_RESETN

DDR1_CLK0_ P
DDR1_CLK0_ N

DDR1_DQS0_ P
DDR1_DQS0_ N
DDR1_DQS1_ P
DDR1_DQS1_ N
DDR1_DQS2_ P
DDR1_DQS2_ N
DDR1_DQS3_ P
DDR1_DQS3_ N

DDR1

Hi3751ARBCV620 0M00

DDR1_DQ0
DDR1_DQ1
DDR1_DQ2
DDR1_DQ3
DDR1_DQ4
DDR1_DQ5
DDR1_DQ6
DDR1_DQ7
DDR1_DQ8

DDR1_DQ9
DDR1_DQ10
DDR1_DQ11
DDR1_DQ12
DDR1_DQ13
DDR1_DQ14
DDR1_DQ15
DDR1_DQ16
DDR1_DQ17
DDR1_DQ18
DDR1_DQ19
DDR1_DQ20
DDR1_DQ21
DDR1_DQ22
DDR1_DQ23
DDR1_DQ24
DDR1_DQ25
DDR1_DQ26
DDR1_DQ27
DDR1_DQ28
DDR1_DQ29
DDR1_DQ30
DDR1_DQ31

DDR1_DM0

DDR1_DM1

DDR1_DM2

DDR1_DM3

DDR1_ZQ

D3

DDR1_DQ2

K2

DDR1_DQ1

C2

DDR1_DQ6

K3

DDR1_DQ3

B1

DDR1_DQ4

M2

DDR1_DQ5

D1

DDR1_DQ0

L3

DDR1_DQ7

H5

DDR1_DQ12

E3

DDR1_DQ11

J1

DDR1_DQ10

E2

DDR1_DQ13

J3

DDR1_DQ8

F2

DDR1_DQ9

J6

DDR1_DQ14

F1

DDR1_DQ15

M5

DDR1_DQ16

N3

DDR1_DQ17

K5

DDR1_DQ18

R5

DDR1_DQ21

K6

DDR1_DQ22DDR1_ODT

R4

DDR1_DQ19

J4

DDR1_DQ20 DDR1_DQ10

R6

DDR1_DQ23

P4

DDR1_DQ24

M6

DDR1_DQ25

T2

DDR1_DQ26

N1

DDR1_DQ31

P5

DDR1_DQ28

M3

DDR1_DQ29

T1

DDR1_DQ30

L6

DDR1_DQ27

G5

DDR1_DM0

G4

DDR1_DM1

N5

DDR1_DM2

N6

DDR1_DM3

AB7

R4111

240R 1%

DDR1_ADDR6

DDR1_ADDR4
DDR1_ADDR1

DDR1_ADDR10
DDR1_ADDR14
DDR1_ADDR11
DDR1_ADDR8

DDR1_ADDR0
DDR1_BA2
DDR1_CASN

DDR1_ADDR5
DDR1_ADDR13
DDR1_ADDR9
DDR1_ADDR2

DDR1_BA0
DDR1_ADDR3
DDR1_ADDR7
DDR1_RESETN

DDR1_BA1
DDR1_ADDR12

DDR1_CKE

DDR1_ODT

DDR1_CSN

DDR1_WEN

DDR1_CLK0_ P

1

RP417 33R

RP418 33R

RP419 33R

RP420 33R

RP421 33R

RP422 33R

RP423 33R

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

R4107 33 OHM 1/16W

R4108 200R 1%

DDR_ADDR6_C

DDR_ADDR4_C
DDR_ADDR1_C

DDR_ADDR10_ C
DDR_ADDR14_ C
DDR_ADDR11_ C
DDR_ADDR8_C

DDR_ADDR0_C
DDR_BA2_C
DDR_CASN_C
DDR_RASN_CDDR1_RASN

DDR_ADDR5_C
DDR_ADDR13_ C
DDR_ADDR9_C
DDR_ADDR2_C

DDR_BA0_C
DDR_ADDR3_C
DDR_ADDR7_C
DDR_RESETN_C

DDR_BA1_C
DDR_ADDR12_ C

DDR_CKE_C

DDR_CS0N_C

DDR_WEN_C

DDR1_CLK0_ N

VDD

C4178

100nF 1 6V

VDDQ

C4185

100nF 1 6V

1V5_DDR3

1V5_DDR3

R4102

1Kohm 1/16W +/-1%

R4109

1Kohm 1/16W +/-1%

DDR D

1V5_DDR3

R9

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

U405

K4B4G1 646E-BCMA

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

VREF_DQ

VREF_CA

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

UDQS
UDQS

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

LDQS
LDQS

H9

LDM
UDM

ODT

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

H1

DDR_VREF_DQ _3

M8

DDR_VREF_CA_ 3

E3

DDR1_DQ16

F7

DDR1_DQ17

F2

DDR1_DQ18

F8

DDR1_DQ19

H3

DDR1_DQ20

H8

DDR1_DQ21

G2

DDR1_DQ22

H7

DDR1_DQ23

D7

DDR1_DQ24

C3

DDR1_DQ25

C8

DDR1_DQ26

C2

DDR1_DQ27

A7

DDR1_DQ28

A2

DDR1_DQ29

B8

DDR1_DQ30

A3

DDR1_DQ31

F3

DDR1_DQS2_ P

G3

DDR1_DQS2_ N

C7

DDR1_DQS3_ P

B7

DDR1_DQS3_ N

E7

DDR1_DM2

D3

K1

DDR_ODT1_ D

G9

C4198

470NF 10V

C4205

100nF 1 6V

1V5_DDR3

C4199

100nF 1 6V

1V5_DDR3

C4206

100nF 1 6V

DDR_VREF_DQ _3

R4114

1Kohm 1/16W +/-1%

DDR_VREF_CA_ 3

R4119

1Kohm 1/16W +/-1%

C4200

100nF 1 6V

C4207

100nF 1 6V

C4211

100nF 1 6V

C4214

100nF 1 6V

C4201

100nF 1 6V

C4208

100nF 1 6V

C4212

1UF 10V

C4215

1UF 10V

C4202

100nF 1 6V

C4209

100nF 1 6V

C4203

22uF 6. 3V

0603

C4210

100nF 1 6V

1V5_DDR3

R4115

4.7K1/16W

C4213

1NF

DDR_ADDR0_D
DDR_ADDR1_D
DDR_ADDR2_D
DDR_ADDR3_D
DDR_ADDR4_D
DDR_ADDR5_D
DDR_ADDR6_D
DDR_ADDR7_D
DDR_ADDR8_D
DDR_ADDR9_D
DDR_ADDR10_ D
DDR_ADDR11_ D
DDR_ADDR12_ D
DDR_ADDR13_ D
DDR_ADDR14_ D

DDR_BA0_D
DDR_BA1_D
DDR_BA2_D

DDR1_CLK0_ P
DDR1_CLK0_ N

DDR_CKE_D

DDR_CS1N_D

DDR_RASN_D
DDR_CASN_D
DDR_WEN_D

DDR_RESETN_D

R4118

240R 1%

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

1

DDR1_ADDR1
DDR1_ADDR4

DDR1_ADDR6

DDR1_ADDR8
DDR1_ADDR11
DDR1_ADDR14

B B

A A

DDR1_ADDR10

DDR1_RASN
DDR1_CASN
DDR1_BA2
DDR1_ADDR0

DDR1_ADDR2
DDR1_ADDR9
DDR1_ADDR13
DDR1_ADDR5

DDR1_RESETN
DDR1_ADDR7
DDR1_ADDR3
DDR1_BA0

DDR1_CKE

DDR1_ADDR12
DDR1_BA1

DDR1_CSN

DDR1_ODT

DDR1_WEN DDR1_DM3

RP424 33R

RP425 33R

RP426 33R

RP427 33R

RP428 33R

RP429 33R

RP430 33R

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

R4116 33 OHM 1/16W

DDR_ADDR1_D
DDR_ADDR4_D

DDR_ADDR6_D

DDR_ADDR8_D
DDR_ADDR11_ D
DDR_ADDR14_ D
DDR_ADDR10_ D

DDR_RASN_D
DDR_CASN_D
DDR_BA2_D
DDR_ADDR0_D

DDR_ADDR2_D
DDR_ADDR9_D
DDR_ADDR13_ D
DDR_ADDR5_D

DDR_RESETN_D
DDR_ADDR7_D
DDR_ADDR3_D
DDR_BA0_D

DDR_CKE_D

DDR_ADDR12_ D
DDR_BA1_D

DDR_CS1N_D

DDR_ODT1_ D

DDR_WEN_D

VDD

C4197

470NF 10V

VDDQ

C4204

100nF 1 6V

1V5_DDR3

1V5_DDR3

R4113

1Kohm 1/16W +/-1%

R4117

1Kohm 1/16W +/-1%

DDRB

DDRA

512MB

2GB 512MB

256MB

1.5GB

256MB

5

DDRC

512MB

512MB

DDRD

512MB

512MB

Custom

Custom

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3 /5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3 /5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3 /5 A

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

G9016-M 0F-B00-0040-17 0525

Key Component

Key Component

Key Component

10-Hi3751V6 20 DDR III-2

10-Hi3751V6 20 DDR III-2

10-Hi3751V6 20 DDR III-2

Date

Date

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G901 6-M0F-B00- 0040

715G901 6-M0F-B00- 0040

715G901 6-M0F-B00- 0040

of

10 14Monday, June 12, 2017

of

10 14Monday, June 12, 2017

of

10 14Monday, June 12, 2017

1

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

AmbiLight

5

4

3

2

1

VCC_3V3

VCC_3V3VCC_3V3

VCC_3V3

VDD

SPICLK

A2
A1
A0

INT

VCC_3V3

16
15
14
13
12
11
10
9

R4127 10K

R4121 NC
R4122 10K

SPI_CLKSPI_DATA

C4216

1UF 10V

R4120

R4124

10K

10K

C4217

1UF 10V

D D

R4125 33 OHM 1/16W

I2C2_SCL

R4126 33 OHM 1/16W

7
7

I2C2_SDA
I2C2_SCL

R4123

10K R4128 100R 1/16W 1%

U411

SC18IS602BIPW

1

SS0/GPIO0

2

SS1/GPIO1

3

RESET

4

Vss

5

MISO

6

MOSI

7

SDA

8

SCL

SS3/GPIO3

SS2/GPIO2

I2C Address: 0x28

2K17 AL3 to Joystick

CN403

1415

1
2
3
4
5
6
7
8
9
10
11

CONN

12
13

C4218

1NF

R4142 33 OHM 1/16W

R4143 33 OHM 1/16W

R4129 NC33 OHM 1/16W

R4130 NC33 OHM 1/16W

R4280 NC/6K8 1%

C4220

C4219

22PF 50V

22PF 50V

Ambilight SPI reserve
Rain

AMBI_SPI_CLK

AMBI_SPI_DATA

KEY0_IN

SPI_CLKI2C2_SDA

SPI_DATA

LED_VCC

KEY0_IN

AMBI_SPI_CLK

AMBI_SPI_DATA

7

7

7

311GW125D10ACL change to 311GW125D13ACL

C C

AL_12V

1 2

FB746 120R 6 A

P12V

FB747

B B

1 2

AMBI_ON_OFF

NC/120R 6 A

C4223

10UF 16V

0805

VCC_3V3

AMBI_ON_OFF

AMBI_SPI_CLK

AL Protection

1
2
3

C4224

22NF 25V

R4233 NC/10K 1/1 6W 5%

R4144 33 OHM 1/16W

7

R4145 NC/33 OHM 1/16W

Ambilight SPI reserve
Rain

F401

NC/2A 63V

U412

APL3546A KAI-TRG

9

GND

8

VIN

VOUT

7

SS

ISET

6

GND

EN

5

NC4NC

R4132

10K

R4131

130K 1/1 0W

0603

130K ---> 3A

C4227

+

100UF 16V

LED_VCC

C4221

10UF 16V

LED_VCC

08050805

C4222

10UF 16V

Reserve for connect to last light bar

2728

CONN 26P

311GF050N26BDX
/311GF050N26BDJ

CN406

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

LED_VCC

GND

GND

A A

Custom

Custom

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5 A

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

Key Component

Key Component

Key Component

11-AmbiLight

11-AmbiLight

11-AmbiLight

Date

Date

5

4

3

Date

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G90 16-M0F-B00-00 40

715G90 16-M0F-B00-00 40

715G90 16-M0F-B00-00 40

of

11 14Monday, Jun e 12, 2017

of

11 14Monday, Jun e 12, 2017

of

11 14Monday, Jun e 12, 2017

1

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

5

2.0 CH -> use 356G061613300A AD82588B

2.1 CH -> use 356G0616048602 AD83586B

+

I2C0_SDA
I2C0_SCL

Mode

Stereo

Mode

Mono

Stereo

C604

100uF 35V

SMT

C615

100nF 16V

AUD_RSTN

R608

10K

AMP_PWRAU_12V

+

AMP_3V3

I2S_DOUT
I2S_WS
I2S_BCLK
I2S_MCLK

VCC_3V3

7
7

C605

100uF 35V

SMT

C616

10uF 10V

0805

R609

10K

7

AMP_PWR

C608

0.1uF

0603

CFG0
CFG1

I2S_DOUT
I2S_WS
I2S_BCLK
I2S_MCLK

AMP_PWR

C623

0.1uF

0603

AMP_3V3

R613

R612

NC/1K

1K

CFG0
CFG1

R619

R620

NC/1K

1K

R625 33 OHM 1/16W

LA

C609

0.1uF

0603

7
7
7
7

VCC_3V3

49

10
11
12

C624

0.1uF

R623

NC/1M 1/16W

C633

0.1uF

0603

45LA46

47NC48

VDDLA

THERMALPAD

1

SDATA1

2

MS

3

PLL

4

CFG0

5

CFG1

6

CLK_OUT

7

DGND

AD83586B-LG48NAY

8

DVDD

9

SDATA0
LRCIN
BCLK
MCLK

NC13VDDS114S1A15GNDS116S1B17VDDS118VDDS219S2B20GNDS221S2A22VDDS223NC

SA1

AMP_3V3

Initial default volume setting
1 : Un-Mute
0 : Mute

AMP_RSTN

R627

10K

GNDL

SA2

R614

NC/10K

AMP_DEF

R618

10K

LB

U601

RB

40RB41

42

43LB44

GNDR

VDDLB

VDDRB

SB2

SB1

FB601

VCC_3V3

AD83586

CFG0

0

1

X

AD82588

CFG0

1

0

1

1 2

I2C0_SDA
I2C0_SCL

CFG1

CFG1

AUD_RSTN

120R 3A

D601

1 2

SS0520_R1

FB602

1 2

NC/600 OHM

0LoMono

0

1

2.1 Channel

1

1

2.1 Channel

0

D D

C C

B B

RA

LINEIN

LREX

RESET#

ERROR#

DVDD

DGND

4

LA

AMP_PWR

C610

C611

0.1uF

0.1uF

0603

A_SCL
A_SDA

C626

0.1uF

0603

SA0

Lo

Lo

Hi

Hi

R615

NC/10K

R621

10K

AMP_RSTN
AMP_PDN

AMP_DEF
AMP_SA1
AMP_SA0

AMP_3V3

SA1

Lo

Hi

Hi

0603

AMP_3V3

AMP_3V3

R605 33 OHM 1/16W
R606 33 OHM 1/16W

R616

NC/10K

AMP_SA0
AMP_SA1

R622

10K

I2C Address

0x60

0x62

0x68

0x6A

C617

100nF 16V

I2C0_SCL
I2C0_SDA

37

38RA39

NC

VDDRA

36
35
34
33
32

PD#

31

30

29

DEF

28

SA1

27

SA0

26

SCL

25

SDA

24

AMP_PWR

C625

0.1uF

06030603

LB

RA

RB

SA1

SA2

SB1

SB2

3

10uH -> 373G253S081X00
22uH -> 373G253S193D00
47uH -> 373G253S173Y00

C601

R601

470P 50V

10 OHM 1/4W

1206

0603

R602

C606

10 OHM 1/4W

470P 50V

0603

1206

R603

C612

10 OHM 1/4W

470P 50V

0603

1206

C618

R604

470P 50V

10 OHM 1/4W

0603

1206

1 2

FB603 120R 3A

R607

C620

10 OHM 1/4W

470P 50V

0603

1206

1 2

FB604 120R 3A

R610

C621

10 OHM 1/4W

470P 50V

0603

1206

1 2

FB605 120R 3A

R611

C628

10 OHM 1/4W

470P 50V

0603

1206

1 2

FB606 120R 3A

R617

C630

10 OHM 1/4W

470P 50V

0603

1206

L601

22uH

L602

22uH

L603

22uH

L604

22uH

C603

470NF 50V

C614

470NF 50V

L605

10uH

L606

10uH

2

1

For external AMP

CN608

CONN

HS601

1
2

HEAT SINK

Q90G6119 6

Coaxial

CN603

2

1

3

388G078G111ACL

1
2
3
4
5
6
7
8

9
10
11

12 1 3

A

RCA JACK

For AMP EMI solution,C602/C607/C613/C619 need change to 100nF.
Rain

C602

100nF 50V

0805

0805

C607

100nF 50V

0805

C613

100nF 50V

0805

0805

C619

100nF 50V

0805

CN601

4

L+
L­R+
R-

C603,C614 footprint change to 0805 for 50V
Rain

L+

3

L-

2

R+

1

R-

5 6

CONN

4Pin R/A 2.0mm
311GW200A04ABX

Speaker

L

Output

R

I2S_MCLK
I2S_BCLK
I2S_WS
I2S_DOUT

VCC_3V3

AMP_RSTN
AMP_PDN
A_SCL
A_SDA

311GW125D11ACL

For external AMP reserve
Rain

Heat Sink

CN602

4
3
2

C627

0.47UF 50V

0805

C622

680NF 50V

1206

C629

680NF 50V

1206

SW+
SW-

1

4Pin R/A 2.5mm
311GW250B04DBX or
311GW250B04DBL

5 6

CONN

SubWoofer
Output

SPDIF Output (Rear)

SPDIF_OUT

SPDIF_OUT

R624 100OHM

6

C631 1UF16V

C632

R626

NC

NC/75 OHM 1/16W

Coaxial

0603

12

ZD601

NC/MLVG0402

LINE_OUT_R2

For POP Noise

A A

Active LOW

AUD_MUTE

AUD_MUTE

R644

7

5V_STB

D602

LL4148

R646

100K

VCC_3V3

C634

+

100UF 16V

SMT

Q602
MMBT3906

Q601

MMBT3906

R647 4.7K1/16W

LINE_OUT_L2

VCC_3V3

R642

10K

AMP_PDN

Q603
MMBT3904

R648

100K

R630

10K 1/10W

0603

10K

5

LINE_OUT_L2

4

R628 100K

C635 1UF 10V

6

R631 10K

C637

1UF 10V

AMP_PDN

R643 100OHM

A_OUT_L

R633 20K 1/16W

C640

1UF 10V

1
2
3
4
5
6

U602
AD22650-QH14NAT

LINP

RINP

LINN

RINN

OUTL

OUTR

SGND

UVP

EN

PGND

PVSS

PVDD

CN7CP

C639 1UF 10V

14
13
12
11
10
9
8

A_OUT_R

R634 20K 1/16W
R635 30K OHM

FB607

1 2

300R

C641

1UF 10V

3

LINE_OUT_R2

VCC_3V3

R629 100K

C636 1UF 10V
R632 10K

6

P12V

VCC_3V3

C638

1UF 10V

R639

R638

NC/1.5K 1/16W

1.5K 1/16W ZD604

R645

1K

A_OUT_L

R636 10 OHM

A_OUT_R

R637 10 OHM

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

Key Compon ent

Key Compon ent

Key Compon ent

12-Audio Amp/SPK/SPDIF/A udio Output

12-Audio Amp/SPK/SPDIF/A udio Output

12-Audio Amp/SPK/SPDIF/A udio Output

Date

Date

Date

2

AV_CVBS_OUT

R640

NC/100K

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

AV Output (Side)

AV_CVBS_OUT

6

LINE_LOUT
LINE_ROUT

12

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

12

ZD603

NC/MLVG0402

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G9016-M0F-B00-0040

715G9016-M0F-B00-0040

715G9016-M0F-B00-0040

12 14Monday, June 12, 2017

12 14Monday, June 12, 2017

12 14Monday, June 12, 2017

NC/MLVG0402

of

of

of

R641

NC/100K

12

ZD602

NC/MLVG0402

CN605

3
5
4
2
1

PHONE JACK

388G302F5B1ACL

1

Custom

Custom

Custom

Size

Size

Size

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

5

From Power Board

AL_12V

D D

P12V

BL_ON

C C

PWR_ON_OFF

B B

A A

CN702

2
4
6

8
10
12
14
16

CONN

CN701 DELETE

7

PWR_ON_OFF

High : Power On
Low: Power Off

PWR_ON_OFF

C758

1UF 10V

Vout = 1.0x(R1+R2)/R2

1
3
5
7
9
11
13
15

3V3_STB

7

R743 2K OHM

U709
G9141T11U

1

IN

2

GND

SHDN3SET

AU_12V

AU_12V / 24V

C704

NC/0.1uF 50V

0805

P12V

12V

C711

NC/0.1uF 50V

0603

R712

100OHM

VCC_5V VCC_3V3

R760

NC/1K

R722

NC/10K

LED_R

5V_STB

5

R1 R2

R750

4

12K 1%

R751 15K 1%

C712

NC/10uF 25V

1206

R706 100OHM

VCC_5V VCC_3V3

R761

NC/10K

R720

1K

R723 2K OHM

Q702
MMBT3904

R724 NC/100OHM

5V_STB

R732

4.7K1/16W

R734 2K OHM

Q704

MMBT3904

R741

47K

R742

33K 1/16W

Q706
MMBT3904

B

VCC_1V8

C759

10UF 6.3V

R709

10K

R715

NC/3.3K

0603

C744

220NF 10V

C

PS_ON

3V3_STB

R731

E

ZD702

1 2

NC/BZT52-B6V8S

R710

NC/2K

0603

R716 2K OHM

Q701
MMBT3904

R721

4.7K1/16W

BL_ON_OFF

High: Backlight On
Low : Backlight Off

5V_STB3V3_STB

R754

1K

NC/1K

PS_ON

Q703

MMBT3904

Q705

1

8

S

D

2

7

S

D

3

6

S

D

4

5

G

D

AO4449 -7A/-30V

3V3_TUVCC_3V3 VCC_3V3

C723

NC/10N 50V

LED_R

R733

2.2K1/16W

R735 2K OHM

OUT

AU_12V

P12V

PW_ON
DIM

R2

5

P12V

AL_12V

C760

1UF 10V

C773

NC/0.1uF 50V

0805

BL_ON_OFF

PS_ON

C741

10uF 10V

0805

U710
G912T63U

VI3VO

4

3V3_STB

VCC_5V

1

4

C742

10uF 10V

0805

GND

R711

4.7K1/16W

BL_BR_CTRL

High: Light
Low : Dark

7

14

2
4

4

1V2_DEM

C761

10UF 6.3V

7

BL_BR_CTRL

Standby Power

5V_STB

U703
AZ1117CH-3.3TRG1

3

VOUT

VIN

C728

1UF16V

ADJ(GND)

0603

4

1

4

Normal Power

VCC_5V

U705
AZ1084CS2-3.3TRG1

2

VIN3VOUT

C736

GND

1UF16V

0603

1

Tuner Power

VCC_5V

U707
AZ1117D

2

VI3VO

C751

GND

1UF 10V

1

356G056351400C00HF change to 356G056351500C00HF.
Rain

U711
AZ1117CH-1.2TRG1

3

VOUT

VIN

C762

1UF 10V

ADJ(GND)

4

1

4

2

ZD703

BZT52-B3V6

1 2

ZD704

1 2

BZT52-B3V6

2

P12V

1 2

3V3_STB

VCC_3V3

3V3_TU

1V2_LDO

3

ZD701

BZT52-B5V6S

R702 4.7K1/16W

C729

22UF

0805

C737

22UF

0805

C752

10UF 6.3V 20%

0603

C763

10UF 6.3V 20%

0603

3

R703

12K 1/16W

C701

10UF 16V

0805

PS_ON

PS_ON

C702

10UF 16V

0805

C705

NC

R719 100OHM

R730 100OHM

U701
SY8366QNC

8

IN

7

IN

1

EN

5

VC

C710

4.7UF 10% 10V

9

0603

GND

Vout = 0.6x(R1+R2)/R2

P12V

P12V

VCC_5V

C738

R739

10uF 25V

1206

10K

C745

NC

DDR_PWREN

C713

10uF 25V

1206

C724

10uF 25V

1206

P12V

ILMT

C717

NC

C730

NC

PG

BS

LX

FB

C739

10uF 25V

1206

C756

10uF 25V

1206

2

C703

6

0.1uF 25V

10

4

3

PMC0_VDD

C715

C714

100nF 16V

10uF 25V

1206

C721

1UF 10V

PMC1_CPU

C726

C725

100nF 16V

10uF 25V

1206

C734

1UF 10V

PMC4_GPU

C740

100nF 16V

C750

C749

10NF 50V

1UF 10V

P12V

DDR_PWREN

C757

10uF 25V

1206

Vout = 0.768x(R1+R2)/R2

2

R701

L701

2.2R 1%

2.2uH

373G253S146D00

PMC0_VDD

C706

470PF 50V

R1

R705

1K

R713 100K 1%

7

C707

22UF 10V

1206

R704

100K 1%

R707

13K 1%

R2

R714 27K 1/16W 1%

5V_STB

R708

0R05 OHM

C708

22UF 10V

1206

C709

22UF 10V

1206

1

AU_12V

P12V

5V_STB

VCC_5V

3V3_STB

VCC_3V3

VCC_1V8

1V2_LDO

1V1_VDD

1V1_CPU

1V1_GPU

1V5_DDR3

3V3_TU

1V2_DEM

R2

R717

R718

12.1K 1%

C718

22UF

0805

24.9K 1%

1V1_VDD

C719

C720

22UF

10uF 10V

0805

0805

C722

10NF 50V

U702
TPS54328DDAR

1

EN

2

VFB

3

VREG5
SS4GND

E-PAD

VBST

VIN

SW

9
8
7
6
5

C716 100nF 16V

R1

L702

2.2uH

373G253S146D00

Vout = 0.765x(R1+R2)/R2

PMC1_CPU

R725 68.1K 1%

7

R726 0R05 OHM

R2

R727

15K 1%

R728

1V1_CPU

C733

C732

C731

22UF

0805

10uF 10V

22UF

0805

0805

C735

10NF 50V

U704
TPS54528DDAR

E-Pad

1

EN

2

VFB

VBST

3

VREG5
SS4GND

R729

9
8

VIN

7

C727 100nF 16V

6

SW

5

R1

L703

2.2uH

373G253S146D00

12.1K 1%

Vout = 0.765x(R1+R2)/R2

PMC4_GPU

R736 100K 1%

6

R737 10K 1%

R2

R738

U706
TPS54328DDAR

1

EN

2

VFB

3

VREG5
SS4GND

E-PAD

VBST

9
8

VIN

7

C743 100nF 16V

6

SW

5

R1

L704

2.2uH

373G253S146D00

Vout = 0.765x(R1+R2)/R2

R744 27K 1/16W

R745 100OHM

7

R746 10K

U708

1
2

2

6

GND
SW
VIN3VFB

TPS563201DDCR

C755 100nF 16V

VBST

5

EN

4

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

絬 隔 瓜 絪 腹 CBPRH9EDX1/2/3/5 A

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

Key Compon ent

Key Compon ent

Key Compon ent

13-System Power

13-System Power

13-System Power

Date

Date

Date

373G253S256D00

L705

2.2uH

R1

R748 1.87K 1%

R749 27K 1/16W 1%

R747

24K 1%

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

24.9K 1%

R740

16.9K 1%

C746

22UF

0805 0805

1V5_DDR3

C753

C754

22UF

22UF

0805

0805

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G9016-M0F-B00-0040

715G9016-M0F-B00-0040

715G9016-M0F-B00-0040

of

13 14Monday, June 12, 2017

of

13 14Monday, June 12, 2017

of

13 14Monday, June 12, 2017

1V1_GPU

C747

C748

22UF

NC/10uF 10V

0805

1

390R 1/16W 1%

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

12

7,11,12,14

5,12

5,7,14

5,6,7,8

4,6,7,8,11,12

6,8

8

8

8

8

8,9,10

3

3

Custom

Custom

Custom

<称爹>

<称爹>

<称爹>

5

4

3

2

1

Hi3751V620 GPIO Pin Table

Hi3751V620 Absolute DC VoltageHi3751V620 Recommended DC Voltage

Voltage

3.3 V

D D

1.5 V 1.425 V ~ 1.575 V

1.2 V 1.045V ~ 1.25V

1.1 V (Core)

1.1 V (CPU)

1.1 V (GPU)

Recom mended DC Voltage

3.135 V ~ 3.6 V

1.71 V ~ 1.98 V1.8 V

1.045V ~ 1.25V

TBD

TBD

Voltage

3.3 V (DVDD33) 4 .6 V

1.8 V

1.5 V 4.6 V

1.2 V

1.1 V (CPU)

1.1 V (GPU)

Absolute Max. Rating s

4.6 V

1.8 V

1.8 V1.1 V (Core)

1.8 V

1.8 V

MHL_CD_SENSE

BOOT_SEL1 Boot Sel 1

3137_RSTN

USB3_PWR_EN

PMC4_GPU

- -

LD_EN Local Dimming Enable

I2C0_SCL I2C0 Clock

I2C0_SDA I2C0 Data

Hi3751V620 ADC Pin Table

Pad NO.

LS_ADC0

LS_ADC1

LS_ADC2

LS_ADC3

C C

ADC Voltage = 0 V~ ? V

AH3

AG5

AG4

AH4

FunctionADC #

Key 0

Key 1

Hi3751V620 Ripple Voltage Specification

Voltage

LDO_1V2

1.1V (Core)

1.1V (CPU) mV

1.1V (GPU) mV

Vp-p U nit.

<=20(20MHz),&<=80(Full)3.3 V

<=80(Full band)

<=20(20MHz),&<=80(Full)

<=80(Full band)

<=80(Full band)

<=80(Full band)

mV

mV

mV

mV

I2C1_SCL

I2C1_SDA

IR_IN

KEY0_IN Key 0 Function

KEY1_IN Key 1 Function

UART0_RXD

UART0_TXD

I2C2_SCL

I2C2_SDA

FUNC_SEL

POR_SEL

SYS_RSTN

BL_ON_OFF

PWR_ON_OFF

AUD_MUTE Audio Amplifier Mute

LOGO

3D_EN/VDP_VSYNC

SYNC_3D_IN Sync 3D In

SYNC_3D_OUT Sync 3D Out

BL_BR_CTRL

ABMI_ON_OFF

MHL_VBUS_EN

BT_WU

22UF 10V

1206

3

BT_RST

LED_B

5V_USB VCC_5V

B B

PS_ON

PS_ON

A A

Impedance Control Table

USB

HDMI

Tuner IF

Ethernet

LVDS/VB1

USB Data differential pair trace impedance 90 Ohm.

HDMI Data and Clock differential pair 100 Ohm.

Tuner IF differential pair trace impedance 100 Ohm.

Ethernet Data differential pair trace impedance 100 Ohm.

LVDS/VB1 Data and Clock differential pair trace impedance 100 Ohm.

R753 1 00OHM

13

5

P12V

C764

10UF 16V

0805

C767

NC C771

C765

10UF 16V

0805

C772

4.7UF 10% 1 0V

0603

U712
SY8366QNC

8

IN

7

IN

1

EN

5

VC

9

GND

PG

BS

LX

FB

ILMT

2

C766

6

0.1uF 25V R75 2

10

4

3

2.2R 1%

L706

2.2uH

373G253S146D00

Vout = 0.6x(R1+R2)/R2

4

C768

470PF 50V

1K

R759 NC/0R0 5 1/8W

R755

R1

100K 1%R756

R757

13K 1%

0805

C769

22UF 10V

1206

R2

5V_USB

R758

0R05 OHM

C770

22UF 10V

1206

GPIO Pin Name # Internal

MHL_CD_SENSE/STB_GPIO21_2

CI_REGN/BOOT_SEL1

AGC_RF_SEL/JTAG_MUX1/GPIO11_0

SFC_WPN_IO2/GPIO1_7/SPI2_DO

SFC_CS1N/GPIO2_3/SPI2_CSN

SFC_HOLDN_IO3/GPIO2_2/PMC4

SFC_DIO/GPIO1_6/PWM0

SFC_DOI/GPIO2_1/PWM2/SPI2_DI

SFC_CLK/GPIO2_0/SPI2_CLK

PMC0/GPIO12_4

PMC1/GPIO12_6

I2C0_SCL/GPIO11_6

I2C0_SDA/GPIO11_7

I2C1_SCL/GPIO1_5/SPI1_DI/SPI3_DI

I2C1_SDA/GPIO1_4/SPI1_CSN/SPI3_CSN

IRIN/STB_GPIO19_0

LS_ADC0/STB_GPIO18_4

LS_ADC1/STB_GPIO18_5

LS_ADC3/STB_GPIO18_7

UART1_RXD/UART0_RXD/STB_GPIO19_1

UART1_TXD/UART0_TXD/STB_GPIO19_2

UART2_RXD/I2C2_SCL/GPIO3_0

UART2_TXD/I2C2_SDA/GPIO3_1

FUNC_SEL

POR_SEL

RESTIN

BLK_ON/GPIO1_3

STANDBY/STB_GPIO19_5

AMP_MUTE/STB_GPIO19_5

POWEN/GPIO1_0

LED_PWM/STB_GPIO19_4

EN_3D/VDP_VSYNC/GPIO00_7

SYNC_3D_IN/SPI0_DI/GPIO0_2

SYNC_3D_OUT/SPI0_CSN/GPIO0_1

BRI_PWM0/GPIO0_3

BRI_PWM3/GPIO0_6/SPI1_CLK

STB_GPIO18_1

STB_GPIO18_3

GPIO9_4

GPIO9_6

GPIO2_1

Pad
NO.

AH25

U31

AJ30

G28

F29

F27

G27

G26

F28

AJ4

AK2

AK3

AL3

D23

C23

AE3

AH3

AG5

AH4

AF3

AE4

AL4

AM2

AD5

AE2

AD2

G25

AE5

AL2

F26

AD1

E22

E23

D24

G24

F25

AD4

AH26

AB33

AA33

G26

Changelist:

715G8619-M0B by CK.Liu:
Change Demo IC and surrounding parts.
Add one USB2.0 port for BT
Add one DC to DC for USB power
Add R174(NC), R175(NC), R176(NC), R177(NC), R551(100R), FB410(220R),
FB411(220R), R4134(0R), R4135(NC), C4225(2.2uF), R4136(NC), R4137(NC),
R4138(0R), R4139(0R), R4140(NC), R4141(33R), C4226(NC), R759(NC)
R4082, R4083 change from NC to 33R
U701 change from SY8368 to SY8366
U705 change from AZ1117 to AZ1084

715G9016-M0A by Rain.Rui:
Change component IO to AV;
Change debug function to HDMI2(CN501),move ARC function to HDMI3(CN502);
Reserve ambilight SPI IO from SPI3;
Change I2S output for external AMP(CN608),311GW125D11ACL;
Change ambilight connector for 2K17 ambilight;
C603,C614 footprint change to 0805 for 50V;
Co-layout with CN701.Reserved for large size TV;
U707 change footprint to TO252;
Add CN703,FB744,FB745 for large size TV TCON power supply;
CN402 311GF050V51ADC change to 311GF050A51ADJ;
PCB PART ID change to 715G9016;
Add C123 067G311R1013LT

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5

絬 隔 瓜 絪 腹 C BPRH9EDX1/2/3/5

Key Component

Key Component

Key Component

I/O

I/OSignal

I
I
O
O I/O

TYPE

I/O

I/O
I/O

I/OO
I/OO

pull-up/down?

? ?

I/OO
I/OO

O I/O

I/OO

O I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I I/O
I I/O
I I/O
O I/O

I/OI

O I/O

I/O

I/O

I/O

I/O

I/OI

I/OI
I I/O
O I/O

I/OO

I/OO

I/OO

I/OO

I/OO
I I/O

I/OO

I/OO

I/OO

I/OO

I/OO

I

I/O

O

I/O
I/O

O

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

T P V ( Top Victory Electr onics Co . , Ltd. )

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

G9016-M0F-B00-0040-170525

14-Voltage Spec/GPIO Table

14-Voltage Spec/GPIO Table

14-Voltage Spec/GPIO Table

Date

Date

Date

2

Default after
RESET

??

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Standby
Mode

Y

Function

MHL Cable Hotplug Detect

N

Demodulator Reset N

N

N

USB Power Control

N

USB Power ControlWIFI_WOL

N

GPU Voltage Fine Tune

N

WiFi ResetWIFI_RST

N

N

N

Core Voltage Fine TunePMC0_VDD

N

CPU Voltage Fine TunePMC1_CPU

N

N

I2C1 Clock

N

I2C1 Data

N

IR Input

N

Y

Y

Audio Amplifier Reset NAUD_RSTN

Y1.5 V

UART RX / VGA DDC SDA

Y

UART TX / VGA DDC SCL

Y

I2C2 Clock

N

I2C2 Data

N

Function Select

N

POR Select

N

Reset Input

N

Back Light ON/OFF

N

System Power ON/OFF

Y

Y

Panel T-CON On / OffTCON_PWR

N

Lighting Logo

Y

3D Enable

N

N

N

Back Light Brightness Control

N

AmbiLight ON/OFF

N

Y

DDR3 Power ON/OFFDDR_PWREN

MHL VBUS Enable

Y

N Bluetooth Wake Up

N Bluetooth Reset

Blue LEDN

China/AP Smart TV

China/AP Smart TV

China/AP Smart TV

715G90 16-M0F-B00-00 40

715G90 16-M0F-B00-00 40

715G90 16-M0F-B00-00 40

of

14 14Monday, Jun e 12, 2017

of

14 14Monday, Jun e 12, 2017

of

14 14Monday, Jun e 12, 2017

1

Custom

Custom

Custom

Size

Size

Size

A

A

A

Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

1

CONTENTS

SCHEMATIC NAME

01.COVER

02.KEY

A A

SHEET

1

2

REVISION HISTORY

Date Author FN

2014/5/13

2

Ver

Reviser reason

William Ou

William Ou PCB Demension change to 22mmX29.5mm to meet D2P5 panel.

Drawing released.A

B2014/5/28

3

4

5

2014/11/06

B B

C C

Jim Wu

Change Up, Down, Left, Right ADC Value

C

D D

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

G7088-B-PHILIPS6000

G7088-B-PHILIPS6000

Date

Date

Date

3

G7088-B-PHILIPS6000

01. COVER

01. COVER

01. COVER

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

1

2

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

4

2K15 PHILIPS6000 KEY CONTROL BOARD Custom

2K15 PHILIPS6000 KEY CONTROL BOARD Custom

2K15 PHILIPS6000 KEY CONTROL BOARD Custom

715G7088-K0B

715G7088-K0B

715G7088-K0B

of

1 2Thursday, November 06, 2014

of

1 2Thursday, November 06, 2014

of

1 2Thursday, November 06, 2014

Size

Size

Size
Rev

1

Rev

1

Rev

1

称爹

称爹

称爹

XX

XX

XX

5

1

A A

2

3

4

5

JOYSTICK

Direction

Center

34

CN01

CN01

CONN

CONN

B B

KEY1

1
2

C06

C06

0.1uF 50V

0.1uF 50V

Right

----><----|

Center

----><----|

7

F5

F5

1 6

F1

F1

2

F3

F3

3 4

SW01

SW01

F4

F4

F2

F2

8

TACT SW 6P

TACT SW 6P

Down

----><----|

5

Left

----><----|

Up

----><----|

Right

Left

Down
Up

switch

2-5 short
1-5 short
4-5 short
3-5 short
6-5 short

Key functionResistance

Menu

CH+
CH­VOL-

VOL+

0R

15K
6K8
1K2
2K2

No function

Joystick circuit diagram

pin1 pin2

F1

pin4 pin5 pin6

pin3

Voltage

0V

2.27V

1.65V

0.5V

0.81V

3.3V

F2

R04

R01

R01

15K 1/10W 1%

15K 1/10W 1%

C C

R02

R02

C01

C01

NC/100N 50V

NC/100N 50V

0R05 1/10W

0R05 1/10W

R03

R03

C02

C02

NC/100N 50V

NC/100N 50V

C03

C03

1K2 1/10W 1%

1K2 1/10W 1%

R04

NC/100N 50V

NC/100N 50V

6K8 1/10W 1%

6K8 1/10W 1%

R05

R05

C04

C04

NC/100N 50V

NC/100N 50V

C05

C05

NC/100N 50V

2K2 1/10W 1%

2K2 1/10W 1%

NC/100N 50V

F3
F4
F5

D D

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

G7418-AOC LATAM

G7418-AOC LATAM

Date

Date

Date

G7418-AOC LATAM

02. KEY

02. KEY

02. KEY

4

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

1

2

3

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

2K15 AOC LATAM KEY CONTROL BOARD B

2K15 AOC LATAM KEY CONTROL BOARD B

2K15 AOC LATAM KEY CONTROL BOARD B

715G7418-K0A

715G7418-K0A

715G7418-K0A

of

2 2Thursday, November 06, 2014

of

2 2Thursday, November 06, 2014

of

2 2Thursday, November 06, 2014

Size

Size

Size
Rev

1

Rev

1

Rev

1

称爹

XX

称爹

XX

称爹

5

XX

CONTENTS

5

4

3

2

1

REVISION HISTORY

SCHEMATIC NAME

01.COVER

02.WORDMARK

D D

C C

SHEET

1

2

Date

2015/09/14

2015/09/15

Author

Vic Sun2015/09/08

Vic Sun

Vic Sun

Ver

A

A

A

Reviser reason

First release

Reserve circuit for invert polarity.

Rename CN201 to CN1204

FN

B B

A A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

New

New

󳴣 󴴸 󱙟 󳴱 󴖨

󳴣 󴴸 󱙟 󳴱 󴖨

󳴣 󴴸 󱙟 󳴱 󴖨

Key Component

Key Component

Key Component

Date

Date

5

4

Date

New

01. COVER

01. COVER

01. COVER

3

OEM MODEL

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet of

Sheet of

Sheet of

PHILIPS EU 2K16 7600 A

PHILIPS EU 2K16 7600 A

PHILIPS EU 2K16 7600 A

715G8046-T0A-000-004

715G8046-T0A-000-004

715G8046-T0A-000-004

1 2Tuesday, September 15, 2015

1 2Tuesday, September 15, 2015

1 2Tuesday, September 15, 2015

2

Size

Rev

Rev

Rev

󰿢󴦄

󰿢󴦄

󰿢󴦄

B

B

B

<󰿢󴦄>

<󰿢󴦄>

<󰿢󴦄>

1

1

2

3

4

5

3V3SB 3V3SB

WORDMARK

A A

CN1204

CN1204

56

LED1

1
2
3
4

CONN 4P

CONN 4P

CONN 1.25mm 4P R/A S1315-04RVB-S03-K

B B

LED2

3V3SB

R203

R203

NC/10K 1/16W 5%

NC/10K 1/16W 5%

LED2

3V3SB

R205 0R05 1/16WR205 0R05 1/16W

R204

R204

NC/10K 1/16W 5%

NC/10K 1/16W 5%

R206

R206

1K 1/16W 5%

1K 1/16W 5%

R201

R201

10R 1/16W 5%

10R 1/16W 5%

LED201

LED201

2 1

CHIP LED WHITE 99-113UNC/2223010/TR8

CHIP LED WHITE 99-113UNC/2223010/TR8

Q201

Q201

BC847BW

BC847BW

R202

R202

NC/10R 1/16W 5%

NC/10R 1/16W 5%

LED202

LED202

2 1

CHIP LED WHITE 99-113UNC/2223010/TR8

CHIP LED WHITE 99-113UNC/2223010/TR8

R207 NC/10K 1/16W 5%R207 NC/10K 1/16W 5%

R208

R208

NC/10K 1/16W 5%

NC/10K 1/16W 5%

C C

D D

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

󳴣 󴴸 󱙟 󳴱 󴖨

󳴣 󴴸 󱙟 󳴱 󴖨

󳴣 󴴸 󱙟 󳴱 󴖨

Key Component

Key Component

Key Component

Date

Date

1

2

Date

New

New

New

02.WORDMARK

02.WORDMARK

02.WORDMARK

3

Q202

Q202
NC/BC847BW

NC/BC847BW

OEM MODEL

OEM MODEL Size

OEM MODEL Size

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet of

Sheet of

Sheet of

PHILIPS EU 2K16 7600 A4

PHILIPS EU 2K16 7600 A4

PHILIPS EU 2K16 7600 A4

715G8046-T0A-000-0040

715G8046-T0A-000-0040

715G8046-T0A-000-0040

2 2Tuesday, September 15, 2015

2 2Tuesday, September 15, 2015

2 2Tuesday, September 15, 2015

4

Size

Rev

Rev

Rev

󰿢󴦄

󰿢󴦄

󰿢󴦄

5

B

B

B

<󰿢󴦄>

<󰿢󴦄>

<󰿢󴦄>

5

4

3

2

1

CONTENTS

SCHEMATIC NAME

01.COVER

02.LED&IR&Light Sensor

D D

C C

SHEET

REVISION HISTORY

Date

1

2

Author FN

Owen Tseng2015/05/09

Ver

A

Reviser reason

First release

B B

A A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

New

New

󳴣 󴴸 󱙟 󳴱 󴖨

󳴣 󴴸 󱙟 󳴱 󴖨

󳴣 󴴸 󱙟 󳴱 󴖨

Key Component

Key Component

Key Component

Date

Date

5

4

Date

New

01. COVER

01. COVER

01. COVER

3

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

PHILIPS 2K16 A

PHILIPS 2K16 A

PHILIPS 2K16 A

?

?

?

715GXXXX-R0A-000-0040

715GXXXX-R0A-000-0040

715GXXXX-R0A-000-0040

of

1 2Wednesday, August 26, 2015

of

1 2Wednesday, August 26, 2015

of

1 2Wednesday, August 26, 2015

2

Size

Size

Size

Rev

Rev

Rev

󰿢󴦄

󰿢󴦄

󰿢󴦄

A

A

A

<󰿢󴦄>

<󰿢󴦄>

<󰿢󴦄>

1

1

2

3

4

5

S

1415

CN201CN201

1
2
3
4
5

A A

6
7
8
9
10
11
12
13

LED_R

RC-IR

LS_SCL

LS_SDA

3V3SB

DVD3V3

t

3V3SB

a

R201

R201
100R 1/16W 5%

n
d

LED201

b

LED201

GPSS008RC4

GPSS008RC4

100R 1/16W 5%

12

Red

y

R202

LED_R

R202

1K 1/16W 5%

1K 1/16W 5%

Q201

Q201
BC847BW

BC847BW

L
E

Light Sensor

DVD3V3DVD3V3

R223

R223

NC/ 0R05 1/16W

R221

R221

LS_SCL LS_SCL

LS_SDA

R222

R222

NC/ 10K 1/16W 5%

NC/ 10K 1/16W 5%

NC/ 10K 1/16W 5%

NC/ 10K 1/16W 5%

NC/ 0R05 1/16W

R224

R224

NC/ 0R05 1/16W

NC/ 0R05 1/16W

C222 NC/ 1uF 10VC222 NC/ 1uF 10V

C221 NC/ 100N 16VC221 NC/ 100N 16V

U221

U221
NC/ JSA-1130

NC/ JSA-1130

1

ADDR

2

VDD
GND3SCL

INT

SDA

6
5
4

Digital Light Sensor

JSA-1130

JSA-1130

R224 R223 I2C addr

0R

NC 0x44

0RNC

LS_SDA

0x45

D

IR Receiver

B B

3V3SB

3V3SB

R203

R203

R204

C201

C201

1uF 10V

1uF 10V

R204

100R 1/16W 5%

100R 1/16W 5%

NC/ 2K7 1/16W 5%

NC/ 2K7 1/16W 5%

RC-IR

C202

C202

1uF 10V

1uF 10V

Close to U201

C C

U201

U201

TSOP75436TR

TSOP75436TR

1

GND

2

VCC

3

Vout

4

12

GND

ZD201

ZD201

MLVG0402

MLVG0402

Close to U201

D D

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

󳴣 󴴸 󱙟 󳴱 󴖨

󳴣 󴴸 󱙟 󳴱 󴖨

󳴣 󴴸 󱙟 󳴱 󴖨

Key Component

Key Component

Key Component

Date

Date

1

2

3

Date

02. LED&IR&Light Sensor

02. LED&IR&Light Sensor

02. LED&IR&Light Sensor

4

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

PHILIPS 2K16 A3

PHILIPS 2K16 A3

PHILIPS 2K16 A3

715GXXXX-R0A-000-0040

715GXXXX-R0A-000-0040

715GXXXX-R0A-000-0040

of

2 2Wednesday, August 26, 2015

of

2 2Wednesday, August 26, 2015

of

2 2Wednesday, August 26, 2015

5

Size

Size

Size

Rev

Rev

Rev

󰿢󴦄

󰿢󴦄

󰿢󴦄

A

A

A

<󰿢󴦄>

<󰿢󴦄>

<󰿢󴦄>

5

D D

!

F9901

T5AH/250V

1 2
3 4

C C

!

CN9901
NC

1
2

B B

!

12

AC 2P
CN9902

FB9901
BEAD

FB9905

NC

1 2

!

C9911
NC

!

C9912
NC

12

FB9904

NC

FB9902
BEAD

4

NR9903
1R

12

1 2

t

!

C9901

470nF 275V

12

680V

!

NR9901
1R

t

12

!

L9901
12mH

4

1

3

NR9902

1 2

t

1R

FB9906
BEAD

1 2

!

C9913

220PF 250V

3

2

!

C9914

220PF 250V

FB9907
BEAD

1 2

CAP004DG-TL

U9901

R9901
750K

1D12D13NC4

NC

8

R9902
750K

!

R9904
750K

!

C9907

R9906

47PF

NC5D26D27NC

NCRV9901

!

R9905
750K

HS9901
NC

1
2

R9907
NC

2

SG9901
DSPL-501N-A21F

1

!

!

!

4

3

L9902

1

2

SG9902
DSPL-501N-A21F

12mH

C9902

470nF 275V

1

2

!

L9903

0.25mH

4

3

BD9901
GBJ1008-FUC

2

Vsin

+

-

4

1

3

N

HS9902

GND2

NC

A A

GND4

1

NC

GND1

1

NC

GND3

1

NC

GND5

1

1

NC

FB9903
BEAD

1 2

C9916
100PF 250V

COLDHOT

!

C9917

330PF 250V

!

5

4

3

NC

1
2

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

󳴣 󴴸 󱙟 󳴱 󴖨

G8807-P0D-000-0020

󳴣 󴴸 󱙟 󳴱 󴖨

G8807-P0D-000-0020

󳴣 󴴸 󱙟 󳴱 󴖨

G8807-P0D-000-0020

Key Component

Key Component

Key Component

01. AC input

01. AC input

01. AC input

Date

Date

Date

2

OEM MODEL

OEM MODEL Size

OEM MODEL Size

EBONY 7102 55

TPV MODEL

TPV MODEL

TPV MODEL

715G8807-P0D-000-0020

715G8807-P0D-000-0020

715G8807-P0D-000-0020

PCB NAME

PCB NAME

PCB NAME

Sheet of

1 4Thursday, June 08, 2017

Sheet of

1 4Thursday, June 08, 2017

Sheet of

1 4Thursday, June 08, 2017

Size

Custom

Custom

Custom

D

Rev

Rev

Rev

󰿢󴦄

󰿢󴦄

󰿢󴦄

1
