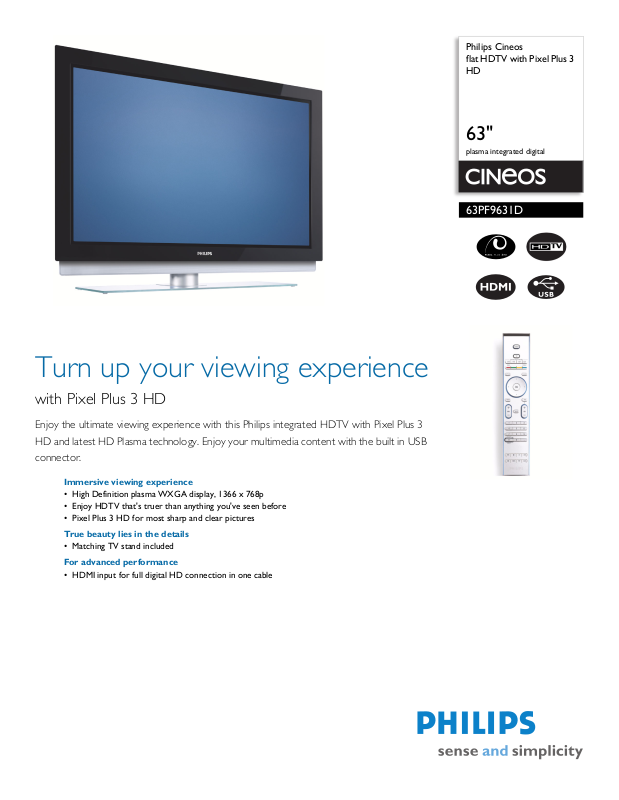

Philips Cineos
flat H DTV with Pixe l Plus 3
HD
63"
plasma integrated digital
63PF9631D
Turn up your viewing experience
with Pixel Plus 3 HD
Enjoy the ultimate viewing experience with this Philips integrated HDTV with Pixel Plus 3
HD and latest HD Plasma technology. Enjoy your multimedia content with the built in USB
connector.
Immersive viewing experience
• High Definition plasma WXGA display, 1366 x 768p
• Enjoy HDTV that's truer than anything you've seen before
• Pixel Plus 3 HD for most sharp and clear pictures
True beauty lies in the details
• Matching TV stand included
For advanced performance
• HDMI input for full digital HD connection in one cable
Page 2
Flat HDTV with Pixel Plus 3 HD
63" plasma integrated digital
Specifications
63PF9631D/37
Picture/Display
• Aspect ratio: 16:9
• Brightness: 1100 cd/m²
• Contrast ratio (typical): 10000:1
• Viewing angle: 160º (H) / 160º (V)
• Diagonal screen size: 63 inch / 197 cm
• Display screen type: Plasma HD panel
• Panel resolution: 1366 x 768p
• Picture enhancement: Pixel Plus 3 HD, 3/2 - 2/2
motion pull down, 3D Combfilter, Active Control +
Light sensor, Digital Crystal Clear, Jagged Line
Suppression, Progressive Scan, Widescreen Plus
• Screen enhancement: Anti ageing circuit, AntiReflection coated screen
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
• Video Formats
Resolution Refresh rate
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Output power (RMS): 2x12W
• Sound Enhancement: Auto Volume Leveller, Digital
Signal Processing, Dynamic Bass Enhancement,
Graphic Equaliser, Smart Sound
• Sound System: Virtual Dolby Digital
Loudspeakers
• Built-in speakers: 2
• Loudspeaker types: Front Speakers
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Program Naming,
Automatic Tuning System (ATS), Autostore, PLL
Digital Tuning, Plug & Play
• Ease of Use: 4 favorite lists, Auto Volume Leveller
(AVL), Channel list, Delta Volume per preset,
Graphical User Interface, On Screen Display, Side
Control, Smart Picture Control, Smart Sound
Control, Closed Captioning Full Text
• Picture in Picture: HDMI-Component PIP
• Remote Control: Amp, DVD, DVD-R, Sat, STB
(Set-Top Box), VCR, Universal
• Remote control type: RC4405
• Screen Format Adjustments: 4:3, 6 Widescreen
Modes, Auto Format, Movie expand 14:9, Movie
expand 16:9, Subtitle and Heading Shift, Subtitle
Zoom, Super Zoom, Widescreen
• Teletext: Closed Captioning Full Text
• VESA Mount: Vesa compliant
Multimedia Applications
• Digital Content Management: Digital Media Reader
• Multimedia connections: USB
• Playback Formats: MP3, Slideshow files (.alb), JPEG
Still pictures
Tuner/Reception/Transmission
• Aerial Input: 75 ohm F-type
• TV system: ATSC, NTSC
• Video Playback: NTSC
• Cable: Unscrambled Digital Cable -QAM
Connectivity
• AV 1: (1, 2, 3F h au tora ngin g), A udi o L/R in, C VBS i n,
RGB+H/V, YPbPr, Y/C
• AV 2: Audio L/R in, CVBS, Y/C
• AV 3: (1, 2, 3Fh autoranging), S/PDIF digital coaxial,
YPbPr
• AV 4: HDMI
• AV 5: HDMI
• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in, USB
• Other connections: Analog audio Left/Right out, S/
PDIF in (coaxial), S/PDIF out (coaxial)
Power
• Ambient temperature: 5 °C to 40 °C
• Mains power: AC 110 - 240 V +/- 10%
• Power consumption: 630 W
• Standby power consumption: 0.98
Dimensions
• Set dimensions (W x H x D):
1586.8
• Weight incl. Packaging (lb): 271,61lb
• Product weight (lb): 181,22 lb
• Box dimensions in inch (W x H x D):
• Color cabinet: Black and Silver
x 1034.5 x 97.6 mm
68.11
x 49,41 x 18.50 inch
Accessories
• Included Accessories: Table top stand, Wall
mounting bracket, RF antenna cable
•
Page 3
Flat HDTV with Pixel Plus 3 HD
63" plasma integrated digital
63PF9631D/37
Product highlights
Plasma WXGA panel, 1366 x 768p
This state-of-the-art plasma screen technology gives you
widescreen HD resolution of up to 1366 x 768p pixels. It
produces brilliant flicker-free progressive scan pictures in
with optimum brightness and superb colors. This vibrant
and sharp image will provide you with an enhanced viewing
experience.
HDTV
HDTV delivers exceptional picture quality and real movieviewing experience that makes television more dynamic,
truer than anything you've seen before. It is the latest and
best television signal available. It features picture quality
more than twice that of traditional analog broadcasts. In
order to effectively maximize the HDTV signal, a television
must incorporate advanced signal input connectivity and
circuitry design.
Pixel Plus 3 HD
Pixel Plus 3 HD offers the unique combination of ultimate
sharpness, natural detail, vivid colors and smooth natural
motion on all qualities of HD, standard TV signals and
multimedia content, for high definition displays. Each pixel
of the incoming picture is enhanced to better match the
surrounding pixels, resulting in a more natural picture.
Artifacts and noise in all sources from multimedia to
standard TV and also in highly compressed HD are
detected and reduced ensuring that the picture is clean and
razor sharp.
Matching TV stand
High quality TV stand that is designed specifically for the
TV. Its seamless design compliments the overall look.
Comes with the TV for greater value.
HDMI input
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion to
an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
output resolution with the source device. The HDMI input
is fully backward compatible with DVI sources but includes
digital audio. HDMI uses HDCP copy protection.
Issue date 2008-01-02
Version: 5.0.12
12 NC: 8670 000 23708
UPC: 6 09585 11558 3
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
