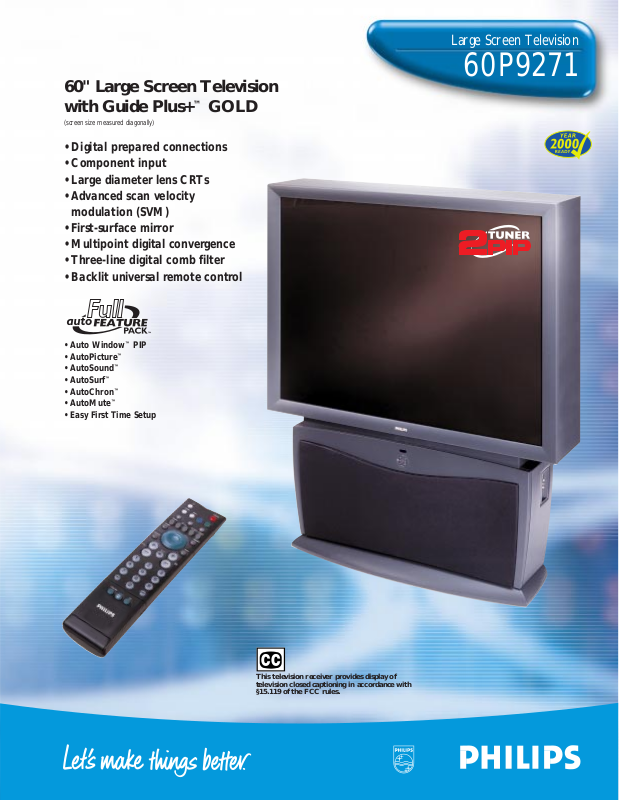

Philips 60P9271 User Manual
60" Large Screen Television
with Guide Plus+™GOLD
(screen size measured diagonally)
• Digital prepared connections
• Component input
• Large diameter lens CRTs
• Advanced scan velocity
modulation (SVM)
• First-surface mirror
• Multipoint digital convergence
• Three-line digital comb filter
• Backlit universal remote control
• Auto Window™PIP
• AutoPicture
™
• AutoSound
™
• AutoSurf
™
• AutoChron
™
• AutoMute
™
• Easy First Time Setup
Large Screen Television
60P9271
This television receiver provides display of
television closed captioning in accordance with
§15.119 of the FCC rules.
Digital Prepared Connections
Supports virtually any digital device on the market through a range of
connectors including Component Video, S-Video, and video inputs.
Large Diameter Lens CRTs
Large screen picture comes alive with sharp, radiant colors and rich highlights. Using high-resolution phosphors and a tighter beam spot, these
monochrome picture tubes with large diameter lenses offer a sharper
picture than ever before.
Advanced Scan Velocity Modulation (SVM)
Advanced beam control technology allows precise transitions from light
to dark portions of the picture. The result is sharper edges on all images
for outstanding clarity and detail.
First-Surface Mirror
3-Line Digital Comb Filter
Multipoint Digital Convergence
Remote Control
Universal TV/VCR/DVD/DBS/Cable Remote
Controls all features and functions of this monitor/receiver with direct
menu access plus activates Auto Window™ PIP with Action Freeze,
Position and Swap; and exclusive AutoSound™ and AutoPicture™
options. This remote also controls all important operating features and
functions of virtually all infrared VCRs, DVDs, Digital Broadcast Systems,
and on/off and channel up/down on most cable converter/decoders.
(Remote # RC2011/01)
Conveinence
Guide Plus+™Gold Programming
Hi-tech software that captures and automatically downloads advanced
programming information for all television program listings, plot descriptions, ratings, artist names, and program length. The featured channel
window displays the current channel or locks in a select channel. Other
features include one-touch record, one-touch scheduling, direct-tune,
sort-by-theme, and news guide.
Dual-Tuner PIP
Enjoy all the benefits of AutoWindow™PIP without a VCR! You can tune
to your favorite show with tuner one, for example, while scanning other
channels with tuner two in the PIP window. The A/V inputs are also
available as PIP sources so all functions of standard PIP are still accessible.
PIP Audio Component Input
Side A/V Jacks AutoPicture
™
AutoSurf
™
AutoChron
™
AutoMute
™
Easy First Time Setup
AutoLock™
Protect young children from harmful programming with V-chip technology based on the Motion Picture Association of America (MPAA) and the
network television rating systems.
Sound
Incredible Surround™with Built-In 40-Watt Surround
Sound Package and 4 Speakers
Built-in stereo sound system includes MTS/SAP decoder and dbx®noise
reduction to eliminate hiss and high-frequency interference. (
20 Watts
RMS per channel into 8Ω, from 50Hz to 20kHz, with no more than
0.5% Total Harmonic Distortion).
AutoSound
™
True Surround Sound
Center Channel Input Onscreen Tone Controls
Onscreen Volume Bar Subwoofer Output
Audio/Video Jack Panel JP9534
Additional Features Include:
UPC: 0 37849 87906 1
Product dimensions: 52.44"W x 64.0"H x 29.12"D
Product weight: 215 lbs.
Carton dimensions: 56.44"W x 65.56"H x 33.88"D
Carton weight: 250 lbs.
Master pack: 1
Carton Contains: 60" Large Screen TV, Universal TV/VCR/DVD/DSS/CBL Remote
Control w/Batteries, Guide Plus IR Shooter, Operating Instructions, Warranty Information
Printed in U.S.A.
©1999 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
Specifications subject to change without notice.
INTERNET ADDRESS: http://www.philipsusa.com
KID Design, GR99171, Philips Consumer Electronics Co.
Specifications subject to change without notice.
dbx®is a registered trademark of dbx, Inc., Sunnyvale, CA.
GUIDE Plus+ Gold is a trademark of Gemstar Development Corp.
AutoChron, AutoLock, Auto Window, AutoSound, AutoPicture, AutoMute, AutoSurf, and Incredible Surround are
trademarks of Philips Consumer Electronics Co.
Large Screen Television
60P9271
• 160° wide-angle screen
• 550 foot lamberts peak
brightness
• Delta 78/79 lenses with
curved faceplate
• 7" liquid-cooled, liquid-
coupled tubes
• 181-total channel capability
• Clearview video noise reduction
• Random channel access
• Programmable scan tuning
• 120-minute sleep timer
• Auto programming
• Channel edit
• Total remote menu-format tuning
with multicolor onscreen graphics
• 4-way cursor directional control
• One-button picture reset
• Status recall
• Mono/stereo/SAP select
• Cable/normal select
•
Two 4"x 6" woofers
•
Two 2" tweeters
EXT INT
L
R
-
+
CENTER CHANNEL
AMP INPUT
AMP SWITCH
REAR SURROUND SPEAKERS
L
-
+
R
SUBWOOFER
IR BLASTER
VIDEO OUT
AUDIO OUT
PIP
VAR
PIP
ANT B/CABLE
75Ω UHF/VHF
ANT A/CABLE
75Ω UHF/VHF
SIDE PANEL
BACK PANEL
INPUTS
VIDEO
S-VIDEO
AUDIO
L
R
VIDEO
S-VIDEO
P
B
P
R
Y
AUDIO
L
R
AUX 2 AUX 3AUX 1
