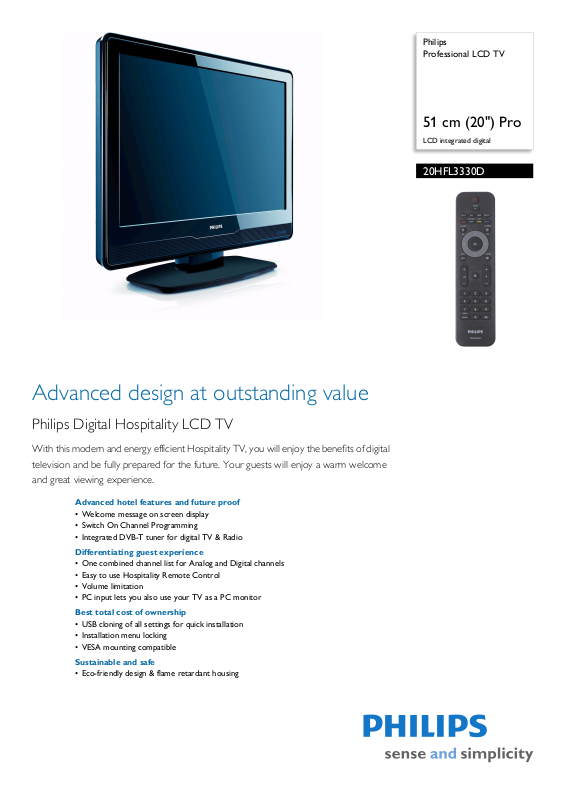

Philips
Professional LCD TV

51 cm (20") Pro

LCD integrated digital

20HFL3330D

Advanced design at outstanding value

Philips Digital Hospitality LCD TV

With this modern and energy efficient Hospitality TV, you will enjoy the benefits of digital
television and be fully prepared for the future. Your guests will enjoy a warm welcome
and great viewing experience.

Advanced hotel features and future proof

• Welcome message on screen display

• Switch On Channel Programming

• Integrated DVB-T tuner for digital TV & Radio

Differentiating guest experience

• One combined channel list for Analog and Digital channels

• Easy to use Hospitality Remote Control

• Volume limitation

• PC input lets you also use your TV as a PC monitor

Best total cost of ownership

• USB cloning of all settings for quick installation

• Installation menu locking

• VESA mounting compatible

Sustainable and safe

• Eco-friendly design & flame retardant housing

Professional LCD TV

51 cm (20") Pro LCD integrated digital

20HFL3330D/10

Specifications

Picture/Display

• Diagonal screen size: 20 inch / 51 cm

• Aspect ratio: 4:3

• Display screen type: LCD VGA Active Matrix TFT

• Panel resolution: 640 x 480p

• Brightness: 300 cd/m²

• Contrast ratio (typical): 800:1

• Response time (typical): 12 ms

• Viewing angle: 178º (H) / 178º (V)

• Screen enhancement: Anti-Reflection coated
reen

sc

• Picture enhancement: 3/2 - 2/2 motion pull down,

•Color cabinet: Black

Supported Display Resolution

• Video formats

• Co

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• Tuner bands: Hyperband, S-Channel, UHF, VHF

• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/G,

• Video Playback: PAL, SECAM, NTSC

• Digital TV: DVB Terrestrial *, MHEG

• Number of Preset Channels: 1000

Sound

• Sound System: Stereo, Mono

• Output power (RMS): 2 x 3W

• Sound Enhancement: Auto Volume Leveller,

Loudspeakers

• Built-in speakers: 2

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 3: Audio L/R in, YPbPr

• HDMI 1: HDMI v1.3

• HDMI 2: HDMI v1.3

•Front / Side connections: Audio

• Other connections: Common Interface, PC-In

• EasyLink (HDMI-CEC): One touch play, System

ive scan, Crystal Clear III, Smart Picture,

Progress
White stretch, 2D Combfilter

Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz

mputer formats

Resolution Refresh rate
640 x 480 60Hz

SECAM D/K, SECAM L

ncredible Surround, Smart Sound

I

HDMI v1.3, Headphone Out, S-video in

GA, Digital audio coaxial out

V

/L'

L/R in, CVBS in,

Issue date 2012-01-20

Version: 5.0.3

12 NC: 8670 000 41419
EAN: 87 12581 43590 5

andby

st

Convenience

• Ease of Installation: PLL Digital Tuning, Fine Tuning,
Automatic Channel Install(ACI), Automatic Tuning
System (ATS), Program Name, Auto Program
Naming, Autostore, Keyboard lock-out, Security
menu access, Installation menu locking, Advanced
Hotel Mode, Cloning of TV settings via USB, Plug &
Play

• Ease of Use: Auto Volume Leveller (AVL), On

reen Display, Program List, 1 channel list analog/

Sc
digital, Side Control, Smart Sound

• Comfort: Hotel Guest features, Swit
Welcome message, Volume limitation, Sleep timer

• Screen Format Adjustments: 4:3, 4:3 expand, 16:9

mpress

co

• Picture in Picture: Text dual screen

• Teletext: 100 page Smart Text

• Electronic Program Guide: 8 day Electronic

gram Guide, Now + Next EPG

Pro

• Clock: Sleep Timer

• Remote Control: battery anti-theft protection, low

attery detection

b

• Remote control type: 22AV1104 (RC6)

• Firmware upgradeable: Firmware upgradeable via

B

US

ch on channel,

Healthcare

• Convenience: Headphone out

• Safety: Double isolation Class II

Green Specifications

• Safety: Flame retardant housing

Power

• Mains power: 100-240V,50/60Hz

• Standby power consumption: <0.3 W

• Power consumption: 58 W

• Ambient temperature: 5 °C to 35 °C

Dimensions

•Set dimensions (W x H x D): 470 x 406 x 71 mm

• Set dimensions with stand (W x H x D):

0 x 448 x 205 mm

47

• Product weight: 5.8 kg

• Product weight (+stand): 6.7 kg

• Weight incl. Packaging: 9.7

•Box dimensions (W x H x D):

2 x 500 x 225 mm

57

• VESA wall mount compatible: 100 x 100 mm

kg

Accessories

• Included accessories: Power cord, Tabletop tilt
stand, Remote Control, Batteries for remote
control, Warranty Leaflet

• Optional accessories: Set up Remote RC2573GR

•

© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

Highlights

Welcome message

A welcome greeting is displayed each time the TV set
is switched on.

Switch On Channel Programming

Perfect for in-house advertising or information
channels as it allows to show a predefined channel
when the TV is turned on.

Integrated DVB-T tuner

The integrated DVB-T tuner lets you receive Digital
Terrestrial TV channels, next to the existing analog
channels. It also allows guests to listen to digital radio
stations in high quality sound without the extra
investment in radio receivers.

One combined channel list

One integrated channel list for digital and analogue
channels. This allows the guest to zapp seemless
between Analogue and Digital channels.

Hospitality Remote Control

This TV comes with a stylish remote control that is
specially designed for hospitality usage. For an easy
to use experience for the guest only the most
essential buttons and functions are offered. In
addition, low battery check and anti-theft battery
provisions are features which can contribute to
efficient hotel operations.

Volume limitation

This feature predefines the volume range with which
the TV set is allowed to operate, preventing
excessive volume adjustments and avoiding
disturbance of next door guests.

USB Cloning

Provides the ability to easily copy all programming
and channel programming settings from one TV into
other TV sets in less than a minute. The feature
ensures uniformity between TV sets and significantly
reduces installation time and costs.

Installation menu locking

Prevents unauthorized access to installation and
configuration settings, to ensure maximum guest
convenience and avoid unnecessary reprogramming
costs.

VESA mounting

A unified industry standard for wall/ceiling mounting
equipment set by the Video Electronics Standards
Association. This offers a great flexibility in mounting
possibilities and a wide choice of mounting brackets.

Eco-friendly design

Sustainability is integral to the way Philips does
business. Philips TVs are designed and produced
according to our EcoDesign principles aimed at
minimizing overall environmental impact, through
lower power consumption, removal of hazardous
substances, lower weight, more efficient packaging
and better recyclability. Philips TVs also have a
special housing of flame retardant material.
Independent tests carried out by emergency fire
services have shown that whereas TVs can
sometimes intensify fires caused by external sources,
Philips TVs will not contribute to the fire.

* For information on DVB-T enrolled countries please ask your Philips

contact.
