Philips 58PFL4609, 58PFL4909 User Manual

www.philips.com/support

58PFL4909 58PFL4609

ENUser Manual

Manual del Usuario



Manuel d’Utilisation



EN For further assistance, call the customer support service in your country.

• To obtain assistance, contact Philips Customer Care Center;

In the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands 1 866 309 8147 México D.F. and Área Metropolitana; 58 87 97 36 Interior de la Republica; 01 800 839 19 89

ES Para obtener más información, llame al servicio de soporte al cliente de su país.

• Para obtener asistencia, comuníquese con Centro de atención al cliente de Philips;

En los Estados Unidos, en Canadá, Puerto Rico o en las Islas Vírgenes de los Estados Unidos; 1 866 309 8147 México D.F. y Área Metropolitana; 58 87 97 36 Interior de la Republica; 01 800 839 19 89

FR Pour obtenir de l’aide supplémentaire, communiquez avec le centre de service

à la clientèle de votre pays.

• Pour obtenir de l’aide, communiquez avec le centre de service à la clientèle Philips au; Dans le États-Unis, au Canada, à Puerto Rico ou aux Îles Vierges américaines; 1 866 309 8147 México D.F. et Área Metropolitana; 58 87 97 36 Interior de la Republica; 01 800 839 19 89

Contents

.English

1 Notice ......................................................................................................................... 5

2 Important ................................................................................................................ 7

Positioning the TV Regulatory Notices Environmental Care Preparing to Move/Ship the Unit

3 Getting Started ............................................................................................... 8

Features Supplied Accessories Symbols used in this User Manual Stand Assembly Attaching the Base Installing the Remote Control Batteries Remote Control Control Panel Terminals Connecting Antenna or Cable / Satellite / IPTV Box Plugging in the AC Power Cord Selecting your Connection quality Connecting your Devices Initial Setup

10 11 11 12 12 13 13 17

4 Use your TV .................................................................................................... 19

Switching on your TV and putting it in Standby mode Adjusting Volume Switching Channels Watching Channels from an External Device Access the Home menu Using auto mode Create and use lists of favorite channels Changing Picture Format TV Screen information USB

19 19 19 20 20 21 21 22 23 23

Sound Features

Caption settings Sleep timer

7 7 7 7

8 8 8 9 9 9

Child and Ratings Lock Change PIN

Installation

Language Channel installation Preferences Use Philips EasyLink Network Return your settings to default values

Software

Checking your current software version Preparing for the software upgrade Upgrading the software Automatically check for latest software Netflix deactivation Netflix ESN VUDU deactivation YouTube deactivation License Philips Wirelessconnect View photos, play music and watch videos using DLNA Net TV PandoraN operations

29 30 30 31 31 33 33 33 34 35 35 37 41 41 41 42 42 43 43 43 43 43 43 44 45 47 48

6 Useful tips ........................................................................................................... 49

FAQ Troubleshooting

49 50

7 Information ........................................................................................................ 52

Glossary Maintenance

52 52

8 Specifications ................................................................................................... 53

5 Making more use with your TV ............................................ 26

Settings assistant Picture

27 27

9 Warranty .............................................................................................................. 54

License ................................................................................................. end of book

Know these safety symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The caution marking is located on the rear or bottom of the cabinet.

CAUTION

Registering your model with Philips makes you eligible for all of the valuable benefits listed below, so don't miss out. Register Online at www.productrecords.com/phl to ensure:

to get the very most from your purchase.

*Product Safety Notification *Additional Benefits

By Registering your Product, you'll receive notification directly from the manufacturer - in the rare case of a Product Recall or Safety Defect.

Registering your Product guarantees that you'll receive all of the Privileges to which you're Entitled, including special money-saving offers.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall

not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. ATTENTION

: Pour éviter les choc électriques,introduire la lame la plus large de la fiche dans la borne correspondante de la

prise et pousser jusqu’au fond.

Visit our World Wide Web Site at www.philips.com/support

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.

• ALWAYS read and follow all instructions for proper use of your television.

• NEVER allow children to climb on or play on the television or the furniture on which the television is placed.

• NEVER place the television on furniture that can easily be used as steps, such as a chest of drawers.

• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.

• ALWAYS route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAYS contact your retailer about professional

installation if you have any doubts about your ability to safely mount your television.

• ALWAYS use a mount that has been recommended by

the television manufacturer and has a safety certification by an independent laboratory (such as UL, CSA, ETL).

• ALWAYS follow all instructions supplied by the

television and mount manufacturers.

• ALWAYS make sure that the wall or ceiling where you

are mounting the television is appropriate. Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a flat-panel television. Special care should be made in the placement of older CRT televisions.

• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size and weight.

• NEVER place your older CRT television on a dresser where children may be tempted to use the drawers to climb.

• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.

CE.org/safety

3 .English

Important Safety Instructions

1.1. Read these instructions.

Read these instructions.

2.2. Keep these instructions.

Keep these instructions.

3.3. Heed all warnings.

Heed all warnings.

4.4. Follow all instructions.

Follow all instructions.

5.5. Do not use this apparatus near water.

Do not use this apparatus near water.

6.6. Clean only with dry cloth.

Clean only with dry cloth.

7.7. Do not block any ventilation openings. Install in

Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8.8. Do not install near any heat sources such as radiators,

Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9.9. Do not defeat the safety purpose of the polarized or

Do not defeat the safety purpose of the polarized or

grounding type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10.

Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11.

Only use attachments / accessories specified by the

manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or

sold with the apparatus. When a cart

is used, use caution when moving the

cart / apparatus combination to avoid

injury from tip-over.

13.

Unplug this apparatus during lightning storms or when

unused for long periods of time.

14.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate

normally, or has been dropped.

Note to the CATV system installer:

This reminder is provided to call the CATV system installer’s

attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in par ticular, speciﬁes that the cable ground

shall be connected to the grounding system of the building, as close

to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National

Electric Code

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT

(NEC SECTION 810-20)

ELECTRIC SERVICE EQUIPMENT

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

POWER SERVICE GROUNDING ELECTRODE

SYSTEM (NEC ART 250, PART H)

GROUND CLAMPS

• The recommended Wall Mount Bracket Kit (sold separately) allows the mounting of the TV on the wall.

• For detailed information on installing the wall mount, refer to the Wall Mount Instruction Book.

• P&F USA is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV Wall Mount Bracket or mount the TV onto the Bracket on your own.

• The Wall Mount Bracket must be installed by experts.

P&F USA is not liable for these types of accidents or injury noted below.

• Install the Wall Mount Bracket on a sturdy vertical wall.

• If installed onto a ceiling or slanted wall, the TV and Wall

Mount Bracket may fall which could result in a severe injury.

• Do not use screws that are longer or shorter than their specified length. If screws too long are used this may cause mechanical or electrical damage inside the TV set. If screws too short are used this may cause the TV set to fall.

• Do not fasten the screws by excessive force. This may damage the product or cause the product to fall, leading to an injury.

• For safety reasons use 2 people to mount the TV onto a Wall Mounting Bracket.

• Do not mount the TV onto the Wall Mounting Bracket while your TV is plugged in or Turned On. It may result in an electrical shock injury.

hen installing the unit on the wall, allow this much space.

Top: 11.8 inches (30cm) Left and right side: 5.9 inches (15cm) Bottom: 3.9 inches (10cm)

4 .English

Wall Mount Bracket Kit

Brand Model # Screw dimension

58PFL4909 / 58PFL4609

SANUS PLA50B M6 x 0.787” (20mm)

1 Notice

Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

P&F USA reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

The material in this manual is believed adequate for the intended use of the system. If the product or its individual modules or procedures are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained. P&F USA warrants t

hat the material itself does not infringe any United States patents. No

further warranty is expressed or implied. P&F USA cannot be held responsible neither for any errors in the

content of this document nor for any problems as a result of the content in this document. Errors repor ted to P&F USA will be adapted and published on the P&F USA support website as soon as possible.

Pixel characteristics

This LCD product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural proper ty of the display (within common industr y standards) and is not a malfunction.

Warranty

No components are user serviceable. Do not open or remove covers t

o the inside of the product. Repairs may only be done by Service Centers and official repair shops. Failure to do so shall void any warranty, stated or implied.

Any operation expressly prohibited in this manual, any adjustments or assembly procedures not recommended or authorized in this manual shall void the warranty.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B Digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio or television

technician for help.

Modifications

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless t

he modifications are expressly approved in the User Manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

Cables

Connections to this device must be made with shielded cables with metallic RFI / EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice

CAN ICES-3 (B)/NMB-3 (B) Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7.

The following FCC/IC RSS-Gen is description of

Wireless LAN adapter.

FCC Caution: Any changes or modifications not expressly

approved by the party responsible for compliance could void the

user’s authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction

with any other antenna or transmitter.

Country Code Statement

For product available in the USA market, only channel 1~11 can be

operated. Selection of other channels is not possible.

To maintain compliance with FCC RF exposure requirements, use

only belt-clips, holsters or similar accessories that do not contain

metallic components in its assembly. The use of accessories that do

not satisfy these requirements may not comply with FCC RF

exposure requirements and should be avoided.

FCC Radiation Exposure Statement

This equipment is compliance with SAR for general population/

uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had

been tested in accordance with the measurement methods and

procedures specified in OET Bulletin 65 Supplement C. This

equipment should be installed and operated with minimum distance

2.5cm between the radiator & your body.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

.English

Declaration of Conformity

Trade Name

Responsible Party

Model

Address

Telephone Number

: PHILIPS

: P&F USA, Inc.

: 58PFL4909, 58PFL4609

: PO Box 2248, Alpharetta, GA 30023-2248

U.S.A.

: 1 866 309 8147

All other registered and unregistered trademarks are the proper ty of t

heir respective owners.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

Consumer Notice:

This TV has been set to maximize energy efficiency while delivering t

he best possible picture using the factory installed home mode settings.

Changing or enabling other features in this TV (e.g. brightened backlighting) will possibly increase energy consumption beyond the original ENERGY STAR

qualified limits.

LED backlighting technology uses less energy when compared with a standard CCFL backlighting LCD television of the same screen size. Actual energy savings will vary depending on the screen size.

VUDUTM is a trademark of VUDU, Inc.

DLNA®, the DLNA Logo and DLNA CERTIFIED

are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Netflix and the Netflix logo are trademarks or registered trademarks of Netflix, Inc.

YouTube and the YouTube logo are trademarks of Google Inc.

CloudTV™ (CloudTV™ by ActiveVideo

) technology provided

under license from ActiveVideo Networks, Inc. U.S. and Foreign Patents apply. CloudTV™ and the “CloudTV™” logo are proprietary trademarks of ActiveVideo Networks, Inc.

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

CinemaNow and the CinemaNow logo are trademarks of BestBuy Stores L.P. and BestBuy Canada LTD.

Portico, Portico TV and the Portico logo are service marks of Net2TV Corporation.

Target, Target Ticket, the Bullseye Design and Bullseye Dog are trademarks of Target Brands, Inc.

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

.English

* CinemaNow is supported in 58PFL4909 only.

* Target Ticket is supported in 58PFL4909 only.

• Large screen TVs are heavy. 2 people are required to carry and handle a large screen TV.

• Make sure to hold the upper and bottom frames of the Unit firmly as illustrated.

• Install the Unit in a horizontal and stable position.

• Do not install the Unit in direct sunlight or in a place subject to dust or strong vibration.

• Depending on the environment, the temperature of this Unit may increase slightly. This is not a malfunction.

• Avoid a place with drastic temperature changes.

• Do not place anything directly on top or bottom of the Unit.

• Depending on your external devices, noise or disturbance of the picture and / or sound may be generated if the Unit is placed too close to them. In this case, please ensure enough space between the external devices and the Unit.

• Do not insert the AC power cord into the power socket outlet before all the connections are made.

• Ensure that you always have easy access to the AC power cord or plug to disconnect the TV from the power.

• Before you move the TV, disconnect attached cables to prevent damage to connectors.

• Be sure to unplug the AC power cord from the AC outlet before moving or carrying the Unit.

Do not place the Unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling Unit can cause serious injury or even death. This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 4 inches (10cm) or more around this apparatus. Press to turn the Unit on and go into standby mode. To completely turn off the Unit, you must unplug the AC power cord. Disconnect the AC plug to shut the Unit off when trouble is found or not in use. The AC plug shall remain readily available.

AC plug

Never use a gas duster on this TV. The gas trapped inside of this Unit may cause ignition and explosion.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

WARNING: Batteries (battery pack or battery installed) shall

not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: To prevent injury, this apparatus must be securely

attached to the furniture / wall in accordance with the instructions. Tipping, shaking or rocking the unit may cause injury / death.

The packaging of this product is intended to be recycled. Contact your local authorities for information about how to recycle

he packaging.

For product recycling information, please visit -

www.recycle.philips.com

Philips pays a lot of attention to produce environmental-friendly products in green focal areas. Your new TV contains materials which can be recycled and reused. At the end of its life, specialized companies can dismantle the discarded TV to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old TV according to local regulations.

Disposal of Used Batteries

The Batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless, in many areas Batteries may not be disposed of with your household waste. Please ensure you dispose of Batteries according to local Regulations.

Please pack the Unit properly by following the Diagram on the Carton.

12 3 4

To avoid damage to the Screen, do not pack the stand on the same side as the TV screen.

7 .English

2 Important

Positioning the TV

Environmental Care

End of Life Directives

Regulatory Notices

Preparing to Move/Ship the Unit

AAA

58PFL4909 / 58PFL4609

SizeQuantity

Model

Screws packed with this Unit.

TV base and Screws

Quick Start guideUser Manual

M4 x 0.393”(10mm)

(AAA, 1.5V x 2)

Remote Control and

Batteries

M5 x 0.866”(22mm)

Digital TV Operation

Cable / NTSC (Analog) TV Operation

.English

3 Getting Started

Features

●

DTV / Analog TV / CATV

You can use your Remote Control to select channels which are Broadcast in Digital format and conventional Analog format. Also, Cable and Satellite subscribers can access their TV channels.

●

Information display

You can display the Title, contents (DTV only) and other information of the current program on the TV screen.

●

Autoprogram

This Unit Automatically scans and memorizes channels available in your area, Eliminating difficult Setup procedures.

●

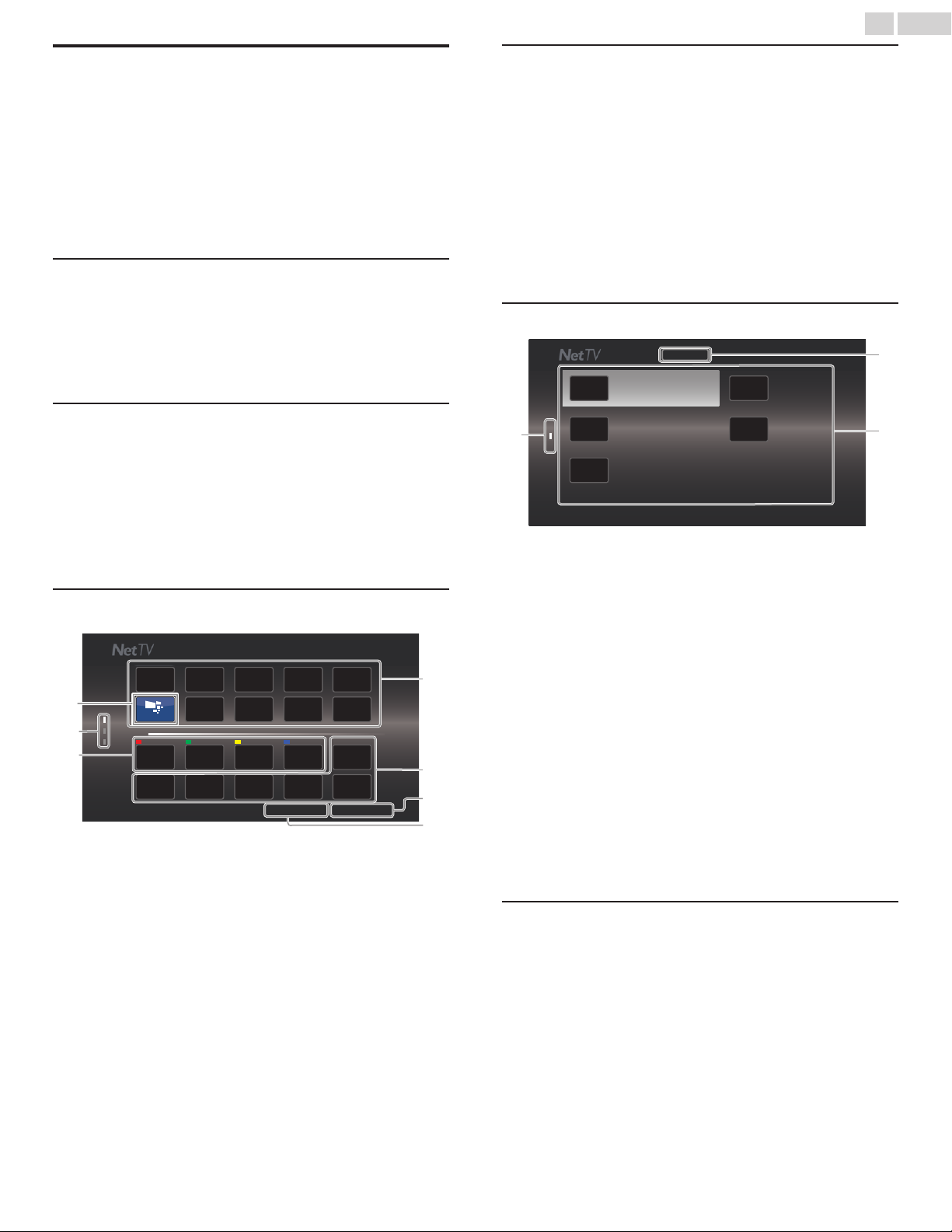

Net TV

This unit lets you enjoy Internet services. Use the remote control to browse the Net TV pages. You can play movies and much more, all from your TV screen.

●

Child lock

This feature allows you to Block children’s access to inappropriate programs.

●

Closed Caption decoder

Built-in Closed Caption decoder displays text for Closed Caption supported programs.

●

MTS / SAP tuner

Audio can be selected from the Remote Control.

●

Auto Standby

If there is no Input Signal and no operation for 15 minutes, the Unit will go into Standby mode Automatically.

●

Sleep Timer

You can set the Unit to go into Standby mode after a specific amount of time.

●

Choices for On-screen language

Select your On-screen language: English, Spanish or French.

●

Stereo sound function

●

PLL frequency synthesized tuning

Provides free and easy channel selection and lets you tune directly to any channel using the number and decimal point “•” keys on the Remote Control.

●

Various adjustments for Picture and Sound

Customizes image quality suitable for your room and sets your sound preference.

●

EasyLink via HDMI link

EasyLink allows your other HDMI link devices to be controlled by the HDMI cable connected to your TV.

●

HDMI Input

●

HDMI-DVI Input

If your Video Device has a DVI Output jack, use an HDMI-DVI Conversion Cable to connect the Unit.

●

Component Video Input

●

PC Input

●

AV Input

Audio and Video Input from an External Device.

●

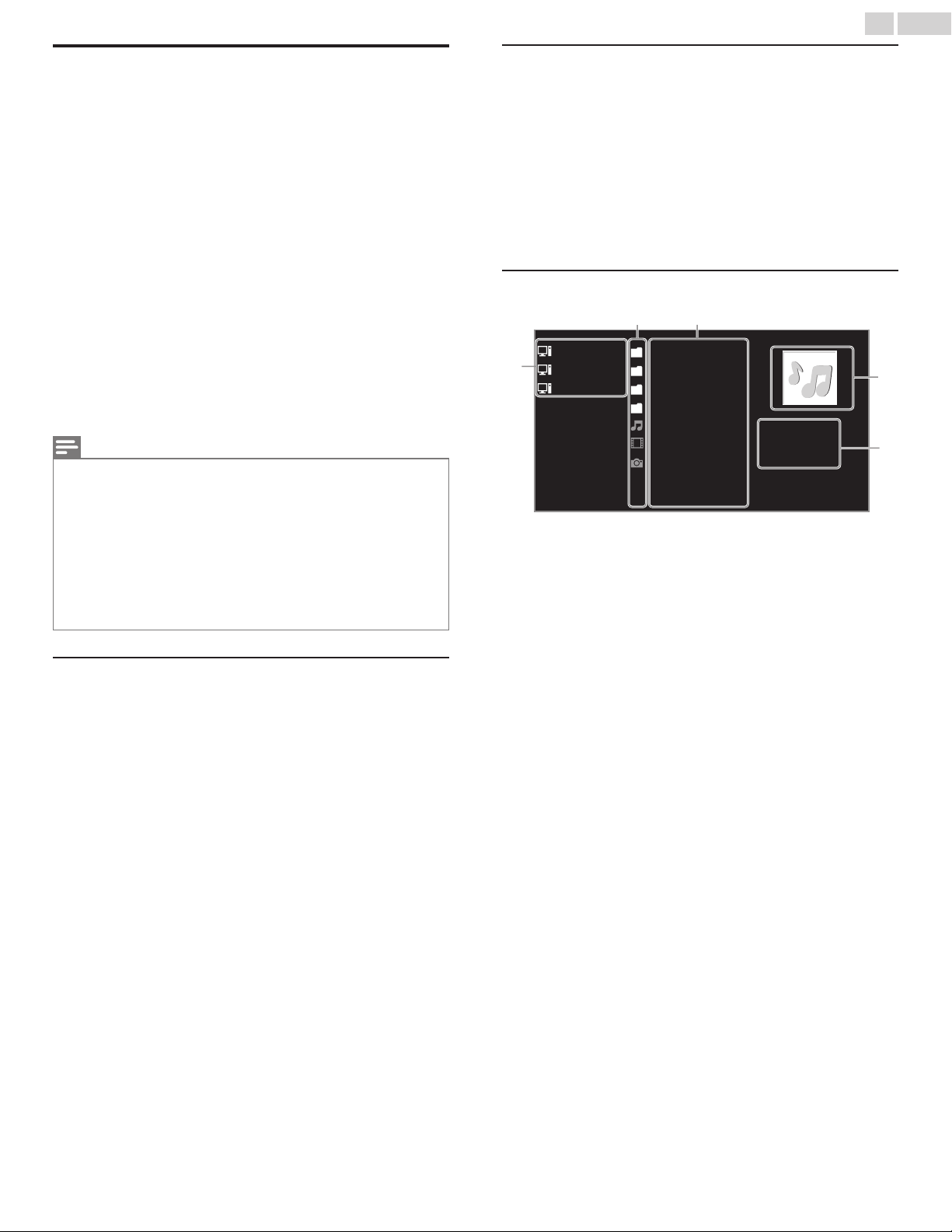

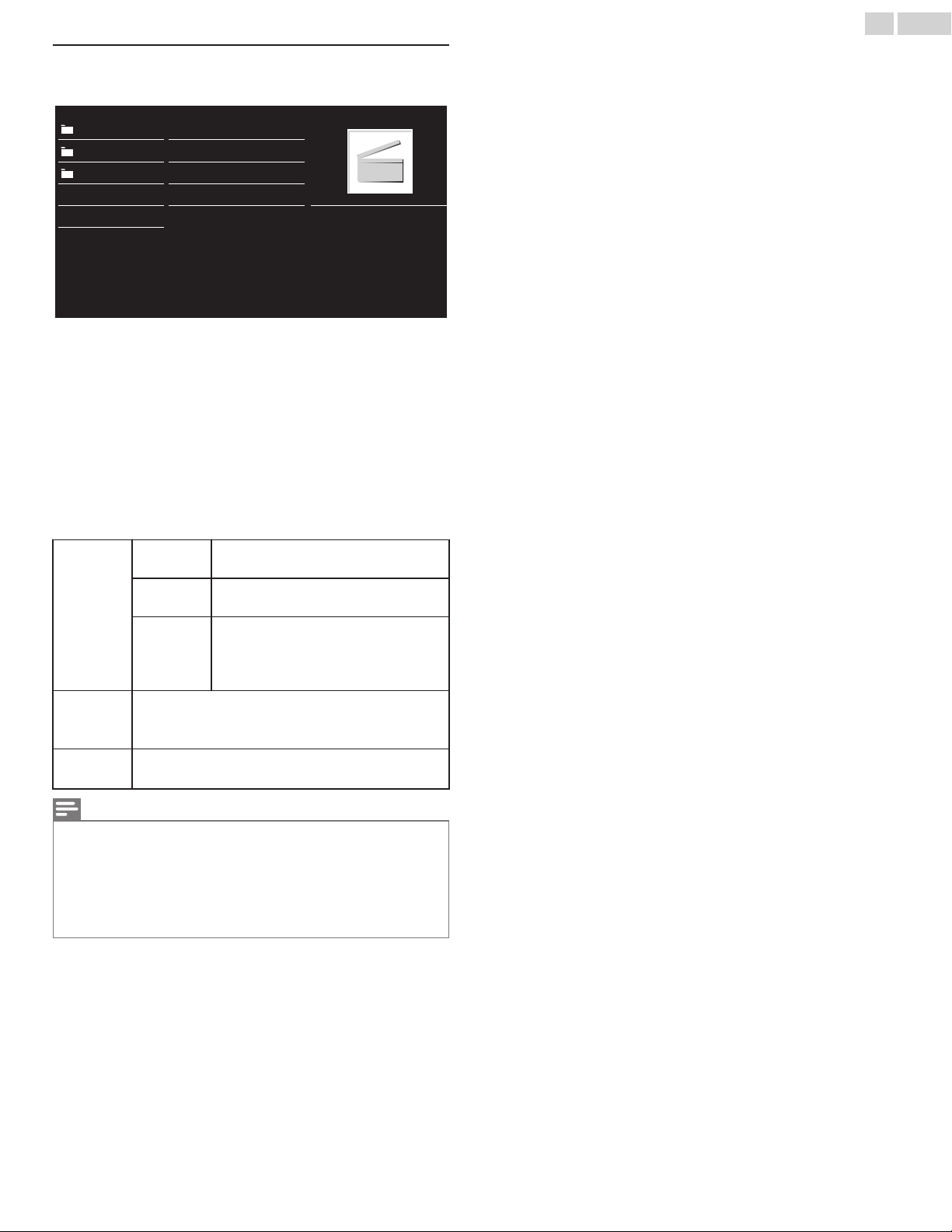

USB terminal

The Picture (JPEG), Music (MP3) and Video files stored on a USB Memory Stick can be played back on this unit.

●

Digital Audio Output

●

Headphone Audio Output

Headphone 3.5mm Stereo jack for personal listening.

Supplied Accessories

Note(s)

●

If you lose the Screws, please purchase the above-mentioned Phillips head Screws at your local store.

●

If you need to replace these accessories, please refer to the part name or No. with the illustrations and call our toll free customer support line found on the cover of this User Manual.

When using a Universal Remote Control to operate this Unit.

●

Make sure the component code on your Universal Remote Control is set to our brand. Refer to the instruction book accompanying your Remote Control for more details.

●

We Do Not guarantee 100% interoperability with All Universal Remote Controls.

Symbols used in this User Manual

The following is the description for the symbols used in this User Manual. Description refers to:

●

If neither symbol appears, the operation is applicable to both.

× 4

M5 x 0.866”(22mm)

× 4

M4 x 0.393” (10mm)

9 .English

Stand Assembly 1

Note(s)

●

Make sure to use a table which can support the weight of this Unit and is larger than this Unit.

●

Make sure the table is in a stable location.

●

When attaching the base, ensure that “FRONT” with “arrow” written on the bottom of the base is downward.

●

When attaching the base, ensure that All Screws are tightly fastened. If the base is not properly attached, it could cause the Unit to fall, resulting in injuries as well as damage to the Unit.

●

To remove the base from this Unit, unscrew the Phillips head screws by the reverse procedure. Be careful not to drop the base when you remove it.

Installing the Remote Control Batteries

Slide the battery cover off the back of the Remote Control.

Insert the 2 Supplied Batteries (AAA, 1.5V). Be sure the + and –

ends of the Batteries line up with the markings inside the case.

Slide the cover back into position.

Attaching the Base

You must attach the base to the Unit to have it as a table top Unit. Be sure the front and rear of the base match the proper direction. For large screen TVs, at least 2 people are required for these steps.

Note(s)

●

Remove the Batteries if not using the Remote Control for an extended period of time.

Remote Control

B (POWER)

Turns the TV On from Standby or Off to Standby.

VUDU

Access to VUDU directly.

EasyLink (HDMI CEC) buttons

JJ / KK K F

YOUTUBE

Access to YouTube directly.

Q (MENU)

Displays the main menu.

T INFO

Displays Information about the current program.

Press to decide the command of setting when the Home menu is displayed.

H I J K (NAVIGATION buttons)

Moves the cursor, Selects the On-screen Menu items.

U OPTIONS

Displays a list of menu items applicable to the highlighted object or screen.

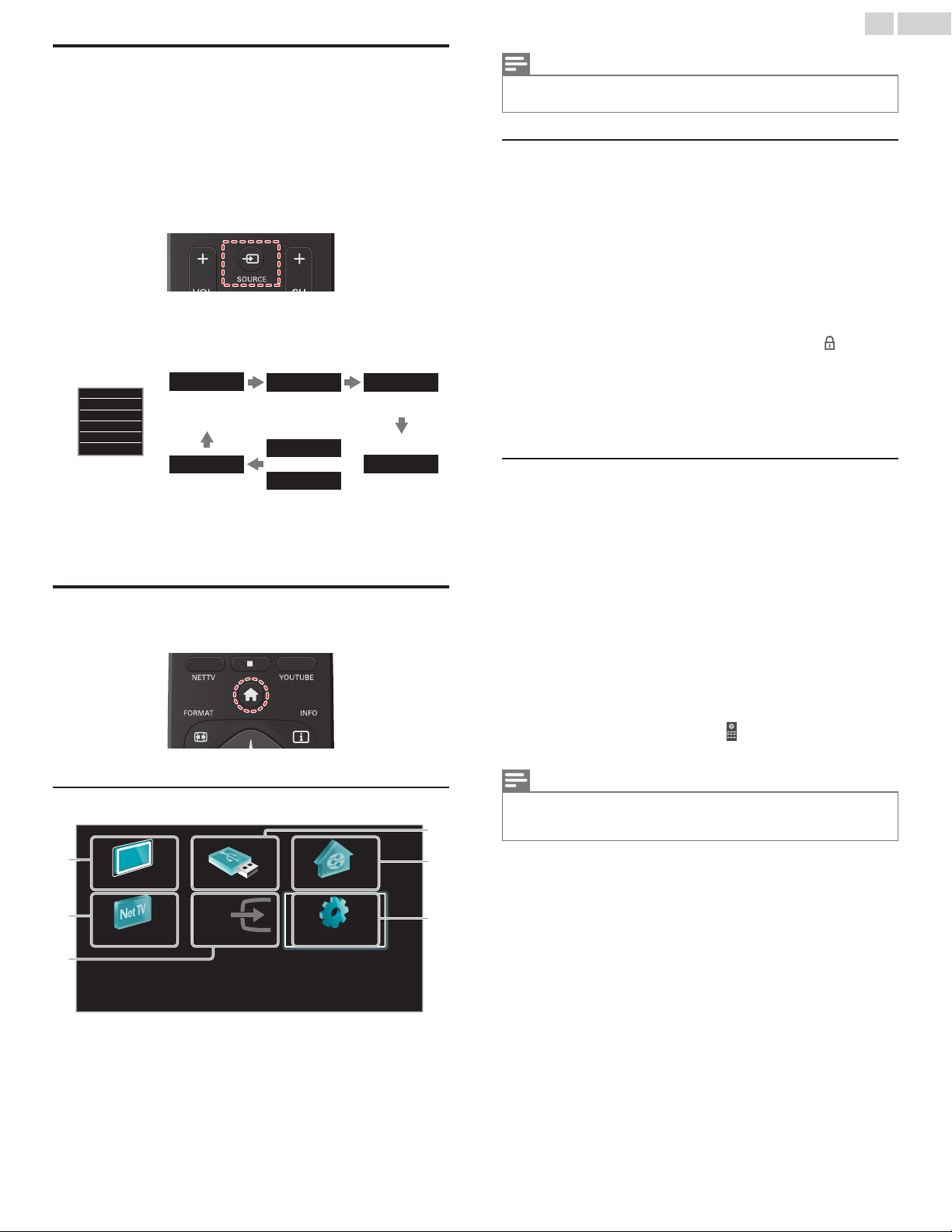

S SOURCE

Selects Connected devices.

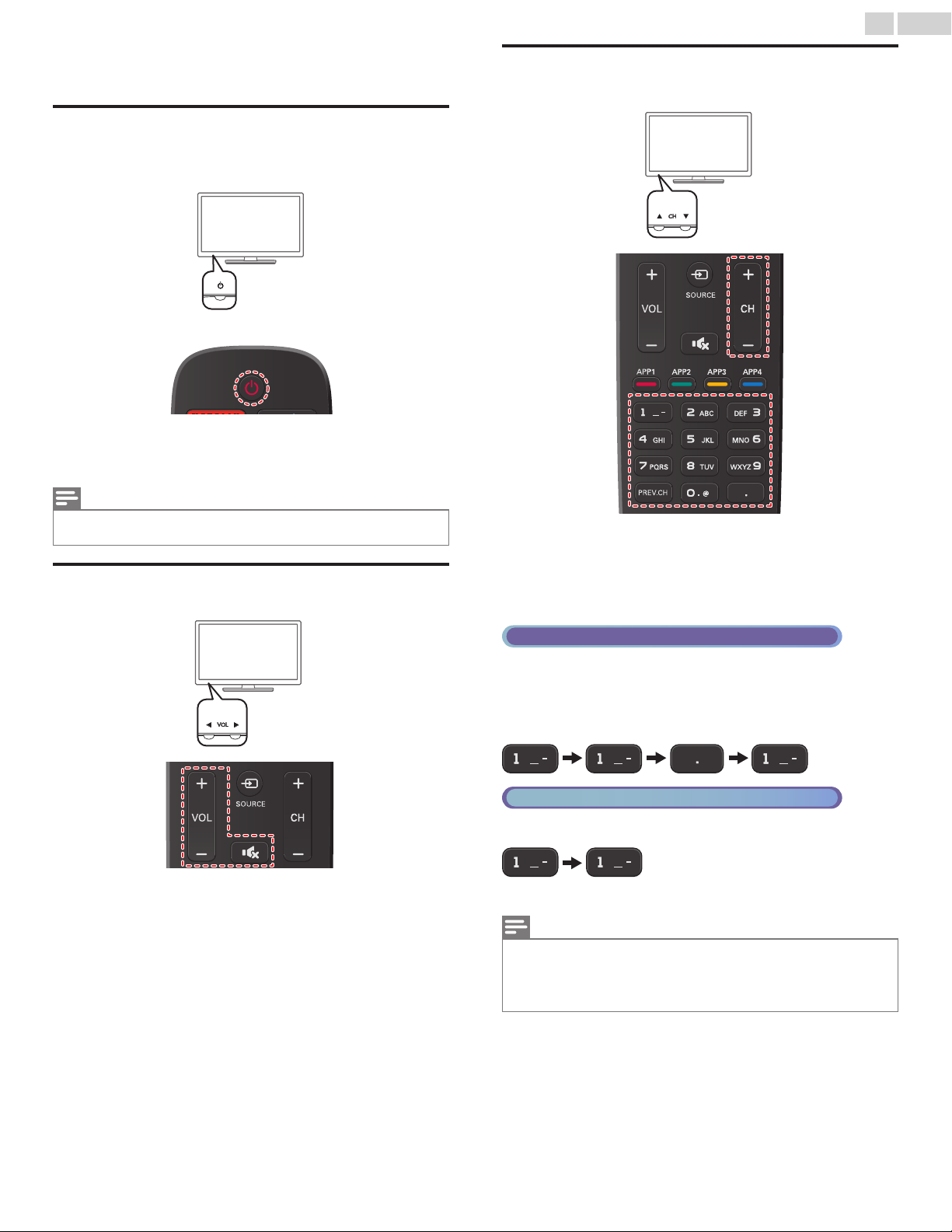

CH + / –

Selects a Channel.

Apps (APP1 / APP2 / APP3 / APP4) buttons

Works as direct access to user specified net apps.

0 - 9 (NUMBER buttons)

Used to enter a Channel / Program number.

• (DOT) : Use with 0-9 to select digital channels. For example,

: Searches Backward or Forward through the disc.

: Starts, pauses or resumes playback.

: Stops the Disc playback.

to enter 2.1, press

.English

PREV.CH : Returns to the previously viewed Channel.

V (MUTE)

Turns the Sound On and Off.

VOL + / –

Adjusts the Volume.

Y BACK

Returns to the previous Menu operation.

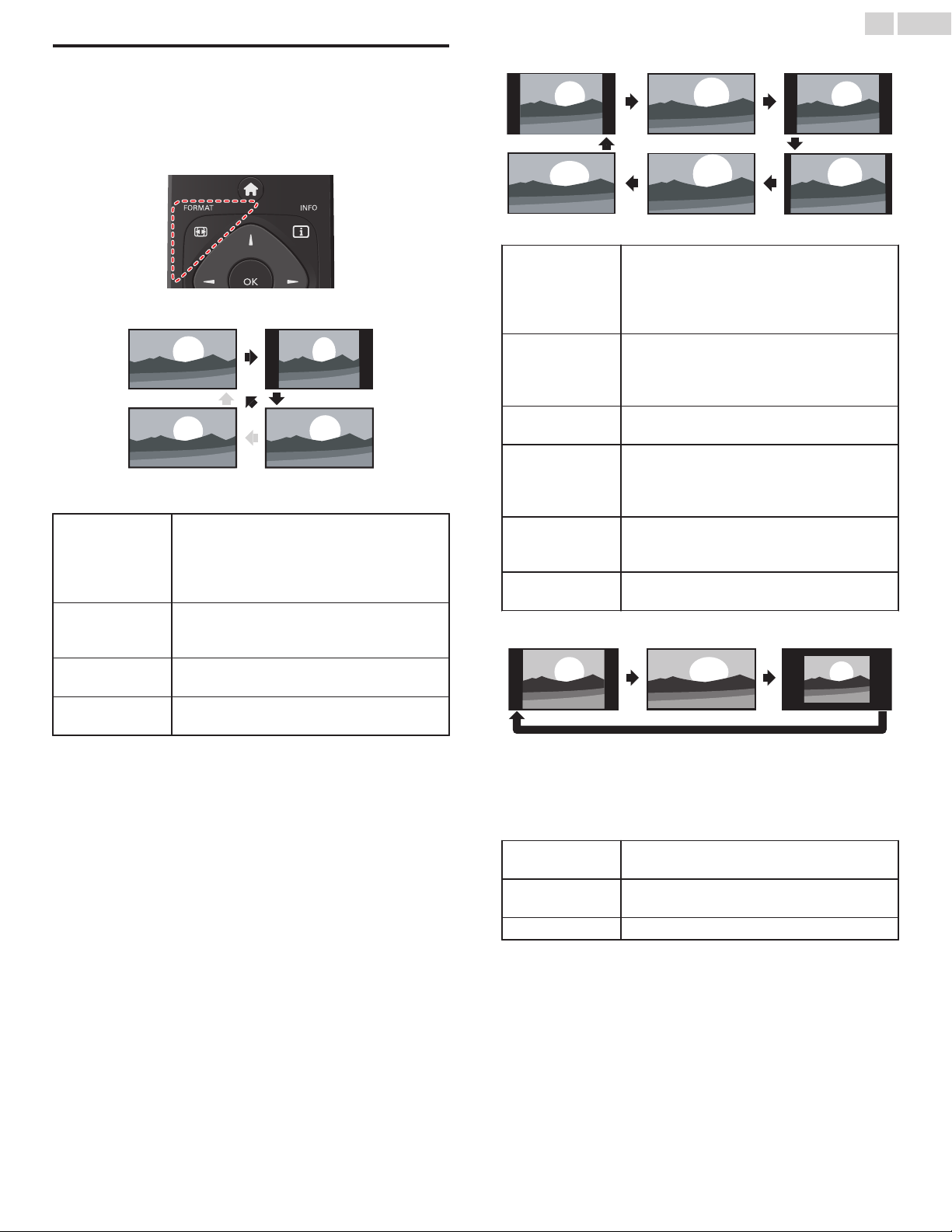

R FORMAT

Adjusts the Picture size on the TV screen.

NET TV

Access to Net TV menu directly.

NETFLIX

Access to Netflix directly.

d e f

cba

i jklm n

.English

Control Panel

Power On / Standby Indicator

(On : lights in white, Standby : no light)

Remote Control Sensor

Receives IR signal from Remote control.

Ambient Light Sensor

Alters the brightness of the TV screen automatically by detecting your room lighting level. Do not block this Light Sensor window to allow proper operation.

B (POWER)

Turns the TV On and Off.

SOURCE

Selects Connected devices.

Opens the Main On-screen Menu.

CH H / I

Selects a Channel. In the Menu screen, moves the Cursor Up (H)/ Down (I).

VOL J / K

Adjusts the Volume. In the Menu screen, moves the Cursor Left (J) / Right (K).

VOL J VOL K

: Volume Down

: Volume Up

Terminals

Ethernet port

For Internet connection using an Ethernet cable with an RJ-45 connector.

75 ohm Cable / Antenna connection

Signal Input from an antenna or cable / satellite set-top boxes.

Headphone Audio Output jack

Headphone 3.5mm stereo jack for personal listening.

Digital Audio Output jack

Digital Audio (S/PDIF) Output to home theaters and other Digital Audio systems.

Analog Audio (L/R) Input jacks

Connect Analog Audio signals from;

–

HDMI-DVI / Analog Audio (L/R) jacks signal

–

Component Video / Analog Audio (L/R) jacks signal

–

Composite Video / Analog Audio (L/R) jacks signal

–

PC Connection / Analog Audio (L/R) jacks signal with Stereo mini

3.5mm plug Audio cable on PC

Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jacks for VIDEO

Composite Video Input (VIDEO) jack is a shared jack with Component Video Input (Y) jack.

USB terminal

Data Input from USB Memory Stick only. Do not connect any device to this terminal such as Digital camera, keyboard, mouse, etc.

HDMI Input jack(s)

Digital audio and video Input from high definition Digital devices such as DVD / Blu-ray disc players, cable / satellite set-top boxes, PC’s.

* For HDMI 3 only

In addition to normal HDMI and HDMI-DVI functionality, it outputs TV Audio to an HDMI-ARC-compliant device, such as a home theater system.

PC Input jack

VGA cable connection for PC.

INININ

OUT

RF cable

Cable

antenna

OUT

Set-top Box

RF cable

antenna

INININ

OUT

Set-top Box

RF cable

HDMI cable

INININ

OUT

Set-top Box

RF cable

Component (Y/Pb/Pr)

Video cables

Component (Y/Pb/Pr)

Video cables

Component (Y/Pb/Pr)

Video cables

Audio (L/R) cables

Cable

OUT

RF cable

Audio (L/R) + Video cables

OUT

INININ

OUT

Set-top box

Blu-ray disc/DVD

recorder

Audio (L/R) + Video cables

12 .English

Connecting Antenna or Cable / Satellite / IPTV Box

Be sure your Antenna or another Device is connected properly before plugging in the AC Power Cord.

If connecting to an Antenna through an RF cable

Any DTV Programs that are Broadcast in your area can be received for free through an Antenna Connection.

If connecting Cable / Satellite / IPTV Box using an RF cable

If the TV is connected to a Cable / Satellite Set-top Box via a Coaxial Connection, set the TV to channel 3/4 or the channel specified by the service provider.

If connecting Cable / Satellite / IPTV Box using an HDMI cable

If the TV is connected to a Cable / Satellite Set-top Box via an HDMI cable, make sure you select the correct Source by using S SOURCE.

Connecting a Cable / Satellite / IPTV Box, Blu-ray Disc / DVD Recorder via Composite Connectors and Analog Audio

Do Not place your Recorder too close to the Screen because some Recorders can be susceptible to harmful interference from the TV.

Note(s)

●

If you have any question about the DTV’s Antenna, visit www.antennaweb.org for further information.

●

Depending on your Antenna system, you may need different types of combiners (mixers) or separators (splitters) for HDTV Signal. The minimum RF bandpass on these Devices is 2,000MHz or 2GHz.

●

For your safety and to avoid damage to this Unit, please unplug the RF Coaxial Cable from the Antenna Input jack before moving the Unit.

●

If you did use an Antenna to receive Analog TV, it should also work for DTV reception. Outdoor or attic Antennas will be more effective than a Set-top Box or inside Antenna.

●

To Turn On your reception source easily between Antenna and Cable, Install an Antenna selector.

●

If you are not receiving a Signal from your Cable service, contact the Cable provider.

Plugging in the AC Power Cord

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are made.

If connecting Cable / Satellite / IPTV Box using Component Video Input

If the TV is connected to a cable / satellite set-top box via Component Video Input, make sure you select the correct Component Video Source by using S SOURCE.

Caution

●

Do Not connect the AC Power Cord to an AC Power Supply outside the indicated voltage of this Unit (120V AC).

●

Connecting the AC Power Cord to a Power Supply outside of this range may result in Unit failure, degradation or electrical shock.

Note(s)

●

Each time you plug in the AC Power Cord, no operations will be performed for several seconds. This is not a malfunction.

OUT

HD game console

Blu-ray Disc/DVD Player

Set-top Box

HDMI cable

OUT

Cable Receiver or

Satellite Set-top Box with

the DVI Output jack

HDMI-DVI

conversion cable

HDMI-DVI

conversion cable

HDMI-DVI

conversion cable

Audio (L/R) cables

13 .English

No supplied cables are used with these connections:

●

Please purchase the Necessary Cables at your local store.

Before you connect the AC Power Cord:

Be sure other Devices are connected properly before plugging in the AC Power Cord.

Selecting your Connection quality

HDMI - Highest quality

Supports high-definition Digital signals and gives highest picture and sound quality. Video and Audio signals are combined in one cable. You must use HDMI for full high-definition Video and to enable EasyLink(HDMI CEC).

Note(s)

●

Philips HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP is a form of Digital Rights Management that protects high definition content in Blu-ray discs or DVDs.

●

The HDMI-ARC connector on the TV features HDMI-ARC functionality. This allows output of TV Audio to an HDMI-ARC-compliant Device.

Connecting your Devices

HDMI Digital Connection

HDMI Connection offers the Highest Picture quality. HDMI (High-Definition Multimedia Interface) transports high definition Digital Video and multi-channel Digital Audio through a single cable.

HDMI-DVI Connection

This Unit can be connected to your Device that has a DVI Terminal. Use an HDMI-DVI Conversion Cable for this Connection and it requires Audio Cable for Analog Audio signal as well.

Component (Y Pb Pr) - High quality

Supports high-definition Analog signals but gives lower picture quality than HDMI. Component (Y/Pb/Pr) Video cables combine red / green / blue Video cables with red / white Audio (L/R) Cables. Match the cable colors when you connect to the TV.

Composite - Basic quality

For Analog Connections. Composite Video / Audio Analog cable usually combine a yellow Video Cable with red / white Audio (L/R) Cables. With this Unit, yellow cable must be connected to Y (green) jack on the Component Video Input jacks.

Note(s)

●

Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable is recommended for the Better compatibility.

For HDMI Connection

●

The Unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of Video signals, 32kHz /

44.1kHz and 48kHz of Audio signals.

●

This Unit accepts 2 channel Audio signal (LPCM) only.

●

This Unit accepts only signals in compliance with EIA861.

For HDMI-DVI Connection

●

The Unit accepts 480i, 480p, 720p, 1080i and 1080p Video signals.

●

HDMI-DVI Connection requires separate Audio Connections as well and the Audio signals are Output as Analog (L/R) Audio.

●

DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

Continued on next page.

HDMI cable

Digital home theater

amplifier that supports

HDMI-ARC

OUT

HDMI 3 IN only

OUT

INININ

ININ

Blu-ray Disc/DVD

Recorder

Set-top Box

Component (Y/Pb/Pr)

Video cables

Audio (L/R) cables

OUT

ININ

DVD Player

Audio (L/R) + Video cables

LAN

InternetInternetInternet

Network provisioning

equipment

Network provisioning

equipment

Network provisioning

equipment

Ethernet cableEthernet cableEthernet cable

14 .English

HDMI-ARC Connection

HDMI-ARC allows you to use EasyLink to output TV Audio directly to a connected Audio device, without the need for an additional Digital Audio cable.

Note(s)

●

The HDMI 3 connector is HDMI Audio Return Channel (ARC) compliant. Use it to output Digital Audio to an HDMI home theater system.

●

Be sure that the device is HDMI CEC and ARC compliant and that the TV is connected to the device using an HDMI cable attached to HDMI-ARC connectors.

Component Analog Video Connection

Component Analog Video Connection offers Better Picture quality for Video Devices connected to the Unit.

If you connect to the Unit’s Component Video (Y/Pb/Pr) Input jacks, connect Analog Audio Cables to the Analog Audio (L/R) Input jacks.

Composite Analog Video Connection

Composite Analog Video Connection offers standard Picture quality for Video Devices connected to the Unit.

If you connect to the Unit’s Component/Composite Video (Y/VIDEO) Input jack (green), connect Audio Cables to the Audio (L/R) Input jacks. When the Audio is monaural, then only connect to the Audio L Input jack.

Note(s)

●

With this Unit, yellow cable must be connected to Y (green) jack on the Component Video Input jacks.

●

Whenever you connect to the Composite Video Input jack (Y/VIDEO), you must disconnect the Component Video Input jacks (Pb and Pr). If you leave those jacks connected, it may cause of an unstable picture.

Note(s)

●

The Unit accepts 480i / 480p / 720p and 1080i of Video signals for this Connection.

Connecting the TV to the Internet using an Ethernet cable

Note(s)

●

Please purchase shielded Ethernet cables at your local store and use them when you connect to network equipment.

●

After connecting an Ethernet cable, set up necessary network settings. Network L

p. 37

●

Do not insert any cable other than an Ethernet cable to the Ethernet port to avoid damaging the unit.

●

If your telecommunications equipment (modem, etc.) does not have broadband router functions, connect a broadband router.

●

If your telecommunications equipment (modem, etc.) has broadband router functions but there is no vacant port, use a hub.

●

For a broadband router, use a router which supports 10BASE-T / 100BASE-TX.

●

Do not connect your PC directly to the Ethernet port of this unit.

Continued on next page.

WLAN

LAN

Internet

Network provisioning

equipment

Network provisioning

equipment

Network provisioning

equipment

Ethernet cable

Broadband router

OUTOUTOUT

ININ

Digital Home Theater

Amplifier

Digital Audio Coaxial cable

Digital Audio Coaxial cableDigital Audio Coaxial cable

OUT

ININ

HDMI cable

OUT

OUTOUT

ININ

HDMI-DVI

conversion cable

HDMI-DVI

conversion cable

HDMI-DVI

conversion cable

Stereo Mini 3.5 mm Plug Audio cable

OUT

INININ

VGA cableVGA cableVGA cable

Stereo Mini 3.5 mm Plug Audio cable

Stereo Mini 3.5 mm Plug Audio cableStereo Mini 3.5 mm Plug Audio cable

.English

Connecting the TV to the Internet using a Wireless LAN

Note(s)

●

After you made the wireless connection, set up necessary network settings. Network L

p. 37

●

Use a Wireless LAN Access Point (AP) (e.g. wireless router) which supports IEEE 802.11 b/g/n. (n is recommended for stable operation of the wireless network.)

●

This unit does not support Ad-hoc mode.

●

Other radio devices or obstacles may cause interference to the wireless network connection.

PC Connection

HDMI Connection

This Unit can be connected to your PC that has an HDMI terminal. Use an HDMI cable for this Digital Connection.

HDMI-DVI Connection

This Unit can be connected to your PC that has a DVI Terminal. Use an HDMI-DVI Conversion Cable for this Video Digital Connection and it requires Stereo mini 3.5mm Plug Audio Cable for Analog Audio signal as well.

Digital Audio Output Connection

If you connect this Unit to an External Digital Audio Device, you can enjoy multi-channel Audio like 5.1ch Digital Broadcasting sound.

Use a Digital Audio Coaxial Cable to connect the Unit to External Digital Audio Devices.

VGA Connection

This unit is equipped with a PC Input jack. If you connect this Unit to your PC, you can use this Unit as a PC monitor. Use a VGA cable for this Video Connection and it requires a Stereo mini

3.5mm Plug Audio Cable for Analog Audio signal as well.

Continued on next page.

The following Video signals can be displayed:

Format Resolution Refresh rate

VGA 640 x 480

SVGA 800 x 600

XGA 1,024 x 768

WXGA

1,280 x 768

1,360 x 768

60Hz

FHD 1,920 x 1,080

Other formats or non-standard signals will not be displayed correctly.

Note(s)

●

Please purchase the VGA cable or HDMI-DVI Conversion Cable that has a ferrite core.

●

The following operations may reduce noise.

–

Attach a ferrite core to the AC Power Cord of your PC.

–

Unplug the AC Power Cord and use the built-in battery of your Portable / Laptop PC.

●

Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable is recommended for the Better compatibility.

●

The Unit accepts 480i, 480p, 720p, 1080i and 1080p Video signals.

●

HDMI-DVI Connection requires separate Audio Connections as well and the Audio signals are Output as Analog (L/R) Audio.

●

DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

16 .English

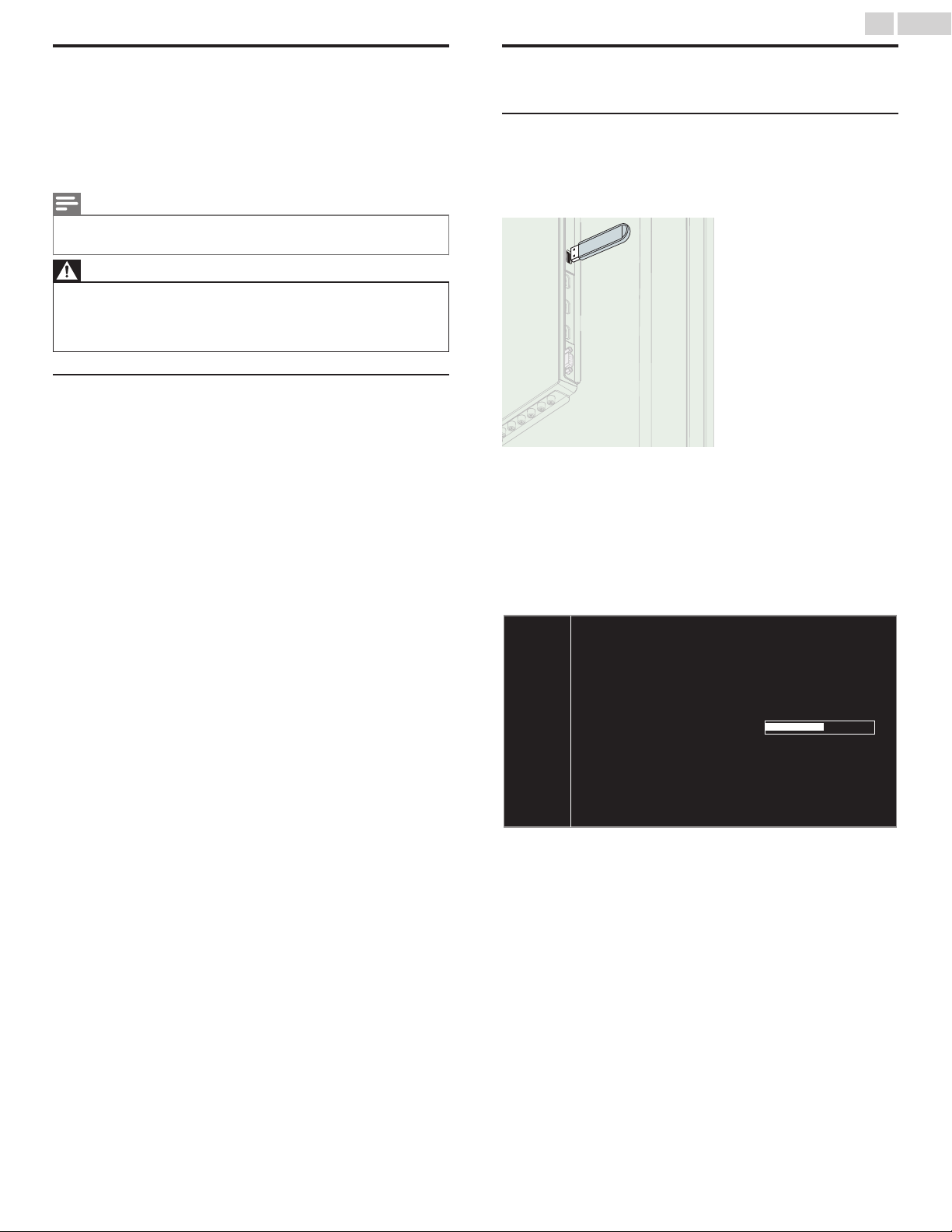

USB Memory Stick

This unit offers easy playback of Picture (JPEG), Music (MP3) and Video files.

Insert the USB Memory Stick into the USB terminal shown below.

USB L p. 23

Note(s)

●

The Unit recognizes only a USB Memory Stick.

●

Do Not use a USB hub or an extension cable to connect an External hard disk drive to the Unit. (Not Supported.)

●

A USB Memory Stick is always inserted to this Unit directly.

●

A USB Memory Stick is Not Supplied with this Unit.

●

We Do Not guarantee that All USB Memory Sticks can be supported by this Unit.

●

Be sure to keep a backup copy of the original files on your Device before you play them back on this Unit. We have no responsibilities for damage or loss of your stored data.

●

To protect your USB Memory Stick files from being erased place the write protect sliding tab in the protect position.

●

When you are ready to remove a USB Memory Stick, set the Unit to go into Standby mode to avoid any damage to your data and the Unit.

●

A USB Memory Stick that requires its own driver or the Device with a special system such as fingerprint recognition are Not Supported.

●

This unit is not allowed to use the USB Memory Stick which requires an External Power Supply (500mA or more).

These Operations are accessible by Remote Control.

Select

box or satellite TV receiver.

To set up a TV signal from a cable TV

Select

wall jack or a standard TV antenna.

To set up a TV signal from a cable TV

Skip

Cable

Antenna

OK button to proceed.

made your selection, press the

remote control. Once you have

Cable, using up/down key of the

Now select either Antenna or

of your TV labeled "ANTENNA IN".

signal into the jack on the back

attached your antenna or cable

Make sure that you have

0 0

Stop

the Auto Programming complete message.

to find and program. Please wait until you see

complete. Digital channels will take longer than Analog

Auto programming may take more than 20 minutes to

Analog channels found:

Digital channels found:

System searching. Please wait…

Skip

Wired

Wireless

Select your connection type.

your home network.

This TV can be connected to

StartCancel

The energy consumption in the “Standard” setting is Energy Star certified.

differ. Select the side that is most pleasing to you with the Left/ Right buttons.

preference. You will see a series of test pictures where the right side and left side

Settings assistant will allow you to customize your picture settings to your personal

Picture BPicture ACancel

Which side of the picture do you prefer?

Some may also be accessible by the Main Unit's Control Panel.

Initial Setup

This section will guide you through the Unit’s Initial setting which includes selecting a Language for your On-screen Menu, country, location and Autoprogram, which Automatically scans and memorizes viewable channels. You can also set the network connection in this setting.

Before you begin:

Make sure the Unit is connected to an Antenna or Cable.

After making All the Necessary Connections, press B to Turn On the Unit.

●

It may take a few moments to Turn On the Unit for the first time.

●

Initial setup menu appears Automatically after the Unit is Turned On.

Use H I to select the on-screen language, country, TV placement, location on the right side of the TV screen, then press OK.

●

You must set Home in location setting. Otherwise, Picture and Sound settings you adjusted will not be memorized after the Unit goes into Standby mode.

Use H I to select the signal type.

●

If the TV is connected to a cable box or satellite set-top box, select the 2nd one and skip to step 5.

After the channel installation is completed, Network setup screen

will appear. Use H I to select Wireless or Wired, then press OK.

.English

Use H I to select Antenna for TV channels or Cable for CATV channels, then press OK.

Wireless

Wired

●

If you have a router with WPS function, select Wireless and use

If you have a Wireless router, select Wireless to connect to the Internet.

If you connect with an Ethernet cable, select Wired to connect to the Internet.

H I to select Easy Connect, then press OK.

Follow the on-screen instructions to complete the installation.

●

When you select On in the selection screen of Auto software update. A message will appear if there is the latest software on the network server.

Use J K to select Start, then press OK to begin Settings assistant.

Press J or K 5 times to select the side of the pictures that is the most pleasing to you, then press OK.

–

When Antenna is selected, the TV detects Antenna signals. It searches for DTV and Analog TV channels available in your area.

–

When Cable is selected, the TV detects signals supplied by cable. It searches for DTV, Analog TV and Cable channels available in your area.

●

Autoprogram will begin.

Continued on next page.

+ 39 hidden pages
