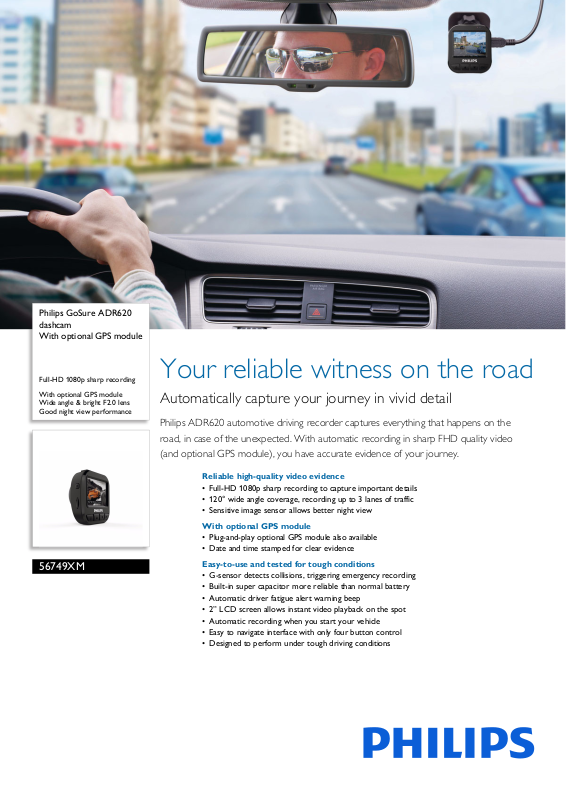

Philips GoSure ADR620
dashcam
With optional GPS module
Full-HD 1080p sharp recording
With optional GPS module
Wide angle & bright F2.0 lens
Good night view performance
56749XM
Your reliable witness on the road
Automatically capture your journey in vivid detail
Philips ADR620 automotive driving recorder captures everything that happens on the
road, in case of the unexpected. With automatic recording in sharp FHD quality video
(and optional GPS module), you have accurate evidence of your journey.
Reliable high-quality video evidence
• Full-HD 1080p sharp recording to capture important details
• 120° wide angle coverage, recording up to 3 lanes of traffic
• Sensitive image sensor allows better night view
With optional GPS module
• Plug-and-play optional GPS module also available
• Date and time stamped for clear evidence
Easy-to-use and tested for tough conditions
• G-sensor detects collisions, triggering emergency recording
• Built-in super capacitor more reliable than normal battery
• Automatic driver fatigue alert warning beep
• 2” LCD screen allows instant video playback on the spot
• Automatic recording when you start your vehicle
• Easy to navigate interface with only four button control
• Designed to perform under tough driving conditions
Page 2
56749XM
With optional GPS module
Full-HD 1080p sharp recording With optional GPS module, Wide angle & bright F2.0 lens, Good night view
performance
Highlights
120° wide angle coverage
Capture more of the scene ahead with a proven 120°
degree wide angle lens. You’ll be able to record up
to three lanes of road traffic, giving you a more
complete picture of any incident in front of you.
2” built-in LCD screen
After a collision, people look to apportion blame.
With a built-in 2” LCD screen, you get clear and
instant video playback. Together with the time
stamp, you’re better able to resolve roadside
disputes with objective evidence.
Automated collision detection
The ADR620 is equipped with a 3-axis G-sensor
module that enables automatic recording while you
drive as well as emergency recording in case of an
accident. During a collision that exceeds a certain
force threshold, the device will lock that video clip to
prevent it being overwritten – safely securing this on
a durable memory card.
Automatic recording
As soon as you turn on your vehicle, the driving
recorder starts operating automatically. So you’ll
never have to worry about forgetting to turn on the
camera. And because the Philips ADR620
automatically overwrites previous unwanted
footage, you don’t have to keep replacing the
memory card.
Driver fatigue alert warning
Full-HD 1080p sharp recording
With its full HD 1080p video capabilities, the Philips
ADR620 captures your journey in sharp and vivid
detail. You’ll get clear evidence of the actions of
other road users, including the ability to record
licence plate numbers up to 6 metres away.
Heat and vibration resistant
Built from high quality components, the ADR620 is
designed to perform under tough driving conditions.
Rigorously tested, it operates in extreme
temperatures (from -10°C up to 60°C). And its
durable construction ensures it can handle the
constant vibrations of a moving vehicle.
Intuitive user interface
With only four controls and a simple user interface,
the Philips ADR620 automotive driving recorder is
easy to use.
Optional GPS module available
Your ADR620 is also compat ible with a GPS suction
mount, purchased separately. Just replace the
normal suction mount that comes in your box with
the GPS mount. Plug it into your dashcam and now
your ADR620 will keep a record of your GPS
location on all recordings – providing further
evidence of what happens on the road.
Safe long-lasting battery
Instead of a regular battery, the ADR620 uses a
super capacitor. As it is more resistant to vibrations
and overheating, this is a safer and more stable
option for use in a car. This makes the super
capacitor more reliable and longer-lasting than
normal batteries.
Sensitive 2MP image sensor
The ADR620 is equipped with a sensitive 2megapixel image sensor. This helps you capture a
sharp, high-quality recording, even when driving at
night.
Date and time stamp evidence
Get an instant replay containing a date and time
stamp, helping you clarify accident responsibility on
the spot, while also supporting and speeding up the
insurance claim process. And when you add the
optional GPS suction mount (and plug it into your
dashcam), you’ll have the exact GPS location on your
recording.
Specifications
Product description
• Designation: ADR620
• Technology: Automotive Driving Recorder
• Interface: Micro USB & Mini USB 2.0
• File Format: H.264
• Fixed Lens: FOV 120°
• Internal Memory: 32Mb SPI flash
• Random Access Memory: 1Gb DDR3
• Recording Time: 160 min @16 GB in full HD
• Display: 2.0” LCD
•G-sensor
• Auto exposure
• Auto white balance
•LCD Auto Off
• Seamless loop recording
• Aperture Range: F/#2.0
• Collision detection
• Date and time stamp
• Image Sensor: 2.1 mega-pixel CMOS, 3.1 megal CMOS, 4 Mega-pixels CMOS, 3.2 Mega-pixels
pixe
CMOS
• Video resolution: Super HD 1296p, Full HD 1080p,
ega-pixel CMOS
3.1 m
• Languages: Chines
• Driver fatigue alert
• Improved night visibility
• Automatic recording
• Parking monitoring: WaveGuard
• Operating Temperature: -10°C ~ 60°C
• Storage Temperature: -20°C ~ 70°C
• Image Sensor: 2 Mega-pixels CMOS
• Emergency recording file
• Recording storage (external):
to 64GB)
Accessories included
• Power: 12V car adapter
• Accessories: 12V cable, Mounting bracket
• Power cable length (m): 3.6
Weight and dimensions
• Product dimensions (mm): 57 L x 65 W x 33 H mm
• Product weight (g): 80
• Box weight (incl. product) (g): 360
Marketing specifications
• Expected benefits: Your road safety guardian
• Product highlight: FHD & O
Logistic data
• EAN1: 6947939168347
• Quantity in box: 1
• Reference: 56749XM
• EAN3: 6947939168354
e, English
SD card (class 10, Up
ptional GPS module
To help remind a driver to get sufficient rest, the
Philips ADR620 will periodically sound a beeping
warning alarm to alert the driver.
Issue date 2018-10-12
Version: 2.2.1
12 NC: 8670 001 50156
© 2018 Philips Lighting Holding B.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Philips Lighting Holding
B.V. or their respective owners.
www.philips.com
Ordering information
• Order entry: 56749XM
• Ordering code: 16834730
•
