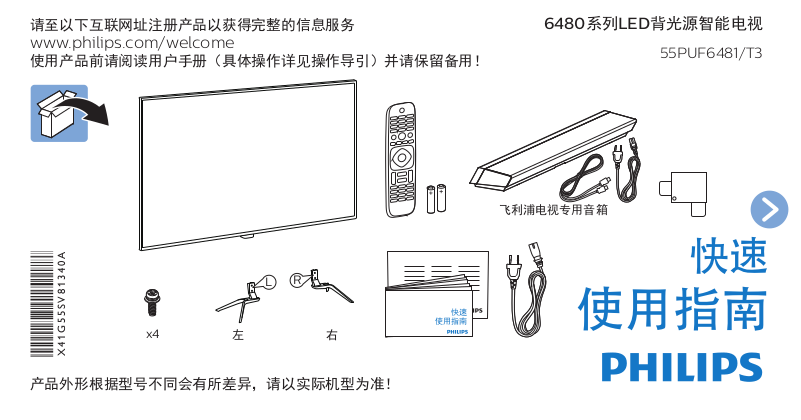

Philips 55PUF6481 Datasheet [en, zh]

请至以下互联网址注册产品以获得完整的信息服务

www.philips.com/welcome

使用产品前请阅读用户手册（具体操作详见操作导引）并请保留备用！

6480系列LED背光源智能电视

55PUF6481/T3

飞利浦电视专用音箱

R

L

x4

X41G55SV81340A

产品外形根据型号不同会有所差异，请以实际机型为准！

左 右

快速

使用指南

快速

使用指南

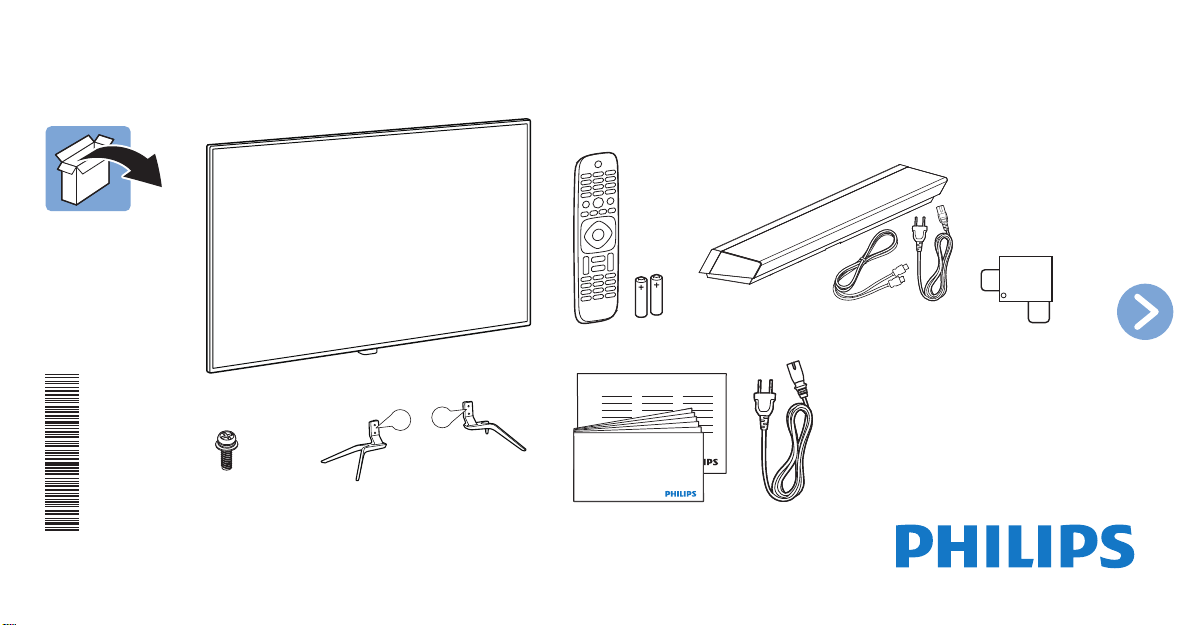

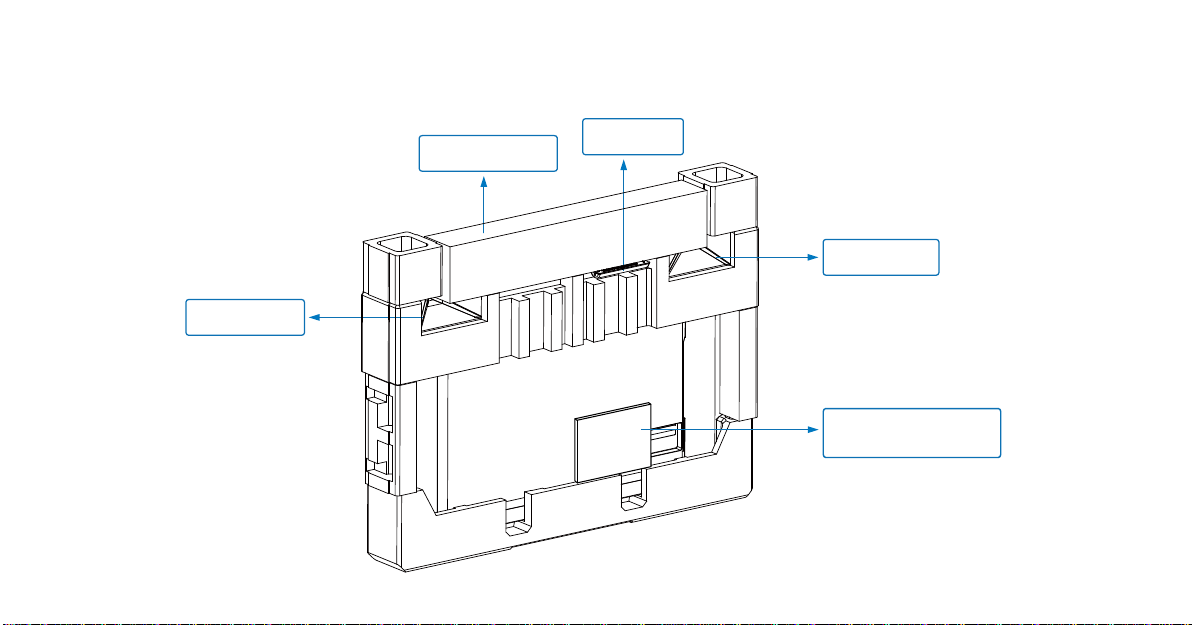

您的产品包装箱内物品摆放位置

飞利浦电视专用音箱放置在
保丽龙的上部，如图示。

底座，底座螺丝放置在
保丽龙的上部，如图示。

遥控器放置在保丽龙
的上部，如图示。

底座，底座螺丝放置在
保丽龙的上部，如图示。

附件包

附件包放置在机台的背部，如图示。
*附件包内包含快速使用指南，保修
卡，电源线，电池，天线隔离器。

以上图示仅供参考，具体请以实际为准！

2

目录

您的产品包装箱内物品摆放位置 2
重要信息 4
安装底座 7
连接 10
电池安装方式 13
打开电视 14
操作导引 14
电子电气产品有害物质限制使用标识要求 15

3

重要信息

安全
小心触电或发生火灾！

•• 切勿让电视机与雨或水接触。切勿将液体容
器（例如花瓶）放置在电视机旁边或上面。
如果将液体洒到了电视机表面或内部，请
立即断开电视机的电源。请与Philips•客户
服务中心联系，对电视机进行检查后再行使
用。

•• 切勿将电视机、遥控器或电池放在明火或其
它热源（包括直射的阳光）附近。为避免火
焰蔓延，请始终使蜡烛或其它明火远离电视
机、遥控器和电池。

4

•• 切勿向电视机上的通风槽或其它开口中插入
任何物体。

•• 旋转电视机时，请确保电源线不会绷紧。电
源线绷紧会使电源连接变松，进而产生火
花。

小心短路或起火！

•• 切勿将遥控器或电池暴露在雨中、水中或过
热的环境中。

•• 请避免电源插头产生拉力。松动的电源插头
可能产生火花或者导致起火。

小心人身伤害或电视机损坏！

小心伤害儿童！

•• 需由两个人搬运重量超过25千克的电视机。

•• 将电视机安装在机座上时，请仅使用提供的
机座。将机座牢固地固定到电视机上。将电
视机放在水平、平坦且可承受电视机和机座
总重量的表面上。

•• 采用壁挂方式安装电视时，请仅使用可
承受电视机重量的壁挂安装托架。将壁
挂安装托架固定到可承受电视机和壁挂
安装托架总重量的墙壁上。TPV Display
Technology(Xiamen)Co.,Ltd.对由于安装
不当而造成的事故、人身伤害或损失不负任
何责任。

请遵循以下注意事项，以避免因电视机掉落而
导致儿童受伤：

•• 切勿将电视机放在由可拉动的布或其它材料
覆盖的表面上。

•• 确保电视机的任何部分均位于表面边缘以
内。

•• 将电视机放在较高的家具（如书柜）上时，
一定要将家具和电视机都固定到墙壁或适当
的支撑物上。

•• 告知儿童爬上家具触摸电视机可能带来的危
险。

小心误食电池！

•• 此产品的遥控器含有电池，有可能被孩童误
食，请将电池放于孩童无法接触的位置。

5

小心过热！

R

L

右

左

1

4

右

左

2

1

右

左

3

*取出电视机。

*请将电视机底部边缘靠近台面边缘 , 将下巴放置于台面外。

*确保平整台面上无杂物后铺上软布。

*将底座按照图示对齐放置(注意区分左右支撑) , R、L在底座上有标识。

55” 14.85kg

•• 切勿将电视机安装在封闭空间内。•始终在
电视机周围留出至少4英寸或10厘米的空间
以便通风。确保窗帘或其它物体不会遮挡电
视机上的通风槽。

小心损坏电视机！

•• 在将电视机连接到电源插座上之前，请确保
电源电压与电视机背面印刷的值相匹配。如
果电压不同，切勿将电视机连接到电源插座
上。

•• 电视长期不使用的情况下，请切断电源。

小心人身伤害、起火或电源线损坏！

•• 切勿将电视机或任何物体放在电源线上。

•• 电源插头作为断开装置，应当保持能方便地
操作。

•• 断开电源线时，应始终握住插头，而不能拉
电缆。

•• 雷雨天气来临之前，请断开电视机与电源插
座及天线的连接。•在雷雨天气里，切勿触
摸电视机、电源线或天线的任何部分。

•• 接入本设备的有线网络天线必须与保护接地
隔离，否则可能会引起着火等危险！

小心听力损害！

•• 避免在高音量下或长时间使用耳机或听筒。

6

R

L

右

左

1

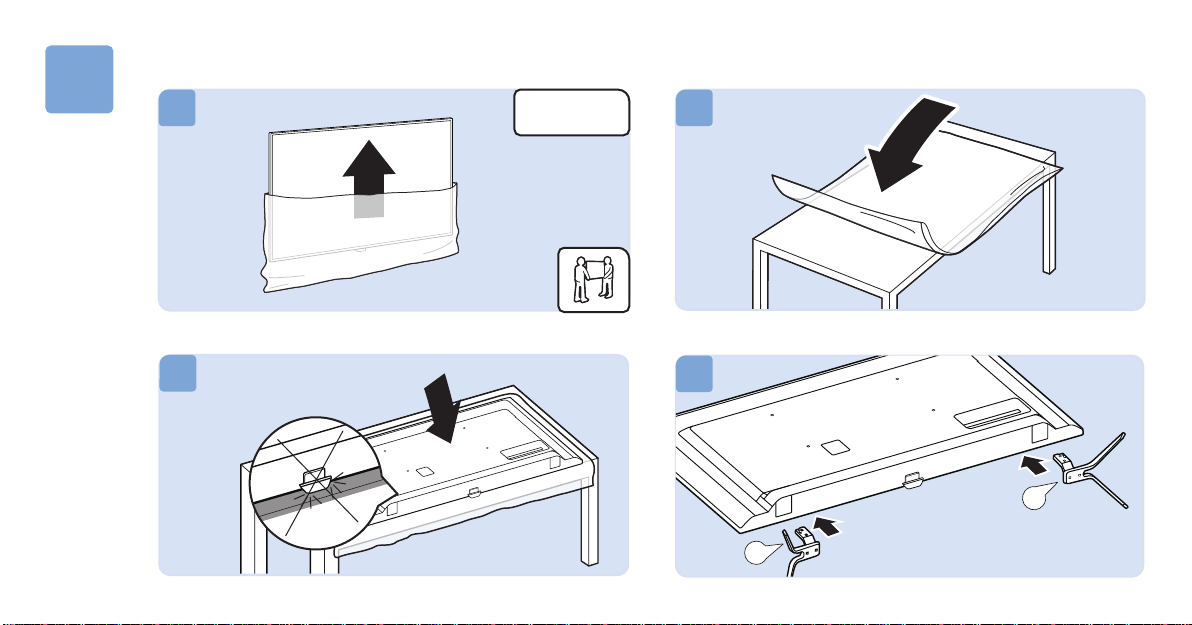

安装底座

1

55” 14.85kg

2

右

*取出电视机。

3

右

*请将电视机底部边缘靠近台面边缘 , 将下巴放置于台面外。

左

4

*确保平整台面上无杂物后铺上软布。

*将底座按照图示对齐放置(注意区分左右支撑) , R、L在底座上有标识。

左

7

5 6

x4

左

L

R

右

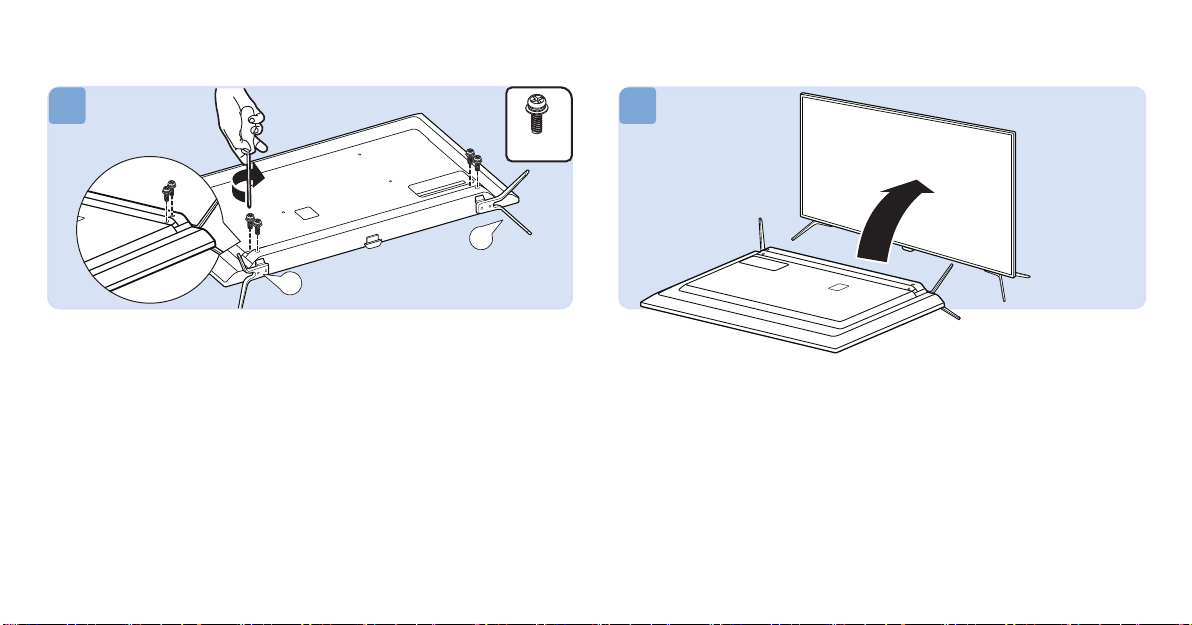

*按照图示将螺丝锁紧。 *将电视扶起放好。

8

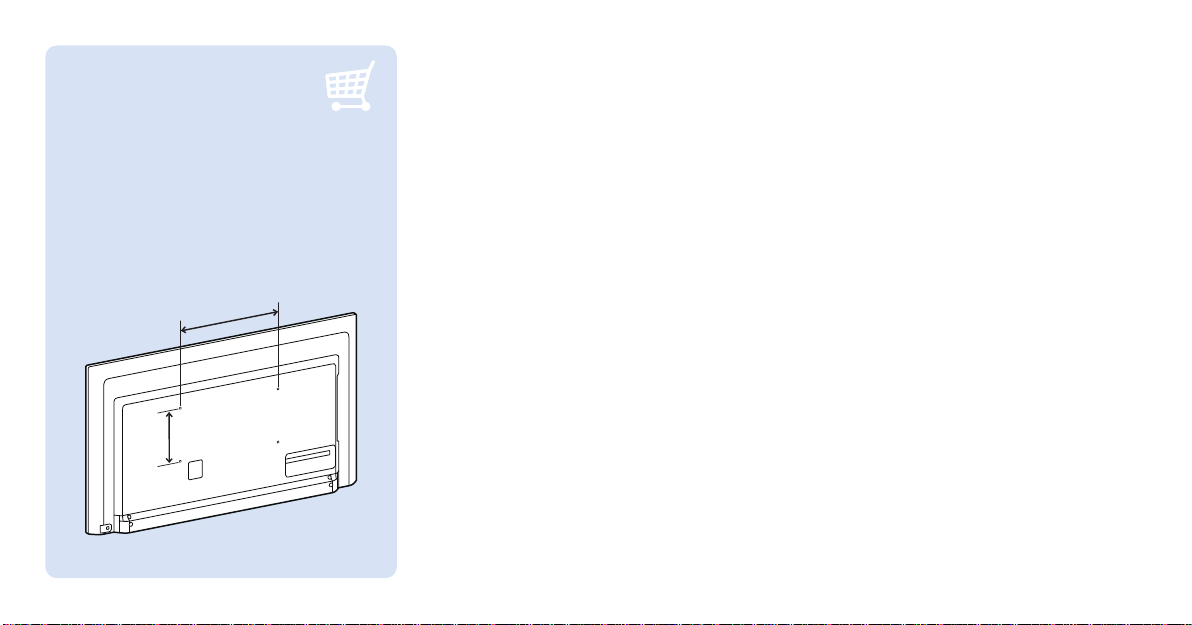

VESA (x,y)
55” 400x200 M6

(壁挂配件需另外购买)

建议螺丝有效螺牙长度14-16MM (不含垫片)

x

y

9

2

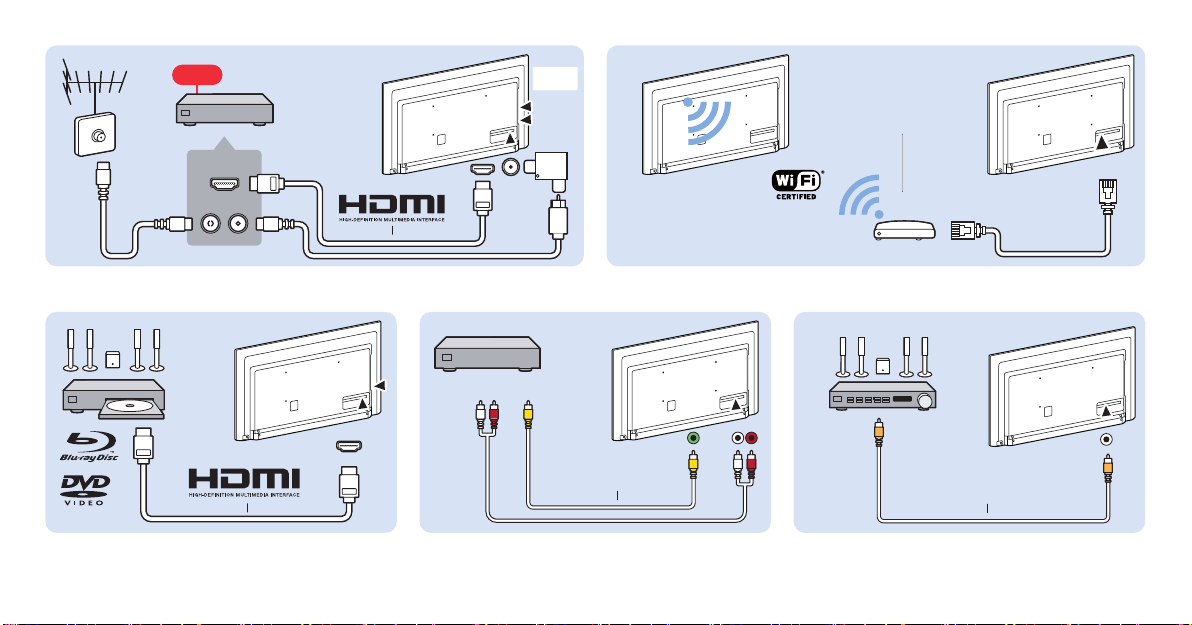

连接

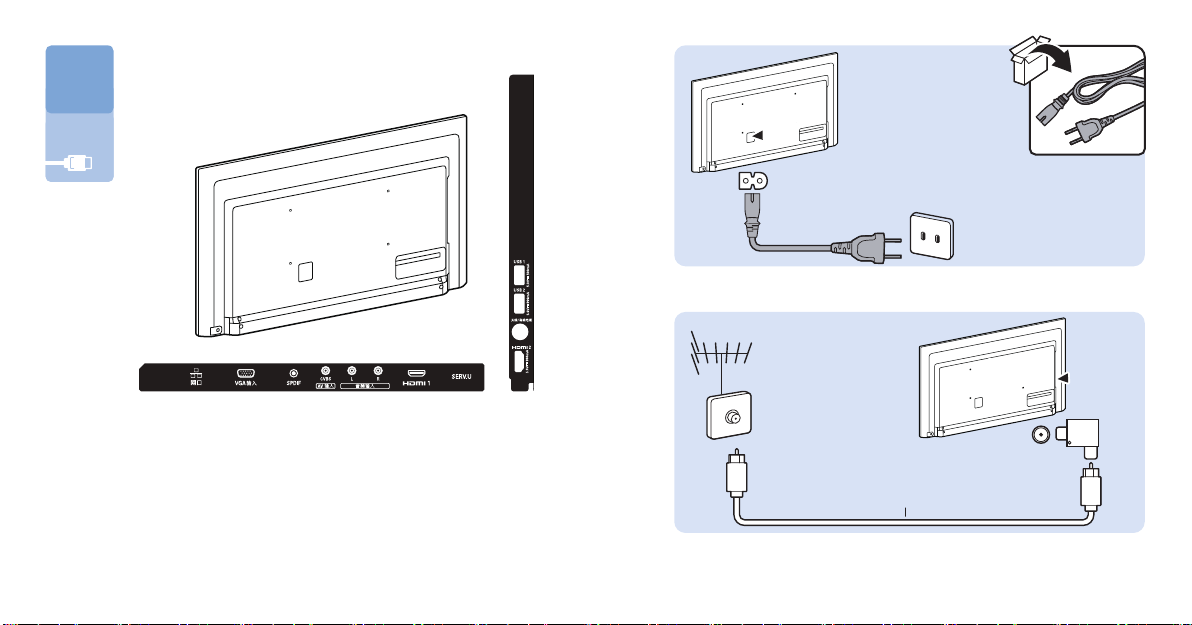

我们随机附送天线隔离器,•请在安装电视的同时一并安
装上天线隔离器(安装方式如图示)。

请用户在使用前务必确认天线隔离器是否有安装,•若为
直接接入,•电视机的有线网络天线必须与保护接地隔离,•
否则可能会引起着火等危险。

10

POWER

电缆

天线/

有线电视

REC

HDMI

IN

OUT

HDMI 1

®

HDMI 2

天线/

有线电视

或

INTERNET

NETWORK

HDMI 1

®

HDMI 2

AV信号 & 左右声道

CVBS L/R

SPDIF

SPDIF 同轴输出

11

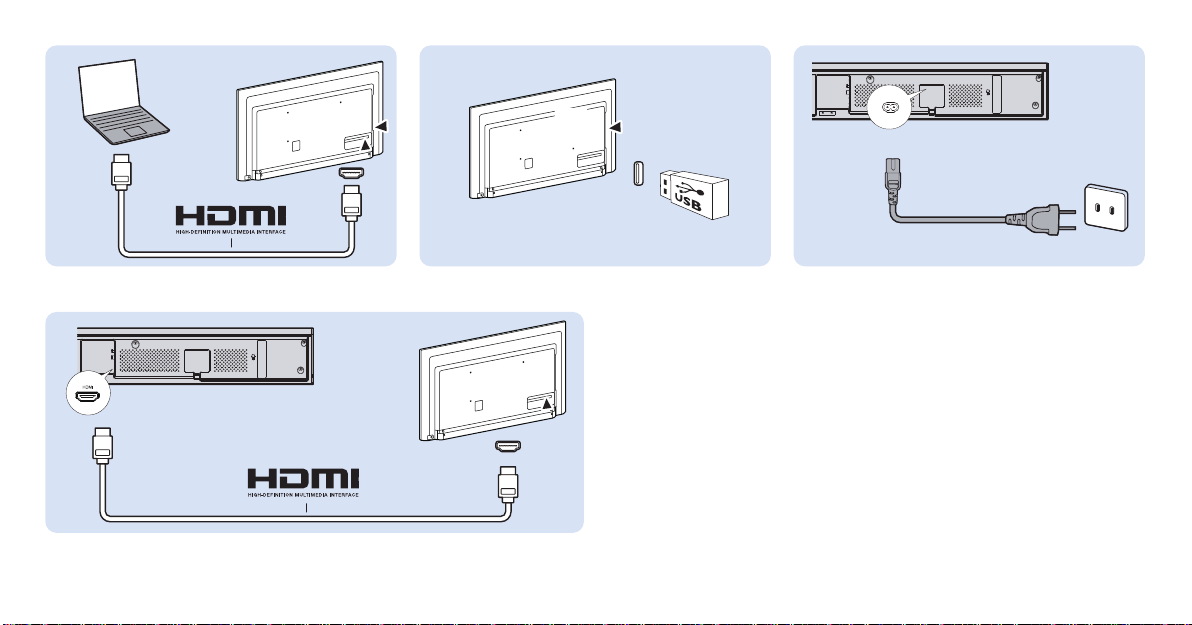

HDMI 1

HDMI 1

®

HDMI 2

USB

飞利浦电视专用音箱

飞利浦电视专用音箱

®

HDMI 1

12

3

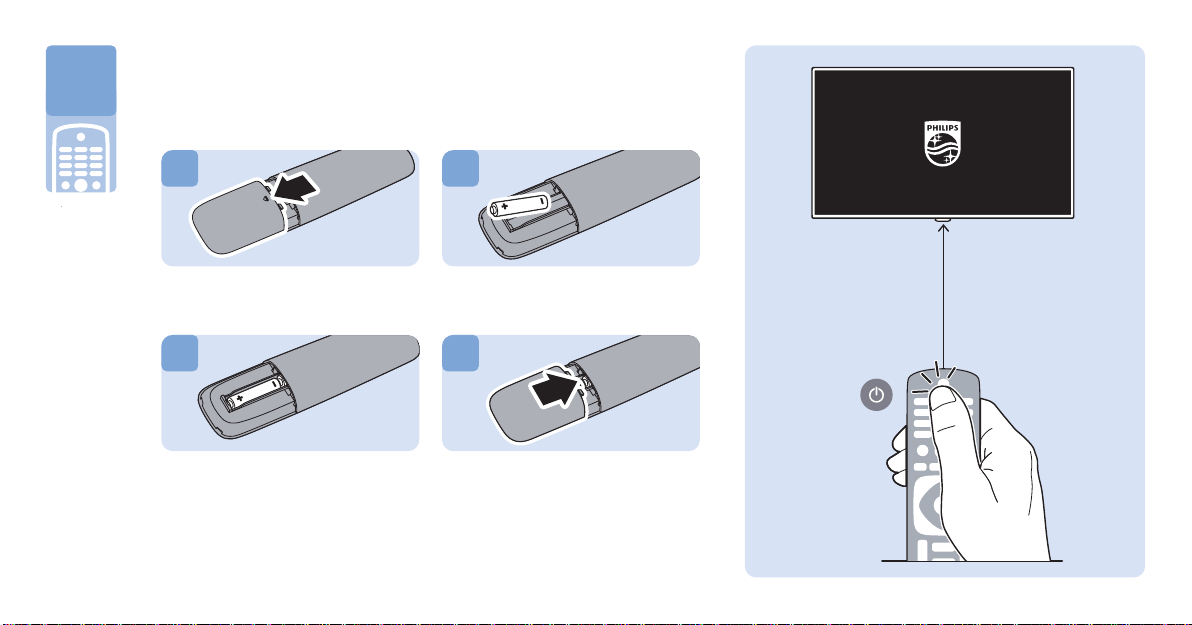

电池安装方式

1 2

43

13

4

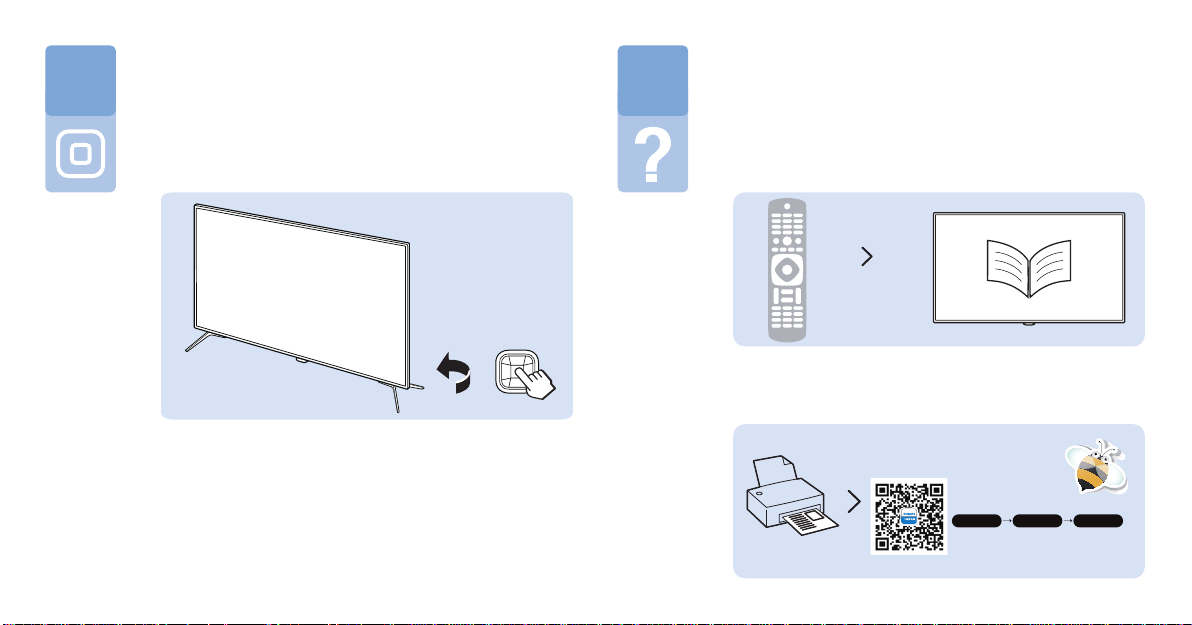

打开电视 操作导引

5

按下电视背面多功能方向键的中间

请按照提示，进行电视设置。

键，打开电视机。

按“帮助”键

更多操作信息请参考•PHILIPS support
网站。

马上扫码，报装报修，
一步搞定，简单三步，
加入飞利浦电视俱乐部，享额外延保专属权益！

扫码关注

热线电话：4008 800 008

www.philips.com.cn

14

飞你不可

注册会员

6

电子电气产品有害物质限制使用标识要求

本产品有害物质名称及含量

有害物质

零部件名称

塑料外框 ○ ○ ○ ○ ○ ○
后壳 ○ ○ ○ ○ ○ ○

LCD面板
电路板组件* × ○ ○ ○ ○ ○

底座 ○ ○ ○ ○ ○ ○
电源线 × ○ ○ ○ ○ ○
其他线材 × ○ ○ ○ ○ ○
遥控器 × ○ ○ ○ ○ ○
*：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。
本表格根据•SJ/T 11364•的规定编制

○：表示该有害物质在该部件所有均质材料中的含量均在•GB/T 26572规定的限量要求以下。
×：表示该有害物质至少在该部件的某一均质材料中的含量超出•GB/T 26572规定的限量要求。
备注：以上打“×”的部件，应功能需要，部分有害物质含量超过GB/T 26572规定的限量要求，但符合欧盟RoHS•法规

要求（属于豁免部分）。

CCFL
LED

铅(Pb) 汞(Hg) 镉(Cd) 六价铬•

(Cr(VI))

× × ○ ○ ○ ○
× ○ ○ ○ ○ ○

多溴联苯•

(PBB)

多溴二苯醚•

(PBDE)

15

该电子电气产品含有某些有害物质，在环保使用期限内可以放心使用，超过环保使用期限之后则应该进
入回收循环系统。

《废弃电器电子产品回收处理管理条例》提示性说明

为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品
回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。

16

所有注册和未注册的商标是其各自所有者的财产。规格如有变更，恕不另行通知。
Philips 和 Philips 盾牌图形是皇家飞利浦有限公司的注册商标，其使用需遵循皇家飞利浦有限公司的许可。

出版日期：2016年10月

升级方式如下：

1.将升级文件放到 U 盘根目录。

2.电视断电，插入 U 盘。

3.上电,电视会自动升级，升级完成后电视会自动重启。

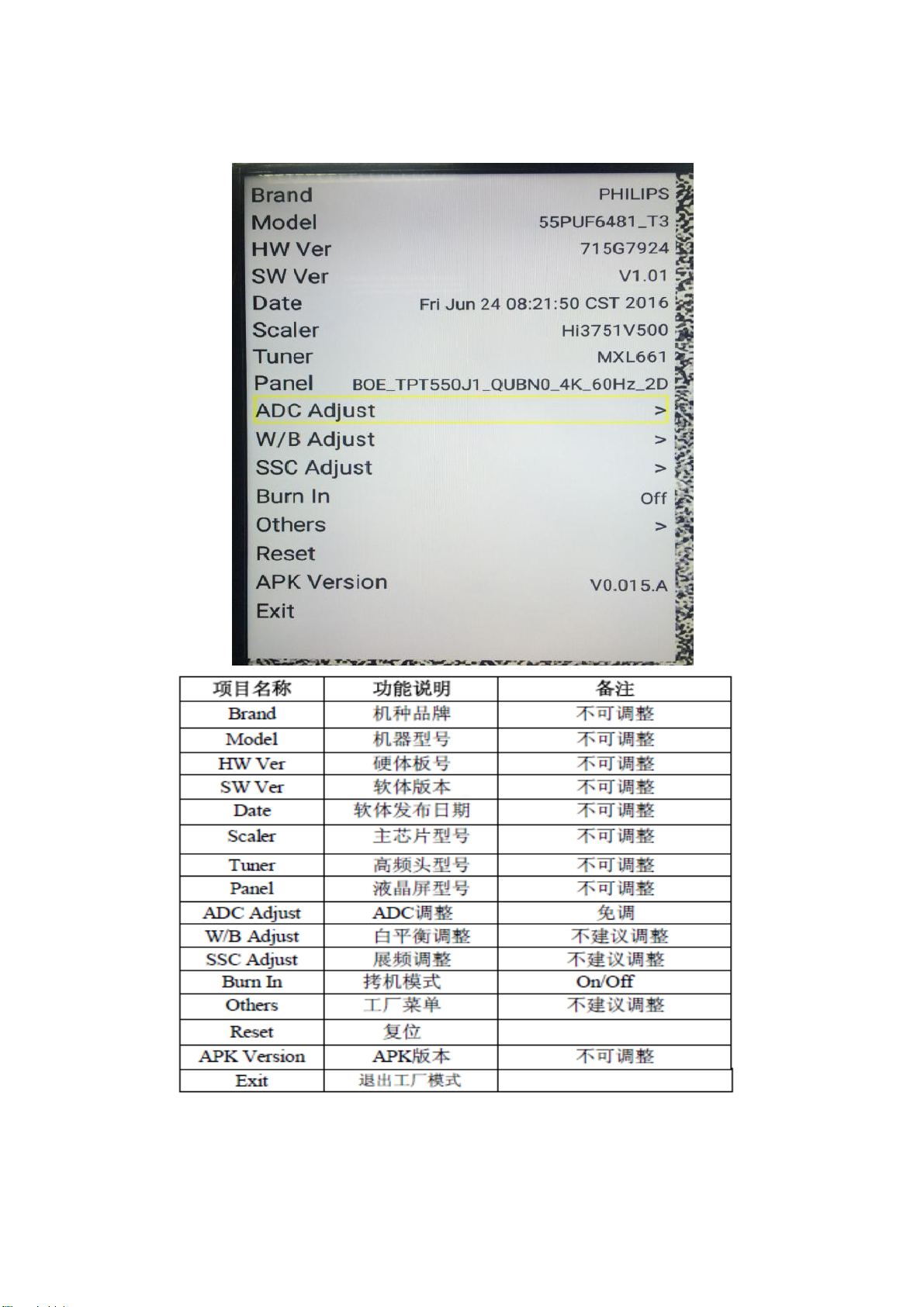

选项+1999+回看

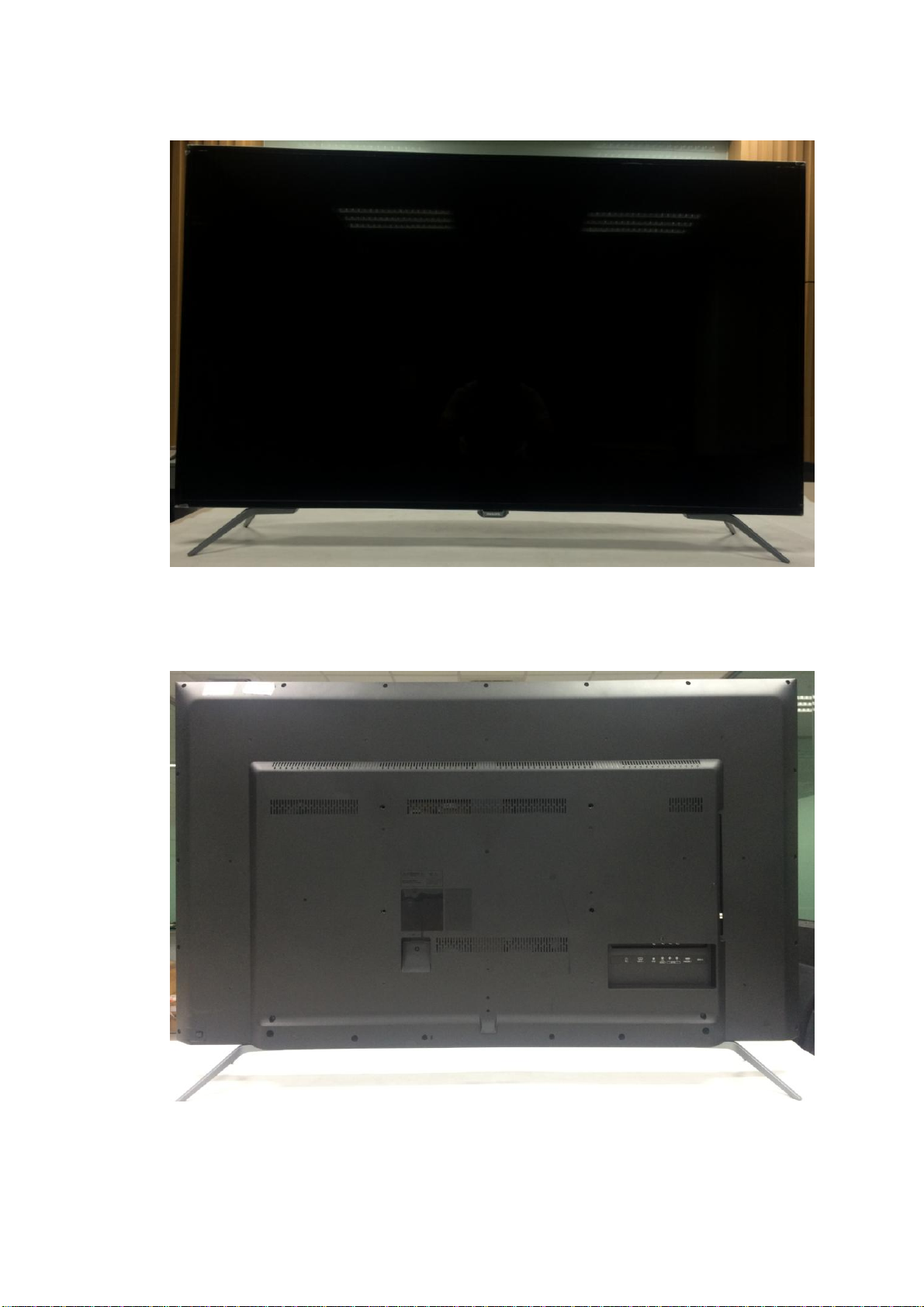

1. 正视图

2. 后视图

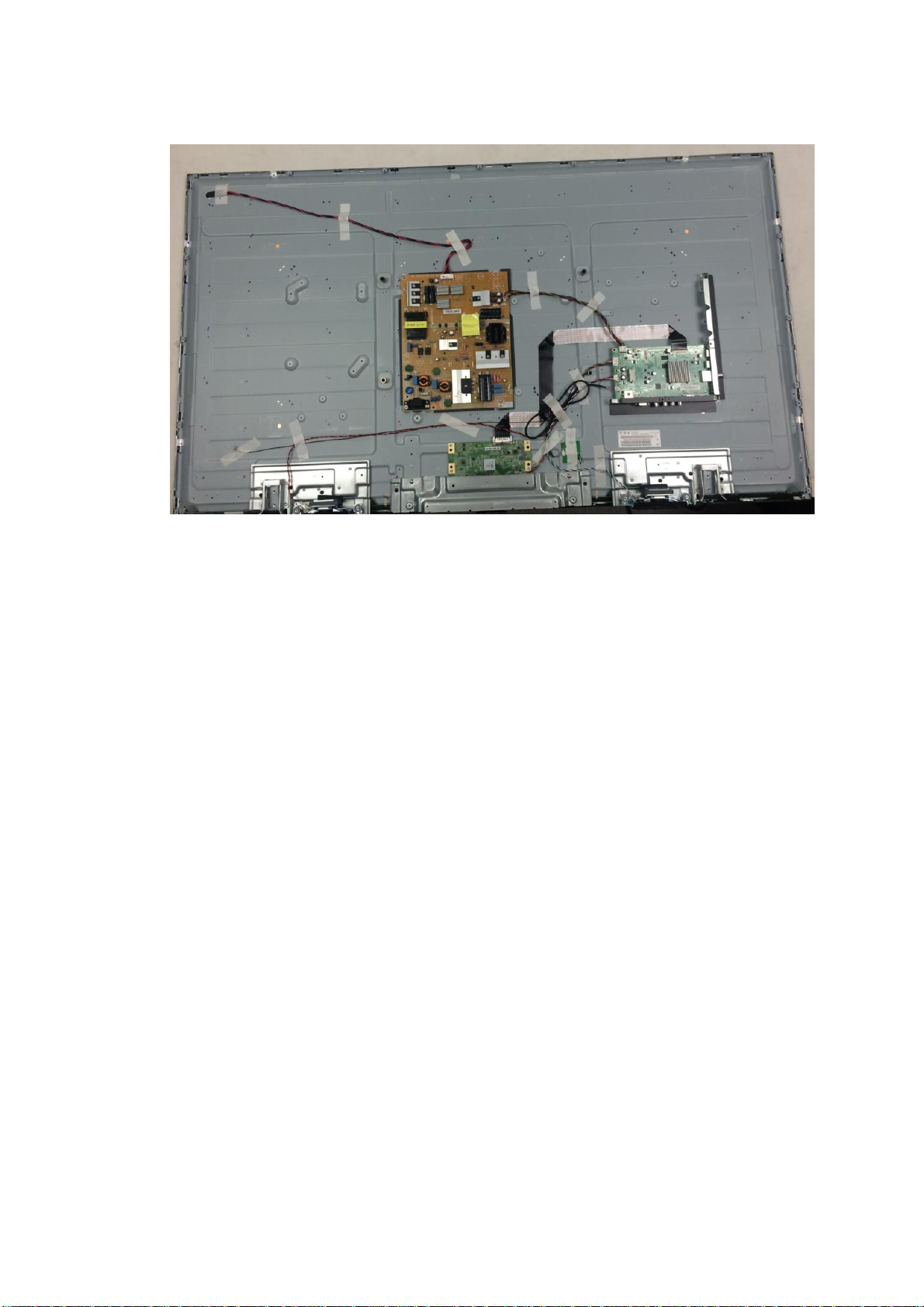

3. 内部结构图

版本 发布日期 变更说明 对外机种名

A00

11/14/2016

首次发布

55PUF6481/T3

对内机种名 Scalar

E55G97NDEDPHNNX

屏 主板板号

TPT550J1-QUBN0.K S8850A XM TPV

715G7924M01B00004Y

电源板板号 升压板板号 按键板板号

715G6973P04006002M

715G7088K01000004K

遥控板板号

715G7785R01000004K

级别

点位

组

件

1 036T 600 18129
1 041G 68508 A
1 Q051 051G 2 14
1 0M1G 130 6 47 CR3
1 0M1G 130 6 47 CR3
1 0M1G 940 6125
1 0M1G1030 4 47 XL
1 0M1G1030 5120
1 0M1G1030 5120
1 0M1G1030 6 47 CR3
1 0M1G1030 8120
1 0M1G1740 20225 CR3
1 0M1G1830 6120
1 0Q1G 930 6 47 CR3
1 0Q1G 930 6 47 CR3
1 317G01 317GAAWF634XUG
1 317G02 317GARFM008TCL
1 SP01 378G0110567CDX
1 SP01 378G0110567YDX
1 SP02 378GSBWR413QAA
1 ECN408 395G279R51HC48
1 ECN101 395G801402RC01
1 ECN101 395G801402WC01
1 ECN700 395G801416DC72
1 ECN700 395G801416LC72
1 ECN602 395GH20004DT002000
1 ECN602 395GH20004RT002000
1 ECN102 395GH20006AT010000
1 ECN102 395GH20006DT010000
1 ECN401 395GH20014DT041000
1 ECN401 395GH20014XT041000
1 RC01 398GR08BCPHN0002HL
1 RC01 398GR08BCPHN0002JH
1 708GVB648130WPX1CH
1 E750 750TBV550QB0A8N000
1 756TXGCB0AD001000X
1 A15T1166201
1 CBPRF9CDX5
1 IRPFGXA2
1 KEPFEAA9
1 E750 LVB550QUBN0AF62F0X
1 P12G6311010
1 P33E0738XJL01T0100
1 P33E0903XKP01C0100
1 P33E0904XES01L02BB
1 P33E0905XBAZ1C0200
1 P34E23680GM0ZK0200
1 P40GD000813 9A
1 PLTVFS411XXB3
1 Q02G707105000100XL
1 M00201 Q02G707105000100XL
1 Q02G707106000100H1
1 Q11G701100500100JY
1 Q36T 600 30 6

1 Q36T 600 37 14 GP
1 Q36T 600 37 16 GP
1 Q40G0001624 4A
1 Q45G88010TV12000WN
1 Q49G03PL1BQ0HF0000
1 Q52G130118600000YY
1 Q52G1501150523AWBK
1 Q52G160119100A00YY
1 M00201 X02G901001700000HX
1 X15T2128501000GMLH
1 X15T233110100000LH
1 X15T235820100000AJ
1 X15T235920100000AJ
1 X15T270010100000AJ
1 X15T968040100000NP
1 X15T968110200000NP
1 X15T986310100000GH
1 X15T9956A0100000BL
1 X37T8269012000L0XD
1 X37T8269012000R0XD
1 X40G2015055X2700XY
1 X40G2016055X2500ZA
1 X44GVB640FB0HX
1 X44GVB641010SY
1 X44GVB642010SY
1 X44GVB64301EPE
1 X44GVB644010SY
1 X44GVB64502EPE
1 X44GVB64601EPE
1 X44GVB6481301A0THX
1 X52G180125700000BK
1 X52G180130300000BK
1 M05201 X52G180144800000HK
1 M05201 X52G180144800000JY
1 X52G20010TV03700BK
1 X52G20010TV03700BK
1 E08901 089G214A15N HL
1 E08901 089G214A15N IS
1 BT01 392GB1TA1A3C2C
1 Q45G88010TV05600X1
1 X40G000881328A
1 X41G55SV81340A
1 X41G78DV81311E
1 040G 58162435A
1 Q40G000162492B
1 X40G000181310C
1 X40G055081396A
1 708GVB648130WPX1CH
2 Q44G6002136 98
2 Q44G6002137120
2 Q44G9003206
2 Q50G 4 10
2 Q50G060046502A00JY
2 Q52G1301 9
2 X07G009913902C

2 X07G012013802C
2 X44G6002CP515A
2 X44G6002CP532A
2 X45G770101700000QF
1 756TXGCB0AD001000X
2 SMTF-U413 100TPAVS001DTX
2 U413 356G3333004612
1 CBPRF9CDX5
2 Z40G0002ALL01A
2 SMTRF9CDX5
1 IRPFGXA2
2 SMTIRPFGXA2
1 KEPFEAA9
2 SMTKEPFEAA9
1 PLTVFS411XXB3
2 Z40G0002ALL01A
2 GND1 009G6005 1
2 CN8101 033G380212B YH
2 U8102 056G 139 9
2 U9104 056G 139 9
2 U9102 056G 139 9
2 Q8101 057G 667914
2 Q8102 057G 667914
2 C9901 063G107M47410M
2 C9902 063G107M47410M
2 C8109 063G211J273 5C 10
2 C9109 067G215Z152 6K
2 C9110 067G215Z152 6K
2 C8116 067G305Z221 9K
2 C8117 067G305Z221 9K
2 CN9902 087G 50147D HC HF
2 BD9801 093G 50460518
2 FOR CN9902 0Q1G 340 8140
2 CN9101 311GW200C16AAL
2 U8102 356G013903B0HF
2 U9104 356G013903B0HF
2 U9102 356G013903B0HF
2 U8105 356G0700008060
2 U8107 356G0700008060
2 U8106 356G0700008060
2 RV9901 361G0046681KZE
2 NR9903 361G0058109MYW008A
2 NR9902 361G0058109MYW008A
2 NR9901 361G0058109MYW008A
2 R9801 361G3SWJ10859B00TZ
2 R9802 361G3SWJ10859B00TZ
2 C9902 363G107K474BEC
2 C9901 363G107K474BEC
2 C9803 363G210J105GHP
2 C9804 363G210J105GHP
2 C9804 363G211K105GCE
2 C9803 363G211K105GCE
2 C9802 367G215X820PKZ
2 C9801 367G215X820PKZ
2 FB9902 371G0055021H02

2 FB9901 371G0055021H02
2 L9902 373G0174362X00
2 L9901 373G0174362X00
2 L9801 373G0174365H01
2 L9102 373G0253247H00
2 L9101 373G0253247H00
2 L8101 373G0253247H00
2 T9101 380GL32P173N00
2 T8101 380GL52P193H00
2 705TAF57030
2 705TAF57031
2 705TAF84006
2 705TAF93012
2 705TAF93013
2 705TAF93014
2 709T69730XM001
2 PLFS411XXB3SMT
2 HS8103 X90G201001400000BF
2 HS8102 X90G201001400000BF
2 HS8104 X90G201001400000BF
2 SMTRF9CDX5
3 CN109 033G8032 5F HR
3 U703 056G 563114
3 U707 056G 563114
3 U402 056G 643 43
3 ZD413 056G 662 41
3 U503 056G 665918
3 Q601 057G 417511
3 Q511 057G 417511
3 Q502 057G 417511
3 Q705 057G 417511
3 Q409 057G 417511
3 Q703 057G 417511
3 Q708 057G 417512
3 Q501 057G 417512
3 Q602 057G 417512
3 Q420 057G 417512
3 Q410 057G 417512
3 Q510 057G 417518
3 Q408 057G 763 79
3 Q701 057G 763 79
3 RP405 061G 1263308JY
3 RP409 061G 1263308JY
3 RP412 061G 1263308JY
3 RP414 061G 1263308JY
3 RP402 061G 1263308JY
3 RP410 061G 1263308JY
3 RP408 061G 1263308JY
3 RP407 061G 1263308JY
3 RP411 061G 1263308JY
3 RP404 061G 1263308JY
3 RP401 061G 1263308JY
3 RP413 061G 1263308JY
3 RP403 061G 1263308JY
3 RP406 061G 1263308JY

3 TH104 061G 56A100 WT
3 TH102 061G 56A100 WT
3 R121 061G0402000 JF
3 R716 061G0402000 JF
3 R518 061G0402000 JF
3 R4024 061G0402000 JF
3 R755 061G0402000 JF
3 R104 061G0402000 JF
3 R116 061G0402000 JF
3 R4023 061G0402000 JF
3 R583 061G0402000 JF
3 R102 061G0402000 JF
3 R172 061G0402000 JF
3 R118 061G0402000 JF
3 R142 061G0402000 JF
3 R4003 061G0402000 JF
3 R4035 061G0402000 JF
3 R143 061G0402000 JF
3 R4130 061G0402000 JF
3 R169 061G0402000 JF
3 R4025 061G0402000 JF
3 R165 061G0402000 JF
3 R717 061G0402000 JF
3 R103 061G0402000 JF
3 R581 061G0402000 JT
3 R587 061G0402000 JT
3 R538 061G0402000 JY
3 R4021 061G0402000 JY
3 R4104 061G0402100 JY
3 R4129 061G0402100 JY
3 R4128 061G0402100 JY
3 R4106 061G04021000FY
3 R500 061G04021000FY
3 R4108 061G04021000FY
3 R454 061G04021001FY
3 R449 061G04021001FY
3 R452 061G04021001FY
3 R447 061G04021001FY
3 R4113 061G04021001FY
3 R455 061G04021001FY
3 R448 061G04021001FY
3 R446 061G04021001FY
3 R453 061G04021001FY
3 R584 061G04021002FT
3 R586 061G04021002FT
3 R4111 061G04021002FY
3 R1006 061G04021002FY
3 R1005 061G04021002FY
3 R154 061G04021002FY
3 R183 061G04021002FY
3 R593 061G0402101 JY
3 R594 061G0402101 JY
3 R512 061G0402101 JY
3 R434 061G0402101 JY
3 R117 061G0402101 JY

3 R120 061G0402101 JY
3 R511 061G0402101 JY
3 R433 061G0402101 JY
3 R4123 061G0402101 JY
3 R4124 061G0402101 JY
3 R489 061G0402101 JY
3 R144 061G0402101 JY
3 R466 061G0402101 JY
3 R513 061G0402102 JY
3 R524 061G0402102 JY
3 R615 061G0402102 JY
3 R736 061G0402102 JY
3 R646 061G0402102 JY
3 R748 061G0402102 JY
3 R617 061G0402102 JY
3 R517 061G0402102 JY
3 R403 061G0402102 JY
3 R591 061G0402102 JY
3 R754 061G0402102 JY
3 R7020 061G0402102 JY
3 R743 061G0402102 JY
3 R640 061G0402102 JY
3 R596 061G0402102 JY
3 R4109 061G0402103 JY
3 R741 061G0402103 JY
3 R514 061G0402103 JY
3 R407 061G0402103 JY
3 R589 061G0402103 JY
3 R160 061G0402103 JY
3 R644 061G0402103 JY
3 R4001 061G0402103 JY
3 R409 061G0402103 JY
3 R619 061G0402103 JY
3 R629 061G0402103 JY
3 R487 061G0402103 JY
3 R713 061G0402103 JY
3 R597 061G0402103 JY
3 R401 061G0402103 JY
3 R725 061G0402103 JY
3 R590 061G0402103 JY
3 R106 061G0402103 JY
3 R4029 061G0402103 JY
3 R404 061G0402103 JY
3 R469 061G0402103 JY
3 R628 061G0402103 JY
3 R4002 061G0402103 JY
3 R115 061G0402103 JY
3 R630 061G0402103 JY
3 R402 061G0402103 JY
3 R161 061G0402103 JY
3 R510 061G0402103 JY
3 R411 061G0402103 JY
3 R592 061G0402103 JY
3 R509 061G0402103 JY
3 R614 061G0402103 JY

3 R7028 061G0402104 JF
3 R742 061G0402104 JF
3 R131 061G0402104 JF
3 R613 061G0402104 JF
3 R4119 061G0402104 JF
3 R753 061G0402104 JF
3 R460 061G0402105 JT
3 R4101 061G04021201FY
3 R7002 061G04021202FY
3 R750 061G04021212FF
3 R7025 061G04021213FF
3 R7001 061G04021213FF
3 R166 061G0402123 JY
3 R167 061G0402123 JY
3 R738 061G04021692FY
3 R519 061G0402184 JY
3 R445 061G0402201 JY
3 R7027 061G0402220 JY
3 R188 061G0402220 JY
3 R186 061G0402220 JY
3 R185 061G0402220 JY
3 R441 061G0402220 JY
3 R187 061G0402220 JY
3 R439 061G0402220 JY
3 R735 061G04022202FT
3 R7000 061G04022202FY
3 R7029 061G04022202FY
3 R164 061G0402222 JF
3 R174 061G0402222 JF
3 R4115 061G0402222 JY
3 R756 061G0402241 JY
3 R444 061G0402241 JY
3 R451 061G0402241 JY
3 R515 061G04022702FT
3 R752 061G04022702FT
3 R7005 061G04023002FY
3 R618 061G04023013FT
3 R520 061G04023013FT
3 R147 061G0402330 JT
3 R153 061G0402330 JT
3 R643 061G0402330 JY
3 R631 061G0402330 JY
3 R458 061G0402330 JY
3 R467 061G0402330 JY
3 R461 061G0402330 JY
3 R616 061G0402330 JY
3 R457 061G0402330 JY
3 R459 061G0402330 JY
3 R612 061G0402330 JY
3 R162 061G0402330 JY
3 R163 061G0402330 JY
3 R464 061G0402330 JY
3 R465 061G0402330 JY
3 R462 061G0402330 JY
3 R7030 061G0402330 JY

3 R468 061G0402330 JY
3 R463 061G0402330 JY
3 R456 061G0402330 JY
3 R632 061G0402330 JY
3 R733 061G04023302FF
3 R599 061G0402339 JF
3 R598 061G0402339 JF
3 R173 061G0402471 JY
3 R4125 061G0402472 JF
3 R4057 061G0402472 JF
3 R595 061G0402472 JY
3 R729 061G0402472 JY
3 R757 061G0402472 JY
3 R718 061G0402472 JY
3 R157 061G0402472 JY
3 R450 061G0402472 JY
3 R443 061G0402472 JY
3 R728 061G0402472 JY
3 R7021 061G0402472 JY
3 R647 061G0402472 JY
3 R523 061G0402472 JY
3 R711 061G0402472 JY
3 R648 061G0402472 JY
3 R521 061G0402472 JY
3 R158 061G0402472 JY
3 R189 061G0402472 JY
3 R190 061G0402472 JY
3 R470 061G0402473 JY
3 R7003 061G04026801FY
3 R7026 061G04026801FY
3 R170 061G04027509FY
3 R168 061G04027509FY
3 R146 061G04027509FY
3 R171 061G04027509FY
3 R704 061G0603000 JY
3 R4046 061G0603000 JY
3 FB704 061G0603000 JY
3 R709 061G0603154 JY
3 R4053 061G0603154 JY
3 R705 061G0603473 JY
3 R4047 061G0603473 JY
3 R4117 061G06036801FY
3 R192 061G1206000 JY
3 R625 061G1206100 JT
3 R624 061G1206100 JT
3 R623 061G1206100 JT
3 R626 061G1206100 JT
3 R4010 061G1206222 JF
3 C461 065G040210031J A
3 C139 065G040210031J T
3 C4035 065G040210131J T
3 C434 065G040210232K Y
3 C129 065G040210232K Y
3 C413 065G040210232K Y
3 C126 065G040210232K Y

3 C7031 065G040210232K Y
3 C127 065G040210232K Y
3 C157 065G040210332K Y
3 C736 065G040210332K Y
3 C755 065G040210332K Y
3 C7014 065G040210412K A
3 C7059 065G040210412K A
3 C7012 065G040210412K A
3 C7058 065G040210412K A
3 C503 065G040210412K Y
3 C444 065G040210412K Y
3 C772 065G040210412K Y
3 C422 065G040210412K Y
3 C170 065G040210412K Y
3 C446 065G040210412K Y
3 C4001 065G040210412K Y
3 C7036 065G040210412K Y
3 C4013 065G040210412K Y
3 C450 065G040210412K Y
3 C4007 065G040210412K Y
3 C765 065G040210412K Y
3 C429 065G040210412K Y
3 C1000 065G040210412K Y
3 C428 065G040210412K Y
3 C440 065G040210412K Y
3 C635 065G040210412K Y
3 C797 065G040210412K Y
3 C727 065G040210412K Y
3 C759 065G040210412K Y
3 C793 065G040210412K Y
3 C760 065G040210412K Y
3 C451 065G040210412K Y
3 C4020 065G040210412K Y
3 C452 065G040210412K Y
3 C4009 065G040210412K Y
3 C501 065G040210412K Y
3 C4018 065G040210412K Y
3 C758 065G040210412K Y
3 C794 065G040210412K Y
3 C788 065G040210412K Y
3 C443 065G040210412K Y
3 C455 065G040210412K Y
3 C733 065G040210412K Y
3 C432 065G040210412K Y
3 C423 065G040210412K Y
3 C1014 065G040210412K Y
3 C4019 065G040210412K Y
3 C433 065G040210412K Y
3 C169 065G040210412K Y
3 C178 065G040210412K Y
3 C176 065G040210412K Y
3 C164 065G040210412K Y
3 C4017 065G040210412K Y
3 C453 065G040210412K Y
3 C109 065G040210412K Y

3 C459 065G040210412K Y
3 C763 065G040210412K Y
3 C435 065G040210412K Y
3 C4006 065G040210412K Y
3 C441 065G040210412K Y
3 C748 065G040210412K Y
3 C421 065G040210412K Y
3 C4012 065G040210412K Y
3 C762 065G040210412K Y
3 C745 065G040210412K Y
3 C505 065G040210412K Y
3 C140 065G040210412K Y
3 C424 065G040210412K Y
3 C792 065G040210412K Y
3 C4004 065G040210412K Y
3 C785 065G040210412K Y
3 C7041 065G040210412K Y
3 C4015 065G040210412K Y
3 C730 065G040210412K Y
3 C744 065G040210412K Y
3 C445 065G040210412K Y
3 C102 065G040210412K Y
3 C612 065G040210412K Y
3 C4016 065G040210412K Y
3 C108 065G040210412K Y
3 C419 065G040210412K Y
3 C442 065G040210412K Y
3 C729 065G040210412K Y
3 C427 065G040210412K Y
3 C4003 065G040210412K Y
3 C418 065G040210412K Y
3 C4014 065G040210412K Y
3 C4022 065G040210412K Y
3 C795 065G040210412K Y
3 C783 065G040210412K Y
3 C426 065G040210412K Y
3 C789 065G040210412K Y
3 C4005 065G040210412K Y
3 C425 065G040210412K Y
3 C447 065G040210412K Y
3 C639 065G040210412K Y
3 C511 065G040210412K Y
3 C4002 065G040210412K Y
3 C4011 065G040210412K Y
3 C463 065G040210412K Y
3 C1001 065G040210412K Y
3 C454 065G040210412K Y
3 C1015 065G040210412K Y
3 C791 065G040210412K Y
3 C631 065G040210425K F
3 C650 065G040210425K F
3 C630 065G040210425K F
3 C629 065G040210425K F
3 C632 065G040210425K F
3 C4030 065G040210425K Y

3 C4032 065G040210425K Y
3 C416 065G040210506K T
3 C7039 065G040210506K T
3 C768 065G040210506K T
3 C774 065G040210506K T
3 C740 065G040210506K T
3 C766 065G040210506K T
3 C799 065G040210506K T
3 C781 065G040210506K T
3 C773 065G040210506K T
3 C7038 065G040210506K T
3 C779 065G040210506K T
3 C7042 065G040210506K T
3 C7046 065G040210506K T
3 C448 065G040210506K T
3 C430 065G040210506K T
3 C790 065G040210506K T
3 C504 065G040210506K T
3 C786 065G040210506K T
3 C177 065G040210506K T
3 C7049 065G040210506K T
3 C196 065G040210506K T
3 C197 065G040210506K T
3 C757 065G040210506K T
3 C775 065G040210506K T
3 C796 065G040210506K T
3 C118 065G040210506K T
3 C769 065G040210506K T
3 C506 065G040210506K T
3 C4008 065G040210506K T
3 C449 065G040210506K T
3 C431 065G040210506K T
3 C754 065G040210506K T
3 C417 065G040210506K T
3 C778 065G040210506K T
3 C117 065G040210506K T
3 C767 065G040210506K T
3 C7035 065G040210506K T
3 C7040 065G040210506K T
3 C777 065G040210506K T
3 C119 065G040210506K T
3 C771 065G040210506K T
3 C770 065G040210506K T
3 C787 065G040210506K T
3 C780 065G040210506K T
3 C735 065G040210506K T
3 C751 065G040210506K T
3 C776 065G040210506K T
3 C7037 065G040210506K T
3 C706 065G040210506K T
3 C160 065G040210506K T
3 C720 065G040210605M A
3 C7001 065G040210605M A
3 C469 065G040215131J A
3 C723 065G040222031J Y

3 C1005 065G040222232K F
3 C171 065G040222232K F
3 C734 065G040222415K Y
3 C749 065G040222415K Y
3 C457 065G040230031J A
3 C458 065G040230031J A
3 C166 065G040230031J A
3 C165 065G040230031J A
3 C114 065G040233031J F
3 C121 065G040233031J F
3 C7053 065G040233232K F
3 C7017 065G040233232K F
3 C182 065G040247031J Y
3 C180 065G040247031J Y
3 C116 065G040247312K Y
3 C183 065G040247312K Y
3 C199 065G040247312K Y
3 C190 065G040247312K Y
3 C1011 065G040247312K Y
3 C115 065G040247312K Y
3 C198 065G040247312K Y
3 C1007 065G040247312K Y
3 C414 065G0402474A5K A
3 C415 065G0402474A5K A
3 C436 065G0402474A5K A
3 C438 065G0402474A5K A
3 C437 065G0402474A5K A
3 C1027 065G040247931C Y
3 C1026 065G040247931C Y
3 C4033 065G060310432K Y
3 C508 065G060310512K A
3 C7057 065G060310512K T
3 C7016 065G060310512K T
3 C4039 065G060310512K T
3 C726 065G060310605M M
3 C439 065G060310605M M
3 C420 065G060310605M M
3 C138 065G060310605M M
3 C728 065G060310605M M
3 C107 065G060310605M M
3 C636 065G060310605M M
3 C7047 065G060310605M M
3 C725 065G060310605M M
3 C753 065G060310605M M
3 C721 065G060310605M M
3 C741 065G060310605M M
3 C722 065G060310605M M
3 C743 065G060310605M M
3 C112 065G060310605M M
3 C701 065G060322422K T
3 C4023 065G060322422K T
3 C619 065G060347131J Y
3 C624 065G060347131J Y
3 C633 065G060347131J Y
3 C622 065G060347131J Y

3 C460 065G060347506K A
3 C128 065G060356931D Y
3 C623 065G080510432K A
3 C625 065G080510432K A
3 C634 065G080510432K A
3 C620 065G080510432K A
3 C620 065G080510432K M
3 C634 065G080510432K M
3 C625 065G080510432K M
3 C623 065G080510432K M
3 C628 065G080522432K A
3 C621 065G080522432K A
3 C621 065G080522432K M
3 C628 065G080522432K M
3 C7010 065G120610625K T
3 C7054 065G120610625K T
3 C7011 065G120610625K T
3 C7060 065G120610625K T
3 C7018 065G1206226A5K A
3 C7055 065G1206226A5K A
3 C7019 065G1206226A5K A
3 C7062 065G1206226A5K A
3 C746 065G121010622K T
3 C731 065G121010622K T
3 C7051 067G311C1013LT
3 C7050 067G311C1013LT
3 C110 067G311R1013LT
3 C646 067G315M1016KV
3 C627 067G315M1016KV
3 HDCP-U413 070GHDCP500HDC
3 FB403 071G 56K121 TA
3 FB703 071G 59A121 TA
3 L103 073G 6333810M
3 L704 073G253S 46 M
3 L703 073G253S 46 M
3 L710 073G253S 67 M
3 L711 073G253S 67 M
3 CN104 088G 78G135ACL
3 CN103 088G352F6B3AYG
3 CN106 088G353GFF1ACL
3 D102 093G 6433S
3 ZD507 093G 39GA01 T
3 D701 093G 60S 37 T
3 ZD113 093G 64S500 SU
3 ZD111 093G 64S500 SU
3 ZD114 093G 64S500 SU
3 ZD110 093G 64S500 SU
3 ZD112 093G 64S500 SU
3 ZD109 093G 64S500 SU
3 ZD115 093G 64S500 SU
3 D501 093G 64S526SEM
3 D101 093G 64S526SEM
3 D502 093G 64S526SEM
3 D511 093G 64S526SEM
3 D502 093G 64S900 T

3 CN408 311GF050A51ADJ
3 CN109 311GW125D05ADL
3 CN602 311GW200A04ABX
3 CN102 311GW200C06ABL
3 CN700 311GW200C12BBX
3 CN401 311GW200C14BBX
3 U705 356G056313200C00HF
3 U711 356G056317300C00HF
3 U703 356G056351400C00HF
3 U707 356G056351400C00HF
3 U407 356G0566024600
3 U401 356G0568577603
3 U404 356G0615004612
3 U403 356G0615004612
3 U601 356G061613300A
3 U413 356G3333004612
3 U702 356GD563006183
3 U706 356GD563008140
3 U704 356GD563008140
3 U710 356GD563008611
3 U712 356GD563008611
3 Q512 357G07630620HF
3 TH101 361G0056159ALT
3 R751 361G04022492FY
3 R739 361G04022492FY
3 R113 361G04025108FT
3 R109 361G04025108FT
3 R111 361G04025108FT
3 R108 361G04025108FT
3 R110 361G04025108FT
3 R114 361G04025108FT
3 R101 361G06031330FY
3 C132 365G040210931B000Y
3 C756 365G040222502K000M
3 C456 365G040222502K000M
3 C761 365G040222502K000M
3 C738 365G040222502K000M
3 C158 365G040227931C000F
3 C159 365G040227931C000F
3 C7052 365G060310535K000T
3 C103 365G060310606M000A
3 C101 365G060310606M000A
3 C784 365G060310606M000A
3 C798 365G060310606M000A
3 C4010 365G060310606M000A
3 C502 365G060310615M000A
3 C764 365G080522606M000M
3 C782 365G080522606M000M
3 C7034 367G311F1014LT
3 C4025 367G311X221FLT
3 MAC-U413 370G0MAC642CNT
3 HDCP2-U413 370GHDCP603PHP
3 FB712 371G042P121M02
3 FB606 371G042P121M02
3 FB402 371G042P121M02

3 FB705 371G042P121M02
3 FB603 371G042P121M02
3 FB605 371G042P121M02
3 FB608 371G042P121M02
3 FB709 371G042P121M02
3 FB501 371G042P121M02
3 FB607 371G042P121M02
3 FB710 371G042P221M00
3 FB711 371G042P221M00
3 FB103 371G042U102C00
3 FB104 371G042U102C00
3 L104 373G0402277FJM
3 L101 373G0402277FJM
3 L102 373G0402826FJM
3 L103 373G0603338FKD
3 L603 373G253S147Y00
3 L601 373G253S147Y00
3 L602 373G253S147Y00
3 L604 373G253S147Y00
3 L702 373G253S526M00
3 CN601 388G078G111ACL
3 CN501 388G340FJ05FAT0001
3 CN504 388G340FJ05FAT0001
3 CN108 388G342GFB6AKX
3 CN101 388G352F911ADL
3 TU101 388G510G601FHC
3 X102 393G022S60100J
3 X401 393G022S662CEC
3 X401 393G022SA44TXC
3 ZD710 393G039SA2300T
3 709T79240XS001
3 E715 715G7924M01B00004N
3 E715 715G7924M01B00004Y
3 HS401 P90T0051301
3 HS601 Q90G6119 6
2 SMTIRPFGXA2
3 Q231 057G 477904 T
3 Q201 057G 477904 T
3 R224 061G0402000 JF
3 R224 061G0402000 JT
3 R224 061G0402000 JY
3 R211 061G0402101 JF
3 R211 061G0402101 JT
3 R211 061G0402101 JY
3 R202 061G0402102 JF
3 R231 061G0402102 JF
3 R201 061G0402102 JT
3 R202 061G0402102 JT
3 R231 061G0402102 JT
3 R202 061G0402102 JY
3 R231 061G0402102 JY
3 R221 061G0402103 JF
3 R222 061G0402103 JF
3 R222 061G0402103 JT
3 R221 061G0402103 JT

3 R222 061G0402103 JY
3 R221 061G0402103 JY
3 R233 061G0402229 JF
3 R232 061G0402229 JF
3 R233 061G0402229 JT
3 R232 061G0402229 JT
3 R233 061G0402229 JY
3 R232 061G0402229 JY
3 C221 065G040210412K A
3 C221 065G040210412K F
3 C221 065G040210412K Y
3 C222 065G0402105A5K A
3 C222 065G0402105A5K M
3 C211 065G0402105A5K M
3 C222 065G0402105A5K T
3 C211 065G0402105A5K T
3 LED201 081G 15R 1 EL
3 LED232 081G 15W 1 EL
3 LED234 081G 15W 1 EL
3 LED233 081G 15W 1 EL
3 LED231 081G 15W 1 EL
3 LED233 081G 15W 1 GP
3 LED234 081G 15W 1 GP
3 LED232 081G 15W 1 GP
3 LED231 081G 15W 1 GP
3 CN201 311GW125D13ACL
3 CN201 311GW125D13ACX
3 U221 356GS527006006
3 U212 356GS927036600
3 Q231 357G0761A0300T
3 Q201 357G0761A0300T
3 LED201 381G0A1500R1GP
3 709T77850XS00100SX
3 E715 715G7785R01000004K
2 SMTKEPFEAA9
3 R01 061G06031201FF
3 R01 061G06031201FT
3 R01 061G06031201FY
3 R05 061G06031502FF
3 R05 061G06031502FT
3 R05 061G06031502FY
3 R04 061G06032201FT
3 R04 061G06032201FY
3 R02 061G06034709FT
3 R03 061G06036801FF
3 R03 061G06036801FT
3 R03 061G06036801FY
3 C06 065G060310432K A
3 C06 065G060310432K F
3 C06 065G060310432K Y
3 CN01 311GW125D02ADX
3 SW01 377G060902C0CJ
3 SW01 377G060902C0HC
3 709T70880XS001
3 E715 715G7088K01000004K

2 705TAF57030
3 051G 200 1
3 SCREW 0M1G1730 8120
3 Q9101 357G0667650006
3 HS9101 Q90T0236001A0000HG
2 705TAF57031
3 051G 200 1
3 SCREW 0M1G1730 8120
3 Q9102 357G0600100020
3 HS9102 X90G070810100000SY
2 705TAF84006
3 FUSE CLIP 084G 34 14
3 F9901 084G 41 7 C
2 705TAF93012
3 051G 200 1
3 D8104 093G 220 24
3 D8109 093G 220 24
3 D8105 093G 220 24
3 SCREW 0M1G1730 8120
3 HS8101 Q90G0219003A0000BF
3 HS8101 Q90G0219003A0000SY
2 705TAF93013
3 051G 200 1
3 Q9801 057G 667954
3 D9801 093G 52905
3 0M1G1730 8120
3 HS9801 Q90T0236004A0000SY
2 705TAF93014
3 051G 200 1
3 SCREW 0M1G1730 8120
3 BD9901 393G0050460602
3 HS9901 Q90T0222008A0000SY
2 709T69730XM001
3 052G 2191 A
3 055G 23520
3 055G 23524
3 Q49G 51100
3 Q51G 6 4509
3 Q55G 100622
3 Q55G 100655
2 PLFS411XXB3SMT
3 U8104 056G 158501
3 U8109 056G 158501
3 U8103 056G 158501
3 U9103 056G 158501
3 U8101 056G 379211
3 Q8103 057G 417511 HF
3 Q9107 057G 417512 HF
3 Q8105 057G 417512 HF
3 Q8104 057G 417512 HF
3 Q8107 057G 417517
3 R8126 061G0805000 JF
3 R8151 061G0805000 JF
3 R8152 061G0805000 JF
3 R8156 061G0805000 JF

3 R8153 061G0805000 JF
3 R8156 061G0805000 JT
3 R8152 061G0805000 JT
3 R8153 061G0805000 JT
3 R8126 061G0805000 JT
3 R8151 061G0805000 JT
3 R9814 061G0805100 JF
3 R9814 061G0805100 JT
3 R8164 061G08051001FF
3 R8131 061G08051001FF
3 R9124 061G08051001FF
3 R8130 061G08051001FF
3 R8128 061G08051001FF
3 R8130 061G08051001FT
3 R8128 061G08051001FT
3 R8164 061G08051001FT
3 R8131 061G08051001FT
3 R9124 061G08051001FT
3 R9817 061G08051002FF
3 R9136 061G08051002FF
3 R8162 061G08051002FF
3 R9135 061G08051002FF
3 R9816 061G08051002FF
3 R8112 061G08051002FF
3 R9109 061G08051002FF
3 R9134 061G08051002FF
3 R8115 061G08051002FF
3 R8115 061G08051002FT
3 R9134 061G08051002FT
3 R9109 061G08051002FT
3 R8112 061G08051002FT
3 R9136 061G08051002FT
3 R9817 061G08051002FT
3 R9135 061G08051002FT
3 R9816 061G08051002FT
3 R8162 061G08051002FT
3 R8163 061G08051003FF
3 R9104 061G08051003FF
3 R9818 061G08051003FF
3 R9818 061G08051003FT
3 R8163 061G08051003FT
3 R9104 061G08051003FT
3 R8171 061G08051004FF
3 R8171 061G08051004FT
3 R8113 061G08051009FF
3 R8110 061G08051009FF
3 R9105 061G08051009FF
3 R9142 061G08051009FF
3 R8109 061G08051009FF
3 R8113 061G08051009FT
3 R8109 061G08051009FT
3 R9105 061G08051009FT
3 R9142 061G08051009FT
3 R8110 061G08051009FT
3 R9122 061G08051501FF

3 R8119 061G08051501FF
3 R9122 061G08051501FT
3 R8119 061G08051501FT
3 R9127 061G08051600FF
3 R9127 061G08051600FT
3 R9808 061G08051602FF
3 R9808 061G08051602FT
3 R8105 061G08051802FF
3 R8105 061G08051802FY
3 R9133 061G08052001FF
3 R8127 061G08052001FF
3 R9133 061G08052001FT
3 R8127 061G08052001FT
3 R8122 061G08052003FF
3 R8122 061G08052003FT
3 R9126 061G08052201FF
3 R9126 061G08052201FT
3 R9810 061G08052202FF
3 R9810 061G08052202FT
3 R8108 061G08052400FF
3 R8108 061G08052400FT
3 R8116 061G08052431FF
3 R8116 061G08052431FT
3 R9809 061G08052702FF
3 R9809 061G08052702FT
3 R8133 061G08053002FF
3 R8133 061G08053002FT
3 R8166 061G08053301FF
3 R8166 061G08053301FT
3 R9811 061G08053302FF
3 R9811 061G08053302FT
3 R8134 061G08054301FF
3 R8134 061G08054301FT
3 R8167 061G08054302FF
3 R8168 061G08054302FF
3 R8167 061G08054302FT
3 R8168 061G08054302FT
3 R8107 061G08054700FF
3 R8107 061G08054700FT
3 R8170 061G08054702FF
3 R8170 061G08054702FT
3 R9807 061G08054703FF
3 R9807 061G08054703FT
3 R8111 061G08054709FF
3 R8114 061G08054709FF
3 R8111 061G08054709FT
3 R8114 061G08054709FT
3 R9123 061G0805472 JF
3 R9123 061G0805472 JT
3 R8125 061G0805474 JF
3 R8125 061G0805474 JT
3 R8165 061G08055100FF
3 R8165 061G08055100FT
3 R8159 061G08055101FF
3 R9141 061G08055101FF

3 R8132 061G08055101FF
3 R9140 061G08055101FF
3 R8132 061G08055101FT
3 R9141 061G08055101FT
3 R8159 061G08055101FT
3 R9140 061G08055101FT
3 R9138 061G08055103FF
3 R8172 061G08055103FF
3 R8121 061G08055103FF
3 R8172 061G08055103FT
3 R8121 061G08055103FT
3 R9138 061G08055103FT
3 R8160 061G08056202FF
3 R8160 061G08056202FT
3 R8123 061G08056802FF
3 R8123 061G08056802FT
3 R9815 061G0805750 JF
3 R9815 061G0805750 JT
3 R9106 061G0805820 JY
3 R9125 061G08059101FF
3 R8169 061G08059101FF
3 R9125 061G08059101FT
3 R8169 061G08059101FY
3 JR8101 061G1206000 JT
3 JR9104 061G1206000 JT
3 JR9105 061G1206000 JT
3 JR9101 061G1206000 JT
3 JR9102 061G1206000 JT
3 JR9106 061G1206000 JT
3 JR9103 061G1206000 JT
3 R9145 061G1206000 JT
3 R8158 061G1206000 JT
3 JR9106 061G1206000 JY
3 JR9102 061G1206000 JY
3 JR9103 061G1206000 JY
3 JR8101 061G1206000 JY
3 JR9105 061G1206000 JY
3 JR9101 061G1206000 JY
3 JR9104 061G1206000 JY
3 R9145 061G1206000 JY
3 R8158 061G1206000 JY
3 R9146 061G12060004JF
3 R9146 061G12060004JT
3 R9107 061G12061001FF
3 R9107 061G12061001FT
3 R9806 061G12061003FF
3 R9132 061G12061003FF
3 R9132 061G12061003FT
3 R9806 061G12061003FT
3 R9803 061G12061004FF
3 R9803 061G12061004FT
3 R9137 061G1206101 JF
3 R9137 061G1206101 JT
3 R8155 061G1206103 JF
3 R8155 061G1206103 JT

3 R8103 061G12061504FF
3 R8104 061G12061504FF
3 R8102 061G12061504FF
3 R8102 061G12061504FT
3 R8103 061G12061504FT
3 R8104 061G12061504FT
3 R8146 061G12061508FT
3 R8142 061G12061508FT
3 R8138 061G12061508FT
3 R9110 061G1206229 JF
3 R9110 061G1206229 JT
3 R9117 061G1206270 JF
3 R9112 061G1206270 JF
3 R9116 061G1206270 JF
3 R9113 061G1206270 JF
3 R9114 061G1206270 JF
3 R9115 061G1206270 JF
3 R9113 061G1206270 JT
3 R9117 061G1206270 JT
3 R9116 061G1206270 JT
3 R9112 061G1206270 JT
3 R9115 061G1206270 JT
3 R9114 061G1206270 JT
3 R9131 061G1206302 JF
3 R9131 061G1206302 JT
3 R9147 061G12063303FF
3 R9149 061G12063303FF
3 R9148 061G12063303FF
3 R9147 061G12063303FT
3 R9149 061G12063303FT
3 R9148 061G12063303FT
3 R9103 061G1206335 JF
3 R9108 061G1206335 JF
3 R9102 061G1206335 JF
3 R9102 061G1206335 JT
3 R9103 061G1206335 JT
3 R9108 061G1206335 JT
3 R8117 061G12064700FF
3 R8117 061G12064700FT
3 R9144 061G12064702FF
3 R9144 061G12064702FT
3 R9812 061G12064709FF
3 R9812 061G12064709FT
3 R9143 061G1206479 JF
3 R9143 061G1206479 JT
3 R9906 061G12066803FF
3 R9904 061G12066803FF
3 R9804 061G12066803FF
3 R9805 061G12066803FF
3 R9908 061G12066803FF
3 R9905 061G12066803FF
3 R9903 061G12066803FF
3 R9907 061G12066803FF
3 R9805 061G12066803FF E
3 R9804 061G12066803FF E

3 R9903 061G12066803FT
3 R9908 061G12066803FT
3 R9904 061G12066803FT
3 R9905 061G12066803FT
3 R9907 061G12066803FT
3 R9906 061G12066803FT
3 R8118 061G1206753 JF
3 R8118 061G1206753 JY
3 R8124 061G12068202FF
3 R8124 061G12068202FT
3 R9139 061G1206822 JF
3 R9139 061G1206822 JT
3 C9127 065G080510131J F
3 C8141 065G080510131J F
3 C9127 065G080510131J Y
3 C8141 065G080510131J Y
3 C9102 065G080510231J A
3 C9102 065G080510231J F
3 C8107 065G080510232K A
3 C9805 065G080510232K A
3 C8107 065G080510232K F
3 C9805 065G080510232K F
3 C9133 065G080510332K F
3 C9809 065G080510332K F
3 C9808 065G080510332K F
3 C8115 065G080510332K F
3 C9809 065G080510332K Y
3 C8115 065G080510332K Y
3 C9133 065G080510332K Y
3 C9808 065G080510332K Y
3 C8142 065G080510432K F
3 C9817 065G080510432K F
3 C9811 065G080510432K F
3 C8126 065G080510432K F
3 C8123 065G080510432K F
3 C8104 065G080510432K F
3 C8127 065G080510432K F
3 C9122 065G080510432K F
3 C9126 065G080510432K F
3 C9128 065G080510432K F
3 C8102 065G080510432K F
3 C8125 065G080510432K F
3 C8129 065G080510432K F
3 C9104 065G080510432K F
3 C8121 065G080510432K F
3 C8131 065G080510432K F
3 C8120 065G080510432K F
3 C9811 065G080510432K Y
3 C8142 065G080510432K Y
3 C9817 065G080510432K Y
3 C8121 065G080510432K Y
3 C9128 065G080510432K Y
3 C8131 065G080510432K Y
3 C8129 065G080510432K Y
3 C8125 065G080510432K Y

3 C8102 065G080510432K Y
3 C9104 065G080510432K Y
3 C8120 065G080510432K Y
3 C9126 065G080510432K Y
3 C9122 065G080510432K Y
3 C8127 065G080510432K Y
3 C8104 065G080510432K Y
3 C8123 065G080510432K Y
3 C8126 065G080510432K Y
3 C9124 065G080510532K M
3 C8138 065G080510532K M
3 C9123 065G080510532K M
3 C8137 065G080510532K M
3 C9118 065G080510532K M
3 C9114 065G080510532K M
3 C8128 065G080510532K M
3 C8130 065G080510532K M
3 C8133 065G080510532K M
3 C8110 065G080510532K M
3 C9806 065G080510532K M
3 C9116 065G080510532K M
3 C8136 065G080510532K M
3 C8132 065G080510532K M
3 C8145 065G080510532K M
3 C8137 065G080510532K T
3 C9123 065G080510532K T
3 C9124 065G080510532K T
3 C8138 065G080510532K T
3 C8130 065G080510532K T
3 C8128 065G080510532K T
3 C9114 065G080510532K T
3 C9118 065G080510532K T
3 C9116 065G080510532K T
3 C8133 065G080510532K T
3 C8110 065G080510532K T
3 C8136 065G080510532K T
3 C9806 065G080510532K T
3 C8132 065G080510532K T
3 C8145 065G080510532K T
3 C9107 065G080522232K F
3 C9108 065G080522232K F
3 C9108 065G080522232K Y
3 C9107 065G080522232K Y
3 C9119 065G080522432K F
3 C9119 065G080522432K Y
3 C8144 065G080522522K M
3 C8144 065G080522522K T
3 C9103 065G080533131J F
3 C9103 065G080533131J Y
3 C9813 065G080533232K F
3 C9813 065G080533232K Y
3 C8111 065G080547031J F
3 C9812 065G080547031J F
3 C9812 065G080547031J Y
3 C8111 065G080547031J Y

3 C9101 065G080547232K F
3 C9101 065G080547232K Y
3 C9807 065G080547432K A
3 C9807 065G080547432K F
3 C8105 065G080547432K F
3 C8143 065G080547432K F
3 C8105 065G080547432K T
3 C8143 065G080547432K T
3 C8114 065G0805475A2K A
3 C8114 065G0805475A2K T
3 C8106 065G080556131J F
3 C8106 065G080556131J Y
3 C9129 065G120610272K A
3 C8140 065G120610272K A
3 C8119 065G120610272K A
3 C8140 065G120610272K F
3 C8119 065G120610272K F
3 C9129 065G120610272K F
3 D9104 093G 60S952 T
3 U9801 356G0379008232
3 U9101 356G0379008605
3 U9105 356GD563008617
3 Q9106 357G0761A0100T
3 Q9108 357G07630620HF
3 Q8108 357G07630620HF
3 Q9802 357G0763600601
3 Q8106 357G0763600601
3 R8136 361G12061108FF
3 R8144 361G12061108FF
3 R8139 361G12061108FF
3 R8135 361G12061108FF
3 R8143 361G12061108FF
3 R8140 361G12061108FF
3 R8140 361G12061108FT
3 R8143 361G12061108FT
3 R8139 361G12061108FT
3 R8135 361G12061108FT
3 R8136 361G12061108FT
3 R8144 361G12061108FT
3 R8137 361G12061308FF
3 R8145 361G12061308FF
3 R8141 361G12061308FF
3 R8142 361G12061508FF
3 R8138 361G12061508FF
3 R8146 361G12061508FF
3 D8110 393G006432S0HF
3 D9106 393G006432S0HF
3 D9101 393G006432S0HF
3 ZD9801 393G039S95400T00HF
3 ZD8102 393G039S96400T00HF
3 ZD8103 393G039S96400T00HF
3 ZD8104 393G039SA1500T
3 ZD9105 393G039SA2900T
3 ZD8101 393G039SA2900T
3 ZD9104 393G039SA2900T

3 ZD8111 393G039SA3000T
3 ZD9803 393G039SA3000T
3 D9802 393G060S060600
3 D9105 393G060S060600
3 D8103 393G060S50000T00HF
3 D8102 393G060S50000T00HF
3 D8107 393G060S50000T00HF
3 D8108 393G060S50000T00HF
3 D8106 393G060S50000T00HF
3 709T69730XS001
3 PLFS411XXB3AI
3 709T79240XS001
4 Q51G02UV0LT0HF0000
4 Q55G02SP1VT0HF0000
4 051G 200 1
4 052G 2191 A
4 055G 100610
4 Q05G6054 1
4 Q09G6012 1
4 Q49G03WB1TF0HF0000
4 Q52G170100700B00XW
4 Q55G 100622
3 709T77850XS00100SX
4 Q05G6054 1
4 X52B160100500100SI
4 X52B160100500100YY
4 055G 100610
4 055G 23520
4 052G 2191 A
4 Q09G6012 1
4 Q52G170100700B00XW
3 709T70880XS001
4 052G 2191 A
4 055G 23520
4 055G 100610
4 Q05G6054 1
4 Q09G6012 1
4 Q52G170100700B00XW
3 709T69730XS001
4 051G 100502
4 052G 2191 A
4 055G 23520
4 Q05G6054 1
4 Q09G6012 1
3 PLFS411XXB3AI
4 FOR NR9902 006G 31 4
4 FOR NR9901 006G 31 4
4 FOR NR9903 006G 31 4
4 FOR BD9901 006G 31 4
4 FOR T9101 006G 31500
4 FOR CN9902 006G 31500
4 FOR T8101 006G 31500
4 FOR L9801 006G 31500
4 FOR C9902 006G 31502
4 L9902 006G 31502

4 L9901 006G 31502
4 FOR C9901 006G 31502
4 FOR C9803 006G 31502
4 FOR C9802 006G 31502
4 FOR C9804 006G 31502
4 FOR C9801 006G 31502
4 RV9901 006G 31502
4 040G 45762420A
4 R8101 061G 30310852T SY
4 C8108 065G 1K10193T
4 C8113 065G 1K10193T
4 C9816 065G 1K10293T
4 C8101 065G 1K10293T
4 C9820 065G 1K10293T
4 C9106 065G 1K22293S
4 C9819 065G 1K4719ST
4 C9913 065G306K22123R
4 C9914 065G306K22123R
4 C9916 065G306M10233R
4 C9132 067G 3151007KB A
4 C9810 067G 3151007KB A
4 C9121 067G 3151007KB A
4 C8118 067G 5154709KT
4 C9113 067G 5154714KT
4 C9115 067G 5154714KT
4 C9105 067G215P1017KT
4 C8103 067G315M2207KB
4 FB9801 071G 55 29
4 FB9903 071G 55 29
4 FB9802 071G 55 29
4 D8101 093G 52908
4 D9102 093G 60953
4 D9108 093G 6451652T
4 D9103 093G1080 252T
4 J8116 095G 90 23
4 J8120 095G 90 23
4 J9904 095G 90 23
4 J9104 095G 90 23
4 J9115 095G 90 23
4 J9805 095G 90 23
4 J8104 095G 90 23
4 J8115 095G 90 23
4 J9903 095G 90 23
4 J8103 095G 90 23
4 J8114 095G 90 23
4 J9902 095G 90 23
4 J9103 095G 90 23
4 J8124 095G 90 23
4 J9119 095G 90 23
4 J8102 095G 90 23
4 J9803 095G 90 23
4 J9113 095G 90 23
4 J9114 095G 90 23
4 J9804 095G 90 23
4 J9109 095G 90 23

4 J9102 095G 90 23
4 J8109 095G 90 23
4 J8105 095G 90 23
4 J9111 095G 90 23
4 J8107 095G 90 23
4 J9118 095G 90 23
4 J8112 095G 90 23
4 J9107 095G 90 23
4 J8101 095G 90 23
4 J9802 095G 90 23
4 J9112 095G 90 23
4 J9101 095G 90 23
4 J9108 095G 90 23
4 J8123 095G 90 23
4 J8119 095G 90 23
4 J8108 095G 90 23
4 J8111 095G 90 23
4 J8122 095G 90 23
4 J8117 095G 90 23
4 J9801 095G 90 23
4 J9106 095G 90 23
4 J9117 095G 90 23
4 J8106 095G 90 23
4 J9105 095G 90 23
4 J9116 095G 90 23
4 J9905 095G 90 23
4 R9150 361G152M22052T00TZ
4 R9111 361G152M82352T00TZ
4 R9101 361G2SWJ22852T00TZ
4 C8112 365G001D5096WT
4 C9814 365G001J4706ST
4 C9815 365G001K1019WT
4 C9912 365G306J47063R
4 C9911 365G306J47063R
4 709T69730XA001
4 E715 715G6973P04006002M
4 709T69730XA001
5 052G 2191 A

对

象描述

组件数量组件单

位

替代

项⽬组

NONWOVEN FABRTC 2.000 PCS

control card 0.100 PCS

FUSE GEL 0.300 G
SCREW M3 6 2.000 PCS
SCREW M3 6 1.000 PCS
SCREW M4 6 2.000 PCS

SCREW 1.000 PCS

Screw 15.000 PCS

Screw 2.000 PCS
SCREW M3 6 20.000 PCS
SCREW M3 8 3.000 PCS

SCREW M4 20 4.000 PCS

SCREW 1.000 PCS
SCREW 2.000 PCS
SCREW 1.000 PCS

WIFI USB IEEE 802.11 b/g/n SDWF-2F/GJ 1.000 PCS

RF MODULE GL03-2-E 1.000 PCS
6 OHM 11W 132*34*37mm 0 UNIT 2.000 PCS 2nd-source
6 OHM 11W 132*34*37mm 0 UNIT 2.000 PCS

4 60W 900x59mm SB3521 1.000 PCS

FFC CABLE 51P 600 0.5MM 1.000 PCS
HARNESS 2P pitch2.0-2P pitch1.25 200mm 1.000 PCS 2nd-source
HARNESS 2P pitch2.0-2P pitch1.25 200mm 1.000 PCS

HARNESS 16P pitch2.0-12P pitch2.0 280mm 1.000 PCS

HARNESS 16P pitch2.0-12P pitch2.0 280mm 1.000 PCS 2nd-source
HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m 1.000 PCS 2nd-source
HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m 1.000 PCS

HARNESS 5P pitch1.25-6P pitch2.0 600mm 1.000 PCS 2nd-source
HARNESS 5P pitch1.25-6P pitch2.0 600mm 1.000 PCS
HARNESS 14P pitch2.0-13P pitch1.25+2P p 1.000 PCS

HARNESS 14P pitch2.0-13P pitch1.25+2P p 1.000 PCS 2nd-source
REMOTE PHILIPS 000005-16470003 chinese 1.000 PCS 2nd-source
REMOTE PHILIPS 000005-16470003 chinese 1.000 PCS

Ebony 40 ( 176 CH ) 1.000 PCS

LCD TPT550J1-QUBN0.K S8850A XM TPV 1.000 PCS 1

MCU ASSY 1.000 PCS 2nd-source

BKT_POWER_TOP 1.000 PCS

CONVERSION 715G7924M01B 1.000 PCS

IR BOARD NA 1.000 PCS

KEY BOARD 1.000 PCS

PANEL TPT550J1-QUBN0.K S8850A XM TP 1.000 PCS 1

RUBBER PAD SILICONE 1.000 PCS

KEY_FUNCTION 1.000 PCS

LENS 1.000 PCS 2nd-source

DECO_REAR_COVER 1.000 PCS

DECO_LOGO 1.000 PCS 2nd-source

REAR_COVER NA 1.000 PCS

A4 PALLET LABEL -for A4 paper 0.100 PCS

ADAPTER BOARD 715G6973 1.000 PCS

BOLT 2.000 PCS
BOLT 2.000 PCS 2nd-source
BOLT 1.000 PCS

PCB-SUPPORT D2.9xH14.97 6.000 PCS

NONWOVEN FABRIC 1.000 PCS

NONWOVEN FABRIC 1.000 PCS
NONWOVEN FABRIC 2.000 PCS

产线需求的栈板LABEL 0.100 PCS

PROTECT BAG 1200*1600 1.000 PCS

Panel Detergent 1.740 ML

TAPE 20.000 CM

TAPE_INSULATING 112.000 CM

TAPE 24.000 CM

BOLT M3 2.000 PCS

BKT_IO_BTM 1.000 PCS

BKT_STAND 1.000 PCS

BKT_STAND_R 1.000 PCS

BKT_STAND_L 1.000 PCS

BKT_HOLDER 1.000 PCS

BKT_STAND 1.000 PCS
BKT_STAND 1.000 PCS

BKT_SPEAKER 2.000 PCS

BKT_IO_SIDE 1.000 PCS
BASE_ASS’Y TV49W-15ph01-ph01d-16ph05a 1.000 PCS
BASE_ASS’Y TV49W-15ph01-ph01d-16ph05a 1.000 PCS

LABEL IO 1.000 PCS

LABEL SIDE 1.000 PCS

ARTWORK CARTON Ebony 55PUF6481/T3 BOTTOM 1.000 PCS

CUSHION-T N/A China(2002) 1.000 PCS

CUSHION-B N/A China(2002) 1.000 PCS

CUSHION-L N/A China(2002) 2.000 PCS

CUSHION-TL N/A China(2002) 2.000 PCS

CUSHION-FRONT N/A China(2002) 1.000 PCS

CUSHION-T N/A China(2002) 1.000 PCS

ARTWORK CARTON Ebony 55PUF6481/T3 TOP CH 1.000 PCS

INSULATING SHEET 1.000 PCS
INSULATING SHEET 1.000 PCS
INSULATING SHEET 1.000 PCS 2nd-source
INSULATING SHEET 1.000 PCS
INSULATING SHEET 1.000 PCS

INSULATING SHEET 1.000 PCS
AC POWER CORD 1500 1.000 PCS
AC POWER CORD 1500 1.000 PCS 2nd-source

BATTERY 1.5V 2P R03(KI)2S/PG 1.000 PAA

PROTECT BAG 1.000 PCS

OTHER LABEL 开机必读标签 1.000 PCS

QSG 55PUF6481/T3 china 1.000 PCS

WARRANTY CARD TPV address china 1.000 PCS

MANUAL P/N LABEL 1.000 PCS

CEL LABEL G3 1.3 54x79.2 mm 1.000 PCS

CARTON LABEL 1.000 PCS

RATING LABEL 55PUF6481/T3 1.000 PCS

Ebony 40 ( 176 CH ) 0.000

PAPER BOARD 0.090 PCS
PAPER BOARD 0.090 PCS

CORNER PAPER 0.346 PCS

TIE (Y1900221) 97.000 CM

PACKAGE_BUCKLE 4.000 PCS

BIG TAPE FOR PHILIPS 151.000 CM

PALLET 0.046 PCS

PALLET 0.046 PCS
PAPER CAP5 0.046 PCS
PAPER CAP5 0.046 PCS

PROTECT RIBBON 379.000 CM

MCU ASSY 0.000

PHP 55PUF6481/T3 EMMC NA NA 1.000 PCS

EMMC THGBMDG5D1LBAIT 4GB FBGA153 1.000 PCS

CONVERSION 715G7924M01B 0.000

OTHER LABEL 1.000 PCS

MAIN BOARD FOR SMT 1.000 PCS

IR BOARD NA 0.000

IR BOARD FOR SMT 1.000 PCS

KEY BOARD 0.000

KEY BOARD FOR SMT 1.000 PCS

ADAPTER BOARD 715G6973 0.000

OTHER LABEL 1.000 PCS

GND TERMINAL 1.000 PCS

wafer 12P 2.0 DIP 1.000 PCS
IC EL817M(X) photocoupler DIP-4 1.000 PCS
IC EL817M(X) photocoupler DIP-4 1.000 PCS 2nd-source
IC EL817M(X) photocoupler DIP-4 1.000 PCS 2nd-source

MOSFET TK10A50D 10A 500V TO-220 1.000 PCS
MOSFET TK10A50D 10A 500V TO-220 1.000 PCS

CAP X2 470NF 20% 275V - - 1.000 PCS 2nd-source
CAP X2 470NF 20% 275V - - 1.000 PCS 2nd-source

CAP MPP 27NF 5% 1KV - R75QI2270500EJ 1.000 PCS

EC 1500UF 20% 35V 10*40 5000 hr 1.000 PCS
EC 1500UF 20% 35V 10*40 5000 hr 1.000 PCS

EC 220UF 20% 100V 10*35 1.000 PCS
EC 220UF 20% 100V 10*35 1.000 PCS

AC R/A 2P 12.81mm 1.000 PCS

BRIDGE KBP208G-C 2A 800V KBP 1.000 PCS

SCREW Q1-SELF TAPING SCREW :Q x8.0 2.000 PCS

WAFER 2.0mm 16P 1.000 PCS
Photo-Coupler PC123Y82FZ9F DIP-4 1.000 PCS 2nd-source
Photo-Coupler PC123Y82FZ9F DIP-4 1.000 PCS
Photo-Coupler PC123Y82FZ9F DIP-4 1.000 PCS

LED DRIVER TPV101D DIP-8 1.000 PCS
LED DRIVER TPV101D DIP-8 1.000 PCS
LED DRIVER TPV101D DIP-8 1.000 PCS

VARISTOR 680V 10% 1.000 PCS
NTCR 1R 20% 3.6W SCK15018MTY503 1.000 PCS
NTCR 1R 20% 3.6W SCK15018MTY503 1.000 PCS
NTCR 1R 20% 3.6W SCK15018MTY503 1.000 PCS

RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10 1.000 PCS

RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10 1.000 PCS
CAP X2 470nF 10% 275V 18*9*13.5 B32922L2 1.000 PCS
CAP X2 470nF 10% 275V 18*9*13.5 B32922L2 1.000 PCS

CAP MPP 1UF 5% 450V 1.000 PCS 2nd-source

CAP MPP 1UF 5% 450V 1.000 PCS 2nd-source
CAP MPP 1uF 10% 450V 18*7*12.5mm B32672P 1.000 PCS
CAP MPP 1uF 10% 450V 18*7*12.5mm B32672P 1.000 PCS

EC 82uF 20% 450V 13*50mm 2000 hr 720mA 1.000 PCS
EC 82uF 20% 450V 13*50mm 2000 hr 720mA 1.000 PCS

BEAD 6.5*12.5 700R 25% BF-I60100R-815 1.000 PCS

BEAD 6.5*12.5 700R 25% BF-I60100R-815 1.000 PCS
LINE FILTER 12mH MIN 2A 3LFT20117-123M- 1.000 PCS
LINE FILTER 12mH MIN 2A 3LFT20117-123M- 1.000 PCS

PFC CHOKE 220 10% 4 GL-14009-HA 1.000 PCS

CHOKE COIL 3UH 15% DR8*8 5A 1.000 PCS
CHOKE COIL 3UH 15% DR8*8 5A 1.000 PCS
CHOKE COIL 3UH 15% DR8*8 5A 1.000 PCS

X'FMR 360uH 10% 5uH EQ30 yuva-2251-5 1.000 PCS
X'FMR 830uH 10% 155uH EE42 BCK-14220-H 1.000 PCS

Q9101 ASS"Y 1.000 PCS
Q9102 ASS"Y 1.000 PCS

F9901 ASSY 1.000 PCS

D8104 D8105 D8109 ASS'Y 1.000 PCS

D9801 Q9801 Assy 1.000 PCS

BD9901 ASS'Y 1.000 PCS

COMSUMPTIVE ASSY 1.000 PCS

ADAPTER BOARD FOR SMT 1.000 PCS

HEAT SINK 1.000 PCS
HEAT SINK 1.000 PCS
HEAT SINK 1.000 PCS

MAIN BOARD FOR SMT 0.000

CONNECTOR 1.000 PCS 2nd-source
LDO G1117-33T63UF 1A 3.3V SOT-223 1.000 PCS 2nd-source
LDO G1117-33T63UF 1A 3.3V SOT-223 1.000 PCS 2nd-source

RESET G690L263T73Uf 2.63V SOT-23 1.000 PCS

ESD PROTECT AZ5123-01H.R7G (for 3.3V ci 1.000 PCS

IC STMPS2171STR SOT23-5L 1.000 PCS

MMBT3904 1.000 PCS
MMBT3904 1.000 PCS
MMBT3904 1.000 PCS
MMBT3904 1.000 PCS
MMBT3904 1.000 PCS
MMBT3904 1.000 PCS
MMBT3906 1.000 PCS
MMBT3906 1.000 PCS
MMBT3906 1.000 PCS
MMBT3906 1.000 PCS
MMBT3906 1.000 PCS

TRA LMBT3904LT1G 200mA/40V SOT-23 LRC 1.000 PCS

FET AO4449 -7A/-30V SOIC-8 1.000 PCS

FET AO4449 -7A/-30V SOIC-8 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS
RST CHIP ARRAY 33R 1/16W 5% 8P4R 1.000 PCS

PTCR SMD 0.12R MAX 0.8W 1.000 PCS

PTCR SMD 0.12R MAX 0.8W 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS
RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS

RST 0402 0.05R MAX 1/16W - 1.000 PCS

RST 0402 0.05R MAX 1/16W - 1.000 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 PCS

RST CHIPR 10 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10 OHM +-5% 1/16W YAGEO 1.000 PCS

RST CHIP 100R 1/16W 1% 1.000 PCS
RST CHIP 100R 1/16W 1% 1.000 PCS
RST CHIP 100R 1/16W 1% 1.000 PCS

RST CHIP 1K 1/16W 1% 1.000 PCS
RST CHIP 1K 1/16W 1% 1.000 PCS
RST CHIP 1K 1/16W 1% 1.000 PCS
RST CHIP 1K 1/16W 1% 1.000 PCS
RST CHIP 1K 1/16W 1% 1.000 PCS
RST CHIP 1K 1/16W 1% 1.000 PCS
RST CHIP 1K 1/16W 1% 1.000 PCS
RST CHIP 1K 1/16W 1% 1.000 PCS

RST CHIP 1K 1/16W 1% 1.000 PCS
RST CHIPR 10K +-1% 1/16W TZAI YUAN 1.000 PCS
RST CHIPR 10K +-1% 1/16W TZAI YUAN 1.000 PCS

RST CHIP 10K 1/16W 1% YAGEO 1.000 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 PCS

RST CHIP 10K 1/16W 1% YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS

RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS

RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS

RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS

RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1.000 PCS
RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1.000 PCS
RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1.000 PCS
RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1.000 PCS
RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1.000 PCS
RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1.000 PCS

RST CHIP R 1Mohm 1/16W +/-5% TZAI YUAN 1.000 PCS

RST CHIP 1.2K 1/16W 1% 1.000 PCS

RST CHIP 12K 1/16W 1% YAGEO 1.000 PCS

RST 0402 12.1K 1% 1/16W FENGHUA 1.000 PCS

RST 0402 121K 1/16W 1% FENGHUA 1.000 PCS

RST 0402 121K 1/16W 1% FENGHUA 1.000 PCS
RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1.000 PCS

RST 0402 16.9K 1% 1/16W - 1.000 PCS
RST CHIP 180K 1/16W 5% YAGEO 1.000 PCS
RST CHIP 200R 1/16W 5% YAGEO 1.000 PCS

RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 PCS

RST CHIP 22K 1/16W 1% TZAI YUAN 1.000 PCS

RST CHIP 22K 1/16W 1% YAGEO 1.000 PCS

RST CHIP 22K 1/16W 1% YAGEO 1.000 PCS
RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA 1.000 PCS
RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA 1.000 PCS

RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 1.000 PCS

RST CHIPR 240 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 240 OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 240 OHM +-5% 1/16W YAGEO 1.000 PCS

RST 0402 27K 1% 1/16W 1.000 PCS
RST 0402 27K 1% 1/16W 1.000 PCS

RST 0402 30K 1% 1/16W RC0402FR-1330KL 1.000 PCS

RST 0402 301K 1% 1/16W TZAI YUAN 1.000 PCS
RST 0402 301K 1% 1/16W TZAI YUAN 1.000 PCS

RST CHIP 33R 1/16W 5% TZAI YUAN 1.000 PCS

RST CHIP 33R 1/16W 5% TZAI YUAN 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS

RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 PCS

RST 0402 33K 1% 1/16W FENGHUA 1.000 PCS
RST CHIP 3R3 1/16W 5% FENGHUA 1.000 PCS
RST CHIP 3R3 1/16W 5% FENGHUA 1.000 PCS

RST CHIPR 470OHM +-5% 1/16W YAGEO 1.000 PCS
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1.000 PCS
RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1.000 PCS

RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 PCS

RST CHIPR 47KOHM +-5% 1/16W YAGEO 1.000 PCS

RST CHIP 6K8 1/16W 1% 1.000 PCS

RST CHIP 6K8 1/16W 1% 1.000 PCS
RST CHIP 75R 1/16W 1% 1.000 PCS
RST CHIP 75R 1/16W 1% 1.000 PCS
RST CHIP 75R 1/16W 1% 1.000 PCS
RST CHIP 75R 1/16W 1% 1.000 PCS

RST CHIPR MAX0R05 1/10W YAGEO 1.000 PCS
RST CHIPR MAX0R05 1/10W YAGEO 1.000 PCS

RST CHIPR MAX0R05 1/10W YAGEO 1.000 PCS
RST CHIPR 150K +-5% 1/10W YAGEO 1.000 PCS
RST CHIPR 150K +-5% 1/10W YAGEO 1.000 PCS

RST CHIPR 47KOHM 1/10W YAGEO 1.000 PCS
RST CHIPR 47KOHM 1/10W YAGEO 1.000 PCS

RST CHIP 6K8 1/10W 1% 1.000 PCS

RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS
RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1.000 PCS
RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1.000 PCS
RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1.000 PCS
RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1.000 PCS

RST CHIPR 2.2KOHM +-5% 1/4W FENGHUA 1.000 PCS

CAP 0402 10PF 5% 50V NP0 - 1.000 PCS

CAP 0402 10PF 5% 50V NP0 1.000 PCS

CAP CHIP 0402 100pF 50V NPO 1.000 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 PCS

CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 PCS

CAP CHIP 0402 10N 50V X7R +/-10% 1.000 PCS
CAP CHIP 0402 10N 50V X7R +/-10% 1.000 PCS
CAP CHIP 0402 10N 50V X7R +/-10% 1.000 PCS

CAP CHIP 0402 100nF K 16V X7R 1.000 PCS
CAP CHIP 0402 100nF K 16V X7R 1.000 PCS
CAP CHIP 0402 100nF K 16V X7R 1.000 PCS
CAP CHIP 0402 100nF K 16V X7R 1.000 PCS

CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS

CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS
CAP 0402 100NF 10% 16V X7R 1.000 PCS

CHIP 0402 0.1UF 25V X5R 1.000 PCS
CHIP 0402 0.1UF 25V X5R 1.000 PCS
CHIP 0402 0.1UF 25V X5R 1.000 PCS
CHIP 0402 0.1UF 25V X5R 1.000 PCS
CHIP 0402 0.1UF 25V X5R 1.000 PCS

CAP 0402 100nF 10% 25V X5R 1.000 PCS

CAP 0402 100nF 10% 25V X5R 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS

CAP 0402 1UF 10% 6.3V X6S - 1.000 PCS
CAP 0402 10UF 20% 6.3V X5R CL05A106MQ5N 1.000 PCS
CAP 0402 10UF 20% 6.3V X5R CL05A106MQ5N 1.000 PCS

CAP 0402 150PF 5% 50V NP0 1.000 PCS

CAP CHIP 0402 22P 50V NP0 +/-5% 1.000 PCS

CAP 0402 2.2NF K 50V X7R 1.000 PCS

CAP 0402 2.2NF K 50V X7R 1.000 PCS
CAP CHIP 0402 220nF 16V X5R 1.000 PCS
CAP CHIP 0402 220nF 16V X5R 1.000 PCS

CAP 0402 30PF 5% 5% 50V NP0 1.000 PCS
CAP 0402 30PF 5% 5% 50V NP0 1.000 PCS
CAP 0402 30PF 5% 5% 50V NP0 1.000 PCS
CAP 0402 30PF 5% 5% 50V NP0 1.000 PCS

CAP 0402 33PF 5% 50V NP0 1.000 PCS

CAP 0402 33PF 5% 50V NP0 1.000 PCS
CAP 0402 3.3NF 10% 50V X7R 1.000 PCS
CAP 0402 3.3NF 10% 50V X7R 1.000 PCS

CAP 0402 47PF 5% 50V NP0 1.000 PCS

CAP 0402 47PF 5% 50V NP0 1.000 PCS

CAP 0402 47NF 10% 16V X7R 1.000 PCS
CAP 0402 47NF 10% 16V X7R 1.000 PCS
CAP 0402 47NF 10% 16V X7R 1.000 PCS
CAP 0402 47NF 10% 16V X7R 1.000 PCS
CAP 0402 47NF 10% 16V X7R 1.000 PCS
CAP 0402 47NF 10% 16V X7R 1.000 PCS
CAP 0402 47NF 10% 16V X7R 1.000 PCS

CAP 0402 47NF 10% 16V X7R 1.000 PCS
CAP 0402 470NF 10% 10V X5R 1.000 PCS
CAP 0402 470NF 10% 10V X5R 1.000 PCS
CAP 0402 470NF 10% 10V X5R 1.000 PCS
CAP 0402 470NF 10% 10V X5R 1.000 PCS
CAP 0402 470NF 10% 10V X5R 1.000 PCS

CAP 0402 4.7PF 0.25pF 50V NP0 1.000 PCS
CAP 0402 4.7PF 0.25pF 50V NP0 1.000 PCS

CAP 0603 100NF 10% 50V X7R 1.000 PCS

CAP 0603 1UF 10% 16V X7R 1.000 PCS
CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1.000 PCS
CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1.000 PCS
CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1.000 PCS

CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 PCS

CAP 0603 10UF 20% 6.3V X5R 1.000 PCS
CAP CHIP0603 220NF K 25V X7R 1.000 PCS
CAP CHIP0603 220NF K 25V X7R 1.000 PCS

CAP CHIP 0603 470P 50V NP0 +/-5% 1.000 PCS
CAP CHIP 0603 470P 50V NP0 +/-5% 1.000 PCS
CAP CHIP 0603 470P 50V NP0 +/-5% 1.000 PCS
CAP CHIP 0603 470P 50V NP0 +/-5% 1.000 PCS

CAP 0603 4.7UF 10% 6.3V X6S - 1.000 PCS

CAP CHIP 0603 5P6 50V NP0 +/-0.5PF 1.000 PCS

CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS

CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP 0805 100NF 10% 50V X7R GRM21BR71H10 1.000 PCS 2nd-source
CAP 0805 100NF 10% 50V X7R GRM21BR71H10 1.000 PCS 2nd-source
CAP 0805 100NF 10% 50V X7R GRM21BR71H10 1.000 PCS 2nd-source
CAP 0805 100NF 10% 50V X7R GRM21BR71H10 1.000 PCS 2nd-source

CAP 0805 220NF 10% 50V X7R 1.000 PCS

CAP 0805 220NF 10% 50V X7R 1.000 PCS
CAP 0805 220nF 10% 50V X7R GRM21BR71H224 1.000 PCS 2nd-source
CAP 0805 220nF 10% 50V X7R GRM21BR71H224 1.000 PCS 2nd-source

CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1.000 PCS
CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1.000 PCS
CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1.000 PCS
CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1.000 PCS

1206 22UF K 10V X5R 1.000 PCS
1206 22UF K 10V X5R 1.000 PCS
1206 22UF K 10V X5R 1.000 PCS

1206 22UF K 10V X5R 1.000 PCS
CAP 1210 10UF 10% 25V X7R 1.000 PCS
CAP 1210 10UF 10% 25V X7R 1.000 PCS

EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2 1.000 PCS
EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2 1.000 PCS

EC SMD 100UF 20% 16V 6.3*5.3 1.000 PCS

EC 100UF 20% 35V 8*7 1.000 PCS
EC 100UF 20% 35V 8*7 1.000 PCS

HDCP CODE 1.000 PCS

HIP BEAD 120R/6000mA HCB2012KF-121T60 1.000 PCS

CHIP BEAD 120R/3000mA HCB1608KF-121T30 1.000 PCS

CHIP INDUCTOR 0.33UH 10% 0.75R 100mA 1.000 PCS 2nd-source
SMD CHOKE 4.7UH 20% MGSD54-4R7M-LF 2.8A 1.000 PCS
SMD CHOKE 4.7UH 20% MGSD54-4R7M-LF 2.8A 1.000 PCS

SMD CHOKE 3.3UH 20% 0.028R 6.5A 1.000 PCS
SMD CHOKE 3.3UH 20% 0.028R 6.5A 1.000 PCS

RCA JACK R/A 6P Y/W/R 1*3 H=10.5 C-PIN 1.000 PCS

USB CONN A TYPE R/A 6P BLACK H=8.4 1.000 PCS

D-SUB CONN 15P BLUE R/A H=10mm 1.000 PCS

switching diode BAV99 1.000 PCS

RLZ5.6B 1.000 PCS

SCHOTTKY SM260A 2A 40V DO-214AC 1.000 PCS

ESD MLVG04025R0QV05BP INPAQ 1.000 PCS
ESD MLVG04025R0QV05BP INPAQ 1.000 PCS
ESD MLVG04025R0QV05BP INPAQ 1.000 PCS
ESD MLVG04025R0QV05BP INPAQ 1.000 PCS
ESD MLVG04025R0QV05BP INPAQ 1.000 PCS
ESD MLVG04025R0QV05BP INPAQ 1.000 PCS

ESD MLVG04025R0QV05BP INPAQ 1.000 PCS
SWITCHING BAS316WS 250mA 100V SOD323 1.000 PCS
SWITCHING BAS316WS 250mA 100V SOD323 1.000 PCS
SWITCHING BAS316WS 250mA 100V SOD323 1.000 PCS
SWITCHING BAS316WS 250mA 100V SOD323 1.000 PCS

DIODE BAS316 SOD-323 PHILIPS 1.000 PCS 2nd-source

FFC CONN 0.5mm 51P R/A 0.5S-5X-51PWB 1.000 PCS

WAFER 1.25mm 5P R/A B1254W05HUM2 1.000 PCS

WAFER 2.0mm 4P 1.000 PCS

WAFER 2.0mm 6P R/A B2000W06HTKB 1.000 PCS
CONN 2.0mm 12P R/A W 2010-12RVA-S04 1.000 PCS
CONN 2.0mm 14P R/A W 2010-14RVA-S04 1.000 PCS

LDO AZ1117CH-1.2TRG1 1A 1.2V SOT-223 1.000 PCS

LDO AZ1084CD-3.3TRG1 5A 3.3V TO-252-2(3) 1.000 PCS
LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223 1.000 PCS
LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223 1.000 PCS

Silicon Tuner MxL661-AG-R 1.000 PCS

SCALER Hi3751ARBCV5100D00 PBGA-577 1.000 PCS

DRAM K4B4G1646E-BCK0 4G FBGA-96 1.000 PCS
DRAM K4B4G1646E-BCK0 4G FBGA-96 1.000 PCS

AUDIO AD82588B-LG48NAY 2x15W stereo E-LQ 1.000 PCS

EMMC THGBMDG5D1LBAIT 4GB FBGA153 1.000 PCS

DC/DC SY8009BABC 2A 3.3V SOT23-6 1.000 PCS
DC/DC TPS54328DDAR 3A 0.76~7V DDA 1.000 PCS
DC/DC TPS54328DDAR 3A 0.76~7V DDA 1.000 PCS

DC/DC RT6206BHGSP 5.5A 18V SOP-8 1.000 PCS

DC/DC RT6206BHGSP 5.5A 18V SOP-8 1.000 PCS
.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000 PCS
PTCR SMD 1.5A 1% 0.8W 1206L150SLYR 1.000 PCS

RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 1.000 PCS
RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 1.000 PCS

RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT 1.000 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT 1.000 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT 1.000 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT 1.000 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT 1.000 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT 1.000 PCS

RST 0603 133Ω 1% 1/10W N/A 1.000 PCS

AP 0402 1pf 0.1pF 50V NP0 CC0402BRNPO9 1.000 PCS
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1.000 PCS
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1.000 PCS
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1.000 PCS
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1.000 PCS

AP 0402 2.7pF 0.25pF 50V NP0 0402CG2R7 1.000 PCS
AP 0402 2.7pF 0.25pF 50V NP0 0402CG2R7 1.000 PCS

CAP 0603 1UF 10% 50V X5R 1.000 PCS
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1.000 PCS
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1.000 PCS
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1.000 PCS
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1.000 PCS
CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8N 1.000 PCS

CAP 0603 10U 20% 16V X5R CL10A106MO8NQN 1.000 PCS

CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1.000 PCS
CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1.000 PCS

367G311F1014LT 20% --25V --8*6.5 -- -- 1.000 PCS

EC SMD 220uF 20% 25V 8x10.2 5000 hr 0.6 1.000 PCS

Buy key CNTV腾讯版MAC for 海 1.000 PCS

CD CD HDCP2.2 code for Wifi Miracast 1.000 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS

CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 PCS

CHIP BEAD 0402 220R 25% MGLB1005M221T1R 1.000 PCS
CHIP BEAD 0402 220R 25% MGLB1005M221T1R 1.000 PCS

CHIP BEAD 0402 1000 25% FCM1005KF-102T0 1.000 PCS
CHIP BEAD 0402 1000 25% FCM1005KF-102T0 1.000 PCS

CHIP IND 27nH 5% 300mA 0.7ohm MGCI1005T 1.000 PCS
CHIP IND 27nH 5% 300mA 0.7ohm MGCI1005T 1.000 PCS

CHIP IND 8.2NH 5% 0.3A 0.35R MGCI1005T8 1.000 PCS

CHIP IND 0.33uH 10% 0.1 0.75 SDFL1608LR3 1.000 PCS
SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 1.000 PCS
SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 1.000 PCS
SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 1.000 PCS
SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 1.000 PCS

SMD CHOKE 4.7uH 20% 0.9A 0.444R - 1.000 PCS

RCA R/A 3P 1*1 ORANGE 10.5 1.000 PCS
HDMI R/A 19P 1*1 BLACK 8.4mm 1.000 PCS
HDMI R/A 19P 1*1 BLACK 8.4mm 1.000 PCS

RJ45 R/A 15P 1*1 BLACK 11.2 1.000 PCS

USB 3.0 A R/A 9P 1*1 BLUE 8.4mm 1.000 PCS

RF RF connector 6P 1*1 - 13.8 mm 1.000 PCS

CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18 1.000 PCS

CRYSTAL K-F-24.000M-18-1020-2070-40 24.0 1.000 PCS

CRYSTAL 7V24000017 ±20ppm 18PF 1.000 PCS 2nd-source

ZENER BZT52-B7V5 7.5V 0.41W SOD-123 1.000 PCS

COMSUMPTIVE ASSY 1.000 PCS
MAIN PCB FR4 DS 193*109*1.6MM 1.000 PCS 2nd-source
MAIN PCB FR4 DS 193*109*1.6MM 1.000 PCS

Heat Sink 1.000 PCS

EAT SINK 1.000 PCS

IR BOARD FOR SMT 0.000
TRA BC847BW 100mA/45V SOT-323 1.000 PCS 2nd-source
TRA BC847BW 100mA/45V SOT-323 1.000 PCS 2nd-source

RST CHIPR MAX0R05 1/16W FENGHUA 1.000 PCS 2nd-source

RST 0402 0.05R MAX 1/16W - 1.000 PCS

RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 PCS 2nd-source

RST CHIPR 100 OHM +-5% 1/16W FENGHUA 1.000 PCS 2nd-source

RST CHIP 100R 1/16W 5% TZAI YUAN 1.000 PCS

RST CHIPR 100 OHM +-5% 1/16W YAGEO 1.000 PCS 2nd-source
RST CHIPR 1KOHM +-5% 1/16W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 1KOHM +-5% 1/16W FENGHUA 1.000 PCS 2nd-source

RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 PCS
RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 PCS

RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 PCS
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS 2nd-source
RST CHIPR 1KOHM +-5% 1/16W YAGEO 1.000 PCS 2nd-source

RST CHIPR 10KOHM +-5% 1/16W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-5% 1/16W FENGHUA 1.000 PCS 2nd-source

RST CHIP 10K 1/16W 5% TZAI YUAN 1.000 PCS
RST CHIP 10K 1/16W 5% TZAI YUAN 1.000 PCS

RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-5% 1/16W YAGEO 1.000 PCS 2nd-source

RST CHIPR 2R2 +-5% 1/16W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 2R2 +-5% 1/16W FENGHUA 1.000 PCS 2nd-source

RST CHIP 2R2 1/16W 5% TZAI YUAN 1.000 PCS

RST CHIP 2R2 1/16W 5% TZAI YUAN 1.000 PCS
RST CHIPR 2.2 OHM +-5% 1/16W YAGEO 1.000 PCS 2nd-source
RST CHIPR 2.2 OHM +-5% 1/16W YAGEO 1.000 PCS 2nd-source

CAP CHIP 0402 100nF K 16V X7R 1.000 PCS 2nd-source

CAP 0402 100NF 10% 16V X7R 1.000 PCS 2nd-source
CAP 0402 100NF 10% 16V X7R 1.000 PCS

CAP CHIP 0402 1UF K 10V X5R 1.000 PCS 2nd-source

CAP 0402 1UF 10% 10V X5R 1.000 PCS

CAP 0402 1UF 10% 10V X5R 1.000 PCS 2nd-source
CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV 1.000 PCS 2nd-source
CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV 1.000 PCS

CHIP LED Red 99-213/R6C-AR2S2B/2C 1.000 PCS 2nd-source
CHIP LED WHITE 99-113UNC/2223010/TR8 1.000 PCS
CHIP LED WHITE 99-113UNC/2223010/TR8 1.000 PCS
CHIP LED WHITE 99-113UNC/2223010/TR8 1.000 PCS
CHIP LED WHITE 99-113UNC/2223010/TR8 1.000 PCS

CHIP LED White GPSS008WC1-D 1.000 PCS 2nd-source
CHIP LED White GPSS008WC1-D 1.000 PCS 2nd-source
CHIP LED White GPSS008WC1-D 1.000 PCS 2nd-source
CHIP LED White GPSS008WC1-D 1.000 PCS 2nd-source

CONN 1.25mm 13P V/T B1254W13VUM2 1.000 PCS 2nd-source

CONN 1.25mm 13P V/T S1315-13SVB-S03-R 1.000 PCS

LIGHT SENSOR JSA-1130 6pin 1.000 PCS

SMD IR RECEIVER TSOP75436TR 36 KHz 1.000 PCS
SMALLTRAN BTC4081S3 150mA 45V SOT-323 1.000 PCS
SMALLTRAN BTC4081S3 150mA 45V SOT-323 1.000 PCS

LED R GPSS008RC4 1.000 PCS

COMSUMPTIVE ASSY 1.000 PCS

IR PCB FR4 DS 35.7*26*0.5mm 1.000 PCS

KEY BOARD FOR SMT 0.000

RST CHIPR 1.2KOHM +-1% 1/10W 1.000 PCS 2nd-source

RST CHIP 1K2 1/10W 1% 1.000 PCS

RST CHIPR 1.2KOHM +-1% 1/10W 1.000 PCS 2nd-source

RST CHIPR 15KOHM +-1% 1/10W FENGHUA 1.000 PCS 2nd-source

RST CHIP 15K 1/10W 1% 1.000 PCS
RST CHIP 15K 1/10W 1% 1.000 PCS 2nd-source
RST CHIP 2K2 1/10W 1% 1.000 PCS
RST CHIP 2K2 1/10W 1% 1.000 PCS 2nd-source

RST CHIP 47R 1/10W 1% 1.000 PCS

RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA 1.000 PCS 2nd-source

RST CHIP 6K8 1/10W 1% 1.000 PCS
RST CHIP 6K8 1/10W 1% 1.000 PCS 2nd-source

3206D1701300NF 10% 50V X7R 1.000 PCS 2nd-source

CAP CHIP 0603 0.1UF K 50V X7R 1.000 PCS

CAP 0603 100NF 10% 50V X7R 1.000 PCS 2nd-source

WAFER 1.25mm 2P R/A S1315-02RVB-S03-K 1.000 PCS

CHIP TACT SW 6P 6mm 160g SMD 1.000 PCS 2nd-source
CHIP TACT SW 6P 6mm 160g SMD 1.000 PCS

COMSUMPTIVE ASSY 1.000 PCS

KEY PCB FR4 DS 22*29.5*1.6mm 1.000 PCS

Q9101 ASS"Y 0.000

OIL FOR DISAPPEAR 0.018 G

SCREW M3 8 1.000 PCS

MOSFET TK11A65D 11A 650V TO-220SIS 1.000 PCS

HEAT SINK 1.000 PCS

Q9102 ASS"Y 0.000

OIL FOR DISAPPEAR 0.018 G

SCREW M3 8 1.000 PCS

MOSFET AOTF298L 33A 100V TO-220F 1.000 PCS

HEAT SINK 1.000 PCS

F9901 ASSY 0.000

bSE -- -- -- 2.000 PCS

FUSE 5A 250V UDA005(PF) 1.000 PCS

D8104 D8105 D8109 ASS'Y 0.000

OIL FOR DISAPPEAR 0.054 G
DIODE FMX-23S SANKEN 1.000 PCS
DIODE FMX-23S SANKEN 1.000 PCS
DIODE FMX-23S SANKEN 1.000 PCS

SCREW M3 8 3.000 PCS

HEAT SINK 1.000 PCS
HEAT SINK 1.000 PCS 2nd-source

D9801 Q9801 Assy 0.000

OIL FOR DISAPPEAR 0.036 G

MOSFET TK18A60V 18A 600V SC-67 1.000 PCS

DIODE FMNS-1106S TO-220 1.000 PCS

SCREW M3 8 2.000 PCS

HEAT SINK 1.000 PCS

BD9901 ASS'Y 0.000

OIL FOR DISAPPEAR 0.055 G

SCREW M3 8 1.000 PCS

BRIDGE GBJ1008-FUC 10A 800V GBJ 1.000 PCS

HEAT SINK 1.000 PCS

COMSUMPTIVE ASSY 0.000

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.079 CM

.leaning Naphtha 0.100 ML

WELDING FLUX WITHOUT PB 3.889 G

Water-based Cleaning Agent 2.000 G

GLUE_RTV 1.200 ML

TIN STICK(SAC0507) 0.100 G

Sn-Cu Solder 12.120 G

ADAPTER BOARD FOR SMT 0.000
C/DC AS431ANTR-E1 150mA 40V SOT23-3 1.000 PCS
C/DC AS431ANTR-E1 150mA 40V SOT23-3 1.000 PCS
C/DC AS431ANTR-E1 150mA 40V SOT23-3 1.000 PCS
C/DC AS431ANTR-E1 150mA 40V SOT23-3 1.000 PCS

AC/DC SSC9522S-TL SOP-18 1.000 PCS

Tra MMBT3904G SOT-23 1.000 PCS
TRA MMBT3906G -0.2A/-40V SOT-23 1.000 PCS
TRA MMBT3906G -0.2A/-40V SOT-23 1.000 PCS
TRA MMBT3906G -0.2A/-40V SOT-23 1.000 PCS

Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC 1.000 PCS

RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 PCS 2nd-source

RST 0805 0.05R MAX 1/8W 1.000 PCS
RST 0805 0.05R MAX 1/8W 1.000 PCS
RST 0805 0.05R MAX 1/8W 1.000 PCS
RST 0805 0.05R MAX 1/8W 1.000 PCS
RST 0805 0.05R MAX 1/8W 1.000 PCS

RST CHIPR 10 OHM +-5% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 10R 1/8W 5% TZAI YUAN 1.000 PCS
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 1K 1/8W 1% 1.000 PCS
RST CHIP 1K 1/8W 1% 1.000 PCS
RST CHIP 1K 1/8W 1% 1.000 PCS
RST CHIP 1K 1/8W 1% 1.000 PCS

RST CHIP 1K 1/8W 1% 1.000 PCS
RST CHIPR 10KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 10K 1/8W 1% 1.000 PCS
RST CHIP 10K 1/8W 1% 1.000 PCS
RST CHIP 10K 1/8W 1% 1.000 PCS
RST CHIP 10K 1/8W 1% 1.000 PCS
RST CHIP 10K 1/8W 1% 1.000 PCS
RST CHIP 10K 1/8W 1% 1.000 PCS
RST CHIP 10K 1/8W 1% 1.000 PCS
RST CHIP 10K 1/8W 1% 1.000 PCS

RST CHIP 10K 1/8W 1% 1.000 PCS
RST CHIPR 100KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 100KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 100KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 100K 1/8W 1% 1.000 PCS
RST CHIP 100K 1/8W 1% 1.000 PCS
RST CHIP 100K 1/8W 1% 1.000 PCS

RST CHIPR 1 MOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP R 1 MOHM +-1% 1/8W 1.000 PCS
RST CHIPR 10 OHM+-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10 OHM+-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10 OHM+-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10 OHM+-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 10 OHM+-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP R 10ohm +/-1% 1/8W 1.000 PCS
RST CHIP R 10ohm +/-1% 1/8W 1.000 PCS
RST CHIP R 10ohm +/-1% 1/8W 1.000 PCS
RST CHIP R 10ohm +/-1% 1/8W 1.000 PCS
RST CHIP R 10ohm +/-1% 1/8W 1.000 PCS

RST CHIPR 1.5KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 1.5KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 1.000 PCS
RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 1.000 PCS

RST 0805 160R 1% 1/8W FENGHUA 1.000 PCS

RST 0805 160R 1% 1/8W TZAI YUAN 1.000 PCS 2nd-source

RST CHIPR 16KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 16K +-1% 1/8W TZAI YUAN 1.000 PCS

RST CHIPR 18KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 18K 1/8W 1% 1.000 PCS
RST CHIPR 2KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 2KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 2K 1/8W 1% 1.000 PCS
RST CHIP 2K 1/8W 1% 1.000 PCS

RST CHIPR 200KOHM +-1% 1/8W FENGHUA 1.000 PCS

RST CHIP 200K 1/8W 1% 1.000 PCS 2nd-source

RST CHIPR 2.2KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

CHIP 2K2 1/8W 1% 1.000 PCS

RST CHIPR 22KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 22K 1/8W 1% 1.000 PCS

RST CHIPR 240 OHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP R 240 OHM +-1% 1/8W 1.000 PCS

RST CHIPR 2.43KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 2K43 1/8W 1% 1.000 PCS

RST CHIPR 27KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 27K 1/8W 1% 1.000 PCS

RST CHIPR 30KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 30K 1/8W 1% 1.000 PCS

RST CHIPR 3.3KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 3K3 1/8W 1% 1.000 PCS

RST CHIPR 33KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 33K 1/8W 1% 1.000 PCS

RST CHIPR 4.3KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 4.3 KOHM +-1% 1/8W 0805 1.000 PCS
RST CHIPR 43KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 43KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 43K 1/8W 1% 1.000 PCS
RST CHIP 43K 1/8W 1% 1.000 PCS

RST 0805 470R 1% 1/8W 1.000 PCS 2nd-source

RST CHIP 470R 1/8W 1% 1.000 PCS

RST CHIPR 47KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 47K 1/8W 1% 1.000 PCS

RST CHIPR 470KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST 0805 470K 1% 1/8W TAIZYUAN 1.000 PCS

RST 0805 47R 1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST 0805 47R 1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST 0805 47R 1% 1/8W 1.000 PCS
RST 0805 47R 1% 1/8W 1.000 PCS

RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA 1.000 PCS

RST CHIPR 4K7 +-5% 1/8W TZAI YUAN 1.000 PCS 2nd-source

RST CHIPR 470KOHM +-5% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 470K +-5% 1/8W TZAI YUAN 1.000 PCS

RST CHIPR 510 OHM +-1% 1/8W FENGHUA 1.000 PCS

RST CHIP R 510 OHM +-1% 1/8W 1.000 PCS 2nd-source
RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 5K1 1/8W 1% 1.000 PCS
RST CHIP 5K1 1/8W 1% 1.000 PCS
RST CHIP 5K1 1/8W 1% 1.000 PCS

RST CHIP 5K1 1/8W 1% 1.000 PCS
RST CHIPR 510K OHM +- 1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 510K OHM +- 1% 1/8W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 510K OHM +- 1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 510K OHM 1/8W 1% TZAI YUAN 1.000 PCS
RST CHIP 510K OHM 1/8W 1% TZAI YUAN 1.000 PCS
RST CHIP 510K OHM 1/8W 1% TZAI YUAN 1.000 PCS

RST CHIPR 62KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 62K 1/8W 1% 1.000 PCS

RST 0805 68K 1% 1/8W 1.000 PCS 2nd-source

RST CHIP R 68K 1/8W 1% 1.000 PCS
RST CHIPR 75 OHM +-5% 1/8W FENGHUA 1.000 PCS
RST CHIPR 75OHM +-5% 1/8W TZAI YUAN 1.000 PCS 2nd-source

RST CHIP R 82ohm 1/8W +/-5% YAGEO 1.000 PCS
RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA 1.000 PCS
RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA 1.000 PCS 2nd-source

RST CHIP 9K1 1/8W 1% 1.000 PCS 2nd-source

RST CHIP 9K1 1/8W 1% 1.000 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 PCS

RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS
RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS
RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS
RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS
RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS
RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS
RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS
RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS 2nd-source
RST CHIPR MAX0R05 1/4W YAGEO 1.000 PCS 2nd-source

RST CHIPR MAX0R05 4A 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 1206 MAX0R05 4A 1/4W TZAI YUAN 1.000 PCS

RST CHIPR 1KOHM +-1% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIP R 1Kohm +-1% 1/4W 1.000 PCS
RST CHIPR 100KOHM +-1% 1/4W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 100KOHM +-1% 1/4W FENGHUA 1.000 PCS

RST 1206 100K 1% 1/4W SMD1206100KF 1.000 PCS 2nd-source
RST 1206 100K 1% 1/4W SMD1206100KF 1.000 PCS

RST CHIPR 1 MOHM +-1% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIP R 1 MOHM +-1% 1/4W 1.000 PCS

RST CHIPR 100 OHM +-5% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1.000 PCS

RST CHIPR 10KOHM +-5% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 1.000 PCS

RST CHIPR 1.5MOHM 1% 1/4W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIP 1M5 1/4W 1% 1.000 PCS
RST CHIP 1M5 1/4W 1% 1.000 PCS
RST CHIP 1M5 1/4W 1% 1.000 PCS
RST 1206 1.5R 1% 1/4W 1.000 PCS
RST 1206 1.5R 1% 1/4W 1.000 PCS
RST 1206 1.5R 1% 1/4W 1.000 PCS

RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 2R2 +-5% 1/4W TZAI YUAN 1.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 PCS

RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 PCS 2nd-source

RST CHIP 3K 5% 1/4W 1.000 PCS 2nd-source

RST CHIP 3K 5% 1/4W 1.000 PCS
RST CHIPR 330KOHM +-1% 1/4W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 330KOHM +-1% 1/4W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 330KOHM +-1% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 330 KOHM +-1% 1/4W TZAI YUAN 1.000 PCS
RST CHIPR 330 KOHM +-1% 1/4W TZAI YUAN 1.000 PCS
RST CHIPR 330 KOHM +-1% 1/4W TZAI YUAN 1.000 PCS

RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 1.000 PCS 2nd-source
RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN 1.000 PCS
RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN 1.000 PCS
RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN 1.000 PCS

RST 1206 470R 1% 1/4W FENGHUA 1.000 PCS 2nd-source

RST 1206 470R 1% 1/4W TZAI YUAN 1.000 PCS

RST CHIPR 47K OHM +-1% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 47 KOHM +-1% 1/4W TZAI YUAN 1.000 PCS

RST 1206 47R 1% 1/4W FENGHUA 1.000 PCS 2nd-source

RST 1206 47R 1% 1/4W TZAI YUAN 1.000 PCS

RST CHIPR 4.7OHM +-5% 1/4W FENGHUA 1.000 PCS 2nd-source

RST 1206 4.7R 5% 1/4W 1.000 PCS
RST CHIPR 680KOHM +-1% 1/4W FENGHUA 1.000 PCS
RST CHIPR 680KOHM +-1% 1/4W FENGHUA 1.000 PCS
RST CHIPR 680KOHM +-1% 1/4W FENGHUA 1.000 PCS
RST CHIPR 680KOHM +-1% 1/4W FENGHUA 1.000 PCS
RST CHIPR 680KOHM +-1% 1/4W FENGHUA 1.000 PCS
RST CHIPR 680KOHM +-1% 1/4W FENGHUA 1.000 PCS
RST CHIPR 680KOHM +-1% 1/4W FENGHUA 1.000 PCS
RST CHIPR 680KOHM +-1% 1/4W FENGHUA 1.000 PCS

RST 1206 680K 1% 1/4W 1.000 PCS 2nd-source
RST 1206 680K 1% 1/4W 1.000 PCS 2nd-source

RST CHIP 680K 1/4W 1% 1.000 PCS 2nd-source
RST CHIP 680K 1/4W 1% 1.000 PCS 2nd-source
RST CHIP 680K 1/4W 1% 1.000 PCS 2nd-source
RST CHIP 680K 1/4W 1% 1.000 PCS 2nd-source
RST CHIP 680K 1/4W 1% 1.000 PCS 2nd-source
RST CHIP 680K 1/4W 1% 1.000 PCS 2nd-source

RST CHIPR 75KOHM +-5% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 75 KOHM +-5% 1/4W YAGEO 1.000 PCS

RST CHIPR 82KOHM +-1% 1/4W FENGHUA 1.000 PCS
RST CHIPR 82KOHM +-1% 1/4W TZAI YUAN 1.000 PCS 2nd-source
RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA 1.000 PCS 2nd-source

RST CHIPR 8.2 KOHM +-5% 1/4W TZAI YUAN 1.000 PCS

CAP CHIP 0805 100PF J 50V NPO 1.000 PCS

CAP CHIP 0805 100PF J 50V NPO 1.000 PCS
CAP CHIP 0805 100P 50V NP0 +/-5% 1.000 PCS 2nd-source
CAP CHIP 0805 100P 50V NP0 +/-5% 1.000 PCS 2nd-source

0805 1000pF J 50V NPO 1.000 PCS

CAP 0805 1NF 5% 50V NPO 1.000 PCS 2nd-source
MLCC 0805 1NF 50V X7R +/-10% SAMSUNG 1.000 PCS 2nd-source
MLCC 0805 1NF 50V X7R +/-10% SAMSUNG 1.000 PCS

CAP 0805 1000PF 10% 50V X7R 1.000 PCS
CAP 0805 1000PF 10% 50V X7R 1.000 PCS 2nd-source

CAP 0805 10NF K 50V X7R 1.000 PCS 2nd-source
CAP 0805 10NF K 50V X7R 1.000 PCS 2nd-source
CAP 0805 10NF K 50V X7R 1.000 PCS 2nd-source

CAP 0805 10NF K 50V X7R 1.000 PCS 2nd-source
CAP CHIP 0805 10N 50V X7R +/-10% 1.000 PCS
CAP CHIP 0805 10N 50V X7R +/-10% 1.000 PCS
CAP CHIP 0805 10N 50V X7R +/-10% 1.000 PCS
CAP CHIP 0805 10N 50V X7R +/-10% 1.000 PCS

CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS 2nd-source
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS 2nd-source
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS 2nd-source
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS

CAP CHIP 0805 0.1UF K 50V X7R 1.000 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source

CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 PCS 2nd-source

CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 PCS

CAP 0805 1UF 10% 50V X7R 1.000 PCS
CAP 0805 2.2NF 10% 50V X7R 1.000 PCS 2nd-source
CAP 0805 2.2NF 10% 50V X7R 1.000 PCS 2nd-source

CAP CHIP 0805 2N2 50V X7R +/-10% 1.000 PCS
CAP CHIP 0805 2N2 50V X7R +/-10% 1.000 PCS

CAP 0805 220NF 10% 50V X7R 1.000 PCS 2nd-source

CAP CHIP 0805 220N 50V X7R +/-10% 1.000 PCS

CAP 0805 2.2UF 10% 25V X7R 1.000 PCS

CAP 0805 2.2uF 10% 25V X7R 1.000 PCS 2nd-source

CAP CHIP 0805 330PF J 50V NPO 1.000 PCS 2nd-source

CAP CHIP 0805 330P 50V NP0 +/-5% 1.000 PCS

CAP 0805 3.3NF 10% 50V X7R 1.000 PCS
CAP 0805 3.3NF 10% 50V X7R 1.000 PCS 2nd-source

CAP CHIP 0805 47PF J 50V NPO 1.000 PCS 2nd-source

CAP CHIP 0805 47PF J 50V NPO 1.000 PCS
AP CHIP 0805 47P 50V NP0 +/-5% 1.000 PCS 2nd-source
AP CHIP 0805 47P 50V NP0 +/-5% 1.000 PCS

CAP 0805 4.7NF 10% 50V X7R 1.000 PCS 2nd-source

CAP CHIP 0805 4N7 50V X7R +/-10% 1.000 PCS

CAP CHIP 0805 0.47UF K 50V X7R 1.000 PCS

0805 0.47UF K 50V X7R 1.000 PCS 2nd-source
0805 0.47UF K 50V X7R 1.000 PCS 2nd-source

0805 0.47UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.47UF K 50V X7R 1.000 PCS
CAP CHIP 0805 0.47UF K 50V X7R 1.000 PCS 2nd-source

CAP 0805 4.7UF 10% 10V X7R CL21B475KPFN 1.000 PCS 2nd-source

CAP CHIP 0805 4.7uF K 10V X7R 1.000 PCS

CAP CHIP 0805 560PF J 50V NPO 1.000 PCS

CAP CHIP 0805 560P 50V NP0 +/-5% 1.000 PCS 2nd-source
CAP 1206 1NF 10% 500V X7R SAMSUNG 1.000 PCS
CAP 1206 1NF 10% 500V X7R SAMSUNG 1.000 PCS 2nd-source
CAP 1206 1NF 10% 500V X7R SAMSUNG 1.000 PCS 2nd-source

CAP 1206 1NF 10% 500V X7R 1.000 PCS
CAP 1206 1NF 10% 500V X7R 1.000 PCS
CAP 1206 1NF 10% 500V X7R 1.000 PCS 2nd-source

SCHOTTKY SK510C R6 5A 100V SMC 1.000 PCS

PFC SSC-2005S SOP-8 1.000 PCS

AC/DC LD5532 GS SOP-8 1.000 PCS

DC/DC SP6018ES8RGB 1A 16V SOP-8 1.000 PCS

SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 1.000 PCS

.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000 PCS

.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000 PCS
MOSFET BSS127 0.021A 600V PG-SOT-23 1.000 PCS
MOSFET BSS127 0.021A 600V PG-SOT-23 1.000 PCS

RST 1206 1.1R 1% 1/4W RS-06L1R10FT 1.000 PCS 2nd-source
RST 1206 1.1R 1% 1/4W RS-06L1R10FT 1.000 PCS 2nd-source
RST 1206 1.1R 1% 1/4W RS-06L1R10FT 1.000 PCS 2nd-source
RST 1206 1.1R 1% 1/4W RS-06L1R10FT 1.000 PCS 2nd-source
RST 1206 1.1R 1% 1/4W RS-06L1R10FT 1.000 PCS 2nd-source
RST 1206 1.1R 1% 1/4W RS-06L1R10FT 1.000 PCS 2nd-source
RST 1206 1.1R 1% 1/4W SMD12061R1F 1.000 PCS
RST 1206 1.1R 1% 1/4W SMD12061R1F 1.000 PCS
RST 1206 1.1R 1% 1/4W SMD12061R1F 1.000 PCS
RST 1206 1.1R 1% 1/4W SMD12061R1F 1.000 PCS
RST 1206 1.1R 1% 1/4W SMD12061R1F 1.000 PCS
RST 1206 1.1R 1% 1/4W SMD12061R1F 1.000 PCS

RST 1206 1.3R 1% 1/4W RS-06L1R3FT 1.000 PCS
RST 1206 1.3R 1% 1/4W RS-06L1R3FT 1.000 PCS
RST 1206 1.3R 1% 1/4W RS-06L1R3FT 1.000 PCS
RST 1206 1.5R 1% 1/4W RS-06K1R5FT 1.000 PCS 2nd-source
RST 1206 1.5R 1% 1/4W RS-06K1R5FT 1.000 PCS 2nd-source

RST 1206 1.5R 1% 1/4W RS-06K1R5FT 1.000 PCS 2nd-source
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000 PCS
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000 PCS
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000 PCS

ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 1.000 PCS
ZENER BZT52-B13_R1_00001 13V 0.41W SOD-1 1.000 PCS
ZENER BZT52-B13_R1_00001 13V 0.41W SOD-1 1.000 PCS

ZENER BZT52-B30 30V 0.41W SOD-123 1.000 PCS

ZENER BZT52-B15 15V 0.41 SOD-123 1.000 PCS
ZENER BZT52-B15 15V 0.41 SOD-123 1.000 PCS
ZENER BZT52-B15 15V 0.41 SOD-123 1.000 PCS

ZENER BZT52-B18 18V 0.41W SOD-123 1.000 PCS
ZENER BZT52-B18 18V 0.41W SOD-123 1.000 PCS

SCHOTTKY SS1060 1A 60V SOD-123 1.000 PCS

SCHOTTKY SS1060 1A 60V SOD-123 1.000 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 PCS

COMSUMPTIVE ASSY 1.000 PCS

ADAPTER BOARD FOR AI 1.000 PCS

COMSUMPTIVE ASSY 0.000

UV glue 0.407 ML

Solder Paste 3.012 G

OIL FOR DISAPPEAR 0.170 G

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.020 CM

Solder Paste 0.688 G

SHEET 0.163 PCS

PIN 0.034 PCS

Water-based Cleaning Agent 0.470 ML

MESH PRINTTING_PAPER 2.860 CM

TIN STICK(SAC0507) 0.100 G

COMSUMPTIVE ASSY 0.000

SHEET 0.003 PCS

other HC-6215 for SMT 1.600 CM

other HC-6215 for SMT 1.600 CM 2nd-source

Solder Paste 0.033 G

.leaning Naphtha 0.018 ML

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021 CM

PIN 0.001 PCS

MESH PRINTTING_PAPER 0.051 CM

COMSUMPTIVE ASSY 0.000

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021 CM

.leaning Naphtha 0.012 ML

Solder Paste 0.022 G

SHEET 0.010 PCS

PIN 0.010 PCS

MESH PRINTTING_PAPER 0.034 CM

COMSUMPTIVE ASSY 0.000

Surface Mount Adhesives 0.026 G

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.002 CM

.leaning Naphtha 0.261 ML

SHEET 0.042 PCS

PIN 0.009 PCS

ADAPTER BOARD FOR AI 0.000

1.7MM RIVET 2.000 PCS

1.7MM RIVET 2.000 PCS

1.7MM RIVET 2.000 PCS

1.7MM RIVET 2.000 PCS
EYELET 4.000 PCS
EYELET 2.000 PCS
EYELET 4.000 PCS
EYELET 4.000 PCS
EYELET 2.000 PCS
EYELET 4.000 PCS

EYELET 4.000 PCS
EYELET 2.000 PCS
EYELET 2.000 PCS
EYELET 1.000 PCS
EYELET 2.000 PCS
EYELET 1.000 PCS
EYELET 2.000 PCS

LABEL 25x6mm 1.000 PCS

RST FUSE 0.1R 5% 1W 1.000 PCS
CAP CER 100PF 10% 1KV R 1.000 PCS
CAP CER 100PF 10% 1KV R 1.000 PCS

CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 1.000 PCS
CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 1.000 PCS
CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 1.000 PCS

CAP CER 2.2NF 10% 1KV R TAPING 1.000 PCS

CAP CER 470PF 10% 1KV R 1.000 PCS

CAP Y1 220PF 10% 250V Y5P 1.000 PCS
CAP Y1 220PF 10% 250V Y5P 1.000 PCS

CAP Y1 1NF 20% 250V Y5U 1.000 PCS
EC 10UF 20% 50V 6.3*7 3000H ER 1.000 PCS
EC 10UF 20% 50V 6.3*7 3000H ER 1.000 PCS
EC 10UF 20% 50V 6.3*7 3000H ER 1.000 PCS

EC 47UF 20% 100V 10*12 1.000 PCS
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1.000 PCS
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1.000 PCS

EC 100UF 20% 50V 10*9 1.000 PCS

EC 22UF 20% 50V 6.3*7 3000 hr 1.000 PCS

FERRITE BEAD 1.000 PCS
FERRITE BEAD 1.000 PCS
FERRITE BEAD 1.000 PCS

RECTIFIER UF4007 A0 1 1000 DO-41 1.000 PCS

SCHOTTKY FR107G-A0 1A 1000V DO-41 1.000 PCS

1N4148 1.000 PCS

RECTIFIER SARS01-V1 1.2A 800V DO-41 1.000 PCS

JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS

JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS
JUMP WIRE - - 1.000 PCS

JUMP WIRE - - 1.000 PCS
RST MOF 22R 5% 2W MOF2WS22RJT52 1.000 PCS
RST MOF 82K 5% 2W MOF2WS82KJT52 1.000 PCS

RST NWR 0R22 5% 2W NKNP2WS0R22JT52 1.000 PCS
CAP CER 5PF 0.5pF 1KV SL CC81-1KV-06d-S 1.000 PCS
CAP CER 47PF 5% 1KV SL 8SL470J102N56G 1.000 PCS

CAP CER 100PF 10% 1KV R CT81-1KV-06d-2R 1.000 PCS
CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA 1.000 PCS
CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA 1.000 PCS

COMSUMPTIVE ASSY 1.000 PCS

PWR PCB FR2 CTI>600 SS 215*275*1.6mm 1.000 PCS

COMSUMPTIVE ASSY 0.000

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.040 CM

HI3751AV500 DEMO VER.A

Update 2014.02.07

Hi3751AV500 Schematic Circuit Version and Page Information

Page Comment

1
2

3
4

5
6

7
8

9
10
11

Comment

Information indicator
Block diagram
Power tree & Boot strap

Power and Signal switching control

Power supply management

UART & JTAG socket & IR & KEY

Chip Power
DDRIII_Chip Power
DDRIII_0

DDRIII_1
eMMC & eeprom & xtal

Page

12
13

14
15
16

17

18

19

20
21
22

V-BY-ONE
USB2.0 & USB3.0 & WIFI

CI & CA
Tuner socket
MIC YPBPR & AV IN & CVBS OUT
Audio Output

AMP
HDMI0 & MHL

HDMI1(ARC) & HDMI2
Ethernet & SD

Power switching control

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

G7856-M0A-B00-0040-1-150624

G7856-M0A-B00-0040-1-150624

G7856-M0A-B00-0040-1-150624

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

1

1

1

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

of

of

of

称爹

715G7924-M0A
BLOCK_DIAGRAM

DDR1

DDR0

DDR

VBO Connector

VBO & LVDS

USB

CI & SIM

& SD

USB2.0
USB2.0

USB3.0

for WIFI

AMP

AD87588

Headphone
OUT

KEY & IR

EMMC

RJ45

SPDIF

STB

I2S

EMMC

SPDIF

CVBS in

HI3751 AV500

FE

HDMI2(ARC)

AFE

HDMI1

IF & TS

AudioCodec

HDMI

HDMI0(MHL)

Tuner
MXL661

Demodulator(Reserve)
ATBM8880

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

2

2

2

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

称爹

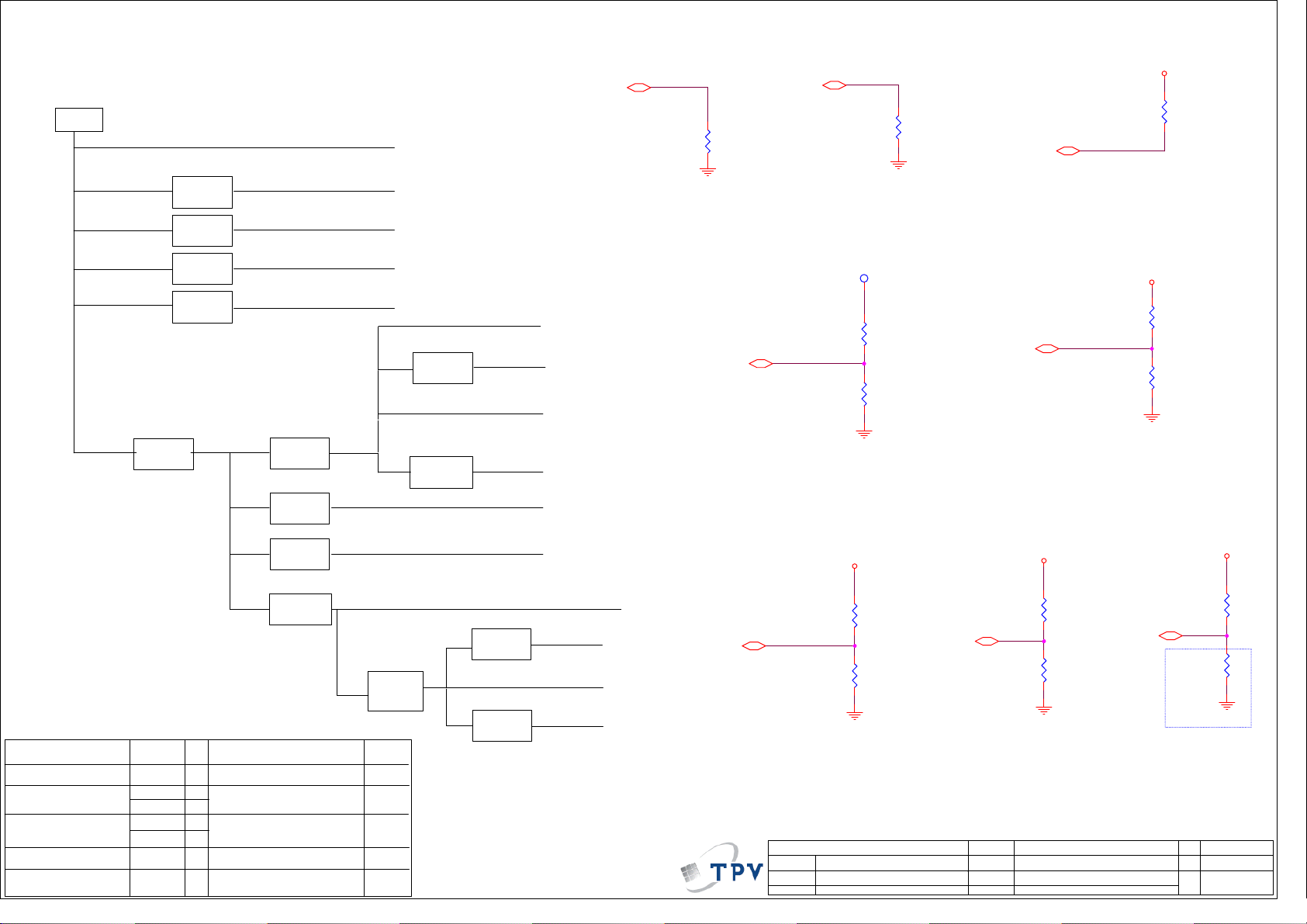

Power tree & Boot strap

12V0

12V0

AMP

4A

4K2K:4A PMOS

VCC_PANEL

TCON

CI_ADR13/PCB_L21

CI_ADR13/PCB_L

R401

10K

FUNC_SEL11

FUNC_SEL

R403

1K

CI_ADR10/BOOT_SEL121

CI_ADR10/BOOT_SEL1

3V3

R402

10K

DC/DC 5A
TPS54528

DC DC 2A
TPS56220

DC DC 3A
TPS554328

DC DC 3A

TPS54328

5V_SB

2.7A max

1A max

1A max

0.8A max

IRLML6401TRPBF

AZ1084/AS1117

1A max

2.5A max

2.5A max

5A max

Boot Strap Selection

0:2 LAYERS

PCB LAYER
FUNCTION MODE

BOOT DEVICE SEL

JTAG CHANNEL SEL

JTAG CONTROL SEL
POWER ON RESET SEL

PCB_L

FUNC_SEL

BOOT_SEL0
BOOT_SEL1

JTAG_MUX1
JTAG_MUX0
JTAG_SEL

POR_SEL US

DS

1:4 LAYERS
0:NORMAL FUCNTION

DS

1:TEST
0X:SPI FLASH

DS

10:FSD

US

11:eMMC
00:A53 JATG

S

01:DSP JTAG
10:DDRC JTAG

S

11:A53 JTAG
0:registers control JTAG

DS

1:JTAG_MUX0/1 control JTAG
0:reset from RESTIN pin

1:reset from internal POR signal

MOS 2.4A

MOS 1A
ETA6010

MOS 1A
ETA6010

LDO 1A

1V5_DDR3

DDR & DDR PHY

CPU_1V1

CPU

VDD_1V1

(Core GPU)

5V0

MOS 1A

0

0

11

00

1

1

0.5A

0.3A

NDS336P

MOS 1A
NDS336P

LDO

AZ1117

3V3

5V0

(USB2.0 * 2 & BT)

VCC_PCMCIA

CI

WIFI_PWR

WIFI

3V3_TUN

TUNER

MHL

VBUS
USB3.0

MOS 1A

NDS336P

LDO 1A

TJ4210GDP-ADJ

3V3_SB

VCC_SD

SD CARD

DVDD33

LDO_1V2

(QAM AVDDREF FE AFE HDMI)

TP400

1

R405

NC/10K

3V3

NC

R412

3

3

3

of

of

of

CI_ADR12/BOOT_SEL0

10K

R409

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

GPIO10_1/JTAG_MUX114,15

RF_AGC/JTAG_MUX015

GPIO10_1/JTAG_MUX1

10K

R407

3V3

R410

NC/10K

RF_AGC/JTAG_MUX0

R413

NC/10K

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

CI_ADR12/BOOT_SEL021

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

JTAG_SEL

JTAG_SEL11

3V3

R404

10K

R406

NC/10K

3V3_SB

R408

NC/10K

э

　　场

POR_SEL

Reset (ň

Size

Size

Size
Rev

Rev

Rev

称爹

称爹

称爹

10K

A3

A3

A3

R411

俐耞讽诀

)

POR_SEL11

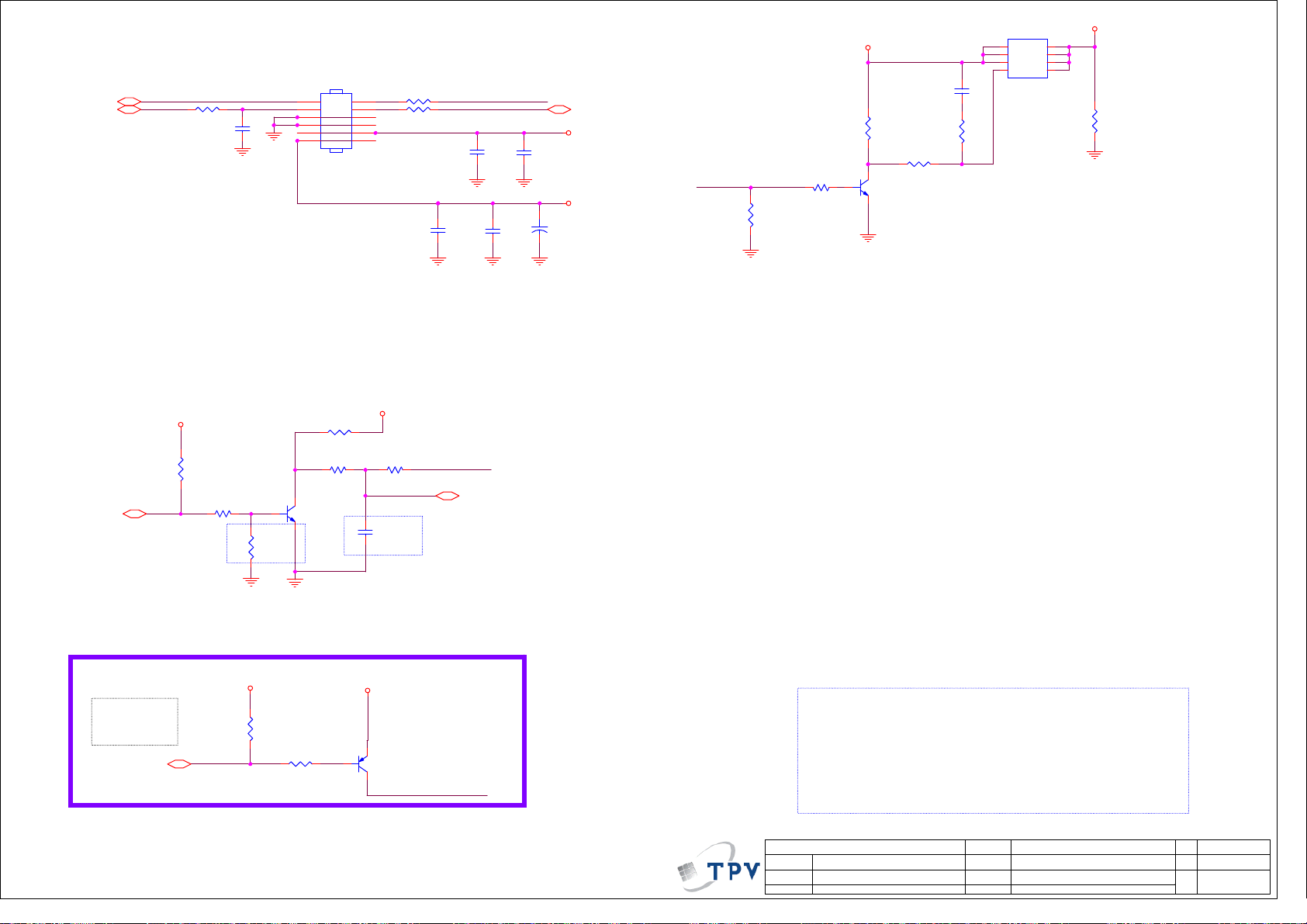

Connetor

PWM_OUT12
STB5,11

STB

R7030 33 OHM 1/16W

C7063

NC/100N 50V

5V_SB

CN700
CONN

11

12

R7020 1K

10

9
7
5
3
1

R708 NC/33 OHM 1/16W

8
6
4
2

C7032
NC/100N 50V

BL_ON_OFFPWM_OUT

C7030
NC/100N 50V

C7033
NC/1N 50V

C7031
1N 50V

+

BIT_SEL/3D_EN 12

AMP_12V

12V0

C7034
100UF 25V

STB

R757

4.7K1/16W

R711

4.7K1/16W

R705
47K

R709 150K

Q703
MMBT3904

C701
220NF 25V

R704
0R05 OHM

Q701

1

S

2

S

3

S

4

G

AO4449 -7A/-30V

D
D
D
D

5V0

8
7
6
5

R702

NC/10KOHM

Panel bright control

3V3

R714
NC/4.7K1/16W

R718

PWM011

PWM0

4.7K1/16W

R7021

4.7K1/16W

Power on off switch

3V3

BL_ON/OFF:
Inverter on: Low
Inverter off:
High

BL_ON11

BL_ON

R725

10K

R713

10K

0R05 OHM

R716

Q705
MMBT3904

R728 4.7K1/16W

3V3

NC/1UF 6.3V

C703

3V3

Q708
MMBT3906

0R05 OHM

R717

C703

パ　ンэ　

PWM_OUT

VBO_DIMM_CTL 12

NC

BL_ON_OFF

　埃

:C704, Q707, R719, R720, R724, R727

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

4

4

4

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

of

of

of

称爹

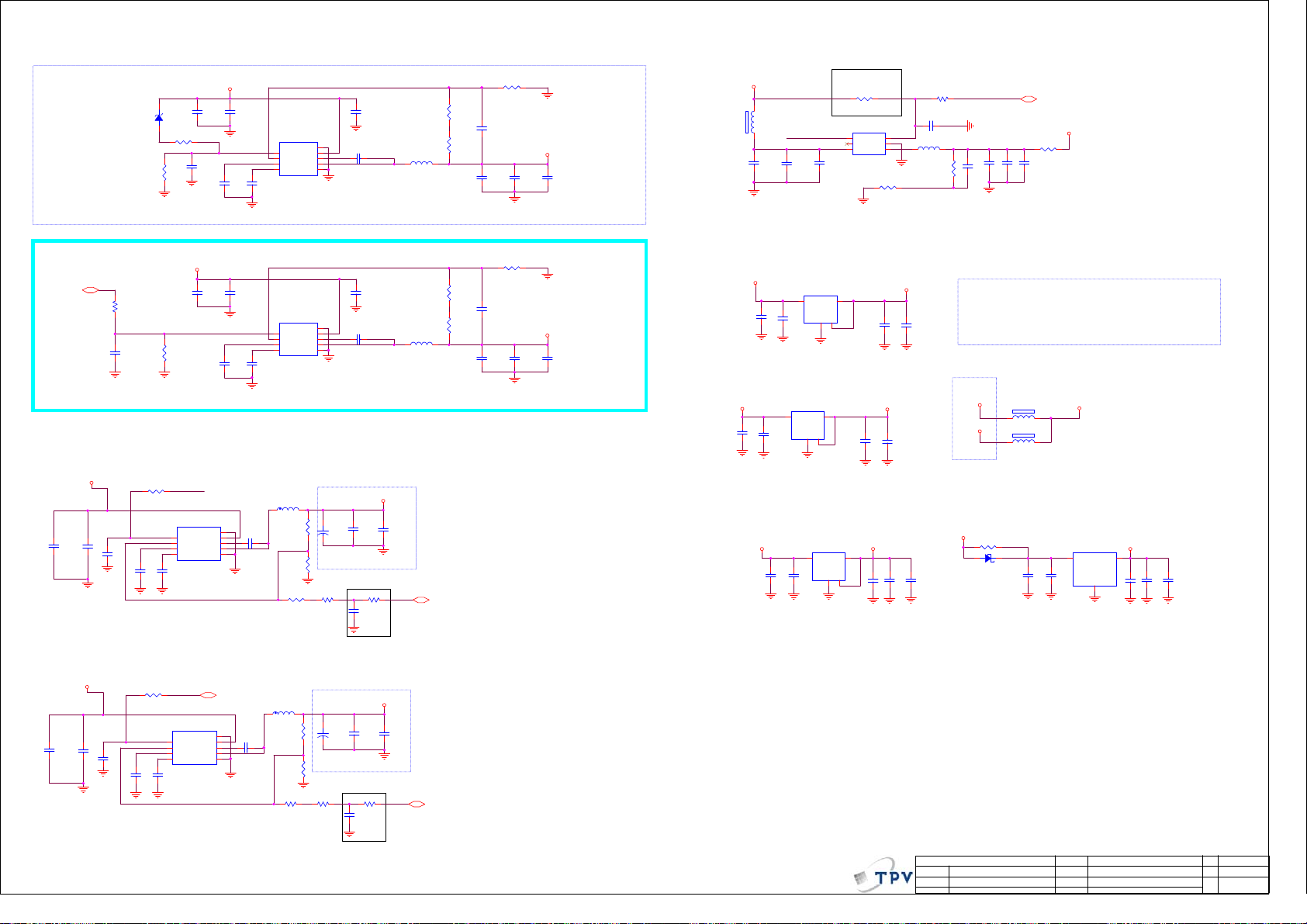

Power supply management

12 to 5V DC-DCパ3A(TI)э　5.5A(Richtek)

ZD710
BZT52-B7V5

1 2

R7002 12K 1%

R7005
30K 1%

C731
10uF 25V

STB4,11

R7027

22 OHM 1/16W

R736 1K

C735

1UF 6.3V

R7028
100K 1/16W

1
2
3

C736

10NF 50V

STB

U704

EN
VFB
VREG5
SS4GND

TPS54328DDAR

C7052
1uF 50V

12V0

C733

C734

100N 16V

220nF 16V

12V0

C7010

C7011

10uF 25V

10uF 25V

1206

1206

C7015
NC/1nF 50V

C7016
1UF16V

0603

12V0

C7060

C7054

10uF 25V

10uF 25V

1206

1206

C7057
1UF16V

0603

9

100N 16V

E-PAD

8

VIN

C730

7

VBST

6

SW

5

3A DC-DC For CPU

U710
RT6206BHGSP

GND

1

EN

VIN

2

FB

BOOT

3

VREG5

SW

SS4GND

C7017

3.3NF 50V

Vout = 0.765x(R1+R2)/R2

U712
RT6206BHGSP

GND

1

EN

VIN

2

FB

BOOT

3

VREG5

SW

SS4GND

C7053

3.3NF 50V

Vout = 0.765x(R1+R2)/R2

L703

4.7UH

R738

16.9K 1%

R739

24.9K 1%

R741

10K

100K 1/16W

9
8
7
6
5

9
8
7
6
5

+

100UF 16V

R742

C7050

C7012
100N16V

C7014 100N16V

C7059 100N16V

073G253S 67 M

C7058
100N16V

073G253S 67 M

1.2K传　6.8K (箇ňUSBのMHL power drop)

CPU_1V1

C729

C728
10UF

100N 16V

Close to HI3751

PMC1

R743

1K

C738

2.2uF 6.3V

L710

3.3UH

L711

3.3UH

R1

R1

PMC1 11

R7001
121K 1%

R7003
6K8 1%

R7025
121K 1%

R7026
6K8 1%

R7000

C7013
NC

C7018
22UF 10V

1206

R7029

C7056
NC

C7062
22UF 10V

1206

22K 1/16W 1%

R2

C7019
22UF 10V

1206 0805

22K 1/16W 1%

R2

C7055
22UF 10V

1206

5V_SB

5V_USB

C7020
NC/10uF 10V

C7061
NC/10uF 10V

0805

DDR_PWR_FB

C719

NC/100N 16V

U703

G1117-33T63Uf

VI3VO

U705

AZ1117H-1.2TRE1

VI3VO

GND14

4

U707

G1117-33T63Uf

VI3VO

C751

1UF 6.3V

Reserved for
Fast boot

C720

10UF 6.3V

GND14

4

2

GND14

4

5V_SB

FB703

120R 3A

1 2

C718

NC/1UF 6.3V

5V0

TUNER_3V3

C724

C725

NC/100N 16V

10UF

3V3

C739

NC/100N 16V

C740

1UF 6.3V

5V_SB 3V3_SB

C750

NC/100N 16V

1V5_DDR3_1A

R730

R729

4.7K1/16W

U702
SY8009BABC

6

FB

5

NC

4

1

EN

2

GND

LX3IN

R735
22K 1%

C706 1UF 6.3V

L702 4.7uH

R733
33K 1%

DDR_PWR_FB

NC/100OHM

Vout= 0.6x(1+33K/22K)= 1.5V

2

C741

TU3V3

C727

C726

100N 16V

10UF

LDO_1V2

C742

NC/100N 16V

10UF

3V3_SB

2

C752

C7001

C753

NC/100N 16V

10UF

10UF 6.3V

STB_GPIO0_0

C721

C723

10UF

22P 50V

　埃

3V3

1 2

5V0

1 2

э 5V_USB

5V0

R758 NC/0 OHM +-5% 1/8W

1 2

D701 SM260A

STB_GPIO0_0 11

1V5_DDR3

R759 0R05 OHM

C717

C722

NC/100N 16V

10UF

:C7002, C737, Q709, R740, R744, R745

C7045

WIFI_PWR

3V3

GND/ADJ

1

3V3

2

C7048

C7049

C7047

NC/100N 16V

10UF

1UF 6.3V

U711
AZ1084CD-3.3TRG1

VIN3VOUT

C7046

NC/100N 16V

1UF 6.3V

FB702

NC/120R

FB705

120R

C746
10uF 25V

12V0

C748
100N 16V

C749

220nF 16V

R748 1K

C754

1UF 6.3V

C755

STB

U706

E-PAD

1

EN

VIN

2

VFB

VBST

3

VREG5

SW

SS4GND

10NF 50V

TPS54328DDAR

3A DC-DC For VDD

STB 4,11

9

100N 16V

8
7
6
5

C745

L704

4.7UH

R750

12.1K 1%

R751

24.9K 1%

R752

27K 1/16W 1%

+

100UF 16V

R753

100K 1/16W

C7051

C743
10UF

Close to HI3751

R754

C756

2.2uF 6.3V

VDD_1V1

1K

C744

100N 16V

PMC0

PMC0 11

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A2

Size

A2

Size

A2

Rev

Rev

Rev

称爹

称爹

5

5

5

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

称爹

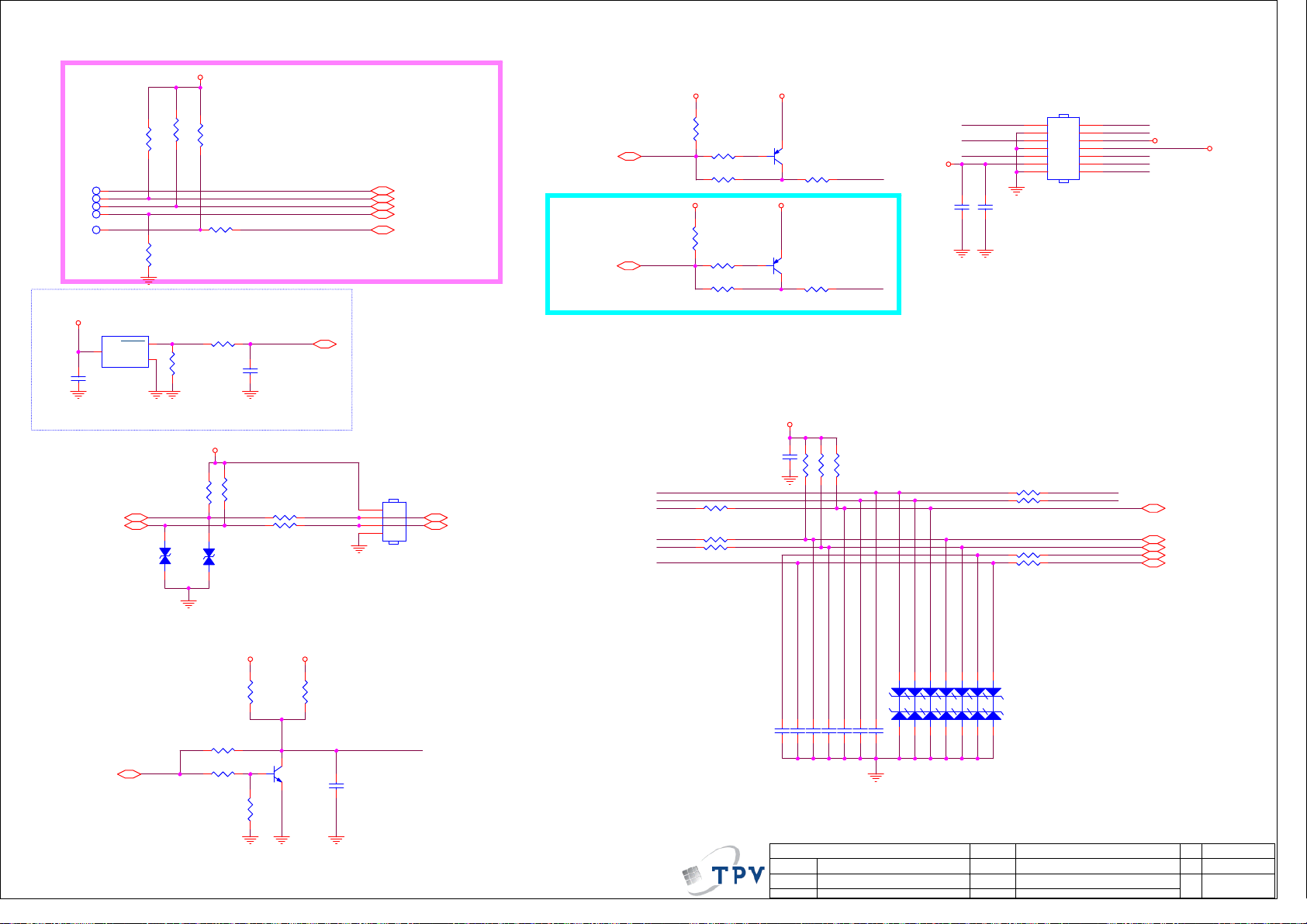

UART & JTAG socket & IR & KEY

3V3

JTAG

R418

NC/4.7K1/16W

NC/4.7K1/16W

R429
NC/1K

R4115 2.2K1/16W
R4119
100K 1/16W

R438

NC/4.7K1/16W

ZD401

1 2

NC/MLVG0402

R420

NC/4.7K 1/16W

NC/22 OHM 1/16W

R428

3V3_SB

NC/4.7K1/16W

ZD402

NC/MLVG0402

1 2

TSI0_D1/JTAG_TRSTN
TSI0_D3/JTAG_TDI
TSI0_D0/JTAG_TMS

TSI0_D2/JTAG_TCK

TSI0_D4/JTAG_TDO

RESETIN

C4031 NC/2.2uF 6.3V

R437

22 OHM 1/16W

R439

22 OHM 1/16W

R441

RESETIN 11

R421

1

TP401

1

TP402

1

TP403

1

TP404

1

TP405

RESET

3V3_SB

U402

3

Vcc

C4030

100NF 25V

G690L263T73U

UART1_RXD_IN16,20 UART1_RXD 11
UART1_TXD_IN16,20

RESET

GND

2
1

TSI0_D1/JTAG_TRSTN 21
TSI0_D3/JTAG_TDI 21
TSI0_D0/JTAG_TMS 21
TSI0_D2/JTAG_TCK 21

TSI0_D4/JTAG_TDO 21

UART1

CN412

1
2
3
4

NC/CONN

UART1_TXD 11

LED_R(LED_B):
H = LED OFF
L = LED ON

LEDR_OUT11

LED_PWM11

3V3_SB 3V3_SB

R4109

LEDR

LEDB

LED-R
LED-B
IR

KEY0
KEY1

I2C1-SCL

10K

R4110

NC/10K

R4113
1K 1/16W 1%

R4121

NC/0R05 1/16W

3V3_SB

R4112
NC/1K 1/16W 1%

R4120

NC/0R05 1/16W

R4108 100R 1/16W 1%

R4106 100R 1/16W 1%
R4107 NC/100R 1/16W 1%

C4032
100NF 25V

Q420
MMBT3906

R4101

1.2K 1/16W 1%

3V3_SB

Q421
NC/MMBT3906

R4102
NC/1.2K 1/16W 1%

3V3_SB

R4117 6K8 1/10W 1%

R4111 10K 1%

R4118 NC/6K8 1/10W 1%

LED-B
LOGO-PWM
KEY1

LED_R

LED_B

5V0

Connector

TO IR/KEY BOARD

C4039 1UF16V

C4040 NC/100NF 25V

R4104 10 OHM
R4103 NC/10 OHM

R4128 10 OHM
R4129 10 OHM

CN401
CONN

2

1
3
5
7
9
11
13

LED_R
LED_B
IRIN

LS_ADC0_KEY
LS_ADC1_KEY
I2C1_SDA
I2C1_SCL

LED-R
IR

KEY0
I2C1-SCL
I2C1-SDA

3V3_SB

IRIN 11,16

LS_ADC0_KEY 11
LS_ADC1_KEY 11
I2C1_SDA 11,12
I2C1_SCL 11,12

3V3

4
6

8
10
12
14

3V35V0

Lighting LOGO

R4100
NC/100R 1/8W 5%

R4130 0R05 OHM

LED_PWM11

R4114 NC/1K 1/16W 5%

R4105

NC/100K1/16W

R4122
NC/100R 1/8W 5%

Q423
NC/MMBT3904

LOGO-PWM

C4038
NC/10uF 16V

C4042 NC

C4034 NC/100N 50V

C4041 NC

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

C4033 100N 50V

C4035 100pF 50V

ZD410 NC/AZ5123-01H

ZD412 NC/AZ5123-01H

ZD411 NC/AZ5123-01H

12

12

12

C4036 NC

C4037 NC

ZD414 NC/AZ5123-01H

ZD413 AZ5123-01H

12

12

ZD415 NC/AZ5123-01H

ZD416 NC/AZ5123-01H

12

12

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

6

6

6

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

of

of

of

称爹

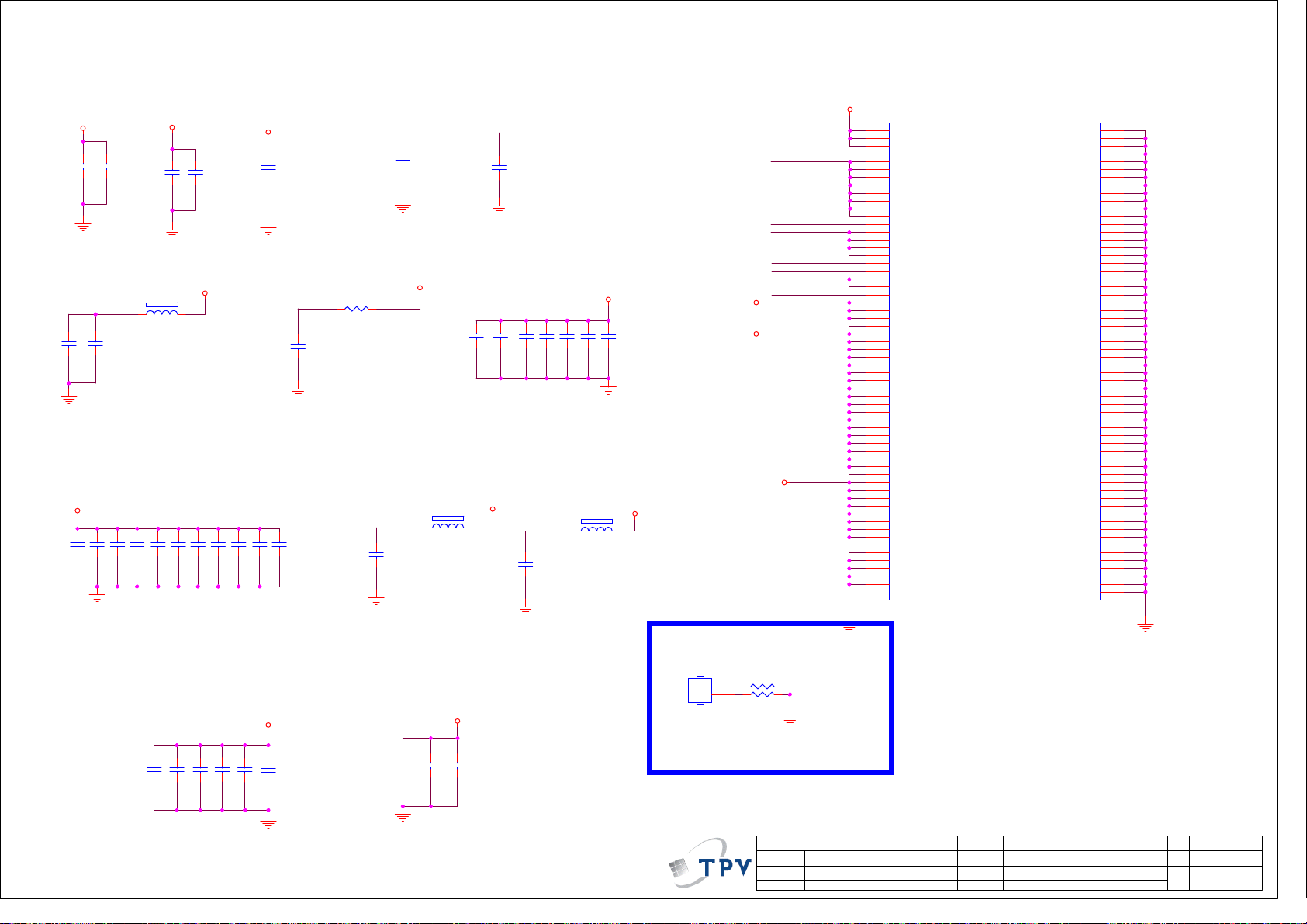

Chip Power

3V3

C758

C772

100N 16V

VDD_1V1

C782

22uF 6.3V

100N 16V

REF_1V2

1UF 6.3V

C783

C759

C771

100N 16V

100N 16V

C774

1UF 6.3V

3V3_SB

C762

FB709

1 2

120R

C784

C775

10uF 6.3V

1UF 6.3V

100N 16V

C776

1UF 6.3V

C763

100N 16V

LDO_1V2

C777

1UF 6.3V

C778

1UF 6.3V

C779

1UF 6.3V

LDO_1V2

C760

100N 16V

C780

1UF 6.3V

C781

1UF 6.3V

FE_1V2

C773

1UF 6.3V

LDO_1V1_OUT

LDO_1V1_OUT

R755
0R05 OHM

PLL_1V1

C785

100N 16V

C757

1UF 6.3V

LDO_1V2

1 2

FB710

220R

AVREF

AVREF

C764

22uF 6.3V

2.2uF 6.3V

C765

VDD_1V1

C761

100N 16V

C766

1UF 6.3V

PLL_3V3

C786

1UF 6.3V

C767

1UF 6.3V

CPU_1V1

C768

C769

1UF 6.3V

1UF 6.3V

FB711

1 2

220R

C770

1UF 6.3V

3V3

DVDD_3V3

FE_3V3

LDO_1V2

VDD_1V1

CPU_1V1

PLL_3V3
3V3

AVREF
3V3

LDO_1V1_OUT
PLL_1V1
REF_1V2

FE_1V2

3V3_SB

HI3751AV500

C12

DVDD33_STANDBY1

D12

DVDD33_STANDBY2

E11

AVDD33_HDMI_VBUS

J13

AVDD33_PLL

AB12

DVDD33_1

AB13

DVDD33_2

AB14

DVDD33_3

AB15

DVDD33_4

AB17

DVDD33_5

AB18

DVDD33_6

E4

DVDD33_7

F4

DVDD33_8

AB9

AVREF

R9

AVDD33_FE

T9

AVDD33_AFE

V9

AVDD33_HDMIRX1

W9

AVDD33_HDMIRX2

F10

DVDD11_LDO1_OUT

K14

AVDD11_PLL

Y13

AVDDREF

Y12

AVDD11_QAM

R10

AVDD11_FE

T10

AVDD11_PLL_AFE

U10

AVDD11_AFE

V10

AVDD11_HDMIRX1

W10

AVDD11_HDMIRX2

L14

VDD1

T14

VDD2

T15

VDD3

L15

VDD4

M14

VDD5

M15

VDD6

M16

VDD7

M17

VDD8

N14

VDD9

N15

VDD10

N16

VDD11

P14

VDD12

P15

VDD13

R14

VDD14

R15

VDD15

L16

VDD16

L17

VDD17

L13

VDD18

M13

VDD19

F8

VDD_CPU1

G8

VDD_CPU2

H8

VDD_CPU3

K10

VDD_CPU4

L10

VDD_CPU5

M10

VDD_CPU6

K11

VDD_CPU7

L11

VDD_CPU8

M11

VDD_CPU9

J14

AVSS_PLL

W13

AGNDREF

AB10

VSS1

R16

VSS2

K15

VSS3

U401J

HI3751AV500_AFE

MISC Interface of

VSS63
VSS62
VSS61
VSS60
VSS59
VSS58
VSS57
VSS56
VSS55
VSS54
VSS53
VSS52
VSS51
VSS50
VSS49
VSS48
VSS47
VSS46
VSS45
VSS44
VSS43
VSS42
VSS41
VSS40
VSS39
VSS38
VSS37
VSS36
VSS35
VSS34
VSS33
VSS32
VSS31
VSS30
VSS29
VSS28
VSS27
VSS26
VSS25
VSS24
VSS23
VSS22
VSS21
VSS20
VSS19
VSS18
VSS17
VSS16
VSS15
VSS14
VSS13
VSS12
VSS11
VSS10

VSS9
VSS8
VSS7
VSS6
VSS5
VSS4

W18
W17
W16
W15
W14
W11
V18
V17
V16
V15
V14
V13
V12
V11
U18
U17
U16
U15
U14
U13
U12
U11
T18
T17
T16
T13
T12
T11
R19
R13
R12
R11
P19
P18
P13
P12
P11
N19
N18
N13
N12
N11
M19
M18
L19
L18
K19
K18
K17
K16
M12
L12
H7
G7
P16
N17
AB16
AB11
N10
R17

C791

100N 16V

C792

100N 16V

C793

100N 16V

C790

1UF 6.3V

C794

100N 16V

3V3

C795

100N 16V

C787

1UF 6.3V

C788

100N 16V

3V3

C789

100N 16V

Heat sink

HS401
HEAT SINK

1
2

R4126
NC/0R05 OHM

R4127
NC/0R05 OHM

P90T0051301
Footprint :
90A0051-101

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

7

7

7

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

of

of

of

称爹

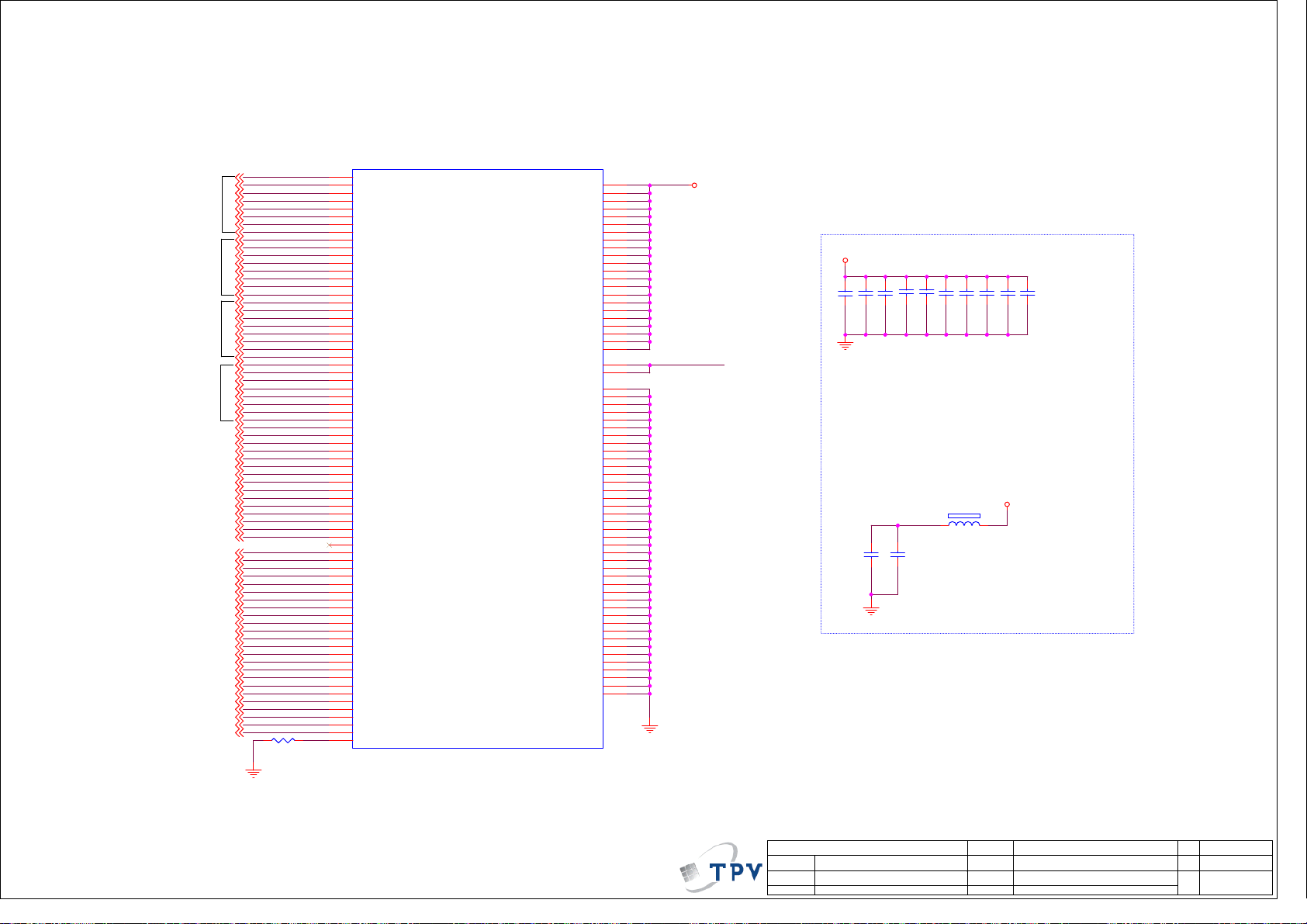

DDRIII_Chip Power

0-7 BIT

8-15 BIT16-23 BIT

24-31 BIT

DDR0_DQ3
DDR0_DQ4
DDR0_DQ1
DDR0_DQ0
DDR0_DQ7
DDR0_DQ2
DDR0_DQ5
DDR0_DQ6
DDR0_DQ9
DDR0_DQ14
DDR0_DQ11
DDR0_DQ12
DDR0_DQ13
DDR0_DQ8
DDR0_DQ15
DDR0_DQ10
DDR0_DQ19
DDR0_DQ22
DDR0_DQ17
DDR0_DQ16
DDR0_DQ21
DDR0_DQ18
DDR0_DQ23
DDR0_DQ20
DDR0_DQ27
DDR0_DQ24
DDR0_DQ29
DDR0_DQ26
DDR0_DQ25
DDR0_DQ28
DDR0_DQ31
DDR0_DQ30
DDR0_ADDR0
DDR0_ADDR1
DDR0_ADDR2
DDR0_ADDR3
DDR0_ADDR4
DDR0_ADDR5
DDR0_ADDR6
DDR0_ADDR7
DDR0_ADDR8
DDR0_ADDR9
DDR0_ADDR10
DDR0_ADDR11
DDR0_ADDR12
DDR0_ADDR13
DDR0_ADDR14

DDR0_DM0
DDR0_DM1
DDR0_DM2
DDR0_DM3
DDR0_BA0
DDR0_BA1
DDR0_BA2
DDR0_CLK0_P
DDR0_CLK0_N
DDR0_DQS0_N
DDR0_DQS0_P
DDR0_DQS1_N
DDR0_DQS1_P
DDR0_DQS2_N
DDR0_DQS2_P
DDR0_DQS3_P
DDR0_DQS3_N
DDR0_CKE
DDR0_WEN
DDR0_CASN
DDR0_CSN
DDR0_ODT
DDR0_RESETN
DDR0_RASN

R756

240 OHM

G26
G27

G24

G13

F28
F26
K27

F25
K26

K23
H23
K24
H24
C23
E27
A23
F24
C22
E26
B22
E25
D26
E21
C26
D21
C27
B24
B28
C24
C17
D19
F15
C15
E19
F13
B18
D14
C18
B16
E20
F17
A19
F14
D18
D17

E22
D23
B14
B19
A17
B20
A20

H27
H28
A27
B27
A25
B25
F19
D15
D16
C14
B13
C16
D13

L24
L23
L28
L26

J25
J23

J28
J27

HI3751AV500

DDR_DQ0
DDR_DQ1
DDR_DQ2
DDR_DQ3
DDR_DQ4
DDR_DQ5
DDR_DQ6
DDR_DQ7
DDR_DQ8
DDR_DQ9
DDR_DQ10
DDR_DQ11
DDR_DQ12
DDR_DQ13
DDR_DQ14
DDR_DQ15
DDR_DQ16
DDR_DQ17
DDR_DQ18
DDR_DQ19
DDR_DQ20
DDR_DQ21
DDR_DQ22
DDR_DQ23
DDR_DQ24
DDR_DQ25
DDR_DQ26
DDR_DQ27
DDR_DQ28
DDR_DQ29
DDR_DQ30
DDR_DQ31
DDR_ADDR0
DDR_ADDR1
DDR_ADDR2
DDR_ADDR3
DDR_ADDR4
DDR_ADDR5
DDR_ADDR6
DDR_ADDR7
DDR_ADDR8
DDR_ADDR9
DDR_ADDR10
DDR_ADDR11
DDR_ADDR12
DDR_ADDR13
DDR_ADDR14
DDR_ADDR15
DDR_DM0
DDR_DM1
DDR_DM2
DDR_DM3
DDR_BA0
DDR_BA1
DDR_BA2
DDR_CLK0_P
DDR_CLK0_N
DDR_DQS0_N
DDR_DQS0_P
DDR_DQS1_N
DDR_DQS1_P
DDR_DQS2_N
DDR_DQS2_P
DDR_DQS3_P
DDR_DQS3_N
DDR_CKE
DDR_WEN
DDR_CASN
DDR_CSN
DDR_ODT
DDR_RESETN
DDR_RASN
DDR_ZQ

U401I

HI3751AV500_AFE

MISC Interface of

VDDIO_CK_DDR

VDDIO_DDR21
VDDIO_DDR20
VDDIO_DDR19
VDDIO_DDR18
VDDIO_DDR17
VDDIO_DDR16
VDDIO_DDR15
VDDIO_DDR14
VDDIO_DDR13
VDDIO_DDR12
VDDIO_DDR11
VDDIO_DDR10

VDDIO_DDR9
VDDIO_DDR8
VDDIO_DDR7
VDDIO_DDR6
VDDIO_DDR5
VDDIO_DDR4
VDDIO_DDR3
VDDIO_DDR2
VDDIO_DDR1

AVDD_DDR_PLL2
AVDD_DDR_PLL1

VSS40
VSS39
VSS38
VSS37
VSS36
VSS35
VSS34
VSS33
VSS32
VSS31
VSS30
VSS29
VSS28
VSS27
VSS26
VSS25
VSS24
VSS23
VSS22
VSS21
VSS20
VSS19
VSS18
VSS17
VSS16
VSS15
VSS14
VSS13
VSS12
VSS11
VSS10

VSS9
VSS8
VSS7
VSS6
VSS5
VSS4
VSS3
VSS2
VSS1

H18
G18
G22
G21
G20
G19
G17
G16
G15
G14
M22
L22
K22
J22
H22
F23
F22
F21
F20
E24
E23
D24

H16
J21

L27
L25
K25
J26
J24
H26
H25
G25
G23
F27
F18
F16
E28
E18
E17
E16
E15
E14
E13
D27
D25
D22
D20
C28
C25
C21
C20
C19
C13
B26
B23
B21
B17
B15
A28
A26
A22
A16
A14
A13

1V5_DDR3

AVDD_DDR_PLL

1V5_DDR3

C7035

1UF 6.3V

C796

C7036

100N 16V

1UF 6.3V

AVDD_DDR_PLL

C7041

100N 16V

1UF 6.3V

C797

100N 16V

C7042

C798

C799

10uF 6.3V

FB712

1 2

120R

1UF 6.3V

C7037

1UF 6.3V

C7038

1UF 6.3V

3V3

C7039

1UF 6.3V

C7040

1UF 6.3V

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

8

8

8

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

称爹

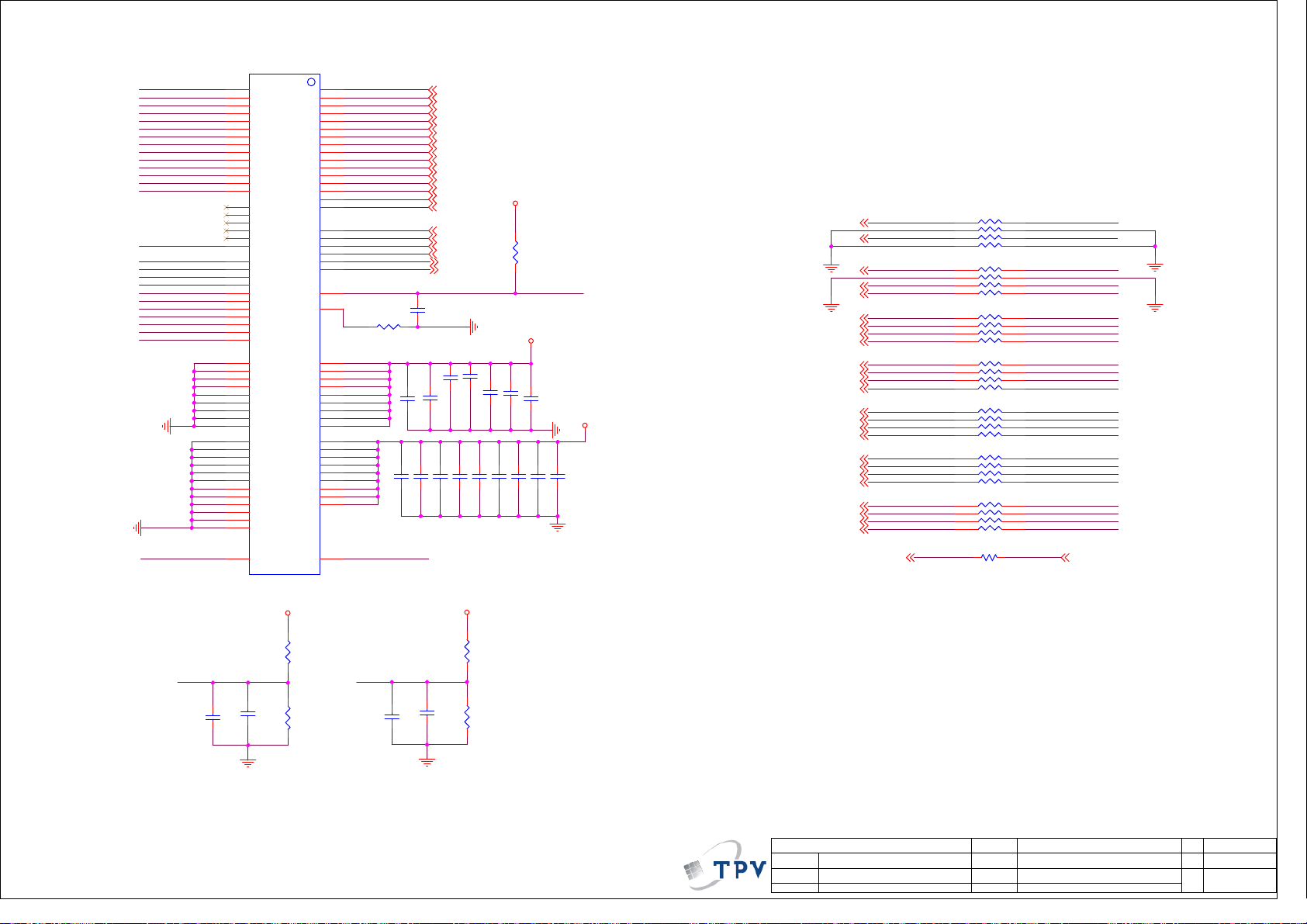

DDRIII_1

U403

ADDR0_1
ADDR1_1
ADDR2_1
ADDR3_1 DDR0_DQ3
ADDR4_1
ADDR5_1
ADDR6_1
ADDR7_1
ADDR8_1
ADDR9_1
ADDR10_1
ADDR11_1
ADDR12_1
ADDR13_1

ADDR14_1
BA0_1

BA1_1
BA2_1
DDR0_CLK0_P
DDR0_CLK0_N
CSN_1
CASN_1
ODT_1
RASN_1
WEN_1
CKE_1

VREF_CA_0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC#

T3

A13

J1

NC_0

J9

NC_1

L1

NC_2

L9

NC_3

M7

NC_4

T7

A14

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK#

L2

CS#

K3

CAS#

K1

ODT

J3

RAS#

L3

WE#

K9

CKE

B1

VSSQ_0

B9

VSSQ_1

D1

VSSQ_2

D8

VSSQ_3

E2

VSSQ_4

E8

VSSQ_5

F9

VSSQ_6

G1

VSSQ_7

G9

VSSQ_8

A9

VSS_0

B3

VSS_1

E1

VSS_2

G8

VSS_3
VSS_4J2VDD_4

J8

VSS_5

M1

VSS_6

M9

VSS_7

P1

VSS_8

P9

VSS_9

T1

VSS_10

T9

VSS_11

M8

VREFCA

K4B4G1646E-BCK0

UDQS#

LDQS#

RESET#

VDDQ_0
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8

VDD_0
VDD_1
VDD_2
VDD_3

VDD_5
VDD_6
VDD_8
VDD_7

VREFDQ

1V5_DDR3

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6

DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

UDQS
LDQS

UDM

LDM

ZQ

E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3

C7
B7
F3
G3
D3
E7

T2
L8

A1
A8
C1
C9
D2
E9
F1
H2
H9

B2
D9
G7
K2
K8
N1
N9
R9
R1

H1

DDR0_DQ0
DDR0_DQ1
DDR0_DQ2

DDR0_DQ4
DDR0_DQ5
DDR0_DQ6
DDR0_DQ7
DDR0_DQ8
DDR0_DQ9
DDR0_DQ10
DDR0_DQ11
DDR0_DQ12
DDR0_DQ13
DDR0_DQ14
DDR0_DQ15

DDR0_DQS1_P
DDR0_DQS1_N
DDR0_DQS0_P
DDR0_DQS0_N

DDR0_DM1
DDR0_DM0

R444

240 OHM

VREF_DQ_0

C421 100N 16V

C419

100N 16V

C422 100N 16V

C413
1N 50V

C418

100N 16V

C415

470NF 10% 10V

C423 100N 16V

1V5_DDR3

C424 100N 16V

C414

470NF 10% 10V

C425 100N 16V

1V5_DDR3

C416

1UF 6.3V

C426 100N 16V

R443

4.7K1/16W

RESETN_1

1V5_DDR3

C417

1UF 6.3V

C427 100N 16V

C420

10UF

C428 100N 16V

1V5_DDR3

C429 100N 16V

DDR0_RASN
DDR0_ODT

DDR0_CSN
DDR0_BA0

DDR0_ADDR3

DDR0_ADDR5
DDR0_ADDR7
DDR0_RESETN
DDR0_ADDR9

DDR0_ADDR13
DDR0_ADDR2
DDR0_ADDR0
DDR0_BA2

DDR0_WEN
DDR0_CASN
DDR0_ADDR11
DDR0_ADDR14

DDR0_ADDR8
DDR0_ADDR6
DDR0_ADDR1
DDR0_ADDR4

DDR0_BA1
DDR0_ADDR12
DDR0_ADDR10
DDR0_CKE

RP401

1
2
3
4

RP402

1
2
3
4

RP403

1
2
3
4

RP404

1
2
3
4

RP405

1
2
3
4

RP406

1
2
3
4

RP407

1
2
3
4

DDR0_CLK0_P DDR0_CLK0_N

R445

200R

33R

33R

33R

33R

33R

33R

33R

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

RASN_1
ODT_1

CSN_1
BA0_1

ADDR3_1

ADDR5_1
ADDR7_1
RESETN_1
ADDR9_1

ADDR13_1
ADDR2_1
ADDR0_1
BA2_1

WEN_1
CASN_1
ADDR11_1
ADDR14_1

ADDR8_1
ADDR6_1
ADDR1_1
ADDR4_1

BA1_1
ADDR12_1
ADDR10_1
CKE_1

VREF_CA_0

C433

100N 16V

C431

1UF 6.3V

R447

1K 1/16W 1%

R449

1K 1/16W 1%

VREF_DQ_0

C432
100N 16V

C430

1UF 6.3V

R446

1K 1/16W 1%

R448

1K 1/16W 1%

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

9

9

9

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

称爹

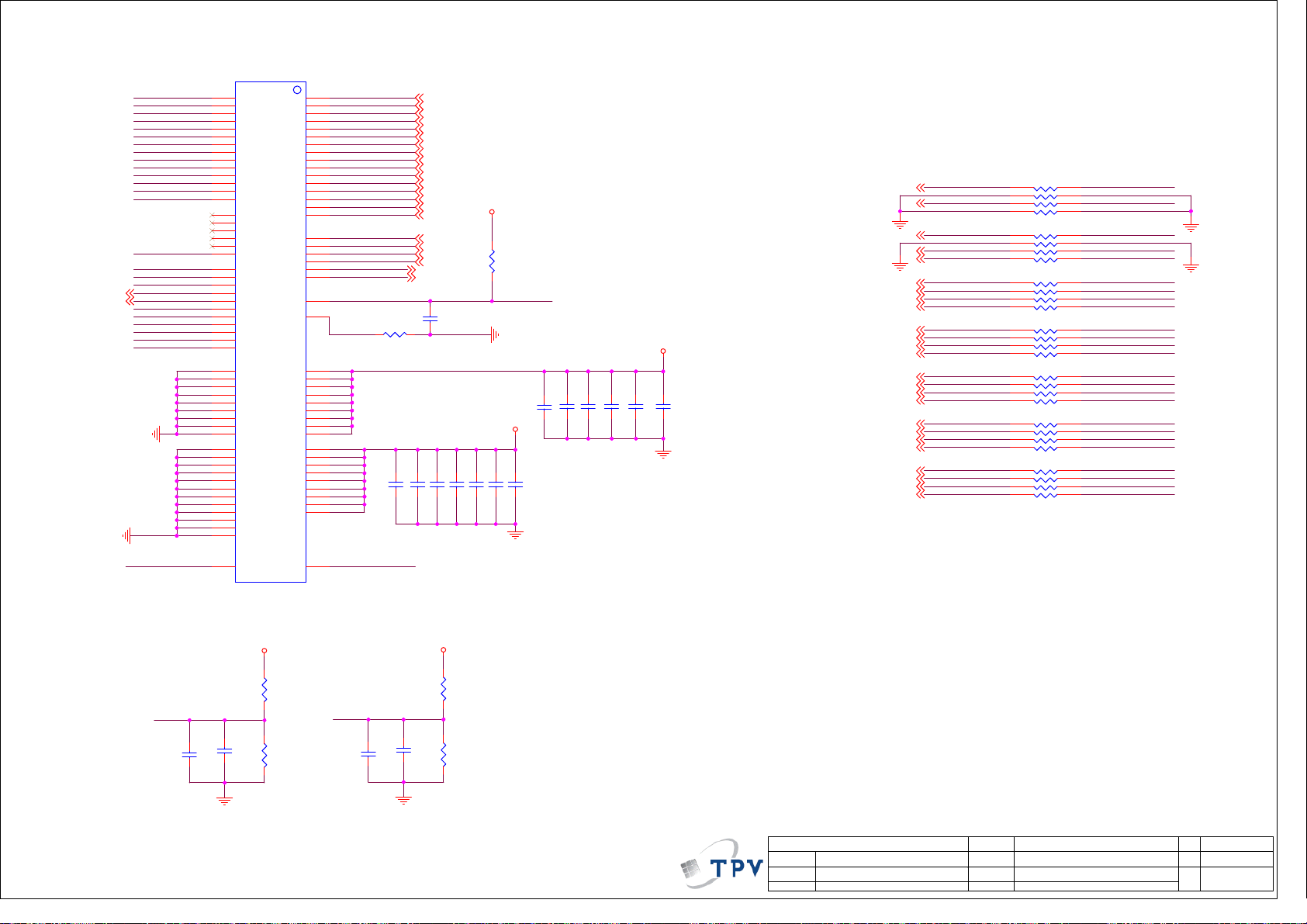

DDRIII_2

ADDR0_2
ADDR1_2
ADDR2_2
ADDR3_2
ADDR4_2
ADDR5_2
ADDR6_2
ADDR7_2
ADDR8_2
ADDR9_2
ADDR10_2
ADDR11_2
ADDR12_2
ADDR13_2

ADDR14_2
BA0_2

BA1_2
BA2_2
DDR0_CLK0_P
DDR0_CLK0_N
CSN_2
CASN_2
ODT_2
RASN_2
WEN_2
CKE_2

VREF_CA_1

U404

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC#

T3

A13

J1

NC_0

J9

NC_1

L1

NC_2

L9

NC_3

M7

NC_4

T7

A14

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK#

L2

CS#

K3

CAS#

K1

ODT

J3

RAS#

L3

WE#

K9

CKE

B1

VSSQ_0

B9

VSSQ_1

D1

VSSQ_2

D8

VSSQ_3

E2

VSSQ_4

E8

VSSQ_5

F9

VSSQ_6

G1

VSSQ_7

G9

VSSQ_8

A9

VSS_0

B3

VSS_1

E1

VSS_2

G8

VSS_3
VSS_4J2VDD_4

J8

VSS_5

M1

VSS_6

M9

VSS_7

P1

VSS_8

P9

VSS_9

T1

VSS_10

T9

VSS_11

M8

VREFCA

K4B4G1646E-BCK0

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6

DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

UDQS

UDQS#

LDQS

LDQS#

UDM

LDM

RESET#

VDDQ_0
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8

VDD_0
VDD_1
VDD_2
VDD_3

VDD_5
VDD_6
VDD_8
VDD_7

VREFDQ

DDR0_DQ16

E3

DDR0_DQ17

F7

DDR0_DQ18

F2

DDR0_DQ19

F8

DDR0_DQ20

H3

DDR0_DQ21

H8

DDR0_DQ22

G2

DDR0_DQ23

H7

DDR0_DQ24

D7

DDR0_DQ25

C3

DDR0_DQ26

C8

DDR0_DQ27

C2

DDR0_DQ28

A7

DDR0_DQ29

A2

DDR0_DQ30

B8

DDR0_DQ31

A3

DDR0_DQS3_P

C7

DDR0_DQS3_N

B7

DDR0_DQS2_P

F3

DDR0_DQS2_N

G3

DDR0_DM3

D3

DDR0_DM2

E7

T2
L8

ZQ

A1
A8
C1
C9
D2
E9
F1
H2
H9

B2
D9
G7
K2
K8
N1
N9
R9
R1

H1

VREF_DQ_1

R451

240 OHM

C441 100N 16V

C442 100N 16V

C434
1N 50V

C443 100N 16V

C444 100N 16V

1V5_DDR3

C445 100N 16V

R450

4.7K1/16W

RESETN_2

1V5_DDR3

C446 100N 16V

C447 100N 16V

C440

100N 16V

C435

100N 16V

C436

470NF 10% 10V

C437

470NF 10% 10V

C438

470NF 10% 10V

1V5_DDR3

C439

10UF

DDR0_RASN
DDR0_ODT ODT_2

DDR0_CSN
DDR0_BA0

DDR0_ADDR3

DDR0_ADDR5
DDR0_ADDR7
DDR0_RESETN
DDR0_ADDR9

DDR0_ADDR13
DDR0_ADDR0

DDR0_BA2

DDR0_WEN
DDR0_CASN
DDR0_ADDR11

DDR0_ADDR8 ADDR8_2
DDR0_ADDR6
DDR0_ADDR1
DDR0_ADDR4

DDR0_BA1
DDR0_ADDR12
DDR0_ADDR10
DDR0_CKE

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

RP408

RP409

RP410

RP411

RP412

RP413

RP414

33R

33R

33R

33R

33R

33R

33R

5
6
7
8

5
6
7
8

5
6
7
8

5
6
7
8

5
6
7
8

5
6
7
8

5
6
7
8

RASN_2

CSN_2
BA0_2

ADDR3_2

ADDR5_2
ADDR7_2

RESETN_2

ADDR9_2

ADDR13_2
ADDR2_2DDR0_ADDR2
ADDR0_2
BA2_2

WEN_2

CASN_2

ADDR11_2

ADDR14_2DDR0_ADDR14

ADDR6_2

ADDR1_2

ADDR4_2

BA1_2

ADDR12_2

ADDR10_2

CKE_2

VREF_CA_1

C451

100N 16V

C449

1UF 6.3V

1V5_DDR3

R453

1K 1/16W 1%

R455

1K 1/16W 1%

VREF_DQ_1

C450
100N 16V

C448

1UF 6.3V

1V5_DDR3

R452

1K 1/16W 1%

R454

1K 1/16W 1%

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

10

10

10

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

称爹

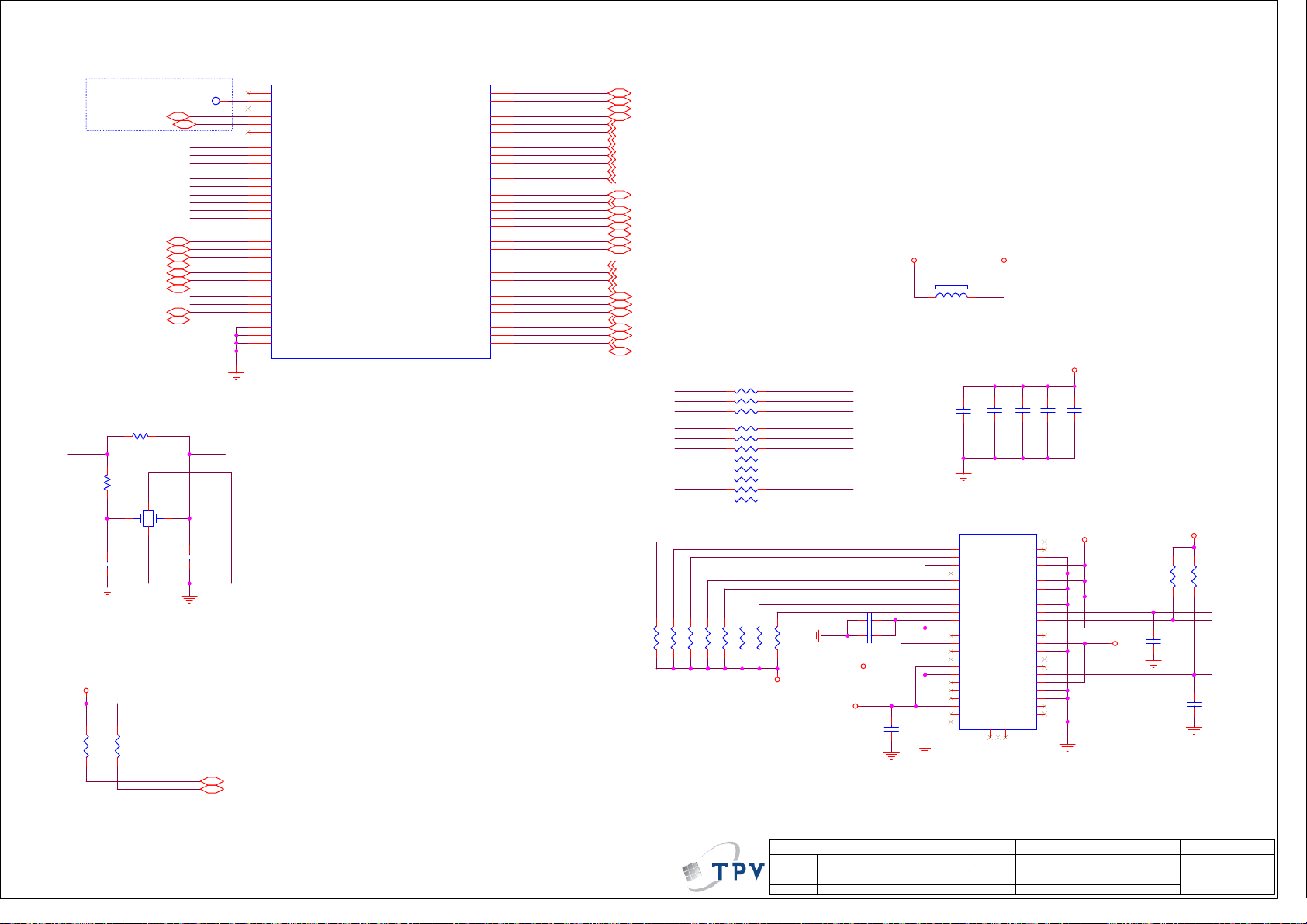

eMMC & eeprom & xtal

AD28

1

AD27
AC27

EAR_DET

AC28
AD26

USB-EN

AD25

EMMC_CMD
EMMC_CLK
EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3

EMMC_D5
EMMC_D6
EMMC_D7

JTAG_SEL
SPDIF_OUT
VGA_DDC_SCL
VGA_DDC_SDA
FUNC_SEL
POR_SEL
RESETIN
XOUT
XIN
AMP_MUTE
LED_PWM

XINXOUT

C457
30PF

I2C1_SCL 6,12
I2C1_SDA 6,12

R466

100OHM

3V3

R481

NC/4.7K1/16W

EAR_DET17

USB-EN14

JTAG_SEL3

SPDIF_OUT17
VGA_DDC_SCL16
VGA_DDC_SDA16

FUNC_SEL3

POR_SEL3
RESETIN6

AMP_MUTE17

LED_PWM6

R460

X401

1

C458

30PF

R482
NC/4.7K1/16W

TP406

EMMC_RST

1MOHM 1/16W +/-5%

24MHZ

3

2 4

MISC Interface of

SFC_DIO/GP3_0/SPI0_DO
SFC_WPN/GP3_1
SFC_CLK/GP3_2/SPI0_CLK
SFC_DOI/GP3_3/SPI0_DI
SFC_HOLDN/GP3_4
SFC_CS1N/GP3_5/SPI0_CSN

D1

EMMC_RSTN/GP7_2

D3

EMMC_CCMD/GP7_3

C1

EMMC_CLK/GP7_4

E2

EMMC_D0/GP7_5

F2

EMMC_D1/GP7_6

G4

EMMC_D2/GP7_7

D2

EMMC_D3/GP8_0

E3

EMMC_D4/GP8_1

F3

EMMC_D5/GP8_2

F1

EMMC_D6/GP8_3

G2

EMMC_D7/GP8_4

H3

JTAG_SEL

G1

SPDIF_OUT/GP8_5

G3

VGA_DDC_SCL/GP8_6

H4

VGA_DDC_SDA/GP8_7

C10

FUNC_SEL

B7

POR_SEL

D10

RESTIN

A9

XOUT

B9

XIN

D9

AMP_MUTE/SGP0_5

C8

LED_PWM/SGP0_4

A1

VSS1

B2

VSS2

C9

VSS3

E10

VSS4

U401H HI3751AV500_AFE

UART2_TXD/GP7_1/I2C4_SDA
UART2_RXD/GP7_0/I2C4_SCL

LD_EN/GP4_0/SCN_EN/SFC_ADDR_MOD

VBO_LOCKN/GP4_4/LVDS_SEL

PMC1/GP6_5
PMC0/GP6_4

I2S_MCLK/GP6_0

I2S_BCLK/GP6_1

I2S_WS/GP6_2

I2S_DOUT/GP6_3

I2C0_SCL/GP6_6

I2C0_SDA/GP6_7

UART1_TXD/UART0_TXD

UART1_RXD/UART0_RXD

MHL_VBUS_CTRL/SGP0_1

SGP0_0

IRIN/SGP0_2

STANDBY/SGP0_3

LS_ADC0/SGP0_6
LS_ADC1/SGP0_7
LS_ADC2/SGP1_0
LS_ADC3/SGP1_1

I2C1_SCL/GP5_3

I2C1_SDA/GP5_2
SYNC_3DI/GP5_1

BRI_PWM0/GP4_5

BLK_ON/GP4_6

SYNC_3DO/GP5_0

VBO_HPN/GP4_3

PWR_EN/GP4_2

EN_3D/GP4_1

VSYNC_GLSS/GP4_7

B4
B1
D4

PMC1

C4

PMC0
I2S_MCLK

C2

I2S_BCLK

C3

I2S_WS

A2

I2S_DOUT

A3

I2C0_SCL

A4

I2C0_SDA

B3

UART1_TXD

C6

UART1_RXD

B6

STB_GPIO0_0EMMC_D4

D8

STB_GPIO0_1

A6
C7

IRIN

A7

STB
LS_ADC0_KEY

A11

LS_ADC1_KEY

B11

LEDR_OUT

C11

LS_ADC3/STB_GPIO1_1

D11

I2C1_SCL

N24

I2C1_SDA

N23

LD_EN

M25

DF0/SYNC_3D_IN

M24
M26

PWM0
BL_ON

N28

DF1/SYNC_3D_OUT

M23
N26

LOCKN
VBO_HPN

N25

PWR_EN

N27

3D_EN

P23

HP_EN

P24

UART2_TXD_IN 16
UART2_RXD_IN 16
PMC1 5
PMC0 5

STB_GPIO0_0 5
IRIN 6,16

STB 4,5
LS_ADC0_KEY 6
LS_ADC1_KEY 6
LEDR_OUT 6
LS_ADC3/STB_GPIO1_1 18

PWM0 4
BL_ON 4
DF1/SYNC_3D_OUT 12

VBO_HPN 12
PWR_EN 13

HP_EN 18

GPIO4_7

R472

R471

NC

NC

EMMC_CLK
EMMC_CMD
EMMC_RST

EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3
EMMC_D4
EMMC_D5
EMMC_D6
EMMC_D7

R473

NC

R456 33 OHM 1/16W
R457 33 OHM 1/16W
R458 33 OHM 1/16W

R459 33 OHM 1/16W
R461 33 OHM 1/16W
R462 33 OHM 1/16W
R463 33 OHM 1/16W
R464 33 OHM 1/16W
R465 33 OHM 1/16W
R467 33 OHM 1/16W
R468 33 OHM 1/16W

R475

R476

R474

NC

R477

NC

NC

NC

R478

NC

VDD_EM

EMMCCK
EMMCCMD
EMMCRSTN

EMMCDAT0
EMMCDAT1
EMMCDAT2
EMMCDAT3
EMMCDAT4
EMMCDAT5
EMMCDAT6
EMMCDAT7

EMMCDAT0
EMMCDAT1
EMMCDAT2

EMMCDAT3
EMMCDAT4
EMMCDAT5
EMMCDAT6
EMMCDAT7

VDD_EM

3V3

C459100N 16V

100N 16V

C463

3V3 VDD_EM

FB402

1 2

120R

A3
A4
A5
A6
A7
B2
B3
B4
B5
B6
C2

E10
F10

C4
C5
C6
D4
E5
E6
E7
E8
E9

F5
G3

C4604.7UF 6.3V

C452

C456

100N 16V

2.2uF 6.3V

U413
THGBMBG5D1KBAIT

DAT0
DAT1
DAT2
VSS
NC
DAT3
DAT4
DAT5
DAT6
DAT7
VDDI
Vssq
NC
Vccq
A1 index
NC
Vcc
Vss
NC
NC
NC
Vcc
NC
NC

RSTN

NCB1NCC1NC

N1

Vssq
Vccq
Vssq
Vccq
Vssq
Vccq
Vssq

CLK
CMD
Vccq

VSS

Vcc
Vss

Vcc
Vss

Vss

C453

NC
NC

NC

NC
NC

DS
NC

100N 16V

P10
P7
P6
P5
P4
P3
N5
N4
N2
M6
M5
M4
K10
K9
K8
K7
K6
K5
J10
J5
H10
H5
G10
G5

C454

100N 16V

VDD_EM

C455

100N 16V

VDD_EM

EMMCCK
EMMCCMD

3V3

EMMCRSTN

10K

R469

C461

10PF 50V

3V3

R470

47K

C462
NC/100NF

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

11

11

11

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

of

of

of

称爹

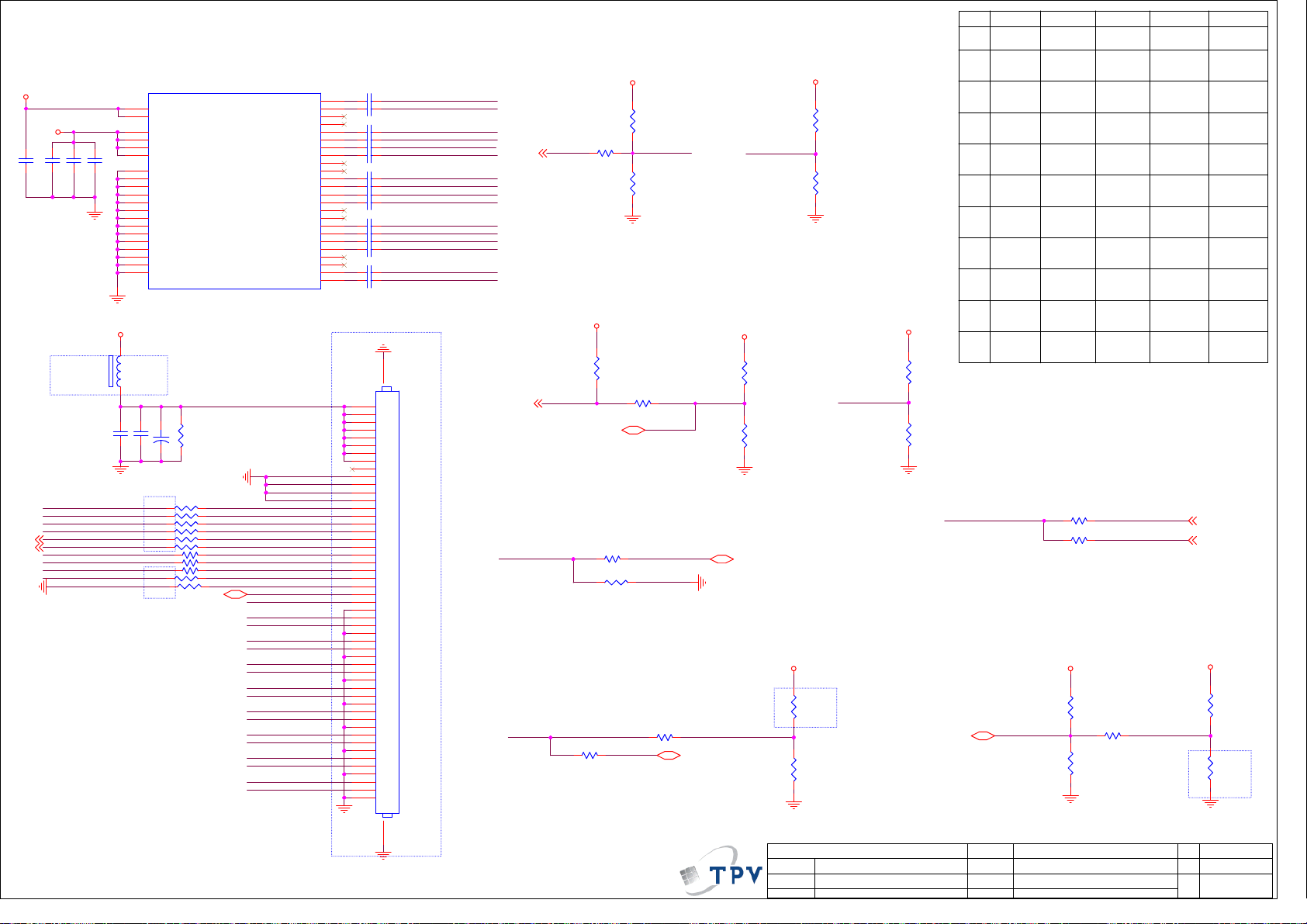

V-BY-ONE socket

MISC Interface of

VDD_1V1

VDD_1V1

3V3

C4001

C4009

C4008

100N 16V

100N 16V

1UF 6.3V

FB403
120R 6A

100N 16V

GND/PWM_TIN
DF0/SYNC_3D_IN/PWM_TOUT
DF1/SYNC_3D_OUT

3D_EN
I2C1_SDA
I2C1_SCL
WP/NC
BIT_SEL/3D_EN
NC/LD_EN/L/R_O
AGP/NSB/L/R_I

3V3

C4010

10uF 6.3V

C4022

HI3751AV500_AFE

T19

AVDD11_LVDS1

U19

AVDD11_LVDS2

T23

AVDD33_PLL_LVDS

U23

AVDD33_LVDS1

V23

AVDD33_LVDS2

W23

AVDD33_LVDS3

R23

AVSS33_PLL_LVDS

P25

AVSS_LVDS1

P26

AVSS_LVDS2

R26

AVSS_LVDS3

T24

AVSS_LVDS4

U26

AVSS_LVDS5

V24

AVSS_LVDS6

W26

AVSS_LVDS7

Y24

AVSS_LVDS8

AA26

AVSS_LVDS9

AB24

AVSS_LVDS10

AC24

AVSS_LVDS11

AC25

AVSS_LVDS12

AC26

AVSS_LVDS13

VCC_PANEL

12

C4026 NC

+

R4013~R4018

R4013 NC/0R05 OHM
R4014 NC/0R05 OHM
R4015 NC/0R05 OHM
R4016 NC/0R05 OHM
R4017 NC/0R05 OHM
R4018 NC/0R05 OHM

R4019
R4020
R4021

R4024 NC/0R05 OHM
R4025 0R05 OHM

R4024~R4025パNCэ

C4025 220uF 25V

パ　ンэ　

U401G

LVDS1_TEP/VX1_LANE7P

LVDS1_TEN/VX1_LANE7N

LVDS1_TCLKP/VX1_LANE6P

LVDS1_TCLKN/VX1_LANE6N

LVDS1_TCP/VX1_LANE5P
LVDS1_TCN/VX1_LANE5N

LVDS1_TAP/VX1_LANE4P

LVDS1_TAN/VX1_LANE4N

LVDS0_TEP/VX1_LANE3P

LVDS0_TEN/VX1_LANE3N

LVDS0_TCLKP/VX1_LANE2P

LVDS0_TCLKN/VX1_LANE2N

LVDS0_TCP/VX1_LANE1P
LVDS0_TCN/VX1_LANE1N

LVDS0_TAP/VX1_LANEN0P
LVDS0_TAN/VX1_LANEN0N

R4010
NC/1K 1/4W

NC

NC
NC
NC/0R05 OHM

VBO_HPN11

　　ン

AB25
AB26

LVDS1_TDP
LVDS1_TDN

LVDS1_TBP
LVDS1_TBN

LVDS0_TDP
LVDS0_TDN

LVDS0_TBP
LVDS0_TBN

AA24
AA25
AA28
AA27
Y25
Y26
W24
W25
W28
W27
V25
V26
U24
U25
U28
U27
T25
T26
R24
R25
R28
R27

V by One

DF0/SYNC_3D_IN/PWM_TOUT2

DF1/SYNC_3D_OUT_OUT
3D_EN_OUT

I2C1_SDA_OUT
I2C1_SCL_OUT

BIT_SEL/3D_EN_OUT

AGP/NSB/L/R_I_OUT

VBO_HPN

LOCKN_OUT

VX1_LANE0N
VX1_LANE0P

VX1_LANE1N
VX1_LANE1P

VX1_LANE2N
VX1_LANE2P

VX1_LANE3N
VX1_LANE3P

VX1_LANE4N
VX1_LANE4P

VX1_LANE5N
VX1_LANE5P

VX1_LANE6N
VX1_LANE6P

VX1_LANE7N
VX1_LANE7P

CN408
CONN

C4002100N 16V
C4003100N 16V

C4004100N 16V
C4005100N 16V
C4006100N 16V
C4007100N 16V

C4011100N 16V
C4012100N 16V
C4013100N 16V
C4014100N 16V

C4015100N 16V
C4016100N 16V
C4017100N 16V
C4018100N 16V

C4019100N 16V
C4020100N 16V

51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

VX1_LANE7P
VX1_LANE7N

VX1_LANE6P

VX1_LANE6N
VX1_LANE5P

VX1_LANE5N

VX1_LANE4P
VX1_LANE4N
VX1_LANE3P
VX1_LANE3N

VX1_LANE2P
VX1_LANE2N
VX1_LANE1P
VX1_LANE1N

VX1_LANE0P
VX1_LANE0N

0R05 OHM

R4003

LOCKN

3V3

3V3

3D_EN

BIT_SEL/3D_EN4

GND/PWM_TIN

NC
R4022

NC/0R05 OHM
R4027

DF0/SYNC_3D_IN/PWM_TOUT

NC
R4033

3V3

3V3

10K

NC

R4006

NC/10K

NC/0R05 OHM
R4009

VBO_DIMM_CTL

NC/0R05 OHM
R4032

PWM_OUT

R4001

R4005

BIT_SEL/3D_EN

パ

NCэ　ン10K

DF0/SYNC_3D_IN

PWM_OUT 4

VBO_HPNLOCKN_OUT

3V3

3V3

NC

R4008

NC

R4012

VBO_DIMM_CTL 4

Samsung

Pin No.

GND

38

(R83,R111)

Data format 0

3V3

3V3

10K

NC

R4002

R4004

3V3

3V3

37

36

35

34

33

32

3D_EN

31

(R100,R107)

3D_Sync_out

30

(R101,R110)

3D_Sync_In

29

(R102,R113)

28

(R106)

NC

R4007

NC

NC

NC

NC

NC

NC

GND

(R80,R114)

R137/R139

Data format 1

(R95)

R136/R152

Bit SEL
(R100)

R134/R135

AGP or NSB

(R102)

R150/R151

GND

(R106)

WP/NC

NC

R4011

NC/LD_EN/L/R_O

3V3 3V3

NC/0R05 OHM
R4023

NC
R4026

3V3

R4030

R4029

NC/10K

NC

R4036

DF1/SYNC_3D_OUT11

DF1/SYNC_3D_OUT

NC/10K

LG

NC

NC

NC

NC

NC

NC

3V3

NC/0R05 OHM
R4031

NC

R4034

AUO
GND

(R83,R111)
3D_Sync_out

(R80,R114)

3D_Sync_In

(R95)

3D_EN
(R96)

SDA

(R22)

SCL

(R105)

WP

(R103)

R156/R183

NC

NC

NC

GND

(R106)

DF0/SYNC_3D_IN

LD_EN

パ

CMI
GND

(R83,R111)
3D_Sync_out

(R80,R114)

3D_Sync_In

(R95)

3D_EN
(R96)

SDA

(R22)

SCL

(R105)

NC

NC

LD_EN

(R101,R109)

NC

NC

AGP/NSB/L/R_I

NCэ　ン0R

(R83,R111)

PWM TOUT

(R80,R115)

Gplus Mode
R136/R152
Gplus EN

(R96,R107)

R134/R135

R134/R135

Data format
(R101,R109)

AGP or NSB
R150/R151

3V3

3V3

NC

NC/0R05 OHM

LG-S
PWM TIN

(R95)

SDA

(R22)

SCL

(R105)

NC

Bit SEL
(R100)

(R102)

NC

R4028

R4035

52 53

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

12

12

12

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

of

of

of

Size

Size

Size
Rev

Rev

Rev

称爹

称爹

称爹

A3

A3

A3

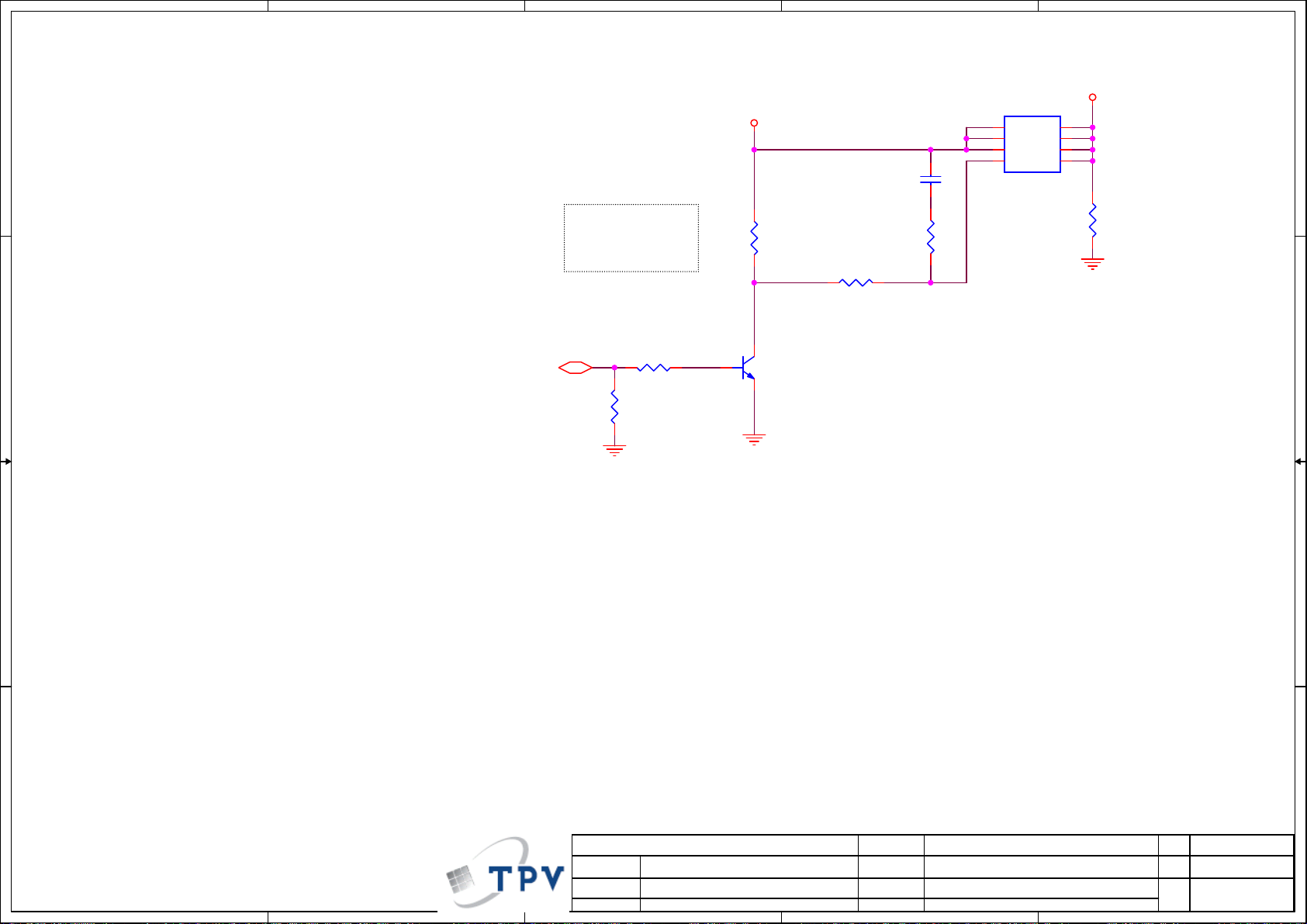

5

4

3

2

1

VCC_PANEL

12V0

D D

C4023
220NF 25V

OPWRSB_PWR
Normal:High
Stand_By:Low

R4057

C C

PWR_EN11

4.7K 1/16W

R4125

4.7K 1/16W

R4047
47K

Q409
MMBT3904

R4053
150K

R4046

0R05 OHM

Q408

1

S

2
3
4

D

S

D

S

D

G

D

AO4449 -7A/-30V

8
7
6
5

R4045

NC/10KOHM

B B

A A

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

5

4

Date

3

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

2

13

13

13

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

of

of

of

Size

Size

Size
Rev

Rev

Rev

称爹

称爹

称爹

1

A4

A4

A4

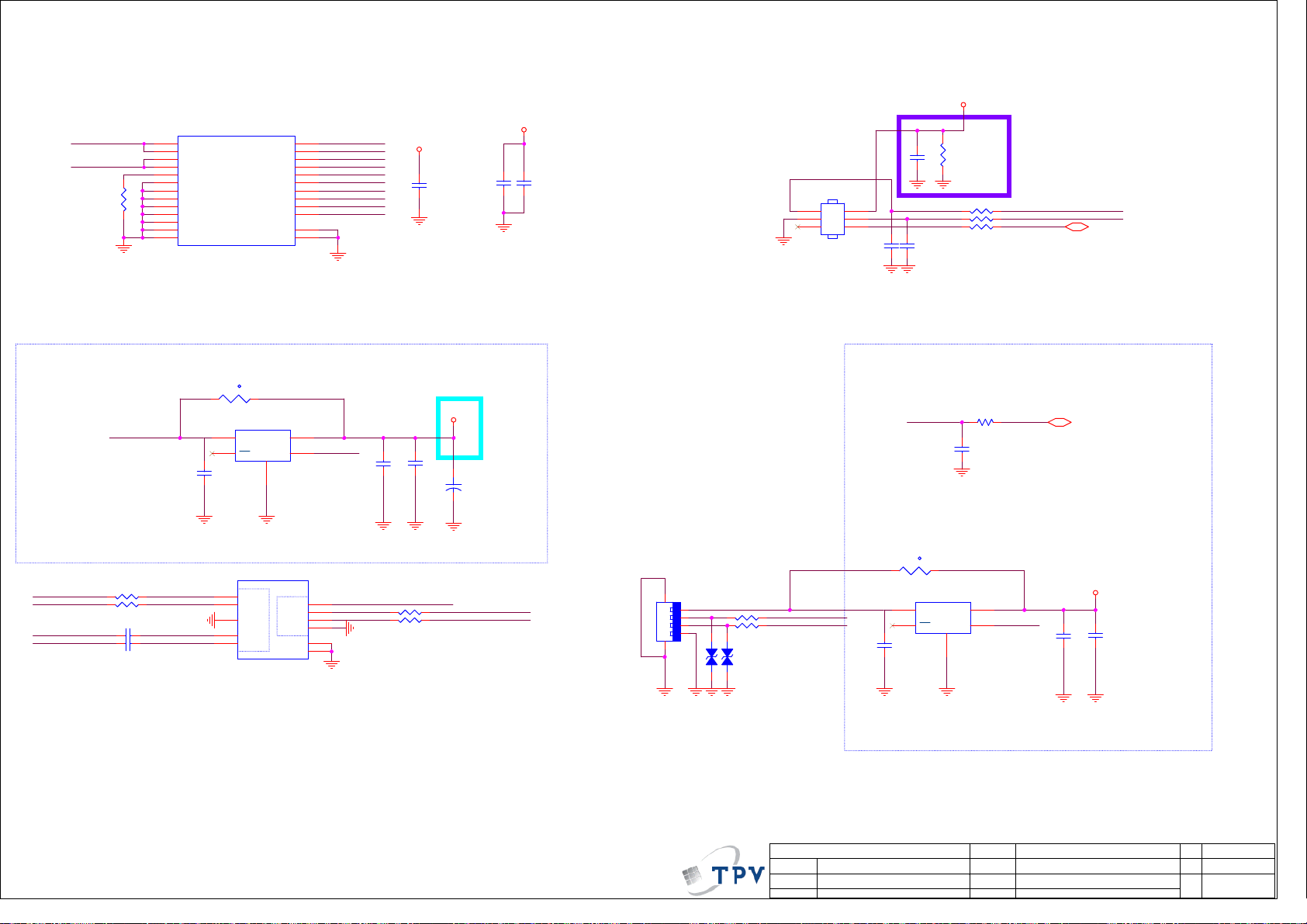

USB2.0 & USB3.0 & WIFI

VDD_1V1

R101
133R 1/10W 1%

USB3.0

3V3

USB3_VBUS

MISC Interface of

AB20
AB21

V19

W19
AD24
AE26
AF26
AF27
AF28
AH27
AH28
AB22
AB19

HI3751AV500

AVDD33_USB3
AVDD33_USB2
AVCC11_USB2
DVDD11_USB3
USB2_RBIAS
VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8

U401F

AVSS_USB3_2
AVSS_USB3_1

HI3751AV500_AFE

TH101
PTCR

1 2

NC/G5250K1T1U

5

OUT

3

OC

C1020
NC/100NF 25V

USB3_TXN

USB3_TXP

USB2_DN2

USB2_DP2
USB3_RXN
USB3_RXP
USB2_DM1

USB2_DP1
USB2_DM0

USB2_DP0

t

U100

GND

2

C107

10UF

USB2_DM
USB2_DP

C1027

4.7pF 50V

USB_EN

WIFI_PWR

R106

NC/10K

R102 0R05 OHM
R103 0R05 OHM
R104 0R05 OHM

R191

C1023
NC/1uF 50V

NC/100OHM

USB2_DM0
USB2_DP0

GPIO10_1/JTAG_MUX1 3,15

USB-EN 11

Wi-Fi Power Control

VDD_1V1

USB3_TXM

AG24

USB3_TXP

AH24

USB3_DM

AF25

USB3_DP

AE25

USB3_RXM

AG26

USB3_RXP

AH26

USB2_DM1

AG28

USB2_DP1

AG27

USB2_DM0

AE27

USB2_DP0

AE28
AF24

AE24

4

IN

USB_EN

1

EN

3V3

1000mA

C1021

NC/100N 16V

C101

10uF 6.3V

C1022

NC/10UF

100N 16V

э 5V_USB

5V_USB

C110

+

100UF 16V

C102

C103

10uF 6.3V

WIFI

CN102

2
4
6

6P R/A 2.0mm
311GW200C06ABL

CONN

1
3
5

4.7pF 50V

C1026

USB3_RXM

USB3_RXP

USB3_TXM
USB3_TXP

R108 5.1R 1/16W
R109 5.1R 1/16W

C108 100N 16V

100N 16V

C109

CN101

5

RXN

6

RXP

7

GND

8

TXN

9

TXP

USB CONN 9P

USB3.0

VCC

USB2.0

GND

HAND1
HAND2

TH102

PTCR

t

1 2

USB3_VBUS

1
2

D-

3

D+

4
10

11

R110 5.1R 1/16W
R111 5.1R 1/16W

USB3_DM

USB3_DP

CN103

USB CONN

USB2.0

1

1234

2
3
4

6 5

ZD101

1 2

R113 5.1R 1/16W
R114 5.1R 1/16W

ZD102

1 2

USB2_DM1
USB2_DP1

C1024
NC/100NF 25V

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

5
3

NC/G5250K1T1U

OUT
OC

GND

2

U101

IN

EN

4

USB_EN

1

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

э 5V_USB

5V_USB

500mA

C112

C111

10UF

NC/100N 16V

Size

A3

Size

A3

Size

A3

Rev

Rev

Rev

称爹

称爹

14

14

14

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

of

of

of

称爹

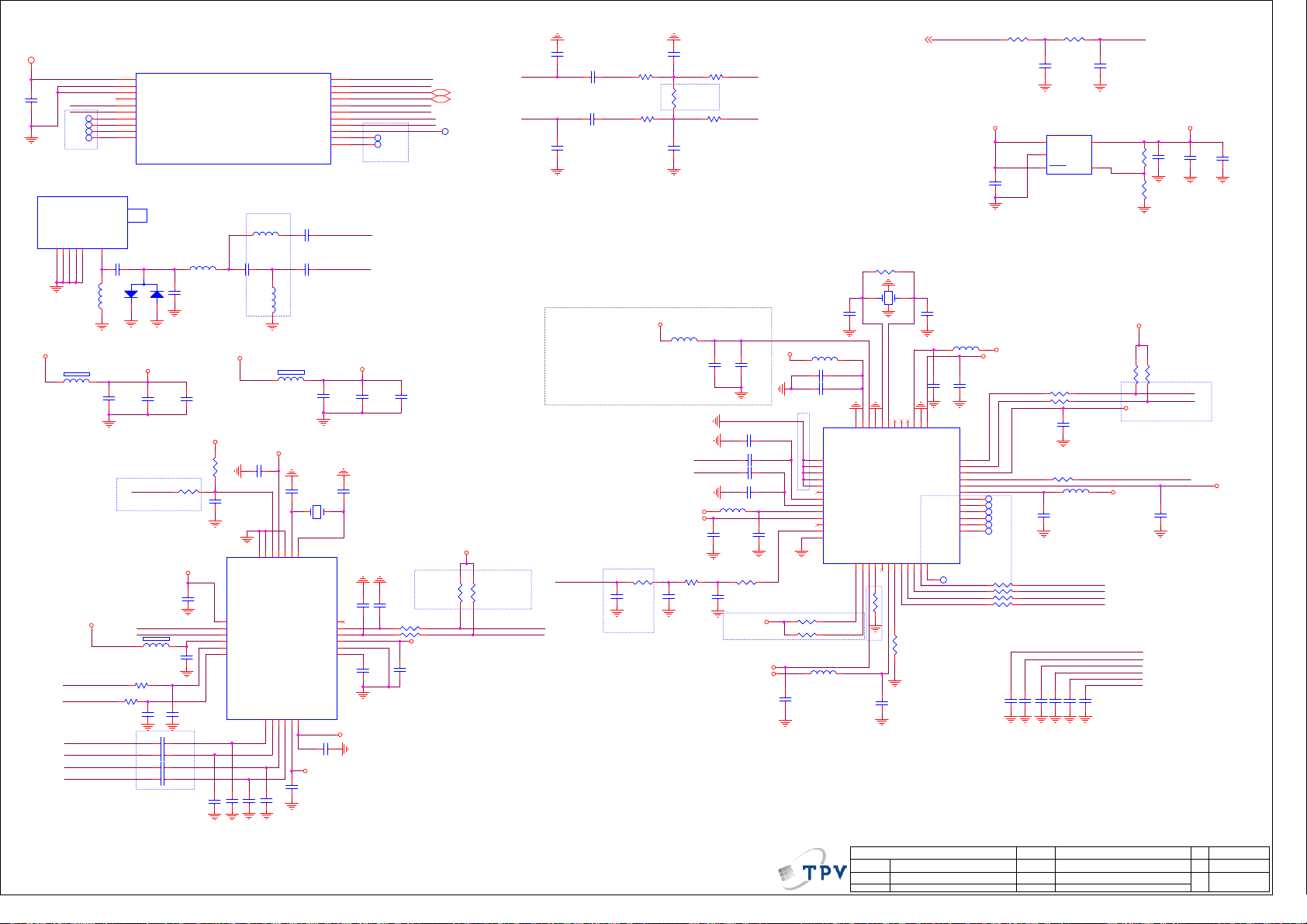

Tuner

DVDD18_OUT

C118

1UF 6.3V

TU3V3

TSI1_SYNC
TSI1_D0

TP408
TP409
TP410
TP411

TU101

RF CONN

6

L103

NC/0.33uH

FB103

1 2

1000

VDD_1V8_SOB

IF_AGC_TUXG

IF_AGC_DM

IFP_SOC
IFN_SOC
IFP_DM
IFN_DM

1
1
1
1

ANT1GND2GND3GND4GND5GND

C127

C138

10UF

100OHM

NC/100OHM

R145

NC/100N 16V

AB8

AF10

W12

AF12
AD10
AC11
AE11
AD12
AC12
AE12

1N 50V

R132

R144

2

C175

MISC Interface of

DVDD1833_LDO_OUT
AVSS_QAM1
AVSS_QAM2
SD_CDZ/GP11_7
SD_PWREN/TSI1_SYNC/GP12_0
SD_CWPR/TSI1_D0/GP12_1
SD_CLK/TSI1_D3/GP12_4
SD_CCMD/TSI1_D4/GP12_5
SD_D3/TSI1_D5/GP12_6
SD_D2/TSI1_D6/GP12_7

8.2NH

D102
BAV99

1

C139

10PF 50V

NC/0R05 OHM

100N 16V

C164

C169

100N 16V

C132

1pF 50V

100N 16V

100K 1/16W

R132

1UF 6.3V

3V3_TUN

12

C176

100N 16V

L102

C140

R131

C160

C182
47pF 50V

3

3V3_TUN

DEMOD_RST

ぃ　ン

SOB_LNA_INP
SOB_LNA_INN

FB104 1000

C1000 100N 16V
C1001 100N 16V
C1002 NC/100N 16V
C1003 NC/100N 16V

U401D

AGC_SEL/JTAG_MUX1/GP10_1

RF_AGC/JTAG_MUXO/GP10_0

HI3751AV500_AFE

C128

5.6PF 50V

TU3V3

3V3_TUN

U407
MxL661-AG-R

1

VDD_3p3

2

LNA_INP

3

LNA_INN

4

VDD_1p8

5

AGC_2/GPO_3

6

AGC_1

C181

C180

NC/47pF 50V

47pF 50V

I2C2_SDA/PWM2/GP10_3

I2C2_SCL/PWM1/GP10_2

QAMAD_VINNI

QAMAD_VINPI
TSI1_VLD/GP13_2
TSI1_CLK/GP13_1

TSI1_D7/GP13_0
SD_D0/TSI1_D2/GP12_3
SD_D1/TSI1_D1/GP12_2

L101

27nH

L104

27nH

L101, L104

FB105

1 2

NC/1000

VDD_1V8_SOB

10NF 50V

C157

20

22

24

23

25

21

AS

E-PAD

XTAL_P

VDD_1p8

RESET_N

GND_XTAL

IF_OUTP_2/GPO_17IF_OUTN_2/GPO_28IF_OUTP_19IF_OUTN_110VDD_3p311VDD_1p8

C179

NC/47pF 50V

C126

1N 50V

C129

1N 50V

C158

2.7pF

1 2

19

XTAL_N

12

C178
100N 16V

SOB_LNA_INP

SOB_LNA_INN

パ

39nHэ　27nH

X102

16MHz

CLK_OUT

SDA

SCL

VDD_IO

GND_DIG

VDD_1p2

C177

1UF 6.3V

3V3_TUN

TUNER_SDA

AE9

TUNER_SCL

AD9

GPIO10_1/JTAG_MUX1

AC8

RF_AGC/JTAG_MUX0

AC9
AH10

IF-

AG10

IF+

AE10
AC10
AF9

1

AF11

1

AD11

+3.3V_ATBM

C172

NC/10UF

C159

2.7pF

C165

C166

30PF

30PF

18
17
16
15
14
13

C171

2.2nF 50V

VDD_1V8_SOB

TSI1_VLD

TSI1_CLK
TSI1_D0+

TP412
TP413

C173

NC/10PF 50V

R142
R143 0R05 OHM

C174

NC/100N 16V

0R05 OHM

3V3_TUN

C170
100N 16V

GPIO10_1/JTAG_MUX1 3,14
RF_AGC/JTAG_MUX0 3

1

TP414

3V3_TUN

R189

4.7K1/16W

R190

4.7K1/16W

TUNER_SDA
TUNER_SCL

IFN_SOC

IFP_SOC

C113
NC/47pF 50V

C117

C119

C120
NC/47pF 50V

IF_AGC_DM

near 3751

100OHM

R117

1UF 6.3V

100OHM

R120

1UF 6.3V

R1003 NC/1K

C1025
NC/100N 16V

+1.1V_ATBM

+3.3V_ATBM
+1.1V_ATBM

R133

C114
33PF 50V

R118

R119
NC/330R 1%

R121

C121
33PF 50V

L114
NC/2.2UH

IFN_DM
IFP_DM

C162
NC/100N 16V

0R05 OHM

R119

0R05 OHM

CAVDD

C143

NC/100N 16V

Pin37~Pin41钡GND,

C142 NC/22P 50V

C149 NC/100N 16V
C151 NC/100N 16V

C152 NC/22P 50V

L108

C155
NC/100N 16V

NC/200R

R134 NC/10K
C163

NC/100N 16V

+3.3V_ATBM

IF-

ぃ　ン

IF+

C133

NC/10NF 50V

NC/2.2UH

+1.1V_ATBM
+3.3V_ATBM

+3.3V_ATBM

L105 NC/2.2UH

C134 NC/100N 16V
C135 NC/10NF 50V

糤　床荐

.

C156
NC/100N 16V

R1001 NC/4.7K1/16W
R1002 NC/4.7K1/16W

L109 NC/2.2UH

C167
NC/100N 16V

C130

NC/8.2pF 50V

37

NC

38

NC

39

IFBP

40

IFBN

41

NC

42

CLK_IO

43

IFAP

44

IFAN

45

VDD33

46

CVDD

47

PWM1/GPIO2

48

PWM0/GPIO3

49

E-PAD

R124
NC/1 MOHM 1% 1/16W

X101

NC/24MHZ

1

3

2 4

31

33

34

32

NC

ADDR

XTAL0

U406

NC/ATBM8880

R1000 NC/0R05 OHM

30

28

NC29NC

XTALI

TEST/GPIO1

R141
NC/1K

C168
NC/100N 16V

27

35

36

GND

AVDD33

SDAM1SCLM2CVDD3TEST04I2CINT/GPIO45VDD336STATUS7TSSYNC8TSVLID9TSCLK10TS011TS1

+3.3V_ATBM

C125
NC/1UF 6.3V

10K
R115

RF_AGC/JTAG_MUX0

Vout=0.8x (1+4.3K/11K) = 1.113V

C131
NC/8.2pF 50V

L106
NC/2.2UH

+3.3V_ATBM

+1.1V_ATBM

C137

26

TEST1

VDD33

C136
NC/100N 16V

25

CVDD

SDAS
SCLS

CVDD

RESETN

CVDD

VDD33

12

1

TS7
TS6
TS5
TS4
TS3
TS2

TP100

DEM_SDA

NC/100N 16V

24
23
22
21
20
19

1

18

TP106

1

17

TP105

1

16

TP104

1

15

TP103

1

14

TP102

1

13

TP101

R135 NC/22 OHM 1/16W
R136 NC/22 OHM 1/16W
R137 NC/22 OHM 1/16W
R138 NC/22 OHM 1/16W

DTMB Demo

C104

NC/10PF

0R05 OHM

R116

C115
47NF 16V

U405

1

IN

OUT

2

GND
SHDN3SET

NC/G9141T11U

NC/0R05 OHM

R127
R128 NC/0R05 OHM

C141
NC/100N 16V

R130

NC/0R05 OHM

L107 NC/2.2UH

C153
NC/100N 16V

TSI1_D0
TSI1_CLK

TSI1_VLD
TSI1_SYNC

C145

C144

C106

C105

NC/10PF

NC/10PF

NC/10PF

NC/10PF

IF_AGC_TUXG

5

4

NC/4.7K1/16W

DEM_SDA
DEM_SCL

TSI1_D0
TSI1_CLK

TSI1_VLD
TSI1_SYNC

C146

NC/10PF

C116
47NF 16V

R122

NC/4.3K 1%

R123

NC/11K 1%

R125

+3.3V_ATBM

+3.3V_ATBM

+1.1V_ATBM

DEMOD_RST

C122

NC/1UF 6.3V

R126
NC/4.7K1/16W

TUNER_SDA
TUNER_SCLDEM_SCL

C154
NC/100N 16V

+1.1V_ATBM

C123

NC/10UF

C124

NC/100N 16V

+1.1V_ATBM

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

Custom

Size

Custom

Size

Custom

Rev

Rev

Rev

称爹

称爹

15

15

15

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

称爹

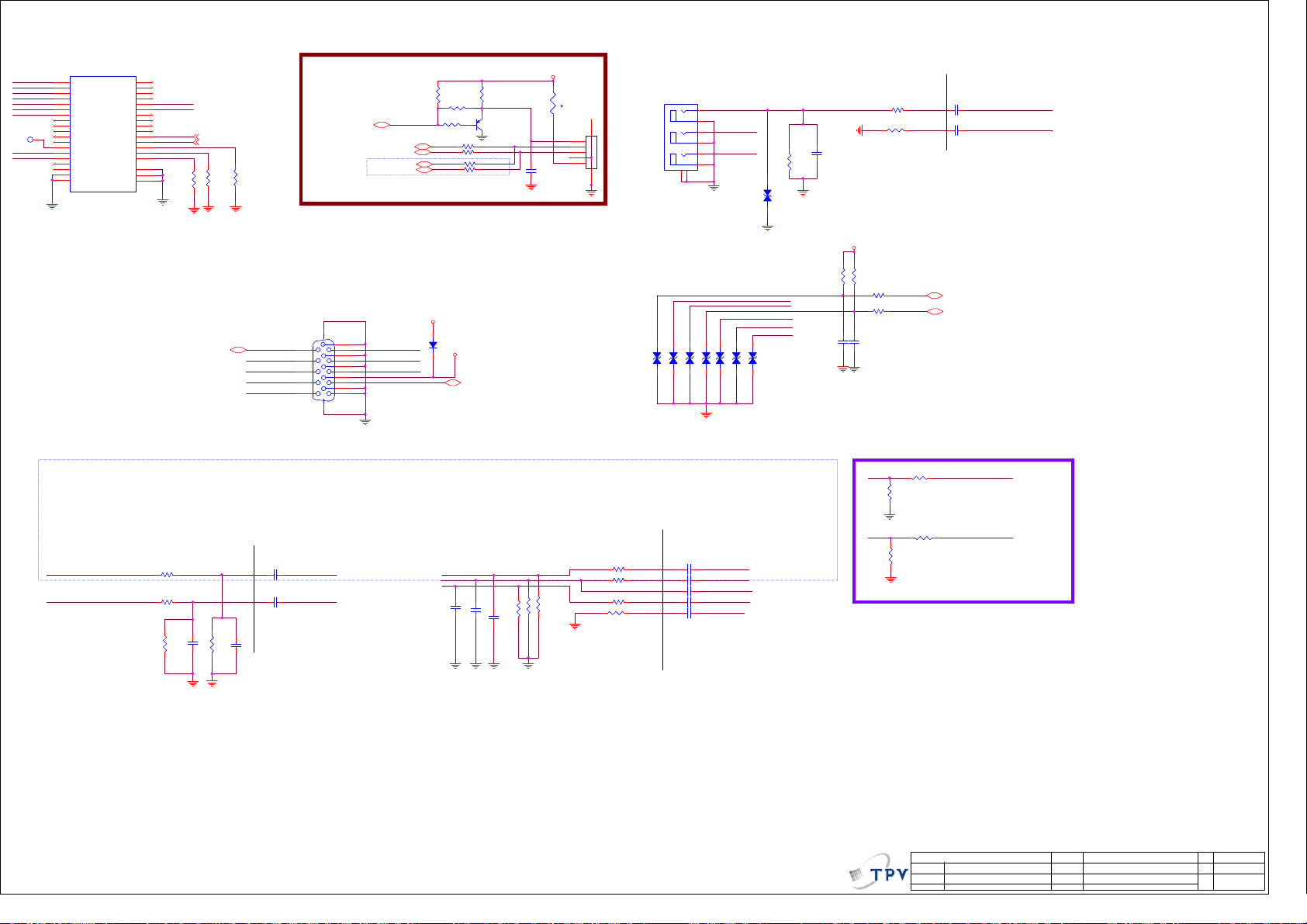

MIC & YPBPR & AV IN & CVBS OUT

MISC Interface of

U401C

VGA_SINCIN
VGA_GN
VGA_BP
VGA_GP
VGA_RP
VGA_HSYNC
VGA_VSYNC

TP415

CVBS_VCOM
CVBS0_IN

HI3751AV500_AFE

N3

SOG

M3

VGA_GN

L2

VGA_BP

M2

VGA_GP

N2

VGA_RP

M4

VGA_HS0

L1

VGA_VS0

N1

Y0N

R3

SOY0

P1

PB0Y

P3

1

Y0P

P2

PROY

T5

VDAC1_OUT

T4

CVBS_COM

R2

CVBS0

R4

CVBS1

R5

CVBS2

T6

VSS2

M5

VSS1

LINEIN_R3
LINEIN_L3
LINEIN_R2
LINEIN_L2
LINEIN_R1
LINEIN_L1

LINEOUT_R3

LINEOUT_L3

LINEOUT_R2

LINEOUT_L2
LINEOUT_L1

LINEOUT_R1

MIC_P

MIC_N

BG_RES_10K

AVSS_AFE3
AVSS_AFE2
AVSS_AFE1

AG6
AF6
AG5
AH6

LINEIN_R1

AG7

LINEIN_L1

AF7
AD8
AD7
AE8
AF8

LINEOUT_L1

AE6

LINEOUT_R1

AE5
AH8
AG8
R6

P5
P4

R154

N4

10K 1%

UART1_RXD_IN6,20

盢

TXDэ　RXD

R1005

10K 1%

R1006

10K 1%

UART1_RXD_IN

VGA_SDA
VGA_HS
VGA_VS

VGA_SCL

ITV Port

Debug
NC R4155 , R4156
ADD R496 , R497 ,
R501 , R502

VGA

1716

CN106

6
1

11

7
2

12

8
3

13

9
4

14

10
5

15

CONN

IRIN6,11

UART2_RXD_IN11

UART2_TXD_IN11

UART1_RXD_IN6,20

UART1_TXD_IN6,20

盢

RXDэ　TXD

IRIN

VGA_R_P
VGA_G_P
VGA_B_P

UART1_TXD_IN

NC/100R 1/16W 5%

R489
100OHM

5V0

BAS316WS
D101

R486
NC/10K

R488

R490
R491

R4124
R4123

VGA_5V

UART1_TXD_IN 6,20

R487

10K

RC_IR_OUT

MMBT3906
Q410

NC/100OHM
NC/100OHM

100OHM
100OHM

5V_SB

C467

NC/100P 50V

12

TH104
PTCR

t

CN109

CONN

67

1
2
3
4
5

YPBPR0/CVBS1

CN104
RCA JACK

YPBPR0_Y_P_IN

2

A

1

VGA_AUIN_L

4

B

3

VGA_AUIN_R

6

C

5

7

8

ZD103

1 2

VGA_SCL
VGA_VS
VGA_HS
VGA_SDA

VGA_R_P
VGA_G_P

12

ZD109NC/MLVG0402

ZD112

ZD111

ZD110

NC/MLVG0402

NC/MLVG0402

NC/MLVG0402

12

12

12

VGA_B_P

12

12

12

ZD113

ZD114

ZD115

NC/MLVG0402

NC/MLVG0402

NC/MLVG0402

NC/VPORT0603100KV05

Close to RCA port

C184

R146

NC/47pF

75R 1/16W 1%

R158

4.7K1/16W

C468 NC/100pF 50V

R153 33R 1/16W 5%

VGA_5V

R157

4.7K1/16W

R433

R434

C469 150pF 50V

R147

33R 1/16W 5%

100OHM

100OHM

Close to HI3751

C183
47NF 16V

C190
47NF 16V

VGA_DDC_SCL 11

VGA_DDC_SDA 11

CVBS0_IN

CVBS_VCOM

VGA/YPBPR0 Audio IN

VGA_AUIN_R

R160 10K

R161

R166

NC/470P 50V

12K 1/16W

10K

R167

C1006

12K 1/16W

C1008

NC/470P 50V

Close to HI3751

LINEIN_R1

C196
1UF 6.3V

LINEIN_L1VGA_AUIN_L

C197
1UF 6.3V

VGA_R_P
VGA_G_P
VGA_B_P

C1009

NC/10PF 50V

C1010

NC/10PF 50V

C1012

NC/10PF 50V

Nearby VGA PORT

R16875R 1/16W 1%

R17075R 1/16W 1%

R171

75R 1/16W 1%

R163
R165

R169

0R05 OHM
0R05 OHM

0R05 OHM

0R05 OHM
R172

Close to HI3751

47NF 16V

47NF 16V

VGA_RP
VGA_GP
VGA_SINCIN

VGA_BP
VGA_GN

C198
C199 47NF 16V
C1005 2.2nF 50V
C1007 47NF 16V

C1011

R164

2.2K 1/16W

R174

2.2K 1/16W

R162 33 OHM 1/16W

R173 33 OHM 1/16W

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

VGA_HSYNCVGA_HS

VGA_VSYNCVGA_VS

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

16

16

16

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

Size

A2

Size

A2

Size

A2

Rev

Rev

Rev

称爹

称爹

称爹

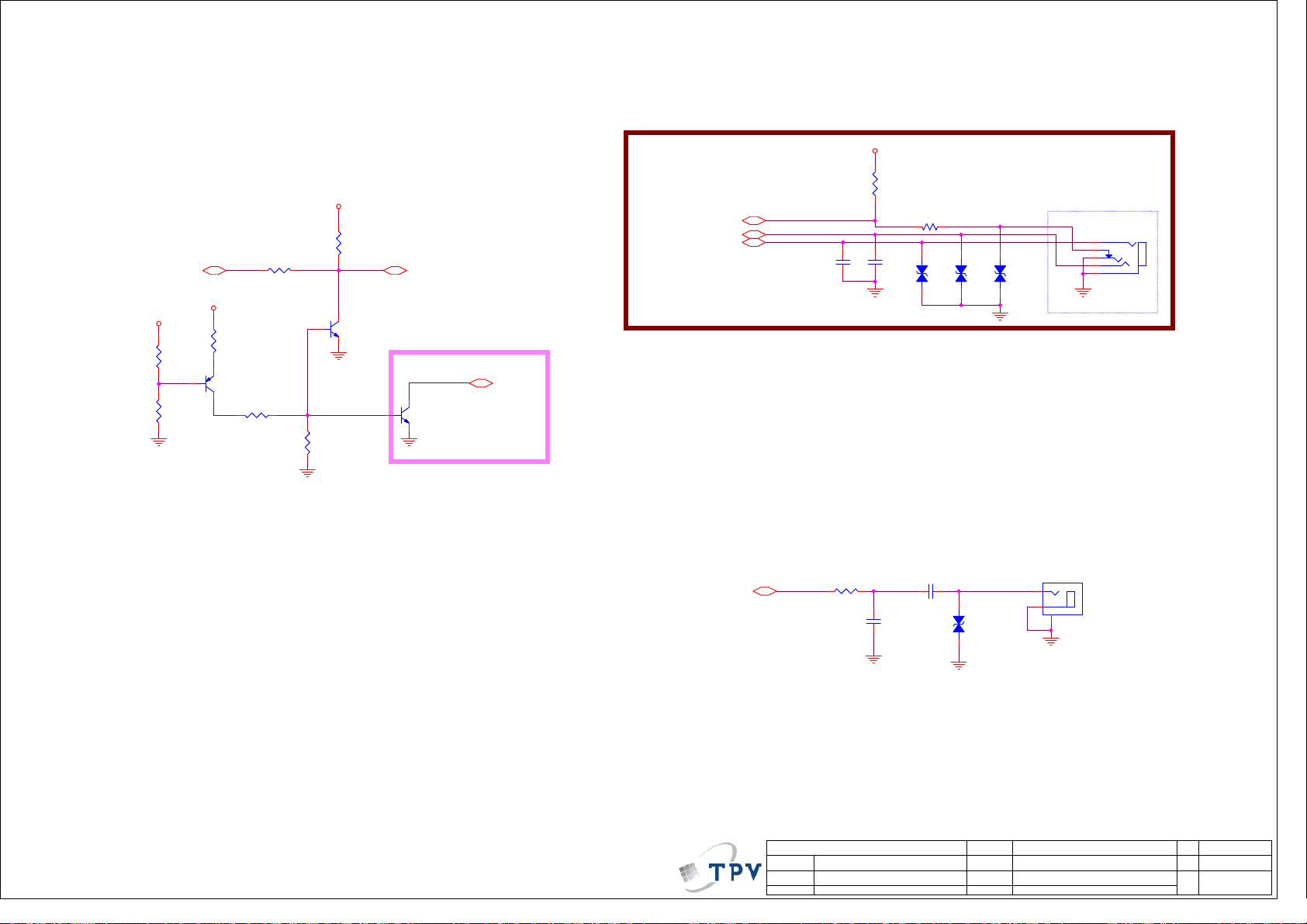

Audio Output

AMP_12V

R618

R1

301K 1%

R613

100K 1/16W

MUTE Circuit

AMPVCC=12V,R1=301K
Q1 OFF :Normal
Q1 ON :Mute

3V3_SB

R614

R619
10K

10K

Q601
MMBT3904

HP_PDN

Q603
NC/MMBT3904

R612

AMP_MUTE11 AMP_MUTE_OUT2 18

3V3

R617
1K

33 OHM 1/16W

Q1

Q602

MMBT3906

R615 1K

HP_PDN 18

3V3

R621
NC/10K

EAR_DET11

AUDIO_OUT_L118

AUDIO_OUT_R118

EAR_DET
AUDIO_OUT_L1

AUDIO_OUT_R1

C613

NC/100N 16V

C615

NC/100N 16V

R622

NC/100OHM

12

ZD604

NC/MLVG0402

12

ZD602

NC/MLVG0402

12

ZD603

NC/MLVG0402

CN603

3
5
4
2
1

NC/PHONE JACK

Coaxial

R616

SPDIF_OUT11

SPDIF_OUT

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

33 OHM 1/16W

C614

NC/100pF 50V

100N 16V

C612

12

ZD601
NC/MLVG0402

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

CN601

2

A

1

RCA JACK

3

388G078G111ACL

17

17

17

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

Size

Size

Size
Rev

Rev

Rev

称爹

称爹

称爹

A3

A3

A3

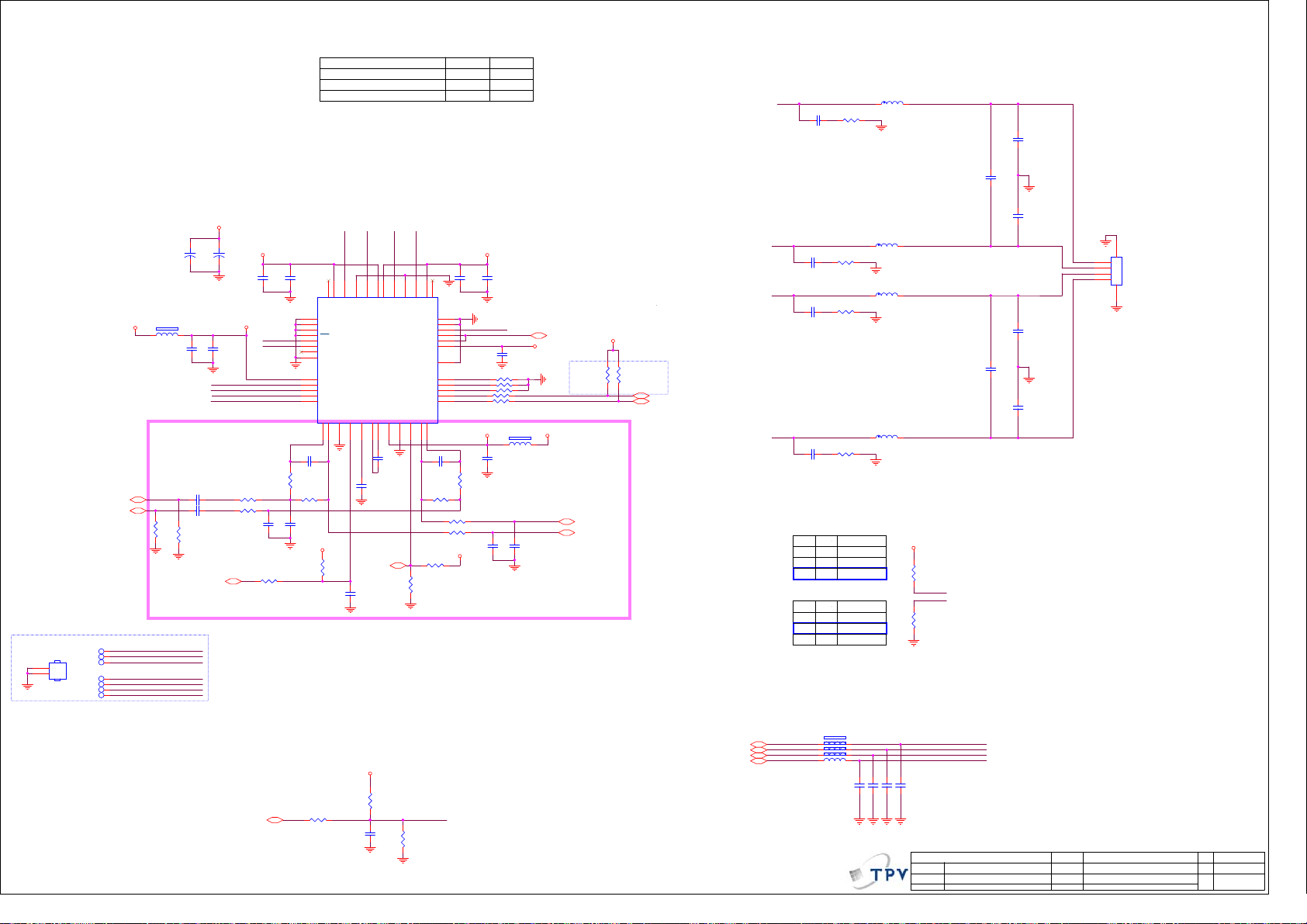

AMP

2.0 CH -> use 356G061613300A AD82588

2.1 CH -> use 056G 616X02 AD83586

AMP_12V

C646

C627

+

+

100UF 35V

100UF 35V

AMP_3V3

C636
10UF

I2S1_DOUT_P
I2S1_WS_P
I2S1_BCLK_P
I2S1_MCLK/BOOT_SEL0_P

R601 NC/20K 1/16W 5%
R602 NC/20K 1/16W 5%

HP_EN11

HS601
HEAT SINK

1
2

TP602
TP603
TP604

TP605
TP606
TP607
TP608

LINEOUT_R116
LINEOUT_L116

1
1
1

1
1
1
1

3V3

FB603

1 2

120R

R633
NC/470KOHM 5% 1/16W

I2S1_BCLK_P
I2S1_WS_P
I2S1_DOUT_P

LS_ADC3/STB_GPIO1_1
AMP_MUTE_OUT2
I2C0_SCL
I2C0_SDA

C635

100N 16V

C601 NC/2.2uF 6.3V
C602 NC/2.2uF 6.3V

R634
NC/470KOHM 5% 1/16W

AMP_12V

C630

C629

0.1uF 25V

0.1uF 25V

CFG0
CFG1

R603
NC/5K1

C605

C604

NC/680PF

NC/680PF

R605 NC/33 OHM 1/16W

AMP VCC

10uH -> 073G253S 81 Y
22uH -> 373G253S193D00
47uH -> 373G253S173Y00

RB

LB

LA

42

45

41

43

47

44

46

48

LB

LA

NC

GNDL

VDDLB

VDDLA

49

THERMALPAD

1

SDATA1

2

MS

3

PLL

4

CFG0

5

CFG1

6

CLK_OUT

7

DGND

8

DVDD

9

SDATA0

10

LRCIN

11

BCLK

12

MCLK

RINN13OUTR14VSS15EN16PVSS17CN18CP19PVDD20PGND21UVP22OUTL23LINN

C603
NC/47pF 50V

R604

NC/75K

HP_3V3

R620
NC/10K

VDDRB

U601

AD87588-LG48NAY

C607

NC/100N 16V

C606

NC/100N 16V

HP_PDN17

C608
NC/100N16V

40

RB

GNDR

RA

38

39

37

RA

NC

VDDRA

36

LINEIN

35

LREX

34

RESET#

33

ERROR#

32

PD#

31

DVDD

30

DGND

29

DEF

28

SA1

27

SA0

26

SCL

25

SDA

24

C609
NC/47pF 50V

R607

NC/75K

R608 NC/560R 1/16W 5%
R609 NC/560R 1/16W 5%

HP_3V3

R610

NC/1K

R611
NC/1K

16 ohmSpeaker

330nF/50VC604/C607/C613/C619/C622/C629

AMP_DEF
AMP_SA1
AMP_SA0
A_SCL
A_SDA

24V

47uHL601/L602/L603/L604/L605/L606

C631

0.1uF 25V

R606
NC/5K1

24V

8 ohm

680nF/50V

22uH

AMP_12V

C632

0.1uF 25V

060306030603 0603

AMP_RSTN_IN
AMP_MUTE_OUT2

R628

R629 10K
R630 10K
R631 33 OHM 1/16W
R632 33 OHM 1/16W

HP_3V3

1 2

C610

NC/100N 16V

C611
NC/1N 50V

C639
100N 16V

10K

FB601

NC/120R

AUDIO_OUT_L1

AUDIO_OUT_R1

C616
NC/1N 50V

AMP_MUTE_OUT2 17

AMP_3V3

3V3

AMP_3V3

R647

4.7K1/16W

AUDIO_OUT_L1 17
AUDIO_OUT_R1 17

穝糤

R648

4.7K1/16W

R647,R648

I2C0_SCL 11
I2C0_SDA 11

LB

RA

RB

LA

C622

470P 50V

C624

470P 50V

0603

C633

470P 50V

0603

AD83586

CFG0

X

AD82588

CFG0

1

0

1

C619

470P 50V

0603

CFG1

CFG1

00

0

1

1

1

0

R623

10 OHM 1/4W

1206

R624

10 OHM 1/4W

12060603

R625

10 OHM 1/4W

1206

R626

10 OHM 1/4W

1206

Mode

Mono

Stereo1

2.1 Channel

Mode

Mono

Stereo

2.1 Channel

L601
22uH

0805

C620
330nF

0805

C621

330nF

0805

C623
330nF

L602
22uH

L603
22uH

0805

C625
330nF

0805

C628

330nF

0805

C634
330nF

L604
22uH

AMP_3V3

R640
1K

CFG1
CFG0

R646
1K

Speaker
Output

CN602

4

L+
L­R+
R-

L+

3

L-

2

R+

1

R-

5 6

CONN

4Pin R/A 2.0mm
311GW200A04ABX

L
R

1 2
1 2
1 2
1 2

120R

120R

C651

NC/22P 50V

I2S_BCLK

I2S_BCLK11
I2S_MCLK11
I2S_DOUT11

3V3

R637
NC/1M 1/16W

LS_ADC3/STB_GPIO1_111

R643 33 OHM 1/16W

C650

0.1uF 25V

0603

AMP_RSTN_IN

R644
10K

I2S_WS11

FB605

I2S_MCLK

FB606

I2S_DOUT

FB607 120R

I2S_WS

FB608 120R

C652

NC/22P 50V

I2S1_BCLK_P
I2S1_MCLK/BOOT_SEL0_P
I2S1_DOUT_P
I2S1_WS_P

C654

C653NC/22P 50V

NC/22P 50V

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A2

Size

A2

Size

A2

Rev

Rev

Rev

称爹

称爹

18

18

18

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

称爹

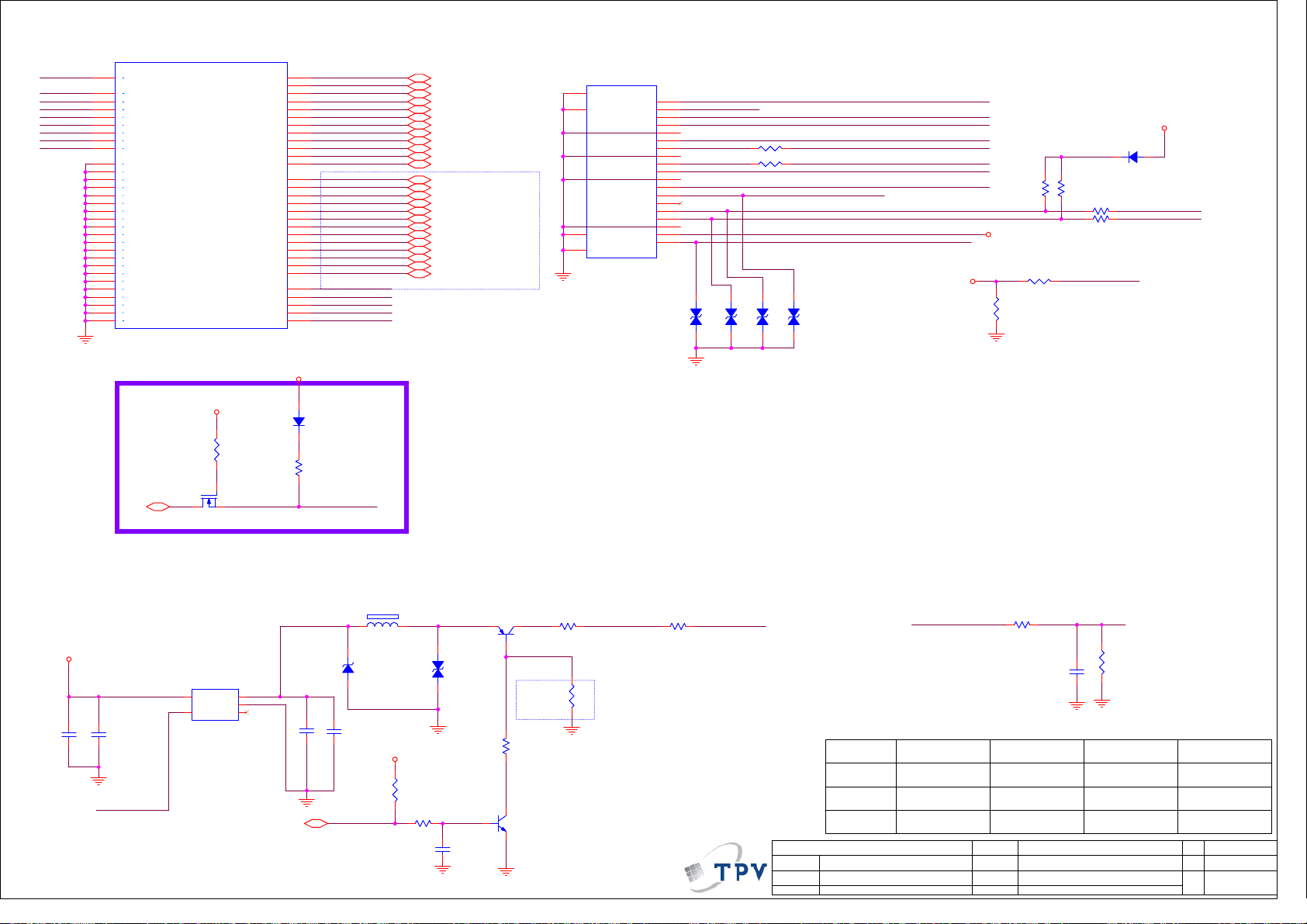

HDMI0 & MHL

HDMI_CEC HDMI_R2XCP
HDMI_R0XCP
HDMI_R0X0P

HDMI_R0X0N
HDMI_R0X1P
HDMI_R0X1N
HDMI_R0X2P
HDMI_R0X2N

U5

HDMI_CEC/SGP2_6

AE2

HDMI_R0XCP

AE1

HDMI_R0XCN

AF4

HDMI_R0X0P

AF3

HDMI_R0X0N

AG2

HDMI_R0X1P

AG1

HDMI_R0X1N

AH4

HDMI_R0X2P

AH3

HDMI_R0X2N

U3

AVSS_HDMIRX1

U4

AVSS_HDMIRX2

V5

AVSS_HDMIRX3

W3

AVSS_HDMIRX4

W4

AVSS_HDMIRX5

Y5

AVSS_HDMIRX6

AA3

AVSS_HDMIRX7

AA4

AVSS_HDMIRX8

AB5

AVSS_HDMIRX9

AC3

AVSS_HDMIRX10

AC4

AVSS_HDMIRX11

AD5

AVSS_HDMIRX12

AE3

AVSS_HDMIRX13

AE4

AVSS_HDMIRX14

AF5

AVSS_HDMIRX15

AG3

AVSS_HDMIRX16

AG4

AVSS_HDMIRX17

AH1

AVSS_HDMIRX18

AH2

AVSS_HDMIRX19

AH5

AVSS_HDMIRX20

F12

AGND_HDMI_VBUS

U401B

HI3751AV500_AFE

HDMI_R2XCP
HDMI_R2XCN

HDMI_R2X0P

HDMI_R2X0N

HDMI_R2X1P

HDMI_R2X1N

HDMI_R2X2P

HDMI_R2X2N

HDMI2_SDA/SGP2_4

HDMI2_SCL/SGP2_5
HDMI2_DET/SGP1_5
HDMI2_HTP/SGP1_7

HDMI_R1XCP
HDMI_R1XCN

HDMI_R1X0P

HDMI_R1X0N

HDMI_R1X1P

HDMI_R1X1N

HDMI_R1X2P

HDMI_R1X2N

HDMI1_SDA/SGP2_2

HDMI1_SCL/SGP2_3
HDMI1_DET/SGP1_4
HDMI1_HTP/SGP1_6

MISC Interface of

MHL_CD_SENSE/SGP1_2

HDMI0_DET/SGP1_3
HDMI0_SCL/SGP2_1

HDMI0_SDA/SGP2_0

ARC_PAD

CBUS_PAD

U2
U1
V4
V3
W2
W1
Y4
Y3
Y7
U6
V7
W6

AA2
AA1
AB4
AB3
AC2
AC1
AD4
AD3
W5
AA6
Y6
V6
AC7

AA5
AB6
AD6
AC6
AC5

HDMI_R2XCN
HDMI_R2X0P
HDMI_R2X0NHDMI_R0XCN
HDMI_R2X1P
HDMI_R2X1N
HDMI_R2X2P
HDMI_R2X2N
HDMI2_SDA
HDMI2_SCL
HDMI2_DET
HDMI2_HOTPLUG

HDMI_R1XCP
HDMI_R1XCN
HDMI_R1X0P
HDMI_R1X0N
HDMI_R1X1P
HDMI_R1X1N
HDMI_R1X2P
HDMI_R1X2N
HDMI1_SDA
HDMI1_SCL
HDMI1_DET
HDMI1_HOTPLUG

ARC_PAD

MHL_CD_SENSE

HDMI0_DET
HDMI0_SCL
HDMI0_SDA
CBUS_PAD

HDMI_R2XCP 20
HDMI_R2XCN 20
HDMI_R2X0P 20
HDMI_R2X0N 20
HDMI_R2X1P 20
HDMI_R2X1N 20
HDMI_R2X2P 20
HDMI_R2X2N 20
HDMI2_SDA 20
HDMI2_SCL 20
HDMI2_DET 20
HDMI2_HOTPLUG 20

HDMI_R1XCP 20
HDMI_R1XCN 20
HDMI_R1X0P 20
HDMI_R1X0N 20
HDMI_R1X1P 20
HDMI_R1X1N 20
HDMI_R1X2P 20
HDMI_R1X2N 20
HDMI1_SDA 20
HDMI1_SCL 20
HDMI1_DET 20
HDMI1_HOTPLUG 20
ARC_PAD 20

穝糤

HDMI port 1 for OTS

诀贺

HDMI0 (Side)/(MHL 2.0)

CN501

20
22

23
21

SHLD0
SHLD2

SHLD3
SHLD1

HDMI 19P

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+

CSHLD0
TMDSC-

CEC

SCL

SDA

DDC_GND

VCC5

HPD

NC

1

MHL_CD_SENSE_1

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

ZD501

NC/MLVG0402

ZD502

NC/MLVG0402

1 2

R598 0R05 OHM
R599 0R05 OHM

ZD504

ZD503

NC/MLVG0402

1 2

1 2

NC/MLVG0402

1 2

CEC

DDC0B_SCL
DDC0B_SDA

HDMI0_HTP_CBUS

VBUS_HDMI0_5V

HDMI_R0X2P
HDMI_R0X2N

HDMI_R0X1P
HDMI_R0X1N

HDMI_R0X0P
HDMI_R0X0N

HDMI_R0XCP
HDMI_R0XCN

VBUS_HDMI0_5V

R509

10K

VBUS_HDMI0_5V

R513

R514

1K

10K

HDMI0_DDC_5V

R510

10K

R511
R512

HDMI0_DET

D501

BAS316WS

100OHM
100OHM

5V_SB

HDMI0_SCL
HDMI0_SDA

Connect ditectly defaultly

100R 1/16W 1%

CEC20

5V0

C504

C505

1UF 6.3V

100N 16V

MHL_CD_SENSE_1

Imax = 39/(36+3) = 1A

5V_SB

R500

U503
STMPS2171STR

5

IN

4

FAULT

EN

Q512

2N7002K

OUT
GND

3V3_SB

D502

BAS316

R515

27K 1/16W 1%

HDMI_CEC

MHL 2.0 Switch Circuit

FB501

3V3_SB

R523

4.7K1/16W

R524

VBUS_HDMI0_5V

1 2

1K

1 2

120R

ZD507
RLZ5.6B

C502

10uF 16V

1 2

C503
100N 16V

STB_GPIO0_1

1
2
3

STB_GPIO0_111

ZD506
NC/MLVG0402

C506
1UF 6.3V

Q501
MMBT3906

穝糤

R521

4.7K1/16W

Q502
MMBT3904

1K

R7023
NC/4.7K1/16W

R7023

R517

HDMI0_HTP_CBUS CBUS_PAD

0R05 OHM

R518

MHL MODE
HDMI MODE
No Sourece

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

MHL_CD_SENSE_1 MHL_CD_SENSE

HH
L
L

R519

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

180K

100N 16V

OFF
ON
ON

19

19

19

R520

C501

301K 1%

QH5CD SENSE

output control

HDMI0_DETQH4

input detectinput detect output control

OFF

Size

Size

Size
Rev

Rev

Rev

称爹

称爹

称爹

H
L

A3

A3

A3

ON
ON

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

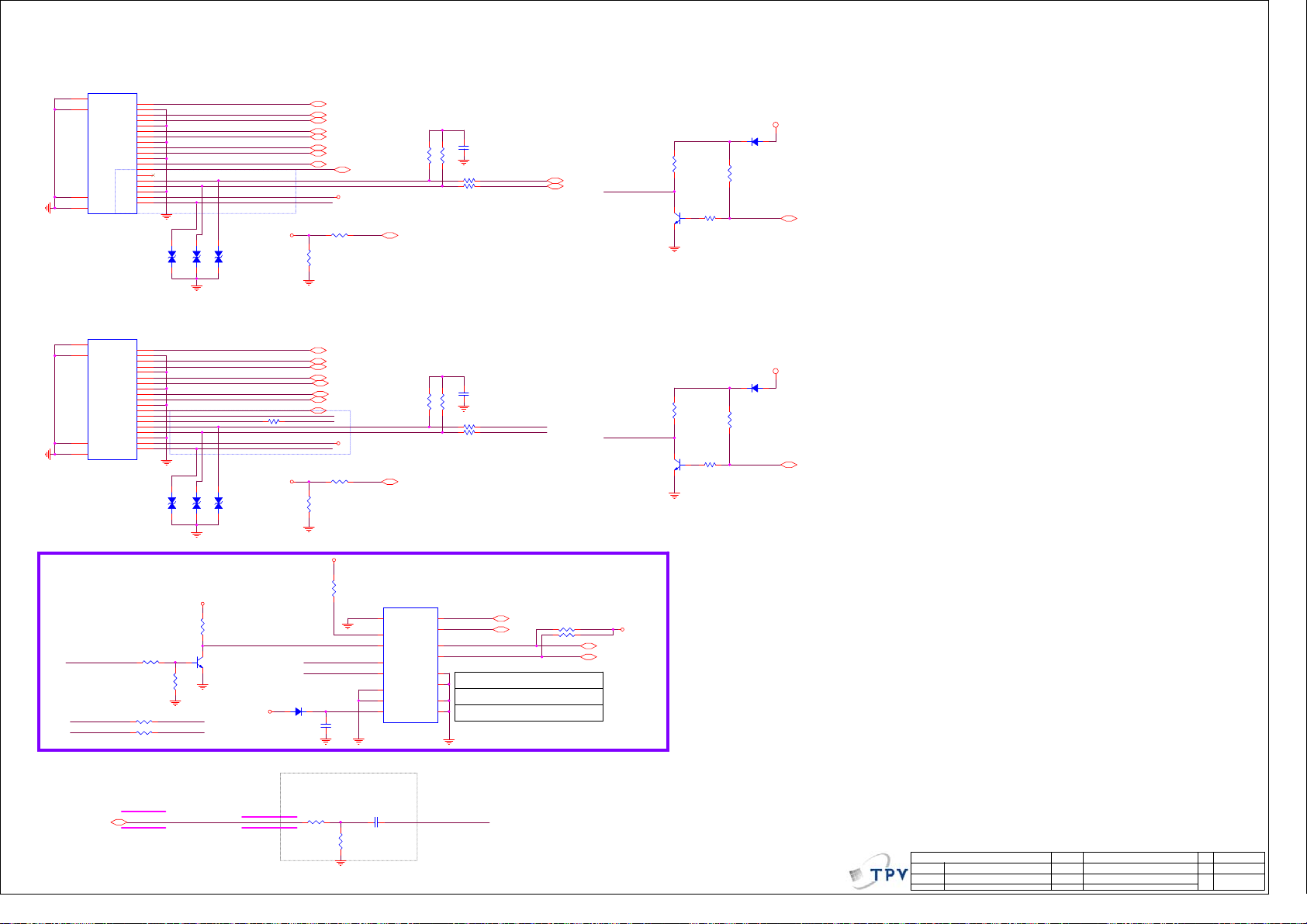

HDMI1 & HDMI2 (HDMI 2.0 / ARC)

HDMI1 (HDMI 1.4a) ; Co-layout with ITV connector

CN503

20
22

23
21

SHLD0
SHLD2

SHLD3
SHLD1

NC/HDMI 19P

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+
CSHLD0

TMDSC-

DDC_GND

VCC5

1
2
3
4
5
6
7
8
9
10
11
12
13

CEC

14

NC

15

SCL

16

SDA

17
18
19

HPD

ZD513

NC/MLVG0402

ZD514

NC/MLVG0402

1 2

CEC

1 2

ZD515

NC/MLVG0402

1 2

HDMI1-HOTPLUG

HDMI1_5V

HDMI_R1X2P
HDMI_R1X2N

HDMI_R1X1P
HDMI_R1X1N

HDMI_R1X0P
HDMI_R1X0N

HDMI_R1XCP
HDMI_R1XCN

R559

NC/10K

HDMI_R1X2P 19
HDMI_R1X2N 19

HDMI_R1X1P 19
HDMI_R1X1N 19

HDMI_R1X0P 19
HDMI_R1X0N 19

HDMI_R1XCP 19
HDMI_R1XCN 19

CEC 19

HDMI1_5V

R558

HDMI1_DET

NC/1K

DDC1B_SCL
DDC1B_SDA

HDMI1_DET 19

HDMI2 (HDMI 2.0 / ARC and HDMI debug-programing)

CN504

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

HDMI 19P

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+
CSHLD0

TMDSC-

DDC_GND

VCC5

1
2
3
4
5
6
7
8
9
10
11
12
13

CEC

14

NC

15

SCL

16

SDA

17
18
19

HPD

ZD516

NC/MLVG0402

ZD517

NC/MLVG0402

1 2

CEC

1 2

ZD518

NC/MLVG0402

1 2

R583

0R05 OHM

HDMI2-HOTPLUG

HDMI2_5V

HDMI_R2X2P
HDMI_R2X2N

HDMI_R2X1P
HDMI_R2X1N

HDMI_R2X0P
HDMI_R2X0N

HDMI_R2XCP
HDMI_R2XCN

UART_SEL

R597

10K

HDMI_R2X2P 19
HDMI_R2X2N 19

HDMI_R2X1P 19
HDMI_R2X1N 19

HDMI_R2X0P 19
HDMI_R2X0N 19

HDMI_R2XCP 19
HDMI_R2XCN 19

HDMI2_5V

R596

HDMI2_DET

1K

DDC2B_SCL
DDC2B_SDA

HDMI2_DET 19

HDMI1_5V0

NC/10K
R553

R552

R556
R557

HDMI2_5V0

10K

R589

R590

R593
R594

5V_SB

Q504

NC/MMBT3904

Q511

MMBT3904

HDMI1_5V0

R543

NC/1K

NC/4.7K1/16W

HDMI2_5V0

R591

1K

4.7K1/16W

C509
NC/100N 16V

NC/10K

HDMI1_SCL

NC/100OHM

HDMI1_SDA

NC/100OHM

10K

C511
100N 16V

HDMI2-SCL/RX

100OHM

HDMI2-SDA/TX

100OHM

HDMI1_SCL 19
HDMI1_SDA 19

HDMI1-HOTPLUG

HDMI2-HOTPLUG

R554

R595

NC/BAS316WS
D504

R545

NC/10K

HDMI1_HOTPLUG

BAS316WS
D511

R592

10K

HDMI2_HOTPLUG

HDMI1_HOTPLUG 19

5V_SB

HDMI2_HOTPLUG 19

Factory UART & I2C Switch IC

to HDMI Pin-14 for ARC

UART_SEL

NC/40.2K 1/16W 1%

HDMI2-SCL/RX

R581

0R05 1/16W

HDMI2-SDA/TX

R587

0R05 1/16W

R585

NC/60.4K 1%

5V_SB

R588
NC/10K +-1% 1/16W

Q510

HDMI2_SCL
HDMI2_SDA

NC/LMBT3904LT1G

R580

HDMI ARC Function

ARC_PAD19

Grounding

HDMI ARC
DC voltage level = 4V
Signal voltage p-p = 500 mV +-100mV
(Test need add 55 ohm terminal resistor to GND)
Tr,Tf <= 60 ns

5V_SB

Grounding

D510

NC/BAS316

For ARC

HDMI2-SCL/RX
HDMI2-SDA/TX

R538
0R05 OHM

5V_SB

C510

NC/100NF 16V

R582

NC/10K +-1% 1/16W

S1

S0

R577
NC

U510

6

/E

9

S1

10

S0

3

2Z

13

1Z

8

GND

7

VEE

16

VCC

C508
1UF 10% 16V

2Y3
1Y3

2Y2
1Y2

2Y1
1Y1

2Y0
1Y0

NC/74HC4052PW

4
11

2
15

5
14

1
12

HDMI2_SCL
HDMI2_SDA

UART1_RXD_IN
UART1_TXD_IN

HDMI
pin14

NC/ARC

+12V

UART_SEL

HDMI2_SCL 19
HDMI2_SDA 19

S1

S0

H

H

LH

R586 10K +-1% 1/16W
R584 10K +-1% 1/16W

UART1_RXD_IN 6,16
UART1_TXD_IN 6,16

CHANNEL

HDMI function

Debug mode

5V_SB

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL
PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

Size

A2

Size

A2

Size

A2

Rev

Rev

Rev

称爹

称爹

20

20

20

of

of

of

21Thursday, October 08, 2015

21Thursday, October 08, 2015

21Thursday, October 08, 2015

称爹
