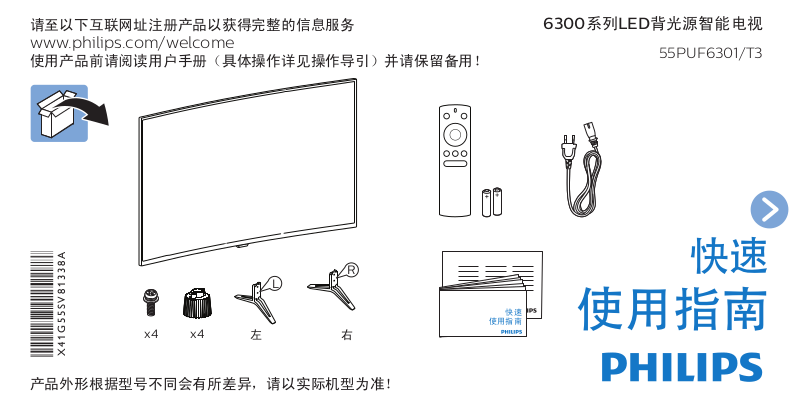

请至以下互联网址注册产品以获得完整的信息服务

www.philips.com/welcome

使用产品前请阅读用户手册（具体操作详见操作导引）并请保留备用！

6300系列LED背光源智能电视

55PUF6301/T3

R

L

x4 x4

X41G55SV81338A

产品外形根据型号不同会有所差异，请以实际机型为准！

左 右

快速

使用指南

快速

使用指南

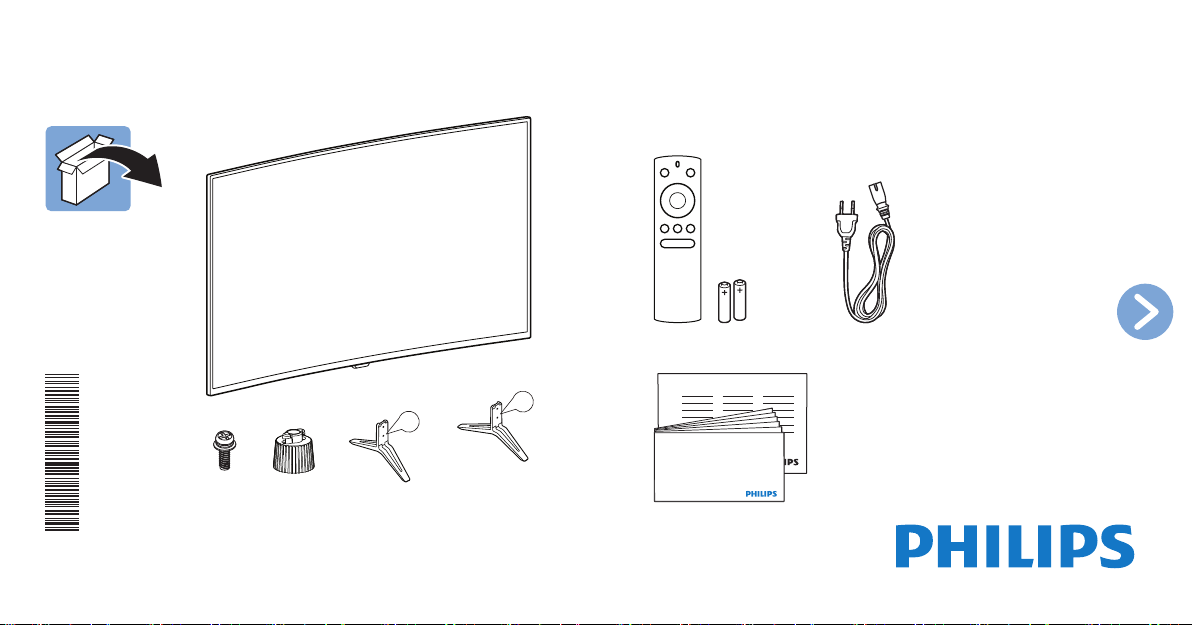

您的产品包装箱内物品摆放位置

遥控器放置在保丽龙
的上部，如图示。

底座，底座螺丝放置在
保丽龙的上部，如图示。

底座，底座螺丝放置在
保丽龙的上部，如图示。

附件包

以上图示仅供参考，具体请以实际为准！

附件包放置在机台的背部，如图示。
*附件包内包含快速使用指南，保修
卡，壁挂锁附柱，电源线，电池。

2

目录

您的产品包装箱内物品摆放位置 2
重要信息 4
安装底座 7
连接 10
电池安装方式 13
遥控器按键与配对说明 14
打开电视 15
主要配置介绍 16
电子电气产品有害物质限制使用标识要求 17

3

重要信息

安全
小心触电或发生火灾！

•• 切勿让电视机与雨或水接触。切勿将液体容
器（例如花瓶）放置在电视机旁边或上面。
如果将液体洒到了电视机表面或内部，请
立即断开电视机的电源。请与Philips•客户
服务中心联系，对电视机进行检查后再行使
用。

•• 切勿将电视机、遥控器或电池放在明火或其
它热源（包括直射的阳光）附近。为避免火
焰蔓延，请始终使蜡烛或其它明火远离电视
机、遥控器和电池。

4

•• 切勿向电视机上的通风槽或其它开口中插入
任何物体。

•• 旋转电视机时，请确保电源线不会绷紧。电
源线绷紧会使电源连接变松，进而产生火
花。

小心短路或起火！

•• 切勿将遥控器或电池暴露在雨中、水中或过
热的环境中。

•• 请避免电源插头产生拉力。松动的电源插头
可能产生火花或者导致起火。

小心人身伤害或电视机损坏！

小心伤害儿童！

•• 需由两个人搬运重量超过25千克的电视机。

•• 将电视机安装在机座上时，请仅使用提供的
机座。将机座牢固地固定到电视机上。将电
视机放在水平、平坦且可承受电视机和机座
总重量的表面上。

•• 采用壁挂方式安装电视时，请仅使用可
承受电视机重量的壁挂安装托架。将壁
挂安装托架固定到可承受电视机和壁挂
安装托架总重量的墙壁上。TPV Display
Technology(Xiamen)Co.,Ltd.对由于安装
不当而造成的事故、人身伤害或损失不负任
何责任。

请遵循以下注意事项，以避免因电视机掉落而
导致儿童受伤：

•• 切勿将电视机放在由可拉动的布或其它材料
覆盖的表面上。

•• 确保电视机的任何部分均位于表面边缘以
内。

•• 将电视机放在较高的家具（如书柜）上时，
一定要将家具和电视机都固定到墙壁或适当
的支撑物上。

•• 告知儿童爬上家具触摸电视机可能带来的危
险。

小心误食电池！

•• 此产品的遥控器含有电池，有可能被孩童误
食，请将电池放于孩童无法接触的位置。

5

小心过热！

L

R

左

右

1

4

2

55” 19.67kg

3

*取出电视机。

*确保底座安装时使用保丽龙进行组装。

*确保平整台面上无杂物后,将电视机(带有保利龙)放置于台面上。

*将底座按照图示对齐放置(注意区分左右支撑) , R、L在底座上有标识。

1

•• 切勿将电视机安装在封闭空间内。•始终在
电视机周围留出至少4英寸或10厘米的空间
以便通风。确保窗帘或其它物体不会遮挡电
视机上的通风槽。

小心损坏电视机！

•• 在将电视机连接到电源插座上之前，请确保
电源电压与电视机背面印刷的值相匹配。如
果电压不同，切勿将电视机连接到电源插座
上。

•• 电视长期不使用的情况下，请切断电源。

小心人身伤害、起火或电源线损坏！

•• 切勿将电视机或任何物体放在电源线上。

•• 电源插头作为断开装置，应当保持能方便地
操作。

•• 断开电源线时，应始终握住插头，而不能拉
电缆。

•• 雷雨天气来临之前，请断开电视机与电源插
座及天线的连接。•在雷雨天气里，切勿触
摸电视机、电源线或天线的任何部分。

•• 接入本设备的有线网络天线必须与保护接地
隔离，否则可能会引起着火等危险！

小心听力损害！

•• 避免在高音量下或长时间使用耳机或听筒。

6

L

R

左

右

1

安装底座

1

55” 19.67kg

2

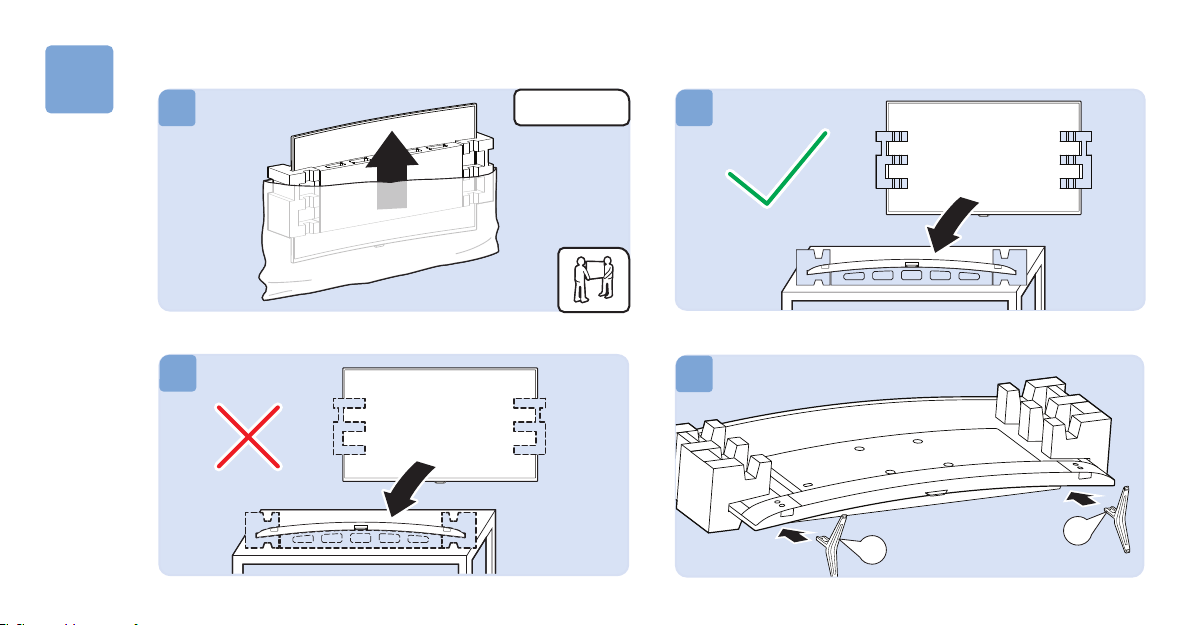

*取出电视机。

3

*确保底座安装时使用保丽龙进行组装。

4

*确保平整台面上无杂物后,将电视机(带有保利龙)放置于台面上。

*将底座按照图示对齐放置(注意区分左右支撑) , R、L在底座上有标识。

7

5 6

x4

L

R

右

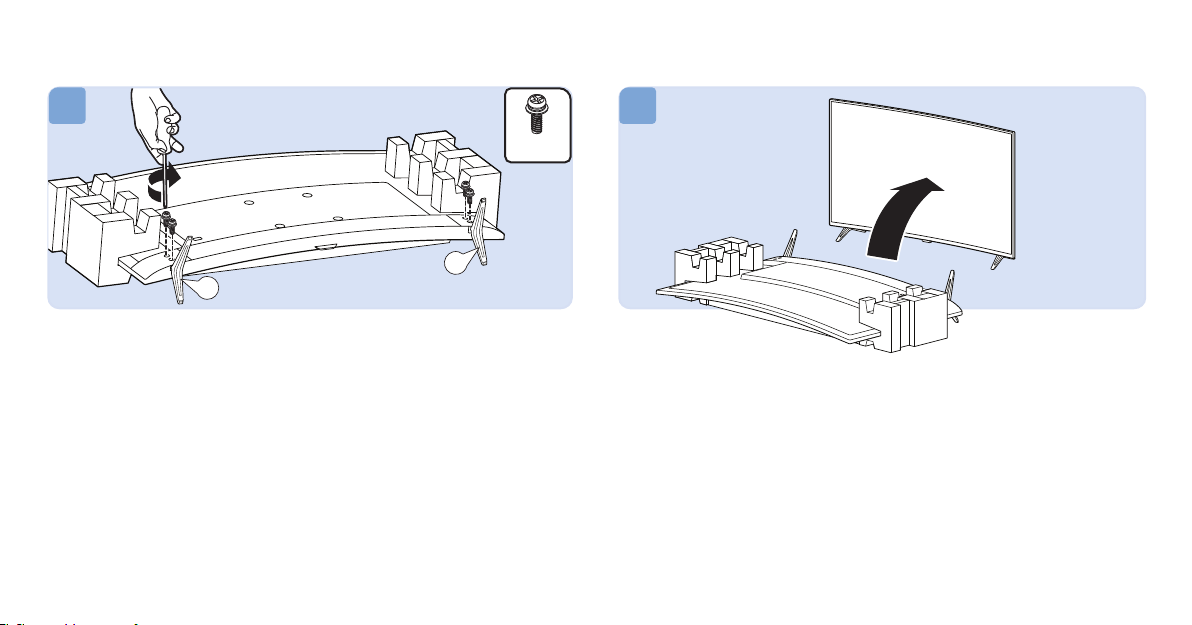

*按照图示将螺丝锁紧。 *将电视扶起放好。

8

左

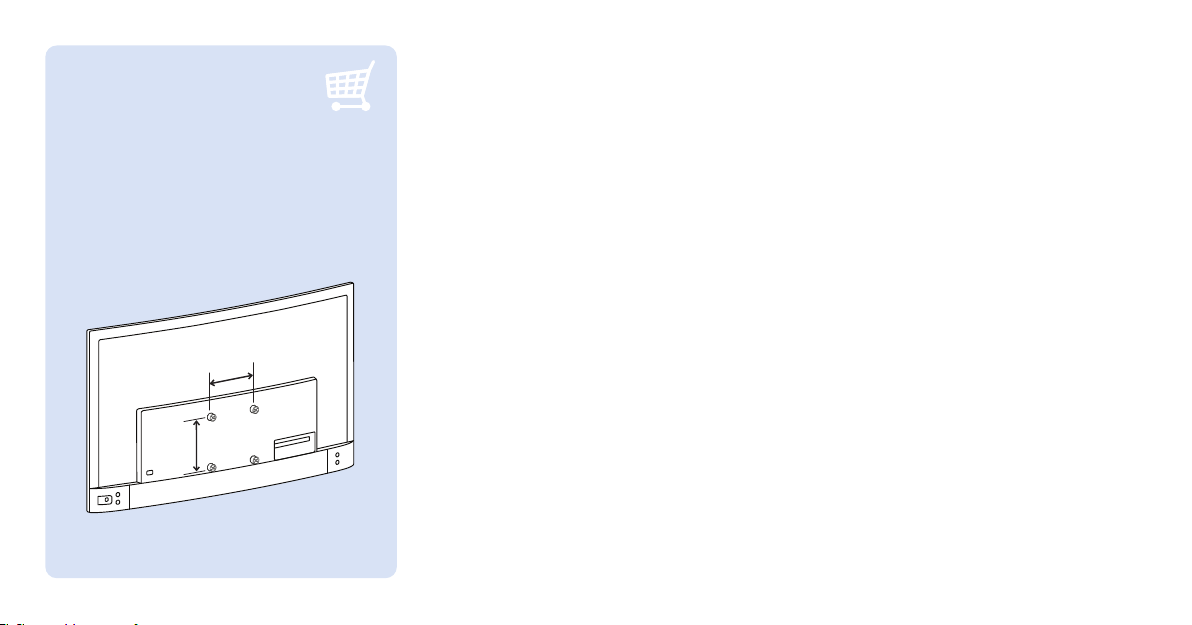

温馨提示：壁挂安装时，请先将壁挂锁附柱

VESA (x,y)
55” 200x200 M6

(壁挂配件需另外购买)

55”建议螺丝有效螺牙长度42.8MM (不含垫片)

x

y

（已提供）安装固定好。

9

10

2

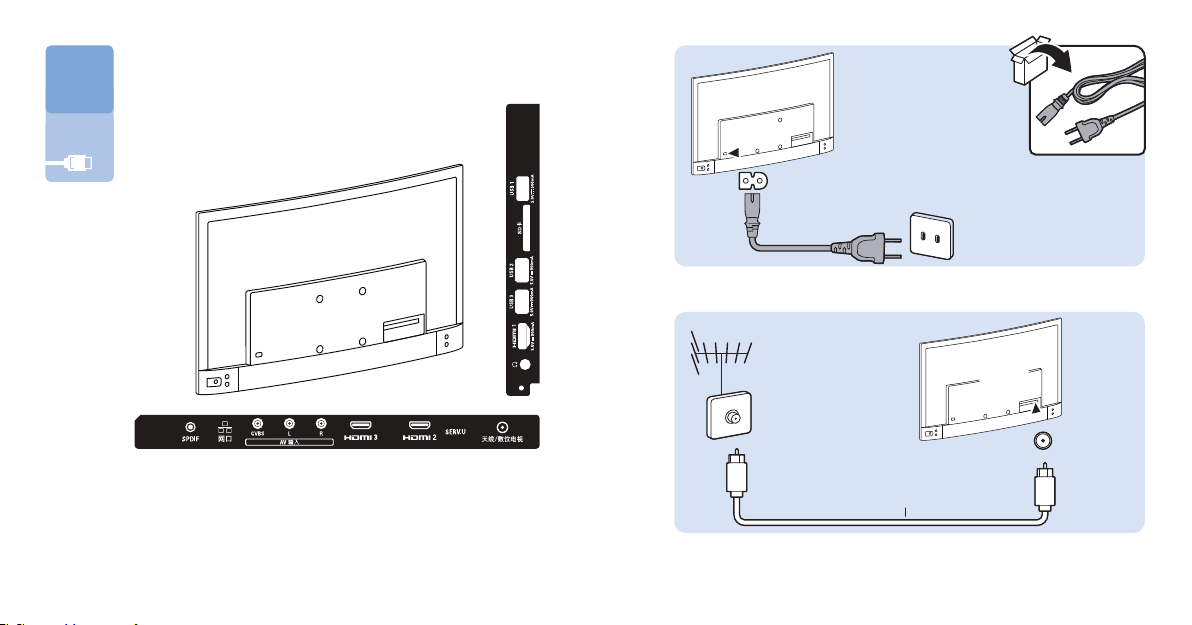

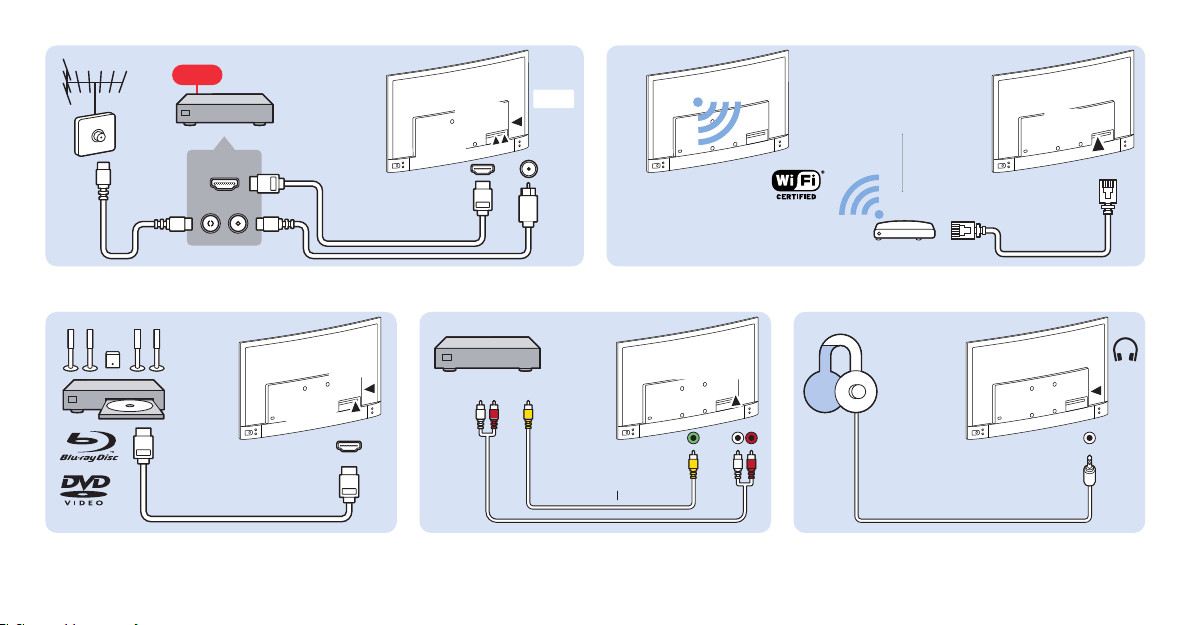

连接

POWER

电缆

天线/

数位电视

REC

HDMI

IN

OUT

HDMI 2
HDMI 3

天线/

数位电视

HDMI 1

或

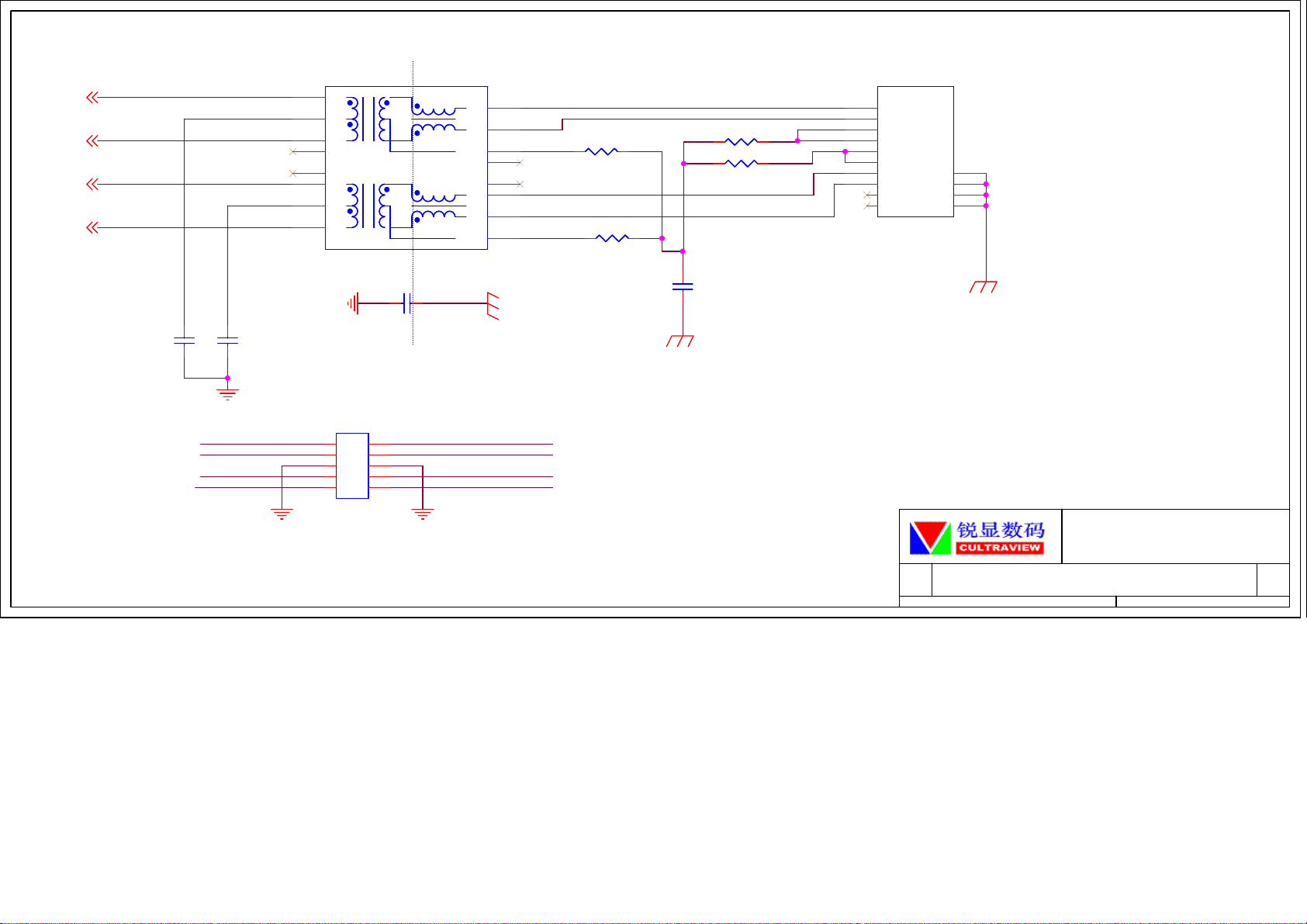

INTERNET

NETWORK

HDMI 2
HDMI 3

HDMI 1

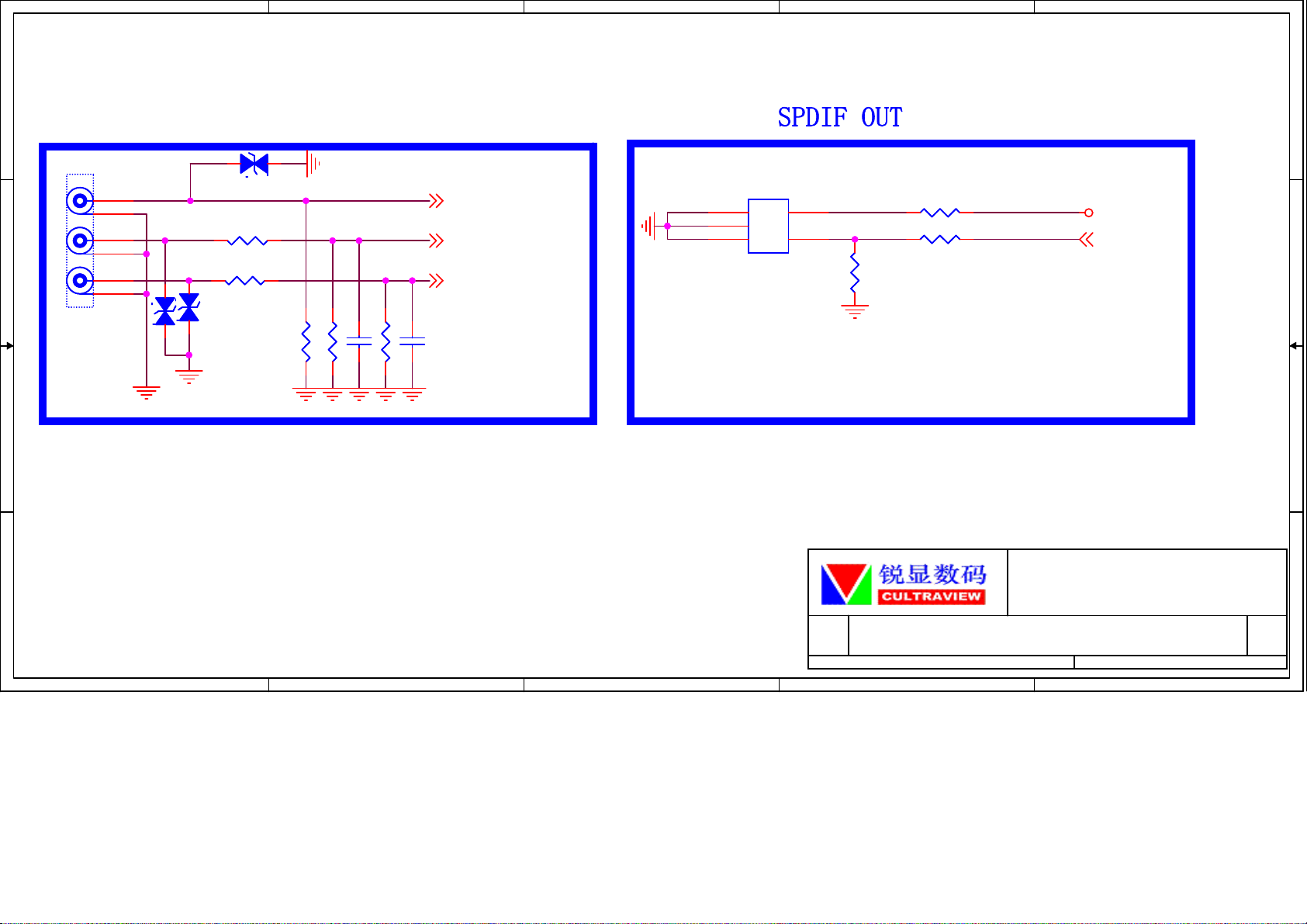

CVBS L/R

AV信号 & 左右声道

11

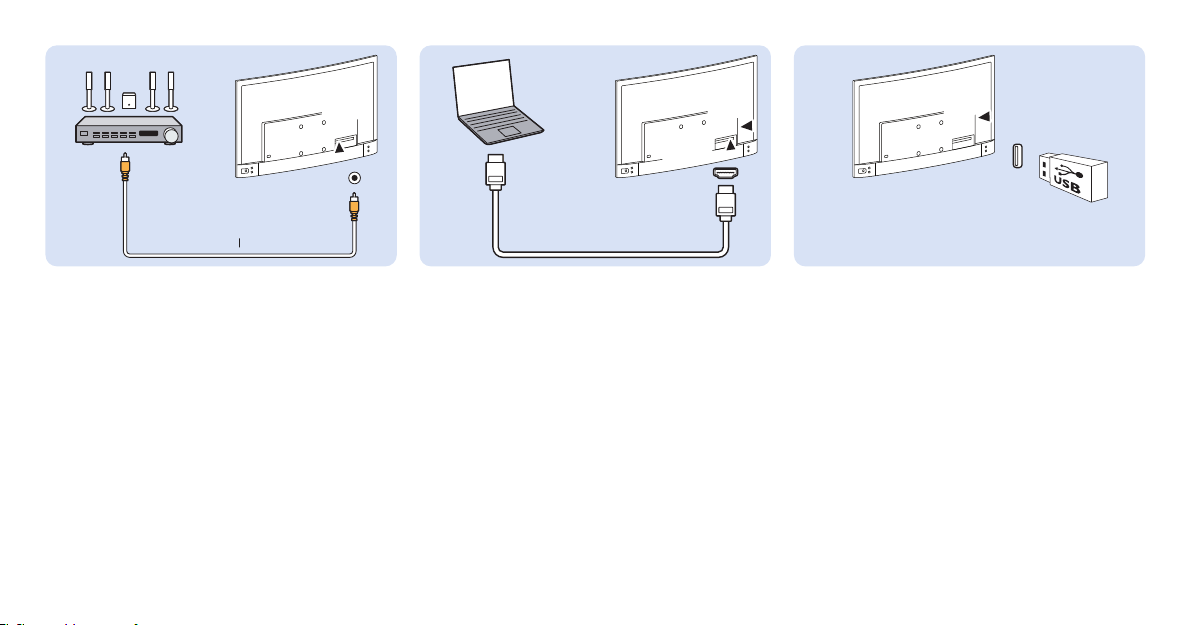

SPDIF

HDMI 1

HDMI 2

HDMI 1

USB

HDMI 3

SPDIF 同轴输出

12

3

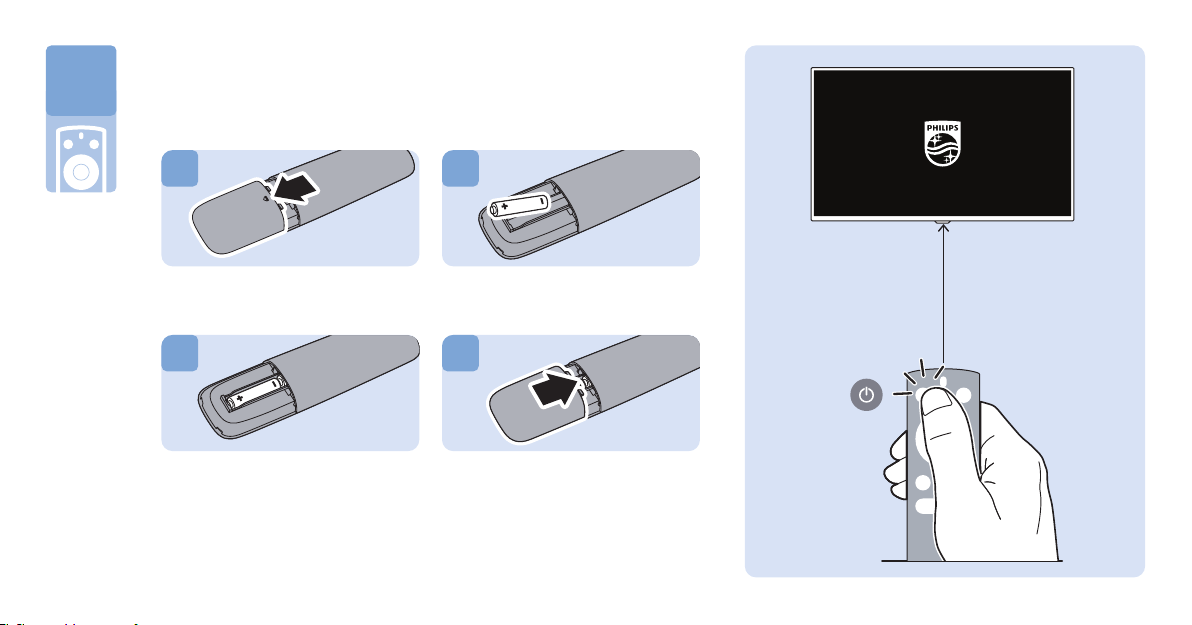

电池安装方式

1 2

43

13

14

4

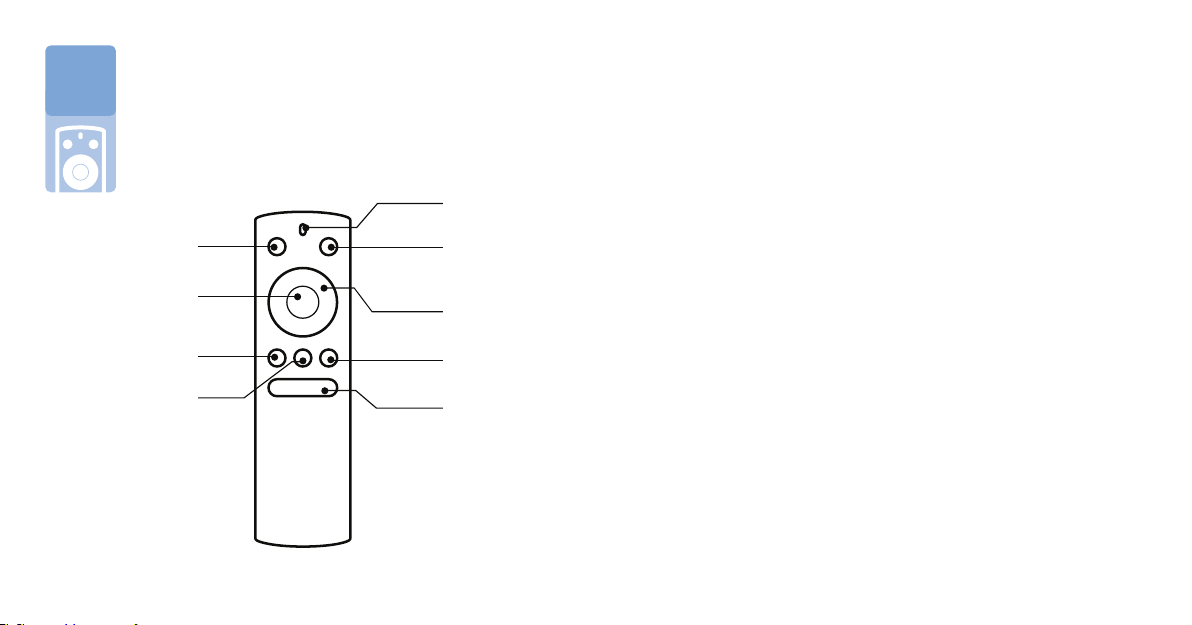

遥控器按键与配对说明

麦克风孔

电源

确认

首页

返回

语音

四向键

菜单

音量

遥控器配对操作说明：

安装电池后，遥控器距离主机30厘米距离，请同时按下菜单键和首页键，听滴
声后松开按键并保持原距离等待约10秒，遥控器与电视主机连接成功后会听到
滴滴提示音。

(本机附带的遥控器需进行配对后方可正常使用。)

遥控器语音功能使用说明：

按住语音键，在距离麦克风10~15厘米的地方以适当的音量说出语音命令。

使用遥控器的注意事项：

•• 按照正确的极性装入电池，以避免电池短路。

•• 当电池电压不足时影响遥控距离，此时应更换新电池，如果长期不用遥控器
或电池耗尽时，将电池取出。

•• 勿混用不同类型电池(如碱性电池和锰锌电池等混用)或新旧电池混合使用。
如果电池更换不当会有爆炸危险，只能用同样类型或等效类型的电池更换。

•• 切勿使遥控器受到剧烈震动。此外，切勿使遥控器溅上液体，也不要将遥控
器放在湿度高的地方。

•• 废弃电池将会对环境产生不良影响，请遵守相关环保规定，将废弃电池放到
指定的回收处。

5

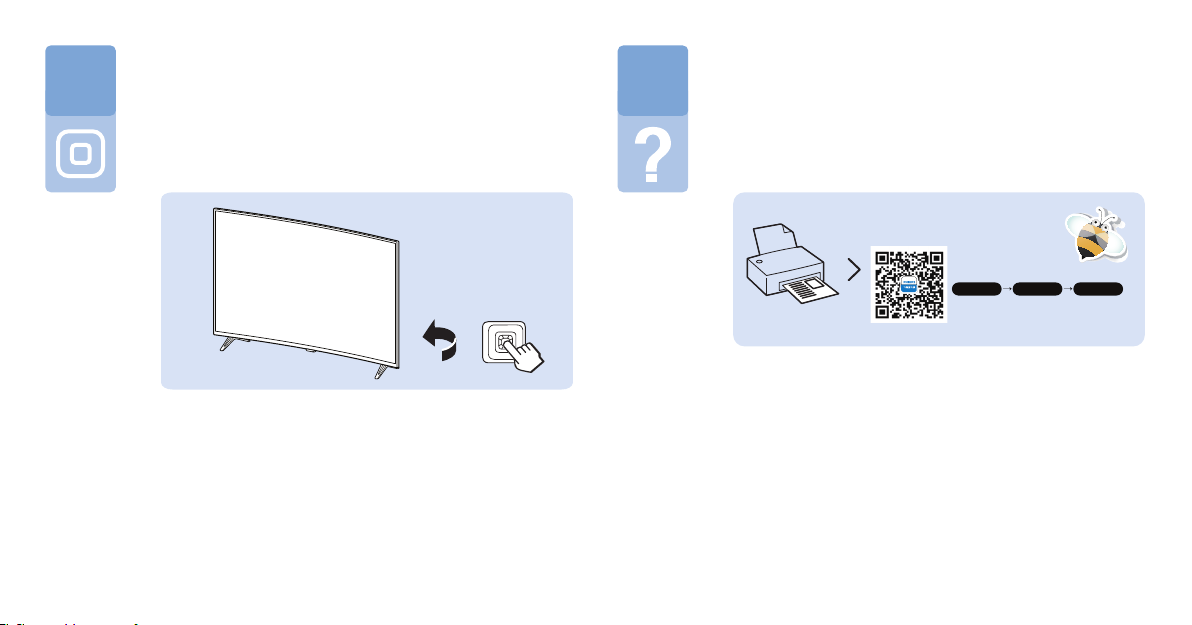

打开电视

按下电视背面五向按键的中间键，打开电
视机；开机需要一定时间，请耐心等待。

五向按键：

•• 五向键的方向键，可以控制屏幕选框。

•• 待机状态下，按五向键中间键，可以启动电视机。

•• 开机状态下，按五向键中间键，调出控制面板，••
可以选择关机或者重启电视机。

•• 长按上键，返回前一/上一级页面。

•• 长按左键，静音。

6

更多操作信息请参考•PHILIPS support
网站。

马上扫码，报装报修，
一步搞定，简单三步，
加入飞利浦电视俱乐部，享额外延保专属权益！

扫码关注 飞你不可

热线电话：4008 800 008

www.philips.com.cn

注册会员

15

7

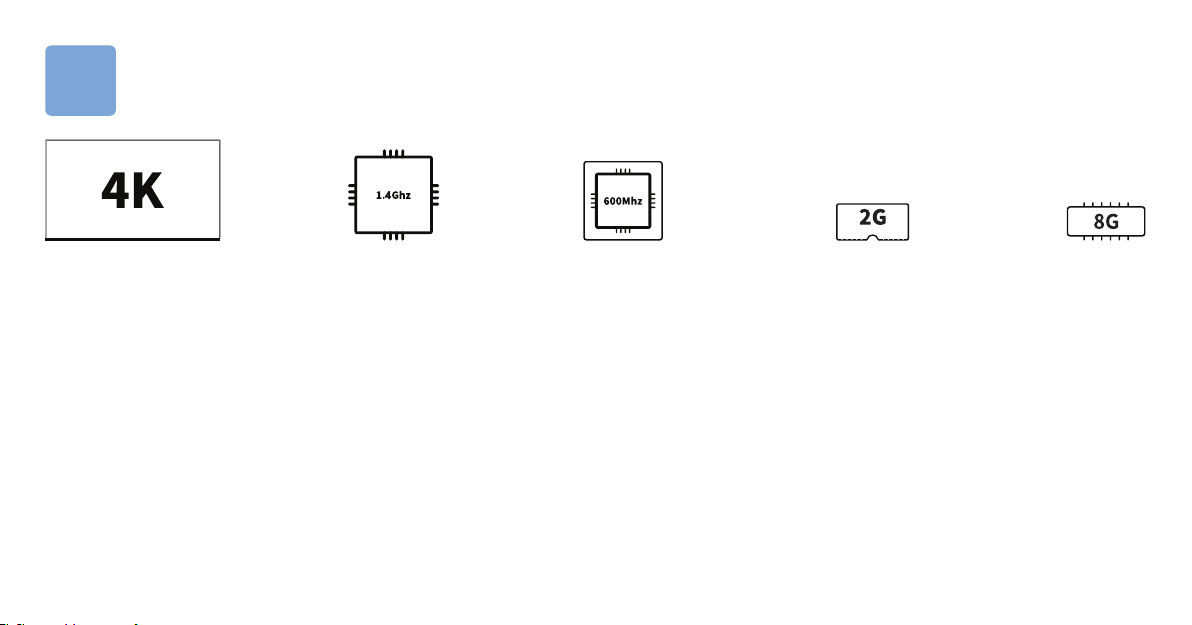

主要配置介绍

屏幕：3840*2160(4K)

中央处理器：Cortex-A53•1.4GHz 输出接口：模拟音频×1••数字(S/PDIF光纤)×1
图形处理器：Mali-450MP4 数据接口：USB2.0×1 USB3.0×2 SD×1••以太网×1
内存：2GB DDR3 视频解码：MPEG2/MPEG4 H265/H264/H263 VP8
闪存：8GB eMMC 5.0 音频解码：MP3 AAC AC3 WAV
蓝牙：蓝牙4.0/BLE低功耗 音频效果：Dolby Audio/ATMOS
能效等级：三级 多屏联动：支持图像/音频和视频的多屏联动,兼容Airplay/DLNA
电源电压：220V~,50Hz 语音控制：支持语音控制（视频搜索/视频播控等）
整体消耗功耗：约143W 可视图像对角线尺寸：约138.6cm
被动待机功率：0.50W 尺寸含底座：约1237.73×783.5×241.43mm
声音输出功率：8W×2 尺寸不含底座：约1237.73×732.85×90.48mm
WIFI无线：双频2.4、5GHz 802.11a/b/g/n/ac 2×2 质量含底座：约20.1Kg
输入接口：HDMI2.0×3 AV×1 模拟电视/DTMB×1 质量不含底座：约19.67Kg

16

CPU:Cortex-A53 GPU:Mali-450MP4

内存

:2G DDR3

闪存:8G eMMC

8

电子电气产品有害物质限制使用标识要求

本产品有害物质名称及含量

有害物质

零部件名称

塑料外框 ○ ○ ○ ○ ○ ○
后壳 ○ ○ ○ ○ ○ ○

LCD面板
电路板组件* × ○ ○ ○ ○ ○

底座 ○ ○ ○ ○ ○ ○
电源线 × ○ ○ ○ ○ ○
其他线材 × ○ ○ ○ ○ ○
遥控器 × ○ ○ ○ ○ ○
*：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。
本表格根据•SJ/T 11364•的规定编制

○：表示该有害物质在该部件所有均质材料中的含量均在•GB/T 26572规定的限量要求以下。
×：表示该有害物质至少在该部件的某一均质材料中的含量超出•GB/T 26572规定的限量要求。
备注：以上打“×”的部件，应功能需要，部分有害物质含量超过GB/T 26572规定的限量要求，但符合欧盟RoHS•法规

要求（属于豁免部分）。

CCFL
LED

铅(Pb) 汞(Hg) 镉(Cd) 六价铬•

(Cr(VI))

× × ○ ○ ○ ○
× ○ ○ ○ ○ ○

多溴联苯•

(PBB)

多溴二苯醚•

(PBDE)

17

该电子电气产品含有某些有害物质，在环保使用期限内可以放心使用，超过环保使用期限之后则应该进
入回收循环系统。

《废弃电器电子产品回收处理管理条例》提示性说明

为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品
回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。

18

所有注册和未注册的商标是其各自所有者的财产。规格如有变更，恕不另行通知。
Philips 和 Philips 盾牌图形是皇家飞利浦有限公司的注册商标，其使用需遵循皇家飞利浦有限公司的许可。

出版日期：2016年8月

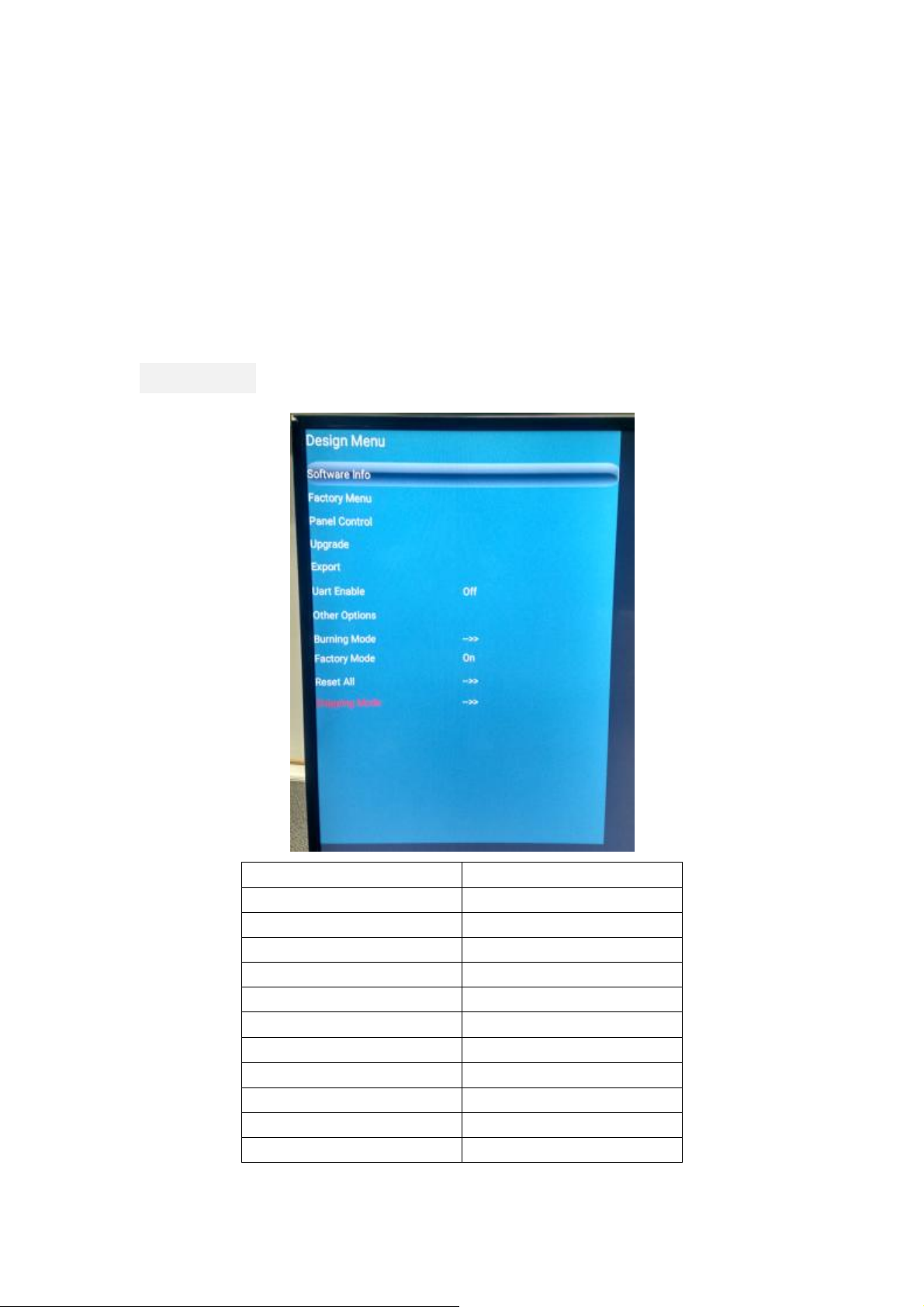

进入工厂菜单的方式如下：

项目名称

功能说明

Software Info

软体信息

Factory Menu

工厂菜单

Panel Control

面板控制

Upgrade

升级

Export

输出

Uart Enable

Uart 启动

Other Options

其他选项

Buring Mode

拷机模式

Factory Mode

工厂模式

Reset All

全部还原

Shipping Mode

运输方式

1、将键盘（USB 接口）插入电视。

2、电视上电，切换到 HDMI1 信号源。

3、按遥控器的菜单键，然后按键盘的 2、5、8、0 键（不可按小键盘

的数字键）， 即可进入工厂菜单。

设置菜单：

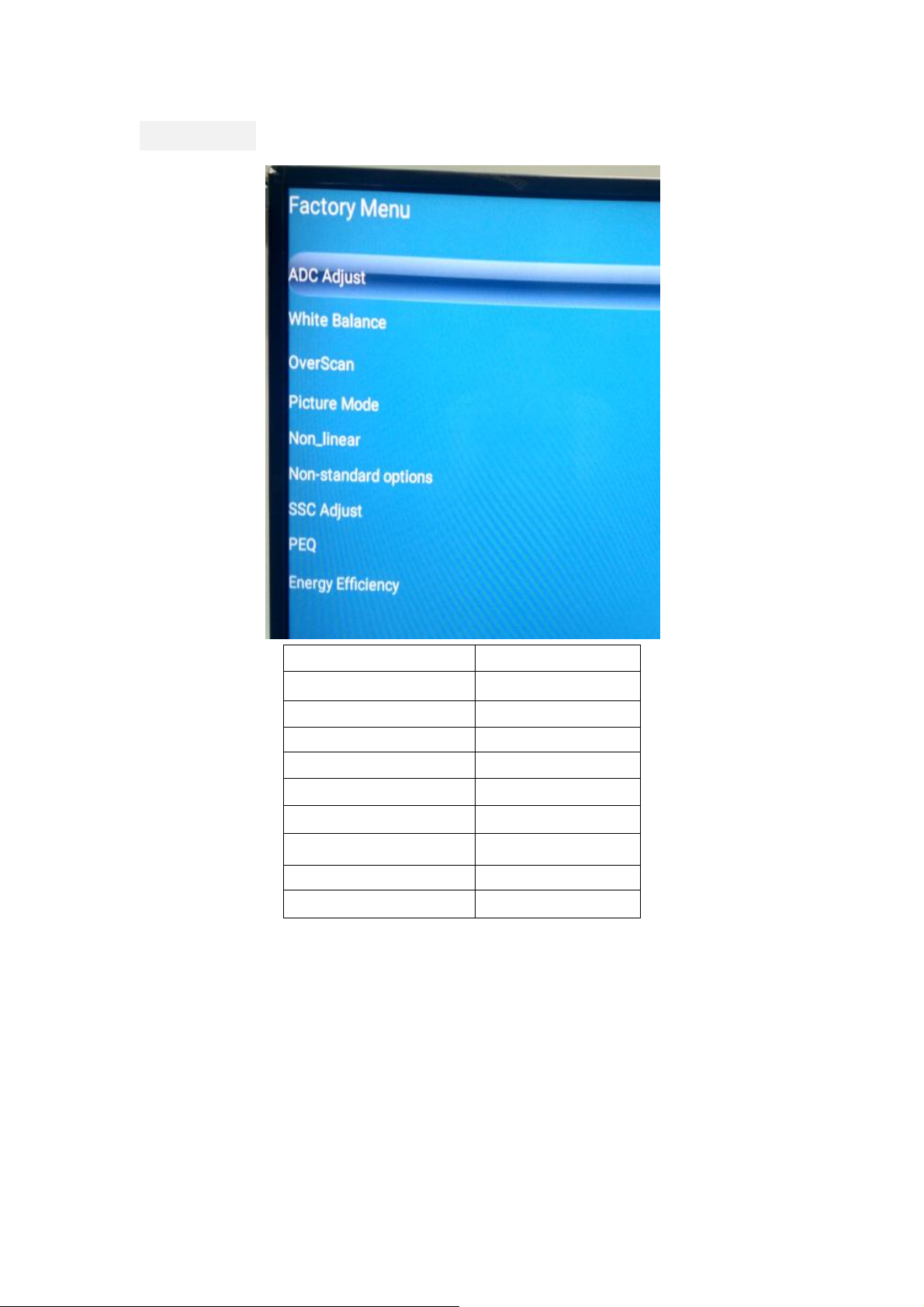

工厂菜单：

项目名称

功能说明

ADC Adjust

ADC调整

Whiter Balance

白平衡

OverScan

过扫描

Picture Mode

影像模式

Non_linear

非线性特征

Non-standard options

非标准选项

SSC Adjust

展频调整

PEQ

参量均衡

Energy Efficiency

能源效率

软体升级方式如下：

• 1.将升级文件放到 U 盘根目录。

• 2.电视断电，插入 U 盘。

• 3.按按键板左键（人面向电视正面）不放，上电。

• 4.电视会自动升级，升级完成后电视会自动重启。

• 5.完成安装向导步骤后，进“通用”选择“恢复出厂设置”进

行复位。

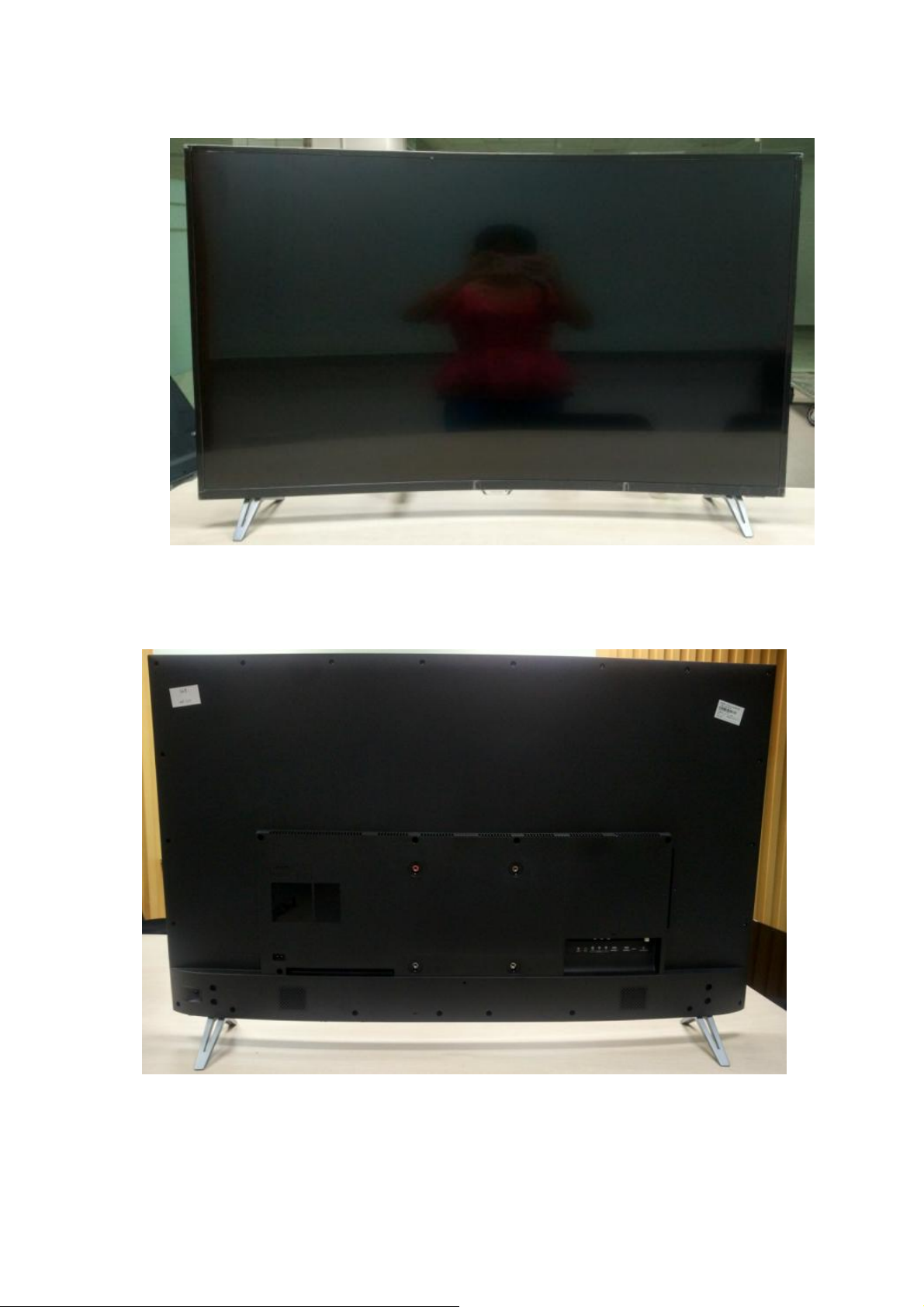

1. 正视图

2. 后视图

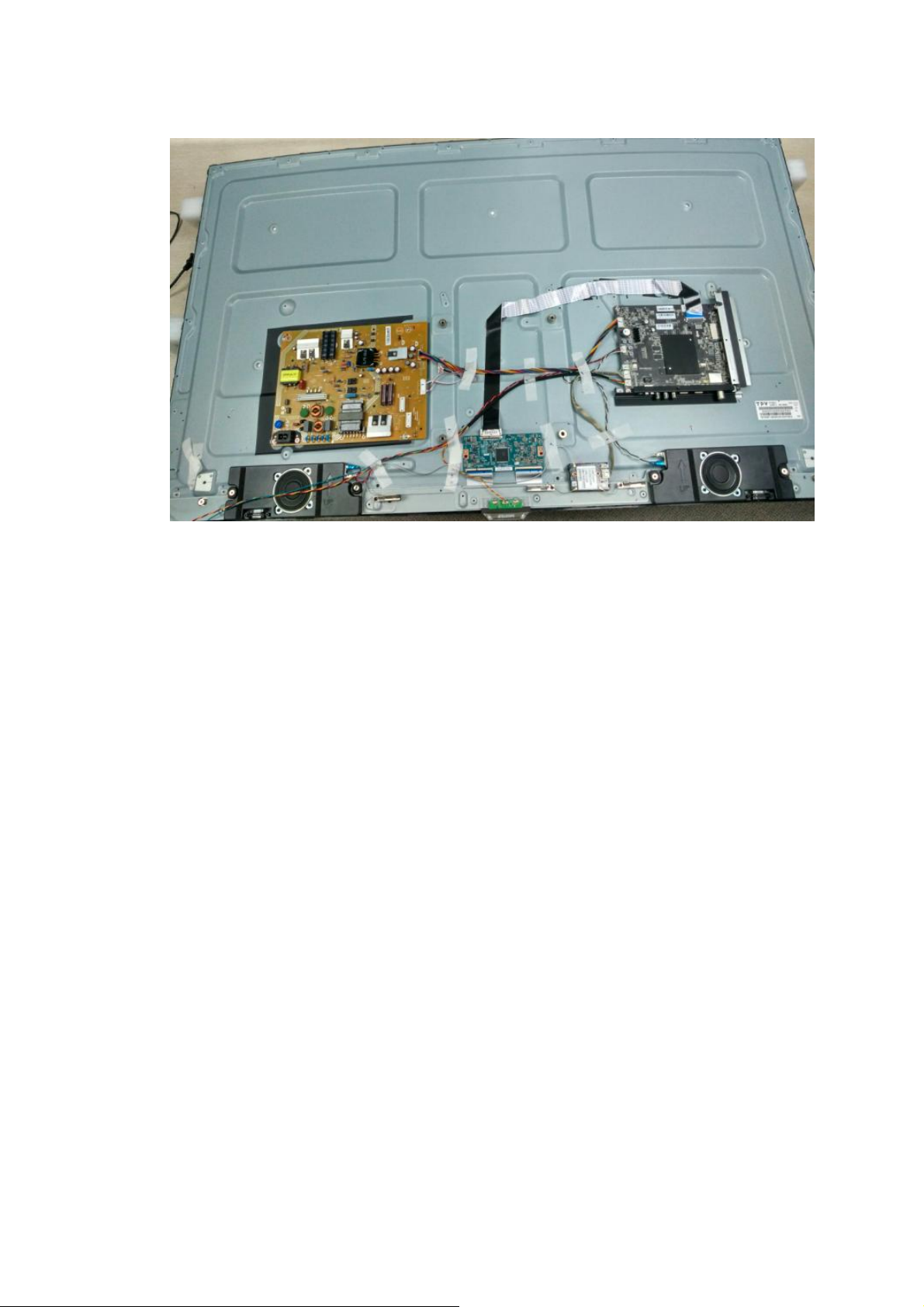

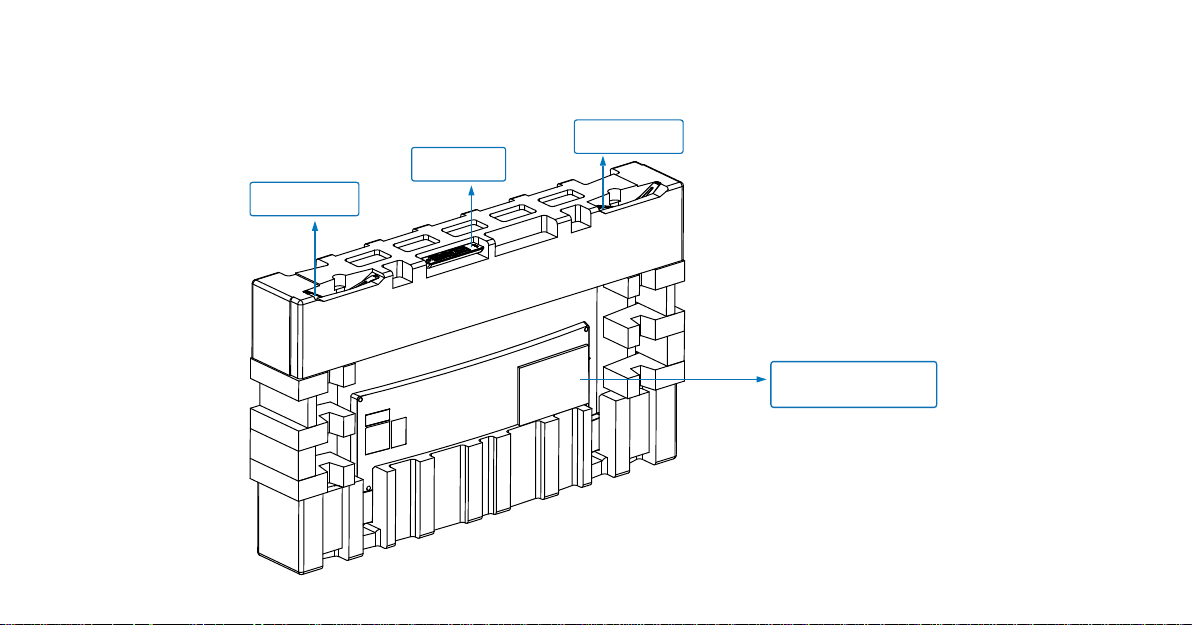

3. 内部结构图

版本 发布日期 变更说明 对外机种名 对内机种名

A00

9/30/2016

首次发布

55PUF6301/T3 E55G4INDARPHNNX

Scalar 屏

MSD6A828（Whaley外购主板） TPT550U1-QVR07.U S000A XM TPV

主板板号 电源板板号 按键板板号 遥控板板号

317GAAMB754CTW 715G8285P0C0000020 715G7088K01000004K 715G8009R01000004Y

级别

点位

组

件

1 041G 68508 A
1 0M1G 130 6 47 CR3
1 0M1G1030 5120
1 0M1G1030 8120
1 0M1G1830 6120
1 0Q1G 130 5 47 CR3
1 0Q1G 930 6 47 CR3
1 0Q1G1030 6 47 CR3
1 E31701 317GAAMB754CTW
1 EJ5 317GAAWA560WNC
1 EJ6 317GAAWA561WNC
1 EJ8 317GAAWA562WNC
1 E31702 317GAAWF644ITN
1 SP01 378G0120481YLB
1 SP02 378G0120481YRB
1 ECN4002 395G279H51HC78
1 ECN4002 395G279W51HC78
1 ECN01 395G801402RC01
1 ECN01 395G801402WC01
1 EJ7001 395G801404DD48
1 EJ7001 395G801404RD48
1 EJ1001 395G801416DD27
1 EJ6002 395GH20008GT043000
1 EJ2002 395GH20008WT042000
1 EJ2002 395GH20008XT042000
1 EJ6002 395GH20008XT043000
1 E39801 398GF10BNPWN0000BC
1 708GVB668130WPX1CH
1 E750 750TBV550R71A8N000
1 IRPFGXA8
1 KEPFGDX1
1 E750 LVA550QVR07A542X0X
1 P33E0738XJL01T0100
1 P33E0830ADT01L0100
1 P33E0976ADT01L0200
1 P33E0982XETZ1X0100
1 P33E1000XLQ01C0100
1 P34E27660GM01K0100
1 P34E2767ADT01L0100
1 P40GD000813 9A
1 PLTVGW181XAB8
1 PTPFGAA3
1 M00201 Q02G707105000100XL
1 Q02G708105000100HX
1 Q11G701100500100JY
1 Q12G714002200100ZA
1 Q36T 600 30 1
1 Q36T 600 38 4
1 Q40G0001624 4A
1 Q49G03PL1BQ0HF0000

1 Q50G060000301W00JI
1 Q52G100204000A00ZA
1 Q52G100205000A00ZA
1 Q52G130118600000YY
1 Q52G1501150523AWBK
1 Q52G160119100A00YY
1 T01G000300000000HX
1 X01B000102800100XL
1 M00201 X02G901001700000HX
1 X11G701000500000JY
1 X11G701001400000JY
1 X15T254410100000LH
1 X15T2593101000GMYF
1 X16G000300400000SI
1 X37T827003100000SL
1 X37T827103100000SL
1 X40G2016055X1600ZA
1 X40G2016055X1700ZA
1 X44GVB660FB0HX
1 X44GVB661010SY
1 X44GVB662010SY
1 X44GVB66301EPE
1 X44GVB66401EPE
1 X44GVB66501EPE
1 X44GVB6662402A00JM
1 X44GVB6681301A0THX
1 X45G990110600000WN
1 X52G180141300000ZA
1 X52G180143900000TH
1 E08901 089G214A15N HL
1 E08901 089G214A15N IS
1 BT01 392GB1TA1A3C2C
1 Q45G88010TV05600X1
1 X40G000881328A
1 X41G55SV81338A
1 X41G78DV81311E
1 040G 58162435A
1 Q40G000162492B
1 X40G000181310C
1 X40G055081399A
1 708GVB668130WPX1CH
2 Q07G012313802C00BL
2 Q44G6002136 98
2 Q44G6002137120
2 Q44G9003169
2 Q50G 4 10
2 Q50G060000301W00JI
2 Q50G060046502A00JY
2 Q52G1301 9
2 X07G009913902C
2 X44G6002CP521A

2 X44G6002CP559A
2 X45G770101700000QF
1 IRPFGXA8
2 SMTIRPFGXA8
1 KEPFGDX1
2 SMTKEPFGDX1
1 PLTVGW181XAB8
2 GND1 009G6005 1
2 CN8601 033G380212B YH
2 U8605 056G 139 9
2 U9306 056G 139 9
2 U9102 056G 139 9
2 Q8602 057G 667914
2 Q8601 057G 667914
2 R9814 061G153M10859B SY
2 C9906 063G107M47410M
2 C9905 063G107M47410M
2 C8636 067G515Z221 9K
2 C8623 067G515Z221 9K
2 FB9904 071G 55906 H
2 FB9903 071G 55906 H
2 CN9303 311GW200C16AAX
2 U8602 356G0700008604
2 U8603 356G0700008604
2 RV9901 361G0046681KZE
2 NR9901 361G0058259MYW008A
2 NR9902 361G0058259MYW008A
2 C9801 363G210J105GHP
2 C8611 363G211J3335CE
2 C9803 367G215X680PKZ000S
2 C9802 367G215X680PKZ000S
2 FB9901 371G0055021H02
2 FB9902 371G0055021H02
2 L9902 373G0174353H00
2 L9901 373G0174353H00
2 L9801 373G0174409H00
2 L9303 373G0253247X00
2 L9302 373G0253247X00
2 T9301 380GL32P141H01
2 T8601 380GL52P303H00
2 T8601 380GL52P303YS0
2 CN9901 387G050147P0HC
2 BD9901 393G0050460A06
2 705TAG57083
2 705TAG57084
2 705TAG57085
2 705TAG93056
2 PLGW181XAB8SMT
2 HS9901 X90G201000800000BF
2 HS8603 Z90G0013101
2 HS8602 Z90G0013101

1 PTPFGAA3
2 SMTPTPFGAA3
2 SMTIRPFGXA8
3 Q201 057G 477904 T
3 R204 061G0402101 JT
3 R202 061G0402102 JT
3 R201 061G0402393 JF
3 C202 065G0402105A5K M
3 C201 065G0402105A5K M
3 ZD201 093G 64S500 SU
3 CN201 311GW125D13ACL
3 U201 356GS927036600
3 LED201 381G0A1500R1GP
3 709T80090XS001
3 E715 715G8009R01000004Y
2 SMTKEPFGDX1
3 R02 061G0603000 JF
3 R02 061G0603000 JT
3 R03 061G06031201FF
3 R03 061G06031201FT
3 R03 061G06031201FY
3 R01 061G06031502FF
3 R01 061G06031502FT
3 R01 061G06031502FY
3 R05 061G06032201FT
3 R05 061G06032201FY
3 R04 061G06036801FF
3 R04 061G06036801FT
3 R04 061G06036801FY
3 C06 065G060310432K A
3 C06 065G060310432K F
3 C06 065G060310432K Y
3 CN01 311GW125D02ADX
3 SW01 377G060902C0CJ
3 SW01 377G060902C0HC
3 709T70880XS001
3 E715 715G7088K01000004K
2 705TAG57083
3 051G 200 1
3 Q9801 057G 667954
3 D9802 093G 52905
3 SCREW 0M1G1730 8120
3 HS9801 Q90G0236 7
2 705TAG57084
3 051G 200 1
3 Q9301 057G 667956
3 SCREW 0M1G1730 8120
3 HS9301 Q90T0236001A0000HG
2 705TAG57085
3 051G 200 1
3 SCREW 0M1G1730 8120

3 Q9303 357G0600100020
3 HS9302 Q90T0236001A0000HG
2 705TAG93056
3 051G 200 1
3 D8602 093G 52 57
3 D8601 093G 52 57
3 SCREW 0M1G1730 8120
3 HS8601 Q90G0236 7
2 PLGW181XAB8SMT
3 U8601 056G 379211
3 U9901 056G 665142
3 Q9308 057G 417512 HF
3 Q8606 057G 417517
3 Q8605 057G 417518
3 Q8603 057G 417526
3 R8641 061G0805000 JT
3 R9304 061G0805000 JT
3 R8657 061G0805000 JT
3 R9811 061G0805100 JF
3 R8605 061G0805100 JF
3 R8611 061G0805100 JT
3 R9309 061G0805100 JT
3 R8604 061G0805100 JT
3 R9345 061G08051001FT
3 R9366 061G08051001FT
3 R8651 061G08051001FT
3 R8643 061G08051001FT
3 R9362 061G08051002FT
3 R8612 061G08051002FY
3 R8608 061G08051002FY
3 R9318 061G08051003FT
3 R9817 061G08051003FT
3 R9339 061G08051003FT
3 R9308 061G0805101 JT
3 R9347 061G0805102 JT
3 R8652 061G0805102 JT
3 R8619 061G0805102 JT
3 R9813 061G0805103 JF
3 R9807 061G0805103 JF
3 R9310 061G0805103 JT
3 R9364 061G0805103 JT
3 R9316 061G08051103FT
3 R9342 061G08051501FF
3 R9343 061G08051501FF
3 R8609 061G08051802FY
3 R8642 061G08052001FT
3 R9895 061G08052002FT
3 R8618 061G08052002FT
3 R9346 061G08052401FT
3 R9808 061G08052402FT
3 R9810 061G08052701FT

3 R8615 061G08053300FT
3 R8655 061G0805332 JT
3 R8653 061G0805334 JT
3 R8624 061G08053902FF
3 R9812 061G0805470 JT
3 R8617 061G08054702FT
3 R8621 061G08054702FY
3 R8613 061G0805471 JT
3 R8645 061G08055101FT
3 R9361 061G08055103FT
3 R8654 061G0805511 JT
3 R8622 061G08056801FT
3 R9806 061G08056803FT
3 R8610 061G0805820 JY
3 R9341 061G08059101FT
3 RJ904 061G1206000 JT
3 R8639 061G1206000 JT
3 RJ917 061G1206000 JT
3 R8630 061G1206000 JT
3 RJ918 061G1206000 JT
3 RJ906 061G1206000 JT
3 RJ902 061G1206000 JT
3 RJ903 061G1206000 JT
3 RJ908 061G1206000 JT
3 RJ901 061G1206000 JT
3 RJ909 061G1206000 JT
3 RJ905 061G1206000 JT
3 RJ912 061G1206000 JT
3 RJ913 061G1206000 JT
3 RJ914 061G1206000 JT
3 RJ915 061G1206000 JT
3 R8634 061G1206000 JT
3 RJ907 061G1206000 JT
3 R9337 061G12060007JT
3 R8644 061G12061001FT
3 R9365 061G12061001FT
3 R9340 061G12061002FT
3 R9816 061G12061002FT
3 R9338 061G12061003FT
3 R9803 061G12061004FF E
3 R9802 061G12061004FF E
3 R9801 061G12061004FF E
3 R9360 061G1206101 JT
3 R9311 061G1206102 JT
3 R8629 061G1206103 JT
3 R9363 061G1206104 JY
3 R8628 061G12061302FT
3 R8603 061G12061504FT
3 R8602 061G12061504FT
3 R8607 061G12061504FT
3 R9809 061G1206203 JF

3 R9335 061G1206270 JT
3 R9334 061G1206270 JT
3 R9333 061G1206270 JT
3 R9330 061G1206270 JT
3 R9331 061G1206270 JT
3 R9332 061G1206270 JT
3 R9303 061G1206274 JF
3 R9302 061G1206274 JF
3 R9301 061G1206274 JF
3 R9317 061G1206302 JT
3 R9320 061G12063302FT
3 R9313 061G1206335 JT
3 R9314 061G1206335 JT
3 R9315 061G1206335 JT
3 R9307 061G1206339 JT
3 R9348 061G1206430 JT
3 R9349 061G1206430 JT
3 R9323 061G12064708FT
3 R9815 061G1206471 JF
3 R8616 061G1206471 JT
3 R9321 061G1206479 JT
3 R9324 061G1206512 JT
3 R9328 061G1206512 JT
3 R8626 061G12067502FT
3 R9908 061G12067503FT
3 R9904 061G12067503FT
3 R9907 061G12067503FT
3 R9903 061G12067503FT
3 R8606 061G1206820 JF
3 R9329 061G1206822 JT
3 C8616 065G080510131J M
3 C9335 065G080510131J Y
3 C9334 065G080510131J Y
3 C9310 065G080510231J F
3 C9811 065G080510232K F
3 C8610 065G080510232K F
3 C9343 065G080510232K Y
3 C9338 065G080510232K Y
3 C9331 065G080510232K Y
3 C9330 065G080510232K Y
3 C8612 065G080510332K F
3 C8620 065G080510432K F
3 C8607 065G080510432K F
3 C8601 065G080510432K F
3 C8632 065G080510432K Y
3 C8633 065G080510432K Y
3 C8630 065G080510432K Y
3 C8631 065G080510432K Y
3 C8637 065G080510432K Y
3 C9333 065G080510432K Y
3 C9306 065G080510432K Y

3 C9332 065G080510432K Y
3 C9329 065G080510432K Y
3 C8639 065G080510432K Y
3 C9810 065G080510432K Y
3 C8626 065G080510432K Y
3 C9814 065G080510432K Y
3 C9813 065G080510432K Y
3 C8625 065G080510432K Y
3 C9342 065G080510532K T
3 C8641 065G080510532K T
3 C8640 065G080510532K T
3 C9340 065G080510532K T
3 C8604 065G080510532K T
3 C8602 065G080510532K T
3 C8618 065G080522522K M
3 C9808 065G080533031J Y
3 C9308 065G080533131J Y
3 C9815 065G080533131J Y
3 C8614 065G080547031J Y
3 C9311 065G080547232K F
3 C9812 065G080547432K M
3 C9339 065G080547432K M
3 C8608 065G080547432K T
3 C8628 065G080547525K M
3 C8624 065G080547525K M
3 C8613 065G0805475A2K T
3 C8609 065G080556131J F
3 C9341 065G120610532K T
3 U9304 356G01585020HF
3 U9801 356G0379008218
3 U9301 356G0379008605
3 U9302 356GD563008617
3 Q9802 357G0667600602
3 Q9306 357G0761A0100T
3 Q9307 357G07630620HF
3 Q8604 357G07630620HF
3 Q9309 357G07630620HF
3 R8633 361G12062408FT
3 R8632 361G12062408FT
3 R8635 361G12062408FT
3 R8637 361G12062408FT
3 R8636 361G12062408FT
3 R8631 361G12062408FT
3 R8658 361G12062708FT
3 R8627 361G12062708FT
3 R8638 361G12062708FT
3 R8661 361G12062708FT
3 R8666 361G12062708FT
3 R8662 361G12062708FT
3 D9393 393G006432S0HF
3 D8608 393G006432S0HF

3 D8609 393G006432S0HF
3 D9314 393G006432S0HF
3 ZD8608 393G039S65200T
3 ZD8602 393G039S96400T00HF
3 ZD8605 393G039S96400T00HF
3 ZD8606 393G039SA1200T
3 ZD9301 393G039SA1400T
3 ZD8603 393G039SA2300T
3 ZD8607 393G039SA2700T
3 ZD9302 393G039SA2900T
3 ZD8601 393G039SA2900T
3 ZD8604 393G039SA3500T
3 D9801 393G052S800600
3 D9803 393G060S50000T00HF
3 D8604 393G060S50000T00HF
3 D8607 393G060S50000T00HF
3 D9304 393G060S50000T00HF
3 D8605 393G060S50000T00HF
3 D8606 393G060S50000T00HF
3 D9312 393G060S50000T00HF
3 D9311 393G060SA0600T
3 PLGW181XAB8AI
2 SMTPTPFGAA3
3 R306 061G0402109 JF
3 E715 715G8439T01000004Y
3 LED303 081G 15W 1 EL
3 CN301 311GW125D04ACL
3 LED304 081G 15W 1 EL
3 R305 061G0402109 JF
3 Q302 057G 477904 T
3 R304 061G0402102 JT
3 709T80090XS001
4 Q52G170100700B00XW
4 052G 2191 A
4 Q05G6054 1
4 055G 23520
4 Q09G6012 1
4 055G 100610
3 709T70880XS001
4 052G 2191 A
4 055G 23520
4 055G 100610
4 Q05G6054 1
4 Q09G6012 1
4 Q52G170100700B00XW
3 PLGW181XAB8AI
4 BD9901 006G 31 4
4 T9301 006G 31 4
4 T8601 006G 31500
4 CN9901 006G 31500
4 NR9902 006G 31502

4 NR9901 006G 31502
4 C9803 006G 31502
4 C9802 006G 31502
4 C9906 006G 31502
4 C9905 006G 31502
4 RV9901 006G 31502
4 U8606 056G 158 10 HF
4 C9806 065G 1K10193T
4 C9307 065G 1K10193T
4 C8615 065G 1K1019ST
4 C8605 065G 1K1019ST
4 C9301 065G 1K10293T
4 C8622 065G 1K10293T
4 C9302 065G 1K22293S
4 C9804 065G 1K22293S
4 C9904 065G306K10123R
4 C9903 065G306K10123R
4 C9818 065G306K4712SR
4 C9315 065G306M1023SR
4 C9809 067G 3151007KB A
4 C9313 067G 3151007KB A
4 C9305 067G 3151007KB A
4 C9304 067G 3154707KT
4 C9321 067G 5154714KT
4 C9322 067G 5154714KT
4 C9326 067G 5154714KT
4 C9323 067G 5154714KT
4 C9320 067G 5154714KT
4 C9327 067G 5154714KT
4 C8606 067G315M2207KB
4 FB8602 071G 55 23
4 FB9301 071G 55 23
4 FB9802 071G 55 23 S
4 FB9306 071G 55 26 H
4 FB9803 071G 55 29
4 FB8601 071G 55 29
4 FB9302 071G 55 29
4 D8603 093G 52908
4 D9301 093G 60953
4 D9302 093G 60953
4 J934 095G 90 23
4 J945 095G 90 23
4 J922 095G 90 23
4 J905 095G 90 23
4 J909 095G 90 23
4 J904 095G 90 23
4 J903 095G 90 23
4 J933 095G 90 23
4 J920 095G 90 23
4 J917 095G 90 23
4 J941 095G 90 23

4 J919 095G 90 23
4 J940 095G 90 23
4 J946 095G 90 23
4 J939 095G 90 23
4 J930 095G 90 23
4 J916 095G 90 23
4 J921 095G 90 23
4 J931 095G 90 23
4 J915 095G 90 23
4 J924 095G 90 23
4 J912 095G 90 23
4 J911 095G 90 23
4 J902 095G 90 23
4 J910 095G 90 23
4 J901 095G 90 23
4 J908 095G 90 23
4 J935 095G 90 23
4 J923 095G 90 23
4 J928 095G 90 23
4 J907 095G 90 23
4 J913 095G 90 23
4 J938 095G 90 23
4 J929 095G 90 23
4 J937 095G 90 23
4 J927 095G 90 23
4 J914 095G 90 23
4 J936 095G 90 23
4 J925 095G 90 23
4 J932 095G 90 23
4 R8601 361G01SJ10852T00TZ
4 R9306 361G152M22052T00TZ
4 R9312 361G152M24852T00YG
4 R9305 361G152M82352T00TZ
4 SG9901 362G0010501MIT
4 SG9902 362G0010501MIT
4 C8603 365G001D5096WT
4 C9907 365G001J4706ST
4 C9805 365G001J4706ST
4 C9902 365G306K2206SR
4 C9901 365G306K2206SR
4 F9902 384G005600506L
4 E715 715G8285P0C0000020

对

象描述

组件数

量

替代

项⽬组

control card 0.100

SCREW M3 6 4.000

Screw 14.000

SCREW M3 8 3.000

SCREW 2.000
SCREW 1.000
SCREW 3.000

SCREW M3 6 2.000

MAIN BOARD MB_M0828 1.000
WLAN ANTENNA C0423_WIFI1_A_01_2016 0803 1.000
WLAN ANTENNA C0423_WIFI2_A_01_2016 0803 1.000

WLAN ANTENNA BT Antenna 1.000

WIFI/BT USB IEEE 802.11 ac/a/b/g/n BW256 1.000

4 OHM 12W 230.73*82.7(L) 0 BOX 1.000

4 OHM 12W 230.7x82.7mm(R) 0 BOX 1.000

V-by-One FFC 51P 680mm 0.5MM 1.000 2nd-source

V-by-One FFC 51P 680mm 0.5MM 1.000
HARNESS 2P pitch2.0-2P pitch1.25 200mm 1.000
HARNESS 2P pitch2.0-2P pitch1.25 200mm 1.000 2nd-source

HARNESS 4P-B&R+B&W 550/360 1.000
HARNESS 4P-B&R+B&W 550/360 1.000 2nd-source

HARNESS 16P pitch2.0-16P pitch2.0 400mm 1.000

HARNESS 12P pitch2.0+6P pitch 2.0-12P pi 1.000 2nd-source
HARNESS 8P pitch2.0-13P pitch1.25+2P pit 1.000 2nd-source
HARNESS 8P pitch2.0-13P pitch1.25+2P pit 1.000
HARNESS 12P pitch2.0+6P pitch 2.0-12P pi 1.000

REMOTE WAHLEY +PHILIPS BRC0771208/01 chi 1.000

Ebony 40 ( 144 CH ) 1.000

LCD TPT550U1-QVR07.U S000A XM TPV 1.000 1

IR BOARD NA 1.000

KEY BOARD G7088-K01-000-0040-1-20160630 1.000

PANEL TPT550U1-QVR07.U S000A XM TPV 1.000 1

KEY_FUNCTION 1.000

COVER_VESA 4.000

COVER_PCB 1.000

DECO_LOGO 1.000

LENS_IR 1.000

REAR_COVER N/A 1.000

BEZEL N/A 1.000

A4 PALLET LABEL -for A4 paper 0.100

ADAPTER BOARD G8285-P0B-000-0020 1.000

OPTION BOARD G8439-T0A-000-0040 1.000

BOLT 4.000 2nd-source

BOLT M3 1.000

PCB-SUPPORT D2.9xH14.97 5.000

HEAT PAD 1.000
NONWOVEN FABRIC 1.000
NONWOVEN FABRIC 2.000

产线需求的栈板LABEL 0.100

Panel Detergent 1.740

Q50G060000301W00JI 678.000

AL FOIL 8.000
AL FOIL 8.000

TAPE 20.000

TAPE_INSULATING 120.000

TAPE 24.000

SCREW M3 6 27.000

Screw SCROW M3*P0.5*2.0 31.000

BOLT M3 4.000

PCB-SUPPORT 2.9*16 3.000

PCB-SUPPORT -- 3.000

BKT_IO_SIDE 1.000

BKT_IO_BTM 1.000

SPONGE 4.000
stand-base ass'y N/A N/A 1.000
stand-base ass'y N/A N/A 1.000

IO LABEL 1.000
IO LABEL 1.000

ARTWORK CARTON Ebony 55PUF6301/T3 BOTTOM 1.000

CUSHION-T N/A Non-region(Global) 1.000
CUSHION-B N/A Non-region(Global) 1.000

CUSHION-L N/A China(2002) 1.000

CUSHION-R N/A China(2002) 1.000

CUSHION-FRONT N/A China(2002) 1.000

CUSHION-die cut Carton N/A China(2002) 1.000

ARTWORK CARTON Ebony 55PUF6301/T3 TOP 1.000

PROTECT BAG 1200*1600 1.000

INSULATING SHEET 1.000

INSULATING SHEET 1.000
AC POWER CORD 1500 1.000
AC POWER CORD 1500 1.000 2nd-source

BATTERY 1.5V 2P R03(KI)2S/PG 1.000

PROTECT BAG 1.000

OTHER LABEL 开机必读标签 1.000

QSG 55PUF6301/T3 china 1.000

WARRANTY CARD TPV address china 1.000

MANUAL P/N LABEL 1.000

CEL LABEL G3 1.3 54x79.2 mm 1.000

CARTON LABEL 2.000

RATING LABEL 55PUF6301/T3 1.000

Ebony 40 ( 144 CH ) 0.000

WOOD PALLET 0.056
PAPER BOARD 0.111
PAPER BOARD 0.111

Corner Paper 0.444

TIE (Y1900221) 122.000

Q50G060000301W00JI 672.000

PACKAGE_BUCKLE 4.000

BIG TAPE FOR PHILIPS 468.000

PALLET 0.056

PAPER CAP5 0.056

PAPER CAP5 0.056

PROTECT RIBBON 417.000

IR BOARD NA 0.000

IR BOARD FOR SMT 1.000

KEY BOARD G7088-K01-000-0040-1-20160630 0.000

KEY BOARD FOR SMT 1.000

ADAPTER BOARD G8285-P0B-000-0020 0.000

GND TERMINAL 1.000

wafer 12P 2.0 DIP 1.000
IC EL817M(X) photocoupler DIP-4 1.000
IC EL817M(X) photocoupler DIP-4 1.000
IC EL817M(X) photocoupler DIP-4 1.000

MOSFET TK10A50D 10A 500V TO-220 1.000
MOSFET TK10A50D 10A 500V TO-220 1.000

RST MOF 0.1R 5% 3WS PITCH=20mm 1.000

CAP X2 470NF 20% 275V - - 1.000

CAP X2 470NF 20% 275V - - 1.000
EC 220UF 20% 100V 10*35 5000 hr 1.000
EC 220UF 20% 100V 10*35 5000 hr 1.000

BEAD 6.0*9.2 510R MIN BF-I60090C-794 1.000
BEAD 6.0*9.2 510R MIN BF-I60090C-794 1.000

CONN 2.0mm 16P V/T W2010-16SVA-S03 1.000

LED DRIVER TPV101AD DIP-8 1.000
LED DRIVER TPV101AD DIP-8 1.000

VARISTOR 680V 10% 1.000
NTCR 2.5R 20% 3.6W SCK152R58MTY503 1.000
NTCR 2.5R 20% 3.6W SCK152R58MTY503 1.000

CAP MPP 1UF 5% 450V 1.000

CAP MPP 33nF 5% 1KV 18*6*11MM B32652A033 1.000

EC 68uF 20% 450V 12.5*50 2000 hr 620mA 1.000
EC 68uF 20% 450V 12.5*50 2000 hr 620mA 1.000

BEAD 6.5*12.5 700R 25% BF-I60100R-815 1.000

BEAD 6.5*12.5 700R 25% BF-I60100R-815 1.000
LINE FILTER 14mH MIN 1.5 LCL-11825 HA 1.000
LINE FILTER 14mH MIN 1.5 LCL-11825 HA 1.000

PFC CHOKE 240uH 10% 2A GL-13259 HA 1.000

CHOKE COIL 3UH 15% DR8*8 5A 1.000
CHOKE COIL 3UH 15% DR8*8 5A 1.000

X'FMR 360uH 10% 5uH ER31 BCK-13143-HA 1.000

X'FMR 830uH 12% 142uH EE42 BCK-14284-HA 1.000

X'FMR 830uH 12% 142uH EE42 YS04161045 1.000 2nd-source

AC V/T 2P 14mm 1.000

BRIDGE TS10K80-02 10A 800V KBJ 1.000

TRANSISTOR Assy (Q9801 D9802 ASSY) 1.000

TRANSISTOR Assy(Q9301 ASS”Y) 1.000
TRANSISTOR Assy(Q9303 ASS”Y) 1.000

Diode Assy ( D8601 D8602 ASSY ) 1.000

ADAPTER BOARD FOR SMT 1.000

HEAT SINK 1.000
HEAT SINK 1.000
HEAT SINK 1.000

OPTION BOARD G8439-T0A-000-0040 0.000

OPTION BOARD FOR SMT 1.000

IR BOARD FOR SMT 0.000

TRA BC847BW 100mA/45V SOT-323 1.000

RST CHIP 100R 1/16W 5% TZAI YUAN 1.000

RST CHIP 1K 1/16W 5% TZAI YUAN 1.000

RST CHIP 39K 1/16W 5% FENGHUA 1.000

CAP 0402 1UF 10% 10V X5R 1.000
CAP 0402 1UF 10% 10V X5R 1.000

ESD MLVG04025R0QV05BP INPAQ 1.000

CONN 1.25mm 13P V/T B1254W13VUM2 1.000

SMD IR RECEIVER TSOP75436TR 36 KHz 1.000

LED R GPSS008RC4 1.000

COMSUMPTIVE ASSY 1.000

IR PCB FR4 DS 35.7*26*0.8mm 1.000

KEY BOARD FOR SMT 0.000

RST CHIPR MAX 0R05 1/10W FENGHUA 1.000 2nd-source

RST CHIP MAX 0R05 1/10W TZAI YUAN 1.000

RST CHIPR 1.2KOHM +-1% 1/10W 1.000 2nd-source

RST CHIP 1K2 1/10W 1% 1.000

RST CHIPR 1.2KOHM +-1% 1/10W 1.000 2nd-source

RST CHIPR 15KOHM +-1% 1/10W FENGHUA 1.000 2nd-source

RST CHIP 15K 1/10W 1% 1.000
RST CHIP 15K 1/10W 1% 1.000 2nd-source
RST CHIP 2K2 1/10W 1% 1.000
RST CHIP 2K2 1/10W 1% 1.000 2nd-source

RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA 1.000 2nd-source

RST CHIP 6K8 1/10W 1% 1.000
RST CHIP 6K8 1/10W 1% 1.000 2nd-source

3206D1701300NF 10% 50V X7R 1.000 2nd-source

CAP CHIP 0603 0.1UF K 50V X7R 1.000

CAP 0603 100NF 10% 50V X7R 1.000 2nd-source

WAFER 1.25mm 2P R/A S1315-02RVB-S03-K 1.000

CHIP TACT SW 6P 6mm 160g SMD 1.000 2nd-source
CHIP TACT SW 6P 6mm 160g SMD 1.000

COMSUMPTIVE ASSY 1.000

KEY PCB FR4 DS 22*29.5*1.6mm 1.000

TRANSISTOR Assy (Q9801 D9802 ASSY) 0.000

OIL FOR DISAPPEAR 0.036

MOSFET TK18A60V 18A 600V SC-67 1.000

DIODE FMNS-1106S TO-220 1.000

SCREW M3 8 2.000

HEAT SINK 1.000

TRANSISTOR Assy(Q9301 ASS”Y) 0.000

OIL FOR DISAPPEAR 0.018

MOSFET TK13A65U(STA4,X.M) 13A 650V SC-67 1.000

SCREW M3 8 1.000

HEAT SINK 1.000

TRANSISTOR Assy(Q9303 ASS”Y) 0.000

OIL FOR DISAPPEAR 0.018

SCREW M3 8 1.000

MOSFET AOTF298L 33A 100V TO-220F 1.000

HEAT SINK 1.000

Diode Assy ( D8601 D8602 ASSY ) 0.000

OIL FOR DISAPPEAR 0.036
RECTIFIER FMXA-2202S 20A 200V TO-220F 1.000
RECTIFIER FMXA-2202S 20A 200V TO-220F 1.000

SCREW M3 8 2.000

HEAT SINK 1.000

ADAPTER BOARD FOR SMT 0.000

AC/DC SSC9522S-TL SOP-18 1.000

IC CAP004DG-TL SOP-8 1.000

TRA MMBT3906G -0.2A/-40V SOT-23 1.000

Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC 1.000

TRA LMBT3904LT1G 200mA/40V SOT-23 LRC 1.000

SMALLTRAN MMBT3906 -0.2A -40V SOT-23 1.000

RST 0805 0.05R MAX 1/8W 1.000
RST 0805 0.05R MAX 1/8W 1.000

RST 0805 0.05R MAX 1/8W 1.000
RST CHIPR 10 OHM +-5% 1/8W FENGHUA 1.000
RST CHIPR 10 OHM +-5% 1/8W FENGHUA 1.000

RST CHIP 10R 1/8W 5% TZAI YUAN 1.000
RST CHIP 10R 1/8W 5% TZAI YUAN 1.000
RST CHIP 10R 1/8W 5% TZAI YUAN 1.000

RST CHIP 1K 1/8W 1% 1.000
RST CHIP 1K 1/8W 1% 1.000
RST CHIP 1K 1/8W 1% 1.000

RST CHIP 1K 1/8W 1% 1.000
RST CHIP 10K 1/8W 1% 1.000
RST CHIP 10K 1/8W 1% 1.000
RST CHIP 10K 1/8W 1% 1.000

RST CHIP 100K 1/8W 1% 1.000
RST CHIP 100K 1/8W 1% 1.000
RST CHIP 100K 1/8W 1% 1.000

RST CHIP 100R 1/8W 5% TZAI YUAN 1.000
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN 1.000
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN 1.000
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN 1.000

RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1.000
RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1.000

RST 0805 10K 5% 1/8W 1.000
RST 0805 10K 5% 1/8W 1.000

RST CHIP R 110K 1/8W +/-1% 1.000
RST CHIPR 1.5KOHM +-1% 1/8W FENGHUA 1.000
RST CHIPR 1.5KOHM +-1% 1/8W FENGHUA 1.000

RST CHIP 18K 1/8W 1% 1.000

RST CHIP 2K 1/8W 1% 1.000
RST CHIP 20K 1/8W 1% 1.000
RST CHIP 20K 1/8W 1% 1.000

RST CHIP R 2K4 +/-1% 1/8W 1.000

RST CHIP 24K 1/8W 1% 1.000
RST CHIP 2K7 1/8W 1% 1.000

RST CHIPR 330 OHM +-1% 1/8W TZAI YUAN 1.000

RST CHIP 3K3 1/8W 5% TZAI YUAN 1.000

RST CHIP 330K 1/8W 5% TZAI YUAN 1.000

RST CHIPR 39KOHM +-1% 1/8W FENGHUA 1.000

RST CHIPR 47OHM +-5% 1/8W TZAI YUAN 1.000

RST CHIP 47K 1/8W 1% 1.000
RST CHIP 47K 1/8W 1% 1.000

RST CHIPR 470OHM +-5% 1/8W TZAI YUAN 1.000

RST CHIP 5K1 1/8W 1% 1.000

RST CHIP 510K OHM 1/8W 1% TZAI YUAN 1.000

RST CHIPR 510OHM +-5% 1/8W TZAI YUAN 1.000

RST CHIP R 6.8KOHM +-1% 1/8W 1.000

RST 0805 680K 1% 1/8W 1.000

RST CHIP R 82ohm 1/8W +/-5% YAGEO 1.000

RST CHIP 9K1 1/8W 1% 1.000

RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000

RST CHIPR MAX 0R05 1/4W 1206 1.000

RST CHIP R 1Kohm +-1% 1/4W 1.000

RST CHIP R 1Kohm +-1% 1/4W 1.000
RST CHIPR 10KOHM +-1% 1/4W 1206 1.000
RST CHIPR 10KOHM +-1% 1/4W 1206 1.000

RST 1206 100K 1% 1/4W SMD1206100KF 1.000

RST CHIP 1M 1% 1/4W 500V FENGHUA 1.000
RST CHIP 1M 1% 1/4W 500V FENGHUA 1.000
RST CHIP 1M 1% 1/4W 500V FENGHUA 1.000

RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1.000

RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN 1.000

RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 1.000

RST CHIPR 100KOHM 5% 1/4W YAGEO 1.000

RST 1206 13K 1% 1/4W 1.000
RST CHIP 1M5 1/4W 1% 1.000
RST CHIP 1M5 1/4W 1% 1.000
RST CHIP 1M5 1/4W 1% 1.000

RST CHIPR 20KOHM +-5% 1/4W FENGHUA 1.000

RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000

RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000
RST CHIPR 270KOHM +-5% 1/4W FENGHUA 1.000
RST CHIPR 270KOHM +-5% 1/4W FENGHUA 1.000
RST CHIPR 270KOHM +-5% 1/4W FENGHUA 1.000

RST CHIP 3K 5% 1/4W 1.000

RST CHIPR 33KOHM +-1% 1/4W TZAI YUAN 1.000
RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN 1.000
RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN 1.000
RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN 1.000

RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN 1.000

RST 1206 43R 5% 1/4W - 1.000
RST 1206 43R 5% 1/4W - 1.000

RST 1206 4.7R 1% 1/4W 1.000

RST CHIPR 470 OHM +-5% 1/4W FENGHUA 1.000

ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN 1.000

RST 1206 4.7R 5% 1/4W 1.000
RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN 1.000
RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN 1.000

RST CHIPR 75K 1/4W +/-1% TZAI YUAN 1.000

RST 1206 750K 1% 1/4W 1.000
RST 1206 750K 1% 1/4W 1.000
RST 1206 750K 1% 1/4W 1.000
RST 1206 750K 1% 1/4W 1.000

RST CHIPR 82 OHM +-5% 1/4W FENGHUA 1.000

RST CHIPR 8.2 KOHM +-5% 1/4W TZAI YUAN 1.000

CAP CHIP 0805 100pF J 50V NPO 1.000
CAP CHIP 0805 100P 50V NP0 +/-5% 1.000
CAP CHIP 0805 100P 50V NP0 +/-5% 1.000

CAP 0805 1NF 5% 50V NPO 1.000
CAP 0805 1000PF 10% 50V X7R 1.000
CAP 0805 1000PF 10% 50V X7R 1.000

CAP CHIP 0805 1N 50V X7R +/-10% 1.000
CAP CHIP 0805 1N 50V X7R +/-10% 1.000
CAP CHIP 0805 1N 50V X7R +/-10% 1.000
CAP CHIP 0805 1N 50V X7R +/-10% 1.000

CAP 0805 10NF K 50V X7R 1.000
CAP CHIP 0805 0.1UF K 50V X7R 1.000
CAP CHIP 0805 0.1UF K 50V X7R 1.000
CAP CHIP 0805 0.1UF K 50V X7R 1.000

CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000

CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000
CAP CHIP 0805 100N 50V X7R +/-10% 1.000

CAP 0805 1UF 10% 50V X7R 1.000
CAP 0805 1UF 10% 50V X7R 1.000
CAP 0805 1UF 10% 50V X7R 1.000
CAP 0805 1UF 10% 50V X7R 1.000
CAP 0805 1UF 10% 50V X7R 1.000
CAP 0805 1UF 10% 50V X7R 1.000

CAP 0805 2.2UF 10% 25V X7R 1.000

CAP CHIP 0805 33P 50V NP0 +/-5% 1.000
CAP CHIP 0805 330P 50V NP0 +/-5% 1.000
CAP CHIP 0805 330P 50V NP0 +/-5% 1.000

AP CHIP 0805 47P 50V NP0 +/-5% 1.000

CAP 0805 4.7NF 10% 50V X7R 1.000
CAP 0805 470NF 10% 50V X7R 1.000
CAP 0805 470NF 10% 50V X7R 1.000

CAP CHIP 0805 0.47UF K 50V X7R 1.000

CAP 0805 4.7UF 10% 25V X5R 1.000

CAP 0805 4.7UF 10% 25V X5R 1.000

CAP CHIP 0805 4.7uF K 10V X7R 1.000

CAP CHIP 0805 560PF J 50V NPO 1.000

CAP CHIP 1206 1uF K 50V X7R 1.000

Shunt Regu TL431G-AE2-R SOT23-3 1.000

PFC LD7591T GS SOP-8 1.000

AC/DC LD5532 GS SOP-8 1.000

DC/DC SP6018ES8RGB 1A 16V SOP-8 1.000

MOSFET AO3160 0.04A 600V SOT23A 1.000

SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 1.000

.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000
.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000
.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000

RST 1206 2R4 1% 1/4W SMD12062R4F 1.000
RST 1206 2R4 1% 1/4W SMD12062R4F 1.000
RST 1206 2R4 1% 1/4W SMD12062R4F 1.000
RST 1206 2R4 1% 1/4W SMD12062R4F 1.000
RST 1206 2R4 1% 1/4W SMD12062R4F 1.000
RST 1206 2R4 1% 1/4W SMD12062R4F 1.000
RST 1206 2R7 1% 1/4W SMD12062R7F 1.000
RST 1206 2R7 1% 1/4W SMD12062R7F 1.000
RST 1206 2R7 1% 1/4W SMD12062R7F 1.000
RST 1206 2R7 1% 1/4W SMD12062R7F 1.000
RST 1206 2R7 1% 1/4W SMD12062R7F 1.000

RST 1206 2R7 1% 1/4W SMD12062R7F 1.000
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000

SWITCHING 1N4148W 0.15A 75V SOD-123 1.000
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000

ZENER BZT52-B20 20V 0.5W SOD-123 1.000
ZENER BZT52-B13_R1_00001 13V 0.41W SOD-1 1.000
ZENER BZT52-B13_R1_00001 13V 0.41W SOD-1 1.000

ZENER BZT52-B22 22V 0.41W SOD-123 150C 1.000

ZENER BZT52-B16_R1_00001 16V 0.41W 1.000

ZENER BZT52-B7V5 7.5V 0.41W SOD-123 1.000

ZENER BZT52-B27 27V 0.41W SOD-123 1.000

ZENER BZT52-B15 15V 0.41 SOD-123 1.000
ZENER BZT52-B15 15V 0.41 SOD-123 1.000

ZENER BZT52-B33 33V(Type) 410mW SOD-123 1.000

RECTIFIER S8KC 8A 800V SMC 1.000
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000

SCHOTTKY MB510 5A 100V SMC 1.000

ADAPTER BOARD FOR AI 1.000

OPTION BOARD FOR SMT 0.000

RST CHIP 0402 1OHM 5% 1/16W FENGHUA 1.000

DAUGHTER PCB FR4 DS 51*13*0.8mm 1.000

CHIP LED WHITE 99-113UNC/2223010/TR8 1.000

WAFER 1.25mm 4P V/T B1254W04VUM2 1.000

CHIP LED WHITE 99-113UNC/2223010/TR8 1.000

RST CHIP 0402 1OHM 5% 1/16W FENGHUA 1.000

TRA BC847BW 100mA/45V SOT-323 1.000

RST CHIP 1K 1/16W 5% TZAI YUAN 1.000

COMSUMPTIVE ASSY 0.000

MESH PRINTTING_PAPER 0.042

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021

SHEET 0.002

.leaning Naphtha 0.015

PIN 0.001

Solder Paste 0.027

COMSUMPTIVE ASSY 0.000

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021

.leaning Naphtha 0.012

Solder Paste 0.022

SHEET 0.010

PIN 0.010

MESH PRINTTING_PAPER 0.034

ADAPTER BOARD FOR AI 0.000

1.7MM RIVET 2.000

1.7MM RIVET 4.000
EYELET 4.000
EYELET 2.000
EYELET 2.000

EYELET 2.000
EYELET 1.000
EYELET 1.000
EYELET 2.000
EYELET 2.000
EYELET 2.000

IC AS431AZTR-G1 TO-92 1.000
CAP CER 100PF 10% 1KV R 1.000
CAP CER 100PF 10% 1KV R 1.000
CAP CER 100PF 10% 1KV R 1.000
CAP CER 100PF 10% 1KV R 1.000

CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 1.000
CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 1.000

CAP CER 2.2NF 10% 1KV R TAPING 1.000
CAP CER 2.2NF 10% 1KV R TAPING 1.000

CAP Y1 100PF 10% 250V Y5P 1.000
CAP Y1 100PF 10% 250V Y5P 1.000
CAP Y1 470PF 10% 250V Y5P 1.000

CAP Y1 1NF 20% 250V Y5U 1.000
EC 10UF 20% 50V 6.3*7 3000H ER 1.000
EC 10UF 20% 50V 6.3*7 3000H ER 1.000
EC 10UF 20% 50V 6.3*7 3000H ER 1.000

EC 47UF 20% 50V ER1H470MPN1007RU 1.000
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1.000
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1.000
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1.000
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1.000
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1.000
EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1.000

EC 22UF 20% 50V 6.3*7 3000 hr 1.000
BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 1.000
BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 1.000

FERRITE BEAD LB 3.5*0.8*7.5A 1.000

BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1.000

FERRITE BEAD 1.000
FERRITE BEAD 1.000
FERRITE BEAD 1.000

RECTIFIER UF4007 A0 1 1000 DO-41 1.000
SCHOTTKY FR107G-A0 1A 1000V DO-41 1.000
SCHOTTKY FR107G-A0 1A 1000V DO-41 1.000

JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000

JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000
JUMP WIRE - - 1.000

RST WD 0.1R 5% 1W NKNP1WS0R1JT52E8 1.000

RST MOF 22R 5% 2W MOF2WS22RJT52 1.000

RST MOF 0R24 5% 2W RSF2VSJT-52-0R24 1.000

RST MOF 82K 5% 2W MOF2WS82KJT52 1.000

SPARK GAP 500V -20/+30% 1.000
SPARK GAP 500V -20/+30% 1.000

CAP CER 5PF 0.5pF 1KV SL CC81-1KV-06d-S 1.000

CAP CER 47PF 5% 1KV SL 8SL470J102N56G 1.000

CAP CER 47PF 5% 1KV SL 8SL470J102N56G 1.000
CAP Y1 22PF 10% 250V SL 5SL220KT402N96G 1.000
CAP Y1 22PF 10% 250V SL 5SL220KT402N96G 1.000

FUSE 5A 250V MST 5A 250V(H) 1.000

PWR PCB FR2 CTI>600 SS 204.5*271*1.6mm 1.000

5

4

3

2

1

输入电源架构

D D

USB2.0
USB1----BT
USB2----WIFI

USB3(USB3.0)

USB4(USB3.0)

HDMI1
HDMI2
HDMI3(MHL)

EARPHONE

C C

RCA

2 IN 1 CARD

Ethernet

ATV/DTV

MX661

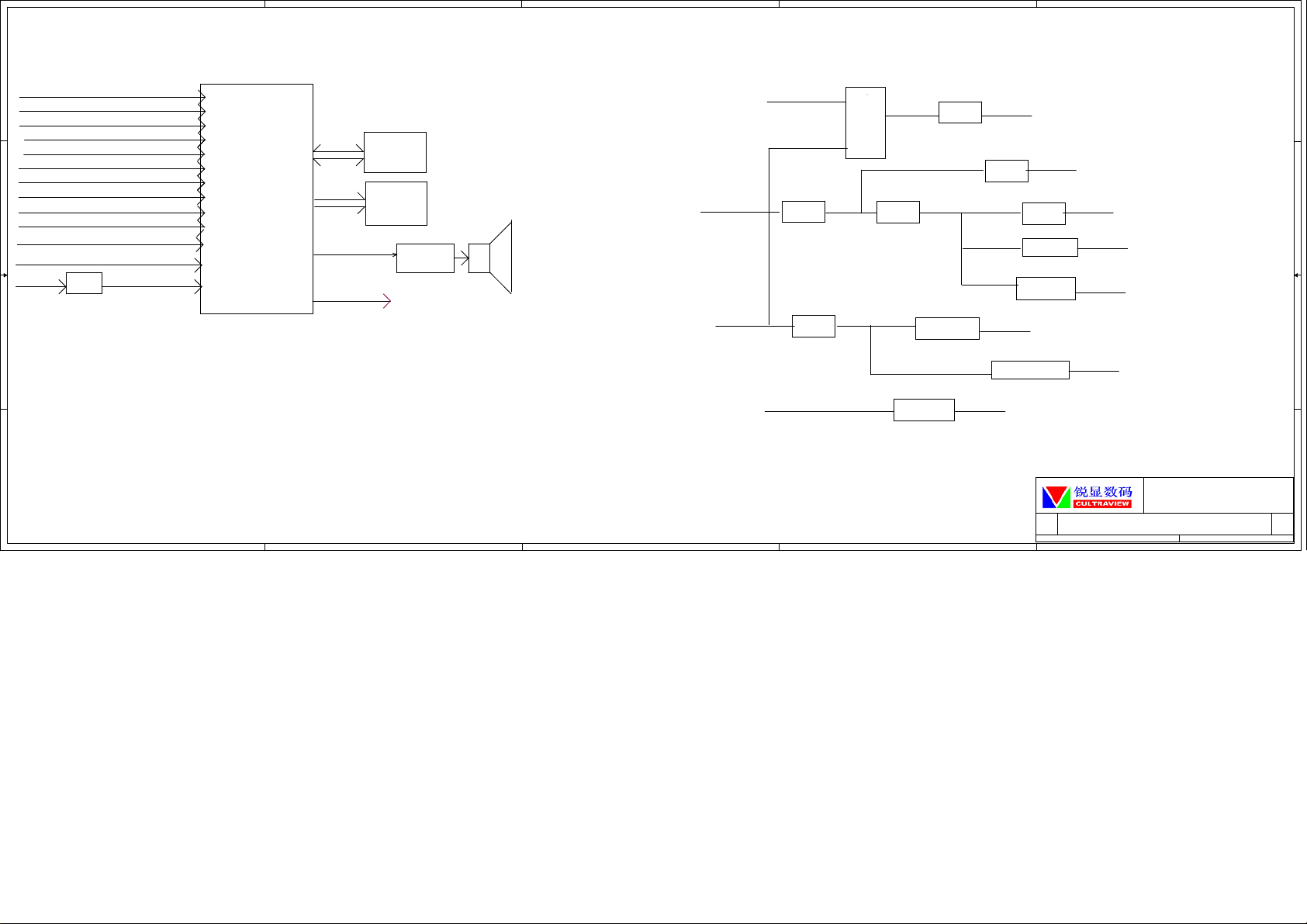

SYSTEM BLOCK

828

IO

LVDS

VB1

I2S

SPDIF_OUT

EMMC
Flash

LCD

TI5711

SPEAKER

12VU

5VU

12VU

8765

5VU

9435

5VU

AO3407

5VA

VCC_PANEL

1117-3.3

5VA

5VA

5VA

3.3VU

1117-3.3

1117-1.8/NC

MP2161*2

3.3VA

1.8VA

1.5VA

12VU

B B

Audio_18V

A A

5

4

3

9435

12VA

9495/1495S

ESMT82584

2

USB/MHL

MSH6110A+8765

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

Date: Sheet

1.15VA

Custom

Custom

Custom

00. SYSTEM BLOCK

00. SYSTEM BLOCK

00. SYSTEM BLOCK

Title

Title

Title

CV828H-B-10

CV828H-B-10

CV828H-B-10

1

1.0

1.0

1.0

of

of

of

012Friday, August 28, 2015

012Friday, August 28, 2015

012Friday, August 28, 2015

5

U1828C

HDMI/Audio Block

HDMI0-RX0N
HDMI0-RX0P
HDMI0-RX1N
HDMI0-RX1P
HDMI0-RX2N
HDMI0-RX2P
HDMI0-CLKN
HDMI0-CLKP
HDMI0-SCL
HDMI0-SDA
HDMI0-HPDIN
HDMIA-CEC

HOTPLUGA_HDMI20_5V

HDMIB-RX0N
HDMIB-RX0P
HDMIB-RX1N
HDMIB-RX1P
HDMIB-RX2N

D D

C C

B B

HDMIB-RX2P
HDMIB-CLKN
HDMIB-CLKP
HDMIB-SCL
HDMIB-SDA
HDMIB-HPDIN

HOTPLUGB_HDMI20_5V

HDMID-RX0N
HDMID-RX0P
HDMID-RX1N
HDMID-RX1P
HDMID-RX2N
HDMID-RX2P
HDMID-CLKN
HDMID-CLKP
HDMID-SCL
HDMID-SDA
HDMID-HPDIN

HOTPLUGD_HDMI20_5V

SPDIF_OUT

NAND Flash

NAND-REZ

NAND-REZ

NAND-CEZ

NAND-CEZ

NAND-RBZ

NAND-RBZ

NAND-DQS

NAND-DQS

PCM_A[7:4]

PCM_A[7:4]

I2S-OUT_BCK AUBCK_OUT
I2S-OUT_MCK AUMCK_OUT

SPDIF_OUT ETDIP

I2S-OUT_WS ETDOPAUWS_OUT
I2S-OUT_SD EDINTPAUSD_OUT

IC Configuration Selection

+3.3V_Standby

R2016 4.7KR2016 4.7K
R2023 NCR2023NC
R2049 NCR2049NC
R2018 4.7KR2018 4.7K
R2017 4.7KR2017 4.7K
R2015 NCR2015NC
R2013 NCR2013NC
R2014 4.7KR2014 4.7K

CHIP_CONFIG[3:0]
{PAD_PM_LED1, PAD_PM_SPI_DI, PAD_PM_LED0, PAD_PWM_PM}
Value Mode Description
4'b1000 SB51_ExtSPI 51 boot from SPI
4'b1001 HEMCU_ExtSPI ARM boot from SPI
4'b1010 HEMCU_ROM_EMMC ARM boot from ROM; outer storage is eMMC
4'b1011 HEMCU_ROM_NAND ARM boot from ROM; outer storage is NAND
4'b1100 DBUS for test only
4'b0000 SB51_ExtSPI + Authentication 51 boot from SPI with ARM authentication
4'b0001 HEMCU_ExtSPI + Authentication ARM boot from SPI with authentication
4'b0011 HEMCU_ROM_NAND + Authentication ARM boot from ROM with authentication; outer storage is NAND

A A

U1828C

Note : Port A needs shielding ground all signal pair

Y2

HDMI0-RX0N

RXA0N

Y3

HDMI0-RX0P

RXA0P

AA1

HDMI0-RX1N

RXA1N

AB2

HDMI0-RX1P

RXA1P

AC2

HDMI0-RX2N

RXA2N

AC1

HDMI0-RX2P

RXA2P

W1

HDMI0-CLKN

RXACKN

W2

HDMI0-CLKP

RXACKP

AA4

HDMI0-SCL

DDCDA_CK

AA5

HDMI0-SDA

DDCDA_DA

Y5

HDMI0-HPDIN

HOTPLUGA

AB5

HDMIA-CEC

CEC

AA3

Analog

C2055

C2055
NC/33pF

NC/33pF

TP17

TP17

TEST POINT

TEST POINT

HOTPLUGA_HDMI20_5V

T2

RXB0N

T3

RXB0P

U2

RXB1N

U3

RXB1P

V2

RXB2N

V1

RXB2P

R3

RXBCKN

T1

RXBCKP

W5

DDCDB_CK

V5

DDCDB_DA

W6

HOTPLUGB

Y6

HOTPLUGB_HDMI20_5V

N2

RXD0N

N3

RXD0P

P2

RXD1N

P3

RXD1P

R2

RXD2N

R1

RXD2P

M3

RXDCKN

N1

RXDCKP

U5

DDCDD_CK

U4

DDCDD_DA

V6

HOTPLUGD

V4

HOTPLUGD_HDMI20_5V

K4

SPDIF_IN

K5

SPDIF_OUT

MSD6A828/MSD6488

MSD6A828/MSD6488

PCM2_RESET
PCM2_WAIT_N

1

SDIO_CLK

NAND-AD[7:0]

PCM_A4
PCM_A5
PCM_A6
PCM_A7

NAND-CEZ
NAND-REZ
NAND-RBZ
NAND-DQS

NAND-AD0
NAND-AD1
NAND-AD2
NAND-AD3
NAND-AD4
NAND-AD5
NAND-AD6
NAND-AD7

HDMI

HDMI

SPDIF

SPDIF

U1828B

U1828B

AH28

PCMDATA[0]/CI_DATA[0]

AJ29

PCMDATA[1]/CI_DATA[1]

AH29

PCMDATA[2]/CI_DATA[2]

AJ17

PCMDATA[3]/CI_DATA[3]

AH18

PCMDATA[4]/CI_DATA[4]

AG18

PCMDATA[5]/CI_DATA[5]

AG19

PCMDATA[6]/CI_DATA[6]

AG20

PCMDATA[7]/CI_DATA[7]

AJ28

PCMADR[0]/CI_A[0]

AH27

PCMADR[1]/CI_A[1]

AJ27

PCMADR[2]/CI_A[2]

AJ26

PCMADR[3]/CI_A[3]

AJ25

PCMADR[4]/CI_A[4]

AH25

PCMADR[5]/CI_A[5]

AG26

PCMADR[6]/CI_A[6]

AG25

PCMADR[7]/CI_A[7]

AG23

PCMADR[8]/CI_A[8]

AG22

PCMADR[9]/CI_A[9]

AJ19

PCMADR[10]/CI_A[10]

AH21

PCMADR[11]/CI_A[11]

AG24

PCMADR[12]/CI_A[12]

AH22

PCMADR[13]/CI_A[13]

AJ22

PCMADR[14]/CI_A[14]

AJ23

PCMIRQA/CI_INT

AJ20

PCMOEN

AH20

PCMIORD/CI_RD

AH19

PCMCEN/CI_CS

AH23

PCMWEN

AH17

PCMCD/CI_CD

AH26

PCMRST/CI_RST

AG27

PCMREG/CI_CLK

AG21

PCMIOWR/CI_WR

AH24

PCMWAIT/CIWACK

AG17

PCM2_RESET

AH16

PCM2_WAIT_N

G2

NAND_ALE/EMMC_IO15/SDIO_D[1]

J4

NAND_WPZ/EMMC_IO17/SDIO_D[2]

F1

NAND_CEZ/EMMC_IO9

G1

NAND_CLE/EMMC_IO14/SDIO_D[0]

F3

NAND_REZ/EMMC_IO10

G3

NAND_WEZ/EMMCIO16/SDIO_D[3]

E3

NAND_RBZ/EMMC_IO11

J5

NAND_CEZ1/EMMC_IO12/SDIO_CMD

B4

NAND_DQS/EMMC_IO8

M5

EMMC_IO13/SDIO_CLK

D1

NAND_AD0/EMMC_IO6

D3

NAND_AD1/EMMC_IO7

C2

NAND_AD2/EMMC_IO2

B1

NAND_AD3/EMMC_IO1

B2

NAND_AD4/EMMC_IO0

A2

NAND_AD5/EMMC_IO3

A3

NAND_AD6/EMMC_IO4

B3

NAND_AD7/EMMC_IO5

MSD6A828/MSD6488

MSD6A828/MSD6488

Analog
Audio

Audio

EARPHONE_OUT_L
EARPHONE_OUT_R

I2S

I2S

HOTPLUGA_HDMI20_5V
HDMIB-RX0N

HDMIB-RX0P
HDMIB-RX1N
HDMIB-RX1P
HDMIB-RX2N
HDMIB-RX2P
HDMIB-CLKN
HDMIB-CLKP
HDMIB-SCL
HDMIB-SDA
HDMIB-HPDIN

HDMID-RX0N
HDMID-RX0P
HDMID-RX1N
HDMID-RX1P
HDMID-RX2N
HDMID-RX2P
HDMID-CLKN
HDMID-CLKP
HDMID-SCL
HDMID-SDA
HDMID-HPDIN

TP25

TP25
TEST POINT

TEST POINT

3D_FLAG

1

SPDIF_OUT

NAND-AD[7:0]

PCM2_RESET
PCM2_WAIT_N

ETMSP3D_FLAG

{PAD_LED1, PAD_PM_SPI_DI,PAD_PM_LED0, PAD_PWM_PM}CHIP_CONFIG[3:0]

PM_LED1
SPI-SDI
PM_LED0
PM_PWM

UART-TX3

UART-RX3

D2001D2001

D2002D2002

1 2

1 2

5

LINE_IN_0R
LINE_IN_1R
LINE_IN_2R

LINE_OUT_0L
LINE_OUT_0R
LINE_OUT_2L
LINE_OUT_2R

I2S_OUT_BCK
I2S_OUT_MCK
I2S_OUT_WS

I2S_OUT_SD

GPIO_PM14
GPIO_PM15

CI

CI

AJ2

LINE_IN_0L

C2084 2.2uFC2084 2.2uF

TGPIO2/SCK1
TGPIO3/SDA1

TS1DATA [0]
TS1DATA_[1]
TS1DATA_[2]
TS1DATA_[3]
TS1DATA_[4]
TS1DATA_[5]
TS1DATA_[6]
TS1DATA_[7]

TS0DATA_[0]
TS0DATA_[1]
TS0DATA_[2]
TS0DATA_[3]
TS0DATA_[4]
TS0DATA_[5]
TS0DATA_[6]
TS0DATA_[7]

AV1L

C2083 2.2uFC2083 2.2uF

AV1R

HDMI0-ARC

TP20

TP20

TP21

TP21

1

TP23

TP23

1

TEST POINT

TEST POINT

1

TEST POINT

TEST POINT

TEST POINT

TEST POINT

MHL_CABLE_DET

10uF/6.3V

10uF/6.3V

TP24

TP24

1

TEST POINT

TEST POINT

AM18
AL18
AK18
AL17
AK17
AK16
AM15
AJ16
AM16

TS1CLK

AL16

TS1VALID

AK19

TS1SYNC

AK20
AL19
AM19
AK23
AL22
AM22
AK22
AM21
AL21

TS0CLK

AK21

TS0VALID

AL20

TS0SYNC

AF15

TS2_CLK

AG16

TS2_D0

AH15

BT_DEV_WAKE

TS2_SYNC

AG15

WL_DEV_WAKE

TS2_VLD

3.3V_Tun

R2019

R2019
10K

10K

R0402

R0402

IFAGC IF-AGC

R2022 0R

R2022 0R

R0402

R0402

C2058 0.1uFC2058 0.1uF

AM7

DIFP

DIFP

VIFP

AL7

DIFM

C2057

C2057

0.1uF

0.1uF

DIFM

VIFM

AM6

IFAGC

IF_AGC

AK8

TGPIO0

AL1

TGPIO1

AM4

T_SCL

AL4

T_SDA

Crystal

RESET

+3.3V_Standby

R2067

R2067
10R

10R

C2127

C2127

C2089

C2089

100nF

100nF

100nF

100nF

AUVRM

XTALO

XTALI

C2024

C2024

TP26

TP26
TEST POINT

TEST POINT

1

D5010

D5010

ESD/NC

ESD/NC

1 2

AUVAGAUVAG

C2062

C2062
22nF

22nF

C0402

C0402

R20410RR2041
0R

Q2002

Q2002

23

SGM809

SGM809

1

C2022

C2022

0.1uF

0.1uF

FB2001FBFB2001

FB

1 2

IF-AGC

C2016

C2016
33pF

33pF

12

X2001

X2001

3

24MHZ

24MHZ

C2014

C2014
33pF

33pF

R2056 1KR2056 1K

R2005

R2005
100K

100K

Audio Line Out

EARPHONE_OUTL

EARPHONE_OUTR

AMP-RESET

BT_HOST_WAKE

4

+5V_Standby

System-RSTSystem_RST

C2021

C2021

C2090

C2090

2.2UF/NC

2.2UF/NC

1nF

1nF

System_RST

4

WIFI_REG_ON4

WL_HOST_WAKE

PCM_PWR_CTL

EARPHONE-OUTL 12

EARPHONE-OUTR 12

GPIO_VID_0
GPIO_VID_1

J7002J7002

LINE_IN_0L

AJ1

LINE_IN_0R

AJ3

LINE_IN_1L

AK2
AK1

LINE_IN_2L

AK3

AJ4
AJ5
AL5
AK6

AH6

EARPHONE_OUTL

AJ6

EARPHONE_OUTR

AB4

HDMI0-ARC

ARC0

AK5

AUVAG

AUVAG

AK4

AUVRM

AUVRM

K7

I2S_IN_BCK

NC1

J15

I2S_IN_SD

NC2

J12

I2S_IN_WS

NC3

L6

AUBCK_OUT

M7

AUMCK_OUT

N6

AUWS_OUT

M6

AUSD_OUT

AB3

MHL_CABLE_DET

AB6

TS1

TS1

(In/Out)

(In/Out)

TS0PCMCIA

TS0PCMCIA
(In)

(In)

TS2

TS2

NAND

NAND
EMMC

EMMC

Front End

Front End

CN2001

CN2001

1
2

4
3

PJ-2.5

PJ-2.5

BRI_ADJ

LR_SYNC

LR_SYNC

PCM_PWR_CTL

PM_PWM 3D_GLASSES_PWM

KEY0-in
key1/sar1

R2012 100RR2012 100R

PANEL_ON/OFF
POWER_DETECT

SPI-SCK

R2065 100RR2065 100R

WIFI_REG_ON

R2010 100RR2010 100R

SPI-SDO

SPI-CS1N B_LED

UART-RX

R2040 100RR2040 100R

UART-TX

R2011 100RR2011 100R

3D_EN
SD_WP

M_SCL

R2008 100RR2008 100R

M_SCL

M_SDA

R2009 100RR2009 100R

M_SDA

GPIO_VID_0
GPIO_VID_1

PM_LED0
PM_LED1

USB3_EN

USB3_EN

LED

R_LED B_LED

REMOTE

+3.3V_Standby

key0

28

J7003J7003

1

1

8

1

8

22222323242425252626272728

2

2

9

2

9

3

3

10

3

10

4

4

11

4

11

5

5

12

5

12

6

6

13

6

13

7

7

14

7

14

15151616171718181919202021

21

1
2
3
4
5
6
7

12

EAR-PLUG

22222323242425252626272728

15151616171718181919202021

4

Video Block

AV1

AV1

TP16

TP16
TEST POINT

TEST POINT

U1828D

U1828D

1

AJ8

BRI_ADJ

AH8

PWM1

AG8

PWM2

T11

PWM

PWM

PWM3

NC

AG7

PWM_PM

AF9

KEY0

AH11

12

SAR1

SAR1

AH7

SAR

SAR

PANEL_ON/OFF

AF8

SAR3

AJ7

POWER_DETECT

AG14

12

SPI_CK

AG13

SPI-SDI

SPI_DI

AH12

12

100R

100R

R2066

R2066

SPI_DO

AG12

1 2

SPI

SPI

R2002 0RR2002 0R

SPI_CZ1/GPIO_PM6

AC4

12

UART-RX-R

DDCA_CK/UART0_RX

AC5

12

UART-TX-R

DDCA_DA/UART0_TX

AJ13

UART1-TX3D_EN

GPIO

GPIO

GPIO3/TX1

AH13

UART1-RXSD_WP

GPIO4/RX1

/UART

/UART

AH14

GPIO2

P6

12

DDCR_CK

P5

12

DDCR_DA

I2C

I2C

R6

VID0

R7

VID1

AH5

LED0

AH4

LED1

N5

WOL_INT_OUT

MSD6A828/MSD6488

MSD6A828/MSD6488

KEYBOARD

IR

J2002

J2002

1 2

GND

3 4

G_LED

5 6
7 8

PHD-2X4-AW

PHD-2X4-AW

28

28

J7004J7004

J7005J7005

8

1

8

8

1

8

22222323242425252626272728

9

2

9

9

2

9

10

3

10

10

3

10

11

4

11

11

4

11

12

5

12

12

5

12

13

6

13

13

6

13

14

7

14

14

7

14

15151616171718181919202021

21

21

4

U1828E

U1828E

AE2

RIN0P

AD3

GIN0M

AD2

GIN0P

AD1

BIN0P

AD4

HSYNC0

AE4

VSYNC0

AG1

RIN1P

AF3

GIN1M

AF1

GIN1P

AE3

BIN1P

AF2

VSYNC1/SOGIN1

AH3

RIN2P

AH2

GIN2M

AG3

GIN2P

AG2

BIN2P

AF6

VCOM

C203147nF C203147nF

R204668R R204668R

VCOM

AF7

CVBS0

C203247nF C203247nF

R204533R R204533R

CVBS0

AE5

CVBS1

AF5

CVBSOUT1

MSD6A828/MSD6488

MSD6A828/MSD6488

AF32

LVSYNC

LVSYNC

AG31

LCK

LCK

AF30

LDE

LDE

AF31

LHSYNC

LHSYNC

AH31

B0-

B0M (R_ODD[7])

AH32

B0+

B0P (R_ODD[6])

AH30

B1-

B1M (R_ODD[5])

AJ32

B1+

B1P (R_ODD[4])

AJ30

B2-

B2M (R_ODD[3])

AK31

B2+

B2P (R_ODD[2])

AL32

BCLK-

BCKM (R_ODD[1])

AL31

BCLK+

BCKP (R_ODD[0])

AM31

B3-

B3M (G_ODD[7])

AL30

B3+

B3P (G_ODD[6])

AK29

LVDS

LVDS

B4-

B4M (G_ODD[5])

AM29

B4+

B4P (G_ODD[4])

60Hz

60Hz

AK28

A0M (G_ODD[3])

AL28

A0P (G_ODD[2])

AL27

A1M (G_ODD[1])

AM27

A1P (G_ODD[0])

AM26

A2M (B_ODD[7])

AL26

A2P (B_ODD[6])

AL25

ACKM (B_ODD[5])

AK25

ACKP (B_ODD[4])

AG29

A3-

A3M (B_ODD[3])

AF29

A3+

A3P (B_ODD[2])

AF28

A4M (B_ODD[1])

AF27

A4P (B_ODD[0])

AJ12

VBL_CTRL

AG6

PWR-ON/OFF

AF4

GPIO_PM7

AD5

GPIO_PM8

L5

PM_GPIO

PM_GPIO

1 2

R2001 0RR2001 0R

GPIO_PM11

AG4

PM_TX FLASH-WPN1

GPIO_PM1

AG5

GPIO_PM5

J11

TESTPIN

B_LED
R_LED
G_LED
REMOTE

28

1

8

1

8

22222323242425252626272728

2

9

2

9

3

10

3

10

4

11

4

11

5

12

5

12

6

13

6

13

7

14

7

14

15151616171718181919202021

21

M2

TN

M1

TP

PHY

PHY

L2

RN

L3

RP

K3

GPIO19/LAN_LED[0]

K2

GPIO20/LAN_LED[1]

RGB

RGB

N4

HWRESET

AM3

XIN

AM2

XOUT

M4

IRIN

H2

USB0_DM

H3

USB0_DP

J2

USB1_DM

J1

USB

USB

USB1_DP

J3

USB2_DM

K1

USB2_DP

AL14

USB_SSTXP

AK15

USB_SSTXN

AM13

USB_DM_PSS

AL13

USB_DP_PSS

AL12

USB_SSRXP

CVBS

CVBS

AM12

USB_SSRXN

AK9

USB_SSTXP_1

AL9

USB3.0

USB3.0

USB_SSTXN_1

AK10

USB_DM_PSS1

AM10

USB_DP_PSS1

AK11

USB_SSRXP_1

AL11

USB_SSRXN_1

LVSYNC
LCK
LDE
LHSYNC

B0­B0+
B1­B1+
B2­B2+
BCLK­BCLK+
B3­B3+
B4­B4+

A3­A3+

VBL_CTRL

VBL_CTRL

PWR-ON/OFF

PWR-ON/OFF

SD_CDZ

SD_CDZ
AMP-MUTE
R_LED

1 2

R2007 0RR2007 0R

1 2

3D_LR_INPM_RX

R2006 100RR2006 100R

3D_LR_IN

REMOTE

IR-in

R2036 68RR2036 68R

R2061

R2061

C2069

C2069

C2066

C2066

C2120

C2120

R2062

R2062

C2068

C2068

4.7K

4.7K

4.7K

4.7K

100nF/NC

100nF/NC

22pF

22pF

100nF/NC

100nF/NC

100nF/NC

100nF/NC

USB Block

MDI_TN

MDI_TN

MDI_TP

MDI_TP

MDI_RN

MDI_RN

MDI_RP

MDI_RP

USB3.0 Block

System-RST
XTALI

XTALO
IR-in

USB0_D­USB0_D+

USB3.0 Block

USB1_D­USB1_D+
USB2_D­USB2_D+
USB_SSTXP
USB_SSTXN
USB_D­USB_D+
USB_SSRXP
USB_SSRXN
1USB_SSTXP
1USB_SSTXN
1USB_D­1USB_D+
1USB_SSRXP
1USB_SSRXN

UART-RX

UART-RX

UART-TX

UART-TX

BRI_ADJ

BRI_ADJ

M_SCL

M_SCL

M_SDA

M_SDA

T_SCL

T_SCL

T_SDA

T_SDA

UART1-TX
UART1-RX

PM_RX
PM_TX

GPIO_VID_0
GPIO_VID_1

G_LED
WIFI-EN4

PANEL_ON/OFF

AMP-MUTE

4

BT_DEV_WAKE

WL_DEV_WAKE4

+3.3V_Standby

REMOTE

R2053 10KR2053 10K

R2063

R2063

4.7K

4.7K

I2S-OUT_BCK
I2S-OUT_MCK
I2S-OUT_WS
I2S-OUT_SD

4

3

CORE

+1.20V_VDDC

12

12

12

12

12

C2116

C2116

C2111

C2111

C2122

C2122

C2030

C2054

C2054
10uF/6.3V

10uF/6.3V

C0805

C0805

FB2002FB/120RFB2002FB/120R

1 2

C2087

C2087
10uF/6.3V

10uF/6.3V

C0805

C0805

DDR3-1.5V

AVDD_DDR

C2046

C2046

10uF/6.3V

10uF/6.3V

J2001

J2001

<FUNCTION>

<FUNCTION>

PH-4A

PH-4A

1122334

12

C2075

C2075

0.1uF

0.1uF

FB2003 0RFB2003 0R

C0805

C0805

4

1 2

AVDDL_MHL3

C2030

C2067

C2067

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

+1.20V_VDDC

12

12

C2012

C2012

C2040

C2040

12

C2076

C2076

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

AVDDL_USB3

12

12

C2094

C2094

0.1uF

0.1uF

DVDD_DDR

12

12

12

C2096

C2096

C2099

C2099

C2095

C2095

0.1uF

0.1uF

0.1uF

0.1uF

4.7uF

4.7uF

AVDD_USB

12

C2034

C2034

0.1uF

0.1uF

12

12

12

12

12

C2044

C2044

C2048

C2048

C2047

C2047

C2045

C2045

C2049

C2049

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

4.7uF

4.7uF

0.1uF

0.1uF

UART-TX

UART-RX

C2029

C2029
22uF/6.3V

R2060 4.7K/NCR2060 4.7K/NC

22uF/6.3V

VDDC_2 +1.20V_VDDC VDDC_4

12

C2074

C2074

0.1uF

0.1uF

+1.20V_VDDC

+1.20V_VDDC

+3.3V_Standby

+3.3V_Standby

+1.5V_DDR

R2025 0RR2025 0R

Urat1&PM Urat

R2043 1KR2043 1K

KEY0-in

USB0_D-

USB0_D-

USB0_D+

USB0_D+

USB1_D-

USB1_D-

USB1_D+

USB1_D+

USB2_D-

USB2_D-

USB2_D+

USB2_D+

USB_SSTXP

USB_SSTXP

USB_SSTXN

USB_SSTXN

USB_D-

USB_D-

USB_D+

USB_D+

USB_SSRXP

USB_SSRXP

USB_SSRXN

USB_SSRXN

1USB_SSTXP

1USB_SSTXP

1USB_SSTXN

1USB_SSTXN

1USB_D-

1USB_D-

1USB_D+

1USB_D+

1USB_SSRXP

1USB_SSRXP

1USB_SSRXN

1USB_SSRXN

+3.3V_Standby

R_LED

R2044 4.7K/NCR2044 4.7K/NC

+3.3V_Standby

B_LED

R2051 4.7K/NCR2051 4.7K/NC

+3.3V_Standby

G_LED

R2039 4.7K/NCR2039 4.7K/NC

+3.3V_Standby

AMP-RESET

R2064 4.7KR2064 4.7K

R2034 4.7KR2034 4.7K
R2033 4.7KR2033 4.7K

+3.3V_Normal

R2027 4.7KR2027 4.7K
R2028 4.7KR2028 4.7K

3.3V_Tun

R2029 4.7KR2029 4.7K
R2030 4.7KR2030 4.7K

+3.3V_Normal

R2031 4.7KR2031 4.7K
R2032 4.7KR2032 4.7K

+3.3V_Standby

R2037 4.7KR2037 4.7K
R2057 4.7KR2057 4.7K

+3.3V_Standby

R2055 4.7KR2055 4.7K
R2042 4.7K/NCR2042 4.7K/NC

PANEL_ON/OFFPANEL_ON/OFF PANEL_ON/OFF

+3.3V_Standby

R2024 4.7KR2024 4.7K

I2S-OUT_BCK
I2S-OUT_MCK
I2S-OUT_WS
I2S-OUT_SD

WIFI_REG_ON

R2059 4.7K/NCR2059 4.7K/NC

R2035

R2035

R2047

R2047

4.7K/NC

4.7K/NC

4.7K

4.7K

R2026

R2026

4.7K/NC

4.7K/NC

+3.3V_Standby

R2038

R2038

4.7K

4.7K

key0

12

C2065

C2065

D2003

D2003

22pF

22pF

NC/ESD

NC/ESD

+3.3V_Standby

R2004

R2004

4.7K

4.7K

key1/sar1

BT_REG_ON key1/sar1

BT_REG_ON

3

C2100

C2100

0.1uF

0.1uF

12

C2098

C2098

0.1uF

0.1uF

12

FB2007 FB/120RFB2007 FB/120R

1 2

12

12

C2121

C2121

C2053

C2053

0.1uF

0.1uF

0.1uF

0.1uF

12

C2033

C2033

0.1uF

0.1uF

12

C2035

C2035

0.1uF

0.1uF

12

C2043

C2043

0.1uF

0.1uF

12

C2020

C2020

0.1uF

0.1uF

C2060

C2060

0.1uF

0.1uF

AVDD_USB3

1 2

FB2005 FB/120RFB2005 FB/120R

12

12

C2071

C2071

C2070

C2070

0.1uF

0.1uF

0.1uF

0.1uF

AVDD33_LAN

AVDD_NODIE

12

12

C2080

C2080

C2081

C2081

0.1uF

0.1uF

0.1uF

0.1uF

AVDD_DADC

12

C2082

C2082

0.1uF

0.1uF

AVDD33_ADC

12

C2086

C2086

0.1uF

0.1uF

AVDD_AU33

12

C2059

C2059

0.1uF

0.1uF

AVDD_DDR

12

C2050

C2050

0.1uF

0.1uF

FB20040RFB2004
0R

1 2

1 2

C2077 0.47uFC2077 0.47uF

1 2

C2079 0.47uFC2079 0.47uF

eMMC protect

+12V_Normal

R20201KR2020
1K

1 2

R2048

R2048
10K

10K

1 2

R20211KR2021
1K

1 2

CPU

+1.05_VDDC_CPU

C2126

C2126

C2125

C2125

C2072

C2072

10uF

10uF

10uF

10uF

10uF

10uF

+1.05_VDDC_CPU

AVDDL_MOD

+1.20V_VDDC

AVDD_DMPLL

AVDD_EAR33

AVDD_DDR_LDO_A

AVDD_DDR_LDO_B

AVDD15_MOD

AVDD_DDR_VBP_B

AVDD_DDR_VBP_A

POWER_DETECT

C2117

C2117

C2093

C2093

12

22uF

22uF

22uF

22uF

12

12

C2078

C2078

C2101

C2101

10uF/6.3V

10uF/6.3V

0.1uF

0.1uF

VDDC_1

C2118

C2118
22uF/6.3V

22uF/6.3V

Normal Power 3.3V

12

C2042

C2042

0.1uF

0.1uF

12

C2063

C2063

0.1uF

0.1uF

12

C2028

C2028

0.1uF

0.1uF

12

C2119

C2119

0.1uF

0.1uF

12

12

C2091

C2091

C2092

C2092

C2097

C2097

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

12

12

C2052

C2052

C2115

C2115

C2088

C2088

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

12

12

C2023

C2023

C2026

C2026

C2027

C2027

10uF/6.3V

10uF/6.3V

0.1uF

0.1uF

0.1uF

0.1uF

+3.3V_Normal

1 2

internal LDO­one BJT for <100mA, two BJT for <200mA

EMMC_CTRL

VDDP_NAND_A

R2058 0RR2058 0R

Power for eMMC

+3.3V_Normal

FB2006NC/0RFB2006NC/0R

1 2

+1.8V_Normal

FB2009 0RFB2009 0R

1 2

+3.3V_Normal VDDP_NAND_C

FB2010 0R/NCFB2010 0R/NC

1 2

12

12

12

C2025

C2025

0.1uF

0.1uF

+3.3V_Normal

+3.3V_Normal

C2110

C2110

0.1uF

0.1uF

C2114

C2114

0.1uF

0.1uF

+3.3V_Normal

FB2008FBFB2008FB

1 2

C2037

C2037
10uF/6.3V

10uF/6.3V

FB2011

FB2011
FB/120R

FB/120R

VDDP_NAND_A

2

VDDC_4

HT2

HT2

Heat-sink50X70

Heat-sink50X70

AVDDL_MOD

AVDD15_MOD
AVDDL_USB3

+1.05_VDDC_CPU

DVDD_NODIE

AVDD5V_MHL

C2041

C2041

12

1uF

1uF

AVDD3P3_MHL3

VDDP_NAND_A
VDDP_NAND_A_1
VDDP_NAND_C_1
VDDP_NAND_C

AVDD_DDR_LDO_A
AVDD_DDR_LDO_B

C2085 0.47uFC2085 0.47uF

C2051 0.47uFC2051 0.47uF

1

+1.20V_VDDC

AVDD_NODIE

AVDDL_MHL3

AVDD33_LAN
AVDD_DADC

AVDD33_ADC
AVDD_USB
AVDD_USB3

AVDD_AU33
AVDD_EAR33
AVDD_DMPLL
VDDP33

AVDD_MOD
AVDD_LPLL

AVDD_PLL

AVDD_DDR_VBP_A

1 2

AVDD_DDR_VBP_B

1 2

2

VDDC_2

U1828F

U1828F

M16

VDDC

U12

VDDC1

AA16

VDDC2

AA21

VDDC3

AA22

VDDC4

AB21

VDDC5

AB22

VDDC6

AB23

VDDC7

AC21

VDDC8

AC22

VDDC9

AC23

VDDC10

AC24

VDDC11

AD21

VDDC12

AD22

VDDC13

AD23

VDDC14

AD24

VDDC15

AD25

VDDC16

AD26

VDDC17

AD27

VDDC18

AD28

VDDC19

AA18

AVDDL_PREDRV

AB18

AVDDL_PREDRV1

AA19

AVDDL_MOD

AB19

AVDDL_MOD1

V20

AVDD15_MOD1

V21

AVDD15_MOD

AB14

AVDDL_USB3_B

AB15

AVDDL_USB3_A

V23

VDDC_CPU

V24

VDDC_CPU1

W23

VDDC_CPU2

W24

VDDC_CPU3

Y23

VDDC_CPU4

Y24

VDDC_CPU5

Y25

VDDC_CPU6

AA25

VDDC_CPU7

AA26

VDDC_CPU8

AA27

VDDC_CPU9

AA28

VDDC_CPU10

AA29

VDDC_CPU11

AB26

VDDC_CPU12

AB27

VDDC_CPU13

AB28

VDDC_CPU14

AB29

VDDC_CPU15

AB30

VDDC_CPU16

AC28

VDDC_CPU17

AC29

VDDC_CPU18

AC30

VDDC_CPU19

AC31

VDDC_CPU20

AC32

VDDC_CPU21

AD29

VDDC_CPU22

AD30

VDDC_CPU23

AD31

VDDC_CPU24

AD32

VDDC_CPU25

P15

DVDD_NODIE

L21

DVDD_DDR

DVDD_DDR1

P21

DVDD_DDR

N21

DVDD_DDR_RX_A

M21

DVDD_DDR_RX_B

AE7

AVDD_NODIE

U14

AVDDL_MHL3_1

U15

AVDDL_MHL3

P8

AVDD3P3_MHL3

R8

AVDD3P3_MHL3_1

AD9

AVDD3P3_ETH

AE8

AVDD3P3_DADC

AE9

AVDD3P3_DADC1

AD7

AVDD3P3_ADC1

AD8

AVDD3P3_ADC

AE12

AVDD3P3_USB1

AF12

AVDD3P3_USB

AE13

AVDD3P3_USB3

AF13

AVDD3P3_USB3_1

AB10

AVDD_AU33

AB9

AVDD_EAR33

AF16

AVDD3P3_DMPLL

N7

VDDP1

P7

VDDP

P9

AVDD_MOD1

R9

AVDD_MOD

P10

AVDD_LPLL

R10

AVDD_LPLL1

M9

AVDD_PLL_A

M10

AVDD_PLL_B

H5

VDDP_3318_A

K14

VDDP_3318_A_1

H13

VDDP_3318_C_1

J6

VDDP_3318_C

K17

AVDD_DDR

AVDD_DDR_A_CMD

K18

AVDD_DDR_A_CMD1

J21

AVDD_DDR_A_DAT

K19

AVDD_DDR_A_DAT1

L19

AVDD_DDR_A_DAT2

L20

AVDD_DDR_A_DAT3

L18

AVDD_DDR_A_MCK

K22

AVDD_DDR_B_CMD

L22

AVDD_DDR_B_CMD1

N22

AVDD_DDR_B_DAT

N23

AVDD_DDR_B_DAT1

P23

AVDD_DDR_B_DAT2

R23

AVDD_DDR_B_DAT3

J22

AVDD_DDR_B_MCK

L17

AVDD_DDR_LDO_A

K21

AVDD_DDR_LDO_B

AC6

AVDD_HDMI_5V_PA

N11

GND_EFUSE

J17

AVDD_DDR_VBP_A

J18

AVDD_DDR_VBP_A1

J19

AVDD_DDR_VBN_A

AVDD_DDR_VBN_A

J20

AVDD_DDR_VBN_A1

M24

AVDD_DDR_VBP_B

N24

AVDD_DDR_VBP_B1

P24

AVDD_DDR_VBN_B

AVDD_DDR_VBN_B

R24

AVDD_DDR_VBN_B1

MSD6A828/MSD6488

MSD6A828/MSD6488

HT3

HT3

1

2

Heat-sink50X70

Heat-sink50X70

VDD_SRAM1

CTRL_SRAMLDO

PADA_EMMC_CTRL

+1.20V_VDDC

AE21

VDDC27

AE22

VDDC26

AE23

VDDC25

AE24

VDDC24

AE25

VDDC23

AE26

VDDC22

AE27

VDDC21

AE28

VDDC20

AK24

VDD_SRAM

AL23
AM24

VCTRL

H6

EMMC_CTRL

12

C2112

C2112

0.1uF

0.1uF

12

12

C2064

C2064

0.1uF

0.1uF

AVDD_LPLL

12

C2103

C2103

2.2uF

2.2uF

+3.3V_Normal

2

MMB2907

MMB2907

1

Q2001

Q2001

3

R2054

R2054

NC/4.7K

NC/4.7K

R20500RR2050

0R

C2061

C2061

2.2uF

2.2uF

C2019

C2019

10uF/6.3V

10uF/6.3V

C2017

C2017

NC/10uF/6.3V

NC/10uF/6.3V

C2105

C2105

C2107

C2107

C2106

C2106

C2109

C2109

C2108

C2108

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

C2113

C2113

0.1uF

0.1uF

AVDDL_MOD

12

C2018

C2018

0.1uF

0.1uF

VDDP33

12

C2038

C2038

C2036

C2036

12

2.2uF

2.2uF

0.1uF

0.1uF

AVDD3P3_MHL3

12

12

C2102

C2102

C2104

C2104

2.2uF

2.2uF

0.1uF

0.1uF

AVDD_MOD

12

C2010

C2010

0.1uF

0.1uF

AVDD_PLL

12

12

12

C2056

C2056

C2073

C2073

C2123

C2123

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

R20520RR2052
0R

C2039

C2039

0.1UF

0.1UF

VDDP_NAND_A_1

12

C2015

C2015

C2013

C2013

0.1uF

0.1uF

0.1uF

0.1uF

VDDP_NAND_C_1

12

C2011

C2011

C2124

C2124

0.1uF

0.1uF

NC/0.1uF

NC/0.1uF

2

Heat Sink

HT1

HT1

Heat-sink50X70

Heat-sink50X70

AVDD5V_MHL

1

2

12

12

12

12

12

VDDC_SRAM

1

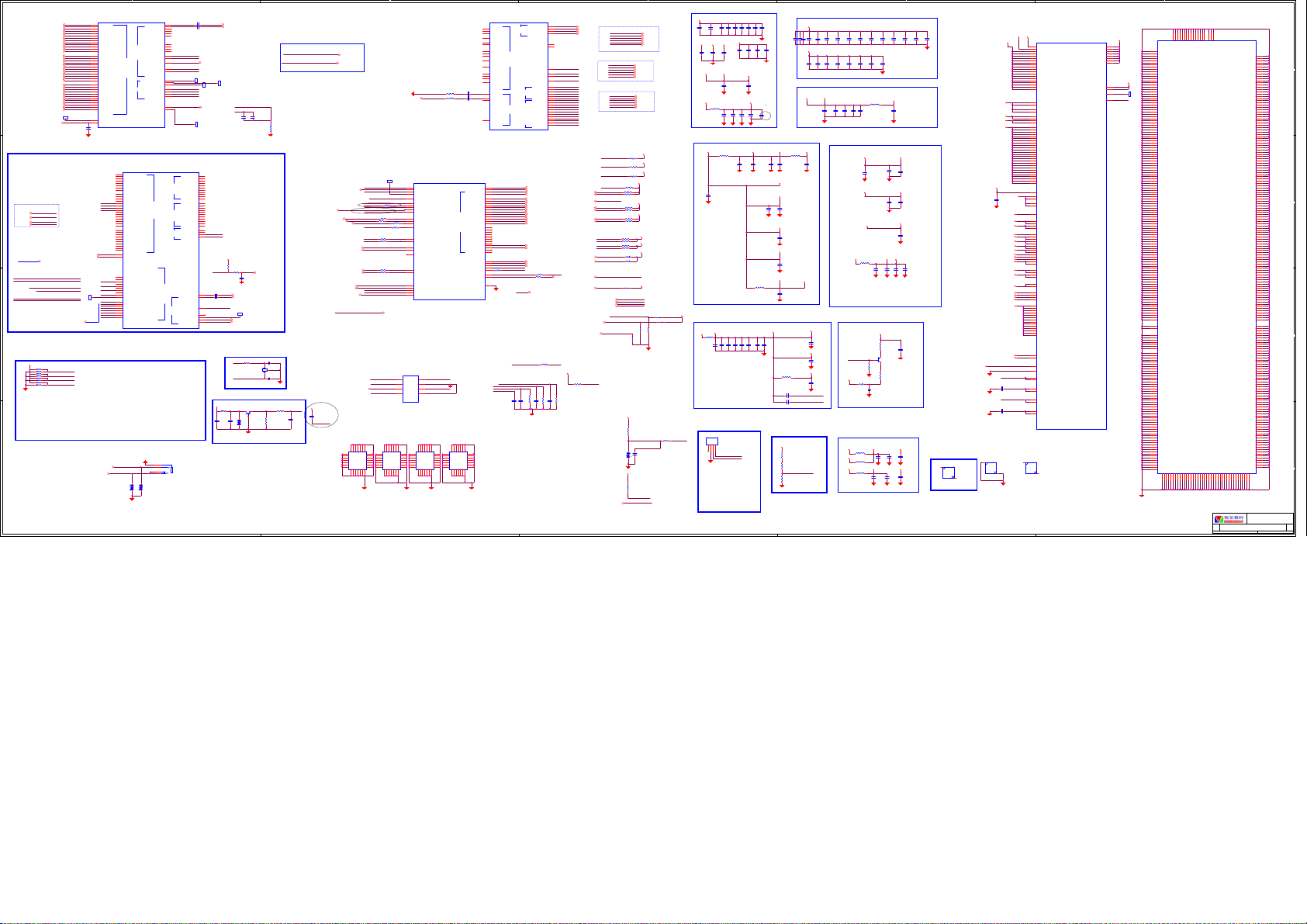

MSD6A828/MSD6488

MSD6A828/MSD6488

1

U1828G

U1828G

AL24

AM30

AK26

AK27

AL2

AL3

AL6

AL8

AL10

AL15

AK30

AK14

AK13

AL29

AM9

P11

R11

U11

GND411

GND407

GND418

GND417

GND415

GND445

GND413

GND412

GND446

GND421

GND416

GND444

GND420

GND409

GND408

GND406

GND405

GND186

GND187

GND188

GND189

GND190

GND192

GND191

GND193

GND194

GND195

P16

P17

P18

P19

P20

P25

P26

P28

P30

GND404

GND196R4GND197R5GND198

GND199

GND200

GND201

GND202

GND203

GND204

GND205

GND206

GND207

GND208

GND209

GND210

GND211

GND212

GND213T4GND214T5GND215T6GND216T7GND217T8GND218T9GND219

R12

R13

R14

R15

R16

R17

R18

R19

R20

R21

R22

R25

R26

R29

R30

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

02. CV828main page

02. CV828main page

02. CV828main page

Date: Sheet

Date: Sheet

Date: Sheet

T15

GND403

T16

GND402

T17

GND401

T18

GND400

T19

GND399

T20

GND398

T21

GND397

T22

GND396

T23

GND395

T24

GND394

T25

GND393

T26

GND392

T28

GND391

T30

GND390

U6

GND389

U7

GND388

U8

GND387

U9

GND386

U10

GND385

U13

GND384

U16

GND383

U17

GND382

U18

GND381

U19

GND380

U20

GND379

U21

GND378

U22

GND377

U23

GND376

U24

GND375

U25

GND374

U26

GND373

U29

GND372

U31

GND371

V3

GND370

V7

GND369

V8

GND368

V9

GND367

V10

GND366

V11

GND365

V12

GND364

V13

GND363

V14

GND362

V15

GND361

V16

GND360

V17

GND359

V18

GND358

V19

GND357

V22

GND356

V25

GND355

V26

GND354

V28

GND353

V32

GND352

W3

GND351

W7

GND350

W8

GND349

W9

GND348

W10

GND347

W11

GND346

W12

GND345

W13

GND344

W14

GND343

W15

GND342

W16

GND341

W17

GND340

W18

GND339

W19

GND338

W20

GND337

W21

GND336

W22

GND335

W25

GND334

W26

GND333

W27

GND332

W28

GND331

W29

GND330

W31

GND329

Y7

GND447

Y8

GND328

Y9

GND327

Y10

GND326

Y11

GND325

Y12

GND324

Y13

GND323

Y14

GND322

Y15

GND321

Y16

GND320

Y17

GND319

Y18

GND318

Y19

GND317

Y20

GND316

Y21

GND315

Y22

GND314

Y26

GND313

Y27

GND312

Y28

GND311

Y29

GND310

Y32

GND309

AA2

GND308

AA7

GND307

AA8

GND306

AA9

GND305

AA10

GND304

AA11

GND303

AA12

GND302

AA13

GND301

AA14

GND300

AA15

GND299

AA17

GND298

AA20

GND297

AA30

GND296

AB1

GND295

AB7

GND294

AB8

GND293

AB11

GND292

AB12

GND291

AB13

GND290

AB16

GND289

AB17

GND288

AB20

GND287

AB31

GND286

AB32

GND285

AC3

GND284

AC7

GND283

AC8

GND282

AC9

GND281

AC10

GND280

AC13

GND279

AC14

GND278

AC15

GND277

AC16

GND276

AC17

GND275

AC18

GND274

AC19

GND273

AC20

GND272

AD6

GND271

AD10

GND270

AD11

GND269

AD12

GND268

AD13

GND267

AD14

GND266

AD15

GND265

AD16

GND264

AD17

GND263

AD18

GND262

AD19

GND261

AD20

GND260

AE6

GND259

AE10

GND258

AE11

GND257

AE14

GND256

AE15

GND255

AE16

GND254

AE17

GND253

AE18

GND252

AE19

GND449

AE20

GND251

AE29

GND250

AF10

GND249

AF11

GND248

AF14

GND247

AF17

GND246

AF18

GND245

AF19

GND244

AF20

GND243

AF21

GND242

AF22

GND241

AF23

GND240

AF24

GND239

AF25

GND238

AG9

GND237

AG10

GND236

AG11

GND235

AG28

GND234

AG30

GND233

AH9

GND232

AH10

GND231

AJ9

GND230

AJ10

GND229

AJ11

GND228

AJ14

GND227

AJ24

GND226

AJ31

GND225

AK7

GND224

AK12

GND223

GND220

GND221

GND222

T10

T12

T13

T14

Title

Title

Title

CV828H-B-10

CV828H-B-10

CV828H-B-10

212Friday, August 28, 2015

212Friday, August 28, 2015

212Friday, August 28, 2015

of

of

of

A5

GND1

A12

GND2

A14

GND3

A21

GND4

A23

GND5

A29

GND6

B6

GND7

B11

GND8

B13

GND9

B15

GND10

B20

GND11

B22

GND12

B24

GND13

B27

GND14

B28

GND15

B30

GND16

B32

GND17

C1

TP19

TP19

GND18

C3

GND19

C4

GND20

C5

GND21

C8

TEST POINT

TEST POINT

GND22

C9

GND23

C10

GND24

C17

GND25

C18

GND26

C19

GND27

C26

GND28

C31

GND29

D2

GND30

D6

GND31

D8

GND32

D10

GND33

D12

GND34

D14

GND35

D16

GND36

D18

GND37

D20

GND38

D22

GND39

D23

GND40

D24

GND41

D25

GND42

D26

GND43

D27

GND44

E2

GND45

E4

GND46

E6

GND47

E8

GND48

E10

GND49

E13

GND50

E15

GND51

E17

GND52

E19

GND53

E21

GND54

E22

GND55

E23

GND56

E24

GND57

E25

GND58

E26

GND59

E29

GND60

E30

GND61

F2

GND62

F4

GND63

F12

GND64

F13

GND65

F22

GND66

F23

GND67

F24

GND68

F25

GND69

F26

GND70

F30

GND71

G4

GND72

G5

GND73

G6

GND74

G7

GND75

G8

GND76

G9

GND77

G10

GND78

G11

GND79

G12

GND80

G13

GND81

G14

GND82

G15

GND83

G16

GND84

G17

GND85

G18

GND86

G19

GND87

G20

GND88

G21

GND422

G22

GND89

G23

GND90

G24

GND91

G25

GND92

G26

GND93

G28

GND94

G29

GND95

G30

GND96

H4

GND97

H7

GND98

H8

GND99

H9

GND100

H10

GND101

H11

GND102

H12

GND103

H14

GND104

H15

GND105

H16

GND106

H17

GND107

H18

GND108

H19

GND109

H20

GND110

H21

GND111

H22

GND112

H23

GND113

H25

GND114

H26

GND115

H31

GND116

J7

GND117

J8

GND118

J9

GND119

J10

GND120

J13

GND121

J14

GND122

J16

GND123

J25

GND124

J26

GND125

J28

GND126

J29

GND127

J32

GND128

K6

GND129

K8

GND130

K9

GND131

K10

GND132

K11

GND133

K12

GND134

K13

GND135

K15

GND136

K16

GND137

K24

GND138

K25

GND139

K26

GND140

K31

GND141

L7

GND142

L8

GND143

L9

GND144

L10

GND145

L11

GND146

L12

GND147

L13

GND148

L14

GND149

L15

GND150

L16

GND151

L24

GND152

L25

GND153

L26

GND154

L29

GND155

L32

GND156

M8

GND157

M11

GND158

M12

GND159

M13

GND160

M14

GND161

M15

GND162

M17

GND163

M18

GND164

M19

GND165

M20

GND166

M25

GND167

M26

GND168

M28

GND169

M31

GND170

N10

GND171

N12

GND172

N13

GND173

N14

GND174

N15

GND175

N16

GND176

N17

GND177

N18

GND178

N19

GND179

N20

GND180

N25

GND181

N26

GND182

GND183

GND184

GND185

P12

P13

P14

N29

1

1.0

1.0

1.0

5

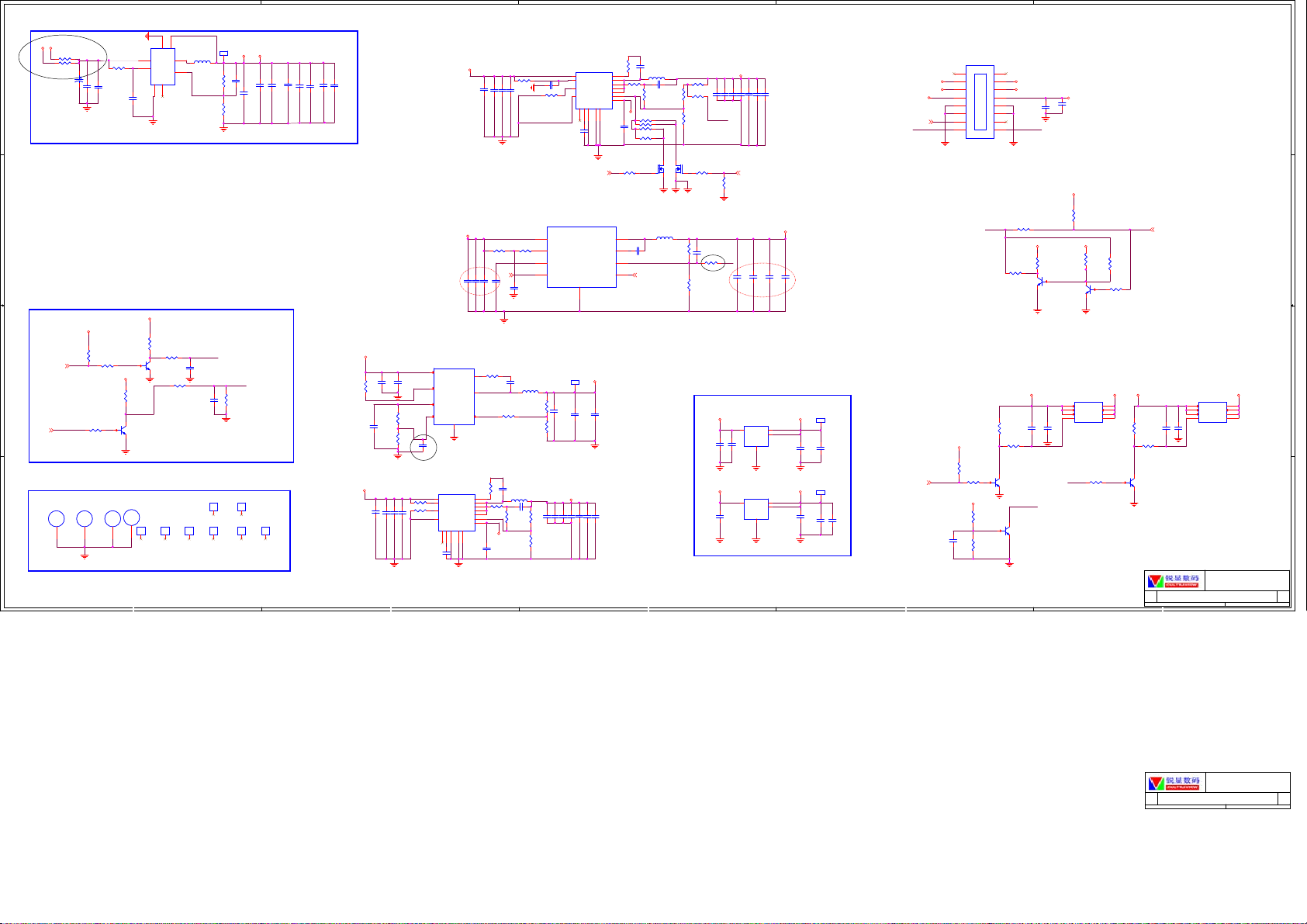

1.5V for DDR

+5V_Standby

+5V_Normal

R1058 0R/NCR1058 0R/NC
R1056 0RR1056 0R

12

EC1001

D D

C C

100uF/16V

100uF/16V

EC1001

C1053

C1053
10uF

10uF

Inverter Interface

+3.3V_Standby

VBL_CTRL

VBL_CTRL3,5

B B

BRI_ADJ-PWM0

R1035 4.7KR1035 4.7K

BRI_ADJ3

R1052 100KR1052 100K

C1050

C1050
100nF

100nF

R1039

R1039

4.7K/NC

4.7K/NC

R1038 4.7KR1038 4.7K

C1048

C1048
100nF

100nF

+5V_Normal

1

VCC1.5V@1000mA

MPS2144

MPS2144

2
8

+5V_Normal

1

R1025

R1025

4.7K

4.7K

Q1002

Q1002
MMBT3904

MMBT3904

2 3

U1006

U1006

4

5

OUT

PGND

SW3VIN

EN

7

FB

PG

AGND

1

6

（预留）防止上电闪白屏

R10201KR1020
1K

R1021 100RR1021 100R

Q1001

Q1001
MMBT3904

MMBT3904

2 3

R1023 100RR1023 100R

TP11

TP11
TEST POINT

TEST POINT

L1005

L1005

2.2uH/2A

2.2uH/2A

162k_1%

162k_1%

R1

R2

100k_1%

100k_1%

BL-ON/OFF

C1021

C1021
100nF

100nF

100nF/NC

100nF/NC

1.5VA+1.5V_DDR

1

C1051

C1051

R1055

R1055

22pF/NC

22pF/NC

R1054

R1054

BL-ADJUST

C1022

C1022

R1022

R1022

4.7K/NC

4.7K/NC

C1081

C1081

C1045

C1045

C1049

C1049

C1052

C1052

10uF

10uF

10uF

10uF

100nF

100nF

C1086

C1086

C1087

C1087

C1084

C1084

C1085

C1085

22uF

22uF

10uF

10uF

10uF

10uF

10uF

10uF

10uF

10uF

AHOLE & MARK

A4

A2
AHOLE157A2AHOLE157

1

A3
AHOLE157A3AHOLE157

1

AHOLE157A4AHOLE157

1

M7

M8

1

1

orientpadM7orientpad

orientpadM8orientpad

M3

M2

M5

1

1

orientpadM5orientpad

orientpadM2orientpad

5

M1

1

1

orientpadM3orientpad

orientpadM1orientpad

M4

M6

1

1

orientpadM4orientpad

orientpadM6orientpad

A1
AHOLE157A1AHOLE157

A A

1

12VU

R1047

R1047
100K

100K

+12V_Normal

4

C1074

C1074

C1069

C1069

10U

10U

100nF

100nF

R1045

R1045
100K_1%

100K_1%

C1042

C1042
100nF

100nF

R1046

R1046
11K_1%

11K_1%

5V for MHL/USB

C102610uF/16V C102610uF/16V

C102910uF/16V/NC C102910uF/16V/NC

C102810uF/16V C102810uF/16V

4

R1017 100KR1017 100K
R1026 0R/NCR1026 0R/NC

C1030100nF C1030100nF

MP8765

MP8765

+12V_Normal

10uF/16V

10uF/16V

电阻靠近

+5V_STANDBY

U1009

U1009

2

IN

6

EN

7

VCC

1

AAM

GND

MP1495S

MP1495S

4

C1043

C1043
1nF

1nF

U1008

U1008

1

VIN

13

EN

6

MODE

3

NC1

PG4VCC11AGND14PGND

2

C1031

C1031
1uF

1uF

VDDC DC/DC

!!!

至少需使用

+12V_Normal

此

BST

SW

FB

R1010 100KR1010 100K

C100310uF/16V C100310uF/16V

C1007100nF C1007100nF

C100410uF/16V C100410uF/16V

C100510uF/16V/NC C100510uF/16V/NC

DCDC

不能更改

R1008

R1008

R1003 100KR1003 100K

C1010

C1010

C1001

C1001

C1012

C1012

C1011

C1011

M_SDA M_SCL

0.1uF

0.1uF
C1008

C1008

10uF/16V

10uF/16V

1uF

1uF

0.1uF

0.1uF

靠近

DC-DC

DCDC,

敏感线,远离干扰源

5

C1076

C1076

R1051 10RR1051 10R

100nF

100nF

3

8

R1050 33K_1%R1050 33K_1%

0.1uF

0.1uF

C1038

C1038

R1011

R1011

OR/NC

OR/NC

MP8765

MP8765

U1004

U1004

8

PVDD

1

10K

10K

EN

3

5V

4

SDA

Vout=0.83V*(1+R1/R2)

L1002

L1002

4.7UH/3A

4.7UH/3A

R1049

R1049

RA

60.4K_1%

60.4K_1%

C1082

C1082

22UF/10V

22UF/10V

R1048

R1048

RB

11.5K_1%

11.5K_1%

4A DC/DC

TP12

TP12

TEST POINT

TEST POINT

Vout=0.8(1+RA/RB)=5.11V

C1032

C1032

R10190RR1019

220nF

220nF

0R

10

BS

L1004

L1004

9

LX1

15

C1036 220PFC1036 220PF

R1024 1MR1024 1M

LX3

8

LX

16

R1018

R1018

LX4

12

FB

7

499R

499R

VOUT

NC

5

5V_SW

C1035100nF C1035100nF

4.7uH/5A

4.7uH/5A

USB,HDMI

5V_SW

R101578.7K R101578.7K

C106322uF/10V C106322uF/10V

C106810uF/10V C106810uF/10V

C103310uF/10V C103310uF/10V

R101610K R101610K

3

C1009

C1009

R1013

U1001

U1001

1

VIN

13

EN

6

MODE

3

NC1

PG4VCC11AGND14PGND

R1013

220nF

220nF

10R

10R

10

BS

L1003 2.2uH/5AL1003 2.2uH/5A

9

LX1

15

C1024 220pFC1024 220pF

R1014 1MR1014 1M

LX3

8

LX

16

R1012

R1012

LX4

12
7

R1028 NC/4.7KR1028 NC/4.7K

R1030 NCR1030 NC

R1032 100K/1%R1032 100K/1%

C1023100nF C1023100nF

R1029 NCR1029 NC

R1033 NC/150K/1%R1033 NC/150K/1%

499R

499R

NC/2N7002

NC/2N7002

R2

Q1006

Q1006

32

32

1

FB

VOUT

NC

2

5

+1.20V_VDDC

C1002

C1002
1uF

1uF

R2: MSH6110A IC 内置50K,IC 外部 NC

6

L1001 2.2uH/5AL1001 2.2uH/5A

LX

7

C1016 0.1uFC1016 0.1uF

PowerPAD

9

MSH6110A

MSH6110A

+5V_Standby

1

C1075

C1075

22UF/10V

22UF/10V

专用

C1037100nF C1037100nF

C103410uF/10V C103410uF/10V

C1027100nF C1027100nF

10uF/10V/NC

10uF/10V/NC

BST

FB

SCL

电阻靠近

C1073

C1073

C1064100nF C1064100nF

2

5

Addr 0x80

DCDC,

敏感线,远离干扰源

NC/18K/1%

NC/18K/1%

3

CORE POWER 1.2V

+1.20V_VDDC

R1006

R1006

NC/0R

NC/0R

C104622uF/10V C104622uF/10V

C101922uF/10V C101922uF/10V

R100422K R100422K

R10070RR1007
0R

+1.20V_VDDC

R1009

R1009

取电靠近IC端

FB

36K

36K

Q1004

Q1004

1

R1027 4.7KR1027 4.7K

R1053

2N7002

2N7002

R1

R2

R1053

4.7K/NC

4.7K/NC

C1017

C1017

R1005

R1005

R1001

R1001

200pF

200pF

+1.05_VDDC_CPU

18K/1%

18K/1%

R1002NCR1002

NC

R14

远端反馈,即 从

LDO

+5V_Standby

C1056

C1056
100nF

100nF

C1040

C1040
100nF

100nF

C106022uF/10V C106022uF/10V

C102022uF/10V C102022uF/10V

GPIO_VID_0GPIO_VID_1

C1015

C1015

22uF/6.3V

22uF/6.3V

靠近

U1007BM1117-3.3U1007BM1117-3.3

3

VIN

C1058

C1058
10uF/NC

10uF/NC

400mA Max

U1005BM1117-3.3U1005BM1117-3.3

3

VIN

C1025100nF C1025100nF

C1013

C1013

22uF/6.3V

22uF/6.3V

DC-DC

IC

VOUT

1

VOUT

1

2

Power Input

J1001

J1001

1 2

12VU

3 4

12VU

PWR-ON/OFF

H:ON
L:Standby

AGND

+3.3V_Standby

C1071

C1071
120PF

120PF

5 6
7 8
9 10
11 12
13 14
15 16

PHD-2X8-AW

PHD-2X8-AW

R1062

R1062

4.7K

4.7K

12VU

C1006100nF C1006100nF

C1047100nF C1047100nF

+1.05_VDDC_CPU

C1014

C1014

C1018

C1018

22uF

22uF

0.1uF

0.1uF

底部引线

!

Vout= 0.6*(1+R1/R2)

TP14

TP14
TEST POINT

TEST POINT

+3.3V_Standby

500mA

1

C1059

C1059

C1057

C1057

100nF

100nF

10uF

10uF

TP10

TP10
TEST POINT

TEST POINT

+3.3V_Normal+5V_Normal

1

C1044

C1044

C1041

C1041

C1039

C1039

10uF

10uF

100nF

100nF

10uF/NC

10uF/NC

2
4

Vout1
ADJ

2
4

Vout1
ADJ

H :Power on
L :Power off

+18V_Normal

STANDBY

BL-ADJUST

PWR-ON/OFF

7

2

12VU

C206靠近24V

接入端口，抑制

12VU

C1062

C1062

0.47uF

0.47uF

BL-ON/OFF

Standby controler

R1042

R1042

STANDBY

100R/NC

100R/NC

+5V_Standby

R1037

R1037

4.7K

4.7K

R1040

R1040

100R

100R

1

Q1005

Q1005

MMBT3904

MMBT3904

2 3

R14

远端反馈,即 从

IC

12VU

R1044

R1044

C1070

C1070

C1072

STANDBY

Q1008

Q1008
MMBT3904

MMBT3904

2 3

C1072

100nF

100nF

100nF

100nF

47K

47K

R1043 200KR1043 200K

Q1007

Q1007

R1063

R1063

1

MMBT3904

MMBT3904

4.7K

4.7K

2 3

R1065

R1065
22K

22K

1

R10641KR1064
1K

底部引线

电源

EMI

+18V_Normal

C1061

C1061

100nF/50v/X7R

100nF/50v/X7R

+5V_Standby

R1034

R1034

4.7K/NC

4.7K/NC

1
2
3

PWR-ON/OFF

+5V_Standby

2 3

!

S0
S1
S2
G4D0

AP9435

AP9435

R1031

R1031

4.7K

4.7K

U1002

U1002

1

MMBT3904

MMBT3904
Q1003

Q1003

D3
D2
D1

R1066

R1066

4.7K

4.7K

8
7
6
5

+12V_Normal

1

H :Power on
L :Power off

PWR-ON/OFF 3

R1041

R1041
100R/NC

100R/NC

R1036

R1036

4.7K

4.7K

+5V_Standby

R1068

R1068
47K

47K

R1067 100KR1067 100K

Q1009

Q1009

1

MMBT3904

MMBT3904

2 3

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

Date: Sheet

Custom

Custom

Custom

C1083

C1083
100nF

100nF

1

C1066

C1066
100nF

100nF

01.Power

01.Power

01.Power

1
2
3

S0
S1
S2
G4D0

AP9435

AP9435

Title

Title

Title

+5V_Normal

U1003

U1003

8

D3

7

D2

6

D1

5

CV828H-B-10

CV828H-B-10

CV828H-B-10

112Friday, August 28, 2015

112Friday, August 28, 2015

112Friday, August 28, 2015

of

of

of

1.0

1.0

1.0

Title

Title

Title

CV628H-A42

CV628H-A42

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

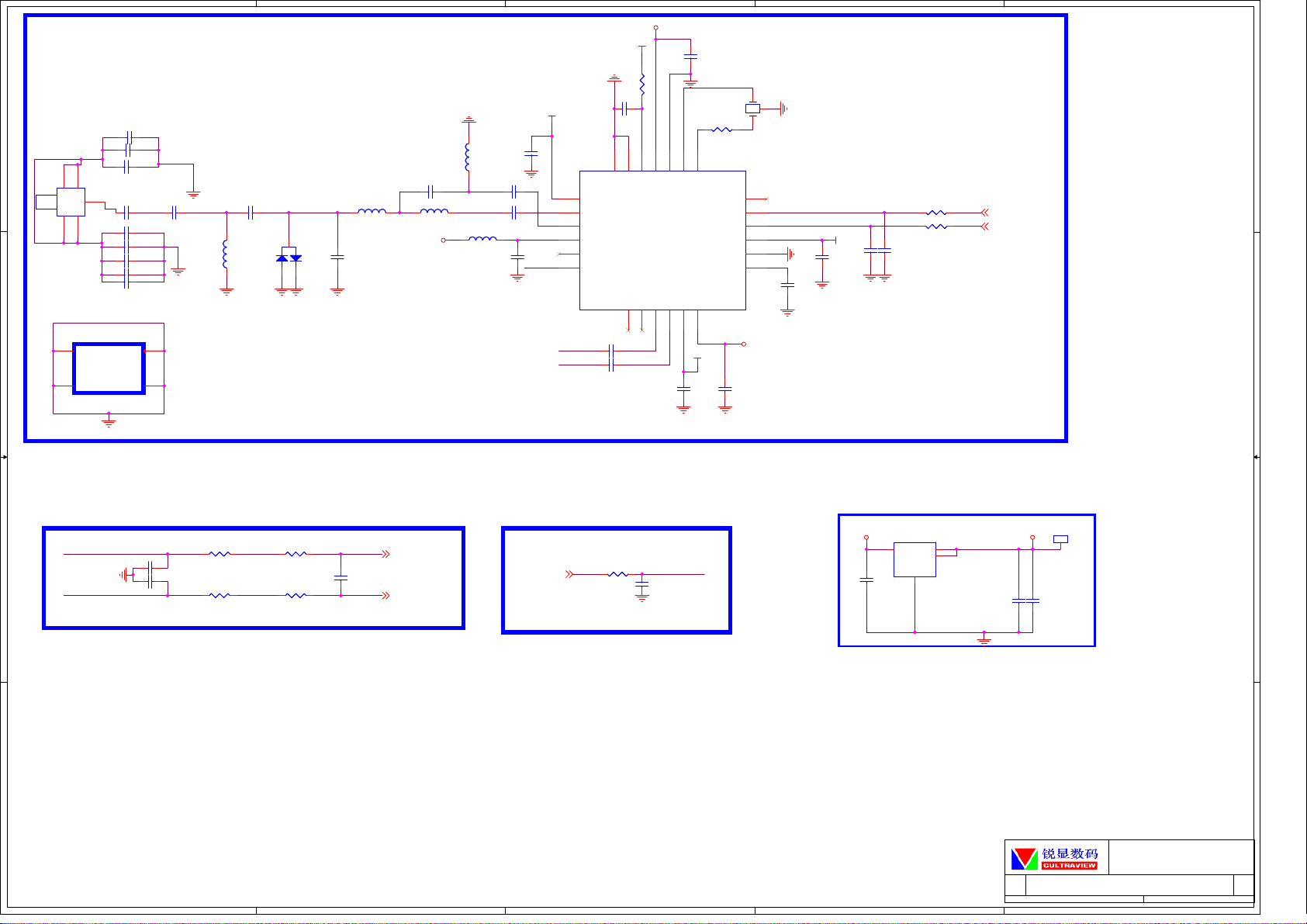

11.TUNER

11.TUNER

11.TUNER

Date: Sheet

Date: Sheet

Date: Sheet

CV628H-A42

211Friday, August 28, 2015

211Friday, August 28, 2015

211Friday, August 28, 2015

of

of

of

1.0

1.0

1.0

5

4

3

2

1

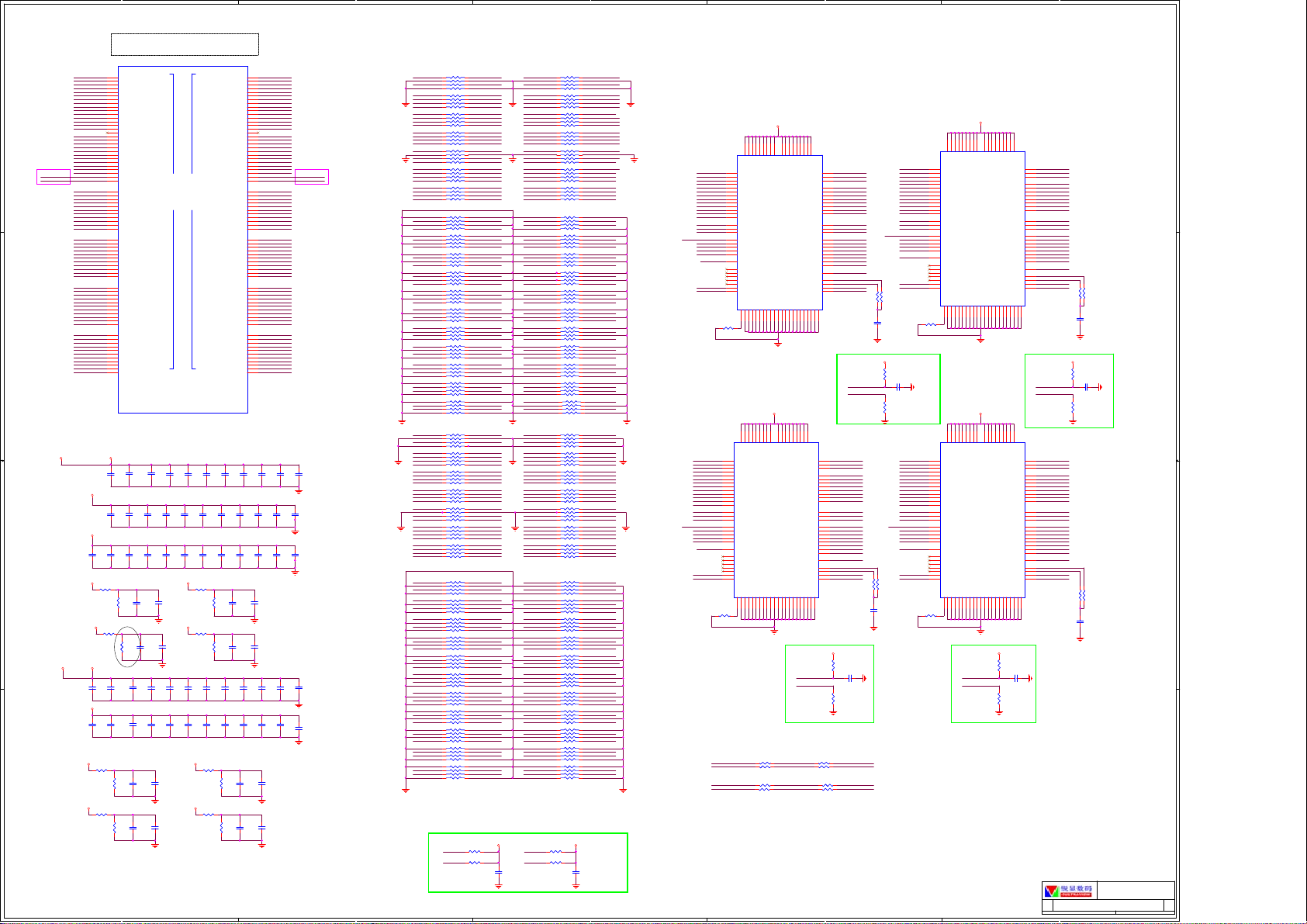

BA2,CSB1,CSB2 need GND shielding

U1828A

U1828A

F9

C_DDR3_A0

A-A0

B8

C_DDR3_A1

A-A1

F8

C_DDR3_A2

A-A2

F6

C_DDR3_A3

A-A3

B9

C_DDR3_A4

A-A4

F7

C_DDR3_A5

A-A5

A9

C_DDR3_A6

A-A6

D7

C_DDR3_A7

A-A7

F11

C_DDR3_A8

A-A8

C6

C_DDR3_A9

A-A9

B10

C_DDR3_A10

A-A10

F10

C_DDR3_A11

D D

C_DDR3_CSB1
C_DDR3_CSB2

C C

+1.5V_DDR

B B

+1.5V_DDR

A A

A-A11

D11

C_DDR3_A12

A-A12

A6

C_DDR3_A13

A-A13

A8

C_DDR3_A14

A-A14

E9

A-A15

D4

C_DDR3_BA0

A-BA0

E11

C_DDR3_BA1

A-BA1

D5

C_DDR3_BA2

A-BA2

D9

C_DDR3_RASZ

A-RASZ

B7

C_DDR3_CASZ

A-CASZ

C7

C_DDR3_WEZ

A-WEZ

F5

C_DDR3_ODT

A-ODT

C11

C_DDR3_CKE

A-CKE

E7

C_DDR3_RESET

A-RST

C12

C_DDR3_MCLK

A-MCLK

A11

C_DDR3_MCLKZ

A-MCLKZ

B5

A-CSB1

E5

A-CSB2

D17

C_DDR3_DQ0

A-DQ[0]

MIU0

A-DQ[1]
A-DQ[2]
A-DQ[3]
A-DQ[4]
A-DQ[5]
A-DQ[6]
A-DQ[7]
A-DQM[0]
A-DQS[0]
A-DQSB[0]

A-DQ[8]/DQU0
A-DQ[9]/DQU1
A-DQ[10]/DQU2
A-DQ[11]/DQU3
A-DQ[12]/DQU4
A-DQ[13]/DQU5
A-DQ[14]/DQU6
A-DQ[15]/DQU7
A-DQM[1]
A-DQS[1]
A-DQSB[1]

A-DQ[16]/DQL0
A-DQ[17]/DQL1
A-DQ[18]/DQL2
A-DQ[19]/DQL3
A-DQ[20]/DQL4
A-DQ[21]/DQL5
A-DQ[22]/DQL6
A-DQ[23]/DQL7
A-DQM[2]
A-DQS[2]
A-DQSB[2]

A-DQ[24]/DQU0
A-DQ[25]/DQU1
A-DQ[26]/DQU2
A-DQ[27]/DQU3
A-DQ[28]/DQU4
A-DQ[29]/DQU5
A-DQ[30]/DQU6
A-DQ[31]/DQU7
A-DQM[3]
A-DQS[3]
A-DQSB[3]

MSD6A828/MSD6488

MSD6A828/MSD6488

12

C3057

C3057
10uF/6.3V

10uF/6.3V

12

C3046

C3046

0.1uF

0.1uF

12

C3055

C3055

0.1uF

0.1uF

R3006

R3006
1K/1%

1K/1%

R3015

R3015
910K/1%

910K/1%

12

12

D-MVREFDQ-T1

R3025

R3025
1K/1%

1K/1%

D-MVREFCA-T1

R3016

R3016
910R/1%

910R/1%

5

C3034

C3034

0.1uF

0.1uF

C3035

C3035

0.1uF

0.1uF

C3025

C3025

0.1uF

0.1uF

C-MVREFDQ-T1

C3018

C3018

0.1uF

0.1uF

C-MVREFCA-T1

C3058

C3058

0.1uF

0.1uF

C3083

C3083

0.1uF

0.1uF

C3011

C3011

0.1uF

0.1uF

C3086

C3086

0.1uF

0.1uF

C3017

C3017

0.1uF

0.1uF

12

C3041

C3041

0.1uF

0.1uF

C3056

C3056

0.1uF

0.1uF

C3038

C3038

0.1uF

0.1uF

12

C3050

C3050

0.1uF

0.1uF

0.1uF

0.1uF

C3073

C3073

12

C3016

C3016
1nF

1nF

12

C3006

C3006
1nF

1nF

MIU0

Close to DDR POWER PIN

C3060

C3060

0.1uF

0.1uF

C3036

C3036

0.1uF

0.1uF

C3044

C3044

0.1uF

0.1uF

C3002

C3002
1nF

1nF

12

C3015

C3015
1nF

1nF

Close to DDR POWER PIN

C3059

C3059

0.1uF

0.1uF

C3068

C3068

0.1uF

0.1uF

E12

C_DDR3_DQ1

E16

C_DDR3_DQ2

D13

C_DDR3_DQ3

B18

C_DDR3_DQ4

B12

C_DDR3_DQ5

A18

C_DDR3_DQ6

C13

C_DDR3_DQ7

C14

C_DDR3_DM0

B16

C_DDR3_DQS0

C16

C_DDR3_DQS0B

B14

C_DDR3_DQ8

E14

C_DDR3_DQ9

F14

C_DDR3_DQ10

B17

C_DDR3_DQ11

D15

C_DDR3_DQ12

F17

C_DDR3_DQ13

F15

C_DDR3_DQ14

F16

C_DDR3_DQ15

A17

C_DDR3_DM1

A15

C_DDR3_DQS1

C15

C_DDR3_DQS1B

C25

C_DDR3_DQ16

F18

C_DDR3_DQ17

B25

C_DDR3_DQ18

F19

C_DDR3_DQ19

A26

C_DDR3_DQ20

B19

C_DDR3_DQ21

B26

C_DDR3_DQ22

C20

C_DDR3_DQ23

A20

C_DDR3_DM2

B23

C_DDR3_DQS2

C23

C_DDR3_DQS2B

C21

C_DDR3_DQ24

F21

C_DDR3_DQ25

D19

C_DDR3_DQ26

C24

C_DDR3_DQ27

F20

C_DDR3_DQ28

E20

C_DDR3_DQ29

E18

C_DDR3_DQ30

D21

C_DDR3_DQ31

A24

C_DDR3_DM3

C22

C_DDR3_DQS3

B21

C_DDR3_DQS3B

AVDD_DDR0_S

AVDD_DDR0_S

AVDD_DDR0_S

12

C3042

C3042

0.1uF

0.1uF

R3010

R3010
1K/1%

1K/1%

AVDD_DDR0_S AVDD_DDR0_S

R3012

R3012
1K/1%

1K/1%

AVDD_DDR1_S

C3064

C3064

C3040

C3040

10uF/6.3V

10uF/6.3V

10uF/6.3V

10uF/6.3V

AVDD_DDR1_S

C3072

C3072

C3082

C3082

0.1uF

0.1uF

0.1uF

0.1uF

AVDD_DDR1_S

R3023

R3023
1K/1%

1K/1%

AVDD_DDR1_S

R3024

R3024
1K/1%

1K/1%

MIU1

MIU1

C3024

C3024

0.1uF

0.1uF

C3004

C3004

0.1uF

0.1uF

AVDD_DDR0_SAVDD_DDR0_S

AVDD_DDR1_S

AVDD_DDR1_S

C3052

C3052

0.1uF

0.1uF

R3009

R3009
1K/1%

1K/1%

R3007

R3007
1K/1%

1K/1%

C3047

C3047

0.1uF

0.1uF

0.1uF

0.1uF

C3065

C3065

R3019

R3019
1K/1%

1K/1%

R3046

R3046
1K/1%

1K/1%

E28

D_DDR3_A0

B-A0

C30

D_DDR3_A1

B-A1

F29

D_DDR3_A2

B-A2

D28

D_DDR3_A3

B-A3

D31

D_DDR3_A4

B-A4

D29

D_DDR3_A5

B-A5

D30

D_DDR3_A6

B-A6

F27

D_DDR3_A7

B-A7

H28

D_DDR3_A8

B-A8

C29

D_DDR3_A9

B-A9

E31

D_DDR3_A10

B-A10

H29

D_DDR3_A11

B-A11

J27

D_DDR3_A12

B-A12

A30

D_DDR3_A13

B-A13

C32

D_DDR3_A14

B-A14

H27

B-A15

B29

D_DDR3_BA0

B-BA0

K27

D_DDR3_BA1

B-BA1

C28

D_DDR3_BA2

B-BA2

G27

D_DDR3_RASZ

B-RASZ

B31

D_DDR3_CASZ

B-CASZ

A31

D_DDR3_WEZ

B-WEZ

A27

D_DDR3_ODT

B-ODT

E32

D_DDR3_CKE

B-CKE

F28

D_DDR3_RESET

B-RST

F31

D_DDR3_MCLK

B-MCLK

F32

D_DDR3_MCLKZ

B-MCLKZ

C27

B-CSB1

E27

B-CSB2

P29

B-DQ[0]

K29

B-DQ[1]

N28

B-DQ[2]

K28

B-DQ[3]

N31

B-DQ[4]

G31

B-DQ[5]

N30

B-DQ[6]

H30

B-DQ[7]

H32

B-DQM[0]

L31

B-DQS[0]

L30

B-DQSB[0]

J30

B-DQ[8]/DQU0

L28

B-DQ[9]/DQU1

L27

B-DQ[10]/DQU2

M30

B-DQ[11]/DQU3

M29

B-DQ[12]/DQU4

P27

B-DQ[13]/DQU5

M27

B-DQ[14]/DQU6

N27

B-DQ[15]/DQU7

M32

B-DQM[1]

K30

B-DQS[1]

J31

B-DQSB[1]

Y30

B-DQ[16]/DQL0

R27

B-DQ[17]/DQL1

Y31

B-DQ[18]/DQL2

T27

B-DQ[19]/DQL3

AA31

B-DQ[20]/DQL4

P31

B-DQ[21]/DQL5

AA32

B-DQ[22]/DQL6

P32

B-DQ[23]/DQL7

R32

B-DQM[2]

V30

B-DQS[2]

U32

B-DQSB[2]

R31

B-DQ[24]/DQU0

V27

B-DQ[25]/DQU1

T29

B-DQ[26]/DQU2

V31

B-DQ[27]/DQU3

U27

B-DQ[28]/DQU4

U28

B-DQ[29]/DQU5

R28

B-DQ[30]/DQU6

V29

B-DQ[31]/DQU7

W30

B-DQM[3]

U30

B-DQS[3]

T31

B-DQSB[3]

C3037

C3037

C3045

C3045

C3027

C3027

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

C3029

C3029

C3061

C3061

C3051

C3051

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

C3013

C3013

C3049

C3049

C3039

C3039

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

C-MVREFDQ-T2

12

C3003

C3003

R3011

R3011

0.1uF

0.1uF

1K/1%

1K/1%

C-MVREFCA-T2

12

R3008

R3008

C3019

C3019

910R/1%

910R/1%

0.1uF

0.1uF

C3062

C3062

C3026

C3026

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

C3084

C3084

C3071

C3071

C3067

C3067

C3066

C3066

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

D-MVREFDQ-T2

R3029

R3029

C3021

C3021

1K/1%

1K/1%

0.1uF

0.1uF

D-MVREFCA-T2

C3020

C3020

R3026

R3026

0.1uF

0.1uF

910R/1%

910R/1%

C3031

C3031

0.1uF

0.1uF

C3023

C3023

0.1uF

0.1uF

C3014

C3014
1nF

1nF

C3012

C3012
1nF

1nF

12

12

D_DDR3_DQ0
D_DDR3_DQ1
D_DDR3_DQ2
D_DDR3_DQ3
D_DDR3_DQ4
D_DDR3_DQ5
D_DDR3_DQ6
D_DDR3_DQ7
D_DDR3_DM0
D_DDR3_DQS0
D_DDR3_DQS0B

D_DDR3_DQ8
D_DDR3_DQ9
D_DDR3_DQ10
D_DDR3_DQ11
D_DDR3_DQ12
D_DDR3_DQ13
D_DDR3_DQ14
D_DDR3_DQ15
D_DDR3_DM1
D_DDR3_DQS1
D_DDR3_DQS1B

D_DDR3_DQ16
D_DDR3_DQ17
D_DDR3_DQ18
D_DDR3_DQ19
D_DDR3_DQ20
D_DDR3_DQ21
D_DDR3_DQ22
D_DDR3_DQ23
D_DDR3_DM2
D_DDR3_DQS2
D_DDR3_DQS2B

D_DDR3_DQ24
D_DDR3_DQ25
D_DDR3_DQ26
D_DDR3_DQ27
D_DDR3_DQ28
D_DDR3_DQ29
D_DDR3_DQ30
D_DDR3_DQ31
D_DDR3_DM3
D_DDR3_DQS3
D_DDR3_DQS3B

C3054

C3054

0.1uF

0.1uF

C3030

C3030

0.1uF

0.1uF

C3074

C3074

0.1uF

0.1uF

C3063

C3063
1nF

1nF

C3032

C3032
1nF

1nF

D_DDR3_CSB1
D_DDR3_CSB2

C3043

C3043

C3028

C3028

0.1uF

0.1uF

0.1uF

0.1uF

C3077

C3077

C3076

C3076

0.1uF

0.1uF

0.1uF

0.1uF

C3010

C3010

C3008

C3008

0.1uF

0.1uF

0.1uF

0.1uF

12

C3081

C3081

C3033

C3033

0.1uF

0.1uF

0.1uF

0.1uF

C3078

C3078

C3080

C3080

0.1uF

0.1uF

0.1uF

0.1uF

4

RN305522RX4

RN305522RX4

7 8

C_DDR3_ODTC-DDR3-ODT-T1

5 6

8642

8642

7531

7531

3 4

C-CSB1

C-DDR3-BA2-T1
C-DDR3-A3-T1

C-DDR3-A5-T1

C-DDR3-RESET-T1 C_DDR3_RESET
C-DDR3-A9-T1

C-DDR3-A2-T1 C_DDR3_A2
C-DDR3-WEZ-T1

C-DDR3-CASZ-T1
C-DDR3-RASZ-T1 C_DDR3_RASZ

C-DDR3-A14-T1
C-DDR3-A11-T1

C-DDR3-A8-T1 C_DDR3_A8
C-DDR3-A6-T1 C_DDR3_A6
C-DDR3-A4-T1

C-DDR3-A12-T1
C-DDR3-BA1-T1
C-DDR3-A10-T1
C-DDR3-CKE-T1

C_DDR3_DQ3
C_DDR3_DQ1

C_DDR3_DQ2
C_DDR3_DQ0

C_DDR3_DQ13
C_DDR3_DQ15

C_DDR3_DQ9
C_DDR3_DQ12

C_DDR3_DQ14
C_DDR3_DQ10
C_DDR3_DQ7
C_DDR3_DQ5

C_DDR3_DQ4
C_DDR3_DQ6

C_DDR3_DM1
C_DDR3_DQ11

C_DDR3_DQ8
C_DDR3_DM0

C_DDR3_DQS1
C_DDR3_DQS1B

C_DDR3_DQS0
C_DDR3_DQS0B

D-CSB1 D_DDR3_CSB1

D-DDR3-BA2-T1
D-DDR3-BA0-T1 D_DDR3_BA0

D-DDR3-A7-T1 D-DDR3-A7-T2D_DDR3_A7
D-DDR3-RESET-T1 D-DDR3-RESET-T2
D-DDR3-A9-T1
D-DDR3-A13-T1

D-DDR3-A2-T1 D-DDR3-A2-T2D_DDR3_A2
D-DDR3-A0-T1
D-DDR3-WEZ-T1
D-DDR3-CASZ-T1

D-DDR3-A1-T1

D-DDR3-A11-T1

D-DDR3-A4-T1
D-DDR3-A12-T1

D-DDR3-BA1-T1
D-DDR3-A10-T1
D-DDR3-CKE-T1 D-DDR3-CKE-T2

D_DDR3_DQ0

D_DDR3_DQ13
D_DDR3_DQ15

D_DDR3_DQ9
D_DDR3_DQ12

D_DDR3_DQ14
D_DDR3_DQ10

D_DDR3_DQ3
D_DDR3_DQ1
D_DDR3_DQ4
D_DDR3_DQ6

D_DDR3_DM1
D_DDR3_DQ11

D_DDR3_DQ8
D_DDR3_DM0

D_DDR3_DQ7
D_DDR3_DQ5

D_DDR3_DQS1
D_DDR3_DQS1B

D_DDR3_DQS0
D_DDR3_DQS0B

C_DDR3_CSB1

1 2

RN3054130RX4

RN3054130RX4

7 8

C_DDR3_BA2

5 6

8642

8642

7531

7531

3 4

C_DDR3_A3

1 2

C_DDR3_A5

RN305082RX4

RN305082RX4

7 8
5 6

8642

8642

7531

7531

3 4

C_DDR3_A9

1 2

C_DDR3_A13C-DDR3-A13-T1

RN304682RX4

RN304682RX4

7 8
5 6

C_DDR3_A0C-DDR3-A0-T1

8642

8642

7531

7531

3 4

C_DDR3_WEZ

1 2

C_DDR3_CASZ

RN305182RX4

RN305182RX4

7 8
5 6

8642

8642

7531

7531

3 4

C_DDR3_A1C-DDR3-A1-T1

1 2

C_DDR3_A14

RN305382RX4

RN305382RX4

7 8

C_DDR3_A11

5 6

8642

8642

7531

7531

3 4
1 2

C_DDR3_A4

RN306382RX4

RN306382RX4

7 8

C_DDR3_A12

5 6

C_DDR3_BA1

8642

8642

7531

7531

3 4

C_DDR3_A10

1 2

C_DDR3_CKE

RN30620RX4

RN30620RX4

1 2
3 4

C-DDR3-DQ3

5 6
7 8

C-DDR3-DQ1

7531

8642

7531

8642

RN30560RX4

RN30560RX4

1 2
3 4

C-DDR3-DQ2

5 6
7 8

C-DDR3-DQ0

7531

8642

7531

8642

RN30590RX4

RN30590RX4

1 2
3 4

C-DDR3-DQ13

5 6
7 8

C-DDR3-DQ15

7531

8642

7531

8642

RN30600RX4

RN30600RX4

1 2
3 4

C-DDR3-DQ9

5 6
7 8

C-DDR3-DQ12

7531

8642

7531

8642

RN30670RX4

RN30670RX4

1 2
3 4

C-DDR3-DQ14

5 6
7 8

C-DDR3-DQ10

7531

8642

7531

8642

RN3070 0RX4

RN3070 0RX4

12

C-DDR3-DQ7

34
56

C-DDR3-DQ5

7531

8642

7531

8642

78

RN3057 0RX4

RN3057 0RX4

12

C-DDR3-DQ4

34
56

C-DDR3-DQ6

7531

8642

7531

8642

78

RN3065 0RX4

RN3065 0RX4

12

C-DDR3-DM1

34
56

C-DDR3-DQ11

7531

8642

7531

8642

78

RN3068 0RX4

RN3068 0RX4

12

C-DDR3-DQ8

34
56

C-DDR3-DM0

7531

8642

7531

8642

78

RN3058 0RX4

RN3058 0RX4

12
34

C-DDR3-DQS1

56

C-DDR3-DQS1B

7531

8642

7531

8642

78

RN3061 0RX4

RN3061 0RX4

12
34

C-DDR3-DQS0

56

C-DDR3-DQS0B

7531

8642

7531

8642

78

RN302922RX4

RN302922RX4

7 8

D_DDR3_ODTD-DDR3-ODT-T1

5 6

7531

8642

7531

8642

3 4
1 2

RN3026130RX4

RN3026130RX4

7 8

D_DDR3_BA2

5 6

7531

8642

7531

8642

3 4

D_DDR3_A3

1 2

D_DDR3_A5

RN301482RX4

RN301482RX4

7 8

D_DDR3_A7

5 6

D_DDR3_RESET

8642

8642

7531

7531

3 4

D_DDR3_A9

1 2

D_DDR3_A13

RN302082RX4

RN302082RX4

7 8

D_DDR3_A2

5 6

D_DDR3_A0

8642

8642

7531

7531

3 4

D_DDR3_WEZ

1 2

D_DDR3_CASZ

RN302482RX4

RN302482RX4

7 8

D_DDR3_RASZ D-DDR3-RASZ-T2D-DDR3-RASZ-T1 D_DDR3_RASZ

5 6

8642

8642

7531

7531

3 4

D_DDR3_A1

1 2

D_DDR3_A14D-DDR3-A14-T1 D-DDR3-A14-T2D_DDR3_A14

RN302382RX4

RN302382RX4

7 8

D_DDR3_A11

5 6

7531

8642

7531

8642

3 4
1 2

D_DDR3_A4

RN303082RX4

RN303082RX4

7 8

D_DDR3_A12

5 6

D_DDR3_BA1

7531

8642

7531

8642

3 4

D_DDR3_A10

1 2

D_DDR3_CKE

RN30350RX4

RN30350RX4

1 2

D-DDR3-DQ2

3 4
5 6

D-DDR3-DQ0

7 8

7531

8642

7531

8642

RN30310RX4

RN30310RX4

1 2

D-DDR3-DQ13

3 4
5 6

D-DDR3-DQ15

7 8

7531

8642

7531

8642

RN30420RX4

RN30420RX4

1 2

D-DDR3-DQ9

3 4
5 6

D-DDR3-DQ12

7 8

7531

8642

7531

8642

RN30250RX4

RN30250RX4

1 2
3 4

D-DDR3-DQ14

5 6
7 8

D-DDR3-DQ10

7531

8642

7531

8642

RN30710RX4

RN30710RX4

1 2
3 4

D-DDR3-DQ3

5 6
7 8

D-DDR3-DQ1

7531

8642

7531

8642

RN3066 0RX4

RN3066 0RX4

12

D-DDR3-DQ4

34
56

D-DDR3-DQ6

7531

8642

7531

8642

78

RN3019 0RX4

RN3019 0RX4

12

D-DDR3-DM1

34
56

D-DDR3-DQ11

7531

8642

7531

8642

78

RN3015 0RX4

RN3015 0RX4

12
34

D-DDR3-DQ8

56

7531

8642

7531

8642

78

D-DDR3-DM0

RN3069 0RX4

RN3069 0RX4

12
34

D-DDR3-DQ7

56

7531

8642

7531

8642

78

D-DDR3-DQ5

RN3034 0RX4

RN3034 0RX4

12
34

D-DDR3-DQS1

56

D-DDR3-DQS1B

7531

7531

8642

8642

78

RN3064 0RX4

RN3064 0RX4

12
34

D-DDR3-DQS0

56

D-DDR3-DQS0B

7531

7531

8642

8642

78

CSB terminator

C-CSB1

R3043 470RR3043 470R

C-CSB2

R3042 470RR3042 470R

C3048

C3048

0.1uF

0.1uF

RN304922RX4

RN304922RX4

7 8

C-DDR3-ODT-T2C_DDR3_ODT

5 6

8642

8642

7531

7531

3 4

R3047 470RR3047 470R

R3022 470RR3022 470R

1 2

RN304356RX4

RN304356RX4

7 8
5 6

7531

7531

3 4
1 2

RN304782RX4

RN304782RX4

7 8
5 6

7531

7531

3 4
1 2

RN305282RX4

RN305282RX4

7 8
5 6

7531

7531

3 4
1 2

RN304882RX4

RN304882RX4

7 8
5 6

7531

7531

3 4
1 2

RN304482RX4

RN304482RX4

7 8
5 6

7531

7531

3 4
1 2

RN304582RX4

RN304582RX4

7 8
5 6

7531

7531

3 4
1 2

RN30110RX4

RN30110RX4

1 2
3 4
5 6
7 8

7531

7531

RN30100RX4

RN30100RX4

1 2
3 4
5 6
7 8

7531

7531

RN30370RX4

RN30370RX4

1 2
3 4
5 6
7 8

7531

7531

RN30160RX4

RN30160RX4

1 2
3 4
5 6
7 8

7531

7531

RN30720RX4

RN30720RX4

1 2
3 4
5 6
7 8

7531

7531

RN3039 0RX4

RN3039 0RX4

8642

8642

RN3032 0RX4

RN3032 0RX4

8642

8642

RN3007 0RX4

RN3007 0RX4

8642

8642

RN3033 0RX4

RN3033 0RX4

8642

8642

RN30380RX4

RN30380RX4

1 2
3 4
5 6
7 8

7531

7531

RN3041 0RX4

RN3041 0RX4

8642

8642

RN303622RX4

RN303622RX4

7 8
5 6

7531

7531

3 4
1 2

RN301856RX4

RN301856RX4

7 8
5 6

7531

7531

3 4
1 2

RN302282RX4

RN302282RX4

7 8
5 6

7531

7531

3 4
1 2

RN302882RX4

RN302882RX4

7 8
5 6

7531

7531

3 4
1 2

RN302782RX4

RN302782RX4

7 8
5 6

7531

7531

3 4
1 2

RN304082RX4

RN304082RX4

7 8
5 6

7531

7531

3 4
1 2

RN302182RX4

RN302182RX4

7 8
5 6

7531

7531

3 4
1 2

RN30080RX4

RN30080RX4

1 2
3 4
5 6
7 8

7531

7531

RN30130RX4

RN30130RX4

1 2
3 4
5 6
7 8

7531

7531

RN30040RX4

RN30040RX4

1 2
3 4
5 6
7 8

7531

7531

RN30030RX4

RN30030RX4

1 2
3 4
5 6
7 8

7531

7531

RN3012 0RX4

RN3012 0RX4

8642

8642

RN3005 0RX4

RN3005 0RX4

8642

8642

RN3002 0RX4

RN3002 0RX4

8642

8642

RN3009 0RX4

RN3009 0RX4

8642

8642

RN3017 0RX4

RN3017 0RX4

8642

8642

RN30010RX4

RN30010RX4

1 2
3 4
5 6
7 8

7531

7531

RN30060RX4

RN30060RX4

1 2
3 4
5 6
7 8

7531

7531

+1.5V_DDR+1.5V_DDR

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

7531

7531

7531

7531

7531

7531

7531

7531

8642

8642

7531

7531

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

8642

7531

7531

7531

7531

7531

7531

7531

7531

7531

7531

8642

8642

8642

8642

C3053

C3053

0.1uF

0.1uF

C-CSB2

C-DDR3-BA0-T2C_DDR3_BA0C_DDR3_BA0C-DDR3-BA0-T1
C-DDR3-A3-T2C_DDR3_A3
C-DDR3-A5-T2

C-DDR3-RESET-T2
C-DDR3-A9-T2
C-DDR3-A13-T2

C-DDR3-A2-T2C_DDR3_A2
C-DDR3-A0-T2C_DDR3_A0
C-DDR3-WEZ-T2
C-DDR3-CASZ-T2

C-DDR3-A1-T2C_DDR3_A1
C-DDR3-A14-T2

C-DDR3-A11-T2

C-DDR3-A4-T2
C-DDR3-A12-T2C_DDR3_A12

C-DDR3-BA1-T2
C-DDR3-A10-T2
C-DDR3-CKE-T2

C-DDR3-DQS3B
C-DDR3-DQS3

C-DDR3-DQ25
C-DDR3-DQ28

C-DDR3-DQ30
C-DDR3-DQ26

C-DDR3-DM2
C-DDR3-DQ24

C-DDR3-DQ19
C-DDR3-DQ17

12
34

C-DDR3-DQ20

56
78

C-DDR3-DQ22

12
34

C-DDR3-DQ18

56
78

C-DDR3-DQ16

12
34

C-DDR3-DM3

56
78

C-DDR3-DQ27

12

C-DDR3-DQ31

34
56

C-DDR3-DQ29

78

C-DDR3-DQS2B
C-DDR3-DQS2

12

C-DDR3-DQ23

34
56

C-DDR3-DQ21

78

D-DDR3-ODT-T2D_DDR3_ODT
D-CSB2

D-DDR3-BA2-T2
D-DDR3-BA0-T2D_DDR3_BA0
D-DDR3-A3-T2D-DDR3-A3-T1
D-DDR3-A5-T2D-DDR3-A5-T1

D-DDR3-A9-T2
D-DDR3-A13-T2

D-DDR3-A0-T2
D-DDR3-WEZ-T2
D-DDR3-CASZ-T2

D-DDR3-A1-T2

D-DDR3-A11-T2
D-DDR3-A8-T2D-DDR3-A8-T1 D_DDR3_A8D_DDR3_A8

D-DDR3-A4-T2
D-DDR3-A12-T2

D-DDR3-BA1-T2
D-DDR3-A10-T2

D-DDR3-DQ25D_DDR3_DQ2
D-DDR3-DQ28

D-DDR3-DQ30
D-DDR3-DQ26
D-DDR3-DM2
D-DDR3-DQ24

D-DDR3-DQ19
D-DDR3-DQ17

12

D-DDR3-DQ20

34
56

D-DDR3-DQ22

78
12

D-DDR3-DQ18

34
56

D-DDR3-DQ16

78
12

D-DDR3-DM3

34
56

D-DDR3-DQ27

78
12

34

D-DDR3-DQ31

56
78

D-DDR3-DQ29

12
34

D-DDR3-DQ23

56
78

D-DDR3-DQ21

D-DDR3-DQS3B
D-DDR3-DQS3

D-DDR3-DQS2B
D-DDR3-DQS2

3

C_DDR3_CSB2

C_DDR3_BA2 C-DDR3-BA2-T2

C_DDR3_A5
C_DDR3_A7 C-DDR3-A7-T2C-DDR3-A7-T1 C_DDR3_A7

C_DDR3_RESET
C_DDR3_A9
C_DDR3_A13

C_DDR3_WEZ
C_DDR3_CASZ

C_DDR3_RASZ C-DDR3-RASZ-T2

C_DDR3_A14
C_DDR3_A11

C_DDR3_A8 C-DDR3-A8-T2
C_DDR3_A6 C-DDR3-A6-T2
C_DDR3_A4

C_DDR3_BA1
C_DDR3_A10
C_DDR3_CKE

C_DDR3_DQS3B
C_DDR3_DQS3

C_DDR3_DQ25
C_DDR3_DQ28

C_DDR3_DQ30
C_DDR3_DQ26

C_DDR3_DM2
C_DDR3_DQ24

C_DDR3_DQ19
C_DDR3_DQ17

C_DDR3_DQ20
C_DDR3_DQ22

C_DDR3_DQ18
C_DDR3_DQ16

C_DDR3_DM3
C_DDR3_DQ27
C_DDR3_DQ31
C_DDR3_DQ29

C_DDR3_DQS2B
C_DDR3_DQS2

C_DDR3_DQ23
C_DDR3_DQ21

D_DDR3_CSB2

D_DDR3_BA2
D_DDR3_A3

D_DDR3_A5

D_DDR3_RESET
D_DDR3_A9
D_DDR3_A13

D_DDR3_A0
D_DDR3_WEZ
D_DDR3_CASZ

D_DDR3_A1

D_DDR3_A11
D_DDR3_A6D-DDR3-A6-T1 D_DDR3_A6 D-DDR3-A6-T2

D_DDR3_A4
D_DDR3_A12

D_DDR3_BA1
D_DDR3_A10
D_DDR3_CKE

D_DDR3_DQ25
D_DDR3_DQ28

D_DDR3_DQ30
D_DDR3_DQ26
D_DDR3_DM2
D_DDR3_DQ24

D_DDR3_DQ19
D_DDR3_DQ17
D_DDR3_DQ20
D_DDR3_DQ22

D_DDR3_DQ18
D_DDR3_DQ16

D_DDR3_DM3
D_DDR3_DQ27

D_DDR3_DQ31
D_DDR3_DQ29

D_DDR3_DQ23
D_DDR3_DQ21

D_DDR3_DQS3B
D_DDR3_DQS3

D_DDR3_DQS2B
D_DDR3_DQS2

D-CSB1

D-CSB2

U3001

U3001
H5TQ4G63AFR-ADC

H5TQ4G63AFR-ADC

C-DDR3-A0-T1
C-DDR3-A1-T1
C-DDR3-A2-T1
C-DDR3-A3-T1
C-DDR3-A4-T1
C-DDR3-A5-T1
C-DDR3-A6-T1
C-DDR3-A7-T1
C-DDR3-A8-T1
C-DDR3-A9-T1
C-DDR3-A10-T1
C-DDR3-A11-T1
C-DDR3-A12-T1

C-DDR3-BA0-T1
C-DDR3-BA1-T1
C-DDR3-BA2-T1

C-CSB1

C-DDR3-RASZ-T1
C-DDR3-CASZ-T1
C-DDR3-WEZ-T1
C-DDR3-ODT-T1

C-MVREFCA-T1

C-DDR3-A13-T1
C-DDR3-A14-T1

R3035

R3035
240R/1%

240R/1%

U3003

U3003

H5TQ4G63AFR-ADC

H5TQ4G63AFR-ADC

D-DDR3-A0-T1
D-DDR3-A1-T1
D-DDR3-A2-T1
D-DDR3-A3-T1
D-DDR3-A4-T1
D-DDR3-A5-T1
D-DDR3-A6-T1
D-DDR3-A7-T1
D-DDR3-A8-T1
D-DDR3-A9-T1
D-DDR3-A10-T1
D-DDR3-A11-T1
D-DDR3-A12-T1

D-DDR3-BA0-T1
D-DDR3-BA1-T1
D-DDR3-BA2-T1

D-DDR3-RASZ-T1
D-DDR3-CASZ-T1
D-DDR3-WEZ-T1
D-DDR3-ODT-T1

D-MVREFCA-T1

D-DDR3-A13-T1
D-DDR3-A14-T1

R3020

R3020
240R/1%

240R/1%

C_DDR3_MCLK
C_DDR3_MCLKZ

D_DDR3_MCLK D_DDR3-MCLK

R9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10

R7

A11

N7

A12

M2

BA0

N8

BA1

M3

BA2

L2

/CS

J3

/RAS

K3

/CAS

L3

/WE

K1

ODT

M8

VREFCA

J1

NC1

J9

NC2

L1

NC3

L9

NC4

M7

NC5

T3

A13

T7

NC7

ZQ

L8

T9

12

DDR3 4G bit 1866MHz

R9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10

R7

A11

N7

A12

M2

BA0

N8

BA1

M3

BA2

L2

/CS

J3

/RAS

K3

/CAS

L3

/WE

K1

ODT

M8

VREFCA

J1

NC1

J9

NC2

L1

NC3

L9

NC4

M7

NC5

T3

A13

T7

NC7

ZQ

L8

T9

12

R3041 0RR3041 0R
R3036 0RR3036 0R

R3039 0RR3039 0R
R3048 0RR3048 0R

AVDD_DDR0_S

H9

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

VSSA9VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSS

B3

H9

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

VSSA9VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSS

VSS

B3

G9

C_DDR3-MCLK
C_DDR3-MCLKZ

D_DDR3-MCLKZ

VSS

G9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

DMU

DQSU

/DQSU

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

DQSL
/DQSL

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

VREFDQ

/RESET

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

DMU
DQSU
/DQSU

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

DML

DQSL

/DQSL

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

VREFDQ

CK

/CK

CKE

/RESET

VSSQB9VSSQB1VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

D-DDR3-RESET-T1
D-DDR3-CKE-T1

R3044 0RR3044 0R
R3040 0RR3040 0R

R3049 0RR3049 0R
R3038 0RR3038 0R

DML

CK

/CK

CKE

VSSQB9VSSQB1VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

D3
C7
B7

D7
C3
C8
C2
A7
A2
B8
A3

E7
F3
G3

E3
F7
F2
F8
H3
H8
G2
H7

H1
J7

K7
K9
T2

D3
C7
B7

D7
C3
C8
C2
A7
A2
B8
A3

E7
F3
G3

E3
F7
F2
F8
H3
H8
G2
H7

H1
J7

K7
K9
T2

AVDD_DDR1_S

2

C-DDR3-DM1
C-DDR3-DQS1
C-DDR3-DQS1B

C-DDR3-DQ8
C-DDR3-DQ9
C-DDR3-DQ10
C-DDR3-DQ11
C-DDR3-DQ12
C-DDR3-DQ13
C-DDR3-DQ14
C-DDR3-DQ15

C-DDR3-DM0
C-DDR3-DQS0
C-DDR3-DQS0B

C-DDR3-DQ0
C-DDR3-DQ1
C-DDR3-DQ2
C-DDR3-DQ3
C-DDR3-DQ4
C-DDR3-DQ5
C-DDR3-DQ6
C-DDR3-DQ7

C-MVREFDQ-T1
C_DDR3-MCLK

C_DDR3-MCLKZ
C-DDR3-CKE-T1
C-DDR3-RESET-T1

D-DDR3-DM1
D-DDR3-DQS1
D-DDR3-DQS1B

D-DDR3-DQ8
D-DDR3-DQ9
D-DDR3-DQ10
D-DDR3-DQ11
D-DDR3-DQ12
D-DDR3-DQ13
D-DDR3-DQ14
D-DDR3-DQ15

D-DDR3-DM0
D-DDR3-DQS0
D-DDR3-DQS0B

D-DDR3-DQ0
D-DDR3-DQ1
D-DDR3-DQ2
D-DDR3-DQ3
D-DDR3-DQ4
D-DDR3-DQ5
D-DDR3-DQ6
D-DDR3-DQ7

D-MVREFDQ-T1
D_DDR3-MCLK

D_DDR3-MCLKZ
D-DDR3-CKE-T1
D-DDR3-RESET-T1

R3031NCR3031
NC

1 2

C3069 10nFC306910nF

R30302KR3030
2K

1 2

C-DDR3-RESET-T1
C-DDR3-CKE-T1

C-DDR3_MCLK
C-DDR3_MCLKZ

D-DDR3_MCLK
D-DDR3_MCLKZD_DDR3_MCLKZ

R3004 56RR3004 56R

R3003 56RR3003 56R

C3005 10nFC3005 10nF

AVDD_DDR0_S

C3085 56RC3085 56R

R3002 56RR3002 56R

C3009 10nFC3009 10nF

1 2

1 2

C-CSB2

C3070 10nFC307010nF

D-CSB2D-CSB1

R3017NCR3017
NC

R30452KR3045
2K

U3002

U3002
H5TQ4G63AFR-ADC

H5TQ4G63AFR-ADC

C-DDR3-A0-T2
C-DDR3-A1-T2
C-DDR3-A2-T2
C-DDR3-A3-T2
C-DDR3-A4-T2
C-DDR3-A5-T2
C-DDR3-A6-T2
C-DDR3-A7-T2
C-DDR3-A8-T2
C-DDR3-A9-T2
C-DDR3-A10-T2
C-DDR3-A11-T2
C-DDR3-A12-T2

C-DDR3-BA0-T2
C-DDR3-BA1-T2
C-DDR3-BA2-T2

C-DDR3-RASZ-T2
C-DDR3-CASZ-T2
C-DDR3-WEZ-T2
C-DDR3-ODT-T2

C-MVREFCA-T2

C-DDR3-A13-T2
C-DDR3-A14-T2

U3004

U3004
H5TQ4G63AFR-ADC

H5TQ4G63AFR-ADC

D-DDR3-A0-T2
D-DDR3-A1-T2
D-DDR3-A2-T2
D-DDR3-A3-T2
D-DDR3-A4-T2
D-DDR3-A5-T2
D-DDR3-A6-T2
D-DDR3-A7-T2
D-DDR3-A8-T2
D-DDR3-A9-T2
D-DDR3-A10-T2
D-DDR3-A11-T2
D-DDR3-A12-T2

D-DDR3-BA0-T2
D-DDR3-BA1-T2
D-DDR3-BA2-T2

D-DDR3-RASZ-T2
D-DDR3-CASZ-T2
D-DDR3-WEZ-T2
D-DDR3-ODT-T2

D-MVREFCA-T2

D-DDR3-A13-T2
D-DDR3-A14-T2

DDR3 4G bit 1866MHzDDR3 4G bit 1866MHz

R9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10

R7

A11

N7

A12

M2

BA0

N8

BA1

M3

BA2

L2

/CS

J3

/RAS

K3

/CAS

L3

/WE

K1

ODT

M8

VREFCA

J1

NC1

J9

NC2

L1

NC3

L9

NC4

M7

NC5

T3

A13

T7

NC7

ZQ

L8

T9

R3005

R3005
240R/1%

240R/1%

12

DDR3 4G bit 1866MHz

R9

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10

R7

A11

N7

A12

M2

BA0

N8

BA1

M3

BA2

L2

/CS

J3

/RAS

K3

/CAS

L3

/WE

K1

ODT

M8

VREFCA

J1

NC1

J9

NC2

L1

NC3

L9

NC4

M7

NC5

T3

A13

T7

NC7

ZQ

L8

T9

R3018

R3018
240R/1%

240R/1%

12

AVDD_DDR0_S

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

AVDD_DDR1_SAVDD_DDR1_S

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

D-DDR3-RESET-T2
D-DDR3-CKE-T2

H9

VSSA9VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSS

VSS

B3

G9

H9

VSSA9VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSS

VSS

B3

G9

AVDD_DDR1_S

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

D3

C-DDR3-DM3

DMU

C7

C-DDR3-DQS3

DQSU

B7

C-DDR3-DQS3B

/DQSU

D7

C-DDR3-DQ24

DQU0

C3

C-DDR3-DQ25

DQU1

C8

C-DDR3-DQ26

DQU2

C2

C-DDR3-DQ27

DQU3

A7

C-DDR3-DQ28

DQU4

A2

C-DDR3-DQ29

DQU5

B8

C-DDR3-DQ30

DQU6

A3

C-DDR3-DQ31

DQU7

E7

C-DDR3-DM2

DML

F3

C-DDR3-DQS2

DQSL

G3

C-DDR3-DQS2B

/DQSL

E3

C-DDR3-DQ16

DQL0

F7

C-DDR3-DQ17

DQL1

F2

C-DDR3-DQ18

DQL2

F8

C-DDR3-DQ19

DQL3

H3

C-DDR3-DQ20

DQL4

H8

C-DDR3-DQ21

DQL5

G2

C-DDR3-DQ22

DQL6

H7

C-DDR3-DQ23

DQL7

H1

C-MVREFDQ-T2

VREFDQ

J7

C-DDR3_MCLK

CK

K7

C-DDR3_MCLKZ

/CK

K9

C-DDR3-CKE-T2

CKE

T2

C-DDR3-RESET-T2

/RESET

VSSQB9VSSQB1VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

AVDD_DDR0_S

C-DDR3-RESET-T2
C-DDR3-CKE-T2

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

D3

D-DDR3-DM3

DMU

C7

D-DDR3-DQS3

DQSU

B7

D-DDR3-DQS3B

/DQSU

D7

D-DDR3-DQ24

DQU0

C3

D-DDR3-DQ25

DQU1

C8

D-DDR3-DQ26

DQU2

C2

D-DDR3-DQ27

DQU3

A7

D-DDR3-DQ28

DQU4

A2

D-DDR3-DQ29

DQU5

B8

D-DDR3-DQ30

DQU6

A3

D-DDR3-DQ31

DQU7

E7

D-DDR3-DM2

DML

F3

D-DDR3-DQS2

DQSL

G3

D-DDR3-DQS2B

/DQSL

E3

D-DDR3-DQ16

DQL0

F7

D-DDR3-DQ17

DQL1

F2

D-DDR3-DQ18

DQL2

F8

D-DDR3-DQ19

DQL3

H3

D-DDR3-DQ20

DQL4

H8

D-DDR3-DQ21

DQL5

G2

D-DDR3-DQ22

DQL6

H7

D-DDR3-DQ23

DQL7

H1

D-MVREFDQ-T2

VREFDQ

J7

D-DDR3_MCLK

CK

K7

D-DDR3_MCLKZ

/CK

K9

D-DDR3-CKE-T2

CKE

T2

D-DDR3-RESET-T2

/RESET

VSSQB9VSSQB1VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

R3027

R3027

4.7K

4.7K

1 2

C3079 10nFC307910nF

R30282KR3028
2K

1 2

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

03.DDR

03.DDR

03.DDR

Date: Sheet of

Date: Sheet of

Date: Sheet of

1

1 2

1 2

R3014 56RR3014 56R

R3013 56RR3013 56R

C3007 10nFC3007 10nF

R3033

R3033

4.7K

4.7K

C3075 10nFC307510nF

R30322KR3032
2K

R3034 56RR3034 56R

R3021 56RR3021 56R

C3022 10nFC3022 10nF

Title

Title

Title

CV828H-B-10

CV828H-B-10

CV828H-B-10

312Friday, August 28, 2015

312Friday, August 28, 2015

312Friday, August 28, 2015

1.0

1.0

1.0

5

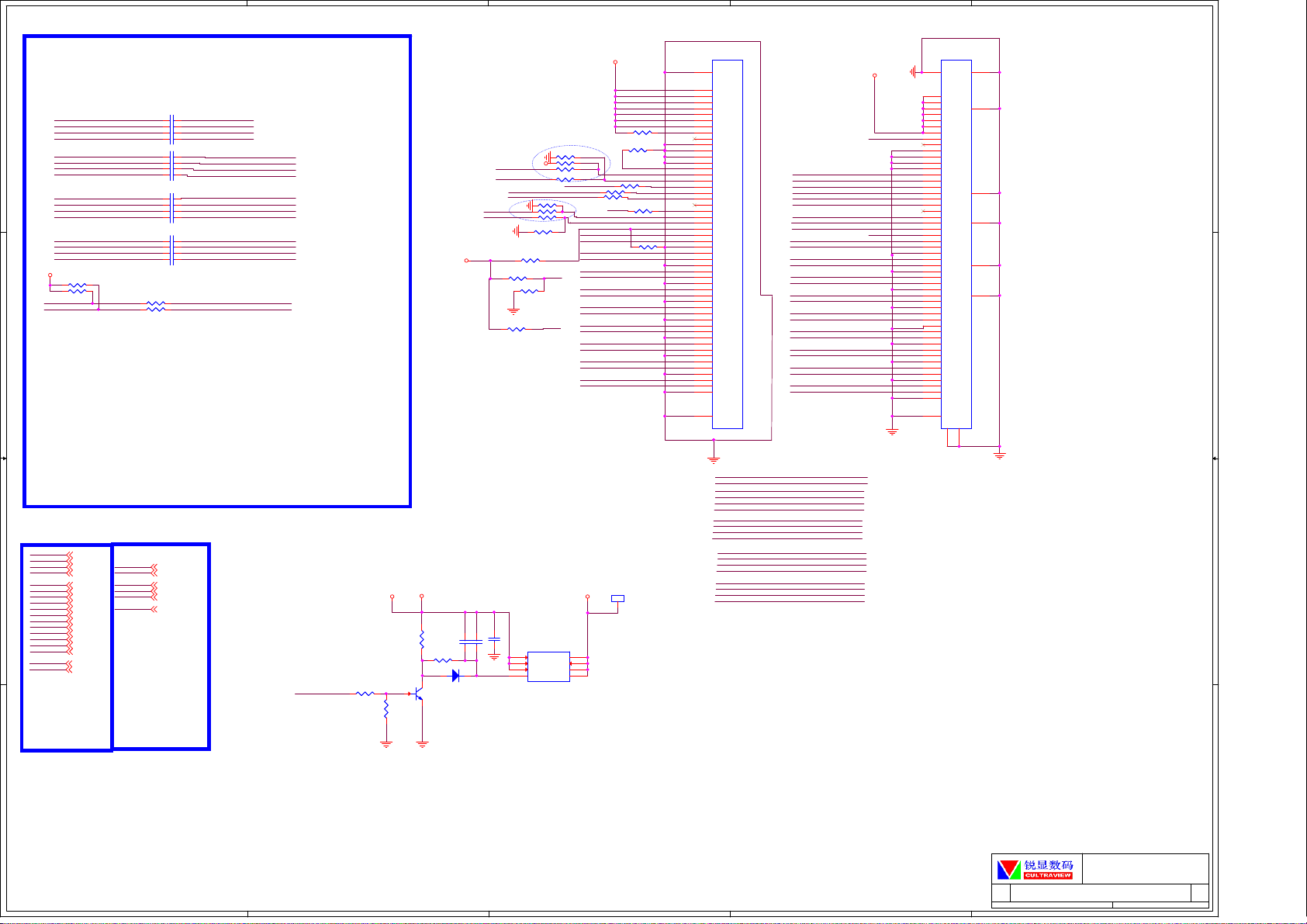

VB1 For CMI LG Sansung &LVDS

可以用0R电阻，方便调试

Bom

+3.3V_Normal

R4018 10KR4018 10K
R4010 10KR4010 10K

A3M
A3P

LVSYNC
LHSYNC
LDE
LCK

B0M
B0P
B1M
B1P

B2M
B2P
BCKM
BCKP

B3M
B3P
B4M
B4P

R4032 0RR4032 0R
R4026 0RR4026 0R

D D

C C

Net

LVSYNC

LVSYNC

LCK

LCK

B B

A3M
A3P

B0M
B0P
B1M
B1P
B2M
B2P
BCKM
BCKP
B3M
B3P
B4M
B4P

LDE

LHSYNC

LDE
LHSYNC

B0­B0+
B1­B1+
B2­B2+
BCLK­BCLK+
B3­B3+
B4­B4+

A3­A3+

M_SCL
M_SDA

3D_LR_in
LR_SYNC
3D_EN

PANEL_ON/OFF

0.1uF

0.1uF

C4002

C4002

0.1uF

0.1uF

C4010

C4010

0.1uF

0.1uF

C4006

C4006

0.1uF

0.1uF

C4017

C4017

0.1uF

0.1uF

C4018

C4018

0.1uF

0.1uF

C4004

C4004

0.1uF

0.1uF

C4008

C4008

0.1uF

0.1uF

C4005

C4005

0.1uF

0.1uF

C4012

C4012

0.1uF

0.1uF

C4007

C4007

0.1uF

0.1uF

C4015

C4015

0.1uF

0.1uF

C4013

C4013

0.1uF

0.1uF

C4003

C4003

0.1uF

0.1uF

C4011

C4011

0.1uF

0.1uF

C4009

C4009

0.1uF

0.1uF

C4014

C4014

M_SCL
M_SDA

3D_LR_in

LR_SYNC
3D_EN

PANEL_ON/OFF

LVDS和VBY

VBY0N
VBY0P
VBY1N
VBY1P

VBY2N
VBY2P
VBY3N
VBY3P

VBY4N
VBY4P
VBY5N
VBY5P

VBY6N
VBY6P
VBY7N
VBY7P

VBYLOCKn
VBYHTPDn

互相更改

Power for panel

PANEL_ON/OFF

L:Off
H:On

4

R4019 4.7KR4019 4.7K

12VU

R4020

R4020
10K

10K

3

CMI/LG/Samung 4K2K@60HZ

P_VCC

R4031

R4031
47K

47K

1

+3.3V_Normal

C4019

C4019

R4014 200KR4014 200K

D4001 1N4148D4001 1N4148

2 1

Q4002

Q4002
MMBT3904

MMBT3904

2 3

Note：2个VBY1

22nF

22nF

座子都需要使用，不能有干涉。

Note4

+3.3V_Normal

3D_LR_in
LR_SYNC

M_SDA
M_SCL

R4013 10KR4013 10K

Note5

3D_LR_in
LR_SYNC

Note1: Pin8
Note2
Note3
Note4
CMI
Note5
Pin22
Note6

C4001

C4001
100nF

100nF

R4022 NCR4022 NC
R4017 NCR4017 NC

R4030 10K/NCR4030 10K/NC

R4029 NC/10KR4029 NC/10K

R4033 10K/NCR4033 10K/NC

R4007 0R/NCR4007 0R/NC

R4006 10K/NCR4006 10K/NC

华星

panel

为地，

：

PIN14 LG panel 需要NC,CMI，Susuang

：

PIN9，PIN20

兼容后端

：

PIN15，PIN16 LG panel为Data Format

为眼睛同步的输入输出，目前设置为

：

Pin22，Pin23 Samsung

为

CMI Local dimming

：

Pin21 为sansung pane 3D enable

C4016

C4016
100nF

100nF

1

S0

2

S1

3

S2
G4D0

AP9435

AP9435

VCC-Panel

Note3

R4008 NC/10KR4008 NC/10K
R4025 NC/10KR4025 NC/10K
R4027 NCR4027 NC

NC

R4021NCR4021

3D_EN

R4034 NC/0RR4034 NC/0R

R4011 0RR4011 0R

R4012 0RR4012 0R

3D_EN
LD_EN
AGP

VBYHTPDn
VBYLOCKn

VBY0N
VBY0P

VBY1N
VBY1P

BIT_SEL

VBY2N
VBY2P

VBY3N
VBY3P

VBY4N

LD_EN

VBY4P
VBY5N

VBY5P
VBY6N

VBY6P
VBY7N

VBY7P

CMI,LG,Susung

为电源，为了仿真实验烧坏单板，

需要接地，为兼容

MEMC 4V4O

模式，

NC

，设置为

U4001

U4001

D3
D2
D1

设置，设置为

，目前

VCC-Panel

8
7
6
5

NC

NC.

disable

TP41

TP41
TEST POINT

TEST POINT

1

为眼睛同步的输入输出，目前设置为

R4028 0RR4028 0R

Note2

R4035 OR/NCR4035 OR/NC

Data_fromat_0 FP_15
Data_fromat_1 FP_16

R4023 NCR4023 NC

R4024 0RR4024 0R

“01”，2divison

2

CN4001

PIN24

CN4001

52

55

GND14

55

1

1

2

2

3

61

3

61

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

60

17

60

18

18

19

19

20

20

21

21

22

59

22

59

23

23

24

24

25

25

26

26

27

27

28

28

29

58

29

58

30

30

31

31

32

32

33

33

34

57

34

57

35

35

36

36

37

37

38

38

39

39

40

40

41

41

42

42

43

43

44

44

45

45

46

46

47

47

48

48

49

49

50

50

51

51

53

GND15

54

56

VB1_55BOE_51

VB1_55BOE_51

54

56

53

GND15

51

51

50

50

49

49

48

48

47

47

46

46

45

Note1

Note6

BIT_SEL

PIN24

NC

，

NC,

45

44

PIN8

44

43

43

42

42

41

41

40

40

39

39

38

FP_14

38

37

37

36

36

35

FP_17

35

34

FP_18

34

33

FP_19

33

32

32

31

31

30

30

29

29

28

28

27

27

26

26

25

25

24

24

23

23

22

22

21

21

20

20

19

19

18

18

17

17

16

16

15

15

14

14

13

13

12

12

11

11

10

10

9

9

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

52

GND14

CN4002

CN4002

CON_SMD_51P

CON_SMD_51P

NC.

VBYHTPDn VBYHTPDn_1
VBYLOCKn VBYLOCKn_1

VBY4N VBY4N_1
VBY4P VBY4P_1
VBY5N VBY5N_1

VBY5P VBY5P_1
VBY6N VBY6N_1

VBY6P VBY6P_1
VBY7N VBY7N_1
VBY7P VBY7P_1

VBY0N VBY0N_1
VBY0P VBY0P_1
VBY1N VBY1N_1
VBY1P VBY1P_1

VBY2N VBY2N_1
VBY2P VBY2P_1
VBY3N VBY3N_1
VBY3P VBY3P_1

FP_14
FP_15
FP_16
FP_17
FP_18

FP_19
BIT_SEL

LD_EN

AGP

VBYHTPDn_1
VBYLOCKn_1

VBY0N_1
VBY0P_1

VBY1N_1

VBY1P_1
VBY2N_1

VBY2P_1
VBY3N_1

VBY3P_1
VBY4N_1

VBY4P_1
VBY5N_1

VBY5P_1
VBY6N_1

VBY6P_1
VBY7N_1

VBY7P_1

VCC-Panel

PIN8

1

A A

Title

Title

Title

CV828H-B-10

CV828H-B-10

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

04.VB1&LVDS

04.VB1&LVDS

04.VB1&LVDS

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

CV828H-B-10

1

1.0

1.0

1.0

of

of

of

412Friday, August 28, 2015

412Friday, August 28, 2015

412Friday, August 28, 2015

5

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

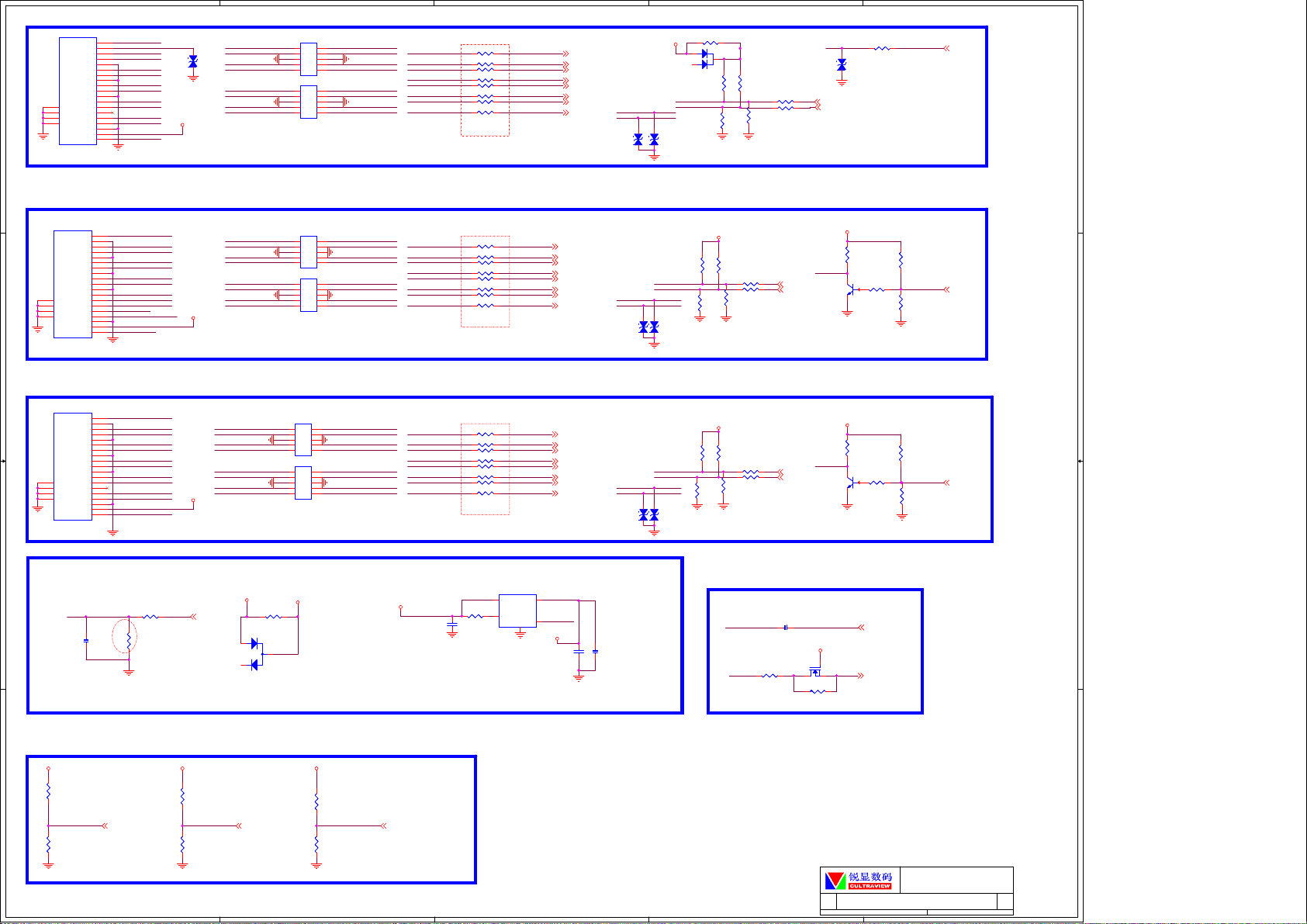

Up to 6G bps

HDMI1_RX2P
MHL_CD_SENSE
HDMI1_RX2N
HDMI1_RX1P

HDMI1_RX1N
HDMI1_RX0P

HDMI1_RX0N
HDMI1_CLKP

HDMI1_CLKN
CEC

HDMI1-DDC-SCL
HDMI1-DDC-SDA

HDMI1-HPD

HDMI0-5V

HDMI1_RX2P
HDMI1_RX2N

D5006

D5006

HDMI1_RX1P
HDMI1_RX1N

ESD

ESD

1 2

HDMI1_RX0P
HDMI1_RX0N

HDMI1_CLKP
HDMI1_CLKN

HDMI1(MHL)

CN5001

CN5001

DATA2+

DATA2 SHIELD

DATA2-

DATA1+

DATA1 SHIELD

DAT1A-

DATA0+

DATA0 SHIELD

DATA0-

CLK+

CLK SHIELD

CLK-

20

CEC

GND1

21

NC

GND2

22

SCL

GND3

D D

23

GND4

DDC/CEC GND

+5V POWER

HOT PLUG

HDMI/90D

HDMI/90D

SDA

6
7
8
9

10

SU0524P

SU0524P

6
7
8
9

10

SU0524P

SU0524P

DN5001

DN5001

S45S8
S3

S7
GND

GND1

S2

S6

S1

S5

SLP2710P8

SLP2710P8

DN5002

DN5002

S45S8
S3

S7
GND

GND1

S2

S6

S1

S5

SLP2710P8

SLP2710P8

4

HDMI1_RX2P

4

HDMI1_RX2N

3
2

HDMI1_RX1P

1

HDMI1_RX1N

HDMI1_RX0P

4

HDMI1_RX0N

3
2

HDMI1_CLKP

1

HDMI1_CLKN

HDMI1_RX2P
HDMI1_RX2N

HDMI1_RX1P
HDMI1_RX1N

HDMI1_RX0P
HDMI1_RX0N

HDMI1_CLKP
HDMI1_CLKN

靠近端子放置

R5009 0RR5009 0R
R5022 0RR5022 0R

R5025 0RR5025 0R
R5060 0RR5060 0R

R5038 0RR5038 0R
R5036 0RR5036 0R

R5023 0RR5023 0R
R5058 0RR5058 0R

HDMI0-RX2P
HDMI0-RX2N

HDMI0-RX1P
HDMI0-RX1N

HDMI0-RX0P
HDMI0-RX0N

HDMI0-CLKP
HDMI0-CLKN

3

+5V_Standby

R5076 0RR5076 0R

D5008

D5008

ESD

ESD

1 2

1
2

Q5006 BAV70/NCQ5006 BAV70/NC

HDMI1-DDC-SCL
HDMI1-DDC-SDA

HDMI0-RX2P
HDMI0-RX2N

HDMI0-RX1P
HDMI0-RX1N

HDMI0-RX0P
HDMI0-RX0N

HDMI0-CLKP
HDMI0-CLKN

ext HDMI

HDMI1-DDC-SCL
HDMI1-DDC-SDA

D5004

D5004

ESD

ESD

1 2

2

R5047 5.1RR5047 5.1R

HDMI0-HPDIN

3

R5033

R5033

R5027

R5027

R5052 22RR5052 22R

10K

10K

10K

10K

R5069

R5069

R5024 22RR5024 22R

R5048

R5048

200K

200K

200K

200K

HDMI1-HPD

HDMI0-SCL

HDMI0-SDA

D5001

D5001

ESD

ESD

1 2

1

HDMI0-HPDIN

Hot-Plug Control (MHL CBUS)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

C5002

C5002
47nF

47nF

Up to 3.75G bps

HDMI2_RX2P
HDMI2_RX2N

HDMI2_RX1P
HDMI2_RX1N

HDMI2_RX0P
HDMI2_RX0N

HDMI2_CLKP
HDMI2_CLKN

CEC
HDMI2_ARC
HDMI2-DDC-SCL
HDMI2-DDC-SDA

HDMI2-HPD

HDMI4_RX2P
HDMI4_RX2N

HDMI4_RX1P
HDMI4_RX1N

HDMI4_RX0P
HDMI4_RX0N

HDMI4_CLKP
HDMI4_CLKN

HDMI4-DDC-SCL
HDMI4-DDC-SDA

HDMI4-HPD

R5055 100RR5055 100R

R5004

R5004
300K

300K

HDMIB-5V

HDMID-5V

MHL_CABLE_DET

HDMI2_RX2P
HDMI2_RX2N

HDMI2_RX1P
HDMI2_RX1N

HDMI2_RX0P
HDMI2_RX0N

HDMI2_CLKP
HDMI2_CLKN

HDMI4_RX2P
HDMI4_RX2N

HDMI4_RX1P
HDMI4_RX1N

HDMI4_RX0P
HDMI4_RX0N

HDMI4_CLKP
HDMI4_CLKN

HDMI0-5V

NC/BAT54S

NC/BAT54S

1

2

R5020 10RR5020 10R

3

Q5001

Q5001

DN5005

DN5005

6
7
8
9

10

SU0524P

SU0524P

SLP2710P8

SLP2710P8

DN5006

DN5006

6
7
8
9

10

SU0524P

SU0524P

SLP2710P8

SLP2710P8

DN5003

DN5003

6
7

S7

8

GND

GND1

9

S6

10

S5

SU0524P

SU0524P

SLP2710P8

SLP2710P8

DN5004

DN5004

6
7

S7

8

GND

GND1

9

S6

10

S5

SU0524P

SU0524P

SLP2710P8

SLP2710P8

AVDD5V_MHL

S7
GND

GND1
S6
S5

S7
GND

GND1
S6
S5

S45S8
S3

S2
S1

S45S8
S3

S2
S1

HDMI2-HPD

MMBT3904

MMBT3904

HDMI4-HPD

MMBT3904

MMBT3904

HDMIB-5V

Q5002

Q5002

HDMID-5V

Q5003

Q5003

2 3

2 3

R50301KR5030

1K

R50641KR5064

1K

1

R5063 10KR5063 10K

1

R5037 10KR5037 10KR5044

R5013

R5013

10K

10K

HDMI2-HPDIN

R5099

R5099

200K

200K

R5074

R5074

10K

10K

HDMID-HPDINCEC

R5050

R5050

200K

200K

HDMIB-HPDIN

HDMID-HPDIN

HDMI2_RX2P

S45S8

4

HDMI2_RX2N

S3

3
2

HDMI2_RX1P

S2

1

HDMI2_RX1N

S1

HDMI2_RX0P

S45S8

4

HDMI2_RX0N

S3

3
2

HDMI2_CLKP

S2

1

HDMI2_CLKN

S1

HDMI4_RX2P

4

HDMI4_RX2N

3
2

HDMI4_RX1P

1

HDMI4_RX1N

HDMI4_RX0P

4

HDMI4_RX0N

3
2

HDMI4_CLKP

1

HDMI4_CLKN

HDMI2_RX2P
HDMI2_RX2N

HDMI2_RX1P
HDMI2_RX1N

HDMI2_RX0P
HDMI2_RX0N

HDMI2_CLKP
HDMI2_CLKN

HDMI4_RX2P
HDMI4_RX2N

HDMI4_RX1P
HDMI4_RX1N

HDMI4_RX0P
HDMI4_RX0N

HDMI4_CLKP
HDMI4_CLKN

靠近端子放置

R5045 0RR5045 0R
R5021 0RR5021 0R

R5032 0RR5032 0R
R5028 0RR5028 0R

R5053 0RR5053 0R
R5046 0RR5046 0R

R5057 0RR5057 0R
R5040 0RR5040 0R

靠近端子放置

R5068 0RR5068 0R
R5010 0RR5010 0R

R5011 0RR5011 0R
R5031 0RR5031 0R

R5051 0RR5051 0R
R5016 0RR5016 0R

R5054 0RR5054 0R
R5041 0RR5041 0R

HDMIB-RX2P
HDMIB-RX2N

HDMIB-RX1P
HDMIB-RX1N

HDMIB-RX0P
HDMIB-RX0N

HDMIB-CLKP
HDMIB-CLKN

HDMID-RX2P
HDMID-RX2N

HDMID-RX1P
HDMID-RX1N

HDMID-RX0P
HDMID-RX0N

HDMID-CLKP
HDMID-CLKN

HDMIB-RX2P
HDMIB-RX2N

HDMIB-RX1P
HDMIB-RX1N

HDMIB-RX0P
HDMIB-RX0N

HDMIB-CLKP

HDMIB-CLKN

HDMID-RX2P

HDMID-RX2N

HDMID-RX1P

HDMID-RX1N

HDMID-RX0P

HDMID-RX0N
HDMID-CLKP

HDMID-CLKN

HDMI2-DDC-SCL
HDMI2-DDC-SDA

HDMI2-DDC-SCL
HDMI2-DDC-SDA

D5003

D5003

D5005

D5005

ESD

ESD

ESD

ESD

1 2

1 2

HDMI4-DDC-SCL
HDMI4-DDC-SDA

HDMI4-DDC-SCL
HDMI4-DDC-SDA

D5007

D5007

D5002

D5002

ESD

ESD

ESD

ESD

1 2

1 2

R5044

200K

200K

R5019

R5019

10K

10K

R5062

R5062

200K

200K

R5059

R5059

10K

10K

HDMIB-5V

R5042

R5042

10K

10K

HDMID-5V

R5029

R5029

10K

10K

R5066 22RR5066 22R
R5017 22RR5017 22R

R5039

R5039

200K

200K

R5070 22RR5070 22R

R5018

R5018

R5043 22RR5043 22R

200K

200K

HDMIB-SCL
HDMIB-SDA

HDMID-SCL
HDMID-SDA

CEC & ARC

Q5005

Q5005

G524B3T11U

5V_SW

R5026 10KR5026 10K

C5005

C5005
10uF

10uF

G524B3T11U

3

VIN5VOUT

FAULT

2

1

4

MHL_CABLE_DET

EN

GND

HDMI0-5V

C5004

C5004

C5003

C5003

10uF

10uF

100nF

100nF

HDMI2_ARC HDMI-ARC

CEC

C5008 1uFC5008 1uF

1 2

R5065 100RR5065 100R

+5V_Standby

Q5004

Q5004
2N7002/NC

2N7002/NC

3 2

R5061 0RR5061 0R

1

HDMI0-ARC

HDMIA-CEC

HDMI2(ARC)

CN5007

CN5007

DATA2+

DATA2 SHIELD

DATA2-

DATA1+

DATA1 SHIELD

DAT1A-

DATA0+

DATA0 SHIELD

DATA0-

CLK+

CLK SHIELD

CLK-

20

CEC

GND1

21

NC

GND2

22

SCL

GND3

23

SDA

GND4

DDC/CEC GND

+5V POWER

HOT PLUG

HDMI/90D

C C

B B

HDMI/90D

HDMI3

CN5003

CN5003

DATA2 SHIELD

DATA1 SHIELD

DATA0 SHIELD

CLK SHIELD

20

GND1

21

GND2

22

GND3

23

GND4

DDC/CEC GND

+5V POWER

HOT PLUG

HDMI/90D

HDMI/90D

MHL

Up to 3.75G bps

DATA2+

DATA2-

DATA1+

DAT1A-

DATA0+

DATA0-

CLK+

CLK­CEC

NC
SCL
SDA

MHL_CD_SENSE

HDMI DETECT

HDMIB-5VHDMI0-5V HDMID-5V

R5014

R5014

10K

A A

10K

HOTPLUGA_HDMI20_5V

R5034

R5034

22K

22K

5

R5049

R5049

10K

10K

R5005

R5005

22K

22K

R5056

R5056

10K

10K

R5015

R5015

22K

22K

HOTPLUGD_HDMI20_5VHOTPLUGB_HDMI20_5V

4

HOTPLUGD_HDMI20_5VHOTPLUGA_HDMI20_5V HOTPLUGB_HDMI20_5V

Title

Title

Title

CV828H-B-10

CV828H-B-10

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

05.HDMI

05.HDMI

05.HDMI

Date: Sheet

Date: Sheet

3

2

Date: Sheet

CV828H-B-10

512Friday, August 28, 2015

512Friday, August 28, 2015

512Friday, August 28, 2015

of

of

of

1

1.0

1.0

1.0

5

YPBPR & VIDEO

4

3

2

1

D D

SPDIF OUT

VIDEO

ESD

ESD

12

CN5005

CN5005

OPTICAL

5
4
3

OPTICAL

2

2

1

1

R5007 0RR5007 0R

+5V

+5V

R5073 33RR5073 33R

SPDIF

SPDIF

R5071

R5071
10k

10k

+5V_Normal

SPDIF_OUT

SPDIF_OUT

R45 close to IC

3

R501275R R501275R

R507512K R507512K

R500812K R500812K

C5009560p/NC C5009560p/NC

AV1 3

AV1L 3

AV1R 3

C5010560p/NC C5010560p/NC

GND

GND
GND

GND
GND

GND

5
4
3

CN5002

CN5002

AV3-8r4-5

AV3-8r4-5

V

V

L

L

R

C C

B B

R

CVBS

CVBS

2

GND

GND

1

L+

L+

4

GND

GND

3

R+

R+

6

GND

GND

5

1 2

D5011

D5011

R5067 10KR5067 10K

R5002 10KR5002 10K

D5012

D5012
D5009

D5009

1 2

ESD

ESD

ESD

ESD

Title

Title

Title

CV828H-B-10

CV828H-B-10

A A

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

06.VIDEO IN

06.VIDEO IN

06.VIDEO IN

Date: Sheet

Date: Sheet

Date: Sheet

5

4

3

2

CV828H-B-10

of

of

of

612Friday, August 28, 2015

612Friday, August 28, 2015

612Friday, August 28, 2015

1

1.0

1.0

1.0

5

4

3

2

1

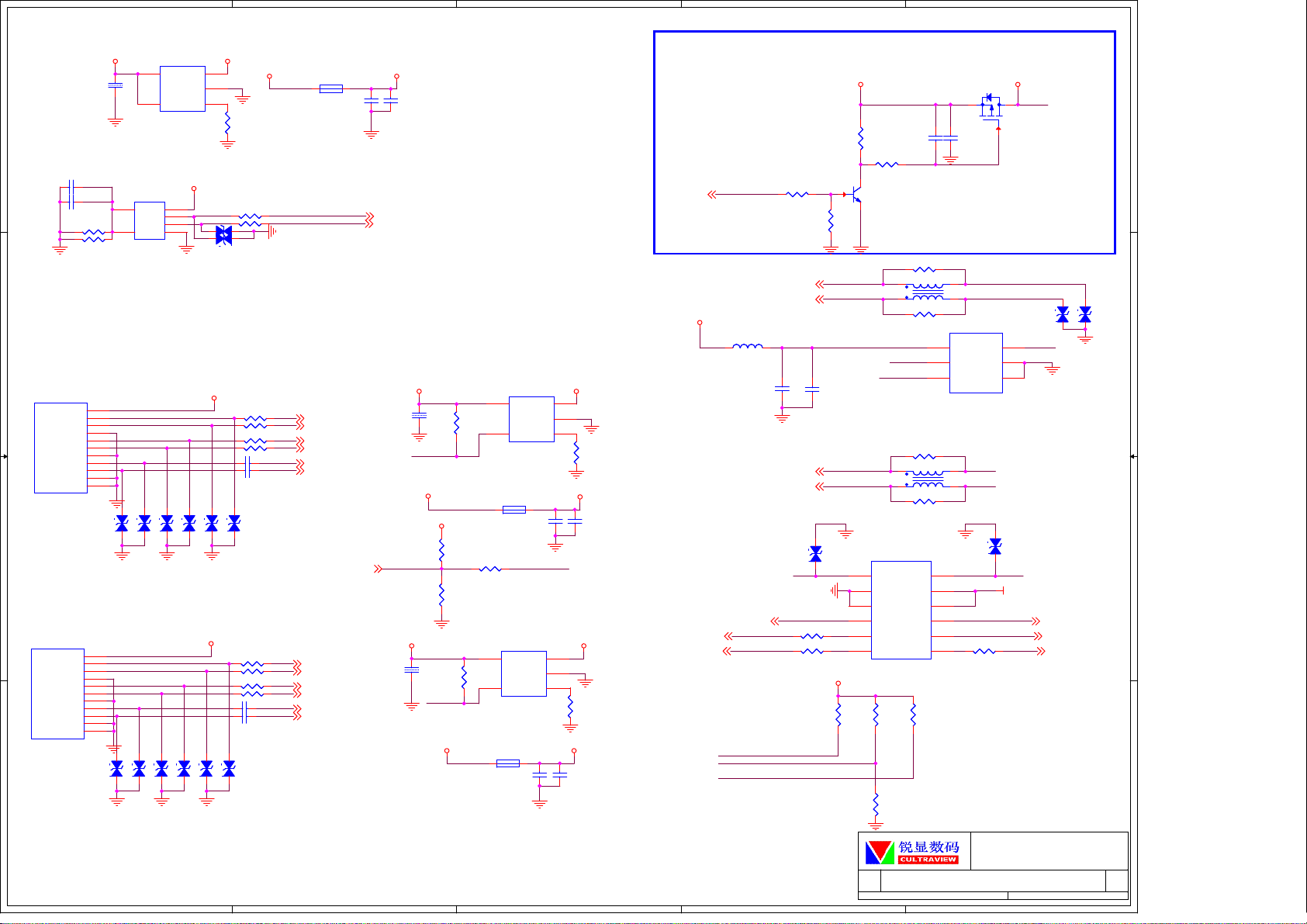

5V_SW V_5V_USB

U6003

U6003

C6010

C6010

1uF/6.3V

1uF/6.3V

D D

C6018 1nF/1KV/NCC6018 1nF/1KV/NC
C6019 1nF/1KV/NCC6019 1nF/1KV/NC

R6030 0RR6030 0R

R6031 0RR6031 0R

C C

USB3.0

CN6001

CN6001

1

VBUS

2

D-

3

D+

4

GND

SHELL1
SHELL2

VBUS

GND

SHELL1
SHELL2

CN6002

CN6002

D­D+

5
6
7
8
9
10
11

1
2
3
4
5
6
7
8
9
10
11

STDA_SSRX-

STDA_SSRX+

GND_DRAIN
STDA_SSTX­STDA_SSTX+

USB3_0

USB3_0

B B

USB3.0

STDA_SSRX­STDA_SSRX+

GND_DRAIN

STDA_SSTX-

STDA_SSTX+

USB3_0

USB3_0

A A

5

4

SY6280AAC

SY6280AAC

CN6003

CN6003

GND

GND

6

1

6

2

1 2

D6014hfD6014

1 2

hf

5

D6009hfD6009

hf

D6002hfD6002

1 2

hf

USB-H

USB-H

D6012hfD6012

1 2

hf

3
447

1 2

D6006hfD6006

hf

GND

GND

VIN

EN

D6005hfD6005

1 2

hf

V_5V_USB

+5V

+5V

1

DM

DM

2

DP

DP

3

GND

GND

1

VOUT

2

GND

3

#FLG

Note:5.1R

D6010 ESDD6010 ESD
D6011 ESDD6011 ESD

V_5V_USB1

D6008hfD6008

D6007hfD6007

1 2

1 2

hf

hf

V_5V_USB2

D6003hfD6003

D6004hfD6004

1 2

1 2

hf

hf

R6019

R6019
6K2_1%

6K2_1%

0

0

电阻靠近端子,减小

R6001 0RR6001 0R
R6002 0RR6002 0R

12
12

R6010 0RR6010 0R
R6009 0RR6009 0R

R6004 0RR6004 0R
R6005 0RR6005 0R

C6016 0.1uFC6016 0.1uF
C6014 0.1uFC6014 0.1uF

D6013hfD6013

1 2

hf

R6013 0RR6013 0R
R6011 0RR6011 0R

R6012 0RR6012 0R
R6014 0RR6014 0R

C6008 0.1uFC6008 0.1uF
C6007 0.1uFC6007 0.1uF

D6001hfD6001

1 2

hf

MF6003 NC/0R/1206/1.1AMF6003 NC/0R/1206/1.1A

1 2

EOS.

USB0_D­USB0_D+

USB_D- 4
USB_D+ 4

USB_SSRXN 4
USB_SSRXP 4

USB_SSTXN 4
USB_SSTXP 4

1USB_D- 4
1USB_D+ 4

1USB_SSRXN 4
1USB_SSRXP 4

1USB_SSTXN 4
1USB_SSTXP 4

USB3_EN

V_5V_USB5V_SW

C6017

C6017

C6009

C6009

10U

10U

0.1uF

0.1uF

USB0_D- 3
USB0_D+

3

5V_SW V_5V_USB1

U6001

U6001

5

VOUT

C6004

C6004

1uF/6.3V

1uF/6.3V

USB3-EN

5V_SW

+3.3V_Standby

R6028NCR6028
NC

R6027NCR6027
NC

VIN

R6025

R6025
0R

0R

4

0

0

EN

SY6280AAC

SY6280AAC

MF6001 NC/0R/1206/1.1AMF6001 NC/0R/1206/1.1A

1 2

R6029 NCR6029 NC

USB3-EN

GND

#FLG

C6005

C6005

5V_SW V_5V_USB2

U6002

C6011

C6011

1uF/6.3V

1uF/6.3V

USB3-EN

U6002

5

R60260RR6026
0R

4

SY6280AAC

SY6280AAC

MF6002 NC/0R/1206/1.1AMF6002 NC/0R/1206/1.1A

1 2

1

VOUT

VIN

2

GND

3

#FLG

EN

C6003

C6003

10U

10U

1
2
3

V_5V_USB1

10U

10U

V_5V_USB25V_SW

C6006

C6006

0.1uF

0.1uF

R6017

R6017

3.9K_1%

3.9K_1%

0

0

C6015

C6015

0.1uF

0.1uF

R6018

R6018

3.9K_1%

3.9K_1%

0

0

Power for WiFi module

+5V_Standby

Q6001 3407/NCQ6001 3407/NC

2

R6006

R6006

47K/NC

WIFI-EN4

BT_DEV_WAKE

2

4

WIFI_REG_ON

WIFI-EN

L:Off
H:On

WIFI-P

FB6001 FB1206/R0/NCFB6001 FB1206/R0/NC

4

BT_HOST_WAKE

TS

R6007 4.7K/NCR6007 4.7K/NC

C6013

C6013

100nF/NC

100nF/NC

R6022

R6022
R6016 0RR6016 0R

BT_HOST_WAKE
WL_HOST_WAKE

WL_DEV_WAKE

USB1_D+
USB1_D-

USB2_D+
USB2_D-

1

R6008

R6008

10K/NC

10K/NC

USB1_D+
USB1_D-

C6012

C6012

10U/NC

10U/NC

USB2_D+
USB2_D-

D6024hfD6024

1 2

hf

BT-

0R/NC

0R/NC

+3.3V_Standby

R6021

R6021

4.7K

4.7K

47K/NC

R6003 200K/NCR6003 200K/NC

Q6002

Q6002

MMBT3904/NC

MMBT3904/NC

2 3

WIFI_REG_ON

J6001

J6001

1 2
3 4
5 6
7 8
9 10
11 12

PHD-2X6-AW

PHD-2X6-AW

R6020

R6020

4.7K

4.7K

R6023NCR6023

NC

C6001

C6001

C6002

C6002

100nF/NC

100nF/NC

100nF/NC

100nF/NC

R6032 0RR6032 0R

L6001

L6001

1
4

SDCW2012-2-900TF/NC

SDCW2012-2-900TF/NC

R6033 0RR6033 0R

R6034 0RR6034 0R

L6002

L6002

R6035 0RR6035 0R

R6024

R6024

4.7K/NC

4.7K/NC

1 2
3 4
5 6

PHD-2X3-AW

PHD-2X3-AW

wifi+

1
4

SDCW2012-2-900TF/NC

SDCW2012-2-900TF/NC

2
3

J6002

J6002

2
3

R6015

R6015

1

wifi+
wifi-

BT+
BT-

D6023hfD6023

1 2

hf

BT+

BT_REG_ON

0R/NC

0R/NC

WIFI-P

3

+5V_Standby

D6025hfD6025

D6026hfD6026

1 2

1 2

hf

hf

wifi-

BT_REG_ON 2

WL_HOST_WAKE 2

WL_DEV_WAKE

4

Title

Title

Title

CV828H-B-10

CV828H-B-10

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

07.USB&WIFI&KALAOK

07.USB&WIFI&KALAOK

07.USB&WIFI&KALAOK

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

CV828H-B-10

of

of

of

712Friday, August 28, 2015

712Friday, August 28, 2015

712Friday, August 28, 2015

1

1.0

1.0

1.0

5

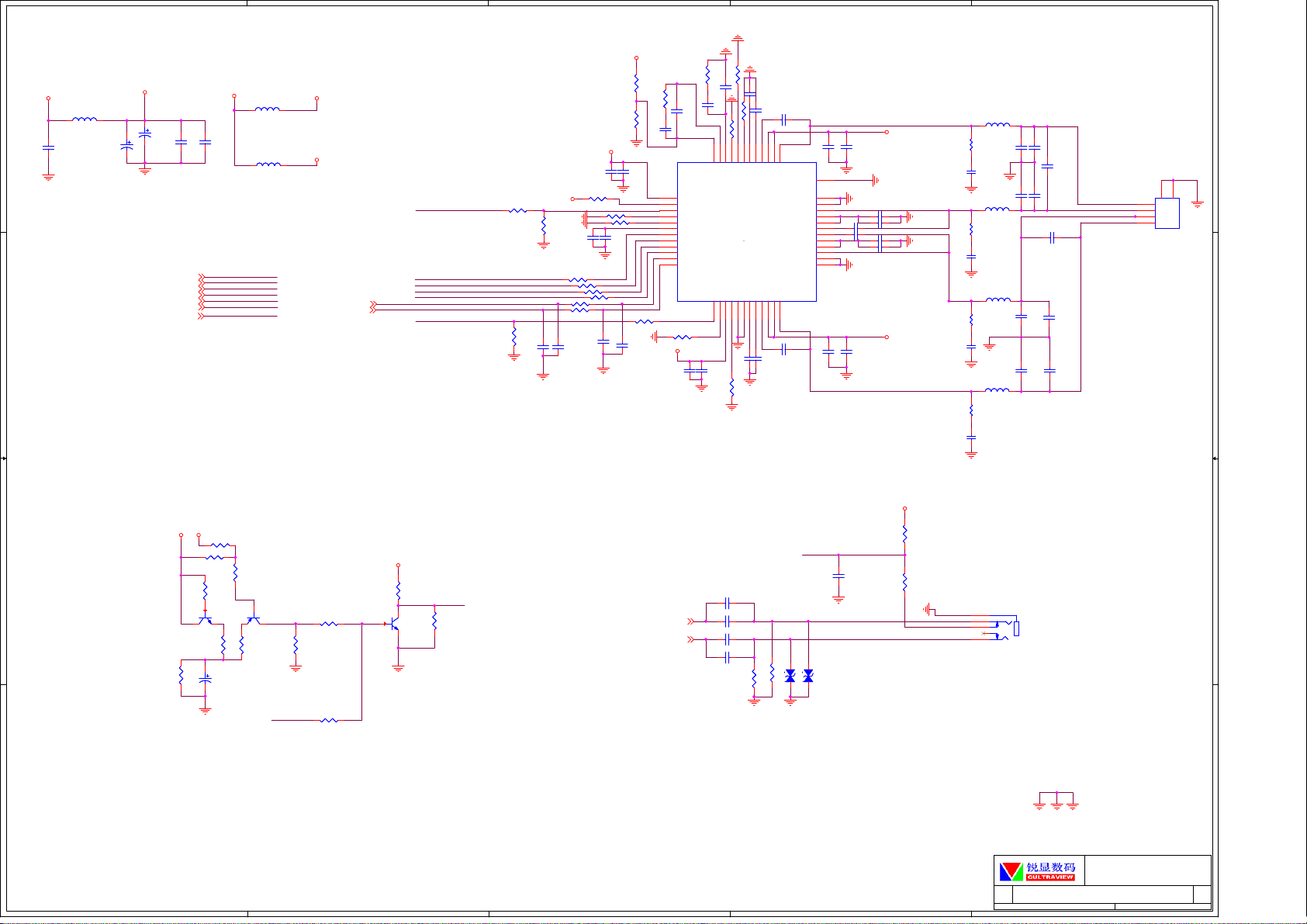

+18V_Normal

FB7001FBFB7001

C7029

C7029
100nF/50v/X7R

100nF/50v/X7R

GND

1

2

D D

C C

PVDD

PVDD

FB

EC7003

EC7003

470uF/35V

470uF/35V

12

12

C7049NCC7049

NC

EC7002

EC7002

220uF/35V/NC

220uF/35V/NC

GND

I2S-OUT_BCK
I2S-OUT_MCK
I2S-OUT_WS
I2S-OUT_SD
AMP-RESET

AMP-MUTE

3

EAR-PLUG

C7050NCC7050

NC

+3.3V_Normal

I2S-OUT_BCK

I2S-OUT_MCK
I2S-OUT_WS
I2S-OUT_SD
AMP-RESET
AMP-MUTE

EAR-PLUG

FB7003FBFB7003

1

FB7002FBFB7002

1

AVDD

FB

2

DVDD0

FB

2

4

A_SEL as Input
L=IIC Address 0x34
H=IIC Address 0x36

AVDD

R7039

GND

R7039

22R

22R

R7035

R7035

4.7K/NC

4.7K/NC
C7043NCC7043

R7019

R7019
10K_1%

10K_1%

GND

22R

22R

22R

22R

22R

22R

NC

GND

I2S-OUT_MCK

MUTE
I2S-OUT_WS
I2S-OUT_BCK
I2S-OUT_SD

M_SDA2,3,5

M_SCL2,3,5

SDAM_SDA
SCLM_SCL

AMP-RESET

GND

GND

C7044NCC7044
NC

C7035

C7035

4.7uF

4.7uF

22R

22R

AVDD

C7039

C7039
10uF

10uF

R7013 10K_1%R7013 10K_1%

R7017

R7017

GND

R7021

R7021

R703322R R703322R

R7015

R7015

R7026

R7026

C7041

C7041
33pF

33pF

GND

R7031

R7031

R703022R R703022R

3

0.1uF

0.1uF
C7033

C7033

AVDD

GND

AGND

18.2K_1%

18.2K_1%

C7042

C7042
33pF

33pF

C7034

C7034

0.1uF

0.1uF

R70441KR7044

GND

R7010

R7010
18K/NC

18K/NC

R7016

R7016

15K/NC

15K/NC

R70110R R70110R

C7002

C7002
47nF

47nF

1K

13
14
15
16
17
18
19
20
21
22
23
24

R70430RR7043

DVDD0

0R

C7009

C7009
10uF

10uF

R7038

R7038
470

470

C7001

C7001

4.7nF

4.7nF

U7001

U7001

AVDD
A_SEL
MCLK
TP1
TP2
VR_DIG
/PDN_N
LRCK
SCLK
SDIN
SDA
SCL

GND

C7018

C7018
47nF

47nF

GND

AGND

R7029

R7029
10K

10K

GND

R7036

R7036
470

470

C7019

C7019

AGND

4.7nF

4.7nF
C7017

C7017

R7014

R7014

1uF

1uF

22.1K

22.1K
C7015 0.033uFC7015 0.033uF

R70180RR7018
0R

4

3

7

11

5

12

9

8

10

TM16TM2

PBTL

BS_A

AVSS

VCLAB

VR_ANA

PLL_FLTP

PLL_FLTM

AD52584

AD52584

/RESET_N25TP326DVDD27DVSS28DGND29AGND30VREG31VCLCD32BS_D33PVDD_D134PVDD_D35OUT_D

C7025 0.033uFC7025 0.033uF

GND

C7028

C7028

C7027

C7027

0.1uF

0.1uF

1uF

R70090RR7009
0R

GND

1uF

GND

C7032

C7032

0.1uF

0.1uF

2200pF

2200pF

C7036

C7036

2

PVDD_A1

1

THER_PAD

OUT_A

PVDD_A

PGND_AB1

PGND_CD1

36

PGND_AB

OUT_B

PVDD_B

PVDD_B1

BS_B
BS_C

PVDD_C

PVDD_C1

OUT_C

PGND_CD

C7037

C7037

1000pF

1000pF

C7010

C7010

1000pF

1000pF

49

48
47
46
45
44
43
42
41
40
39
38
37

2

C7016

C7016

0.1uF

0.1uF

GND

GND

PVDD

C7026 0.033uFC7026 0.033uF
C7023 0.033uFC7023 0.033uF

PVDD

GND

C7012

C7012

0.1uF

0.1uF

GND

PVDD

GND

C7013 0.1uFC7013 0.1uF
C7020 1000pFC7020 1000pF

C7011 0.1uFC7011 0.1uF
C7014 1000pFC7014 1000pF

PVDD

PVDD

PVDD

GND

GND

GND

GND

R7041

R7041
18R

18R

C7003

C7003

330pF_50V/X7R

330pF_50V/X7R

GND

R7028

R7028
18R

18R

C7008

C7008

330pF_50V/X7R

330pF_50V/X7R

GND

L7004 15uHL7004 15uH

R7032

R7032

100nF

100nF

18R

18R
C7005

C7005

330pF_50V/X7R

330pF_50V/X7R

100nF

100nF

L7003 15uHL7003 15uH

R7040

R7040
18R

18R
C7007

C7007

330pF_50V/X7R

330pF_50V/X7R

L7002 15uHL7002 15uH

100nF

100nF

GND

100nF

100nF

L7001 15uHL7001 15uH

C7030

C7030

GND

C7031

C7031

C7022

C7022

C7038

C7038

C7046NCC7046

C7045NCC7045

C7047NCC7047

C7048NCC7048

NC

NC

C7024

C7024

470nF/nc

470nF/nc

C7021

C7021

470nF/nc

470nF/nc

1

6

4

556

4

3

GND

3

2

2

1

1

PH-4A-90

PH-4A-90

J7001

J7001

NC

NC

+3.3V_Normal

+18V_Normal

+5V_Normal

R7002 0R/NCR7002 0R/NC
R7012 0RR7012 0R

R7005

Q7002

Q7002

1

12

R7024

R7024

4.7K

4.7K

23

EC7001

EC7001

100u/35V

100u/35V

R70071KR7007
1K

R7005
10K

10K

213

R73341KR7334
1K

Q7001

Q7001
MMB3906

MMB3906

AMP-MUTE

R7025

R7025
100K

100K

R7037 47KR7037 47K

R7020 47KR7020 47K

B B

MMBT3904

MMBT3904

R7004

R7004
100K

100K

A A

5

4

+5V_Normal

1

R7006

R7006

4.7K

4.7K

Q7003

Q7003
MMBT3904

MMBT3904

2 3

R7003

R7003
100K

100K

MUTE

C7051 47uFC7051 47uF

EARPHONE-OUTR3

EARPHONE-OUTL3

3

C7004 47uFC7004 47uF

C7006 47uFC7006 47uF

C7052 47uFC7052 47uF

R7027

R7027

10K

10K

R7008

R7008

10K

10K

1 2

D7002NCD7002

NC

EAR-PLUG

D7001NCD7001

1 2

NC

C7040

C7040
10UF/6.3V

10UF/6.3V

2

R7022

R7022

R70231KR7023

470K

470K

1K

CN7001

CN7001

4
7
3
6
5

PJ-328A-1

PJ-328A-1

GND

AGND

Title

Title

Title

CV828H-B-10

CV828H-B-10

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

08.AMP

08.AMP

08.AMP

Date: Sheet

Date: Sheet

Date: Sheet

CV828H-B-10

1

812Friday, August 28, 2015

812Friday, August 28, 2015

812Friday, August 28, 2015

of

of

of

1.0

1.0

1.0

5

MX661

D D

CN8001

CN8001

IFP-030

IFP-030

1

C C

443

GND

GND

2

1

RF

3

221

SH8001

SH8001

GND2

GND1

GND

GND

5

RF

RF

C8009

C8009

4.7nF/1KV/NC

4.7nF/1KV/NC

C8020 4.7nF/1KVC8020 4.7nF/1KV

C8023 4.7nF/1KVC8023 4.7nF/1KV

C8025 0RC8025 0R

C8017 4.7nF/1KVC8017 4.7nF/1KV
C8024 4.7nF/1KVC8024 4.7nF/1KV
C8019 4.7nF/1KVC8019 4.7nF/1KV
C8022 4.7nF/1KVC8022 4.7nF/1KV

C8012 4.7nF/1KV/NCC8012 4.7nF/1KV/NC

3

GND3

4

GND4

SHIELD_JL

SHIELD_JL

C8007 390pFC8007 390pF

RF in

C8033 1nFC8033 1nF

L8007

L8007

390nH

390nH

3

Q8001

Q8001
BAV99

BAV99

<FUNCTION>

<FUNCTION>

1

2

C8021

C8021

L8006

L8006

6.8nH

6.8nH

2.7p/NC

2.7p/NC

4

3.3V_Tun

C8015

C8015

L8004

L8004

100nF

C8011 6.8pFC8011 6.8pF

L8003

L8003
27nH

27nH

VDD1V8

C8008 1nFC8008 1nF

C8032 1nFC8032 1nF

C8001

C8001
100nF

100nF

100nF

27nH

27nH

L8001 1000R/300mAL8001 1000R/300mA

IF-AGC-T

VON

1
2
3
4
5
6

U8001

U8001
MxL601

MxL601

VDD3.3V_1
LNA_INP
LNA_INN
VDD1.8V_1
AGC2/GPO
AGC

3

VDD1V8

3.3V_Tun

R8002

R8002

560k

560k

C8014

C8014
1uF

1uF

24

25

23

AS

GND2

MxL601_QFN24P

MxL601_QFN24P

IF_OUTP_27IF_OUTN_28IF_OUTP_19IF_OUTN_110VDD3.3V_211VDD1.8V_2

C8028 4.7nC8028 4.7n
C8026 4.7nC8026 4.7n

IF+VOP
IF-

RESET

22

VDD1.8V

21

C8034

C8034
100nF

100nF

C8005

C8005
10nF

10nF

GND1

R8004 0RR8004 0R

19

20

XTAL_P

12

3.3V_Tun

12

X8001

X8001

3

16MHz

16MHz

XTAL_N

18

CLK_OUT

17

SDA

16

SCL

15

VDD_IO

14

GND_DIG

13

VDD_1P2

VDD1V8

1,8V网络的电容，要按照原理图位置，放在对应的
管脚旁边，不能随便放置。

C8013

C8013
1uF

1uF

C8031

C8031

1.8nF

1.8nF

C8004

C8004
100nF

100nF

3.3V_Tun

C8030

C8030

2

R8005 68RR8005 68R
R8001 68RR8001 68R

C8029

C8029

33p

33p

33p

33p

T_SDA
T_SCL

T_SDA 3
T_SCL 3

1

TUNER POWER

+3.3V SI-TUNER POWER

DIF IN&OUT

R8003

VON

B B

VOP

A A

C8006 100p/NCC8006 100p/NC
C8003 100p/NCC8003 100p/NC

5

R8003

R8006

R8006

100R

100R

100R

100R

L8002

L8002

L8005

L8005

120nH

120nH

120nH

120nH

C8027

C8027
20pF

20pF

DIFM 7

DIFP 7

4

AGC RC Filter

IF-AGC

R8007 100R

R8007 100R

R0402

R0402

Close Tuner

TP81

+5V_Normal

U8002

U8002

3

IF-AGC-T

C8002

C8002

0.1uF

0.1uF

C0402

C0402

3

100n

100n

C8016

C8016

2

2

VIN

VOUT

4

Vout1

ADJ

BM1117-3.3

BM1117-3.3

1

C8010

C8010

10u/6.3V

10u/6.3V

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

Date: Sheet

3.3V_Tun

Custom

Custom

Custom

TP81
TEST POINT

TEST POINT

C8018

C8018

100n

100n

09.TUNER

09.TUNER

09.TUNER

1

Title

Title

Title

CV828H-B-10

CV828H-B-10

CV828H-B-10

1.0

1.0

1.0

of

of

of

09 12Friday, August 28, 2015

09 12Friday, August 28, 2015

1

09 12Friday, August 28, 2015

5

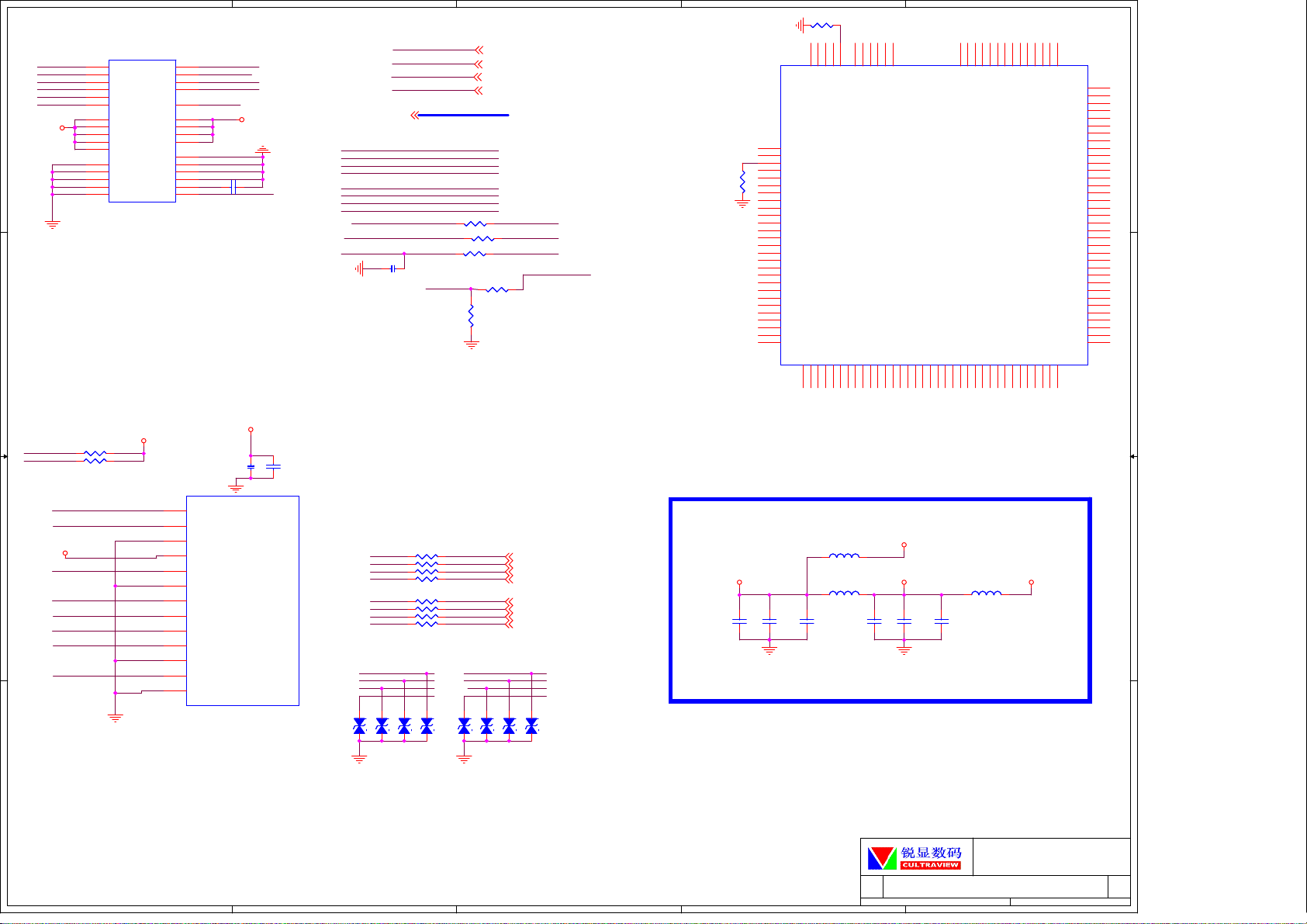

eMMC

EMMC_CLK
EMMC_CMD
EMMC_D0
EMMC_D1
EMMC_D2

D D

EMMC_VIO

C C

AA3
AA5

AA4
AA6

U9001A

U9001A

W6

CLK

W5

CMD

H3

D0

H4

D1

H5

D2

J2

D3

K6

VDD_IF1

W4

VDD_IF2

Y4

VDD_IF3
VDD_IF4
VDD_IF5

K4

VSS1

Y2

VSS2

Y5

VSS3
VSS4
VSS5

DATASTROBE

iNAND

iNAND

RESET

VDD1
VDD2
VDD3
VDD4

VSS9
VSS8
VSS7

iNAND

iNAND

VSS6

CREG/VDDi

J3

EMMC_D4EMMC_D4

D4

J4

EMMC_D5EMMC_D5

D5

J5

EMMC_D6EMMC_D6

D6

J6

EMMC_D7EMMC_D7

D7

U5

EMMC_RSTEMMC_D3

M6
N5
T10
U9

M7
P5
R10
U8
K2
R5

C9002

C9002

VCC3.3V_EMMC_SD

1uF

1uF

EMMC_DS

4

NET

NAND-DQS
NAND-RBZ
NAND-REZ
NAND-CEZ

NAND-AD[7:0]

EMMC_D6 NAND-AD0
EMMC_D7 NAND-AD1
EMMC_D2 NAND-AD2
EMMC_D1 NAND-AD3

EMMC_D0 NAND-AD4
EMMC_D3 NAND-AD5
EMMC_D4 NAND-AD6
EMMC_D5 NAND-AD7

EMMC_CMD

EMMC_RST NAND-RBZ

C9009NC/33pFC9009NC/33pF

EMMC_DS

NAND-REZ

R9015 0RR9015 0R

R9013 0RR9013 0R

R9005 22RR9005 22R

R9017 0RR9017 0R

12

R9006

R9006
10K

10K

NAND-DQS

NAND-RBZ

NAND-CEZ

12

12

12

NAND-CEZ

NAND-REZEMMC_CLK

NAND-DQS

12

3

12

0R

R90010RR9001

H10
H11
H12
H13
H14

H1
H2
H6
H7
H8
H9

J10
J11
J12
J13
J14

K10

J1
J7
J8
J9

K1
K3
K5
K7
K8
K9

2

R9016 0RR9016 0R

U9001B

U9001B

NC9
NC10
NC11
NC12
NC13
NC14
NC15
NC16
NC17
NC18
NC19
NC20
NC21
NC22
NC23
NC24
NC25
NC26
NC27
NC28
NC29
NC30
NC31
NC32
NC33
NC34
NC35

iNAND

iNAND

K11

L4

NC36

K12

U10

NC139

NC37

NC38

K13

12

NC39

NC40L1NC41L2NC42L3NC43

K14

1

Y11

Y12

Y13

Y14

AA1

AA2

AA7

AA8

AA9

AA10

AA11

AA12

AA13

NC51

NC52N1NC53N2NC54N3NC55

M14

AA14

Y10

NC106

NC107

NC108

NC109

NC110

NC111

NC112

NC113

NC114

NC115

NC116

NC117

NC118

NC119

NC56

NC57

NC58P1NC59P2NC60P3NC61

NC62

NC63

NC64R1NC65R2NC66R3NC67

P12

P13

N12

N13

P14

N14

NC105

Y9

NC104

Y8

NC103

Y7

NC102

Y6

NC101

Y3

NC100

Y1

NC99

W14

NC98

W13

NC97

W12

NC96

W11

NC95

W10

NC94

W9

NC93

W8

NC92

W7

NC91

W3

NC90

W2

NC89

W1

NC88

V14

NC87

V13

NC86

V12

NC85

V3

NC84

V2

NC83

V1

NC82

U14

NC81

U13

NC80

U12

NC79

U3

NC78

U2

NC77

U1

NC76

T14

NC75

T13

NC74

T12

NC73

T3

NC72

T2

NC71

NC68

NC69

NC70

T1

R12

R13

R14

M10

N10

P10

NC128M5NC129M8NC130M9NC131

NC132

NC133

NC135T5NC136U6NC137U7NC138

NC44

NC45

NC46M1NC47M2NC48M3NC49

NC50

L12

L13

L14

M12

M13

SD/MMC Card Reader

CN9001

CN9001

DAT3
CMD
VSS1
VDD
CLK
VSS2
DAT0
DAT1
DAT2
CD_SW
COM
WP_SW
CASE_GND1

2IN1CARDCON

2IN1CARDCON

+3.3V_Normal

C9001

C9001

0.1uF

0.1uF

C9004

C9004
10uF/6.3V

10uF/6.3V

SD-D3
SD-D2
SD-D1
SD-D0

SD-CDZ

SD-WP# SD_WP

SD-D3
SD-D2
SD-D1
SD-D0

12

12

D6017

D6017

D6016

D6016

D6015

D6015

ESD

ESD

ESD

ESD

ESD

ESD

R9014 22RR9014 22R
R9008 22RR9008 22R
R9007 22RR9007 22R
R9012 22RR9012 22R

R9011 22RR9011 22R
R9004 22RR9004 22R
R9010 22RR9010 22R
R9002 22RR9002 22R

12

D6018

D6018

ESD

ESD

+1.8V_Normal

VCC3.3V_EMMC_SDEMMC_VIO

C9006

C9006

0.1uF

0.1uF

C9005

C9005

0.1uF

0.1uF

C9010

C9010

2.2uF

2.2uF

FB9001 0RFB9001 0R

+3.3V_Normal

C9008

C9008

0.1uF

0.1uF

FB90030RFB90030R

C9007

C9007

0.1uF

0.1uF

FB9002

FB9002
NC/0R

NC/0R

PCM_A7
PCM_A6
PCM_A5
PCM_A4

SD_CDZ
PCM2_RESETSD-CLK
PCM2_WAIT_NSD-CMD

12

12

D6019

D6019

ESD

ESD

SD-CDZ
SD-CLK
SD-CMD
SD-WP#

12

D6020

D6020

ESD

ESD

D6021

D6021

ESD

ESD

PCM_A7
PCM_A6
PCM_A5
PCM_A4

SD_CDZ
PCM2_RESET
PCM2_WAIT_N
SD_WP

12

12

D6022

D6022

ESD

ESD

C9003

C9003

2.2uF

2.2uF

+3.3V_Normal

SD-CDZ

R9009 4.7KR9009 4.7K

SD-WP#

R9003 4.7KR9003 4.7K

SD-D3

SD-CMD

+3.3V_Normal

B B

SD-CLK

SD-D0
SD-D1

SD-D2

SD-CDZ

SD-WP#

1
2
3
4
5
6
7
8

9
10
11
12
13

A A

Title

Title

Title

CV828H-B-10

CV828H-B-10

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

10.EMMC&EXT SD

10.EMMC&EXT SD

10.EMMC&EXT SD

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

CV828H-B-10

10 12Friday, August 28, 2015

10 12Friday, August 28, 2015

10 12Friday, August 28, 2015

of

of

1

of

1.0

1.0

1.0

1

H1102

DN5007

DN5007

S45S8
S3

S7

GND

GND1

S2

S6

S1

S5

SLP2710P8

SLP2710P8

H1102

C5007 1nF/2KV/1206C5007 1nF/2KV/1206

MDI_TP

4

MDI_TN

3
2

MDI_RP

1

MDI_RN

RJ45 Connector

MDI_TP

MDI_TN

MDI_RP

MDI_RN

A A

MDI_TP

MDI_TN

MDI_RP

MDI_RN

C5001

C5001
100nF

100nF

MDI_TP
MDI_TN

MDI_RP

MDI_RN

C5006

C5006
100nF

100nF

U5001

U5001

1

TD+

2

TCT

3

TD-

4

NC1

5

NC2

6

RD+

7

RCT

8

RD-

PM44-11BP

PM44-11BP

6
7
8
9

10

SU0524P

SU0524P

Connector

16

TX+

14

TX-

TCM

NC4
NC3

RX+

RX-

TCM-

15
13

12
11

9
10

R5072 75R/1%R5072 75R/1%

R5006 75R/1%R5006 75R/1%

R5001 75R/1%R5001 75R/1%
R5003 75R/1%R5003 75R/1%

C5011

C5011
1nF/2KV/1206

1nF/2KV/1206

CN5004

CN5004

1

TX+

2

TX-

4

NC1

5

NC2

7

NC3

8

NC4

3

RX+

Chassis1

6

RX­NC5
NC6

RJ45

RJ45

Chassis2
Chassis4
Chassis3

14
13

12
11
10
9

Title

Title

Title

CV828H-B-10

CV828H-B-10

CV828H-B-10

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

11.PHY

11.PHY

11.PHY

of

of

Date: Sheet

Date: Sheet

1

Date: Sheet

of

11 12Friday, August 28, 2015

11 12Friday, August 28, 2015

11 12Friday, August 28, 2015

1.0

1.0

1.0

5

4

3

2

1

DATE

ITEM

D D

C C

0312

0317

0317

0317

6

0317 Jeffy

7

0317

8

PAGE

02

02

01

07

02

08

07

07

Auther

Jeffy1

Jeffy

Jeffy

Jeffy

Jeffy

DETAIL

change uart connector pin define

change SPI-DI net03122 Jeffy

AVDD_DDR 1.5V D-D module NC3

J205 single wifi module connector NCJeffy03174

EAR_PLUG FROM N5 CHANGE TO AG85

AMP_RST ADD R138 4.7K/NC TO GND

COMB MODULE I/O ADD 4.7K TO 3.3VU

add FPC CON FOR VB1

B B

A A

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

A

A

A

12.change list

12.change list

12.change list

Date: Sheet

Date: Sheet

5

4

3

Date: Sheet

2

Title

Title

Title

CV828H-B-10

CV828H-B-10

CV828H-B-10

1.0

1.0

1.0

12 12Friday, August 28, 2015

12 12Friday, August 28, 2015

12 12Friday, August 28, 2015

of

of

of

1

CONTENTS

5

REVISION HISTORY

4

絬隔瓜

: G7402

3

2

1

SCHEMATIC NAME

01.COVER

5 5

02.AC : input

03.PFC : LD7591T

04.Standby : LD5532

05..LED Driver :
SSC9522S+TPV101AD

SHEET

1

2

3

4

5

Date

2014/10/25

2014/11/05

2014/11/14

2014/12/12

4 4

2014/12/25

2015/01/06

13

絏舱ン

3 3

╰

PLTVEW 432XAU2 (XM)

PLTVEW 432XXU2 (FQ)

TPV Model

BesTV DTU5500

Author

Richard

Richard

Richard

Richard

Richard

Richard

Ver

00

01

02

03

04

05

Revise reason

Original

タ筿疭┦

issue!!

EMI & function debug!!

EMI

癸郸旧

EMI

癸郸旧

э砏惠

& LED driver Layout

& LED driver Layout

―!! 715G7402-P0F

跑

跑

!!

!!

DCN

絪腹

PCB

狾腹

715G7402-P0A

715G7402-P0B

715G7402-P0C

715G7402-P0D SVT

715G7402-P0E

Stage

DVT I

DVT II

EIT

SVT2

PP

2 2

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

1 1

T P V ( Top Victory Electronics Co . , Ltd. )

715G7402-P0F-000-0020

715G7402-P0F-000-0020

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

715G7402-P0F-000-0020

01.COVER

01.COVER

01.COVER

Wednesday, March 02, 2016

Wednesday, March 02, 2016

Wednesday, March 02, 2016

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

2K15 D7 <150W

2K15 D7 <150W

2K15 D7 <150W

See Table

715G7402-P0F-000-0020

715G7402-P0F-000-0020

715G7402-P0F-000-0020

of

1 5

of

1 5

of

1 5

195.5*271*13.5mm

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

02

02

02

<称爹>

<称爹>

<称爹>

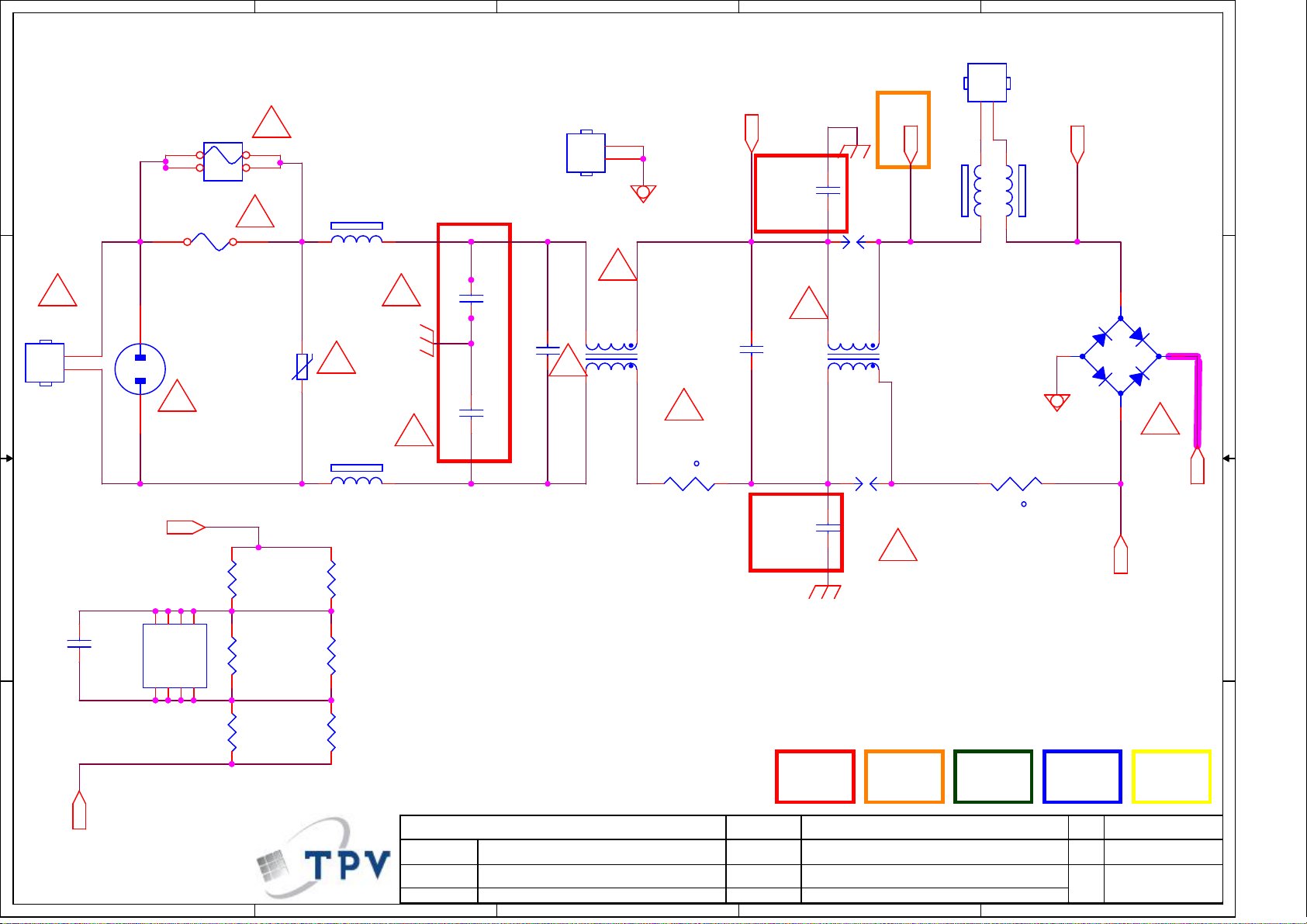

5

D D

F9901

1 2
3 4

NC

F9902

5A 250V

T5.0AH/250V

!

!

1 2

!

CN9902

C C

B B

1
2

NC/CONN

12

CN9901
AC SOCKET

!

VXB

R9903
510K 1/4W

1D12D13NC4

680V
RV9901

!

1 2

FB9901

BEAD

FB9902

BEAD

R9904
510K 1/4W

4

For BD9901

HS9901
HEAT SINK

EMI solution !!

!

22PF 250V

C9901

C9905

470NF 275V

!

!

22PF 250V

C9902

2

3

3

1
2

!

L9901

14mH

1

4

!

NR9901

1 2

2.5R

EMI solution !!

VXC

C9903

100PF 250V

EMI solution !!

C9906

470NF 275V

t

C9904

100PF 250V

P0D

!

3

2

2

惠跑钡翴

VXB

FB9903
BEAD

SG9901

DSPL-501N-A21F

L9902

14mH

4

1

DSPL-501N-A21F
SG9902

!

CN9903
CONN

!!

L1N

2

12

FB9904
BEAD

1 2

EMI solution !!

BD9901
TS10K80-02

NR9902

1 2

t

2.5R

1

BR

舠竲祏竲

3

!

1

+

Vsin

4

-

2

VXA

C9907

47PF/NC

A A

VXA

NC

U9901

8

CAP004DG-TL/NC

5

R9905

510K 1/4W

NC5D26D27NC

R9907
510K 1/4W

R9906

510K 1/4W

R9908
510K 1/4W

4

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

715G7402-P0F-000-0020

715G7402-P0F-000-0020

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

715G7402-P0F-000-0020

02.AC input

02.AC input

02.AC input

3

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

э

 传竚 穝糤

2K15 D7 <150W

of

2 5Thursday, March 03, 2016

of

2 5Thursday, March 03, 2016

of

2 5Thursday, March 03, 2016

2

эLay IE

195.5x271x13.5mm

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

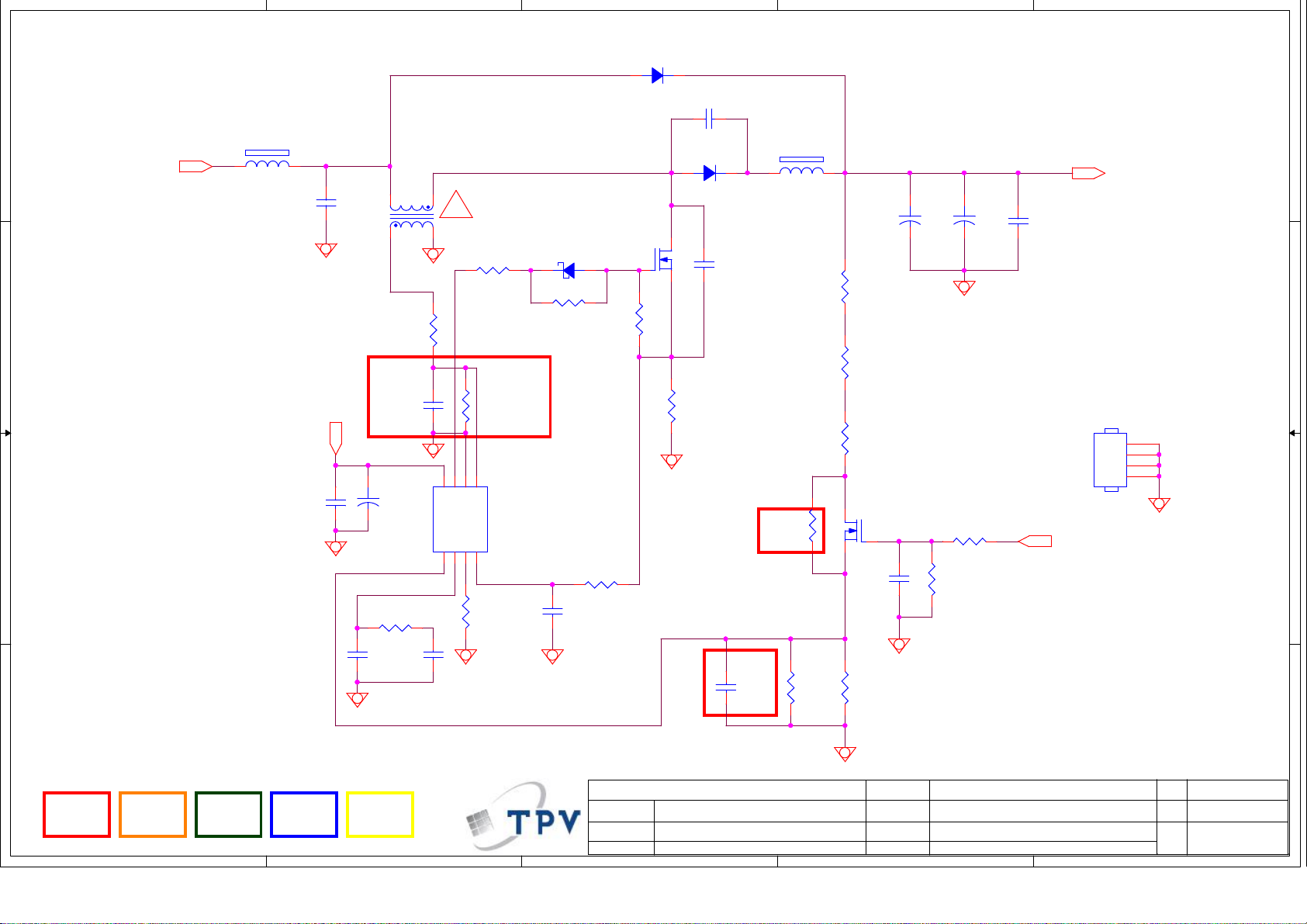

1

02

5

D D

Vsin

C C

FB9801
BEAD

1 2

C9801

1UF 450V

4

5

1

R9809
20K 1/4W

43

!

240uH

L9801

R9811
10 OHM 1/8W

D9803
SS1060FL

12

R9812
47OHM +- 5% 1/8W

Q9801

TK18A60V

10K 1/8W

3

R9813

D9801
S8KC

D9802
FMNS- 1106S

C9805

47PF

C9806

100PF

FB9802
BEAD

1 2

R9801

1M 1% 1/4W

R9802

1M 1% 1/4W

2

HV

+

+

68uF 450V

C9802

68uF 450V

C9803

C9804

2.2NF

1

R9810

VCC_O N

C9810

100N 50V

B B

A A

э

 传竚 穝糤

5

эLay IE

C9808

33P 50V

C9809

10UF 50V

+

R9807

10K 1/8W

C9813

100N 50V

4

2K7 1/8W 1%

2014.11.17 FAE某э:
R9810: 2.4K change to 2.7K

5

6

8

C9808: 47P change to 33P

U9801
LD7591T

ZCD

OUT7VCC

GND

INV1COMP2RAMP3CS

4

R9808
24K 1/8W 1%

C9812

470NF 50V

R9815

470 OHM 1/4W

C9811

1nF 50V

T P V ( T op Victory Electronics C o . , Ltd. )

T P V ( T op Victory Electronics C o . , Ltd. )

T P V ( T op Victory Electronics C o . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Component

Key Component

Key Component

Date

Date

Date

R9814

0.1R

2015.01.05 э NC! ! 

R9804

2014.11.17 FAE某э:
C9815: 100P change to 330P

C9815

330P 50V

715G7402-P0F-000-0020

715G7402-P0F-000-0020

715G7402-P0F-000-0020

03.PFC

03.PFC

03.PFC

3

NC

R9806

680K 1%

R9803
1M 1% 1/4W

For Pow er Saving

Q9802

AO3160

C9814

100N 50V

R9895
20K 1/8W 1%

OEM MOD EL

OEM MOD EL

OEM MOD EL

TPV MOD EL

TPV MOD EL

TPV MOD EL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

2

R9816
10K OHM

R9817

100K 1/8W 1%

of

3 5Thursd ay, March 03, 2016

of

3 5Thursd ay, March 03, 2016

of

3 5Thursd ay, March 03, 2016

For Q9801/D9802

HS9801

HEAT S INK

1
2
3
4

VCC_O N

Size

Size

Size

Rev

Rev

Rev

称爹

称爹

称爹

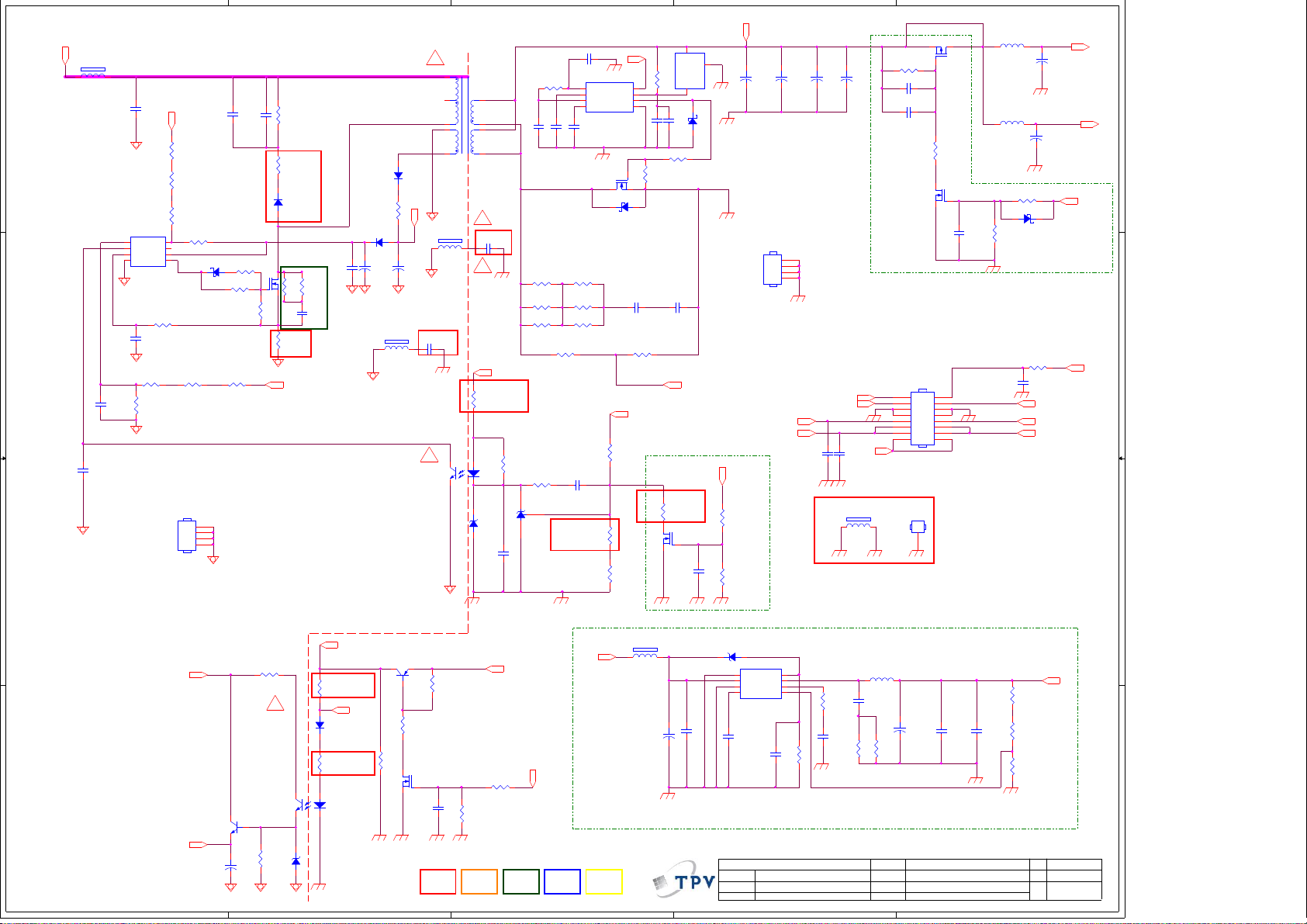

1

5

4

3

2

1

U9303

3

1

Q9309

2N7002K

IN

GND

OUT

1 2

2

D9312
SS1060FL

筿溃

C9338

12VS

3/10/2014

竒パ篮

.

DV5

R9338
100K 1%

R9339

1N 50V

100K 1/8W 1%

+

FAE

絋粄惠璶э

For Q9303

C9320

470UF 25V

CN9302

HEAT SINK

+12V_A

+12V

L9302

C9328

100N 50V/NC

3UH

L9303
3UH

C9327

470UF 25V

R9325
100R 1/8 W 5%/NC

D9313

1 2

SS1060FL /NC
R9326

510K 1% 1/8 W/NC

R9337
0R05

+

C9343
1N 50V

+

PS_ON

+12V_A

+12V

C9326
470UF 25V

+12V

+12V_A

PS_ON

DIM

Q9304 P1604ED/NC

R9322

+

+

C9321

C9322

470UF 25V

4.7uF

1
2
3
4

BL_ON/OFF

C9342

1uF

+

470UF 25V

3D_ON

C9341
1uF 50V

FB9306

1 2

127R

100KOHM +-5% 1/8 W/NC

C9323

470UF 25V

For Q9303

+3.5V/+5V

C9325

1uF/NC

C9324

1uF/NC

R9327

Q9305

2N7002K/NC

CN9303

CONN

2
4
6

8
10
12
14
16

GND1
GND

1

100K/NC

1
3
5
7
9
11
13
15

EMI solution !!

R9320

33K +-1% 1/ 4W

C9333

C9334 100P 50 V

100N 50V

1/13/2014

竒パ篮

R9330

R9331

R9332

R9329 8.2K 1/4W

R9345
1K 1/8W 1%

U9304

TL431G -AE2-R

Standby
R9342: 2.2K
R9343: 120R

3/6/2014

穝糤

IC9106,16V outpot 箇痙!!

C9332

100N 50V

U9302
SP6018ES8RGB

1

Timing

2

Pred

3

VR
Adj4GND

C9335

100P 50V

FAE

絋粄惠璶э

Q9303

AOTF298 L

R9333

27 OHM 1/4W

R9334

27 OHM 1/4W

R9335

27 OHM 1/4W

C9339

470NF 50V

R9342

1.5KOHM +-1% 1/8 W

ぃ筿溃

,

R9343

1.5KOHM +-1% 1/8 W

SYNC

8

SYNC

7

Vdd

6

MOSG-C

5

NC

R9324

5.1K 1/4W

12

D9311

MB510

C9330

1N 50V

R9328 5.1K 1/4W

12VS

R9341
9K1 1/8W 1 %

2014.11.17 Standby(+10V):
R9340: 6.2K change to 10K
R9342: 2.2K change to 1.5K

AS78L12RT R-G1/NC

4R7 1/4W 5%

R9321

C9336

4.7UF/NC

C9337

4.7UF/NC

R9323 4.7R 1%

C9331

1N 50V

SYNC

Standby

R9340

10K OHM

D9302

R9307

FB9803

BEAD

C9304

+

+VCC1

47UF 50V

HOT COLD

!

T9301

6

POWER X'FMR

5

4
2

1

FB9302

1 2

BEAD

EMI solution !!

C9818
470PF 25 0V

12

!

12

43

U9102

EL817M(X)

7

11
8

10

!

EMI solution !!

C9315
1NF 250V

!

27 OHM 1/4W

27 OHM 1/4W

27 OHM 1/4W

12VS

R9346

2K4 +/-1% 1 /8W

2014.11.17 FAE某э:
R9346: 1.5K change to 2.4K

R9347

1K OHM +-5% 1/8W

HV

FB9301

1 2

BEAD

C9301

C9311

4.7nF 5 0V

1NF

C9310

1NF

D D

C C

1
2
3

U9301
LD5532

BNO
COMP
CS
GND4OUT

NC
NC

VCC

R9311
1K 1/4W

C9308
330P 50V

R9315

3.3M 1/4W

R9316
110K 1/8W +/-1%

BR

R9301
270K 1/4W

R9302
270K 1/4W

R9303
270K 1/4W

0 OHM +-5% 1/8W

8
7
6
5

R9314

3.3M 1/4W

C9303

NC/1NF

R9304

D9304
SS1060FL

10K OHM +-5% 1/8 W

R9309
10R 1/8W 5%

12

R9308

100R 1/8 W 5%

R9310

R9313

3.3M 1/4W

C9302

2.2NF

BR

From AC N

R9305

82K 2W

EMI solution !!

R9306

22R 5%

D9301

FR107G- A0

Q9301

TK13A65U

43 OHM 1/4W

43 OHM 1/4W

R9349

R9348

C9307

100PF

R9312

0R24 5%

FR107G- A0

3.3 OHM 1/4W

D9393
1N4148W

C9305

C9306

100N 50V

+

EMI solution !!

10UF 50V

For Q9301

HS9301

1
2
3
4

B B

HEAT SINK

ZD9302

BZT52-B15

1 2

C9340

1uF

Haier project 需加 入5V D C to DC

12VS

FB9305

1 2

127R/NC

C9350

470UF 25V/NC

+

C9351

1uF/NC

ZD9303

BZT52-B5V1_ R1_00001/NC

12

1

PGND

2

VIN

3

AGND
VCC4FB

C9352

100N 50V/NC

1N 50V/NC

U9305

COMP

AOZ3015AI/NC

C9353

8

EN

7

LX

6
5

30K +-5% 1/ 8W/NC

R9351

R9352

20K 1/8W 1 %/NC

C9354

2N2 50V/NC

L9304 47uH/NC

C9355

2N2 50V/NC

30R 1%/NC

30R 1%/NC

R9353

R9354

+

C9356

470UF 25V/NC

C9357

1uF/NC

C9358

1uF/NC

+3.5V/+5V

R9355

10.5K OHM 1%/NC

R9356
620 OHM +-1% 1/ 4W/NC

R9357
2K 1/8W 1%/NC

EMI solution !!

2K15 D7 <150W

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

T P V ( T op Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

715G740 2-P0F-000 -0020

絬 隔 瓜 絪 腹

715G740 2-P0F-000 -0020

絬 隔 瓜 絪 腹

IEэLay

Key Component

Key Component

Key Component

Date

Date

Date

715G740 2-P0F-000 -0020

04.Standb y:LD5532

04.Standb y:LD5532

04.Standb y:LD5532

Thursda y, March 03, 2 016

Thursda y, March 03, 2 016

Thursda y, March 03, 2 016

2

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

4 5

of

4 5

of

4 5

195.5x271x13.5mm

Size

Size

Size

02
Rev

Rev

Rev

<称爹>

<称爹>

<称爹>

称爹

称爹

称爹

1

DV5

43

ZD9301

BZT52-B16

1 2

2014.12.15 FAE某э:
R9365: 0R change to 1K

R9365

1Kohm +-1% 1/ 4W

LED_OV

D9314
1N4148W

R9366

1K 1/8W 1%

2014.12.15 FAE某э:
R9366: 2K change to 1K

12

4

R9317

+VCC1

3K

!

A A

Q9306

BTC4672M3

VCC_ON

C9313

10UF 50V

5

U9306

EL817M(X)

+

R9318

100K 1/8W 1%

Q9308

MMBT3906

R9363

10K OHM +-5% 1 /8W

100K

R9364

Q9307

2N7002K

R9362

10K 1/8W 1 %

R9360

100 OHM 1/4W

C9329

R9361

100N 50V

510K 1% 1/8 W

传竚

э

 穝糤

12VS

PS_ON

3

5

4

3

2

1

DIM

BL_ON/OFF

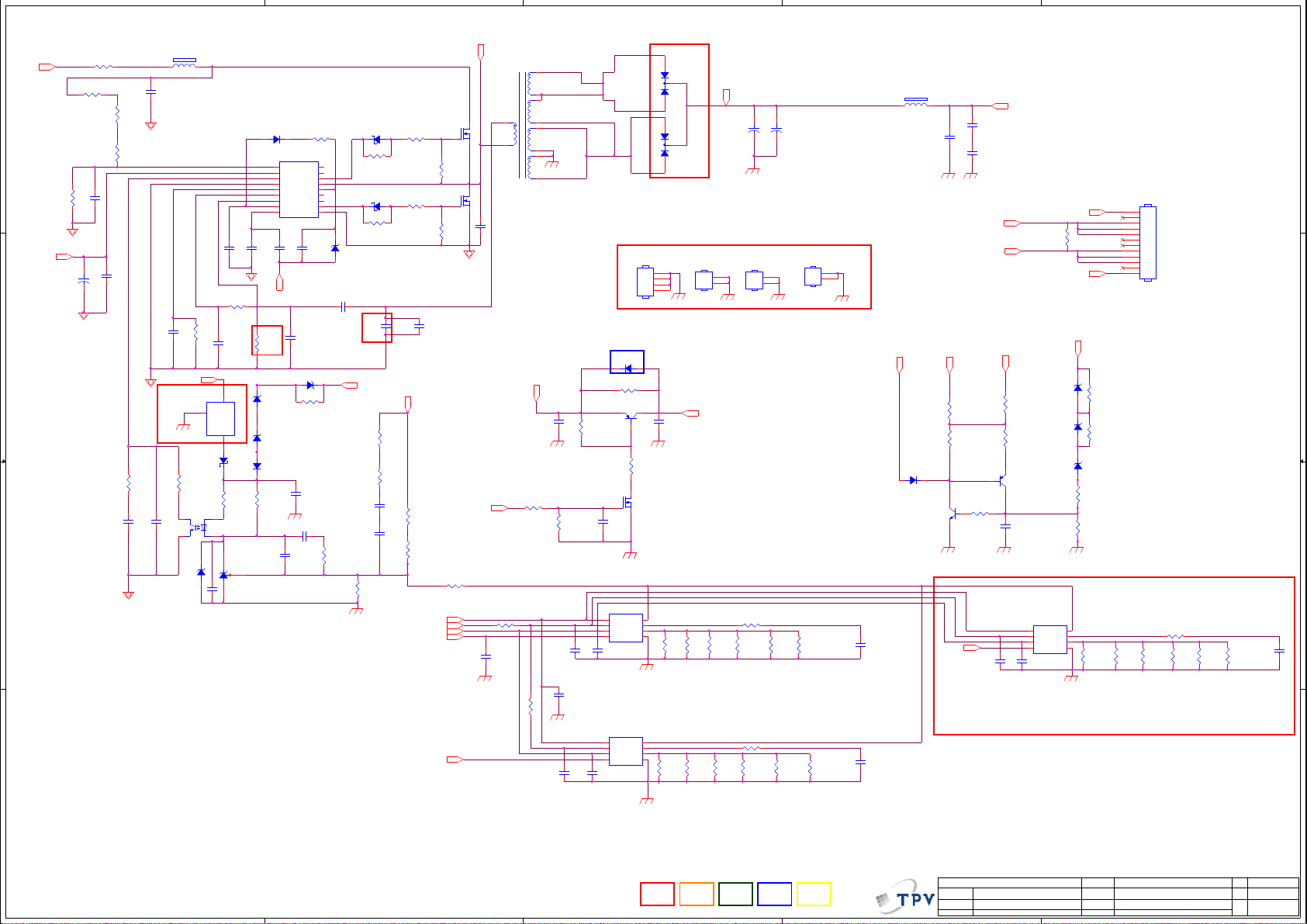

R8628

13K 1/8W 1%

C8634

NC/1NF 500V

VS

Q8601
TK10A50D

Q8602
TK10A50D

1

4

POWER X'FMR

C8615

100PF

12VS

R8652

1K OHM +-5% 1/8W

R8629

10K 1/4W

R8601

HV

D D

VCC_ON

C C

B B

A A

0.1R 1W

R8607
1M5 1/4W 1%

R8602
1M5 1/4W 1%

R8603
1M5 1/4W 1%

R8609

C8601

0.1uF 50V

18K 1/8W 1 %

+

C8606

22UF 50V

C8607

0.1uF 50V

R8617

47K 1/8W 1 %

C8613

4.7uF 10V

FB8602

1 2

BEAD

C8622
1NF

C8608

0.47UF 50V

12VS



RJ910铬絬!!

U8607
L78L09ACUTR/NC

R8616

470 OHM 1/4 W

U8605
EL817M(X)

10nF 50V

C8612

4

ZD8604

BZT52-B33

2

D8605
SS1060FL

1 2

NC

R8614

3

GND

1
12

1

23

1uF/NC
C8621

D8603
UF4007

U8601

1

Vsen

NC

2

Vcc

NC

3

FB

VGH

4

GND

VS

5

Css

VB

6

OC

NC

7

RC

NC

8

Reg

VGL

RV9COM

SSC9522S

C8604

5PF

47P 50V

C8614

VS

R8615

110R

ZD8602
BZT52-B13

ZD8603
BZT52-B7V5

D8609
1N4148W

R8618
20K 1/8W 1%

1uF

C8603

C8610
1nF 50V

ZD8605 BZT52-B13

1 2

C8618

2.2UF 25V

C8620

0.1uF 50V

C8616
100pF 50V

1uF

C8602

R8613
470OHM +-5% 1/8W

C8609

560PF 50V

For 55D7 LCM 400nits(typ) (24.5V/4.2A)

IN

1 2

OUT

1 2

R8619
1K OHM +-5% 1/8W

U8606
AS431AZTR-G1

R8605

10 OHM 1/8W

18
17
16
15
14
13
12
11
10

ZD8601

BZT52-B15

0R05 1/4W/NC

1 2

C8605

100PF

R8647

10K 1/8W 1%/NC

10K 1/8W 1%/NC

0.1uF 50V /NC

0.1uF 50V /NC

R8621
47K 1/8W 1%

R8604

D8604

10R 1/8W 5%

SS1060FL

12

R8608

R8606

10K 1/8W 1%

82 OHM 1/4W

D8606

R8611

SS1060FL

10R 1/8W 5%

12

R8610

R8612

82 OHM

10K 1/8W 1%

C8611

22nF

C8643
NC

For 55D7 LCM 400nits(typ) (24.5V/4.2A)

+VLED

+VLED

R8623

R8625

C8617

C8619

R8622

6.8KOHM +-1% 1/8W

R8624

43.2KOHM +-1% 1/8W

R8626
75 KOHM +-1% 1/8W

BL_ON/OFF

IC_VCC

-VLED-1

-VLED-2

T8601

0R05 1/4W

R8639

+36V 铬絬: J935/J936

9

6
5

10
7

12
11

8

+24V 铬絬: J934/J937

C8640

1uF

R8653
330K 1/8W 5%

C8625

100N 50V

C8627

NC/100P 50V

C8630

100N 50V

3

1

3

1

For 55D7 LCM 400nits(typ) (24.5V/4.2A)

For 55D7 LCM 400nits(typ) (24.5V/4.2A)

HS8601

HEAT SINK

1
2
3
4

D8608

1N4148W

R8656
0 OHM +-5% 1/8W/NC

Q8603

MMBT3906

2 3

R8654
510OHM +-5% 1/8W

1

R8655

3K3 1/8W 5%

Q8604
2N7002K

C8639

100N 50V

U8602

1

8

DIM

COMP

2

7

EN

GM

3

6

VCC

ISET

5

LED4GND

TPV101AD

C8626

100N 50V

One channel 1. 70A:1.2Rx2/1Rx4 (惠HEAT SINK)

One channel 2. 0A:0.82Rx3/1Rx3 (惠HEAT SINK)

One channel 1. 5A:1.2Rx6pcs(惠HEAT SINK)

One channel 1. 65A: 1.2Rx3pcs/ 1Rx3pcs(惠HEAT SINK)

One channel 1. 45A:1.2Rx5pcs+1 .5Rx1pcs(惠HEAT SINK)

8

COMP

7

GM

6

ISET

5

C8631

100N 50V

1
2
3

U8603

DIM
EN
VCC
LED4GND

TPV101AD

D8601

TSF20U100C

D8602

TSF20U100C

C8641

1uF

2

2

R8631

2R4 1/4W

IC_VCC

HS8602

HEAT SINK

R8632

2R4 1/4W

VLED

+

+

C8636

C8623

390UF 63V

390UF 63V

HS8603

HEAT SINK

1
2

R8630

0R05 1/4W

R8633

R8627

2R4 1/4W

2R7 1%

HS8604
HEAT SINK

1
2

1
2

R8661

R8662

2R7 1%

2R7 1%

One channel 0.9 5A:1.5Rx2/1Rx1 /1.2Rx1

R8634

0R05 1/4W

R8658

R8636

R8635

2R4 1/4W

2R4 1/4W

One channel 0.9 5A:1.5Rx2/1Rx1 /1.2Rx1

One channel 1. 70A:1.2Rx2/1Rx4 (惠HEAT SINK)

One channel 2. 0A:0.82Rx3/1Rx3 (惠HEAT SINK)

One channel 1. 5A:1.2Rx6pcs(惠HEAT SINK)

One channel 1. 65A: 1.2Rx3pcs/ 1Rx3pcs(惠HEAT SINK)

One channel 1. 45A:1.2Rx5pcs+1 .5Rx1pcs(惠HEAT SINK)

R8638

R8637

2R4 1/4W

2R7 1%

R8666

2R7 1%

2R7 1%

FB8601

1 2

BEAD

C8635

NC/1NF 500V

D8607

SS1060FL

Q8605

LMBT3904LT1G

DV5

-VLED-2

R8642
2K 1/8W 1%

LED_OV 12VS

C8624

4.7UF

C8628

4.7UF

C8632

100N 50V

C8633

100N 50V

R8640

NC

R8644

1Kohm +-1% 1/4W

C8645

100N 50V/NC

+VLED

-VLED-1

0 OHM +-5% 1/8W

-VLED-2

R8641

0 OHM +-5% 1/8W

R8643

1K 1/8W 1%

Q8606

LMBT3906LT1G

C8637
100N 50V

C8644

100N 50V/NC

R8657

1
2
3

ZD8606

BZT52-B22

ZD8607

BZT52-B27

R8645
5K1 1/8W 1%

200R 1/8W 1%

U8604

DIM

COMP
EN
VCC

ISET

LED4GND

TPV101AD/NC

R8649
0R05 1/4W/NC

R8648
0R05 1/4W/NC

CN8601

12
11
10

9
8
7
6
5
4
3
2
1

CONN

R8651

+VLED

1 2

1 2

1 2

+VLED

+VLED

ZD8608
BZT52-B20

For 55D7 LCM 400nits(typ) (24.5V/4.2A)

8
7

GM

6
5

R8659

1.5R 1%/NC

One channel 1.0 A:1.2Rx4pcs

One channel 1. 5A:1.2Rx6pcs(惠HEAT SINK)

R8665

0R05 1/4W/NC

R8663

R8660

1.2R 1%/NC

1.2R 1%/NC

R8667

R8664

1.2R 1%/NC

1.2R 1%/NC

One channel 1. 45A:1.2Rx5pcs+1 .5Rx1pcs(惠HEAT SINK)

C8646

4.7UF

R8668

1.2R 1%/NC

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

传竚

э

 穝糤

5

4

3

IEэLay

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

絬 隔 瓜 絪 腹

Key Compon ent

Key Compon ent

Key Compon ent

Date

Date

Date

2

715G7402-P0F-000-0020

715G7402-P0F-000-0020

715G7402-P0F-000-0020

4.LLC with Sanken LED Driver

4.LLC with Sanken LED Driver

4.LLC with Sanken LED Driver

OEM MODEL

OEM MODEL

OEM MODEL

TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

of

5 5Thursday, June 16, 2016

of

5 5Thursday, June 16, 2016

of

5 5Thursday, June 16, 2016

1

Size

Size

Size

A2

A2

A2

Rev

Rev

Rev

称爹

称爹

称爹

1

CONTENTS

SCHEMATIC NAME

01.COVER

02.KEY

A A

B B

C C

SHEET

1
2

REVISION HISTORY

Date Author FN

2014/5/13 William Ou

2014/5/28 William Ou PCB Demension change to 22mmX29.5mm to meet D2P5 panel.B

2

Ver

Reviser reason

3

4

5

Drawing released.A

D D

T P V ( Top Victory Electronics Co . , Ltd. )

Date

3

G7088-B-PHILIPS6000

01. COVER

線 路 圖 編
號

Key Component

1

2

OEM MODEL Size
TPV MODEL

PCB NAME

2K15 PHILIPS6000 KEY CONTROL BOARD Custom

715G7088-K0B

1 2Wednesday, May 28, 2014

Sheet of

4

1

Rev

XX

備註

5

PDF created with pdfFactory trial version www.pdffactory.com

1

A A

2

3

4

5

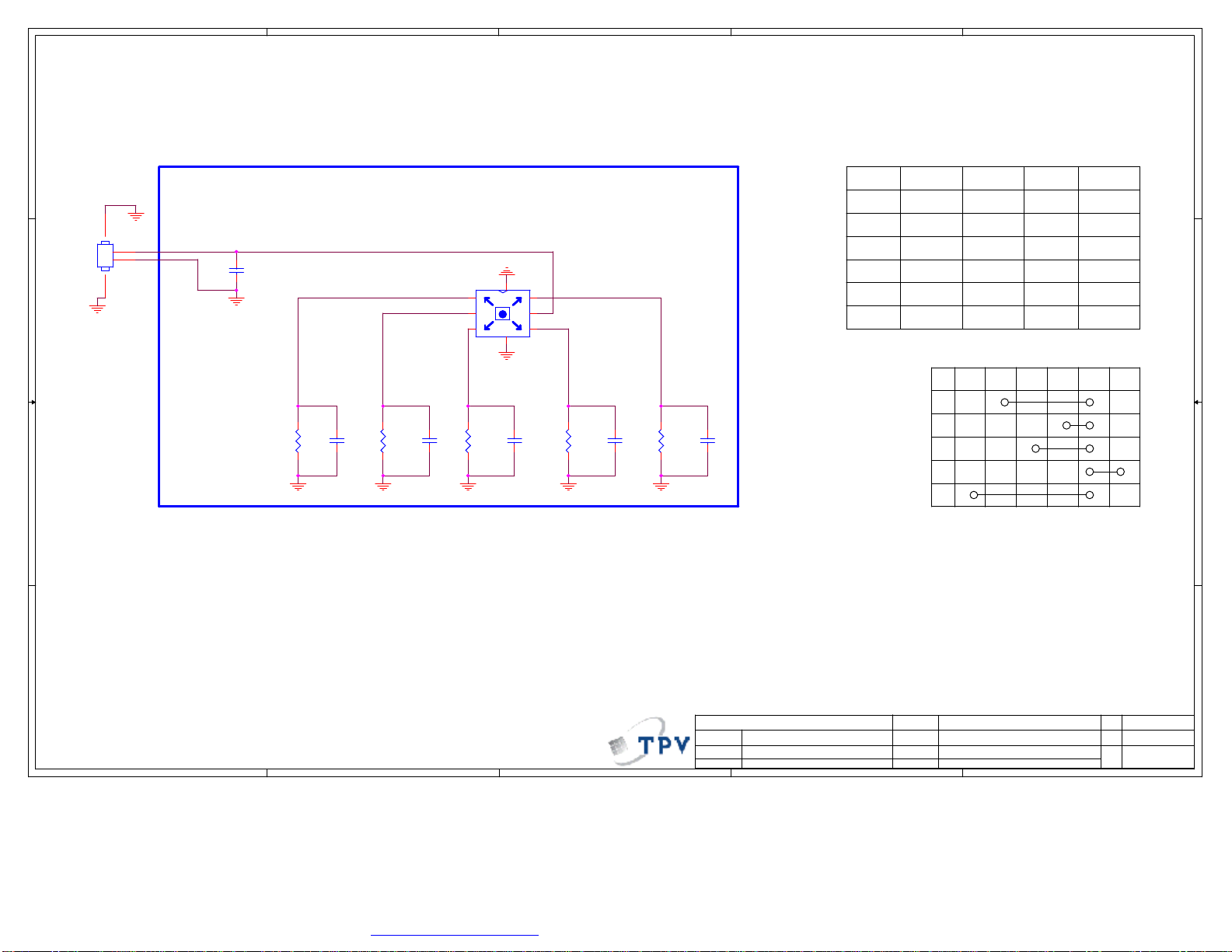

JOYSTICK

34

CN01

CONN

B B

KEY1

1
2

C06

0.1uF 50V

Right

----><----|

Center

----><----|

7

F5

F1

F3

SW01

F4

F2

8

TACT SW 6P

1 6
2
3 4

Down

----><----|

5

Left

----><----|

Up

----><----|

Direction switch
Center
Right
Left
Down

2-5 short
1-5 short
4-5 short
3-5 short

Up 6-5 short

Key functionResistance

Menu
CH+
CH­VOL­VOL+

0R
1K2
2K2
6K8
15K

No function 3.3V

Joystick circuit diagram

pin1 pin2 pin3 pin4 pin5 pin6

F1

Voltage

0V

0.5V

0.81V

1.65V

2.27V

F2

R01

1K2 1/10W 1%

C C

R02

C01

NC/100N 50V

0R05 1/10W

R03

C02

NC/100N 50V

C03

6K8 1/10W 1%

R04

NC/100N 50V

2K2 1/10W 1%

R05

C04

NC/100N 50V

C05

15K 1/10W 1%

NC/100N 50V

F3
F4
F5

D D

T P V ( Top Victory Electronics Co . , Ltd. )

Date

G7088-B-PHILIPS5000

02. KEY

4

線 路 圖 編
號

Key Component

1

2

3

OEM MODEL Size
TPV MODEL
PCB NAME

2K15 PHILIPS6000 KEY CONTROL BOARD B

715G7088-K0B
2 2Monday, September 01, 2014

Sheet of

1

Rev

XX

備註

5

PDF created with pdfFactory trial version www.pdffactory.com

1

2

3

4

5

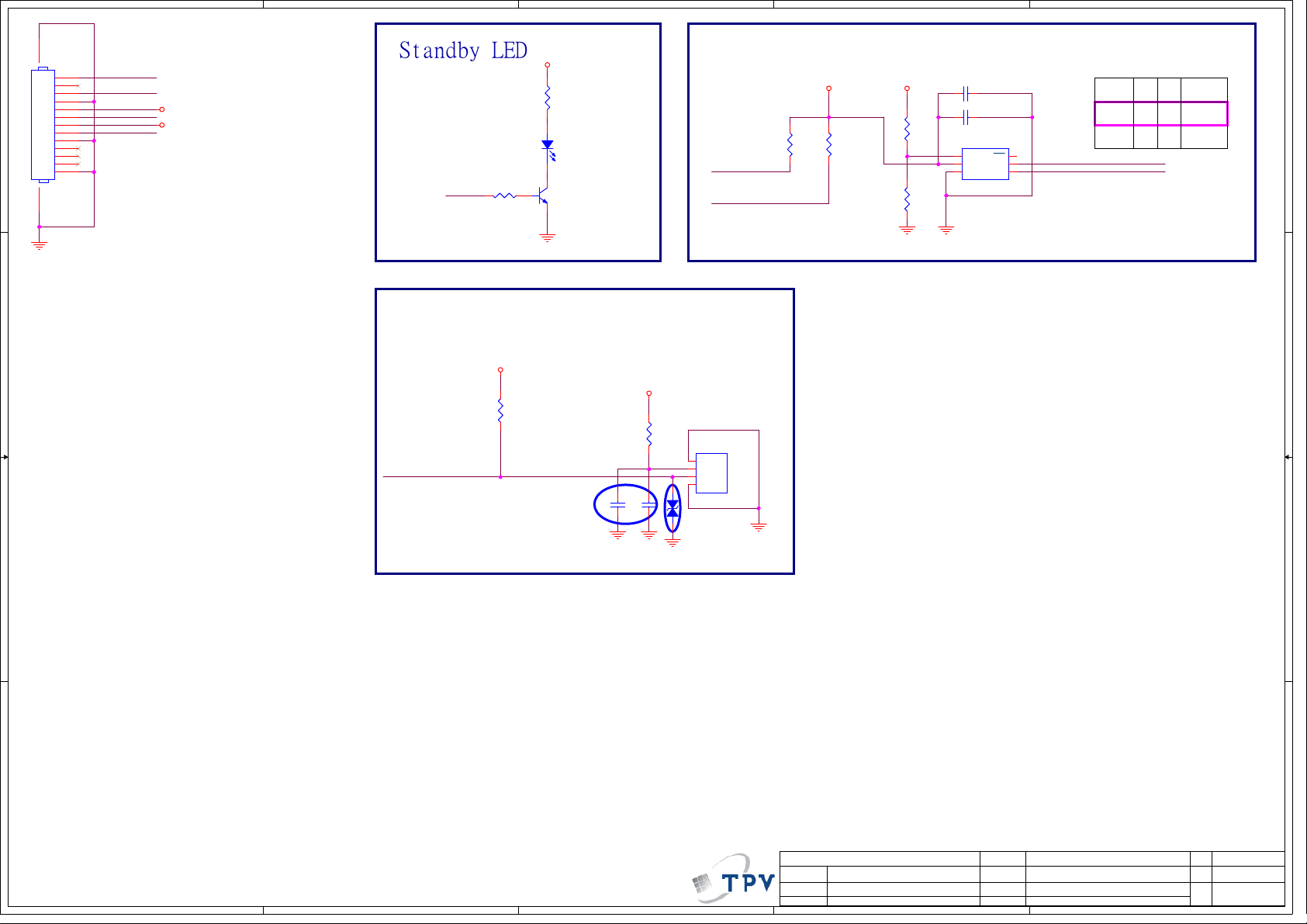

Standby LED

1415

CN201

1
2
3
4
5
6

A A

7
8
9
10
11
12
13

LED_R
RC-IR

LS_SCL
LS_SDA

3V3SB
DVD3V3

LED_R

1K 1/16W 5%

LED201

GPSS008RC4

R202

3V3SB

12

Red

Q201
BC847BW

R201
100R 1/16W 5%

Light Sensor

DVD3V3DVD3V3

R222

R221

LS_SCL LS_SCL

NC/10K 1/16W 5%

LS_SDA

NC/10K 1/16W 5%

R223

NC/0R05 1/16W

R224

NC/0R05 1/16W

C222 NC/1uF 10V

C221 NC/100N 16V

U221
NC/JSA-1130

1

ADDR

2

VDD
GND3SCL

SDA

6

INT

5
4

Digital Light Sensor

JSA-1130

JSA-1130

R224 R223 I2C addr

0R

NC 0x44

0RNC

LS_SDA

0x45

IR Receiver

B B

RC-IR

3V3SB

R203

NC/2K7 1/16W 5%

C202

1uF 10V

1uF 10V

Close to U201

C201

3V3SB

R204

100R 1/16W 5%

TSOP75436TR

1

GND

2

VCC

3

Vout

4

12

GND

ZD201

MLVG0402

Close to U201

U201

C C

D D

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹 A

絬 隔 瓜 絪 腹 A

絬 隔 瓜 絪 腹 A

Key Component

Key Component

Key Component

1

2

3

Date

Date

Date

02. LED&IR&Light Sensor

02. LED&IR&Light Sensor

02. LED&IR&Light Sensor

4

OEM MODEL

OEM MODEL

OEM MODEL
TPV MODEL

TPV MODEL

TPV MODEL

PCB NAME

PCB NAME

PCB NAME

Sheet

Sheet

Sheet

PHILIPS 2K16 A3

PHILIPS 2K16 A3

PHILIPS 2K16 A3

715GXXXX-R0A-000-0040

715GXXXX-R0A-000-0040

715GXXXX-R0A-000-0040

of

of

of

22Friday, September 30, 2016

22Friday, September 30, 2016

22Friday, September 30, 2016

Size

Size

Size
Rev

Rev

Rev

称爹

称爹

称爹

<称爹>

<称爹>

5

<称爹>
