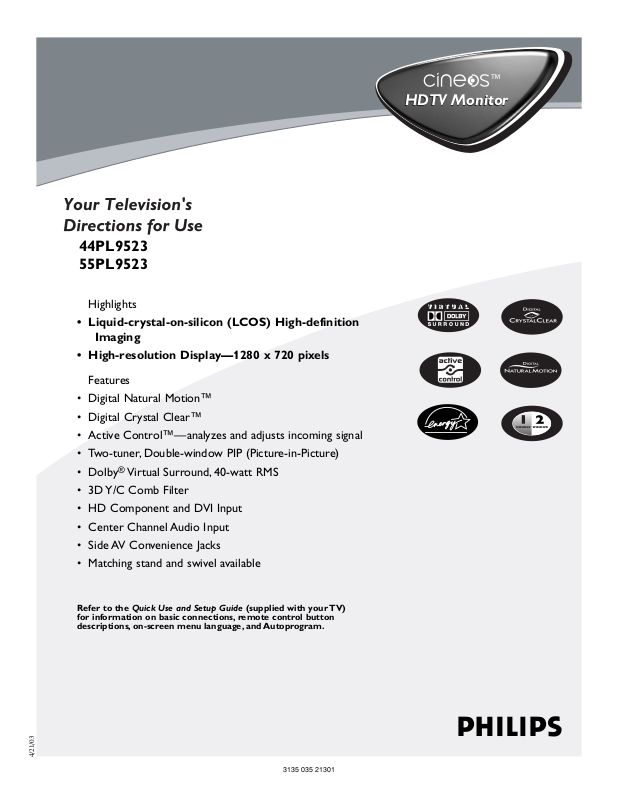

Philips 44PL9523, 55PL9523 User Manual

Page 1

3135 035 21301

44PL9523 55PL9523

Refer to the Quick Use and Setup Guide (supplied with your TV) for information on basic connections, remote control button descriptions, on-screen menu language, and Autoprogram.

Highlights

• Liquid-crystal-on-silicon (LCOS) High-definition Imaging

• High-resolution Display—1280 x 720 pixels

Features

• Digital Natural Motion™

• Digital Crystal Clear™

• Active Control™—analyzes and adjusts incoming signal

• Two-tuner, Double-window PIP (Picture-in-Picture)

• Dolby

Virtual Surround, 40-watt RMS

• 3D Y/C Comb Filter

• HD Component and DVI Input

• Center Channel Audio Input

• Side AV Convenience Jacks

• Matching stand and swivel available

4/21/03

HDTV Monitor

Page 2

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges

of owning a PHILIPS product. So complete and return the Warranty Registration

Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you

receive all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly, you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.

Sincerely,

Lawrence J. Blanford President and Chief Executive Officer

Know these

safetysymbols

t This “bolt of lightning” indicates uninsulated material within your unit may cause an elec-

trical shock. For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed

literature closely to prevent operating and maintenance problems.

WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION:To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans

la borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

P.S. Remember, to get the most from your

PHILIPS product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Hurry!

Visit our World Wide Web Site at http://www.philips.com

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance

with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particu-

larly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving

the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead and mercury. Disposal of these

materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org

16. Damage Requiring Service - The appliance should be serviced

by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appli-

ance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or

exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Wall or Ceiling Mounting - The appliance should be mounted to

a wall or ceiling only as recommended by the manufacturer.

19. Power Lines - An outdoor antenna should be located away from

power lines.

20. Outdoor Antenna Grounding - If an outside antenna is connect-

ed to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 701984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure below.

21. Object and Liquid Entry - Care should be taken so that objects

do not fall and liquids are not spilled into the enclosure through openings.

Example of Antenna Grounding as per NEC - National Electric Code

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

(NEC SECTION 810-20)

Page 4

Contents

INTRODUCTION

Welcome/Registration of Your TV . . . . . . . . . . . . . . . . .2

Safety/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

CONNECTING ACCESSORY DEVICES

YOUR TV

Information about TV Signals . . . . . . . . . . . . . . . . . . . . . . . .6

Descriptions of Jacks, Cables, and Connectors . . . . . . . . . . .7

Panel Jack Compatibility Information . . . . . . . . . . . . . . . . . .8

Pre-connection Recommendations . . . . . . . . . . . . . . . . . . .9

Connecting a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connecting a VCR and Cable Box . . . . . . . . . . . . . . . . . . .11

Connecting an S-Video Device . . . . . . . . . . . . . . . . . . . . .12

Connecting a Standard DVD Player . . . . . . . . . . . . . . . . . .13

Connecting a Progressive-scan DVD Player . . . . . . . . . . . .14

Connecting an HD Satellite Receiver to YPbPr . . . . . . . . .15

Connecting an HD Satellite Receiver to DVI . . . . . . . . . . .16

Connecting Surround Sound Equipment . . . . . . . . . . . . . .17

Connecting to the Side Inputs:Video Game System . . . . . .18

Labeling the Audio/Video Input Sources . . . . . . . . . . . . . . .19

USING THE

REMOTE CONTROL

Programming the Remote Control . . . . . . . . . . . . . . . .20–21

Setup Codes for Accessory Devices . . . . . . . . .22–23

Using the TV Remote’s VCR-specific Buttons . . . . .24

Using Active Control™ Plus . . . . . . . . . . . . . . . . . . . . . . .25

Using the Zoom Control . . . . . . . . . . . . . . . . . . . . . . . . . .26

USING THE ON-SCREEN MENUS


Adjusting/Setting the Picture Controls . . . . . . . . . . . . . . . .27

Selecting a Digital Processing Option . . . . . . . . . . .28

Selecting a Dynamic Contrast Option . . . . . . . . . . .29

Selecting a DNR (Dynamic Noise Reduction) Option . . . .30

Turning on Color Enhancement . . . . . . . . . . . . . . . . . . . . .31

Selecting an AutoPicture™ Option . . . . . . . . . . . . . . . . . .32

Selecting a Picture Format Option . . . . . . . . . . . . . . . .33–34

SOUND

Adjusting the TV and Headphone Volume . . . . . . . . . . . . .35

Selecting a TV Equalizer Option . . . . . . . . . . . . . . .36

Adjusting TV Speaker Balance . . . . . . . . . . . . . . . . .37

Turning Loudness on or off . . . . . . . . . . . . . . . . . . . . . . . .38

Selecting a Sound Mode Option . . . . . . . . . . . . . . . . . . . .39

Using Alternate Audio (SAP) . . . . . . . . . . . . . . . . . . . . . . .40

Setting the TV for Stereo Programming . . . . . . . . . . . . . . .41

Turning the AVL (Audio Volume Leveler) on or off . . . . . .42

Adjusting the Delta Volume . . . . . . . . . . . . . . . . . . . . . . . .43

Selecting an AutoSound™ Option . . . . . . . . . . . . . . . . . . .44

FEATURES

Using Closed Captioning . . . . . . . . . . . . . . . . . . . . . . . . . .45

Setting the Sleeptimer . . . . . . . . . . . . . . . . . . . . . .46

Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . .47

CHANNELS

Using the Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Removing Channels from the Channel List . . . . . . .49

Using Lock Channel . . . . . . . . . . . . . . . . . . . . . . . .50

Using Lock After . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Blocking Programming Based on TV Ratings . . . . . . . . . . .52

Blocking Programming Based on Movie Ratings . . . . . . . . .53

Turning the Antenna Attenuator on or off . . . . . . . . . . . . .54

GENERAL

Turning the Menu Background on or off . . . . . . . . . . . . . .55

Using Surf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Using Dual Screen and PIP . . . . . . . . . . . . . . . . . . . .57

Changing Channels or Input Sources in Dual Screen/PIP . .58

Selecting a Picture Freeze Option . . . . . . . . . . . . . . . . . . .59

Resetting the Audio/Video Settings to Factory

Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Selecting an On-screen Display Option . . . . . . . . . . . . . . .61

Selecting a Time Zone and Setting the Daylight

Savings Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Setting up or Changing a PIN (Personal

Identification Number) . . . . . . . . . . . . . . . . . . . . . . . . . .63

Setting the Subwoofer Control . . . . . . . . . . . . . . . . . . . . .64

ADDITIONAL INFORMATION

Cleaning the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Cleaning or Replacing the Filters . . . . . . . . . . . .66-67

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . .68–69

Resetting the Lamp’s Lifetime Counter . . . . . . . . . . . . . . .70

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71–72

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Factory Service Locations . . . . . . . . . . . . . . . . . . . . . .75–76

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Page 5

Features

Compact design with low weight

The unique Philips single-panel liquid-crystal-on-silicon (LCOS) technology allows for a large screen TV with a very low depth and low weight. This TV will find a place in any living room without occupying a large area, and it can be easily handled by two persons.

Philips Single-panel, LCOS Imaging System

The Philips single-panel LCOS technology produces unmatched high-resolution and flicker-free video with superb brightness. This technology enables a large-screen-size TV with low weight and shallow depth without any concerns for convergence or image retention.

Digital Natural Motion™

Digital Natural Motion™ offers razor-sharp reproduction of movement and motion. Its unique and highly advanced processing calculates motion trajectories of moving picture elements. It corrects jerky movement from both studio programs or movie material.

Digital CrystalClear™

Digital CrystalClear™—with Dynamic Contrast, comb filter, 9-bit processing, luminance enhancements, and color enhancements—offers a crisp and natural picture from any type or quality of source. The comb filter supports the picture demands of DVD players and other advanced high-resolution video sources.

Active Control™ Plus+

Active Control™ Plus+ automatically analyzes the incoming signals from the Tuner, AV1, AV2, and Side video inputs 50 times per second and adjusts key picture settings. In addition to measuring picture noise, this feature uses an ambient light sensor to adjust the picture settings according to viewing conditions in the room.

Dolby* Virtual Surround

Dolby processing circuitry provides an enhanced cinema surround sound effect without the need for rear speakers.

Double-window,Two-Tuner PIP

Your TV features double-window, two-tuner PIP with second tuner double window. The TV also has single PIP (free positioning), as well as threefold and sixfold side PIPs. In addition, you get photo finish, freeze Main, and freeze PIP. Replay lets you play back the previous few seconds in a PIP screen—if you missed the action, replay it as much as you want.

Audio/Video (A/V) Jack Panel

The A/V jack panel allows direct connections with VCRs, DVDs, high-definition receivers, or other devices, providing quality TV picture and sound playback.

Audio Volume Leveler (AVL) Control

AVL keeps the TV sound at an even level. Peaks and valleys that occur at commercial breaks or during program changes are reduced, providing a more consistent, comfortable sound.

V-Chip (with Channel Lock)

The V-Chip feature (with Channel Lock) will allow you to block the viewing of channels or programs with certain ratings, and thus prevent your children from watching inappropriate materials.

Autoprogramming

The TV’s Autoprogram feature scans (when activated) for all available channels from regular antenna or cable signals and stores active broadcast stations in the TV’s memory.

Surf Button

Philips Auto Surf™ allows you to easily switch between only the channels that are of interest to you. Surf allows two-channel surfing or nine-channel surfing.

As an Energy Star® Partner, Philips Consumer Electronics has determined this product meets the

Energy Star® guidelines for energy efficiency. Energy Star® is a U.S. registered mark. Using products with the Energy Star® label can save energy. Saving energy reduces air pollution and lowers utility bills.

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Active Control, AutoPicture, AutoSound, AutoSurf, Cineos, Digital Crystal Clear, Digital Natural Motion, and Pixel Plus are trademarks of Philips Consumer Electronics. Copyright 2003 Philips Consumer Electronics. All rights reserved.

Items Included with This TV

Your new television and its packing contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts that need to be properly disposed of. Your product also uses batteries that should not be thrown away when depleted, but should be handed in and disposed of as small chemical waste. When you replace your existing equipment, please find out about the local regulations regarding disposal of your old television, batteries, and packing materials.

End-of-Life Disposal

As you unpack your TV, please note the included items:

• Quick Use and Setup Guide to help you set up your new TV.

• Directions for Use manual—contains information on safety, set maintenance, Factory Service Center locations, and product warranty

• Warranty Registration Card

• Remote Control (with supplied batteries).

Please take a few minutes to complete your registration card. The serial number for the TV is on the rear of the set. For your future reference, please write down the serial and model number of this television in the space provided on the warranty page at the back of this manual. (In the unlikely event you should need to place a service call, these numbers will be needed.)

Page 6

Information about TV Signals

Your High-definition-ready Set

Over the Air

Satellite

Cable

High-definition television offers a picture with unprecedented crispness and clarity. The TV broadcast industry is moving toward high definition as

the signal standard. Currently, the number of programs being broadcast in high definition is limited, but this is changing. To view high-definition programs on your TV, you will need to connect a satellite receiver, cable box, or set-top box that can decode HD signals.

Analog

Signal

Digital

Signal

Antenna

at Your

Home

Cable TV

Company

Satellite TV

Company

Satellite

Dish

at Your

Home

Telephone Line

Cable TV Signal (Analog)

Satellites

Satellite

Receiver

at Your

Home

For Direct Connection

to Your TV or to a

Cable Box, VCR, or

Satellite Receiver

DVD619 DVD/CD PLAYER

STOP

OPEN/CLOSE

GUIDE

POWER

SELECT

INFO

HIGH DEFINITION

STANDBY-ON

POWER

PLAY PAUSE

PREV NEXT

Page 7

Descriptions of Jacks, Cables, and Connectors

This page contains descriptions and illustrations of jacks, cables, and connectors you might use in making connections. The cables and connectors are not supplied with your TV, but you can purchase at your electronics dealer. Or you can order them by calling our Customer Care Center at 1-800-531-0039.

Antenna RF Jack

Cable Used: RF

Coaxial (75Ω)

Push-on Type Cable

Screw-on Type Cable

Signal Splitter

Cables Used: RF

Coaxial (75Ω)

Video (Composite) Jack

Cable Used:Video with

RCA-type Phono Plugs

S-VIDEO Jack

Cable Used: S-Video

Component Video Jacks

Cables Used: Component

Video with RCA-type

Phono Plugs

Component Video Input Jacks Cables used: component video with RCA-type phono plugs

Allow you to connect accessory devices such as DVD players. Separating the video into three signals, these inputs provide excellent quality. Be sure to connect the left and right audio cables, because the Y, Pb, Pr jacks receive only the picture signal.

NOTE: See the “Helpful Hint” on page 13 for more information.

S-Video Input Jacks Cable used: S-Video

Provide a higher quality picture than the Video (composite) jacks because the color part of the picture is separated from the black and white portion. Be sure to connect the left and right audio cables, because the S-Video jacks receive only the picture signal.

VGA/HD15 Jack

Cable Used: HD DB15

RGB+HV Input Connector Cable used: HD DB15

Allows you to connect equipment with RGB.

Video (called “CVBS” or “composite”) Input Jack Cable used: Video with RCA-type phono plugs

Provide better picture performance than the antenna RF input. Be sure to connect the audio cables, because the video jacks receive only the picture signal.

Your TV also has a monitor output (“MON OUT”) video (“V”) jack. Use a video cable with RCA-type phono plug to make connections.

Tuner (RF) Input Jack Cables used: RF coaxial cable (75Ω)

Allows you to connect an antenna, cable TV, or components having RF outputs to the antenna input on the TV. RF coaxial cables are available in push-on or screw-on type.

Audio Input Jacks Cables used:Audio with RCA-type phono plugs

Provide sound for the video inputs. If your accessory device has only one output for audio, connect it to the left (color coded white) audio jack on the TV.

Your TV also has monitor output (“MON OUT”) audio (“L” and “R”) jacks and a subwoofer output jack. Use Audio cables with RCA-type phono plugs to make connections.

Audio Jacks

Cables Used:Audio

with RCA-type

Phono Plugs

Signal Splitter

Allows you to route an antenna or cable TV signal to two inputs.

3.5mm Stereo Mini Phone Plug to RCA Jack Adapter

Allows a connection between the

3.5mm stereo audio out jack on a computer and the left and right audio inputs on the television. Connect A/V cables with RCA-type phono plugs to the adapter, then to the TV.

3.5mm Stereo Mini Phone Plug to RCA Jack Adapter

300- to 75-ohm

Twin-lead Adapter

300- to 75-ohm Twin-lead Adapter

Accepts twin-lead wires from an antenna and allows connection to the antenna input on the TV. If your antenna is already equipped with an RF coaxial cable you will not need this adapter.

Center Channel Amp Speaker Terminals (+ and –)

Allow a connection from a surround sound receiver. Set the EXT/INT switch to EXT to use the TV speakers as the center speakers in a surround sound arrangement.

Center Channel Amp Speaker

Terminals (for the connection

of speaker wires)

DVI-D Jack

Cables Used: DVI-D

DVI-D Input Connector Cable used: DVI-D

This jack works only with DVI TMDS (Transition Minimized Differential Signaling) digital video. Allows encrypted transmissions of uncompressed digital content. The DVI-D jack used in this product is not for computer connections.

DVI

Pr Pb Y

TUNER

S-VIDEO

RGB+HV

INT

EXT

Page 8

Panel Jack Compatibility Information

Speaker Terminals and EXT(ernal)/INT(ernal) Speaker Switch Located on the Back Left Side of the TV

Jack Panel Located on the Left Side of the TV

CENTER CHANNEL AMP INPUT Click-fit Terminals

Provides speaker-wire input terminals for connection of an external home-cinema surround-sound system amplifier. For this use, set the switch to “EXT,” and the TV speakers become the center speakers for the home-cinema surroundsound system. NOTE: If no audio is heard from the set, check to make sure the Center Channel Amp switch is in the INT position. This switch should be in the EXT position only when an external center channel input is connected to the Click-fit Terminals.

SIDE JACK PANEL Signals accepted: Analog NTSC

(480i). Inputs available: S-Video (Y/C) and CVBS, plus audio left and right. Output available: Headphone. Only one of the inputs can be used at a time. Select the Side source, and the TV detects the input to which you have connected. Connections must be made to the audio inputs for sound.

Definitions: NTSC—National Television System Committee. CVBS—labeled “V,” provides a small step up in quality from the Tuner (RF) input. Called

Composite Video. S-Video (Y/C)—provides better picture quality than CVBS. Separates the signal into color and

brightness. YPbPr—provides the best quality video signal. Called Component Video Input, the signal is

split into three parts, two color and one brightness.

AV 1 Input Jacks Signals accepted: NTSC (480i). Inputs available: YPbPr, S-Video (Y/C), and

CVBS, plus audio left and right.

Use only one of the video signal inputs at a time.

If you should forget and have more than one type of signal connected, the set will automatically show the one of better quality: CVBS—good, S-Video—better, and YPbPr—best. For sound, connections must be made to the AV1 audio inputs.

MON OUT Output Jacks

Provide video and audio output signals from all TV when those sources are being viewed on the main screen. Output from the audio L/R jacks is at a fixed volume level; changing the TV volume does not affect them. Adjust the volume at your external home cinema system.

AV 2 Input Jacks Signals accepted: NTSC (480i). Inputs available: S-Video (Y/C) and CVBS, plus

audio left and right.

Use only one of the video signal inputs at a time.

If you should forget and have both types of signal connected, the set will automatically show the S-Video, since it is of better quality than CVBS. For sound, connections must be made to the AV2 audio inputs.

SUB OUT Output Jack

Provides a signal to an external powered subwoofer.

AV3 Input Jacks Signals accepted: NTSC (480i), 480p, 720p, and

1080i, plus audio left and right. Inputs available: YPbPr, plus audio. For sound, connections must be made to the AV3 audio inputs.

AV4 Input Jacks Signals accepted: NTSC (480i), 480p, 720p, and

1080i, plus audio left and right. Inputs available: YPbPr, plus audio. For sound, connections must be made to the AV4 audio inputs.

TUNER Input Jack Signals accepted: RF modulated NTSC. Inputs available: 75Ω RF coaxial.

AV5 Input Connector Signals accepted: NTSC (480i), 480p, 720p, 1080i,

plus audio left and right. Inputs available: RGB+HV. For sound, connections must be made to the AV5 audio inputs.

AV6 Input Connector Signals accepted: Digital only (TMDS [Transition Minimized Differential Signaling] encoded, uncom-

pressed); DVI 480i, 480p, 720p, and 1080i, plus audio left and right. Inputs available: DVI TMDS, plus audio. For sound, connections must be made to the AV6 audio inputs. Intended use of the input: digital set-top boxes and inputs from other digital video devices.

NOTE: This DVI jack is not for computer connections. VGA cannot be connected.

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

S-VIDEO

RLV

DVI

Pr Pb Y

OUT

S-VIDEO

INT

EXT

CENTER CHANNEL AMP INPUT

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

AV5 AV6

RGB+HV

Pr Pb Y

TUNER

Page 9

Pre-connection Recommendations

Positioning the TV

Before connecting accessory devices—VCR, DVD player, or HD satellite receiver, for example—please keep the following in mind:

• Place the TV on a flat surface. An unlevel surface may adversely affect picture performance.

• Do not place the TV on shag carpet or any surface that will block the ventilation openings at the bottom of the set. Blockage will cause the TV to overheat and shut down.

• Allow 4 to 6 inches of space behind the TV for ventilation.

• An optional swivel and an optional stand are available for use with your TV. See your electronics dealer.

• Test various locations in the room to find the optimal spot to locate the set for best viewing.

• Do not place the TV in direct sunlight or near a heating appliance.

• Do not expose the TV to rain or moisture.

• To prevent any unsafe situations, do not place objects on top of the TV.

Providing Protection Against Power Surges

• Connect all accessory devices before you plug any of their power cords into the wall outlet or power strip. NEVER plug your TV into an outlet that is controlled by a wall switch.

• Turn off the TV and/or accessory devices before you connect or disconnect any cables.

• Ensure that all antennas and cables are properly grounded. See page 3, “Important Safety Instructions.”

Protecting Accessory Devices from Overheating

• Arrange accessory devices so that air can circulate freely around them.

• Don’t stack the accessory devices. Arrange them to allow for good ventilation. The optional Philips stand provides enough room for two accessory devices, side by side.

• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from it will not flow around other components.

Connecting Cables

Be sure to insert each cable firmly into the correct jack.

Using the Connection Examples in This Manual

The accessory device jack panels shown are for example purpose only. The jack panels on your accessory devices may look different. Also, note that connections can be made in various ways. The examples are presented only as guides.

Allow 4 to 6 inches behind the TV for ventilation.

Place the TV on a flat surface.

Do not place the TV on a surface that will block the air filters located underneath the set.

Situate the TV where it will not be exposed to heat or moisture.

For safety, do not set objects on top of the TV.

Optional Swivel

Optional Stand

DVD619 DVD/CD PLAYER

GUIDE

POWER

SELECT

INFO

HIGH DEFINITION

STANDBY-ON

STOP

OPEN/CLOSE

PLAY PAUSE

PREV NEXT

Page 10

Connecting a VCR

Back of TV

Incoming Cable TV

or Antenna Signal

Back of VCR

(example only)

Connect the incoming antenna or cable TV signal to the ANT IN jack on the back of the VCR.

Using a coaxial cable, connect to the OUT jack on the back of the VCR and to the TUNER jack on the back of the TV.

Using A/V cables, connect from the AUDIO and VIDEO OUT jacks on the back of the VCR to the corresponding AV2 audio (L and R) and video (V) jacks on the back of the TV.

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV2 input source.

Press the OK button to confirm your choice. The set is now switched to the AV2 input source for the viewing of programs from the VCR.

NOTE: Since you’ve connected the cable TV signal directly to the TV’s tuner (step 2 above), you can watch the unscrambled programs by simply tuning to the desired channel. To store channels in the TV’s memory, you must use Autoprogram, which you can access through “Install” in the TV’s on-screen menu. See the Autoprogram section in the Quick Use and Setup Guide that came with the TV. If you use Autoprogram, you can select channels by pressing the CH + or – buttons on the TV remote control (in TV mode). Otherwise, you must press the digit (number) buttons to tune directly to the channel you desire.

Color Coding Used on Jacks and Plugs to simplify connections: Yellow: Video (Composite Video) Red: Right Audio White: Left Audio.

ELPFUL HINT

Source

SERVICE 1

S-VIDEO

RLV

AV1MONSUB OUT AV2AV3AV4

Pr Pb Y

OUT

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

TV AV1:None

AV2:None AV3:None AV4:None AV5:None AV6:None SIDE:None

DVI

AV5 AV6

RGB+HV

Pr Pb Y

AUDIO

ANT

OUT

VIDEO

CH3 CH4

OUT

TUNER

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 11

Connecting a VCR and Cable Box

Back of TV

Incoming

Cable TV

Signal

Back of VCR

(example only)

Back of Cable Box (example only)

Signal

Splitter

NOTE: A cable box with AUDIO OUT jacks such as the one used in the example on this page might pass stereo sound to the TV. Check with your cable TV company. The RF jack output jack on a cable box (commonly labeled “OUT TO TV,” “OUTPUT,” or “OUT”) will not pass stereo sound to your TV.

Connect the incoming cable TV signal to a two-way signal splitter. The signal splitter enables you to route the cable signal to the TV without using the OUT TO TV jack on the cable box, which will not pass stereo sound to the TV.

Using a coaxial cable, connect to one of the connectors on the signal splitter and to the TUNER jack on the back of the TV.

Using a coaxial cable, connect to the other connector on the signal splitter and to the CABLE IN jack on the back of the cable box.

Using Audio/Video cables, connect to the AUDIO and VIDEO OUT jacks on the back of the cable box and to the corresponding AUDIO and VIDEO IN jacks on the back of the VCR.

Using Audio/Video cables, connect to the AUDIO and VIDEO OUT jacks on the back of the VCR and to the corresponding AV2 audio (L and R) and video (V) input jacks on the back of the TV.

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV2 input source.

Press the OK button to confirm your choice. The set is now switched to the AV2 input source for the viewing of programs from the cable box or the VCR.

Color Coding Used on Jacks and Plugs to simplify connections: Yellow: Video (Composite Video) Red: Right Audio White: Left Audio.

HELPFUL HINT

Source

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/ HD INPUTS

AV5 AV6

DVI

RGB+HV

Pr Pb Y

TUNER

AUDIO

ANT

OUT

VIDEO

CH3 CH4

OUT

TV AV1:None

AV2:None AV3:None AV4:None AV5:None AV6:None SIDE:None

OUTPUT

CABLE

3 4

TO TV

VIDEO

OUT

AUDIO

OUT

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 12

Connecting an S-Video Device

Back of Standard S-Video Device

(example only)

Back of TV

Using an S-Video cable, connect to the S-Video output on the back of the S-Video device and to the AV2 SVIDEO input.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the S-Video device and to the corresponding AV2 audio inputs (L and R).

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV2 input source.

Press the OK button to confirm your choice. The set is now switched to the AV2 input source for the viewing of programs from the S-Video device.

To simplify making connections, the connectors on audio and video cables are often color coded to match the colors on TV jacks, red for right, and white for left.

HELPFUL HINT

Source

TV AV1:None AV2:None AV3:None AV4:None AV5:None AV6:None SIDE:None

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

DVI

AV5 AV6

RGB+HV

Pr Pb Y

L R

AUDIO OUT

TUNER

VIDEO

ANT/CABLE

OUT

Pr Pb Y

S-VIDEO

OUT

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 13

Connecting a Standard DVD Player

Back of TV

Back of Standard DVD Player

(example only)

Using Component Video cables, connect to the YPbPr jacks on the back of the standard DVD player and to the AV1 YPbPr jacks on the back of the TV.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the DVD player and to the corresponding AV1 audio (L and R) jacks on the back of the TV.

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV1 input source.

Press the OK button to confirm your choice. The set is now switched to the AV1 input source for the viewing of programs from the DVD player.

• If you do not know whether your DVD player is standard or progressive scan, you can connect it to either AV3 or AV4, and the TV will automatically determine the type of output.

• To simplify making connections, the connectors on audio and video cables are often color coded to match the colors on TV jacks: green for Y, blue for Pb, and red for Pr; also red for right audio, and white for left audio.

• The names for the component video jacks may differ depending on the DVD player or accessory digital source equipment used. For example, besides YPbPr, you may see R-Y/B-Y/Y; or CrCbY. Although abbreviations and terms may vary, the letters B and R stand for the blue and red color component signal connectors, respectively, and Y indicates the luminance signal. If necessary, refer to the user manual for your DVD or digital accessory for more information.

• If you experience difficulties receiving sound with a DVD disc, check the sound settings through the DVD disc’s menu.

HELPFUL HINTS

Source

AV1:None AV2:None AV3:None AV4:None AV5:None AV6:None SIDE:None

---

ACITVE

CONTROL

SOUND PICTURE

1 2

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

PCM-MPEG2-Dolby Digital-DTS

COAXIAL

ZOOM

DIGITAL AUDIO OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

SUB WF OUT

OPT OUT

DVI

AV5 AV6

RGB+HV

Pr Pb Y

AUDIO OUT

DVD619 DVD/CD PLAYER

STANDBY-ON

TUNER

PR/C

(CVBS)

VIDEO OUT

B/CB

VIDEO OUT

OPEN/CLOSE

(Y/C)

S-VIDEO OUT

STOP

PREV NEXT

PLAY PAUSE

Page 14

Using Component Video cables, connect to the YPbPr jacks on the back of the progressive-scan DVD player and to the AV3 YPbPr jacks on the back of the TV.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the DVD player and to the corresponding AV3 audio (L and R) jacks on the back of the TV.

If your DVD player has an I/P switch on the back, be sure it is set to the “P” position for progressive-scan mode. NOTE: Some DVD players have an I/P switch on the back, while others may allow the user to change the mode by pressing a button on the DVD player’s remote control or by using the DVD player’s on-screen menu. Also, some DVD players have dedicated progressive-scan output jacks that are labeled as such and require no switching by the user. See the user manual for your DVD player for more information on placing the player in progressive-scan mode.

Press the Source Select button on the remote control to access the Source list.

Press the Cursor Up or Down button to select the AV3 input source.

Press the OK button to confirm your choice. The set is now switched to the AV3 input source for the viewing of programs from the DVD player.

Connecting a Progressive-scan DVD Player

Back of TV

Back of Progressive-

scan DVD Player

(example only)

• If you experience difficulties receiving sound with a DVD disc, check the sound settings through the DVD disc’s menu.

HELPFUL HINTS

Inputs AV3–AV6 allow horizontal and vertical picture panning using the Cursor Left, Right, Up, and Down buttons. The Side input allows vertical picture panning; left and right panning with the Side input is possible when the input has been labeled “Game.” See pages 20 and 21 for details on side panel connections and source labeling.

HELPFUL HINT

Source

SERVICE 1

S-VIDEO

RLV

AV1MONSUB OUT AV2AV3AV4

Pr Pb Y

OUT

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

VIDEO OUT

VIDEO

SELECT

DVI

AV5 AV6

RGB+HV

Pr Pb Y

TUNER

AUDIO OUT

2CH

BITSTREAM

/PCM

OPTICAL

COAXIAL

DIGITAL

AC IN ~

DVD619 DVD/CD PLAYER

--AV2:None

AV3:None AV4:None AV5:None AV6:None SIDE:None

STANDBY-ON

OPEN/CLOSE

PLAY PAUSE

STOP

PREV NEXT

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 15

Using Component Video cables, connect to the YPbPr jacks on the back of the HD satellite receiver and to the corresponding AV4 YPbPr jacks on the back of the TV.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the HD satellite receiver and to the corresponding AV4 audio (L and R) jacks on the back of the TV.

Refer to the user manual for the HD satellite receiver to complete the connections to the HD satellite receiver and to use the HD satellite receiver’s on-screen setup menus.

After completing HD satellite receiver connections and setup through the onscreen setup menus, press the Source Select button on the TV remote to access the Source list.

Press the Cursor Up or Down button to select the AV4 input source.

Press the OK button to confirm your choice. The set is now switched to the AV4 input source for the viewing of programs from the HD satellite receiver.

Connecting an HD Satellite Receiver to YPbPr

Back of TV

Back of HD

Receiver

(example only)

• Inputs AV3–AV6 allow horizontal and vertical picture panning using the Cursor Left, Right, Up, and Down buttons. The Side input allows vertical picture panning; left and right panning with the Side input is possible when the input has been labeled “Game.” See pages 20 and 21 for details on side panel connections and source labeling.

HELPFUL HINTS

Source

REMOTEPHONE JACK

--AV3:None AV4:None AV5:None AV6:None SIDE:None

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/ HD INPUTS

AUDIO

VIDEOVIDEO

CONTROL

VCR

S-VIDEO

AV5 AV6

HIGH DEFINITION

DVI

RGB+HV

Pr Pb Y

DIGITAL

AUDIO OUT

POWER

SELECT

TUNER

OUT TO TV

CH 3 CH 4

IN FROM ANT SATELLITE IN

GUIDE

POWER

INFO

ACITVE

CONTROL

SOUND PICTURE

1 2

User Manual

for

HD Satellite

Receiver

ZOOM

Page 16

Using a DVI cable, connect to the DVI jack on the back of the HD satellite receiver and to the corresponding AV6 DVI jack on the back of the TV.

Using Stereo Audio cables, connect to the AUDIO OUT jacks on the back of the HD satellite receiver and to the corresponding AV6 audio (L and R) jacks on the back of the TV.

Refer to the user manual for the HD satellite receiver to complete the connections to the HD satellite receiver and to use the HD satellite receiver’s on-screen setup menus.

After completing HD satellite receiver connections and setup through the onscreen setup menus, press the Source Select button on the TV remote to access the Source list.

Press the Cursor Up or Down button to select the AV6 input source.

Press the OK button to confirm your choice. The set is now switched to the AV6 input source for the viewing of programs from the HD satellite receiver.

Connecting an HD Satellite Receiver to DVI

Back of TV

Back of HD satellite receiver

(example only)

• To simplify making connections, the con-

nectors on audio cables are often color coded to match the colors on TV jacks: red for right audio, and white for left audio.

• Because DVI is such new technology, the

electronics industry is still working toward a decision on one standard. Philips testing has determined that compatibility issues exist with respect to a limited number of high-definition receivers when they are connected to the DVI input on this television. If you should experience difficulties, please contact our Customer Care Center at 1800-531-0039.

• Inputs AV3–AV6 allow horizontal and verti-

cal picture panning using the Cursor Left, Right, Up, and Down buttons. The Side input allows vertical picture panning; left and right panning with the Side input is possible when the input has been labeled “Game.” See pages 20 and 21 for details on side panel connections and source labeling.

HELPFUL HINTS

AIR IN

SATELLITE IN

DIGITAL OUT

CABLE IN

Source

DOLBY

(OPTICAL)

--AV5:None AV6:None SIDE:None

RESOLUTION SELECT

1080i 720p 480p/i

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

ACCESS CARD

DVI/HDCP OUT

DVI

AV5 AV6

RGB+HV

Pr Pb Y

DTV OUTPUT SELECT

RGB/Y PB P

DVI

RGB OUT

TV OUT

TUNER

VIDEO OUT

AUDIO OUT

3 4

DOLBY

COMPONENT

DIGITAL

OUT

(COAXIAL)

AUDIO

LISTED

VCR

E207602

CONTROL

7H74

AUDIO/VIDEO PRODUCT

TEL LINE

S-VIDEO

ACITVE

CONTROL

SOUND PICTURE

1 2

User Manual

for

ZOOM

HD Satellite

Receiver

Page 17

Using speaker wires, connect to the Center Speaker output terminals (+, –) on the back of the surround sound receiver and to the corresponding (+, –) CENTER CHANNEL AMP terminals on the back of the TV.

Set the CENTER CHANNEL AMP INPUT switch to EXT. This allows the TV cabinet speakers to be used as the center speakers in a surround sound arrangement.

Using Stereo Audio cables, connect to the MON OUT L and R jacks on the back of the TV and to the corresponding TV IN jacks on the back of the receiver.

Using an Audio cable, connect to the SUB OUT jack on the back of the TV and to the Audio Input jack on the back of a powered subwoofer.

Using speaker wires, connect to the R and L Front Speakers terminals and to the corresponding terminals on the backs of the front speakers.

Using speaker wires, connect to the Surround Speakers terminals (+, –) on the back of the receiver and to the corresponding terminals (+, –) on the back of the surround speakers.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select “General.”

Press the Cursor Down button repeatedly until “Subwoofer” is selected.

Press the Cursor Right or Left button to select “Yes.”

Connecting Surround Sound Equipment

Back of TV

Back of Receiver

(example only)

Surround

(Back)

Speakers

Front

Speakers

Powered

Subwoofer

“Yes” must be activated for the Subwoofer menu selection before the SUB OUT jack will supply output. This is because the subwoofer’s low frequencies are redirected to the main TV speakers when “No” is selected.

HELPFUL HINT

To simplify making connections, the connectors on audio cables are often color coded to match the colors on TV jacks: red for right audio, and white for left audio.

HELPFUL HINT

T U P

IN P M A L E N N A H

C R E T N E C

T U P

IN P

INT

M A L E N N A H

EXT

C R E T

N E C

SERVICE 1

DVI

S-VIDEO

RLV

AV1MONSUB OUT AV2AV3AV4

Pr Pb Y

OUT

S-VIDEO

AV5 AV6

RGB+HV

Pr Pb Y

STANDARD/ HD INPUTS

TUNER

Pr Pb Y STANDARD/ HD INPUTS

SERVICE 1

AV1MONSUB OUT AV2AV3AV4

OUT

S-VIDEO

RLV

Pr Pb Y

S-VIDEO

STANDARD/

HD INPUTS

STANDARD/

HD INPUTS

AV5 AV6

DVI

RGB+HV

Pr Pb Y

TUNER

INT

EXT

Audio Input

180

Phase

Settings

Daylight saving

Change PIN

Subwoofer

Lamp rating

Lamp replaced

General

No • Yes

General

Settings

Daylight saving

Change PIN

Subwoofer

Lamp rating

Lamp replaced

Yes • No

Page 18

Connecting to the Side Inputs: Video Game System

Panel on

Side of

Back of Game System

(example only)

You can label the Side Audio/Video input source “Game” if you would like. See page 21 for details on labeling.

• To simplify making connections, the connectors on audio and video cables are often color coded to match the colors on TV jacks: yellow for video (composite), red for right audio, and white for left audio.

HELPFUL HINTS

Using the Audio/Video cable supplied with your video game system, connect to the back of the game system and to the corresponding S-VIDEO and AUDIO (L and R) jacks in the Side panel of the TV.

NOTE: If your game system cable does not have an S-Video plug, you can instead make a regular Video connection.

Press the Source button on the TV remote control to access the Source list.

Press the Cursor Up or Down button to select the Side input source.

Press the OK button to confirm your choice. The set is now switched to the Side input source for the viewing of your video game system.

The side panel is also convenient for connecting equipment such as camcorders or cameras. If the equipment has an S-Video output jack, it is the suggested one to use for your connection to receive the best picture. Otherwise, you can make a regular Video connection. You must also make an audio connection (L and R for stereo or L for mono) to receive sound. Neither an S-Video or Video cable carries a sound signal.

Camcorder

--AV6:None

Source

SIDE:None

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 19

Labeling the Audio/Video Input Sources

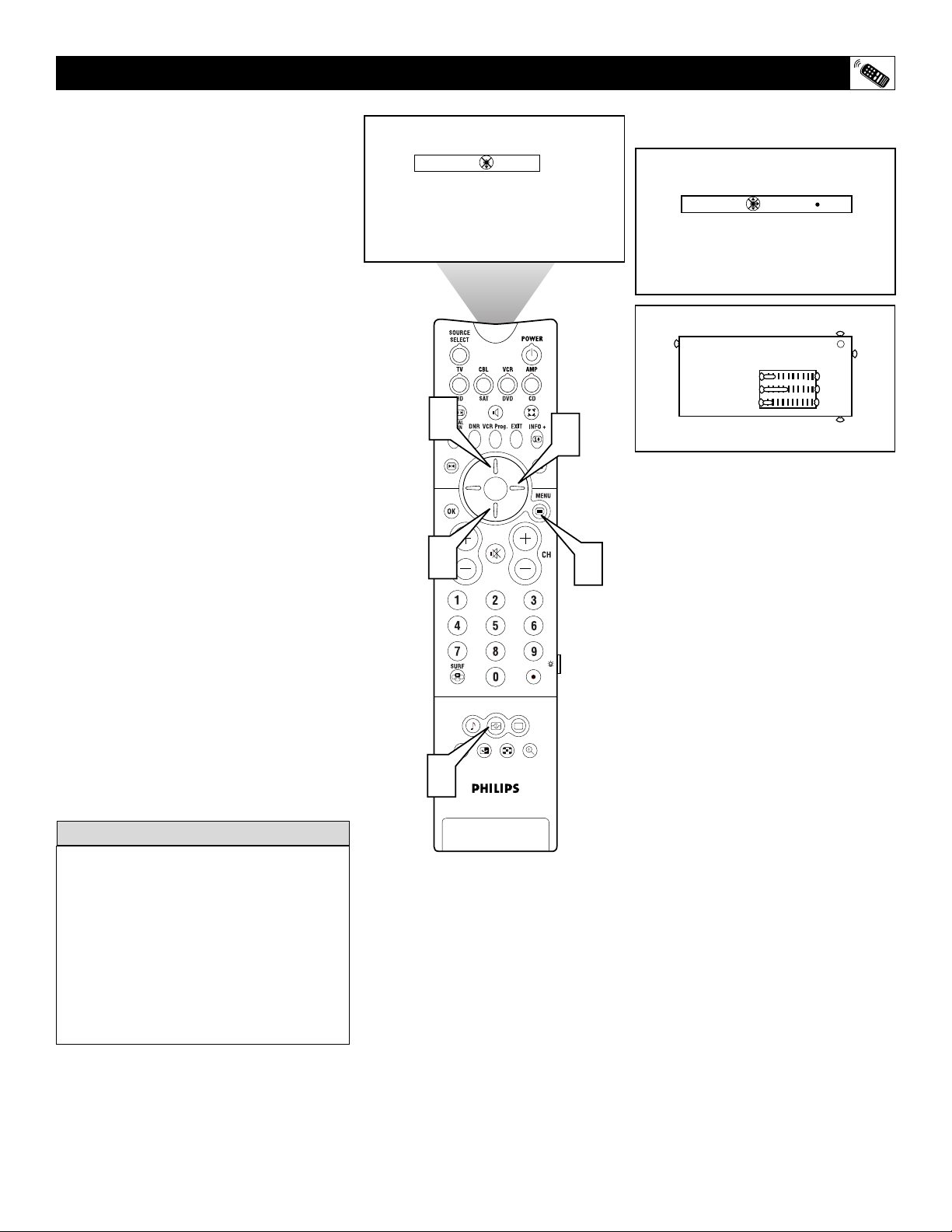

You can label all the external Audio/Video input sources—AV1, AV2, AV3, AV4, AV5, AV6, and Side—according to the type of accessory device you have connected to each input.

After labeling, you can use the Source Select button to cycle through and select your desired source. The labels will appear alongside the channel indicator when you select the AV input sources.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button repeatedly to select the “Source” menu.

Press the Cursor Down button repeatedly to select any of the AV Inputs— AV1, AV2, AV3, AV4, AV5, AV6, or Side. A list of labels will appear next to the selected AV input.

Press the Cursor Right button to enter the list.

Press the Cursor Up or Down button to scroll and select one of the labels in the list.

Press the Menu button on the remote control to remove the on-screen menu from the TV screen.

Press the Source Select button on the remote control to display the list of AV inputs and their labels.

This is just a sample of what the labeling might look like. Your Source Labels will depend on the options you choose to label the AV inputs.

Settings

Demo

Install

Picture Sound Features Channels

2 4 6

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

3 5

1 7

Settings

Demo

Install

Settings

General Source

Source

AV1

AV2

AV3

AV4

Source

AV1 AV2 AV3 AV4

Source

AV1

None Cable DVD SAT Recorder

---

None Cable DVD SAT Recorder

---

Source

TV AV1:DVD AV2:Recorder AV3:SAT AV4:HD AV5:Other AV6:HD SIDE:Camera

Settings

Source

---

AV1

DVD SAT Recorder PVR Other

Page 20

PROGRAMMING THE TV REMOTE TO OPERATE ACCESSORY DEVICES

The remote control supplied with your television may also work with a variety of infrared-controlled accessory devices such as cable boxes, VCRs, amplifiers, HD satellite receivers, satellite receivers, DVD players, and CD players.

Press the CBL, VCR, AMP, HD, SAT, DVD, or CD Mode button, depending on the type of accessory device you want to operate. If the function buttons—Play, CH + or –, Stop, for example—on the remote control work the device, the remote is ready to use and no further steps are required. If the remote does not work with the accessory device, proceed to step 2.

Using the Code Entry Method

Please look up the code(s) for your brand of accessory device (listed on pages 24–25) before you begin the next few steps.

Press the desired Mode button that corresponds to the type of device you wish to operate—CBL, VCR, AMP, HD, SAT, DVD, or CD. A green light will indicate the mode labeled on the top of the button, while a red light will indicate the mode labeled on the bottom of the button. If needed, hold the button down and the light will toggle between the green and red settings.

Press and hold the 1 and 3 Digit (Number) buttons at the same time until the Backlight and selected Mode buttons light up. Then release both buttons.

Within 30 seconds of completing step 3 and using the Digit (Number) buttons, enter the four-digit code from pages 24–25 for your brand of device. Several codes may be listed for your brand, so you may need to try them all before the remote will operate the device.

If a valid code number has been entered, the Backlight and Mode buttons will turn off and then blink twice. The remote control will assign that code number to the mode selected.

Try the function buttons to see if the remote will operate your accessory device.

If yes, no other steps are required.

If no, try the procedure again with another code number listed by your brand. Several attempts may be needed to complete all code numbers.

If none of the codes work, please refer to page 23 to try the Auto Search Method.

CBL

VCR

DVD

SAT

AMP

STANDBY-ON

POWER

HIGH DEFINITION

1 2

SELECT

DVD619 DVD/CD PLAYER

GUIDE

POWER

INFO

OPEN/CLOSE

PLAY PAUSE

STOP

PREV NEXT

ACITVE

CONTROL

SOUND PICTURE

1 2

3 4

ZOOM

Page 21

The Auto Search Method of programming the remote control can take several minutes to complete. So before starting, it is recommended that you sit in a comfortable position at least six feet from the accessory device. You will have to hold the remote so that it is pointed at the front of the device for the entire time the search is taking place.

Turn the accessory device on using the device’s power button.

Press and hold the 1 and 3 Digit (Number) buttons at the same time until the Backlight and selected Mode buttons light up. Then release both buttons.

Press and release the red POWER button on the remote control. The Backlight buttons and the selected Mode button will turn off.

The remote will start the Auto Search of all available codes, sending a command to channel up. The backlight will blink after each code is tried. For devices such as DVD or CD players, insert a disc and press PLAY on the device. The remote control will send a command to switch to the next track. Switch AV receivers to the tuner function.

IMPORTANT: Watch the channel indicator of your accessory device closely. Once the right code is found, the channels on your device will start to scan up.

Press and release the red POWER button on the remote control as soon as the channels start to change. The Backlight buttons and selected Mode button will blink twice to indicate the Auto Search code setup is complete.

NOTE: If any other buttons are pressed during the procedure, the Auto Search will end.

Remember, Auto Search can take several minutes to complete, so please be patient.

PROGRAMMING THE TV REMOTE TO OPERATE ACCESSORY DEVICES

HIGH DEFINITION

POWER

GUIDE

SELECT

POWER

INFO

ACITVE

CONTROL

SOUND PICTURE

1 2

4 5

ZOOM

Page 22

SETUP CODES FOR ACCESSORY DEVICES

Amplifier

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . . .0433

Carver . . . . . . . . . . . . . . . . . . . . . . . . . . .0296

Curtis Mathes . . . . . . . . . . . . . . . . . . . . .0327

Denon . . . . . . . . . . . . . . . . . . . . . . . . . . .0187

GE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0105

Harman/Kardon . . . . . . . . . . . . . . . . . . . .0919

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0358

Linn . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0296

Magnavox . . . . . . . . . . . . . . . . . . . . . . . .0296

Marantz . . . . . . . . . . . . . . . . . . . . .0296, 0348

Nakamichi . . . . . . . . . . . . . . . . . . . . . . . .0348

Optimus . . . . . . . . . . . . . . . . . . . . . . . . . .0422

Panasonic . . . . . . . . . . . . . . . . . . . . . . . .0335

Philips . . . . . . . . . . . . . . . . . . . . . .0296, 0919

Pioneer . . . . . . . . . . . . . . . . . . . . .0040, 0327

Realistic . . . . . . . . . . . . . . . . . . . . . . . . .0422

Sansui . . . . . . . . . . . . . . . . . . . . . . . . . . .0348

Sony . . . . . . . . . . . . . . . . . . . . . . .0716, 0247

Soundesign . . . . . . . . . . . . . . . . . . . . . . .0105

Technics . . . . . . . . . . . . . . . . . . . . . . . . .0335

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . . .0358

Wards . . . . . . . . . . . . . . . . . . . . . .0040, 0105

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . . .0381

Cable Box

ABC . . . . . . . . .0030, 0028, 0034, 0035, 0038,

. . . . . . . . . . . . . . . . . . . . . .0040, 0041, 0044

Allegro . . . . . . . . . . . . . . . . . . . . . .0180, 0342

Americast . . . . . . . . . . . . . . . . . . . . . . . .0926

Antronix . . . . . . . . . . . . . . . . . . . . . . . . . .0049

Archer . . . . . . . . . . . . . . . . .0049, 0180, 0824

Belcor . . . . . . . . . . . . . . . . . . . . . . . . . . .0083

Bell & Howell . . . . . . . . . . . . . . . . . . . . . .0041

Cable Star . . . . . . . . . . . . . . . . . . . . . . . .0083

Cabletenna . . . . . . . . . . . . . . . . . . . . . . .0049

Cableview . . . . . . . . . . . . . . . . . . . . . . . .0049

Century . . . . . . . . . . . . . . . . . . . . . . . . . .0180

Citizen . . . . . . . . . . . . . . . . . . . . . .0180, 0342

Colour Voice . . . . . . . . . . . . . . . . . . . . . .0052

Comtronics . . . . . . . . . . . . . . . . . . . . . . .0067

Contec . . . . . . . . . . . . . . . . . . . . . . . . . .0046

Eastern . . . . . . . . . . . . . . . . . . . . . . . . . .0029

Emerson . . . . . . . . . . . . . . . . . . . . . . . . .0824

Everquest . . . . . . . . . . . . . . . . . . .0042, 0067

Focus . . . . . . . . . . . . . . . . . . . . . . . . . . .0427

GC Electronics . . . . . . . . . . . . . . . . . . . .0083

Garrard . . . . . . . . . . . . . . . . . . . . . . . . . .0180

Gemini . . . . . . . . . . . . . . . . . . . . . . . . . .0042

General Instrument . . .0303, 0503, 0038, 0837

GoldStar . . . . . . . . . . . . . . . . . . . .0067, 0171

Goodmind . . . . . . . . . . . . . . . . . . . . . . . .0824

Hamlin . . . . . . . . . . . .0047, 0036, 0286, 0061

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . . .0038

Hytex . . . . . . . . . . . . . . . . . . . . . . . . . . . .0034

Jasco . . . . . . . . . . . . . . . . . .0042, 0180, 0342

Jerrold . . . . . . . . . . . .0030, 0039, 0303, 0041,

. . . . . . . . . . . . . . . . .0038, 0503, 0042, 0837

Memorex . . . . . . . . . . . . . . . . . . . . . . . . .0027

Movie Time . . . . . . . . . . . . . . . . . . . . . . .0090

NSC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0090

Oak . . . . . . . . . . . . . . . . . . . . . . . .0046, 0034

Optimus . . . . . . . . . . . . . . . . . . . . . . . . . .0048

Panasonic . . . . . . . . . . . . . .0048, 0134, 0027

Paragon . . . . . . . . . . . . . . . . . . . . . . . . .0027

Philips . . . . . . . . . . . . . . . . . . . . . .0052, 0180

Pioneer . . . . . . . . . . . . . . . .0171, 0560, 0904

Popular Mechanics . . . . . . . . . . . . . . . . .0427

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Quasar . . . . . . . . . . . . . . . . . . . . . . . . . .0027

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . .0048

Radio Shack . . . . . . . .0042, 0342, 0910, 0824

Recoton . . . . . . . . . . . . . . . . . . . . . . . . . .0427

Regal . . . . . . . . . . . . . . . . . . . . . . .0047, 0286

Regency . . . . . . . . . . . . . . . . . . . . . . . . .0029

Rembrandt . . . . . . . . . . . . . . . . . . . . . . .0038

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

SL Marx . . . . . . . . . . . . . . . . . . . . . . . . . .0067

Samsung . . . . . . . . . . . . . . . . . . . .0067, 0171

Scientific Atlanta . . . . .0035, 0044, 0504, 0904

Signal . . . . . . . . . . . . . . . . . . . . . .0042, 0067

Signature . . . . . . . . . . . . . . . . . . . . . . . . .0038

Sprucer . . . . . . . . . . . . . . . . . . . . . . . . . .0048

Starcom . . . . . . . . . . . . . . . . . . . . .0030, 0042

Stargate . . . . . . . . . . . . . . . .0067, 0042, 0824

Starquest . . . . . . . . . . . . . . . . . . . . . . . . .0042

Sylvania . . . . . . . . . . . . . . . . . . . . . . . . .0028

TV86 . . . . . . . . . . . . . . . . . . . . . . . . . . . .0090

Tandy . . . . . . . . . . . . . . . . . . . . . . . . . . .0285

Teleview . . . . . . . . . . . . . . . . . . . . . . . . .0067

Texscan . . . . . . . . . . . . . . . . . . . . . . . . . .0028

Tocom . . . . . . . . . . . . . . . . . . . . . .0039, 0040

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Tusa . . . . . . . . . . . . . . . . . . . . . . . . . . . .0042

Unika . . . . . . . . . . . . . . . . . . . . . . .0180, 0049

United Artists . . . . . . . . . . . . . . . . . . . . . .0034

Universal . . . . . . . . . .0049, 0083, 0180, 0218

Viewstar . . . . . . . . . . . . . . . . . . . . .0285, 0090

Zenith . . . . . . . . . . . . . . . . . .0027, 0552, 0926

Zentek . . . . . . . . . . . . . . . . . . . . . . . . . . .0427

CD Player

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

Burmester . . . . . . . . . . . . . . . . . . . . . . . .0447

California Audio Labs . . . . . . . . . . . . . . . .0056

Carver . . . . . . . . . . . . . . . . .0184, 0206, 0464

DKK . . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Denon . . . . . . . . . . . . . . . . . . . . . .0030, 0900

Emerson . . . . . . . . . . . . . . . . . . . . . . . . .0332

Fisher . . . . . . . . . . . . . . . . . . . . . .0201, 0206

Garrard . . . . . . . . . . . . . . . . . . . . .0420, 0447

Genexxa . . . . . . . . . . . . . . . . . . . .0059, 0332

Harman/Kardon . . . . . . . . . . . . . . .0200, 0184

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . . .0059

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Kenwood . . . . . . . . . .0055, 0217, 0853, 0064,

. . . . . . . . . . . . . . . . . . . . . . . . . . .0653, 0708

Krell . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0332

Linn . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

MCS . . . . . . . . . . . . . . . . . . . . . . . . . . . .0056

MTC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0447

Magnavox . . . . . . . . . . . . . . . . . . .0184, 0332

Marantz . . . . . . . . . . . . . . . .0184, 0056, 0207

Mission . . . . . . . . . . . . . . . . . . . . . . . . . .0184

NSM . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

Nikko . . . . . . . . . . . . . . . . . . . . . . . . . . . .0201

Onkyo . . . . . . . . . . . . . . . . . . . . . .0128, 0895

Optimus . . . . . . . . . . .0447, 0059, 0206, 0495,

. . . . . . . . . . . . .0464, 0332, 0027, 0064, 0172

Panasonic . . . . . . . . . . . . . . . . . . .0056, 0330

Parasound . . . . . . . . . . . . . . . . . . . . . . . .0447

Philips . . . . . . . . . . . . . . . . . . . . . .0184, 0653

Pioneer . . . . . . . . . . . .0059, 0495, 0271, 0332

Proton . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

QED . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

Quasar . . . . . . . . . . . . . . . . . . . . . . . . . .0056

RCA . . . . . . . . . . . . . .0080, 0332, 0206, 0791

Realistic . . . . . . . . . . . . . . . .0206, 0207, 0447

Rotel . . . . . . . . . . . . . . . . . . . . . . .0184, 0447

SAE . . . . . . . . . . . . . . . . . . . . . . . . . . . .0184

Sansui . . . . . . . . . . . . . . . . . . . . . .0184, 0332

Sanyo . . . . . . . . . . . . . . . . . . . . . . . . . . .0206

Scott . . . . . . . . . . . . . . . . . . . . . . . . . . . .0332

Sears . . . . . . . . . . . . . . . . . . . . . . . . . . .0332

Sharp . . . . . . . . . . . . . . . . . .0064, 0207, 0888

Sherwood . . . . . . . . . . . . . . . . . . . . . . . .0207

Sony . . . . . . . . . . . . . . . . . .0027, 0212, 0517

Soundesign . . . . . . . . . . . . . . . . . . . . . . .0172

Tascam . . . . . . . . . . . . . . . . . . . . . . . . . .0447

Teac . . . . . . . . . . . . . .0420, 0447, 0201, 0207

Technics . . . . . . . . . . . . . . . . . . . .0330, 0056

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Wards . . . . . . . . . . . . . . . . . . . . . .0080, 0184

Yamaha . . . . . . . . . . . . . . . . . . . . .0214, 0063

Yorx . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0488

Surround Sound Receiver

ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0558

Adcom . . . . . . . . . . . . . . . . . . . . . . . . . . .0643

Aiwa . . . . . . . . . . . . . .0148, 0432, 0185, 0216

Akai . . . . . . . . . . . . . . . . . . . . . . . .0251, 0103

Capetronic . . . . . . . . . . . . . . . . . . . . . . . .0558

Carver . . . . . . . . . . . .0035, 0216, 0387, 0069

Casio . . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Clarinette . . . . . . . . . . . . . . . . . . . . . . . . .0222

Curtis Mathes . . . . . . . . . . . . . . . . . . . . .0107

Denon . . . . . . . . . . . . . . . . .0031, 0798, 0300

Emerson . . . . . . . . . . . . . . . . . . . . . . . . .0451

Fisher . . . . . . . . . . . . . . . . . .0069, 0246, 0387

Garrard . . . . . . . . . . . . . . . . . . . . .0451, 0490

Harman/Kardon . . . . . . . . . .0137, 0216, 0918

Inkel . . . . . . . . . . . . . . . . . . . . . . . . . . . .0089

JBL . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0137

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0101

Kenwood . . . . . . . . . .0054, 0341, 0104, 0069,

. . . . . . . . . . . . . . . . . . . . . . . . . . .0213, 0340

Koss . . . . . . . . . . . . . . . . . . . . . . . . . . . .0451

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0208

Linn . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0216

Lloyd's . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

MCS . . . . . . . . . . . . . . . . . . . . . . .0066, 0373

Magnavox . . . . .0216, 0418, 0558, 0155, 0222

Marantz . . . . . . . . . . . . . . . .0216, 0155, 0066

Modulaire . . . . . . . . . . . . . . . . . . . . . . . .0222

NAD . . . . . . . . . . . . . . . . . . . . . . . . . . . .0347

NEC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0262

Nakamichi . . . . . . . . . . . . . . . . . . .0374, 0124

Onkyo . . . . . . . . . . . . . . . . .0162, 0407, 0127

Optimus . . . . . . . . . . .0208, 0204, 0213, 0246,

. . . . . . . . . . . . .0558, 0765, 0828, 0069, 0697

Panasonic . . . . . . . . . . . . . .0066, 0336, 0545

Penney . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Philips . . . . . . . . . . . . . . . . . . . . . .0216, 0418

Pioneer . . . . . . .0107, 0041, 0177, 0558, 0657

Quasar . . . . . . . . . . . . . . . . . . . . . . . . . .0066

RCA . . . . . . . . .0081, 0373, 0558, 0387, 0557

Realistic . . . . . . . . . . . . . . .0208, 0222, 0190

Sansui . . . . . . . . . . . . . . . . .0216, 0220, 0373

Sanyo . . . . . . . . . . . . . . . . . . . . . .0246, 0828

Scott . . . . . . . . . . . . . . . . . . . . . . .0190, 0349

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . . .0213

Sherwood . . . . . . . . . . . . . . .0529, 0518, 0089

Sony . . . . . . . . . . . . . . . . . .0185, 0195, 0501

Soundesign . . . . . . . . . . . . . . . . . . . . . . .0697

Teac . . . . . . . . . . . . . . . . . . . . . . .0490, 0190

Technics . . . . . . . . . . .0336, 0066, 0235, 0545

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . . .0101

Wards . . . . . . . .0081, 0041, 0107, 0185, 0216

Yamaha . . . . . . . . . . . . . . . . . . . . .0203, 0213

Yorx . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0222

Zenith . . . . . . . . . . . . . . . . . . . . . . . . . . .0884

Page 23

SETUP CODES FOR ACCESSORY DEVICES

Satellite

AlphaStar . . . . . . . . . . . . . . . . . . . . . . . .0799

Amplica . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Amway . . . . . . . . . . . . . . . . . . . . . . . . . .0102

Astro Industries . . . . . . . . . . . . . . . . . . . .0122

BSR . . . . . . . . . . . . . . . . . . . . . . . . . . . .0122

Capetronic . . . . . . . . . . . . . . . . . . . . . . . .0122

Channel Master . . . . . . . . . . . . . . .0045, 0239

Chaparral . . . . . . . . . . . . . . .0080, 0236, 0243

Curtis Mathes . . . . . . . . . . . . . . . .0088, 0099

DX Antenna . . . . . . . . . . . . . . . . . . . . . . .0068

Drake . . . . . . . . . . . . .0091, 0272, 0045, 0176

Echostar . . . . . .0307, 0802, 0175, 0186, 0296

Expressvu . . . . . . . . . . . . . . . . . . . . . . . .0802

General Instrument . . . . . . . .0388, 0896, 0654

HTS . . . . . . . . . . . . . . . . . . . . . . . . . . . .0802

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . . .0846

Homecable . . . . . . . . . . . . . . . . . . . . . . .0265

Hughes Network Systems . . . . . . . . . . . .0776

Hytek . . . . . . . . . . . . . . . . . . . . . . . . . . . .0122

IQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0237

IQ Prism . . . . . . . . . . . . . . . . . . . . . . . . .0237

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0802

Janeil . . . . . . . . . . . . . . . . . . . . . . . . . . .0179

Jerrold . . . . . . . . . . . . . . . . . . . . . .0388, 0654

Legend . . . . . . . . . . . . . . . . . . . . . . . . . .0296

Macom . . . . . . . . . . . . . . . . . . . . .0088, 0045

Magnavox . . . . . . . . . . . . . . . . . . .0749, 0751

Memorex . . . . . . . . . . . . . . . . . . . .0296, 0751

Next Level . . . . . . . . . . . . . . . . . . . . . . . .0896

Panasonic . . . . . . . . . . . . . . . . . . .0179, 0728

Philips . . . . . . . . . . . . . . . . .0227, 0749, 0751

Pico . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0102

Primestar . . . . . . . . . . . . . . . . . . . .0654, 0388

RCA . . . . . . . . . . . . . . . . . .0593, 0170, 0882

Radio Shack . . . . . . . . . . . . . . . . . . . . . .0896

Ramsey . . . . . . . . . . . . . . . . . . . . . . . . . .0102

Realistic . . . . . . . . . . . . . . . . . . . . . . . . .0079

STS . . . . . . . . . . . . . . . . . . . . . . . .0237, 0068

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . . .0666

Star Choice . . . . . . . . . . . . . . . . . . . . . . .0896

Star Trak . . . . . . . . . . . . . . . . . . . . . . . . .0207

Toshiba . . . . . . . . . . . . . . . .0109, 0817, 0088

Uniden . . . . . . .0265, 0079, 0101, 0397, 0751,

. . . . . . . . . . . . . . . . . . . . . . . . . . .0103, 0749

Zenith . . . . . . . . . . . . . . . . . .0091, 0883, 0088

VCR

Admiral . . . . . . . . . . . . . . . . . . . . .0075, 0236

Adventura . . . . . . . . . . . . . . . . . . . . . . . .0027

Aiko . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0305

Aiwa . . . . . . . . . . . . . . . . . . .0334, 0027, 0064

Akai . . . . . . . . . . . . . . . . . .0133, 0068, 0088

America Action . . . . . . . . . . . . . . . . . . . .0305

American High . . . . . . . . . . . . . . . . . . . .0062

Asha . . . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Audiovox . . . . . . . . . . . . . . . . . . . . . . . . .0064

Beaumark . . . . . . . . . . . . . . . . . . . . . . . .0267

Bell & Howell . . . . . . . . . . . . . . . . . . . . . .0131

Brocksonic . . . . . . . . . . . . . . . . . . . . . . . .0236

Broksonic . . . . .0148, 0211, 0029, 0236, 0506

CCE . . . . . . . . . . . . . . . . . . . . . . .0099, 0305

Calix . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Canon . . . . . . . . . . . . . . . . . . . . . . . . . . .0062

Capehart . . . . . . . . . . . . . . . . . . . . . . . . .0047

Carver . . . . . . . . . . . . . . . . . . . . . . . . . .0108

Cineral . . . . . . . . . . . . . . . . . . . . . . . . . .0305

Citizen . . . . . . . . . . . . . . . . . . . . . .0305, 0064

Colt . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Craig . . . . . . . . .0064, 0099, 0074, 0267, 0298

Curtis Mathes . . . . . . .0062, 0068, 0087, 0189

Cybernex . . . . . . . . . . . . . . . . . . . . . . . . .0267

Daewoo . . . . . . . . . . .0305, 0588, 0047, 0072

Daytron . . . . . . . . . . . . . . . . . . . . . . . . . .0047

Denon . . . . . . . . . . . . . . . . . . . . . . . . . . .0069

Dynatech . . . . . . . . . . . . . . . . . . . . . . . . .0027

Electrohome . . . . . . . . . . . . . . . . . . . . . .0064

Electrophonic . . . . . . . . . . . . . . . . . . . . . .0064

Emerex . . . . . . . . . . . . . . . . . . . . . . . . . .0059

Emerson . . . . . . . . . .0211, 0029, 0236, 0305,

. . . . . . . . . . . . . . . . .0148, 0235, 0506, 0588,

. . . . . . . . . . . . .0088, 0239, 0027, 0064,0070

Fisher . . . . . . . . . . . . . . . . . .0074, 0131, 0081

Fuji . . . . . . . . . . . . . . . . . . . . . . . .0060, 0062

Funai . . . . . . . . . . . . . . . . . . . . . . . . . . . .0027

GE . . . . . . . . . .0062, 0087, 0075, 0229, 0267

Garrard . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Go Video . . . . . . . . . . . . . . . . . . . .0459, 0553

GoldStar . . . . . . . . . . . . . . . . . . . .0064, 0065

Gradiente . . . . . . . . . . . . . . . . . . . .0035, 0027

HI-Q . . . . . . . . . . . . . . . . . . . . . . . . . . . .0074

Harley Davidson . . . . . . . . . . . . . . . . . . .0027

Harman/Kardon . . . . . . . . . . . . . . .0065, 0108

Harwood . . . . . . . . . . . . . . . . . . . . . . . . .0099

Headquarter . . . . . . . . . . . . . . . . . . . . . .0073

Hitachi . . . . . . . . . . . .0069, 0132, 0027, 0068

Hughes Network Systems . . . . . . . . . . . .0069

JVC . . . . . . . . . . . . . . . . . . .0094, 0035, 0068

Jensen . . . . . . . . . . . . . . . . . . . . . . . . . .0068

KEC . . . . . . . . . . . . . . . . . . . . . . . .0064, 0305

KLH . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Kenwood . . . . . . . . . . . . . . .0068, 0094, 0065

Kodak . . . . . . . . . . . . . . . . . . . . . .0062, 0064

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Lloyd's . . . . . . . . . . . . . . . . . . . . . .0027, 0235

Logik . . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

MEI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0062

MGA . . . . . . . . . . . . . . . . . .0070, 0088, 0267

MGN Technology . . . . . . . . . . . . . . . . . . .0267

MTC . . . . . . . . . . . . . . . . . . . . . . .0027, 0267

Magnasonic . . . . . . . . . . . . . . . . . . . . . . .0305

Magnavox . . . . .0062, 0108, 0027, 0066, 0176

Magnin . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Marantz . . . . . . . . . . . . . . . . . . . . .0108, 0062

Marta . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Matsushita . . . . . . . . . . . . . .0062, 0189, 0481

Memorex . . . . .0131, 0074, 0027, 0064, 0075,

. . . . . . . . . . . . .0062, 0073, 0267, 1064, 0334,

. . . . . . . . . . . . . . . . . .0066, 0236, 1189, 1289

Minolta . . . . . . . . . . . . . . . . . . . . . .0132, 0069

Mitsubishi . . . . . . . . . .0070, 0088, 0075, 0094

Motorola . . . . . . . . . . . . . . . . . . . .0062, 0075

Multitech . . . . . . . . . . . . . . . . . . . .0027, 0099

NEC . . . . . . . . . . . . . .0065, 0068, 0094, 0131

Nikko . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Nikon . . . . . . . . . . . . . . . . . . . . . . . . . . . .0061

Noblex . . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Olympus . . . . . . . . . . . . . . . . . . . . . . . . .0062

Optimus . . . . . .1089, 1189, 0075, 1289, 0064,

. . . . . . . . . . . . .1075, 0131, 0189, 0459, 0481

Optonica . . . . . . . . . . . . . . . . . . . . . . . . .0089

Orion . . . . . . . . . . . . .0506, 0029, 0211, 0236

Panasonic . . . . . . . . .0062, 1189, 0189, 0252,

. . . . . . . . . . . . . . . . . . . . . . . . . . .0481, 0643

Penney . .0062, 0267, 0064, 0069, 0065, 0081

Pentax . . . . . . . . . . . . . . . . . . . . . .0069, 0132

Philco . . . . . . . . . . . . . . . . . .0062, 0236, 0506

Philips . . .0108, 0062, 0089, 0645, 1108, 1208

Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Pioneer . . . . . . . . . . . . . . . . . . . . . . . . . .0094

Portland . . . . . . . . . . . . . . . . . . . . . . . . . .0047

Profitronic . . . . . . . . . . . . . . . . . . . . . . . .0267

Proscan . . . . . . . . . . . . . . . . . . . . .0087, 0229

Protec . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . . . .0066

Quarter . . . . . . . . . . . . . . . . . . . . . . . . . .0073

Quartz . . . . . . . . . . . . . . . . . . . . . . . . . . .0073

Quasar . . . . . . . . . . . .0062, 0189, 0481, 1189

RCA . . . . . . . . .0087, 0176, 0229, 0069, 0132,

. . . . . . . . . . . . . . . . .0062, 0075, 0133, 0267

Radio Shack . . . . . . . . . . . . . . . . .0027, 1064

Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Randex . . . . . . . . . . . . . . . . . . . . . . . . . .0064

Realistic . . . . . .0027, 0131, 0074, 0075, 0064,

. . . . . . . . . . . . . . . . . . . . . .0062, 0089, 0073

ReplayTV . . . . . . . . . . . . . . . . . . . .0641, 0643

Ricoh . . . . . . . . . . . . . . . . . . . . . . . . . . . .0061

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . .0066

STS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0069

Samsung . . . . . . . . . . . . . . . . . . . .0072, 0267

Sanky . . . . . . . . . . . . . . . . . . . . . .0066, 0075

Sansui . . .0068, 0506, 0027, 0094, 0236, 0298

Sanyo . . . . . . . . . . . . .0074, 0073, 0131, 0267

Scott . . . . . . . . .0211, 0148, 0070, 0072, 0239

Sears . . . . . . . .0081, 0132, 0064, 0069, 0027,

. . . . . . . . . . . . . . . . .0062, 0073, 0074, 0131

Semp . . . . . . . . . . . . . . . . . . . . . . . . . . .0072

Sharp . . . . . . . . . . . . . . . . . . . . . . .0075, 0089

Shintom . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Shogun . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Singer . . . . . . . . . . . . . . . . . . . . . . . . . . .0099

Sony . . . . . . . . .0060, 0061, 0059, 0027, 0062

Sylvania . . . . . . . . . . .0062, 0108, 0027, 0070

Symphonic . . . . . . . . . . . . . . . . . . . . . . .0027

TMK . . . . . . . . . . . . . . . . . . . . . . .0235, 0267

Tatung . . . . . . . . . . . . . . . . . . . . . . . . . . .0068

Teac . . . . . . . . . . . . . . . . . . . . . . .0027, 0068

Technics . . . . . . . . . . . . . . . . . . . .0062, 0189

Teknika . . . . . . . . . . . . . . . .0027, 0062, 0064

Thomas . . . . . . . . . . . . . . . . . . . . . . . . . .0027

Tivo . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0645

Toshiba . . . . . . . . . . . . . . . .0072, 0239, 0070

Totevision . . . . . . . . . . . . . . . . . . .0064, 0267

Unitech . . . . . . . . . . . . . . . . . . . . . . . . . .0267

Vector . . . . . . . . . . . . . . . . . . . . . . . . . . .0072

Vector Research . . . . . . . . . . . . . . . . . . .0065

Video Concepts . . . . . . . . . . . . . . .0072, 0088

Videosonic . . . . . . . . . . . . . . . . . . . . . . . .0267

Wards . . .0062, 0087, 0089, 0027, 0074, 0239,

. . . . . . . .0267, 0069, 0075, 0099, 0108, 0176

White Westinghouse . . . . . . . . . . .0305, 0236

XR-1000 . . . . . . . . . . . . . . . .0099, 0027, 0062

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . . .0065

Zenith . . .0066, 0027, 0060, 0061, 0236, 0506

DVD Player

Harman/Kardon . . . . . . . . . . . . . . . . . . . .0609

JVC . . . . . . . . . . . . . . . . . . . . . . . .0650, 0585

Kenwood . . . . . . . . . . . . . . . . . . . . . . . . .0561

Magnavox . . . . . . . . . . . . . . . . . . . . . . . .0530

Mitsubishi . . . . . . . . . . . . . . . . . . . . . . . .0548

Onkyo . . . . . . . . . . . . . . . . . . . . . .0654, 0530

Panasonic . . . . . . . . . . . . . . . . . . .0517, 0659

Philips . . . . . . . . . . . . . . . . . . . . . .0530, 0566

Pioneer . . . . . . . . . . . . . . . .0598, 0552, 0659

Proscan . . . . . . . . . . . . . . . . . . . . . . . . . .0549

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . .0549

Samsung . . . . . . . . . . . . . . . . . . . . . . . . .0600

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . . .0657

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . . .0560

Technics . . . . . . . . . . . . . . . . . . . . . . . . .0517

Theta Digita . . . . . . . . . . . . . . . . . . . . . . .0598

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . . .0530

Yamaha . . . . . . . . . . . . . . . . . . . . .0517, 0572

Zenith . . . . . . . . . . . . . . . . . . . . . .0618, 0530

Page 24

VCR Mode

Press to place the remote in a mode to control a VCR.

VCR Prog.

Many VCRs have an automatic programming function. If your VCR has this function, the universal code set will assign it to this function.

VCR Timer

Press to set up a timer recording in the VCR on-screen menu.

• (Record)

Hold the • (Record) and Play buttons down to begin a VCR recording.

Stop ■

Press to stop the motion of a tape in playback, rewind, and fast forward.

Rewind



Press to rewind tapes. For some VCRs, the Stop button may have to be pressed first, then Rewind. In playback mode, hold down the button to view the picture moving rapidly in reverse.

USING THE TV REMOTE’S VCR-SPECIFIC BUTTONS

To use the TV remote control with a VCR, first make certain it is set to control your VCR using one of the programming methods explained on pages 22 and 23.

Press the VCR mode button. Be sure the button light that appears is green.

Point the top of the remote toward the front of the VCR (remote sensor window) when pressing the buttons.

Remember, the VCR buttons on the remote will not operate your VCR if those features are not found on your VCR remote control.

NOTE: All VCR functions (particularly Search, Rewind, and Fast Forward) will operate the same as with the remote control provided with the VCR.

ELPFUL HINT

Power

Press to turn the VCR on and off.

Cursor Up/Down/Left/Right

Press to navigate the VCR on-screen customer controls.

CH (Channel Selection)

Press to scan up or down through the VCR channel numbers.

Digits (Numbers)

Press to directly select VCR channels.

Pause II

Press to temporarily stop the tape during playback or recording. Press again to release Pause.

Play



Press to begin playback of a videotape.

Fast Forward 

Press to rapidly advance the tape. For some VCRs, you may need to press the Stop button first, then the Fast Forward button. In playback mode, hold the button down to view the picture moving rapidly in the forward direction.

ACITVE

CONTROL

SOUND PICTURE

ZOOM

Page 25

Using Active Control™ Plus+

Active Control™ Plus+ monitors incoming video signals from the Tuner, AV1, AV2, and Side inputs and adjusts key picture settings for best picture quality. In addition to measuring picture noise, this feature uses an ambient light sensor (located on the front of the TV) to adjust the picture settings according to viewing conditions in the room. When you choose to turn Active Control™ Plus+ on, you have the options Minimum, Medium, or Maximum. Maximum is the recommended option.

NOTE: Active Control™ Plus is not available for use with the AV3–AV6 input sources.

Press the Active Control™ button on the remote control to display the “Active Control” menu.

Press the Cursor Up or Down button to select one of the options: “Minimum,” “Medium,” “Maximum,” or “Off.”

Press the Cursor Right button to display the Active Control™ information window. You will notice how the values constantly change while Active Control™ is working.

NOTE: The Active Control™ values shown in the information window will based on the current AutoPicture™ setting: Personal, Rich, Natural, Soft, Multimedia, or Eco.

Press the Menu button to remove the on-screen menu from the TV screen.

Active Control™ Plus+ Settings Minimum—Sharpness, Dynamic Contrast,

and Noise Reduction are controlled automatically.

Medium—Sharpness, Color, Dynamic Contrast, and Noise Reduction are controlled automatically.

Maximum—Sharpness, Color, Dynamic Contrast, Noise Reduction, and Contrast are controlled automatically.

HELPFUL HINTS

Active Control

Off Minimum Medium Maximum

Active Control

Off Minimum Medium Maximum

INFO+

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Active Control : Minimum

Auto Picture

Dynamic Contrast

Sharpness

DNR

Personal

10 51 4

Page 26

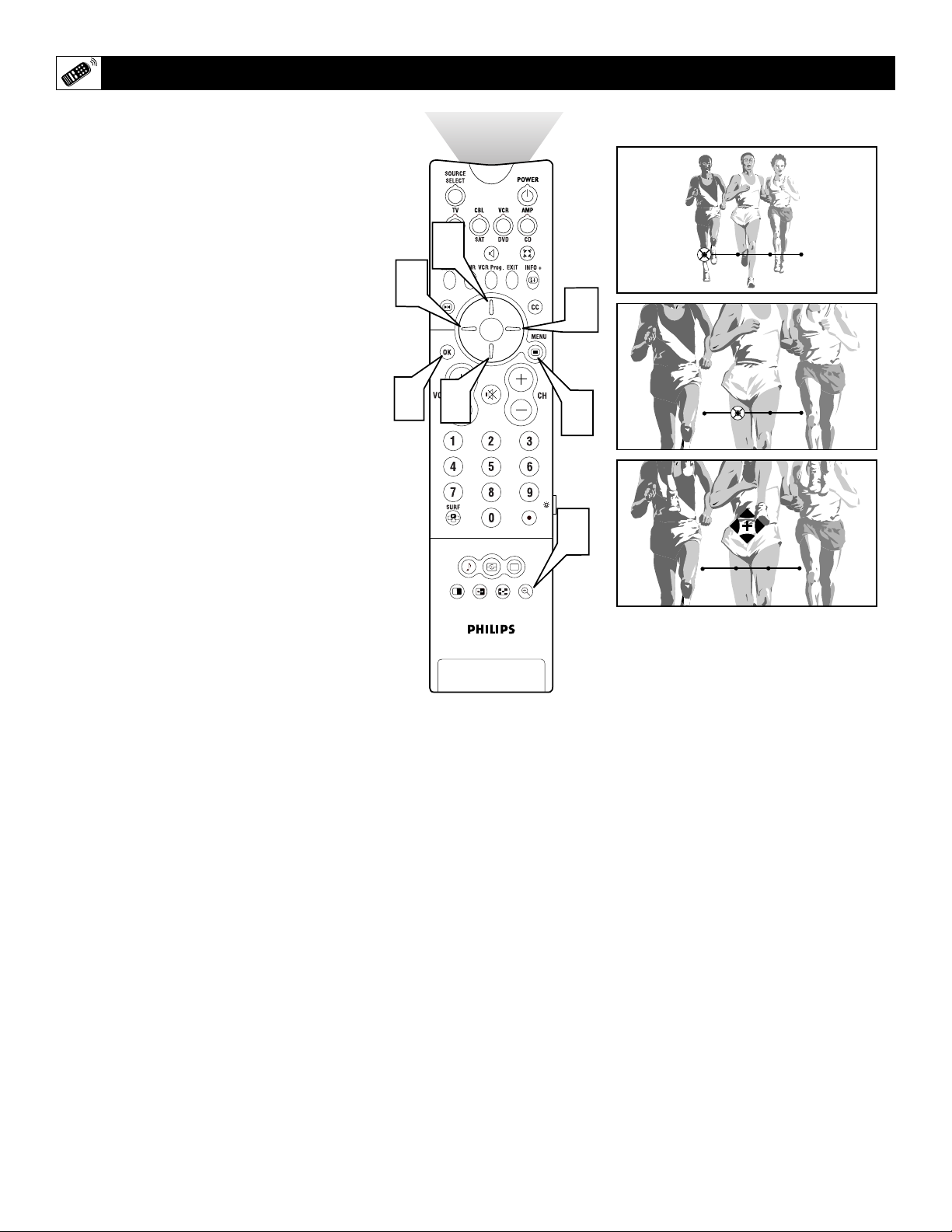

This television offers a unique feature called Zoom. The Zoom Controls allows you to magnify the on-screen picture by 4, 9, or 16 times. The magnified picture can also be panned with the cursor buttons.

Press the ZOOM button on the remote control to display the Zoom menu.

Press the OK button repeatedly to select one of the zoom options (4x, 9x, or 16x).

Press and hold any of the Cursor buttons to pan the picture up, down, left or right.

Press the Zoom button to remove the Zoom menu from the TV screen and return the picture to its normal size.

USING THE ZOOM CONTROL

Zoom 1x 4x 9x 16x

ACITVE

CONTROL

SOUND PICTURE

1 2

Zoom 1x 4x4x 9x 16x

ZOOM

Page 27

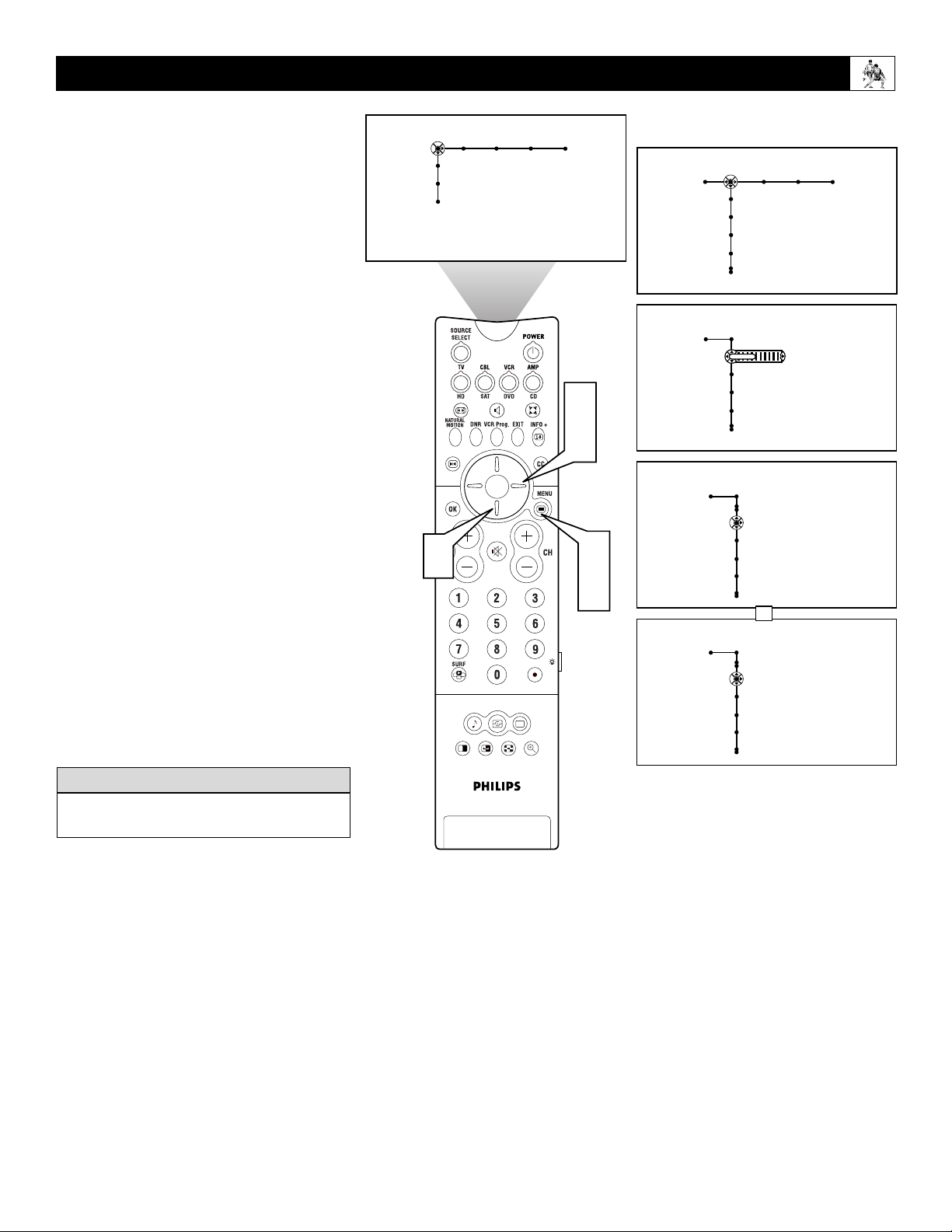

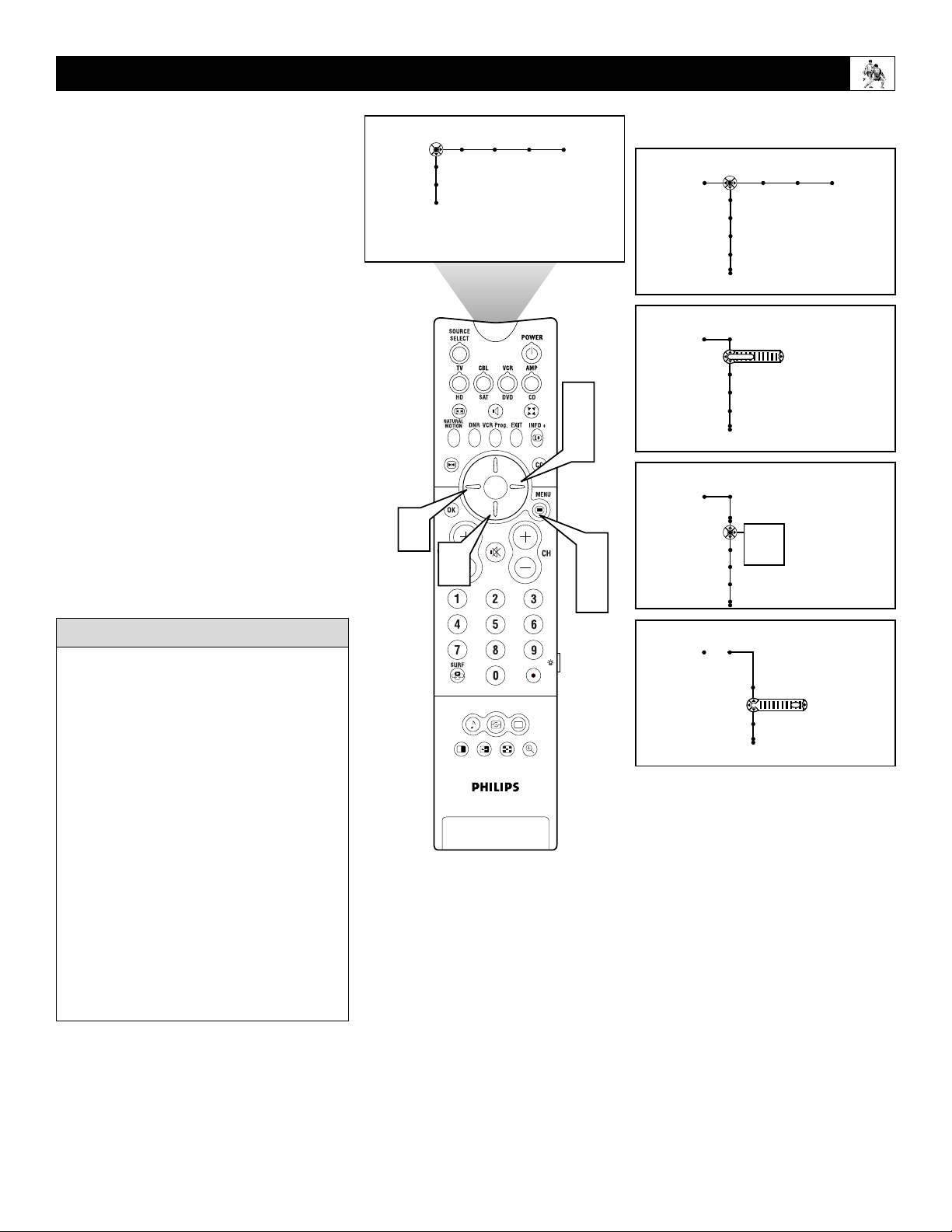

Adjusting/Setting the Picture Controls

To adjust your TV picture controls, select a channel and follow these steps.

Press the Menu button on the remote control to show the on-screen menu.

Press the Cursor Right button to select “Picture.”

Press the Cursor Down button to select one of the picture adjustments: “Contrast,” “Brightness,” “Color,” “Sharpness,” “Color temperature,” or “Tint.”

NOTE: The menu will show only four items at a time, so you will need to continue scrolling with the Cursor Down button to adjust the color temperature and tint.

Press the Cursor Left or Cursor Right button to adjust the selected control. Or, if color temperature is chosen, press the Cursor Right button to choose from the options “Normal,” “Warm,” or “Cool.”

Press the Menu button to remove the onscreen menu from the TV screen.

• Remember, when the bar scale is centered, the control settings are at normal, mid-range levels.

• The tint control is not available with the AV5 and AV6 input sources.

Picture Control Settings

• Brightness adds or subtracts light from the

darkest part of the picture.

• Color adds or eliminates color.

• Sharpness improves the detail in the pic-

ture.

• Tint adjusts the picture to obtain natural skin tones.

• Color temperature offers “Normal,” “Cool,” or “Warm” picture preferences.

• Normal keeps whites, white.

• Cool makes whites, bluish.

• Warm makes whites, reddish.

HELPFUL HINTS

Settings

Demo

Install

Picture Sound Features Channels

Contrast

Brightness

Color

Sharpness


Contrast

Brightness

Color

Sharpness

CONTROL

SOUND PICTURE

1 2

ACITVE

ZOOM

1 5

Color Temperature

Digital processing

Dynamic contrast

Color enhancement

Auto picture

Picture format


NORMAL WARM COOL

DNR


Tint

Page 28

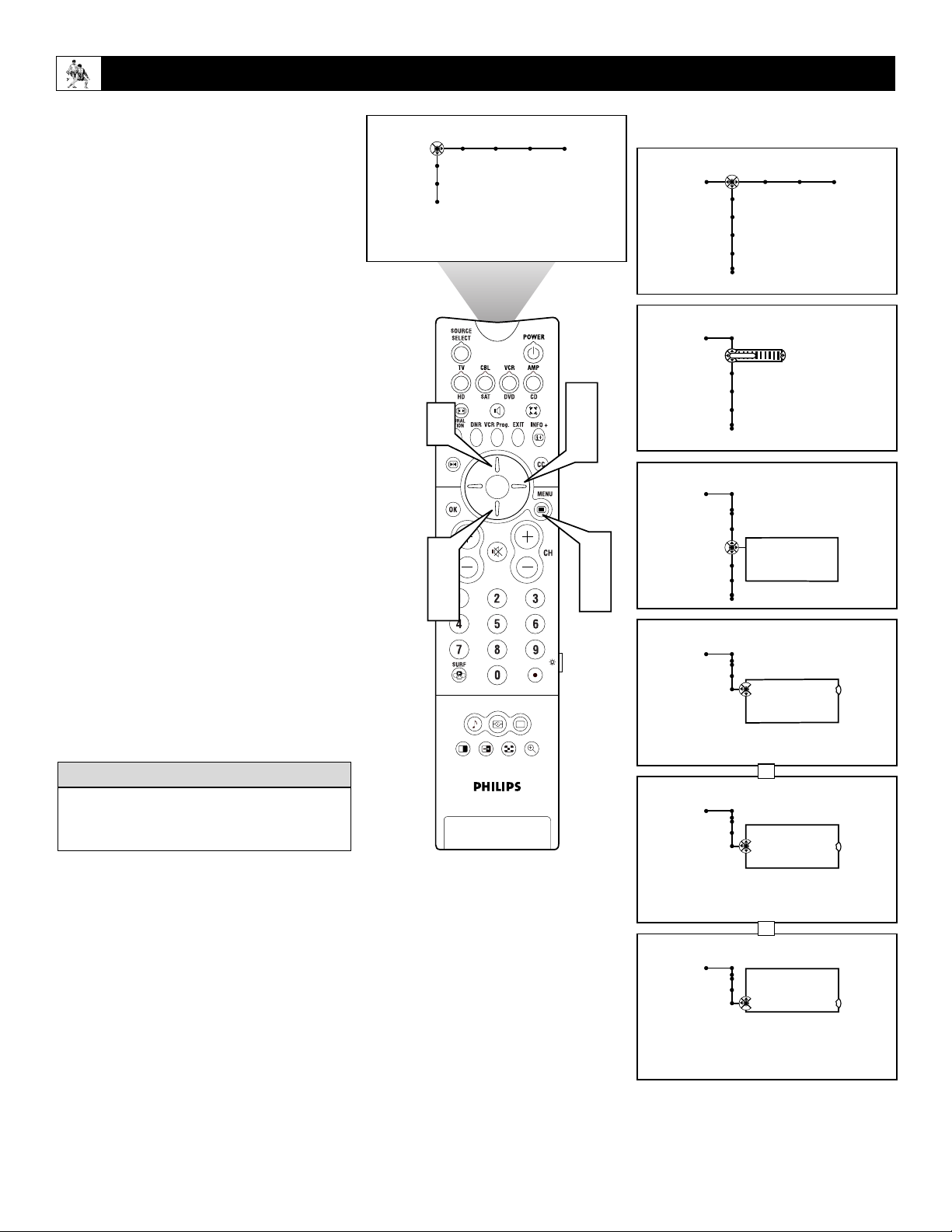

The Digital Processing control gives you a choice of different picture scanning modes.

Progressive Scan doubles the number of picture lines, eliminating line flicker and providing a jitter-free picture.

Movie Plus provides motion compensation to prevent bands of light (a halo effect) that may occur around moving images in the picture.

Digital Natural Motion offers a razor-sharp reproduction of movement and motion. Its unique and highly advanced processing calculates motion trajectories of moving picture elements. It corrects jerky movement from both studio programs or movie material.

Press the Menu button on the remote to display the on-screen menu

Press the Cursor Right button to select “Picture.”

Press the Cursor Down button repeatedly until the “Digital processing” control is selected.

Press the Cursor Right button to enter the digital processing submenu.

Press the Cursor Up or Down button to select Progressive Scan, Movie Plus, or Digital Natural Motion.

Press the Menu button to remove the on-screen menu from the TV screen.

Selecting a Digital Processing Option

The Digital Processing control is not available for use with the AV3, AV4, AV5, or AV6 input sources.

HELPFUL HINT

Settings

Demo

Install

Picture Sound Features Channels

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

2 4

1 6

Contrast

Brightness

Sharpness

Contrast

Brightness

Sharpness

Color Temperature

Digital processing

Dynamic contrast

Digital processing

Picture Sound Features Channels

Color


Color


Progressive Scan Movie Plus Digital Natural Motion

DNR


Progressive Scan Movie Plus Digital Natural Motion


Progressive Scan Movie Plus Digital Natural Motion

Digital processing


Progressive Scan Movie Plus Digital Natural Motion

Page 29

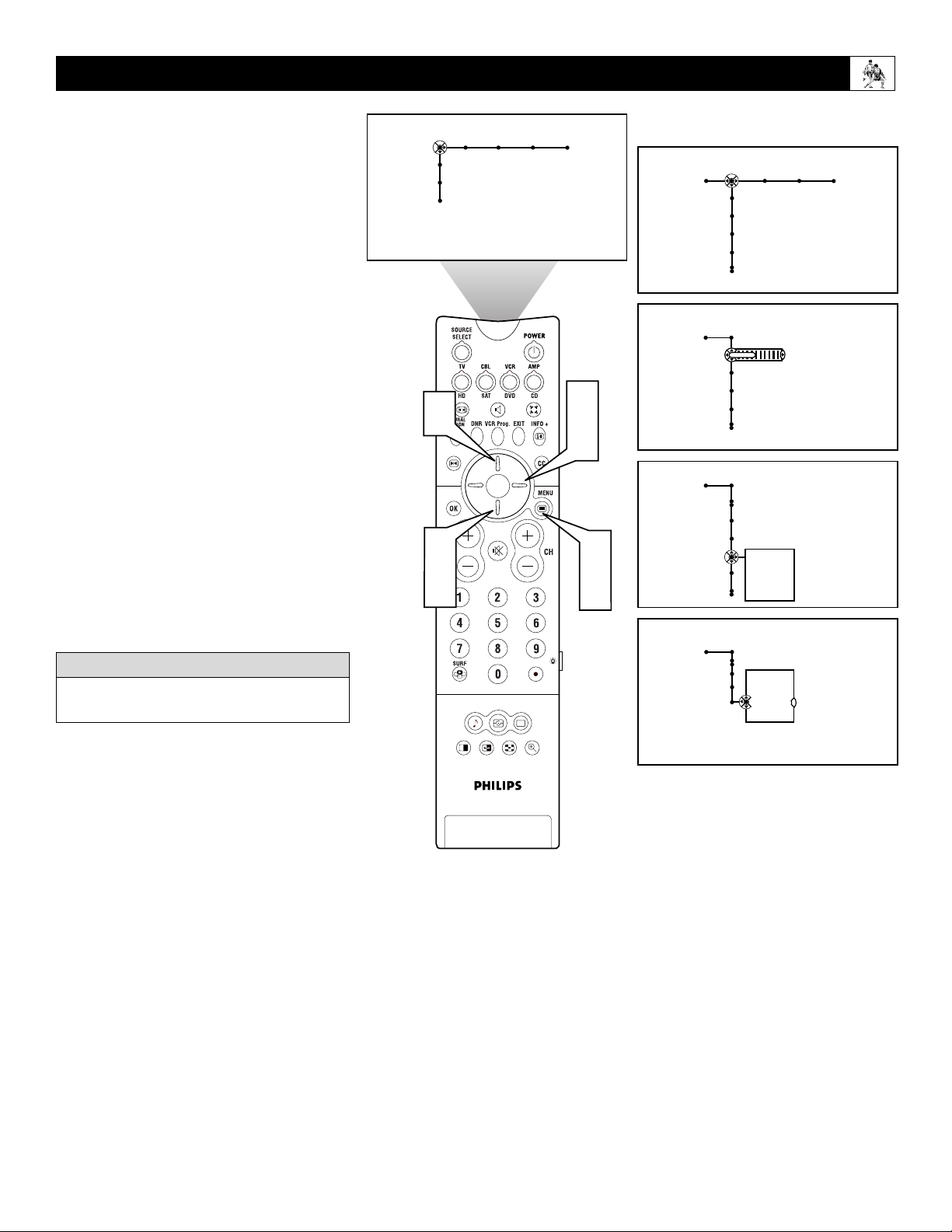

Selecting a Dynamic Contrast Option

The Dynamic Contrast control allows you to sharpen the picture quality by making dark portions of the picture darker and light portions of the picture more noticeable. Normally, you will probably want to select Medium. In certain circumstances, however, you may prefer Minimum or Maximum.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button to select Picture.

Press the Cursor Down button repeatedly until the “Dynamic contrast” control is selected.

Press the Cursor Right button to enter the Dynamic Contrast submenu.

Press the Cursor Up or Down button to select one of the Dynamic Contrast options: “Off,” “Minimum,” “Medium,” or “Maximum.”

Press the Menu button to remove the on-screen menu from the TV screen.

The Dynamic Contrast control is not available for use with input sources AV3–AV6.

HELPFUL HINT

Settings

Demo

Install

Picture Sound Features Channels

Contrast

Brightness

Color

Sharpness

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

2 4

1 6

Contrast

Brightness

Sharpness

Color Temperature

Digital processing

Dynamic contrast

Color


Off Minimum

DNR

Medium Maximum


Off Minimum Medium Maximum

Page 30

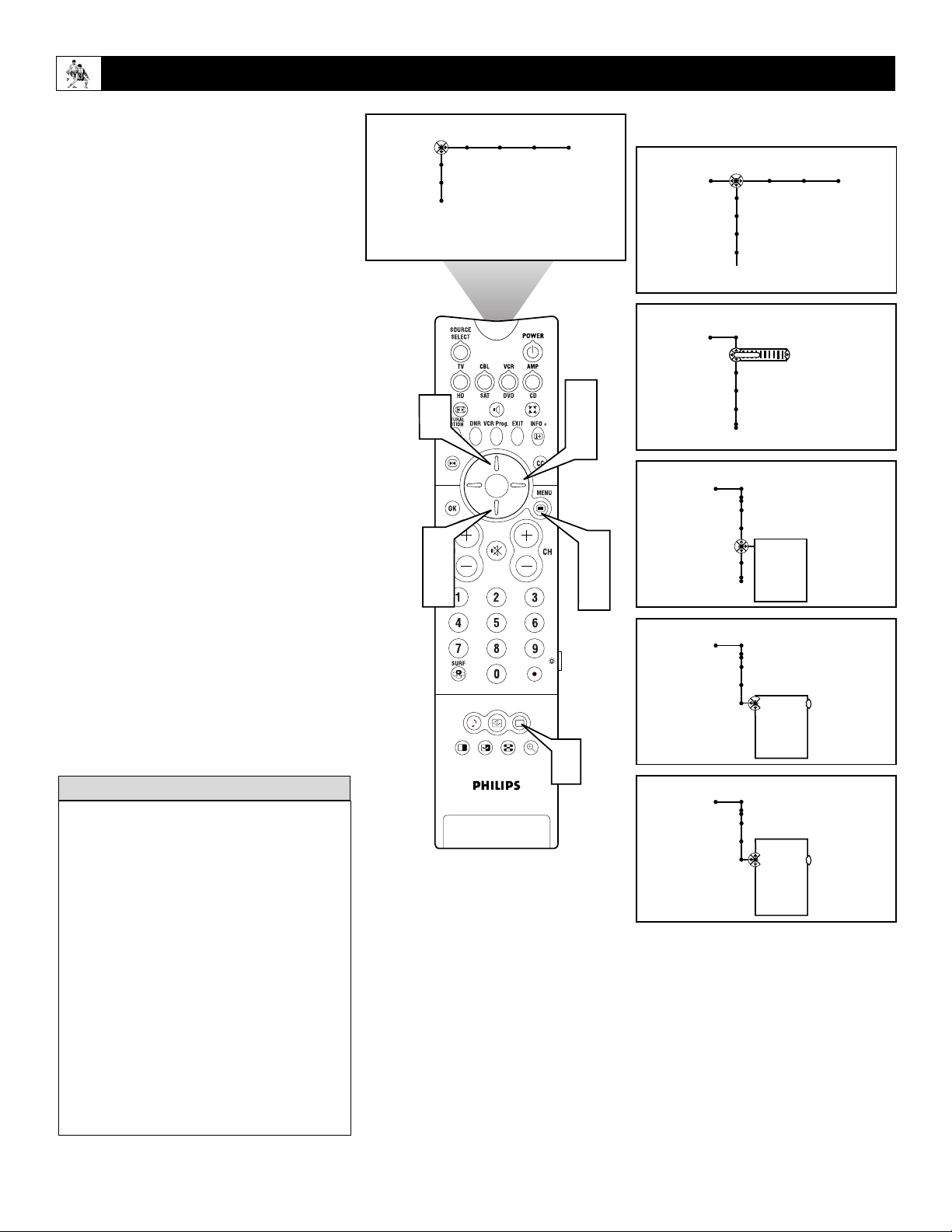

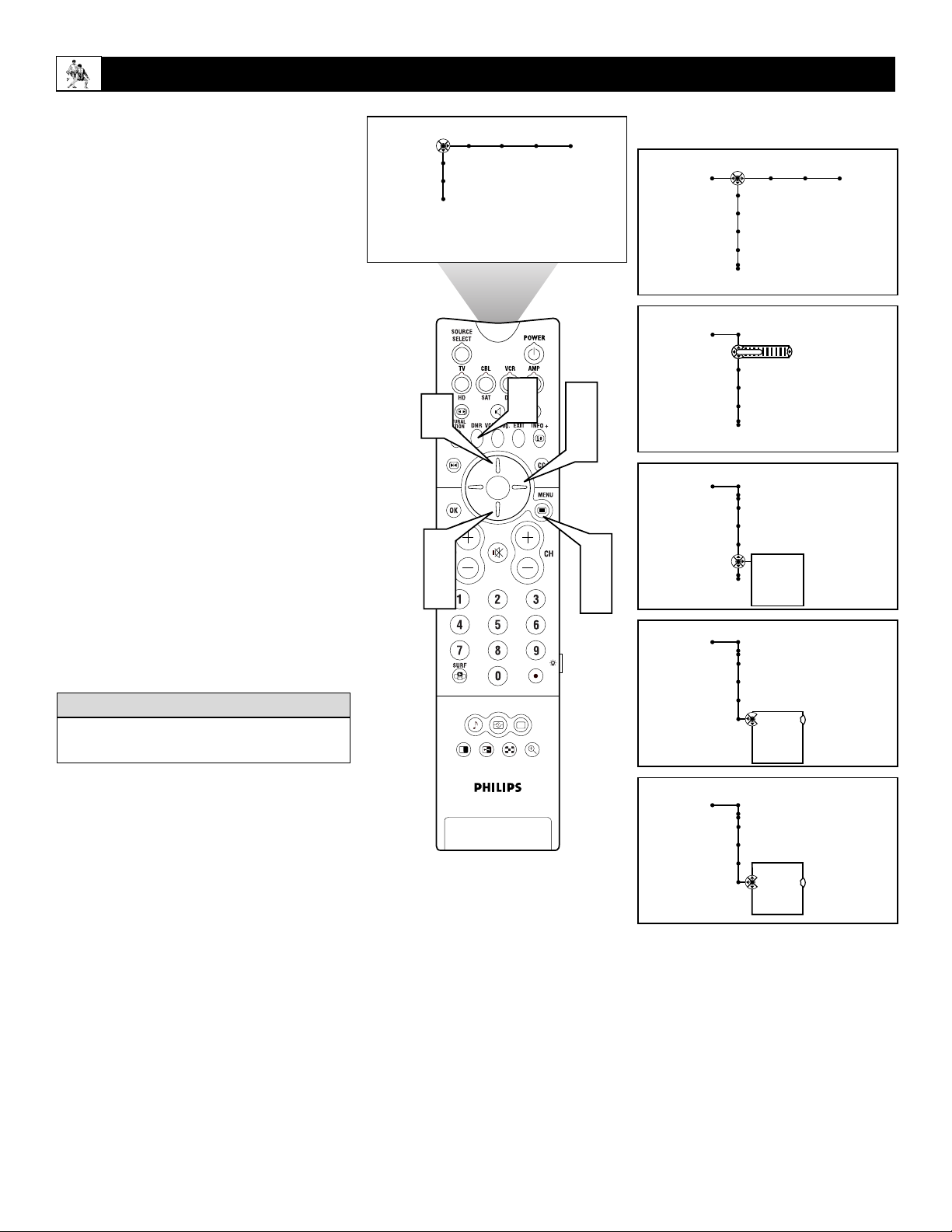

For many reasons, one of which is poor cable reception, the picture can sometimes appear slightly speckled (an indication of signal noise in the picture). The DNR (Dynamic Noise Reduction) control can help eliminate this type of interference and improve the quality of the picture.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button to select “Picture.”

Press the Cursor Down button repeatedly until the DNR control is selected.

Press the Cursor Right button to enter the DNR submenu.

Press the Cursor Up or Down button to select one of the DNR options: Off, Minimum, Medium, or Maximum.

Press the Menu button to remove the on-screen menu from the TV screen.

You can also access the DNR control by simply pressing the DNR button on the remote control.

Selecting a DNR (Dynamic Noise Reduction) Option

DNR is not available for use with input sources AV3–AV6.

HELPFUL HINT

Settings

Demo

Install

Picture Sound Features Channels

3 5

2 4

1 6

Contrast

Brightness

Sharpness

Contrast

Brightness

Sharpness

Color temperature

Digital processing

Dynamic contrast

Picture Sound Features Channels

Color


Color


DNR

Off Minimum Medium Maximum


ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Off

DNR

Minimum Medium Maximum


Off

DNR

Minimum Medium Maximum

Page 31

Turning on Color Enhancement

The Color Enhancement control can dramatically improve the picture quality of pictures with a high saturation of color. This control works in four ways: Dynamic Blue Stretch corrects the white colors toward a more bluish-colored white without changing the other colors. Improves the sharpness of the picture. Green Enhancement offers a more saturated green color in case of low green broadcasts, giving landscapes a fresher and brighter look. Color-dependent Sharpness improves the sharpness of the picture through the color information. Gives the picture more details, especially in red colors. Skin-tone Correction adjusts for over saturation of red that often appears in skin tones.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button to select “Picture.”

Press the Cursor Down button repeatedly until the “Color enhancement” control is selected.

Press the Cursor Right button to turn the color enhancement control on or off.

Press the Menu button to remove the on-screen menu from the TV screen.

The color enhancement control is not available for use with inputs AV3–AV6.

HELPFUL HINT

Settings

Demo

Install

Picture Sound Features Channels

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

2 4

1 5

Contrast

Brightness

Color

Sharpness

Contrast

Brightness

Color

Sharpness

Color enhancement

Auto picture

Picture format

Color enhancement

Auto picture

Picture format

Picture Sound Features Channels


On • Off

Tint


Off • On

Tint

Page 32

Selecting an AutoPicture™ Option

Whether you’re watching a movie or playing a video game, your TV has automatic video control settings to match your current program source or content. AutoPicture™ quickly resets your TV’s video controls for a number of different types of programs and viewing conditions that you may have in your home. The Personal AutoPicture™ settings are the same as the Picture control adjustments made within the on-screen menu.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button to select “Picture.”

Press the Cursor Down button repeatedly until the “Auto picture” control is selected.

Press the Cursor Right button to enter the AutoPicture™ submenu.

Press the Cursor Down or Up button to select one of the AutoPicture™ options: “Personal,” “Rich,” “Natural,” “Soft,” “Multimedia,” or “Eco.”

Press the Menu button to remove the on-screen menu from the TV screen.

You can also select AutoPicture™ settings by simply pressing the Picture button on the remote control.

AutoPicture™ Options

Personal settings are based on your personal choice or viewer control preferences.

Rich emphasizes very vibrant colors. (This is a good choice when AV mode is used in a brightly lighted room.)

Natural sets picture controls at midlevel settings for consistent viewing conditions.

Soft emphasizes warm colors. (This is a good choice for dimly lighted room. It gives a cinema-like effect when the light is switched off.)

Multimedia emphasizes soft colors. (This is a good choice for playing computer games, for example.)

ECO reduces brightness and contrast settings to low levels as a power consumption saving measure.

HELPFUL HINTS

NOTE: The Personal option shows the personal settings made in the Picture submenu. When you select one of the preset AutoPicture™ options, those settings become the Personal settings.

Settings

Demo

Install

Picture Sound Features Channels

Contrast

Brightness

Color

Sharpness


Contrast

Brightness

Color

Sharpness


Color enhancement

Tint

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

1 6

Auto picture

Picture format

Auto picture

Personal Rich Natural Soft

---


Personal Rich Natural Soft

---


Personal

Auto picture

Rich Natural Soft Multimedia Eco

Page 33

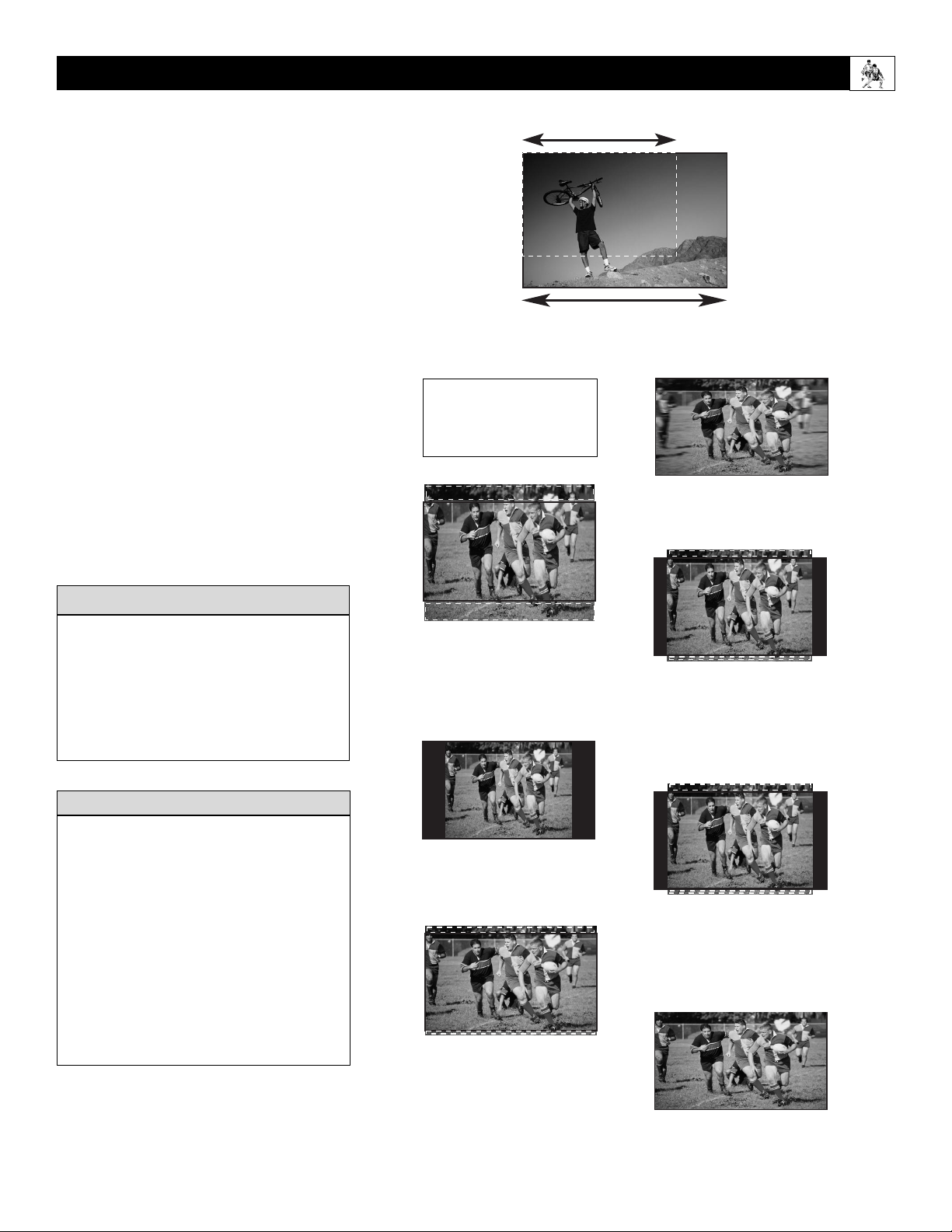

Selecting a Picture Format Option

Conventional 4:3 Screen Size

Your TV’s 16:9 Screen Size

Your TV’s wide screen (16:9 aspect ratio) delivers a home-cinema experience that isn’t possible with a conventional (4:3 aspect ratio) set. The 16:9 format of high-definition (HD) programs and other widescreen-format video sources appear more lifelike, dramatic, and theatrical. Black or gray bars are diminished or eliminated. As the television industry moves toward the high-definition format standard and more HD broadcasts become available, you will be able to see the broadcasts as they were intended—in 16:9 format.

For flexibility in viewing conventional 4:3format video sources on your TV’s wide screen, you have the options Automatic,” “Super zoom,” “Panoramic,” “4:3,” “Movie expand 14:9,” “Movie expand 16:9,” “16:9 subtitle,” or “Wide screen.”

NOTE: The Automatic option is disabled for AV3–AV6.

Page 36 explains how to select a picture format option.

Your TV’s Picture Format Options

Super zoom

Removes the black or gray bars on the sides of a 4:3-format picture with minimal distortion. Part of the top and bottom portions of the picture are excluded from the screen.

Panoramic

Evenly stretches the edges of the picture to fill the TV’s wide screen.

4:3

Displays a conventional 4:3 picture without change. Black or gray bars will show at the left and right sides.

Movie expand 14:9

Expands the picture to 14:9 movie aspect ratio. Part of the top and bottom portions of the picture are excluded from the screen. Black or gray bars are shown at the left and right sides.

Movie expand 16:9

Alters the image both horizontally (stretched) and vertically (cropped) to fill the TV’s wide screen. Part of the top and bottom portions of the picture will be excluded from the screen.

16:9 subtitle

Zooms the picture for a full view of subtitles or other information displayed at the bottom of the picture. Part of the top portion of the picture is excluded from the screen.

Wide screen

Evenly stretches the width of the picture to fill the screen.

The term aspect ratio refers to the relationship between the width and height of a TV screen. Historically, TV screen width has been 33 percent greater than its height, amounting to a 4:3 aspect ratio. The width of your widescreen TV, however, is nearly 80 percent greater than its height, which means its aspect ratio is 16:9. This screen corresponds well with the tendency of the eyes to feel more comfortable with fields of view and action planes that are horizontally oriented. The wide screen is also proportionally truer to the formats in which movies are filmed and presented in theaters.

HELPFUL HINT

HECK IT OUT

Automatic (not depicted)

Makes the picture fill the screen as much as possible when the presence of black or gray bars is detected.

Page 34

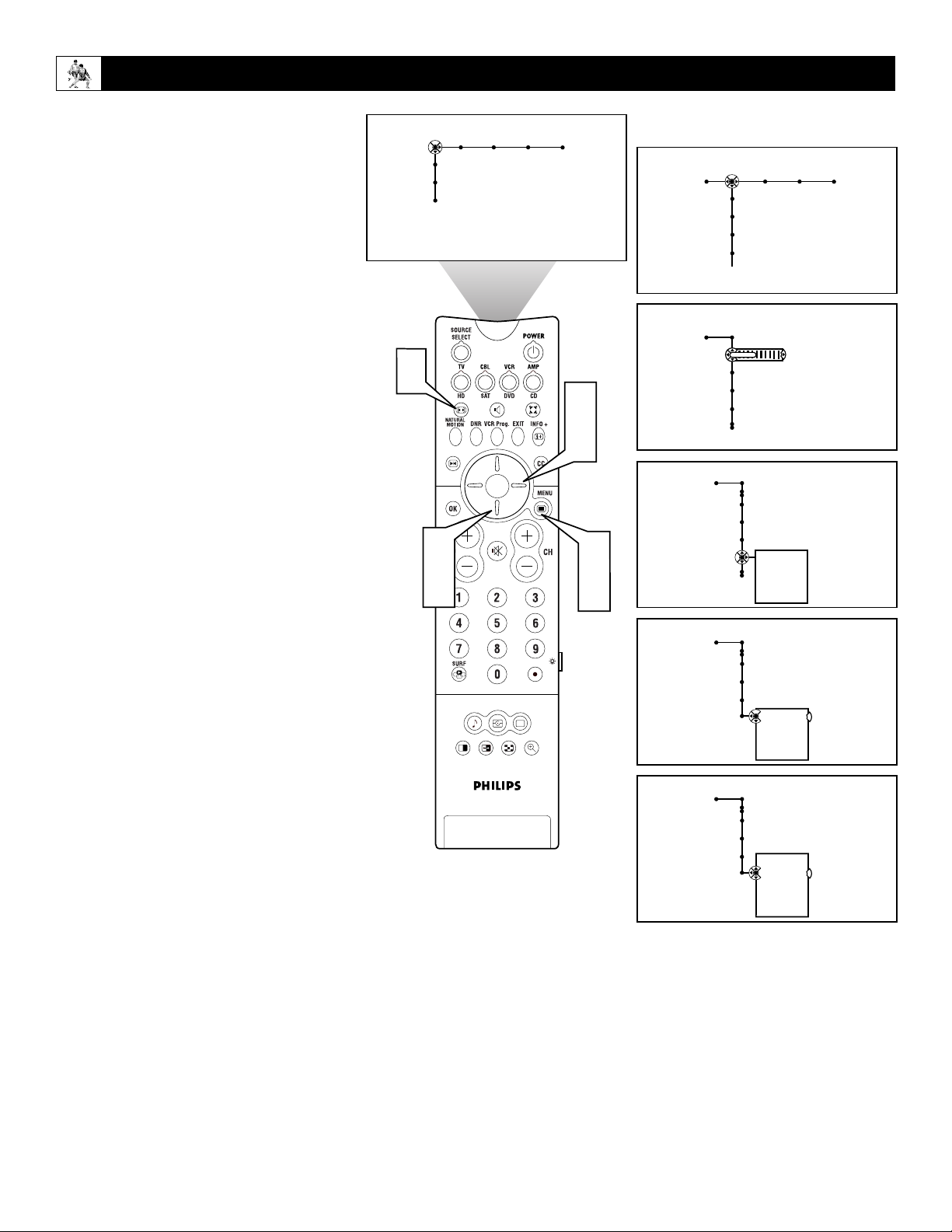

Choose a picture format size to match the type of program you’re watching. Select the normal 4:3 aspect ratio or a variety of widescreen formats.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button to select “Picture.”

Press the Cursor Down button repeatedly until the “Picture format” control is selected.

Press the Cursor Right button to enter the picture-format submenu.

Press the Cursor Down button to select one of the seven screen formats: “Automatic,” “Super zoom,” “Panoramic,” “4:3,” “Movie expand 14:9,” “Movie expand 16:9,” “16:9 subtitle,” or “Wide screen.” The Automatic option senses the presence of black or gray bars around the picture and zooms the picture to reduce or eliminate the bars.

NOTE: The Automatic option is not available with AV5 (computer) connections.

Press the Menu button to remove the on-screen menu from the TV screen.

You can also select a picture format simply by pressing the Picture Format button on the remote control.

Selecting a Picture Format Option

Settings

Demo

Install

Picture Sound Features Channels

Contrast

Brightness

Color

Sharpness

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

2 4

1 6

Contrast

Brightness

Color

Sharpness

Color enhancement

Auto picture

Picture format


Tint

Automatic Super zoom Panoramic

---


Automatic Super zoom Panoramic

---


Picture format

Automatic Super zoom Panoramic 4:3

---

Page 35

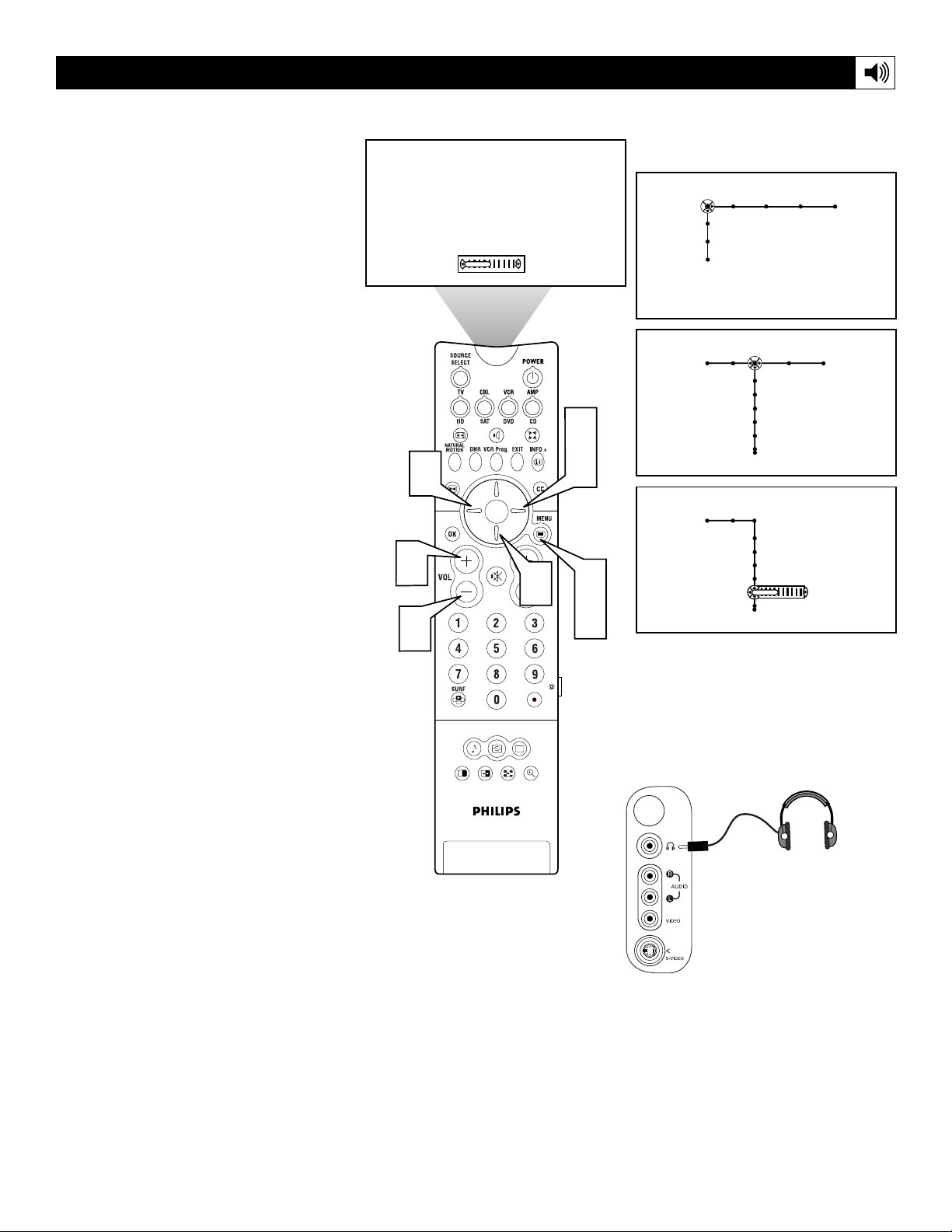

Adjusting the TV and Headphone Volume

Television Volume

Headphone Volume

Plug your headphones into the headphone (3.5mm) output jack in the TV’s Side panel.

Besides the normal volume level control, your TV also has a headphone volume control. This control can be adjusted when using headphones without having to adjust the main volume control for the TV cabinet speakers.

To control the television volume:

Press the Volume + button on the remote control to increase the television volume level.

Press the Volume – button on the remote control to decrease the television volume level.

NOTES:

• The Volume scroll will not appear on screen if the on-screen display is set to “Minimum.” See page 63 for details.

• The Volume level can also be adjusted within the on-screen menu. Select the Sound menu and cursor down to the Volume control. Use the Cursor Left and Right buttons to adjust.

To control the Headphone volume:

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button to select “Sound.”

Press the Cursor Down button repeatedly until the “Headphone volume” control is selected.

Press the Cursor Right button to increase the headphone volume level.

Press the Cursor Left button to decrease the headphone volume level.

Press the Menu button on the remote control to remove the on-screen menu from the TV screen.

4 6

3 8

Picture Sound Features Channels

Settings

Demo

Install

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume

Sound

Volume

Equalizer

Balance

Loudness

Headphone volume

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 36

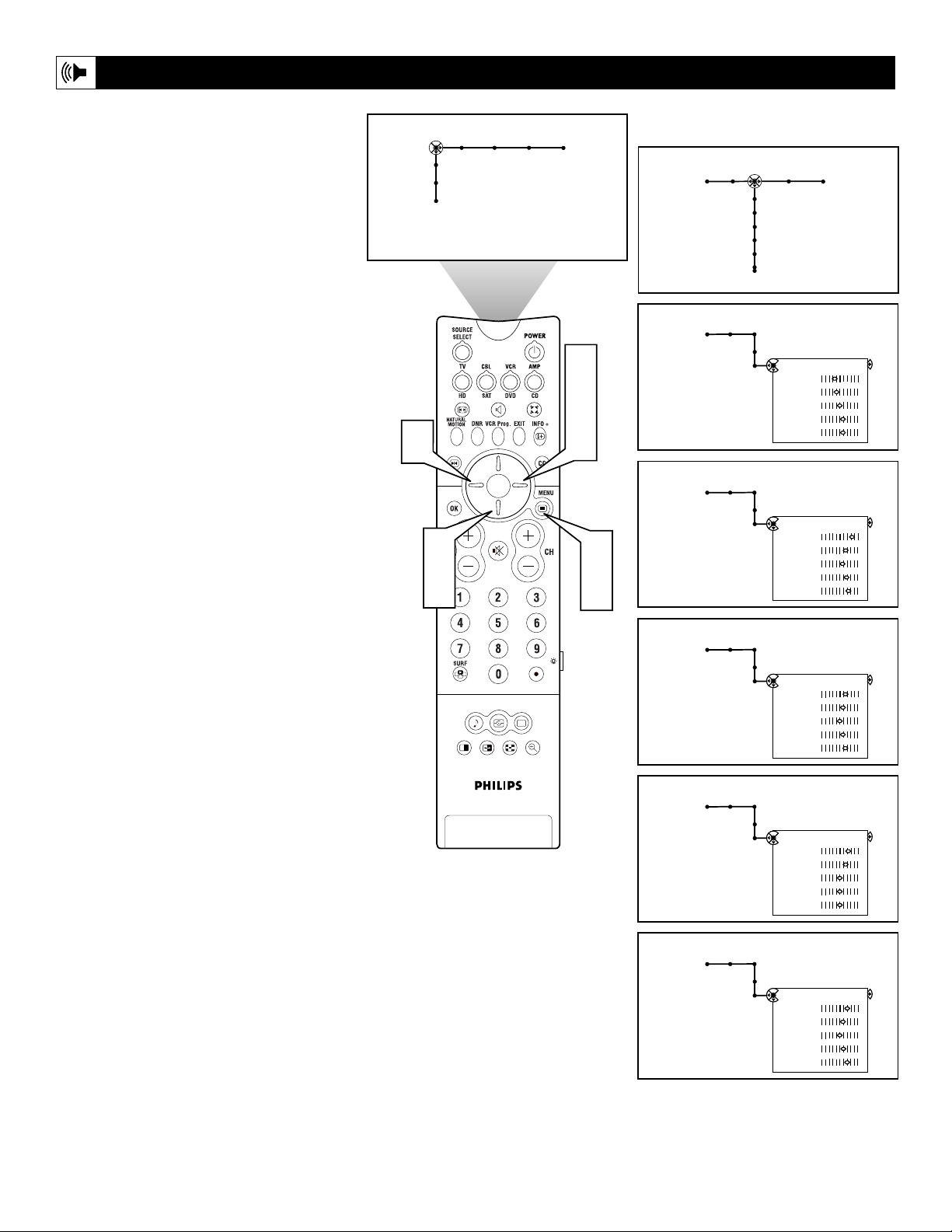

Selecting a TV Equalizer Option

The Equalizer control will change the dynamics of the sound being heard through the TV. You can adjust the settings for the Personal Equalizer option. The other options have been preset at the factory and cannot be changed.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Sound.”

Press the Cursor Down button repeatedly until the “Equalizer” control is selected.

Press the Cursor Right button to enter the equalizer submenu. Continue to press the Cursor Right button to select one of the options: “Speech,” “Music,” “Movie,” “Multimedia,” or “Personal.”

If you select the Personal option and want to make adjustments, press the Cursor Down button to select an adjustment, then press the Cursor Left or Right button to adjust the slider control to the desired position.

NOTE: If you attempt to change the settings for the factory preset options Speech, Music, Movie, or Multimedia, the Equalizer control will default to the Personal option.

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

2 4 5

1 6

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume

Sound

Equalizer

Sound

Equalizer

Sound

Equalizer

Sound

Auto Sound: Speech 120 Hz 500 Hz

1.5 kHz 5 kHz 10 kHz

Auto Sound: Music 120 Hz 500 Hz

1.5 kHz 5 kHz 10 kHz

Auto Sound: Movie 120 Hz 500 Hz

1.5 kHz 5 kHz 10 kHz

Equalizer

Sound

Equalizer

Auto Sound: Multimedia 120 Hz 500 Hz

1.5 kHz 5 kHz 10 kHz

Auto Sound: Personal 120 Hz 500 Hz

1.5 kHz 5 kHz 10 kHz

Page 37

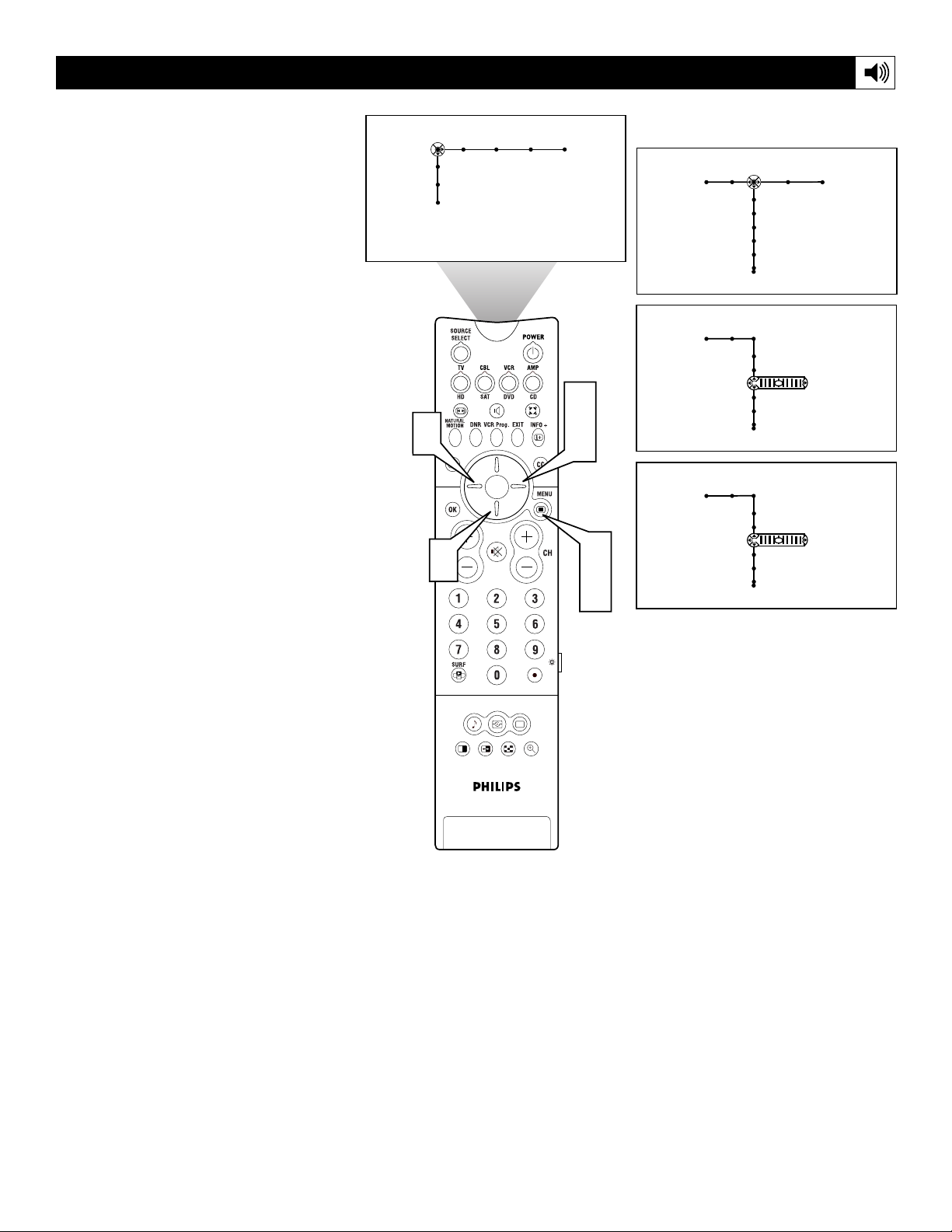

Adjusting TV Speaker Balance

You can adjust the balance of the TV speaker sound.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Sound.”

Press the Cursor Down button repeatedly until the “Balance” control is selected.

Press the Cursor Right or Left button to adjust speaker balance.

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

2 4

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume

SoundAV1

Volume

Equalizer

Balance

Loudness

Headphone volume

SoundAV1

Volume

Equalizer

Balance

Loudness

Headphone volume

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 38

Turning Loudness on or off

Turning the Loudness control on provides a volume-dependent bass-boost effect to the speakers. Follow the steps here to turn the Loudness control on.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Sound.”

Press the Cursor Down button repeatedly until the “Loudness” control is selected.

Press the Cursor Right to toggle loudness on or off.

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

2 4

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume

Sound

Volume

Equalizer

Balance

Loudness

Headphone volume

Sound

Volume

Equalizer

Balance

Loudness

Headphone volume

Off • On

On • Off

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 39

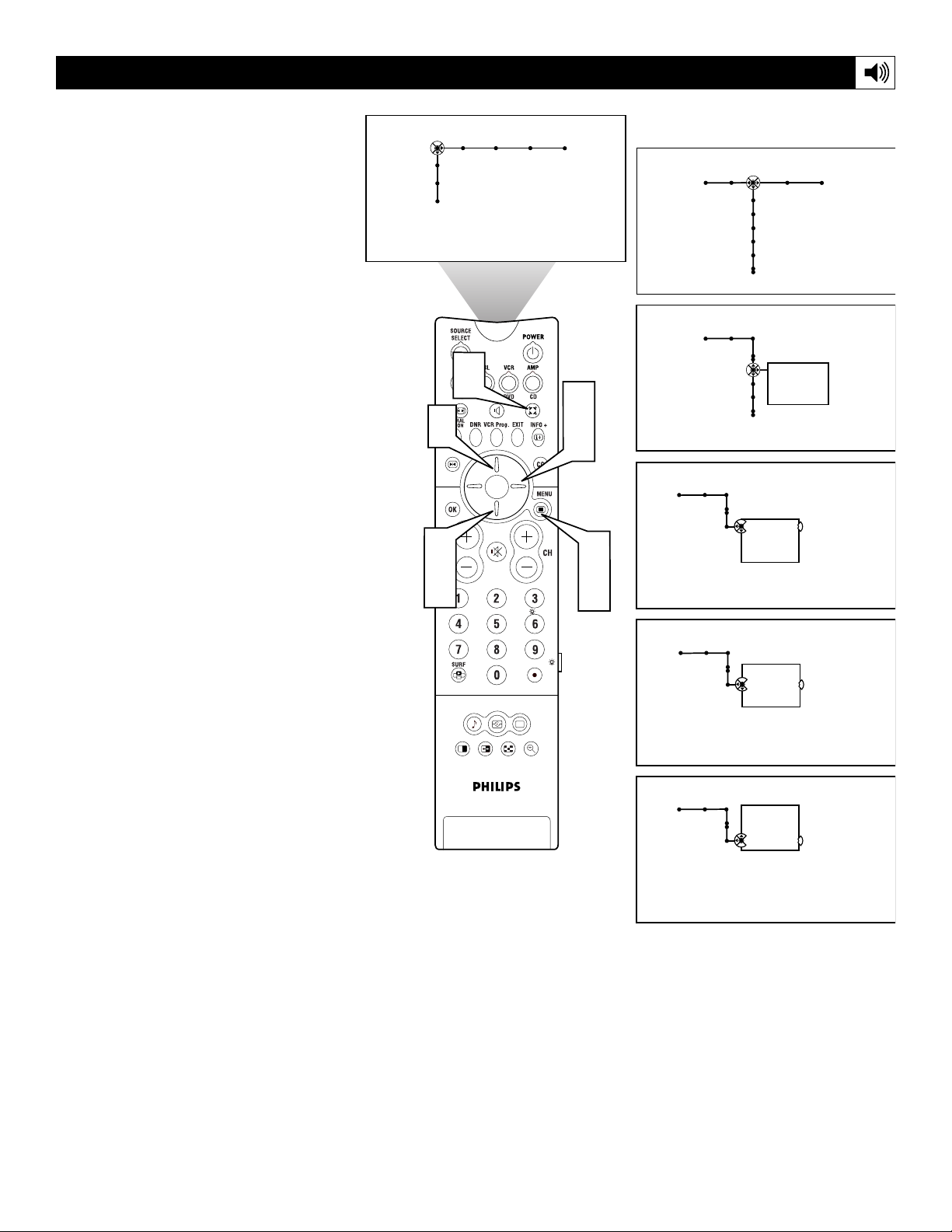

Selecting a Sound Mode Option

The Sound Mode control allows you to place the TV sound into either Incredible Surround™ or Dolby* Virtual mode. The steps below explain how to select one of those options.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Sound.”

Press the Cursor Down button repeatedly until the “Sound mode” control is selected.

Press the Cursor Right button to enter the sound mode submenu.

Press the Cursor Up or Down button to select one of modes, either “Incr. Surround” or “Dolby Virtual.”

Incredible Surround enhances stereo programs by making the sound broader and fuller.

Dolby Virtual creates a virtualized surround-sound experience from two speakers using Dolby Pro Logic*. Dolby Virtual retains all the original multichannel audio information and provides the listener with the sensation of being surrounded by additional speakers.

When finished, press the Menu button to remove the on-screen menu from the TV screen.

You can also select a sound mode option simply by pressing the Surround button on the remote control.

*Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.

Settings

Demo

Install

Picture Sound Features Channels

3 5

ACITVE

CONTROL

SOUND PICTURE

2 4

1 6

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume

Sound

Sound mode

Alt Audio

Mono/Stereo

Sound

Sound mode

Sound

Sound mode

Off Incr. Surround Dolby Virtual

1 2

ZOOM

Sound mode

Sound

Off Incr. Surround Dolby Virtual

Page 40

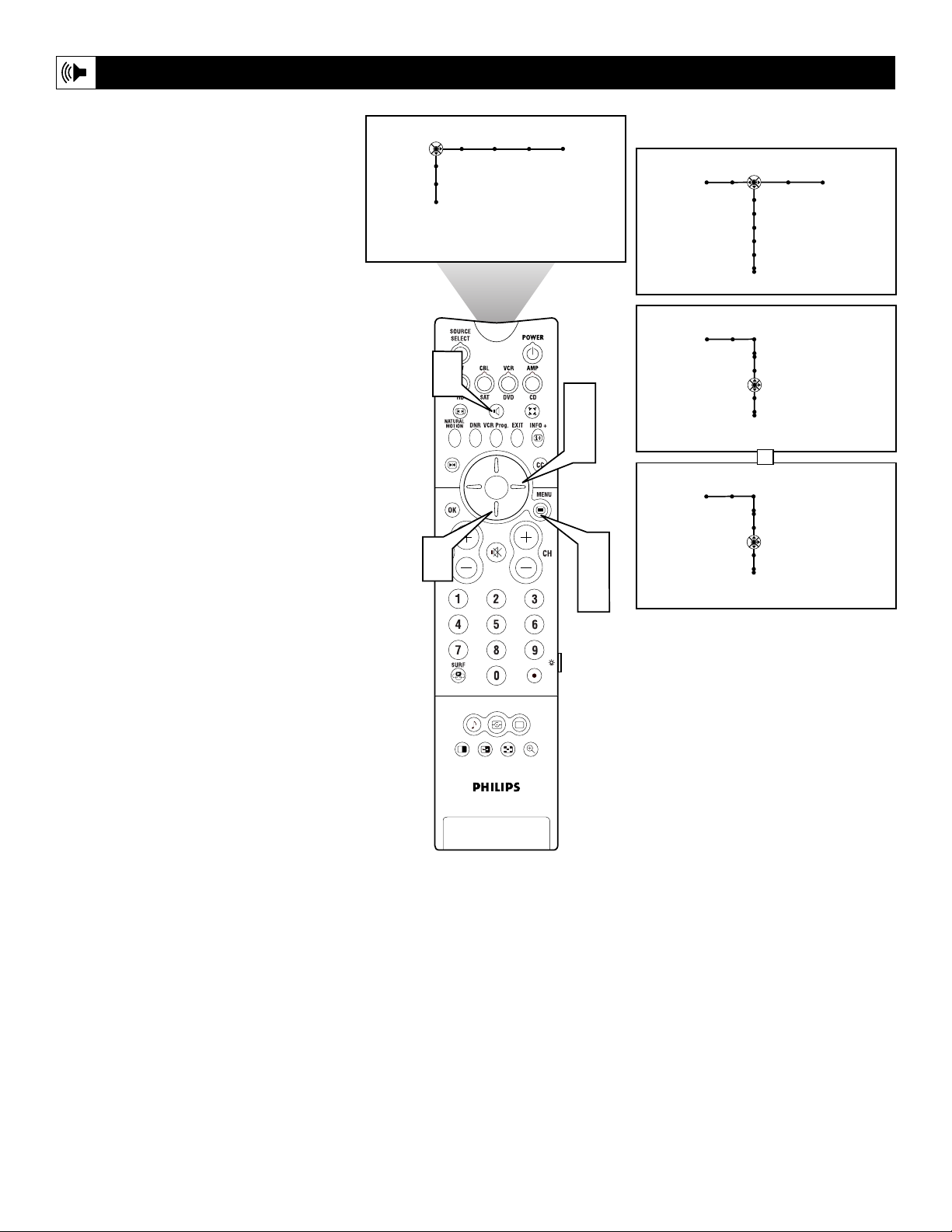

Using Alternate Audio (SAP)

For broadcasts that contain SAP (Secondary Audio Program) information, the Alt Audio Control can be set to SAP. Sent as a third audio channel, SAP is an additional part of the stereo broadcast system that can be heard apart from the current TV program sound. TV stations are free to use SAP for any number of purposes.

If an SAP signal is not present with a selected program, the “Alt Audio” option in the TV’s on-screen menu cannot be selected and will appear grayed out.

If SAP is available on the tuned channel:

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Sound.”

Press the Cursor Down button repeatedly until the Alt Audio control is selected.

Press the Cursor Right button to toggle and select either “Main” or “SAP.”

Press the Menu button to remove the on-screen menu from the TV screen.

You can also select SAP by simply pressing the Alternate Audio button on the remote control.

Settings

Demo

Install

Picture Sound Features Channels

2 4

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume

Sound

Sound mode

Alt audio

Mono/Stereo

Sound

Sound mode

Alt audio

Mono/Stereo

Main • SAP

SAP • Main

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 41

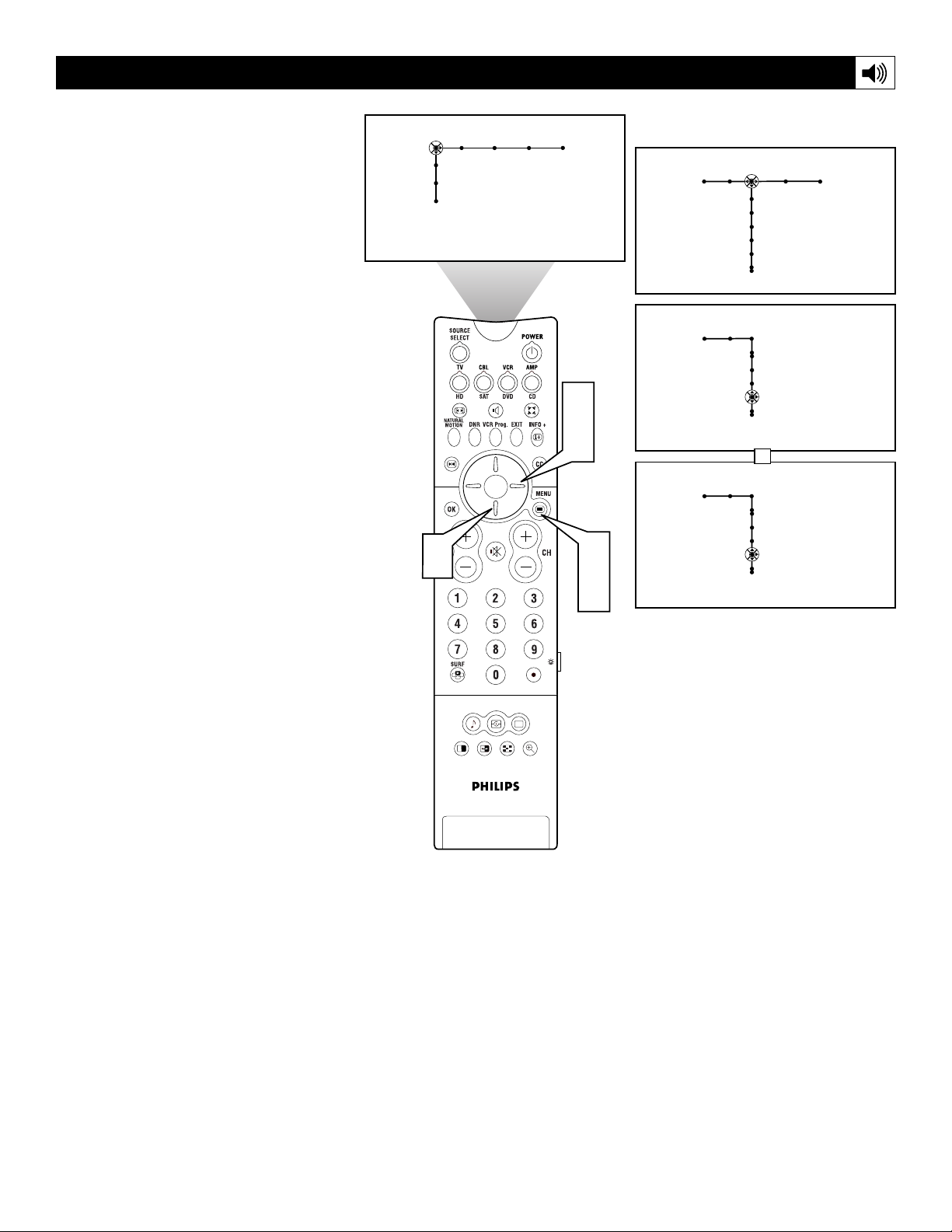

Setting the TV for Stereo Programming

Your TV can output stereo sound. It has both an amplifier and twin speakers through which the stereo sound can be heard.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Sound.”

Press the Cursor Down button repeatedly until the “Mono/Stereo” control is selected.

Press the Cursor Right button to toggle and select either Mono or Stereo.

NOTE: If the signal being received is in mono, it cannot be set to Stereo. If, however, the signal is being received in Stereo, the TV can be placed in the Mono mode. (If you select the Mono option, remember to return the Mono/Stereo control back to Stereo when using the TV with stereo programming.)

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

2 4

1 5

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume

Sound

Sound mode

Alt audio

Mono/Stereo

Sound

Sound mode

Alt audio

Mono/Stereo

Mono • Stereo

Stereo • Mono

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 42

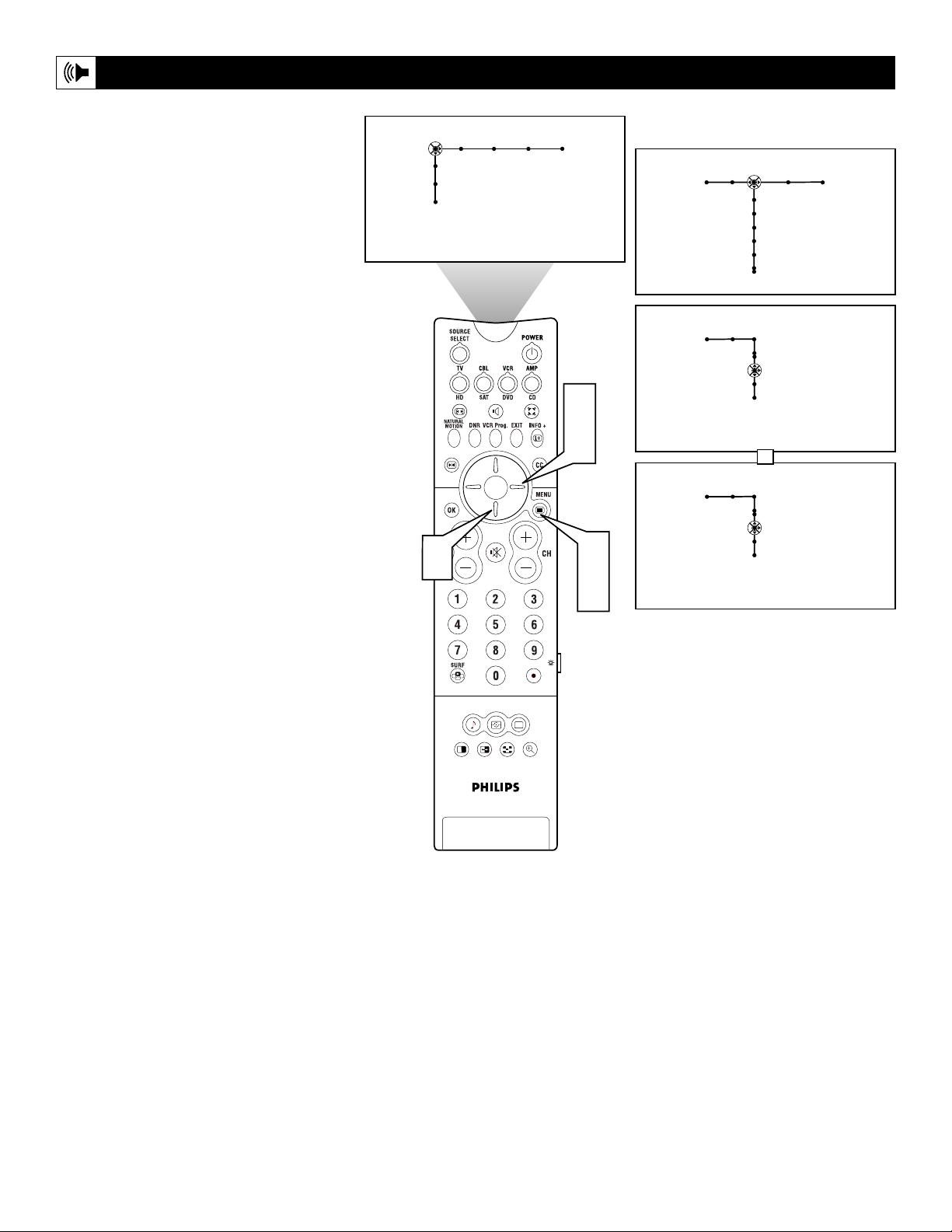

Turning the AVL (Audio Volume Leveler) on or off

You may have noticed the peaks and valleys of sound that occur between program changes or at commercial breaks. The volume levels often vary considerably. By turning on the AVL (Audio Volume Leveler) control, you can make your TV produce a more consistent volume level. Follow the steps below to turn AVL on.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Sound.”

Press the Cursor Down button repeatedly until AVL is highlighted.

Press the Cursor Right button to toggle the control on or off.

Press the Menu button to remove the menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

2 4

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume

Sound

AVL

Delta volume

Auto sound

Sound

AVL

Delta volume

Auto sound

Off • On

On • Off

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 43

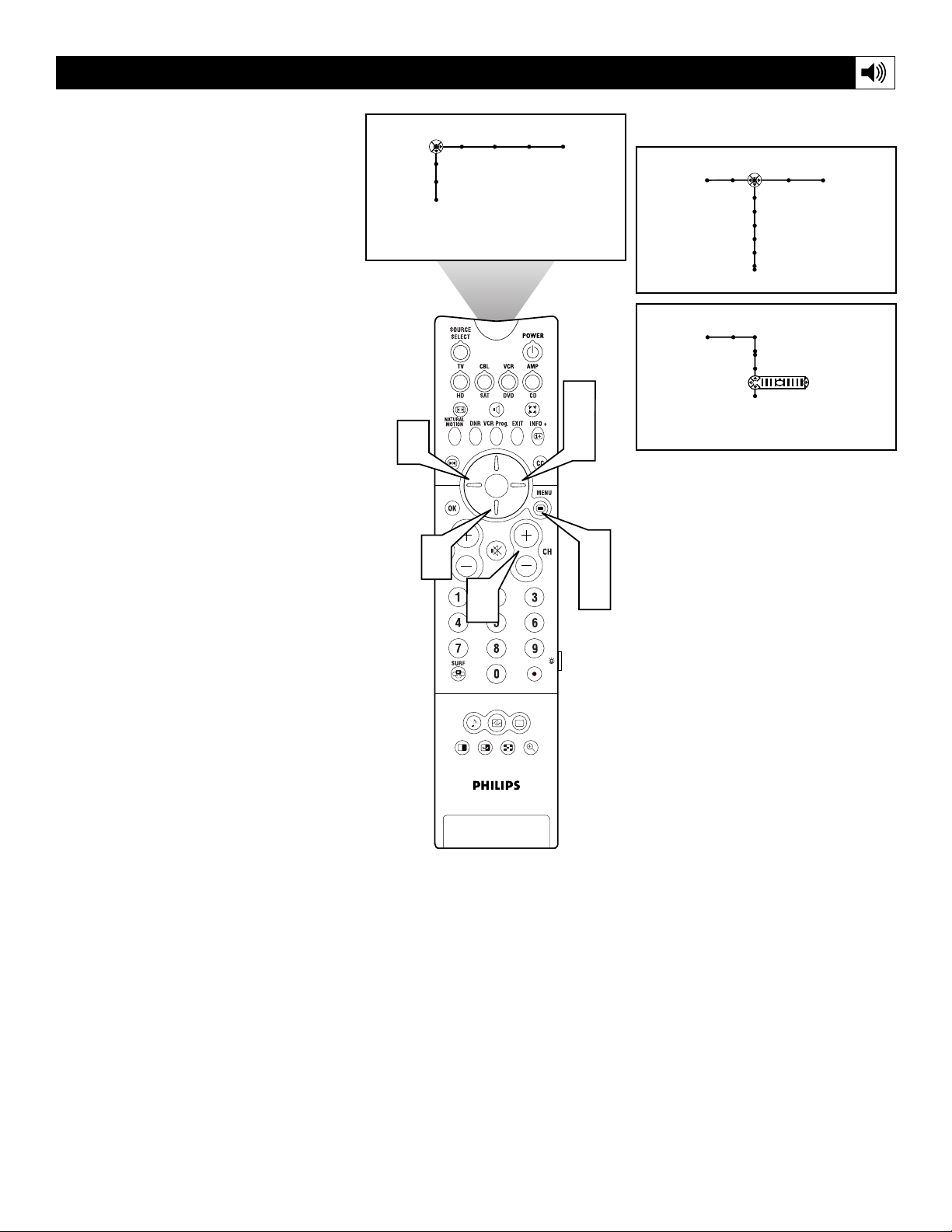

Adjusting the Delta Volume

The volume level coming from channel to channel and broadcast to broadcast can vary widely. The Delta Volume control will allow the volume to be increased for channels with weaker audio signals while allowing other channels with stronger signals to be reduced. When the Delta Volume control is adjusted or changed, it will affect only the currently tuned channel. The TV will store the setting for that channel in its memory and remember it when the channel is tuned again.

NOTE: The Delta Volume control does not work with the headphones.

Press the CH + or – button on the remote control to tune to a specific channel.

Press the Menu button on the remote control to show the on-screen menu.

Press the Cursor Right button repeatedly to select “Sound.”

Press the Cursor Down button repeatedly until “Delta volume” is highlighted.

Press the Cursor Left button to decrease the overall volume, or press the Cursor Right button to increase the overall volume for the tuned channel.

Repeat the steps above to adjust the delta volume for additional channels.

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

3 5

2 6

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume

Sound

AVL

Delta volume

Auto sound

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 44

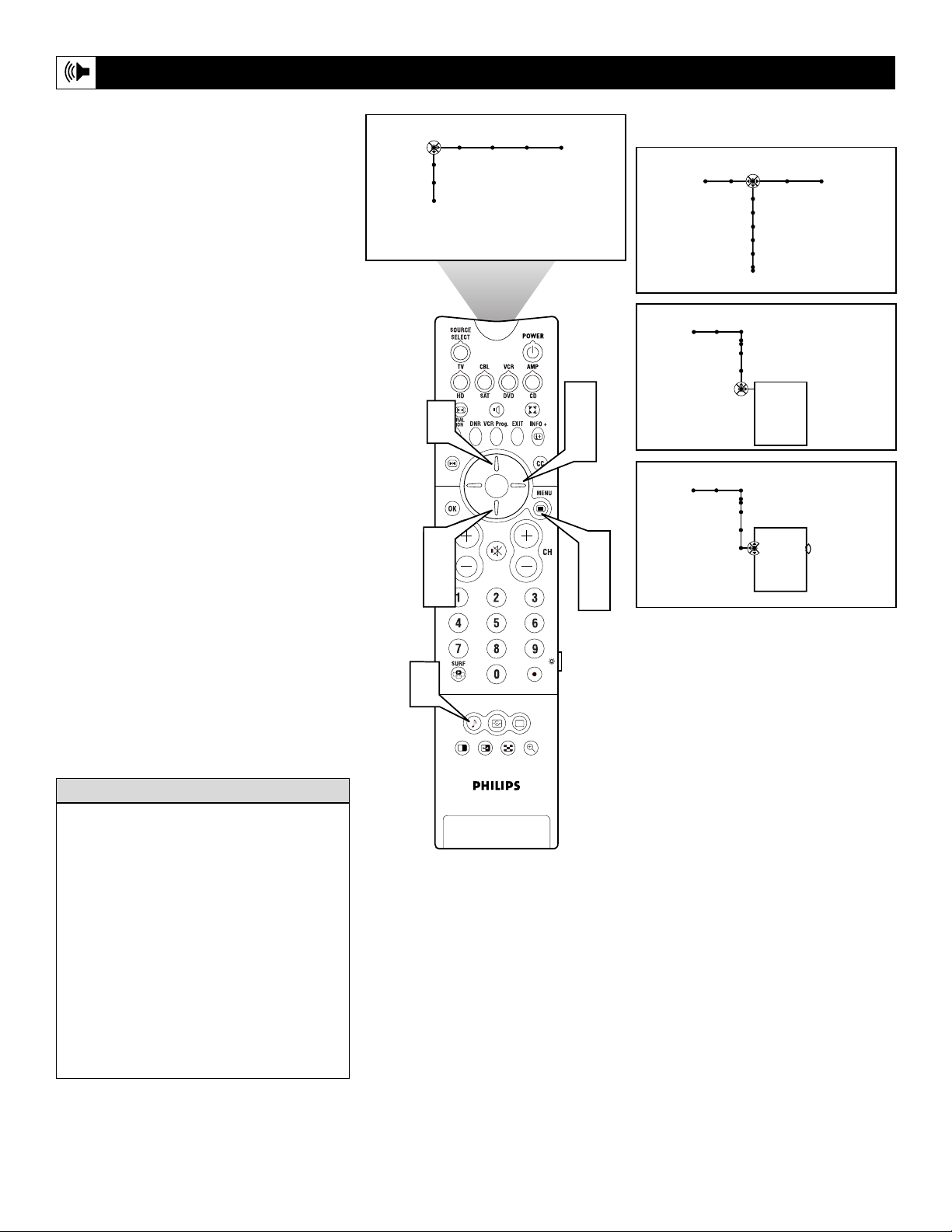

AutoSound™ Options

Speech brings voices to the forefront and emphasizes them. Moves music to the background.

Music emphasizes music over voices.

Movies provides a balance between voices

and music.

Multimedia provides sound balance best suited for gaming consoles or interactive media.

Personal presents the TV’s sound according to the settings you make within the sound menu.

Selecting an AutoSound™ Option

HELPFUL HINTS

AutoSound™ allows you to select from four factory-set controls and a personal control. The personal control consists of settings you adjust through the on-screen Sound menu. The four factory-set controls—Speech, Music, Movie, or Multimedia—enable you to tailor the TV sound to enhance the particular program you are watching. Follow these steps to select any of the options.

Press the Menu button on the remote to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Sound.”

Press the Cursor Down button repeatedly until the “Auto sound” control is selected.

Press the Cursor Right button to enter the AutoSound™ submenu.

Press the Cursor Up or Down button to select an option: “Speech,” “Music,” “Movies,” “Multimedia,” or “Personal.”

Press the Menu button to remove the on-screen menu from the TV screen.

You can also select AutoSound™ settings by simply pressing the Sound button on the remote control.

NOTE: The Personal option shows the personal settings made in the Sound submenu. When you select one of the preset AutoSound™ options, those settings become the Personal settings.

Settings

Demo

Install

Picture Sound Features Channels

3 5

2 4

1 6

Sound Features Channels

Volume

Equalizer

Balance

Loudness

Headphone volume


AVL

Delta volume

Auto sound


Auto sound

Personal Speech Music Movies Multimedia

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 45

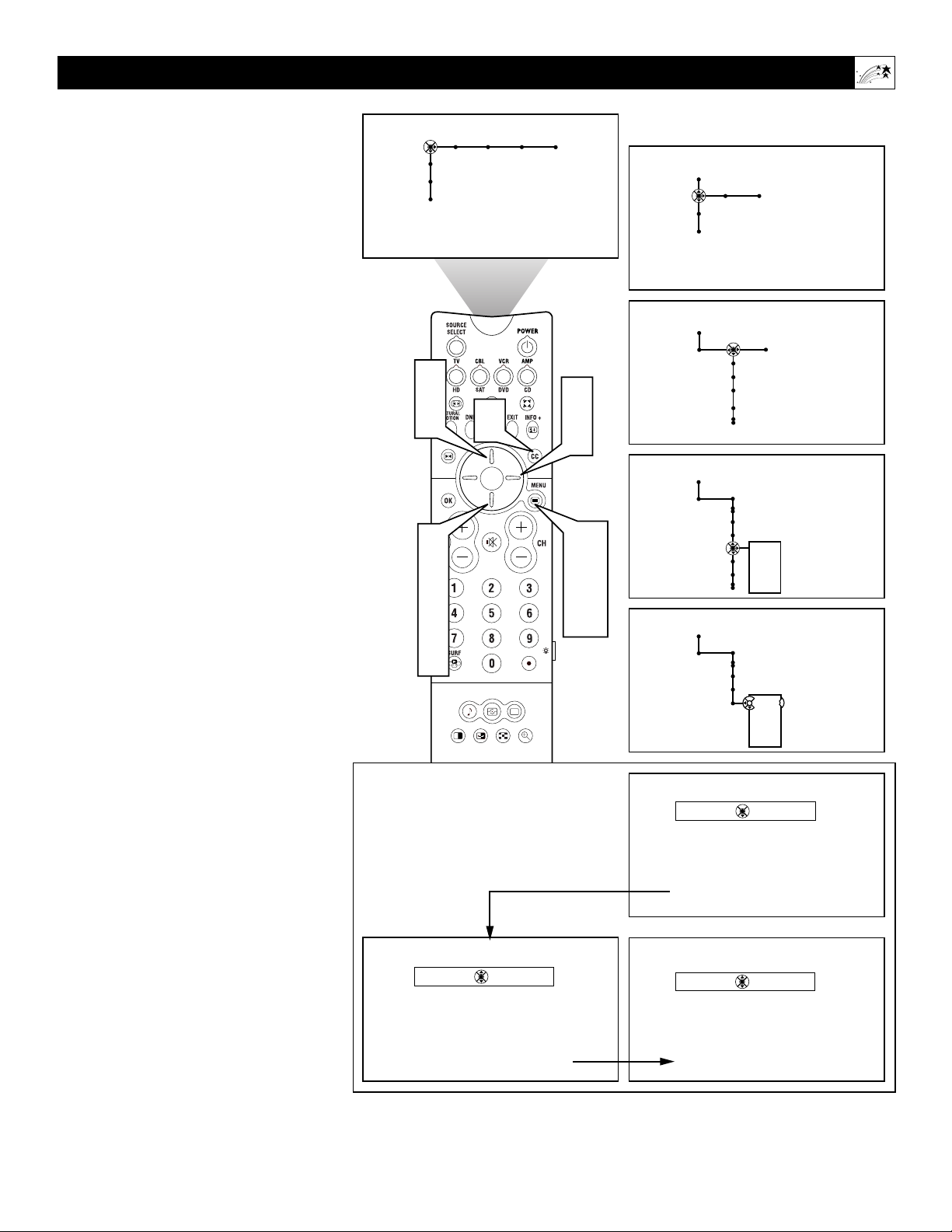

Using Closed Captioning

Access the CC “Off/On/On during mute control,” using the CC button on the remote control or the “Features” on-screen menu.

Closed Captioning (CC) allows you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired, this feature uses on-screen text boxes to show dialogue and conversations while the TV program is in progress. Captions will appear on screen during captioned broadcasts.

Follow steps 1 through 7 to select a Closed Captioning option:

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button repeatedly to select “Settings.”

Press the Cursor Right button to select “General.”

Press the Cursor Down button repeatedly to select “Caption service.”

Press the Cursor Right button to enter the caption service submenu.

Press the Cursor Up or Down button to select one of the caption modes: CC-1, CC-2, CC-3, or CC-4—Dialogue (and descriptions) for the action on the captioned TV program shows on screen. CC-1 is used most frequently. CC-2 may be used for alternate languages if they are being transmitted. T-1, T-2, T-3, or T-4—Often used for a channel guide, schedules, bulletin board information for captioned programs, news, weather information, or stock market reports.

NOTES

• Text Modes (T-1 through T-4) appear

on screen as boxes and may block portions of the TV screen.

• Not all caption services are necessarily being used by a TV channel during the transmission of a captioned program.

Press the Menu button to remove the onscreen menu from the TV screen.

To turn Closed Captioning on or off:

Press the CC button on the remote control.

Press the Cursor Up or Down button repeatedly to select “Off,” “On,” or “On during mute.” Off—Closed captioning service will not be displayed on the TV screen. On—Closed captioning information (if available) will display on the TV screen. On during mute—Closed Captioning information will turn on only when the Mute button is pressed. Turns the Closed Captioning information off when the TV volume is restored.

Press the Menu button on the remote to remove the on-screen display from the TV screen.

NOTES: • The captions do not always use correct spelling and grammar. • Not all TV programs and product commercials made for broadcast include Closed Captioning information. Refer to your area’s TV program listings for the TV channels and times of shows with Closed Captioning. The captioned programs are usually noted in the TV listings with service marks such as “CC.”

Picture Sound Features Channels

Settings

Demo

Install

2 4 6

1 7

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Settings

Demo

Install

Settings

Menu background

Dual screen format

Freeze format

Settings

Freeze format

Reset AV settings

Caption service

Time zone

Settings

Caption service

Closed captions

General Source

Surf

General

OSD

General

CC-1 CC-2 CC-3 CC-4

---

CC-1 CC-2 CC-3 CC-4

---

Off

On during mute

Off

On during mute

Closed captions

Off

On during mute

Page 46

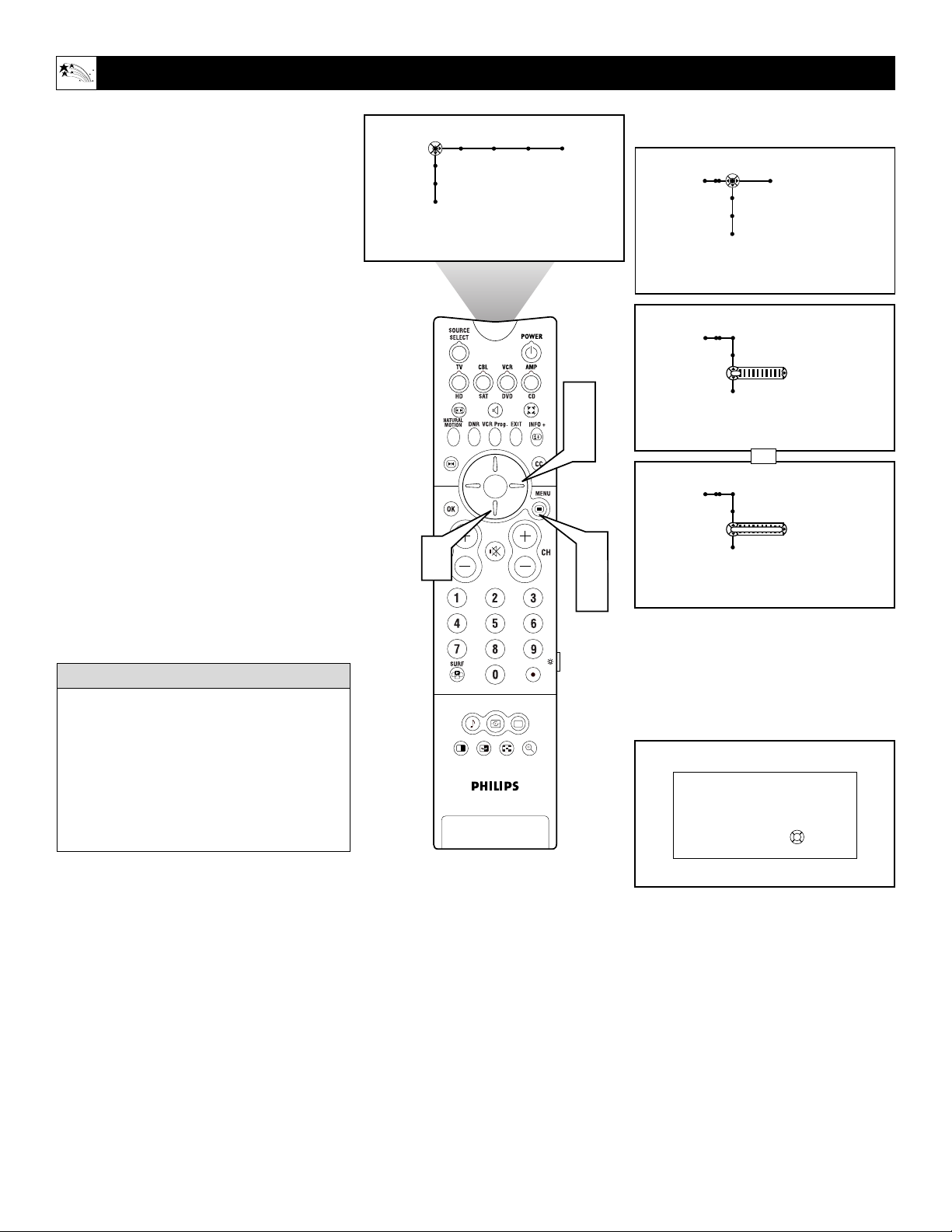

Setting the Sleeptimer

• To see how many minutes remain before the TV shuts itself off, press the INFO+

m button.

• An on-screen countdown will appear during the last minute before the TV shuts itself off. At this time, you may cancel the Sleeptimer setting by pressing the OK button on the remote control.

HELPFUL HINTS

During the last minute of a sleeptimer setting, the TV will display a countdown screen that will allow you to cancel the setting.

NOTE: If you have not selected your time zone and set the Daylight Savings control, do so before making a Sleeptimer setting. Details are on page 64.

If you have ever fallen asleep while watching TV, you may have wished you could have programmed your TV to turn off automatically. The Sleeptimer feature allows you to set your TV to do that. With the Sleeptimer control, you can set a timer to automatically switch the TV off after a period of time you choose—5 minutes up to 180 minutes in 5-minute increments.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly until “Features” is selected.

Press the Cursor Down button repeatedly to select “Sleeptimer.”

Press the Cursor Right button to set the sleeptimer in 5-minute increments, from 5 minutes to 180 minutes.

Press the Menu button to remove the on-screen menu from the TV screen.

Picture Sound Features Channels

Settings

Demo

Install

2 4

Closed captions

Sleeptimer

On timer

Closed captions

Sleeptimer

On timer

Closed captions

Sleeptimer

On timer

Features Channels

Features

5 min.

Up To

Features

180 min.

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

The sleeptimer will switch off the TV in 45 seconds.

Cancel

Page 47

Setting the On Timer

NOTE: If you have not selected your time zone and set the Daylight Savings control, do so before making an On Timer setting. Details are on page 64.

The On Timer control allows you to set a time for the TV to come on automatically at a certain time of day. The on timer can be set to work once or daily at a time you specify.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Features.”

Press the Cursor Down button repeatedly to select the “On timer” control.

Press the Cursor Right button to enter the On Timer submenu.

Press the Cursor Up or Down button to select “On.”

Press the Cursor Right button to shift the menu to the start-channel submenu.

Press the Cursor Up or Cursor Down button to select the channel you would like the TV to tune to when it turns on.

Press the Cursor Right button to shift the menu to the day/daily submenu.

Press the Cursor Up or Down button to select the day to turn on or select “Daily.”

Press the Cursor Right button to enter the AM/PM submenu.

Press the Cursor Up or Down button to select “AM” or “PM.”

Press the Cursor Right button to enter the start time.

Press the Number buttons to enter the time. Use “0” first if entering a singlel digit (for example, input “0, 1, 3, 0” for 1:30).

Press the OK button to confirm.

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

5 7 9

3 5 7 9

Picture Sound Features Channels

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

2 4 6

8 10 12

Closed captions

Sleeptimer

On timer

Closed captions

Sleeptimer

On timer

Features

Features Channels

Features

Off On

--2 3

4 5 6

---

Daily

--Thursday Friday Saturday Daily

AM FM

On timer

Daily

06:35

Page 48

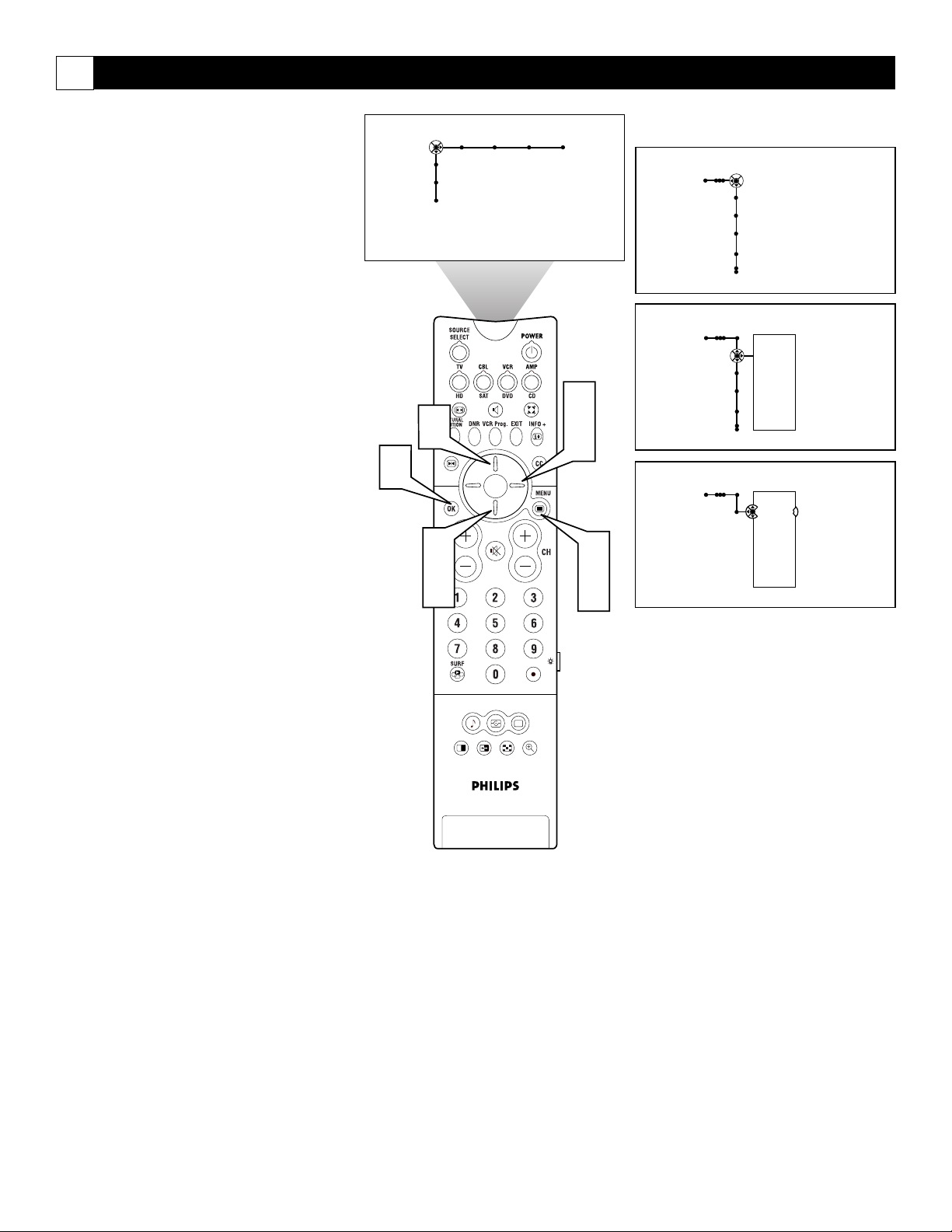

Using the Channel List

The Channel List control shows all the available channels that Auto Programming placed in the TV memory. The channels can be selected from this list.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Channels.”

Press the Cursor Down button to select the “Channel list” control.

Press the Cursor Right button to enter the Channel List submenu.

Press the Cursor Up or Down button to select a specific channel from the list.

Press the OK button. The television will tune to the selected channel.

Press the Menu button to remove the on-screen menu from the TV screen.

Picture Sound Features Channels

Settings

Demo

Install

Channel list

Channel lock

Lock after

TV ratings lock

Channels

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

2 4

1 7

Channel list

Channel lock

Lock after

TV ratings lock

Channel list

Channels

--12 13 14 15 19

---

Channels

--12 13 14 15 19

---

Page 49

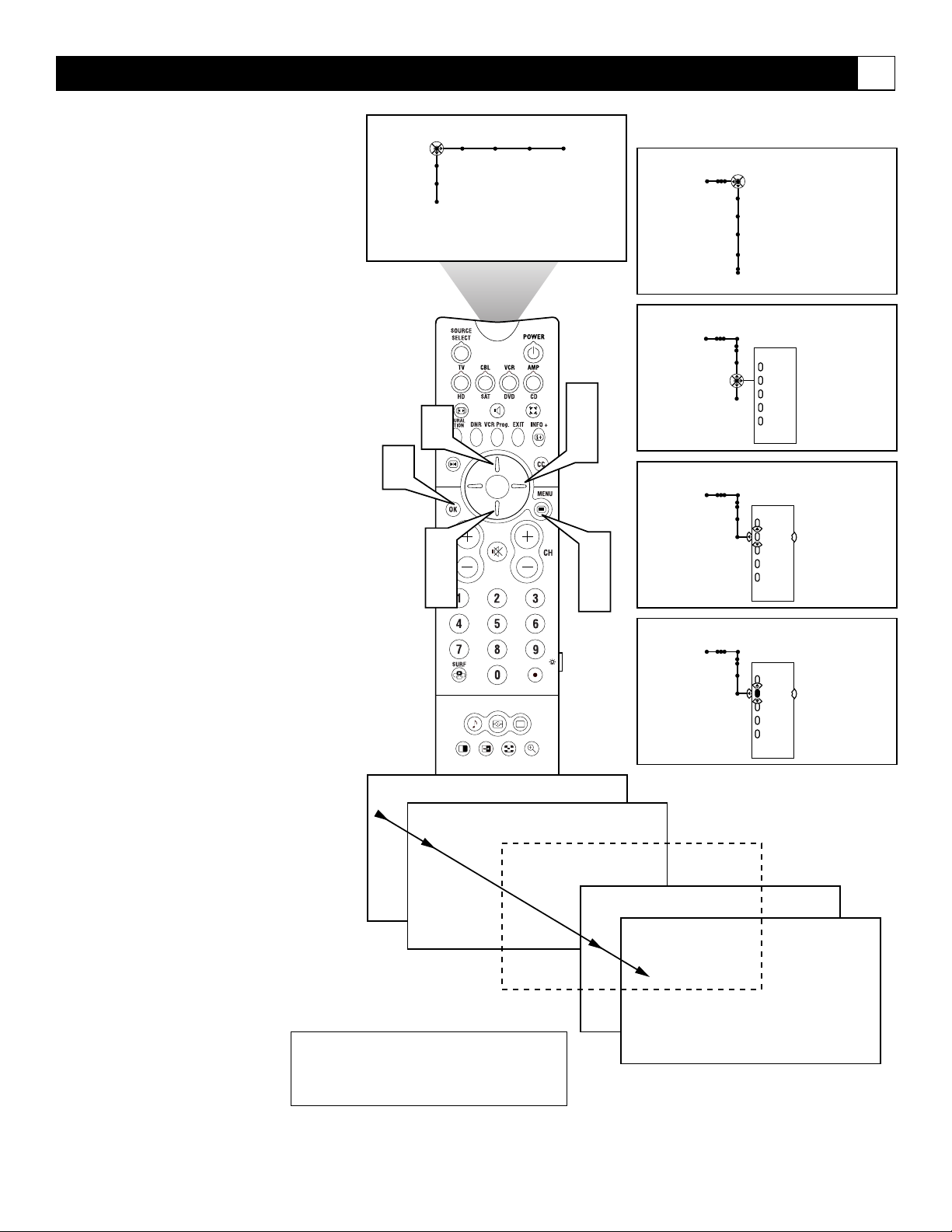

Removing Channels from the Channel List

You can remove specific channels from the television’s memory by using the Channel Remove control.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Channels.”

Press the Cursor Down button repeatedly to select the “Channel remove” control.

Press the Cursor Right button to enter the list of channels in the television’s memory.

Press the Cursor Up or Down button to select a channel you want to remove.

Press the OK button to activate your choice. After you activate the Channel Remove control, the channel(s) highlighted will no longer be tuned when you press the CH(annel) + or – buttons.

Press the Menu button to remove the on-screen menu from the TV screen.

When you use the CH(annel) + or – buttons to scroll the available channels, channels that have been removed using the channel remove control will not appear.

Settings

Demo

Install

Picture Sound Features Channels

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

2 4

1 7

Channel list

Channel lock

Lock after

TV ratings lock

Movie ratings lock

Channel remove

Antenna attenuator

Channel remove

Channels

--12 13 14 15 19

---

Channels

--12 13 14 15 19

---

Channels

--12 13 14 15 19

---

Page 50

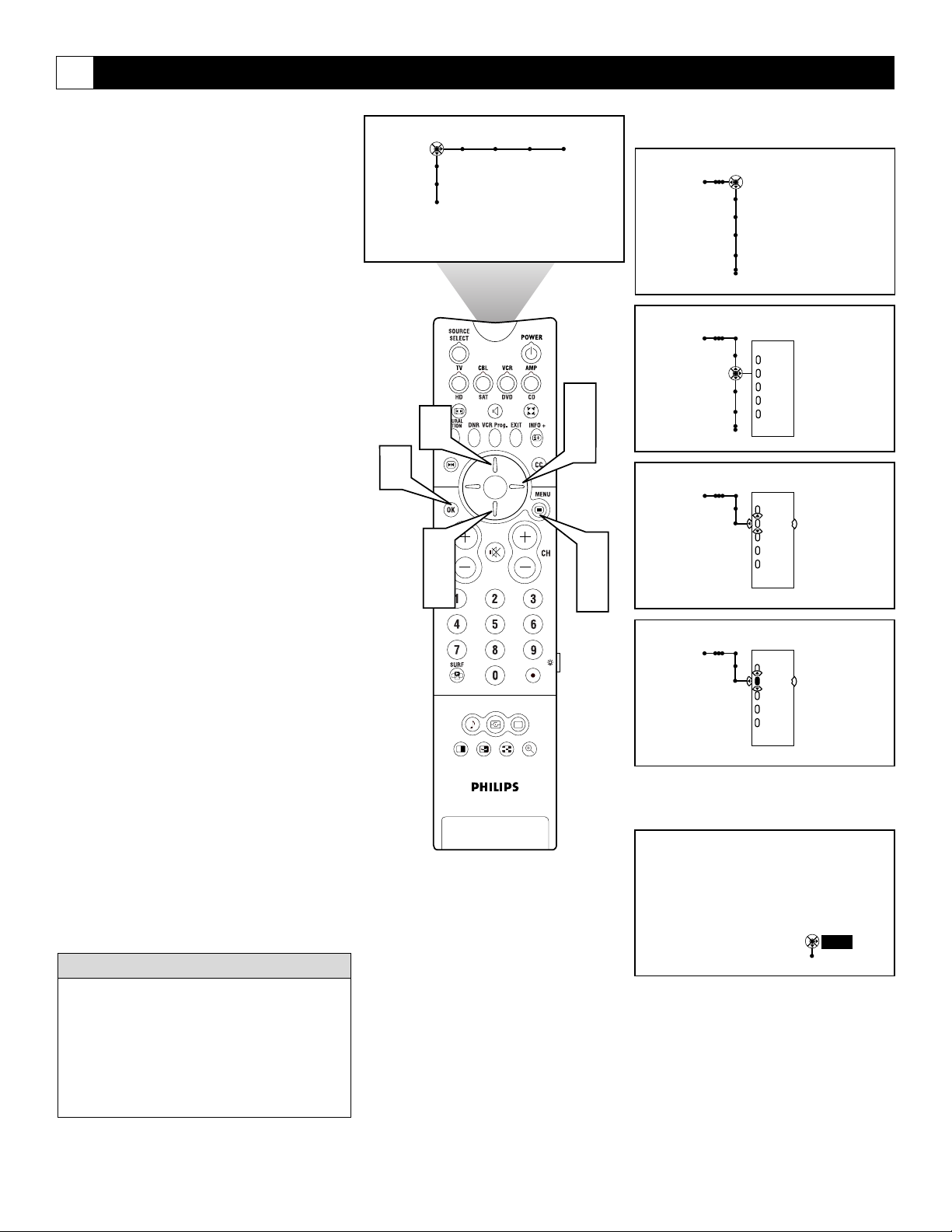

Using Lock Channel

This screen will appear when tuned to a locked channel. To view the channel, enter your PIN.

For various reasons, you may want to block the viewing of materials on a specific channel or channels or through the audio/video (AV) inputs. Lock Channel provides this capability.

Before using the Lock Channel feature for the first time, you will be asked to enter the PIN number. Use the digit buttons on the remote control to enter the PIN you choose. All number combinations from 0000 to 9999 are valid. After you enter the number once, you will be asked to confirm the number, and then the number is stored.

To set or change your PIN number, see page 65.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Channels.”

Press the Cursor Down button repeatedly to highlight the “Channel lock” control.

Press the Cursor Right button to enter the channel lock submenu.

Press the Cursor Up or Down button to select a specific channel from the list.

Press the OK button. The oval in front of the channel number will change to yellow to show that the channel is locked.

Repeat steps 5 and 6 for other channels you want to lock.

Press the MENU button to remove the on-screen menu from the TV screen.

NOTE: To unlock a locked channel, enter your personal PIN number.

If you tune to a channel or input source that is locked and you enter your PIN, all locked channels or input sources will be unlocked until the television is shut off. When the television is turned back on again, previously locked channels or input sources will be locked again.

HELPFUL HINT

Picture Sound Features Channels

Settings

Demo

Install

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

1 7

Channel list

Channel lock

Lock after

TV ratings lock

Channel list

Channel lock

Lock after

TV ratings lock

Channel lock

Channels

--12 13 14 15 19

---

Channels

--12 13 14 15 19

---

Channels

--12 13 14 15 19

---

This channel is locked. To unlock the channel, please enter your PIN.

- - - -

PIN Cancel

Page 51

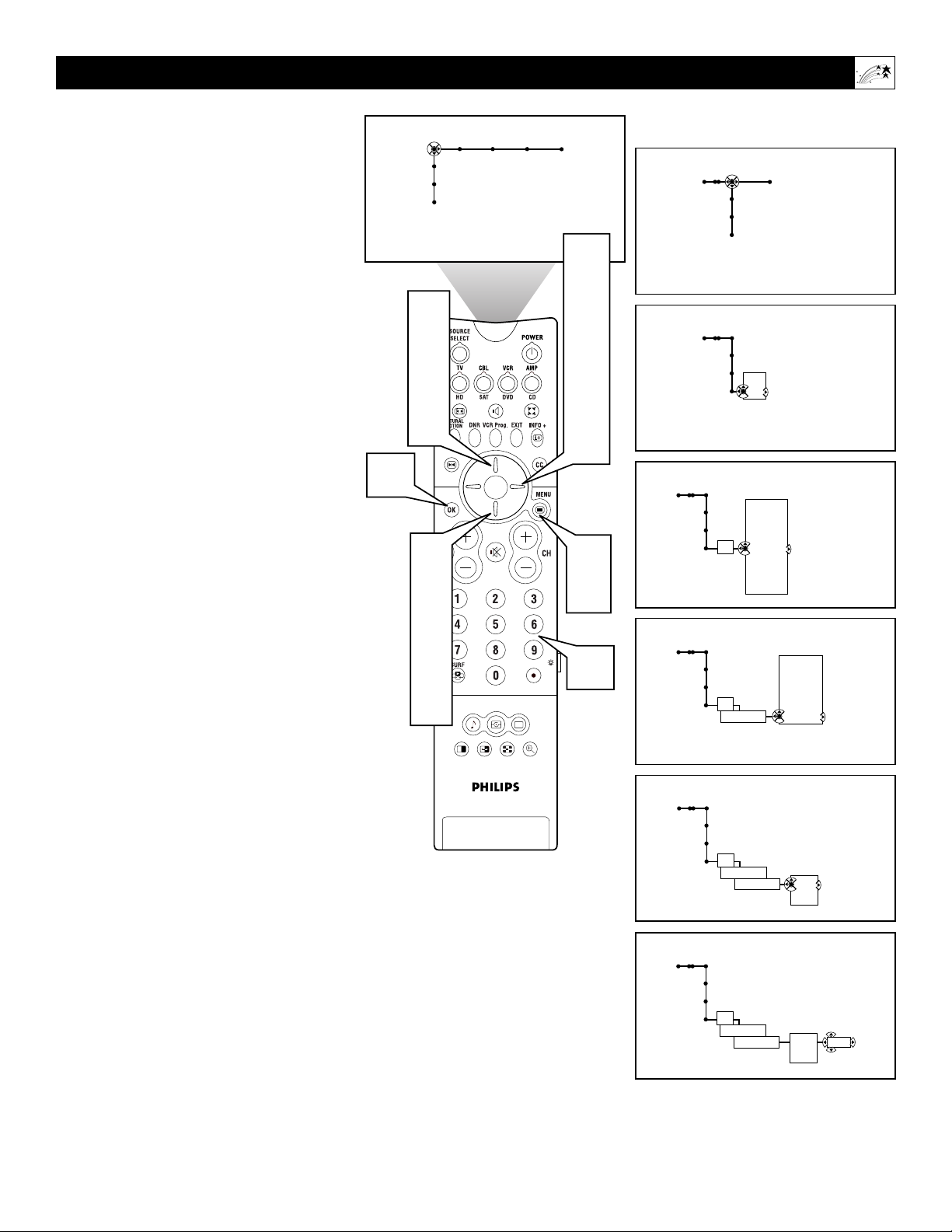

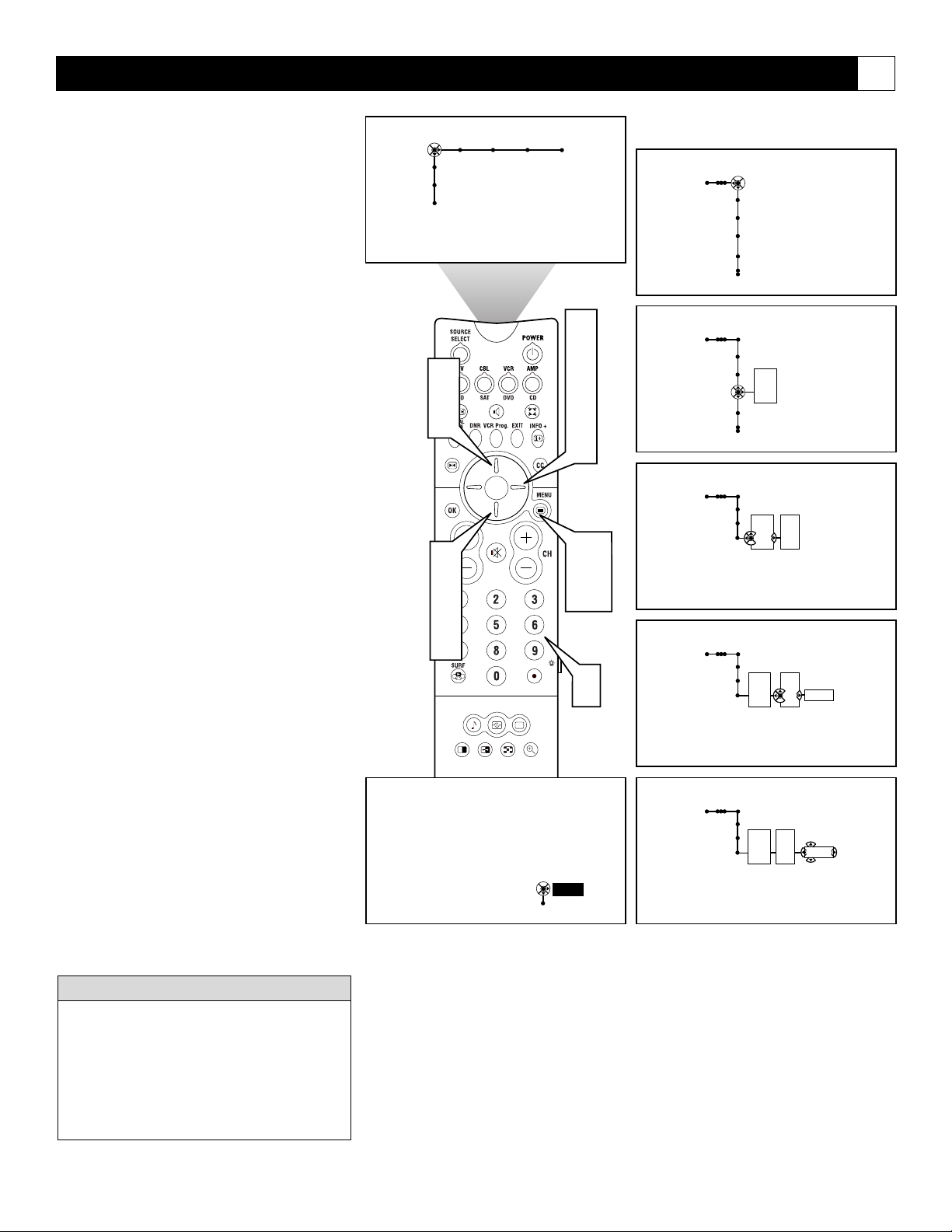

Using Lock After

Once the time has expired, all channels will display this screen. To view the channels, enter your PIN.

You may want to block programming after a certain time of day. This feature is excellent for limiting the amount of time your children watch TV or for preventing them watching unsuitable programs that are often shown at night.

NOTE: The set automatically unlocks after 3 a.m.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Channels.”

Press the Cursor Down button repeatedly to select the “Lock after” control.

Press the Cursor Right button to enter the Lock After submenu (with the options “Off” or “On”).

Press the Cursor Up or Down button to select “On” from the submenu. A submenu with the options of “AM” or “PM” will appear.

Press the Cursor Right button to enter the AM/PM submenu. A box with the time (or area where the time can be entered) will appear.

Press the Cursor Up or Down button to select AM or PM.

Press the Cursor Right button to enter the Lock After time.

Press the Number buttons to enter the time you want the television to lock all channels.

Press the Menu button to remove the on-screen menu from the TV screen.

HELPFUL HINT

Picture Sound Features Channels

Settings

Demo

Install

5 7

4 6 8

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

This channel is locked. To unlock the channel, please enter your PIN.

ZOOM

PIN Cancel

- - - -

Channel list

Channel lock

Lock after

TV ratings lock

Channel list

Channel lock

Lock after

TV ratings lock

Lock after

Channels

Off On

Off

Off On

11:30

Page 52

SOUND PICTURE

ACITVE

CONTROL

ZOOM

1 2

1 7

2 4

3 5

Channels

Channel list

Channel lock

Lock after

TV ratings lock

Channels

Channel list

Channel lock

Lock after

TV ratings lock

All None TV-Y TV-Y7

---

Channels

TV ratings lock

All None TV-Y TV-Y7

---

Channels

TV ratings lock

All None TV-Y TV-Y7 TV-G

---

(FV) Fantasy Violence

Picture Sound Features Channels

Settings

Demo

Install

You can select specific TV Ratings to block broadcast signals that have unsuitable content.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Channels.”

Press the Cursor Down button repeatedly to select the “TV ratings lock” control.

Press the Cursor Right button to enter the TV Ratings Lock list of options.

Press the Cursor Up or Down button to select one of the ratings.

Press the OK button to activate your choice.

NOTE: Some of the TV Rating options contain specific subratings. “TV-Y7” contains the “(FV) Fantasy Violence” subrating; “TV-PG” and “TV-14” contain “(D) Dialogue,” “(L) Language,” “(S) Sex,” and “(V) Violence” subratings; “TV-MA” contains “(L) Language,” “(S) Sex,” and “(V) Violence” subratings.

If the PIN message is displayed, enter your PIN.

Press the Menu button to remove the on-screen menu from the TV screen.

Some TV Ratings have subrating options.

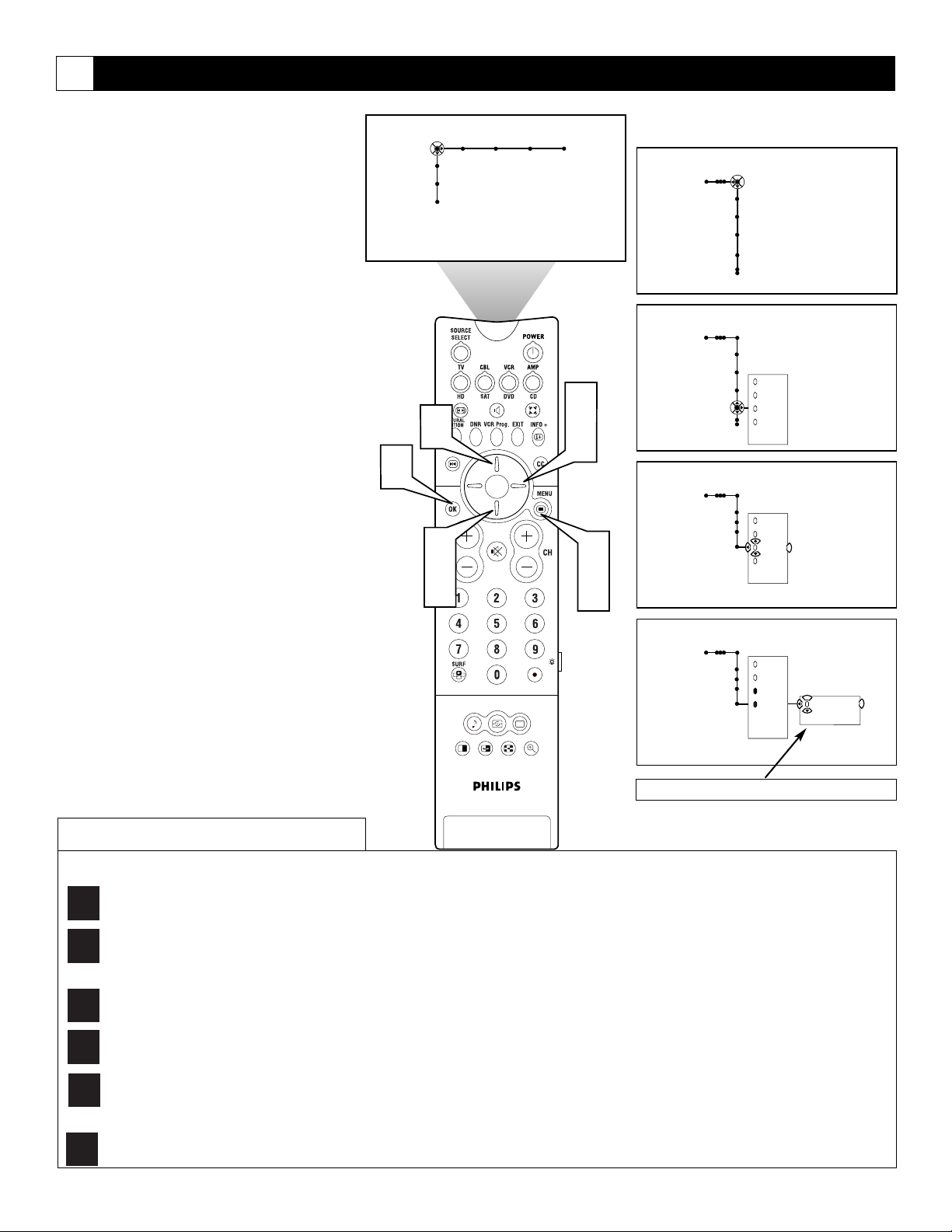

Blocking Programming Based on TV Ratings

None—programs that are either rated “None” or have no content advisory. Selecting this option will block all such programs.

TV-Y (All Children)—programs designed to be appropriate for all children, especially ones ages 2–6. These programs are not expected to frighten

younger children.

TV-Y7 (Directed to Older Children)—programs designed for children ages 7 and older. These programs may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. Such programs may include mild fantasy and comic violence (FV).

TV-G (General Audience)—most parents will consider programs that are rated TV-G to be suitable for children of all ages. Such programs have little or no violence, no strong language, and little or no sexual dialogue or sexual situations.

TV-PG (Parental Guidance Suggested)—programs contain material that parents may find unsuitable for younger children. This type of programming has one or more of the following: moderate violence (V), some sexual situations (S), infrequent coarse language (L), or some suggestive dialogue (D).

TV-14 (Parents Strongly Cautioned)—programs contain material that many parents will find unsuitable for children under 14 years of age. These programs have one or more of the following: intense violence (V); intense sexual situations (S); strong, coarse language (L); or intensely suggestive dialogue (D).

TV-MA (Mature Audience Only)—specifically designed to be viewed by adults and therefore may be unsuitable for children under 17. Such programs have one or more of the following: graphic violence (V); explicit sexual situations (S); or crude, indecent language (L).

TV Ratings (from TV Broadcasters)

Page 53

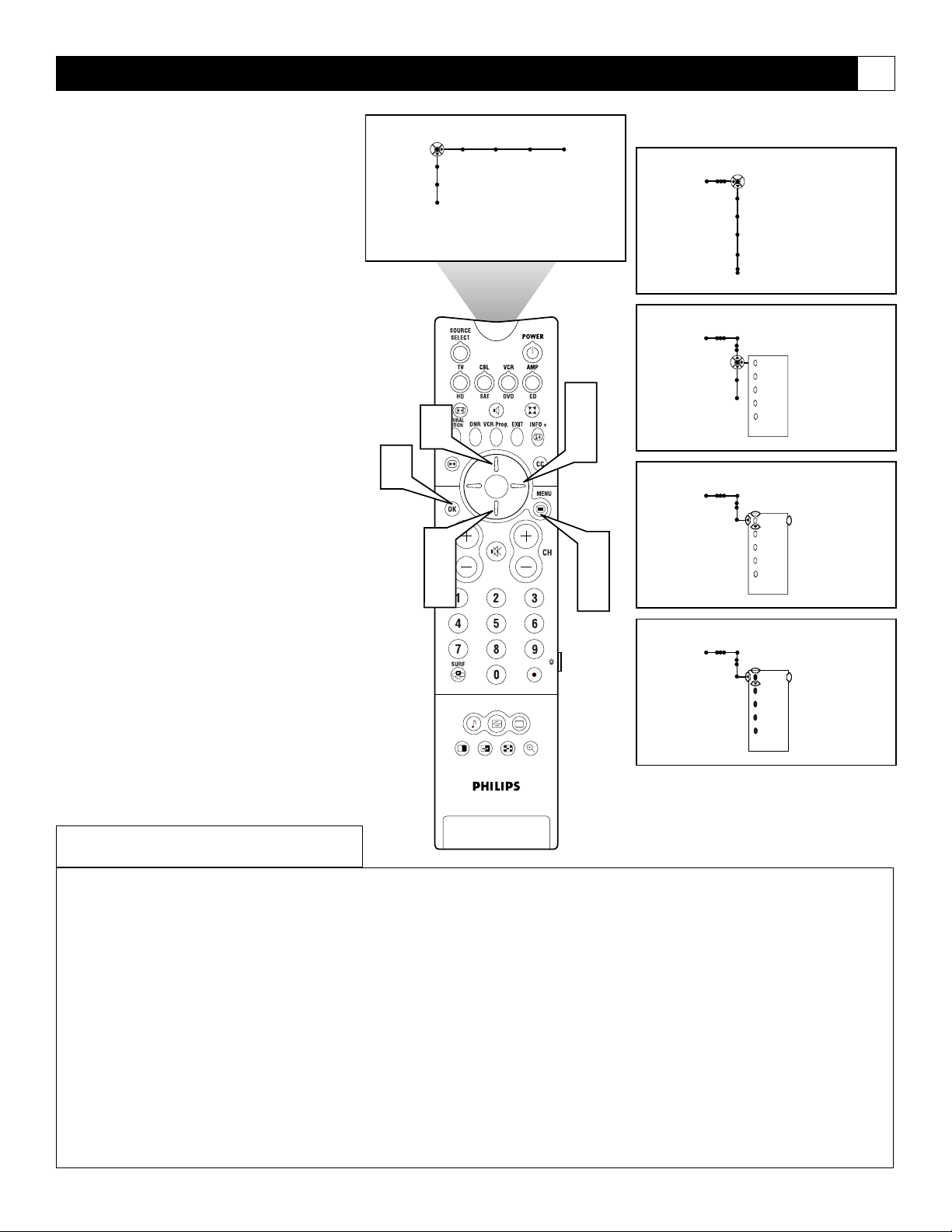

Blocking Programming Based on Movie Ratings

You can prevent the viewing of unsuitable programming based on movie ratings.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Channels.”

Press the Cursor Down button repeatedly to select the “Movie ratings lock” control.

Press the Cursor Right button to enter the Movie Ratings Lock list of options.

Press the Cursor Up or Down button to select the rating you want to lock.

Press the OK button to activate your choice. NOTE: When a rating is turned on, all higher ratings (and subratings) will be turned on. (for example, if “R” is selected, “NC-17” and “X” will automatically turn on also.)

If the PIN message is displayed, enter your PIN.

Press the MENU button to remove the on-screen menu from the TV screen.

NR (Not Rated)—programs that the Motion Picture Association of America has chosen not to rate.

G (General Audience)—all ages admitted. Most parents will find programs that are rated G to be suitable for children of all ages. Such programs

have little or no violence, no strong language, and little or no sexual dialogue or sexual situations.

PG (Parental Guidance Suggested)—

contain material that parents may find unsuitable for younger children. These programs have one or more of the

following: moderate violence, some sexual situations, infrequent coarse language, or some suggestive dialogue.

PG-13 (Parents Strongly Cautioned)—contain material that parents may find unsuitable for children under the age of 13. Programs that are rated PG13 have one or more of the following: violence, sexual situations, coarse language, or suggestive dialogue.

R (Restricted)—specifically designed for adults. Anyone under the age of 17 should view programs that are rated R only with an accompanying parent or adult guardian. Such programs have one or more of the following: intense violence; intense sexual situations; strong, coarse language; or intensely suggestive dialogue.

NC-17 (No one under the age of 17 will be admitted)—should be viewed by adults only. These programs have graphic violence; explicit sex; or crude, indecent language.

X (Adults Only)—contain one or more of the following: very graphic violence, very graphic and explicit or indecent sexual acts, or very coarse and intensely suggestive language.

Movie Ratings

(from the Motion Picture Association of America)

Settings

Demo

Install

Picture Sound Features Channels

3 5

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

2 4

1 7

Channel list

Channel lock

Lock after

TV ratings lock

Movie ratings lock

Channel remove

Antenna attenuator

Movie ratings lock

Channels

All NR G PG PG-13

---

Channels

All NR G PG PG-13

---

Channels

All NR G PG PG-13

---

Page 54

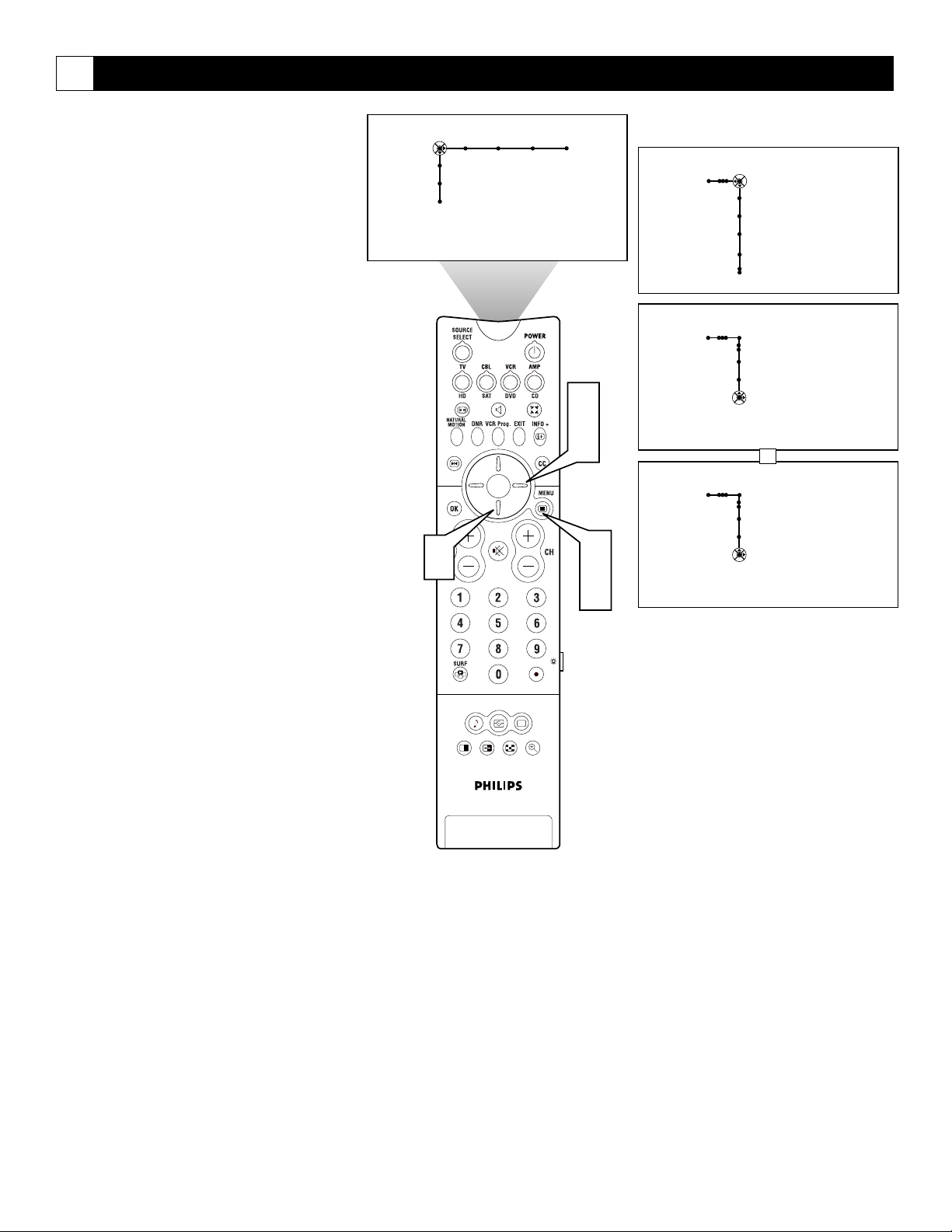

Turning the Antenna Attenuator on or off

If you live near a television station’s transmitter tower, you may receive an interfering signal from the station while watching other TV channels. Your television’s Antenna Attenuator control is designed to reduce the strength of such a signal in the presence of a strong main signal. The default setting for the Antenna Attenuator is “Off.” If you need to use the feature, simply toggle it “On” in the on-screen menu. The setting you make applies to the channel you are currently watching and will remain in place until you change the setting.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Right button repeatedly to select “Channels.”

Press the Cursor Down button repeatedly to select the “Antenna attenuator” control.

Press the Cursor Right button to toggle the control “On” or “Off.”

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

1 5

Channel list

Channel lock

Lock after

TV ratings lock

Movie ratings lock

Channel remove

Antenna attenuator

Movie ratings lock

Channel remove

Antenna attenuator

Channels

Off • On

Channels

On • Off

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 55

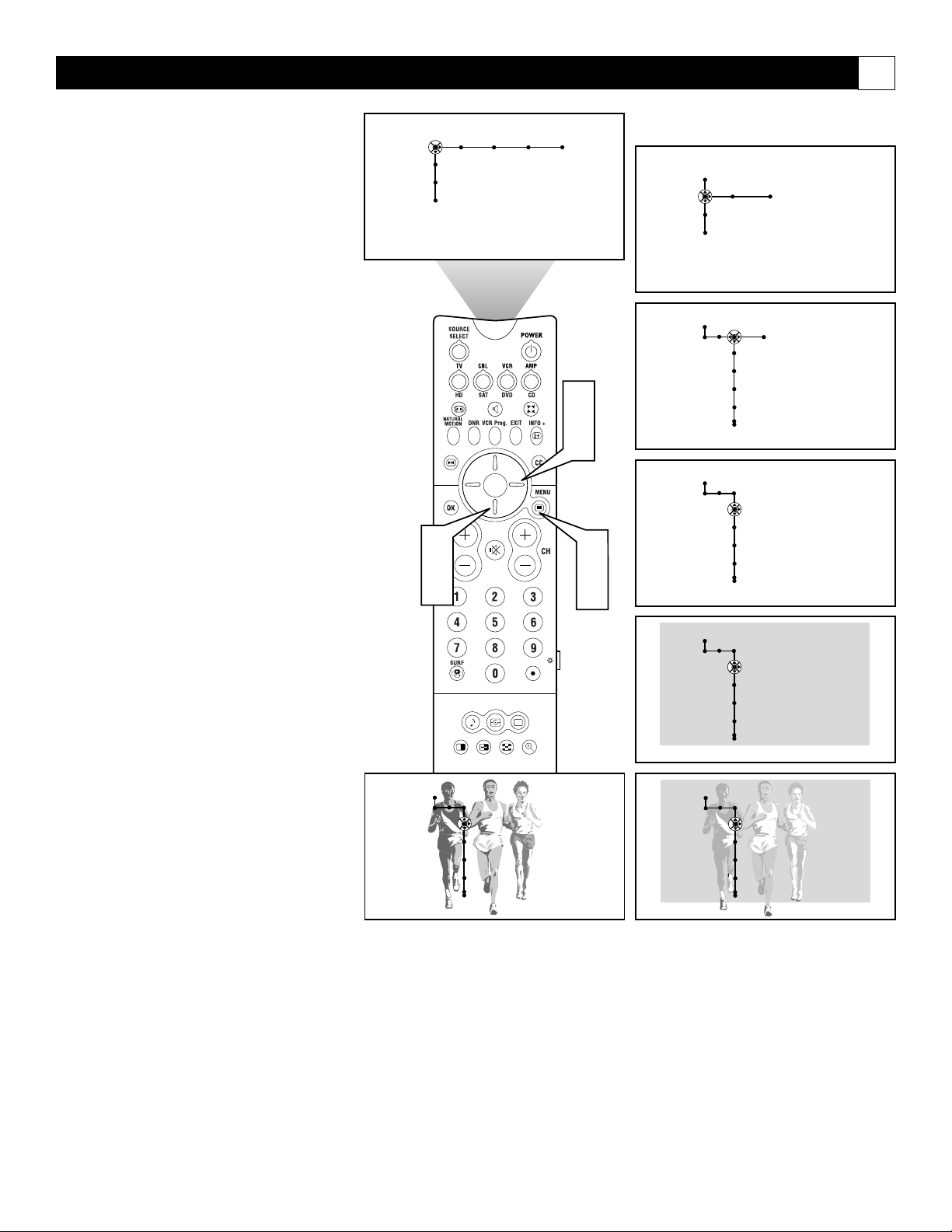

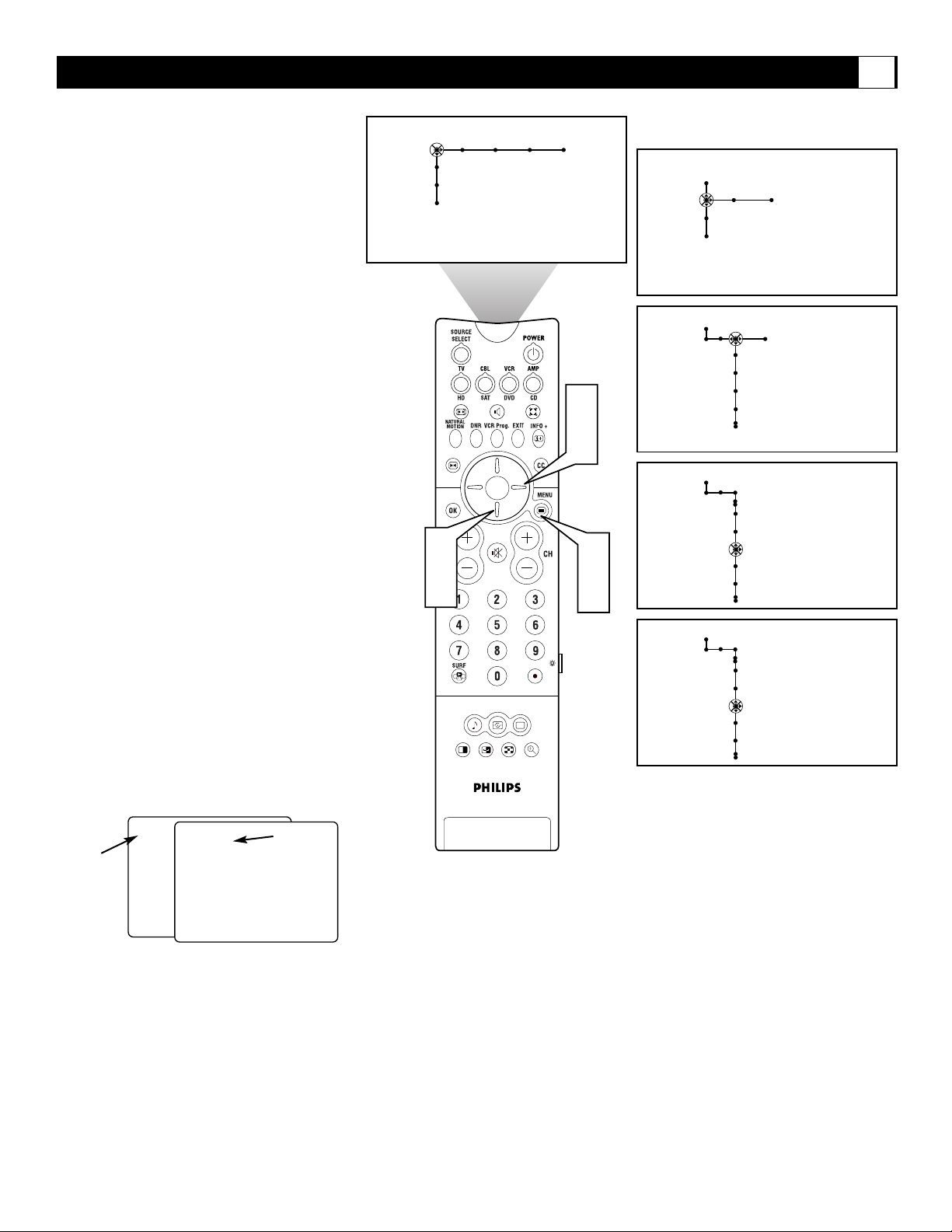

Turning the Menu Background on or off

With Menu Background off

With Menu Background on

You have the option of turning on a background that will make reading the on-screen menu easier. The Menu Background control places a light, transparent green field behind the on-screen menu that reduces the contrast posed by the picture. When turned on, the menu background appears only while the onscreen menu is displayed on the TV screen.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select the “General” menu.

Press the Cursor Down button to select the “Menu background” control.

Press the Cursor Right button to toggle the menu background control “On” or “Off.”

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

2 4

3 5

1 6

Settings

Demo

Install

Settings

Menu background

Dual screen format

Freeze format

Settings

Menu background

Dual screen format

Freeze format

General Source

Surf

General

Off • On

Surf

ACITVE

CONTROL

SOUND PICTURE

1 2

Settings

Menu background

Dual screen format

General

Off • On

Surf

Freeze format

ZOOM

Settings

Menu background

Dual screen format

Settings

Menu background

Dual screen format

General

On • Off

Surf

Freeze format

General

On • Off

Surf

Freeze format

Page 56

2 Channels Surf

9 Channels Surf

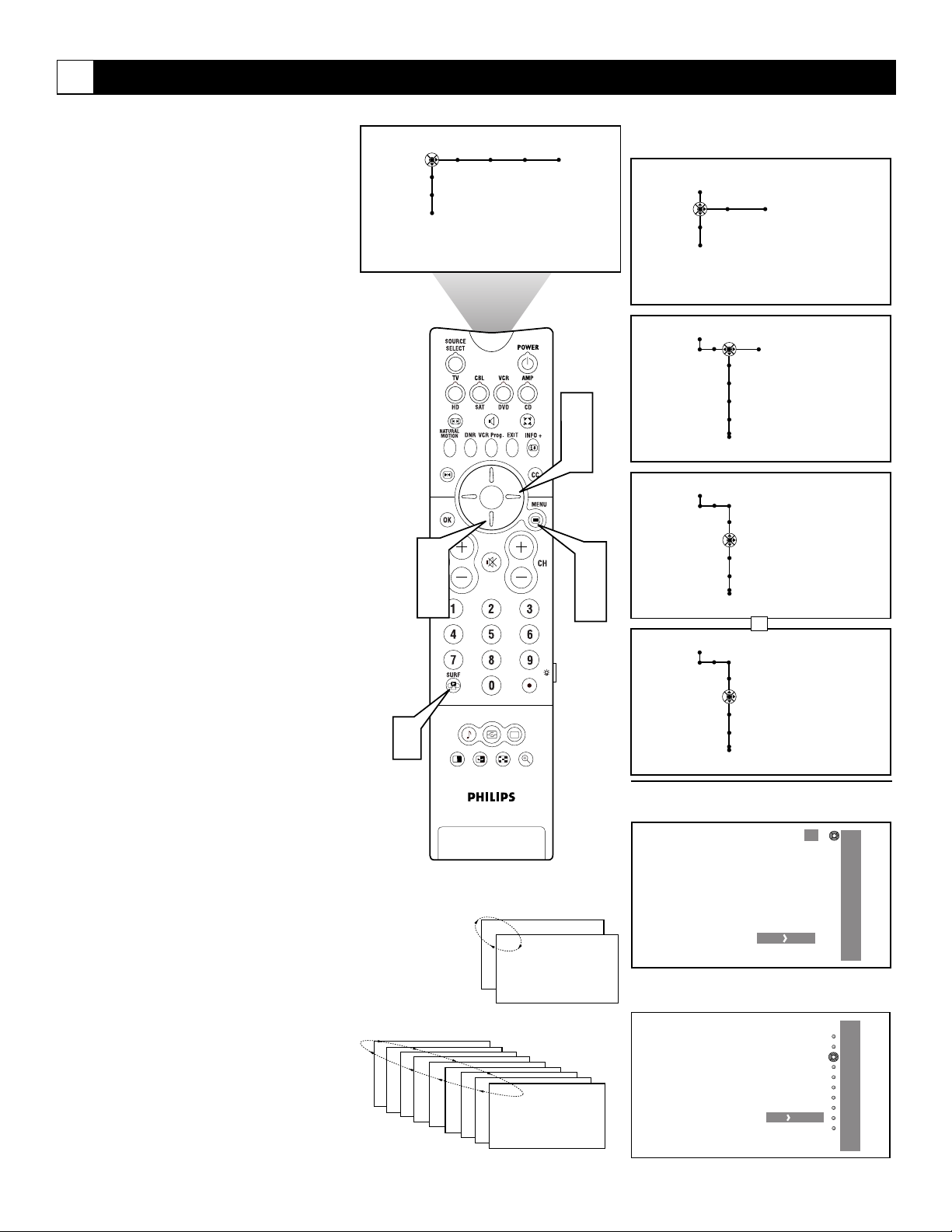

Using Surf

You can access a list of previously viewed channels with the Surf on the remote control. With Surf you can easily switch between different TV channels that currently interest you. Surf allows you to set up the television to cycle through two or nine channels by pressing the Surf button.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select the “General” menu.

Press the Cursor Down button repeatedly to select the “Surf” control.

Press the Cursor Right button to toggle the Surf control to “2 channels” or “9 channels.”

Press the Menu button to remove the on-screen menu from the TV screen.

If you selected the “2 channels” Surf option, pressing the Surf button allows you to alternate between the currently viewed channel and the previously viewed channel.

If you selected the “9 channels” Surf option, pressing the Surf button displays a Surf list in which you can place up to 9 favorite channels. A/V sources also can be included in the list.

To add a channel to the list, tune to the channel, press the Surf button, then press the Cursor Right button.

If you attempt to add more than 9 channels to the list, the last channel will be automatically removed to make room for the newly added channel.

After you have placed your favorite channels in the list, press the Surf button as many times as necessary to tune to the desired favorite channel. Or, with the Surf list displayed, press the Cursor Down or Up buttons to tune to a channel.

To remove a channel from the list, press the Surf button to display the list, press the Cursor Down or Up buttons until you select the channel you want to remove, then press the Cursor Right button.

Using 9 Channels Surf, place up to 9 favorite channels in the Surf list.

If you decide you don’t want a channel in the list, you can remove it.

Picture Sound Features Channels

Settings

Demo

Install

2 4

SOUND PICTURE

1 2

ACITVE

CONTROL

ZOOM

3 5

1 6

Demo

Install

Freeze format

General Source

Surf

General

Surf

2 channels • 9 channels

General

Surf

9 channels • 2 channels

Settings

Menu background

Dual screen format

Settings

Menu background

Dual screen format

Settings

Menu background

Dual screen format

Surf

Press to add

Press to remove

Surf 46 28 15 22 12 17 AV1 25 13 10

Page 57

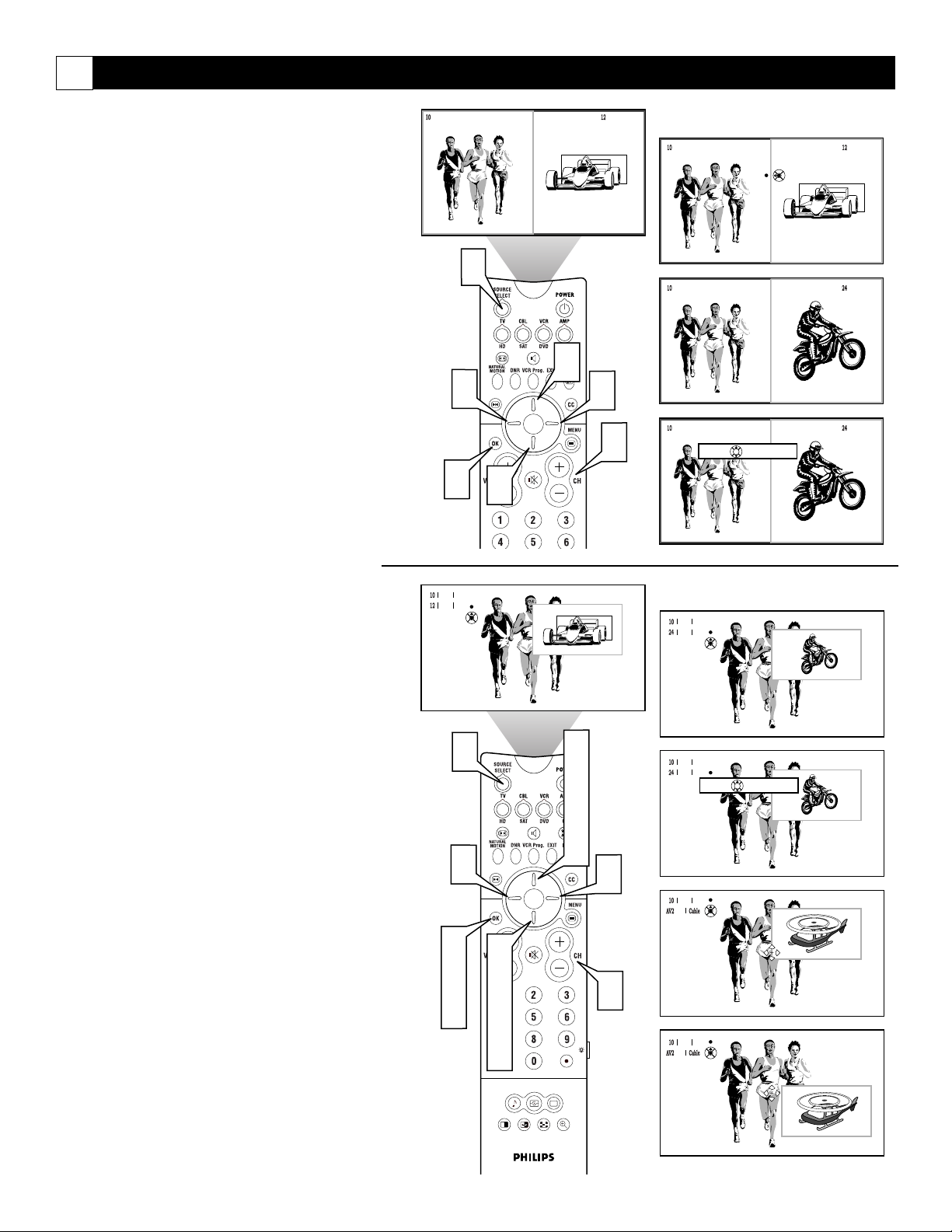

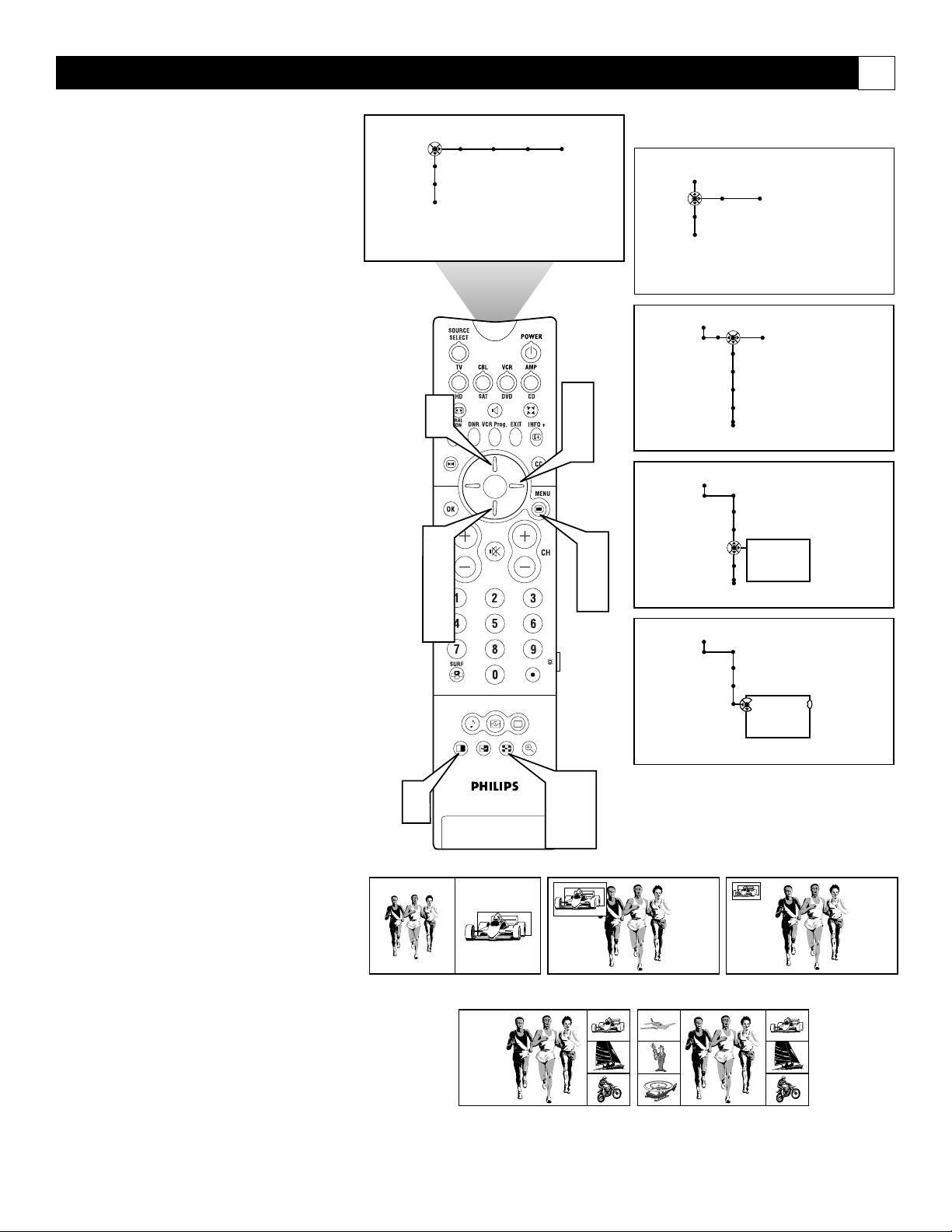

Using Dual Screen and PIP

The Dual Screen feature, also referred to as Picture In Picture (PIP), will allow you to choose the size of the dual screen window to be displayed when the Dual Screen (or PIP) button is pressed on the remote control. The window can be set to Dual Screen, Large PIP, or Small PIP. The MultiPIP button allows you to display either 3 or 6 PIP windows.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select the “General” menu.

Press the Cursor Down button repeatedly to select the “Dual screen format” control. A submenu or list of options will appear.

Press the Cursor Right button to enter the list of options.

Press the Cursor Up or Down button to select the desire dual screen format. Choose from “Dual screen,” “Large PIP,” or “Small PIP.”

Press the Menu button to remove the on-screen menu from the TV screen.

Press the Dual Screen/PIP button on the remote control to display the second video window in the format you have chosen.

Continuing to hold the Dual Screen/PIP button will cycle through the Dual Screen PIP options.

Press the Dual Screen button again to return the television to the main video screen.

To display 3 PIP screens, press the MultiPIP button. To display 6 PIP screens, press the MultiPIP button again and briefly hold it until the screens appear.

Press the MultiPIP button again to turn PIP off.

See the next page for information on changing channels or input sources in the Dual or PIP screens.

Dual Screen

Large PIP

Small PIP

PIP 3

PIP 6

Settings

Demo

Install

Picture Sound Features Channels

2 4 6

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

3 5

1 7

Settings

Demo

Install

Settings

Menu background

Dual screen format

Freeze format

Settings

Menu background

Dual screen format

Freeze format

Settings

Dual screen format

General Source

Surf

General

Surf

Dual screen Large PIP Small PIP

General

Dual screen Large PIP Small PIP

Page 58

Changing Channels or Input Sources in Dual Screen/PIP

When using Dual Screen:

A light-colored border indicates the selected screen. If the screen whose channel or input source you want to change is not selected, press the Cursor Right or Left button to select the desired screen.

To change channels in the selected screen, press the CH (Channel Selection) + or – buttons.

Or:

To change the input source, first press the Source Select button. Then, within 6 seconds, press the Cursor Up or Down until your desired input source is highlighted. Press the OK button to confirm. The desired input source appears in the selected screen. NOTE: If the list of input sources “times out” (leaves the screen) before you can make your selection, press the Source Select button again to display the list again.

When using Large or Small PIP:

When the PIP window is on screen, press the Cursor Up or Down button to select either the main or PIP screen. A light-colored border surrounds the PIP screen when it is selected. The PIP screen must be selected before its channel or input source can be changed.

To change channels in the PIP screen, press the CH (Channel Selection) + or – buttons. Or:

To select a different input source, first press the Source Select button. Then, within 6 seconds, press the Cursor Up or Down until your desired input source is highlighted. Press the OK button to confirm. The desired input source appears in the PIP screen. NOTE: If the list of input sources “times out” (leaves the screen) before you can make your selection, press the Source Select button again to display the list again.

To reposition the PIP screen:

Press the Cursor Up or Down button. The ball and direction indicator appear on screen. Within 6 seconds, press the OK button. A multidirectional symbol appears on screen. NOTE: If the ball and direction indicator “time out” (leave the screen) before you press the OK button, simply press the Cursor Up or Down button again.

Press the Cursor Up, Down, Left, or Right buttons to move the PIP window to the desired location.

Press the OK button. The ball and direction indicator reappear and “time out” (leave the screen) in about 6 seconds.

When using PIP3 or PIP6:

To change channels when in PIP3 or PIP6 modes, press the Cursor Right, Left, Up, or Down buttons to select the screen whose channel or source you want to change. Then follow step 2 or 3 in either section above to change channels or input sources.

3 4 6

1 3 4 5

CONTROL

SOUND PICTURE

1 2

ACITVE

ZOOM

1 3 4 5

Source

TV AV1:DVD AV2:Recorder AV3:SAT AV4:HD AV5:Other AV6:HD SIDE:Camera

Page 59

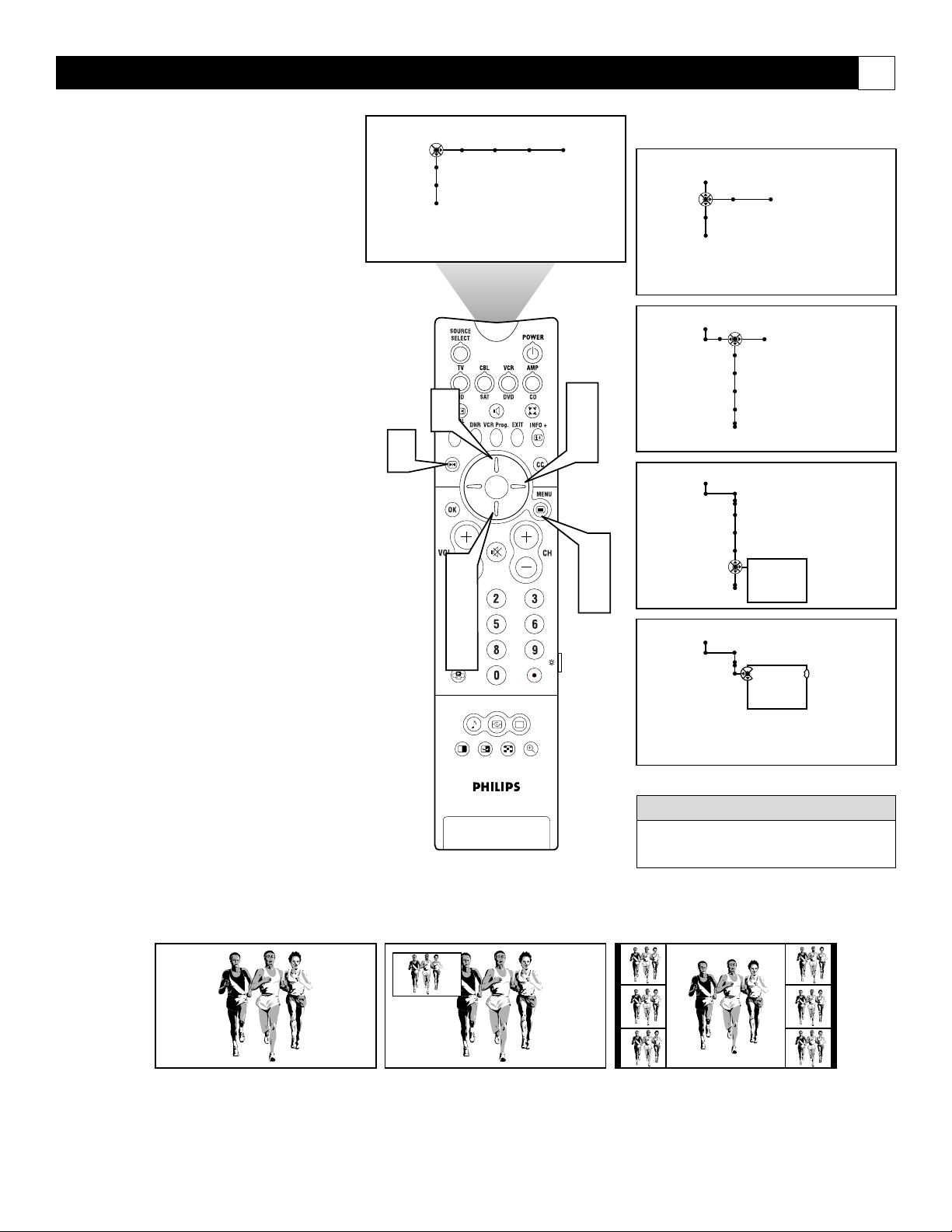

Selecting a Picture Freeze Option

Freeze

Stops motion on the main screen.

Replay

Replays a few seconds of stored video.

Photo finish

Displays six still frames from a TV picture while the current program continues to play on the main (center) screen. NOTE: Frame order will vary.

The Freeze control provides three ways for you to stop the action of programs. The Freeze control options allow you to get a better look at exciting sports plays or copy down broadcasted addresses or phone numbers. The steps below explain how to select an option.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to highlight the “General” menu.

Press the Cursor Down button repeatedly to highlight the “Freeze format” control. A submenu will appear.

Press the Cursor Right button to enter the submenu.

Press the Cursor Up or Down button to select the desired freeze format. Choose from “Freeze,” “Replay,” or “Photo finish.”

Freeze stops motion in the main screen image while the audio continues to play. Replay displays and replays a few seconds of stored video information in the single-PIP window. Photo finish displays a series of frozen frames in six PIP windows. A TV picture consists of a series of frames.

Press the Menu button to remove the on-screen menu from the TV screen.

Press the Freeze Format button on the remote control to display the format you have chosen.

NOTE: Continuing to hold the Freeze Format button will cycle the TV through the Freeze modes.

To return the television to the main video screen, press the Freeze button again.

Replay and Photo Finish are not available with inputs AV3–AV6.

HELPFUL HINT

Settings

Demo

Install

Picture Sound Features Channels

Settings

Demo

Install

Settings

Menu background

Dual screen format

Freeze format

General Source

Surf

2 4 6

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

1 7

Freeze format

General

Surf

Freeze Replay Photo finish

General

Freeze Replay Photo finish

Settings

Menu background

Dual screen format

Settings

Page 60

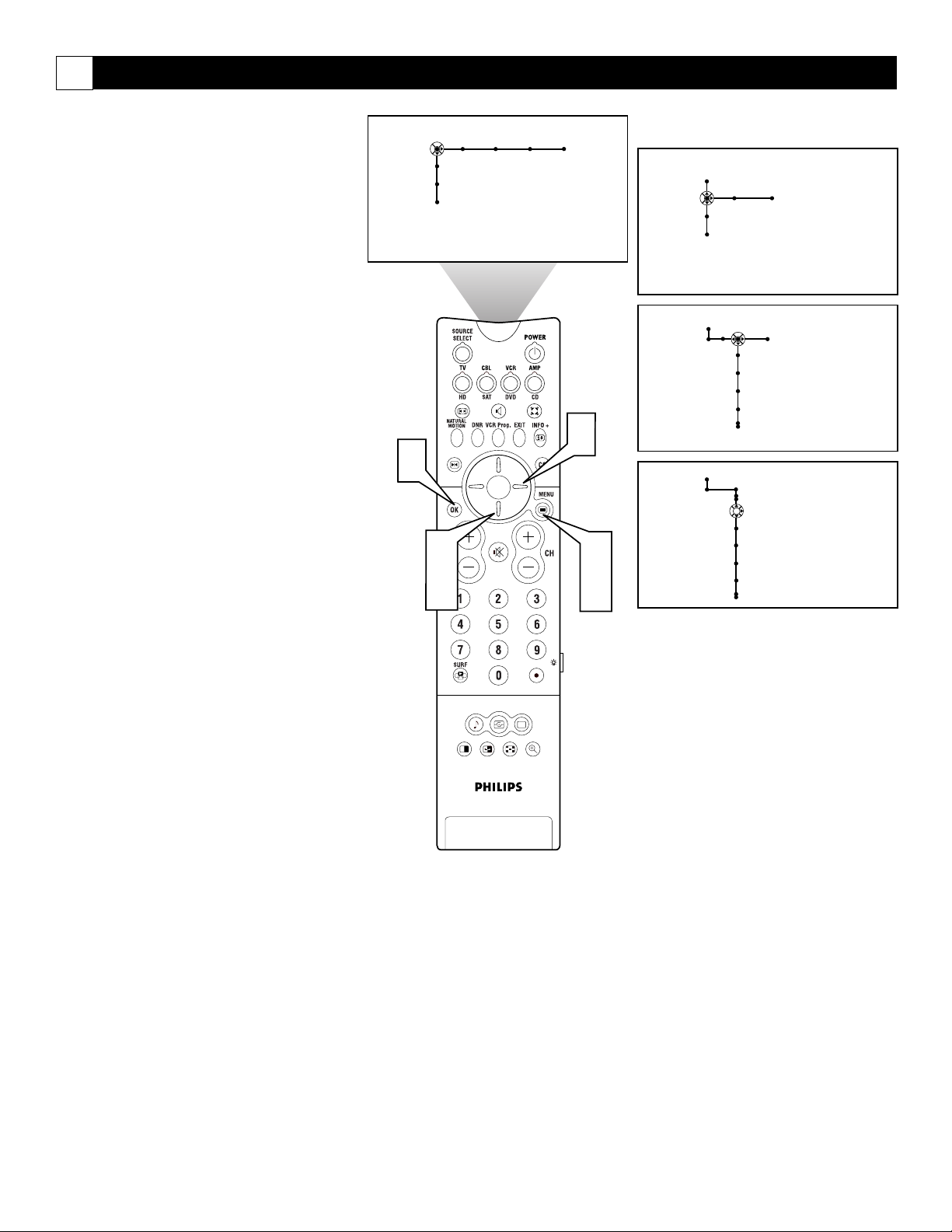

Resetting the Audio/Video Settings to Factory Default Values

You can reset the TV’s Sound and Picture settings to the factory default values.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select the “General” menu.

Press the Cursor Down button repeatedly to select the “Reset AV settings” control.

Press the OK button to reset the AV settings to factory values.

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

2 4

1 6

Settings

Demo

Install

Settings

Menu background

Dual screen format

Freeze format

Settings

Reset AV settings

Caption service

Time zone

Daylight saving

General Source

Surf

General

OSD

To erase settings and reset them to their defualt values, please press OK.

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

Page 61

Selecting an On-screen Display Option

Normal

Mode

Minimum

Mode

The television’s on-screen display (OSD) can be set to show only the current channel number or the channel number with additional TV operating modes and status-screen information.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select the “General” menu.

Press the Cursor Down button repeatedly to select the “OSD” control.

Press the Cursor Right button to toggle between “Minimum” and “Normal.”

Normal mode—the on-screen display stays on screen. Channel/Input source, call letters and program name (if provided by the signal source), picture format, and sound mode are shown.

Minimum mode (default mode)—

channel/Input source, call letters, and program name (if provided by the signal source) are shown. The on-screen display disappears after a few seconds. In Minimum mode, the volume scroll bar will not be displayed when you press the volume control.

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

Settings

Demo

Install

Settings

Menu background

Dual screen format

Freeze format

General Source

Surf

10 WABC

Automatic Mono selected

2 4

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

1 6

Settings

Reset AV settings

Caption service

Time zone

Daylight saving

Settings

Reset AV settings

Caption service

Time zone

Daylight saving

General

OSD

General

OSD

Minimum • Normal

Normal • Minimum

Page 62

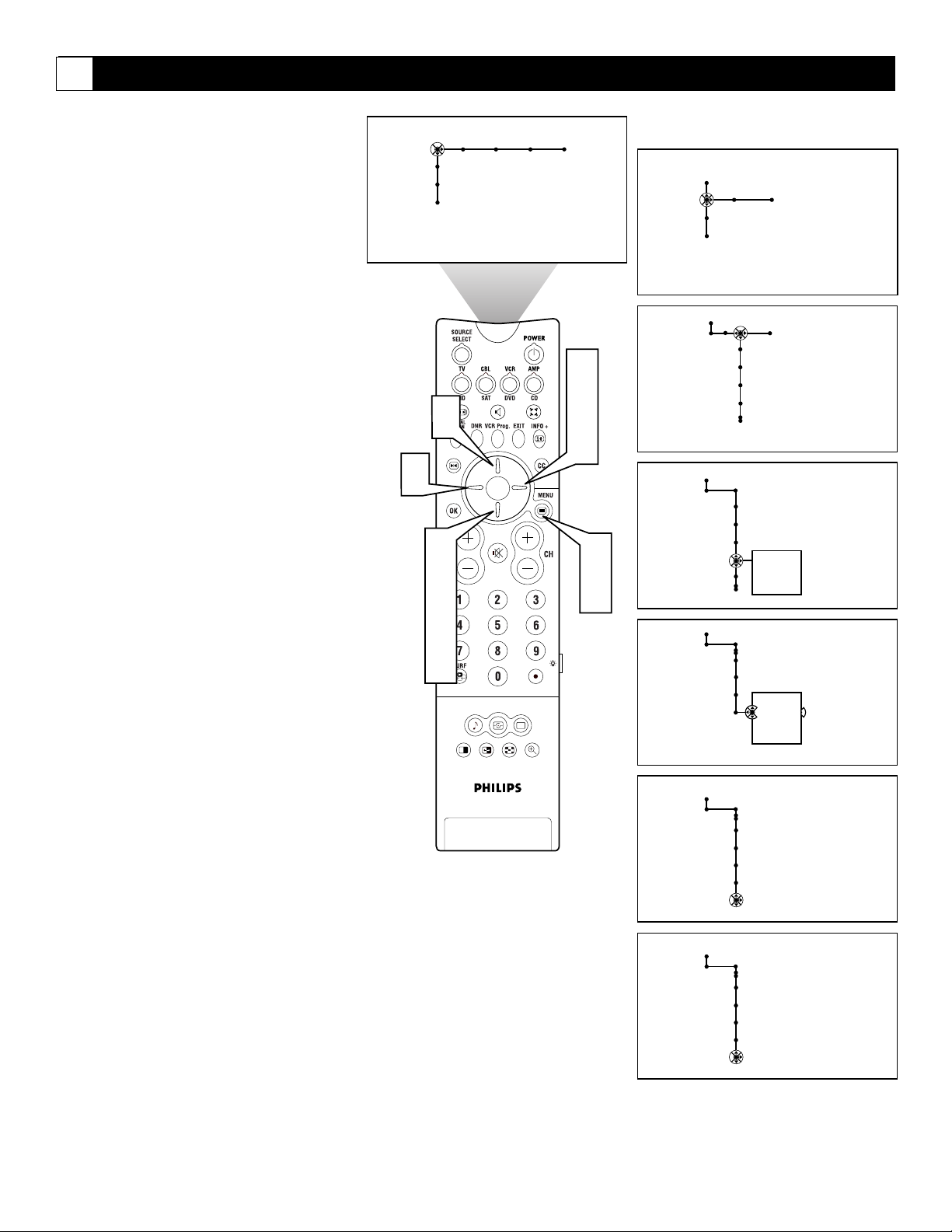

Selecting a Time Zone and Setting the Daylight Savings Control

Your television can acquire the current time from the signal being received. It needs to know your Time Zone, however, and whether or not you use Daylight Savings.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to highlight “Settings.”

Press the Cursor Right button repeatedly to select the “General” menu.

Press the Cursor Down button repeatedly to select the “Time Zone” control.

Press the Cursor Right button to enter the list of available time zones.

Press the Cursor Up or Down button to select your time zone.

Press the Cursor Left button, then press the Cursor Down button to select the “Daylight Savings” control.

Press the Cursor Right button to toggle “Daylight Savings” to “Automatic” for the TV to change to Daylight Savings Time automatically. Or select “Off.”

Press the Menu button to remove the on-screen menu from the TV screen.

Settings

Demo

Install

Picture Sound Features Channels

2 4 6 7

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

3 5 8

1 9

Settings

Demo

Install

Menu background

Dual screen format

Freeze format

Settings

Reset AV settings

Caption service

Time zone

Daylight saving

Settings

Time zone

General Source

Surf

General

OSD

Atlantic Eastern _ _ _

General

Atlantic Eastern Central

---

Settings

Reset AV settings

Caption service

Time zone

Daylight saving

Settings

Reset AV settings

Caption service

Time zone

Daylight saving

General

OSD

Off • Automatic

General

OSD

Auomatic • Off

Page 63

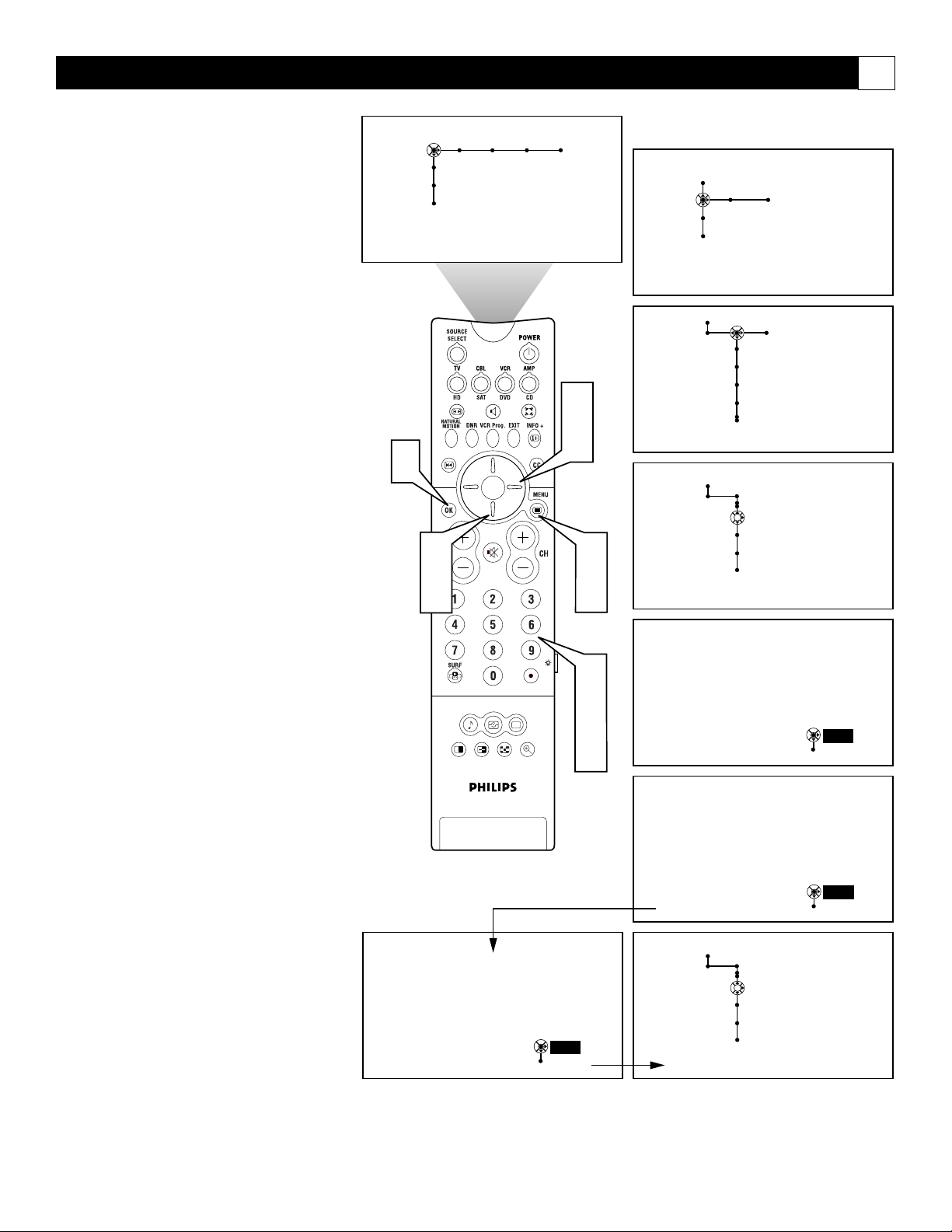

Setting up or Changing a PIN (Personal Identification Number)

In the General menu, you can set up a new PIN number or change an existing one for the Lock Channel feature.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select the “General” menu.

Press the Cursor Down button repeatedly to select either “Set PIN” or “Change PIN.”

NOTES:

• If no PIN exists yet, the menu will show “Set PIN.” Simply follow the on-screen instructions to set your PIN.

• If a PIN has previously been entered, the menu will show “Change PIN.”

• All number combinations from 0000 to 9999 are valid numbers.

Press the OK or Cursor Right button to begin the process.

Enter your current PIN using the Digit buttons on the remote control.

If you have forgotten your PIN, you can enter the overriding/default PIN 0-7-1-1.

Enter a new four-digit PIN.

Re-enter your new PIN using the Digit buttons to confirm the code. Your PIN is now changed.

Press the Menu button on the remote control to remove the on-screen menu from the TV screen.

Settings

Picture Sound Features Channels

Demo

Install

3 5

Settings

Demo

Install

Menu background

Dual screen format

Freeze format

Settings

Change PIN

Subwoofer

Lamp rating

Lamp replaced

General Source

Surf

General

To change your PIN, please press OK.

ACITVE

CONTROL

SOUND PICTURE

1 2

To confirm your new PIN, please enter it again.

PIN Cancel

ZOOM

- - - -

6 7 8

Please enter your current PIN.

Please enter your new PIN.

Change PIN

Subwoofer

Lamp rating

General

Your PIN has been changed.

Settings

Lamp replaced

PIN Cancel

- - - -

Page 64

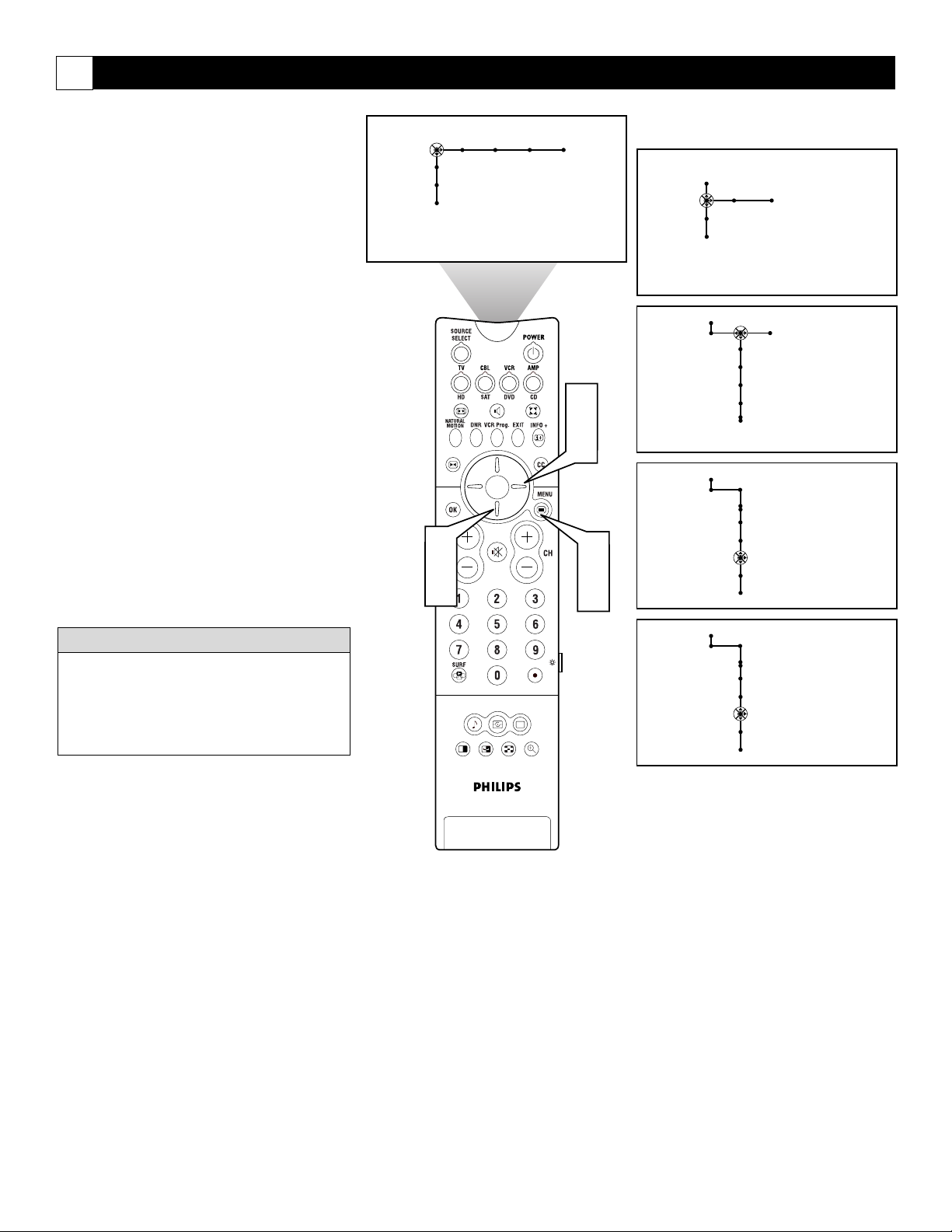

Setting the Subwoofer Control

If you connect a home-cinema surroundsound system with subwoofer to your TV (see page 19), you will need to select the Subwoofer “Yes” option in the TV’s onscreen menu. These steps explain how.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select the “General” menu.

Press the Cursor Down button repeatedly to select the “Subwoofer” control.

Press the Cursor Right button to toggle the Subwoofer control to “Yes” or “No.” Select Yes if you have connected an external subwoofer to the SUB OUT jack on the back of the TV.

Press the Menu button on the remote control to remove the on-screen menu from the TV screen.

HELPFUL HINT

Settings

Demo

Install

Picture Sound Features Channels

Settings

Demo

Install

Menu background

Dual screen format

Freeze format

General Source

Surf

2 4

ACITVE

CONTROL

SOUND PICTURE

1 2

ZOOM

1 6

Settings

Daylight savings

Change PIN

Subwoofer

Lamp rating

Lamp replaced

Settings

Daylight savings

Change PIN

Subwoofer

Lamp rating

Lamp replaced

General

No • Yes

General

Yes • No

Page 65

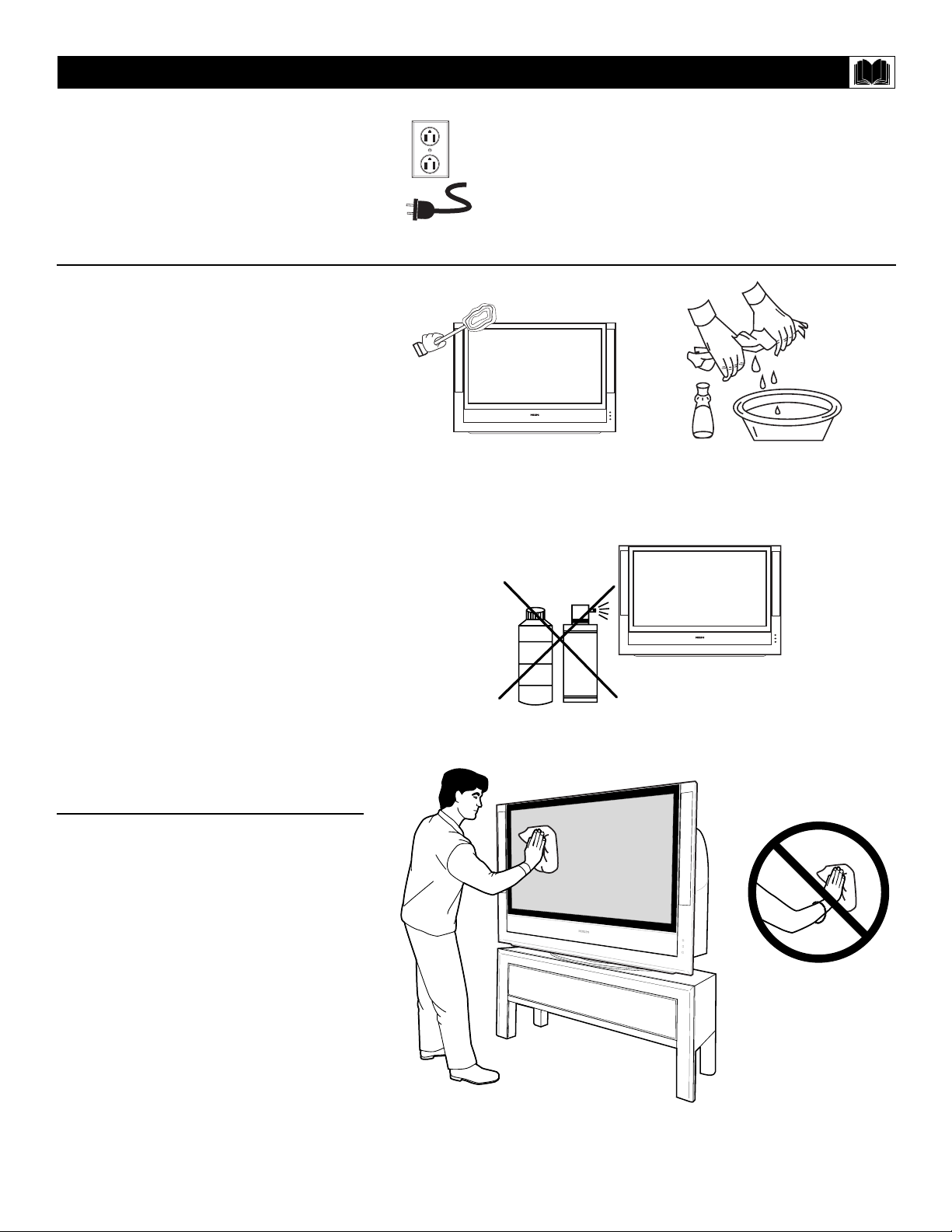

CLEANING THE TV

Be sure the TV is unplugged before cleaning it.

Use a nonscratching duster.

Soak the wiping cloth in cool, clean water and mild detergent. Then ring the cloth out before using.

Don’t use chemicals on or near the TV.

WARNING

To avoid possible shock hazard, be sure the TV is unplugged from the electrical outlet before cleaning.

Cleaning the Cabinet

• Regularly dust the TV cabinet with a dry, nonscratching duster.

• Gently wipe the cabinet surfaces with a soft, clean cloth. Even if the surfaces are very dirty, do not apply cleaner to them directly. Soak the cloth in a solution of cool, clean water and mild soap or detergent. Wring out the cloth and wipe the cabinet surfaces clean. Then use a clean, dry cloth to dry the wiped surfaces.

• Occasionally vacuum the ventilation slots on the back cover of the set. See the next section on “Cleaning or Replacing the Filters.”

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring of the cabinet finish.

• The television contains plastic parts. DO NOT use benzine, thinners, or other chemicals to clean. DO NOT use insecticide or other volatile substances nearby. DO NOT allow the TV to come into contact for extended periods of time with rubber or vinyl products.

Cleaning the Screen

• Use a dry soft cloth to wipe the screen. Use

even, easy, vertical strokes. Take care not to scratch or damage the screen surface. Avoid wearing jewelry or using anything abrasive.

Page 66

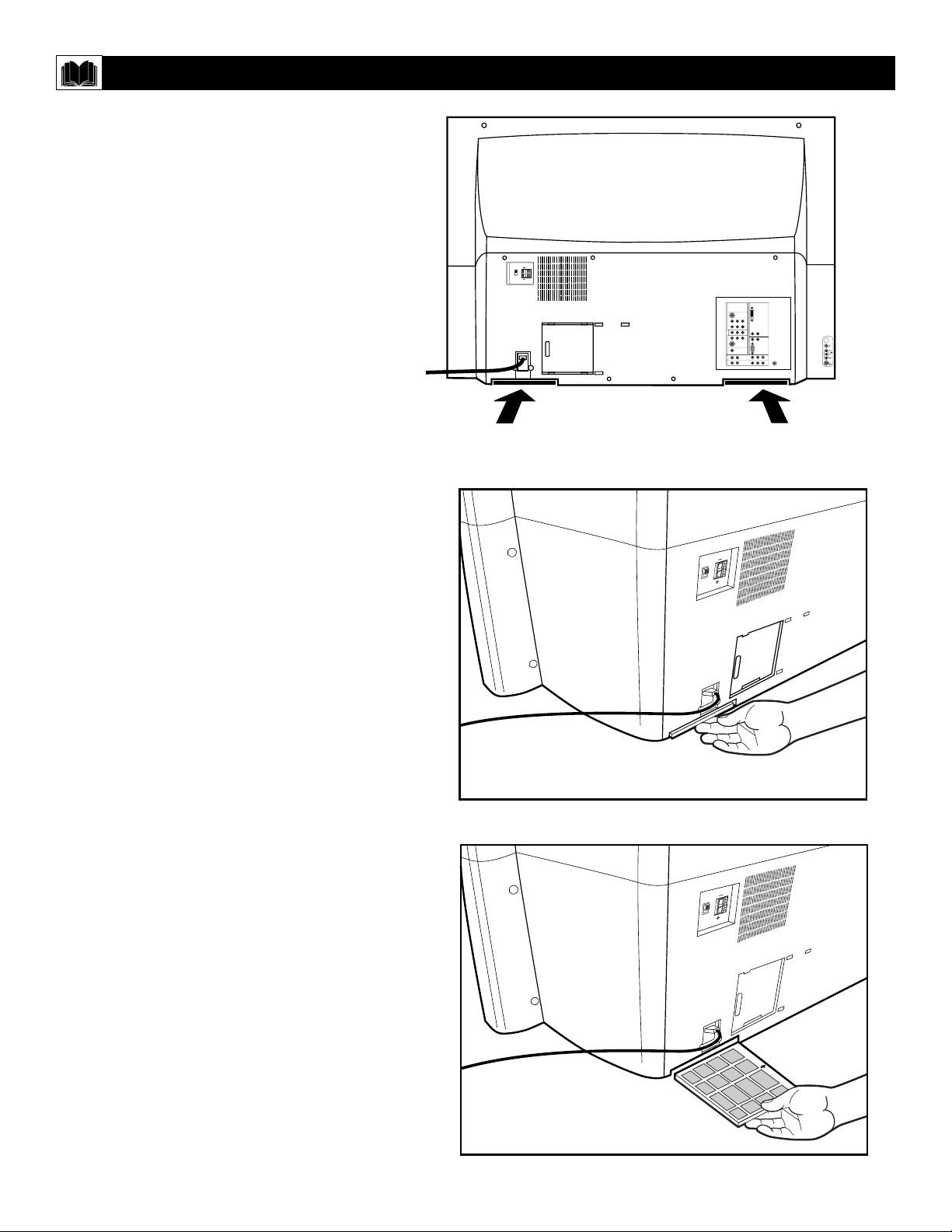

Cleaning or Replacing the Filters

Locations of Air Filters

The Cineos TV has two filters that cover air inlets on the bottom of the set. Maintaining a free flow of air through the inlets is very important. If the air filters are allowed to become dirty, clogged, or blocked, the temperature in the set will rise.

Should the heat level be allowed to become too high due to blockage, a sensor will detect this, and a warning message will appear on screen to alert you to check the air inlets for blockage. The message will be displayed for 6 seconds. It will reappear every 15 minutes as long as the temperature remains too high.

If the internal temperature of the TV is allowed to rise to a level that if prolonged could damage the TV, a warning message alerting you that the TV is shutting down will appear. Then, if the temperature remains at this high level for 1 minute, the TV will enter Standby mode. In Standby mode, the TV is off.

Be sure the TV is not placed on a surface (such as a shag carpet) that will prevent the free flow of air through the inlets, and periodically clean or replace the filters as detailed in the following instructions.

WARNING: Do not tip the TV when removing or installing the filters. This may result in instability of the TV.

Place your fingers under one of the filter slots located at either bottom left or right in back of the TV cabinet.

Grasp the filter and gently pull it straight out.

Continued on the next page.

T U P IN P

INT

M A L E N N A H

EXT

C R E T N E C

SERVICE 1

DVI

S-VIDEO

RLV

AV1MONSUB OUT AV2AV3AV4

Pr Pb Y

OUT

S-VIDEO

AV5 AV6

RGB+HV

Pr Pb Y

STANDARD/ HD INPUTS

TUNER

Pr Pb Y STANDARD/ HD INPUTS

EXT

CENTER

Page 67

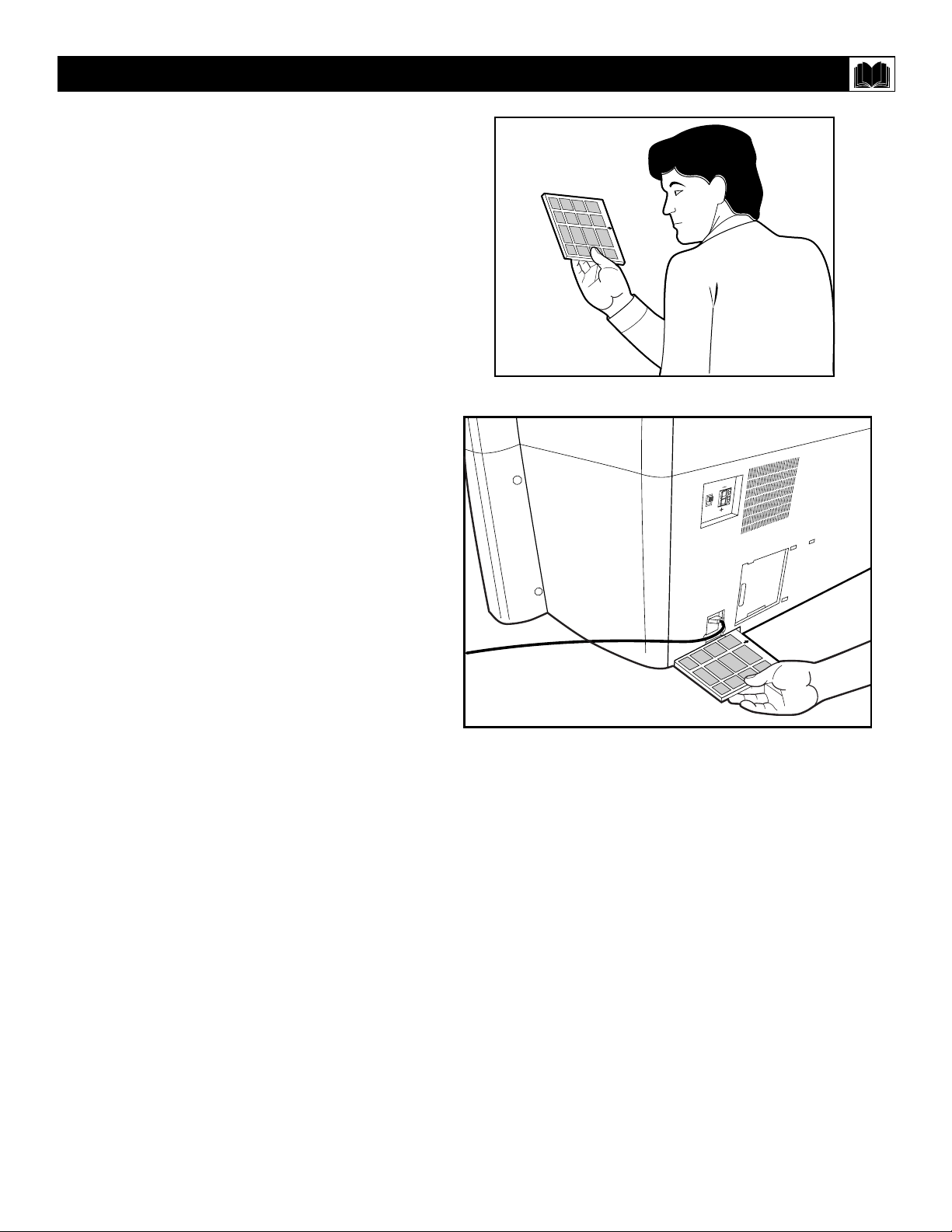

Cleaning or Replacing the Filters

Continued from page 68.

Examine the filter for dust or other contamination. If it is dirty, clean it with a vacuum cleaner. DO NOT WASH it. Replace the filter if vacuuming does not sufficiently clean it.

To order replacement filters, call the Philips Customer Care Center at 1-800-531-0039. A Philips associate will be happy to assist you. The part number for the Philips TV inlet filter assembly is 3135 037 51810.

WARNING:

DO NOT operate the TV without filters. This will cause serious damage to the TV.

Turn the filter so that the arrow is pointing toward the center of the TV. Align the edges of the filter with the slot track, then gently slide it all the way back into the slot. A click sound can be heard as the filter reaches the correct position.

CENTER

C E

N T E R

CENTER

Page 68

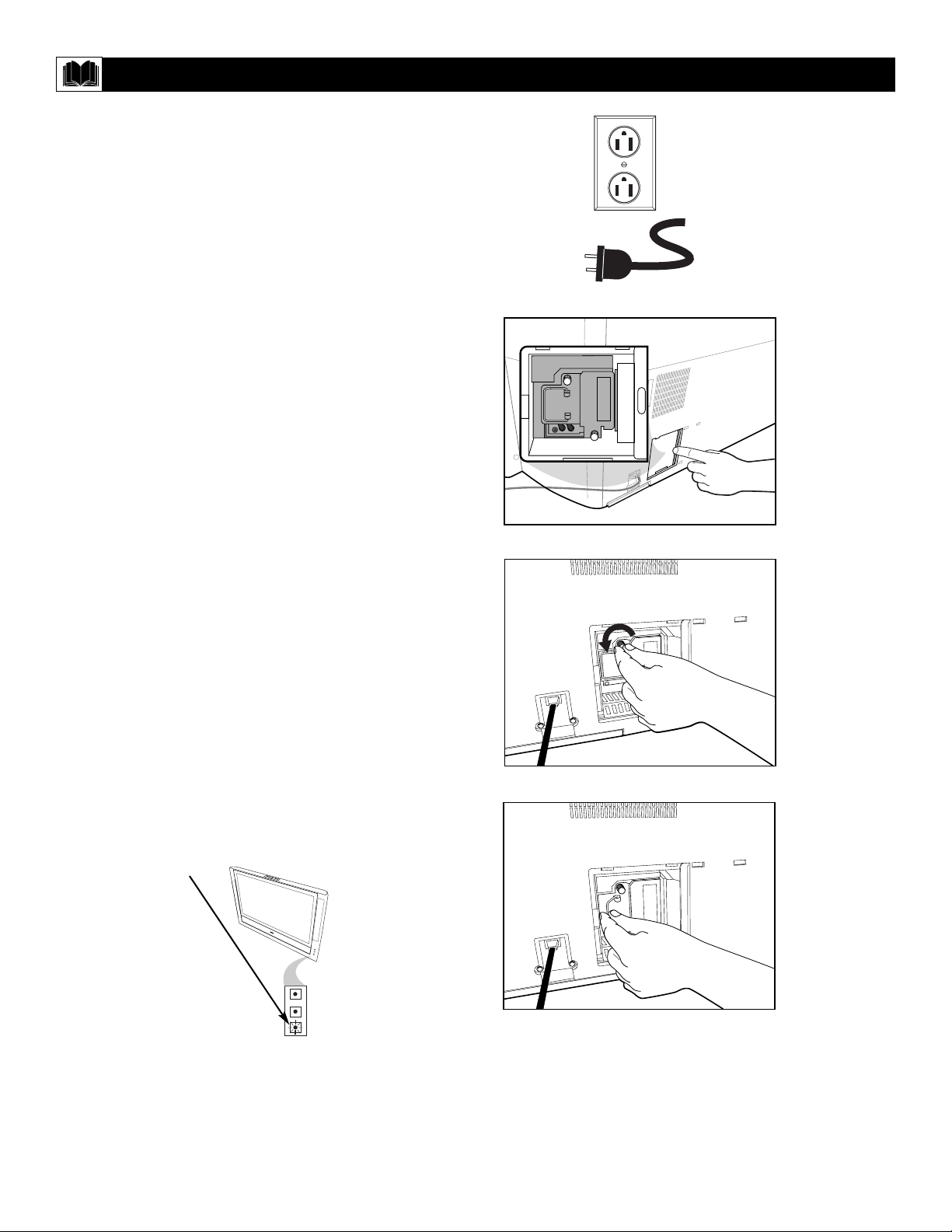

Replacing the Lamp

The Cineos TV uses a lamp with a limited lifetime to illuminate the picture. A Lifetime counter in the TV records the operating time of the lamp. One hundred hours before the lamp reaches the end of its life, a warning message will appear on screen. This will allow you to prepare to replace the lamp or take action right away. The message will disappear within 6 seconds. It will reappear each time the TV is turned on until the lamp is replaced.

To order a replacement lamp, call the Philips Customer Care Center at 1-800-531-0039. A Philips associate will be happy to assist you. The part number for the Philips TV replacement lamp is 3122 438 71310.

Here are the steps for replacing the lamp:

Power off the TV. Unplug the TV.

The lamp door is located on the back of the TV next to the power cord. Gently slide the door completely to the right to open.

CAUTION: The lamp gets extremely hot. Allow a cool-down time before removing the lamp.

Unscrew the thumb screws until they are dangling.

Lift the handle out.

Continued on page 71.

NOTE: A blinking orange light in the Active Standby Window means that the lamp is worn out, dead, or has expired and needs to be replaced.

Page 69

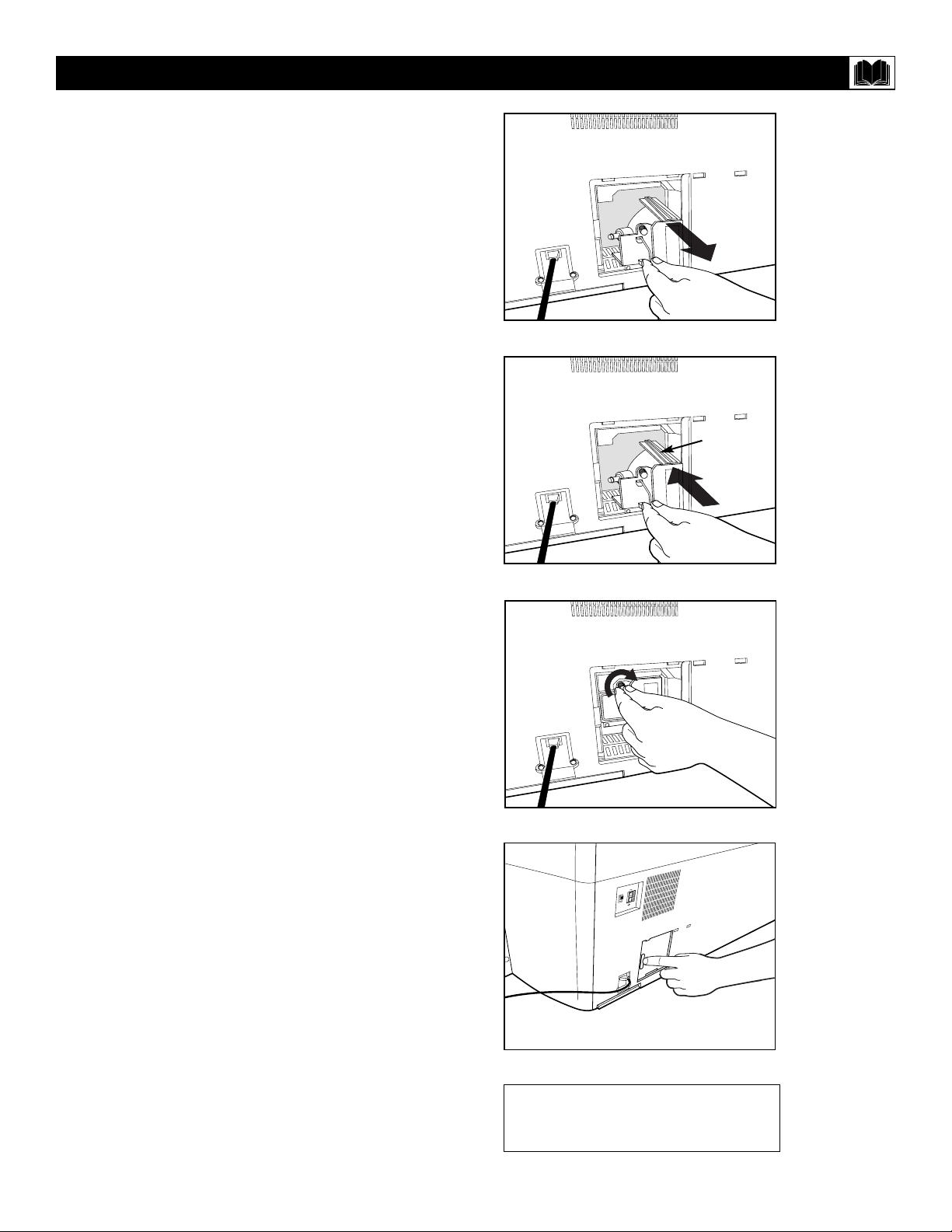

Replacing the Lamp

Go to page 72 for instructions for resetting the Lamp Lifetime counter through the TV’s onscreen menu.

Groove

Continued from page 70.

CAUTION: When removing the lamp, do not touch the glass envelope. It may still be hot.

Grasp the handle, then pull out and slightly down to remove.

WARNING: The lamp contains mercury. Dispose of the lamp in accordance with local, state, and federal regulations.

CAUTION: When installing the new lamp, do not touch the glass envelope. Oil from skin can reduce lamp life.

Align the groove on top of the new lamp’s housing with the corresponding groove pocket inside the TV, then slide the new lamp into place.

Tighten the thumb screws clockwise until finger tight only. Do not overtighten.

Slide the lamp door closed.

IMPORTANT: The door must be closed completely to the left. Otherwise, the TV will not operate.

Go to page 72 for instructions for setting the Lamp Rating and resetting the Lamp Lifetime Counter.

INT

EXT

Page 70

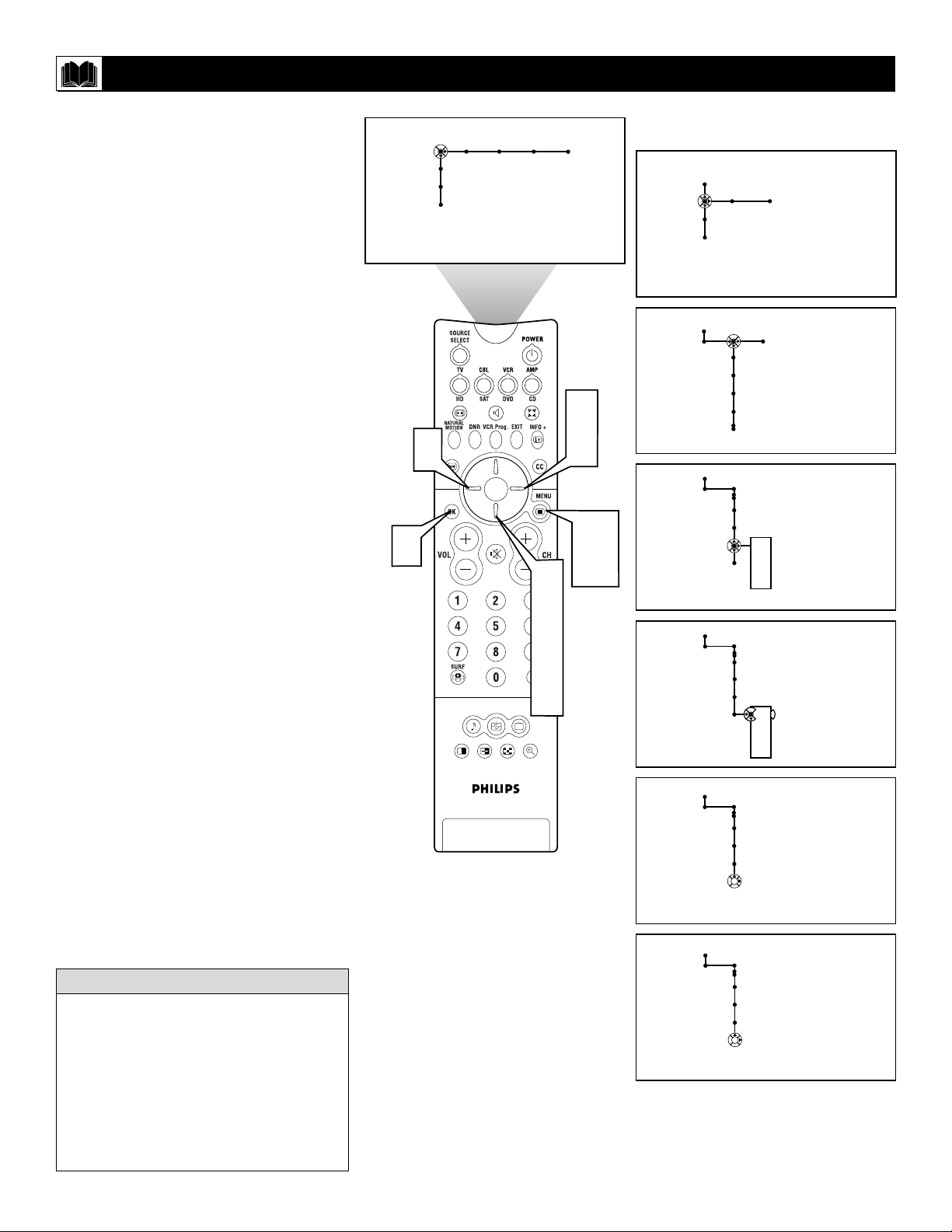

Resetting the Lamp’s Lifetime Counter

After installing a new lamp in the TV, you need to enter the “Lamp rating” list in the onscreen menu and select the alphabetical code that is provided with the lamp. This will be a letter from A–Z. The letter represents the lifetime of the lamp. By inputting the code, you are telling the TV’s Lamp Lifetime Counter the lifetime of the new lamp.

The next step is to use the “Lamp replaced control” to tell the TV that you have installed a new lamp. This control resets the Lifetime Counter to 0 for the new lamp and begins keeping track of the lifetime of the new lamp.

Press the Menu button on the remote control to display the on-screen menu.

Press the Cursor Down button to select “Settings.”

Press the Cursor Right button to select the “General” menu.

Press the Cursor Down button repeatedly until “Lamp rating” is selected.

Press the Cursor Right button to enter the rating list.

If necessary, press the Cursor Down button as many times as necessary to select the letter for your replacement lamp.

Press the Cursor Left button to return to the “General” menu.

Press the Cursor Down button to select “Lamp replaced.”

Press the OK button to confirm that you have changed the lamp.

Press the Menu button to remove the on-screen menu from the TV screen.

• One hundred hours before the lamp reaches the end of its life, a warning message will appear on screen to alert you. Changing the lamp at this point is recommended for optimal performance.

• A blinking orange light on the front of the set means that the lamp is not working anymore and needs to be replaced.

HELPFUL HINTS

Settings

Picture Sound Features Channels

Demo

Install

SOUND PICTURE

1 2

ACITVE

CONTROL

ZOOM

2 4 6 8

3 5

Settings

Demo

Install

Settings

Menu background

Dual screen format

Freeze format

Settings

Change PIN

Subwoofer

Lamp rating

Lamp replaced

Settings

Lamp rating

Settings

Change PIN

Subwoofer

Lamp rating

Lamp replaced

Settings

Change PIN

Subwoofer

Lamp rating

Lamp replaced

General Source

Surf

General

Press OK after you replaced the lamp.

General

A B C

---

A B C

---

Page 71

Troubleshooting

Review This List of Symptoms and Checks Before Requesting Service

You may be able to solve the problem yourself. Charges for TV installation and adjustment of customer controls are not covered under your warranty.

If you need to call a customer service representative, please know the model number and serial number of your product before you call. This information is displayed on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If you believe the representative will need to help you with operations, please stay near the product. Our representative will be happy to assist you. To reach our Customer Care Center, call 1-800-531-0039.

TV-related Checks

The TV won’t switch on.

• Make sure the power plug is plugged in.

• If you’re using the TV remote control to turn the TV on, be sure the remote is in TV mode. (page *Q6)

• Plug something else in to be sure the wall outlet (or extension cord) is receiving power.

• The remote control could have a problem. See the troubleshooting section “Remote-related Checks” on page 74.

• Make sure the lamp door is not ajar. The TV is designed not to operate with the lamp door open. (pages *Q1, 71)

• If a red light is blinking on the front of the TV, the set has entered protection mode. Unplug and plug the set back in a couple of times and try to switch it on. If the problem persists, contact the Customer Care Center at 1-800-531-0039.

The TV switches off unexpectedly.

• If the lamp door is open, the TV will shut down. The TV is designed not to operate when the lamp door is ajar.

• The Sleeptimer may have been set to turn the TV off. Turn the TV back on if desired. (page 48)

The TV switches on unexpectedly.

• The On Timer may have been set. (page 49)

An on-screen message tells you that it is time to replace the lamp.

• The message appears on screen when the lamp has 100 hours of life left, and will reappear each time the TV is turned on until the lamp is replaced. Prepare to replace the lamp or take action right away. (pages 70–72)

An on-screen message instructs you to check the air inlets for blockage.

• Check the air inlets and filters for blockage and clean or replace the air filters as necessary. (pages 68–69)

You have a picture but no sound.

• Make sure Mute is not on. (page *Q6)

• The TV speakers may be turned off. Make sure the Center Channel Amp Switch on the back of the TV is in the INT position. (page 7)

You have no picture.

• If you have made a connection to the TV’s Tuner jack be sure to use Autoprogram. (page *Q8).

• If you want to view materials from an accessory device (DVD player, VCR, or satellite receiver, for example) be sure you have selected the input source to which you have connected the device—AV1, AV2, AV3, AV4, AV5, AV6, or Side. (pages *Q4, *Q6, 10–16, 18, 20)

• Make sure you have made connections correctly. (pages *Q3–5, 10–16, 18, 20)

You have no picture and no sound.

• If you see a blinking orange light on the front of the set, this means that the lamp is worn out, dead, or has expired and needs to be replaced. (pages 70–72)

You see scrolling images.

• Make sure you have made connections correctly. (pages *Q3–5, 10–16, 18, 20)

*Q refers to the Quick Use and Setup Guide that came with your TV.

Page 72

Troubleshooting

TV-related Checks (continued from page 73)

The picture appears doubled or tripled.

• If you are using an antenna, be sure it is facing in the correct direction. Also, check to see if it may be receiving signals that are being reflected off of mountains or buildings.

The picture shakes or is not clear.

• If you are using an antenna, make sure it is not broken or shorted, and make sure the antenna cable is connected properly and securely.

• If you are using a VCR and selecting channels on the TV, make sure the TV/VCR mode on the VCR is set to TV.

The picture has no colors or colors are not correct.

• Make sure you have made connections correctly. (pages *Q3–5, 10–16, 18, 20)

• If you have connected accessory equipment, such as an HD satellite receiver, make sure the color setting on the accessory equipment is correct. See the user manual for the HD satellite receiver.

The TV sound has an unusual quality.

• Check the TV’s Equalizer control to be sure it is set to the option you want. (page 39)

Remote-related Checks

The remote control does not work.

• Make sure nothing is blocking the path between the remote control and the TV or accessory device you want to operate.

• Make sure you point the remote directly at the TV or accessory device you want to operate.

• If you want to operate the TV, make sure the remote is in TV mode. If you want to operate an accessory device, program the remote for the device if necessary and make sure the remote is in the appropriate mode for the device. (pages *Q6, 22–26)

• Make sure you have installed the batteries correctly. (page *Q6)

• The batteries could be dead. When the batteries in the remote run low, the remote will send a “Battery Low” command to the TV. The TV will then display a message on the screen reminding you to replace the batteries as soon as possible.

• You may want to try taking the remote batteries out and putting them back in. NOTE: After taking the batteries out, you may need to reprogram the remote for use with accessory devices.

*Q refers to the Quick Use and Setup Guide that came with your TV.

Page 73

Product Specifications


• Screen Size 44PL9523: 44” measured diagonally 55PL9523: 55” measured diagonally

• Visible Screen Size 44PL9523: 44” measured diagonally 55PL9523: 55” measured diagonally

• Aspect ratio: 16:9

• Display technology: Philips single-panel liquid crystal

on silicon (LCOS)

• Flicker free; perfect convergence

• Resolution: 1280 x 720

• 1080i HD performance and line doubling

• Brightness: 450 Nits

• Contrast ratio: 400:1

• Screen protector with anti-glare coating

• Digital Natural Motion™

• Digital Crystal Clear™

• Active Control™

• Widescreen Plus

• Picture Freeze

Sound

• Sound system: Hi-fi Stereo

• Virtual Dolby* Surround processing

• Output: 2 x 20W RMS at 2% distortion

• Frequency response: 20Hz–15kHz, +1/-3dB (ampl.)

• Loudspeaker configuration: two 2”/two 5”

• Control:Volume, 5-band Audio Equalizer Controls (with adjustments

at 120Hz, 500Hz, 1.5KHz, 5KHz, and 10KHz), Balance,AVL (on/off), and Headphone (volume, balance)

• Center channel input

• Subwoofer out

Operation

• Easy, menu-driven installation and operation; direct-access menus

and cursor control

• Selection of three menu languages: English, French, and Spanish

• On-screen status display on programs and functions (on-screen

display)

• Sleeptimer

• Favorite channel listing

• AutoLock™ to protect children from objectionable programming

with V-chip technology

• Closed Captioning

• AutoPicture™ control: Soft, Natural, Rich, Multimedia, Personal

• AutoSound™ control: Movie, Speech, Music, Personal

• Eight widescreen modes:Automatic, Super Zoom, Panoramic, 4:3,

Movie Expand 14:9, Movie Expand 16:9, 16:9 Subtitle, and Wide Screen

• Subtitle and heading shift (scroll the screen with the cursor buttons)

• Auto Format/Auto Screen Fit

• Smart Clock

Miscellaneous

• Mains: AC 110V ± 10%

• Power consumption: Normal operation: 233W

Standby: <1W

• Input and output jacks (see page 7)

• Product dimensions (d x w x h)

44PL9523: 14.6” x 46.7” x 31.7” 55PL9523: 17.4” x 56.6” x 38.1”

• Product weight (excluding packaging) 44PL9523: 73.1 lbs 55PL9523: 95.5 lbs

• Universal remote control: RC2043, universal RC managing TV and

accessory devices

Supporting Features

• Digital Color Transient Improvement (CTI)

• Picture Freeze

• Auto Aspect Ratio Adaptation

• Incredible Surround™

• Automatic Volume Leveler (AVL)

• Independent headphone volume control

• Easy Tune™ (auto search, auto tune, auto install)

• Alternate channel

• AutoSurf™

• Low-power standby (<1W)

Supplied Accessories

• Remote control with two “AA” size batteries

Design and specifications are subject to change without notice.

Parts that will need to be replaced at some point during the life of the product:

• Philips TV inlet filter assembly: part number 3135 037 51810

• Philips TV lamp: part number 3122 438 71310. To order the parts, contact the Philips Customer Care Center at 1-800-531-0039.

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Page 74

Index

Active Control™ Plus+, 27 Active Control™ Plus+ Window, *Q5 Active Standby Window, *Q5, 70, 72 Alternate Audio (SAP) Control, 42 Antenna Attenuator, 56 Audio/Video Input Sources, Labeling, 21 AutoPicture™ Options, 34 AutoSound™ Options, 46 AVL (Auto Volume Leveler), 44 AV5 Clock Frequency and Phase, Adjusting, 17

Blocking Programs

Based on TV Ratings, 54 Based on Movie Ratings, 55

Cabinet

Buttons, *Q5

Windows, *Q5 Channel List, 50–51 Channels, Programming into the TV’s

Memory, *Q8 Cleaning the TV, 68 Closed Captioning, 47 Color Enhancement, 33 Connections

Camcorder, 20 Computer, 16 HD Satellite Receiver to DVI, 18 HD Satellite Receiver to YPbPr, 15 Progressive-scan DVD Player, 14 Standard DVD Player, 13 Surround Sound, 19 S-Video, 12 VCR, 10 VCR and Cable Box, 11 Video Game System, 20

Daylight Savings, Setting, 64 Delta Volume, 45 Digital Processing Options, 30 Dolby** Virtual (See Sound Mode Options) Dual Screen/PIP Format

Changing Channels or Input Sources, 60

Selecting, 59 DVI Input Jack, 7–8, 18 Dynamic Contrast Options, 31 Dynamic Noise Reduction Options, 32

Factory Service Locations, 77–78 Features, List of, 5 Filters, Cleaning or Replacing, 68–69

Headphone Volume, Adjusting, 37

Incredible Surround™ (See Sound Mode

Options)

Jacks/Cables/Connectors, Descriptions, 7

Lamp

Replacing, 71–72 Resetting the Lifetime Counter, 73

Lamp Lifetime Counter, 72 Lamp Rating Control, 72 Language, Setting for the On-screen

Menu, *Q8 Lock After, 53 Lock Channel, 52 Loudness Control, 40

Menu Background, 57 MultiPIP Options, 61

On-screen Display Options, 63 On Timer, 49 Overheating, Preventing *Q1-2, 9, 68–69

Panel Jacks, Compatibility Information, 7–8 Panning the Screen, *Q6, 20, 35 Picture Controls, 29 Picture Format Options, 35–36 Picture Freeze Options, 61 PIN, Setting up or Changing, 65 Power Surges, Protecting Against, 9 Pre-connection Recommendations, 9 Product End of Life Disposal, 5

Remote Control

Programming, 22–23 Using with the TV, *Q6 Using with VCR, 26

Remote Sensor Window, *Q5 RGB+HV Input Jack, 7–8, 16

Safety Instructions, *Q1, 2–3, 9, 68- 69, 70–71 SAP (See Alternate Audio [SAP] Control) Service (See Factory Service Locations) Signal Splitter, *Q4, 8, 11 Sleeptimer, 48 Sound Mode Options, 41 Specifications, Product, 75 Stand (Optional), Mounting, *Q3 Stereo, Setting the TV for, 43 Subwoofer

Output Jack, 7–8, 19

Control (in on-screen menu), 19 Surf Options, 58 Surround Sound (See Connections and Sound

Mode Options) S-Video Input Jacks, 7–8, 12 Swivel (Optional), Mounting, *Q2

Time Zone, Selecting, 64 Troubleshooting, 73–74 Tuner (RF) Input Jack, *Q3–5, 7–8,

10-11 TV Equalizer Options, 38 TV Signals

Information on, 6

Ways of Receiving, 6 TV Speaker Balance, 39 TV Volume, 37 Twin-lead Adapter, 8

Video Game Systems (See Connections) Volume, Adjusting

Headphone, 37

TV, 37

Warranty, 80 Welcome, 2

YPbPr Input Input Jacks, 7–8, 13–15

*Q refers to the Quick Use and Setup Guide that came with your TV.

**Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Page 75

Factory Service Locations

3135 015 07541

Milwaukee: call Chicago Cincinnati and Columbus: call Cleveland Nashville and Chattanooga: call Knoxville Washington/Baltimore: call Philadelphia Charlotte: call Atlanta San Antonio: call Houston All Florida locations: call Tampa

Rev. HH - 1/9/2003

NOTE: If you reside in one of our Philips Factory Service Branch areas (see the directory on the next page), you can contact the nearest Service Branch to obtain efficient and expedient repair for your product. If your product is In-Warranty, you should have proof-of-purchase to ensure No Charge Service. For Out-of-Warranty service, call the location nearest you.

NOTA: Si vous résidez dans une des régions desservies par une succursale de service après vente du fabricant Philips (voir liste ci-dessous), vous pourrez contacter la branche de service après vente la plus près de chez vous pour obtenir un service après vente rapide et efficace. Si le produit est sous garantie, il suffira de présenter une preuve d`achat pour bénéficier d'un service sans frais. Pour les produits non couverts par la garantie, contactez le centre le plus près de chez vous.

NOTA: Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de fábrica (ver directorio más abajo), Ud. puede comunicarse con la sucursal de servicio más cercana para obtener una reparación oportuna y eficaz de su producto. Si su producto está todavía bajo garantía, Ud. debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio después del vencimiento de la garantía, llame al lugar más cercano de los abajo indicados.

In Canada

How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product Please contact Philips at 1-800-661-6162 (French speaking)

1-800-531-0039 (English or Spanish speaking)

Au Canada

Comment obtenir le service après-vente pour les produits apportés ou envoyés par la poste à notre centre de service ou le service à domicile Veuillez contacter philips á: 1-800-661-6162 (Francophone)

1-800-531-0039 (Anglais ou Espagnol)

En el Canadá

Cómo recibir servicio efficiente para su producto, en persona, por correo o a domicillo Favor de comunicarse con Philips al: 1-800-661-6162 (francófono)

1-800-531-0039 (Inglés o Español))

Page 76

Factory Service Locations

QUALITY SERVICE IS AS CLOSE AS YOUR TELEPHONE! SIMPLY LOOK OVER THE LIST BELOW FOR THE NUMBER OF A FACTORY SERVICE CENTER

NEAR YOU

. YOUR PRODUCT WILL RECEIVE EFFICIENT AND EXPEDIENT CARRY-IN, MAIL-IN, OR IN-HOME SERVICE, AND YOU WILL RECEIVE PEACE OF MIND,

KNOWING YOUR PRODUCT IS BEING GIVEN THE EXPERT ATTENTION OF PHILIPS’ FACTORY SERVICE.

COMMENT OBTENIR NOTRE SERVICE APRÈS VENTE RAPIDE ET EFFICACE SOIT PAR COURRIER, À DOMICILE, OU EN SE PRÉSENTANT À UN CENTRE DE SERVICE PHILIPS. PLUS DE 600 CENTRES DE RÉCEPTION DE PRODUITS À RÉPARER À TRAVERS LE PAYS: CONTACTER LE CENTRE DE SERVICE AUX CONSOMMATEURS LE PLUS PROCHE POUR SAVOIR L’EMPLACEMENT DE CES DÉPÔTS DANS UN RAYON DE 50 À 75 MILES (80 KM À 120 KM) DU CENTRE DE SERVICE LOCAL.

CÓMO OBTENER UN SERVICIO OPORTUNO Y EFICIENTE POR CORREO, EN CASA O EN PERSONA PARA SU PRODUCTO A TRAVÉS DE UN CENTRO PHILIPS DE SERVICIO. MAS DE 600 SITIOS POR TODO EL PAIS PARA LA RECEPCION DE PRODUCTOS NECESITADOS DE REPARACIONES: COMUNICARSE CON EL CENTRO DE SERVICIO DE FABRICA MAS CERCANO PARA ESTOS LUGARES DENTRO DE UN RADIO DE 80 A 120 KM (50 A 75 MILLAS) DEL CENTRO DE SERVICIO LOCAL.

ATLANTA

Philips Factory Service 550 Franklin Road., Suite F Marietta, GA 30067 800-273-1501

TAMPA

Philips Factory Service 1911 US Highway 301 North, Suite 100 Tampa, FL 33619 800-442-2027

SAN FRANCISCO

Philips Factory Service 681 East Brokaw Rd. San Jose, CA 95112 800-300-9013

HOUSTON

Philips Factory Service 1110 N. Post Oak Rd., Suite 100 Houston, TX 77055 800-952-3254

CLEVELAND

Philips Factory Service 950 Keynote Circle Brooklyn Heights, OH 44131 800-331-7037

DETROIT

Philips Factory Service 25173 Dequindre Madison Heights, MI 48071 800-438-1398

DALLAS

Philips Factory Service 415 N. Main Street, #107 Euless, TX 76040 800-952-3254

LOS ANGELES

Philips Factory Service 20930 Bonita, Ste. V Carson, CA 90746 800-300-9013

CHICAGO

Philips Factory Service 1279 W. Hamilton Pkwy. Itasca, IL 60143 800-531-2922

KNOXVILLE

Philips Factory Service One Philips Drive Building 2 Knoxville, TN 37914 800-821-1767

PHILADELPHIA

Philips Factory Service 354 Dunks Ferry Rd. Bensalem, PA 19020 800-847-9320

Page 77

This page is intentionally left blank.

Page 78

Limited Warranty

PHILIPS TELEVISION

One Year Free Labor

One Year Free Service on Parts

30 days Free Service on Television Screen

This product can be repaired in-home.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Philips Consumer Electronics, P.O. Box 520890, Miami, FL 33152, (402) 536-4171

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year thereafter (30 days for the TV screen), all parts will be repaired or replaced, and labor and transportation are free. After one year from the day of purchase, you pay for the replacement or repair of all parts and for all labor and transportation charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• a product used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE...

Repair must be performed by an authorized service center or a factory service center. If you do not live near a factory service center, contact your dealer. If your dealer is an authorized service center, he will arrange repair. If your dealer is not an authorized service center, he will direct you to the authorized service center engaged by him to service the products he sells.

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

IF YOU HAVE QUESTIONS...

Please contact Philips at:

1-800-531-0039, if calling from the USA (English or Spanish Speaking) 1-800-661-6162, if calling from Canada (French Speaking) 1-800-531-0039, if calling from Canada (English or Spanish Speaking).

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # ________________________________________________

SERIAL # ________________________________________________

EL6551E001 / 3-03
