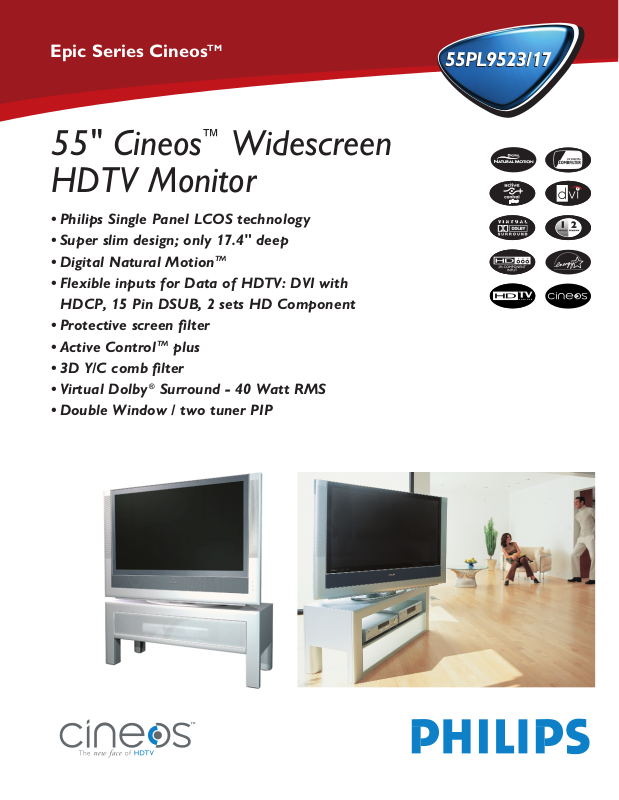

55PL9523/17

55" Cineos

™

Widescreen

HDTV Monitor

• Philips Single Panel LCOS technology

• Super slim design; only 17.4" deep

• Digital Natural Motion

• Flexible inputs for Data of HDTV: DVI with HDCP, 15 Pin DSUB, 2 sets HD Component

• Protective screen ﬁlter

• Active ControlTMplus

• 3D Y/C comb ﬁlter

• Virtual Dolby®Surround - 40 Watt RMS

• Double Window / two tuner PIP

Epic Series Cineos

55" CineosTMWidescreen HDTV Monitor

Sound quality

Virtual Dolby®Surround processing

Dolby

processing circuitry for enhanced surround sound effect creates the

sensation of Dolby®Pro Logic without the hassle of additional rear speakers.

Sound system: Hi-Fi Stereo

Receives stereo broadcasts. Produces sound for performance through 4 speakers with an output of 2 x 20W RMS. The loudspeaker conﬁguration consists of two 2" tweeters and two 5" woofers. Full user controllable equalizer via the OSD menu with 4 presets “Movie, Speech, Music and Multimeda”.

Connectivity

Broad input standard support

• AV1: S-Video, CVBS, Y Pb Pr and stereo sound

• AV2: S-Video, CVBS and stereo sound

• AV3: Standard or composite Y Pb Pr supporting 480i, 480p, 720p and 1080i inputs and stereo sound.

• AV4: Standard or composite Y Pb Pr supporting 480i, 480p, 720p and 1080i inputs and stereo sound.

• AV5: 15-pins D-SUB input supporting standard resolutions up to 1280 x 1024 with stereo sound.

• AV6: DVI-D input with stereo sound

• Side: S-Video and CVBS with stereo sound.

• Monitor out; subwoofer out and center channel input.

• Headphone output

Miscellaneous

• Mains: AC 110V ± 10%

• Power consumption: Normal operation: 270 Watts Stand by: <1W

• Product dimension (d x w x h): 17.4 x 56.6 x 38.1"

• Product weight: 95.6 lbs.

• Carton dimensions (d x w x h): 22.5 x 62.5 x 43.3"

• Shipping weight: 120 lbs.

• UPC: 0 37849 93419 7

Universal remote control – RC2043/01B Universal RC managing TV and peripherals.

Digital Natural Motion, Digital Crystal Clear, Active Control, Auto Surf, Incredible Surround, Cineos

and Easytune are trademarks of Philips Consumer Electronics Company.

Virtual Dolby is a trademark of Dolby Laboratories.

As an ENERGY STAR

Partner, Philips has determined that this product

meets the ENERGY STAR

guidelines for energy efﬁciency.

www.philips.com or AOL keyword: philips

Picture Quality

Philips Single Panel LCOS technology

Philips single panel LCOS technology produces high resolution, ﬂicker free video without a visible pixelgrid. This Philips patented reﬂective technology enables a large screen size TV with low weight and small footprint without any concerns for convergence or burn-in.

Digital Natural Motion

Eliminates motion judder from ﬁlm based sources such as DVD’s for distortion free, natural viewing.

Active Control Plus

By continually adjusting picture settings over 60 times per second, Active Control Plus ensures that the viewing experience is always optimal. Changes in ambient light are even automatically compensated for!

• Screen size: 55"

• Visible screen size: 55"

• Aspect ration: 16 : 9

• Resolution: 1280 x 720

• 720P HD performance and line doubling

• Brightness: 450 Nits

• Contrast ratio: >400 : 1

• Screen protector

Ease of use

• Ergonomic universal remote control

• Easy menu driven installation and operation. Direct access menus and cursor control.

• Selection of three menu languages: English, French, Spanish.

• Onscreen status display on programs and functions (OSD)

• Sleep timer

• Favorite channel listing

• AutoLock™ to protect young children from objectionable programming with V-chip technology.

• Closed Captioning

• Smart Picture control: Soft, Natural, Rich, Multimedia, Personal

• Smart Sound Control: Movie, Speech, Music, Personal

• 6 wide screen modes: 4:3, Zoom 14:9, Zoom 16:9, Subtitle Zoom, Super Zoom,Widescreen

• Subtitle and heading shift

• Autoformat / Auto Screen Fit (invl.WSSB)

• Smart Clock

Center Channel Input

Jack Panel

Side Panel

➢ Optional ST559523/ZA stand (shown on front) provides the

ideal solution to table top placement with an emphasis on high design, storage, and safety.

➢ Optional SW559523ZA swivel provides greater viewing ﬂexibility

by allowing safe easy rotation of the set.

Remote

55PL9523/17
