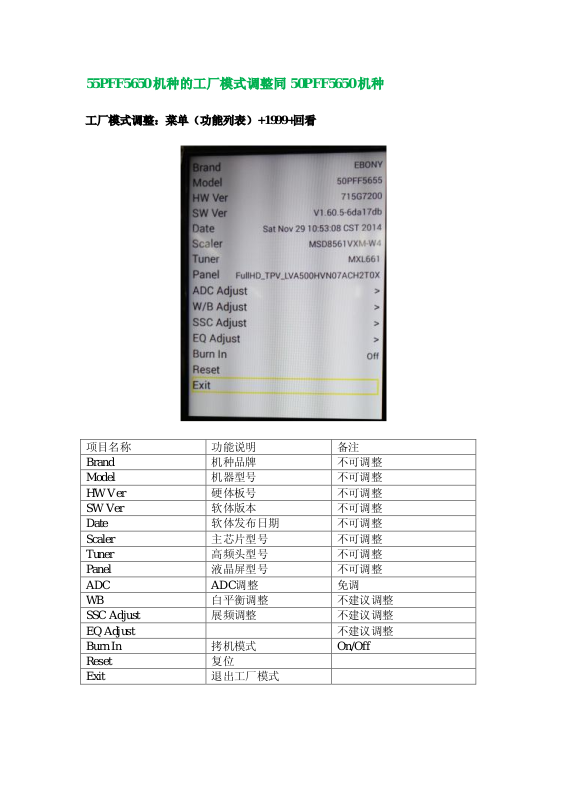

55PFF5650 机种的工厂模式调整同 50PFF5650 机种

项目名称

功能说明

备注

Brand

机种品牌

不可调整

Model

机器型号

不可调整

HW Ver

硬体板号

不可调整

SW Ver

软体版本

不可调整

Date

软体发布日期

不可调整

Scaler

主芯片型号

不可调整

Tuner

高频头型号

不可调整

Panel

液晶屏型号

不可调整

ADC

ADC调整

免调

WB

白平衡调整

不建议调整

SSC Adjust

展频调整

不建议调整

EQ Adjust

不建议调整

Burn In

拷机模式

On/Off

Reset

复位

Exit

退出工厂模式

工厂模式调整：菜单（功能列表）+1999+回看

USB 升级方式

1.拷贝对应机种名软体，如40PFF5650T3

EBONYLite_40PFF5650T3_CN_MSD8561VXM_PCB715G7204_USB_FullHD_TPV_LV
M400J6PE1ADP2P0X_V2.01_20141211.bin到U盘根目录。

2.插U盘到电视USB接口。

3.AC上电or RC power on

4.TV自动升级(LED灯闪烁)，升级完成后会自动开启，升级过程请勿断电。

5.升级完成后，按RC“功能列表+1999+返回”，进工厂菜单进行reset。

ISP 升级方式

必须用 v4.6.t2 以上版本的 ISP tool 工具.

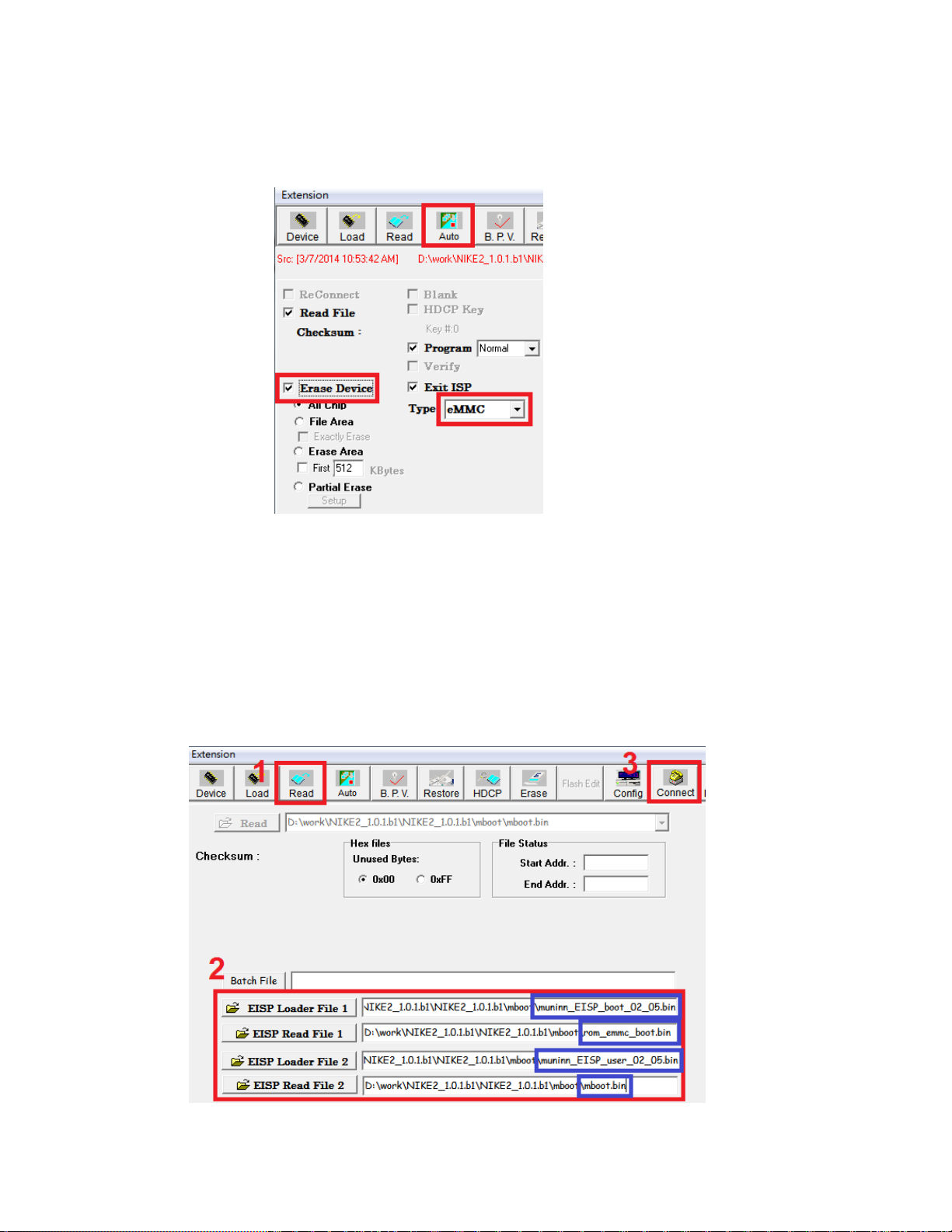

a. 在“Auto”界面，Type 选项选择“eMMC”，并选中“Erase Device”，具体如下图：

b. 连接设备

2.1 选择“Read”选项

2.2 选择 Mboot 文件

2.2.1 EISP Loader File 1  muninn_EISP_boot_xx_xx.bin

2.2.2 EISP Read File 1 rom_emmc_boot.bin

2.2.3 EISP Loader File 2  muninn_EISP_user_xx_xx.bin

2.2.4 EISP Read File 2  mboot.bin

2.3 给设备上电，选择“Connect”进行连接

PS.

如果治具没有连接成功，请重试

2.3

步骤。

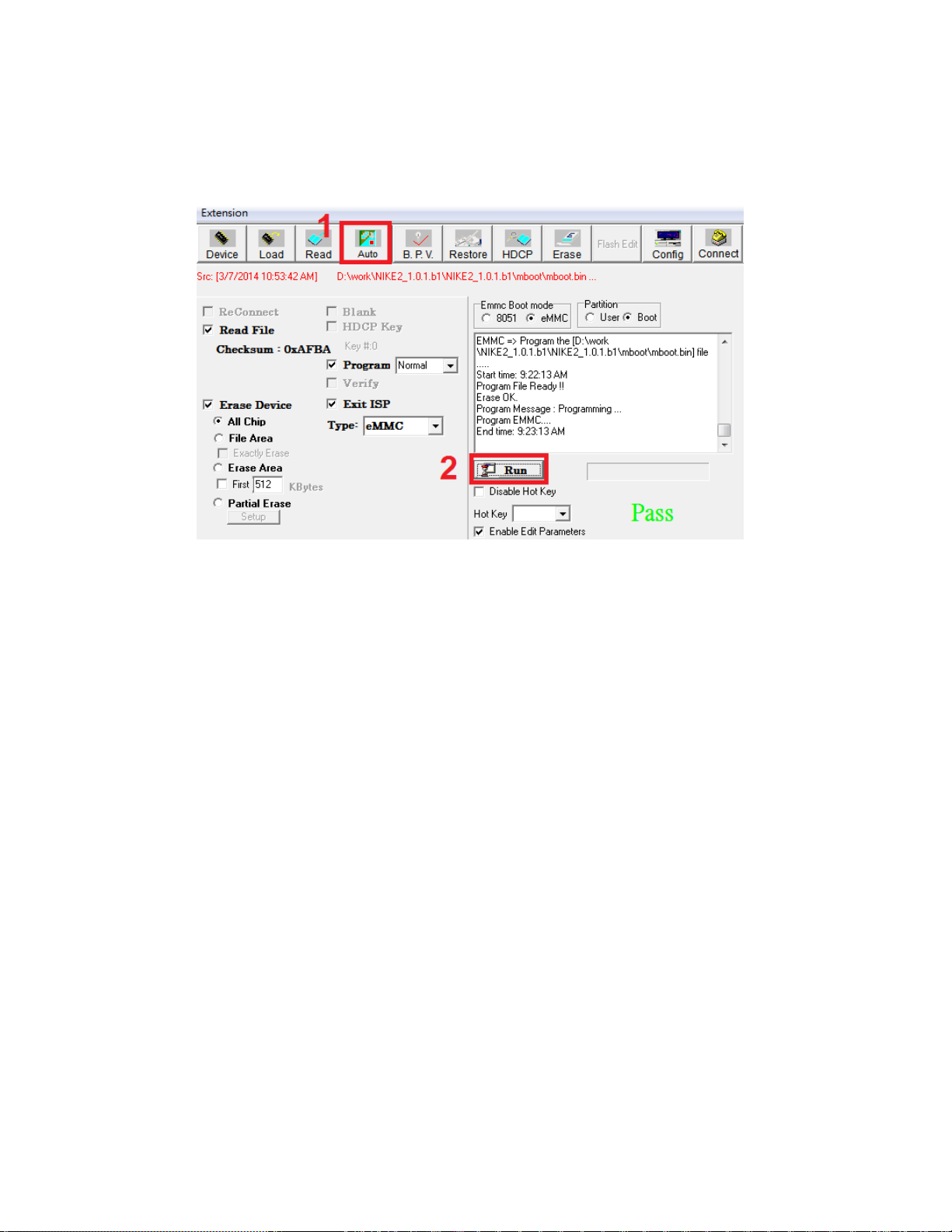

c. 治具连接成功后

3.1 在“Auto”界面选择“Run”开始烧录

d. 请耐心等待，直至 ISP 治具提示“Pass”，烧录完成。

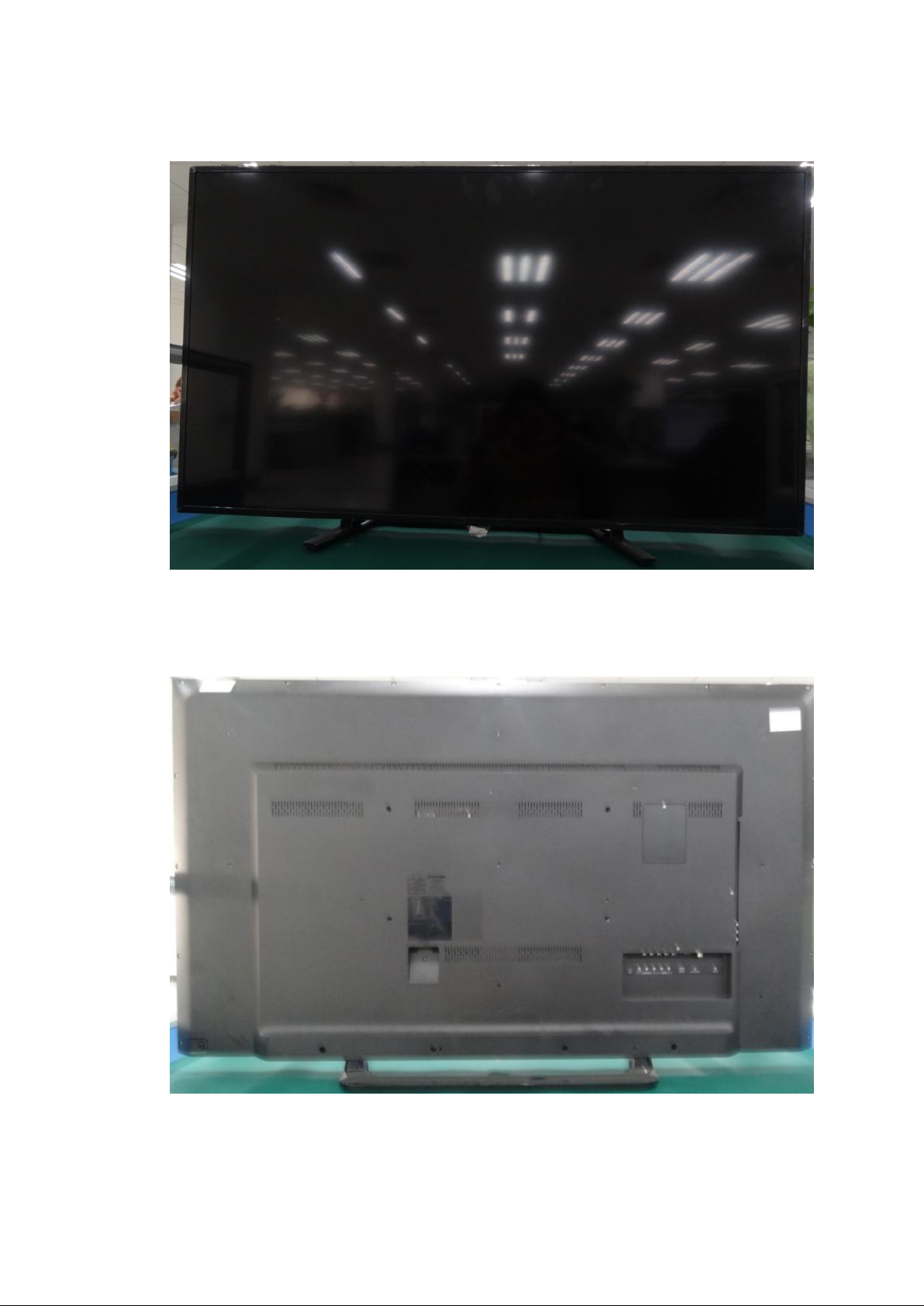

1. 正视图

2. 后视图

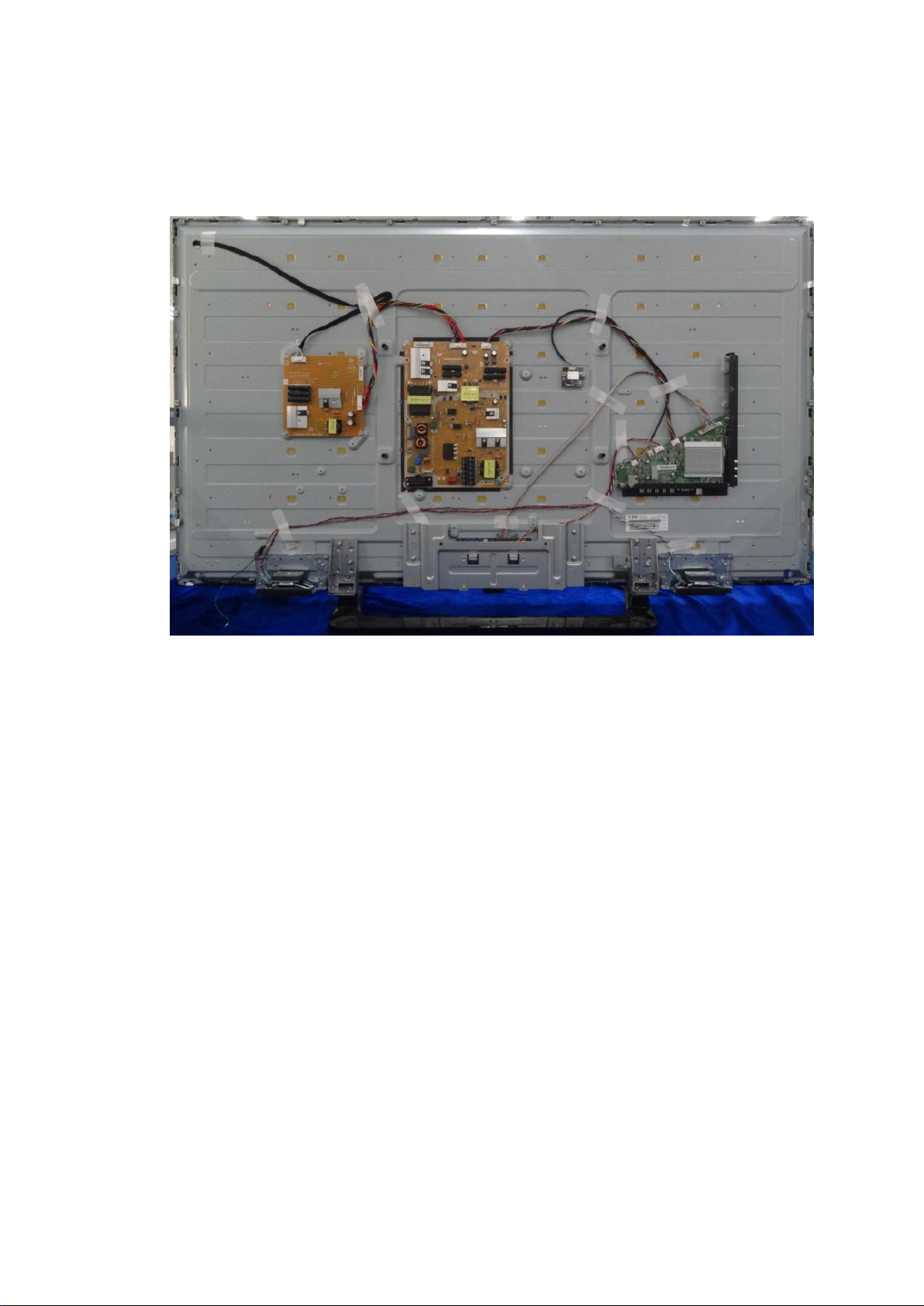

3. 内部结构图

项⽬编号 级别 点位 组件

0010 1 P34E23680GM0FG0400
0010 1 M05214 Q52G14010130HF0AXW
0010 1 X45G880113600000X1
0010 1 M04510 X45G880114800000WN
0010 1 X45G880117500000X1
0011 1 036T 600 18129
0011 1 041G 68508 A
0011 1 Q051 051G 2 14
0011 1 051G 2 14
0011 1 0M1G 130 6 47 CR3
0011 1 0M1G 940 6125
0011 1 0M1G1030 4 47 XL
0011 1 0M1G1030 5120
0011 1 0M1G1030 6 47 CR3
0011 1 0M1G1030 8120
0011 1 0M1G1830 6120
0011 1 0Q1G 930 6 47 CR3
0011 1 715
0011 1 317G01 317GAAWF550TCL
0011 1 SP01 378G0110567CDX
0011 1 SP01 378G0110567YDX
0011 1 ECN01 395G801402RC01
0011 1 ECN01 395G801402WC01
0011 1 ECN700 395G801416DD32
0011 1 ECN700 395G801416RD32
0011 1 ECN107 395GH12506DT003000
0011 1 ECN107 395GH12506HT003000
0011 1 ECN600 395GH20004DT002000
0011 1 ECN600 395GH20004RT002000
0011 1 ECN400 395GH20014DT036000
0011 1 ECN400 395GH20014RT036000
0011 1 ECN401 395GLT5140D0160000
0011 1 ECN401 395GLT5140X0160000
0011 1 RC01 398GR08BCPHN0001CH
0011 1 708GVB020WPX01
0011 1 E750 750TBV550V65C8N000
0011 1 756TXFCB01D102040X
0011 1 CBPFFMSDX6
0011 1 IRPFFAA9
0011 1 KEPFEAA9
0011 1 E750 LVA550HVN06AFM2X0X
0011 1 P33E0738XJL01T0100
0011 1 P33E0756ALDZ1C0100
0011 1 P33E0757ADT01L0200
0011 1 P34E2486ADT02L0200
0011 1 P40GD000813 9A
0011 1 PLTVEW381XXRA
0011 1 Q02G707105000100XL
0011 1 Q02G708105500100HX
0011 1 Q11G701100500100JY

0011 1 Q12G6300 25 1
0011 1 EQ52C1 Q12G714001200100HK
0011 1 Q36T 600 37 16 GP
0011 1 Q40G0001624 4A
0011 1 Q44T3231 21 11
0011 1 Q49G 51500 HF
0011 1 Q052 Q52G100203000A00ZA
0011 1 Q52G130118600000YY
0011 1 Q52G1501150523AWBK
0011 1 Q52G160119100A00YY
0011 1 X15T966610100000BL
0011 1 X15T968010100000NP
0011 1 X15T968110100000NP
0011 1 X15T984710100000GH
0011 1 X15T986310100000GH
0011 1 X15T995630100000BL
0011 1 X15T9957501000GMYF
0011 1 X40G2014040X8100XY
0011 1 X40G2014055X2501ZA
0011 1 X44GVB021020FA
0011 1 X44GVB022020FA
0011 1 X44GVB023020FA
0011 1 X44GVB024020FA
0011 1 X44GVB02501EPE
0011 1 X44GVB0281301C00JA
0011 1 X52G18012660000ALF
0011 1 X52G20010TV03700BK
0012 1 E08901 089G214A15N HL
0012 1 E08901 089G214A15N IS
0012 1 0M1G1740 20225 CR3
0012 1 317G02 317GARFM008TCL
0012 1 BT01 392GB1TA1A3C2C
0012 1 X41G40SV81337B
0012 1 X41G78DV81311E
0012 1 X52G20012470000ABK
0013 1 040G 58162435A
0013 1 Q40G000162493B
0013 1 X40G0001624 2A
0013 1 X40G000181310C
0013 1 X40G055081346B
0013 1 Z40G0002ALL01A
0020 1 M04510 X45G880114800000X1
0020 1 M05214 X52G14010130HF0ABK

1 708GVB020WPX01
0011 2 Q07G010513802C00BL
0011 2 Q07G012313802C00BL
0011 2 Q44G6002134101
0011 2 Q44G6002137120
0011 2 Q44G9003180
0011 2 Q50G 4 10
0011 2 Q52G1301 9

0011 2 X45G770101700000QF

1 756TXFCB01D102040X
0021 2 SMTF-U404 100TP1VS005D4X
0021 2 U404 356G333304A600

1 CBPFFMSDX6
0021 2 C4154 067G 4152216CV
0021 2 C608 067G315M1016CV
0021 2 C607 067G315M1016CV
0021 2 CN101 088G 78G152ACL
0021 2 CN108 088G352E912AXH
0021 2 CN104 088G353GFF1ACL
0021 2 CN600 311GW200A04ABL
0021 2 CN107 311GW200C06ABL
0021 2 CN700 311GW200C12BBX
0021 2 CN400 311GW200C14BBX
0021 2 CN401 311GW200C40AAL
0021 2 CN103 388G078G13NAYG
0021 2 CN100 388G302F5B1ACL
0021 2 CN109 388G342GFB6AGN
0021 2 CN109 388G342GFB6AKX
0021 2 CN106 388G352F6B3AXH
0021 2 J100 388G510H401AHC
0021 2 709T72040XM001
0021 2 Q85T01 Q85T 583162
0021 2 HS600 Q90G6119 6
0021 2 SMTFFMSDX6
0021 2 HS100 X85T806910100000LH
0021 2 HS400 X90G070310100000SY
0021 2 Z40G0002ALL01A

1 IRPFFAA9
0051 2 SMTIRPFFAA9

1 KEPFEAA9
0031 2 SMTKEPFEAA9

1 PLTVEW381XXRA
0013 2 Z40G0002ALL01A
0071 2 GND7 009G6005 1
0071 2 GND4 009G6005 1
0071 2 GND3 009G6005 1
0071 2 CN8101 033G380212B YH
0071 2 U9102 056G 139 9
0071 2 U8102 056G 139 9
0071 2 U9306 056G 139 9
0071 2 Q8102 057G 667914
0071 2 Q8101 057G 667914
0071 2 R9814 061G153M10859B SY
0071 2 C9906 063G107M47410M
0071 2 C9905 063G107M47410M
0071 2 CN9901 087G 50147D HC HF
0071 2 BD9801 093G 50460519
0071 2 0Q1G 340 8140
0071 2 CN9303 311GW200C16AAX

0071 2 U8106 356G0700008060
0071 2 U8105 356G0700008060
0071 2 RV9901 361G0046681KZE
0071 2 RV9901 361G0046681KZW
0071 2 NR9901 361G0058259MYW008A
0071 2 NR9902 361G0058259MYW008A
0071 2 C9801 363G210J105GHP
0071 2 C8117 363G211J2235HE
0071 2 C9802 367G215X680PHZ000S
0071 2 C9803 367G215X680PHZ000S
0071 2 FB9901 371G0055021H02
0071 2 FB9902 371G0055021H02
0071 2 L9801 373G0174355H00
0071 2 L9801 373G0174355X00
0071 2 L9901 373G0174362H00
0071 2 L9902 373G0174362H00
0071 2 L9901 373G0174362X00
0071 2 L9902 373G0174362X00
0071 2 L8101 373G0253247H00
0071 2 L9302 373G0253247H00
0071 2 L9303 373G0253247H00
0071 2 L8101 373G0253247X00
0071 2 L9302 373G0253247X00
0071 2 L9303 373G0253247X00
0071 2 T9301 380GL32P172N00
0071 2 T8101 380GL52P211H00
0071 2 BD9901 393G0050460604
0071 2 705TAE57162
0071 2 705TAE57163
0071 2 705TAE84018
0071 2 705TAE93142
0071 2 705TXF57025
0071 2 PLEW381XXRASMT
0071 2 HS8106 X90G070710100000BF
0071 2 HS8105 X90G070710100000BF

2 709T72040XM001
0709 3 051G 200 1
0709 3 052G 2191 A
0709 3 055G 23520
0709 3 055G 23524
0709 3 Q49G 51100
0709 3 Q55G 100622
0709 3 Q55G 100655

2 SMTFFMSDX6
0210 3 U702 056G 563515
0210 3 U101 056G 581 9
0210 3 U105 056G 581 9
0210 3 U107 056G 585 4A
0210 3 U700 056G 585 4A
0210 3 U102 056G 616 55
0210 3 U402 056G 643 5B

0210 3 U501 056G 665918
0210 3 Q701 057G 417511
0210 3 Q705 057G 417511
0210 3 Q703 057G 417511
0210 3 Q406 057G 417511
0210 3 Q601 057G 417511
0210 3 Q702 057G 417511
0210 3 Q400 057G 417512
0210 3 Q600 057G 417512
0210 3 Q602 057G 417512
0210 3 Q700 057G 763 79
0210 3 Q405 057G 763 79
0210 3 R729 061G0402000 JF
0210 3 C142 061G0402000 JT
0210 3 R4239 061G0402000 JT
0210 3 R4232 061G0402000 JT
0210 3 C143 061G0402000 JT
0210 3 R4054 061G0402000 JY
0210 3 R4102 061G0402000 JY
0210 3 R101 061G0402000 JY
0210 3 R123 061G0402000 JY
0210 3 R4052 061G0402000 JY
0210 3 R748 061G0402000 JY
0210 3 R100 061G0402000 JY
0210 3 R4111 061G0402000 JY
0210 3 R4105 061G0402000 JY
0210 3 R4104 061G0402000 JY
0210 3 R150 061G0402000 JY
0210 3 R4110 061G0402000 JY
0210 3 R132 061G0402000 JY
0210 3 R733 061G0402000 JY
0210 3 R623 061G0402000 JY
0210 3 R734 061G0402000 JY
0210 3 R4107 061G0402000 JY
0210 3 R117 061G0402000 JY
0210 3 R717 061G0402000 JY
0210 3 R174 061G0402000 JY
0210 3 R626 061G0402000 JY
0210 3 R4109 061G0402000 JY
0210 3 R744 061G0402000 JY
0210 3 R631 061G0402000 JY
0210 3 R171 061G0402000 JY
0210 3 R527 061G0402000 JY
0210 3 R4106 061G0402000 JY
0210 3 R616 061G0402000 JY
0210 3 R4108 061G0402000 JY
0210 3 R4103 061G0402000 JY
0210 3 R4036 061G0402100 JY
0210 3 R161 061G0402100 JY
0210 3 R4035 061G0402100 JY
0210 3 R522 061G0402100 JY

0210 3 R162 061G0402100 JY
0210 3 R4037 061G04021000FY
0210 3 R4043 061G04021000FY
0210 3 R118 061G04021000FY
0210 3 R4044 061G04021000FY
0210 3 R720 061G04021000FY
0210 3 R154 061G04021000FY
0210 3 R153 061G04021000FY
0210 3 R152 061G04021000FY
0210 3 R119 061G04021000FY
0210 3 R502 061G04021000FY
0210 3 R124 061G04021000FY
0210 3 R719 061G04021000FY
0210 3 R120 061G04021000FY
0210 3 R4051 061G04021001FY
0210 3 R618 061G04021001FY
0210 3 R4028 061G04021001FY
0210 3 R4027 061G04021001FY
0210 3 R4026 061G04021001FY
0210 3 R4025 061G04021001FY
0210 3 R507 061G04021001FY
0210 3 R4094 061G04021002FY
0210 3 R525 061G04021002FY
0210 3 R4019 061G04021002FY
0210 3 R4097 061G04021002FY
0210 3 R4042 061G04021002FY
0210 3 R112 061G04021002FY
0210 3 R4000 061G04021002FY
0210 3 R4100 061G04021002FY
0210 3 R4092 061G04021002FY
0210 3 R4015 061G04021002FY
0210 3 R4014 061G04021002FY
0210 3 R106 061G04021002FY
0210 3 R111 061G04021002FY
0210 3 R4098 061G04021002FY
0210 3 R633 061G04021002FY
0210 3 R107 061G04021002FY
0210 3 R4020 061G04021002FY
0210 3 R624 061G04021002FY
0210 3 R634 061G04021002FY
0210 3 R4096 061G04021002FY
0210 3 R4093 061G04021002FY
0210 3 R632 061G04021002FY
0210 3 R115 061G04021002FY
0210 3 R776 061G04021002FY
0210 3 R116 061G04021002FY
0210 3 R4099 061G04021002FY
0210 3 R621 061G04021002FY
0210 3 R4095 061G04021002FY
0210 3 R4055 061G04021003FY
0210 3 R163 061G04021003FY

0210 3 R4065 061G04021003FY
0210 3 R4039 061G04021003FY
0210 3 R166 061G04021003FY
0210 3 R164 061G04021003FY
0210 3 R165 061G04021003FY
0210 3 R625 061G04021003FY
0210 3 R4061 061G04021004FT
0210 3 R148 061G04021004FT
0210 3 R4046 061G04021004FT
0210 3 R4242 061G0402102 JT
0210 3 R4244 061G0402102 JT
0210 3 R4245 061G0402102 JT
0210 3 R4246 061G0402102 JT
0210 3 R4241 061G0402102 JT
0210 3 R4243 061G0402102 JT
0210 3 R736 061G0402104 JY
0210 3 R768 061G04021202FY
0210 3 R114 061G0402123 JY
0210 3 R113 061G0402123 JY
0210 3 R109 061G0402123 JY
0210 3 R108 061G0402123 JY
0210 3 R4133 061G0402152 JY
0210 3 R742 061G04021802FY
0210 3 R4240 061G0402203 JT
0210 3 R4162 061G0402220 JT
0210 3 R4165 061G0402220 JT
0210 3 R4101 061G0402220 JY
0210 3 R131 061G0402220 JY
0210 3 R611 061G0402220 JY
0210 3 R610 061G0402220 JY
0210 3 R145 061G0402220 JY
0210 3 R4060 061G0402220 JY
0210 3 R735 061G04022202FT
0210 3 R126 061G0402222 JY
0210 3 R740 061G0402222 JY
0210 3 R127 061G0402222 JY
0210 3 R739 061G0402222 JY
0210 3 R4132 061G0402222 JY
0210 3 R725 061G0402222 JY
0210 3 R753 061G0402229 JY
0210 3 R4024 061G04022400FY
0210 3 R620 061G04022400FY
0210 3 R4023 061G04022400FY
0210 3 R504 061G0402304 JT
0210 3 R701 061G0402330 JY
0210 3 R4011 061G0402330 JY
0210 3 R746 061G0402330 JY
0210 3 R4006 061G0402330 JY
0210 3 R520 061G0402330 JY
0210 3 R700 061G0402330 JY
0210 3 R4018 061G0402330 JY

0210 3 R516 061G0402330 JY
0210 3 R4007 061G0402330 JY
0210 3 R702 061G0402330 JY
0210 3 R4009 061G0402330 JY
0210 3 R4010 061G0402330 JY
0210 3 R4021 061G0402330 JY
0210 3 R4013 061G0402330 JY
0210 3 R514 061G0402330 JY
0210 3 R731 061G04023302FF
0210 3 R4034 061G0402332 JF
0210 3 R724 061G0402332 JY
0210 3 R167 061G0402393 JY
0210 3 R526 061G0402393 JY
0210 3 R168 061G0402393 JY
0210 3 R509 061G04024702FF
0210 3 R510 061G04024702FF
0210 3 R722 061G04024702FF
0210 3 R4016 061G0402472 JY
0210 3 R727 061G0402472 JY
0210 3 R4005 061G0402472 JY
0210 3 R4033 061G0402472 JY
0210 3 R4091 061G0402472 JY
0210 3 R4004 061G0402472 JY
0210 3 R4068 061G0402472 JY
0210 3 R749 061G0402472 JY
0210 3 R4059 061G0402472 JY
0210 3 R4073 061G0402472 JY
0210 3 R4017 061G0402472 JY
0210 3 R4079 061G0402472 JY
0210 3 R4003 061G0402472 JY
0210 3 R4001 061G0402472 JY
0210 3 R4084 061G0402472 JY
0210 3 R4002 061G0402472 JY
0210 3 R726 061G0402472 JY
0210 3 R4078 061G0402472 JY
0210 3 R4090 061G0402472 JY
0210 3 R716 061G0402472 JY
0210 3 R704 061G0402473 JT
0210 3 R750 061G0402473 JT
0210 3 R721 061G04026201FY
0210 3 R169 061G0402623 JY
0210 3 R170 061G0402623 JY
0210 3 R4008 061G0402680 JY
0210 3 R4012 061G0402680 JY
0210 3 R4022 061G0402680 JY
0210 3 R784 061G04026803FY
0210 3 R104 061G04027509FY
0210 3 R110 061G04027509FY
0210 3 R121 061G04027509FY
0210 3 R102 061G04027509FY
0210 3 R122 061G04027509FY

0210 3 R125 061G04027509FY
0210 3 R103 061G04027509FY
0210 3 R105 061G04027509FY
0210 3 R778 061G04028202FF
0210 3 R737 061G04029101FF
0210 3 R706 061G04029101FF
0210 3 R712 061G0603000 JY
0210 3 R606 061G0603000 JY
0210 3 R4088 061G0603000 JY
0210 3 R707 061G0603000 JY
0210 3 R738 061G0603000 JY
0210 3 R4218 061G0603000 JY
0210 3 R607 061G0603000 JY
0210 3 R635 061G0603102 JY
0210 3 R723 061G0603102 JY
0210 3 R4029 061G06031501FF
0210 3 R619 061G06031502FY
0210 3 R4089 061G0603154 JY
0210 3 R710 061G06031802FY
0210 3 R524 061G0603201 JY
0210 3 R4030 061G06033301FY
0210 3 R4031 061G06033301FY
0210 3 R711 061G0603473 JY
0210 3 R713 061G0603473 JY
0210 3 R4080 061G0603473 JY
0210 3 R4225 061G0805000 JF
0210 3 R4234 061G0805000 JY
0210 3 R147 061G1206000 JY
0210 3 R4223 061G12060004JT
0210 3 R615 061G1206100 JY
0210 3 R603 061G1206100 JY
0210 3 R614 061G1206100 JY
0210 3 R601 061G1206100 JY
0210 3 R613 061G1206100 JY
0210 3 R602 061G1206100 JY
0210 3 R612 061G1206100 JY
0210 3 R604 061G1206100 JY
0210 3 R600 061G1206103 JT
0210 3 R4081 061G1206472 JF
0210 3 C4078 065G040210131J Y
0210 3 C4156 065G040210131J Y
0210 3 C133 065G040210232K F
0210 3 C4131 065G040210232K F
0210 3 C4130 065G040210232K F
0210 3 C128 065G040210232K F
0210 3 C755 065G040210232K F
0210 3 C4090 065G040210232K Y
0210 3 C131 065G040210232K Y
0210 3 C702 065G040210232K Y
0210 3 C4155 065G040210232K Y
0210 3 C4074 065G040210232K Y

0210 3 C719 065G040210232K Y
0210 3 C630 065G040210332K F
0210 3 C127 065G040210332K F
0210 3 C624 065G040210332K F
0210 3 C615 065G040210332K F
0210 3 C609 065G040210332K F
0210 3 C721 065G040210332K Y
0210 3 C4157 065G040210332K Y
0210 3 C712 065G040210412K T
0210 3 C4083 065G040210412K Y
0210 3 C4029 065G040210412K Y
0210 3 C4013 065G040210412K Y
0210 3 C129 065G040210412K Y
0210 3 C4094 065G040210425K Y
0210 3 C4015 065G040210425K Y
0210 3 C4081 065G040210425K Y
0210 3 C4080 065G040210425K Y
0210 3 C4065 065G040210425K Y
0210 3 C125 065G040210425K Y
0210 3 C4122 065G040210425K Y
0210 3 C4008 065G040210425K Y
0210 3 C732 065G040210425K Y
0210 3 C4010 065G040210425K Y
0210 3 C4003 065G040210425K Y
0210 3 C4124 065G040210425K Y
0210 3 C115 065G040210425K Y
0210 3 C4117 065G040210425K Y
0210 3 C119 065G040210425K Y
0210 3 C4000 065G040210425K Y
0210 3 C4086 065G040210425K Y
0210 3 C4084 065G040210425K Y
0210 3 C4097 065G040210425K Y
0210 3 C726 065G040210425K Y
0210 3 C4030 065G040210425K Y
0210 3 C4045 065G040210425K Y
0210 3 C121 065G040210425K Y
0210 3 C4106 065G040210425K Y
0210 3 C4033 065G040210425K Y
0210 3 C741 065G040210425K Y
0210 3 C716 065G040210425K Y
0210 3 C4031 065G040210425K Y
0210 3 C4093 065G040210425K Y
0210 3 C141 065G040210425K Y
0210 3 C149 065G040210425K Y
0210 3 C4038 065G040210425K Y
0210 3 C709 065G040210425K Y
0210 3 C729 065G040210425K Y
0210 3 C4002 065G040210425K Y
0210 3 C4072 065G040210425K Y
0210 3 C136 065G040210425K Y
0210 3 C4032 065G040210425K Y

0210 3 C150 065G040210425K Y
0210 3 C4037 065G040210425K Y
0210 3 C708 065G040210425K Y
0210 3 C144 065G040210425K Y
0210 3 C4023 065G040210425K Y
0210 3 C145 065G040210425K Y
0210 3 C4123 065G040210425K Y
0210 3 C140 065G040210425K Y
0210 3 C4062 065G040210425K Y
0210 3 C4016 065G040210425K Y
0210 3 C4025 065G040210425K Y
0210 3 C703 065G040210425K Y
0210 3 C4039 065G040210425K Y
0210 3 C4073 065G040210425K Y
0210 3 C4036 065G040210425K Y
0210 3 C4021 065G040210425K Y
0210 3 C727 065G040210425K Y
0210 3 C4092 065G040210425K Y
0210 3 C752 065G040210425K Y
0210 3 C733 065G040210425K Y
0210 3 C4035 065G040210425K Y
0210 3 C120 065G040210425K Y
0210 3 C122 065G040210425K Y
0210 3 C745 065G040210425K Y
0210 3 C4046 065G040210425K Y
0210 3 C4014 065G040210425K Y
0210 3 C705 065G040210425K Y
0210 3 C4009 065G040210425K Y
0210 3 C4091 065G040210425K Y
0210 3 C4085 065G040210425K Y
0210 3 C4024 065G040210425K Y
0210 3 C118 065G040210425K Y
0210 3 C4047 065G040210425K Y
0210 3 C4089 065G040210425K Y
0210 3 C4027 065G040210425K Y
0210 3 C4007 065G040210425K Y
0210 3 C4070 065G040210425K Y
0210 3 C742 065G040210425K Y
0210 3 C4022 065G040210425K Y
0210 3 C4098 065G040210425K Y
0210 3 C749 065G040210425K Y
0210 3 C4026 065G040210425K Y
0210 3 C4001 065G0402105A5K T
0210 3 C4118 065G0402105A5K T
0210 3 C4018 065G0402105A5K T
0210 3 C4107 065G040218031J T
0210 3 C4108 065G040218031J T
0210 3 C747 065G040222031J Y
0210 3 C139 065G040222232K F
0210 3 C151 065G040222232K F
0210 3 C4017 065G040222322K Y

0210 3 C4076 065G040233031J F
0210 3 C4075 065G040233031J F
0210 3 C4077 065G040233031J F
0210 3 C734 065G040233031J Y
0210 3 C148 065G040233031J Y
0210 3 C4069 065G040233031J Y
0210 3 C147 065G040233031J Y
0210 3 C146 065G040247031J F
0210 3 C154 065G040247031J F
0210 3 C602 065G040247131J Y
0210 3 C631 065G040247131J Y
0210 3 C623 065G040247131J Y
0210 3 C616 065G040247131J Y
0210 3 C4040 065G040247312K Y
0210 3 C4066 065G040247312K Y
0210 3 C4058 065G040247312K Y
0210 3 C4042 065G040247312K Y
0210 3 C4060 065G040247312K Y
0210 3 C4064 065G040247312K Y
0210 3 C4048 065G040247312K Y
0210 3 C4063 065G040247312K Y
0210 3 C152 065G040247312K Y
0210 3 C4059 065G040247312K Y
0210 3 C4061 065G040247312K Y
0210 3 C500 065G040247312K Y
0210 3 C4050 065G040247312K Y
0210 3 C126 065G0402474A5K F
0210 3 C110 065G040256132K Y
0210 3 C105 065G040256132K Y
0210 3 C106 065G040256132K Y
0210 3 C111 065G040256132K Y
0210 3 C605 065G060310432K Y
0210 3 C604 065G060310432K Y
0210 3 C4113 065G060310432K Y
0210 3 C603 065G060310432K Y
0210 3 C718 065G060310432K Y
0210 3 C622 065G060310432K Y
0210 3 C601 065G060310432K Y
0210 3 C613 065G060310432K Y
0210 3 C621 065G060310432K Y
0210 3 C701 065G060310432K Y
0210 3 C503 065G060310432K Y
0210 3 C606 065G060310432K Y
0210 3 C617 065G060310432K Y
0210 3 C619 065G060310432K Y
0210 3 C632 065G060310432K Y
0210 3 C165 065G060310512K A
0210 3 C166 065G060310512K A
0210 3 C163 065G060310512K A
0210 3 C504 065G060310512K A
0210 3 C109 065G060310512K A

0210 3 C707 065G060310512K A
0210 3 C164 065G060310512K A
0210 3 C103 065G060310512K A
0210 3 C108 065G060310512K A
0210 3 C720 065G060310512K A
0210 3 C104 065G060310512K A
0210 3 C743 065G060310522K M
0210 3 C153 065G060310605M A
0210 3 C4071 065G060310605M A
0210 3 C4005 065G060310605M A
0210 3 C4012 065G060310605M A
0210 3 C4020 065G060310605M A
0210 3 C748 065G060310605M A
0210 3 C4120 065G060310605M A
0210 3 C161 065G060310605M A
0210 3 C612 065G060310605M A
0210 3 C4028 065G060310605M A
0210 3 C4019 065G060310605M A
0210 3 C750 065G060310605M A
0210 3 C4006 065G060310605M A
0210 3 C4087 065G060310605M M
0210 3 C4087 065G060310605M T
0210 3 C4112 065G060322422K Y
0210 3 C730 065G060322422K Y
0210 3 C4051 065G060322515K A
0210 3 C4041 065G060322515K A
0210 3 C4049 065G060322515K A
0210 3 C4121 065G060322515K A
0210 3 C4043 065G060322515K A
0210 3 C4116 065G0603225A5K A
0210 3 C728 065G0603225A5K A
0210 3 C704 065G0603225A5K A
0210 3 C634 065G060347412K Y
0210 3 C611 065G080510432K Y
0210 3 C628 065G080510432K Y
0210 3 C4151 065G080510615K A
0210 3 C4152 065G080510615K A
0210 3 C4096 065G080510615K T
0210 3 C501 065G080510615K T
0210 3 C502 065G080510615K T
0210 3 C736 065G080510615K T
0210 3 C162 065G080510615K T
0210 3 C735 065G080510615K T
0210 3 C160 065G080510615K T
0210 3 C117 065G080510615K T
0210 3 C123 065G0805106A5K A
0210 3 C116 065G0805106A5K A
0210 3 C737 065G0805106A5K T
0210 3 C751 065G0805106A5K T
0210 3 C754 065G0805106A5K T
0210 3 C614 065G080522432K Y

0210 3 C629 065G080522432K Y
0210 3 C625 065G080522432K Y
0210 3 C610 065G080522432K Y
0210 3 C756 065G080522605M A
0210 3 C758 065G080522605M A
0210 3 C759 065G080522605M A
0210 3 C167 065G080547515K M
0210 3 C168 065G080547515K M
0210 3 C706 065G120610612K A
0210 3 C731 067G311C1013LT
0210 3 C633 067G311C1013LT
0210 3 HDCP-U404 070GHDCP500HDC
0210 3 FB106 071G 56G301 TA
0210 3 FB600 071G 57G121 TA
0210 3 FB603 071G 57G121 TA
0210 3 FB604 071G 57G121 TA
0210 3 FB606 071G 57G121 TA
0210 3 FB408 071G 59A121 TA
0210 3 L105 073G 6322810M
0210 3 L106 073G 6322810M
0210 3 L701 073G253S 68 H
0210 3 L707 073G253S525 DN
0210 3 CN500 088G 34019K AV
0210 3 D101 093G 64 33
0210 3 D601 093G 6432P
0210 3 ZD409 093G 39S911 T
0210 3 D702 093G 60S930 T
0210 3 U106 356G0566024600
0210 3 U400 356G0568590601
0210 3 U600 356G061613300A
0210 3 U404 356G333304A600
0210 3 U704 356GD563006183
0210 3 U701 356GD563008140
0210 3 U703 356GD563008609
0210 3 U711 356GD563024607
0210 3 Q408 357G07630620HF
0210 3 Q407 357G07630620HF
0210 3 R140 361G04025108FT
0210 3 R138 361G04025108FT
0210 3 R515 361G04025108FT
0210 3 R142 361G04025108FT
0210 3 R137 361G04025108FT
0210 3 R139 361G04025108FT
0210 3 R512 361G04025108FT
0210 3 R143 361G04025108FT
0210 3 R503 361G04025108FT
0210 3 R136 361G04025108FT
0210 3 R141 361G04025108FT
0210 3 R501 361G04025108FT
0210 3 R500 361G04025108FT
0210 3 R517 361G04025108FT

0210 3 R513 361G04025108FT
0210 3 R505 361G04025108FT
0210 3 C4082 365G040222502K000M
0210 3 C4011 365G040222502K000M
0210 3 C4044 365G040222502K000M
0210 3 C4034 365G040222502K000M
0210 3 C4150 365G040222502K000M
0210 3 C746 365G060322605M000A
0210 3 C724 365G080522606M000M
0210 3 C739 365G080522606M000M
0210 3 C620 365G080522606M000M
0210 3 C757 365G080522606M000M
0210 3 C738 365G080522606M000M
0210 3 C723 365G080522606M000M
0210 3 C130 365G1206226A2K000M
0210 3 C124 365G1206226A2K000M
0210 3 C717 367G311F1014LT
0210 3 MAC-U404 370G0MAC645CNT
0210 3 HDCP2-U404 370GHDCP603PHP
0210 3 R4238 371G042P121M02
0210 3 R4236 371G042P121M02
0210 3 R4237 371G042P121M02
0210 3 FB401 371G042P121M02
0210 3 FB404 371G042P121M02
0210 3 R4235 371G042P121M02
0210 3 FB403 371G042P121M02
0210 3 FB402 371G042P121M02
0210 3 FB400 371G042P121M02
0210 3 FB104 371G042U102C00
0210 3 L702 373G253S140Y01
0210 3 L601 373G253S147Y00
0210 3 L603 373G253S147Y00
0210 3 L600 373G253S147Y00
0210 3 L602 373G253S147Y00
0210 3 L101 373G253S239D00
0210 3 L700 373G253S366M00
0210 3 X100 393G022S60100J
0210 3 X400 393G022SA8200J
0210 3 ZD700 393G039S63000T
0210 3 D400 393G060S03000T00HF
0210 3 D500 393G060S03000T00HF
0210 3 D600 393G060S04300T00HF
0210 3 709T72040XS001
0210 3 E715 715G7204M01001004N
0210 3 E715 715G7204M01001004Y

2 SMTIRPFFAA9
0040 3 R202 061G0603101 JT
0050 3 R301 061G0402102 JT
0060 3 R201 061G0402103 JT
0070 3 R302 061G0402222 JT
0090 3 C304 065G0402105A5K M

0100 3 C305 065G0402105A5K M
0120 3 Q301 057G 477904 T
0510 3 CN201 033G8032 5F S HR
0510 3 LED301 081G 63R 1 EL
0510 3 LED301 081G 63R 1 GP
0510 3 CN201 311GW125D05ACX
0510 3 U201 356GS927075
0510 3 E715 715G7055R01000004M
0510 3 E715 715G7055R01000004Y

2 SMTKEPFEAA9
0310 3 R01 061G06031201FF
0310 3 R01 061G06031201FT
0310 3 R01 061G06031201FY
0310 3 R05 061G06031502FF
0310 3 R05 061G06031502FT
0310 3 R05 061G06031502FY
0310 3 R04 061G06032201FT
0310 3 R04 061G06032201FY
0310 3 R02 061G06034709FT
0310 3 R03 061G06036801FF
0310 3 R03 061G06036801FT
0310 3 R03 061G06036801FY
0310 3 C06 065G060310432K A
0310 3 C06 065G060310432K F
0310 3 C06 065G060310432K Y
0310 3 CN01 311GW125D02ADX
0310 3 SW01 377G060902C0CJ
0310 3 SW01 377G060902C0HC
0310 3 709T70880XS001
0310 3 E715 715G7088K01000004K

2 705TAE57162
0704 3 051G 200 1
0704 3 0M1G1730 8120
0704 3 Q9303 357G0600100600
0704 3 HS9302 Q90G0219 4

2 705TAE57163
0704 3 051G 200 1
0704 3 0M1G1730 8120
0704 3 Q9301 357G0667650006
0704 3 HS9301 Q90G0219 4

2 705TAE84018
0704 3 084G 34 14
0704 3 F9901 084G 41 7

2 705TAE93142
0704 3 051G 200 1
0704 3 D8106 093G 52 57
0704 3 D8107 093G 52 57
0704 3 0M1G1730 8120
0704 3 HS8102 Q90G0219003A0000BF
0704 3 HS8102 Q90G0219003A0000SY

2 705TXF57025

0704 3 051G 200 1
0704 3 Q9801 057G 667A04
0704 3 D9802 093G 52905
0704 3 0M1G1730 8120
0704 3 HS9801 Q90T0236003A0000SY

2 PLEW381XXRASMT
0710 3 U8101 056G 379211
0710 3 Q8106 057G 417511 HF
0710 3 Q9308 057G 417512 HF
0710 3 Q8104 057G 417512 HF
0710 3 Q8107 057G 417512 HF
0710 3 R9366 061G0805000 JF
0710 3 R9337 061G0805000 JF
0710 3 R9304 061G0805000 JF
0710 3 R9343 061G0805000 JF
0710 3 R9366 061G0805000 JT
0710 3 R9337 061G0805000 JT
0710 3 R9304 061G0805000 JT
0710 3 R9343 061G0805000 JT
0710 3 R8111 061G0805100 JF
0710 3 R9309 061G0805100 JF
0710 3 R8113 061G0805100 JF
0710 3 R8116 061G0805100 JF
0710 3 R8113 061G0805100 JT
0710 3 R8116 061G0805100 JT
0710 3 R9309 061G0805100 JT
0710 3 R8111 061G0805100 JT
0710 3 R8132 061G08051001FF
0710 3 R9345 061G08051001FF
0710 3 R8139 061G08051001FF
0710 3 R8137 061G08051001FF
0710 3 R8134 061G08051001FF
0710 3 R8139 061G08051001FT
0710 3 R9345 061G08051001FT
0710 3 R8132 061G08051001FT
0710 3 R8134 061G08051001FT
0710 3 R8137 061G08051001FT
0710 3 R9362 061G08051002FT
0710 3 R8117 061G08051002FT
0710 3 R8114 061G08051002FT
0710 3 R8114 061G08051002FY
0710 3 R8117 061G08051002FY
0710 3 R9362 061G08051002FY
0710 3 R9318 061G08051003FF
0710 3 R9339 061G08051003FF
0710 3 R9316 061G08051003FF
0710 3 R9318 061G08051003FT
0710 3 R9339 061G08051003FT
0710 3 R9316 061G08051003FT
0710 3 R9347 061G0805102 JF
0710 3 R9347 061G0805102 JT

0710 3 R9813 061G0805103 JF
0710 3 R9807 061G0805103 JF
0710 3 R9310 061G0805103 JF
0710 3 R9364 061G0805103 JF
0710 3 R9807 061G0805103 JT
0710 3 R9813 061G0805103 JT
0710 3 R9364 061G0805103 JT
0710 3 R9310 061G0805103 JT
0710 3 R8123 061G0805105 JF
0710 3 R8123 061G0805105 JT
0710 3 R8128 061G08051102FF
0710 3 R8128 061G08051102FT
0710 3 R8141 061G08051203FF
0710 3 R8141 061G08051203FT
0710 3 R8118 061G08051800FF
0710 3 R8118 061G08051800FT
0710 3 R8105 061G08051802FT
0710 3 R8105 061G08051802FY
0710 3 R8136 061G08052001FF
0710 3 R9810 061G08052001FF
0710 3 R9810 061G08052001FT
0710 3 R8136 061G08052001FT
0710 3 R9895 061G08052002FF
0710 3 R9895 061G08052002FT
0710 3 R9346 061G08052201FF
0710 3 R9346 061G08052201FT
0710 3 R9808 061G08052702FF
0710 3 R9808 061G08052702FT
0710 3 R9811 061G0805330 JF
0710 3 R9811 061G0805330 JT
0710 3 R9342 061G08053301FF
0710 3 R9342 061G08053301FT
0710 3 R8145 061G08053303FF
0710 3 R8145 061G08053303FT
0710 3 R8129 061G0805332 JF
0710 3 R8129 061G0805332 JT
0710 3 R9812 061G0805470 JF
0710 3 R8112 061G0805470 JF
0710 3 R8115 061G0805470 JF
0710 3 R8115 061G0805470 JT
0710 3 R9812 061G0805470 JT
0710 3 R8112 061G0805470 JT
0710 3 R8127 061G08054702FF
0710 3 R8125 061G08054702FF
0710 3 R8127 061G08054702FT
0710 3 R8125 061G08054702FT
0710 3 R8119 061G0805471 JF
0710 3 R8119 061G0805471 JT
0710 3 R9361 061G08055103FF
0710 3 R8140 061G08055103FF
0710 3 R9361 061G08055103FT

0710 3 R8140 061G08055103FT
0710 3 R8130 061G0805511 JF
0710 3 R8130 061G0805511 JT
0710 3 R8124 061G0805514 JF
0710 3 R8124 061G0805514 JT
0710 3 R8142 061G08056202FF
0710 3 R8142 061G08056202FT
0710 3 R9806 061G08056803FT
0710 3 R8150 061G08057502FF
0710 3 R8150 061G08057502FT
0710 3 R9308 061G0805820 JY
0710 3 R9340 061G08059101FF
0710 3 R9340 061G08059101FT
0710 3 R9341 061G08059311FF
0710 3 R9341 061G08059311FT
0710 3 RJ909 061G1206000 JF
0710 3 RJ905 061G1206000 JF
0710 3 RJ901 061G1206000 JF
0710 3 RJ908 061G1206000 JF
0710 3 R8122 061G1206000 JF
0710 3 R8155 061G1206000 JF
0710 3 RJ904 061G1206000 JF
0710 3 RJ910 061G1206000 JF
0710 3 R8106 061G1206000 JF
0710 3 R8135 061G1206000 JF
0710 3 RJ903 061G1206000 JF
0710 3 RJ907 061G1206000 JF
0710 3 R8160 061G1206000 JF
0710 3 RJ911 061G1206000 JF
0710 3 RJ902 061G1206000 JF
0710 3 RJ906 061G1206000 JF
0710 3 R8121 061G1206000 JF
0710 3 RJ912 061G1206000 JF
0710 3 RJ909 061G1206000 JT
0710 3 RJ905 061G1206000 JT
0710 3 RJ907 061G1206000 JT
0710 3 R8160 061G1206000 JT
0710 3 RJ901 061G1206000 JT
0710 3 RJ904 061G1206000 JT
0710 3 R8155 061G1206000 JT
0710 3 R8122 061G1206000 JT
0710 3 RJ908 061G1206000 JT
0710 3 RJ910 061G1206000 JT
0710 3 RJ902 061G1206000 JT
0710 3 RJ912 061G1206000 JT
0710 3 R8106 061G1206000 JT
0710 3 R8121 061G1206000 JT
0710 3 RJ906 061G1206000 JT
0710 3 R8135 061G1206000 JT
0710 3 RJ911 061G1206000 JT
0710 3 RJ903 061G1206000 JT

0710 3 R9804 061G12060007JF
0710 3 R9804 061G12060007JT
0710 3 R8138 061G12061001FF
0710 3 R8138 061G12061001FT
0710 3 R9338 061G12061003FF
0710 3 R9338 061G12061003FT
0710 3 R9801 061G12061004FF E
0710 3 R9802 061G12061004FF E
0710 3 R9803 061G12061004FF E
0710 3 R9802 061G12061004FK E
0710 3 R9801 061G12061004FK E
0710 3 R9803 061G12061004FK E
0710 3 R8159 061G12061008FF
0710 3 R8154 061G12061008FF
0710 3 R9323 061G12061009FF
0710 3 R9323 061G12061009FT
0710 3 R9360 061G1206101 JF
0710 3 R8131 061G1206101 JF
0710 3 R8131 061G1206101 JT
0710 3 R9360 061G1206101 JT
0710 3 R9311 061G1206102 JF
0710 3 R9311 061G1206102 JT
0710 3 R8172 061G1206103 JF
0710 3 R8171 061G1206103 JF
0710 3 R8172 061G1206103 JT
0710 3 R8171 061G1206103 JT
0710 3 R9363 061G1206104 JT
0710 3 R8149 061G1206104 JT
0710 3 R8149 061G1206104 JY
0710 3 R9363 061G1206104 JY
0710 3 R8104 061G12061504FF
0710 3 R8103 061G12061504FF
0710 3 R8102 061G12061504FF
0710 3 R8102 061G12061504FT
0710 3 R8104 061G12061504FT
0710 3 R8103 061G12061504FT
0710 3 R9365 061G12062001FF
0710 3 R9365 061G12062001FT
0710 3 R9809 061G1206203 JF
0710 3 R9809 061G1206203 JT
0710 3 R9330 061G1206270 JF
0710 3 R9334 061G1206270 JF
0710 3 R9333 061G1206270 JF
0710 3 R9335 061G1206270 JF
0710 3 R9331 061G1206270 JF
0710 3 R9332 061G1206270 JF
0710 3 R9332 061G1206270 JT
0710 3 R9334 061G1206270 JT
0710 3 R9330 061G1206270 JT
0710 3 R9333 061G1206270 JT
0710 3 R9335 061G1206270 JT

0710 3 R9331 061G1206270 JT
0710 3 R9317 061G1206302 JF
0710 3 R9317 061G1206302 JT
0710 3 R9320 061G12063302FF
0710 3 R9320 061G12063302FT
0710 3 R9314 061G1206335 JF
0710 3 R9313 061G1206335 JF
0710 3 R9315 061G1206335 JF
0710 3 R9315 061G1206335 JT
0710 3 R9314 061G1206335 JT
0710 3 R9313 061G1206335 JT
0710 3 R9307 061G1206339 JF
0710 3 R9307 061G1206339 JT
0710 3 R8126 061G12064702FF
0710 3 R8110 061G12064702FF
0710 3 R8126 061G12064702FT
0710 3 R8110 061G12064702FT
0710 3 R9815 061G1206471 JF
0710 3 R8109 061G1206471 JF
0710 3 R8109 061G1206471 JT
0710 3 R9815 061G1206471 JT
0710 3 R9321 061G1206479 JF
0710 3 R9321 061G1206479 JT
0710 3 R9324 061G1206512 JF
0710 3 R9328 061G1206512 JF
0710 3 R9328 061G1206512 JT
0710 3 R9324 061G1206512 JT
0710 3 R9905 061G1206514 JF
0710 3 R9907 061G1206514 JF
0710 3 R9903 061G1206514 JF
0710 3 R9908 061G1206514 JF
0710 3 R9904 061G1206514 JF
0710 3 R9906 061G1206514 JF
0710 3 R9906 061G1206514 JT
0710 3 R9907 061G1206514 JT
0710 3 R9903 061G1206514 JT
0710 3 R9904 061G1206514 JT
0710 3 R9908 061G1206514 JT
0710 3 R9905 061G1206514 JT
0710 3 R9301 061G1206754 JF
0710 3 R9302 061G1206754 JF
0710 3 R9303 061G1206754 JF
0710 3 R9302 061G1206754 JT
0710 3 R9303 061G1206754 JT
0710 3 R9301 061G1206754 JT
0710 3 R9329 061G1206822 JF
0710 3 R9329 061G1206822 JT
0710 3 C9808 065G080510031J Y
0710 3 C8127 065G080510131J F
0710 3 C9334 065G080510131J F
0710 3 C9334 065G080510131J Y

0710 3 C8127 065G080510131J Y
0710 3 C9310 065G080510231J F
0710 3 C9310 065G080510231J Y
0710 3 C9338 065G080510232K A
0710 3 C9811 065G080510232K F
0710 3 C9338 065G080510232K F
0710 3 C9330 065G080510232K F
0710 3 C9343 065G080510232K F
0710 3 C8114 065G080510232K F
0710 3 C9331 065G080510232K F
0710 3 C8114 065G080510232K Y
0710 3 C9330 065G080510232K Y
0710 3 C9343 065G080510232K Y
0710 3 C9331 065G080510232K Y
0710 3 C9811 065G080510232K Y
0710 3 C8106 065G080510332K F
0710 3 C8106 065G080510332K M
0710 3 C9333 065G080510432K F
0710 3 C9813 065G080510432K F
0710 3 C8146 065G080510432K F
0710 3 C8104 065G080510432K F
0710 3 C9332 065G080510432K F
0710 3 C9810 065G080510432K F
0710 3 C8131 065G080510432K F
0710 3 C9329 065G080510432K F
0710 3 C9306 065G080510432K F
0710 3 C8125 065G080510432K F
0710 3 C8132 065G080510432K F
0710 3 C8126 065G080510432K F
0710 3 C8103 065G080510432K F
0710 3 C8141 065G080510432K F
0710 3 C8125 065G080510432K Y
0710 3 C9810 065G080510432K Y
0710 3 C8141 065G080510432K Y
0710 3 C8132 065G080510432K Y
0710 3 C9332 065G080510432K Y
0710 3 C8103 065G080510432K Y
0710 3 C8126 065G080510432K Y
0710 3 C9329 065G080510432K Y
0710 3 C9306 065G080510432K Y
0710 3 C9813 065G080510432K Y
0710 3 C9333 065G080510432K Y
0710 3 C8146 065G080510432K Y
0710 3 C8131 065G080510432K Y
0710 3 C8104 065G080510432K Y
0710 3 C8109 065G080510522K M
0710 3 C8109 065G080510522K T
0710 3 C8136 065G080510532K M
0710 3 C8143 065G080510532K M
0710 3 C8147 065G080510532K M
0710 3 C9342 065G080510532K M

0710 3 C8148 065G080510532K M
0710 3 C8157 065G080510532K M
0710 3 C8134 065G080510532K M
0710 3 C9340 065G080510532K M
0710 3 C8112 065G080510532K M
0710 3 C8135 065G080510532K M
0710 3 C8135 065G080510532K T
0710 3 C8112 065G080510532K T
0710 3 C9342 065G080510532K T
0710 3 C8136 065G080510532K T
0710 3 C8147 065G080510532K T
0710 3 C8143 065G080510532K T
0710 3 C8148 065G080510532K T
0710 3 C9340 065G080510532K T
0710 3 C8134 065G080510532K T
0710 3 C8157 065G080510532K T
0710 3 C9308 065G080533131J F
0710 3 C9308 065G080533131J Y
0710 3 C8110 065G080547031J F
0710 3 C8110 065G080547031J Y
0710 3 C9815 065G080547131J F
0710 3 C9815 065G080547131J Y
0710 3 C9311 065G080547232K F
0710 3 C8128 065G080547232K F
0710 3 C9311 065G080547232K Y
0710 3 C8128 065G080547232K Y
0710 3 C8108 065G080547432K M
0710 3 C9339 065G080547432K M
0710 3 C9812 065G080547432K M
0710 3 C8133 065G080547432K M
0710 3 C9339 065G080547432K T
0710 3 C8133 065G080547432K T
0710 3 C9812 065G080547432K T
0710 3 C8108 065G080547432K T
0710 3 C9337 065G080547525K M
0710 3 C9336 065G080547525K M
0710 3 C9336 065G080547525K T
0710 3 C9337 065G080547525K T
0710 3 C8107 065G0805475A2K A
0710 3 C8107 065G0805475A2K T
0710 3 C8113 065G080556131J F
0710 3 C8113 065G080556131J Y
0710 3 C9341 065G120610532K M
0710 3 C9341 065G120610532K T
0710 3 D9311 093G 60S952 T
0710 3 U8104 356G01585020HF
0710 3 U9304 356G01585020HF
0710 3 U8103 356G01585020HF
0710 3 U9801 356G0379008218
0710 3 U9301 356G0379008606
0710 3 U9302 356GD563008617

0710 3 Q9306 357G0761A0100T
0710 3 Q9307 357G07630620HF
0710 3 Q8105 357G07630620HF
0710 3 Q9309 357G07630620HF
0710 3 R8153 361G12061208FY
0710 3 R8156 361G12061208FY
0710 3 R8152 361G12061208FY
0710 3 R8151 361G12061208FY
0710 3 R8158 361G12061208FY
0710 3 R8157 361G12061208FY
0710 3 D8112 393G006432S0HF
0710 3 D8108 393G006432S0HF
0710 3 D9393 393G006432S0HF
0710 3 D8110 393G006432S0HF
0710 3 D9314 393G006432S0HF
0710 3 ZD9301 393G039SA1400T
0710 3 ZD8107 393G039SA2300T
0710 3 ZD8108 393G039SA2300T
0710 3 ZD8106 393G039SA2300T
0710 3 ZD8105 393G039SA2700T
0710 3 ZD8102 393G039SA2700T
0710 3 ZD8104 393G039SA2700T
0710 3 ZD8101 393G039SA2900T
0710 3 ZD9302 393G039SA2900T
0710 3 D9803 393G060S50000T00HF
0710 3 D9304 393G060S50000T00HF
0710 3 D8101 393G060S50000T00HF
0710 3 D8102 393G060S50000T00HF
0710 3 D9312 393G060S50000T00HF
0710 3 D8109 393G060S50000T00HF
0710 3 PLEW381XXRAAI

3 709T72040XS001
0709 4 052G 2191 A
0709 4 055G 23520
0709 4 055G 100610
0709 4 Q05G6054 1
0709 4 Q09G6012 1
0709 4 Q52G170100700B00XW

3 709T70880XS001
0709 4 052G 2191 A
0709 4 055G 23520
0709 4 055G 100610
0709 4 Q05G6054 1
0709 4 Q09G6012 1
0709 4 Q52G170100700B00XW

3 PLEW381XXRAAI
7100 4 T9301 006G 31 4
7100 4 NR9902 006G 31 4
7100 4 NR9901 006G 31 4
7100 4 BD9901 006G 31 4
7100 4 T8101 006G 31500

7100 4 CN9901 006G 31500
7100 4 L9801 006G 31500
7100 4 C9802 006G 31502
7100 4 C9803 006G 31502
7100 4 C9905 006G 31502
7100 4 RV9901 006G 31502
7100 4 C9906 006G 31502
7100 4 040G 45762420A
7100 4 C8116 065G 1K10193T
7100 4 C9806 065G 1K10193T
7100 4 C8101 065G 1K10293T
7100 4 C9301 065G 1K10293T
7100 4 C9302 065G 1K22293S
7100 4 C9904 065G306K22123R
7100 4 C9818 065G306K22123R
7100 4 C9903 065G306K22123R
7100 4 C9818 065G306K2212WR
7100 4 C9315 065G306M1023WR
7100 4 C9305 067G 3151007KB A
7100 4 C9313 067G 3151007KB A
7100 4 C9304 067G 3154707HT
7100 4 C9809 067G 5151007KB
7100 4 C8105 067G315M2207HB
7100 4 FB9802 071G 55 23
7100 4 FB9891 071G 55 23
7100 4 FB9301 071G 55 23
7100 4 FB9802 071G 55 23 S
7100 4 FB9891 071G 55 23 S
7100 4 FB9301 071G 55 23 S
7100 4 FB9803 071G 55 26 H
7100 4 FB9801 071G 55 29
7100 4 FB9302 071G 55 29
7100 4 D8103 093G 52908
7100 4 D9302 093G 60953
7100 4 D9301 093G1080 252T
7100 4 J936 095G 90 23
7100 4 J925 095G 90 23
7100 4 J941 095G 90 23
7100 4 J914 095G 90 23
7100 4 J930 095G 90 23
7100 4 J903 095G 90 23
7100 4 J969 095G 90 23
7100 4 J963 095G 90 23
7100 4 J952 095G 90 23
7100 4 J959 095G 90 23
7100 4 J948 095G 90 23
7100 4 J964 095G 90 23
7100 4 J937 095G 90 23
7100 4 J944 095G 90 23
7100 4 J939 095G 90 23
7100 4 J943 095G 90 23

7100 4 J906 095G 90 23
7100 4 J949 095G 90 23
7100 4 J910 095G 90 23
7100 4 J921 095G 90 23
7100 4 J926 095G 90 23
7100 4 J942 095G 90 23
7100 4 J931 095G 90 23
7100 4 J945 095G 90 23
7100 4 J956 095G 90 23
7100 4 J967 095G 90 23
7100 4 J901 095G 90 23
7100 4 J912 095G 90 23
7100 4 J960 095G 90 23
7100 4 J907 095G 90 23
7100 4 J955 095G 90 23
7100 4 J918 095G 90 23
7100 4 J966 095G 90 23
7100 4 J929 095G 90 23
7100 4 J922 095G 90 23
7100 4 J933 095G 90 23
7100 4 J917 095G 90 23
7100 4 J934 095G 90 23
7100 4 J950 095G 90 23
7100 4 J935 095G 90 23
7100 4 J908 095G 90 23
7100 4 J961 095G 90 23
7100 4 J913 095G 90 23
7100 4 J902 095G 90 23
7100 4 J968 095G 90 23
7100 4 J957 095G 90 23
7100 4 J909 095G 90 23
7100 4 J946 095G 90 23
7100 4 J962 095G 90 23
7100 4 J951 095G 90 23
7100 4 J958 095G 90 23
7100 4 J947 095G 90 23
7100 4 J920 095G 90 23
7100 4 J905 095G 90 23
7100 4 J916 095G 90 23
7100 4 J938 095G 90 23
7100 4 R8101 361G01SJ10852T00TZ
7100 4 R9306 361G152M22052T00TZ
7100 4 R9305 361G152M82352T00TZ
7100 4 R9312 361G2SWJ22852T00TZ
7100 4 C8111 365G001D5096WT
7100 4 C9901 365G306J47063R
7100 4 C9901 365G306J4706PR
7100 4 C9320 367G215X101FKT
7100 4 C9321 367G215X101FKT
7100 4 C9323 367G515X471FHT000A
7100 4 C9327 367G515X471FHT000A

7100 4 C9326 367G515X471FHT000A
7100 4 C9322 367G515X471FHT000A
7100 4 C8121 367G515X820JHT
7100 4 C8120 367G515X820JHT
7100 4 C8123 367G515X820JHT
7100 4 C8122 367G515X820JHT
7100 4 E715 715G6677P04001002H
7100 4 E715 715G6677P04001002S

对

象描述

组件数量组件数

量

(CUn)

组件单

位

REAR_COVER NA 1.000 1 PCS

MESH PRINTTING_PAPER 12.000 12 CM

MANUAL PE BAG 290*195 1.000 1 PCS

PROTECT BAG 1200*1600 1.000 1 PCS

PROTECT BAG 850*400*0.04 1.000 1 PCS

NONWOVEN FABRTC 2.000 2 PCS

control card 0.100 1 PCS

FUSE GEL 0.300 0.300 G

FUSE GEL 2.000 2 G
SCREW M3 6 2.000 2 PCS
SCREW M4 6 10.000 10 PCS

SCREW 1.000 1 PCS

Screw 11.000 11 PCS
SCREW M3 6 20.000 20 PCS
SCREW M3 8 5.000 5 PCS

SCREW 1.000 1 PCS
SCREW 2.000 2 PCS
SCREW 4.000 4 PCS

WIFI USB IEEE 802.11 b/g/n WF0KRT1510W 1.000 1 PCS

6 OHM 11W 132*34*37mm 0 UNIT 2.000 2 PCS

6 OHM 11W 132*34*37mm 0 UNIT 2.000 0.000 PCS
HARNESS 2P pitch2.0-2P pitch1.25 200mm 1.000 0.000 PCS
HARNESS 2P pitch2.0-2P pitch1.25 200mm 1.000 1 PCS

HARNESS 12P pitch2.0-16P pitch2.0 500mm 1.000 1 PCS
HARNESS 12P pitch2.0-16P pitch2.0 500mm 1.000 0.000 PCS

HARNESS 5P pitch1.25-6P pitch2.0 400mm 1.000 1 PCS
HARNESS 5P pitch1.25-6P pitch2.0 400mm 1.000 0.000 PCS

HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m 1.000 0.000 PCS
HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m 1.000 1 PCS

HARNESS 14P pitch2.0-5P pitch1.25+2P pi 1.000 1 PCS
HARNESS 14P pitch2.0-5P pitch1.25+2P pi 1.000 0.000 PCS

LVDS CABLE 51P-40P 550MM 1.000 1 PCS
LVDS CABLE 51P-40P 550MM 1.000 0.000 PCS

REMOTE PHILIPS RL134B chinese 1.000 1 PCS

Ebony 40 ( 208 NA ) 1.000 1 PCS

LCD TPT550J1-HVN06.U S510C XM TPV 1.000 0.000 PCS

MCU ASSY 1.000 0.000 PCS

CONVERSION BOARD NA 1.000 1 PCS

IR BOARD 1.000 1 PCS

KEY BOARD 1.000 1 PCS

PANEL TPT550J1-HVN06.U S510C XM TPV 1.000 1 PCS

KEY_FUNCTION 1.000 1 PCS

DECO_LOGO 1.000 1 PCS

DECO_REAR_COVER 1.000 1 PCS

BASE NA 1.000 1 PCS

A4 PALLET LABEL -for A4 paper 0.100 1 PCS

ADAPTER BOARD G6677-P0B-001-0020 1.000 1 PCS

BOLT 2.000 2 PCS
BOLT 1.000 1 PCS

PCB-SUPPORT D2.9xH14.97 5.000 5 PCS

FOOT PAD 7.000 7 PCS

HEAT PAD 1.000 1 PCS

NONWOVEN FABRIC 2.000 2 PCS
产线需求的栈板LABEL 0.100 1 PCS

EVA WASHER 2.000 2 PCS

Cleaning Naphtha 0.244 0.244 G

AL FOIL 8.000 8 CM

TAPE 20.000 20 CM

TAPE_INSULATING 104.000 104 CM

TAPE 24.000 24 CM

BKT_BASE 2.000 2 PCS
BKT_STAND 1.000 1 PCS
BKT_STAND 1.000 1 PCS
BKT_STAND 1.000 1 PCS

BKT_SPEAKER 2.000 2 PCS

BKT_IO 1.000 1 PCS
BKT_IO 1.000 1 PCS

IO LABEL 1.000 1 PCS

LABEL SIDE 1.000 1 PCS

CUSHION-TL N/A China(2002) 1.000 1 PCS
CUSHION-TR N/A China(2002) 1.000 1 PCS
CUSHION-BL N/A China(2002) 1.000 1 PCS

CUSHION-BR N/A China(2002) 1.000 1 PCS

CUSHION N/A China(2002) 1.000 1 PCS

ARTWORK CARTON Ebony 55PFF5650/T3 CHINA 1.000 1 PCS

INSULATING SHEET 1.000 1 PCS

INSULATING SHEET 1.000 1 PCS
AC POWER CORD 1500 1.000 0.000 PCS
AC POWER CORD 1500 1.000 1 PCS

SCREW M4 20 4.000 4 PCS

RF MODULE GL03-2-E 1.000 1 PCS

BATTERY 1.5V 2P R03(KI)2S/PG 1.000 1 PAA

QSG PFF5650_PFF5655 cost down 1.000 1 PCS

WARRANTY CARD TPV address china 1.000 1 PCS

TAPE 90.000 90 MM

MANUAL P/N LABEL 1.000 1 PCS

CEL LABEL G2 2.0 54X79.2 1.000 1 PCS

Label for screw pe bag 1.000 1 PCS

CARTON LABEL 1.000 1 PCS

RATING LABEL 55PFF5650-T3 1.000 1 PCS

OTHER LABEL 1.000 1 PCS

PROTECT BAG 1200*1600 1.000 0.000 PCS

TAPE 12.000 0.000 CM

Ebony 40 ( 208 NA ) 0.000 0.000

WOOD PALLET 0.039 1 PCS
WOOD PALLET 0.039 1 PCS

PAPER BOARD 0.117 1 PCS
PAPER BOARD 0.117 1 PCS

CORNER PAPER 0.308 1 PCS

TIE (Y1900221) 82.000 82 CM

BIG TAPE FOR PHILIPS 306.000 306 CM

PROTECT RIBBON 2.820 2.820 M

MCU ASSY 0.000 0.000

PHP 55PFF5650 Nand_FLASH V8.11 3C53B477 1.000 0.000 PCS

NAND FLASH THGBMBG5D1KBAIT 4G BGA 153 1.000 0.000 PCS

CONVERSION BOARD NA 0.000 0.000

EC 220UF 20% 35V 8*11.5 4000 hr 1.000 1 PCS
EC 100UF 20% 35V 8*7 3000 hr 470mA SY10 1.000 1 PCS
EC 100UF 20% 35V 8*7 3000 hr 470mA SY10 1.000 1 PCS

RCA JACK R/A 12P G/BL/R/W/R 1*5 H=10.5 1.000 1 PCS

USB A TYPE R/A 9P 1*1 BLUE 6.96mm 1.000 1 PCS

D-SUB CONN 15P BLUE R/A H=10mm 1.000 1 PCS
CONN 2.0mm 4P R/A B2009W04HTK0 1.000 1 PCS

WAFER 2.0mm 6P R/A B2000W06HTKB 1.000 1 PCS
CONN 2.0mm 12P R/A W2010-12RVA-S04 1.000 1 PCS
CONN 2.0mm 14P R/A W2010-14RVA-S04 1.000 1 PCS

WAFER 2.0mm 40P 1.000 1 PCS

RCA R/A 6P 1*3 Y/W/R 9.5mm 1.000 1 PCS

PHONE JACK R/A 5P 1*1 BLACK 8.5mm 1.000 1 PCS

RJ45 R/A 15P 1*1 BLACK 11.2 1.000 0.000 PCS
RJ45 R/A 15P 1*1 BLACK 11.2 1.000 1 PCS

USB A TYPE R/A 6P 1*1 BLACK 8.4 1.000 1 PCS

RF IFP-007 4P 1*1 W -- 1.000 1 PCS

COMSUMPTIVE ASSY 1.000 1 PCS

GASKET 1.000 1 PCS

HEAT SINK 25 10 1.000 1 PCS

MAIN BOARD FOR SMT 1.000 1 PCS

SHIELD_TUNER 1.000 1 PCS

HEAT SINK 1.000 1 PCS

OTHER LABEL 1.000 1 PCS

IR BOARD 0.000 0.000

IR BOARD FOR SMT 1.000 1 PCS

KEY BOARD 0.000 0.000

KEY BOARD FOR SMT 1.000 1 PCS

ADAPTER BOARD G6677-P0B-001-0020 0.000 0.000

OTHER LABEL 1.000 1 PCS
GND TERMINAL 1.000 1 PCS
GND TERMINAL 1.000 1 PCS
GND TERMINAL 1.000 1 PCS

wafer 12P 2.0 DIP 1.000 1 PCS
IC EL817M(X) photocoupler DIP-4 1.000 1 PCS
IC EL817M(X) photocoupler DIP-4 1.000 1 PCS
IC EL817M(X) photocoupler DIP-4 1.000 1 PCS

MOSFET TK10A50D 10A 500V TO-220 1.000 1 PCS
MOSFET TK10A50D 10A 500V TO-220 1.000 1 PCS

RST MOF 0.1R 5% 3WS PITCH=20mm 1.000 1 PCS

CAP X2 470NF 20% 275V - - 1.000 1 PCS
CAP X2 470NF 20% 275V - - 1.000 1 PCS

AC R/A 2P 12.81mm 1.000 1 PCS

BRIDGE KBP206G X0 2A 800V KBP 80A 1.000 1 PCS

SCREW Q1-SELF TAPING SCREW :Q x8.0 2.000 2 PCS

CONN 2.0mm 16P V/T W2010-16SVA-S03 1.000 1 PCS

LED DRIVER TPV101D DIP-8 1.000 1 PCS
LED DRIVER TPV101D DIP-8 1.000 1 PCS

VARISTOR 680V 10% 1.000 1 PCS

VARISTOR 680V 10% 1.000 0.000 PCS
NTCR 2.5R 20% 3.6W SCK152R58MTY503 1.000 1 PCS
NTCR 2.5R 20% 3.6W SCK152R58MTY503 1.000 1 PCS

CAP MPP 1UF 5% 450V 1.000 1 PCS

CAP MPP 22nF 5% 1KV 18*5*10.5 B32652A022 1.000 1 PCS

EC 68UF 20% 450V 13*50 2000 hr 620mA HR 1.000 1 PCS
EC 68UF 20% 450V 13*50 2000 hr 620mA HR 1.000 1 PCS

BEAD 6.5*12.5 700R 25% BF-I60100R-815 1.000 1 PCS
BEAD 6.5*12.5 700R 25% BF-I60100R-815 1.000 1 PCS
PFC CHOKE 240uH 10% 2A GL-13230 HA 1.000 1 PCS

PFC CHOKE 240uH 10% 2A 3TREQ32-241K-1 1.000 0.000 PCS

LINE FILTER 12mH MIN 2A LCL-12034 HA 1.000 0.000 PCS
LINE FILTER 12mH MIN 2A LCL-12034 HA 1.000 0.000 PCS

LINE FILTER 12mH MIN 2A 3LFT20117-123M- 1.000 1 PCS
LINE FILTER 12mH MIN 2A 3LFT20117-123M- 1.000 1 PCS

CHOKE COIL 3UH 15% DR8*8 5A 1.000 0.000 PCS
CHOKE COIL 3UH 15% DR8*8 5A 1.000 0.000 PCS
CHOKE COIL 3UH 15% DR8*8 5A 1.000 0.000 PCS
CHOKE COIL 3UH 15% DR8*8 5A 1.000 1 PCS
CHOKE COIL 3UH 15% DR8*8 5A 1.000 1 PCS
CHOKE COIL 3UH 15% DR8*8 5A 1.000 1 PCS

X'FMR 310uH 10% 5uH ER31 YUVA-2133-32 1.000 1 PCS

X'FMR 900μH 12% 155μH EE3913 BCK 1.000 1 PCS

BRIDGE TS10P06G-05 10A 800V TS-6P 1.000 1 PCS

Q9303 ASSY 1.000 1 PCS
Q9301 ASSY 1.000 1 PCS

FUSE Assy(F9901 ASSY) 1.000 1 PCS

D8106 D8107 ASSY 1.000 1 PCS
Q9801 D9802 ASSY 1.000 1 PCS

ADAPTER BOARD FOR SMT 1.000 1 PCS

HEAT SINK 1.000 1 PCS
HEAT SINK 1.000 1 PCS

COMSUMPTIVE ASSY 0.000 0.000

OIL FOR DISAPPEAR 0.110 0.110 G

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.079 0.079 CM

.leaning Naphtha 0.100 0.100 ML

WELDING FLUX WITHOUT PB 3.969 3.969 G

Water-based Cleaning Agent 2.000 2 G

TIN STICK(SAC0507) 0.100 0.100 G

Sn-Cu Solder 3.700 3.700 G

MAIN BOARD FOR SMT 0.000 0.000

LDO AZ1117D-3.3TR/E1 1A/3.3V TO-252 1.000 1 PCS

IC G5250K1T1U SOT23-5 1.000 1 PCS

IC G5250K1T1U SOT23-5 1.000 1 PCS
LDO AP1117E33G-13 1A 3.3V SOT-223 1.000 1 PCS
LDO AP1117E33G-13 1A 3.3V SOT-223 1.000 1 PCS

AUDIO DRV602PW 870mW TSSOP-14 1.000 1 PCS

IC G690H293T73Uf SOT-23 GMT 1.000 1 PCS

IC STMPS2171STR SOT23-5L 1.000 1 PCS

MMBT3904 1.000 1 PCS
MMBT3904 1.000 1 PCS
MMBT3904 1.000 1 PCS
MMBT3904 1.000 1 PCS
MMBT3904 1.000 1 PCS
MMBT3904 1.000 1 PCS
MMBT3906 1.000 1 PCS
MMBT3906 1.000 1 PCS

MMBT3906 1.000 1 PCS
FET AO4449 -7A/-30V SOIC-8 1.000 1 PCS
FET AO4449 -7A/-30V SOIC-8 1.000 1 PCS

RST CHIPR MAX0R05 1/16W FENGHUA 1.000 1 PCS

RST 0402 0.05R MAX 1/16W - 1.000 1 PCS
RST 0402 0.05R MAX 1/16W - 1.000 1 PCS
RST 0402 0.05R MAX 1/16W - 1.000 1 PCS
RST 0402 0.05R MAX 1/16W - 1.000 1 PCS

RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1.000 1 PCS

RST CHIPR 10 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 10 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 10 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 10 OHM +-5% 1/16W YAGEO 1.000 1 PCS

RST CHIPR 10 OHM +-5% 1/16W YAGEO 1.000 1 PCS

RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS
RST CHIP 100R 1/16W 1% 1.000 1 PCS

RST CHIP 1K 1/16W 1% 1.000 1 PCS
RST CHIP 1K 1/16W 1% 1.000 1 PCS
RST CHIP 1K 1/16W 1% 1.000 1 PCS
RST CHIP 1K 1/16W 1% 1.000 1 PCS
RST CHIP 1K 1/16W 1% 1.000 1 PCS
RST CHIP 1K 1/16W 1% 1.000 1 PCS

RST CHIP 1K 1/16W 1% 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIP 10K 1/16W 1% YAGEO 1.000 1 PCS

RST CHIP 100K 1/16W 1% 1.000 1 PCS
RST CHIP 100K 1/16W 1% 1.000 1 PCS

RST CHIP 100K 1/16W 1% 1.000 1 PCS
RST CHIP 100K 1/16W 1% 1.000 1 PCS
RST CHIP 100K 1/16W 1% 1.000 1 PCS
RST CHIP 100K 1/16W 1% 1.000 1 PCS
RST CHIP 100K 1/16W 1% 1.000 1 PCS

RST CHIP 100K 1/16W 1% 1.000 1 PCS
RST CHIPR 1M +-1% 1/16W TZAI YUAN 1.000 1 PCS
RST CHIPR 1M +-1% 1/16W TZAI YUAN 1.000 1 PCS
RST CHIPR 1M +-1% 1/16W TZAI YUAN 1.000 1 PCS

RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 1 PCS

RST CHIPR 100KOHM +-5% 1/16W YAGEO 1.000 1 PCS

RST CHIP 12K 1/16W 1% YAGEO 1.000 1 PCS
RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS

RST CHIPR 1.5KOHM +-5% 1/16W YAGEO 1.000 1 PCS

RST CHIP R 18Kohm 1/16W +/-1% 1.000 1 PCS
RST CHIP 20K 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 22R 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 22R 1/16W 5% TZAI YUAN 1.000 1 PCS

RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 22 OHM +-5% 1/16W YAGEO 1.000 1 PCS

RST CHIP 22K 1/16W 1% TZAI YUAN 1.000 1 PCS

RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 1.000 1 PCS
RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 1.000 1 PCS
RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 1.000 1 PCS
RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 1.000 1 PCS
RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 1.000 1 PCS
RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 1.000 1 PCS

RST CHIPR 2.2 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO 1.000 1 PCS

RST 0402 300K 5% 1/16W TZAI YUAN 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS

RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS
RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 1.000 1 PCS

RST 0402 33K 1% 1/16W FENGHUA 1.000 1 PCS

RST CHIPR 3.3KOHM 5% 1/16W FENGHUA 1.000 1 PCS

RST CHIPR 3.3KOHM 5% 1/16W YAGEO 1.000 1 PCS

RST CHIP 39K 1/16W 5% YAGEO 1.000 1 PCS
RST CHIP 39K 1/16W 5% YAGEO 1.000 1 PCS

RST CHIP 39K 1/16W 5% YAGEO 1.000 1 PCS
RST CHIPR 0402 47K +-1% 1/16W FENGHUA 1.000 1 PCS
RST CHIPR 0402 47K +-1% 1/16W FENGHUA 1.000 1 PCS
RST CHIPR 0402 47K +-1% 1/16W FENGHUA 1.000 1 PCS

RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS
RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1.000 1 PCS

RST CHIP 47K 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 47K 1/16W 5% TZAI YUAN 1.000 1 PCS

RST CHIP 6.2K 1/16W 1% 1.000 1 PCS
RST CHIP R 62K 1/16W +/-5% YAGEO 1.000 1 PCS
RST CHIP R 62K 1/16W +/-5% YAGEO 1.000 1 PCS

RST CHIPR 68 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 68 OHM +-5% 1/16W YAGEO 1.000 1 PCS
RST CHIPR 68 OHM +-5% 1/16W YAGEO 1.000 1 PCS

RST CHIPR 680K +-1% 1/16W YAGEO 1.000 1 PCS

RST CHIP 75R 1/16W 1% 1.000 1 PCS
RST CHIP 75R 1/16W 1% 1.000 1 PCS
RST CHIP 75R 1/16W 1% 1.000 1 PCS
RST CHIP 75R 1/16W 1% 1.000 1 PCS
RST CHIP 75R 1/16W 1% 1.000 1 PCS

RST CHIP 75R 1/16W 1% 1.000 1 PCS
RST CHIP 75R 1/16W 1% 1.000 1 PCS
RST CHIP 75R 1/16W 1% 1.000 1 PCS

RST CHIPR 82KOHM +-1% 1/16W FENGHUA 1.000 1 PCS

RST CHIP 9K1 1/16W 1% FENGHUA 1.000 1 PCS

RST CHIP 9K1 1/16W 1% FENGHUA 1.000 1 PCS
RST CHIPR MAX0R05 1/10W YAGEO 1.000 1 PCS
RST CHIPR MAX0R05 1/10W YAGEO 1.000 1 PCS
RST CHIPR MAX0R05 1/10W YAGEO 1.000 1 PCS
RST CHIPR MAX0R05 1/10W YAGEO 1.000 1 PCS
RST CHIPR MAX0R05 1/10W YAGEO 1.000 1 PCS
RST CHIPR MAX0R05 1/10W YAGEO 1.000 1 PCS
RST CHIPR MAX0R05 1/10W YAGEO 1.000 1 PCS

RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO 1.000 1 PCS
RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO 1.000 1 PCS

RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA 1.000 1 PCS

RST CHIP 15K 1/10W 1% 1.000 1 PCS

RST CHIPR 150K +-5% 1/10W YAGEO 1.000 1 PCS

RST CHIPR 18 KOHM +-1% 1/10W YAGEO 1.000 1 PCS

RST CHIPR 200 OHM +-5% 1/10W YAGEO 1.000 1 PCS

RST CHIP 3K3 1/10W 1% 1.000 1 PCS

RST CHIP 3K3 1/10W 1% 1.000 1 PCS
RST CHIPR 47KOHM 1/10W YAGEO 1.000 1 PCS
RST CHIPR 47KOHM 1/10W YAGEO 1.000 1 PCS
RST CHIPR 47KOHM 1/10W YAGEO 1.000 1 PCS

RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 1 PCS
RST CHIPR MAX 0R05 OHM 1/8W YAGEO 1.000 1 PCS

RST CHIPR MAX0R05 1/4W YAGEO 1.000 1 PCS

RST CHIPR 1206 MAX0R05 4A 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR 10 OHM +-5% 1/4W YAGEO 1.000 1 PCS
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1.000 1 PCS
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1.000 1 PCS
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1.000 1 PCS
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1.000 1 PCS
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1.000 1 PCS
RST CHIPR 10 OHM +-5% 1/4W YAGEO 1.000 1 PCS

RST CHIPR 10 OHM +-5% 1/4W YAGEO 1.000 1 PCS
RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 4.7KOHM +-5% 1/4W FENGHUA 1.000 1 PCS

CAP CHIP 0402 100P 50V NP0 +/-5% 1.000 1 PCS
CAP CHIP 0402 100P 50V NP0 +/-5% 1.000 1 PCS

CAP 0402 1NF 10% 50V X7R 1.000 1 PCS
CAP 0402 1NF 10% 50V X7R 1.000 1 PCS
CAP 0402 1NF 10% 50V X7R 1.000 1 PCS
CAP 0402 1NF 10% 50V X7R 1.000 1 PCS

CAP 0402 1NF 10% 50V X7R 1.000 1 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 1 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 1 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 1 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 1 PCS
CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 1 PCS

CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 1.000 1 PCS

CAP 0402 10NF 10% 50V X7R 1.000 1 PCS
CAP 0402 10NF 10% 50V X7R 1.000 1 PCS
CAP 0402 10NF 10% 50V X7R 1.000 1 PCS
CAP 0402 10NF 10% 50V X7R 1.000 1 PCS

CAP 0402 10NF 10% 50V X7R 1.000 1 PCS
CAP CHIP 0402 10N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0402 10N 50V X7R +/-10% 1.000 1 PCS

CAP CHIP 0402 100nF 16V X7R 1.000 1 PCS

CAP 0402 100NF 10% 16V X7R 1.000 1 PCS
CAP 0402 100NF 10% 16V X7R 1.000 1 PCS
CAP 0402 100NF 10% 16V X7R 1.000 1 PCS
CAP 0402 100NF 10% 16V X7R 1.000 1 PCS

CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS

CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 100nF 10% 25V X5R 1.000 1 PCS

CAP 0402 100nF 10% 25V X5R 1.000 1 PCS
CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV 1.000 1 PCS
CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV 1.000 1 PCS
CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV 1.000 1 PCS

CAP CHIP 0402 18PF 50V J NPO 1.000 1 PCS
CAP CHIP 0402 18PF 50V J NPO 1.000 1 PCS

CAP CHIP 0402 22P 50V NP0 +/-5% 1.000 1 PCS

CAP 0402 2.2NF K 50V X7R 1.000 1 PCS
CAP 0402 2.2NF K 50V X7R 1.000 1 PCS

CAP 0402 22NF 10% 25V X7R 1.000 1 PCS

CAP 0402 33PF 5% 50V NP0 1.000 1 PCS
CAP 0402 33PF 5% 50V NP0 1.000 1 PCS

CAP 0402 33PF 5% 50V NP0 1.000 1 PCS
CAP CHIP 0402 33P 50V NP0 +/-5% 1.000 1 PCS
CAP CHIP 0402 33P 50V NP0 +/-5% 1.000 1 PCS
CAP CHIP 0402 33P 50V NP0 +/-5% 1.000 1 PCS
CAP CHIP 0402 33P 50V NP0 +/-5% 1.000 1 PCS

CAP 0402 47PF 5% 50V NP0 1.000 1 PCS

CAP 0402 47PF 5% 50V NP0 1.000 1 PCS

0402 470pF J 50V NP0 1.000 1 PCS
0402 470pF J 50V NP0 1.000 1 PCS
0402 470pF J 50V NP0 1.000 1 PCS

0402 470pF J 50V NP0 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS
CAP 0402 47NF 10% 16V X7R 1.000 1 PCS

CAP 0402 470NF 10% 10V X5R 1.000 1 PCS
CAP 0402 560pF 50V X7R +/-10% 1.000 1 PCS
CAP 0402 560pF 50V X7R +/-10% 1.000 1 PCS
CAP 0402 560pF 50V X7R +/-10% 1.000 1 PCS
CAP 0402 560pF 50V X7R +/-10% 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 1 PCS

CAP 0603 1UF 10% 16V X7R 1.000 1 PCS
CAP 0603 1UF 10% 16V X7R 1.000 1 PCS
CAP 0603 1UF 10% 16V X7R 1.000 1 PCS
CAP 0603 1UF 10% 16V X7R 1.000 1 PCS
CAP 0603 1UF 10% 16V X7R 1.000 1 PCS

CAP 0603 1UF 10% 16V X7R 1.000 1 PCS
CAP 0603 1UF 10% 16V X7R 1.000 1 PCS
CAP 0603 1UF 10% 16V X7R 1.000 1 PCS
CAP 0603 1UF 10% 16V X7R 1.000 1 PCS
CAP 0603 1UF 10% 16V X7R 1.000 1 PCS
CAP 0603 1UF 10% 16V X7R 1.000 1 PCS

CAP 0603 1UF 10% 25V X7R NA 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS
MLCC 0603 10UF 6.3V X5R +-20% 1.000 1 PCS

CAP 0603 10UF 20% 6.3V X5R 1.000 1 PCS
CAP 0603 10UF 20% 6.3V X5R 1.000 0.000 PCS

CAP 0603 220N 25V X7R 10% 1.000 1 PCS
CAP 0603 220N 25V X7R 10% 1.000 1 PCS

0603 2.2UF K 16V X5R 1.000 1 PCS
0603 2.2UF K 16V X5R 1.000 1 PCS
0603 2.2UF K 16V X5R 1.000 1 PCS
0603 2.2UF K 16V X5R 1.000 1 PCS

0603 2.2UF K 16V X5R 1.000 1 PCS
CAP 0603 2.2UF K 10V X5R 1.000 1 PCS
CAP 0603 2.2UF K 10V X5R 1.000 1 PCS
CAP 0603 2.2UF K 10V X5R 1.000 1 PCS

CAP CHIP 0.47uF 16V +/-10% X7R 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS

CAP 0805 10UF 10% 16V X5R 1.000 1 PCS
CAP 0805 10UF 10% 16V X5R 1.000 1 PCS

CHIP 10uF 16V X5R 0805 1.000 1 PCS
CHIP 10uF 16V X5R 0805 1.000 1 PCS
CHIP 10uF 16V X5R 0805 1.000 1 PCS
CHIP 10uF 16V X5R 0805 1.000 1 PCS
CHIP 10uF 16V X5R 0805 1.000 1 PCS
CHIP 10uF 16V X5R 0805 1.000 1 PCS
CHIP 10uF 16V X5R 0805 1.000 1 PCS

CHIP 10uF 16V X5R 0805 1.000 1 PCS
CAP 0805 10UF 10% 10V X5R 1.000 1 PCS
CAP 0805 10UF 10% 10V X5R 1.000 1 PCS

CAP 0805 10uF 10% 10V X5R LMK212 BJ106K 1.000 1 PCS
CAP 0805 10uF 10% 10V X5R LMK212 BJ106K 1.000 1 PCS
CAP 0805 10uF 10% 10V X5R LMK212 BJ106K 1.000 1 PCS

CAP CHIP 0805 220N 50V X7R +/-10% 1.000 1 PCS

CAP CHIP 0805 220N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 220N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 220N 50V X7R +/-10% 1.000 1 PCS

CAP 0805 22UF 20% 6.3V X5R 1.000 1 PCS
CAP 0805 22UF 20% 6.3V X5R 1.000 1 PCS
CAP 0805 22UF 20% 6.3V X5R 1.000 1 PCS
CAP 0805 4.7UF 10% 16V X5R 1.000 1 PCS
CAP 0805 4.7UF 10% 16V X5R 1.000 1 PCS

MLCC 1206 10UF 16V X7R +-10% 1.000 1 PCS
EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2 1.000 1 PCS
EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2 1.000 1 PCS

HDCP CODE 1.000 1 PCS
CHIP BEAD 0805 300R 25% HCB2012KF-301T40 1.000 1 PCS
CHIP BEAD 1206 120R 25% HCB3216KF-121T30 1.000 1 PCS
CHIP BEAD 1206 120R 25% HCB3216KF-121T30 1.000 1 PCS
CHIP BEAD 1206 120R 25% HCB3216KF-121T30 1.000 1 PCS
CHIP BEAD 1206 120R 25% HCB3216KF-121T30 1.000 1 PCS

CHIP BEAD 120R/3000mA HCB1608KF-121T30 1.000 1 PCS
SMD CHOKE 0.22UH 10% 0.05A 2.1R MGFI160 1.000 1 PCS
SMD CHOKE 0.22UH 10% 0.05A 2.1R MGFI160 1.000 1 PCS
SMD CHOKE 2.2UH 30% 2.04A 0.031R SPI530L 1.000 1 PCS

SMD CHOKE 10UH 20% 5.4A LZ.05100.A1P 1.000 1 PCS

HDMI HEADER R/A 19P BLACK H=8.4 1.000 1 PCS

SWITCHING BAV99 0.2A 85V SOT-23 1.000 1 PCS

SWITCHING LL4148 0.15A 100V MINI-MELF 1.000 1 PCS

ZENER BZX84-C5V6 5.6V 0.25W SOT-23 1.000 1 PCS

SCHOTTKY SK36B 3A 60V DO-214AA 1.000 1 PCS

Silicon Tuner MxL661-AG-R 1.000 1 PCS

SCALER MSD8561VXM-W4 HSBGA-590 1.000 1 PCS

AUDIO AD82588B-LG48NAY 2x15W stereo E-LQ 1.000 1 PCS

NAND FLASH THGBMBG5D1KBAIT 4G BGA 153 1.000 1 PCS

DC/DC SY8009BABC 2A 3.3V SOT23-6 1.000 1 PCS

DC/DC TPS54328DDAR 3A 0.76~7V DDA 1.000 1 PCS

DC/DC MSH6000A 5A ADJ ESOP-8 1.000 1 PCS

DC/DC G5383QU1U 8A 28V QFN3X3-24 1.000 1 PCS
.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000 1 PCS
.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000 1 PCS

RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS

RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS

RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1.000 1 PCS
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1.000 1 PCS
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1.000 1 PCS
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1.000 1 PCS
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1.000 1 PCS
CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1.000 1 PCS

CAP 0603 22uF 20% 6.3V X5R CL10A226MQ8N 1.000 1 PCS

CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1.000 1 PCS
CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1.000 1 PCS
CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1.000 1 PCS
CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1.000 1 PCS
CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1.000 1 PCS

CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1.000 1 PCS
CAP 1206 22UF 10% 10V X7R GRM31CR71A226 1.000 1 PCS
CAP 1206 22UF 10% 10V X7R GRM31CR71A226 1.000 1 PCS

367G311F1014LT 20% --25V --8*6.5 -- -- 1.000 1 PCS

Buy key CNTV腾讯版MAC for MSD6A628 1.000 1 PCS

CD CD HDCP2.2 code for Wifi Miracast 1.000 1 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 1 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 1 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 1 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 1 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 1 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 1 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 1 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 1 PCS
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 1.000 1 PCS

CHIP BEAD 0402 1000 25% FCM1005KF-102T0 1.000 1 PCS

SMD CHOKE 2.2uH 20% 1.48A 0.058R NRS301 1.000 1 PCS
SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 1.000 1 PCS
SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 1.000 1 PCS
SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 1.000 1 PCS
SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 1.000 1 PCS

SMD CHOKE 75R 25% 280mA 75R BW21S7511B01 1.000 1 PCS

SMD CHOKE 4.7UH 20% 2.2A 0.057 MPIT5020 1.000 1 PCS
CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18 1.000 1 PCS

CRYSTAL NXK24.000AE12F-KAB8 24MHz 12pF 1.000 1 PCS

ZENER BZT52-B5V6 5.6V 0.41W SOD-123 1.000 1 PCS
SCHOTTKY BAT54C_R1_00001 0.2A 30V SOT-2 1.000 1 PCS
SCHOTTKY BAT54C_R1_00001 0.2A 30V SOT-2 1.000 1 PCS

SCHOTTKY SX36 HF 3A 60V SMA 1.000 1 PCS

COMSUMPTIVE ASSY 1.000 1 PCS
MAIN PCB FR4 DS 133.5*207*1.6mm 1.000 0.000 PCS
MAIN PCB FR4 DS 133.5*207*1.6mm 1.000 1 PCS

IR BOARD FOR SMT 0.000 0.000

RST CHIP 100R 1/10W 5% TZAI YUAN 1.000 1 PCS

RST CHIP 1K 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 10K 1/16W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 2K2 1/16W 5% TZAI YUAN 1.000 1 PCS

CAP 0402 1UF 10% 10V X5R 1.000 1 PCS

CAP 0402 1UF 10% 10V X5R 1.000 1 PCS

TRA BC847BW 100mA/45V SOT-323 1.000 1 PCS

CONNECTOR 1.000 0.000 PCS

CHIP LED RED 19-21B/R6C-BL1M2VY/3T 1.000 0.000 PCS

CHIP LED RED GPTS06033RC3-PB 1.000 1 PCS

WAFER 1.25mm 5P V/T S1315-05SVB-S03-R 1.000 1 PCS

IR RECEIVER TSOP75336WTT 36 KHz 1.000 1 PCS

IR PCB FR4 DS 30*8.5*1.6mm 1.000 0.000 PCS
IR PCB FR4 DS 30*8.5*1.6mm 1.000 1 PCS

KEY BOARD FOR SMT 0.000 0.000

RST CHIPR 1.2KOHM +-1% 1/10W 1.000 0.000 PCS

RST CHIP 1K2 1/10W 1% 1.000 1 PCS

RST CHIPR 1.2KOHM +-1% 1/10W 1.000 0.000 PCS

RST CHIPR 15KOHM +-1% 1/10W FENGHUA 1.000 0.000 PCS

RST CHIP 15K 1/10W 1% 1.000 1 PCS
RST CHIP 15K 1/10W 1% 1.000 0.000 PCS
RST CHIP 2K2 1/10W 1% 1.000 1 PCS
RST CHIP 2K2 1/10W 1% 1.000 0.000 PCS
RST CHIP 47R 1/10W 1% 1.000 1 PCS

RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA 1.000 0.000 PCS

RST CHIP 6K8 1/10W 1% 1.000 1 PCS
RST CHIP 6K8 1/10W 1% 1.000 0.000 PCS

CAP 0603 100NF 10% 50V X7R 1.000 0.000 PCS

CAP CHIP 0603 0.1UF K 50V X7R 1.000 1 PCS

CAP 0603 100NF 10% 50V X7R 1.000 0.000 PCS

WAFER 1.25mm 2P R/A S1315-02RVB-S03-K 1.000 1 PCS

CHIP TACT SW 6P 6mm 160g SMD 1.000 0.000 PCS
CHIP TACT SW 6P 6mm 160g SMD 1.000 1 PCS

COMSUMPTIVE ASSY 1.000 1 PCS

KEY PCB FR4 DS 22*29.5*1.6mm 1.000 1 PCS

Q9303 ASSY 0.000 0.000

OIL FOR DISAPPEAR 0.018 0.018 G

SCREW M3 8 1.000 1 PCS

OSFET TK22A10N1 22A 100V TO-220SIS 1.000 1 PCS

HEAT SINK 24.8 19.5 7 1.000 1 PCS

Q9301 ASSY 0.000 0.000

OIL FOR DISAPPEAR 0.018 0.018 G

SCREW M3 8 1.000 1 PCS

MOSFET TK11A65D 11A 650V TO-220SIS 1.000 1 PCS

HEAT SINK 24.8 19.5 7 1.000 1 PCS

FUSE Assy(F9901 ASSY) 0.000 0.000

bSE -- -- -- 2.000 2 PCS

FUSE 5A 250V 0215005M LITTELFUSE 1.000 1 PCS

D8106 D8107 ASSY 0.000 0.000

OIL FOR DISAPPEAR 0.036 0.036 G
RECTIFIER FMXA-2202S 20A 200V TO-220F 1.000 1 PCS
RECTIFIER FMXA-2202S 20A 200V TO-220F 1.000 1 PCS

SCREW M3 8 2.000 2 PCS

HEAT SINK 1.000 1 PCS
HEAT SINK 1.000 0.000 PCS

Q9801 D9802 ASSY 0.000 0.000

OIL FOR DISAPPEAR 0.036 0.036 G

MOSFET STF24NM60N 17A 600V 30W TO-220FP 1.000 1 PCS

DIODE FMNS-1106S TO-220 1.000 1 PCS

SCREW M3 8 2.000 2 PCS

HEAT SINK 1.000 1 PCS

ADAPTER BOARD FOR SMT 0.000 0.000

AC/DC SSC9522S-TL SOP-18 1.000 1 PCS

Tra MMBT3904G SOT-23 1.000 1 PCS
TRA MMBT3906G -0.2A/-40V SOT-23 1.000 1 PCS
TRA MMBT3906G -0.2A/-40V SOT-23 1.000 1 PCS
TRA MMBT3906G -0.2A/-40V SOT-23 1.000 1 PCS

RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 0 OHM +-5% 1/8W FENGHUA 1.000 1 PCS

RST 0805 0.05R MAX 1/8W 1.000 1 PCS
RST 0805 0.05R MAX 1/8W 1.000 1 PCS
RST 0805 0.05R MAX 1/8W 1.000 1 PCS

RST 0805 0.05R MAX 1/8W 1.000 0.000 PCS
RST CHIPR 10 OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 10 OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 10 OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 10 OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 10R 1/8W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 10R 1/8W 5% TZAI YUAN 1.000 1 PCS
RST CHIP 10R 1/8W 5% TZAI YUAN 1.000 1 PCS

RST CHIP 10R 1/8W 5% TZAI YUAN 1.000 1 PCS
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 1KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 1K 1/8W 1% 1.000 1 PCS
RST CHIP 1K 1/8W 1% 1.000 1 PCS
RST CHIP 1K 1/8W 1% 1.000 1 PCS
RST CHIP 1K 1/8W 1% 1.000 1 PCS

RST CHIP 1K 1/8W 1% 1.000 1 PCS
RST CHIP 10K 1/8W 1% 1.000 1 PCS
RST CHIP 10K 1/8W 1% 1.000 0.000 PCS
RST CHIP 10K 1/8W 1% 1.000 0.000 PCS
RST CHIP 10K 1/8W 1% 1.000 1 PCS
RST CHIP 10K 1/8W 1% 1.000 1 PCS
RST CHIP 10K 1/8W 1% 1.000 0.000 PCS

RST CHIPR 100KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 100KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 100KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 100K 1/8W 1% 1.000 1 PCS
RST CHIP 100K 1/8W 1% 1.000 1 PCS
RST CHIP 100K 1/8W 1% 1.000 1 PCS

RST CHIPR 1K OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN 1.000 1 PCS

RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1.000 1 PCS
RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1.000 1 PCS
RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS

RST 0805 10K 5% 1/8W 1.000 0.000 PCS
RST 0805 10K 5% 1/8W 1.000 0.000 PCS
RST 0805 10K 5% 1/8W 1.000 1 PCS
RST 0805 10K 5% 1/8W 1.000 1 PCS

RST CHIPR 1M OHM +- 5% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 1M 1/8W 5% TZAI YUAN 1.000 1 PCS

RST CHIRP 11K OHM 1/8W 1% FENGHUA 1.000 0.000 PCS

RST 0805 11K 1% 1/8W SMD0805011KF 1.000 1 PCS

RST CHIPR 120KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIPR 120KOHM +- 1% 1/8W TZAI YUAN 1.000 1 PCS

RST CHIPR 180 OHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST 0805 180R 1% 1/8W TZAI YUAN 1.000 1 PCS

RST 0805 18K 1% 1/8W 1.000 0.000 PCS

RST CHIP 18K 1/8W 1% 1.000 1 PCS

RST CHIPR 2KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 2KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 2K 1/8W 1% 1.000 1 PCS

RST CHIP 2K 1/8W 1% 1.000 1 PCS

RST CHIPR 20KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 20K 1/8W 1% 1.000 1 PCS

RST CHIPR 2.2KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

CHIP 2K2 1/8W 1% 1.000 1 PCS

RST CHIPR 27KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 27K 1/8W 1% 1.000 1 PCS

RST CHIPR 33 OHM +-5% 1/8W FENGHUA 1.000 1 PCS

RST CHIP 33R 1/8W 5% TZAI YUAN 1.000 0.000 PCS

RST CHIPR 3.3KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 3K3 1/8W 1% 1.000 1 PCS

RST CHIP 330K 1/8W 1% 1.000 0.000 PCS
RST CHIP 330K 1% 1/8W 1.000 1 PCS

RST CHIPR 3.3KOHM +-5% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 3K3 1/8W 5% TZAI YUAN 1.000 1 PCS
RST CHIPR 47OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 47OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 47OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIPR 47OHM +-5% 1/8W TZAI YUAN 1.000 1 PCS
RST CHIPR 47OHM +-5% 1/8W TZAI YUAN 1.000 1 PCS

RST CHIPR 47OHM +-5% 1/8W TZAI YUAN 1.000 1 PCS
RST CHIPR 47KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 47KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 47K 1/8W 1% 1.000 1 PCS

RST CHIP 47K 1/8W 1% 1.000 1 PCS
RST CHIPR 470 OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 470OHM +-5% 1/8W TZAI YUAN 1.000 1 PCS

RST CHIPR 510K OHM +- 1% 1/8W FENGHUA 1.000 0.000 PCS
RST CHIPR 510K OHM +- 1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 510K OHM 1/8W 1% TZAI YUAN 1.000 1 PCS

RST CHIP 510K OHM 1/8W 1% TZAI YUAN 1.000 1 PCS

RST CHIPR 510OHM +-5% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIPR 510OHM +-5% 1/8W TZAI YUAN 1.000 1 PCS

ST CHIPR 510KOHM +-5% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIPR 510K +-5% 1/8W TZAI YUAN 1.000 1 PCS

RST CHIPR 62KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 62K 1/8W 1% 1.000 1 PCS

RST 0805 680K 1% 1/8W 1.000 1 PCS

RST CHIPR 75KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP R 75 KOHM +-1% 1/8W 1.000 1 PCS

RST CHIP R 82ohm 1/8W +/-5% YAGEO 1.000 1 PCS

RST CHIPR 9.1KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIP 9K1 1/8W 1% 1.000 1 PCS

RST CHIPR 9.31KOHM +-1% 1/8W FENGHUA 1.000 0.000 PCS

RST CHIPR 9.31KOHM +-1% 1/8W TZAI YUAN 1.000 1 PCS

RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR MAX0R05 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR MAX0R05 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR MAX0R05 7A 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR MAX 0R05 1/4W 1206 1.000 1 PCS

RST CHIPR 1KOHM +-1% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIP R 1Kohm +-1% 1/4W 1.000 1 PCS

RST CHIPR 100KOHM +-1% 1/4W FENGHUA 1.000 0.000 PCS

RST 1206 100K 1% 1/4W SMD1206100KF 1.000 1 PCS

RST CHIP 1M 1% 1/4W 500V FENGHUA 1.000 1 PCS
RST CHIP 1M 1% 1/4W 500V FENGHUA 1.000 1 PCS
RST CHIP 1M 1% 1/4W 500V FENGHUA 1.000 1 PCS

RST 1206 1M 1% 1/4W 1.000 0.000 PCS
RST 1206 1M 1% 1/4W 1.000 0.000 PCS

RST 1206 1M 1% 1/4W 1.000 0.000 PCS
RST CHIPR 1OHM +-1% 1/4W FENGHUA 1.000 1 PCS
RST CHIPR 1OHM +-1% 1/4W FENGHUA 1.000 1 PCS

RST CHIP 10 OHM 1% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIP R 10ohm 1/4W +/-1% 1.000 1 PCS
RST CHIPR 100 OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 100 OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR 1KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 10KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 10KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN 1.000 0.000 PCS
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR 100KOHM 5% 1/4W YAGEO 1.000 0.000 PCS

RST CHIPR 100KOHM 5% 1/4W YAGEO 1.000 1 PCS
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIP 1M5 1/4W 1% 1.000 1 PCS
RST CHIP 1M5 1/4W 1% 1.000 1 PCS
RST CHIP 1M5 1/4W 1% 1.000 1 PCS

RST CHIPR 2KOHM +-1% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIP R 2Kohm 1/4W +/-1% 1.000 1 PCS

RST CHIPR 20KOHM +-5% 1/4W FENGHUA 1.000 1 PCS

RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN 1.000 0.000 PCS

RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS

RST CHIP 3K 5% 1/4W 1.000 0.000 PCS
RST CHIP 3K 5% 1/4W 1.000 1 PCS

RST CHIPR 33KOHM +-1% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 33KOHM +-1% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 3.3 MOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS

RST 1206 3.3R 5% 1/4W - 1.000 0.000 PCS

RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 47K OHM +-1% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 47K OHM +-1% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 47 KOHM +-1% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 47 KOHM +-1% 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR 470 OHM +-5% 1/4W FENGHUA 1.000 1 PCS

RST CHIPR 470 OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN 1.000 0.000 PCS

RST CHIPR 4.7OHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST 1206 4.7R 5% 1/4W 1.000 1 PCS
.ST CHIPR 5.1KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
.ST CHIPR 5.1KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR 510KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 510KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 510KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 510KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 510KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 510KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS
RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 510 KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR 750KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 750KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 750KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 750K +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 750K +-5% 1/4W TZAI YUAN 1.000 1 PCS
RST CHIPR 750K +-5% 1/4W TZAI YUAN 1.000 1 PCS

RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA 1.000 0.000 PCS

RST CHIPR 8.2 KOHM +-5% 1/4W TZAI YUAN 1.000 1 PCS

CAP CHIP 0805 10PF J 50V NPO 1.000 1 PCS
CAP CHIP 0805 100PF J 50V NPO 1.000 0.000 PCS
CAP CHIP 0805 100PF J 50V NPO 1.000 0.000 PCS

CAP CHIP 0805 100P 50V NP0 +/-5% 1.000 1 PCS

CAP CHIP 0805 100P 50V NP0 +/-5% 1.000 1 PCS

CAP 0805 1NF 5% 50V NPO 1.000 1 PCS

N0-SUGGEST CAP 0805 1NF 50V NP0 +/-5% 1.000 0.000 PCS

MLCC 0805 1NF 50V X7R +/-10% SAMSUNG 1.000 1 PCS

CAP 0805 1000PF 10% 50V X7R 1.000 1 PCS
CAP 0805 1000PF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1000PF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1000PF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1000PF 10% 50V X7R 1.000 0.000 PCS

CAP 0805 1000PF 10% 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 1N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 1N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 1N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 1N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 1N 50V X7R +/-10% 1.000 0.000 PCS

CAP 0805 10NF K 50V X7R 1.000 1 PCS

CAP 0805 10NF 10% 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.1UF K 50V X7R 1.000 0.000 PCS

CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 100N 50V X7R +/-10% 1.000 1 PCS

AP 0805 1UF 10% 25V X7R 1.000 1 PCS
CAP 0805 1UF 10% 25V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 1 PCS
CAP 0805 1UF 10% 50V X7R 1.000 1 PCS
CAP 0805 1UF 10% 50V X7R 1.000 1 PCS
CAP 0805 1UF 10% 50V X7R 1.000 1 PCS

CAP 0805 1UF 10% 50V X7R 1.000 1 PCS
CAP 0805 1UF 10% 50V X7R 1.000 1 PCS
CAP 0805 1UF 10% 50V X7R 1.000 1 PCS
CAP 0805 1UF 10% 50V X7R 1.000 1 PCS
CAP 0805 1UF 10% 50V X7R 1.000 1 PCS
CAP 0805 1UF 10% 50V X7R 1.000 1 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 1UF 10% 50V X7R 1.000 0.000 PCS

CAP CHIP 0805 330PF J 50V NPO 1.000 0.000 PCS

CAP CHIP 0805 330P 50V NP0 +/-5% 1.000 1 PCS

CAP CHIP 0805 47PF J 50V NPO 1.000 0.000 PCS
AP CHIP 0805 47P 50V NP0 +/-5% 1.000 1 PCS
CAP CHIP 0805 470PF J 50V NPO 1.000 0.000 PCS

CAP CHIP 0805 470P 50V NPO +/-5% 1.000 1 PCS

CAP 0805 4.7NF 10% 50V X7R 1.000 0.000 PCS

CAP 0805 4.7NF 10% 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 4N7 50V X7R +/-10% 1.000 1 PCS
CAP CHIP 0805 4N7 50V X7R +/-10% 1.000 1 PCS

CAP 0805 470NF 10% 50V X7R 1.000 0.000 PCS
CAP 0805 470NF 10% 50V X7R 1.000 1 PCS
CAP 0805 470NF 10% 50V X7R 1.000 1 PCS

CAP 0805 470NF 10% 50V X7R 1.000 1 PCS
CAP CHIP 0805 0.47UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.47UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.47UF K 50V X7R 1.000 0.000 PCS
CAP CHIP 0805 0.47UF K 50V X7R 1.000 1 PCS

CAP 0805 4.7UF 10% 25V X5R 1.000 1 PCS

CAP 0805 4.7UF 10% 25V X5R 1.000 1 PCS
CAP MLCC 0805 4.7uF K 25V X5R 1.000 0.000 PCS
CAP MLCC 0805 4.7uF K 25V X5R 1.000 0.000 PCS

CAP 0805 4.7UF 10% 10V X7R CL21B475KPFN 1.000 0.000 PCS

CAP CHIP 0805 4.7uF K 10V X7R 1.000 1 PCS

CAP CHIP 0805 560PF J 50V NPO 1.000 0.000 PCS

CAP CHIP 0805 560P 50V NP0 +/-5% 1.000 1 PCS

AP CHIP 1206 1UF K 50V X7R 1.000 0.000 PCS

CAP CHIP 1206 1uF K 50V X7R 1.000 1 PCS

SCHOTTKY SK510C R6 5A 100V SMC 1.000 1 PCS

Shunt Regu TL431G-AE2-R SOT23-3 1.000 1 PCS
Shunt Regu TL431G-AE2-R SOT23-3 1.000 1 PCS
Shunt Regu TL431G-AE2-R SOT23-3 1.000 1 PCS

PFC LD7591T GS SOP-8 1.000 1 PCS
AC/DC PF6005AS SOP-8 1.000 1 PCS

DC/DC SP6018ES8RGB 1A 16V SOP-8 1.000 1 PCS

SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 1.000 1 PCS

.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000 1 PCS
.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000 1 PCS
.F MOSFET 2N7002K_R1_00001 0.3A 60V 1.000 1 PCS

RST 1206 1.2R 1% 1/4W - 1.000 1 PCS
RST 1206 1.2R 1% 1/4W - 1.000 1 PCS
RST 1206 1.2R 1% 1/4W - 1.000 1 PCS
RST 1206 1.2R 1% 1/4W - 1.000 1 PCS
RST 1206 1.2R 1% 1/4W - 1.000 1 PCS

RST 1206 1.2R 1% 1/4W - 1.000 1 PCS
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000 1 PCS
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000 1 PCS
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000 1 PCS
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000 1 PCS
SWITCHING 1N4148W 0.15A 75V SOD-123 1.000 1 PCS

ZENER BZT52-B16_R1_00001 16V 0.41W 1.000 1 PCS
ZENER BZT52-B7V5 7.5V 0.41W SOD-123 1.000 1 PCS
ZENER BZT52-B7V5 7.5V 0.41W SOD-123 1.000 1 PCS
ZENER BZT52-B7V5 7.5V 0.41W SOD-123 1.000 1 PCS

ZENER BZT52-B27 27V 0.41W SOD-123 1.000 1 PCS
ZENER BZT52-B27 27V 0.41W SOD-123 1.000 1 PCS
ZENER BZT52-B27 27V 0.41W SOD-123 1.000 1 PCS

ZENER BZT52-B15 15V 0.41 SOD-123 1.000 1 PCS

ZENER BZT52-B15 15V 0.41 SOD-123 1.000 1 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 1 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 1 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 1 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 1 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 1 PCS
HF SS1060FL_R1_00001 1A 60V SOD123FL 1.000 1 PCS

ADAPTER BOARD FOR AI 1.000 1 PCS

COMSUMPTIVE ASSY 0.000 0.000

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021 0.021 CM

.leaning Naphtha 0.894 0.894 ML

Solder Paste 1.621 1.621 G

SHEET 0.143 1 PCS

PIN 0.030 1 PCS

MESH PRINTTING_PAPER 2.516 2.516 CM

COMSUMPTIVE ASSY 0.000 0.000

TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021 0.021 CM

.leaning Naphtha 0.012 0.012 ML

Solder Paste 0.022 0.022 G

SHEET 0.010 1 PCS

PIN 0.010 1 PCS

MESH PRINTTING_PAPER 0.034 0.034 CM

ADAPTER BOARD FOR AI 0.000 0.000

EYELET 4.000 4 PCS
EYELET 2.000 2 PCS
EYELET 2.000 2 PCS
EYELET 4.000 4 PCS
EYELET 4.000 4 PCS

EYELET 2.000 2 PCS
EYELET 4.000 4 PCS
EYELET 1.000 1 PCS
EYELET 1.000 1 PCS
EYELET 2.000 2 PCS
EYELET 2.000 2 PCS
EYELET 2.000 2 PCS

LABEL 25x6mm 1.000 1 PCS
CAP CER 100PF 10% 1KV R 1.000 1 PCS
CAP CER 100PF 10% 1KV R 1.000 1 PCS

CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 1.000 1 PCS
CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 1.000 1 PCS

CAP CER 2.2NF 10% 1KV R TAPING 1.000 1 PCS

CAP Y1 220PF 10% 250V Y5P 1.000 1 PCS
CAP Y1 220PF 10% 250V Y5P 1.000 1 PCS
CAP Y1 220PF 10% 250V Y5P 1.000 1 PCS

CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 1.000 0.000 PCS

CAP Y1 1NF 20% 250V Y5U 1.000 1 PCS
EC 10UF 20% 50V 6.3*7 3000H ER 1.000 1 PCS
EC 10UF 20% 50V 6.3*7 3000H ER 1.000 1 PCS

EC 47UF 20% 50V 1.000 1 PCS

EC 10UF 20% 50V 5*11 EY 1.000 1 PCS

EC 22UF 20% 50V 6.3*7 3000 hr 1.000 1 PCS
BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 1.000 1 PCS
BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 1.000 1 PCS
BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 1.000 1 PCS

FERRITE BEAD LB 3.5*0.8*7.5A 1.000 0.000 PCS

FERRITE BEAD LB 3.5*0.8*7.5A 1.000 0.000 PCS

FERRITE BEAD LB 3.5*0.8*7.5A 1.000 0.000 PCS

BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1.000 1 PCS

FERRITE BEAD 1.000 1 PCS
FERRITE BEAD 1.000 1 PCS

RECTIFIER UF4007 A0 1 1000 DO-41 1.000 1 PCS
SCHOTTKY FR107G-A0 1A 1000V DO-41 1.000 1 PCS
RECTIFIER SARS01-V1 1.2A 800V DO-41 1.000 1 PCS

JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS

JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS
JUMP WIRE - - 1.000 1 PCS

RST WD 0.1R 5% 1W NKNP1WS0R1JT52E8 1.000 1 PCS

RST MOF 22R 5% 2W MOF2WS22RJT52 1.000 1 PCS

RST MOF 82K 5% 2W MOF2WS82KJT52 1.000 1 PCS

RST NWR 0R22 5% 2W NKNP2WS0R22JT52 1.000 1 PCS

CAP CER 5PF 0.5pF 1KV SL CC81-1KV-06d-S 1.000 1 PCS

CAP Y1 47PF 5% 250V SL CD45SL2GA470JDSKA 1.000 0.000 PCS

CAP Y1 47PF 5% 250V SL SL0AH470J07SXAMS 1.000 1 PCS

CAP CS 100uF 20% 25V 10*12mm 2000 hr 4. 1.000 1 PCS
CAP CS 100uF 20% 25V 10*12mm 2000 hr 4. 1.000 1 PCS

EC 470uF 20% 25V 10*12 5000 hr 1.45A LSP 1.000 1 PCS
EC 470uF 20% 25V 10*12 5000 hr 1.45A LSP 1.000 1 PCS

EC 470uF 20% 25V 10*12 5000 hr 1.45A LSP 1.000 1 PCS
EC 470uF 20% 25V 10*12 5000 hr 1.45A LSP 1.000 1 PCS

EC 82uF 20% 100V 12.5*12 5000 hr 1A LLP 1.000 1 PCS
EC 82uF 20% 100V 12.5*12 5000 hr 1A LLP 1.000 1 PCS
EC 82uF 20% 100V 12.5*12 5000 hr 1A LLP 1.000 1 PCS

EC 82uF 20% 100V 12.5*12 5000 hr 1A LLP 1.000 1 PCS
PWR PCB FR2 CTI>600 SS 195.5*271*1.6mm 1.000 1 PCS
PWR PCB FR2 CTI>600 SS 195.5*271*1.6mm 1.000 0.000 PCS

点位 组件号 对象描述 替代项⽬组

041G 68508 A control card

Q051 051G 2 14 FUSE GEL

0M1G 130 6120 SCREW M3X6
0M1G1030 6 47 CR3 SCREW
0M1G1730 6120 SCREW 3x6
0M1G1730 8120 SCREW
0Q1G 930 8 47 CR3 SCREW
0Q1G1030 6 47 CR3 SCREW 3x6

317G01 317GAAWF550TCL WIFI USB IEEE 802.11 b/g/n WF0KRT1510W

SP01 378G0110567CDX 6 OHM 11W 132*34*37mm 0 UNIT

SP01 378G0110567YDX 6 OHM 11W 132*34*37mm 0 UNIT 2nd-source
ECN01 395G801302LC04 HARNESS 2P pitch 2.5-2P pitch 1.25 200m 2nd-source
ECN01 395G801302XC04 HARNESS 2P pitch 2.5-2P pitch 1.25 200m

ECN9102 395G801414RC52 HARNESS 13P pitch2.0-14P pitch2.0 380mm
ECN9102 395G801414XC52 HARNESS 13P pitch2.0-14P pitch2.0 380mm 2nd-source

ECN700 395G801416DD32 HARNESS 12P pitch2.0-16P pitch2.0 500mm
ECN700 395G801416RD32 HARNESS 12P pitch2.0-16P pitch2.0 500mm 2nd-source
ECN107 395GH12506DT003000 HARNESS 5P pitch1.25-6P pitch2.0 400mm
ECN107 395GH12506HT003000 HARNESS 5P pitch1.25-6P pitch2.0 400mm 2nd-source
ECN600 395GH20004DT002000 HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m 2nd-source
ECN600 395GH20004RT002000 HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m
ECN400 395GH20014DT013000 HARNESS 14P pitch2.0-5P pitch1.25+2P pi 2nd-source
ECN400 395GH20014XT013000 HARNESS 14P pitch2.0-5P pitch1.25+2P pi
ECN401 395GLT5140R0010000 LVDS CABLE 51P(0.5mm)-40P(2.0mm) 600mm 2nd-source
ECN401 395GLT5140X0010000 LVDS CABLE 51P(0.5mm)-40P(2.0mm) 600mm

RC01 398GR8BD2NCPHH REMOTE Philips HOF-44K-GJ12647 chinese

708GVB020WPX01 Ebony 40 ( 208 NA )

E750 750TBV550V64B8N000 LCD TPT550J1-HVN06.U S410B XM TPV 2nd-source

ADTVE1220XB8 ADAPTER BOARD NA
CBPFEMSDA3 CONVERSION BOARD NA
IRPFFAA9 IR BOARD
KEPFEAA9 KEY BOARD
LNTVEW661XXA6 CONVERTER BOARD --

E750 LVA550HVN06ACL2P0X PANEL TPT550J1-HVN06.U S410B XM TPV 1

P33E0738XJL01T0100 KEY_FUNCTION
P33E0756ALDZ1C0100 DECO_LOGO
P33E0757ADT01L0100 DECO_REAR_COVER
P34E23680GM0FK0100 REAR_COVER NA
P34E2486ADT02L0100 BASE NA
P40GD000813 9A A4 PALLET LABEL -for A4 paper
Q02G707105000100XL BOLT
Q02G708105500100HX BOLT
Q11G701100500100JY CB-SUPPORT
Q12G6300 25 1 FOOT PAD

EQ52C1 Q12G714001200100HK HEAT PAD

Q40G0001624 4A

产线需求的栈板LABEL

Q45G88010TV05500WN PROTECT BAG

洁

剂

Q45G88010TV12000WN PROTECT BAG 1200*1600
Q49G 51500 HF panel清

Q052 Q52G100203000A00ZA AL FOIL

Q52G130118600000YY TAPE
Q52G1501150523AWBK TAPE_INSULATING
Q52G160119100A00YY TAPE
X15T966610100000BL BKT_BASE
X15T968010100000NP BKT_STAND
X15T968110100000NP BKT_STAND
X15T984710100000GH BKT_STAND
X15T986310100000GH BKT_SPEAKER
X15T995630100000BL BKT_IO
X15T9957501000GMYF BKT_IO
X40G000181310C CARTON LABEL
X40G2014040X8100XY IO LABEL
X40G2014055X2100XY LABEL IO
X44GVB021010FA CUSHION-TL N/A China(2002)
X44GVB022010FA CUSHION-B N/A China(2002)
X44GVB023010FA CUSHION-BL N/A China(2002)
X44GVB024010FA CUSHION-BR N/A China(2002)
X44GVB02501EPE CUSHION N/A China(2002)
X44GVB0281301A00JA ARTWORK CARTON Ebony 55PFF5650/T3 china

X52G18012660000ALF INSULATING SHEET
E08901 089G214A15N HL AC POWER CORD 1500
E08901 089G214A15N IS AC POWER CORD 1500 2nd-source

0M1G1740 18120 H1 SCREW

317G02 317GARFM008TCL RF MODULE GL03-2-E

BT01 392GB1JA1A3E2C BATTERY 1.5V 2P LR03(KA)2S/G

Q45G88010TV05600X1 PROTECT BAG

Q45G88010TV08900X1 PROTECT BAG

X41G40SV81330A QSG PFF5650_PFF5655

X41G78DV81311C WARRANTY CARD TPV address

040G 58162435A MANUAL P/N LABEL

Q40G000162492A CEL LABEL FOR TV MODEL G3/1.3/0.5

X40G0001624 2A Label for screw pe bag

X40G055081346A RATING LABEL 55PFF5650/T3

Z40G0002ALL01A OTHER LABEL

Q44T3231 21 11 EVA WASHER

0M1G1740 10120 SCREW

036T 600 18129 NONWOVEN FABRTC

0M1G1030 4120 SCREW

P34E23170GM01K0100 COVER_SERVICE NA

708GVB020WPX01 Ebony 40 ( 208 NA )

Q07G010513802C00BL WOOD PALLET

Q07G012313802C00BL WOOD PALLET

Q44G6002134101 PAPER BOARD

Q44G6002137120 PAPER BOARD

Q44G9003180 CORNER PAPER

Q45G 77 5 PE PACKING

Q50G 4 10 TIE (Y1900221)

Q52G1301 9 BIG TAPE FOR PHILIPS

X44G6002CP521A PAPER CAP5

X44G6002CP551A PAPER CAP5

ADTVE1220XB8 ADAPTER BOARD NA

CN9102 033G380214B YH WAFER 2.0mm 14P W2015-14RVA-S01

IC9104 056G 139 9 IC EL817M(X) photocoupler DIP-4
IC9304 056G 139 9 IC EL817M(X) photocoupler DIP-4
IC9102 056G 139 9 IC EL817M(X) photocoupler DIP-4

Q9105 057G 667929 MOSFET AOTF8N50 8A 500V TO-220FP
Q9106 057G 667929 MOSFET AOTF8N50 8A 500V TO-220FP

C9906 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
C9905 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
C9131 067G215Z102 6K LOW ESR EC 1000uF M 35V 10*35mm
C9117 067G215Z102 6K LOW ESR EC 1000uF M 35V 10*35mm
C9307 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr
C9306 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr

FB9801 071G 55906 FERRITE CORE 510R C8B R6H 6x9.2(A)

L9103 073G 253191 HP CHOKE COIL 1.1uH VOC
L9103 073G 253191 LP CHOKE COIL 1.1uH VOC 2nd-source

CN9901 087G 50147D HC HF AC R/A 2P 12.81mm

D9801 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD

FORCN9901 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q x8.0

CN9101 311GW200C16BBX ONN 2.0mm 16P R/A W2010-16RVA-S04,B200
RV9901 361G0046681KZE VARISTOR 680V 10%
NR9901 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504
NR9902 361G0058259MYW006A NTCR 2.5R 20% 3.1W SCK132R56MTY504

R9808 361G3SWJ10859B00TZ RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10
C9801 363G210K105GZP CAP MPP 1uF 10% 450V 18.1*12.6*8.5 ECWF
C9111 363G211J2235HA CAP MPP 22nF 5% 1KV 18*5*11 R75QI2220HA0
C9812 367G215X680PKZ000S EC 68uF 20% 450V 12.5*50 2000 hr 620mA
C9811 367G215X680PKZ000S EC 68uF 20% 450V 12.5*50 2000 hr 620mA

L9903 373G0174301H00 LINE FILTER 0.25mH MIN 2A LCL-11010 HA
L9903 373G0174301X00 LINE FILTER 0.25mH MIN 2A 3LFT1064-251M 2nd-source
L9902 373G0174303H00 LINE FILTER 18mH MIN 1.26A LCL-11822 HA
L9901 373G0174303H00 LINE FILTER 18mH MIN 1.26A LCL-11822 HA
L9902 373G0174303X00 LINE FILTER 18mH MIN 1.26 3LFT18106-183 2nd-source
L9901 373G0174303X00 LINE FILTER 18mH MIN 1.26 3LFT18106-183 2nd-source
L9801 373G0174308H01 PFC CHOKE 220uH 10% 2A GL-13240 HA
L9801 373G0174308X01 PFC CHOKE 220uH 10% 2A 3TRATQ32-221K 2nd-source
L9302 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
L9301 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
L9302 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A 2nd-source
L9301 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A 2nd-source

T9301 380GL32P141H02 X'FMR 360uH 10% 5uH ER31 BCK-13142-HA
T9301 380GL32P141N02 X'FMR 360uH 10% 5uH ER31 YUVA-2133-26 2nd-source
T9101 380GL52P186H00 X'FMR 830uH 12% 160uH EE42 BCK-14234-H
T9101 380GL52P186YS0 X'FMR 830uH 12% 160uH EE42 YS04160730 2nd-source

BD9902 393G0050460600 BRIDGE TS10P06G-04 10A 800V TS-6P

705TAD84023 F9901

705TAD93119 Q9801&Q9802

705TAD93120 Q9301

705TAD93121 Q9303

705TXE93083 D9103&D9104 ASSY

ADE1220XB8SMT ADAPTER BOARD FOR SMT

Z40G0002ALL01A OTHER LABEL

CBPFEMSDA3 CONVERSION BOARD NA

Z40G0002ALL01A OTHER LABEL

C607 067G315M1514LV EC 150UF 20% 25V RTR151M1ECCF0807P 8*7

C608 067G315M1514LV EC 150UF 20% 25V RTR151M1ECCF0807P 8*7
CN101 088G 78G152ACL RCA JACK R/A 12P G/BL/R/W/R 1*5 H=10.5
CN108 088G352E912AXH USB A TYPE R/A 9P 1*1 BLUE 6.96mm
CN104 088G353GFF1ACL D-SUB CONN 15P BLUE R/A H=10mm
CN600 311GW200A04ABL CONN 2.0mm 4P R/A B2009W04HTK0
CN107 311GW200C06ABL WAFER 2.0mm 6P R/A B2000W06HTKB
CN700 311GW200C12BBX CONN 2.0mm 12P R/A W2010-12RVA-S04
CN400 311GW200C14BBX CONN 2.0mm 14P R/A W2010-14RVA-S04
CN401 311GW200C40AAL WAFER 2.0mm 40P
CN103 388G078G13NAYG RCA R/A 6P 1*3 Y/W/R 9.5mm
CN100 388G302F5B1ACL PHONE JACK R/A 5P 1*1 BLACK 8.5mm
CN109 388G342GFB6AGN RJ45 R/A 15P 1*1 BLACK 11.2
CN106 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4

J100 388G510H401AHC RF IFP-007 4P 1*1 W --

Q85T01 Q85T 583162 GASKET

HS600 Q90G6119 6 EAT SINK

SMTFEMSDA3 MAIN BOARD FOR SMT

X85 X85T806910100000LH SHIELD_TUNER

HS400 X90G070310100000SY HEAT SINK

IRPFFAA9 IR BOARD
SMTIRPFFAA9 IR BOARD FOR SMT
KEPFEAA9 KEY BOARD
SMTKEPFEAA9 KEY BOARD FOR SMT
LNTVEW661XXA6 CONVERTER BOARD --

L8101 373G0253353X00 BOOST CHOKE 33uH 10% 4A 3LCEQ2513-330K
CN8102 033G380212B YH wafer 12P 2.0 DIP
CN8101 033G380213B YH AFER 2.0mm 13P

C8107 067G515Z271 9K EC 270UF 20% 100V 10*40 5000 hr
C8106 067G515Z271 9K EC 270UF 20% 100V 10*40 5000 hr
C8105 067G515Z271 9K EC 270UF 20% 100V 10*40 5000 hr
C8101 367G415X3317KT EC 330UF 20% 50V 12.5*12
C8102 367G415X3317KT EC 330UF 20% 50V 12.5*12

705TXD57224 Q8101
705TXD93200 D8101
LNEW661XXA6SMT CONVERTER BOARD FOR SMT
Z40G0002ALL01A OTHER LABEL
705TAD84023 F9901

EF9901 084G 34 14 bSE -- -- --

F9901 084G 41 7 C FUSE 5A 250V UDA005(PF)

705TAD93119 Q9801&Q9802
Q9801 057G 667954 MOSFET TK18A60V 18A 600V SC-67
D9802 093G 52905 DIODE FMNS-1106S TO-220

0M1G1730 8120 SCREW

HS9801 Q90T0236002A0000HG HEAT SINK

705TAD93120 Q9301
Q9301 057G 667931 MOSFET AOTF8N65 8A 650V TO-220FP

0M1G1730 8120 SCREW

HS9301 Q90G0219 4 HEAT SINK ÐͲÄ/Profile

705TAD93121 Q9303

0M1G1730 8120 SCREW
Q9303 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F

HS9303 Q90T0236001A0000HG HEAT SINK

705TXE93083 D9103&D9104 ASSY
D9103 093G 60247 ME-220A
D9104 093G 60247 ME-220A

0M1G1730 8120 SCREW

HS9103 Q90T0236003A0000HG HEAT SINK

ADE1220XB8SMT ADAPTER BOARD FOR SMT

IC9305 056G 158501 DC/DC AS431ANTR-E1 150mA 40V SOT23-3 2nd-source
IC9101 056G 379211 AC/DC SSC9522S-TL SOP-18

Q9103 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC
Q9104 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
Q9101 057G 419912 T TRANSISTOR 2SD1624T-TD-E PCP

R9148 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R9162 061G0805000 JT RST 0805 0.05R MAX 1/8W
R9802 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R9109 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9311 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
R9133 061G08051001FT RST CHIP 1K 1/8W 1%
R9332 061G08051001FT RST CHIP 1K 1/8W 1%
R9137 061G08051001FT RST CHIP 1K 1/8W 1%
R9156 061G08051002FT RST CHIP 10K 1/8W 1%
R9152 061G08051002FT RST CHIP 10K 1/8W 1%
R9151 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
R9150 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
R9810 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R9134 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R9806 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R9813 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA

R9314 061G0805103 JT RST 0805 10K 5% 1/8W
R9341 061G08051200FT RST CHIP 120R 1/8W 1%
R9103 061G08051600FF RST 0805 160R 1% 1/8W FENGHUA
R9127 061G08051802FT RST 0805 18K 1% 1/8W
R9116 061G08051802FY RST CHIP 18K 1/8W 1%
R9811 061G08051912FT RST CHIPR 19K1 +-1% 1/8W TZAI YUAN
R9128 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA
R9814 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA
R9136 061G0805202 JT RST CHIP 2K 1/8W 5% TZAI YUAN
R9122 061G08052101FT RST CHIPR 2.1KOHM +-1% 1/8W TZAI YUAN
R9340 061G08052201FT CHIP 2K2 1/8W 1%
R9312 061G08052209FT RST 0805 22R 1% 1/8W
R9112 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA
R9120 061G0805242 JF RST CHIPR 2.4KOHM +-5% 1/8W FENGHUA
R9163 061G08052431FT RST CHIP 2K43 1/8W 1%
R9118 061G0805302 JY RST CHIPR 3K +-5% 1/8W YAGEO
R9803 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN
R9812 061G0805363 JF ST CHIPR 36KOHM +-5% 1/8W FENGHUA
R9119 061G08054701FT RST CHIP 4K7 1/8W 1%
R9117 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA
R9328 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
R9130 061G0805514 JF ST CHIPR 510KOHM +-5% 1/8W FENGHUA
R9149 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO
R9154 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO
R9329 061G08059101FT RST CHIP 9K1 1/8W 1%

JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR907 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
JR902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN

JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
R9308 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
R9804 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
R9809 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
R9807 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
R9131 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R9132 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R9102 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9101 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R9129 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA
R9324 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R9138 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9143 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
R9141 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
R9124 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
R9139 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA

R9142 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
R9327 061G12061501FF RST CHIPR 1.5KOHM +-1% 1/4W FENGHUA
R9113 061G12061504FT RST CHIP 1M5 1/4W 1%
R9115 061G12061504FT RST CHIP 1M5 1/4W 1%
R9114 061G12061504FT RST CHIP 1M5 1/4W 1%
R9316 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9315 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9322 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9320 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9323 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9319 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
R9805 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA
R9305 061G12062202FT RST 1206 22K 1% 1/4W TZAI YUAN
R9318 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R9303 061G1206479 JT RST 1206 4.7R 5% 1/4W
R9309 061G1206479 JT RST 1206 4.7R 5% 1/4W
R9310 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9325 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R9905 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9904 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9903 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9902 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
R9105 061G1206561 JT RST CHIPR 560 OHM +-5% 1/4W TZAI YUAN
C9316 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
C9315 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
C9322 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9102 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9323 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9101 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
C9320 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9318 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C9119 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9135 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9806 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9137 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9128 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9123 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9108 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9144 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9314 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9302 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C9145 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9141 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9337 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9143 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9312 065G080510532K M CAP 0805 1UF 10% 50V X7R

C9134 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9313 065G080510532K M CAP 0805 1UF 10% 50V X7R
C9807 065G080522131J F CAP CHIP 0805 220PF J 50V NPO
C9109 065G080522131J M CAP 0805 220PF 5% 50V NP0
C9138 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
C9116 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
C9133 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
C9130 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
C9132 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
C9129 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
C9329 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
C9804 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
C9106 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
C9808 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
C9324 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
C9326 065G080547232K A CAP 0805 4.7NF 10% 50V X7R
C9809 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C9810 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
C9142 065G0805475A2K T CAP CHIP 0805 4.7uF K 10V X7R
C9139 065G080556131J Y CAP CHIP 0805 560P 50V NP0 +/-5%

IC9305 356G01585020HF Shunt Regu TL431G-AE2-R SOT23-3
IC9801 356G0379008218 PFC LD7591T GS SOP-8
IC9301 356G0379213 AC/DC SSC2S110 SOP-8
IC9302 356GD563008152000Z DC/DC SP6018S8RGB 1A 16V SOP-8

Q9102 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V

R9901 361G12069103FT RST 1206 910K 1% 1/4W RC1206FR-07910KL,
R9906 361G12069103FT RST 1206 910K 1% 1/4W RC1206FR-07910KL,

D9109 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
ZD9107 393G039S95200T00HF HF BZT52-B6V2_R1_00001 6.2V 0.41W
ZD9106 393G039S95200T00HF HF BZT52-B6V2_R1_00001 6.2V 0.41W
ZD9302 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
ZD9301 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
ZD9105 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
ZD9101 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
ZD9103 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123

D9114 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL

D9304 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL

D9803 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL

D9107 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL

D9110 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL

D9302 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL

D9113 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL

D9307 393G060SA0700T SCHOTTKY MB810 8A 100V SMC

ADE1220XB8AI ADAPTER BOARD FOR AI

SMTFEMSDA3 MAIN BOARD FOR SMT
U105 056G 581 9 IC G5250K1T1U SOT23-5
U101 056G 581 9 IC G5250K1T1U SOT23-5

U107 056G 585 4A LDO AP1117E33G-13 1A 3.3V SOT-223
U700 056G 585 4A LDO AP1117E33G-13 1A 3.3V SOT-223
U702 056G 585 4A LDO AP1117E33G-13 1A 3.3V SOT-223
U102 056G 616 55 AUDIO DRV602PW 870mW TSSOP-14
U402 056G 643 5B IC G690H293T73Uf SOT-23 GMT
U501 056G 665918 IC STMPS2171STR SOT23-5L
Q705 057G 417511 MMBT3904
Q703 057G 417511 MMBT3904
Q702 057G 417511 MMBT3904
Q701 057G 417511 MMBT3904
Q601 057G 417511 MMBT3904
Q406 057G 417511 MMBT3904
Q600 057G 417512 MMBT3906
Q400 057G 417512 MMBT3906
Q602 057G 417512 MMBT3906
Q405 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q700 057G 763 79 FET AO4449 -7A/-30V SOIC-8

RP301 061G 1260008JT RST NET 0R 5% 1/16W
RP302 061G 1260008JT RST NET 0R 5% 1/16W
FB500 061G0402000 JT RST 0402 0.05R MAX 1/16W -

C143 061G0402000 JT RST 0402 0.05R MAX 1/16W ­C142 061G0402000 JT RST 0402 0.05R MAX 1/16W -

R4109 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R123 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

C306 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4104 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4103 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R734 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

C309 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R171 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

C307 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

C312 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R160 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R729 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R527 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R174 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R744 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R631 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4107 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4108 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4106 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R748 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4105 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4054 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

C310 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

C313 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

C311 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R616 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R100 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R623 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R101 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R717 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

C308 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4102 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R626 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4110 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4052 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4111 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R150 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

R117 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
R4035 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
R4036 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO

R161 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO

R522 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO

R162 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO

R119 061G04021000FY RST CHIP 100R 1/16W 1%

R118 061G04021000FY RST CHIP 100R 1/16W 1%

R152 061G04021000FY RST CHIP 100R 1/16W 1%
R4044 061G04021000FY RST CHIP 100R 1/16W 1%
R4043 061G04021000FY RST CHIP 100R 1/16W 1%

R124 061G04021000FY RST CHIP 100R 1/16W 1%

R502 061G04021000FY RST CHIP 100R 1/16W 1%

R720 061G04021000FY RST CHIP 100R 1/16W 1%

R719 061G04021000FY RST CHIP 100R 1/16W 1%
R4037 061G04021000FY RST CHIP 100R 1/16W 1%

R120 061G04021000FY RST CHIP 100R 1/16W 1%
R4025 061G04021001FY RST CHIP 1K 1/16W 1%

R618 061G04021001FY RST CHIP 1K 1/16W 1%

R507 061G04021001FY RST CHIP 1K 1/16W 1%

R773 061G04021001FY RST CHIP 1K 1/16W 1%
R4026 061G04021001FY RST CHIP 1K 1/16W 1%
R4027 061G04021001FY RST CHIP 1K 1/16W 1%
R4028 061G04021001FY RST CHIP 1K 1/16W 1%
R4051 061G04021001FY RST CHIP 1K 1/16W 1%

R107 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4098 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4019 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4000 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4015 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4014 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R115 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4020 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R111 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R633 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R634 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4099 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R632 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R776 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4042 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R106 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4100 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R624 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4097 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R704 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R112 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4093 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R116 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4096 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4095 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4092 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4094 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R621 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R525 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO

R750 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
R4065 061G04021003FY RST CHIP 100K 1/16W 1%
R4055 061G04021003FY RST CHIP 100K 1/16W 1%

R166 061G04021003FY RST CHIP 100K 1/16W 1%
R4039 061G04021003FY RST CHIP 100K 1/16W 1%

R625 061G04021003FY RST CHIP 100K 1/16W 1%

R165 061G04021003FY RST CHIP 100K 1/16W 1%

R163 061G04021003FY RST CHIP 100K 1/16W 1%

R164 061G04021003FY RST CHIP 100K 1/16W 1%
R4046 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN
R4061 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN

R148 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN

R770 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA

R134 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO

R113 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO

R108 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO

R109 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO

R114 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO

R761 061G04021243FY RST CHIP 124K 1/16W 1%

R772 061G04021243FY RST CHIP 124K 1/16W 1%
R4133 061G0402152 JY RST CHIPR 1.5KOHM +-5% 1/16W YAGEO

R611 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
R4060 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
R4101 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO

R131 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO

R610 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO

R145 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO

R766 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO

R763 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN

R735 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN

R774 061G04022212FF RST 0402 22.1K 1% 1/16W FENGHUA

R127 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L

R126 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L

R739 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L

R725 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L

R740 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
R4132 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
R4023 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO

R620 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO
R4024 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO

R504 061G0402304 JT RST 0402 300K 5% 1/16W TZAI YUAN

R746 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
R4006 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
R4007 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R516 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
R4021 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R700 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
R4009 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
R4013 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
R4011 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R520 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
R4018 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
R4010 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R702 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R514 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R701 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO

R760 061G04023301FF RST CHIP 3K3 1/16W 1% FENGHUA

R731 061G04023302FF RST 0402 33K 1% 1/16W FENGHUA
R4034 061G0402332 JF RST CHIPR 3.3KOHM 5% 1/16W FENGHUA

R724 061G0402332 JY RST CHIPR 3.3KOHM 5% 1/16W YAGEO

R153 061G0402391 JT RST CHIP 390R 1/16W 5% TZAI YUAN

R154 061G0402391 JT RST CHIP 390R 1/16W 5% TZAI YUAN

R526 061G0402393 JY RST CHIP 39K 1/16W 5% YAGEO

R168 061G0402393 JY RST CHIP 39K 1/16W 5% YAGEO

R167 061G0402393 JY RST CHIP 39K 1/16W 5% YAGEO

R510 061G04024702FF RST CHIPR 0402 47K +-1% 1/16W FENGHUA

R509 061G04024702FF RST CHIPR 0402 47K +-1% 1/16W FENGHUA

R722 061G04024702FF RST CHIPR 0402 47K +-1% 1/16W FENGHUA
R4059 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4068 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L

R749 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4090 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L

R726 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L

R727 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4017 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L

R4004 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4016 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4001 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L

R716 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4073 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4078 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4002 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4003 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4005 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
R4091 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L

R775 061G04025101FT RST CHIP 5.1K 1/16W 1% TZAI YUAN

R721 061G04026201FY RST CHIP 6.2K 1/16W 1%

R169 061G0402623 JY RST CHIP R 62K 1/16W +/-5% YAGEO

R170 061G0402623 JY RST CHIP R 62K 1/16W +/-5% YAGEO
R4022 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
R4012 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
R4008 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO

R125 061G04027509FY RST CHIP 75R 1/16W 1%

R105 061G04027509FY RST CHIP 75R 1/16W 1%

R103 061G04027509FY RST CHIP 75R 1/16W 1%

R104 061G04027509FY RST CHIP 75R 1/16W 1%

R102 061G04027509FY RST CHIP 75R 1/16W 1%

R110 061G04027509FY RST CHIP 75R 1/16W 1%

R121 061G04027509FY RST CHIP 75R 1/16W 1%

R122 061G04027509FY RST CHIP 75R 1/16W 1%

R706 061G04029101FF RST CHIP 9K1 1/16W 1% FENGHUA
R4088 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R607 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R712 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R707 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R606 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
R4218 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO

R723 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R635 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
R4029 061G06031501FF RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA

R619 061G06031502FY RST CHIP 15K 1/10W 1%

R713 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO
R4089 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO

R710 061G06031802FY RST CHIPR 18 KOHM +-1% 1/10W YAGEO

R523 061G0603201 JY RST CHIPR 200 OHM +-5% 1/10W YAGEO
R4030 061G06033301FY RST CHIP 3K3 1/10W 1%
R4031 061G06033301FY RST CHIP 3K3 1/10W 1%

R711 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
R4080 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
FB105 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO

R147 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO

R615 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO

R602 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO

R601 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO

R612 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO

R604 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO

R613 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO

R614 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO

R603 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO

R600 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
C4078 065G040210131J Y CAP CHIP 0402 100P 50V NP0 +/-5%

C133 065G040210232K F CAP 0402 1NF 10% 50V X7R
C4130 065G040210232K F CAP 0402 1NF 10% 50V X7R
C4131 065G040210232K F CAP 0402 1NF 10% 50V X7R

C128 065G040210232K F CAP 0402 1NF 10% 50V X7R
C4090 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
C4074 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB

C702 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB

C131 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB

C719 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB

C609 065G040210332K F CAP 0402 10NF 10% 50V X7R

C624 065G040210332K F CAP 0402 10NF 10% 50V X7R

C615 065G040210332K F CAP 0402 10NF 10% 50V X7R

C630 065G040210332K F CAP 0402 10NF 10% 50V X7R

C763 065G040210332K F CAP 0402 10NF 10% 50V X7R

C127 065G040210332K F CAP 0402 10NF 10% 50V X7R

C721 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C783 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%

C762 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C761 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C129 065G040210412K Y CAP 0402 100NF 10% 16V X7R

C749 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C141 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C140 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4091 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4106 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4097 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4008 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4015 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C716 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4010 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C136 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4124 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4089 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C125 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4035 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4033 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4032 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C122 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C149 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4094 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4093 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C752 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4092 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4065 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C145 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4081 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4036 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4037 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C120 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4080 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C760 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4026 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4014 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4117 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C729 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C708 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C726 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4031 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4030 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C115 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C745 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4123 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4122 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4098 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4062 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4009 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C119 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C709 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C118 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4027 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4016 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4047 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4025 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C732 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4046 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C703 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C144 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C733 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4023 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C727 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C150 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C121 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4002 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4003 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C741 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C742 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4024 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4073 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4045 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C705 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4021 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4000 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4084 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4085 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4086 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4007 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4072 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C781 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4022 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4070 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4038 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C780 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4039 065G040210425K Y CAP 0402 100nF 10% 25V X5R

C782 065G040210425K Y CAP 0402 100nF 10% 25V X5R
C4018 065G0402105A5K T CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV
C4118 065G0402105A5K T CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV
C4001 065G0402105A5K T CAP 0402 1uF 10% 10V X5R LMK105 BJ105KV
C4108 065G040218031J T CAP CHIP 0402 18PF 50V J NPO
C4107 065G040218031J T CAP CHIP 0402 18PF 50V J NPO

C788 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%

C747 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%

C768 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5%

C151 065G040222232K F CAP 0402 2.2NF K 50V X7R

C139 065G040222232K F CAP 0402 2.2NF K 50V X7R
C4017 065G040222322K Y CAP 0402 22NF 10% 25V X7R
C4069 065G040233031J Y CAP CHIP 0402 33P 50V NP0 +/-5%

C734 065G040233031J Y CAP CHIP 0402 33P 50V NP0 +/-5%

C147 065G040233031J Y CAP CHIP 0402 33P 50V NP0 +/-5%

C148 065G040233031J Y CAP CHIP 0402 33P 50V NP0 +/-5%

C146 065G040247031J F CAP 0402 47PF 5% 50V NP0

C154 065G040247031J F CAP 0402 47PF 5% 50V NP0

C602 065G040247131J Y 0402 470pF J 50V NP0

C616 065G040247131J Y 0402 470pF J 50V NP0

C623 065G040247131J Y 0402 470pF J 50V NP0

C631 065G040247131J Y 0402 470pF J 50V NP0
C4042 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4066 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4064 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4063 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4050 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4058 065G040247312K Y CAP 0402 47NF 10% 16V X7R

C152 065G040247312K Y CAP 0402 47NF 10% 16V X7R

C4040 065G040247312K Y CAP 0402 47NF 10% 16V X7R

C500 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4048 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4061 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4060 065G040247312K Y CAP 0402 47NF 10% 16V X7R
C4059 065G040247312K Y CAP 0402 47NF 10% 16V X7R

C126 065G0402474A5K F CAP 0402 470NF 10% 10V X5R

C111 065G040256132K Y CAP 0402 560pF 50V X7R +/-10%

C110 065G040256132K Y CAP 0402 560pF 50V X7R +/-10%

C105 065G040256132K Y CAP 0402 560pF 50V X7R +/-10%

C106 065G040256132K Y CAP 0402 560pF 50V X7R +/-10%

C603 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C632 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C701 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C605 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C601 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C604 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C606 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C619 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C617 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C613 065G060310432K Y CAP 0603 100NF 10% 50V X7R
C4113 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C622 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C621 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C718 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C503 065G060310432K Y CAP 0603 100NF 10% 50V X7R

C707 065G060310512K A CAP 0603 1UF 10% 16V X7R

C166 065G060310512K A CAP 0603 1UF 10% 16V X7R

C164 065G060310512K A CAP 0603 1UF 10% 16V X7R

C165 065G060310512K A CAP 0603 1UF 10% 16V X7R

C104 065G060310512K A CAP 0603 1UF 10% 16V X7R

C787 065G060310512K A CAP 0603 1UF 10% 16V X7R

C786 065G060310512K A CAP 0603 1UF 10% 16V X7R

C103 065G060310512K A CAP 0603 1UF 10% 16V X7R

C163 065G060310512K A CAP 0603 1UF 10% 16V X7R

C109 065G060310512K A CAP 0603 1UF 10% 16V X7R

C108 065G060310512K A CAP 0603 1UF 10% 16V X7R

C767 065G060310512K A CAP 0603 1UF 10% 16V X7R

C720 065G060310512K A CAP 0603 1UF 10% 16V X7R

C504 065G060310512K A CAP 0603 1UF 10% 16V X7R

C743 065G060310522K M CAP MLCC 0603 1uF K 25V X7R
C4071 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4006 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4120 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4019 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4005 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%
C4020 065G060310605M A MLCC 0603 10UF 6.3V X5R +-20%

C4112 065G060322422K Y CAP 0603 220N 25V X7R 10%

C730 065G060322422K Y CAP 0603 220N 25V X7R 10%
C4121 065G060322515K A 0603 2.2UF K 16V X5R
C4051 065G060322515K A 0603 2.2UF K 16V X5R
C4049 065G060322515K A 0603 2.2UF K 16V X5R
C4116 065G060322515K A 0603 2.2UF K 16V X5R
C4041 065G060322515K A 0603 2.2UF K 16V X5R
C4043 065G060322515K A 0603 2.2UF K 16V X5R

C634 065G060347412K Y CAP CHIP 0.47uF 16V +/-10% X7R

C628 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C611 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

C744 065G080510615K T CHIP 10uF 16V X5R 0805

C117 065G080510615K T CHIP 10uF 16V X5R 0805

C502 065G080510615K T CHIP 10uF 16V X5R 0805

C735 065G080510615K T CHIP 10uF 16V X5R 0805

C162 065G080510615K T CHIP 10uF 16V X5R 0805

C153 065G080510615K T CHIP 10uF 16V X5R 0805

C161 065G080510615K T CHIP 10uF 16V X5R 0805

C160 065G080510615K T CHIP 10uF 16V X5R 0805

C748 065G080510615K T CHIP 10uF 16V X5R 0805

C746 065G080510615K T CHIP 10uF 16V X5R 0805

C750 065G080510615K T CHIP 10uF 16V X5R 0805
C4096 065G080510615K T CHIP 10uF 16V X5R 0805
C4114 065G080510615K T CHIP 10uF 16V X5R 0805

C612 065G080510615K T CHIP 10uF 16V X5R 0805

C123 065G080510615K T CHIP 10uF 16V X5R 0805

C736 065G080510615K T CHIP 10uF 16V X5R 0805

C501 065G080510615K T CHIP 10uF 16V X5R 0805

C116 065G080510615K T CHIP 10uF 16V X5R 0805

C625 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C629 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C614 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C610 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%

C167 065G080547515K M CAP 0805 4.7UF 10% 16V X5R

C168 065G080547515K M CAP 0805 4.7UF 10% 16V X5R

C764 065G120610622K M CAP 1206 10UF 10% 25V X7R

C765 065G120610622K M CAP 1206 10UF 10% 25V X7R

C785 065G120610622K M CAP 1206 10UF 10% 25V X7R

C784 065G120610622K M CAP 1206 10UF 10% 25V X7R

C706 065G120610622K M CAP 1206 10UF 10% 25V X7R

C731 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2

C633 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 2

C717 067G311F4713LT EC SMD 470UF 20% 16V 8*10 VZH471M1CTR-0

HDCP-U404 070GHDCP500HDC HDCP CODE

FB703 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB601 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB705 071G 56G301 MA CHIP BEAD 0805 300OHM 4A

FB706 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB106 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB700 071G 56G301 MA CHIP BEAD 0805 300OHM 4A
FB712 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB711 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB713 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB714 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L
FB600 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB606 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB604 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB603 071G 57G121 TA CHIP BEAD 1206 120R 25% HCB3216KF-121T30
FB408 071G 59A121 TA CHIP BEAD 120R/3000mA HCB1608KF-121T30

L105 073G 6322810M SMD CHOKE 0.22UH 10% 0.05A 2.1R MGFI160

L106 073G 6322810M SMD CHOKE 0.22UH 10% 0.05A 2.1R MGFI160

L706 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A

L705 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A

L701 073G253S 68 H SMD CHOKE 2.2UH 30% 2.04A 0.031R SPI530L

CN500 088G 34019K AV HDMI HEADER R/A 19P BLACK H=8.4

D101 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23

D601 093G 6432P LL4148
ZD409 093G 39S911 T ZENER BZX84-C5V6 5.6V 0.25W SOT-23
ZD700 093G 39S923 T ZENER BZX84B6V8 6.8 0.5 SOT-23

D702 093G 60S 37 T SCHOTTKY SM260A 2A 40V DO-214AC
ZD112 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD113 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD115 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD114 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD108 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD107 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD100 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD106 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD105 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD101 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD102 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD104 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD103 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD119 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD110 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD111 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD120 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD123 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ
ZD124 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ

U106 356G0566024600 Silicon Tuner MxL661-AG-R

U400 356G0568590601 SCALER MSD8561VXM-W4 HSBGA-590

U600 356G061613300A AUDIO AD82588B-LG48NAY 2x15W stereo E-LQ

U404 356G333304A600 sAND FLASH THGBMBG5D1KBAIT 4G BGA 153

U704 356GD563006183 DC/DC SY8009BABC 2A 3.3V SOT23-6

U701 356GD563008140 DC/DC TPS54328DDAR 3A 0.76~7V DDA

U705 356GD563008141 DC/DC TPS54528DDAR 5A ADJ DDA

U706 356GD563008141 DC/DC TPS54528DDAR 5A ADJ DDA

U703 356GD563008609 DC/DC MSH6000A 5A ADJ ESOP-8

Q501 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V

R500 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R513 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R512 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R138 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R139 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R140 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R505 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R501 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R517 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R503 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R515 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R143 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R142 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R141 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
R136 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT

R137 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1FT
C4083 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
C4011 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
C4034 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
C4150 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
C4044 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2

C704 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2

C728 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2
C4082 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2

C738 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22

C724 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22

C620 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22

C723 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22

C739 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22

C769 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226

C771 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226

C770 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226

C790 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226

C789 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226

C791 365G1206226A2K000M CAP 1206 22UF 10% 10V X7R GRM31CR71A226

C600 365G121010632K000T CAP 1210 10UF 10% 50V X7R UMK325AB7106K

MAC-U404 370G0MAC630EBY CD 微信版CNTV-MSD8561VXM

HDCP2-U404 370GHDCP601AOC CD HDCP2.0 code for AOC

FB103 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB404 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB101 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3

FB407 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB406 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB400 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB402 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB405 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB403 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB401 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB409 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
FB104 371G042U102C00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0

L702 373G253S140Y01 SMD CHOKE 2.2uH 20% 1.48A 0.058R NRS301

L603 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22

L602 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22

L601 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22

L600 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22

L101 373G253S239D00 SMD CHOKE 75R 25% 280mA 75R BW21S7511B01

L700 373G253S366M00 SMD CHOKE 4.7UH 20% 2.2A 0.057 MPIT5020

X100 393G022S60100J CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18

X400 393G022SA8200J CRYSTAL NXK24.000AE12F-KAB8 24MHz 12pF

D500 393G060S03000T00HF SCHOTTKY BAT54C_R1_00001 0.2A 30V SOT-2
D400 393G060S03000T00HF SCHOTTKY BAT54C_R1_00001 0.2A 30V SOT-2
D600 393G060S04300T00HF SCHOTTKY SX36 HF 3A 60V SMA

E715 715G7204M0C000004Y MAIN PCB FR4 DS 133.5*207*1.6mm

SMTIRPFFAA9 IR BOARD FOR SMT
R202 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN
R301 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN
R201 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R302 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN

CN201 033G8032 5F S HR CONNECTOR

C304 065G0402105A5K M CAP 0402 1UF 10% 10V X5R
C305 065G0402105A5K M CAP 0402 1UF 10% 10V X5R

Q301 057G 477904 T TRA BC847BW 100mA/45V SOT-323
LED301 081G 63R 1 EL CHIP LED RED 19-21B/R6C-BL1M2VY/3T 2nd-source
LED301 081G 63R 1 GP CHIP LED RED GPTS06033RC3-PB

U201 356GS927075 IR RECEIVER TSOP75336WTT 36 KHz

E715 715G7055R01000004M IR PCB FR4 DS 30*8.5*1.6mm 2nd-source
E715 715G7055R01000004Y IR PCB FR4 DS 30*8.5*1.6mm

SMTKEPFEAA9 KEY BOARD FOR SMT
R01 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W 2nd-source
R01 061G06031201FT RST CHIP 1K2 1/10W 1%
R01 061G06031201FY RST CHIPR 1.2KOHM +-1% 1/10W 2nd-source
R05 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA 2nd-source
R05 061G06031502FT RST CHIP 15K 1/10W 1%
R05 061G06031502FY RST CHIP 15K 1/10W 1% 2nd-source
R04 061G06032201FT RST CHIP 2K2 1/10W 1%
R04 061G06032201FY RST CHIP 2K2 1/10W 1% 2nd-source
R02 061G0603470 JF RST CHIPR 47OHM +-5% 1/10W FENGHUA 2nd-source
R02 061G0603470 JT RST CHIP 47R 1/10W 5% TZAI YUAN

R03 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA 2nd-source
R03 061G06036801FT RST CHIP 6K8 1/10W 1%
R03 061G06036801FY RST CHIP 6K8 1/10W 1% 2nd-source
C06 065G060310432K A CAP 0603 100NF 10% 50V X7R 2nd-source
C06 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R 2nd-source

CN01 311GW125D02ADX WAFER 1.25mm 2P R/A S1315-02RVB-S03-K
SW01 377G060902B0CJ CHIP TACT SW 6P 6mm 160g SMD 2nd-source
SW01 377G060902C0CJ CHIP TACT SW 6P 6mm 160g SMD
SW01 377G060902C0HJ CHIP TACT SW 6P 6mm 160g SMD 2nd-source

E715 715G7088K01000004K KEY PCB FR4 DS 22*29.5*1.6mm

705TXD57224 Q8101
0M1G1730 8120 SCREW

Q8101 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F

HS8101 Q90T0236007A0000SY HEAT SINK

705TXD93200 D8101

D8101 093G 60500 FMEN210A TO-220 SANKEN

0M1G1730 8120 SCREW

HS8102 Q90T0236007A0000SY HEAT SINK

LNEW661XXA6SMT CONVERTER BOARD FOR SMT

R8117 061G08051003FY RST CHIP 100K 1/8W 1%

LNEW661XXA6AI CONVERTER BOARD FOR AI
R8149 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R8119 061G08051003FY RST CHIP 100K 1/8W 1%
C8104 065G080522432K F CAP 0805 220NF 10% 50V X7R
R8109 061G08051003FY RST CHIP 100K 1/8W 1%
R8105 061G12064700FT RST 1206 470R 1% 1/4W TZAI YUAN
C8115 065G080510532K T CAP 0805 1UF 10% 50V X7R

ZD8101 393G039S95300T00HF HF BZT52-B9V1_R1_00001 9.1V 0.41W

R8169 061G12061508FT RST 1206 1.5R 1% 1/4W
R8132 061G08056202FY RST 0805 62K 1% 1/8W ­R8144 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
R8146 361G12061108FT RST 1206 1.1R 1% 1/4W SMD12061R1F
C8132 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
R8147 061G12061508FT RST 1206 1.5R 1% 1/4W
R8168 061G12061508FT RST 1206 1.5R 1% 1/4W
R8145 061G12061508FT RST 1206 1.5R 1% 1/4W
C8112 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
R8139 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
C8134 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
R8170 061G12061508FT RST 1206 1.5R 1% 1/4W
C8133 065G080522522K T CAP 0805 2.2uF 10% 25V X7R
R8106 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206
R8110 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W
R8137 061G08051003FY RST CHIP 100K 1/8W 1%
R8112 061G08051103FF RST CHIPR 110KOHM +-1% 1/8W FENGHUA

Q8102 057G 417907 T TRA PMBT3906 PNP -200mA/-40V SOT-23

C8110 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
R8103 061G08051002FT RST CHIP 10K 1/8W 1%
R8107 061G0805302 JY RST CHIPR 3K +-5% 1/8W YAGEO
C8114 065G080522232K A CAP 0805 2.2NF 10% 50V X7R
R8151 061G08051003FY RST CHIP 100K 1/8W 1%
R8134 061G0805103 JT RST 0805 10K 5% 1/8W
R8131 061G08053302FT RST CHIP 33K 1/8W 1%
R8160 361G12061208FY RST 1206 1.2R 1% 1/4W ­R8120 061G0805103 JT RST 0805 10K 5% 1/8W
C8145 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%

Q8103 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V

R8141 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
C8146 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10%
R8153 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W
R8152 061G08050004JT RST CHIPR 0805 0 OHM 4A
R8138 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R8140 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R8116 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W
C8103 065G080522432K F CAP 0805 220NF 10% 50V X7R
R8150 061G08050004JT RST CHIPR 0805 0 OHM 4A
C8143 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
R8148 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
C8131 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C8109 065G080510522K M AP 0805 1UF 10% 25V X7R
R8115 061G0805205 JT RST CHIPR 2M +-5% 1/8W TZAI YUAN

D8102 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL

R8113 061G08051052FF RST CHIPR 10.5K OHM +- 1% 1/8W FENGHUA
R8136 061G0805304 JY RST CHIPR 300K +-5% 1/8W YAGEO
R8111 061G08051003FT RST CHIP 100K 1/8W 1%
R8108 061G08053303FT RST CHIP 330K 1% 1/8W

IC8101 356G0700024600 LED DRIVER LD7890GS SOP-24

R8101 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN
R8155 061G08052003FT RST CHIP 200K 1/8W 1%
C8111 065G080547131J M CAP 0805 470PF 5% 50V NP0

Q8143 057G 763139 MOSFET AOD478 11A 100V TO-252

R8102 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN
R8133 061G08051002FT RST CHIP 10K 1/8W 1%
R8135 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
R8112 061G08051103FT RST CHIP R 110K 1/8W +/-1% 2nd-source

Q8102 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC 2nd-source

R8103 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA 2nd-source
R8107 061G0805302 JT RST CHIP 3K 1/8W 5% TZAI YUAN 2nd-source
R8151 061G08051003FT RST CHIP 100K 1/8W 1% 2nd-source
R8134 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 2nd-source
R8131 061G08053302FF RST CHIPR 33KOHM +-1% 1/8W FENGHUA 2nd-source
R8160 361G12061208FT RST 1206 1.2R 1% 1/4W - 2nd-source
R8141 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 2nd-source

R8138 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd-source
R8140 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd-source
R8117 061G08051003FT RST CHIP 100K 1/8W 1% 2nd-source
R8149 061G0805203 JF RST CHIPR 20KOHM +-5% 1/8W FENGHUA 2nd-source
R8109 061G08051003FT RST CHIP 100K 1/8W 1% 2nd-source
R8105 061G12064700FF RST 1206 470R 1% 1/4W FENGHUA 2nd-source
R8115 061G0805205 JF RST CHIPR 2M +-5% 1/8W FENGHUA 2nd-source
R8113 061G08051052FT RST CHIP 10.5K OHM 1/8W 1% TZAI YUAN 2nd-source
R8111 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA 2nd-source
R8108 061G08053303FF RST CHIP 330K 1/8W 1% 2nd-source
R8101 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA 2nd-source
R8155 061G08052003FF RST CHIPR 200KOHM +-1% 1/8W FENGHUA 2nd-source
R8102 061G0805330 JF RST CHIPR 33 OHM +-5% 1/8W FENGHUA 2nd-source
R8133 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA 2nd-source
R8135 061G08051009FF RST CHIPR 10 OHM+-1% 1/8W FENGHUA 2nd-source
R8148 061G0805000 JT RST 0805 0.05R MAX 1/8W 2nd-source
R8106 061G12061002FF RST CHIPR 10KOHM +-1% 1/4W FENGHUA 2nd-source
R8139 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd-source
R8146 361G12061108FY RST 1206 1.1R 1% 1/4W RC1206FR-071R1L 2nd-source
R8144 361G12061108FY RST 1206 1.1R 1% 1/4W RC1206FR-071R1L 2nd-source
C8115 065G080510532K M CAP 0805 1UF 10% 50V X7R 2nd-source

ADE1220XB8AI ADAPTER BOARD FOR AI
C9319 067G 5151017KT EC 100UF 20% 50V 10*9 EJ

BD9902 006G 31 4 1.7MM RIVET

T9301 006G 31 4 1.7MM RIVET
T9101 006G 31500 EYELET

CN9901 006G 31500 EYELET
NR9901 006G 31502 EYELET

L9902 006G 31502 EYELET

NR9902 006G 31502 EYELET

L9901 006G 31502 EYELET

IC9103 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92

C9813 065G 1K101 2T6921 CAP CER 100pF 1KV K Y5P
C9110 065G 1K101 2T6921 CAP CER 100pF 1KV K Y5P
C9817 065G 1K10193T CAP CER 100PF 10% 1KV R
C9303 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING
C9904 065G306K10123R CAP Y1 100PF 10% 250V Y5P
C9908 065G306K22123R CAP Y1 220PF 10% 250V Y5P
C9902 065G306K33123R CAP Y1 330PF 10% 250V Y5P
C9907 065G306K33123R CAP Y1 330PF 10% 250V Y5P
C9325 065G306M10233R CAP Y1 1NF 20% 250V Y5U
C9122 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000 hr
C9114 067G 5153316KT EC 330UF 20% 35V 10*12 5000 hr
C9304 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.33A ­C9317 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.33A ­C9805 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 hr
C9124 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 hr

FB9301 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9302 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9802 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9803 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A
FB9904 071G 55 23 S FERRITE BEAD LB 3.5*0.8*7.5A

D9102 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41
D9303 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41

ZD9102 093G 39G 7 ZENER GDZJ15B 15 0.5 DO-35

D9301 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41

J909 095G 90 23 JUMP WIRE - ­J918 095G 90 23 JUMP WIRE - ­J914 095G 90 23 JUMP WIRE - ­J920 095G 90 23 JUMP WIRE - ­J913 095G 90 23 JUMP WIRE - ­J912 095G 90 23 JUMP WIRE - ­J910 095G 90 23 JUMP WIRE - ­J906 095G 90 23 JUMP WIRE - -

FB9102 095G 90 23 JUMP WIRE - -

J916 095G 90 23 JUMP WIRE - ­J919 095G 90 23 JUMP WIRE - ­J923 095G 90 23 JUMP WIRE - ­J915 095G 90 23 JUMP WIRE - ­J904 095G 90 23 JUMP WIRE - ­J902 095G 90 23 JUMP WIRE - ­J907 095G 90 23 JUMP WIRE - ­J921 095G 90 23 JUMP WIRE - ­J917 095G 90 23 JUMP WIRE - ­J903 095G 90 23 JUMP WIRE - ­J911 095G 90 23 JUMP WIRE - -

J905 095G 90 23 JUMP WIRE - ­R9301 361G01SJ10852T00TZ RST WD 0.1R 5% 1W NKNP1WS0R1JT52E8
R9306 361G152M22052T00TZ RST MOF 22R 5% 2W MOF2WS22RJT52
R9302 361G152M82352T00TZ RST MOF 82K 5% 2W MOF2WS82KJT52
R9321 361G2SWJ36852T00TZ RST NWR 0R36 5% 2W NKNP2WS0R36JT52

RV9902 362G0010501MIT SPARK GAP 500V -20/+30%
RV9903 362G0010501MIT SPARK GAP 500V -20/+30%

C9140 365G001D5096WT CAP CER 5PF 0.5pF 1KV SL CC81-1KV-06d-S

E715 715G6607P02001002M PWR PCB FR2 CTI>600 SS 195.5*271*1.6MM

LNEW661XXA6AI CONVERTER BOARD FOR AI
J8108 095G 90 23 JUMP WIRE - ­J8107 095G 90 23 JUMP WIRE - ­J8106 095G 90 23 JUMP WIRE - ­J8105 095G 90 23 JUMP WIRE - ­J8110 095G 90 23 JUMP WIRE - ­J8103 095G 90 23 JUMP WIRE - ­J8111 095G 90 23 JUMP WIRE - ­J8102 095G 90 23 JUMP WIRE - -

R8104 361G152M10852T00TZ RST MOF 0.1R 5% 2W MOF2W0R1JT52

E715 715G6432P01000002H PWR PCB FR1 CTI>600 SS 150*150mm
J8101 095G 90 23 JUMP WIRE - ­J8104 095G 90 23 JUMP WIRE - -

R8118 361G152M10852T00TZ RST MOF 0.1R 5% 2W MOF2W0R1JT52
R8104 061G152M10852T SY RST MOF 0R1 5% 2W 2nd-source
R8118 061G152M10852T SY RST MOF 0R1 5% 2W 2nd-source

级别 点位 对象标识 对象描述

LVA550HVN06ACL2P0X

1 036T 600 18129 NONWOVEN FABRTC
1 041G 68508 A control card
1 051G 2 14 FUSE GEL
1 Q051 051G 2 14 FUSE GEL
1 0M1G 130 6 47 CR3 SCREW M3 6
1 0M1G1030 4 47 XL SCREW
1 0M1G1030 6 47 CR3 SCREW M3 6
1 0M1G1730 6 47 CR3 SCREW M3 6
1 0M1G1730 8120 SCREW M3 8
1 0M1G1740 10 47 CR3 SCREW M4 10
1 0M1G1830 6120 SCREW
1 0Q1G 930 8 47 CR3 SCREW
1 0Q1G1030 6 47 CR3 SCREW M3 6
1 317G01 317GAAWF550TCL WIFI USB IEEE 802.11 b/g/n WF0KRT1510W
1 SP01 378G0110567CDX 6 OHM 11W 132*34*37mm 0 UNIT
1 SP01 378G0110567YDX 6 OHM 11W 132*34*37mm 0 UNIT
1 ECN01 395G801302LC04 HARNESS 2P pitch 2.5-2P pitch 1.25 200m
1 ECN01 395G801302XC04 HARNESS 2P pitch 2.5-2P pitch 1.25 200m
1 ECN9102 395G801414RC52 HARNESS 13P pitch2.0-14P pitch2.0 380mm
1 ECN9102 395G801414XC52 HARNESS 13P pitch2.0-14P pitch2.0 380mm
1 ECN700 395G801416DD32 HARNESS 12P pitch2.0-16P pitch2.0 500mm
1 ECN700 395G801416RD32 HARNESS 12P pitch2.0-16P pitch2.0 500mm
1 ECN107 395GH12506DT003000 HARNESS 5P pitch1.25-6P pitch2.0 400mm
1 ECN107 395GH12506HT003000 HARNESS 5P pitch1.25-6P pitch2.0 400mm
1 ECN600 395GH20004DT002000 HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m
1 ECN600 395GH20004RT002000 HARNESS 4P pitch2.0-B&R+B&W 850 + 400 m
1 ECN400 395GH20014DT013000 HARNESS 14P pitch2.0-5P pitch1.25+2P pi
1 ECN400 395GH20014XT013000 HARNESS 14P pitch2.0-5P pitch1.25+2P pi
1 ECN401 395GLT5140R0010000 LVDS CABLE 51P(0.5mm)-40P(2.0mm) 600mm
1 ECN401 395GLT5140X0010000 LVDS CABLE 51P(0.5mm)-40P(2.0mm) 600mm
1 RC01 398GR8BD2NCPHH REMOTE Philips HOF-44K-GJ12647 chinese
1 708GVB020WPX01 Ebony 40 ( 208 NA )
1 E750 750TBV550V64B8N000 LCD TPT550J1-HVN06.U S410B XM TPV
1 756TXFCB01D093000X MCU ASSY
1 ADTVE1220XB8 ADAPTER BOARD NA
1 CBPFEMSDA3 CONVERSION BOARD NA
1 IRPFFAA9 IR BOARD
1 KEPFEAA9 KEY BOARD
1 LNTVEW661XXA6 CONVERTER BOARD -­1 E750
1 P33E0738XJL01T0100 KEY_FUNCTION
1 P33E0756ALDZ1C0100 DECO_LOGO
1 P33E0757ADT01L0100 DECO_REAR_COVER
1
1 P34E2486ADT02L0200 BASE NA
1 P40GD000813 9A A4 PALLET LABEL -for A4 paper
1 Q02G707105000100XL BOLT
1 Q02G708105500100HX BOLT
1 Q11G701100500100JY PCB-SUPPORT D2.9xH14.97
1 Q12G6300 25 1 FOOT PAD

P34E23680GM0FK0400 REAR_COVER NA

PANEL TPT550J1-HVN06.U S410B XM TPV

1 EQ52C1 Q12G714001200100HK HEAT PAD
1 Q40G0001624 4A 产线需求的栈板LABEL
1 Q44T3231 21 11 EVA WASHER
1
1
1 Q49G 51500 HF panel清洁剂
1 Q052 Q52G100203000A00ZA AL FOIL
1 Q52G130118600000YY TAPE
1
1 Q52G160119100A00YY TAPE
1 X15T966610100000BL BKT_BASE
1 X15T968010100000NP BKT_STAND
1 X15T968110100000NP BKT_STAND
1 X15T984710100000GH BKT_STAND
1 X15T986310100000GH BKT_SPEAKER
1 X15T995630100000BL BKT_IO
1 X15T9957501000GMYF BKT_IO
1 X40G2014040X8100XY IO LABEL
1 X40G2014055X2500ZA IO LABEL
1 X44GVB021010FA CUSHION-TL N/A China(2002)
1 X44GVB022010FA CUSHION-B N/A China(2002)
1 X44GVB023010FA CUSHION-BL N/A China(2002)
1 X44GVB024010FA CUSHION-BR N/A China(2002)
1 X44GVB02501EPE CUSHION N/A China(2002)
1 X44GVB0281301B00JA ARTWORK CARTON Ebony 55PFF5650/T3 CHINA
1 X52G18012660000ALF INSULATING SHEET
1 E08901 089G214A15N HL AC POWER CORD 1500
1 E08901 089G214A15N IS AC POWER CORD 1500
1 0M1G1740 20225 CR3 SCREW M4 20
1 317G02 317GARFM008TCL RF MODULE GL03-2-E
1 BT01 392GB1JA1A3E2C BATTERY 1.5V 2P LR03(KA)2S/G
1 Q45G88010TV05600X1 PROTECT BAG
1 Q45G88010TV08900X1 PROTECT BAG
1 X41G40SV81330B QSG PFF5650_PFF5655
1 X41G78DV81311D WARRANTY CARD TPV address china
1 040G 58162435A MANUAL P/N LABEL
1 Q40G000162493A 3CEL LABEL FOR TV MODEL G2/2.0/0.5
1 X40G0001624 2A Label for screw pe bag
1 X40G000181310C CARTON LABEL
1 X40G055081346B RATING LABEL 55PFF5650-T3
1 Z40G0002ALL01A OTHER LABEL
1 708GVB020WPX01 Ebony 40 ( 208 NA )
2 Q07G010513802C00BL WOOD PALLET
2 Q07G012313802C00BL WOOD PALLET
2 Q44G6002134101 PAPER BOARD
2 Q44G6002137120 PAPER BOARD
2 Q44G9003180 CORNER PAPER
2 Q45G 77 5 PE PACKING
2 Q50G 4 10 TIE (Y1900221)
2 Q52G1301 9 BIG TAPE FOR PHILIPS
2 X44G6002CP521A PAPER CAP5

PROTECT BAG

PROTECT BAG 1200*1600

TAPE_INSULATING

2 X44G6002CP551A PAPER CAP5

361G3SWJ10859B00TZ

1 756TXFCB01D093000X MCU ASSY
2 SMTF-U404 100TP1VP005DTX PHP 49PFF5755/T3 Nand_FLASH NA NA
2 U404 356G333304A600 sAND FLASH THGBMBG5D1KBAIT 4G BGA 153
1 ADTVE1220XB8 ADAPTER BOARD NA
2 Z40G0002ALL01A OTHER LABEL
2 GND2 009G6005 1 GND TERMINAL
2 CN9102 033G380214B YH WAFER 2.0mm 14P W2015-14RVA-S01
2 IC9104 056G 139 9 IC EL817M(X) photocoupler DIP-4
2 IC9304 056G 139 9 IC EL817M(X) photocoupler DIP-4
2 IC9102 056G 139 9 IC EL817M(X) photocoupler DIP-4
2 Q9105 057G 667929 MOSFET AOTF8N50 8A 500V TO-220FP
2 Q9106 057G 667929 MOSFET AOTF8N50 8A 500V TO-220FP
2 C9906 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
2 C9905 063G107M47410M CAP X2 470NF 20% 275V R46KI3470HAP1M
2 C9117 067G215Z102 6K LOW ESR EC 1000uF M 35V 10*35mm
2 C9131 067G215Z102 6K LOW ESR EC 1000uF M 35V 10*35mm
2 C9307 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr
2 C9306 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr
2 FB9801 071G 55906 FERRITE CORE 510R C8B R6H 6x9.2(A)
2 L9103 073G 253191 HP CHOKE COIL 1.1uH VOC
2 L9103 073G 253191 LP CHOKE COIL 1.1uH VOC
2 CN9901 087G 50147D HC HF AC R/A 2P 12.81mm
2 D9801 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD
2 FORCN9901 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q x8.0
2 CN9101 311GW200C16BBX ONN 2.0mm 16P R/A W2010-16RVA-S04,B200
2 RV9901 361G0046681KZE VARISTOR 680V 10%
2 NR9901
2 NR9902
2 R9808
2 C9801 363G210K105GZP CAP MPP 1uF 10% 450V 18.1*12.6*8.5 ECWF
2 C9111 363G211J2235HA CAP MPP 22nF 5% 1KV 18*5*11 R75QI2220HA0
2 C9812 367G215X680PKZ000S EC 68uF 20% 450V 12.5*50 2000 hr 620mA
2 C9811 367G215X680PKZ000S EC 68uF 20% 450V 12.5*50 2000 hr 620mA
2 L9903 373G0174301H00 LINE FILTER 0.25mH MIN 2A LCL-11010 HA
2 L9903 373G0174301X00 LINE FILTER 0.25mH MIN 2A 3LFT1064-251M
2 L9902 373G0174303H00 LINE FILTER 18mH MIN 1.26A LCL-11822 HA
2 L9901 373G0174303H00 LINE FILTER 18mH MIN 1.26A LCL-11822 HA
2 L9901 373G0174303X00 LINE FILTER 18mH MIN 1.26 3LFT18106-183
2 L9902 373G0174303X00 LINE FILTER 18mH MIN 1.26 3LFT18106-183
2 L9801 373G0174308H01 PFC CHOKE 220uH 10% 2A GL-13240 HA
2 L9801 373G0174308X01 PFC CHOKE 220uH 10% 2A 3TRATQ32-221K
2 L9302 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
2 L9301 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
2 L9302 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
2 L9301 373G0253247X00 CHOKE COIL 3UH 15% DR8*8 5A
2 T9301 380GL32P141H03 X'FMR 360uH 10% 5uH ER31 BCK-13142-HA1
2 T9101 380GL52P186H00 X'FMR 830uH 12% 160uH EE42 BCK-14234-H
2 T9101 380GL52P186YS0 X'FMR 830uH 12% 160uH EE42 YS04160730
2 BD9902 393G0050460600 BRIDGE TS10P06G-04 10A 800V TS-6P
2 705TAD84023 F9901

NTCR 2.5R 20% 3.1W SCK132R56MTY504
NTCR 2.5R 20% 3.1W SCK132R56MTY504

RST NWR 0.1R 5% 3W NKNP3WS0R1JMS10

2 705TAD93119 Q9801&Q9802
2 705TAD93120 Q9301
2 705TAD93121 Q9303
2 705TXE93083 D9103&D9104 ASSY
2 ADE1220XB8SMT ADAPTER BOARD FOR SMT
1 CBPFEMSDA3 CONVERSION BOARD NA
2 Z40G0002ALL01A OTHER LABEL
2 C608 067G315M1514LV EC 150UF 20% 25V RTR151M1ECCF0807P 8*7
2 C607 067G315M1514LV EC 150UF 20% 25V RTR151M1ECCF0807P 8*7
2 CN101 088G 78G152ACL RCA JACK R/A 12P G/BL/R/W/R 1*5 H=10.5
2 CN108 088G352E912AXH USB A TYPE R/A 9P 1*1 BLUE 6.96mm
2 CN104 088G353GFF1ACL D-SUB CONN 15P BLUE R/A H=10mm
2 CN600 311GW200A04ABL CONN 2.0mm 4P R/A B2009W04HTK0
2 CN107 311GW200C06ABL WAFER 2.0mm 6P R/A B2000W06HTKB
2 CN700 311GW200C12BBX CONN 2.0mm 12P R/A W2010-12RVA-S04
2 CN400 311GW200C14BBX CONN 2.0mm 14P R/A W2010-14RVA-S04
2 CN401 311GW200C40AAL WAFER 2.0mm 40P
2 CN103 388G078G13NAYG RCA R/A 6P 1*3 Y/W/R 9.5mm
2 CN100 388G302F5B1ACL PHONE JACK R/A 5P 1*1 BLACK 8.5mm
2 CN109 388G342GFB6AGN RJ45 R/A 15P 1*1 BLACK 11.2
2 CN106 388G352F6B3AXH USB A TYPE R/A 6P 1*1 BLACK 8.4
2 J100 388G510H401AHC RF IFP-007 4P 1*1 W -­2 Q85T01 Q85T 583162 GASKET
2 HS600 Q90G6119 6 EAT SINK
2 SMTFEMSDA3 MAIN BOARD FOR SMT
2 X85 X85T806910100000LH SHIELD_TUNER
2 HS400 X90G070310100000BF HEAT SINK
2 HS400 X90G070310100000SY HEAT SINK
1 IRPFFAA9 IR BOARD
2 SMTIRPFFAA9 IR BOARD FOR SMT
1 KEPFEAA9 KEY BOARD
2 SMTKEPFEAA9 KEY BOARD FOR SMT
1 LNTVEW661XXA6 CONVERTER BOARD -­2 Z40G0002ALL01A OTHER LABEL
2 CN8102 033G380212B YH wafer 12P 2.0 DIP
2 CN8101 033G380213B YH AFER 2.0mm 13P
2 C8105 067G515Z271 9K EC 270UF 20% 100V 10*40 5000 hr
2 C8107 067G515Z271 9K EC 270UF 20% 100V 10*40 5000 hr
2 C8106 067G515Z271 9K EC 270UF 20% 100V 10*40 5000 hr
2 C8102 367G415X3317KT EC 330UF 20% 50V 12.5*12
2 C8101 367G415X3317KT EC 330UF 20% 50V 12.5*12
2 L8101 373G0253353X00 BOOST CHOKE 33uH 10% 4A 3LCEQ2513-330K
2 705TXD57224 Q8101
2 705TXD93200 D8101
2 LNEW661XXA6SMT CONVERTER BOARD FOR SMT
2 705TAD84023 F9901
3 EF9901 084G 34 14 bSE -- -- -­3 F9901 084G 41 7 C FUSE 5A 250V UDA005(PF)
2 705TAD93119 Q9801&Q9802
3 Q9801 057G 667954 MOSFET TK18A60V 18A 600V SC-67
3 D9802 093G 52905 DIODE FMNS-1106S TO-220

3 0M1G1730 8120 SCREW M3 8
3 HS9801 Q90T0236002A0000HG HEAT SINK
2 705TAD93120 Q9301
3 Q9301 057G 667931 MOSFET AOTF8N65 8A 650V TO-220FP
3 0M1G1730 8120 SCREW M3 8
3 HS9301 Q90G0219 4 HEAT SINK ÐͲÄ/Profile
2 705TAD93121 Q9303
3 0M1G1730 8120 SCREW M3 8
3 Q9303 357G0600100020 MOSFET AOTF298L 33A 100V TO-220F
3 HS9303 Q90T0236001A0000HG HEAT SINK
2 705TXE93083 D9103&D9104 ASSY
3 D9103 093G 60247 ME-220A
3 D9104 093G 60247 ME-220A
3 0M1G1730 8120 SCREW M3 8
3 HS9103 Q90T0236003A0000HG HEAT SINK
2 ADE1220XB8SMT ADAPTER BOARD FOR SMT
3 IC9305 056G 158501 DC/DC AS431ANTR-E1 150mA 40V SOT23-3
3 IC9101 056G 379211 AC/DC SSC9522S-TL SOP-18
3 Q9103 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC
3 Q9104 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC
3 Q9101 057G 419912 T RANSISTOR 2SD1624T-TD-E PCP
3 R9148 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
3 R9162 061G0805000 JT RST 0805 0.05R MAX 1/8W
3 R9802 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA
3 R9109 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
3 R9311 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN
3 R9133 061G08051001FT RST CHIP 1K 1/8W 1%
3 R9332 061G08051001FT RST CHIP 1K 1/8W 1%
3 R9137 061G08051001FT RST CHIP 1K 1/8W 1%
3 R9156 061G08051002FT RST CHIP 10K 1/8W 1%
3 R9152 061G08051002FT RST CHIP 10K 1/8W 1%
3 R9151 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 R9150 061G08051009FT RST CHIP R 10ohm +/-1% 1/8W
3 R9810 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA
3 R9134 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
3 R9806 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
3 R9813 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA
3 R9314 061G0805103 JT RST 0805 10K 5% 1/8W
3 R9341 061G08051200FT RST CHIP 120R 1/8W 1%
3 R9103 061G08051600FF RST 0805 160R 1% 1/8W FENGHUA
3 R9127 061G08051802FT RST 0805 18K 1% 1/8W
3 R9116 061G08051802FY RST CHIP 18K 1/8W 1%
3 R9811 061G08051912FT RST CHIPR 19K1 +-1% 1/8W TZAI YUAN
3 R9128 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA
3 R9814 061G0805202 JF RST CHIPR 2KOHM +-5% 1/8W FENGHUA
3 R9136 061G0805202 JT RST CHIP 2K 1/8W 5% TZAI YUAN
3 R9122 061G08052101FT RST CHIPR 2.1KOHM +-1% 1/8W TZAI YUAN
3 R9340 061G08052201FT CHIP 2K2 1/8W 1%
3 R9312 061G08052209FT RST 0805 22R 1% 1/8W
3 R9112 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA
3 R9120 061G0805242 JF RST CHIPR 2.4KOHM +-5% 1/8W FENGHUA

3 R9163 061G08052431FT RST CHIP 2K43 1/8W 1%
3 R9118 061G0805302 JY RST CHIPR 3K +-5% 1/8W YAGEO
3 R9803 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN
3 R9812 061G0805363 JF ST CHIPR 36KOHM +-5% 1/8W FENGHUA
3 R9119 061G08054701FT RST CHIP 4K7 1/8W 1%
3 R9117 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA
3 R9328 061G0805472 JT RST CHIPR 4K7 +-5% 1/8W TZAI YUAN
3 R9130 061G0805514 JF ST CHIPR 510KOHM +-5% 1/8W FENGHUA
3 R9149 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO
3 R9154 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO
3 R9329 061G08059101FT RST CHIP 9K1 1/8W 1%
3 JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR907 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR906 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR904 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 JR905 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN
3 R9308 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN
3 R9804 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
3 R9809 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
3 R9807 061G12061004FF E RST CHIP 1M 1% 1/4W 500V FENGHUA
3 R9131 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
3 R9132 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA
3 R9102 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
3 R9101 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
3 R9129 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA
3 R9324 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
3 R9138 061G1206104 JT RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
3 R9143 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9141 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9124 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9139 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9142 061G1206123 JF RST CHIPR 12KOHM +-5% 1/4W FENGHUA
3 R9327 061G12061501FF RST CHIPR 1.5KOHM +-1% 1/4W FENGHUA
3 R9113 061G12061504FT RST CHIP 1M5 1/4W 1%
3 R9115 061G12061504FT RST CHIP 1M5 1/4W 1%
3 R9114 061G12061504FT RST CHIP 1M5 1/4W 1%
3 R9316 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9315 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9322 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9320 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9323 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9319 061G1206201 JT RST CHIPR 200 OHM +-5% 1/4W TZAI YUAN
3 R9805 061G1206203 JF RST CHIPR 20KOHM +-5% 1/4W FENGHUA
3 R9305 061G12062202FT RST 1206 22K 1% 1/4W TZAI YUAN
3 R9318 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
3 R9303 061G1206479 JT RST 1206 4.7R 5% 1/4W
3 R9309 061G1206479 JT RST 1206 4.7R 5% 1/4W
3 R9310 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
3 R9325 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN

3 R9905 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
3 R9904 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
3 R9903 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
3 R9902 061G1206514 JF E RST CHIP 510K 5% 1/4W 500V FENGHUA
3 R9105 061G1206561 JT RST CHIPR 560 OHM +-5% 1/4W TZAI YUAN
3 C9316 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
3 C9315 065G080510131J Y CAP CHIP 0805 100P 50V NP0 +/-5%
3 C9322 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
3 C9102 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
3 C9323 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
3 C9101 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%
3 C9320 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 C9113 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 C9318 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
3 C9119 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9135 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9806 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9137 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9128 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9123 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9108 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9144 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9314 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9302 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
3 C9337 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9141 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9145 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9143 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9312 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9134 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9313 065G080510532K M CAP 0805 1UF 10% 50V X7R
3 C9807 065G080522131J F c69 CHIP 0805 220PF J 50V NPO
3 C9109 065G080522131J M CAP 0805 220PF 5% 50V NP0
3 C9129 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9132 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9130 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9133 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9116 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9138 065G080522432K T CAP 0805 220nF 10% 50V X7R UMK212 B7224
3 C9329 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10%
3 C9804 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
3 C9106 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
3 C9808 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5%
3 C9324 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
3 C9326 065G080547232K A CAP 0805 4.7NF 10% 50V X7R
3 C9809 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
3 C9810 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R
3 C9142 065G0805475A2K T CAP CHIP 0805 4.7uF K 10V X7R
3 C9139 065G080556131J Y CAP CHIP 0805 560P 50V NP0 +/-5%
3 IC9305 356G01585020HF Shunt Regu TL431G-AE2-R SOT23-3
3 IC9801 356G0379008218 PFC LD7591T GS SOP-8

3 IC9301 356G0379213 AC/DC SSC2S110 SOP-8
3 IC9302 356GD563008152000Z DC/DC SP6018S8RGB 1A 16V SOP-8
3 Q9102 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V
3 R9901 361G12069103FT RST 1206 910K 1% 1/4W RC1206FR-07910KL,
3 R9906 361G12069103FT RST 1206 910K 1% 1/4W RC1206FR-07910KL,
3 D9109 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123
3 ZD9107 393G039S95200T00HF HF BZT52-B6V2_R1_00001 6.2V 0.41W
3 ZD9106 393G039S95200T00HF HF BZT52-B6V2_R1_00001 6.2V 0.41W
3 ZD9302 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
3 ZD9301 393G039SA1300T ZENER BZT52-B39_R1_00001 39V 0.41W
3 ZD9103 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
3 ZD9101 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
3 ZD9105 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123
3 D9113 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9302 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9110 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9107 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9803 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9304 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9114 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
3 D9307 393G060SA0700T SCHOTTKY MB810 8A 100V SMC
3 ADE1220XB8AI ADAPTER BOARD FOR AI
2 SMTFEMSDA3 MAIN BOARD FOR SMT
3 U101 056G 581 9 IC G5250K1T1U SOT23-5
3 U105 056G 581 9 IC G5250K1T1U SOT23-5
3 U702 056G 585 4A LDO AP1117E33G-13 1A 3.3V SOT-223
3 U700 056G 585 4A LDO AP1117E33G-13 1A 3.3V SOT-223
3 U107 056G 585 4A LDO AP1117E33G-13 1A 3.3V SOT-223
3 U102 056G 616 55 AUDIO DRV602PW 870mW TSSOP-14
3 U402 056G 643 5B IC G690H293T73Uf SOT-23 GMT
3 U501 056G 665918 IC STMPS2171STR SOT23-5L
3 Q705 057G 417511 MMBT3904
3 Q406 057G 417511 MMBT3904
3 Q703 057G 417511 MMBT3904
3 Q702 057G 417511 MMBT3904
3 Q701 057G 417511 MMBT3904
3 Q601 057G 417511 MMBT3904
3 Q600 057G 417512 MMBT3906
3 Q400 057G 417512 MMBT3906
3 Q602 057G 417512 MMBT3906
3 Q700 057G 763 79 FET AO4449 -7A/-30V SOIC-8
3 Q405 057G 763 79 FET AO4449 -7A/-30V SOIC-8
3 RP301 061G 1260008JT RST NET 0R 5% 1/16W
3 RP302 061G 1260008JT RST NET 0R 5% 1/16W
3 C142 061G0402000 JT RST 0402 0.05R MAX 1/16W ­3 C143 061G0402000 JT RST 0402 0.05R MAX 1/16W ­3 FB500 061G0402000 JT RST 0402 0.05R MAX 1/16W ­3 R4219 061G0402000 JT RST 0402 0.05R MAX 1/16W ­3 R101 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R717 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R623 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO

3 R100 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R734 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4103 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4104 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4109 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R123 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C306 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C309 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R171 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C307 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C312 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R160 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R527 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R729 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C308 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R174 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R744 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R631 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4107 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4108 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4106 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R748 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4105 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4054 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C310 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C313 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 C311 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R616 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R117 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R150 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4111 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4052 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4110 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R626 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R4102 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO
3 R162 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R522 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R161 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R4036 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R4035 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO
3 R119 061G04021000FY RST CHIP 100R 1/16W 1%
3 R118 061G04021000FY RST CHIP 100R 1/16W 1%
3 R152 061G04021000FY RST CHIP 100R 1/16W 1%
3 R4044 061G04021000FY RST CHIP 100R 1/16W 1%
3 R4043 061G04021000FY RST CHIP 100R 1/16W 1%
3 R124 061G04021000FY RST CHIP 100R 1/16W 1%
3 R502 061G04021000FY RST CHIP 100R 1/16W 1%
3 R720 061G04021000FY RST CHIP 100R 1/16W 1%
3 R719 061G04021000FY RST CHIP 100R 1/16W 1%
3 R4037 061G04021000FY RST CHIP 100R 1/16W 1%
3 R120 061G04021000FY RST CHIP 100R 1/16W 1%

3 R4025 061G04021001FY RST CHIP 1K 1/16W 1%
3 R618 061G04021001FY RST CHIP 1K 1/16W 1%
3 R507 061G04021001FY RST CHIP 1K 1/16W 1%
3 R773 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4026 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4027 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4028 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4051 061G04021001FY RST CHIP 1K 1/16W 1%
3 R4042 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R776 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R632 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4099 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R634 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R633 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R111 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4020 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R115 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4014 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4015 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4000 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4019 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4098 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R107 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R106 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4100 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R624 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4097 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R704 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R112 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4093 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R116 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4096 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4095 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4092 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4094 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R621 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R525 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R750 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO
3 R4065 061G04021003FY RST CHIP 100K 1/16W 1%
3 R4055 061G04021003FY RST CHIP 100K 1/16W 1%
3 R166 061G04021003FY RST CHIP 100K 1/16W 1%
3 R4039 061G04021003FY RST CHIP 100K 1/16W 1%
3 R625 061G04021003FY RST CHIP 100K 1/16W 1%
3 R165 061G04021003FY RST CHIP 100K 1/16W 1%
3 R163 061G04021003FY RST CHIP 100K 1/16W 1%
3 R164 061G04021003FY RST CHIP 100K 1/16W 1%
3 R4046 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN
3 R4061 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN
3 R148 061G04021004FT RST CHIPR 1M +-1% 1/16W TZAI YUAN
3 R770 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA
3 R134 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO

3 R114 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 R109 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 R108 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 R113 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO
3 R761 061G04021243FY RST CHIP 124K 1/16W 1%
3 R772 061G04021243FY RST CHIP 124K 1/16W 1%
3 R4133 061G0402152 JY RST CHIPR 1.5KOHM +-5% 1/16W YAGEO
3 R766 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R145 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R610 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R131 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R4101 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R4060 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R611 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO
3 R763 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN
3 R735 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN
3 R774 061G04022212FF RST 0402 22.1K 1% 1/16W FENGHUA
3 R127 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R126 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R739 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R725 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R740 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R4132 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L
3 R4023 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO
3 R620 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO
3 R4024 061G04022400FY RST CHIPR 0402 240 OHM +-1% 1/16W YAGEO
3 R504 061G0402304 JT RST 0402 300K 5% 1/16W TZAI YUAN
3 R746 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4006 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4007 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R516 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4021 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R700 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4009 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4013 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4011 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R520 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4018 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R4010 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R702 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R514 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R701 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO
3 R760 061G04023301FF RST CHIP 3K3 1/16W 1% FENGHUA
3 R731 061G04023302FF RST 0402 33K 1% 1/16W FENGHUA
3 R4034 061G0402332 JF RST CHIPR 3.3KOHM 5% 1/16W FENGHUA
3 R724 061G0402332 JY RST CHIPR 3.3KOHM 5% 1/16W YAGEO
3 R153 061G0402391 JT RST CHIP 390R 1/16W 5% TZAI YUAN
3 R154 061G0402391 JT RST CHIP 390R 1/16W 5% TZAI YUAN
3 R526 061G0402393 JY RST CHIP 39K 1/16W 5% YAGEO
3 R168 061G0402393 JY RST CHIP 39K 1/16W 5% YAGEO
3 R167 061G0402393 JY RST CHIP 39K 1/16W 5% YAGEO

3 R722 061G04024702FF RST CHIPR 0402 47K +-1% 1/16W FENGHUA
3 R509 061G04024702FF RST CHIPR 0402 47K +-1% 1/16W FENGHUA
3 R510 061G04024702FF RST CHIPR 0402 47K +-1% 1/16W FENGHUA
3 R4091 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4005 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4003 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4002 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4078 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4073 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R716 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4001 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4016 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4004 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4017 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R727 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R726 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4090 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R749 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4068 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R4059 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
3 R775 061G04025101FT RST CHIP 5.1K 1/16W 1% TZAI YUAN
3 R721 061G04026201FY RST CHIP 6.2K 1/16W 1%
3 R170 061G0402623 JY RST CHIP R 62K 1/16W +/-5% YAGEO
3 R169 061G0402623 JY RST CHIP R 62K 1/16W +/-5% YAGEO
3 R4008 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
3 R4012 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
3 R4022 061G0402680 JY RST CHIPR 68 OHM +-5% 1/16W YAGEO
3 R122 061G04027509FY RST CHIP 75R 1/16W 1%
3 R121 061G04027509FY RST CHIP 75R 1/16W 1%
3 R110 061G04027509FY RST CHIP 75R 1/16W 1%
3 R102 061G04027509FY RST CHIP 75R 1/16W 1%
3 R104 061G04027509FY RST CHIP 75R 1/16W 1%
3 R103 061G04027509FY RST CHIP 75R 1/16W 1%
3 R105 061G04027509FY RST CHIP 75R 1/16W 1%
3 R125 061G04027509FY RST CHIP 75R 1/16W 1%
3 R706 061G04029101FF RST CHIP 9K1 1/16W 1% FENGHUA
3 R4088 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R607 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R712 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R707 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R606 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R4218 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO
3 R635 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
3 R723 061G0603102 JY RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO
3 R4029 061G06031501FF RST CHIPR 1.5K OHM +-1% 1/10W FENGHUA
3 R619 061G06031502FY RST CHIP 15K 1/10W 1%
3 R713 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO
3 R4089 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO
3 R710 061G06031802FY RST CHIPR 18 KOHM +-1% 1/10W YAGEO
3 R523 061G0603201 JY RST CHIPR 200 OHM +-5% 1/10W YAGEO
3 R4030 061G06033301FY RST CHIP 3K3 1/10W 1%

3 R4031 061G06033301FY RST CHIP 3K3 1/10W 1%
3 R711 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
3 R4080 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO
3 FB706 061G0805000 JT RST 0805 0.05R MAX 1/8W
3 FB105 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
3 FB706 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO
3 R147 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO
3 R615 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R602 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R601 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R612 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R604 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R613 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R614 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R603 061G1206100 JY RST CHIPR 10 OHM +-5% 1/4W YAGEO
3 R600 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
3 C4078 065G040210131J Y CAP CHIP 0402 100P 50V NP0 +/-5%
3 C128 065G040210232K F CAP 0402 1NF 10% 50V X7R
3 C4131 065G040210232K F CAP 0402 1NF 10% 50V X7R
3 C4130 065G040210232K F CAP 0402 1NF 10% 50V X7R
3 C133 065G040210232K F CAP 0402 1NF 10% 50V X7R
3 C4090 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C4074 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C702 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C131 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C719 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB
3 C609 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C624 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C615 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C630 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C763 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C127 065G040210332K F CAP 0402 10NF 10% 50V X7R
3 C783 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
3 C721 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10%
3 C762 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 C761 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 C129 065G040210412K Y CAP 0402 100NF 10% 16V X7R
3 C4094 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4093 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C752 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4092 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4065 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C145 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4081 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4036 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4037 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C120 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4080 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C760 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4026 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C705 065G040210425K Y CAP 0402 100nF 10% 25V X5R

3 C745 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4123 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4122 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4098 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4062 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4009 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C119 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C709 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C118 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4027 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4016 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4047 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4025 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C732 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4046 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C703 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C144 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C733 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4023 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C727 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C150 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C121 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4002 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4003 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C741 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C742 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4024 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4073 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C115 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4045 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4091 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C140 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C141 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C749 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4117 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4000 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4021 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C149 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C122 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4032 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4033 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4035 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C125 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4089 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4124 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C136 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4010 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C716 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4015 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4008 065G040210425K Y CAP 0402 100nF 10% 25V X5R
3 C4097 065G040210425K Y CAP 0402 100nF 10% 25V X5R
