Philips 55P9161099 User Manual

Download

Instructions for use

Projection Television

55P916 60P916 64P916

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a

PHILIPS product. So complete and return the Warranty Registration Card enclosed with your

purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you receive

all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today . And we’ll do everything in our power to keep you happy with your purchase formany years to come.

As a member of the PHILIPS “family ,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry .

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

Know these

safety

symbols

t This “bolt of lightning” indicates uninsulated material within your unit which may cause an

electrical shock. For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed

literature closely to prevent operating and maintenance problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la

borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Hurry!

INTERNET ADDRESS: http://www.philipsusa.com

SAFETY INSTRUCTIONS - Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Water and Moisture - The appliance should not be used near water

- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

6B. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying exces-

sive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing elec-

tronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

10. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

11. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.

12. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.

13. Power Lines - An outdoor antenna should be located away from power lines.

14. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Fig. below.

15. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

16. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

17. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the

appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits

a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

18. Servicing - The user should not attempt to service the appliance

beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National Electric Code

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

(NEC SECTION 810-20)

TABLE OF CONTENTS

Getting Started

Welcome/Product Registration ...................2

Safety/Precautions .....................................................3

Table of Contents.......................................................4

Features, Model and Cabinet Information.................5

On-Screen Features

PICTURE MENU

✧Adjusting Color, Brightness, Sharpness,

Tint, and Picture Controls...................................6

✧Using the Clearview Control...............................7

✧Adjusting the TV's Convergence Control...........8

✧Using the Flesh Correction Control ....................9

FEATURES MENU

✧Selecting a Picture Source ................................10

✧Setting the TV for Closed Captioning...............11

✧Setting the TV for Cable or Antenna Signals....12

✧Adding Channels in Memory (Automatically) .13

✧Adding Channels in Memory (Manually).........14

✧Setting the TV Clock.........................................15

✧Alarm Timer......................................................16

✧Using the Sleep Timer Control .........................17

✧Adjusting the Channel Display Control............18

✧Using the Time/Channel Reminder Control......18

✧Using Parental Control/Content Advisory:

• Code Setup/Blocking Channels...............19-20

• Content Advisory - Movie Ratings .........21-22

• Parental Guidelines.......................................23

• Blocking Options/Review Settings...............24

✧Using the Channel Label Control......................25

✧Using the Language Selection Control..............26

SOUND MENU

✧Adjusting Bass, Treble, and Balance Sound

Controls.............................................................27

✧Setting the Bass Boost Control ........................27

✧Setting the TV for Stereo and SAP Programs ..28

✧Using the Incredible Stereo Control .................29

✧Using the Volume Display Control...................30

✧Using the TV Speaker On/Off Control with

the Audio Output jacks .....................................31

✧Surround Sound Speaker Connections and

Variable Audio Output Control ........................32

✧Using the TV's Audio/Video Input and

Output Jacks ...............................................33-37

Remote Control Operation

Setting the Auto Picture Control ...........38-39

Using the Auto Sound Control....................40

Using the Auto Surf Control....................................41

Setting the TV Remote to Work Optional Accessory Devices:

Direct Entry/Code Number Method ..............42-43

Search and Identify Method ................................44

Remote Control Direct Entry Code Lists ......45-46

Using the Remote's VCR buttons ............................47

Picture-In-Picture (PIP)

How to Use PIP (Connections).............48-49

How to Use PIP with the TV Remote......................50

Selecting the Picture Source for PIP........................51

Adjusting Picture-in-Picture Color and Tint............52

More PIP Connections (Cable Converter)...............53

General Information

TV Help Menu...........................................54

Tips if Something Isn’t Working.............................55

Glossary of TV Terms .............................................56

Index ........................................................................57

Warranty ..................................................................58

Use the simple Set-Up Guide (supplied with your TV information packet) for details on:

• Antenna Hook-ups

• First Time Set-Up (Automatic Settings)

• Basic TV and Remote Control Operation

• On-Screen Menu Use

SET-UP AND QUICK USE GUIDE

12 1

2 3

4 5 6

BEGIN

STOP

VOL

STATUS/EXIT

NOTE: This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with your television set. This is normal and does not require you contacting your dealer or requesting service.

Because of continuous product improvements, the information mentioned in the documents accompanying your product are subject to change without notice.

SET-U

A typical ANT(enna)

A and B connection (using a

common signal source and an optional Signal Splitter):

If your Antenna or Cable TV signal has a round cableconnector(75 ohm) on the end,

then you're ready to connect it to the 75ohm Signal Splitter.

If your antenna has flat twinlead wire (300 ohm),you first

need to attach the antenna wires to the screws on a 300 to 75 ohm adapter before connecting to the 75ohm Signal Splitter.

Round Cable 75ΩOhm

Getting Started

Warning/Precautions..................................1

Hooking Up Your TV.................................1

How to Use the First Time Set-Up Control ..............2

Basic TV and Remote Control Operation.................3

How to Use the On-Screen Menu Controls...............4

WARNING:TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS UNIT TO RAIN OR EXCESSIVE MOISTURE.

Connect your Antenna or

Cable TV signal to the single

75 ohm input plug on the twoway Signal Splitter (optional). Then connect two lengths of RF Coaxial Cable to the two Output plugs on the two-way Signal Splitter (F-type connector on both ends).

Combination VHF/UHF Antenna

300 to 75ΩAdapter (483521827003)

Twin Lead

Wire

- Outdoor or Indoor Antenna -

receives normal broadcast channels

2-13 (VHF) and 14-69 (UHF).

P ANDQUICKUSEGUIDE

TABLEOF CONTENTS

• For details on product registration, warranty, and service refer to the other literature included

with your TV information packet. Please retain all these materials and keep them handy for future reference.

NOTE:This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with your television set. This is normal and does not require you contacting your dealer or requesting service.

Connect the twin Output

plugs on the Signal Splitter to

the ANT A and ANT B inputs on the rear of the TV. Push the round connector end of the RF Coaxial Cable onto the ANT(enna) plug and screw it down tight (if using threaded cables).

Back of TV

REAR SURROUND SPEAKERS

–

SUBWOOFER

S-VIDEO

FIXED

VIDEO

VIDEO OUT

VAR

AUDIO

PIP

L R

AUX 1AUX 2

AUDIO OUT

INPUTS

PIP

ANT A/CABLE

ANT B/CABLE

75 V UHF/VHF

SMART HELP

Remember, be sure to set the TV for the type signal you've connected (see "SETUP" on page 2 of this Guide.) Your TV can set itself to select only the channel numbers on your Cable system (see “Setup" page 2). If you use a Cable Converter box, set the TV to the same channel as the converter's CH 3/4 switch (on the rear of the converter.) To order any optional accessory contact your dealer or call the toll-free accessory ordering

ANTENNAOR

CABLETV

ANT(ENNA) A & B INPUTS

our TV has two sepa-

rate ANT(enna)/Cable

inputs on the rear of the

set. These two signal inputs offer convenient hook-up options for both normal TV program viewing and Picture-In-Picture (PIP) features.

The ANT(enna) A input is intendedfor use and view-

ing on the TV’s main screen. Your home’s primary Antenna,or Cable TV signal,should be connected to this input for normal TV setup,use and feature operation.

The ANT(enna) B input is a second,or auxiliary sig-

nal source,designed to

Projection Television and Remote Control

First Time Set Up - automatically sets the TV for local channels, the correct picture signal (antenna or cable), and assists in the setting of TV’s Guide Plus+ feature.

Infrared Remote Control - operates your TV set and a variety of wireless remote control VCRs, Cable TV Converters, and other accessory equipment.

Standard TV broadcast (VHF/UHF) or Cable TV (CATV) channel capability.

Closed Captioning - allows the viewer to read TV

program dialogue or voice conversations as on-screen text.

Automatic Programming of channels - for quick and easy selection of favorite stations available in your area.

Picture-In-Picture (PIP) - can show a TV program and the direct video output from an accessory (VCR, etc.) onto the TV screen at the same time.

Parental Control for “Censoring” - this feature can block out channels to keep children from watching undesirable programming. Parental Guideline and Movie Rating settings can also be used as part of the new Content Advisory Data system available with TV programming.

Stereo-TV - with a built-in audio amplifier and a twin speaker system, reception of TV programs in both broadcast stereo sound or (SAP) bilingual broadcast are available.

Twin Antenna (A/B) Inputs - for easy displaying of two separate signal sources on the TV. An A/B button on the remote control switches the TV’s Main screen between the two Antenna (A & B) Input options.

Audio/Video Jacks - for direct connections with VCRs (and other accessories) for quality TV picture and sound playback.Component Video Input connectors are also available for high fidelity color and picture resolution when using digital video source material, such as DVD.

Surround Sound - this TV set contains external; audio speaker connections for a more dynamic sound effect.

Sleep-Timer - automatically turns the TV OFF at preset time intervals.

Auto Button - for the control of TV Sound and the Picture levels. Use the Auto Button on the remote to quickly adjust Auto Sound (to select various audio modes matched to specific types of TV programming); Auto Picture (for programmed video level adjustments on a variety of program sources); and Auto Surf (for quick one button channel selection of up to 10 of your favorite channels).

FEATURES

As you unpack your TV please note that the following items have been included with your set:

• Owner's Manual

- Safety Tip Information

- Factory Service Center Locations

• Warranty Registration Card

• Remote Control Transmitter

• Batteries for Remote Control Use Please take a few minutes to complete your

registration card. The serial number for the TV is on the back of the set.

Refer to the back of this manual for instructions on the cleaning and care of the TV.

End-of-Life disposal

Your new projection television and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts which need to be properly disposed.

Your product also uses batteries which should not be thrown away when depleted, but should be handed in and disposed of as small chemical waste.

Please find out about the local regulations on how to dispose of your old television, batteries, and packaging materials whenever you replace existing equipment.

Digital Ready - Projection Television capable of connecting to both the current analog television signals of today as well as interfacing with new upcoming digital source playback products and devices. This TV includes multiple signal connectors (Component Video, S-Video, Composite Video) which give you a variety of equipment playback options for digital set top boxes, satellite receivers, cable boxes, and other digital devices.

While there may exist some digital devices with connections not available on this television, you should be adequately prepared for the vast majority of products coming onto the digital consumer electronics’ market. Note: You should always use the connection output on digital devices that gives the highest level of picture quality possible. As listed above the Component Video (or Y P

B PR) input

delivers the best color and picture reproduction; followed by S-Video; and then Composite Video. In addition to the above listed inputs, your television also includes the standard 75ohm cable signal connector for use with antennas or analog cable boxes.

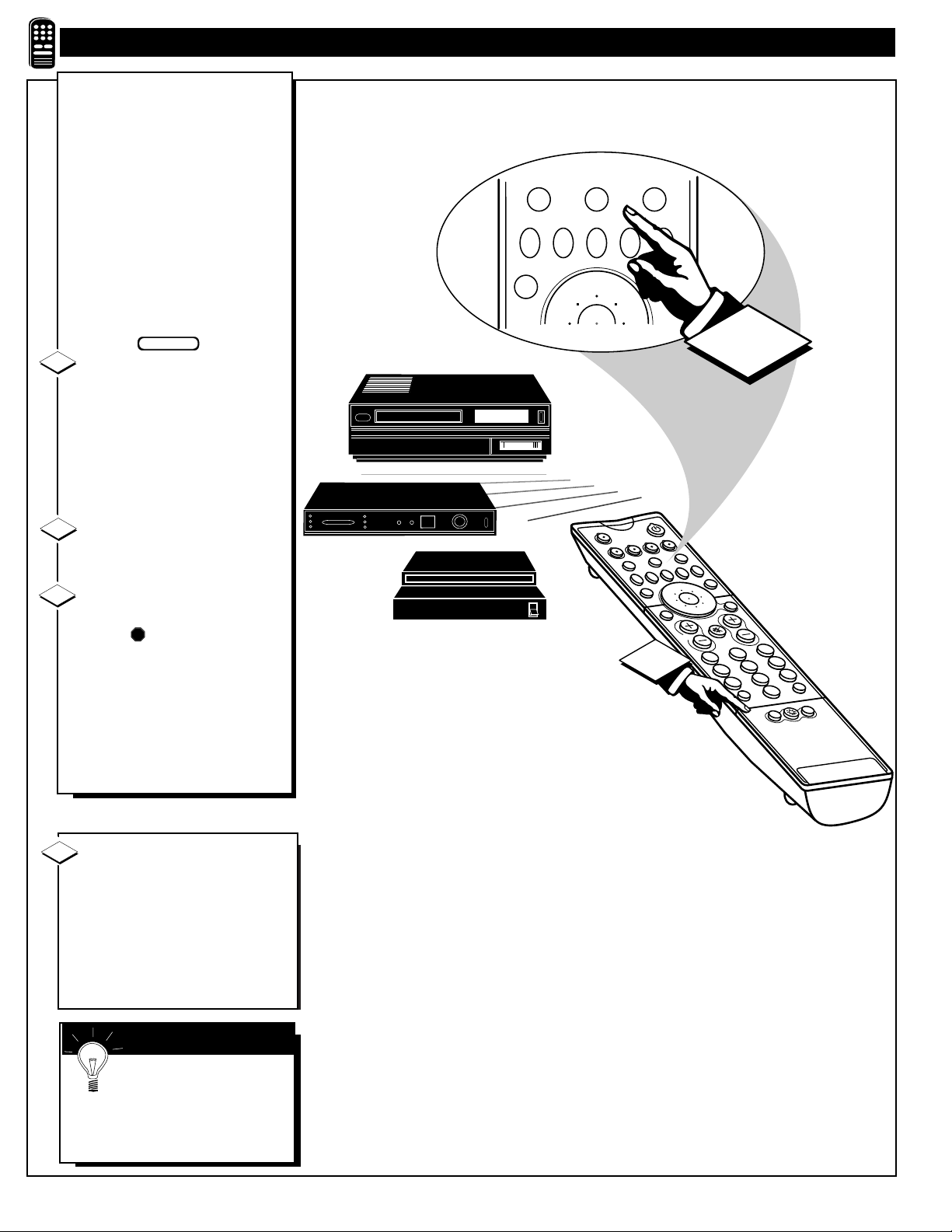

PICTURE MENU CONTROL ADJUSTMENTS

COLOR, BRIGHTNESS,

SHARPNESS, TINT, PICTURE

STOP

o adjust your TV color and

picture controls, select a TV channel and follow the steps shown below:

Select BRIGHTNESS, PICTURE, COLOR, TINT, or SHARPNESS picture control.

With the PICTURE MENU on screen, move the RED highlight with the outer MENU ring

buttons. Then press the center MENU button to select the feature.

Press the outer MENU ring

buttons to adjust the selected control.

Press the STATUS button to

clear the screen.

SMART HELP

Remember. When the bar

scale is centered, control settings are at normal mid-range levels.

BRIGHTNESS Press (-) or (+) until dark parts of the picture show good detail.

PICTURE Press (-) or (+) until whitest parts of the picture are as bright as you prefer.

COLOR Press (-) or (+) to add or eliminate color.

TINT Press (-) or (+) to obtain natural skin tones. (Also see Flesh Correction on page 9 for more information).

SHARPNESS Press (-) or (+) to improve detail in the picture.

BEGIN

Select and then press MENU (M) button to view an explanation of the selected feature.

Select and then press MENU (M) button to view additional controls grouped under same feature heading. For Example: Tint, Brightness, Picture, etc.

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

SWAP PIP CH

SLEEP

VCR

POWER

ACC

SOURCE FREEZE

SOUND

HELP

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT


CLEARVIEW

MORE...

1 OF 2

AUTO

STATUS/

EXIT

MENU/

SELECT

VOL

MUTE

100+

POSITION

213 546 879

SURF

PIP

COLOR

MIN

EXIT

HELP

MAX

NEXT...

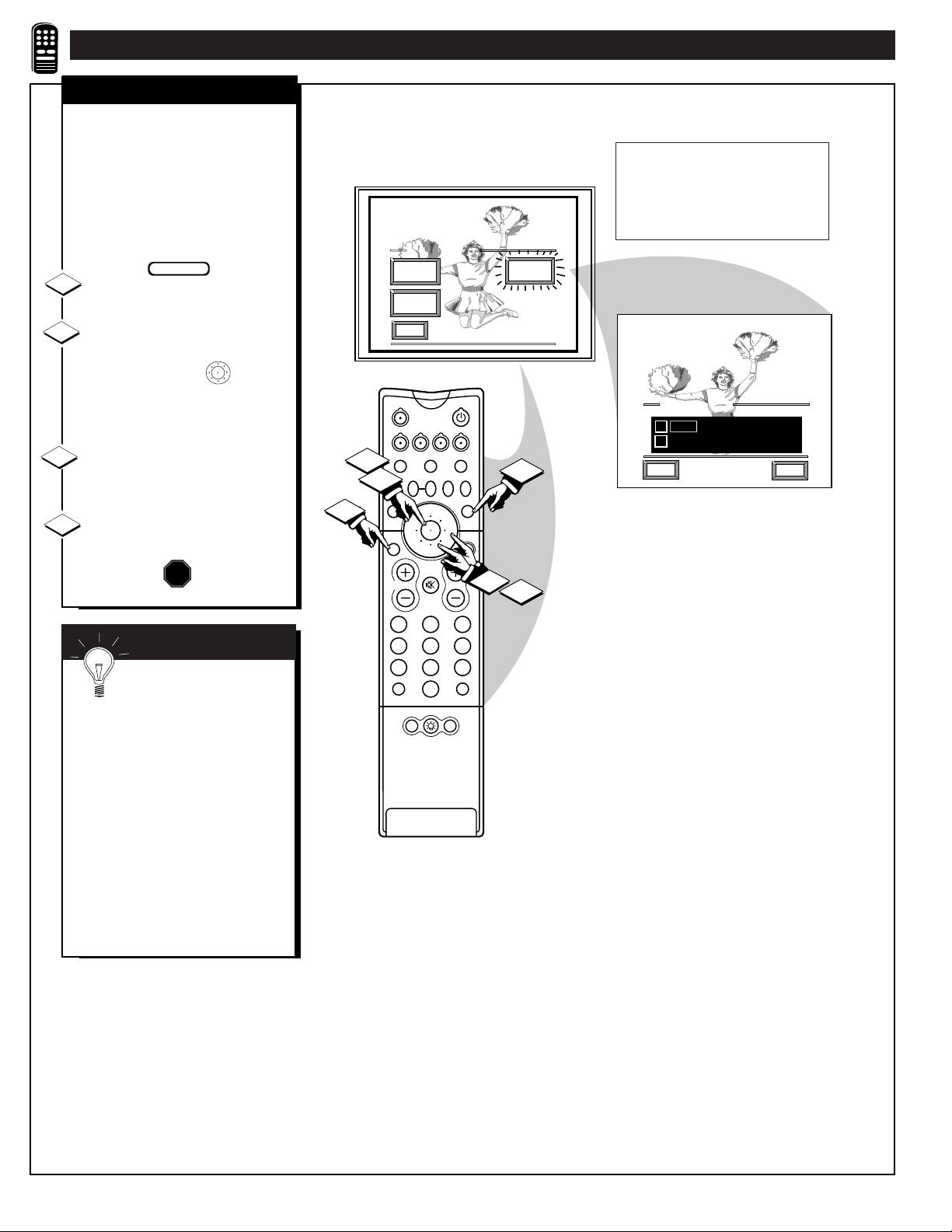

PICTURE MENU CONTROLS (CONTINUED)

learview is a sharpness feature

which smoothes out background snow (or picture noise) without losing picture image detail or crispness.

Select CLEARVIEW control.

With the PICTURE MENU on screen, move the RED highlight with the outer MENU ring

buttons. Then press the center MENU button to select the feature.

Press the outer MENU ring

buttons to move the RED highlight. Press the center MENU button to select (

U) the ENHANCED mode.

Press the STATUS button to

clear the screen.

CLEARVIEW

STOP

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

POWER

INFO

ACC

VCR

MUTE

213 546 879

SURF

AUTO

MENU/

SELECT

SOUND

HELP

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT

CLEARVIEW

EXIT

NORMAL

ENHANCED

HELP


CLEARVIEW

MORE...

1 OF 2

NEXT...

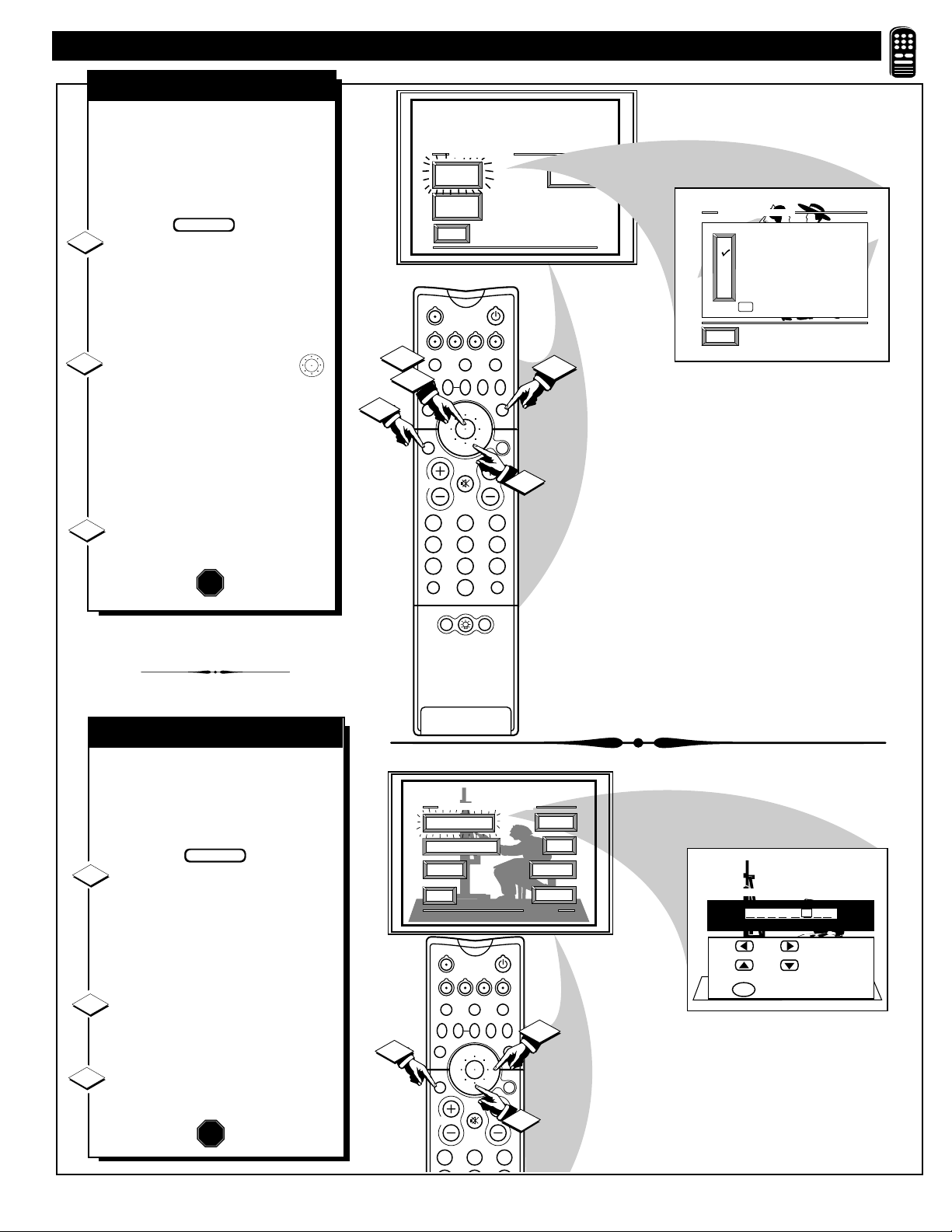

PICTURE MENU CONTROLS (CONTINUED)

RED/BLUE CONVERGENCE

onvergence is the correct

lining up of the red and blue light paths on the TV screen. NOTE: If no color fringing (see Smart Help) shows, then no Convergence adjustments are necessary for your TV.

Select CONVERGENCE

control. With PICTURE MENU (2 of 2) on

screen, move the RED highlight with the outer MENU ring

buttons. Then press the center MENU button to select the feature.

If there is RED or BLUE color

fringing on the White cross, press the center MENU button to continue.

Press the MENU ring

buttons to move the red or blue

cross directly over the white cross on the TV screen.

The red or blue cross is properly adjusted when it is completely merged with the white cross. (No color appears around the edge of the white cross).

Press the STATUS button to

clear the screen when convergence adjustments are complete.

STOP

SMART HELP

Remember. Convergence

has been set at the factory for

best viewing, but if one or more of the (red or blue) colors appear around the edges of objects (color fringing) follow the steps given in this section.

BEGIN

NOTE: Adjustments for “Multi-Point” onscreen color fringing can also be made as part of the TV’s Convergence control system. Follow the TV’s on-screen menu directions to select individual screen areas that can be readjusted and set for varying red/blue color fringing conditions. These multi-point settings can then be “Saved” to memory for the specific areas of the TV screen (or Factory Settings for convergence can be recalled and put back into place for use).

Press "M" to Adjust or Press "STATUS" to Continue

Use the keys to adjust

Press "M" to Save Press " " to Undo

Press " " to

recall Factory Settings

MULTI-POINT CONVERGENCE

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

ACC

SURF

AUTO

MENU/ SELECT

SOUND

HELP

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT

PICTURE MENU

CONVERGENCE

FLESH CORRECTION

EXIT


CLEARVIEW

MORE...

1 OF 2

MORE...

2 OF 2

If there is RED or BLUE

fringe on the WHITE cross,

use this adjustment to

improve the picture.

Press "M" to Continue

- or -

Press " " to Return

Use the keys to merge the

RED fringe into the WHITE

cross. Press "M" to Continue.

se the Flesh Correction

control to keep skin tone hues (or facial tint) from varying from TV channel to TV channel.

Select FLESH

CORRECTION control.

With PICTURE MENU (2 of 2) on screen, move the RED highlight with the outer MENU ring

buttons. Then press the center MENU button to select the feature.

Press the MENU ring

buttons to move the RED

highlight. Press the center MENU button to turn (

U) the FLESH

CORRECTION control ON.

Press the STATUS button to

clear the screen.

FLESH CORRECTION

STOP

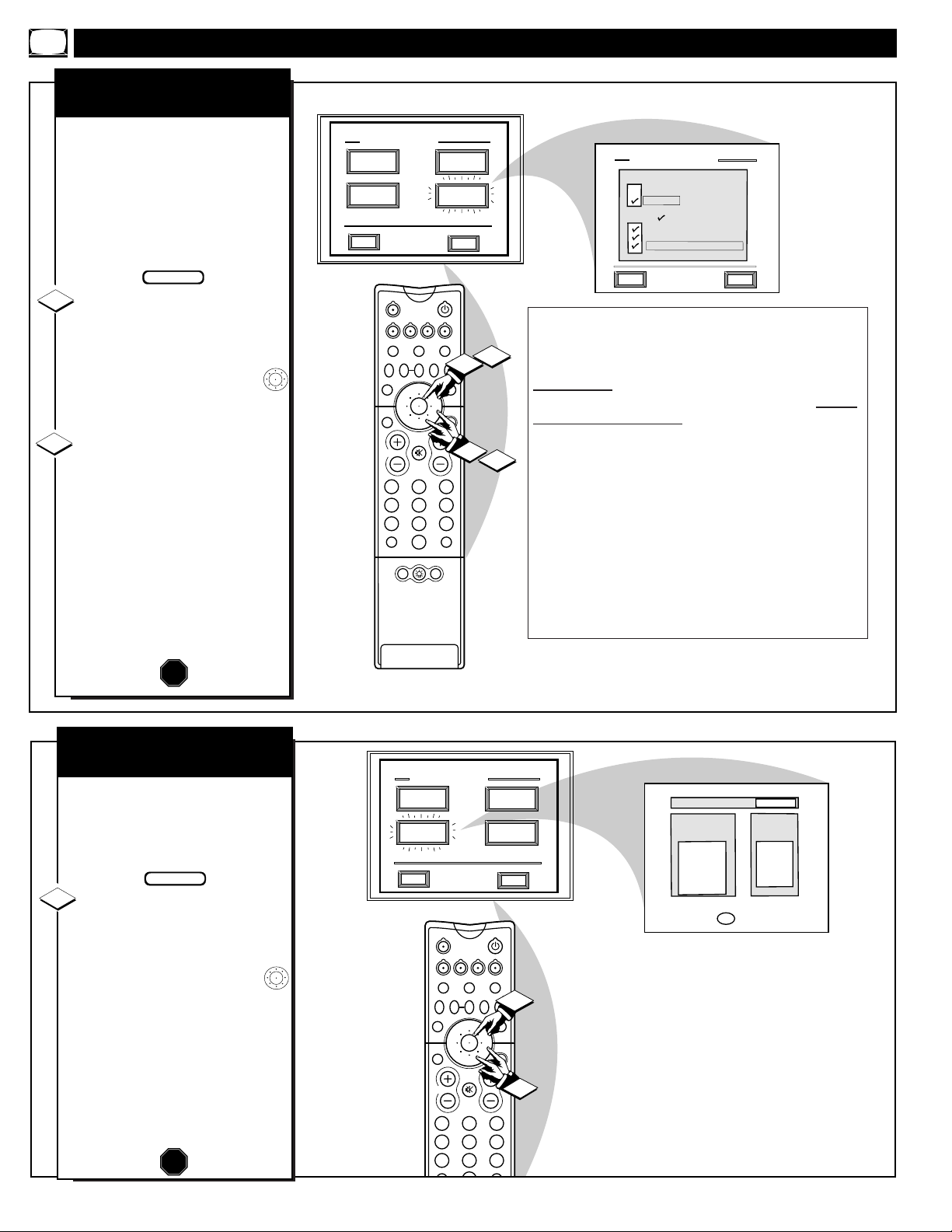

PICTURE MENU CONTROLS (CONTINUED)

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

SOUND

HELP

EXIT

ACC

AUTO

SELECT

SURF

MENU/

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT

PICTURE MENU

CONVERGENCE

FLESH CORRECTION

EXIT

FLESH CORRECTION

OFF


CLEARVIEW

MORE...

1 OF 2

MORE...

2 OF 2

EXIT

HELP

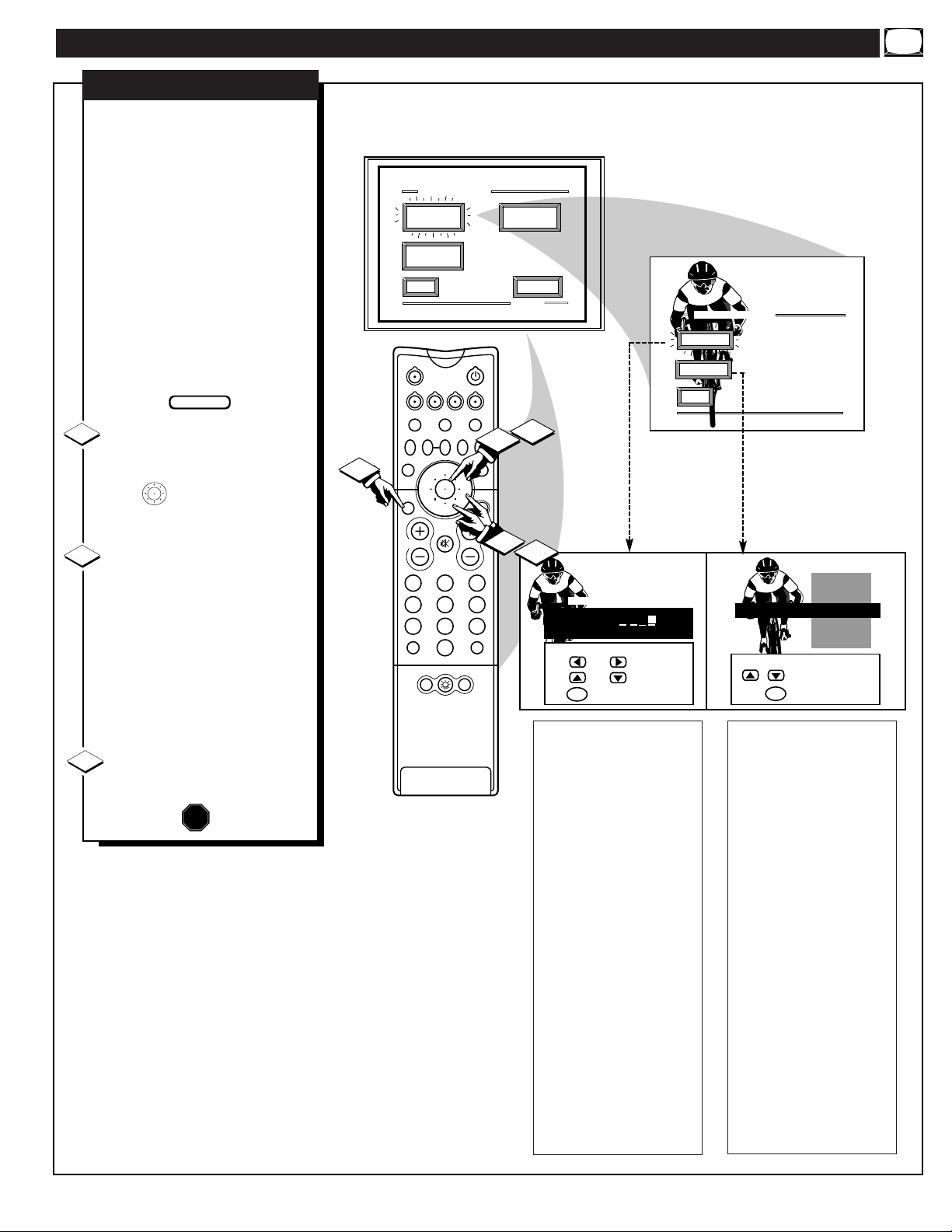

FEATURE MENU CONTROL ADJUSTMENTS

PICTURE SOURCE

he picture for the TV can come

through either the ANTENNA plug or the AUDIO/VIDEO INput jacks (on the rear of the TV). The Picture Source control simply tells the TV which one of these picture sources it is to show on the TV screen.

Select PICTURE SOURCE

SELECT control.

With the FEATURES MENU on screen, move the RED highlight with the outer MENU ring buttons. Then press the center

MENU button to select the feature.

Press the MENU ring

buttons to move the RED

highlight. Press the center MENU button to turn the desired PICTURE SOURCE control ON (U).

ANT A or B- for a picture signal coming from either the ANT(enna) A or B Input plugs on the TV.

AUX 1 (or 2) VIDEO- for a picture signal coming from the AUX 1 (or 2) Video Input jacks on the rear of the TV.

AUX 1 Y PB PR- for picture signals coming from the AUX 1 component (Y PB PR) luminance and color input jacks on the rear of the TV.

SIDE VIDEO- for a picture signal coming from the Video Input jack on the right side panel of the TV.

Press the STATUS button to

clear the screen.

STOP

Note: A “S-VIDEO 1 (or 2)” Input control will appear as a PICTURE SOURCE SELECT(ion) in place of the AUX 1 (or 2) VIDEO position when the S-VIDEO plugs (on the rear of the TV) are connected. See page 35 for operating details on S-VIDEO.

SMART HELP

Remember, the Auxiliary

Input modes (AUX 1 VIDEO, AUX 1 Y PB PR, etc.) must have a compatible video signal source properly connected (to the INPUT plug on the rear of the TV), or the TV screen will be blank.

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

POWER

INFO

VCR

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

SOUND

HELP

EXIT

ACC

MENU/

AUTO

SELECT

SURF

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

PICTURE SOURCE SELECT

ANT A ANT B AUX 1 VIDEO AUX 1 Y P AUX 2 VIDEO SIDE VIDEO

EXIT

B PR

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

HELP

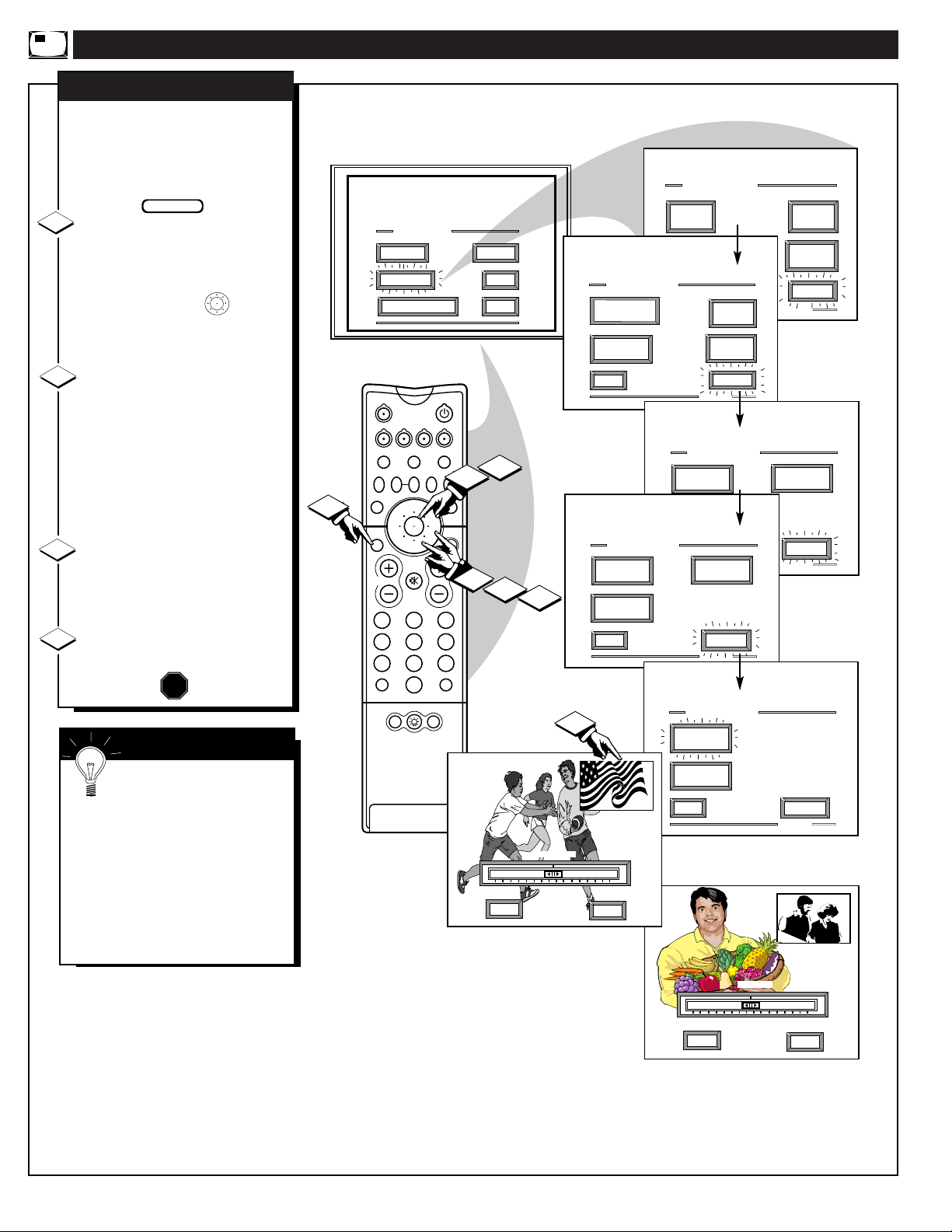

losed Captioning (CC) allows

you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired this feature uses on-screen "text boxes" to show dialogue and conversations while the TV program is in progress.

Select CLOSED

CAPTIONING control.

With the FEATURES MENU on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring

buttons to move the RED highlight.

Press the center MENU button to select (U) the desired Closed Caption mode - For Example: "ALWAYS ON" and "CAPTION 1".

CAPTION 1, 2, 3, 4:

dialogue (and descriptions) for the action on the captioned TV program shows on-screen. (See Important Note on this page.)

TEXT 1, 2, 3, 4:

often used for channel guide, schedules, or bulletin board information for CC programs.

After making your Caption mode

selection, press the STATUS button to clear the TV screen. The selected Closed Caption mode will be active.

To cancel, set the Closed Captioned feature to OFF when finished.

STOP

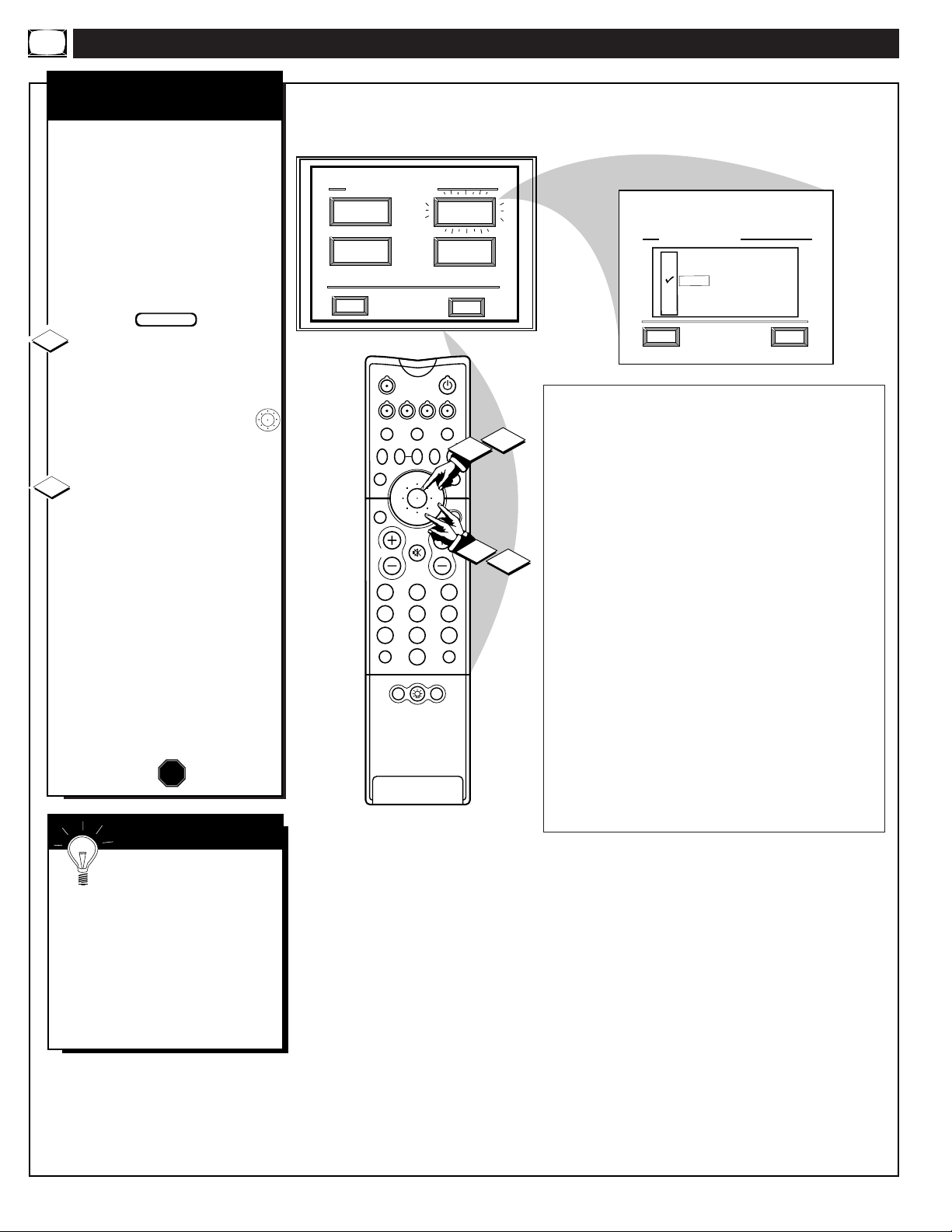

FEATURE MENU CONTROLS (CONTINUED)

NOTE: Not all TV programs and product commercials are made for broadcast

with Closed Caption (CC) information included. Neither are all Closed Caption modes (CAPTION 1-4; or TEXT 1-4) necessarily being used by a broadcast station during the transmission of a closed caption program. Usually "CAPTION 1" is the most used mode to view captioned material. Refer to your area's TV program listings for the stations and times of Closed Caption shows.

CAPTION 1 mode

Example Screen Display

FULL SCREEN TEXT

will block TV screen from viewing

Closed Caption information will usually appear in black and white (although some broadcasters or networks may occasionally use color to highlight or draw attention to certain areas.)

CLOSED CAPTION

NOTE: The ON DURING MUTE ONLY control can be

used to set the TV to turn the Closed Caption mode "ON" whenever the MUTE button on the remote is pressed.

SMART HELP

Remember. Broadcast

stations will often use spelling abbreviations, symbols, dropouts and other grammatical shortcuts in order to keep pace with the on-screen action. These type factors vary upon the source of the captioned text material and do not indicate a need for service on the part of the TV.

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

SOUND

HELP

EXIT

POWER

ACC

AUTO

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MENU/ SELECT

MUTE

213 546 879 0

SURF

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

CLOSED CAPTION

ALWAYS ON ALWAYS OFF ON DURING MUTE ONLY

CAPTION 1 CAPTION 2 CAPTION 3 CAPTION 4

EXIT

JOHN: Why did they move the meeting up to this week? MARSHA: I don't know, but they are pushing to close the deal.

CABLE

TUNING

CHANNEL MEMORY

MORE...

1 OF 5

TEXT 1 TEXT 2 TEXT 3 TEXT 4

HELP

CLOSE CAPTION PROGRAMS ON WXYZ

ALL ITEMS ARE EASTERN STANDARD TIME (EST)

CHECK LOCAL LISTINGS

FOR TIMES IN YOUR AREA

6:00 TOP OF THE MORNING 10:00 THE BEST LITTLE CALL-IN SHOW EVER 12:00 NOONDAY NEWS

1:30 AS YOUR LIFE TURNS MY WORLD AROUND

6:00 WORLD NEWS FOR TODAY 9:00 PLAYHOUSE MOVIE OF THE WEEK

FEATURE MENU CONTROLS (CONTINUED)

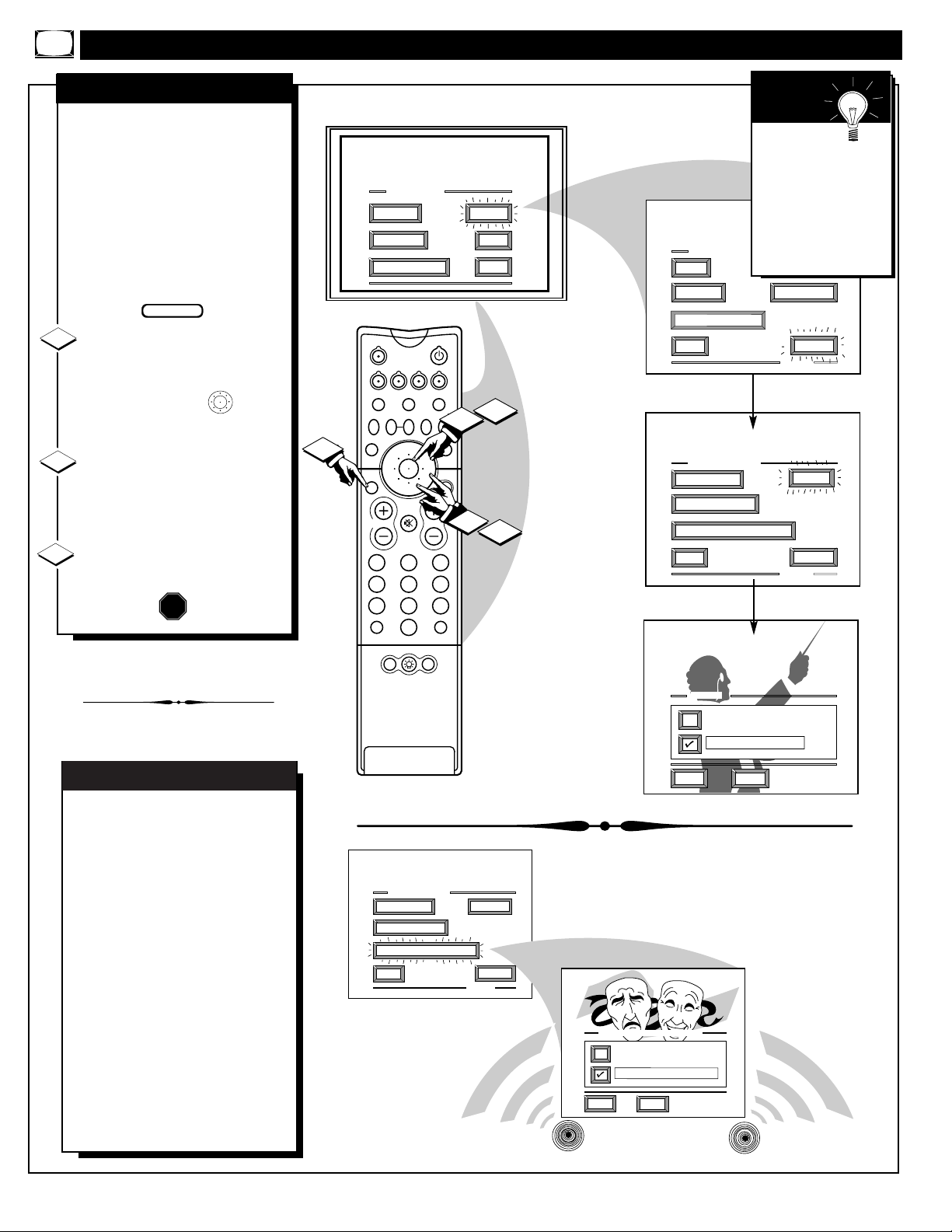

ou need to make sure the TV is

set to pick up either Cable TV or Antenna signals. In other words, the TV needs to know if you connected a Cable TV signal or a normal antenna to its ANTENNA plug.

NOTE: If you went through First Time Setup (in your Quick Use Guide), this task has already been completed for you.

Select CABLE CHANNEL

TUNING control.

With the FEATURES MENU on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring

buttons

to move the RED highlight. Press the center MENU button to select (U) the desired mode - For Example: CABLE.

CABLE- If you DO have

Cable TV

connected to the TV. Channels 1-125 available.

NORMAL- If you have an

Antenna connected

to the TV. Channels 2-69 available.

Press the STATUS button to

clear the screen.

CABLE TUNING

STOP

Note: Both ANT(enna) A and ANT B inputs on the rear of the TV can be set for the correct connected signal (either an Antenna or Cable TV source).

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

POWER

INFO

VCR

SOUND

HELP

EXIT

ACC

AUTO

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MENU/

SELECT

MUTE

213 546 879 0

SURF

CABLE TUNING

CABLE ANT A

EXIT

NORMAL ANT A CABLE ANT B NORMAL ANT B

HELP

our TV can automatically set itself

for local area (or Cable TV) channels. This makes it easy for you to select only the TV stations in your area when the CHANNEL

▲▼

buttons are pressed. NOTE: If you went through First

Time Setup (in your Quick Use Guide), this task has already been completed for you.

Select CHANNEL MEMORY

(START AUTO-PROGRAMMING)

control. With the FEATURES MENU on

screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the center MENU button to

turn AUTO-PROGRAMMING ON .

The TV shows which channel numbers are "SAVED" (U) as they are added into memory.

"Auto-programming CHANNEL MEMORY is finished" shows when the TV is through adding channels.

Press the STATUS or Menu

button to clear the screen.

CHANNEL MEMORY

AUTO-PROGRAMMING

STOP

FEATURE MENU CONTROLS (CONTINUED)

U Channel Numbers are Saved in Memory

SMART HELP

Try it out. Press the

CHANNEL▲▼ buttons

and see which channels you can select.

Remember, an Antenna or Cable TV signal must first be connected to your TV so that channels can be saved.

If you want to delete any unwanted channels from the TV's memory, see "ADD/DELETE CHANNELS" on the next page.

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

SOUND

HELP

EXIT

ACC

AUTO

MENU/ SELECT

SURF

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

CHANNEL MEMORY

ADD/DELETE CHANNELS

START AUTO-PROGRAMMING

EXIT

AUTO-PROGRAMMING CHANNEL

MEMORY FOR ANT A

1 2 3 4 5 6 7 8 9 1O 11 12

13 14 15 16 17 18 19 20 21 22 23 24

Press "M" to

Stop Auto-Program

CABLE TUNING

CHANNEL MEMORY

MORE...

1 OF 5

HELP

FEATURE MENU CONTROLS (CONTINUED)

uto-Programming (see

previous page) adds all the channels it can find (on your Antenna or Cable TV system) into the TV's memory. Add/Delete Channels makes it easy for you to add other channels, or drop unwanted channels, from the list of channels in the TV's memory.

Select CHANNEL MEMORY

(ADD/DELETE CHANNELS)

control. With the FEATURES MENU on

screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the CHANNEL ▲▼ or

number buttons to select the

channel you want to add or delete.

Press the outer MENU

ring button (on the Right) to

ADD the channel into the TV's memory.

Press the outer MENU ring button (on the Left) to DELETE the channel from memory.

Repeat steps 2 and 3 for each channel you wish to add or delete.

Press the STATUS or MENU

button to clear the screen when through.

ADD/DELETE CHANNELS

STOP

SMART HELP

Remember. You can also

add the Auxiliary modes (AUX 1 VIDEO, AUX 1 Y PB PR, etc.) just like a channel. Then by pressing the CHANNEL ▲▼

buttons the AUX(iliary) mode can quickly be selected to use the desired set of Input jacks (see page 33).

Note: AUX(iliary) VIDEO modes are located between the lowest and highest channel numbers within the ADD/DELETE CHANNEL control screen.

BEGIN

NOTE: A separate ADD/DELETE CHANNEL memory may also be created for the ANT(enna) B Input on the rear of the set (if an Antenna or Cable TV signal has been connected). Press the “AV” button on the remote, while in the ADD/DELETE CHANNEL mode, to switch between the ANT A and ANT B channel memory lists. Then follow steps 2 and 3 as shown to the left to add or delete the desired channels.

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

ACC

SOUND

HELP

EXIT

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

AUTO

MENU/

SELECT

CHANNEL MEMORY

ADD/DELETE CHANNELS

START AUTO-PROGRAMMING

EXIT

HELP

SURF

ADD/DELETE CHANNEL

Channel 19 Added for ANT A

SELECT CHANNEL to DELETE CHANNEL

for ANT B

when FINISHED

FEATURE MENU CONTROLS (CONTINUED)

SET CLOCK

our TV comes with an on-

screen clock. During normal operation the clock appears on the screen with every channel change (and when the STATUS button is pressed).

Select SET CLOCK control.

With the FEATURES MENU (2 of

5) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the remote's number

buttons to set the time clock.

Press the STATUS button to

set the clock in operation and clear the screen.

STOP

Remember, be sure to

press "0" first and then the hour number for single digit entries.

The remote's MENU ring buttons can also be used to set the hours, minutes and AM/PM portions of the clock.

TV Clock settings may be lost when the TV is unplugged (or AC power to the set is interrupted).

SMART HELP

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

SOUND

HELP

EXIT

POWER

ACC

AUTO

STATUS/

EXIT

MENU/ SELECT

FEATURE MENU


SOURCE

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR

REMINDER

EXIT

CABLE TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

2 OF 5

SLEEP TIMER

CHANNEL

DISPLAY

MORE...

VOL

MUTE

100+

POSITIONDNPIP

213 546 879

SURF

SET CLOCK/ALARM TIMER

SET CLOCK

SET ALARM TIMER

EXIT

SET CLOCK

9 : 19 AM

PLEASE ENTER THE

CURRENT HOUR

ust like an alarm clock you can set the TV to turn itself on at the

same time everyday.

Select SET ALARM TIMER

control. With the FEATURES MENU (2 of

5) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the outer MENU ring

and center MENU buttons to

highlight and select "ON" (U).

Press the outer MENU ring

and center MENU buttons to

select "SET ALARM TIME".

Press the remote's number

buttons to set the "TURN ON"

time for the TV. (Press the MENU ring buttons for the AM or PM

settings.)

Press the STATUS button to

set the "ALARM TIME" and clear the screen.

SET ALARM TIMER

STOP

FEATURE MENU CONTROLS (CONTINUED)

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

SOUND

HELP

EXIT

FEATURE MENU


SOURCE

CLOSED

CAPTIONS

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

POWER

INFO

ACC

VCR

AUTO

MENU/ SELECT

MUTE

213 546 879 0

SURF

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR

REMINDER

EXIT

SET CLOCK/ALARM TIMER

SET CLOCK

SET ALARM TIMER

SLEEP

TIMER

CHANNEL

DISPLAY

MORE...

2 OF 5

EXIT

SET ALARM TIMER

ON OFF

SET ALARM TIME

EXIT

SET ALARM TIME

7 : 30 AM

PLEASE ENTER THE

HOUR TO TURN ON

HELP

FEATURE MENU CONTROLS (CONTINUED)

ave you ever fallen asleep in

front of the TV only to have it wake you up at two in the morning with a test pattern screeching in your ears? Well, your TV can save you all that trouble by automatically turning itself off.

Press the SLEEP button on the

remote control. Note: you can also select the

SLEEP control with the TV’s onscreen FEATURES MENU (2 of 5). Move the RED highlight with the outer MENU ring buttons.

Then press the center MENU button to select the feature.

ress the SLEEP button

repeatedly to pick the amount of time (15 minutes to 2 hours ahead) before the TV will turn itself off.

The Menu ring buttons can also be used to set the amount of time.

Press the STATUS or MENU

button to clear the screen after you have set the time for the TV to turn off.

STOP

Remember, to see how

many minutes are left before the TV shuts itself off, reselect the SLEEP TIMER control screen.

To stop a SLEEP TIMER setting, reset the timer back to OFF. (Turning the TV off and on, or pressing a button during the last minute of a timer setting, will also cancel a setting.)

A few seconds before the TV is to shut off a message will come on the screen telling you GOOD NIGHT.

SMART HELP

BEGIN

SLEEP TIMER

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

SOUND

HELP

EXIT

POWER

ACC

AUTO

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MENU/ SELECT

MUTE

213 546 879

SURF

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR

REMINDER

EXIT

SET SLEEP TIMER

1 : 15

CABLE

TUNING

CHANNEL MEMORY

MORE...

1 OF 5

CHANNEL

DISPLAY

MORE...

2 OF 5

SLEEP TIMER

to CHANGE

when FINISHED

ith the Half Hour Reminder

control the TV automatically shows you the current time and channel every thirty minutes.

Select HALF HOUR

REMINDER control.

With the FEATURES MENU (2 of 5) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU

buttons to highlight and select (U) the EVERY HALF HOUR item.

Press the STATUS button to

clear the screen.

HALF HOUR REMINDER

STOP

FEATURE MENU CONTROLS (CONTINUED)

ith the Channel Display

control you can change the size and location of the on screen channel and clock information.

Select CHANNEL DISPLAY

control. With the FEATURES MENU (2

of 5) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU

buttons to highlight and select (U) the LARGE or SMALL display control.

Press the STATUS button to

clear the screen.

CHANNEL DISPLAY

STOP

Remember. The Time and Channel Reminders will show on the hour and the halfhour for about five seconds.

SMART

HELP

Try it out.

Press the

CHANNEL ▲▼ buttons and you

should see the Display Size you selected.

Remember. The SMALL SIZE display shows only the channel number, not the time (or clock).

SMART

HELP

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

FEATURE MENU


SOUND

HELP

EXIT

ACC

AUTO

MENU/ SELECT

SURF

SOURCE

CLOSED

CAPTION

EXIT

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR

REMINDER

EXIT

CHANNEL DISPLAY

LARGE

SMALL - Channel/Label

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

CHANNEL

DISPLAY

MORE...

2 OF 5

SLEEP TIMER

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

EXIT

HELP

SOUND

HELP

EXIT

ACC

AUTO

MENU/

SELECT

SURF

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR

REMINDER

EXIT

HALF HOUR REMINDER

OFF

EVERY HALF HOUR

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

CHANNEL

DISPLAY

MORE...

2 OF 5

SLEEP TIMER

EXIT

HELP

FEATURE MENU CONTROLS (CONTINUED)

arental Control allows parents

to block out, or "censor", any channels they think children should not watch. A channel placed under Parental Control cannot be viewed until a correct access code is used to unlock the channel for viewing.

First let's set your Parental Code:

Select the PARENTAL

CONTROL.

With the FEATURES MENU (3 of

5) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

"CHANNEL BLOCKING" and "SETUP CODE" show on screen.

Press the MENU ring and center

MENU buttons to highlight and

select the SETUP CODE item.

Press 0, 7, 1, 1 on the remote.

"XXXX" shows on the ACCESS

CODE SETUP screen as you press the number buttons.

"INCORRECT ACCESS CODE TRY AGAIN" will also show on the screen.

Press 0, 7, 1, 1 on the remote

again.

"Next Enter Your New Access Code" shows on the screen.

Enter a new four digit number

code using the remote.

"Access Code Changed" shows on

the screen to let you know the new code has been set.

Continue to the next page to find out how to "BLOCK" channels from viewing.

SMART HELP

Parents - it isn't possible

to unlock or defeat your Censor Code without changing to a new code number. So if your Code number changes, and you didn't change it yourself, then you will know that someone has altered the code and the blanked out channel has been viewed.

NOTE:Your TV left the factory with the Parental Code set to "0000". If you are using your TV and the Parental Control for the first time, and don't want to SETUP a new Access code number, you can use the "0000" number to block channels - see next page. The "0711" Parental Code (shown on this page) is given as a default or way to reset the Code when the current Access number is not known.

• Press outer MENU ring button (on the Right)

to go on and start to

"block" channels.

• Press outer MENU ring button (on the Left)

to go to "Content Advisory"

(or TV and Movie Ratings system of channel blocking).

• Press the center MENU button to return to the Parental Control Menu screen.

• Press STATUS to clear the screen.

PARENTAL CONTROL

SETUP CODE NUMBER

BEGIN

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR

REMINDER

EXIT

PARENTAL CONTROL

CONTENT

ADVISORY

CHANNEL BLOCKING

EXIT

ACCESS CODE SETUP

X X X X

INCORRECT ACCESS CODE

TRY AGAIN. If You've Forgotten Your Access Code go to SETUP CODE and see Owner's Manual.

to EXIT

2 OF 5

SETUP

CODE

MAIN MENU


FEATURES

1ST TIME SETUP

GUIDE

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

SOUND

HELP

EXIT

POWER

INFO

ACC

VCR

AUTO

MENU/ SELECT

MUTE

213 546 879 0

SURF

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

FEATURE MENU

CHANNEL

LABELS

LANGUAGE

SELECTION

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

MORE...

3 OF 5

ACCESS CODE SETUP

X X X X

First Enter Your

Current Access Code.

to EXIT

SLEEP TIMER

CHANNEL

DISPLAY

MORE...

HELP

ACCESS CODE SETUP

X X X X

Next Enter Your New Access Code.

to EXIT

ACCESS CODE SETUP

Access Code Changed.

for CHANNEL BLOCKING for CONTENT ADVISORY

to EXIT

X X X X

FEATURE MENU CONTROLS (CONTINUED)

fter your personal Parental

Code number has been set (see previous page), you are now ready to select the channels you want to block out or censor.

Select the BLOCK

CHANNELS control.

With the FEATURES MENU (3 of

5) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU

buttons to highlight and select the CHANNEL BLOCKING item.

Enter the correct Parental

Code number.

Press Channel ▲▼ or Channel

Number buttons to select the channel you want to block.

Press the outer MENU ring

button (on the right) to "BLOCK

VIEWING" on the selected channel. Press the outer MENU ring button (on the left) to "ALLOW VIEWING" on a blocked channel.

Repeat steps 3 and 4 for any other channels you wish to block out.

STOP

SMART HELP

Remember, once set

Parental Control blocks out the selected channel number on both the ANT A and ANT B channel rings. Also, to make TV viewing easier all channels (for both ANT A/B and Audio/Video Input jacks) will be unblocked, once the correct Parental Code number has been entered. When the TV is turned OFF and then back ON again, is when Parental Control is back in place for all blocked out channels.

Note: You can also block out the use of the Audio/Video Input jacks on the TV. This stops the viewing of VCR programs which can be shown through the A/V IN jacks. Just select AUX 1 VIDEO, AUX 2 VIDEO, etc. (located between the lowest and highest channel numbers) on the Channel Blocking screen and select "blocked".

BLOCKED CHANNEL SCREEN MESSAGE (Appears when an attempt to select a blocked channel is made and Parental Control is ON.)

PARENTAL CONTROL

CHANNEL BLOCKING

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

GUIDE

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

SOUND

HELP

EXIT

POWER

INFO

ACC

VCR

AUTO

MENU/ SELECT

MUTE

213 546 879 0

SURF

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

FEATURE MENU

CHANNEL

LABELS

LANGUAGE SELECTION

EXIT

CHANNEL BLOCKING MEMORY

X X X X

To Block or Un-Block channels First Enter your Access Code.

to EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

MORE...

3 OF 5

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR REMINDER

EXIT

PARENTAL CONTROL

CONTENT ADVISORY

CHANNEL

BLOCKING

EXIT

CHANNEL BLOCKING MEMORY

Channel 19 blocked

CHOOSE CHANNEL to ALLOW VIEWING

to EXIT

CHANNEL

DISPLAY

MORE...

2 OF 5

SETUP

CODE

SLEEP TIMER

HELP

CHANNEL 19 CHANNEL BLOCKING ACTIVE

X X X X

Please enter Access Code

-ORSelect another Channel for viewing.

FEATURE MENU CONTROLS (CONTINUED)

PARENTAL CONTROL

CONTENT ADVISORY

nother new area available to

parents for the censoring of program material is through the TV Guidelines and Movie Ratings system. Program Content Advisory data will soon be contained within the broadcast signals of received TV programs. When setup by the parent or viewer, the TV can respond to transmitted advisory data by blocking out or denying access to TV shows (based on whether the program meets or exceeds the limitations you select as viewable). The TV program can then only be viewed by entering the correct and current Parental Code Access number.

The Content Advisory system uses both “Movie Ratings” and a “Parental Guidelines” form of censoring. Refer to the following page sections for explanations on the different Rating system levels and their uses.

Select the CONTENT

ADVISORY Menu option

With PARENTAL CONTROL Menu on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

A Parental Guideline/Movie Rating status screen will appear with a review of currently BLOCKED Content Advisory categories.

Press the outer MENU ring

button (on the right) to select the

ENTER ACCESS CODE Menu item.

Enter the correct Parental

Code number (see note at the top

of this page). “CONTENT ADVISORY” Menu

screen appears. Parental Guidelines, Movie Ratings and other blocking control items are ready for selection and use.

STOP

Note: Please remember that a vailid and current Access Code number will be required in the setup and use of the TV’s “Content Advisory” system. Review the previous SETUP CODE section on how to obtain a valid Parental Access Code number before attempting to make adjustments within the Movie Ratings and Parental Guidelines system.

NOTE: In normal Content Advisory system operation the TV screen will display a message when programming is blocked by a Movie Rating, Parental Guideline, or Blocking Option control feature. Entering the correct ACCESS CODE number will unblock all the blocked Content Advisory Rated channels until the TV is turned Off. The blocked Advisory Ratings will be back in place when the TV is turned back On again.

Please enter Access Code

-ORSelect another Channel for viewing.

CHANNEL 8 BLOCKED BY CONTENT ADVISORY TV GUIDELINES TV-14 D

X X X X

BEGIN

PARENTAL CONTROL

to EXIT

X X X X

DISABLED

MOVIE RATINGS BLOCKED PG PG-13 R NC-17 X

MOVIE

RATINGS

BLOCKING

OPTIONS

HELP

CONTENT

ADVISORY

CHANNEL BLOCKING

EXIT

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

100+

SETUP

INFO

VCR

MUTE

213 546 879 0

POSITIONDNPIP

CODE

POWER

ACC

SURF

AUTO

MENU/

SELECT

CONTENT ADVISORY TV PARENTAL

GUIDELINES BLOCKED TV-Y TV-Y7 FV TV-G

HELP

TV-PG DLSV TV-14 DLSV TV-MA LSV

to ENTER ACCESS CODE

CONTENT ADVISORY ACCESS

To Block or Un-Block Programs, First Enter your Access Code.

to EXIT

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

FEATURE MENU CONTROLS (CONTINUED)

CONTENT ADVISORY

MOVIE RATINGS

ovie Ratings set viewing

access levels for TV programming according to current Motion Picture Association of America (MPAA) ratings. These ratings are similar to the categories used with the rated movies appearing in cinema theaters and with video rental material.

Select the MOVIE RATINGS

Menu option. With CONTENT ADVISORY

Menu on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU

buttons to highlight and select (U) the desired MOVIE BLOCKING level.

When in operation a “Blocked Movie Rating” TV screen appears when movies are received which include the same selected rating as the Movie Blocking setting(s). Only the correct Access Code number, entered by the viewer, will unblock or allow the viewing of a block rated program.

• G - General Audience: Most parents would find this

program suitable for all ages. This type of programming contains little or no violence, no strong language, and little or no sexual dialogue or situations.

• PG - Parental Guidance:

This programming contains material that parents may find unsuitable for younger children. It may contain one or more of the following: Moderate violence, some sexual situations, infrequent coarse language, or some suggestive dialogue.

• PG-13:

This programming contains material that parents may find unsuitable for children under the age of 13. It contains one or more of the following: violence, sexual situations, coarse language, or suggestive dialogue.

• R - Restricted:

This programming is specifically designed for adults. Anyone under the age of 17 should only view this programming with an accompanying parent or adult guardian. It contains one or more of the following: intense violence, intense sexual situations, strong coarse language, or intensely suggestive dialogue.

• NC-17 - No one under 17 admitted:

This type of programming should be viewed by adults only. It contains graphic violence, explicit sex, or crude indecent language.

• X - Mature audience only:

This type of programming contains one or more of the following: very graphic violence, very graphic and explicit or indecent sexual acts, very coarse and intensely suggestive language.

STOP

BEGIN

SMART HELP

Note: When a Movie

Rating is selected (U) all higher level ratings are automatically blocked (although each individual Movie Rating can be manually selected and turned On or Off as desired). Programs with lower than the selected rating level are allowed for viewing or unblocked.

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MOVIE

RATINGS

BLOCKING

OPTIONS

HELP

POWER

INFO

ACC

VCR

AUTO

MENU/

SELECT

MUTE

213 546 879 0

SURF

MOVIE BLOCKING

G PG PG-13 R NC-17 X

EXIT

HELP

FEATURE MENU CONTROLS (CONTINUED)

CONTENT ADVISORY

PARENTAL GUIDELINES

arental Guidelines can be

even more defined and specific in the degree and extent of material parents may allow for TV program viewing. Sub-settings for Language, Violence, and other blocking factors can be manually switched On or Off for use within the major Parental Guideline categories (TV-Y7, TV-PG, etc.).

Select the PARENTAL

GUIDELINES Menu option.

With CONTENT ADVISORY Menu on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring (Left

and Right side) buttons to

highlight and select the desired PARENTAL GUIDELINE rating level (TV-Y, TV-Y7, etc.).

Press the MENU ring and

center MENU buttons to Block

(U) the selected Parental Guideline category (or to set other individual blocking feature items available within that Guideline category (L, V. S, D, etc.) as desired).

Note: Selecting “ALWAYS BLOCKED” (or individually adjusting the L, V, S, D settings) for any one rating will set all other higher level ratings to be automatically blocked as well.

• TV-Y - Appropriate for all children:

Designed for a very young audience, including children ages 2-6. This type of programming is not expected to frighten younger children.

• TV-Y7 -Appropriate for children seven and older:

It may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).

• TV-G - General Audience:

This type of programming contains little or no violence, no strong language, and little or no sexual dialogue or situations.

• TV-PG - Parental Guidance suggested:

This type of programming contains one or more of the following: Moderate violence (V), some sexual situations (S), infrequent coarse language (L), or some suggestive dialogue (D).

• TV-14 - Unsuitable for children under 14:

This type of programming contains one or more of the following: intense violence (V), intense sexual situations (S), strong coarse language (L), or intensely suggestive dialogue (D).

• TV-MA - Mature audence only:

This type of programming contains one or more of the following: graphic violence (V), explicit sexual situations (S), or crude indecent language (L).

• (V) - Violence

• (S) - Sexual situations

• (L) - Language

• (D) - Inappropriate dialogue

• (FV) - Fantasy Violence may frighten children under

seven. Some cartoons may have this rating. Available in the TV-Y7 category only.

STOP

BEGIN

SMART HELP

The TV-Y7; TV-PG;

TV-14; and TV-MA guidelines also include customized settings for various additional items such as V (violence), S (sexual situations), L (coarse language), D (suggestive dialogue), and FV (fantasy violence). These additional settings are category specific and can be individually selected for use as desired.

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

MOVIE

RATINGS

BLOCKING

OPTIONS

HELP

PARENTAL GUIDELINES

To Select Rating

TVY7TV GTVPGTV14TV

TV Y

To Select Blocking

NOT BLOCKED ALWAYS BLOCKED (FV) FANTASY VIOLENCE

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

POWER

INFO

VCR

MUTE

213 546 879 0

EXIT

PARENTAL GUIDELINES

To Select Rating TV Y

ACC

AUTO

MENU/ SELECT

NOT BLOCKED ALWAYS BLOCKED (L) LANGUAGE (V) VIOLENCE (S) SEXUAL CONTENT (D) SUGGESTIVE DIALOG

EXIT

HELP

TVY7TV GTVPGTV14TV

To Select Blocking

HELP

SURF

FEATURE MENU CONTROLS (CONTINUED)

CONTENT ADVISORY

REVIEW SETTINGS

se the Review Settings control

to quickly check the status for Content Advisory system Parental Guidelines and Movie Rating “Blocked” program levels.

Select the REVIEW

SETTINGS Menu option.

With CONTENT ADVISORY Menu on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

The TV screen will display the current Parental Guideline and Movie Ratings Blocked program settings. Content Advisory system status will also be shown (Enabled

-On, or Disabled - Off).

CONTENT ADVISORY

BLOCKING OPTIONS

he Content Advisory system

also has “Blocking Option”controls which can be used to deny viewing access for channel programs and movies even when they are “unrated”, or contain “no rating” information as broadcasted.

Select the BLOCKING

OPTIONS Menu control.

With CONTENT ADVISORY Menu on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU buttons to turn the

Blocking System On (highlight and select

U ENABLED). Then use the remote Menu buttons to select the desired programming and information blocking options.

Please refer to Note shown with this page section for details on “unrated” and “no rating” program control options.

STOP

BEGIN

Note: Remember that Content Advisory data or encoded information is not available with all received TV programming (this also includes commercials, and other program spot announcements). Broadcaster’s can decide

not to encode any kind of content advisory ratings with their programming, or they can actually choose to encode programs to be “unrated.” The TV Blocking Options allow the viewer to block any program without content advisory data with the use of its “NO RATING INFORMATION” control. And to block programs that are encoded as “unrated” with its “UNRATED PROGRAMMING” control option.

Since the reception of Content Advisory data can take a few seconds, you may want to use the “CHANNEL CHANGE” option to be sure no viewing is allowed during blocked program channel changes. This can eliminate the display of a few seconds of undesirable video on the TV, or receiving scenes from a Ratings blocked channel source.

STOP

BEGIN

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

GUIDE

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MOVIE

RATINGS

BLOCKING

OPTIONS

HELP

POWER

INFO

ACC

VCR

AUTO

MENU/

SELECT

MUTE

213 546 879 0

SURF

BLOCKING OPTIONS

Blocking System:

DISABLED ENABLED

Set To Block On:

CHANNEL CHANGE UNRATED PROGRAMMING NO RATING INFORMATION

EXIT

HELP

CONTENT ADVISORY

PARENTAL

GUIDELINES

REVIEW

SETTINGS

EXIT

GUIDE

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

MOVIE

RATINGS

BLOCKING

OPTIONS

HELP

POWER

INFO

ACC

VCR

AUTO

MENU/

SELECT

MUTE

213 546 879

CONTENT ADVISORY TV PARENTAL

GUIDELINES BLOCKED TV-Y TV-Y7 FV TV-G TV-PG DLSV TV-14 DLSV TV-MA LSV

ENABLED MOVIE

RATINGS BLOCKED PG PG-13 R NC-17 X

to EXIT

FEATURE MENU CONTROLS (CONTINUED)

o you ever have trouble

remembering on which channel a particular station or network is located? The Channel Labels Control is a quick way to view and select channels from a list of Labeled channels.

A Label is a four letter callout you can set to appear with the on screen channel number. Example Label: WXYZ - for a TV station's call letters.

To select channels from the Channel Labels Control:

With the FEATURE MENU (3

of 5) on the TV screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select CHANNEL LABELS.

Press the MENU ring and

center MENU buttons

highlight and select either: "MANUAL" to create your own

label for a channel. "PRESETS" to choose from a list

of prewritten channel labels. (See instruction details on this

page.)

Press the STATUS button to

clear the screen.

CHANNEL LABELS

MANUAL- To create your own Channel Label:

Press the Channel ▲▼ or Number buttons to select

desired station. A red highlight shows the

active letter space for the channel label.

Press the outer MENU ring (top or bottom)

buttons on the remote to pick any of the letters or symbols that are given for your use.

Press the outer MENU ring (Left and Right)

buttons on the remote to move the red highlight to the other letter spaces and repeat.

Press the STATUS button to clear the screen when finished.

STOP

PRESETS -To pick a Label from the "LABEL" list:

Press the Channel ▲▼ or Number buttons to select

desired station.

Press the outer MENU ring (top or bottom)

buttons to move up and down the Channel Label list.

Just stop on any label you might want to use.

The selected label automatically appears with channel changes and when the STATUS button is pressed.

Press the STATUS button to clear the screen when finished.

BEGIN

FEATURE MENU

POWER

ACC

AUTO

PARENTAL

CONTROL

MORE...

3 OF 5

CHANNEL LABELS

MANUAL

PRESETS

EXIT

Create Your Own

Choose From List

CHANNEL

LABELS

LANGUAGE SELECTION

EXIT

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MENU/

SELECT

MUTE

213 546 879 0

SURF

CHANNEL GUIDE LABEL

C H 1 0 C B S

ANTENNA A LABELS

to SELECT

to CHANGE

when FINISHED

BRV

Channel 1 0

CHOOSE ANTENNA A CHANNEL

CBN CBS CNBC CMT

to SELECT LABEL to EXIT

ote: If you went through First Time Setup, This task has

already been completed for you. For our Spanish and French

speaking TV owners an on-screen LANGUAGE option is present. With the LANGUAGE control you can set the TV’s on-screen features to be shown in either English, Spanish or French.

Select the LANGUAGE

DISPLAY control.

With FEATURES MENU (3 of 5) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU buttons to

highlight and select (U) English, Español, or Francais on the display control.

Text for the on-screen Menu will change to the selected language.

Press the STATUS button to

clear the screen.

LANGUAGE

STOP

Remember, the

Language control only makes the TV’s on-screen (MENU) items appear in English, Spanish, or French text. It does not change the other on-screen text features such as Closed Captioned (CC) TV shows.

SMART HELP

BEGIN

FEATURE MENU CONTROLS (CONTINUED)

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

POWER

ACC

SOUND

HELP

EXIT

AUTO

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MENU/

SELECT

MUTE

213 546 879 0

SURF

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR

REMINDER

EXIT

FEATURE MENU

CHANNEL

LABELS

LANGUAGE SELECTION

EXIT

CABLE TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

SLEEP TIMER

CHANNEL

DISPLAY

MORE...

2 OF 5

PARENTAL

CONTROL

MORE...

3 OF 5

LANGUAGE SELECTION

ENGLISH ESPANOL FRANCAIS

EXIT

HELP

he BASS BOOST control

increases the low frequency audio range of the TV. This creates a deeper, fuller playback sound which can be heard through the TV's speakers.

Select BASS BOOST sound

control. With the SOUND MENU on the

screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU buttons to

highlight and turn ON (

U) the

BASS BOOST control.

Press the STATUS button to

clear the screen.

BASS BOOST

STOP

SOUND MENU CONTROL ADJUSTMENTS

our TV also has individual

sound adjustment controls. The BASS (low frequency), TREBLE (high frequency) , and Speaker BALANCE may all be used to adjust the sound playback of TV programs.

Select BASS, or TREBLE, or

BALANCE sound control.

With the SOUND MENU on the screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the outer MENU ring

(Left and Right) buttons to adjust

the sound control to levels you prefer.

Press the STATUS button to

clear the screen.

BASS, TREBLE, BALANCE

STOP

Select and then press MENU (M) button to view additional controls grouped under same feature heading. For Example: Treble, Balance, Bass Boost, Stereo, etc.

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

SOUND

HELP

EXIT

ACC

SOUND MENU

BASS TREBLE

BALANCE

INCREDIBLE STEREO

EXIT

BASS BOOST

MORE...

1 OF 3

AUTO

MENU/

SELECT

SURF

MIN

EXIT

BASS

HELP

MAX

NEXT...

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

SOUND

HELP

EXIT

ACC

SURF

AUTO

SELECT

MENU/

SOUND MENU

BASS TREBLE

HELP

BASS BOOST

MORE...

1 OF 3

NEXT...

BALANCE

INCREDIBLE STEREO

EXIT

BASS BOOST

OFF

EXIT

SOUND MENU CONTROLS (CONTINUED)

STEREO

our TV is able to receive

broadcast stereo TV programs. The TV is equipped with an amplifier and twin speaker system through which the stereo sound can be heard. Note: STEREO will appear on the TV’s channel status screen to indicate when a stereo broadcast signal is available and received.

Select STEREO sound control.

With the SOUND MENU on the screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU buttons to

highlight and turn ON (U) the STEREO mode.

Press the STATUS button to

clear the screen.

STOP

SECOND AUDIO PROGRAM

HELP

EXIT

NORMAL SOUND

SECOND PROGRAM SOUND

SOUND MENU

SECOND AUDIO PROGRAM

EXIT

2 OF 3

TV SPEAKERS

MORE...

DISPLAY VOLUME

STEREO

SECOND PROGRAM SOUND CAN ONLY BE SELECTED (

U) WHEN SAP INFORMATION IS PRESENT ON CURRENT CHANNEL.

Remember. If a stereo signal is not available and the TV is placed in the STEREO mode, sound coming from the TV will remain monaural (mono).

SMART

HELP

BEGIN

Second Audio Program (SAP) is part of the stereo broadcast system. Sent as a additional audio channel SAP can be heard apart from the current TV program sound. TV stations are free to use SAP for any number of purposes, but many experts believe it will be used for foreign language translations of TV shows (or for weather and news bulletins.)

NOTE: If a SAP signal is not present with a selected program, the SAP option can not be selected. "This program does not contain SAP information" will show on the TV screen.

SECOND AUDIO PROGRAM

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

ACC

SURF

AUTO

MENU/ SELECT

SOUND

HELP

EXIT

SOUND MENU

BASS TREBLE

BALANCE

INCREDIBLE STEREO

EXIT

SOUND MENU

TV SPEAKERS

DISPLAY VOLUME

SECOND AUDIO PROGRAM

EXIT

BASS BOOST

MORE...

1 OF 3

STEREO

MORE...

2 OF 3

STEREO

MONO AT ALL TIMES

STEREO IF AVAILABLE

EXIT

HELP

SOUND MENU CONTROLS (CONTINUED)

he Incredible Stereo control can

be used to add greater depth and dimension to both monaural (MONO) and STEREO TV sound.

Select the INCREDIBLE

STEREO control.

With the SOUND MENU on the screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU buttons to highlight

and turn ON (

U) the INCREDIBLE

STEREO mode. For Example: “MAXIMUM”

spreads the Incredible Stereo effect as wide as possible.

Press the STATUS button to

clear the screen.

INCREDIBLE STERE0

STOP

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

POWER

SOUND

HELP

EXIT

ACC

AUTO

SOUND MENU

BASS TREBLE

BALANCE

INCREDIBLE STEREO

EXIT

BASS BOOST

MORE...

1 OF 3

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MENU/ SELECT

MUTE

213 546 879 0

SURF

INCREDIBLE STEREO

MINIMUM

MAXIMUM

EXIT

NO EXPANSION

HELP

NEXT...

SOUND MENU CONTROLS (CONTINUED)

se the DISPLAY VOLUME control to see the TV's volume

level settings on the TV screen. Once set the Volume Display will be seen each time the VOLUME buttons (on the TV or remote) are pressed.

Select DISPLAY VOLUME

control.

With SOUND MENU (2 of 3) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU buttons to highlight

and turn ON (U) the DURING ADJUSTMENT Display Volume control.

Press the STATUS button to

clear the screen.

DISPLAY VOLUME

STOP

SMART HELP

Remember, "DURING

ADJUSTMENT" means the volume level will be on screen whenever the Volume buttons are pressed.

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

POWER

SOUND

HELP

EXIT

ACC

AUTO

MENU/

SELECT

SOUND MENU

BASS TREBLE

BALANCE

INCREDIBLE STEREO

EXIT

SOUND MENU

TV SPEAKERS

DISPLAY VOLUME

SECOND AUDIO PROGRAM

EXIT

BASS BOOST

MORE...

1 OF 3

STEREO

MORE...

2 OF 3

213 546 879

100+

POSITIONDNPIP

SURF

DISPLAY VOLUME

NEVER

DURING ADJUSTMENT

EXIT

HELP

SOUND MENU CONTROLS (CONTINUED)

TV SPEAKERS

ould you like to hear TV

programs through your audio hi-fi system? The TV's Variable Audio Output jacks and TV Speaker On/Off control work together to offer you this TV sound option.

Connect the R(ight) and L(eft)

VARIABLE AUDIO OUT jacks

on the TV to the R and L Audio Input jacks on your amplifier or sound system.

Set the audio system's volume to normal listening level.

Turn the TV and audio system

ON. You can now adjust the sound level coming from the audio system with the Volume ▲▼

buttons on the TV or remote.

To hear the TV sound from only

the audio system speakers, select TV SPEAKERS control.

With SOUND MENU (2 of 3) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU buttons to

highlight and turn OFF (U) the TV SPEAKERS control.

You should now only hear TV sound coming from the audio system speakers.

Press the STATUS button to

clear the screen.

STOP

BACK OF TV

AUDIO SYSTEM

AUDIO IN

(RED/WHITE)

VARIABLE

AUDIO

OUTPUT JACKS

SMART HELP

Remember, the audio

system may have to be in AUX(iliary) mode to play sound from the TV (Outputs).

Note: When the TV SPEAKER control is set to "NORMAL" (for TV speaker operation) make sure the VARIABLE AUDIO OUTPUT control (see next page) is also set to "STEREO" in order for the TV's AUDIO OUTPUT jacks to work properly.

NOTE: The TV’s FIXED AUDIO OUTPUT jacks can also be used for the playback of TV program sound with an external audio amplifier, or home theater hi-fi system, Connection of the FIXED AUDIO OUT(puts) is similar

to the Variable Audio Outputs (as shown above). However, specific sound level adjustments will be made with the controls at the external amplifier or home sound system (instead of through the TV’s audio level controls.)

NOTE: The TV’s PIP AUDIO OUTPUT jacks can also be used for additional stereo playback options such as wireless transmitter headphone hook-up, or as an external amplifier connection source. However, with normal PIP feature operations (when

the ANT A and ANT B Input sources are connected for use), the PIP AUDIO OUTPUTs will switch from stereo to monaural (mono) sound. Stereo sound will only be available with the TV’s Main screen (or ANT A supplied signal) at that time.

BEGIN

SLEEP

STATUS/

VOL

SOUND MENU

TV SPEAKERS

DISPLAY VOLUME

SECOND AUDIO PROGRAM

EXIT

GUIDE

SWAP PIP CHUPSOURCE FREEZE

EXIT

100+

POSITIONDNPIP

POWER

INFO

ACC

VCR

MUTE

213 546 879

SURF

AUTO

MENU/

SELECT

FIXED

STEREO

MORE...

TV SPEAKERS

2 OF 3

NORMAL

TV SPEAKERS OFF

EXIT

HELP

VAR

PIP

AUDIO OUT

VIDEO OUT

IR BLASTER

ANT A/CABLE 75 V UHF/VHF

AUX/TV INPUT

PHONO INPUT

VIDEO

AUDIO

AUX 1 AUX 2

INPUTS

ANT B/CABLE 75 V UHF/VHF

PIP

FIXED

VAR

PIP

AUDIO OUT

ANT A/CABLE 75 V UHF/VHF

VIDEO OUT

IR BLASTER

SOUND MENU CONTROLS (CONTINUED)

REAR SURROUND SPEAKERS

SUBWOOFER

VIDEO OUT

AUDIO OUT

–

FIXED

VAR

PIP

ANT A/CABLE 75 V UHF/VHF

INPUTS

S-VIDEO

VIDEO

AUDIO

AUX 1 AUX 2

ANT B/CABLE 75 V UHF/VHF

PIP

–

SUBWOOFER

REAR SURROUND SPEAKERS

AUX 3

SURROUND SOUND

y adding optional external

speakers to the TV's sound system, you can create the feeling of reflected sound that surrounds you at a movie theater or concert hall.

Connect both external

speakers to the speaker wire

terminals on the TV. Recommended speakers: 8ohm, 15

watt minimum. Be sure the (+) and (-) speaker wires are connected to the correct R(ight) and L(eft) speaker terminals on the TV.

Place the speakers so the

viewing area is between the TV and the rear surround speakers. (See overhead view drawing.)

Turn TV ON and place the

STEREO control to the "STEREO IF AVAILABLE" (U) position.

After setup whenever a stereo signal is received the audio will be heard in Surround Sound.

STOP

BACK OF TV

REAR SURROUND SOUND SPEAKERS

Note: The rear Surround Sound speakers will not be heard at the same volume level as the front TV speakers. It is intended for the rear speakers to give a background noise effect which requires a lower volume level than the TV's front speakers.

PRIMARY VIEWING AREA

REAR SPEAKER

VARIABLE AUDIO OUTPUT

he TV's Variable Audio Output

jacks can also be used for Surround Sound. Once they are connected to an external hi-fi system its speakers can be used for the playback of Surround Sound.

Connect the R(ight) and L(eft)

VARIABLE AUDIO OUT jacks

on the TV to the R and L Audio Input jacks on your amplifier or sound system.

Turn TV ON and place the

VARIABLE AUDIO OUTPUT on screen control to the SURROUND (U) position. (Sound Menu 3 of 3).

Note:This will change the Left/Right channel audio line level signal at the Audio Output jacks to the same signal found at the TV's Surround Sound Speaker terminals.

STOP

AUDIO SYSTEM SPEAKERS USED AS REAR

SURROUND SOUND SPEAKERS

BACK OF TV

REAR SURROUND SOUND

SPEAKER TERMINALS

VARIABLE AUDIO

OUTPUT JACKS

AUDIO

INPUT JACKS

Remember, Surround Sound will not work with only one speaker connected; or with monaural audio material (unless Variable Audio Surround control is turned ON - see section below).

SMART

HELP

SUBWOOFER

SUBWOOFER OUTPUT Use the Subwoofer Output (RCA plug connector) to send the subwoofer audio channel signal (at line level) to an optional external powered Subwoofer speaker. The Subwoofer audio signal is for the playback of only the lowest frequency notes (under 100 Hz).

BEGIN

SOUND MENU

VARIABLE AUDIO OUTPUT

EXIT

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

ACC

AUTO

MENU/ SELECT

SURF

MORE...

VARIABLE AUDIO OUTPUT

3 OF 3

STEREO

SURROUND

EXIT

AUX/TV INPUT

PHONO INPUT

FIXED

VAR

PIP

AUDIO OUT

VIDEO OUT

IR BLASTER

ANT A/CABLE 75 V UHF/VHF

HELP

VIDEO

AUDIO

AUX 1 AUX 2

INPUTS

PIP ANT B/CABLE 75 V UHF/VHF

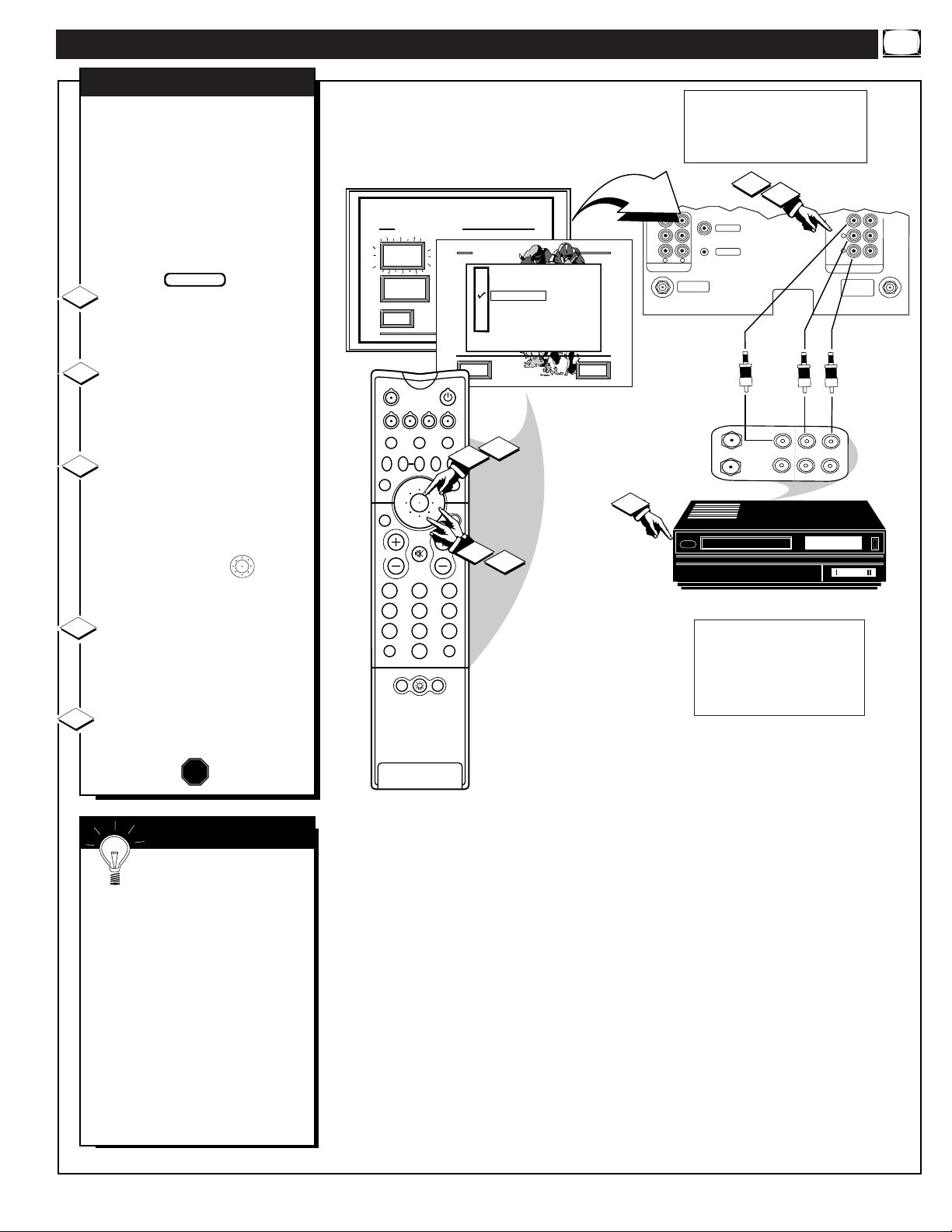

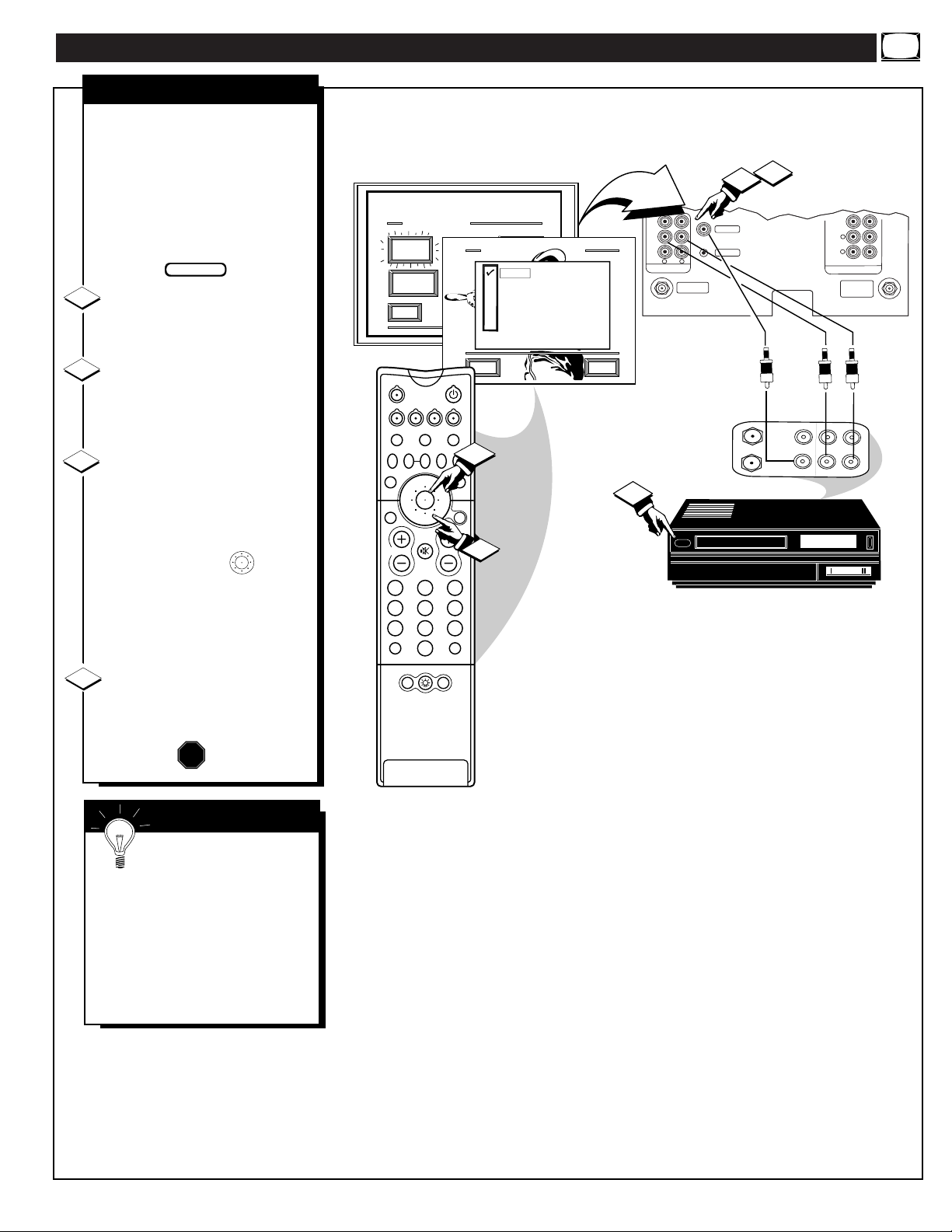

USING THE AUDIO/VIDEO INPUT JACKS

VIDEO OUT

AUDIO OUT

FIXED

VAR

PIP

ANT A/CABLE 75 V UHF/VHF

INPUTS

VIDEO

AUDIO

AUX 1 AUX 2

ANT B/CABLE

75 V UHF/VHF

PIP

IR BLASTER

ANTENNA

OUT

AUDIO R

VIDEO

OUT

EXIT

1 OF 3


SOURCE

MORE...

CLOSED

CAPTIONS

FEATURE MENU

CHANNEL

MEMORY

CABLE

TUNING

PICTURE SOURCE SELECT

HELP

EXIT

ANT A

AUX 1 VIDEO

AUX 2 VIDEO SIDE VIDEO

ANT B

AUX 1 Y P

B PR

213 546 879 0

VCR

ACC

GUIDE

INFO

SWAP PIP CHUPSOURCE FREEZE

SLEEP

AUTO

STATUS/

EXIT

VOL

MUTE

SURF

100+

POWER

MENU/

SELECT

POSITIONDNPIP

he TV's Audio/Video Input

jacks are for direct picture and sound connections between the TV and a VCR (or Video Disc Player, etc.) that has Audio/Video Output jacks. To view the playback of a VCR tape by using the Audio/Video Input jacks on the TV:

Connect the VIDEO OUT jack

from the VCR to the AUX 1

VIDEO IN jack on the TV.

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the VCR to the AUX 1 AUDIO IN jacks on the TV.

Select the "AUX 1 VIDEO"

PICTURE SOURCE SELECT

control on the TV. With the FEATURES MENU on

screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU buttons to

highlight and select (

U) the AUX

1 VIDEO mode.

Turn the VCR ON and press

PLAY to view the tape on the TV.

AUX 1 VIDEO INPUTS

STOP

BACK OF TV

VIDEO IN

(YELLOW)

AUDIO IN

(RED/WHITE)

If you have a single (monaural) Audio Output VCR, "Y" connectors are available to complete your connection. Contact your dealer, or our Parts Information Center (1-800851-8885) to order any optional accessories.

VCR

PICTURE AND SOUND FROM

PLAYBACK OF VCR TAPE

SMART HELP

Remember, after it is

connected an easy way to select the AUX 1 VIDEO mode is to press the AV button on the remote. Other Auxiliary modes (AUX 2 VIDEO, AUX 1 Y PB PR, etc.);ANT A/B, and the last channel viewed can also be selected by pressing the AV button.

Also, if you have added AUX 1 VIDEO to the TV's channel memory (see page 14), you can just press the CHANNEL ▲▼

buttons to select the AUX 1 mode.

AUDIO/VIDEO

OUTPUT JACKS

ON VCR

NOTE: Connections and use of the TV's rear AUX 2 VIDEO Input jacks are the same as for the AUX 1 jacks (except "AUX 2" is selected as the Picture Source in step 3).

BEGIN

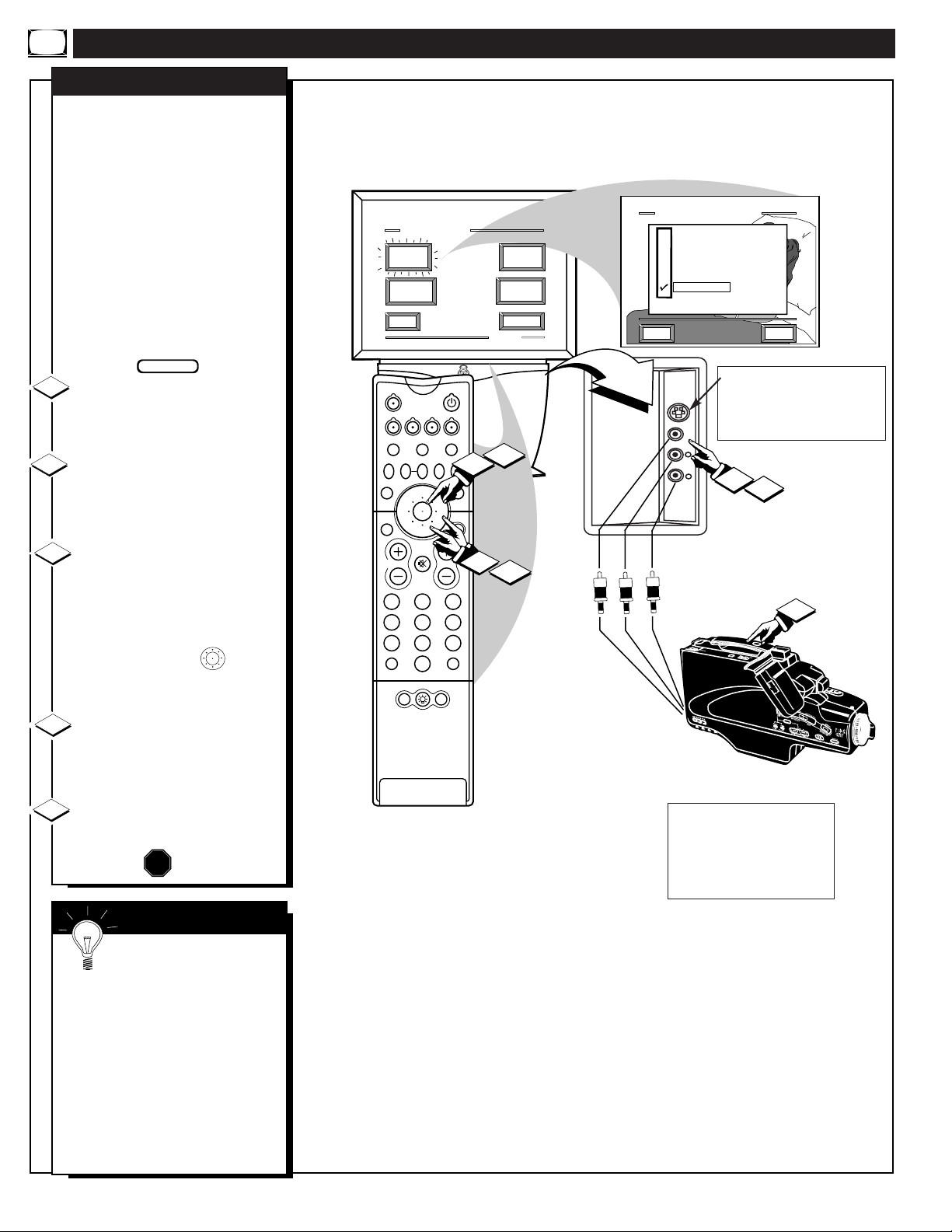

USING THE AUDIO/VIDEO INPUT JACKS (CONTINUED)

VOL

STATUS/EXIT

AUDIO

VIDEO

S-VIDEO

EXIT

1 OF 4


SOURCE

MORE...

CLOSED

CAPTIONS

FEATURE MENU

CHANNEL

MEMORY

CABLE

TUNING

213 546 879 0

VCR

ACC

GUIDE

INFO

SWAP PIP CHUPSOURCE FREEZE

SLEEP

AUTO

STATUS/

EXIT

VOL

MUTE

SURF

100+

POWER

MENU/ SELECT

PICTURE SOURCE SELECT

HELP

EXIT

ANT A

AUX 1 VIDEO

AUX 2 VIDEO SIDE VIDEO

ANT B

AUX 1 Y P

B PR

POSITIONDNPIP

or more convenient Direct playback connections the TV's

Side Video Input panel can be used. Located on the TV's right side panel (angled toward the front for easy access) these Audio/Video Input jacks allow for quick connections, particularly for the playback of Camcorder tape recordings.

To view the playback of a Camcorder recording using the Audio/Video Input jacks on the side of the TV:

Connect the VIDEO OUT jack

from the Camcorder to the VIDEO IN jack on the side of the TV.

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the Camcorder to the AUDIO IN jacks on the side of the TV.

Select the "SIDE VIDEO"

PICTURE SOURCE SELECT

control on the TV. With the FEATURES MENU on

screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU buttons to highlight

and select (

U) the SIDE VIDEO

mode.

Turn the Camcorder ON and

press PLAY to view the tape on the TV.

SIDE VIDEO INPUTS

STOP

SIDE PANEL AUDIO/VIDEO

INPUT JACKS

(S-VIDEO Input plug also provided for possible S-VHS tape playback material.)

VIDEO IN

(YELLOW)

AUDIO IN

(RED/WHITE)

If you have a single (monaural) Audio Output Camcorder, "Y" connectors are available to complete your connection. Contact your dealer, or our Parts Information Center (1-800-851-8885) to order any optional accessories.

CAMCORDER

PICTURE AND SOUND FROM PLAYBACK

OF CAMCORDER TAPE

AUDIO/VIDEO

OUTPUT JACKS

ON CAMCORDER

SMART HELP

Remember, an easy way

to select the SIDE VIDEO mode is to press the AV button on the remote. Other Auiliary modes, ANT A/B, and the last channel viewed can also be selected in this way.

Also, if you have added SIDE VIDEO to the TV's channel memory (see page 14), you can just press the CHANNEL

▲▼ buttons

to select the SIDE VIDEO mode.

BEGIN

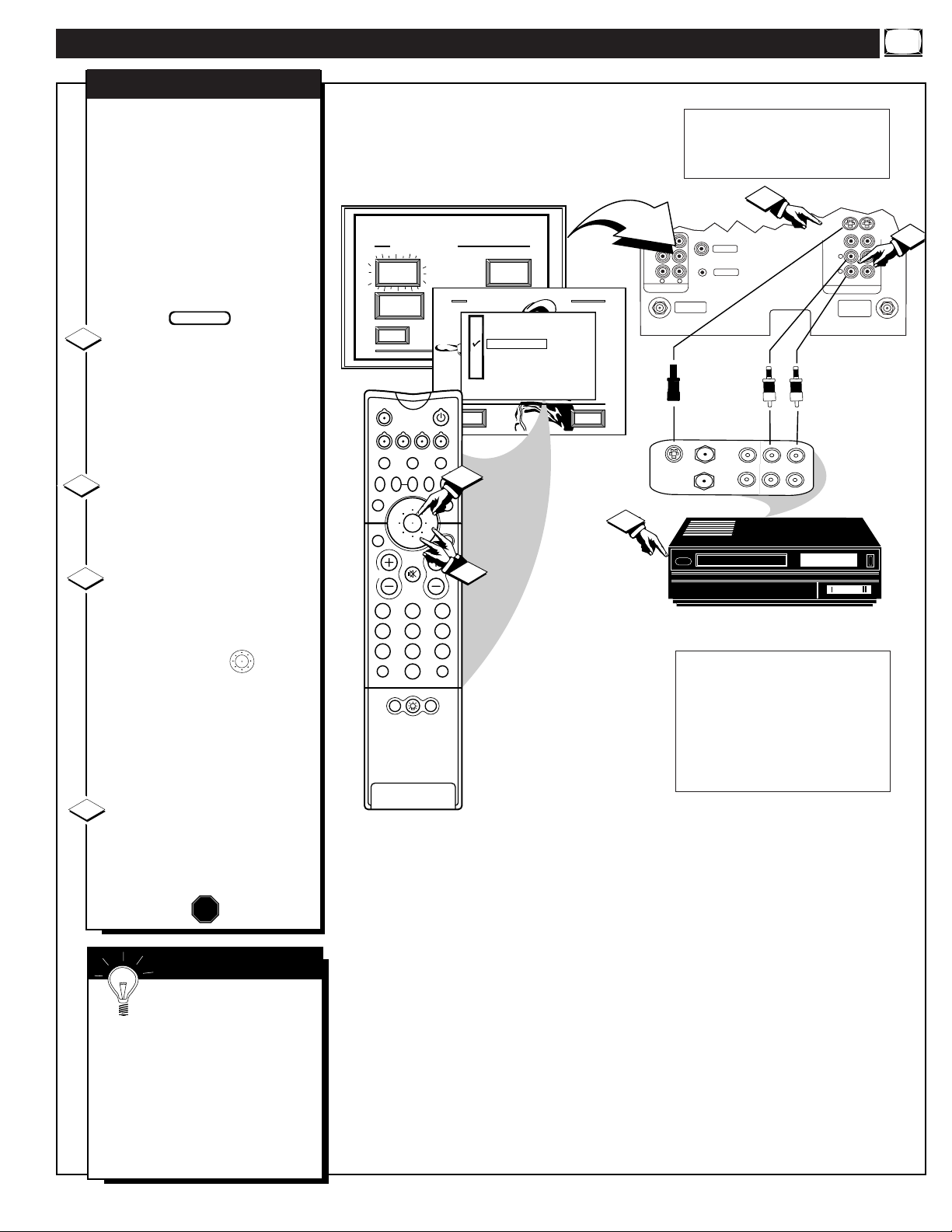

USING THE AUDIO/VIDEO INPUT JACKS (CONTINUED)

he S(uper)-Video connection on

the rear of the TV can give you better picture detail and clarity, for the playback of S-VHS VCR tapes or Video Discs, than the normal antenna picture connections.

Note: The VCR (or Video Disc Player) must have a S-VIDEO OUT(put) jack in order for you to complete the connections shown on this page.

Connect the S-VIDEO (S-

VHS) OUT jack from the VCR to

the S-VIDEO AUX 1 IN(put) jack on the TV. The S-VIDEO connecting cable will be supplied with the S-VHS VCR (or Video Disc Player).

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the VCR to the AUDIO AUX 1IN(put) jacks on the TV.

Select the "AUX 1 S-VIDEO"

PICTURE SOURCE control.

With the FEATURES MENU on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

The "AUX 1 S VIDEO" picture source option appears only when a S-VIDEO cable has been connected to the TV’s AUX 1 IN(puts).

Turn the VCR ON and place it

in the S-VIDEO (or S-VHS) playback mode. Insert S-VHS cassette tape and playback in a normal manner.

AUX1 - S-VIDEO INPUTS

STOP

S-VHS VCR

AUDIO OUT

(RED/WHITE)

S-VIDEO OUT

BACK OF TV

PICTURE AND SOUND FROM

PLAYBACK OF S-VHS VCR TAPE

SMART HELP

Remember, after it is

connected an easy way to select the AUX 1 S-VIDEO mode is to press the AV button on the remote.)

Also, if you have added AUX 1 to the TV's channel memory, you can just press the CHANNEL ▲▼

buttons to select the S-VIDEO mode (when active).

S-VIDEO

CABLE

NOTE: A CD-i (Compact Disc Interactive) player, Video Game, or other S-VIDEO accessory can be hooked up to the TV using this type of connection. Please be aware that such video sources, which show a constant non-moving pattern on the TV screen, can cause picture tube damage. When not in use turn your video accessories OFF. Also, regularly alternate the use of video sources with normal TV viewing.

NOTE: Connections and use of the TV's AUX 2 S-VIDEO Input jacks are the same as for the AUX 1 S-VIDEO jacks (except “AUX 2” S-VIDEO is selected as the Picture Source in step 3).

BEGIN

FEATURE MENU

PICTURE SOURCE

CLOSED

CAPTIONS

EXIT

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

POWER

ACC

AUTO

MENU/

SELECT

CABLE

TUNING

PICTURE SOURCE SELECT

CHANNEL MEMORY

ANT A ANT B

MORE...

AUX 1 S-VIDEO

1 OF 3

AUX 1 Y P AUX 2 VIDEO SIDE VIDEO

EXIT

B PR

HELP

S-VIDEO

VIDEO

AUDIO

AUX 1 AUX 2

INPUTS

PIP ANT B/CABLE 75 V UHF/VHF

FIXED

VAR

PIP

AUDIO OUT

ANT A/CABLE 75 V UHF/VHF

VIDEO OUT

IR BLASTER

OUT

AUDIO

OUT

S-VIDEO

ANTENNA

OUT

VIDEO

VOL

100+

POSITIONDNPIP

MUTE

213 546 879 0

SURF

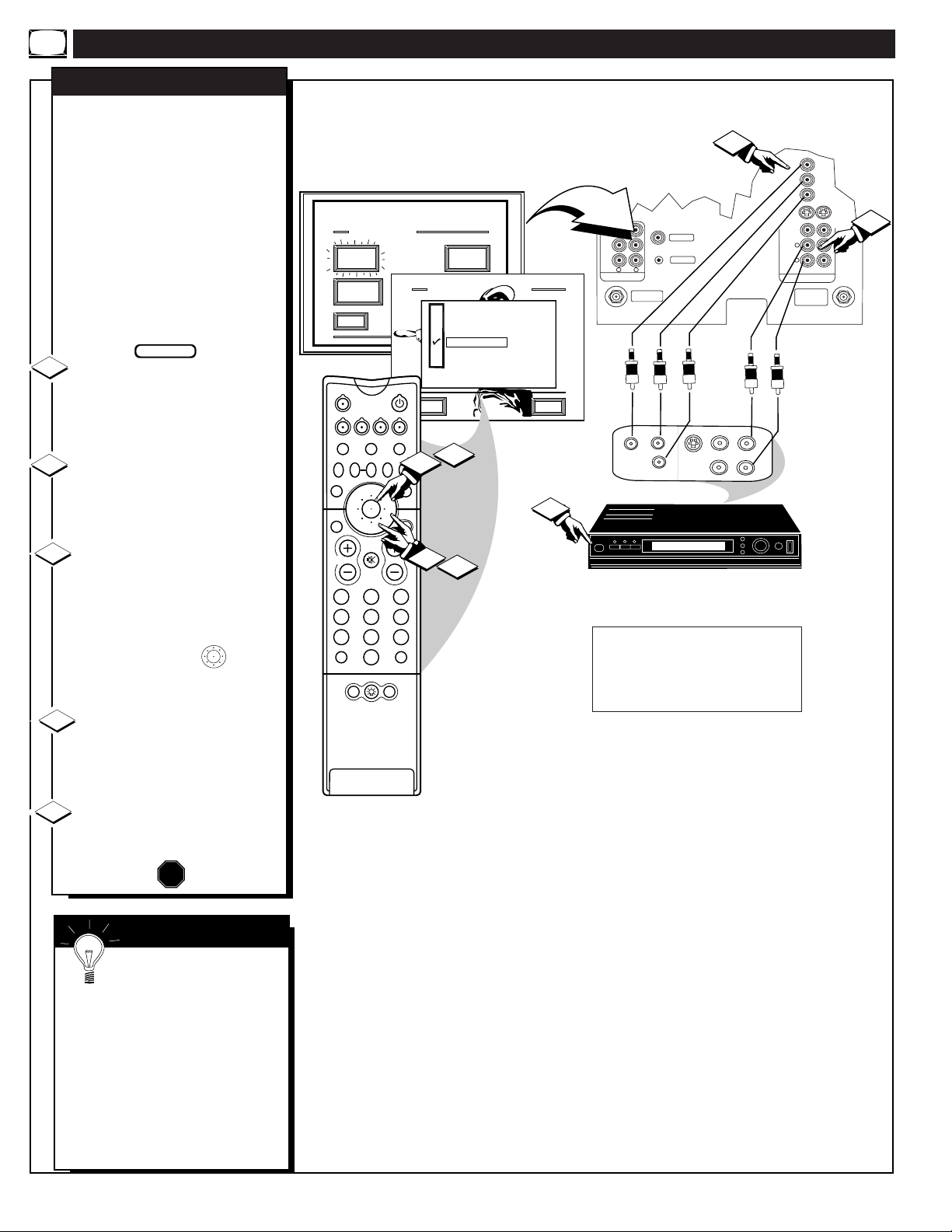

USING THE AUDIO/VIDEO INPUT JACKS (CONTINUED)

VIDEO OUT

AUDIO OUT

FIXED

VAR

PIP

ANT A/CABLE 75 V UHF/VHF

INPUTS

VIDEO

AUDIO

AUX 1 AUX 2

ANT B/CABLE 75 V UHF/VHF

PIP

S-VIDEO

IR BLASTER

FIXED

EXIT

1 OF 3

PICTURE SOURCE

MORE...

CLOSED

CAPTIONS

FEATURE MENU

CHANNEL

MEMORY

CABLE TUNING

OUT

AUDIO

S-VIDEO

OUT

VIDEO OUT

VIDEO 1

VIDEO 2

OUT

PICTURE SOURCE SELECT

HELP

EXIT

ANT A

AUX 1 VIDEO

AUX 2 VIDEO SIDE VIDEO

ANT B

AUX 1 Y P

B PR

213 546 879 0

VCR

ACC

GUIDE

INFO

SWAP PIP CHUPSOURCE FREEZE

SLEEP

AUTO

STATUS/

EXIT

VOL

MUTE

SURF

100+

POWER

MENU/ SELECT

POSITIONDNPIP

omponent Video Inputs

provide for the highest possible color and picture resolution in the playback of digital signal source material such as with DVD players. The color difference signals (PB, PR) and the luminance (Y) signal are connected and received separately which permits for improved color bandwidth information (not possible when using composite video or S-Video connections).

Connect the Component (Y PB

PR) VIDEO OUT jacks from the

DVD player to the (Y PB PR) VIDEO IN(put) jacks on the TV.

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the DVD player to the AUX 1 AUDIO IN jacks on the TV.

Select the "AUX 1 Y PB PR"

PICTURE SOURCE control on the TV.

With the FEATURES MENU on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the MENU ring and

center MENU

buttons to highlight and select (U) the AUX 1 Y PB PR mode.

Turn the DVD player ON and

press PLAY to view the source material playback on the TV.

COMPONENT VIDEO INPUTS

STOP

COMPONENT

VIDEO OUTPUTS

AUDIO OUT (L/R)

(RED/WHITE)

Optional Video/Audio Cables (with standard RCA plug connectors) are available to complete your Component Input Jack connections. Contact your dealer, or our Parts Information Center (1-800-851-8885) to order any optional accessories.

DVD PLAYER

(equipped with Component Color

& Luminance Outputs)

PICTURE AND SOUND FROM PLAYBACK

OF DVD SOURCE MATERIAL

SMART HELP

The description for the

component video connectors may differ depending on the DVD player or accessory digital source equipment used (e.g. Y PB PR; R-Y/BY/Y; Cr/Cb/Y, etc.). Although abbreviations and terms may vary, the letters “B” and “R” stand for the blue and red color component signal connectors and “Y” indicates the luminance signal. Refer to your DVD or digital accessory Owner’s Manual for definitions and connection details.

BACK OF TV

BEGIN

USING THE AUDIO/VIDEO OUTPUT JACKS (CONTINUED)

VIDEO OUT

AUDIO OUT

FIXED

VAR

PIP

ANT A/CABLE 75 V UHF/VHF

INPUTS

VIDEO

AUDIO

AUX 1 AUX 2

ANT B/CABLE 75 V UHF/VHF

PIP

IR BLASTER

EXIT

1 OF 3

PICTURE SOURCE

CLOSED

CAPTIONS

FEATURE MENU

CHANNEL

MEMORY

CABLE

TUNING

ANTENNA

OUT

AUDIO

VIDEO

OUT

PICTURE SOURCE SELECT

HELP

EXIT

ANT A

AUX 1 VIDEO

AUX 2 VIDEO SIDE VIDEO

ANT B

AUX 1 Y P

B PR

213 546 879 0

VCR

ACC

GUIDE

INFO

SWAP PIP CHUPSOURCE FREEZE

SLEEP

AUTO

STATUS/

EXIT

VOL

MUTE

SURF

100+

POWER

MENU/ SELECT

POSITIONDNPIP

AUDIO/VIDEO OUTPUTS

he Audio/Video Output jacks

on the TV can be used to record TV programs on VCRs which have Audio/Video Input jacks.

To record TV programs by using the Audio/Video jacks on the TV:

Connect the VIDEO OUT jack

from the TV to the VIDEO IN jack on the VCR.

Connect the AUDIO OUT

jacks R(ight) and L(eft) from the TV to the AUDIO IN jacks on the VCR.

Select the "ANTENNA A"

PICTURE SOURCE control on the TV.

With the FEATURES MENU on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Select the channel on the TV that you want to record.

Turn the VCR ON. Put a

cassette tape in the unit and place

the VCR in the RECORD mode.

STOP

BACK OF TV

VIDEO OUT

(YELLOW)

VCR

PICTURE AND SOUND BEING

RECORDED ON VCR.

AUDIO/VIDEO INPUT

JACKS ON VCR

AUDIO

OUT

(RED/

WHITE)

SMART HELP

Remember, If the VCR

has an INPUT SELECTOR switch, place it in the LINE or CAMERA position.

Unattended Timer Recordings with a VCR are possible, but not recommended with this connection since the TV must be left ON for the VCR to record.

BEGIN

ith Auto Picture you can set a

number of video and audio controls to your own personal preference. Once the individual controls have been adjusted to the levels you desire, use the list of Auto Picture feature category titles to quickly reselect these “personalized” settings contained within the memory of the TV. (See the next page for more details on the labeling options and use of Auto Picture.)

Press the AUTO button on the

remote. Press the center MENU button to

select the Auto Picture feature (highlighted in RED).

Press the outer MENU ring (top

and bottom)

buttons to highlight the category list for Auto Picture. Press the center MENU button to select (U) the desired title.

Press the MENU ring buttons

to choose any of the individual controls you wish to adjust for the Auto Picture selected title. Then press the center Menu button to select the highlighted control.

Press the Menu ring and

center Menu buttons to adjust the

selected control.

Press the STATUS button on the

remote to clear the screen after you have finished with all of your Auto Picture feature control adjustments.

STOP

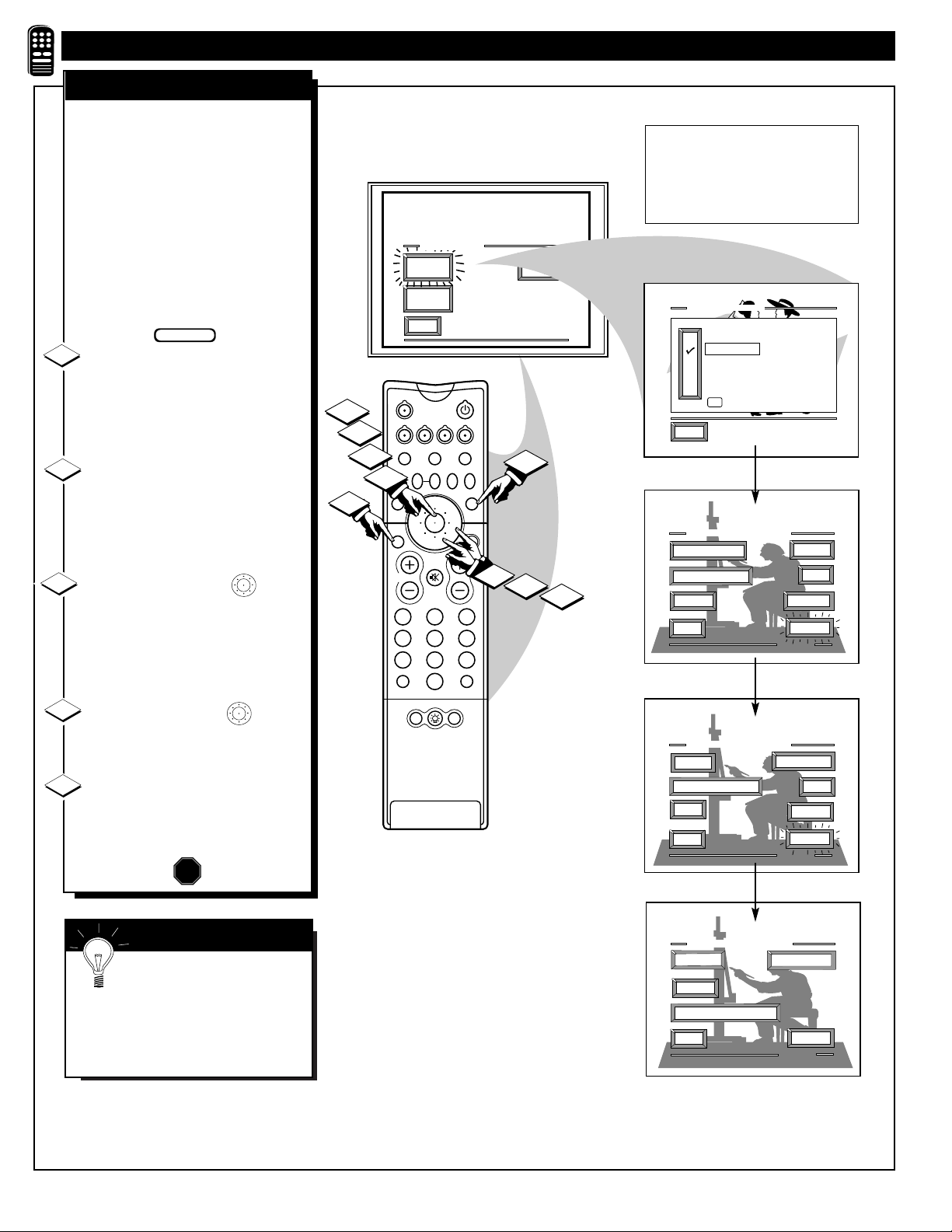

REMOTE CONTROL OPERATION

AUTO PICTURE

SMART HELP

Note: Select the

“FACTORY SETTINGS” category to automatically return the TV to the video and audio control levels preset at the factory prior to product shipment.

Note: For select models the AUTO PICTURE, AUTO SOUND, and AUTO SURF features may appear within the TV’s onscreen Menu as Smart Picture, Smart Sound, and Smart Surf. Use and operation of these functions will still be the same as described within the following sections.

BEGIN

AUTO MENU

AUTO PICTURE

AUTO SURF

EXIT

GUIDE

POWER

INFO

SWAP PIP CHUPSOURCE FREEZE

SLEEP

ACC

VCR

AUTO

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MENU/ SELECT

MUTE

213 546 879

SURF

SMART SOUND

AUTO PICTURE

SPORTS MOVIES WEAK SIGNAL CARTOONS CUSTOM FACTORY SETTINGS

M to SELECT

EXIT

AUTO PICTURE MENU

CHANGE LABEL

PICTURE SOURCE

BRIGHT

EXIT

AUTO PICTURE MENU

SHARP

FLESH CORRECTION

BASS

EXIT

COLOR

TINT


MORE...

1 OF 3

CLEARVIEW

SAP

TREBLE

MORE...

2 OF 3

AUTO PICTURE MENU

BALANCE

STEREO

INCREDIBLE SURROUND

EXIT

BASS BOOST

MORE...

3 OF 3

ollowing your initial setup

adjustments (see previous page), just select the desired Auto Picture category in order to place the TV to the personalized set of audio and video control settings for that title.

Press the AUTO button on the

remote. Then press the MENU button to

select the AUTO PICTURE control feature.

Press the outer MENU ring

(top and bottom) buttons with the list of “AUTO PICTURE” categories on the TV screen to highlight the desired category. Then press the center Menu button to select the audio and video control settings for that particular title.

Press the STATUS button on the

remote to clear the screen.

STOP

AUTO PICTURE

REMOTE CONTROL OPERATION (CONTINUED)

he "CHANGE LABEL" control

can be used to change the title of

a AUTO PICTURE setting into a name or label that may be easier for you to remember.

With the AUTO PICTURE

“CHANGE LABEL" control on the

screen, press the outer MENU ring (top and bottom) buttons to spell out a new label or title for the selected AUTO PICTURE category.

Press the outer MENU ring (left

and right)

buttons to move the red

highlight to each letter space.

Press the STATUS button to clear

the screen when the new label is finished.

CHANGE LABEL

STOP

AUTO PICTURE LABEL

when FINISHED

to SELECT

M Y O W N

to CHANGE

213

VCR

ACC

GUIDE

INFO

SWAP PIP CHUPSOURCE FREEZE

SLEEP

AUTO

STATUS/

EXIT

VOL

MUTE

POWER

MENU/

SELECT

TINT

AUTO PICTURE MENU


EXIT

1 OF 3

COLOR

MORE...

BRIGHT

CHANGE LABEL

PICTURE SOURCE

BEGIN

AUTO PICTURE

AUTO SURF

EXIT

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

AUTO MENU

POWER

INFO

VCR

ACC

AUTO

SMART SOUND

SMART PICTURE

SPORTS MOVIES WEAK SIGNAL CARTOONS CUSTOM FACTORY SETTINGS

M to SELECT

EXIT

MUTE

MENU/

SELECT

STATUS/

EXIT

VOL

BEGIN

100+

POSITIONDNPIP

213 546 879

SURF

REMOTE CONTROL OPERATION (CONTINUED)

re you tired of the sound of

commercials following you throughout the house? Auto Sound allows you to preset a desired volume level that the TV sound will not go above. This makes for an even, more consistent sound by reducing the “peaks” and “valleys” that can occur during commercials.

Press the AUTO button on the

remote.

With the AUTO Menu on

screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the highlighted Auto Sound control.

Press the Menu ring and the

center Menu buttons to turn the

Auto Sound control ON (or OFF.)

Press the STATUS button to

clear the screen when completed.

STOP

AUTO SOUND

Remember, Auto Sound

works for sound levels coming from either the Antenna/Cable input on the rear of the TV (RF audio); or the Auxiliary (VCR/AUX IN) audio inputs. When using a Cable Converter Box with the Auto Sound Control ON, the TV’s volume level may take up to ten seconds to gradually increase to normal listening levels (when the TV’s first turned on). This is considered NORMAL with various Cable Converter Box use.

SMART HELP

BEGIN

AUTO PICTURE

AUTO SURF

EXIT

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

AUTO PICTURE

POWER

INFO

VCR

ACC

AUTO

AUTO SOUND

✓

OFF

EXIT

HELP

STATUS/

EXIT

MENU/

SELECT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

SURF

REMOTE CONTROL OPERATION (CONTINUED)

“list” or series of previously

viewed channels can be selected with the SURF button on your remote control. With this feature you can easily switch between different TV programs that currently interest you. The Auto Surf control allows you to set up to 10 channels in its quick viewing “list”.

Press the AUTO button on the

remote.

With the AUTO Menu on

screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the highlighted Auto Surf control.

Press the Menu ring then the

center Menu button to select either

Auto Surf or 2-Channel Surf. (See explanation of Surf options with the illustration on this page.)

Press STATUS button on the

remote control to clear the screen.

2-CHANNEL SURF/AUTO SURF

STOP

2 CHANNEL SURF- Current and

one previous channel in the ring. AUTO SURF - Current and up to

nine additional channels available in the ring. Note: The Channel Surf ring can be used with fewer than ten channels. In this way, the number of Surf channels can match or fit your present viewing interests.

With the Auto Surf control ON (see above), select a desired channel for viewing. You can use

the number buttons on the remote (or the Channel ▲▼ buttons).

Press the SURF button on the

remote. (Some channel numbers may already appear within the Surf channel list.)

Press the center Menu button to

"ADD" the selected channel to the Surf list.

Select the next desired channel and repeat steps 2 and 3. Continue until all desired channels are on the Surf list.

Press the SURF button on the

remote to quickly review current action on channels contained within the Surf list.

To Use 2Channel Surf:

With the 2-Channel Surf control ON, select the two desired channels for viewing

with the number buttons on the remote control. Then press the SURF button on the remote to "toggle" between the two selected channels.

SMART

HELP

HOW TO USE AUTO SURF

STOP

Note: To Delete a channel from the Surf list just press the SURF button to select the desired channel. Then press the Menu button and the channel will be immediately dropped from the on-screen Surf list.

BEGIN

AUTO PICTURE

AUTO SURF

GUIDE

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

AUTO PICTURE

EXIT

POWER

INFO

VCR

MUTE

213 546 879 0

AUTO SOUND

AUTO SURF

✓

2-CHANNEL SURF

ACC

AUTO

MENU/ SELECT

EXIT

HELP

SURF

BEGIN

SURF

8 10 14 18

M to ADD

6 to List

GUIDE

SWAP PIP CHUPSOURCEFREEZE

SLEEP

STATUS/

EXIT

VOL

100+

INFO

VCR

MUTE

213 546 879 0

POSITIONDNPIP

POWER

SURF

8 10 14 18

M to DELETE

ACC

AUTO

MENU/ SELECT

SURF

6 to List

SURF

8 10 14 18

SURF

M to DELETE

3 to List

M to DELETE

6 to List

SURF

14 18

M to DELETE

10 to List

SETTING THE TV REMOTE TO WORK ACCESSORY DEVICES

our remote control is set to

work your TV and many infrared remote (IR) control VCRs, Cable TV Converter Boxes, DVD players, Home Satellite receivers, etc. However, an easy one-time step may be necessary before the remote will work with your accessory device.

To begin, try this initial check to see if going on to the following section is necessary.

Press the VCR or

ACC(essory) System button on

the TV remote for the desired accessory device category.

Note: The ACC(essory) system button contains product codes for Cable TV Converters, DVD players, and Satellite receivers.

Point the TV remote toward

the desired accessory device and press the POWER button.

Does the remote turn the accessory device ON? IF YES, and try other

function buttons on the TV remote. If they also work the accessory device, then the remote is ready and no further steps are needed.

If NO, continue...

STOP

VCR

SMART HELP

Remember, if more than

one number is listed, you may have to try more than the first three-digit code given in order to locate your device's correct code.

BEGIN

First look up a THREE-DIGIT

remote code number for your

brand of Accessory Device before going through the simple Direct Access Method steps shown on the following page.

Find your Three Digit Code

Number on pages 45-46.

CABLE CONVERTER

SATELLITE

RECEIVER

TV REMOTE

VCR/ACCESSORY

SYSTEM BUTTONS

SWAP PIP CH

SLEEP

VCR

ACC

SOURCE FREEZE

SMART

INFO

GUIDE

POWER

ACC

VCR

SWAP PIP CH SOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

AUTO

MENU/

SELECT

MUTE

213

546

879

100+

POSITION

SURF

PIP

SETTING THE TV REMOTE TO WORK ACCESSORY DEVICES

ow that you have looked up

the three-digit Remote Code Number for your brand of accessory device (see page 45-

46), you are ready to follow the simple steps shown below.

Please read through all the steps before beginning.

Press and release the correct

VCR or ACC(essory) System

button.

Press and release the center

Menu button.

Within thirty seconds after

releasing the center Menu button, ENTER THE THREE DIGIT CODE NUMBER for the desired device. The remote is now ready to send commands to the accessory.

Point the remote at the

accessory device. Press the POWER button on the remote to turn the device ON.

STOP

VCR

SMART HELP

Remember, if this does

not work the first time, repeat steps using the same remote code number.

If after a second try the remote does not operate your accessory device, and there are more code numbers listed for your brand, use the next listed code number.

If after repeated attempts the code number method does not work your accessory device, try the "SEARCH METHOD" shown on the following page.

BEGIN

DIRECT ACCESS METHOD

DVD

CABLE TV CONVERTER

SATELLITE RECEIVER

Note: For TV remote’s equipped with a backlight option, the unit may “blink” or flash as the three-digit Direct Access code numbers are entered on the keypad. (Two blinks indicate a valid code number entry has been accepted; one long blink indicates an invalid code number or the thirty second time interval for entering code numbers has expired.)

GUIDE

SWAP PIP CH

SLEEP

INFO

VCR

SOURCE FREEZE

POWER

ACC

AUTO

INFO

GUIDE

TV SWAP PIP CH SOURCEFREEZE

STATUS/

POWER

ACC

VCR

SLEEP

AUTO

VOL

MENU/

SELECT

MUTE

213

100+

546

879

SURF

PIP

POSITION

STATUS/

EXIT

VOL

100+

MUTE

213 546 879 0

POSITION

MENU/ SELECT

SURF

PIP

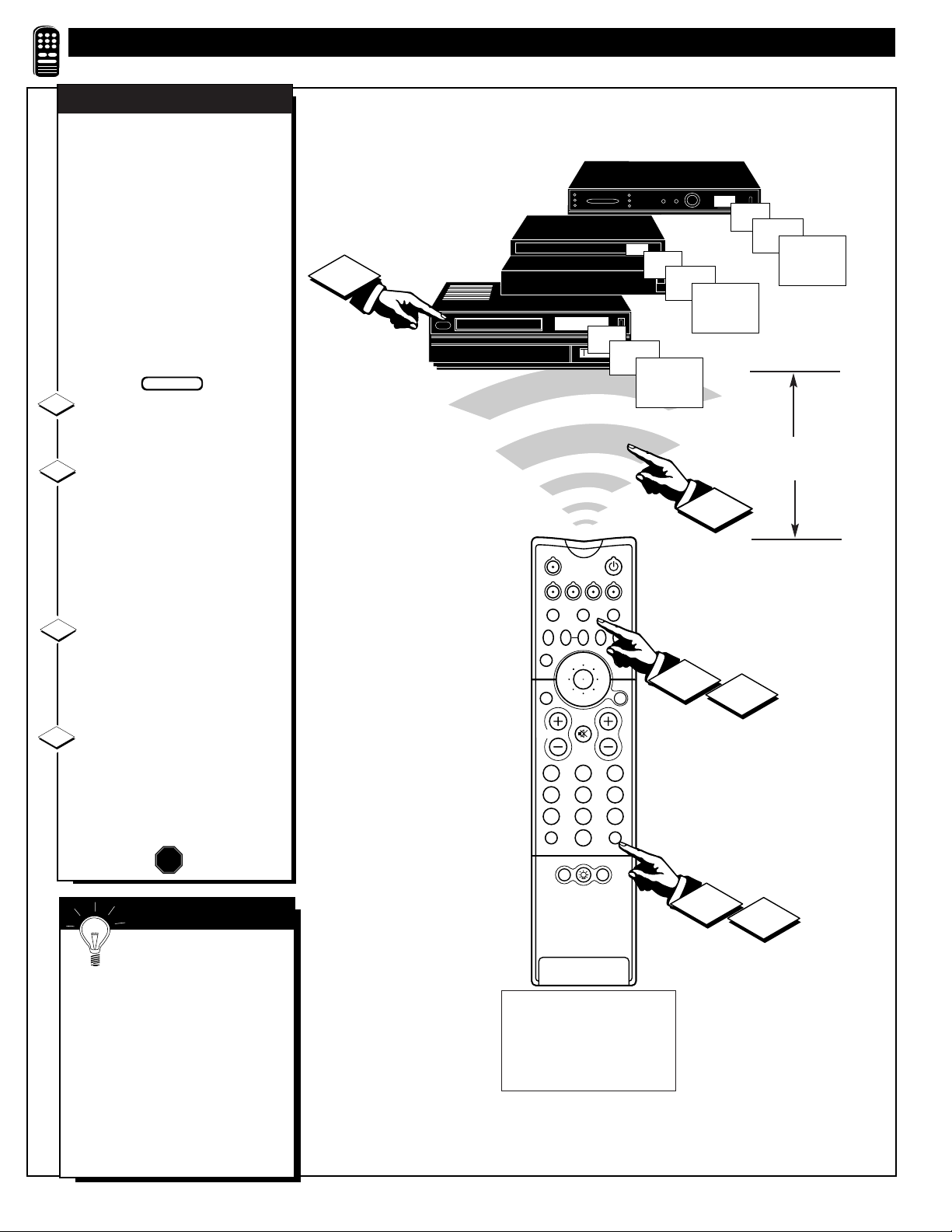

SETTING THE REMOTE TO WORK OTHER DEVICES - SEARCH

our TV remote can be set to

work various accessory devices (VCRs, Cable Converters, Satellite Receivers) by what is called the SEARCH method.

Note: The Search Method only works with devices equipped with Channel Display Indicators or

capability. If the "Direct Access" code number method (shown in the previous section) did not set your remote to work your accessory device, then follow the easy steps listed below.

Turn ON the desired device.

Press the correct VCR or ACC

system button on the remote.

Stand at least six feet away

from the front of the accessory device. Point the remote toward the unit. HOLD DOWN the

SURF and the desired System (VCR or ACC) buttons at the

same time. KEEP HOLDING BUTTONS DOWN.

Watch the Channel Indicator

on the unit. Channel Numbers will SCAN UP when the unit has been identified. This may take up to two minutes.

Release the SURF and System

(VCR or ACC) buttons as soon

as channel numbers start to scan up. The code has been identified and the remote is ready to operate with the accessory device.

STOP

VCR

Don't let the Accessory Device scan up more than five channels (in Search mode).

Six Feet

(minimum)

SMART HELP

Remember, a minute or two

can seem very long, but the code should be located within two minutes. Don't let the accessory device scan up more than five channels. The remote may pass up the right code and another two minute search cycle will have to be repeated.

If no channel change happens within two minutes, repeat steps 1-4. Should a channel change still not occur, the remote will not work with the desired unit.

BEGIN

CABLE TV

CONVERTER

SEARCH METHOD

SATELLITE RECEIVER

Note: For TV remote’s equipped with a backlight option, the unit may “blink” or flash as the remote moves through its product code list. Once a product code has been identified and the buttons on the remote are released, the unit will blink twice.

GUIDE

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

POWER

INFO

ACC

VCR

AUTO

MENU/

SELECT

MUTE

213 546 879

SURF

REMOTE CONTROL DIRECT ENTRY CODES FOR ACCESSORY DEVICES

VCR BRAND REMOTE CODE NO.

Admiral. . . . . . . . . . . . . . . . . . . . . . 075

Adventura . . . . . . . . . . . . . . . . . . . . 027

Aiko . . . . . . . . . . . . . . . . . . . . . . . . . 305

Aiwa. . . . . . . . . . . . . 334, 495, 027, 064

Akai . 133, 080, 076, 088, 183, 269, 068

American High . . . . . . . . . . . . . . . . 062

Asha. . . . . . . . . . . . . . . . . . . . . . . . . 267

Audiovox . . . . . . . . . . . . . . . . . . . . . 064

Beaumark. . . . . . . . . . . . . . . . . . . . . 267

Bell & Howell . . . . . . . . . . . . . . . . . 131

Broksonic . . . . 211, 148, 388, 029, 236,

. . . . . . . . . . . . . . . . . . . . . 238, 322, 506

CCE . . . . . . . . . . . . . . . . . . . . . 099, 305

Calix. . . . . . . . . . . . . . . . . . . . . . . . . 064

Canon. . . . . . . . . . . . . . . . 194, 062, 129

Capehart. . . . . . . . . . . . . . . . . . . . . . 047

Carver . . . . . . . . . . . . . . . . . . . . . . . 108

Cineral . . . . . . . . . . . . . . . . . . . . . . . 305

Citizen . . . . . . . . . . . . . . . . . . . 305, 064

Colt . . . . . . . . . . . . . . . . . . . . . . . . . 099

Craig . . . . . . . . 064, 074, 099, 267, 298

Curtis Mathes . . . . . 062, 068, 087, 189

Cybernex . . . . . . . . . . . . . . . . . 078, 267

Daewoo. . . . . . . . . . 305, 588, 047, 072

Daytron. . . . . . . . . . . . . . . . . . . . . . 047

Denon . . . . . . . . . . . . . . . . . . . . . . . 069

Dynatech . . . . . . . . . . . . . . . . . . . . . 027

Electrohome. . . . . . . . . . . . . . . . . . . 064

Electrophonic. . . . . . . . . . . . . . . . . . 064

Emerex. . . . . . . . . . . . . . . . . . . . . . . 059

Emerson . 211, 029, 148, 236, 063, 238,

. . . . 305, 321, 115, 235, 506, 088, 239,

. 588, 095, 322, 388, 537, 027, 064, 070

Fisher . . . . . . . . . . . 074, 131, 081, 093

Fuji . . . . . . . . . . . . . . . . . . . . . 060, 062

Funai . . . . . . . . . . . . . . . . . . . . . . . . 027

GE . . . . . . 062, 087, 092, 229, 075, 267

Garrard. . . . . . . . . . . . . . . . . . . . . . . 027

Go Video . . . . . . . . . 306, 259, 459, 553

GoldStar. . . . . . 064, 045, 065, 498, 507

Gradiente . . . . . . . . . . . . . 035, 027, 435

Grundig . . . . . . . . . . . . . . . . . . . . . . 222

HI-Q. . . . . . . . . . . . . . . . . . . . . . . . . 074

Harley Davidson . . . . . . . . . . . . . . . 027

Harman/Kardon . . . . . . . . 108, 065, 102

Harwood . . . . . . . . . . . . . . . . . 095, 099

Headquarter . . . . . . . . . . . . . . . . . . . 073

Hitachi. . . 069, 193, 132, 092, 423, 027,

. . . . . . . . . . . . . . . . . . . . . . . . . 068, 109

JVC . . . . . 094, 035, 233, 234, 068, 411

Jensen. . . . . . . . . . . . . . . . . . . . 068, 102

KEC . . . . . . . . . . . . . . . . . . . . 064, 305

KLH. . . . . . . . . . . . . . . . . . . . . . . . . 099

Kenwood . . . . . 411, 068, 094, 065, 073

Kodak. . . . . . . . . . . . . . . . . . . . 062, 064

LXI. . . . . . . . . . . . . . . . . . . . . . . . . . 064

VCR BRAND REMOTE CODE NO.

Lloyd's . . . . . . . . . . . . . . . . . . 027, 235

Logik . . . . . . . . . . . . . . . . . . . . . . . . 099

MEI . . . . . . . . . . . . . . . . . . . . . . . . . 062

MGA . . . . . . . . . . . . . . . . 070, 088, 267

MGN Technology . . . . . . . . . . . . . . 267

MTC . . . . . . . . . . . . . . . . . . . . 027, 267

Magnasonic . . . . . . . . . . . . . . . . . . . 305

Magnavox. . . . 062, 108, 137, 130, 027,

. . . . . . . . . . . . . . . . . . . . . . . . . 066, 176

Magnin. . . . . . . . . . . . . . . . . . . . . . . 267

Marantz . . . . . . . . . . . . . . 108, 065, 062

Marta . . . . . . . . . . . . . . . . . . . . . . . . 064

Matsushita . . . . . . . . . . . 062, 481, 189

Memorex. 131, 074, 027, 064, 062, 075,

. . . . . . . . . 267, 334, 073, 066, 828, 829

Minolta . . . . . . . . . . . . . . . . . . 132, 069

Mitsubishi . . . 070, 088, 200, 241, 102,

. . . . . . . . . . . . . . . . . 269, 094, 470, 075

Motorola . . . . . . . . . . . . . . . . . 062, 075

Multitech . . . . . . . . . . . . . . . . . 027, 099

NAD. . . . . . . . . . . . . . . . . . . . . . . . . 085

NAP . . . . 060, 061, 062, 064, 066, 069,

. . . . . . . . . . . . . . . . . . . . . . . . . 093, 132

NEC 065, 067, 068, 077, 094, 109, 131

Nikko . . . . . . . . . . . . . . . . . . . . . . . . 064

Nikon . . . . . . . . . . . . . . . . . . . . 061, 280

Noblex . . . . . . . . . . . . . . . . . . . . . . . 267

Olympus . . . . . . . . . . . . . . . . . 062, 253

Optimus. . . . . . 827, 828, 085, 829, 075,

. . . . . . . . . . . . . 064, 459, 131, 189, 481

Optonica . . . . . . . . . . . . . . . . . . . . . 089

Orion . . . . . . . . . . . . 506, 322, 029, 211

Panasonic . . . . 062, 828, 253, 104, 189,

. . . . . . . . . 405, 129, 252, 254, 273, 481

Penney 062, 267, 064, 065, 069, 067, 081

Pentax . . . . . . . . . . . . . . . 092, 069, 132

Philco. . . . . . . . . . . . . . . . 062, 506, 236

Philips . . . 108, 062, 089, 137, 803, 804

Pilot . . . . . . . . . . . . . . . . . . . . . . . . . 064

Pioneer. . . . . . . . . . . . . . . 085, 195, 094

Portland . . . . . . . . . . . . . . . . . . . . . . 047

Profitronic . . . . . . . . . . . . . . . . . . . . 267

Proscan. . . . . . . . . . . . . . . . . . . 087, 229

Protec . . . . . . . . . . . . . . . . . . . . . . . 099

Pulsar . . . . . . . . . . . . . . . . . . . . 066, 078

Quarter. . . . . . . . . . . . . . . . . . . . . . . 073

Quartz . . . . . . . . . . . . . . . . . . . . . . . 073

Quasar . . . . . . . 062, 189, 104, 481, 828

RCA . . . . 087, 176, 229, 069, 132, 092,

. . . . . . . . . 104, 133, 304, 062, 075, 267

Radio Shack . . . . . . . . . . . . . . . . . . 027

Radix . . . . . . . . . . . . . . . . . . . . . . . . 064

Randex. . . . . . . . . . . . . . . . . . . . . . . 064

Realistic . 074, 027, 131, 075, 064, 062,

. . . . . . . . . . . . . . . . . . . . . 089, 073, 093

Ricoh . . . . . . . . . . . . . . . . . . . . 061, 280

VCR BRAND REMOTE CODE NO.

Runco. . . . . . . . . . . . . . . . . . . . . . . . 066

STS . . . . . . . . . . . . . . . . . . . . . . . . . 069

Salora. . . . . . . . . . . . . . . . . . . . . . . . 102

Samsung. . . . . . . . . . 267, 072, 080, 078

Sanky . . . . . . . . . . . . . . . . . . . . 066, 075

Sansui. . . . 506, 068, 109, 298, 027, 094

Sanyo . . . . . . . . . . . . 073, 074, 131, 267

Scott. 211, 148, 238, 072, 237, 239, 070

Sears . . . . 069, 132, 081, 073, 064, 074,

. . . . . . . . . . . . . . . . . 131, 027, 062, 093

Semp . . . . . . . . . . . . . . . . . . . . . . . . 072

Sharp . . . . . . . . . . . . . . . . . . . . 075, 089

Shintom . . . . . . . . . . . . . . . . . . . . . . 099

Shogun. . . . . . . . . . . . . . . . . . . 078, 267

Signature . . . . . . . . . . . . . . . . . . . . . 062

Singer. . . . . . . . . . . . . . . . . . . . . . . . 099

Sony. 060, 061, 059, 280, 038, 062, 027

Sunpak . . . . . . . . . . . . . . . . . . . . . . . 280

Sylvania . 062, 108, 027, 130, 137, 070

Symphonic. . . . . . . . . . . . . . . . . . . . 027

TMK . . . . . . . . . . . . . . . . 063, 235, 267

Tatung . . . . . . . . . . . . . . . . . . . . . . . 068

Teac . . . . . . . . . . . . . . . . . . . . . 027, 068

Technics 062, 189, 273, 066, 087, 229, 254

Teknika . . . . . . . . . . 027, 062, 079, 064

Thomas . . . . . . . . . . . . . . . . . . . . . . 027

Toshiba . . 072, 239, 237, 093, 393, 070

Totevision . . . . . . . . . . . . . . . . 064, 267

Unitech. . . . . . . . . . . . . . . . . . . . . . . 267

Vector . . . . . . . . . . . . . . . . . . . . . . . 072

Vector Research. . . . . . . . . . . . 065, 067

Video Concepts . . . . 067, 088, 248, 072

Videosonic. . . . . . . . . . . . . . . . . . . . 267

Wards . . . 062, 075, 089, 027, 087, 074,

. . . . . 072, 267, 239, 069, 099, 176, 108

White Westinghouse . . . . . . . . . . . . 305

XR-1000 . . . . . . . . . . . . . 099, 027, 062

Yamaha . . . . . . . . . . . . . . . . . . 065, 068

Zenith. . . . . . . . 066, 060, 061, 027, 506

Continued on Next Page

REMOTE CONTROL DIRECT ENTRY CODES FOR ACCESSORY DEVICES

CABLE CONVERTER REMOTE CODE NO.

ABC . . . . . .030, 035, 038, 040, 028, 034,

. . . . . . . . . . . . . . . . . . . . . . . . . . .041, 044

Allegro . . . . . . . . . . . . . . . . . . . .180, 342

Antronix . . . . . . . . . . . . . . . . . . .049, 234

Archer . . . . . . . . . . . . .049, 180, 234, 824

BBT . . . . . . . . . . . . . . . . . . . . . . . . . .294

Belcor . . . . . . . . . . . . . . . . . . . . . . . . .083

Bell & Howell . . . . . . . . . . . . . . . . . .041

Cable Star . . . . . . . . . . . . . . . . . . . . . . 083

Cabletenna . . . . . . . . . . . . . . . . . . . . .049

Cableview . . . . . . . . . . . . . . . . . . . . . .049

Century . . . . . . . . . . . . . . . . . . . . . . . .180

Citizen . . . . . . . . . . . . . . . . . . . .180, 342

Colour Voice . . . . . . . . . . . . . . . .052, 058

Comtronics . . . . . . . . . . . . . . . . . . . . .067

Contec . . . . . . . . . . . . . . . . . . . . . . . . 046

Digi . . . . . . . . . . . . . . . . . . . . . . . . . . .664

Eastern . . . . . . . . . . . . . . . . . . . . . . . . 029

Emerson . . . . . . . . . . . . . . . . . . . . . . .824

Everquest . . . . . . . . . . . . . . . . . .042, 067

Focus . . . . . . . . . . . . . . . . . . . . . . . . .427

GC Electronics . . . . . . . . . . . . . .083, 234

Garrard . . . . . . . . . . . . . . . . . . . . . . . .180

Gemini . . . . . . . . . . . . . . . . . . . . . . . . .042

General Instrument . . .303, 503, 038, 837

GoldStar . . . . . . . . . . . . . . . . . . 067, 171

Goodmind . . . . . . . . . . . . . . . . . . . . . .824

Hamlin . . . . . . . . . . . . .047, 036, 286, 061

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . 038

Hytex . . . . . . . . . . . . . . . . . . . . . . . . . 034

Jasco . . . . . . . . . . . . . . . . . .042, 180, 342

Jerrold . . . . .030, 039, 303, 038, 041, 042,

. . . . . . . . . . . . . . . . . . . . . . .051, 503, 837

Linsay . . . . . . . . . . . . . . . . . . . . . . . . .467

Magnavox . . . . . . . . . . . . . . . . . .054, 041

Memorex . . . . . . . . . . . . . . . . . . . . . . 027

Movie Time . . . . . . . . . . . . . . . . .090, 183

NAP . . . . . . . . . . . . . . . . . . . . . . . . . .034

NSC . . . . . . . . . . . . . . . . . . . . . . .183, 090

Novaplex . . . . . . . . . . . . . . . . . . . . . . .645

Oak . . . . . . . . . . . . . . . . . . . . . . .046, 034

Optimus . . . . . . . . . . . . . . . . . . . . . . . 048

Panasonic . . . . . . . . . . . . . . 048, 134, 027

Panther . . . . . . . . . . . . . . . . . . . . . . . .664

Paragon . . . . . . . . . . . . . . . . . . . . . . . .027

Philips . . . . . . . . . . . . 052, 058, 054, 180

Pioneer . . . . . . . . . . . . . . . .171, 050, 560

Popular Mechanics . . . . . . . . . . . . . . .427

Proscan . . . . . . . . . . . . . . . . . . . . . . . .048

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . .027

Quasar . . . . . . . . . . . . . . . . . . . . . . . . .027

RCA . . . . . . . . . . . . . . . . . . . . . . . . . .048

Radio Shack . . . . . . . .824, 042, 342, 847

Realistic . . . . . . . . . . . . . . . . . . . . . . . .234

Recoton . . . . . . . . . . . . . . . . . . . . . . . .427

Regal . . . . . . . . . . . . . . . . . . . . . .286, 047

Regency . . . . . . . . . . . . . . . . . . . . . . . .029

Rembrandt . . . . . . . . . . . . . . . . . . . . . .038

Runco . . . . . . . . . . . . . . . . . . . . . . . . .027

CABLE CONVERTER REMOTE CODE NO.

SL Marx . . . . . . . . . . . . . . . . . . . . . . . 067

Samsung . . . . . . . . . . . . . . . . . . . 067, 171

Scientific Atlanta . . . . . . . .035, 044, 504

Seam . . . . . . . . . . . . . . . . . . . . . . . . . .537

Signal . . . . . . . . . . . . . . . . . . . . . 042, 067

Signature . . . . . . . . . . . . . . . . . . . . . .038

Sprucer . . . . . . . . . . . . . . . . . . . . . . . .048

Starcom . . . . . . . . . . . . . . . . . . .030, 042

Stargate . . . . . . . . . . . . . . . 067, 042, 824

Starquest . . . . . . . . . . . . . . . . . . . . . . . 042

Sylvania . . . . . . . . . . . . . . . . . . . . . . . 028

TFC . . . . . . . . . . . . . . . . . . . . . . . . . . .337

TV86 . . . . . . . . . . . . . . . . . . . . . . . . . 090

Tandy . . . . . . . . . . . . . . . . . . . . . . . . .285

TeleCaption . . . . . . . . . . . . . . . . . . . .248

Teleview . . . . . . . . . . . . . . . . . . . . . . . 067

Texscan . . . . . . . . . . . . . . . . . . . . . . . 028

Timeless . . . . . . . . . . . . . . . . . . . . . . .445

Tocom . . . . . . . . . . . . . . . . . . . . .039, 040

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . 027

Tusa . . . . . . . . . . . . . . . . . . . . . . . . . . .042

Unika . . . . . . . . . . . . . . . . . 234, 180, 049

United Artists . . . . . . . . . . . . . . . . . . . 034

Universal . . . . . . .234, 049, 083, 218, 180

Viewstar . . . . . . . . . . . . . . .285, 054, 090

Zenith . . . . 027, 552, 081, 035, 042, 234

Zentek . . . . . . . . . . . . . . . . . . . . . . . . . 427

SATELLITE RECEIVER REMOTE CODE NO.

AlphaStar . . . . . . . . . . . . . . . . . . . . . .799

Amplica . . . . . . . . . . . . . . . . . . . . . . . 099

Amway . . . . . . . . . . . . . . . . . . . . . . . .102

Astro Industries . . . . . . . . . . . . . . . . . .122

BSR . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Capetronic . . . . . . . . . . . . . . . . . . . . . .122

Channel Maste . . . . . . . . . . . . . . 045, 239

Chaparral . . . . . . . . . . . . . . 080, 236, 243

Curtis Mathes . . . . . . . . . . . . . . . 088, 099

DX Antenna . . . . . . . . . . . . . . . . . . . . 068

Drake . . . . . . . . . . . . . 091, 272, 045, 176

Echostar . . . . . . . .307, 802, 175, 186, 296

Expressvu . . . . . . . . . . . . . . . . . . . . . .802

General Instrument . . . . . . .388, 896, 654

HTS . . . . . . . . . . . . . . . . . . . . . . . . . . .802

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . 846

Homecable . . . . . . . . . . . . . . . . . . . . .265

Hughes Network Systems . . . . . . . . . .776

Hytek . . . . . . . . . . . . . . . . . . . . . . . . . .122

IQ . . . . . . . . . . . . . . . . . . . . . . . . . . . .237

IQ Prism . . . . . . . . . . . . . . . . . . . . . . .237

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . .802

Janeil . . . . . . . . . . . . . . . . . . . . . . . . . .179

Jerrold . . . . . . . . . . . . . . . . . . . . .388, 654

Legend . . . . . . . . . . . . . . . . . . . . . . . .296

Macom . . . . . . . . . . . . . . . . . . . .088, 045

Magnavox . . . . . . . . . . . . . . . . . .749, 751

Memorex . . . . . . . . . . . . . . . . . .296, 751

Next Level . . . . . . . . . . . . . . . . . . . . . .896

Panasonic . . . . . . . . . . . . . . . . . .179, 728

SATELLITE RECEIVER REMOTE CODE NO.

Philips . . . . . . . . . . . . . . . . .227, 749, 751

Pico . . . . . . . . . . . . . . . . . . . . . . . . . . .102

President . . . . . . . . . . . . . . . . . . . . . . .101

Primestar . . . . . . . . . . . . . . . . . .654, 388

Proscan . . . . . . . . . . . . . . . . . . . . . . . .593

RCA . . . . . . . . . . . . . . . . . .593, 170, 882

Radio Shack . . . . . . . . . . . . . . . . . . . .593

Ramsey . . . . . . . . . . . . . . . . . . . . . . . .102

Realistic . . . . . . . . . . . . . . . . . . . . . . . .079

STS . . . . . . . . . . . . . . . . . . . . . . .237, 068

Sony . . . . . . . . . . . . . . . . . . . . . . . . . .666

Star Choice . . . . . . . . . . . . . . . . . . . . .896

Star Trak . . . . . . . . . . . . . . . . . . . . . . .207

Toshiba . . . . . . . . . . . . . . . .109, 817, 088

Uniden .265, 397, 079, 101, 751, 103, 749

Zenith . . . . . . . . . . . . . 091, 088, 883, 272

DVD BRAND REMOTE CODE NO.

Harman/Kardon. . . . . . . . . . . . . . . . . . 871

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . 868

Kenwood. . . . . . . . . . . . . . . . . . . . . . . 865

Magnavox . . . . . . . . . . . . . . . . . . . . . . 860

Mitsubishi . . . . . . . . . . . . . . . . . . . . . . 861

Onkyo . . . . . . . . . . . . . . . . . . . . . . . . . 860

Optimus. . . . . . . . . . . . . . . . . . . . . . . . 863

Panasonic . . . . . . . . . . . . . . . . . . . . . . 859

Philips . . . . . . . . . . . . . . . . . . . . . 866, 860

Pioneer . . . . . . . . . . . . . . . . . . . . 863, 869

Proscan . . . . . . . . . . . . . . . . . . . . . . . . 862

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . 862

Samsung . . . . . . . . . . . . . . . . . . . . . . . 870

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . 864

Technics . . . . . . . . . . . . . . . . . . . . . . . 859

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . 860

Yamaha . . . . . . . . . . . . . . . . . . . . 867, 859

Zenith . . . . . . . . . . . . . . . . . . . . . 872, 860

LASER DISC REMOTE CODE NO.

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . .855

Carver . . . . . . . . . . . . . . . . .853, 850, 858

Denon . . . . . . . . . . . . . . . . . . . . . 851, 849

Disco Vision . . . . . . . . . . . . . . . . . . . .848

Funai . . . . . . . . . . . . . . . . . . . . . . . . . .855

Harman/Kardon . . . . . . . . . . . . . . . . . .853

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . .848

Magnavox . . . . . . . . . . . . . . . . . .853, 857

Marantz . . . . . . . . . . . . . . . . . . . .853, 850

Mitsubishi . . . . . . . . . . . . . . . . . . . . . .849

NAD . . . . . . . . . . . . . . . . . . . . . . . . . .849

Panasonic . . . . . . . . . . . . . . . . . . . . . .856

Philips . . . . . . . . . . . . . . . . . . . . . 853, 850

Pioneer . . . . . . . . . . . . . . . . . . . .849, 848

Quasar . . . . . . . . . . . . . . . . . . . . . . . . .856

Realistic . . . . . . . . . . . . . . . . . . . . . . . .855

Sam . . . . . . . . . . . . . . . . . . . . . . . . . . . 848

Sony . . . . . . . . . . . . . . . . . . . . . . 854, 852

Technics . . . . . . . . . . . . . . . . . . . . . . . 856

Theta Digital . . . . . . . . . . . . . . . . . . . 853

Yamaha . . . . . . . . . . . . . . . . . . . . . . .857

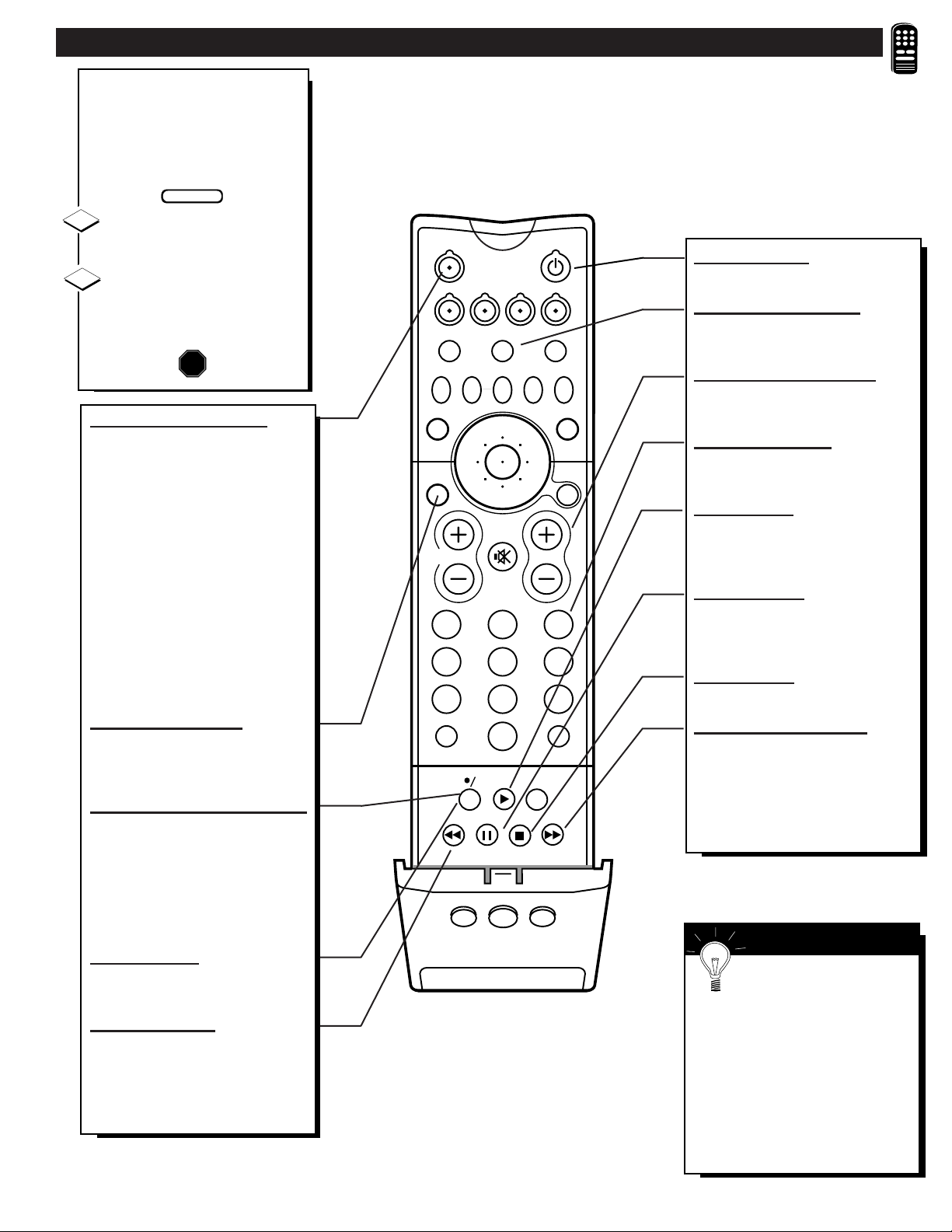

USING THE REMOTE'S VCR BUTTONS

hen using the TV remote

with a VCR, first make certain it is set to control your VCR ( by the REMOTE CODE or SEARCH method - see earlier sections).

Press the VCR System

button on the remote.

Point the top of the remote

toward the front of the VCR (remote sensor window) when pressing buttons.

Power Button

Press to turn the VCR ON and OFF.

VCR System Button

Press to send remote commands to the VCR.

Channel Scan Buttons

Press to scan up or down through VCR channel numbers.

Number Buttons

Press buttons for direct VCR channel selections.

Play Button

Press to playback a tape. Hold down after pressing the RECORD button to start a recording.

Pause Button

Press to temporarily stop the tape during a playback, or recording. Press again to release Pause.

Stop Button

Press to stop the tape.

Fast Forward Button

Press to rapidly advance the tape. For some VCRs you may need to press STOP first then FF. In Playback mode hold button down to view the picture moving rapidly in the forward direction.

TV-VCR (AV) Button

Press to the VCR position ("VCR" indicator on the VCR will light) to view the playback of a tape. Press again to place in the TV position ("VCR" indicator on the VCR will go OFF) to view one program while recording another program. When used with the television the AV button works as a source button. Each press cycles the TV between the AUX(iliary) Input modes, ANT A/B inputs, and the the last view channel. It is a quick one-button way to select these channels and modes (without directly entering the TV's Menu system.)

Status/Exit Button

Press to clear the screen of menu controls or display a feature operation status screen.

Record/VCR Plus+ Button

Press the RECORD button to start a recording (with some VCR models you may also need to press the PLAY button on the remote to begin recording). Also use this button to set timer recordings with the VCR Plus+ programming system.

Clear Button

Press to erase incorrect entries or data when programming VCR functions.

Rewind Button

Press to rewind tapes. For some VCRs you may need to press STOP button first then REWIND. In playback mode, hold button down to view picture moving rapidly in reverse.

SMART HELP

Remember, the VCR

buttons on the remote will not operate your VCR if those features are not already found on your VCR remote control.

Note: All VCR functions (particularly Search, Rewind, Fast Forward, etc.) will operate the same as with the original VCR remote control provided with the VCR.

BEGIN

STOP

Open the remote control VCR button compartment with the pull tabs located on both sides of the hinged door or lid.

GUIDE

SWAP PIP CH

DN UP

SLEEP

STATUS/

EXIT

VOL

INFO

VCR

MUTE

POWER

ACC

SOURCE FREEZE

AUTO

MENU/

SELECT

213 546 879

100+

REC

CLEAR

VCR

PLUS+

SURF

RESET

VIDEO OUT

AUDIO OUT

FIXED

VAR

PIP

ANT A/CABLE 75 V UHF/VHF

INPUTS

VIDEO

AUDIO

AUX 1 AUX 2

ANT B/CABLE

75 V UHF/VHF

PIP

IR BLASTER

REAR SURROUND SPEAKERS

SUBWOOFER

VIDEO OUT

AUDIO OUT

–

FIXED

VAR

PIP

ANT A/CABLE 75 V UHF/VHF

INPUTS

S-VIDEO

VIDEO

AUDIO

AUX 1 AUX 2

ANT B/CABLE 75 V UHF/VHF

PIP

OUT

HOW TO USE THE PICTURE-IN-PICTURE (PIP) FEATURE

icture-in-Picture (PIP) is the

showing of two pictures on the TV screen at the same time. (One main screen picture and one small inset picture - or PIP). For your ease and convenience this TV has two separate inputs (ANTenna A and ANTenna B) for your home’s Antenna and/or Cable TV system signal.

The ANT A input is primarily for the TV’s main screen picture. The ANT B input is provided as a second, dedicated source option for the TV’s PIP “window” and

its feature operations. The signal connected to the ANT B input can be either a Split Signal Input (as described in the section on this page), or another type of external signal source (such as a satellite dish system, additional home antenna, video accessory, etc.).

See the following steps on how channels connected to the ANT(enna) B Input can be shown and used within the PIP window:

Connect your Antenna or

Cable TV signal to the single 75

ohm INPUT plug on a two-way Signal Splitter (not supplied).

Connect two lengths of RF Coaxial Cable (F-type connectors on both ends) to the two OUTPUT plugs on the two-way Signal Splitter.

Connect the twin OUTPUT

plugs on the Signal Splitter to the

ANT A and ANT B Inputs on the rear of the TV.

continue to next page

- PIP WINDOW -

Display signal supplied primarily through ANT B Input on rear of TV.

BACK OF TV

SMART HELP

For other possible PIP

connections see page 53 for the "More PIP Connections" section.

If you need any accessories or parts to complete the described PIP connections, contact your dealer, or our Parts Information Center at (1-800-851-8885) for details.

BEGIN

See the Set-Up Guide also provided with your TV set for further Cable TV connection options and accessories.

VOL

STATUS/EXIT

- MAIN SCREEN -

Display signal supplied primarily through ANT A Input on rear of TV.

Round Cable

75Ω Ohm

Cable TV Company

Cable TV Signal

300 to 75Ω Adapter

(483521827003)

Twin Lead

Wire

Round Cable

75Ω Ohm

- Outdoor or Indoor Antenna -

receives normal broadcast channels

2-13 (VHF) and 14-69 (UHF).

Note: The purpose of the ANT B input is to provide an easily connected, dedicated picture source for PIP feature use. Other signal source options (such as a satellite dish system, additional external antenna, VCR, or Video Game) could also be connected and displayed on the TV’s PIP screen window through the use of the ANT B input.

OPTIONAL TWO-WAY

SIGNAL SPLITTER

Combination VHF/UHF Antenna

(single 75ohm Input to twin 75 ohm Outputs optional RF Coaxial connecting cables also required)

ANT(enna) A

Input

ANT(enna) B

Input

ow that you have completed

the required connections on the previous page you are ready to follow the simple steps shown below.

Turn the TV ON.

Place the TV's PIP SOURCE SELECT control to "ANT B"-

• Press the PIP Source button on

the remote to select “ANT B” as the PIP source, (or use the FEATURES MENU 4 of 5 control screen to select the PIP Source Select item as ANT B.

Also place the TV's Main screen PICTURE SOURCE SELECT control to "ANT A"-

• See the Picture Source option

FEATURES MENU (1 of 5).

Press the STATUS button to clear the screen when the above Menu items have been set.

Press the PIP ON/OFF button

on the remote. The PIP window should show in

one of the corners of the TV screen.

Press the SWAP buttons on

the remote to move the ANT B and ANT A Input pictures between the PIP window and Main screen.

Use the PIP CH(annel) Up and Down buttons to select desired

programs for viewing in the PIP window. Program Sound occurs with the channels displayed on the Main screen.

PIP SOURCE SELECT SET TO "ANT B"

NOTE: Sound for TV programs displayed in the PIP window can also be heard through the use of PIP AUDIO OUT jacks on the rear of the TV. Just connect the TV’s Left/Right PIP AUDIO OUTPUTs to the correct AUX(iliary) Inputs on an external stereo sound system (through which the PIP audio will be played).

SMART HELP

Remember, if you see the

same picture on the main screen and in the PIP window, check to be sure the TV's PIP Source Select and Main screen Picture Source select are set for ANT B and ANT A respectively.

See the following page on how to operate other PIP features with the TV’s remote control.

- PIP WINDOW -

- MAIN SCREEN -

MAIN PICTURE SOURCE SELECT SET

TO "ANT A"

12:34

STEREO

PIP: 8

PIP: 5

• Main Screen is CH 5 from ANT A input.

• PIP is CH 8 from ANT B input

• Main Screen shows CH 8 from ANT B input.

• PIP is CH 5 from ANT A input.

WHITE frame around the PIP window appears

when the ANT B Input is on the Main screen.

BLACK frame around the PIP window appears

when the ANT A Input is on the Main screen.

SWAP

PRESS

button on the remote to switch programs shown on the Main screen and in the PIP window.

AUX/TV INPUT

PHONO INPUT

VIDEO OUT

AUDIO OUT

FIXED

VAR

PIP

ANT A/CABLE 75 V UHF/VHF

IR BLASTER

PIP AUDIO OUTPUT will

be monaural (mono) when both ANT A and ANT B are being used for normal PIP operation. See page 31 for details on other stereo sound uses for the PIP Audio Output jacks.

REAR OF TV

PICTURE SOURCE SELECT

ANT A

ANT B

AUX 1 VIDEO AUX 1 Y P AUX 2 VIDEO SIDE VIDEO

EXIT

B PR

HELP

PIP SOURCE SELECT

ANT A ANT B AUX 1 VIDEO AUX 2 VIDEO SIDE VIDEO

EXIT

POWER

INFO

GUIDE

ACC

VCR

SWAP PIP CH SOURCEFREEZE

SLEEP

STATUS/

EXIT

AUTO

MENU/

SELECT

MUTE

VOL

213

546

879

100+

POSITION

HELP

SURF

PIP

5. PIP SOURCE & PIP CH UP/DN

4. PIP FREEZE

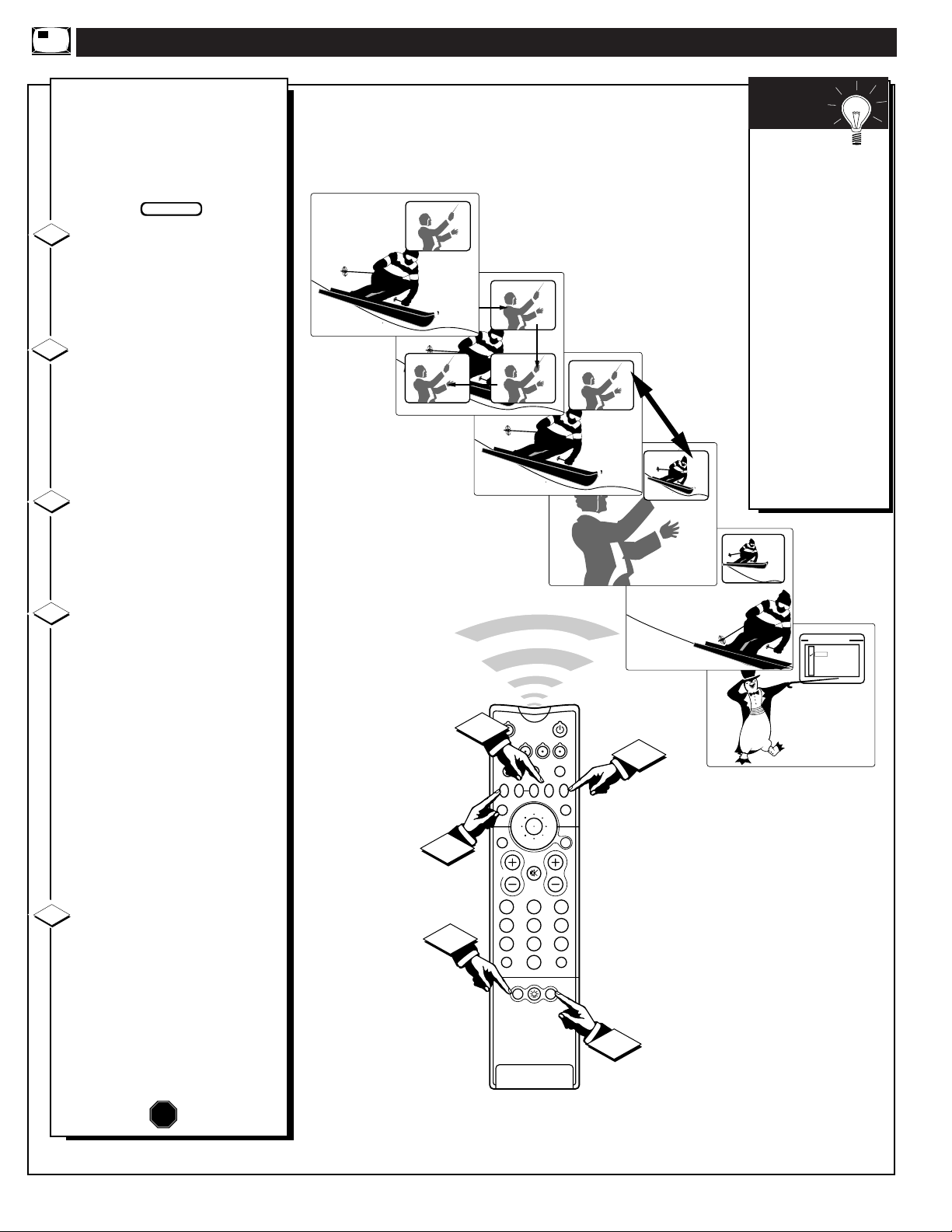

USING PIP WITH THE REMOTE CONTROL

y using the PIP buttons on the

remote the PIP picture can be moved and swapped with the main screen. The main screen picture can also be frozen in the PIP window.

Press the PIP ON/OFF button

to show the PIP picture.

PIP appears in a corner of TV screen. Press PIP ON/OFF again to remove PIP from the main screen.

Press the PIP POSITION

button to move the PIP picture

(from corner-to-corner on the TV screen.)

This feature allows you to move PIP and avoid blocking off any main screen action.

With PIP on the TV screen,

press the SWAP button to swap the main screen picture with the PIP picture. See "Smart Help" note on this page.

Press FREEZE to hold the

current MAIN screen picture in the PIP window (Main picture is still active).

If PIP is currently OFF, the PIP window will automatically appear.

Press FRZ repeatedly to update the frozen PIP with current pictures from the Main screen.

You cannot reposition a frozen PIP picture.

Press the PIP ON/OFF button to drop the frozen PIP picture from the screen.

Press the PIP SOURCE

button to change the signal input source (ANT B, etc.) for the PIP window shown on the TV screen.

Press the PIP CH(annel) Up and Down (DN) buttons to select channels shown within the PIP window (when an antenna/cable signal source is connected for use with PIP).

1. PIP ON / OFF

2. PIP POSITION

3. PIP SWAP

STOP

Remember, if the TV’s Main screen picture is being supplied by an AUX VIDEO connected VCR (or other external accessory source); and then both the TV and VCR are turned OFF, a blank screen will appear when the TV is turned back ON again. If this happens, just press the CH(annel)

▲ or ▼ buttons to select a TV station

for normal viewing.

SMART

HELP

BEGIN

GUIDE

SWAP PIP CH

SLEEP

STATUS/

EXIT

VOL

100+

POSITION

INFO

POWER

LIGHT

ACC

VCR

SOURCEFREEZE

AUTO

MENU/ SELECT

MUTE

213 546 879

SURF

PIP

PIP SOURCE SELECT

ANT A

ANT B AUX 1 VIDEO AUX 2 VIDEO AUX 2 VIDEO SIDE VIDEO

he picture for the PIP window

can come through either the ANT(enna) A / B Inputs or the AUX Video Inputs (on the rear and side of the TV). PIP Picture Source simply tells the TV which one of these sources it is to show in the PIP window.

Select PIP SOURCE control.

With FEATURES MENU (4 of 5) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Note: The remote control’s PIP SOURCE button can also be used to quickly select picture source inputs on the rear of the TV for the PIP window.

Press the MENU ring and

center MENU buttons to highlight

and select the desired (U) PIP Picture Source.

ANT A or B- for a picture signal coming from either the ANT(enna) A or B Input plug on the TV.

AUX 1 (or 2) VIDEO - for a picture signal coming from the AUX 1 (or 2) VIDEO IN jack on the rear of the TV.

SIDE VIDEO- for a picture signal coming from the SIDE VIDEO Input jack on the right side of the TV cabinet.

Press the STATUS button to

clear the screen.

SELECTING THE PICTURE SOURCE FOR PIP

PIP SOURCE

STOP

SMART HELP

Remember, the PIP

window will be blank unless a signal is connected to the selected PIP Picture Source (ANT B, AUX VIDEO, SIDE VIDEO, etc.) on the set.

If you see the same picture on the main screen and in the PIP window, you may have the Main Screen and PIP window set to the same video input source.

BEGIN

FEATURE MENU

MAIN MENU


FEATURES

1ST TIME SETUP

GUIDE

POWER

INFO

SWAP PIP CHUPSOURCE FREEZE

SLEEP

ACC

VCR


SOURCE

CLOSED

SOUND

HELP

EXIT

AUTO

CAPTIONS

EXIT

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR

REMINDER

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

SLEEP TIMER

CHANNEL

DISPLAY

MORE...

2 OF 5

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MENU/

SELECT

MUTE

213 546 879 0

SURF

FEATURE MENU

CHANNEL

LABELS

LANGUAGE

SELECTION

EXIT

FEATURE MENU

PIP

SOURCE

PIP

POSITION

PARENTAL

CONTROL

MORE...

3 OF 5

PIP

SIZE

EXIT

PIP SOURCE SELECT

ANT A ANT B AUX 1 VIDEO AUX 2 VIDEO SIDE VIDEO

EXIT

MORE...

4 OF 5

HELP

ADJUSTING PICTURE-IN-PICTURE COLOR AND TINT

he Picture-In-Picture (PIP)

Color and Tint controls are used to make fine tune adjustments to the color settings for PIP (when it is shown on the TV screen).

Select PIP COLOR (or PIP

TINT) control.

With FEATURES MENU (5 of 5) on screen, move the RED highlight with the outer MENU ring buttons. Then press the center MENU button to select the feature.

Press the outer MENU ring

buttons to move the RED highlight. Press the MENU button to turn (U) the PIP COLOR or TINT control ON.

The PIP automatically comes on to show the PIP window on the TV screen.

Press the outer Menu ring

(Left and Right) buttons to adjust

the PIP for Color (or Tint) levels you prefer.

Press the STATUS button to

clear the screen.

PIP COLOR / PIP TINT

STOP

SMART HELP

Remember. Although

there are separate COLOR and TINT controls for PIP, the adjustment levels for these controls depend on the TV's main picture. For example: If the main screen is showing a black and white picture, PIP would also be in black and white (even though its source is in color).

BEGIN

FEATURE MENU


MAIN MENU


FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

POWER

ACC

SOUND

HELP

EXIT

AUTO

FEATURE MENU

SET CLOCK &

ALARM TIMER

HALF HOUR

REMINDER

EXIT

STATUS/

EXIT

VOL

100+

POSITIONDNPIP

MENU/

SELECT

MUTE

213 546 879 0

SURF

FEATURE MENU

PIP

SOURCE

PIP

POSITION

EXIT

SOURCE

CLOSED

CAPTIONS

EXIT

FEATURE MENU

CHANNEL

LABELS

ACCESSORY

RF SWITCH

EXIT

SIZE

FEATURE MENU

PIP

COLOR

SLEEP TIMER

CHANNEL

DISPLAY

MORE...

2 OF 5

PIP

MORE...

4 OF 5

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

MORE...

3 OF 5

PIP

TINT

EXIT

PIP COLOR

MIN

EXIT

MAX

HELP

PIP TINT

RED

EXIT

MORE...

5 OF 5

GRN

HELP

MORE PIP CONNECTIONS

he following example is for an

alternative PIP connection hookup using an external Cable Converter Box and a VCR (as the picture source for the PIP window).

First use an optional signal

splitter and connect the original

cable TV signal to both the CABLE IN on the Cable Converter and the ANTENNA A plug on the rear of the TV.

Connect the CABLE OUT on

the Converter to the ANT. IN on the VCR.

Connect the VIDEO OUT jack

on the VCR to the VIDEO IN

jack on the TV. Also connect the AUDIO OUT (R

and L) jacks from the VCR to the AUDIO IN jacks on the TV.

SIGNAL

SPLITTER

Contact the Parts Information Center 1 800 851-8885 to order any optional accessories

CABLE TV CONVERTER

VCR

REAR OF TV

AUDIO VIDEO CABLES

(RCA Plug Cables - optional)

STOP

Remember to use the Cable TV Converter Box to select channels for PIP, the VCR must be set to the same channel as the channel selection switch on the rear of the Cable Converter (either channel 3 or

4).

SMART

HELP

BEGIN

The ANTENNA A signal input supplies the TV’s Main screen picture, and the AUX 1 VIDEO Input connection from the VCR serves as the picture source for PIP. Be sure to set the TV’s PIP SOURCE SELECT control to the “AUX 1 VIDEO” mode in order to display the Audio/Video Input signals within the PIP window.

FIXED

VAR

PIP

AUDIO OUT

ANT A/CABLE 75 V UHF/VHF

VIDEO OUT

IR BLASTER

VIDEO

AUDIO

AUX 1 AUX 2

INPUTS

PIP

ANT B/CABLE

75 V UHF/VHF

REAR SURROUND SPEAKERS

FIXED

VAR

PIP

AUDIO OUT

–

SUBWOOFER

S-VIDEO

VIDEO

VIDEO OUT

AUDIO

ANT A/CABLE 75 V UHF/VHF

AUX 1 AUX 2

AUX 3

INPUTS

PIP ANT B/CABLE 75 V UHF/VHF

ANTENNA

OUT

ANTENNA

OUT OUT

VIDEO AUDIO

CABLE OUT

CABLE IN

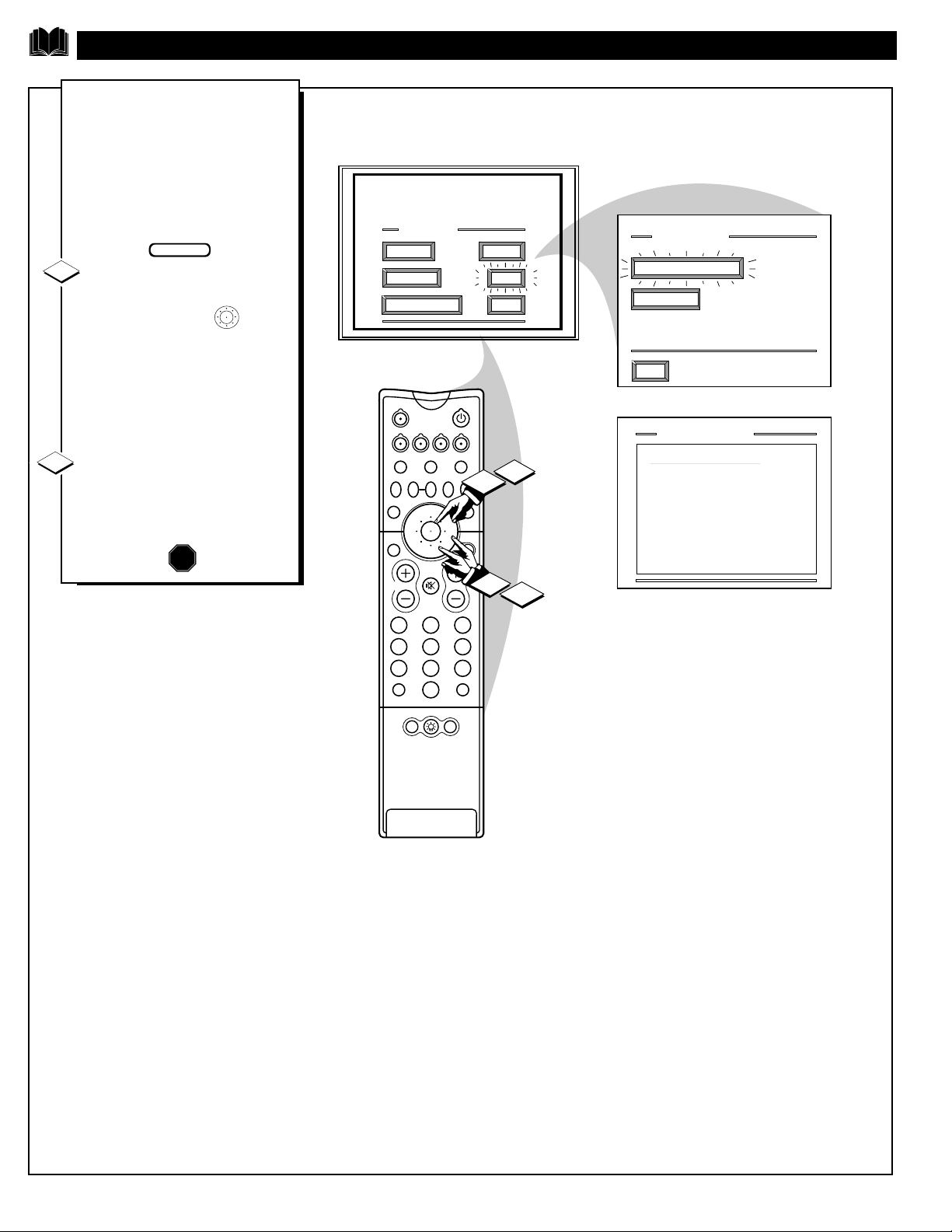

TV HELP MENU

he on screen HELP menu

offers both Operating Tips and a list of Glossary definitions for different features on your TV. These items are given to provide you with more information and details on a select group of feature operations.

Select "HELP" on the TV's

Main Menu.

Press the outer Menu ring

buttons to move UP/DOWN and from SIDE-TO-SIDE within the list of on-screen features.

Press the center MENU button to select the highlighted "HELP" item.

Press the MENU ring and then

the center MENU

buttons to select either the OPERATING TIPS or GLOSSARY item.

FOLLOW THE ON SCREEN

DIRECTIONS TO VIEW

OPERATING TIPS

STOP

BEGIN

MAIN MENU

SOUNDPICTURE

FEATURES

1ST TIME SETUP

INFO

GUIDE

VCR

SWAP PIP CHUPSOURCE FREEZE

SLEEP

STATUS/

EXIT

VOL

MUTE

213 546 879

100+

POSITIONDNPIP

POWER

HELP

EXIT

ACC

AUTO

SELECT

SURF

MENU/

HELP MENU

OPERATING TIPS

GLOSSARY

EXIT

OPERATING TIPS

USING OPERATING TIPS

•

Use the ¶ and Ä keys on your remote to scroll through the different help items.

• Use the "M" key on your remote will go back to the help menu.

For Problems

Of TV Features

TIPS IF SOMETHING ISN'T WORKING

• Check the TV power cord. Unplug the TV, wait 1 minute, then reinsert plug into outlet and push POWER button again.

• Check to be sure outlet is not on a wall switch.

• Check antenna connections on the rear of the TV. Are they properly secured to the antenna plug on the TV?

• Check the CABLE TUNING control for correct position.

• Check PICTURE SOURCE control for correct position ANT A or B; AUX 1/2 VIDEO; AUX Y PB PR; or SIDE VIDEO position without a signal source will result in a blank screen.

• Check the CLOSED CAPTIONS control. Some TEXT modes could block the screen.

• Check VCR-ACC-TV “System” buttons on the remote. Press the remote’s TV System button to send commands to the TV; VCR System to sent to VCR; etc.

• Check batteries. Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries if necessary.

• Clean the remote and the remote sensor window on the TV.

• Check the VOLUME and MUTE buttons on the TV and remote.

• Check the TV SPEAKER NORMAL/OFF sound control for the correct position.

• If attempting auxiliary equipment hook-ups, check audio jack connections and that the auxiliary equipment is on and in the proper operating modes.

• Repeat channel selection.

• Add desired channel numbers (ADD/DELETE CHANNELS control) into TV memory.

• Check CABLE TUNING control for correct position.

lease make these simple

checks before calling for service. These tips can save you time and money since charges for TV installation and adjustment of customer controls are not covered under your warranty.

No Power

No Picture

No Sound

Remote Does Not

Work

TV Displays Wrong

Channel or No

Channels Above 13

This TV is equipped with protective circuitry that shuts the TV off in case of moderate power surges. Should this occur turn the TV back on by pressing the POWER button once or twice, or unplug and then replug the power cord at the AC outlet. This feature is NOT designed to prevent damage due to high power surges such as those caused by lightning, which is not covered by your warranty.

Cleaning and Care

• To avoid possible shock hazard be sure the TV is unplugged from the electrical outlet before cleaning.

• When cleaning the TV screen take care not to scratch or damage the screen surface (avoid wearing jewelry or using anything abrasive- do not use household cleaners). Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when cleaning.

• Specially designed screen cleaning kits are also available which contain anti-static cleaners and cloths designed to get into the ridges of the TV screen. If interested, ask your dealer about an optional Projection TV Screen Cleaning Kit or call our toll-free Accessory Parts ordering number 1-800-851-8885.

• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool clear water and a mild soap or detergent. Use a clean dry cloth to dry the wiped surfaces.

• Occasionally vacuum the ventilation holes or slots in the cabinet back.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring of the cabinet finish.

CAUTION: A video source (such as a video game, Compact Disc Interactive - CDI, or TV information channel) which shows a constant non-moving pattern on the TV screen, can cause picture tube damage. When your TV is continuously used with such a source the pattern of the non-moving portion of the game (CDI, etc.) could leave an image permanently on the picture tube. When not in use, turn the video source OFF. Regularly alternate the use of such video sources with normal TV viewing.

GLOSSARY TO TELEVISION TERMS

Audio/Video Inputs * Located on the rear of the TV these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.

Coaxial Cable * A single solid antenna wire normally matched with a metal plug (F-type) end connector that screws (or pushes) directly onto a 75 Ohm input found on the Television or VCR.

Display * An on screen message or graphics that help the user operate and adjust TV feature controls. See On Screen Displays (OSD).

Identify* Method by which a remote control searches and finds an operating code for another product (such as a VCR or Cable Converter). Once the code has been "identified" then the TV remote can operate and send commands to the other product.

LED * Light Emitting Diode or indicator. Menu * An on-screen listing of feature controls shown on the TV

screen that are made available for user adjustments. Multichannel Television Sound (MTS) * The broadcast standard

that allows for stereo sound to be transmitted with the TV picture. On Screen Displays (OSD) * Refers to the wording or messages

generated by the TV to help the user with specific feature controls (color adjustment, programming, etc.).

Picture -In-Picture (PIP) * Term used when two pictures are shown on the TV screen at the same time. The smaller PIP picture is supplied by a VCR (or other tuner/video playback source). The PIP picture can also be moved and swapped with the TV's main screen picture.

Pre-Amplifier * The control center of a hi-fi system. Not only amplifies source inputs, but also allows for source selection, volume, tone, balance and all other controls that affect the sound.

Programming * The procedure of adding or deleting channel numbers into the TV’s memory circuits. In this way the TV “remembers’’ only the locally available or desired channel numbers and skips over any unwanted channel numbers.

PTV * Projection Television (Rear and/or Front projection design systems are available.)

Remote Sensor Window * A window or opening found on the TV control panel through which infrared remote control command signals are received.

RF * Radio Frequency or modulated signal design used as the carrier for television broadcasts.

Second Audio Program (SAP) * Another or additional audio channel provided for in the Multichannel Television Sound (MTS) broadcast standard. A monaural soundtrack included within the recorded or video signal (usually containing a second language translation for the displayed programming.)

Status * Allows the user to quickly confirm what channel number is currently being viewed. Status can also be used to clear the TV of on-screen displays or information (rather than waiting for the displays to “time out” or automatically disappear from the screen).

Subwoofer * A speaker designed for audio playback of only the lowest-frequency notes (under 100 Hz.)

S-Video Input * Allows direct connection of high-resolution video sources, such as a Super VHS videocassette recorder, Laser Disc player, etc. Provides improved picture resolution, sharpness, and clarity.

Twin Lead Wire * The more commonly used name for the two strand 300 Ohm antenna wire used with many indoor and outdoor antenna systems. In many cases this type of antenna wire requires an additional adapter (or balun) in order to connect to the 75 Ohm Input terminals designed into the more recent Televisions and VCRs.

Variable Audio Output * An adjustable audio output which allows for volume variations at the source.

INDEX

Accessories/Optional.............................. 31-37, 48, 53, *Q/U-1

Add/Delete Channels ..........................................13-14, *Q/U-2

Audio Controls..................................................................27-32

Audio/Video Input ..................................33-37, 48, 53, *Q/U-2

Automatic Programming..........................................13, *Q/U-2

Auto Picture.......................................................................38-39

Auto Sound.............................................................................40

Auto Surf ................................................................................41

Battery Installation .........................................................*Q/U-3

Blocking Channels ............................................................19-20

Cable TV Connections/Settings ................12, 48, 53 *Q/U-1, 2

Channel/Time Display..................................15, 16, 18, *Q/U-3

Channel Label.........................................................................25

Channel Memory.................................................13-14, *Q/U-2

Channel/Time Reminder.........................................................18

Clock Setting ..........................................................................15

Clock Timer............................................................................16

Closed Captioning ..................................................................11

Color Controls.............................................................6,*Q/U-4

Content Advisory ..............................................................19-24

Convergence.............................................................................8

Controls/TV............................................................*Q/U-2, 3, 4

Controls/Remote ...................................38-47, 50, *Q/U-2, 3, 4

Exit .................................................................................*Q/U-4

Features.....................................................................................5

First Time Set Up ...........................................................*Q/U-2

Help Menu............................................................54, *Q/U-2, 4

Inputs/Audio and Video ........................................33-36, 48, 53

Language.................................................................................26

Menu...........................................................................*Q/U-2, 4

Minus(-)/Plus (+) Buttons...........................................*Q/U-3, 4

Movie Ratings.........................................................................21

Parental Control.................................................................19-24

Parental Guidelines.................................................................23

Picture-In-Picture (PIP).......................................48-53, *Q/U-2

PIP Audio Output jacks....................................................31, 49

Picture Source Control......................................................10, 51

Precautions/Safety............................................2, 3, 55, *Q/U-1

Programming Channels............................................13, *Q/U-2

Remote Control.....................................38-47, 50, *Q/U-2, 3, 4

Remote with VCRs............................................................42-47

Requesting Service............................................... 55, 58-59, 60

RF Coaxial Cable ...............................................48, 53, *Q/U-1

Reminder/Time and Channel..................................................18

Safety/Precautions............................................2, 3, 55, *Q/U-1

Second Audio Program (SAP)................................................28

Sensor Remote................................................................*Q/U-3

Sleep Timer.............................................................................17

Surround Sound......................................................................32

Speaker Terminals..................................................................32

Time/Channel Display..............................................18, *Q/U-3

Timer (Turn On).....................................................................16

Variable Audio Output ...........................................................32

VCR Button........................................................33, 47, *Q/U-3

VCR/TV Connections.............................33-37, 48, 53, *Q/U-1

Tips for Service...........................................................55, 58-59

TV Speaker Control................................................................31

Volume Display......................................................................30

Warranty .................................................................................59

* Q/U indicates page number reference in the separate Quick Use Guide

RENEWED

90 DAY

LIMITED WARRANTY

Philips 55P9161099 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
