Philips 55P8288, 55P8241, 60P8288, 60P 8241 User Manual

3135 035 20203

55P8241 60P8241 55P8288 60P8288

Projection

Television

2

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your pur-

chase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you

receive all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.

Sincerely,

Lawrence J. Blanford President and Chief Executive Officer

Know these

safety

symbols

t This “bolt of lightning” indicates uninsulated material within your unit may cause an electri-

cal shock. For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed

literature closely to prevent operating and maintenance problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la

borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

R

E

G

I

S

T

R

A

T

I

O

N

E

D

E

D

W

I

T

H

I

N

1

0

D

A

Y

S

Hurry!

Visit our World Wide Web Site at http://www.philips.com

3

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in

accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. Apolarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org

16. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged;

or

B. Objects have fallen, or liquid has been spilled into the

appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or

exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure

damaged.

17. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

19. Power Lines - An outdoor antenna should be located away from power lines.

20. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

21 Object and Liquid Entry - Care should be taken so that

objects do not fall and liquids are not spilled into the enclosure through openings.

Example of Antenna Grounding as per NEC - National Electric Code

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides

guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Rev. 3/9/01

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

(NEC SECTION 810-20)

4

TABLE OF CONTENTS

GETTING STARTED

PICTURE MENU

FEATURES MENU

SOUND MENU

Adjusting the Picture . . . . . . . . . . . . . . . . . . . . . .6

Turning on the Dynamic Noise

Reduction (DNR) Control . . . . . . . . . . . . . . . . . .7

Turning on the ImageMax Control . . . . . . . . . . . .8

The Convergence Control:

•Converge Red/Blue . . . . . . . . . . . . . . . . . . . .9

•Converge Multipoint Red/Blue . . . . . . . .10–11

•Undo Multipoint . . . . . . . . . . . . . . . . . . . . .12

Welcome/Product Registration . . . . . . . . . . . . . . . .2

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . .4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

The Timer Control:

•Setting the Clock . . . . . . . . . . . . . . . . . . . . .13

•Setting the Start Time . . . . . . . . . . . . . . . . .14

•Setting the Stop Time . . . . . . . . . . . . . . . . .15

•Selecting the Channel . . . . . . . . . . . . . . . . .16

•Setting the Activate Control . . . . . . . . . . . .17

•Constantly Displaying

the Time on Screen . . . . . . . . . . . . . . . . . .18

The AutoLock Control:

•Understanding AutoLock . . . . . . . . . . . . . . .19

•Setting up the Access Code . . . . . . . . . . . . .20

•Blocking Channels . . . . . . . . . . . . . . . . . . .21

•Blocking by Movie Rating . . . . . . . . . . . . .22

•Blocking by TV Rating . . . . . . . . . . . . . . . .23

•Turning the Blocking Control

on or off . . . . . . . . . . . . . . . . . . . . . . . . . .24

•Blocking Unrated Broadcasts . . . . . . . . . . .25

•Blocking Broadcasts

That Have No Rating . . . . . . . . . . . . . . . .26

•Reviewing Your Settings . . . . . . . . . . . . . . .27

•Clearing All Blocked Channels . . . . . . . . . .28

Using the Closed Captioning Control . . . . . . . . .29

Adjusting the Treble, Bass,

and Balance . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Using the AVL (Audio Volume Leveler)

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Using Incredible Surround . . . . . . . . . . . . . . . . .32

Setting the TV for Stereo and SAP . . . . . . . . . . .33

Setting the Audio Out Control . . . . . . . . . . . . . . .34

Using the TV Speaker Control

and Audio Outputs . . . . . . . . . . . . . . . . . . . . . .35

Using the Bass Boost Control . . . . . . . . . . . . . . .36

REMOTE CONTROL

AutoLock, ImageMax, Incredible Surround, SmartPicture, and SmartSound are trademarks of Philips Consumer Electronics Company. Copyright © 2001 Philips Consumer Electronics Company. All rights reserved.

Using SmartPicture . . . . . . . . . . . . . . . . . . . . . . .37

Using SmartSound . . . . . . . . . . . . . . . . . . . . . . .38

Using Surf and Alternate Channel . . . . . . . . . . . .39

Using the Sleep Timer Control . . . . . . . . . . . . . .40

Using the Volume and AV Buttons . . . . . . . . . . .41

Setting the TV Remote to Work

Accessory Devices . . . . . . . . . . . . . . . . . . .42–46

NOTE: This owner's manual is used with several different television models. Not all features (and illustrations) discussed herein will necessarily match your television set. This is normal and does not require that you contact your dealer or request service.

Because of continuous product improvements, the information mentioned in the documents accompanying your product are subject to change without notice.

THE PICTURE-IN-PICTURE (PIP) FEATURE

Using PIP (Basic Connections) . . . . . . . . . . . . . .47

Using the PIP Remote Control Buttons . . . . . . . .48

Adjusting the PIP Color and Tint Controls . . . . .49

More PIP Connections . . . . . . . . . . . . . . . . . . . .50

GENERAL INFORMATION

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Glossary of Television Terms . . . . . . . . . . . . . . .52

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Factory Service Locations . . . . . . . . . . . . . . .54–55

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . .56

ON-SCREEN FEATURES

Refer to the simple Quick Use and Setup Guide (supplied with your TV) for details on the following:

• Basic TV Connections

• Television and Remote Operation

• On-screen Menu Controls

• How to Use the Installation Features

• Connection Options for Accessory Devices

QUICK USE AND SETUP GUIDE

OR OR

Quick Use and Setup Guide

CONTENTS

TABLEOF

2

1

Setting the Tuner Mode Control . . . . . . . . . . . . . . . .3

1 1

1

Getting Started

2 0

1

3 9

4

8

5 7

Running Auto Program . . . . . . . . . . . . . . . . . . . . . . .3

6

Warning/Important Notice . . . . . . . . . . . . .1

Editing Channels . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Making Basic Antenna/Cable Hookups . . . .1

Using AutoChron to Set the TV’s Clock . . . . . . . . . .4

Using the TVButtons . . . . . . . . . . . . . . . . . . . . . . . .2

Naming Channels . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Using the Remote Control Buttons . . . . . . . . . . . . . .2

Setting the TV’s on-screen menu language . . . . . . . .3

HOOKINGUP YOUR TV(BASIC TV C

CABLETV

If yourCable TVsignal

Connect the cable TVcable to the

comes from a single round

ANTENNAIN 75Ωplug on the TV.

CABLEINPUT/CONVERTER

cable(75 ohm), then you're

If you have a cable converterbox,

our Cable TVinput into

ready to connect to the TV.

connect the OUT(put) plug from the

Y

your home may be a

If you have a cable converter

converter to the ANTENNAIN 75Ω

box, connect the cable TVsignal

single (75 ohm) cable or a

(ohm) plug on the TV.

to the cable signal IN(put) plug

converter box installation.

on the converter.

In either case, the connection to the TVis very easy.

Cable TVCompany

ANTENNA

combination antenna receives normal broad-

TVTO VCR

BASICCONNECTION

ollow the steps to the right to connect a

ANTENNA IN 75Ω

Cable TVSignal Input

OUT

IN

Round Cable

Cable TVConverter

75Ω(Ohm)

Box Connection

Push the round endof the

If yourantenna has a

adapter (or antenna) onto the

round cable(75 ohm) on the

ANTENNAIN 75Ωplug on the

end, then you're ready to connect it

back of the TV. If the round

to the TV.

end of the antenna wire is

If yourantenna has flat, twin-

threaded, screw it down finger

lead wire (300 ohm), you first need

tight.

to attach the antenna wires to the screws on a 300- to 75-ohm adapter.

300Ω(Ohm) to

75Ω(Ohm) Adapter

1

ANTENNA IN 75Ω

Twin–Lead

Combination VHF/UHF

Wire

Antenna

MONO/L

(Outdoor or Indoor)

Round Cable

75Ω(Ohm)

Connect the OUTTO

Connect youranten-

TVplug on the VCR to the

na orcable TVsignal to the

ANTENNAIN 75Ωplug on

INFROMANT(enna) plug on

the TV(connecting cable sup-

the VCR.

plied with the VCR).

300Ω(Ohm) to

75Ω(Ohm) Adapter

Outdoor

VHF/UHF

1

Antenna

OR

OUT TO TV

IN FROM ANT.

Cable TVsignal

VCR

Just put the threaded end of the cable signal to the TV’s antenna plug and screw it down tightly.

NOTE:The connecting cable

for the converter is supplied

by the cable TVcompany.

COMBINATIONUHF/VHF

A

cast channels (VHF 2–13 and UHF 14–69). Your connection is easy because there is only one ANTENNA IN 75Ω(ohm) plug on the back of your TV, and that’s where the antenna goes.

F

basic antenna or cable TV signal to a VCR, and then the VCR to the TV. For information on other hookups (possible when cable/descrambler boxes are included), refer to the owner’s manuals for the VCR and the cable converter.

MONITOR OUT AV1 IN AV2 IN

VIDEO

AUDIO

R

75Ω(Ohm) Supplied with VCR

MONITOR OUT AV1 IN AV2 IN

VIDEO

MONO/L AUDIO

R

2

Y

Pb

Pr

1

Y

Pb

Pr

Round Cable

ANTENNA IN 75Ω

IMPORTANT

NOTE: This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with yourtelevision set. This is normal and does not require you contacting yourdealeror requesting service. WARNING: TO PREVENTFIRE OR SHOCK HAZARD DO NOTEXPOSE THIS UNITTO RAIN OR EXCESSIVE MOISTURE.

ONNECTIONS)

MONITOR OUTAV1 IN AV2 IN

ANTENNA IN 75Ω

Y

VIDEO

Pb

S-VIDEO

MONO/L

AUDIO

Pr

R

S-VIDEO

Back of TV

NOTE:For homes with separate UHF and VHF antennas, you will need an optional combiner to connect to the TV.

U/V

Combiner

Back of TV

300- to 75-Ohm Adapter

MONITOR OUTAV1 IN AV2 IN

ANTENNA IN 75Ω

Y

VIDEO

Pb

S-VIDEO MONO/L

AUDIO

Pr

R

S-VIDEO

Back of TV

Referto the owner's

manual included with your

VCR for other possible connections and TV/VCR operating details.

2

MONITOR OUT AV1 IN AV2 IN

Y

VIDEO

Pb

S-VIDEO

MONO/L AUDIO

MONITOR OUTAV1 IN AV2 IN

ANTENNA IN 75Ω

Pr

Y

VIDEO

Pb

MONO/L

AUDIO

Pr

R

Back of TV

Projection

Television

SMART HELP

Use the Auto Program feature to store in the TV’s memory only the channels with active broadcast stations. See page page 3 for details.

SMART HELP

To get optional accessories to make the connections shown here, contact your deal-

MONITOR OUTAV1 INAV2 IN

ANTENNA IN 75Ω

Y

VIDEO

Pb S-VIDEO

MONO/L

er, or our Parts

AUDIO Pr

R

Information Center at 1-800-851-8885.

S-VIDEO

5

FEATURES

Your new projection television and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts that need to be properly disposed. The batteries used by your product should not be thrown away when depleted but should be handed in and disposed of as small chemical waste. Please find out about the local regulations concerning how to dispose of your old television, batteries, and packaging materials whenever it is time to replace them.

End-of-Life Disposal

This Projection Television is capable of connecting to both the current analog television signals of today as well as interfacing with new, upcoming digital source playback products and devices. This TV includes multiple signal connectors (Component Video, S-Video, and Composite Video), which give you a variety of equipment playback options for digital set-top boxes, satellite receivers, cable boxes, and other digital devices.

While there may exist some digital devices with connections not available on this television, you should be adequately prepared for the vast majority of products coming onto the digital consumer electronics’ market. NOTE: You should always use the connection output on digital devices that gives the highest level of picture quality possible. As listed above, the Component Video (or Y P

B PR) input

delivers the best color and picture reproduction, followed by S-Video, and then Composite Video. In addition to these inputs, your television also includes the standard 75-ohm cable signal connector for use with antennas or analog cable boxes.

Digital-Ready Projection TV

Items Included with This TV

As you unpack your TV, please note that this Directions for Use manual contains the following:

• Safety Tip Information

• Factory Service Center Locations.

Also included with your set are the following:

• Warranty Registration Card

• Remote Control Transmitter

• Batteries for Remote Control Use.

Please take a few minutes to complete your registration card. The serial number for the TV is on the back of the set.

Refer to the back of this manual for instructions in the cleaning and care of the TV.

Audio/Video Jack Panel allows direct connections with VCRs, DVDs, or other accessory devices, providing quality TV picture and sound playback.

Audio Volume Leveler (AVL) Control keeps the TV sound at an even level. Peaks and valleys that occur during program changes or commercial breaks are reduced, making for a more consistent, comfortable sound.

AutoChron automatically sets the right time of day and maintains it with digital precision through brownouts, power failures, and even Daylight Savings Time adjustments.

AutoLock allows you to block the viewing of certain channels or programs with certain ratings if you do not want your children to view inappropriate materials.

Auto Program scans for all available channels from regular antenna or cable signals and stores only active broadcast stations in the TV’s memory.

Channel Edit allows you to add or delete channels from the list stored in the TV’s memory. Channel Edit makes it easy to limit or expand the number of channels that are available to you when you press the Channel Scan (+,–) buttons on your remote control.

Closed Captioning allows the viewer to read TV program dialogue or voice conversations as on-screen text.

Dynamic Noise Reduction (DNR) can help eliminate broadcast signal noise (“speckles” in the picture).

ImageMax helps you sharpen the picture quality by making dark portions of the picture darker and lighter portions brighter.

Infrared Remote Control works your TV and other remote-controlled devices, such as VCRs, DVD players, cable converters, and satellite receivers.

On-screen Menu shows helpful messages and instructions for adjusting or setting TV feature controls (can be viewed in English, French, or Spanish).

Sleep Timer automatically turns the TV off after a set amount of time of your choice.

SmartPicture allows you to push a button and adapt your television’s picture to various types of programming, such as sports, movies, and multimedia (games), as well as to the occurrence of a weak broadcast signal.

SmartSound allows you to select from three factory-set controls and a personal control that you set according to your own preferences through the onscreen Sound menu. The three factory-set controls (Voice, Music, and Theatre) enable you to tailor the TV sound to enhance the particular programming you are watching.

Standard Broadcast (VHF/UHF) or Cable TV (CATV) channel capability allows for viewing by antenna or cable.

Stereo capability, including a built-in audio amplifier and twin-speaker system, allows for the reception of TV programs broadcast in stereo sound.

Surf Button allows you to easily switch among only the channels that are of interest to you (the ones that you have programmed into the TV’s Surf control through the on-screen menu).

Timer allows you to set your TV to turn itself on and off once or daily like an alarm clock.

6

ADJUSTING THE PICTURE

T

o adjust your TV picture controls, select a channel and follow these

steps.

Press the MENU button on the

remote control to show the on-screen

menu. PICTURE will be highlighted.

Press the CURSOR RIGHT button.

BRIGHTNESS will be highlighted and an adjustment bar will be shown to the right.

Press the CURSOR RIGHT or LEFT button to adjust the BRIGHT- NESS level of the picture. Or press the CURSOR DOWN button to select

another picture control to adjust.

Press the i+ button to remove the menu from the screen.

Picture Menu • Adjusting the Picture

When the bar scale

is centered, the control settings are at normal, midrange levels. Picture adjustment controls are described here.

BRIGHTNESS—adds or subtracts light from the darkest part of the picture.

COLOR—adds or eliminates color. PICTURE—improves the detail of

the lightest parts of the picture. SHARPNESS—improves the detail

in the picture. TINT—adjusts the picture to obtain

natural skin tones. COLOR TEMP—offers NOR-

MAL, COOL, or WARM picture preferences.

NORMAL—keeps whites, white. COOL—makes whites, bluish. WARM—makes whites, reddish.

SMART HELP

BEGIN


SOUND FEATURES INSTALL

AV

TV

VCR

1

4

ACC

4

7

SMART

MENU SURF

1

INCR. SURR.

BRIGHTNESS COLOR PICTURE SHARPNESS TINT

+

i

SAP

23 5

89

SMART

0

3

PIP

A/CH

PIP CH

DN

UP


BRIGHTNESS 30

COLOR PICTURE SHARPNESS STORE


6

3

2

CH

BRIGHTNESS

COLOR 30

PICTURE SHARPNESS STORE


BRIGHTNESS COLOR

PICTURE 30

SHARPNESS STORE


BRIGHTNESS COLOR PICTURE

SHARPNESS 30

TINT


BRIGHTNESS COLOR PICTURE SHARPNESS

TINT 0


COLOR PICTURE SHARPNESS TINT

COLOR TEMP NORMAL

OR

COLOR TEMP WARM

OR

COLOR TEMP COOL

Picture Menu • The Dynamic Noise Reduction Control

7

TURNING ON THE DYNAMIC NOISE REDUCTION (DNR) CONTROL

B

ecause of poor cable reception or

other difficulties, the picture can sometimes appear slightly “speckled” (an indication of signal noise in the picture). The DNR (Dynamic Noise Reduction) control can help eliminate this type of interference and improve the quality of the picture.

Press the MENU button on the

remote to show the on-screen menu.

PICTURE will be highlighted.

Press the CURSOR RIGHT but-

ton to enter the PICTURE menu.

Press the CURSOR DOWN but-

ton repeatedly until the DNR control

is highlighted.

Press the CURSOR RIGHT or

LEFT button to switch DNR ON or

OFF.

Press the i+ button to remove the

menu from the screen.

BEGIN


SOUND FEATURES INSTALL

5

1

AV

TV

VCR

1

ACC

4

7

SMART

MENU SURF

BRIGHTNESS COLOR PICTURE SHARPNESS TINT

+

i

SAP

23 5

89

SMART

0


BRIGHTNESS 30

COLOR PICTURE SHARPNESS TINT


PICTURE SHARPNESS TINT COLOR TEMP

ON

DNR

OR

DNR OFF

6

4

2

INCR. SURR.

CH

3

PIP

A/CH

PIP CH

DN

UP

Picture Menu • The ImageMax Control

8

TURNING ON THE IMAGEMAX CONTROL

I

mageMax helps you sharpen the

picture quality by making dark portions of the picture darker and light portions of the picture brighter. Follow these steps to turn ImageMax on.

Press the MENU button on the

remote control to show the on-screen menu. PICTURE will be highlighted.

Press the CURSOR RIGHT but-

ton to enter the PICTURE menu.

Press the CURSOR DOWN but-

ton repeatedly until the IMAGEMAX

control is highlighted.

Press the CURSOR RIGHT or

LEFT button to switch between ON

and OFF.

Press the i+ button to remove the

menu from the screen.

BEGIN


SOUND FEATURES INSTALL

BRIGHTNESS COLOR PICTURE SHARPNESS TINT


BRIGHTNESS 30

COLOR PICTURE SHARPNESS TINT


SHARPNESS TINT COLOR TEMP

ON

DNR

IMAGEMAX ON

+

AV

i

5

TV

VCR

ACC

SMART

1

INCR. SURR.

SAP

1

23

4

5 89

7

MENU SURF

SMART

0

3

PIP

PIP CH

UP

OR

IMAGEMAX OFF

6

4

2

CH

A/CH

DN

Picture Menu • The Convergence Control

9

CONVERGE RED/BLUE

T

he influence of magnetic fields

and changes in the position of the TV may cause screen colors not to line up properly. The result on your TV screen will be red or blue colors appearing around the edges of images.

If various images on the entire picture have red outlines, adjust the CONVERGE RED control. Then if any red outlines remain, adjust the MULTIPOINT RED control.

If various images on the entire picture have blue outlines, adjust the CONVERGE BLUE control. Then if any blue outlines remain, adjust the MULTIPOINT BLUE control.

Use the UNDO MULTIPOINT control if you want to restore the picture screen to the way it was before you made Multipoint adjustments.

NOTE: After turning the TV set on, allow it to warm up for 15 minutes before adjusting the Convergence controls.

Press the MENU button on the

remote to show the on-screen menu. PICTURE will be highlighted.

Press the CURSOR RIGHT button to enter the PICTURE menu.

Press the CURSOR DOWN button repeatedly until CONVER-

GENCE is selected.

Press the CURSOR RIGHT but-

ton to enter the CONVERGENCE

menu.

Press the CURSOR RIGHT but-

ton to enter CONVERGE RED mode.

Press the CURSOR LEFT, RIGHT, UP, or DOWN button to

adjust the cross image until the color outline around it is gone.

Press the i+ button to exit the

menu from the screen.

SMART HELP

You can adjust the CON-

VERGE BLUE control the same way you would the CONVERGE RED control.

BEGIN


1

TINT

COLOR TEMP DNR IMAGEMAX

CONVERGENCE

7

TV

VCR

ACC

AV

1 4

SMART

MENU SURF

i

7

CONVERGE RED CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE SAVE MULTIPOINT

+

SAP

23

6

5 89

SMART

0

2

PICTURE CONVERGENCE

CONVERGE RED

CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE SAVE MULTIPOINT

CONVERGE RED

4

5

6

CH

INCR. SURR.

3

PIP

A/CH

CONVERGE BLUE

PICTURE CONVERGENCE

CONVERGE RED

CONVERGE BLUE

MULTIPOINT RED MULTIPOINT BLUE SAVE MULTIPOINT

PIP CH

DN

UP

10

CONVERGE MULTIPOINT RED/BLUE

I

f various images on the entire pic-

ture have red outlines, adjust the CONVERGE RED control. Then if any red outlines remain, adjust the MULTIPOINT RED control.

Likewise, if various images on the entire picture have blue outlines, adjust the CONVERGE BLUE control. Then if any blue outlines remain, adjust the MULTIPOINT BLUE control.

Use the UNDO MULTIPOINT control if you want to restore the picture screen to the way it was before you made Multipoint adjustments.

NOTE: After turning the TV set on, allow it to warm up for 15 minutes before adjusting the Convergence controls.

Press the MENU button on the

remote to show the on-screen menu.

PICTURE will be highlighted.

Press the CURSOR RIGHT but-

ton to enter the PICTURE menu.

Press the CURSOR DOWN but-

ton repeatedly until CONVER-

GENCE is selected.

Press the CURSOR RIGHT but-

ton to enter the CONVERGENCE

menu.

Press the CURSOR DOWN but-

ton repeatedly until MULTIPOINT

RED is selected.

Press the CURSOR RIGHT but-

ton to enter NAVIGATE mode.

Press the CURSOR LEFT,

RIGHT, UP, or DOWN button to

move to a cross image that has a color outline.

Go to step 8 on the next page.

Picture Menu • The Convergence Control

BEGIN


TINT COLOR TEMP DNR IMAGEMAX

CONVERGENCE

AV

TV

VCR

1

ACC

4

7

SMART

MENU SURF

1

7

INCR. SURR.

+

i

23 5

89 0

3

PIP

5

UP

CONVERGE RED CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE SAVE MULTIPOINT

SAP

6

SMART

CH

A/CH

PIP CH

DN

PICTURE CONVERGENCE

CONVERGE RED

CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE SAVE MULTIPOINT

PICTURE CONVERGENCE

CONVERGE RED CONVERGE BLUE

MULTIPOINT RED

MULTIPOINT BLUE

▲

SAVE MULTIPOINT

NOTE: T o display three cross images hidden by the on-screen text, simply navigate to the

6

4

2

bottom row and the cross images will be shown.

É

• NAVIGATE I+: ADJUST

11

CONVERGE MULTIPOINT RED/BLUE

Press the i+ button to enter the

ADJUST mode.

Press the CURSOR LEFT,

RIGHT, UP, or DOWN button to

adjust the cross image until the color outline is gone.

Press the i+ button to return to

NAVIGATE mode.

Repeat steps 7–10 until all misaligned crosses have been adjusted.

Press the MENU button to return

to the CONVERGENCE menu.

Press the CURSOR DOWN but-

ton repeatedly until SAVE MULTI-

POINT is selected.

Press the CURSOR RIGHT but-

ton to activate the storing of the

Multipoint adjustments you have made.

Press the i+ button to remove the

menu from the screen.

10

11

12

13

14

Picture Menu • The Convergence Control

You can adjust the MULTI-

POINT BLUE control in the way you would adjust the MULTIPOINT RED control.

SMART HELP

14

10

11

• ADJUST

I+: NAVIGATE

• NAVIGATE I+: ADJUST

PICTURE CONVERGENCE

CONVERGE RED CONVERGE BLUE

MULTIPOINT RED

MULTIPOINT BLUE SAVE MULTIPOINT


8

+

AV

i

TV

VCR

ACC

SMART

SAP

1

23

4

5 89

7

0

MENU SURF

6

SMART

13

9

CONVERGENCE

CONVERGE RED CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE

SAVE MULTIPOINT

PICTURE CONVERGENCE

CONVERGE RED CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE

SAVE MULTIPOINT STORED

INCR. SURR.

12

PIP

UP

PIP CH

CH

A/CH

DN

12

UNDO MULTIPOINT

T

he UNDO MULTIPOINT control

allows you to restore the TV’s picture screen to the way it was before you made Multipoint adjustments.

Press the MENU button to show

the on-screen menu. PICTURE will

be highlighted.

Press the CURSOR RIGHT but-

ton to enter the PICTURE menu.

Press the CURSOR DOWN button repeatedly until CONVER-

GENCE is selected.

Press the CURSOR RIGHT but-

ton to enter the CONVERGENCE

menu.

Press the CURSOR DOWN but-

ton repeatedly until UNDO MULTI-

POINT is selected.

Press the CURSOR RIGHT but-

ton to activate the restoring of the

previous picture screen.

Press the i+ button to remove the

menu from the screen.

BEGIN

Picture Menu • The Convergence Control


TINT COLOR TEMP DNR IMAGEMAX

CONVERGENCE

AV

TV

7

VCR

1

ACC

4

SMART

MENU SURF

1

MENU SURF

7

CONVERGE RED CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE SAVE MULTIPOINT

+

i

SAP

23

23 5

5

5 89

89

SMART

0

6

2

PICTURE CONVERGENCE

CONVERGE RED

CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE SAVE MULTIPOINT

PICTURE CONVERGENCE

CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE SAVE MULTIPOINT

UNDO MULTIPOINT

PICTURE CONVERGENCE

CONVERGE BLUE MULTIPOINT RED MULTIPOINT BLUE SAVE MULTIPOINT

UNDO MULTIPOINT RESTORED

6

4

INCR. SURR.

CH

3

PIP

A/CH

5

A/CH

PIP CH

DN

UP

DN

UP

13

SETTING THE CLOCK

TIME _ _:_ _

START TIME STOP TIME CHANNEL

ACTIVATE

TIMER

FEATURES

AV

SAP

TV

VCR

ACC

SMART

1

23

4

5

6

7

89

0

i

+

Y

our television comes with an on-

screen clock. During normal opera-

tion, the clock appears on the screen when the i+ button is pressed or if the TIMER DISPLAY control is turned ON.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN button

twice to highlight FEATURES.

Press the CURSOR RIGHT button

to enter the FEATURES menu.

Press the CURSOR RIGHT button

again to shift the display left and highlight the TIME control.

Press the CURSOR RIGHT button

again to highlight the time indicator area.

Press the NUMBER buttons to

enter the correct time. If you make a mistake entering the time, use the CURSOR LEFT or RIGHT button to move among the input slots to make corrections. NOTE: You may also use the CURSOR UP or DOWN button to cycle through digits to input the time.

Press the CURSOR UP or DOWN

button to select AM or PM.

Press the i+ button to remove the

menu from the screen.

Features Menu • The TimerControl

SMART HELP

• For single-digit entries, be

sure to press 0 first and then the

hour number.

• If you’d like, set the clock automatically using the AutoChron feature (page 4, Setup and Quick Use Guide).

• Clock settings may be lost when the TV is unplugged or when AC power to the set is interrupted.

•

The TIME (Clock) feature can be accessed directly by pressing the CLOCK button on the remote control and following steps 5Ð10 to complete the task.

BEGIN

12

1

11 10 9

8

5

7

6

2 3 4


SOUND

FEATURES

INSTALL

TV

VCR

ACC

8

AV

1 4

7

SMART

MENU SURF

TIMER AUTOLOCK PIP CLOSED CAP

+

i

SAP

23

6

5 89

SMART

0

FEATURES TIMER

TIMER

AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

TIME _ _:_ _

START TIME STOP TIME CHANNEL

ACTIVATE

FEATURES

TIMER

6

TIME START TIME STOP TIME CHANNEL ACTIVATE

TIME 8:00 PM

START TIME STOP TIME CHANNEL

ACTIVATE

1

3

CH

2

7

PIP

INCR. SURR.

A/CH

4

5

PIP CH

DN

UP

14

SETTING THE START TIME

Y

ou can set the TV to turn itself on

at a specific time, just as you would an alarm clock. Follow these steps to set the Start Time.

Press the MENU button on the

remote control to show the on-screen

menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT but-

ton to enter the FEATURES menu.

Press the CURSOR RIGHT button again. Then press the CURSOR DOWN button once to highlight the

START TIME control.

Press the CURSOR RIGHT

button again to highlight the time

indicator area.

Press the NUMBER buttons to enter the correct time. If you make a mistake entering the time, use the CURSOR LEFT or RIGHT button to move among the time input slots to make corrections. NOTE: You can also use the CURSOR UP or DOWN button to cycle through digits to input the time.

Press the CURSOR UP or DOWN

button to select AM or PM.

Press the i+ button to remove the

menu from the screen.

Features Menu • The TimerControl

SMART HELP

You can set STOP TIME

similarly to the way you set START TIME. Instructions are on the next page.

12

1

11

2

10

3

9

4

8

5

7

6

BEGIN


SOUND

FEATURES

INSTALL

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

AUTOLOCK PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

TIME 8:01 PM

START TIME STOP TIME CHANNEL

ACTIVATE

+

AV

i

TV

8

VCR

ACC

SMART

1

SAP

1

23

4

5 89

7

MENU SURF

SMART

0

6

HOME

3

CH

4

FEATURES

TIMER

TIME

START TIME _ _:_ _

STOP TIME CHANNEL

ACTIVATE

FEATURES

TIMER

TIME START TIME 8:00 AM

STOP TIME CHANNEL

ACTIVATE

5

2

PIP

INCR. SURR.

4

A/CH

7

PIP CH

DN

UP

15

SETTING THE STOP TIME

U

se the START TIME control to

set the TV to turn itself on at a specific time (see the previous page). The following steps will guide you in setting the TV to turn itself off.

Press the MENU button on the

remote control to show the on-screen

menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT

button to enter the FEATURES

menu.

Press the CURSOR RIGHT button again. Then press the CURSOR DOWN button twice to high-

light the STOP TIME control.

Press the CURSOR RIGHT

button to highlight the time indicator

area.

Press the NUMBER buttons to enter the correct time. If you make a mistake entering the time, use the CURSOR LEFT or RIGHT button to move among the input slots to make corrections. NOTE: You can also use the CURSOR UP or DOWN button to cycle through digits to input the time.

Press the CURSOR UP or DOWN

button to select AM or PM.

Press the i+ button to remove the

menu from the screen.

Features Menu • The TimerControl

BEGIN

+

i

SAP

23 5

89 0

2

PIP

4

PIP CH

UP

TIMER AUTOLOCK PIP CLOSED CAP

6

SMART

A/CH

DN

6

3

CH


SOUND

FEATURES

INSTALL

AV

TV

VCR

8

1

ACC

4

7

SMART

MENU SURF

1

INCR. SURR.

7

12

1

11

2

10

3

9

4

8

5

7

6

FEATURES

TIMER

AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

FEATURES

4

5

TIME START TIME STOP TIME CHANNEL ACTIVATE

TIME 8:02 PM

START TIME STOP TIME CHANNEL

ACTIVATE

TIMER

TIME START TIME

STOP TIME _ _:_ _

CHANNEL ACTIVATE

FEATURES

TIMER

TIME START TIME STOP TIME 9:30 AM

CHANNEL

ACTIVATE

16

SELECTING THE CHANNEL

Y

ou can select a specific channel

that the television will tune to when the timer turns the set on. Follow these steps to select the channel.

Press the MENU button on the remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT but-

ton to enter the FEATURES menu.

Press the CURSOR RIGHT button. Then press the CURSOR DOWN button repeatedly until the

CHANNEL control is highlighted.

Press the NUMBER buttons to

enter the desired start-up channel. Or

press the CURSOR RIGHT button

repeatedly to enter the start-up channel you want.

Press the i+ button to remove the

menu from the screen.

Features Menu • The TimerControl

12

1

11

2

10

3

9

4

8

5

7

6

BEGIN


SOUND

FEATURES

INSTALL

AV

TV

6

VCR

1

ACC

4

7

SMART

MENU SURF

1

TIMER AUTOLOCK PIP CLOSED CAP

+

i

SAP

23

6

5 89

SMART

0

FEATURES

5

3

4

CH

TIMER

AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

FEATURES

TIME START TIME STOP TIME CHANNEL ACTIVATE

TIME 8:03 PM

START TIME STOP TIME CHANNEL

ACTIVATE

TIMER

TIME START TIME STOP TIME

CHANNEL 12

ACTIVATE

INCR. SURR.

2

PIP

A/CH

4

PIP CH

DN

UP

17

SETTING THE ACTIVATE CONTROL

A

fter you have set the Time, Start

Time, Stop Time, and Start Channel, you must activate the Timer for it to operate. Your options are to set the Timer to work ONCE or DAILY. Set ACTIVATE to OFF if you don’t want to use the Timer.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT but-

ton to enter the FEATURES menu.

Press the CURSOR RIGHT button again. Then press the CURSOR DOWN button repeatedly until the

ACTIVATE control is highlighted.

Press the CURSOR RIGHT button again to set ACTIVATE to ONCE, press the CURSOR RIGHT button again for DAILY, or press the CURSOR RIGHT button again to

toggle ACTIVATE to OFF.

Press the i+ button to remove the

menu from the screen.

Features Menu • The TimerControl

SMART HELP

Before you set the

TIMER controls, you must set the TV’s clock manually within the Timer menu (see page 13) or by using the AutoChron feature described on page 4 of the Setup

and Quick Use Guide.

Try it! After following the steps on pages 13–18, use your TV to wake you up like a clock radio.

BEGIN

12

1

11

2

10

3

9

4

8

5

7

6


SOUND

FEATURES

INSTALL

6

AV

TV

VCR

1

ACC

4 7

SMART

1

MENU SURF

TIMER AUTOLOCK PIP CLOSED CAP

+

i

SAP

23

6

5

89

SMART

0

FEATURES

TIMER

AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

3

4

CH

5

TIME START TIME STOP TIME CHANNEL ACTIVATE

TIME 8:05 PM

START TIME STOP TIME CHANNEL

ACTIVATE

FEATURES

TIMER

TIME START TIME STOP TIME

CHANNEL

ACTIVATE OFF

OR

ACTIVATE ONCE

OR

ACTIVATE DAILY

INCR. SURR.

2

PIP

4

A/CH

PIP CH

DN

UP

18

CONSTANTLY DISPLAYING THE TIME ON SCREEN

A

fter you have set the TV’s clock,

you can use your TV to keep up with the time. The TIMER DISPLAY control allows you to permanently display the time in the upper right corner of the screen.

Press the MENU button on the

remote to show the on-screen menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT but-

ton to enter the FEATURES menu.

Press the CURSOR RIGHT button again. Then press the CURSOR DOWN button repeatedly until the

DISPLAY control is highlighted.

Press the CURSOR RIGHT or

LEFT button to turn the TIMER

DISPLAY ON or OFF.

Press the i+ button to remove the

menu from the screen.

BEGIN

Features Menu • The TimerControl

12

1

11

2

10

3

9

4

8

5

7

6


SOUND

FEATURES

INSTALL

AV

TV

VCR

1

6

ACC

4 7

SMART

MENU SURF

1

TIMER AUTOLOCK PIP CLOSED CAP

+

i

SAP

23 5

89

SMART

0

FEATURES

TIMER

AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

TIME 8:06 PM

START TIME STOP TIME CHANNEL

ACTIVATE

FEATURES

6

5

TIME START TIME STOP TIME CHANNEL ACTIVATE

TIMER

START TIME STOP TIME

CHANNEL

ACTIVATE

DISPLAY ON

4

3

DISPLAY OFF

CH

OR

INCR. SURR.

2

PIP

4

A/CH

PIP CH

DN

UP

19

UNDERSTANDING AUTOLOCK

TV-Y(All Children)—designed to be

appropriate for all children, especially ones ages 2–6. Programs rated TV-Y

are not expected to frighten younger children.

TV-Y7(Directed to Older Children)—designed for children ages

7 and older. Programs rated TV-Y7 may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. Such programs may include mild fantasy and comic violence (FV).

TV-G (General Audience)—most par-

ents will consider programs that are

rated TV-G to be suitable for children of all ages. Such programs have little or no violence, no strong language, and little or no sexual dialogue or sexual situations.

TV-PG(Parental Guidance

Suggested)—contain material that par-

ents may find unsuitable for younger children. This type of programming has one or more of the following: moderate violence (V), some sexual situations (S), infrequent coarse language (L), or some suggestive dialogue (D).

TV-14(Parents Strongly Cautioned— contain material that many parents will

find unsuitable for children under 14 years of age. Such programs have one or more of the following: intense violence (V); intense sexual situations (S); strong, coarse language (L); or intensely suggestive dialogue (D).

TV-MA(Mature Audience Only)—

specifically designed to be viewed by

adults and therefore may be unsuitable

for children under 17. Such programs have one or more of the following: graphic violence (V); explicit sexual situations (S); or crude, indecent language (L).

TV PARENTAL GUIDELINES

(TV BROADCASTERS)

G (General Audience)—all ages admitted.

Most parents will find programs that are rated G to be suitable for children of all ages. Such programs have little or no violence, no strong language, and little or no sexual dialogue or sexual situations.

PG (Parental Guidance Suggested)—

contain material that parents may find unsuitable for younger children. Programs that are rated PG have one or more of the following: moderate violence, some sexual situations, infrequent coarse language, or some suggestive dialogue.

PG-13 (Parents Strongly Cautioned)—

contain material that parents may find unsuitable for children under the age of 13. Programs that are rated PG-13 have one or more of the following: violence, sexual situations, coarse language, or suggestive dialogue.

R (Restricted)—specifically designed for adults. Anyone under the age of 17 should view programs that are rated R only with an accompanying parent or adult guardian. Such programs have one or more of the following: intense violence; intense sexual situations; strong, coarse language; or intensely suggestive dialogue.

NC-17 (No one under the age of 17 will be admitted)—should be viewed by adults

only. Programs that are rated NC-17 have graphic violence; explicit sex; or crude, indecent language.

X (Adults Only)—contain one or more of the following: very graphic violence, very graphic and explicit or indecent sexual acts, or very coarse and intensely suggestive language.

MOVIE RATINGS

(M

OTIONPICTUREASSOCIATION

OF

A

MERICA

)

T

he AutoLock feature can help par-

ents censor what their children watch on TV. AutoLock receives content advisories sent by broadcasters or other program providers. After you program AutoLock, it can respond to the content advisories and block programs that contain content which you may consider objectionable—offensive language, violence, or sexual situations.

In this section, you’ll learn how to block channels and programming that is not rated, is unrated, or has no rating. You will also find out how to turn these blocking features on or off. Following on this page are brief explanations of AutoLock terms and program ratings.

Terms BLOCKING control—can be thought

of as the “master switch” for AutoLock. This control affects the settings you have chosen for blocking programs according to movie ratings or TV ratings, or for blocking programs that have no rating or are unrated. When the BLOCKING control is OFF, the blocking or censoring of programs is disabled. When the BLOCKING control is ON, blocking will occur according to the settings you have chosen.

BLOCK UNRATED control—if set to ON, blocks all unrated programs.

Unrated programming consists of the kind of shows that the MPAA (Motion Picture Association of America) or the TV broadcasters have chosen not to rate.

NO RATING control—if set to ON, blocks all programming with no content advisory data.

Programming that has No Rating is not encoded with any rating information from the MPAA or the Parental Guidelines. Any programming could fall into this category.

You can also block individual channels using the BLOCK CHANNEL control.

Features Menu • The AutoLock Control

AUTOLOCK

MOVIE RATING

G

PG PG-13 R NC-17

ON

AUTOLOCK

TV RATING

TV-Y

TV-Y7 TV-G TV-PG TV-14

ON

TV

Y

TV

Y7

TV

G

TV

PG

TV

14

TV

MA

20

SETTING UP THE

ACCESS CODE

A

utoLockallows parents to block

channels they think children should not watch. A channel blocked by the AUTOLOCK control cannot be viewed until a correct access code is used to unlock the channel for viewing. Follow these steps to set up your Access Code.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT button to enter the FEATURES menu. Then press the CURSOR DOWN button once to highlight the

AUTOLOCK control.

Press the CURSOR RIGHT but-

ton to highlight ACCESS CODE.

Press 0,7,1,1 on the remote con-

trol. INCORRECT will appear on the screen.

Press 0,7,1,1 on the remote control again. ENTER NEW CODE will appear on the screen.

Enter a new four-digit code

using the number buttons. CONFIRM CODE will appear on the screen.

Enter your new four-digit code

again. CORRECT will flash on the

screen briefly.

Press the i+ button to remove the

menu from the screen.

Features Menu • The AutoLock Control

Parents, it isn’t possible for

your child to unblock a channel without knowing your access code or changing it to a new one. If you discover that your access code has been changed, you can assume that blocked channels may have been viewed.

SMART HELP

BEGIN

5

6

7

1

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

ACCESS CODE X X X X INCORRECT


SOUND

FEATURES

INSTALL

AV

TV

9

VCR

ACC

8

SMART

INCR. SURR.

TIMER AUTOLOCK PIP CLOSED CAP

+

i

SAP

1

23

4

5

5 89

89

7

0

MENU SURF

2

PIP

3

PIP CH

UP

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

SMART

A/CH

6

CH

DN

3

ACCESS CODE

- - - -

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

ACCESS CODE

- - - -

ACCESS CODE

- - - -

4

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

ACCESS CODE X X X X

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

ENTER NEW CODE

- - - -

CONFIRM CODE X X X X

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

ENTER NEW CODE X X X X

CONFIRM CODE X X X X CORRECT

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

CONFIRM CODE

- - - -

21

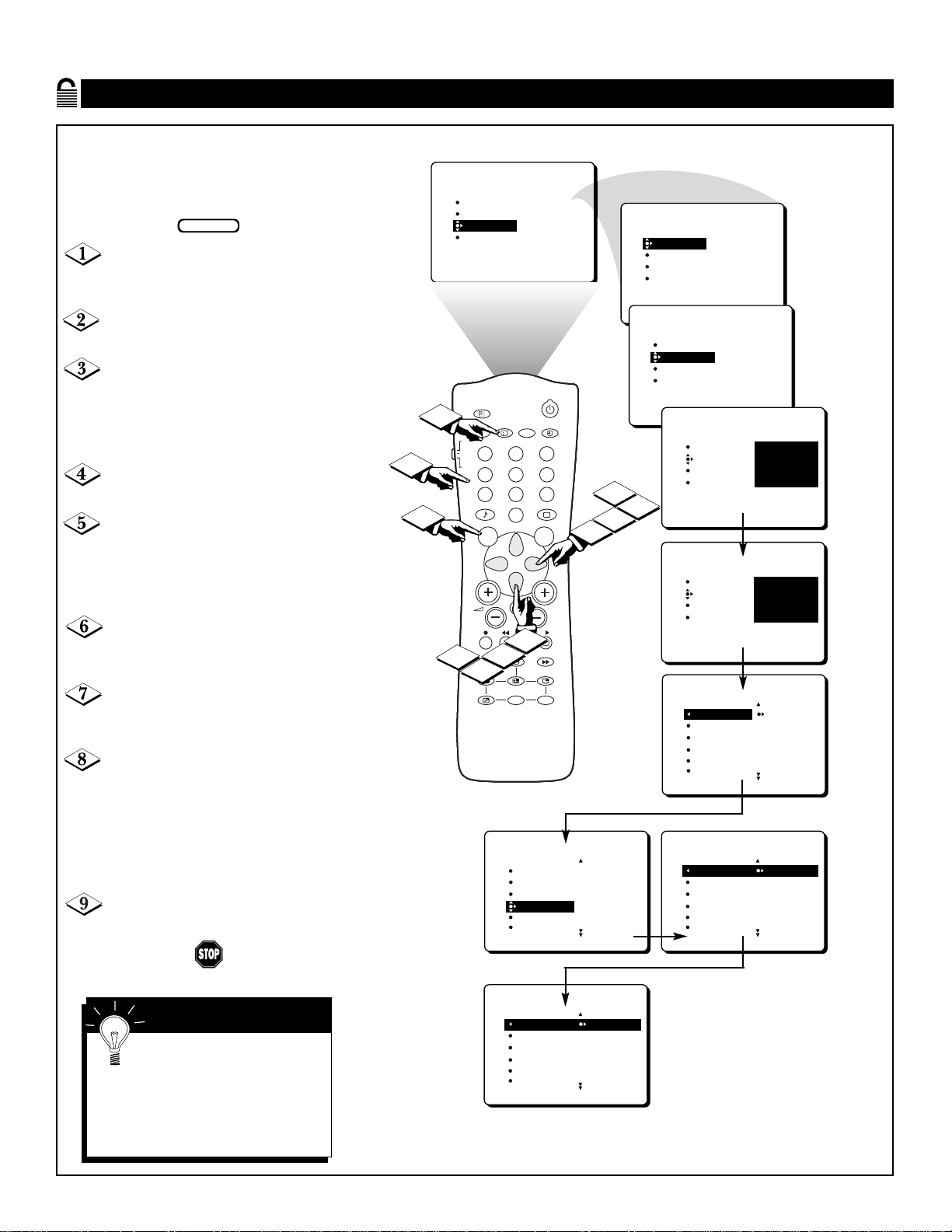

BLOCKING CHANNELS

A

fter you have set your personal

access code (see the previous page), you are ready to select the channels or program sources you want to block.

Press the MENU button on the

remote control to show the on-screen

menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT

button to enter the FEATURES menu. Then press the CURSOR DOWN button once to highlight the

AUTOLOCK control.

Press the CURSOR RIGHT but-

ton to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE. CORRECT will flash very

briefly and the menu will move to the left with BLOCK CHANNEL highlighted.

Press the CURSOR RIGHT but-

ton to highlight the TV’s available

channels.

Press the CURSOR UP or

DOWN button to highlight the chan-

nel you want to block.

Press the CURSOR RIGHT but-

ton to block the channel. A padlock

image will appear to the right of the channel number.

Repeat steps 7 and 8 for any channels you want to block from viewing.

Press the i+ button to remove the

menu from the screen.

Features Menu • The AutoLock Control

Use BLOCK CHANNEL to

prevent the viewing of programs coming from a VCR, DVD, or other accessory device hooked up to the AV, component, or S-VIDEO inputs.

SMART HELP

BEGIN


SOUND

FEATURES

INSTALL

9

AV

TV

VCR

5

VCR

ACC

SMART

1

SMART

TIMER AUTOLOCK PIP CLOSED CAP

+

i

SAP

1

23

4

5

5 89

89

7

0

MENU SURF

SMART

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

ACCESS CODE

- - - -

FEATURES

TIMER AUTOLOCK

6

PIP CLOSED CAP

ACCESS CODE

- - - -

8

6

4

3

FEATURES

AUTOLOCK

FEATURES

AUTOLOCK

BLOCK CHANNEL SETUP CODE CLEAR ALL MOVIE RATING TV RATING

FEATURES

INCR. SURR.

TIMER AUTOLOCK

CH

2

PIP

A/CH

3

PIP CLOSED CAP

ACCESS CODE X X X X

7

PIP CH

DN

UP

DN

UP

DN

UP

FEATURES

AV2 AV3 ALL 1 2

12 13 14 15 16

AUTOLOCK

BLOCK CHANNEL SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AV2 AV3 ALL 1 2

FEATURES

AUTOLOCK

FEATURES

AUTOLOCK

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

BLOCK CHANNEL SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AV2 AV3 ALL 1 2

12 13 14 15 16

22

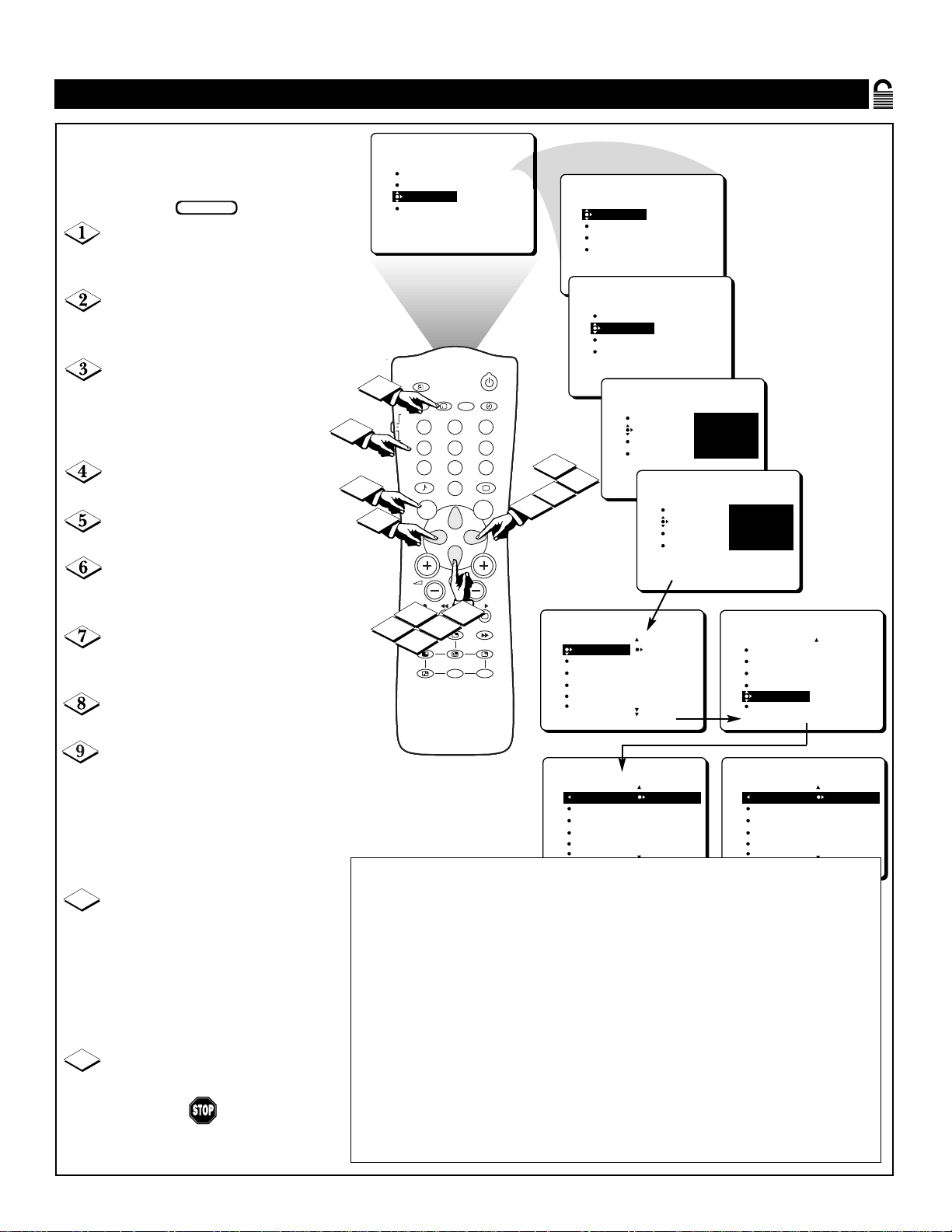

BLOCKING BY MOVIE RATING

A

fter you have set your personal

access code (see page 20), you can block programs by specific movie ratings.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT button to enter the FEATURES menu. Then press the CURSOR DOWN button once to highlight the

AUTOLOCK control.

Press the CURSOR RIGHT but-

ton to highlight ACCESS CODE.

Enter your four-digit ACCESS CODE. CORRECT will flash very

briefly in red and the menu will move to the left with BLOCK CHANNEL highlighted.

Press the CURSOR DOWN but-

ton repeatedly until MOVIE RATING

is highlighted.

Press the CURSOR RIGHT button and the Rating menu will shift to

the left with G highlighted.

Press the CURSOR UP or DOWN button to highlight each rat- ing you want. Then press the CURSOR RIGHT button to turn the rat-

ing ON or OFF. Turning the rating on will block such programs from being seen.

Press the i+ button to remove the

menu from the screen.

Features Menu • The AutoLock Control

When a rating is set to be

turned on (blocked), all higher ratings will also be blocked automatically. For example, if the R rating is turned on, the NC-17 and X ratings also will be turned on.

SMART HELP

BEGIN


SOUND

FEATURES

INSTALL

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

9

5

1

AV

TV

VCR

1

ACC

4

7

SMART

MENU SURF

+

i

SAP

23

23 5

5

5 89

89

SMART

0

FEATURES

6

8

7

4

3

TIMER AUTOLOCK PIP CLOSED CAP

ACCESS CODE

- - - -

ACCESS CODE

- - - -

FEATURES

TIMER AUTOLOCK

CH

2

PIP

INCR. SURR.

8

A/CH

3

PIP CLOSED CAP

ACCESS CODE X X X X

6

FEATURES

AUTOLOCK

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AUTOLOCK

MOVIE RATING

G

PG PG-13 R NC-17

AV2 AV3 ALL 1 2

OFF AV3 ALL 1 2

FEATURES

AUTOLOCK

PIP CH

DN

UP

DN

UP

DN

UP

BLOCK CHANNEL SETUP CODE CLEAR ALL

MOVIE RATING

TV RATING

G PG PG-13 R NC-17

AUTOLOCK

MOVIE RATING

G

PG PG-13 R NC-17

ON AV3 ALL 1 2

23

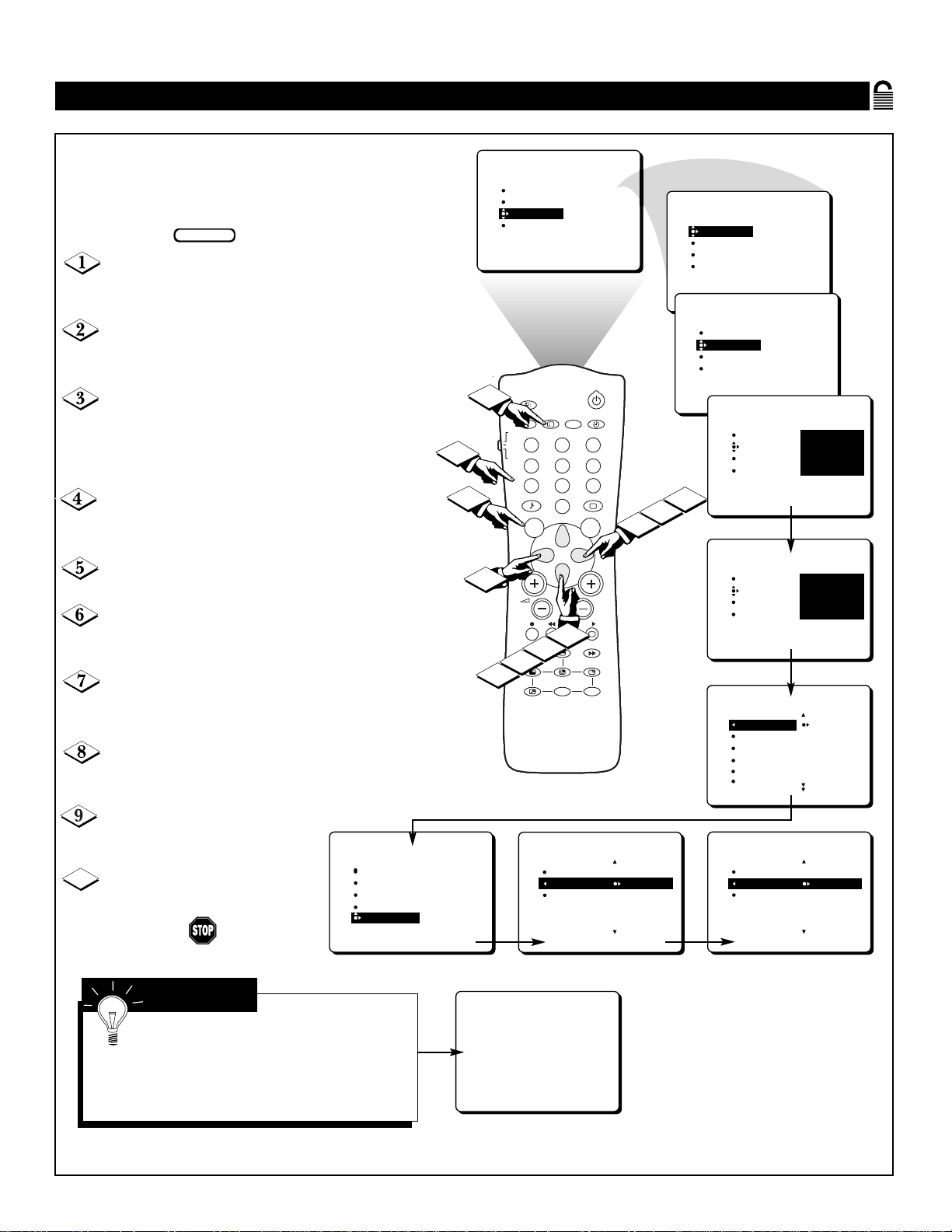

BLOCKING BY TV RATING

Y

ou also can block programs by specific TV ratings. Follow these

simple steps.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button to enter the FEATURES menu. Then press the CURSOR DOWN button once to highlight the

AUTOLOCK control.

Press the CURSOR RIGHT

button to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE.

Press the CURSOR DOWN

button repeatedly until TV RATING

is highlighted.

Press the CURSOR RIGHT

button to enter the TV RATING

menu.

Press the CURSOR UP or

DOWN button to select a rating.

Press the CURSOR RIGHT or

LEFT button to turn the block on

the rating ON or OFF. NOTE: More specific subratings (for

violence, sexual content, dialogue, or fantasy violence) are available for TV-Y7, TV-PG, TV-14, and TV-MA.

To access these subratings, press

the CURSOR RIGHT button. Press the CURSOR UP or DOWN button

to select the subrating that you want to block or unblock. Then press the

CURSOR RIGHT or LEFT button

to turn the block on the subrating ON or OFF.

Press the i+ button to remove the

menu from the screen.

10

11

TV-Y(All Children)—designed to be appropriate for all children, especially ones ages 2–6. Programs rated TV-Y are not expected to frighten younger children.

TV-Y7(Directed to Older Children)—designed for children ages 7 and older. Programs rated TV-Y7 may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. Such programs may include mild fantasy and comic violence (FV).

TV-G (General Audience)—likely to be considered suitable for children of all ages. Such programs have little or no violence, no strong language, and little or no sexual dialogue or sexual situations.

TV-PG(Parental Guidance Suggested)—contain material that parents may find unsuitable for younger children. This type of programming has one or more of the following: moderate violence (V), some sexual situations (S), infrequent coarse language (L), or some suggestive dialogue (D).

TV-14(Parents Strongly Cautioned)—contain material that many parents will find unsuitable for children under 14 years of age. Such programs have one or more of the following: intense violence (V); intense sexual situations (S); strong, coarse language (L); or intensely suggestive dialogue (D).

TV-MA(Mature Audience Only)—specifically designed to be viewed by adults and therefore may be unsuitable for children under 17. Such programs have one or more of the following: graphic violence (V); explicit sexual situations (S); or crude, indecent language (L).

Features Menu • The AutoLock Control

BEGIN


SOUND

FEATURES

INSTALL

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

11

5

1

AV

TV

VCR

1

ACC

4

7

SMART

MENU SURF

+

i

SAP

23

23 5

5

5 89

89

SMART

0

FEATURES

6

10

7

4

3

9

CH

INCR. SURR.

6

2

PIP

A/CH

3

PIP CH

DN

UP

DN

UP

DN

UP

FEATURES

AUTOLOCK

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

10

8

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

AV2 AV3 ALL 1 2

ACCESS CODE

- - - -

TIMER AUTOLOCK PIP CLOSED CAP

ACCESS CODE

- - - -

ACCESS CODE X X X X

FEATURES

AUTOLOCK

BLOCK CHANNEL SETUP CODE CLEAR ALL MOVIE RATING

TV RATING

TV-Y TV-Y7 TV-G TV-PG TV-14

AUTOLOCK

TV RATING

TV-Y

TV-Y7 TV-G TV-PG TV-14

OFF AV3 ALL 1 2

AUTOLOCK

TV RATING

TV-Y

TV-Y7 TV-G TV-PG TV-14

ON AV3 ALL 1 2

24

TURNING THE BLOCKING CONTROL ON OR OFF

T

he BLOCKING control can be

thought of as the “master switch” for AutoLock. Use it to turn on or off all of the settings you have chosen to block programming.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT button to enter the FEATURES menu. Then press the CURSOR DOWN button once to highlight the

AUTOLOCK control.

Press the CURSOR RIGHT

button to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE.

Press the CURSOR DOWN but-

ton repeatedly until BLOCK

OPTIONS is highlighted.

Press the CURSOR RIGHT but-

ton to enter the BLOCK OPTIONS

menu. BLOCKING will be highlighted.

Press the CURSOR RIGHT or

LEFT button to toggle BLOCKING

ON or OFF.

Press the i+ button to remove

the menu.

Features Menu • The AutoLock Control

BEGIN


SOUND

FEATURES

INSTALL

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

ACCESS CODE

- - - -

9

+

AV

i

AV

i

AV

i

AV

i

SAP

TV

VCR

ACC

5

ACC

1

SAP

1

23

4

5

5 89

89

7

SMART

0

MENU SURF

SMART

6

4

3

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

ACCESS CODE

- - - -

7

8

FEATURES

INCR. SURR.

TIMER

CH

2

PIP

A/CH

3

AUTOLOCK PIP CLOSED CAP

ACCESS CODE X X X X

6

PIP CH

DN

UP

DN

UP

DN

UP

FEATURES

AUTOLOCK

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AV2 AV3 ALL 1 2

AUTOLOCK

BLOCK OPTIONS

BLOCKING

BLOCK UNRATED NO RATING

FEATURES

AUTOLOCK

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

BLOCK OPTIONS

AUTOLOCK

BLOCK OPTIONS

OFF AV3 ALL 1 2

BLOCKING

BLOCK UNRATED NO RATING

BLOCKING BLOCK UNRATED NO RATING

ON AV3 ALL 1 2

25

BLOCKING UNRATED BROADCASTS

I

n addition to blocking rated pro-

grams or channels, you may also choose to block all programming that is unrated.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT

button to enter the FEATURES menu. Then press the CURSOR DOWN button once to highlight the

AUTOLOCK control.

Press the CURSOR RIGHT but-

ton again to highlight ACCESS

CODE.

Enter your four-digit ACCESS

CODE.

Press the CURSOR DOWN but-

ton repeatedly until BLOCK

OPTIONS is highlighted.

Press the CURSOR RIGHT

button to enter the BLOCK

OPTIONS menu.

Press the CURSOR DOWN

button once to select BLOCK

UNRATED.

Press the CURSOR RIGHT or

LEFT button to turn BLOCK

UNRATED ON or OFF.

Press the i+ button to remove

the menu.

10

Features Menu • The AutoLock Control

When the BLOCK UNRATED control is turned

on, attempts to view unrated programs will bring a message like this to the screen. To watch the program, enter your access code or go into the BLOCK OPTIONS menu and turn the BLOCK UNRATED control OFF.

SMART HELP

BEGIN


SOUND

FEATURES

INSTALL

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

ACCESS CODE

- - - -

FEATURES

AUTOLOCK

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

BLOCK OPTIONS

5

1

BLOCKING BLOCK UNRATED NO RATING

10

9

TV

VCR

ACC

8

+

AV

i

AV

i

AV

i

AV

i

1

23

4

5

5 89

89

7

SMART

0

MENU SURF

PIP

INCR. SURR.

3

6

UP

AUTOLOCK

BLOCK OPTIONS

BLOCKING

BLOCK UNRATED

NO RATING

SAP

6

SMART

4

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

ACCESS CODE

- - - -

7

3

FEATURES

TIMER

CH

2

A/CH

PIP CH

DN

OFF OFF

AUTOLOCK PIP CLOSED CAP

FEATURES

AUTOLOCK

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AUTOLOCK

BLOCK OPTIONS

BLOCKING

BLOCK UNRATED

NO RATING

ACCESS CODE X X X X

AV2 AV3 ALL 1 2

ON ON

Channel 12

Blocked by AutoLock

Unrated

Access Code

- - - -

26

BLOCKING BROADCASTS THAT HAVE NO RATING

Features Menu • The AutoLock Control

S

ome programs contain no content

advisories from the Motion Picture Association of America or the television broadcasters (see page 19 for more on content advisories and ratings). To block such programs, follow these steps.

Press the MENU button on the

remote to show the on-screen menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT

button to enter the FEATURES menu. Then press the CURSOR DOWN button once to highlight the

AUTOLOCK control.

Press the CURSOR RIGHT

button to highlight the ACCESS

CODE input area.

Enter your four-digit ACCESS

CODE.

Press the CURSOR DOWN

button repeatedly until BLOCK

OPTIONS is highlighted.

Press the CURSOR RIGHT but-

ton to enter the BLOCK OPTIONS

menu.

Press the CURSOR DOWN

button twice to highlight NO RAT-

ING.

Press the CURSOR RIGHT or

LEFT button to turn NO RATING

ON or OFF.

Press the i+ button to remove the

menu.

10

If the NO RATING control is turned on, all

programs having no content advisory information will activate a screen like this. To watch the channel, enter your access code or turn the NO RATING option OFF.

SMART HELP

BEGIN


SOUND

FEATURES

INSTALL

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

ACCESS CODE

- - - -

10

+

AV

i

AV

i

AV

i

AV

i

SAP

TV

VCR

5

ACC

1

9

INCR. SURR.

SAP

1

23

4

5

89

7

SMART

0

MENU SURF

2

PIP

3

SMART

A/CH

6

4

3

CH

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

ACCESS CODE

- - - -

7

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

ACCESS CODE X X X X

6

8

PIP CH

DN

UP

DN

UP

DN

UP

FEATURES

AUTOLOCK

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AV2 AV3 ALL 1 2

FEATURES

AUTOLOCK

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

BLOCK OPTIONS

BLOCKING BLOCK UNRATED NO RATING

AUTOLOCK

BLOCK OPTIONS

BLOCKING BLOCK UNRATED

NO RATING

OFF OFF OFF

Channel 12

Blocked by AutoLock

No rating

Access Code

- - - -

AUTOLOCK

BLOCK OPTIONS

BLOCKING BLOCK UNRATED

NO RATING

ON ON ON

27

REVIEWING YOUR SETTINGS

MOVIE RATING—shows all the movie ratings that you have chosen to block within the

MOVIE RATING control. NOTE: If a lower rating is blocked, higher ratings will also be blocked automatically. For example, if you block R-rated programs, those that are rated X will also be blocked.

TV RATING—shows all the TV ratings that you have chosen to block within the TV RATING control. NOTE: If a lower rating is blocked, higher ratings will also be blocked automatically. For example, if you block TV-PG-rated programs, those rated TV-14 and TV-MA will also be blocked. The TV rating controls also have subratings for Violence (V), Fantasy Violence (FV), Sexual Situations (S), Coarse Language (L), and Suggestive Language (D). If you turn off a main rating but turn on a subrating of that main rating control, programs having the subrating will be blocked; however, the main rating will not appear within the AutoLock review menu because you did not turn it ON.

BLOCK UNRATED—shows whether you have turned this control ON or OFF.

BLOCK NO RATING—shows whether you have turned this control ON or OFF.

Y

ou can access a screen that shows your AutoLock settings.

Press the i+ button on your

remote twice. Your AutoLock set-

tings will appear on the screen. NOTE: If you have blocked specific

subratings, such as V for Violence in the TV-PG category, these blocked subratings will not appear in the review. Nonetheless, the subratings are still blocked according to your selections.

After a few seconds, the set-

tings will leave the screen auto-

matically, or you can press the i+ button to remove them from the screen.

Features Menu • The AutoLock Control

SMART HELP

The AutoLock review

screen will appear only if you have turned ON the BLOCKING control (see page 24).

BEGIN

MOVIE RATING -

2

1

-

R NC17 X

BLOCK UNRATED

NO RATING

AV

TV

VCR

1

ACC

4

7

SMART

MENU SURF

TV RATING -

ON OFF

+

i

SAP

23

6

5

5 89

89

SMART

0

Y7

PG 14 MA

MOVIE RATING -

TV RATING -

-

R NC17 X

BLOCK UNRATED

NO RATING

ON OFF

Y7

PG 14 MA

CH

PIP

INCR. SURR.

A/CH

PIP CH

DN

UP

DN

UP

DN

UP

28

CLEARING ALL BLOCKED CHANNELS

Features Menu • The AutoLock Control

T

he CLEAR ALL control will

allow you to remove all channel blocks that have been turned on through the BLOCK CHANNEL control. To clear all channel blocks, follow the simple steps below.

Press the MENU button on the

remote to show the on-screen menu.

Press the CURSOR DOWN

button twice to highlight FEA-

TURES.

Press the CURSOR RIGHT.button to enter the FEA- TURES menu. Then press the CURSOR DOWN button once to

highlight the AUTOLOCK control.

Press the CURSOR RIGHT

button again to highlight ACCESS

CODE.

Enter your four-digit

ACCESS CODE.

Press the CURSOR DOWN button twice to highlight CLEAR

ALL.

Press the CURSOR RIGHT

button. The CLEAR ALL option

will display the word CLEARED. All blocked channels will then be viewable.

Press the i+ button to remove the menu.

BEGIN

SMART HELP

This control clears only

the blocks placed on channels through use of the BLOCK CHANNEL control and will not turn off the MOVIE RATING, TV RATING, BLOCK UNRATED, or NO RATING control settings.


SOUND

FEATURES

INSTALL

TIMER AUTOLOCK PIP CLOSED CAP

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER

AUTOLOCK

PIP CLOSED CAP

ACCESS CODE

- - - -

8

+

AV

i

AV

i

AV

i

AV

i

SAP

TV

VCR

ACC

5

ACC

1

SAP

1

23

4

5

5 89

89

7

SMART

0

MENU SURF

SMART

6

4

3

FEATURES

TIMER AUTOLOCK PIP CLOSED CAP

ACCESS CODE

- - - -

7

FEATURES

INCR. SURR.

TIMER

CH

2

PIP

A/CH

3

AUTOLOCK PIP CLOSED CAP

ACCESS CODE X X X X

6

PIP CH

DN

UP

DN

UP

DN

UP

FEATURES

AUTOLOCK

BLOCK CHANNEL

SETUP CODE CLEAR ALL MOVIE RATING TV RATING

AV2 AV3 ALL 1 2

FEATURES

AUTOLOCK

BLOCK CHANNEL SETUP CODE

CLEAR ALL

MOVIE RATING TV RATING

BLOCK OPTIONS

FEATURES

AUTOLOCK

BLOCK CHANNEL SETUP CODE

CLEAR ALL CLEARED

MOVIE RATING TV RATING

BLOCK OPTIONS

29

USING THE CLOSED CAPTIONING CONTROL

CAPTION Mode Example Display

TEXT Mode

Example Display -

The TV program is

blocked by the Text screen.

C

losed Captioning (CC) allows

you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired, this feature uses on-screen text boxes to show dialogue and conversations while the TV program is in progress.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton twice to highlight FEATURES.

Press the CURSOR RIGHT but-

ton to enter the FEATURES menu.

Press the CURSOR DOWN but-

ton repeatedly until CLOSED CAP is

highlighted.

Press the CURSOR RIGHT but-

ton. The menu will shift to the left

and CAPTION MODE will be highlighted. Then press the CURSOR RIGHT button again to highlight the CAPTION MODEs area.

Press the CURSOR UP or

DOWN button to select a CAPTION

MODE.

Press the i+ button to remove the

menu from the screen.

Features Menu • The Closed Captioning Control

CC

SMART HELP

CC DISPLAY—turns text

on or off if the TV station broadcasting on the channel is making Closed Captioning available. Highlight CC DISPLAYand press the CURSOR RIGHT button to turn this feature on or off. CC MUTE—turns the Closed Captioning mode on whenever the MUTE button on the remote control is pushed. Select CC MUTE in the onscreen menu to turn this feature on. Closed Captioning cannot be used on the CVI (Component Video input) source.

Not all TV programs and product commercials are broadcast with

Closed Captioning (CC). Nor are all Closed Captioning MODEs necessarily being used by broadcast stations during a program offering Closed Captioning. Refer to your area’s TV program listings for the stations and times of shows being broadcast with Closed Captioning.

SMART HELP

BEGIN


SOUND

FEATURES

INSTALL

7

1

AV

TV

VCR

1

ACC

4

7

SMART

MENU SURF

TIMER AUTOLOCK PIP CLOSED CAP

+

i

SAP

23

6

5

5 89

89

SMART

0

FEATURES

TIMER

AUTOLOCK PIP CLOSED CAP

TIME START TIME STOP TIME CHANNEL ACTIVATE

FEATURES

TIMER AUTOLOCK

CAPTION MODE

CC DISPLAY

PIP

CLOSED CAP

FEATURES

CLOSED CAP

CAPTION MODE

CC DISPLAY

FEATURES

CLOSED CAP

CAPTION MODE

5

CC DISPLAY

3

CC1 CC2 CC3

INCR. SURR.

6

CC1

CH

CC2 CC3 CC4

2

PIP

A/CH

4

A/CH

CC MUTE TXT1 TXT2 TXT3

PIP CH

DN

UP

DN

UP

DN

UP

TXT4

JOHN: Why did they move the meeting up to this week? MARSHA: I don't know, but they are pushing to close the deal.

CLOSE CAPTION PROGRAMS ON WXYZ

ALL ITEMS ARE EASTERN STANDARD TIME (EST)

CHECK LOCAL LISTINGS

FOR TIMES IN YOUR AREA

6:00 TOP OF THE MORNING 10:00 THE BEST LITTLE CALL-IN SHOW EVER 12:00 NOONDAY NEWS

1:30 AS YOUR LIFE TURNS MY WORLD AROUND

6:00 WORLD NEWS FOR TODAY

9:00 PLAYHOUSE MOVIE OF THE WEEK

30

ADJUSTING THE TREBLE, BASS, AND BALANCE

B

esides the normal volume level

control, your TV also has individual sound-adjustment controls. You can use TREBLE (high frequency), BASS (low frequency), and Speaker BALANCE to further adjust the sound playback of TV programs.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton once to highlight SOUND.

Press the CURSOR RIGHT but-

ton to enter the SOUND menu.

Press the CURSOR RIGHT or

LEFT button to adjust the TREBLE

level of the television’s sound.

After adjusting the TREBLE con-

trol, press the CURSOR DOWN button to select another sound adjustment: BASS or BALANCE. Then

Press the CURSOR RIGHT or LEFT button to adjust the selected

control.

Press the i+ button to remove

the menu from the screen.

Sound Menu • Treble, Bass, and Balance

SMART HELP

Remember, when the bar

scale is centered, speaker sound BALANCE is centered between the TV’s left and right side speakers.

BEGIN


SOUND

FEATURES INSTALL

TREBLE BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE

BASS 30

BALANCE AVL INCR. SURROUND

6

+

AV

i

AV

i

AV

i

AV

i

SAP

TV

VCR

ACC

SMART

1

SMART

5

SAP

1

23

4

5

5 89

89

7

MENU SURF

SMART

0

6

4

3

SOUND

TREBLE BASS

BALANCE 0

AVL INCR. SURROUND

INCR. SURR.

CH

2

PIP

A/CH

5

PIP CH

DN

UP

DN

UP

DN

UP

31

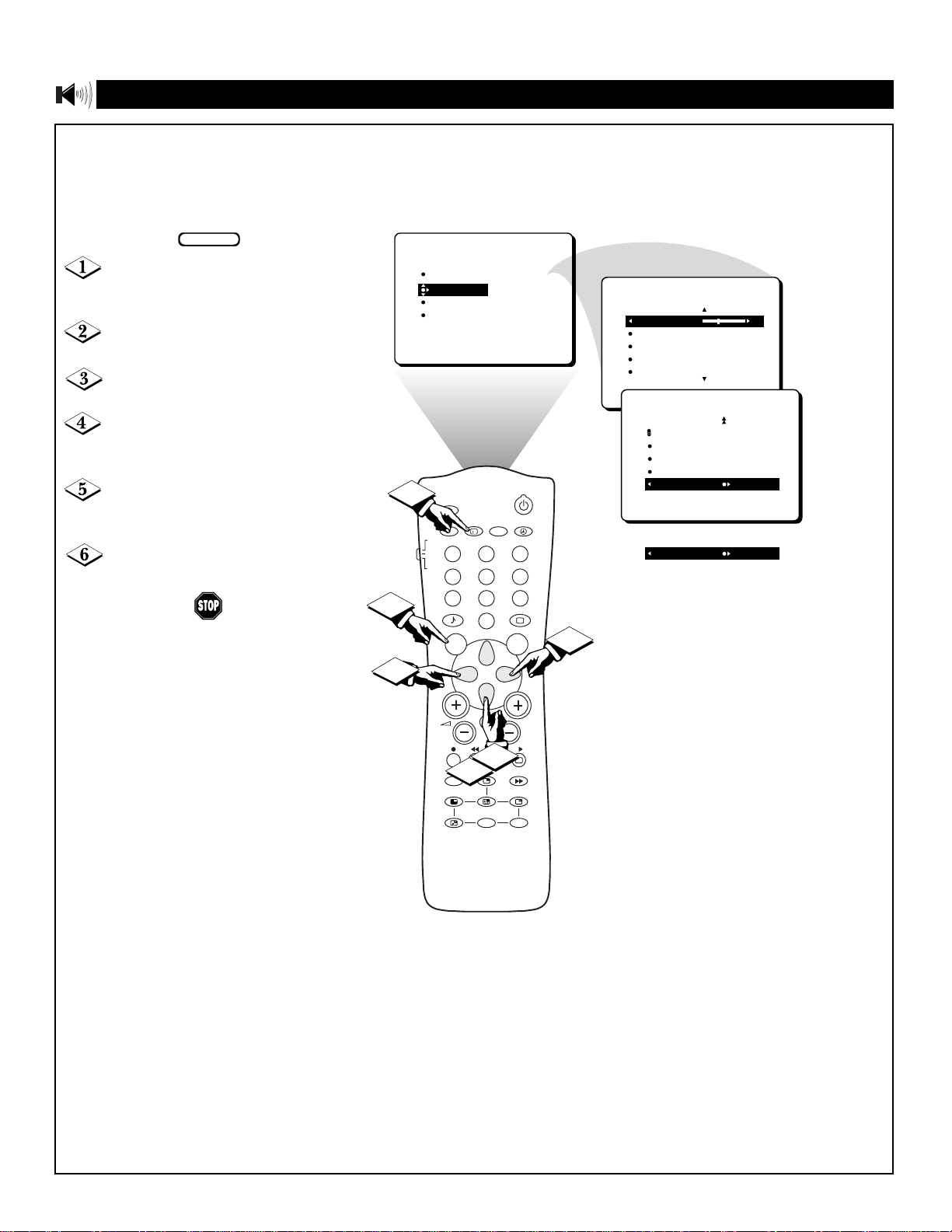

USING THE AVL (AUDIO VOLUME LEVELER) CONTROL

Y

ou may have noticed the peaks

and valleys of sound that occur between program changes or at commercial breaks. The volume levels often vary considerably. By turning on the AVL (Audio Volume Leveler) control, you can make your TV produce a more consistent volume level. Follow these steps to turn the AVL on.

Press the MENU button on the remote control to show the on-screen menu.

Press the CURSOR DOWN button once to highlight SOUND.

Press the CURSOR RIGHT but-

ton to enter the SOUND menu.

Press the CURSOR DOWN button repeatedly until AVL is highlight- ed. Then press the CURSOR RIGHT or LEFT button to turn

AVL ON or OFF.

Press the i+ button to remove the menu from the screen.

Sound Menu • AVL(Audio Volume Leveler)

BEGIN


SOUND

FEATURES INSTALL

TREBLE BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE BASS BALANCE

AVL OFF

INCR. SURROUND

5

+

AV

i

AV

i

AV

i

AV

i

SAP

TV

VCR

ACC

SMART

1

SAP

1

23

4

5

5 89

89

7

MENU SURF

SMART

0

6

3

OR

AVL ON

4

INCR. SURR.

CH

2

PIP

A/CH

4

A/CH

PIP CH

DN

UP

DN

UP

DN

UP

32

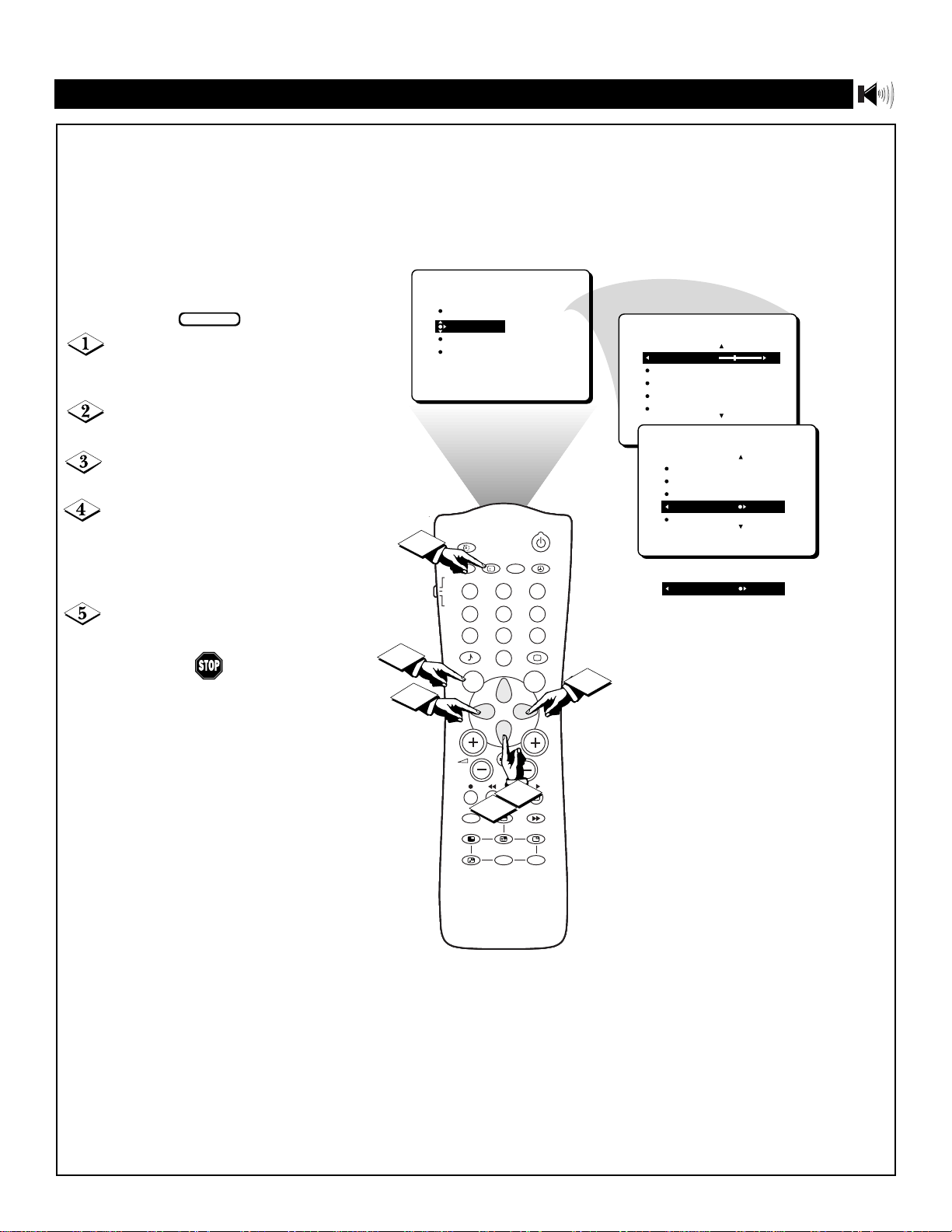

USING INCREDIBLE SURROUND

T

he Incredible Surround feature

will boost the TV’s sound by making the sound broader and fuller. Set the INCREDIBLE SURROUND control to INCREDIBLE SURROUND to enhance stereo programs. Or set the INCREDIBLE SURROUND control to SPATIAL to give a “surround” effect to mono programs.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton once to highlight SOUND.

Press the CURSOR RIGHT but-

ton to enter the SOUND menu.

Press the CURSOR DOWN button repeatedly until INCR. SUR- ROUND is highlighted. Then press the CURSOR RIGHT or LEFT button to select SPATIAL or MONO for

a mono program, or INCR. SURROUND or STEREO for a stereo program.

Press the i+ button to remove the

menu from the screen.

BEGIN

Sound Menu • Incredible Surround

SMART HELP

Press the INCR. SURR.

button on the remote to toggle between the same Incredible Surround options discussed above: SPATIAL or MONO and INCR. SURROUND or STEREO. The options available to you will be determined by the program the TV is on when you push the INCR. SURR. button.


SOUND

FEATURES INSTALL

TREBLE BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE BASS BALANCE AVL OFF

INCR. SURROUND INCR. SURROUND

5

+

AV

i

AV

i

AV

i

AV

i

SAP

TV

VCR

ACC

SMART

1

SAP

1

23

4

5

5 89

89

7

MENU SURF

SMART

0

INCR. SURROUND STEREO

6

3

OR

4

CH

INCR. SURR.

2

PIP

A/CH

4

PIP CH

DN

UP

DN

UP

DN

UP

SPATIAL

OR OR

MONO

+

AV

i

TV

VCR

ACC

SMART

SAP

1

23

4

5 89

7

0

MENU SURF

INCR. SURROUND

STEREO

6

SMART

CH

INCR. SURR.

PIP

A/CH

PIP CH

DN

UP

33

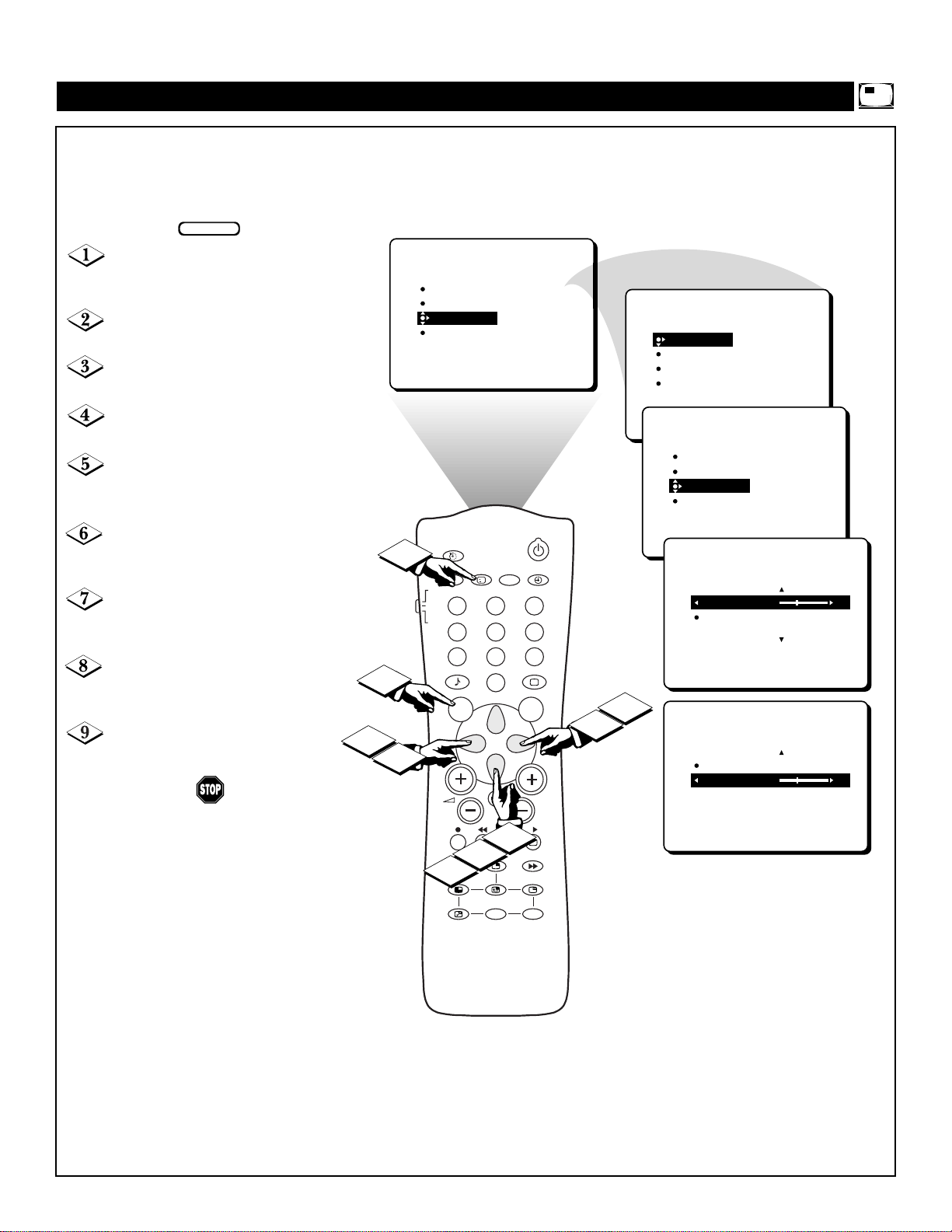

SETTING THE TV FOR STEREO AND SAP

Y

ou can enjoy stereo programs on

your TV. It has both an amplifier and twin speakers through which stereo sound can be heard. Follow these steps to select the STEREO mode.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton once to highlight the SOUND

menu.

Press the CURSOR RIGHT button to enter the SOUND menu.

Press the CURSOR DOWN but-

ton repeatedly until the STEREO

control is highlighted.

Press the CURSOR RIGHT or

LEFT button to select STEREO or

MONO. When STEREO has been selected, the television will reproduce any stereo signal it receives.

Press the i+ button to remove the

menu from the screen.

Sound Menu • Stereo and SAP (Second Audio Program)

SECOND AUDIO PROGRAM (SAP)

A

Second Audio Program, or SAP, is

an additional part of the stereo broadcast system. Sent as a third audio channel, an SAP can be heard apart from the current TV program sound. TV stations are free to use SAP for any number of purposes, such as the broadcast of a second language or other audio information.

If an SAP signal is not present with a selected program, the SAP option cannot be selected; NOT AVAILABLE will appear on screen. Also, if SAP is selected on a channel and you change to another channel, when you return to the original channel, SAP will be off. You will have to reselect the SAP feature.

SMART

HELP

If stereo is not present on

a selected show and the TV is placed in the STEREO mode, the sound coming from the set will remain MONO.

STEREO MODE

BEGIN


SOUND

FEATURES INSTALL

TREBLE BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

BASS BALANCE AVL INCR. SURROUND

STEREO MONO

6

+

AV

i

AV

i

AV

i

AV

i

AV

i

AV

i

AV

i

AV

TV

VCR

ACC

SMART

1

SMART

SAP

i

SAP

1

23

4

5

5 89

89

7

MENU SURF

SMART

0

OR

STEREO STEREO

6

3

5

INCR. SURR.

CH

2

PIP

A/CH

4

PIP CH

DN

UP

DN

UP

DN

UP

DN

UP

DN

UP

DN

UP

SOUND

BALANCE AVL INCR. SURROUND STEREO

SAP NOT AVAILABLE

IF A SECOND AUDIO PROGRAM

IS NOT BEING BROADCAST:

SAP NOT AVAILABLE

OR

SAP OFF

SOUND

BALANCE

AVL

INCR. SURROUND

STEREO

SAP ON

IF A SECOND AUDIO PROGRAM

IS BEING BROADCAST:

SAP ON

OR

SAP OFF

34

SETTING THE AUDIO OUT CONTROL

Sound Menu • The Audio Out Control

I

f you have connected the TV’s

AUDIO OUTPUT jacks to the AUDIO INPUT jacks on a stereo receiver, set AUDIO OUT to either VARIABLE or FIXED to determine whether you adjust the volume at the at the TV or at the stereo. If you select VARIABLE, change the volume at the TV using the TV’s remote control. If you select FIXED, adjust the volume at the stereo using the stereo’s controls. Follow these steps to make your selection.

Press the MENU button on the

remote control to show the on-screen menu.

Press the CURSOR DOWN but-

ton once to highlight SOUND.

Press the CURSOR RIGHT but-

ton to enter the SOUND menu.

Press the CURSOR DOWN but-

ton repeatedly until AUDIO OUT is

highlighted.

Press the CURSOR RIGHT or

LEFT button to set the AUDIO

OUT to VARIABLE or FIXED.

Press the i+ button to remove the

menu from the screen.

BEGIN


SOUND

FEATURES INSTALL

6

TREBLE BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

AVL INCR. SURROUND STEREO SAP

AUDIO OUT FIXED

+

AV

i

TV

VCR

ACC

1

SMART

SAP

1

23

4

5 89

7

MENU SURF

SMART

0

6

SOUND

3

OR

AVL INCR. SURROUND STEREO SAP

AUDIO OUT VARIABLE

5

CH

2

PIP

INCR. SURR.

A/CH

4

PIP CH

DN

UP

35

USING THE TV SPEAKER CONTROL AND AUDIO OUTPUTS

Audio System

Back of TV

W

ould you like to hear TV pro-

grams through your audio hifi system? The TV’s Audio Outputs and TV Speaker ON/OFF control work together to offer you this TV sound option.

Use audio cables to connect the R(ight) and L(eft) AUDIO OUT(puts) on the TV to the

AUX/TV INPUTs on your amplifier or sound system. Set the audio system’s volume to a normal listening level.

Turn the TV and audio system ON. You can now adjust the sound

level coming from the audio system with the VOL(ume) (+,–) buttons on the TV or remote control.

To hear the TV sound from only the audio system speakers:

Press the MENU button on the

remote control to show the onscreen menu.

Press the CURSOR DOWN

button once to highlight SOUND.

Press the CURSOR RIGHT

button to enter the SOUND menu.

Press the CURSOR DOWN

button repeatedly until the

SPEAKERS control is highlighted.

Press the CURSOR RIGHT or

LEFT button to turn the televi-

sion’s speakers ON or OFF. With the SPEAKERS control set to OFF, you should hear the TV sound coming only from the audio system speakers.

Press the i+ button to remove

the menu from the screen.

Sound Menu • The TV Speaker Control and Audio Outputs

SMART HELP

The audio system may

have to be in AUX(iliary)

mode to play sound from the TV.

BEGIN

i

7

TREBLE BASS BALANCE AVL INCR. SURROUND

+

SAP

23

6

5 89

SMART

0

PIP

A/CH

PIP CH

DN

UP

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

INCR. SURROUND STEREO SAP AUDIO OUT

SPEAKERS ON

OR

SPEAKERS OFF

7

5

ANTENNA IN 75Ω

CH

MONITOR OUT AV1 IN AV2 IN

1

VIDEO

MONO/L

AUDIO

R

Y

Pb

Pr

R

AUX/TV INPUT

PHONO INPUT

S-VIDEO

L


SOUND

FEATURES INSTALL

8

AV

TV

VCR

1

ACC

4

3

SMART

MENU SURF

4

6

INCR. SURR.

2

36

USING THE BASS BOOST CONTROL

Sound Menu • The Bass Boost Control

T

he BASS BOOST control allows

you to increase the low-frequency range of the TV’s sound. This creates a deeper, fuller sound. Follow these steps to turn BASS BOOST ON.

Press MENU button on the

remote control to show the on-screen

menu.

Press the CURSOR DOWN but-

ton once to highlight SOUND.

Press the CURSOR RIGHT but-

ton to enter the SOUND menu.

Press the CURSOR DOWN but-

ton repeatedly until BASS BOOST is

highlighted.

Press the CURSOR RIGHT or

LEFT button to turn BASS BOOST

ON or OFF.

Press the i+ button to remove the

menu from the screen.

BEGIN


SOUND

FEATURES INSTALL

TREBLE BASS BALANCE AVL INCR. SURROUND

SOUND

TREBLE 30

BASS BALANCE AVL INCR. SURROUND

SOUND

STEREO SAP AUDIO OUT SPEAKERS

BASS BOOST ON

6

+

AV

i

TV

VCR

ACC

1

SMART

SAP

1

23

4

5 89

7

MENU SURF

SMART

0

BASS BOOST OFF

6

3

OR

5

INCR. SURR.

CH

2

PIP

4

A/CH

PIP CH

DN

UP

37

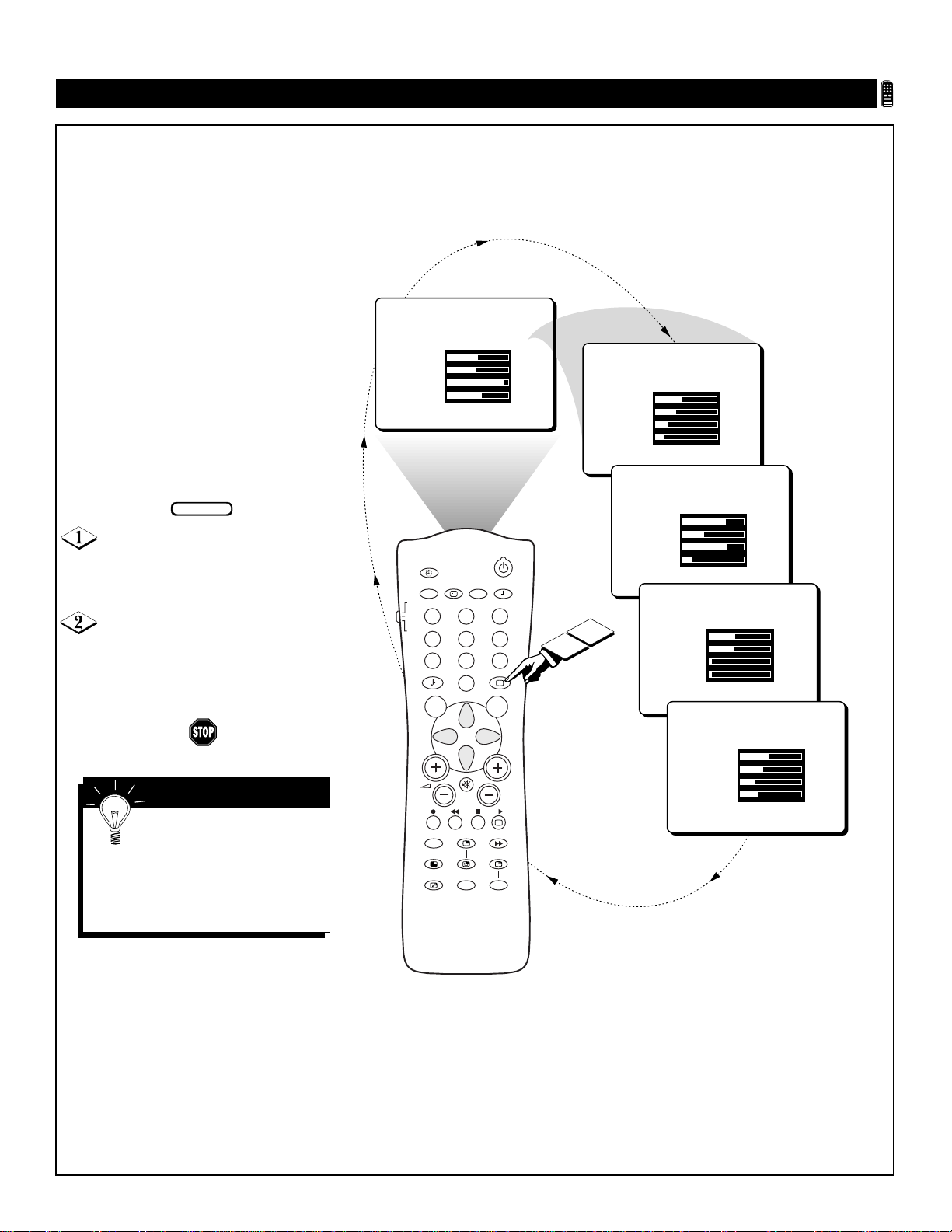

USING SMARTPICTURE

Remote Control • SmartPicture

W

hether you’re watching a movie

or playing a video game, your TV has automatic video control settings that will match with your current program source or content. SmartPicture quickly resets your TV’s video controls for a number of different types of programs and viewing conditions that you may have in your home. The Movies, Sports, Weak Signal, and Multimedia AutoPicture controls have been preset at the factory to automatically adjust the TV’s brightness, color, picture, sharpness, tint, and color temperature levels. The Personal AutoPicture settings are the ones that you made through the PICTURE options within the on-screen menu.

Press the SMARTPICTURE

button on the remote control. The

current AutoPicture setting will appear in the middle of the screen.

Press the SMARTPICTURE

button repeatedly to select either

PERSONAL, MOVIES, SPORTS, WEAK SIGNAL, or MULTIMEDIA picture settings.

SMART HELP

You determine the PER-

SONAL setting by adjustments you make within the PICTURE menu. The other SmartPicture settings are made at the factory and cannot be adjusted.

BEGIN

PERSONAL

BRIGHTNESS 48 COLOR 41 PICTURE 81 SHARPNESS 46

+

AV

i

TV

VCR

ACC

SMART

SAP

1

23

4

5 89

7

MENU SURF

SMART

0

6

1

MOVIES

BRIGHTNESS 40 COLOR 31 PICTURE 20 SHARPNESS 16

BRIGHTNESS 62 COLOR 31 PICTURE 62 SHARPNESS 16

2

BRIGHTNESS 37 COLOR 35 PICTURE 15 SHARPNESS 15

SPORTS

WEAK SIGNAL

INCR. SURR.

MULTIMEDIA

BRIGHTNESS 40 COLOR 31

CH

PIP

A/CH

PIP CH

DN

UP

PICTURE 20 SHARPNESS 26

38

USING SMARTSOUND

S

martSound allows you to select

from three factory-set controls and a personal control that you set according to your own preferences through the on-screen Sound menu. The three factory-set controls (Voice, Music, and Theatre) enable you to tailor the TV sound so as to enhance the particular program you are watching. Follow these steps to select any of the options.

Press the SMARTSOUND but-

ton on the remote control. The cur-

rent SmartSound setting will appear in the middle of the screen.

Press the SMARTSOUND button repeatedly to cycle through the

four settings: PERSONAL, VOICE, MUSIC, or THEATRE.

Remote Control • SmartSound

SMART HELP

You determine the PER-

SONAL setting by adjustments you make within the SOUND menu. The other SmartSound settings are made at the factory and cannot be adjusted.

SmartSoundworks only with the programs coming through the ANTENNA/CABLE (ANT “A” or PIP ANT “B”) inputs on the back of the TV. SmartSound will not control the sound levels of the other inputs on the back of the TV set.

SmartSound Choices PERSONAL—presents the TV’s

sound according to the settings you make within the SOUND menu.

VOICE—brings voices to the forefront and emphasizes them. Moves music to the background.

MUSIC—emphasizes music over voices.

THEATRE—provides a balance between voices and music.

BEGIN

PERSONAL

TREBLE 49 BASS 49

+

AV

i

TV

VCR

2

ACC

1

SMART

SAP

1

23

4

5 89

7

MENU SURF

SMART

0

6

CH

VOICE

TREBLE 56 BASS 47

MUSIC

TREBLE 63 BASS 69

THEATRE

TREBLE 60 BASS 72

INCR. SURR.

PIP

A/CH

PIP CH

DN

UP

39

USING SURF AND ALTERNATE CHANNEL

MENU SURF

CH

UP

DN

PIP

INCR. SURR.

A/CH

PIP CH

5

10

Remote Control • Surf and Alternate Channel

A

list of previously viewed channels

can be selected with the SURF button on your remote control. With SURF, you can easily switch between different TV channels that currently interest you. The SURF control allows you to set up to ten channels in its quick viewing list.

Press the CH(annel) Scan (+,–)

buttons (or the NUMBER buttons) to

select a channel to add to the SURF list.

Press the SURF button on the

remote control. The on-screen display may read, “SURF LIST EMPTY.” The number of the current channel will be shown with ADD? to the right.

While the SURF list message or

the SURF channel list appears on the screen, press the CURSOR RIGHT button to add the present channel to the SURF list.

If you want to delete the present

channel from the SURF list, press the CURSOR RIGHT button again.

Repeat steps 1 through 3 to add more channels (up to 10) to the SURF list.

BEGIN

SURF

ALTERNATE CHANNEL (A/CH)

Y

our remote also has an A/CH

(Alternate Channel) button. Pressing this button will toggle between the current channel and one previous channel.

Along with the broadcast channels, the external video source connections can be added to the SURF list. This means that the AV 1, CVI, and AV 2 signal sources can be added to your SURF list. Just press the AV button on your remote to select the signal source and then follow steps 2Ð4 in the ÒSurfÓ section on this page.

SMART

HELP

SURF

12 ADD?

SURF LIST EMPTY

+

AV

i

TV

VCR

ACC

INCR. SURR.

SAP

1

23

4

5 89

7

SMART

0

MENU SURF

PIP

UP

PIP CH

SMART

A/CH

SURF

12 DELETE?

SURF

12 24 ADD?

SURF

6

12 24 DELETE?

2

3

4

CH

SURF

12 24 32 ADD?

1

SURF

DN

12 24 32 DELETE?

40

USING THE SLEEP TIMER CONTROL

During the last minute of a Sleep Timer setting, an onscreen countdown will be displayed.

During the last 10 seconds of a Sleep Timer setting, the on-screen display will read “GOOD BYE.”

Remote Control • The Sleep TimerControl

H

ave you ever fallen asleep in

front of the TV, only to be awakened in the middle of the night by the screeching sound that accompanies the on-screen test pattern of a station that’s signed off? Your TV can enable you to avoid that discomfort by automatically turning itself off. You choose the amount of time before the set turns off.

Press the SLEEP button on the

remote control. The SLEEP Timer onscreen display will appear in the upper part of the screen.

Within five seconds, press the

SLEEP button repeatedly to pick the

amount of time before the TV will turn itself off.

An on-screen countdown will appear during the last minute before the TV turns off.

SMART HELP

To see how many minutes

remain before the TV shuts

itself off, press the i+ button.

BEGIN

SLEEP OFFSLEEP OFF

SLEEP 15

2

1

+

AV

i

TV

VCR

ACC

SMART

SAP

1

23

4

5 89

7

MENU SURF

SMART

0

6

SLEEP 30

SLEEP 45

CH

PIP

INCR. SURR.

A/CH

PIP CH

DN

UP

SLEEP 60

SLEEP 90

SLEEP 120

SLEEP 180

SLEEP 240

50 SEC

GOOD BYE

41

USING THE

VOLUME AND AV BUTTONS

Remote Control • The Volume and AV Buttons

P

ress the VOLUME (+, –) buttons

on the remote and the volume adjustment bar will appear on screen. Adjustments are shown as you make them.

Press the VOLUME (+,–) but-

tons on the remote control to show

the VOLUME bar display on the screen.

Press the VOLUME (+,–) but-

tons to adjust the TV’s sound level.

T

he AV button on your remote con-

trol allows you to choose from among the signal sources you have connected to your TV.

Press the AV button on your

remote to choose a signal source for

viewing.

BEGIN

AV BUTTON

VOLUME BUTTONS

BEGIN

VOLUME 15

AV 2

+

AV

i

7

SAP

23

6

5 89

SMART

0

CH

2

1

TV

VCR

1

ACC

4

SMART

MENU SURF

CV1

AV 1

10

INCR. SURR.

PIP

A/CH

PIP CH

DN

UP

1

+

AV

i

7

SAP

23

6

5 89

SMART

TV

VCR

1

ACC

4

SMART

0

MENU SURF

CH

PIP

INCR. SURR.

A/CH

PIP CH

DN

UP

42

SETTING THE TV REMOTE TO WORK ACCESSORY DEVICES

VCR

Cable Converter

Satellite

Receiver

TV Remote VCR/ACC(essory)

Mode Buttons

Remote Control • Working Accessory Devices

Y

our TV remote is capable of work-

ing not only your TV but also infrared remote (IR) controlled devices such as VCRs, cable TV converter boxes, satellite receivers, DVD players, and laser disc players.

If you want to use your TV remote to operate a VCR or other accessory device, you will need to perform this initial check explained in this section. You may also need to go to the sections on the “Direct Access Method” and the “Search Method” in the pages that follow.

Move the slide switch on the side

of the TV remote to VCR or ACC mode for the accessory device category you want.

NOTE: selecting the ACC(essory) mode button allows access to the product codes for cable TV converters, DVD players, satellite receivers, and laser disc players.

Point the TV remote toward the

desired accessory device and press the POWER button.

Does the remote turn the accessory device on?

If yes, and try other function but-

tons on the TV remote. If they also work the accessory device, then the remote is ready and no further steps are needed.

If no, do the following: Look up a three-digit remote code

number on page 45 or 46 for your

brand of accessory device. Then go through the simple Direct Access Method steps shown on page 43.

BEGIN

SMART HELP

If more than one number is

listed, you may have to try more than the first three-digit code given to locate your device’s correct code.

1

+

AV

i

TV

VCR

1

SMART

4

7

23 5

89 0

ACC

2

SAP

+

i

AV

TV

VCR

ACC

SAP

6

SMART

SURF

MENU

INCR. SURR.

CH

A/CH

PIP

DN

PIP CH

UP

43

SETTING THE TV REMOTE TO WORK ACCESSORY DEVICES

Remote Control • Working Accessory Devices

DIRECT ACCESS METHOD

N

ow that you have looked up the

three-digit Remote Control Direct Entry Code for your brand of accessory device, you are ready to follow the simple steps shown below.

Please read through all the steps before beginning.

Move the slide switch on the side

of the TV remote to VCR or ACC mode for the device you want.

Press the VCR RECORD (•)

button and release.

Within 30 seconds, press the

SMARTSOUND button.

Within 30 seconds, Enter the

three-digit ID code (the code is list

on pages 45 and 46).

Point the remote at the accessory

device. Then press the POWER but-

ton on the TV remote to turn the device on.

• ACC mode is for cable

converter boxes, satellite receivers, DVDs, and laser disc players.

• If the procedure explained above does not work the first time, repeat the steps using the same remote code number.

• If after a second try the TV remote does not operate your accessory device, and more code numbers are listed for your brand, use the next listed code number. Continue trying the code numbers until successful.

• If none of the codes listed for the accessory device will work, go to the Search Method on the next page.

SMART HELP

VCR

DVD

Satellite Receiver

Cable TV Converter

BEGIN

TV

VCR

AV

ACC

+

i

SAP

SMART SMART

MENU

INCR. SURR.

1

TV

VCR

ACC

3

AV

1

4

SMART

7

+

i

SAP

23 5

89

SMART

6

4

0

MENU SURF

5

CH

2

INCR. SURR.

SURF

CH

PIP

A/CH

PIP CH

UP

DN

PIP

A/CH

PIP CH

DN

UP

44

SETTING THE TV REMOTE TO WORK ACCESSORY DEVICES

VCR

Cable TV Converter

Satellite Receiver

Remote Control • Working Accessory Devices

Y

our TV remote can be set to work

various accessory devices (VCRs, cable converters, satellite receivers) by what is called the Search Method. NOTE: The Search Method works with devices equipped with Channel Display Indicators (cable TV converters, satellite receivers, etc.). For VCRs, the play/stop function is used to confirm that the correct code has been found. Please read the steps below once before performing them.

Turn on the desired device. For a

VCR, insert a tape and begin playing.

Move the slide switch on the side

of the TV remote to VCR or ACC

mode for the desired device.

Press and hold the VCR

RECORD (•) and SMARTSOUND

buttons at the same time.

While continuing to hold the VCR RECORD (•) and SMARTSOUND buttons, point the TV remote at the remote sensor window

of the accessory device. The TV remote will begin transmitting codes to try to find the one for your accessory device.

For cable converter boxes and satellite receivers, watch the accessory device’s Channel Indicator.

When the channel numbers begin to change, immediately release the VCR RECORD (•) and SMARTSOUND buttons. The TV remote has identified the correct remote code for the accessory device. For VCRs, when the

VCR player stops, the correct code has been found. When you release

the VCR RECORD and SMARTSOUND buttons, the remote code for the accessory device will be stored in the TV remote. Whenever you want to use the TV remote to work the accessory device, remember to have the slide switch on the TV remote in the VCR or ACC mode. Then point the TV remote at the accessory device to operate it.

BEGIN

SEARCH METHOD

SMART HELP

• Your TV remote may

locate the accessory device’s code quickly or require several minutes to do so.

• Don’t let the accessory device scan through more than five channels when the correct code is found— the remote may pass up the right code and have to repeat the search cycle.

• If the channel does not change on the accessory device or if the VCR fails to stop, repeat steps 1–4. If there is still no response, the remote will not work the accessory device or VCR.

1

2

5

TV

VCR

ACC

4

3

5

4

3

INCR. SURR.

Play

Stop

+

AV

i

SAP

1

23

4

5 89

7

SMART

0

MENU SURF

PIP

PIP CH

UP

SMART

A/CH

06

07

06

07

08

09

08

09

5

6

CH

DN

45

SETTING THE TV REMOTE TO WORK ACCESSORIES

VCR BRAND AND REMOTE CODE(S)

Admiral . . . . . . . . . . . . . . . . . . . . . . . . .075, 236

Adventura . . . . . . . . . . . . . . . . . . . . . . . . . . .027

Aiko . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .305

Aiwa . . . . . . . . . . . . . . . . . . .334, 495, 027, 064

Akai . . . . . . . .133, 080, 068, 076, 088, 183, 269

America Action . . . . . . . . . . . . . . . . . . . . . . .305

American High . . . . . . . . . . . . . . . . . . . . . . .062

Asha . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .267

Audiovox . . . . . . . . . . . . . . . . . . . . . . . . . . .064

Beaumark . . . . . . . . . . . . . . . . . . . . . . . . . . .267

Bell & Howell . . . . . . . . . . . . . . . . . . . . . . . .131

Broksonic . . . . . . . . . . . . . . .148, 211, 029, 236,

. . . . . . . . . . . . . . . . . . . . . . .238, 322, 388, 506

CCE . . . . . . . . . . . . . . . . . . . . . . . . . . .099, 305

Calix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .064

Canon . . . . . . . . . . . . . . . . . . . . . .194, 062, 129

Capehart . . . . . . . . . . . . . . . . . . . . . . . . . . . .047

Carver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Cineral . . . . . . . . . . . . . . . . . . . . . . . . . . . . .305

Citizen . . . . . . . . . . . . . . . . . . . . . . . . .305, 064

Colt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .099

Craig . . . . . . . . . . . . . . .064, 099, 074, 267, 298

Curtis Mathes . . . . . . . . . . . .062, 068, 087, 189

Cybernex . . . . . . . . . . . . . . . . . . . . . . . .078, 267

Daewoo . . . . . . . . . . . . . . . . .305, 588, 047, 072

Daytron . . . . . . . . . . . . . . . . . . . . . . . . . . . . .047

Denon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .069

Dynatech . . . . . . . . . . . . . . . . . . . . . . . . . . . .027

Electrohome . . . . . . . . . . . . . . . . . . . . . . . . .064

Electrophonic . . . . . . . . . . . . . . . . . . . . . . . .064

Emerex . . . . . . . . . . . . . . . . . . . . . . . . . . . . .059

Emerson . . . . .211, 029, 236, 305, 063, 148, 238,

. . . . . . . . . . .588, 235, 321, 506, 088, 115, 239,

. . . . . . . . . . . .027, 064, 070, 095, 322, 388, 537

Fisher . . . . . . . . . . . . . . . . . .074, 131, 081, 093

Fuji . . . . . . . . . . . . . . . . . . . . . . . . . . . .060, 062

Funai . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .027

GE . . . . . . . . . . . . .062, 087, 075, 092, 229, 267

Garrard . . . . . . . . . . . . . . . . . . . . . . . . . . . . .027

Go Video . . . . . . . . . . . . . . . .306, 459, 553, 259

GoldStar . . . . . . . . . . . . .064, 045, 065, 498, 507

Gradiente . . . . . . . . . . . . . . . . . . . .035, 027, 435

Grundig . . . . . . . . . . . . . . . . . . . . . . . . . . . .222

HI-Q . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .074

Harley Davidson . . . . . . . . . . . . . . . . . . . . . .027

Harman/Kardon . . . . . . . . . . . . . . .065, 102, 108

Harwood . . . . . . . . . . . . . . . . . . . . . . . .095, 099

Headquarter . . . . . . . . . . . . . . . . . . . . . . . . .073

Hitachi . . . . . .069, 193, 132, 092, 027, 068, 109

Hughes Network Systems . . . . . . . . . . . . . . .069

JVC . . . . . . . . . . . .094, 035, 233, 234, 068, 411

Jensen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .068

KEC . . . . . . . . . . . . . . . . . . . . . . . . . . .064, 305

KLH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .099

Kenwood . . . . . . . . . . . . . . . .068, 094, 411, 065

Kodak . . . . . . . . . . . . . . . . . . . . . . . . . .062, 064

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .064

Lloyd's . . . . . . . . . . . . . . . . . . . . . . . . .027, 235

Logik . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .099

MEI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .062

MGA . . . . . . . . . . . . . . . . . . . . . . .070, 088, 267

MGN Technology . . . . . . . . . . . . . . . . . . . . .267

MTC . . . . . . . . . . . . . . . . . . . . . . . . . . .027, 267

Magnasonic . . . . . . . . . . . . . . . . . . . . . . . . . .305

Magnavox . . . .062, 108, 137, 130, 027, 066, 176

Magnin . . . . . . . . . . . . . . . . . . . . . . . . . . . . .267

Marantz . . . . . . . . . . . . . . . . . . . . . . . . .108, 062

Marta . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .064

Matsushita . . . . . . . . . . . . . . . . . . .062, 189, 481

Memorex .131, 074, 506, 027, 064, 075, 062, 073,

. . . . . . . .267, 334, 066, 189, 236, 481, 828, 829

Minolta . . . . . . . . . . . . . . . . . . . . . . . . .132, 069

Mitsubishi . . .070, 200, 088, 102, 241, 269, 075, 094, 470

Motorola . . . . . . . . . . . . . . . . . . . . . . . .062, 075

Multitech . . . . . . . . . . . . . . . . . . . . . . . .027, 099

NAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .085

NEC . . . . . . . .065, 067, 068, 077, 094, 109, 131

Nikko . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .064

Nikon . . . . . . . . . . . . . . . . . . . . . . . . . .061, 280

Noblex . . . . . . . . . . . . . . . . . . . . . . . . . . . . .267

Olympus . . . . . . . . . . . . . . . . . . . . . . . .062, 253

Optimus . . . . . . . . . . . .189, 481, 075, 085, 064,

. . . . . . . . . . . . . . . . . . .131, 459, 827, 828, 829

Optonica . . . . . . . . . . . . . . . . . . . . . . . . . . . .089

Orion . . . . . . . . . . . . . . .506, 029, 211, 236, 322

Panasonic . . . . . . .062, 189, 481, 253, 104, 405,

. . . . . . . . . . . .129, 252, 254, 273, 827, 828, 829

Penney . . . . . .062, 267, 064, 069, 065, 067, 081

Pentax . . . . . . . . . . . . . . . . . . . . . .069, 092, 132

Philco . . . . . . . . . . . . . . . . . . . . . .062, 236, 506

Philips . . . . . . . . . .108, 062, 089, 137, 830, 831

Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .064

Pioneer . . . . . . . . . . . . . . . . . . . . .085, 195, 094

Polk Audio . . . . . . . . . . . . . . . . . . . . . . . . . .108

Portland . . . . . . . . . . . . . . . . . . . . . . . . . . . .047

Profitronic . . . . . . . . . . . . . . . . . . . . . . . . . . .267

Proscan . . . . . . . . . . . . . . . . . . . . . . . . .087, 229

Protec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .099

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . . .066, 078

Quarter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .073

Quartz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .073

Quasar . . . . . . . . . . . . . .062, 189, 104, 481, 828

RCA . . . . . . . . . . .087, 176, 229, 069, 132, 062,

. . . . . . . . . . . . . . . .075, 092,104, 133, 267, 304

Radio Shack . . . . . . . . . . . . . . . . . . . . . . . . .027

Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .064

Randex . . . . . . . . . . . . . . . . . . . . . . . . . . . . .064

Realistic . . . . . . . . . . . . . . . .027, 131, 074, 075,

. . . . . . . . . . . . . . . . . . . .064, 062, 089, 073, 93

Ricoh . . . . . . . . . . . . . . . . . . . . . . . . . .061, 280

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .066

STS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .069

Salora . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Samsung . . . . . . . . . . . . . . . .072, 078, 080, 267

Sanky . . . . . . . . . . . . . . . . . . . . . . . . . .066, 075
