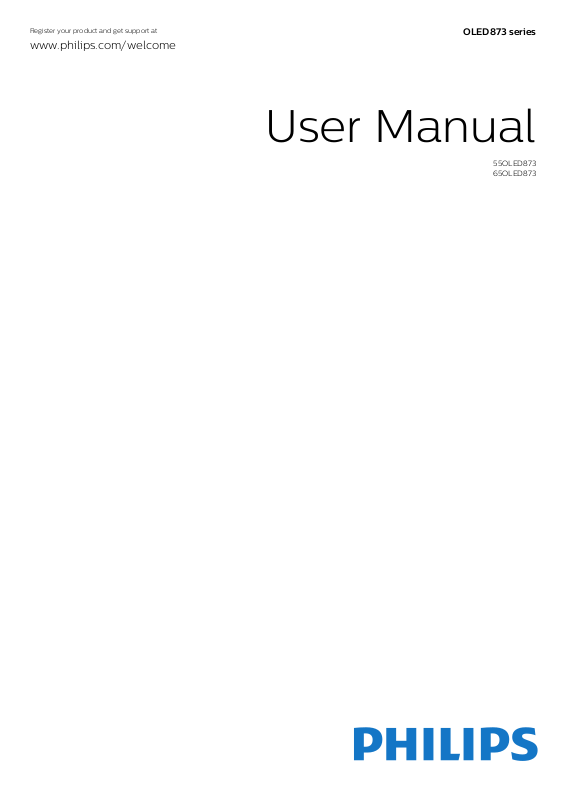

Page 1

www.philips.com/welcome

OLED873 series

User Manual

55OLED873 65OLED873

Page 2

1 Get Support 3

1.1 Identify and Register your TV 3

1.2 TV Help and User Manual 3

1.3 On-line Help and User Manual 3

1.4 Consumer Care / Repair 3

2 Software 4

2.1 Update Software 4

2.2 Software Version 4

3 Quick Guide 5

3.1 Remote Control 5

3.2 IR sensor 6

3.3 Joysticker - Local Control 6

4 Setting Up 7

4.1 Read Safety 7

4.2 TV Placement 7

4.3 Turn on TV 7

5 Connections 9

5.1 Connectivity guide 9

5.2 Antenna 9

5.3 Video Device 9

5.4 Audio Device 9

5.5 Mobile Device 10

5.6 Other Device 11

6 Switch Source 12

6.1 Source List 12

6.2 Rename Device 12

7 Channels 13

7.1 About Channels and Switch Channels 13

7.2 Install Channel 13

7.3 Channel List 14

7.4 Favorite Channels 15

7.5 Closed Caption (CC) and Language 15

8 Recording 17

8.1 What you need 17

8.2 Record a programme 17

8.3 Schedule a Recording 17

8.4 List of recordings 17

8.5 Watch a recording 17

9 Videos, Photos and Music 18

9.1 From a USB Connection 18

9.2 Photos 18

9.3 Videos 18

9.4 Music 19

10 Open TV Setting Menus 20

10.1 Home Menu Overview 20

10.2 Frequent settings and All settings 20

10.3 All Settings 20

11 Network 29

11.1 Home Network 29

11.2 Connect to Network 29

11.3 Network settings 30

12 Smart TV 31

12.1 Setup Smart TV 31

12.2 Smart TV Start Page 31

12.3 App Gallery 31

13 Ambilight 32

13.1 Ambilight Style 32

13.2 Ambilight Brightness, Saturation 32

13.3 Ambilight+hue 32

13.4 Advanced Ambilight Settings 34

14 Environmental 35

14.1 Energy Label 35

14.2 End of Use 35

15 Specifications 36

15.1 Power 36

15.2 Reception 36

15.3 Display Resolution 36

15.4 Supported Input Resolution - Video 36

15.5 Supported Input Resolution - Computer 36

15.6 Sound 36

15.7 Multimedia 37

15.8 Connectivity 37

16 Troubleshooting 38

16.1 Tips 38

16.2 Switch On 38

16.3 Remote Control 38

16.4 Channels 38

16.5 Picture 39

16.6 Sound 39

16.7 HDMI - UHD 40

16.8 USB 40

16.9 Wi-Fi and Internet 40

16.10 Wrong Menu Language 40

17 Safety and Care 42

17.1 Safety 42

17.2 Screen Care 43

18 Terms of Use 44 19 Copyrights 45

19.1 MHL 45

19.2 Ultra HD 45

19.3 HDMI 45

19.4 Dolby Audio 45

19.5 DTS 2.0 + Digital Out ™ 45

19.6 Wi-Fi Alliance 45

19.7 Other Trademarks 45

20 Open Source 46

20.1 Open Source Software 46

20.2 Open Source License 46

21 Disclaimer regarding services and/or software offered by third parties 50

Index 51

Page 3

1.3

Get Support

1.1

Identify and Register your TV

Identify your TV - TV model number and serial number

You might be asked to provide the TV product model number and serial number. Find these numbers on the packaging label or on the type label on the back or bottom of the TV.

Register your TV and enjoy a range of benefits including full support (including downloads), privileged access to information about new products, exclusive offers and discounts, the chance to win prizes and even participate in special surveys about new releases.

Go to www.philips.com/welcome

On-line Help and User Manual

To solve any Philips TV related problem, you can consult our online support. You can select your language and enter your product model number.

Go to www.philips.com/TVsupport. On the support site you can find your country's

telephone number to contact us as well as answers to frequently asked questions (FAQs). In some countries, you can chat with one of our collaborators and ask your question directly or send a question by email. You can download new TV software or the manual to read on your computer.

For more TV troubleshooting and frequently asked questions (FAQs)...

Go to http://philips-tvconsumercare.kxondemand.com/

portal/en/ModelSelect

1.2

TV Help and User Manual

Settings > Help



You can use the Help function to diagnose and get more information about your TV.

• How to - You can see instructions on how to

install channels, sort channels, update TV software, connect external devices and use Smart functions on your TV.

• Check the TV - You can check if the picture, sound and Ambilight* are working fine while playing a short video clip.

• Check the Network - Check the Network Connection.

• Update software - Check available software updates.

• User manual - Read the user manual for TV information.

• Troubleshooting - Find a solution for frequently asked questions.

• Factory settings - Reset all settings to factory settings.

• Reinstall TV - Reinstall and redo the complete TV installation.

• Contact info - Shows the telephone number or web address for your country or region.

TV Help on your tablet, smartphone or computer

To carry out extended sequences of instructions more easily, you can download the TV Help in PDF format to read on your smartphone, tablet or computer. Alternatively, you can print the relevant Help page from your computer. To download the Help (user manual) go to www.philips.com/TVsupport

1.4

Consumer Care / Repair

For support and repair, call the Consumer Care hotline in your country. Our service engineers will take care of a repair, if necessary.

Find the telephone number in the printed documentation that came with the TV. Or consult our website www.philips.com/TVsupport and select your country if needed.

TV model number and serial number

You might be asked to provide the TV product model number and serial number. Find these numbers on the packaging label or on the type label on the back or bottom of the TV.

Warning



Do not attempt to repair the TV yourself. This may cause severe injury, irreparable damage to your TV or void your warranty.

Page 4

Software

2.1

Update Software

Search for Updates

Update from Internet

(Home) > Settings > Update software > Search



for updates > Internet Look for a software update yourself.

back on again. Please wait.

Do not . . .

• use the remote control

• remove the USB memory device from the TV

• press  twice

• press the power switch on the TV The TV switches itself off (for 10 seconds) and then back on again. Please wait.

The TV software has been updated. You can use the TV again. To prevent an accidental update of the TV software, delete the autorun.upg file from the USB memory device.

• If the TV is connected to the Internet, you may receive a message to update the TV software. You need a high-speed (broadband) Internet connection. If you receive this message, we recommend you to carry out the update.

• During the software update, there is no picture and the TV will switch off and on again. This might happen several times. The update can take a few minutes.

• Wait until the TV picture comes back up. Do not press the power switch  on the TV or on the remote control during the software update.

Update from USB

(Home) > Settings > Update



software > Search for updates > USB

• You need a computer with a high-speed Internet connection and a USB memory device to upload the software on the TV.

• Use a USB memory device with 512MB free space. Make sure that write protection is switched off.

1 - Start the update on TV

Select Update software > Search for updates > USB, then press OK. 2 - Identify the TV

Insert the USB memory into one of the USB connections of the TV. Select Start and press OK. An identification file is written on the USB memory device.

3 - Download the TV software

- Insert the USB memory into your computer.

- On the USB memory device, locate the file update.html and double click it.

- Click on Send ID.

- If new software is available, download the .zip file.

- After the download, unzip the file and copy the file autorun.upg onto the USB memory device.

- Do not place this file in a folder.

4 - Update the TV software

Insert the USB memory into the TV again. The update starts automatically. The TV switches itself off for 10 seconds and then

Local Updates

(Home) > Settings > Update



software > Search for updates > USB > Local updates.

For dealers and expert users.

2.2

Software Version

(Home) > Settings > Update



software > Current software Info To view the current TV software version.

Page 5

Quick Guide

3.1

• Fast forward , to go fast forward

• Record , to start recording. 3 -

To select one of the Ambilight style or switch off Ambilight.

(Ambilight)



Remote Control

Batteries and Cleaning

Replace batteries

If the TV does not react on a key press on the remote control, the batteries might be empty.

To replace the batteries, open the battery compartment on the back of the remote control.

1 - Slide the battery door in the direction shown by the arrow. 2 - Replace the old batteries with 2 Alkaline, type AAA-R03-1.5V batteries. Make sure the + and the - ends of the batteries line up correctly. 3 - Reposition the battery door and slide it back until it clicks.

• Remove the batteries if you are not using the remote control for a long time.

• Safely dispose of your old batteries according to the end of use directions.

Cleaning

4 -  취침예약 (Sleep Timer)

To start and set the sleep timer. 5 -  (Search)

To open the Smart TV searches page. 6 -  (Settings)

To open the Quick settings menu.

7 -  외부입력 (Source)

To open or close the Sources menu. 8 -  리스트 (List)

To open or close the channel list.

Middle

Your remote control is treated with a scratch-resistant coating.

To clean the remote control, use a soft damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the remote control.

Key Overview

Top

1 -  Standby / On

To switch the TV on or back to Standby. 2 - Playback and Record

• Play , to playback.

• Pause , to pause playback

• Stop , to stop playback

• Rewind , to rewind

1 -  (Home) To open the Home menu.

2 -  스마트 (Smart TV) To open the Smart TV start page

3 -

   

Direct selection of options. 4 -  정보 (Info)

To open or close programme info. 5 -  이전 (Back)

To close a menu without changing a setting. 6 -  TV

To switch back to watch TV. To stop an interactive TV application.

7 -  옵션 (Options) To open or close the Options Menu.

8 - OK key To confirm a selection or setting. To open the channel list while watching TV.

9 - Arrow / navigation keys

Color keys

Page 6

To navigate up, down, left or right. 10 -  화면모드 (Picture Format)

To open or close the Picture Format menu.

Bottom

1 - With the TV switched on, press the joystick key on the back of the TV to bring up the basic menu. 2 - Press left or right to select  Volume,  Channel, or  Sources. Select  Demo to start a demo movie. 3 - Press up or down to adjust the volume or tune to the next or previous channel. Press up or down to go through the list of sources, including the tuner selection.

The menu will disappear automatically.

1 To adjust the volume level.

2 To mute the sound or to restore it.

3 - Number keys To select a channel directly.

4 - CC (Closed captions) To switch Closed captions on, off or on during mute.

5 -  Channel To switch to the next or previous channel in the channel list. To start the next or previous chapter on a disc.

6 - (Dot) To enter digital sub-channels.

3.2

Volume



Mute



IR sensor

The TV can receive commands from a remote control that uses infrared (IR) to send commands. If you use this kind of remote control, always point it at the infrared sensor on the front of the TV.

Warning



Do not put any objects in front of IR sensor of the TV as it may block the IR signal.

3.3

Joysticker - Local Control

Keys on TV If you lost the remote control or its batteries are

empty, you can still do some basic TV operations. To open the basic menu…

Page 7

Setting Up

4.1

Read Safety

Read the safety instructions first before you use the TV.

To read the instructions, in Help > User manual, press the color key  Keywords and look up Safety and Care.

4.2

TV Placement

Tips on Placement

• Position the TV where light does not shine directly on the screen.

• Position the TV up to 6 inches away from the wall.

• The ideal distance to watch Ultra HD TV is 2 to 5 times of its screen height. When seated, your eyes should be level with the center of the screen.

• 55OLED873

VESA MIS-F 300x300, M6 (Minimum 12 mm, Maximum 16 mm)

• 65OLED873

VESA MIS-F 300x300, M6 (Minimum 10 mm, Maximum 14 mm)

Preparation

First remove the 4 plastic screw caps out of the threaded bushes on the back of the TV. Make sure that the metal screws, to mount the TV to the VESA-compliant bracket, go about 10mm deep inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and should only be performed by qualified personnel. The TV wall mounting should meet safety standards according to the TVs weight. Also read the safety precautions before positioning the TV. TP Vision Europe B.V. bears no responsibility for improper mounting or any mounting that results in accident or injury.

TV Stand

You can find the instructions for mounting the TV stand in the Quick Start Guide that came with the TV. In case you lost this guide, you can download it from www.philips.com.

Use the model number of the TV to look for the Quick Start Guide to download.

Wall Mounting

Your TV is also prepared for a VESA-compliant wall mount bracket (sold separately). Use the following VESA code when purchasing the wall mount . . .

4.3

Turn on TV

Connect Power Cable

• Insert the power cable into the POWER connector on the back of the TV.

• Make sure the power cable is securely inserted in the connector.

• Make sure that the power plug, in the wall socket, is accessible at all times.

• When you unplug the power cable, always pull the plug, never pull the cable.

Although this TV has a very low standby power consumption, unplug the power cable to save energy

Page 8

if you do not use the TV for a long period of time.

On or Standby

Before you switch on the TV, make sure you plugged in the mains power in the POWER connector on the back of the TV.

Switch On

• Press the small joystick key on the back of the TV.

Switch to standby

To switch the TV to standby, press  on the remote control. You can also press the small joystick key on the back of the TV.

In standby mode, the TV is still connected to the mains power but consumes very little energy.

To switch off the TV completely, disconnect the power plug. When disconnecting the power plug, always pull the power plug, never the cord. Ensure that you have full access to the power plug, power cord and outlet socket at all times.

Page 9

Component

Connections

5.1

Connectivity guide

Always connect a device to the TV with the highest quality connection available. Also, use good quality cables to ensure a good transfer of picture and sound.

When you connect a device, the TV recognizes its type and gives each device a correct type name. You can change the type name if you wish. If a correct type name for a device is set, the TV automatically switches to the ideal TV settings when you switch to this device in the Sources menu.

5.2

Antenna

Insert the antenna plug firmly into the Antenna socket at the back of the TV.

Y Pb Pr - Component Video is a high quality connection.

The YPbPr connection can be used for High Definition (HD) TV signals. Next to the Y, Pb and Pr signals, add the Audio Left and Right signals for sound.

Match the YPbPr (green, blue, red) connector colors with the cable plugs when you connect. Use an Audio L/R cinch cable if your device also has sound.

Composite

CVBS - Composite Video is a standard time quality

connection. Next to the CVBS signal adds the Audio Left and Right signals for sound.

• Y shares the same jack with CVBS.

• Component and Composite share audio jacks.

You can connect your own antenna or an antenna signal from an antenna distribution system. Use an IEC Coax 75 Ohm RF antenna connector.

5.3

Video Device

HDMI

An HDMI connection has the best picture and sound quality.

For best signal quality transfer, use a High speed HDMI cable and do not use an HDMI cable longer than 5 m, and also connect devices supporting HDR on HDMI 2 or HDMI 3.

Copy protection

HDMI ports support HDCP (High-bandwidth Digital Content Protection). HDCP is a copy protection signal that prevents copying content from a DVD disc or Bluray Disc. Also referred to as DRM (Digital Rights Management).

5.4

Audio Device

HDMI ARC

Only HDMI 1 on the TV has HDMI ARC (Audio Return Channel).

If the device, typically a Home Theater System (HTS), also has the HDMI ARC connection, connect it to HDMI 1 connection on this TV. With the HDMI ARC connection, you do not need to connect the extra audio cable that sends the sound of the TV Picture to the HTS. The HDMI ARC connection combines both signals.

Digital Audio Out - Optical

Audio Out - Optical is a high quality sound connection.

This optical connection can carry 5.1 audio channels. If your device, typically a Home Theater System (HTS), has no HDMI ARC connection, you can use this connection with the Audio In - Optical connection on the HTS. The Audio Out - Optical connection sends the sound from the TV to the HTS.

Page 10

Headphones

You can connect a set of headphones to the  connection on the side of the TV. The connection is a mini-jack 3.5mm. You can adjust the volume of the headphones separately.

5.5

Mobile Device

Wi-Fi Direct / Miracast

About Wi-Fi Miracast

You can view your photos or play your music and videos from a mobile device on your TV with Wi-Fi Miracast™. The mobile device and the TV should be within range, which usually means being in the same room.

Check if your mobile device is ready for Miracast.

connection, you can enjoy using Miracast.

Stop Sharing

You can stop sharing a screen from the TV or the mobile device.

From the device

With the application you use to start Miracast, you can disconnect and stop watching the screen of the device on TV. The TV will switch back to the last selected programme.

From the TV

To stop watching the screen of the device on TV, you can . . .

• press  EXIT to watch a TV broadcast

• press  (Home) to start another activity on TV

• press  SOURCES to open the Sources menu and select a connected device.

Your TV is a Wi-Fi CERTIFIED Miracast™ device. With Miracast™, you can watch and share the screen of your smartphone, tablet or computer on your TV screen wirelessly. You can stream videos (audio and video), and share photos or anything else that's on the device screen. No need to connect the device to your home network. Both the TV and the device must be Wi-Fi CERTIFIED Miracast™ devices and have Miracast switched on.

Miracast on this TV is subject to the HDCP protocol and cannot display copy-protected premium content sent by a device. The maximum video resolution supported is 720p for 2.4GHz Wi-Fi or 1080p for 5GHz Wi-Fi.

For more information on Wi-Fi CERTIFIED Miracast™ go to www.wi-fi.org

Wi-Fi®, the Wi-Fi CERTIFIED logo, the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Wi-Fi CERTIFIED Miracast™, Miracast™ are trademarks of the Wi-Fi Alliance.

Using Miracast Switch on Miracast

Press  SOURCES > Miracast

Share a Screen on TV

1 - Activate Miracast (Screen mirroring) on your mobile device. 2 - On your mobile device, select the TV. (This TV will be displayed as TV model name) 3 - Select the TV name on your mobile device, after

Reset Wi-Fi Miracast connection

All previously connected devices are stored in the WiFi Miracast list of connections.

To clear all connected Miracast devices…

(Home) > Settings > All



settings > Network > Reset Wi-Fi Miracast connection.

Screen Delay

The normal delay when sharing a screen with Miracast is about 1 second. The delay might be longer if you are using older devices with less processing power.

MHL

This TV is MHL™ compliant. If your mobile device is also MHL compliant, you can

connect your mobile device with a MHL cable to the TV. With the MHL cable connected you can share what's on your mobile device on the TV screen. Your mobile device charges its battery at the same time. The MHL connection is ideal for watching movies or playing games from your mobile device on TV for a longer time.

Charging

With the MHL cable connected, your device will charge while the TV is switched on (not in standby).

Page 11

MHL Cable

You need a passive MHL cable (HDMI to Micro USB) to connect your mobile device to the TV. You might need an extra adapter to connect to your mobile device. To connect the MHL cable to the TV use the HDMI 3 MHL connection.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of the MHL, LLC.

Apps - Philips TV Remote App

With the TV Remote App, you master your media around you. Send photos, music or videos to your big TV screen or watch any of your TV channels live on your tablet or phone. With the TV Remote App you can use your phone as a remote control*.

Download the Philips TV Remote App from your favorite app store today.

The Philips TV Remote App is available for iOS and Android and is free of charge.

* When use your phone as a remote control, TV cannot be switched on or off via your phone.

5.6

Other Device

USB Flash Drive

You can view photos or play your music and videos from a connected USB flash drive. Insert a USB flash drive in one of the USB connections on the TV while the TV is switched on.

The TV detects the flash drive and opens a list showing its content. If the contents list does not appear automatically, press  SOURCES and select USB.

For more information on watching or playing content from a USB flash drive, in Help, press the color key  Keywords and look up Photos, Videos and Music.

Page 12

Switch Source

6.1

Source List

• To open the sources menu, press  SOURCES .

• To switch to a connected device, select the device with the arrows  (left) or  (right) and press OK.

• To close the source menu without switching to a device, press  SOURCES again.

6.2

Rename Device

(Home) > Settings > All settings > General



settings > Input sources

• To edit the input sources names from the source list.

1 - Select one of the device and press OK. 2 - Select Edit and press OK. 3 - Follow the on screen instructions to rename the

device name.

Page 13

Channels

7.1

About Channels and Switch Channels

To watch TV channels

• Press . The TV tunes to the TV channel you last watched.

• Press  (Home) > Watch TV > Channels and press OK.

• Press  + or  - to switch channels.

• If you know the channel number, type in the number with the number keys. Press OK after you entered the number to switch channels.

• To switch back to the previously tuned channel, press  BACK .

To switch to a channel from a channel list

• While watching a TV channel, press  LIST to open the channel lists.

• The channel list can have several pages with channels. To view the next or previous page, press  + or  -.

• To close the channel lists without switching channels, press  LIST again.

Channel icons

After an Automatic channel update of the channel list, newly found channels are marked with a  (star). If you lock a channel, it will be marked with a  (lock).

channels. 3 - Select Start and press OK to update channels. This can take a few minutes.

Weak Channel Installation

(Home) > Settings > Install



Channels > Antenna/Cable Installation > Weak channel installation

The digital frequency is shown for this channel. If the reception is poor, you can reposition your antenna. To check the signal quality of this frequency again, select Search and press OK. To enter a specific digital frequency yourself, use the remote control digit keys. Alternatively, select the frequency, position the arrows on a number with  and  and change the number with  and . To check the frequency, select Search and press OK.

Antenna Connection

(Home) > Settings > Install



Channels > Antenna/Cable Installation > Antenna Connection

1 - Select Antenna or Cable, and press OK. 2 - Select Start and press OK. This can take a few

minutes.

Channel Options

Radio channels

If digital broadcasting is available, digital radio stations are installed during installation. Switch to a radio channel just like you switch to a TV channel.

This TV can receive digital television standard time DVB. TV may not work properly with some operators of digital television , non-compliance with requirements of the standard in full.

7.2

Install Channel

Antenna/Cable Installation

Auto Program

(Home) > Settings > Install



Channels > Antenna/Cable Installation > Auto program

1 - Select Start now and press OK. 2 - Select Update channels to only add new digital

Open Options

While watching a channel, you can set some options. Depending on the type of channel you are watching

or depending on the TV settings you made, some options are available.

To open the options menu…

1 - While watching a channel, press  OPTIONS. 2 - Press  OPTIONS again to close.

Audio Language

If none of the preferred audio languages are available, you can select another audio language if available. If no audio languages are available, you cannot select this option.

To read more information, in Help, press the color key  Keywords and look up Audio Language.

Page 14

Closed Caption

Create or Edit Favorites Channel List

Switch Closed Caption On or Off with this options. Select On During Mute to show closed captions only when the sound is muted with .

Caption Service

Select the correct type of closed caption services. For more information, in Help, press  Keywords and look up Closed Caption.

Status

Select Status to view technical information on the channel or a connected device you are watching.

Enables the user to communicate his activity with his social networks (such as Twitter or email).

LIST >  OPTIONS > Create favourites list



Select a channel then press OK to add in a favorites channel list, once completed, press  Done.

LIST >  OPTIONS > Edit favorites



Select a channel then press OK to add in or remove from a favorites channel list, once completed, press

Done.



Select Channel Range

LIST >  OPTIONS > Select channel range



Select a range of channels in a favorites channel list, once completed, press OK.

Select Channel List

LIST >  OPTIONS > Select channel list



Select a range of channels in a favorites channel list, once completed, press OK.

7.3

Channel List

Open Channel List

To open the current channel list…

1 - Press , to switch to TV. 2 - Press  LIST to open the current channel list. 3 - Press  OPTIONS > Select channel list, and

select one channel list you want to watch. 4 - Press  LIST again to close the channel list.

Channel List Options

Open Option Menu

To open the channel list option menu...

• Press , to switch to TV.

• Press  LIST to open the current channel list.

• Press  OPTIONS , and select one of options.

• Press  LIST again to close the channel list.

Search Channels

LIST >  OPTIONS > Search channel



You can search for a channel to find it in a long list of channels.

1 - Press , to switch to TV. 2 - Press  LIST to open the current channel list. 3 - Press  OPTIONS > Search channel, and

press OK. 4 - In the typing field, press OK to open on-screen keyboard, or press  BACK to hide the on-screen keyboard. 5 - Use navigation keys to select a character, then press OK.

- Press  (red) key to enter with lower-case

- Press  (green) key to enter with upper-case

- Press  (yellow) key to enter number and symbol

- Press  (blue) key to delete a character

6 - Select Done when complete the editing. 7 - Press  LIST again to close the channel list.

Select Channel Filter

LIST >  OPTIONS > Digital



Select one of channel combinations showing in the channel list.

Lock or Unlock Channel

LIST >  OPTIONS > Lock channel, Unlock



channel

To prevent children from watching a channel, you can lock a channel. To watch a locked channel, you must enter the 4 digit Child Lock PIN code first. You cannot lock programmes from connected devices.

Page 15

The locked channel will have  next to the channel logo.

7.5

Closed Caption (CC) and Language

Remove Favorite List

LIST >  OPTIONS > Remove favorite list



To remove existing favorite list, select Yes.

7.4

Favorite Channels

About favorite Channels

You can create a favorite channel list that only holds the channels you want to watch. With the Favorite channel list selected, you will only see your favorite channels when you switch through channels.

Create a favorites List

1 - While watching a TV channel, press open the channel list.

2 - Select the channel, and press  Mark as favorites to mark as favorite.

3 - The selected channel is marked with a . 4 - To finish, press  BACK . The channels are

added to the Favorites list.



LIST to

Closed Caption

You can display closed captions at all times or only when the TV is muted.

To open Closed Caption, press CC.

Note:

• Not all TV programmes, commercials, and features include closed captioning information. See your local TV programme listings for channels with closed captions. The captioned programmes are typically listed with service marks, such as "CC," in the TV listings.

Switch on closed caption

1 - While you watch TV, press  OPTIONS. 2 - Select Closed Caption > On and press OK.

Select type of closed caption

1 - While you watch TV, press  OPTIONS. 2 - Select Caption Service. 3 - Select the correct type of closed captions and

press OK.

Audio Language

Remove Channel from the Favorites List

To remove a channel from the favorites list, select the channel with , then press  Unmark as

favorites again to unmark as favorites.

Reorder Channels

You can reorder — reposition — channels in the Favorite channel list.

1 - While watching a TV channel, press  LIST >  OPTIONS > Select channel list. 2 - Select Antenna favorite or Cable Favorite, and press OK.

3 - Select the channel to reorder and press OK. 4 - Press the Navigation buttons to move the

highlighted channel to another location and press OK. 5 - Once completed, press OK.

If the TV channel broadcasts multiple or dual audio languages, you can select your preferred audio language.

1 - While you watch TV, press 2 - For digital channels, select Audio Language. For

analog channels, select Alternate Audio. Press OK to confirm your selection. 3 - Select from the available languages, then press OK.

Note: If you have selected Alternate Audio for analog channels, select between:

• Main: Primary audio language or

• SAP: Secondary audio language

OPTIONS.



Menu Language

To change the language of the TV menus and messages…

1 - Press , select All settings > General settings > Language > Menu language and press OK. 2 - Select the language you want and press OK.

Page 16

3 - Press  (left) repeatedly if necessary, to close the menu.

Page 17

8.5

Recording

8.1

What you need

To record a TV programme you need…

• a connected USB Hard Drive formatted on this TV

• digital TV channels installed on this TV

8.2

Record a programme

• To record the programme you are watching right now, press  (Record) on the remote control. The recording will start immediately.

• To stop recording, press  (Stop).

8.3

Schedule a Recording

Watch a recording

(Home) > Watch TV > Recordings



• In the list of recordings, select the recording you want and press OK to start watching.

• You can use the keys  (pause),  (play),  (rewind),  (fast forward) or  (stop).

• To switch back to watch TV, press  EXIT.

(Home) > Watch TV > Recordings



• You can schedule a recording of an upcoming programme.

• Press

•

Schedule



• Press the color key  Schedule.

• Select the channel to record from and press OK.

• Select the day of the recording and press OK.

• Set the start and end time of the recording. Select a button and use the  (up) or  (down) keys to set the hours and minutes.

• Select Confirm and press OK to schedule the manual recording.

The recording will appear in the list of scheduled recordings and reminders.

8.4

List of recordings

(Home) > Watch TV > Recordings



You can view and manage your recordings in the list of recordings.

Page 18

Videos, Photos and Music

Slideshow speed

Set the speed of the slideshow.

Slideshow transitions

Set the transition from one picture to the next.

9.1

From a USB Connection

You can view your photos or play your music and videos from a connected USB flash drive or USB Hard Drive.

With the TV switched on, plug in a USB flash drive or a USB Hard Drive to one of the USB connections.

Press  SOURCES, then select  USB, you can browse your files in folder structure you have organized on the USB Hard Drive.

9.2

Photos

View Photos

1 - Press  SOURCES, select  USB and press OK. 2 - Select  USB Flash Drive and press  (right) to select the USB device you need. 3 - Select Photo, you can press browse your photos by date, month, year or alphabetically by name. 4 - Select one of photos, and press OK to view the selected photo.

• To view photos, select Photos in the menu bar, select a photo thumbnail and press OK.

• If there are several photos in the same folder, select a photo and press  Slide show to start a slide show of all photos in this folder.

• Watch a photo and press  INFO to show below: Progress bar, Playback control bar,  (Jump to the previous photo in a folder),  (Jump to the next photo in a folder),  (Start slideshow playback),  (Pause the playback),  (Start slideshow),  (Rotate photo)

Photo Options

With a photo on screen, press  OPTIONS to…

Sort to



9.3

Videos

Play Videos

To play a video on the TV… Select  Videos , select the file name and

press OK.

• To pause the video, press OK. Press OK again to continue.

• To rewind or fast forward, press  or . Press the keys several times to speed up to 2x, 4x, 8x, 16x, 32x.

• To jump to the next video in a folder, press OK to pause, then select  on screen and press OK.

• To stop the video playback, press  (Stop).

• To go back to the folder, press .

Open video folder

1 - Press  SOURCES, select  USB and press OK. 2 - Select  USB Flash Drive and press  (right) to select the USB device you need. 3 - Select Videos and select one of video, you can press OK to play the selected video.

• Select a video and press  INFO to show file information.

• Playback a video and press  INFO to show below: Progress bar, Playback control bar,  (Jump to the previous video in a folder),  (Jump to the next video in a folder),  (Playback),  (Rewind),  (Fast forward),  (Pause the playback),  (Play all/Play one),  (Shuffle on/Shuffle off)

Video Options

During the video playback, press  OPTIONS to… Subtitles

Display the subtitles if available, select On, Off, or On during mute.

Character set

Select one of system for character.

List/Thumbnails

View photos with list view or thumbnails view.

Shuffle off, Shuffle on

View the pictures in sequential order, or at random.

Repeat, Play once

View the pictures repeatedly or once only.

Audio language

Play the audio language if available.

Status

Display file information, like sound mode.

Repeat, Play once

Page 19

Play videos repeatedly or once.

9.4

Music

Play Music

Open music folder 1 - Press  SOURCES, select  USB and

press OK. 2 - Select  USB Flash Drive and press  (right) to select the USB device you need. 3 - Select Music and select one of music, you can press OK to play the selected music.

• Select a music and press  INFO to show file information.

• Playback a music and press  INFO to show below: Progress bar, Playback control bar,  (Jump to the previous music in a folder),  (Jump to the next music in a folder),  (Playback),  (Rewind),  (Fast Forward),  (Pause the playback),  (Play all/Play one)

Music Options

Options for playing music... Repeat, Play once

Play songs repeatedly or once.

Page 20

Open TV Setting Menus

10.1

Home Menu Overview

Press  (Home) to select one of below menus, then press OK.

Sources

This row contains available sources on this TV.

the connected audio system.Ambilight style - Select one of preset Ambilight styles.

Ambilight+hue - Switch Ambilight+hue on or off. Sleep timer - Set the TV to switch to standby

automatically after a preset time. Screen off - If you only listen to music on TV, you can switch off the TV screen.

Picture settings - View Picture menu. All settings - View all settings menu. Help - Diagnose and get more information about

your TV. For more information, in Help, press the color key  Keywords and look up Help

Menu for more information.

This row contains TV functions available to the user.

Apps

This row contains number of apps pre-installed.

This row contains an interface to perform the search within this TV.

Settings

This row contains settings available to the user. You can reorder the icons on Home menus. To

reposition icons, press OK. Alternatively, you can select the icon you want to reorder, and hold the OK key for 3 seconds until the arrows appear around the icon. Use navigation keys to move the highlighted icon to another location, then press OK. Press the BACK key to exit.

10.2

Frequent settings and All settings

Settings menu:

Press  SETUP key on the remote control to find frequent settings.

How to - Instructions on how to install channels, sort channels, update TV software, connect external devices and use Smart functions on your TV. Install Channels - Update channels or start a complete new channel installation. Picture style - Select one of preset picture styles for ideal picture viewing. Picture format - Select one of preset picture format which fits the screen. Sound style - Select one of preset sound styles for ideal sound settings.

Audio out - Set the TV to play the sound on TV or on

All settings menu:

Press  (home) key on the remote control, select Settings > All settings, and press OK.

10.3

All Settings

Picture Settings

Picture Style Select a style

For easy picture adjustment, you can select a preset picture style.

(Home) > Settings > Picture style, press OK to



change to next available option.

The available Picture styles are ...

• Personal - The picture preferences you set during the first start up

• Vivid - Ideal for daylight viewing

• Natural - Natural picture settings

• Standard - Most energy conscious setting

• Movie - Ideal for watching movies

• Game - Ideal for gaming*

• Monitor - Ideal for computer monitor * Picture style - Game is not available for some video

sources.

Custom a style

You can adjust and stored picture settings in in the currently selected picture style, like Color, Contrast or Sharpness.

Restore a style

To restore the style to its original setting, go to  (Home) > Settings > All settings > Picture > Picture style, then press  Restore style.

Page 21

Connect HDMI devices supportings HDR on HDMI 1/HDMI 2/HDMI 3.

The styles for HDR content are...

• HDR Personal

• HDR Vivid

• HDR Natural

• HDR Movie

• HDR Game

Color, Contrast, Sharpness, Brightness Adjust the picture color

(Home) > Settings > All



settings > Picture > Color Press the arrows  (up) or  (down) to adjust the

color saturation value of the picture.

Adjust the picture contrast

(Home) > Settings > All



settings > Picture > Contrast Press the arrows  (up) or  (down) to adjust the

contrast value of the picture. You can decrease contrast value to reduce power

consumption.

Adjust the picture sharpness

(Home) > Settings > All



settings > Picture > Sharpness

Adjust the color enhancement

(Home) > Settings > All



settings > Picture > Expert mode settings > Color enhancement

Select Maximum, Medium, or Minimum to set the level of the color intensity and the details in bright colors.

Select the color gamut

(Home) > Settings > All



settings > Picture > Expert mode settings > Color gamut

Select Normal, or Wide to set the setting of color gamut.

Select the preset color temperature

(Home) > Settings > All



settings > Picture > Expert mode settings > Color temperature

Select Normal, Warm, or Cool to set the color temperature for your preference.

Customise color temperature

(Home) > Settings > All



settings > Picture > Expert mode settings > Color temperature > Custom color temperature

Select Custom in Color temperature menu to customise a color temperature yourself. Press the arrows  (up) or  (down) to adjust the value.

Press the arrows  (up) or  (down) to adjust the sharpness value of the picture.

Adjust the picture brightness

(Home) > Settings > All



settings > Picture > Brightness

Press the arrows  (up) or  (down) to set the level of brightness of the picture signal.

Note: Setting of brightness much away from reference value (50) may result lower contrast.

Expert mode picture settings

Color Settings

(Home) > Settings > All



settings > Picture > Expert mode settings

Contrast Settings

Contrast Modes

(Home) > Settings > All



settings > Picture > Expert mode settings > Contrast

mode

Select Normal, Optimized for picture, Optimized for energy saving to set the TV automatically reduces

the contrast, for best power consumption or for best picture experience.

HDR Perfect

(Home) > Settings > All



settings > Picture > Expert mode settings

Set HDR Perfect to Off, Minimum, Medium, Maximum or Automatic to set the level at which the

Page 22

TV automatically shows superior contrast and brightness effect for HDR content.

Note: Available when HDR (High-Dynamic Range) signal is detected.

• The TV can play HDR programmes* from HDMI 1/HDMI 2/HDMI 3 connections, broadcasting, from an Internet source (e.g. Netflix) or from a connected USB memory device.

* Only HDR10 and Hybrid Log Gamma HDR are supported

Dynamic Contrast

(Home) > Settings > All



settings > Picture > Expert mode settings > Dynamic contrast

Select Maximum, Medium, or Minimum to set the level at which the TV automatically enhances the details in the dark, middle and light areas of the picture.

reduction

Select Maximum, Medium, Minimum to set the level for removing the noise in video content. Noise is mostly visible as small moving dots in onscreen picture.

MPEG Artifact Reduction

(Home) > Settings > All



settings > Picture > Expert mode settings > MPEG Artifact Reduction

Select Maximum, Medium, Minimum to have different degrees of smoothing the artifacts in digital video content. MPEG artifacts are mostly visible as small blocks or jagged edges in on-screen images.

Motion Settings

Motion Styles

Video Contrast, Gamma Video contrast

(Home) > Settings > All



settings > Picture > Expert mode settings > Video contrast

Press the arrows  (up) or  (down) to adjust the video contrast level.

Gamma

(Home) > Settings > All



settings > Picture > Expert mode settings > Gamma

Press the arrows  (up) or  (down) to set a nonlinear setting for picture luminance and contrast.

Ultra Resolution

(Home) > Settings > All



settings > Picture > Expert mode settings > Ultra resolution

Select On to have a superior sharpness in line edges and details.

(Home) > Settings > All



settings > Picture > Expert mode settings > Motion Styles

Motion styles provides optimized motion setting modes for different video content.

Select Off to switch off or select one of the motion styles to have better viewing experience. (Movie, Sports, Standard, Smooth or Personal)

Not available for below cases:

•  (Home) > Settings > All settings > Picture style > Game.

• Network/Internet streaming Ultra HD 50Hz/60Hz videos.

Natural Motion

(Home) > Settings > All



settings > Picture > Expert mode settings > Natural Motion

Natural Motion makes any movement smooth and fluent.

• Select Maximum, Medium, Minimum to have different degrees for reducing the motion judder, visible in movies on TV.

• Select Minimum or Off when noise appears in playing moving picture on-screen.

Picture Clean

Noise reduction

(Home) > Settings > All



settings > Picture > Expert mode settings > Noise

Note: Only available when Motion styles set to Personal.

Page 23

Perfect Natural Motion

(Home) > Settings > All



settings > Picture > Expert mode settings > Perfect Natural Motion

Perfect Natural Motion makes any movement smooth and fluent.

• Select Maximum, Medium, Minimum to have different degrees for reducing the motion judder, visible in movies on TV.

• Select Minimum or Off when noise appears in playing moving picture on-screen.

Note: Only available when Motion styles set to Personal.

Perfect Clear Motion

(Home) > Settings > All



settings > Picture > Expert mode settings > Perfect Clear Motion

Picture Format

(Home) > Settings > All



settings >

Picture > Picture format

If the picture is not filling the whole screen, if black bars are showing on the top or bottom or at both sides, you can adjust the picture to fill the screen completely.

To select one of the basic settings to fill the screen…

• Wide screen – automatically zooms in the picture to wide screen.

• Fill screen – automatically enlarges the picture to fill the screen. Picture distortion is minimal, subtitles remain visible. Not suitable for PC input. Some extreme picture formats may still show black bars.

• Fit to screen – automatically zooms in the picture to fill the screen without distortion. Black bars may be visible. Not supported for PC input.

Perfect Clear Motion switch on a superior motion sharpness, better black level, high contrast with a flicker-free, quiet image and a larger viewing angle.

• Select Maximum, Medium, Minimum to have different degrees for reducing the motion judder, visible in movies on TV.

• Select Minimum or Off when noise appears in playing moving picture on-screen.

Note: Only available when Motion styles set to Personal.

Clear Residual Image

Displaying a still image for a prolonged period of time may cause an image sticking. This phenomenon is normal character for OLED panel. Avoid displaying a fixed image on the TV screen for an extended length of time. Or you can clear such image retention on-screen by activating this function.

(Home) > Settings > All



settings > Picture > Expert mode settings > Clear Residual Image

The TV will be switched off until the process is completed. If you are recording something, the process will be paused, and restart until the recording is completed. It might take more than 1 hour. If you turn the TV on during the process, it will be stopped and will be restarted automatically when the TV switches to standby at a later time. While processing, a white line may appear on the screen. This is normal when clearing on-screen image retention.

• Original – shows the original format of the incoming picture.

(Home) > Settings > All



settings > Picture > Picture format > Advanced To format the picture manually…

• Shift – select on the arrows to shift the picture. You can only shift the picture when it is zoomed in.

• Zoom – select on the arrows to zoom in.

• Stretch – select on the arrows to stretch the picture vertically or horizontally.

• Undo – select to return to the picture format you started with.

Quick Picture Settings

(Home) > Settings > All



settings >

Picture >

Quick picture settings

• During the first installation, you did some picture settings in a few easy steps. You can redo these steps with Quick picture settings menu.

• Select the picture setting you prefer and go to the next setting.

• To do these steps, make sure the TV can tune to a TV channel or can show a programme from a connected device.

Page 24

Sound Settings

TV Placement

Sound Style Select a style

For easy sound adjustment, you can select a preset sound style.

(Home) > Settings > All



settings > Sound > Sound style The available sound styles are ...

• Original - Most neutral sound setting

• Movie - Ideal for watching movies

• Music - Ideal for listening to music

• Game - Ideal for gaming

• News - Ideal for speech

• Expert mode - Select to check more advanced sound settings

Custom a style

You can adjust and stored sound settings in the currently selected sound style.

Restore a style

To restore the style to its original setting, select back to Sound style, then press  Restore style.

(Home) > Settings > All settings >



placement

Select On a TV stand or On the wall to have best sound reproduction according to the setting.

Advanced Sound Settings

Volume Control Auto volume

(Home) > Settings > All



settings > Sound > Advanced > Auto volume Select AVL to automatically level out sudden

volume differences. Typically when you are switching channels. Select Night mode for a more comfortable quiet listening experience.

Delta volume

(Home) > Settings > All



settings > Sound > Advanced > Delta volume Press the arrows  (up) or  (down) to adjust the

delta value for TV speaker volume.

Sound

> TV

Expert mode sound settings Dynamic surround

(Home) > Settings > All



settings > Sound > Expert mode settings > Dynamic surround

Set the surround sound effect level for the internal TV speakers.

Clear dialogue

(Home) > Settings > All



settings > Sound > Expert mode settings > Clear dialogue

Select On to improve the sound for speech. Ideal for news programmes.

Equalizer

(Home) > Settings > All



settings > Sound > Expert mode settings > Equalizer

Press the arrows  (up) or  (down) to adjust the equalizer settings.

Audio Out Settings

(Home) > Settings > All



settings > Sound > Advanced > Audio out Set the TV to play the sound on TV or on the

connected audio system. You can select where you want to hear the TV sound

and how you want to control it.

• If you select TV speakers off, you permanently switch off the TV speakers.

• If you select TV speakers, the TV speakers are always on.

With an audio device connected with HDMI CEC, select HDMI sound system. The TV will switch off the TV speakers when the device is playing the sound.

Digital Output Settings

Digital output settings are available for SPDIF output (optical) and HDMI ARC sound signals.

Digital out format

(Home) > Settings > All



settings > Sound > Advanced > Digital out format

Page 25

Set the audio out signal of the TV to fit the sound capabilities of the connected Home Theatre System.

General Settings

• Stereo: If your audio playback devices have no multichannel sound processing, select to only output stereo content to your audio playback devices.

• Multichannel: Select to only output 5.1 audio content (compressed multichannel sound signal) to your audio playback devices.

• Multichannel (bypass): Select to output Dolby Digital Plus or DTS content to your audio playback devices or Home theater system.

- Make sure your audio playback devices support Dolby Atmos feature.

- SPDIF output (DIGITAL AUDIO OUT) will be disabled when streaming Dolby Digital Plus content.

Digital out leveling

(Home) > Settings > All



settings > Sound > Advanced > Digital out leveling

Adjust the loudness level from device which is connected to digital audio output (SPDIF) or HDMI.

• Select More to have louder volume.

• Select Less to have softer volume.

Connection Related Settings

USB Hard Drive

(Home) > Settings > All settings > General



settings > Format USB Hard Drive

USB Keyboard Settings

(Home) > Settings > All settings > General



settings > USB keyboard settings To install the USB keyboard, switch on the TV and

connect the USB keyboard to one of the USB connections on the TV. When the TV detects the keyboard for the first time, you can select your keyboard lay-out and test your selection.

Mouse Settings

(Home) > Settings > All settings > General



settings > Mouse settings Adjust the motion speed of the USB mouse.

Digital out delay

(Home) > Settings > All



settings > Sound > Advanced > Digital out delay For some Home Theater Systems you might need to

adjust the audio sync delay to synchronize the audio to the video. Select Off if a sound delay is set on your Home Theater System.

Digital out offset (Only available when Digital out delay set to On)

(Home) > Settings > All



settings > Sound > Advanced > Digital out offset

• If you cannot set a delay on the Home Theater System, you can set the TV to sync the sound.

• You can set an offset that compensates for the time necessary for the Home Theater System to process the sound of the TV picture.

• You can set the value in steps of 5ms. Maximum setting is 60ms.

HDMI-CEC Connection - EasyLink

Connect HDMI CEC-compatible devices to your TV, you can operate them with the TV remote control. EasyLink HDMI CEC must be switched on on the TV and the connected device.

Switch on EasyLink

(Home) > Settings > All settings > General



settings > EasyLink > EasyLink > On

Operate HDMI CEC-compatible devices with TV remote control

(Home) > Settings > All settings > General



settings > EasyLink > EasyLink remote control > On

Note:

- EasyLink might not work with devices from other brands.

- The HDMI CEC functionality has different names on different brands. Some examples are: Anynet, Aquos Link, Bravia Theater Sync, Kuro Link, Simplink and Viera Link. Not all brands are fully compatible with EasyLink. Example HDMI CEC branding names are property of their respective owners.

Page 26

Input Sources

(Home) > Settings > All settings > General



settings > Input sources

• To edit the input sources names from the source list.

1 - Select one of the device and press OK. 2 - Select Edit and press OK. 3 - Follow the on screen instructions to rename the

device name.

HDMI Ultra HD

(Home) > Settings > All settings > General



settings > HDMI Ultra HD

• Style: Select a font style.

• Text Color: Select a caption display text color.

• Text opacity: Select the text opacity.

• Background Color: Select a caption display character background color.

• Background opacity: Select the background opacity options.

• Edge type: Select the edge type.

• Edge color: Select the caption display edge color.

Eco Settings Set energy saving level

This TV can display Ultra HD signals. Some devices connected with HDMI - do not recognize a TV with Ultra HD and might not work correctly or show distorted picture or sound.

To avoid the malfunctioning of such a device, you can set the signal quality to a level the device can handle. If the device is not using Ultra HD signals, you can switch off Ultra HD for this HDMI connection.

• The setting Optimal allows maximum up to Ultra HD (50Hz or 60Hz) RGB 4:4:4 or YCbCr 4:4:4/4:2:2/4:2:0 signals.

• The setting Standard allows maximum up to Ultra HD (50Hz or 60Hz) YCbCr 4:2:0 signals.

• The setting Off is to watch videos with Full HD.

Supported format for HDMI Ultra HD options:

• Resolution: 3840 x 2160

• Frame rate (Hz): 50Hz, 59.94Hz, 60Hz

• Video data sub-sampling (bit-depth)

- 8 bit: YCbCr 4:2:0, YCbCr 4:2:2*, YCbCr 4:4:4*, RGB 4:4:4*

- 10 bit: YCbCr 4:2:0*, YCbCr 4:2:2*

- 12 bit: YCbCr 4:2:0*, YCbCr 4:2:2* * Supported only when HDMI Ultra HD is set

to Optimal.

(Home) > Settings > All settings > General



settings > Eco settings > Energy saving Select Minimum, Medium, or Maximum to have

different degrees for energy saving, or select Off to switch off energy saving mode.

Set screen off to save energy consumption

(Home) > Settings > All settings > General



settings > Eco settings > Screen off Select Screen off, the TV screen is switched off, to

switch the TV screen back on, press any key on the remote control.

Set the Light Sensor

(Home) > Settings > All settings > General



settings > Eco settings > Light sensor Select Light Sensor. The icon  is shown in front

of Light Sensor when it is active. To save energy, the built-in ambient light sensor

lowers the brightness of the TV screen when the surrounding light darkens. The built-in light sensor automatically adjusts the picture to the lighting conditions of the room.

Digital Caption Options

This allows you to modify how digital captions are displayed.

(Home) > Settings > All settings > General



settings > Digital caption options

• Custom settings: Select Automatic or Manual. If Manual mode is selected, you can select from the

following options to change the visual characteristics of the TV's digital captioning.

• Size: Select to choose a caption display size according to your own preference.

Set TV switch off timer

(Home) > Settings > All settings > General



settings > Eco settings > Switch off timer Press the arrows  (up) or  (down) to adjust the

value. The value 0 (Off) deactivates the automatic switch off.

Select Switch off timer, the TV switches off automatically to save energy.

• TV switches off if receiving a TV signal but you don't press a key on the remote control during a 4 hour period.

• TV switches off if not receiving a TV signal nor a

Page 27

remote control command for 10 minutes.

• If you use the TV as a monitor or use a digital receiver to watch TV (a Set-Top Box - STB) and you do not use the remote control of the TV, you should deactivate this automatic switch off, to set the value to 0.

Region and Language Settings

Language

(Home) > Settings > All settings > Region and



language > Languages

Location - Home or Shop

(Home) > Settings > All settings > General



settings > Location

• Select the location of your TV

• Select Shop, the picture style is switched back to Vivid, and can adjust shop settings.

• Shop mode is for in-store promotion.

Shop Setup

(Home) > Settings > All settings > General



settings > Shop setup If the TV is set to Shop, you can view feature logos or

set the availability of a specific demo for in store use.

Philips logo brightness

(Home) > Settings > All settings > General



settings > Philips logo brightness Adjust the brightness of the Philips logo on the front

of the TV.

Change the language of the TV menu and messages

(Home) > Settings > All settings > Region and



language > Languages > Menu language

Clock

(Home) > Settings > All settings > Region and



language > Clock

Correct clock automatically

(Home) > Settings > All settings > Region and



language > Clock > Auto clock mode

• The standard time setting for the TV clock is Automatic. The time information comes from the broadcasted UTC - Coordinated Universal Time information.

Correct clock manually

(Home) > Settings > All settings > Region and



language > Clock > Auto clock mode > Manual

Reset TV Settings and Reinstall TV Reset all settings value to original TV settings

(Home) > Settings > General



settings > Factory settings

Redo full TV installation , and set TV status back to the first time you switch on

(Home) > Settings > General



settings > Reinstall TV Enter PIN code and select Yes, the TV will reinstall

completely. All settings will be reset and installed channels will be replaced. The installation can take a few minute

(Home) > Settings > All settings > Region and



language > Clock > Date, Time Go to previous menu, and select Date and Time to

adjust the value. Note:

• If none of the automatic settings display the time correctly, you can set the time manually.

Set the TV to switch to Standby automatically after a preset time

(Home) > Settings > All settings > Region and



language > Clock > Sleep timer. Set the TV to switch to Standby automatically after a

preset time. With the slider bar you can set the time to up to 180 minutes in increments of 5 minutes. If set to 0 minutes, the sleep timer is switched off. You can always switch off your TV earlier or reset the time during the countdown

Page 28

Lock Settings

Set Code and Change Code

(Home) > Settings > All settings > Child



lock > Set code or Change code

Set new code or reset change code. The child lock code is used to lock or unlock channels or programmes.

Note: If you forgot your PIN code, you can override the current code use 8888 and enter a new code.

Channel Lock

(Home) > Settings > All settings > Child



lock > Channel lock

To prevent children from watching a channel, you can set a lock to block the channels.

In a channel list, a locked channel is marked with a lock .

Page 29

Network

11.1

Home Network

To enjoy the full capabilities of your Philips Smart TV, your TV must be connected to the Internet.

Connect the TV to a home network with a high-speed Internet connection. You can connect your TV wirelessly or wired to your network router.

11.2

Connect to Network

select OK to connect immediately.

3 - A message will be shown when the connection is successful.

Make the Connection - WPS

(Home) > Settings > All



settings > Network > Connect to network > WPS If your router has WPS, you can directly connect to

the router without scanning for networks. If you have devices in your wireless network that use the WEP security encryption system, you cannot use WPS.

1 - Go to the router, press the WPS button and return to the TV within 2 minutes.

2 - Select Connect to make the connection. 3 - A message will be shown when the connection is

successful.

Wireless Connection

What You Need

To connect the TV to the Internet wirelessly, you need a Wi-Fi router with a connection to the Internet. Use a high-speed (broadband) connection to the Internet.

Turn Wi-Fi On or Off

 (Home) > Settings > On/Off

All settings

> Network > Wi-Fi

Make the Connection - WPS with PIN Code

(Home) > Settings > All



settings > Network > Connect to network > WPS with PIN Code

If your router has WPS with a PIN code, you can directly connect to the router without scanning for networks. If you have devices in your wireless network that use the WEP security encryption system, you cannot use WPS.

1 - Write down the 8-digit PIN code shown on screen and enter it in the router software on your PC. Consult the router manual on where to enter the PIN code in the router software.

2 - Select Connect to make the connection. 3 - A message will be shown when the connection is

successful.

Wired Connection

What You Need

Make the Connection Make the Connection - Wireless

(Home) > Settings > All



settings > Network > Connect to network > Wireless

1 - In the list of found networks, select on your wireless network. If your network is not in the list because the network name is hidden (you switched off the SSID broadcast of the router), select Add New Network to enter the network name yourself. 2 - Depending on the type of router, enter your encryption key - WEP, WPA or WPA2. If you entered the encryption key for this network before, you can

To connect the TV to the Internet, you need a network router with a connection to the Internet. Use a high-speed (broadband) connection to the Internet.

Make the Connection

(Home) > Settings > All



settings > Network > Connect to network > Wired

1 - Connect the router to the TV with a network cable (Ethernet cable**).

2 - Make sure that the router is turned on. 3 - The TV constantly searches for the network

connection. 4 - A message will be shown when the connection is

Page 30

successful. If the connection fails, you can check the DHCP

setting of the router. DHCP should be switched on. **To fulfill EMC regulations, use a shielded FTP Cat.

5E Ethernet cable.

11.3

Network settings

View Network Settings

Switch on Wi-Fi connection

(Home) > Settings > All



settings > Network > Wi-Fi On/Off You can switch on or off Wi-Fi connection on your

TV.

Reset Wi-Fi Miracast connection

(Home) > Settings > All



settings > Network > Reset Wi-Fi Miracast connection

(Home) > Settings > All



settings > Network > View network settings You can view all current network settings here. The IP

and MAC address, signal strength, speed, encryption method, etc.

Network Configuration - Static IP

(Home) > Settings > All



settings > Network > Network Configuration > Static IP

If you are an advanced user and want to install your network with Static IP addressing, set the TV to Static

IP.

Network Configuration - Static IP Configuration

(Home) > Settings > All



settings > Network > Static IP configuration

1 - Select Static IP configuration and configure the connection.

2 - You can set the number for the IP Address, Netmask, Gateway, DNS 1, or DNS 2.

Switch On with Wi-Fi (WoWLAN)

(Home) > Settings > All



settings > Network > Switch On with Wi-Fi (WoWLAN)

You can switch this TV on from your smartphone or tablet if the TV is in Standby. The setting Switch On with Wi-Fi (WoWLAN) must be switched on.

Clear the list of connected and blocked devices that are used with Miracast.

TV network name

(Home) > Settings > All



settings > Network > TV network name If you have more than one TV in your home network,

you can give the TV a unique name.

Viewing data

(Home) > Settings > All



settings > Network > Viewing data This takes you to the Viewing data settings where you

can enable or disable the collection of your viewing data by Inscape Data, Inc. (Inscape) and provides access to the Inscape's Privacy policy that explains how viewing Data is collected (if you enable collection) and used.

Clear Internet Memory

(Home) > Settings > All



settings > Network > Clear Internet Memory With Clear Internet Memory you clear your Philips

server registration and parental rating settings, your video store app logins, all Philips App Gallery favorites, Internet bookmarks and history. Interactive MHEG applications can also save so-called 'cookies', on your TV. These files will also be cleared.

Digital Media Renderer - DMR

(Home) > Settings > All



settings > Network > Digital Media Renderer DMR

If your media files do not play on your TV, make sure that the Digital Media Renderer is turned on. As a factory setting, DMR is turned on.

Page 31

Smart TV

You can select and open them from the Recommended Apps window.

12.1

Setup Smart TV

The first time you open Smart TV, you need to configure your connection. Read and agree to the terms and conditions to continue.

The Smart TV start page is your link to the Internet. You can rent movies online, read newspapers, watch videos and listen to music, also shop online, or watch TV programmes when it suits you with On-line TV.

Open Smart TV

To open the Smart TV start page, press  Smart TV . Alternatively, you can press  (Home) > Apps, select  Smart TV and press OK.

The TV connects to the Internet and opens the Smart TV start page. This may take a few seconds.

Close Smart TV

To close the Smart TV start page, press EXIT. TP Vision Europe B.V. bears no responsibility

regarding the content and the quality of the content provided by the content service providers.

12.3

App Gallery

Open the App gallery in Smart TV to browse the Apps, the collection of tailored websites for TV.

Find the App for YouTube videos, a national newspaper, an online photo album, etc. There are Apps to rent a video from an online video store and Apps for watching programmes you missed. If the App gallery does not have what you are looking for, try the World Wide Web and surf the Internet on your TV.

With Search, you can search the App gallery for relevant Apps. Enter a keyword in the text field, select  and press OK to start searching. You can enter names, titles, genres and description keywords to search. Alternatively, you can leave the text field empty and search for the most popular searches/keywords for a range of categories. In the list of found keywords, select a keyword and press OK to search for items with that keyword.

12.2

Smart TV Start Page

Your Apps

You start Apps from the Smart TV start page. If the start page does not hold any Apps yet, you can find the App for YouTube videos, a national newspaper, an online photo album, etc. There are Apps to rent a video from an online video store and Apps for watching programmes you missed. If the App gallery does not hold what you are looking for, try the World Wide Web and surf the Internet on TV.

Internet

The Internet App opens the World Wide Web on your TV. On your TV, you can view any Internet website but most of them are not tailored for a TV screen.

- Some plug-ins (e.g. to view pages or videos) are not available on your TV.

- Internet pages are shown one page at a time and full screen.

Recommended Apps

In this window, Philips presents a range of recommended Apps for your country, Apps for Online TV or a selection of rental movies from Video stores.

Page 32

Ambilight

13.1

Ambilight Style

(Home) > Settings > All



settings > Ambilight > Ambilight style You can select the way Ambilight follows.

Follow Video

(Home) > Settings > Ambilight > Ambilight



style > Follow video Select one of the styles that follow the dynamics of

the picture on your TV screen.

• Standard time - Ideal for day-to-day TV watching

• Natural - Follows the picture or sound as truthfully as possible

• Football - Ideal for sports

• Vivid - Ideal for daylight viewing

• Game - Ideal for gaming

• Comfort - Ideal for a quiet evening

• Relax - Ideal for a lounge feeling

Follow Audio

(Home) > Settings > All



settings > Ambilight > Ambilight style > Follow audio

Select one of the styles that follow the dynamics of the sound.

• Lumina - Mixes audio dynamics with video colors

• Colora - Based on audio dynamics

• Retro - Based on audio dynamics

• Spectrum - Based on audio dynamics

• Scanner - Based on audio dynamics

• Rhythm - Based on audio dynamics

• Party - A mix of all Follow audio styles, one after the other

Follow Color

(Home) > Settings > All



settings > Ambilight > Ambilight style > Follow Color

Select one of the preset color styles.

• Hot lava - Red color variations

• Deep water - Blue color variations

• Fresh nature - Green color variations

• Warm white - Warm white color variations

• Cool white - Cool white color variations

Follow Flag

(Home) > Settings > All



settings > Ambilight > Ambilight style > Follow flag

Select one of the preset flag styles.

Follow App

(Home) > Settings > All settings



> Ambilight > Ambilight style > Follow app This function is available when you control Ambilight

with an app.

13.2

Ambilight Brightness, Saturation

Brightness

(Home) > Settings > All



settings > Ambilight > Brightness Press the arrows  (up) or  (down) to set the

level of Ambilight brightness.

Saturation

(Home) > Settings > All



settings > Ambilight > Saturation Press the arrows  (up) or  (down) to set the

level of Ambilight saturation.

13.3

Ambilight+hue

Configure the Hue Bulbs

Step 1 - Network

(Home) > Settings > All



settings > Ambilight > Ambilight + hue > Configure the hue bulbs

In this first step, you will prepare the TV to find the Philips Hue Bridge. The TV and the Philips Hue Bridge must use the same network.

Setting up… 1 - Connect the Philips Hue Bridge to the power

outlet. 2 - Connect the Philips Hue Bridge to the same router you are using for the TV — use an Ethernet cable to connect.

Page 33

3 - Switch on the Hue bulbs. To start the configuration…

1 - Press  (Home) > Settings > All settings > Ambilight > Ambilight + hue > Configure the hue bulbs.

2 - Select Start now and press OK. The TV will search for the Philips Hue Bridge. If the TV is not yet connected to your network, the TV will start the network setup first. If the Philips Hue Bridge appears in the list, select the Hue Bridge you want to use.

For more info on connecting the TV to your home network, in Help, press the color key  Keywords and look up Network Settings.

Step 2 - Hue Bridge

In the next step, you will link up the TV with the Philips Hue Bridge. The TV can only be linked up to one Hue Bridge.

To link the Hue Bridge… 1 - With the TV connected to your home network, it

will show the available Hue Bridges. If the TV did not find your Hue Bridge yet, you can select Scan again and press OK. If the TV found the only Hue Bridge you have, select the Hue Bridge name and press OK. If you have more than one Hue Bridge available, select the Hue Bridge you want to use and press OK.

2 - Select Start and press OK. 3 - Now go to the Philips Hue Bridge and press the

link button in the middle of the device. This will link the Hue Bridge with the TV. Do this within 30 seconds. The TV will confirm if a Hue Bridge is now linked to the TV. 4 - Select OK and press OK.

With the Philips Hue bridge linked to the TV, go to page Hue bulbs.

Step 4 - Configure Bulb

In the following step, you will configure each Philips Hue bulb.

To configure each Hue bulb… 1 - Select a bulb to configure and press OK. The

bulb you selected is flashing.

2 - Select Start and press OK. 3 - First indicate where you placed the bulb relative

to the TV. A correct setting of the Angle will send the correct Ambilight color to the bulb. Select the slider bar to adjust the position. 4 - Secondly, indicate the Distance between the bulb and the TV. The further away from the TV, the weaker the Ambilight color. Select the slider bar to adjust the distance. 5 - Finally, set the Brightness of the bulb. Select the slider bar to adjust the brightness. 6 - To stop configuring this bulb, select OK and press OK. 7 - In the Configure Ambilight+hue menu, you can do the same for each bulb. 8 - When all Ambilight+hue bulbs are configured, select Finish and press OK.

Ambilight+hue is ready for use.

Ambilight+hue Settings

(Home) > Settings > All



settings > Ambilight > Ambilight + hue > Switch off

Switch off Ambilight+hue

(Home) > Settings > All



settings > Ambilight > Ambilight + hue > Immersion

Step 3 - Hue Bulbs

In the next step, you will select the Philips Hue bulbs that have to follow the Ambilight.

You can select a maximum of 9 Philips Hue bulbs for Ambilight+hue.

To select the bulbs for Ambilight+hue… 1 - In the list, mark the bulbs that have to follow the

Ambilight. To mark a bulb, select the bulb name and press OK. When you mark a bulb, the bulb will blink once. 2 - When you’re done, select OK and press OK.

Press the arrows  (up) or  (down) to adjust how accurate the Hue bulbs follow the Ambilight.

(Home) > Settings > All



settings > Ambilight > Ambilight + hue > Lounge light+hue

If you installed Ambilight+hue, you can let the hue bulbs follow Lounge light from Ambilight. The Philips hue lamps will expand the Lounge light effect across the room.

(Home) > Settings > All



settings > Ambilight > Ambilight + hue > View configuration

View current setup of the Ambilight+hue, network,

Page 34

Bridge and bulbs.

(Home) > Settings > All



settings > Ambilight > Ambilight + hue > Reset configuration

Reset current setup of the Ambilight+hue.

13.4

Advanced Ambilight Settings

Wall color

(Home) > Settings > All



settings > Ambilight > Advanced > Wall color

• Neutralize the influence of a colored wall on the Ambilight colors

• Select the color of the wall behind the TV and the TV will modify the Ambilight colors to appear as they are intended.

TV switch off

(Home) > Settings > All



settings > Ambilight > Advanced > TV switch off Set Ambilight to switch off immediately or slowly fade

out when you switch off the TV. The slow fade out gives you some time to switch on the lights in your living room.

Page 35

Environmental

14.1

Energy Label

The Energy Label informs you on the energy efficiency class of this product. The greener the energy efficiency class of this product is, the lower the energy it consumes. On the label, you can find the energy efficiency class, the average power consumption of this product in use and the average energy consumption for 1 year. You can also find the power consumption values for this product on the Philips website for your country at www.philips.com/TV

14.2

End of Use

Please find out for yourself about the local rules on separate collection of batteries because correct disposal will help to prevent negative consequences for the environment and human health.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by European Directive 2012/19/EU.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.

Page 36

Specifications

15.1

Power

• 3840 x 2160p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

HDMI - UHD

(Home) > Settings > All settings > General



settings > HDMI Ultra HD

Product specifications are subject to change without notice. For more specification details of this product, see www.philips.com/support

Power

• Mains power: AC 220-240V +/-10%

• Ambient temperature: 5°C to 35°C

15.2

Reception

• Aerial input: 75 ohm coaxial (IEC75)

• Tuner bands: UHF, VHF

• ATSC

• Digital video playback: MPEG2 SD/HD (ISO/IEC 13818-2), MPEG4 SD/HD (ISO/IEC 14496-10), HEVC*

• Digital audio playback (ISO/IEC 13818-3)

15.3

Display Resolution

This TV can display Ultra HD signals. Some devices connected with HDMI - do not recognize a TV with Ultra HD and might not work correctly or show distorted picture or sound.

• The setting Optimal* allows maximum up to Ultra HD (50Hz or 60Hz) RGB 4:4:4 or YCbCr 4:4:4/4:2:2/4:2:0 signals.

• The setting Standard allows maximum up to Ultra HD (50Hz or 60Hz) YCbCr 4:2:0 signals.

• The setting Off is to watch videos with Full HD. * Available when Source is set to HDMI 2 or HDMI 3

Component, Composite

Composite

• PAL, NTSC, SECAM

Diagonal screen size

• 55OLED873: 139 cm / 55 inch

• 65OLED873: 164 cm / 65 inch

Display resolution

• 3840 x 2160

15.4

Supported Input Resolution Video

Support Timing

Video support timing also includes field/frame rate

23.976Hz, 29.97Hz and 59.94Hz.

HDMI

• 480i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 480p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 576i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 576p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 720p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 1080i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 1080p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

Component

• 480i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 480p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 576i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 576p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 720p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 1080i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

• 1080p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

15.5

Supported Input Resolution Computer

• 640 x 480 - 60Hz

• 800 x 600 - 60Hz

• 1024 x 768 - 60Hz

• 1280 x 800 - 60Hz

• 1280 x 960 - 60Hz

• 1280 x 1024 - 60Hz

• 1366 x 768 - 60Hz

• 1440 x 900 - 60Hz

• 1920 x 1080 - 60Hz

• 3840 x 2160 - 60Hz

Page 37

15.6

Sound

• Incredible Surround

• Clear Sound

• Smart Sound

• Output power (RMS): 30W

• Dolby Audio ™

• DTS 2.0+ Digital out

15.7

Multimedia

Connections

• USB 2.0/USB 3.0

• Ethernet LAN RJ-45

• Wi-Fi 802.11n (built-in)

Supported USB file systems

• FAT, NTFS

Playback formats

• Video Codec: AVI, MKV, HEVC, H.264/MPEG-4 AVC, MPEG1, MPEG2, MPEG4, WMV9/VC1, VP9

• Audio Codec: MP3, WAV, AAC, WMA (v2 up to v9.2), WMA-PRO (v9 and v10)

• Subtitles:

- Format: SRT, SMI, SSA, SUB, ASS, TXT

- Character encodings: UTF-8, Central Europe and Eastern Europe (Windows-1250), Cyrillic (Windows-1251), Greek (Windows-1253), Turkish (Windows-1254), Western Europe (Windows-1252)

• Image Codec: JPEG, GIF, PNG, BMP

Wi-Fi Certified

This TV supports Miracast certified devices. Performance may vary, depending on the capabilities

of the mobile device and the software used.

15.8

Connectivity

TV Side

• USB 1 - USB 2.0

• USB 2 - USB 3.0

• Headphones - Stereo mini-jack 3.5mm

• HDMI 1 in - ARC - Ultra HD

• HDMI 2 in - Ultra HD - HDR

• HDMI 3 in - MHL - Ultra HD - HDR

TV Bottom

• Digital Audio out - Optical

• Network LAN - RJ45

• YPbPr: Y Pb Pr, Audio L/R

• AV: AV, Audio L/R (Shared with YPbPr)

• Antenna (75 ohm)

Page 38

Troubleshooting

16.1

Tips

If you can't find a solution for your TV problem in Troubleshooting, you can use  Keywords in Help > User manual to find the information you are looking for. Select a keyword to go the most relevant page in the User manual.

If the User manual doen't answer your question, you can go to the support website of Philips.

To solve any Philips TV related problem, you can consult our online support. You can select your language and enter your product model number.

Go to www.philips.com/support. On the support site you can find your country's

For more TV troubleshooting and frequently asked questions (FAQs)...

Go to http://philips-tvconsumercare.kxondemand.com/

portal/en/ModelSelect

TV Help on your tablet, smartphone or computer

respond to the remote control.

Creaking sound at startup or switch off

When you are turning the TV on or standby, you hear a creaking sound from the TV chassis. The creaking sound is due to the normal expansion and contraction of the TV as it cools and warms up. This does not affect performance.

The TV goes back to standby after showing the Philips startup screen

When the TV is in standby, a Philips startup screen is displayed, then the TV returns to standby mode. This is normal behavior. When the TV is disconnected and reconnected to the power supply, the startup screen is displayed at the next startup. To switch on the TV from standby, press  (Standby / On) the remote control or the TV.

The standby light keeps on blinking

Disconnect the power cable from the power outlet. Wait 5 minutes before you reconnect the power cable. If the blinking reoccurs, contact Philips TV Consumer Care. In Help > User manual, press the color key  Keywords and look up Contact Info.

TV switches off by itself If the TV switches off suddenly, the setting switch off

timer might be switched on. With switch off timer the TV switches off after 4 hours if no remote

control signals were received. To avoid this automatic switch off, you can deactivate this switch off. In Help > User manual, press the color key  Keywords and look up switch Off Timer. Also, if the TV does not receive a TV signal nor a remote control command for 10 minutes, the TV switches off automatically.

16.3

Remote Control

16.2

Switch On

The TV does not switch on

• Disconnect the power cable from the power outlet. Wait for one minute then reconnect it. Make sure that the power cable is securely connected. Try switching on again.

• Connect the TV to another wall mains socket and try switching on.

• Disconnect all connected devices from the TV and try switching on.

• If the standby light on TV is on, the TV might not

TV does not respond to the remote control

• The TV requires some time to start up. During this time, the TV does not respond to the remote control or TV controls. This is normal behavior.

• The batteries of the remote control might be empty. Replace the batteries with new ones.

Page 39

16.4

Channels

No digital channels found during the installation

• Check if the TV was connected with an antenna or is using a provider signal. Check the cable connections.

• Check if the country where you install the TV, has digital channels available.

• Check if you selected the correct system. Select Antenna when you use an antenna or common antenna, select cable if you use a TV cable service with a CAM module.

• Redo the installation and check if you select the correct system.

No analog channels found during the installation

• Check if the TV was connected with an antenna. Check the cable connections.

• Check if you selected the correct system. Select Antenna when you use an antenna or common antenna.

Some channels disappeared, cannot find all or some previously installed channels

• Check if you selected the correct Channel list or Favorites list you normally use.

• Some channels might be moved or even deleted by the broadcaster. In the normal channels list, try to search for the channel you're missing. If the channel is still available, you can put it back in the favorites list.

• Restore picture style, select back to Picture style, then press  Restore style.

• Reset all TV settings, go to  (Home) > Settings > All settings > General settings > Reinstall TV.

• Check the connections of the source/input devices.

Poor reception

If the TV picture is distorted or variable in quality, the input signal might be poor. A weak digital signal is seen as a picture that is breaking up in square blocks and freezes occasionally. Much sooner than a bad analog signal, a bad digital signal will fall away.

• Check if the antenna cable is properly connected.

• Large loudspeakers, unearthed audio devices, neon lights, high buildings and other large objects can influence reception quality when you are using an antenna. Try to improve the reception by changing the antenna direction or moving devices away from the TV. Bad weather might deteriorate the reception.

• Check if all connections, to and from your devices, are properly connected.

Poor picture from a device

• Make sure that the device is connected properly. Make sure that the device's output video setting is the highest possible resolution if applicable.

• Restore picture style or change to another picture style.

Picture settings change after a while

16.5


No picture / distorted picture

• Check if the TV is connected with an antenna or is using a provider signal. Check the cable connections.

• Check if the correct source/input is selected in the sources menu. Press  Sources and select the source/input you need.

• Check if the the external device or source is properly connected.

• Check if the reception is poor.

• Check if the picture is set to a minimal value. Select Picture style and select a style and press OK.

(Home) > Settings > All



settings > Picture > Picture style

• To check if the TV is broken, try to play a video clip. Press  Settings > Help > Check the TV. If the video clip stays black, call Philips. Wait until the clip ends and select Contact info in the Help menu. Call the telephone number for your country.

Sound but no picture

• Change to other video sources and then change back to current source.

• Select Picture style and select a style and press OK.

(Home) > Settings > All



settings > Picture > Picture style

Make sure that Location is set to Home . You can change and save settings in this mode.

(Home) > Settings > All settings > General



settings > Location A banner appears

If an on screen promotion banner appears occasionally or the Picture style automatically switches back to Vivid at startup, the TV is in Shop location. Set the TV to Home location for use at home.

(Home) > Settings > All settings > General



settings > Location Picture does not fit the screen / Wrong or unstable

picture size / Picture position is incorrect

• If the picture size - its aspect ratio - does not fit the screen, with black bars on the top and bottom or left and right side of the screen, press  Picture Format > Fill screen.

• If the picture size changes all the time, press  Picture Format > Fit to screen.

• If the position of the picture is incorrect on the screen, try to check the signal resolution and output type of the connected device, press  Picture

Format > Original. Computer picture is not stable

Make sure that your PC uses the supported resolution and refresh rate.

Page 40

16.6

Sound

No sound or poor sound quality

• Check if the sound settings of the TV are OK, press the  volume or

• If you use a digital receiver (set-top box), check if the volume on this receiver is not set to zero or mute.

• Check if the TV - the audio signal - is properly connected with the Home Theater System, if you use such a system for the TV sound. Check if you connected the HDMI cable to an HDMI1 ARC connection on the Home Theater System.

• Make sure that the TV audio output is connected to the audio input on the Home Theater System. Sound should be heard from the HTS (Home Theater System) speakers.

Sound with loud noise

If you watch a video from a plugged in USB flash drive or connected computer, the sound from your Home Theater System might be distorted. This noise is heard when the audio or video file has DTS sound but the Home Theater System has no DTS sound processing. You can fix this by setting the Digital out format of the TV to Stereo. Press  (Home) > Settings > All settings > Sound > Advanced > Digital out format

mute key.



compatible. EasyLink features only work with devices that are HDMI-CEC compatible.

No volume icon shown

• When an HDMI-CEC audio device is connected and you use the TV Remote Control to adjust the volume level from the device, this behavior is normal.

16.8

USB

Photos, videos and music from a USB device do not show

• Check if the USB storage device is set to Mass Storage Class compliant, as described in the storage device's documentation.

• Check if the USB storage device is compatible with the TV.

• Check if the audio and picture file formats are supported by the TV. For more information, in Help, press the color key  Keywords and look up Multimedia.

Choppy playback of USB files

• The transfer performance of the USB storage device may limit the data transfer rate to the TV which causes poor playback.

16.7

HDMI - UHD

HDMI

• Note that HDCP (High-bandwidth Digital Content Protection) support can delay the time taken for a TV to display content from an HDMI device.

• If the TV does not recognize the HDMI device and no picture is displayed, switch the source from one device to another and back again.

• This is an Ultra HD TV. Some older devices connected with HDMI - do not recognize an Ultra HD TV electronically and might not work correctly or show distorted picture or sound. To avoid the malfunctioning of such a device, you can set the signal quality to a level the device can handle. If the device is not using Ultra HD signals, you can switch off Ultra HD for this HDMI connection. If the picture and sound of a device connected with HDMI is distorted, check if a different HDMI Ultra

HD setting can solve this problem. In Help > User manual, press the color key  Keywords and look

up HDMI Ultra HD.

• If there are intermittent sound disruptions, make sure that output settings from the HDMI device are correct.

HDMI EasyLink does not work

• Check if your HDMI devices are HDMI-CEC

16.9

Wi-Fi and Internet

Wi-Fi network not found or distorted

• Check if the firewalls in your network allow access to the TV's wireless connection.

• If the wireless network does not work properly in your home, try the wired network installation.

Internet does not work

• If the connection to the router is OK, check the router connection to the Internet.

The PC and Internet connection are slow

• Look in your wireless router's user manual for information on indoor range, transfer rate and other factors of signal quality.

• Use a high-speed (broadband) Internet connection for your router.

DHCP

• If the connection fails, you can check the DHCP (Dynamic Host Configuration Protocol) setting of the router. DHCP should be switched on.

Page 41

16.10

Wrong Menu Language

Change the language back to your language. 1 - Press  (Home), select Settings > Region and language > Languages > Menu language and press OK.

2 - Select the language you want and press OK. 3 - Press  BACK to close the menu.

Page 42

Safety and Care

17.1

Safety

Important

Read and understand all safety instructions before you use the TV. If damage is caused by failure to follow instructions, the warranty does not apply.

Risk of Electric Shock or Fire

• Never expose the TV to rain or water. Never place liquid containers, such as vases, near the TV. If liquids are split on or into the TV, disconnect the TV from the power outlet immediately. Contact Philips TV Consumer Care to have the TV checked before use.

• Never expose the TV, remote control or batteries to excessive heat. Never place them near burning candles, naked flames or other heat sources, including direct sunlight.

• Never insert objects into the ventilation slots or other openings on the TV.

• Never place heavy objects on the power cord.

• Avoid force coming onto power plugs. Loose power plugs can cause arcing or fire. Ensure that no strain is exerted on the power cord when you swivel the TV screen.

• To disconnect the TV from the main power, the power plug of the TV must be disconnected. When disconnecting the power, always pull the power plug, never the cord. Ensure that you have full access to the power plug, power cord and outlet socket at all times.

ensure that the power voltage matches the value printed on the back of the TV. Never connect the TV to the power outlet if the voltage is different.

Risk of Injury to Children

Follow these precautions to prevent the TV from toppling over and causing injury to children:

• Never place the TV on a surface covered by a cloth or other material that can be pulled away.

• Ensure that no part of the TV hangs over the edge of the mounting surface.

• Never place the TV on tall furniture, such as a bookcase, without anchoring both the furniture and TV to the wall or a suitable support.

• Teach children about the dangers of climbing on furniture to reach the TV.

Risk of swallowing batteries!

The remote control may contain coin-type batteries which can easily be swallowed by small children. Keep these batteries out of reach of children at all times.

Risk of Overheating

Never install the TV in a confined space. Always leave a space of at least 10 cm or 4 inches around the TV for ventilation. Ensure curtains or other objects never cover the ventilation slots on the TV.

Lightning Storms

Disconnect the TV from the power outlet and antenna before lightning storms. During lightning storms, never touch any part of the TV, power cord or antenna cable.

Risk of Injury or Damage to the TV

• Two people are required to lift and carry a TV that weighs more than 25 kg or 55 lbs.

• If you mount the TV on a stand, only use the supplied stand. Secure the stand to the TV tightly. Place the TV on a flat, level surface that can support the weight of the TV and the stand.

• When wall mounted, ensure that the wall mount can safely bear the weight of the TV set. TP Vision bears no responsibility for improper wall mounting that results in accident, injury or damage.

• Parts of this product are made of glass. Handle with care to avoid injury or damage.

Risk of damage to the TV!

Before you connect the TV to the power outlet,

Risk of Hearing Damage

Avoid using earphones or headphones at high volumes or for prolonged periods of time.

Low Temperatures

If the TV is transported in temperatures below 5°C or 41°F, unpack the TV and wait until the TV temperature reaches room temperature before connecting the TV to the power outlet.

Page 43

Humidity

In rare occasions, depending on temperature and humidity, minor condensation can occur on the inside of the TV glass front (on some models). To prevent this, do not expose the TV to direct sunlight, heat or extreme humidity. If condensation occurs, it will disappear spontaneously while the TV is playing for a few hours. The condensation moisture will not harm the TV or cause malfunction.

17.2

Screen Care

Clean

• Never touch, push, rub or strike the screen with any object.

• Unplug the TV before cleaning.

• Clean the TV and frame with a soft damp cloth and wipe gently. Never use substances such as alcohol, chemicals, or household cleaners on the TV.

• To avoid deformations and color fading, wipe off water drops as quickly as possible.

• Avoid stationary images as much as possible. Stationary images are images that remain on screen for extended periods of time. Stationary images include on screen menus, black bars, time displays, etc. If you must use stationary images, reduce screen contrast and brightness to avoid screen damage.

Page 44

Europe B.V. or one of its affiliates, hereinafter referred to as TP Vision, which is the manufacturer of the product. TP Vision is the warranter in relation to the TV with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V or their respective owners. TP Vision reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

The written material packaged with the TV and the manual stored in the memory of the TV or downloaded from the Philips website www.philips.com/TVsupport are believed to be adequate for the intended use of the system.

TP Vision is committed to developing, producing and marketing products that cause no adverse health effects. TP Vision confirms that, as long as its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. TP Vision plays an active role in the development of safety standards, enabling TP Vision to anticipate further developments in standardization for early integration in its products.

The material in this manual is believed adequate for the intended use of the system. If the product, or its individual modules or procedures, are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained. TP Vision warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied. TP Vision cannot be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to Philips will be adapted and published on the Philips support website as soon as possible.

Terms of warranty - Risk of injury, damage to TV or void of warranty! Never attempt to repair the TV yourself. Use the TV and accessories only as intended by the manufacturer. The caution sign printed on the back of the TV indicates risk of electric shock. Never remove the TV cover. Always contact Philips TV Customer Care for service or repairs. Find the telephone number in the printed documentation that came with the TV. Or consult our website www.philips.com/TVsupport and select your country if needed. Any operation expressly prohibited in this manual, or any adjustments and assembly procedures not recommended or authorized in this manual, shall void the warranty.

Pixel characteristics This TV product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural property of the display (within common industry standards) and is not a malfunction.

Page 45

19.5

Copyrights

19.1

MHL

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of the MHL, LLC.

19.2

Ultra HD

The DIGITALEUROPE UHD Display Logo is a trademark of DIGITALEUROPE.

DTS 2.0 + Digital Out ™

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS

19.6

Wi-Fi Alliance

Wi-Fi®, the Wi-Fi CERTIFIED logo, the Wi-Fi logo are

registered trademarks of the Wi-Fi Alliance.

19.3

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

19.4

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

19.7

Other Trademarks

All other registered and unregistered trademarks are the property of their respective owners.

Page 46

Open Source

20.1

Open Source Software

This television contains open source software. TP Vision Europe B.V. hereby offers to deliver, upon request, a copy of the complete corresponding source code for the copyrighted open source software packages used in this product for which such offer is requested by the respective licences.

This offer is valid up to three years after product purchase to anyone in receipt of this information. To obtain the source code, please write in English to . . .

P1003.2/ISO 9945.2 Shell and Tools standard. It offers functional improvements over sh for both programming and interactive use. In addition, most sh scripts can be run by Bash without modification. Source: http://www.gnu.org/software/bash/

c-ares (1.10.0) c-ares is a C library that performs DNS requests and name resolves asynchronously. Source: http://c-ares.haxx.se/

coreutils (6.9) The GNU Core Utilities are the basic file, shell and text manipulation utilities of the GNU operating system. These are the core utilities which are expected to exist on every operating system. Source: http://www.gnu.org/software/coreutils/

open.source@tpvision.com

20.2

Open Source License

About Open Source License

README for the source code of the parts of TP Vision Netherlands B.V. TV software that fall under open source licenses.

This is a document describing the distribution of the source code used on the TP Vision Netherlands B.V. TV, which fall either under the GNU General Public License (the GPL), or the GNU Lesser General Public License (the LGPL), or any other open source license. Instructions to obtain copies of this software can be found in the Directions For Use.

TP Vision Netherlands B.V. MAKES NO WARRANTIES WHATSOEVER, EITHER EXPRESS OR IMPLIED, INCLUDING ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, REGARDING THIS SOFTWARE. TP Vision Netherlands B.V. offers no support for this software. The preceding does not affect your warranties and statutory rights regarding any TP Vision Netherlands B.V. product(s) you purchased. It only applies to this source code made available to you.

Open Source

bash (3.2.48) Bash is the shell, or command language interpreter, that will appear in the GNU operating system. Bash is an sh-compatible shell that incorporates useful features from the Korn shell (ksh) and C shell (csh). It is intended to conform to the IEEE POSIX

e2fsprogs (2.12.2) e2fsprogs provides the filesystem utilities for use with the ext2 filesystem, it also supports the ext3 and ext4 filesystems. This piece of software is made available under the terms and conditions of the e2fsprogs license, which can be found below. Source: http://e2fsprogs.sourceforge.net/

Expat (2.01) xml paser; Expat is an XML parser library written in C. It is a stream-oriented parser in which an application registers handlers for things the parser might find in the XML document (like start tags). An introductory article on using. This piece of software is made available under the terms and conditions of the Expat license, which can be found below. Source: http://expat.sourceforge.net/

DFB (4.2.31) It is a software library for GNU/Linux/UNIX based operating system with a small memory footprint that provides graphics acceleration, input device handling and abstraction layer, and integrated windowing system with support for translucent windows and multiple display layers on top of the Linux framebuffer without requiring any kernel modifications Source: http://sourceforge.net/projects/jointspace/fil es/remote_applications_SDK/remote_spplications_S DK_v1.3.1/DirectFB141_source_1.3.1.7z/download

SAWMAN SaWMan, the Shared application and Window Manager, is a new window manager module for use with DirectFB. Source: http://www.directfb.org/index.php?path=Mai n%2FDownloads&page=1

findutils (4.2.31)

Page 47

The GNU Find Utilities are the basic directory searching utilities of the GNU operating system. These programs are typically used in conjunction with other programs to provide modular and powerful directory search and file locating capabilities to other commands. Source: http://www.gnu.org/software/findutils/

Freetype (2.4.3) FreeType is a software font engine that is designed to be small, efficient, highly customizable, and portable while capable of producing high-quality output (glyph images). Source: http://freetype.sourceforge.net

fuse (2.8.4) Fuse is a simple interface for userspace programs to export a virtual filesystem to the linux kernel. This piece of software is made available under the terms and conditions of the fuse license, which can be found below. Source: http://fuse.sourceforge.net/

gawk (3.1.5) If you are like many computer users, you would frequently like to make changes in various text files wherever certain patterns appear, or extract data from parts of certain lines while discarding the rest. To write a program to do this in a language such as C or Pascal is a time-consuming inconvenience that may take many lines of code. The job is easy with awk, especially the GNU implementation: gawk. Source: http://www.gnu.org/software/gawk/

glibc (2.12.2) Any Unix-like operating system needs a C library: the library which defines the “system calls” and other basic facilities such as open, malloc, printf, exit...The GNU C library is used as the C library in the GNU system and most systems with the Linux kernel This piece of software is made available under the terms and conditions of the glibc license, which can be found below. Source: http://www.gnu.org/software/libc/

grep (2.5.1a) The grep command searches one or more input files for lines containing a match to a specified pattern. By default, grep prints the matching lines. Source: http://www.gnu.org/software/grep/

gzip (1.3.12) GNU Gzip is a popular data compression program originally written by Jean-loup Gailly for the GNU project. Mark Adler wrote the decompression part. Source: http://www.gnu.org/software/gzip/

inetutils (1.4.2) Inetutils is a collection of common network programs.

Source: http://www.gnu.org/software/inetutils/

iptables (1.4.15) For Cross connection. Source: http://www.netfilter.org/projects/iptables/

iputils (s20101006) The iputils package is set of small useful utilities for Linux networking. It was originally maintained by Alexey Kuznetsov. Source: http://www.skbuff.net/iputils/

Libcurl (7.30.0) HTTP client;libcurl is a free and easy-to-use clientside URL transfer library, supporting FTP, FTPS, HTTP, HTTPS, SCP, SFTP, TFTP, TELNET, DICT, LDAP, LDAPS, FILE, IMAP, SMTP, POP3 and RTSP. libcurl supports SSL certificates, HTTP POST, HTTP PUT, FTP uploading, HTTP form based upload, proxies, cookies, user+password authentication (Basic, Digest, NTLM, Negotiate, Kerberos4), file transfer resume, http proxy tunneling and more! This piece of software is made available under the terms and conditions of the Libcurl license, which can be found below. Source: http://curl.haxx.se/

libiconv (1.11.1) This library provides an iconv() implementation, for use on systems which don't have one, or whose implementation cannot convert from/to Unicode. . This piece of software is made available under the terms and conditions of the libiconv license, which can be found below. Source: http://ftp.gnu.org/pub/gnu/libiconv

libmtp (0.3.6) libmtp is an Initiator implementation of the Media Transfer Protocol (MTP) in the form of a library suitable primarily for POSIX compliant operating systems. We implement MTP Basic, the stuff proposed for standardization. Source: http://libmtp.sourceforge.net/

libjpg (6b) This library is used to perform JPEG decoding tasks. This piece of software is made available under the terms and conditions of the libjpg license, which can be found below. Source: http://www.ijg.org/

libusb This is the home of libusb, a library that gives user level applications uniform access to USB devices across many different operating systems. libusb is an open source project licensed under the GNU Lesser General Public License version 2.1. Many participants in the libusb community have helped and continue to help with ideas, implementation, support and improvements for

Page 48

libusb. This piece of software is made available under the terms and conditions of the libusb license, which can be found below. Source: http://libusb.wiki.sourceforge.net http://www.libusb.org/

libusb-compat Library to enable user space application programs to communicate with USB devices. This piece of software is made available under the terms and conditions of the libusb-compat license, which can be found below. Source: http://libusb.wiki.sourceforge.net/LibusbCompat0.1

libpng (1.2.43) libpng -THE reference library for reading, displaying, writing and examining png Image Network Graphics. This piece of software is made available under the terms and conditions of the libpng license, which can be found below. Source: http://sourceforge.net/projects/libpng/files/

Libxml2 (2.7.8) The "libxml2" library is used in AstroTV as a support for the execution of NCL application. This library was developed for the GNOME software suite and is available under a "MIT" license. Source: http://www.xmlsoft.org

Linux Kernel (3.1) The Linux kernel is an operating system kernel used by the Linux family of Unix-like operating systems. This piece of software is made available under the terms and conditions of the Linux Kernel license, which can be found below. Source: http://www.kernel.org

Linux Fusion (8.7.0) Source: GNU

liveMedia (2011.06.12) c++ runtime library for RTSP requirement Source: www.live555.com

lvm2 (2.02.89) Userspace toolset that provide logical volume management facilities on linux. This piece of software is made available under the terms and conditions of the lvm2 license, which can be found below. Source: ftp://sources.redhat.com/pub/lvm2/releases/

module-init-tools (3.12) Provides developer documentation for the utilities used by Linux systems to load and manage kernel modules (commonly referred to as "drivers"). Source: https://modules.wiki.kernel.org/index.php/M

ain_Page

mtd-utils The aim of the system is to make it simple to provide a driver for new hardware, by providing a generic interface between the hardware drivers and the upper layers of the system. Hardware drivers need to know nothing about the storage formats used, such as FTL, FFS2, etc., but will only need to provide simple routines for read, write and erase. Presentation of the device's contents to the user in an appropriate form will be handled by the upper layers of the system. This piece of software is made available under the terms and conditions of the mtd-utils license, which can be found below. Source: http://www.linuxmtd.infradead.org/index.html

ncurses (5.7) The ncurses (new curses) library is a free software emulation of curses in System V Release 4.0 (SVr4), and more. It uses terminfo format, supports pads and color and multiple highlights and forms characters and function-key mapping, and has all the other SVr4-curses enhancements over BSD curses. SVr4 curses is better known today as X/Open Curses. Source: http://www.gnu.org/software/ncurses/

net-tools (1.6) The Net-tools?package is a collection of programs for controlling the network subsystem of the Linux kernel. Source: http://www.linuxfromscratch.org/blfs/view/6. 3/basicnet/net-tools.html

NTFS-3G Read/Write Driver (2010.5.22) NTFS-3G is an open source cross-platform implementation of the Microsoft Windows NTFS file system with read-write support. NTFS-3G often uses the FUSE file system interface, so it can run unmodified on many different operating systems. It is runnable on Linux, FreeBSD, NetBSD, OpenSolaris, BeOS, QNX, WinCE, Nucleus, VxWorks, Haiku,MorphOS, and Mac OS X It is licensed under either the GNU General Public License or a proprietary license. It is a partial fork of ntfsprogs and is under active maintenance and development. This piece of software is made available under the terms and conditions of the NTFS-3G Read/Write Driver license, which can be found below. Source: http://www.tuxera.com

openssl (1.0.1j) OpenSSL is an open source implementation of the SSL and TLS protocols. The core library (written in the C programming language) implements the basic cryptographic functions and provides various utility functions. Wrappers allowing the use of the OpenSSL library in a variety of computer languages are available. Source: http://www.openssl.org/

Page 49

procps (ps, top) (3.2.8) procps is the package that has a bunch of small useful utilities that give information about processes using the /proc filesystem. The package includes the programs ps, top, vmstat, w, kill, free, slabtop, and skill. Source: http://procps.sourceforge.net/index.html

samba (3.0.37) Samba is the standard Windows interoperability suite of programs for Linux and Unix. Source: http://www.samba.org/

to run . This piece of software is made available under the terms and conditions of the u-Boot loader license, which can be found below. Source: http://www.denx.de

udhcpc (0.9.8cvs20050303-3) Source: http://udhcp.sourcearchive.com/downloads/

0.9.8cvs20050303-3/

uDirectFB (1.5.3) Source: http://www.directfb.org

SaWMan (1.5.3) SaWMan, the Shared application and Window Manager, is a new window manager module for use with DirectFB. Source: http://www.directfb.org

sed (4.1.5) sed (stream editor) isn't an interactive text editor. Instead, it is used to filter text, i.e., it takes text input, performs some operation (or set of operations) on it, and outputs the modified text. sed is typically used for extracting part of a file using pattern matching or substituting multiple occurrences of a string within a file. Source: http://www.gnu.org/software/sed/

SQLite3 (2.12.2) SQLite is a in-process library that implements a selfcontained, serverless, zero-configuration, transactional SQL database engine. This piece of software is made available under the terms and conditions of the SQLite3 license, which can be found below. Source: http://www.sqlite.org/

SquashFS SquashFS is a compressed read-only file system for Linux. SquashFS compresses files, inodes and directories, and supports block sizes up to 1 MB for greater compression. SquashFS is also the name of free/open software, licensed under the GPL, for accessing SquashFS filesystems. This piece of software is made available under the terms and conditions of the SquashFS license, which can be found below. Source: http://squashfs.sourceforge.net/

tar (1.17) GNU Tar provides the ability to create tar archives, as well as various other kinds of manipulation. For example, you can use Tar on previously created archives to extract files, to store additional files, or to update or list files which were already stored. Source: http://www.gnu.org/software/tar/

uriparser (0.7.7) Uriparser is a strictly RFC 3986 compliant URI parsing and handling library written in C. uriparser is crossplatform, fast, supports Unicode and is licensed under the New BSD license. Source: http://uriparser.sourceforge.net/

util-linux-ng (2.18) Various system utilities. Source: http://userweb.kernel.org/~kzak/util-linuxng/

wget (1.10.2) GNU Wget is a free software package for retrieving files using HTTP, HTTPS and FTP, the most widelyused Internet protocols. It is a non-interactive commandline tool, so it may easily be called from scripts,?cron?jobs, terminals without X-Windows support, etc. Source: http://ftp.gnu.org/gnu/wget/wget-1.10.2.tar.gz

wpa_supplicant v0.8(wext)/v2.3(cfg80211) wpa_supplicant is a WPA Supplicant for Linux, BSD, Mac OS X, and Windows with support for WPA and WPA2 (IEEE 802.11i / RSN). It is suitable for both desktop/laptop computers and embedded systems. Supplicant is the IEEE 802.1X/WPA component that is used in the client stations. It implements key negotiation with a WPA Authenticator and it controls the roaming and IEEE 802.11 authentication/association of the wlan driver. Source: https://w1.fi/wpa_supplicant/

xerces-c++ (3.1.1) Source: http://xerces.apache.org/

zlib (6b) The 'zlib' compression library provides in-memory compression and decompression functions, including integrity checks of the uncompressed data. This piece of software is made available under the terms and conditions of the zlib license, which can be found below. Source: http://www.zlib.net/

u-Boot (2011.12) The uboot will load the linux kerenl to dram,and jump

Page 50

Disclaimer regarding services and/or software offered by third parties

Services and/or software offered by third parties may be changed, suspended, or terminated without prior notice. TP Vision does not bear any responsibility in these sorts of situations.

Page 51

Index

Advanced Ambilight Settings 34 Advanced Sound Settings 24 Ambilight 32 Ambilight Style 32 Ambilight+hue 32 Ambilight+hue, Hue Bulbs 32 Ambilight, Brightness 32 Ambilight, Saturation 32 Antenna Connection 9 App Gallery 31 Audio Out Menu 24 Auto Clock Mode 27

Batteries 5

Channel List 14 Channel lock 28 Channel Options 13 Channel, Channel Filter 14 Channels 13 Child Lock 28 Child Lock, Change Code 28 Child Lock, Set Code 28 Clear residual image 23 Clock 27 Closed caption 15 Color 21 Color Enhancement 21 Color Gamut 21 Color Settings 21 Color Temperature 21 Component - Y Pb Pr 9 Composite - CVBS 9 Connect Device 9 Consumer Care 3 Contact Info 3 Contrast 21

HDMI 9 HDMI - CEC 25 HDMI ARC 9 HDMI Sound System 24 HDMI Ultra HD 26 HDR Perfect 21 Headphone Connection 10 Help Menu 3 Home Menu 20 Home or Shop 27

Identify TV 3 Input Resolution 36

Keys on TV 6

Light Sensor 26 Location 27 Lock Channel 14

Menu language 15 Menu Languages 27 MHL Connection 10 Miracast 10 Miracast Connection 10 Mouse Settings 25

Natural Motion 22 Network - Wired 29 Network - Wireless 29 Network settings 29

On-line User Manual 3 Optical - Digital Audio Out 9

Date 27 Digital Out Delay 24 Digital Out Format 24 Digital Out Leveling 24 Digital Out Menu 24 Digital Out Offset 24 Dynamic Contrast 22

End of Use 35 Energy Saving 26

Favorite Channel, Channel Range 14 Favorite Channel, Create 14 Favorite Channel, Edit 14 Favorite Channels 15

Gamma 22 General Settings 25

Perfect Clear Motion 23 Perfect Natural Motion 23 Philips Support 3 Photos, Videos and Music 18 Picture Clean, Noise Reduction 22 Picture Contrast Menu 21 Picture Contrast Mode 21 Picture Format 23 Picture Motion Style 22 Picture Style 20 Picture, Color 21 Picture, Contrast 21 Picture, Expert mode 21 Picture, Sharpness 21 Picture, Ultra Resolution 22 Power Cable 7 Problems 38

Quick Picture Settings 23

Page 52

Quick Settings Menu 20

Register TV 3 Remote Control 5 Remote Control - IR Sensor 6 Remote Control and Batteries 5 Rename Device 12 Repair 3 Reset Settings 27

Safety and Care 42 Screen Off 26 Sharpness 21 Shop Setup 27 Sleep Timer 27 Smart TV 31 Software Version 4 Sound Menu 24 Sound Style 24 Sound, Auto Volume Leveling 24 Sound, Delta Volume 24 Sound, Expert mode 24 Source List 12 Standby Mode 8 Switch Off Timer 26 Switching On 8

Time 27 Troubleshooting 38 TV Display Resolution 36 TV Placement 24 TV Reception 36 TV Speaker 24

Unlock Channel 14 Update Software 4 Update Software - Internet 4 Update Software - Local Updates 4 Update Software - USB 4 USB Flash Drive 11 USB Hard Drive 25 USB Keyboard Settings 25 User Manual 3

Video Contrast 22 Viewing Distance 7

Wall Mounting 7

Page 53

Philips 55OLED873/56 user manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Index
