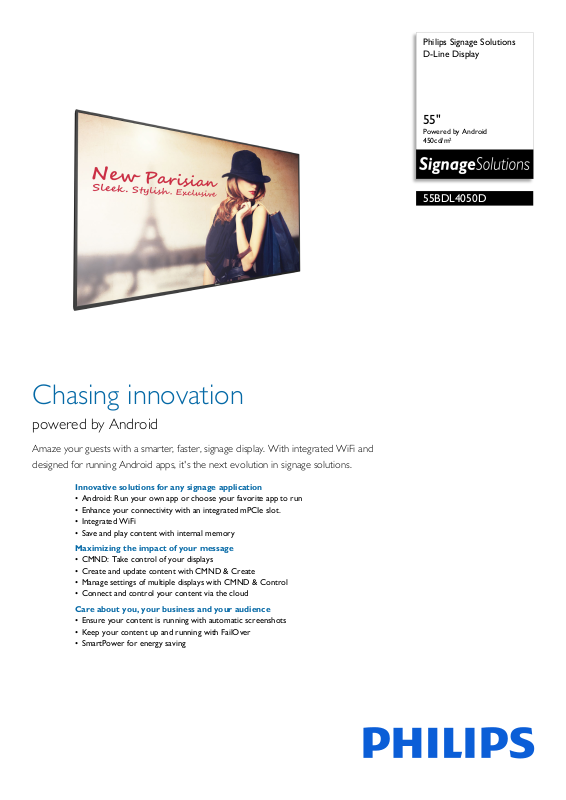

Philips 55BDL4050D/00 Product Data Sheet

Page 1

Philips Signage Solutions D-Line Display

55"

55BDL4050D

Chasing innovation

Amaze your guests with a smarter, faster, signage display. With integrated WiFi and designed for running Android apps, it's the next evolution in signage solutions.

Innovative solutions for any signage application

• Android: Run your own app or choose your favorite app to run

• Enhance your connectivity with an integrated mPCIe slot.

•Integrated WiFi

• Save and play content with internal memory

Maximizing the impact of your message

• CMND: Take control of your displays

• Create and update content with CMND & Create

• Manage settings of multiple displays with CMND & Control

• Connect and control your content via the cloud

Care about you, your business and your audience

• Ensure your content is running with automatic screenshots

• Keep your content up and running with FailOver

• SmartPower for energy saving

Page 2

55BDL4050D/00

D-Line Display

55" Powered by Android, 450cd/m²

Highlights

WIth Android OS integrated into the display, you can w the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.

PCI Slot

With an integrated PCI slot, you can connect an extra allowing for even greater communication with the display. Machine to machine communication is also enhanced, with numerous configurations available for customers to use, such as the ability to expand product features or signal-handling capability.

Internal Memory

ork with the most developed OS on

WiFI/bluetooth or 4G LTE module,

FailOver

Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides 24/7 protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

SmartPower

CMND & Control

With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.

CMND & Create

Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.

Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

Proof of Play

Content is king, and with the automatic s

creenshot feauture, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

CMND

A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

SmartBrowser

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists

Page 3

55BDL4050D/00

D-Line Display

55" Powered by Android, 450cd/m²

Specifications

Picture/Display

• Diagonal screen size: 54.64 inch / 138.8 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60Hz

• Brightness: 450 cd/m²

• Contrast ratio (typical): 1100:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 12 ms

• Pixel pitch: 0.63 x 0.63 mm

• Display colors: 16.7 million

• Viewing angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down,

mbfi

3D Co MA deinterlacing, Dynamic contrast enhancement, Progressive scan

lter, Motion compens. deinterlacing, 3D

Connectivity

• Video input: DisplayPort (1.2), HDMI (x2), DVI-D,

USB, VGA (via DVI)

• Video output: DisplayPort, DVI-I, VGA (via DVI-D)

• Audio input: 3.5 mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA), External

eaker

connector

• Other connections: mPCIe,

USB power outlet (5 V. 2 amp)

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

jac

micro SD, micro USB,

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 1920 x 1080 60Hz 1440 x 900 60Hz 1366 x 768 60 1360 x 768 60Hz 1280 x 800 60Hz 1280 x 768 60Hz 1024 x 768 60Hz 800 x 600 56, 60, 72, 75Hz 640 x 480 60, 67, 72, 75Hz

deo formats

• Vi

olution Refresh rate

Res 1080p 50, 60Hz 1080i 50, 60Hz 720p 50, 60Hz 576i 50Hz 576p 50Hz

480p 60Hz 480i 60Hz

Dimensions

•Set dimensions (W x H x D):

1231.9 x 711.2 x 45.72 mm

• Set dimensions in inch (W x H x D): x 28.0 x 1.8 inch

48.5

• Bezel width: 9.5 mm (T/L/R) 15.6mm (B)

• Product weight (lb): 39.68 lb

• Product weight: 18.0 kg

• VESA Mount: 400 x 400 mm, M6

Convenience

• Placement: Landscape, Portrait

• Tiled Matrix: Up to 15 x 15

• Keyboard control: Hidden, Lockable

• Signal Loop Through: DVI, VGA, RS232, IR

oop

through, DisplayPort

• Network controllable: RJ45, RS232, One Wire

•

• Screen saving functions: Pixel Shift, Low Bright

CEC), HDMI (One Wire)

(HDMIEnergy saving functions: Smart Power

Power

• Standby power consumption: <0.4 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (EPA 6.0): 64 W

• Consumption (Typical): 76 W

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• Altitude: 0 ~ 3000 m

• MTBF: 50,000 hour(s)

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Included accessories: Remote Control, Batteries

for remote control, Quick start guide, RS232 cable, AC Power Cord

• Stand: BM05922 (Optional)

• Optional accessories: ColourCalibrationKit

460

(CCK

Multimedia Applications

• USB Playback Audio: AAC, AIF, AIFF, M4A, MP3, WAV, WMA, ASF, LPCM, M3U, MP4

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Video: M2TS, M4V, MK3D, MKV, MP4, MPEG,

MPG, MTS, TS, TTS, VOB,

WMV

Miscellaneous

• On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

• Regulatory approvals: Energy Class B, UL/cUL, CCC, C-Tick, RoHS, GOST, BSMI, CB, J-Moss, PSE, VCCI

• Warranty: 3 year warranty

Star 7.0,

CE, FCC,

Internal Player

• CPU: Quad Core Cortex A9 1.8GHz

• GPU: ARM Mali400 Quad Core 533MHz

• Memory: 2GB DDR3

• Storage: 16GB EMMC

•

Issue date 2016-05-24

Version: 1.0.1

12 NC: 8670 001 37395 EAN: 87 12581 74128 0
