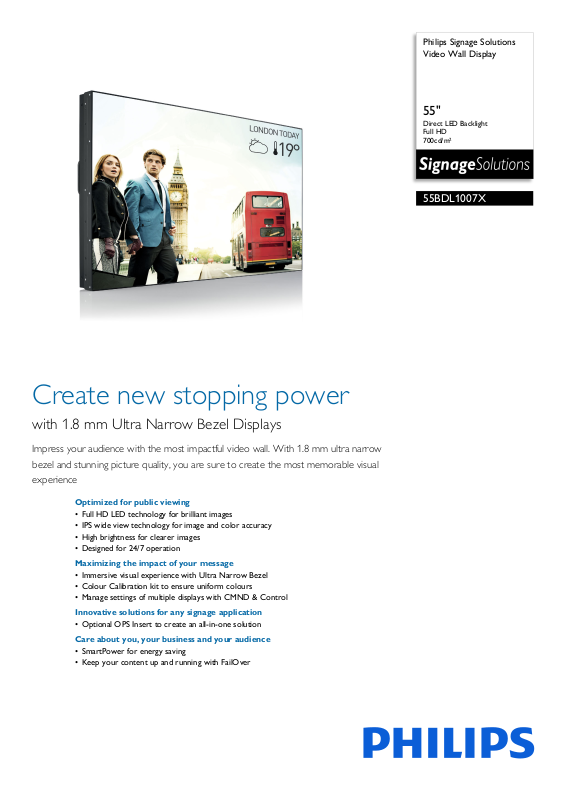

Page 1

Philips Signage Solutions Video Wall Display

55"

Direct LED Backlight Full HD 700cd/m²

55BDL1007X

Create new stopping power

with 1.8 mm Ultra Narrow Bezel Displays

Impress your audience with the most impactful video wall. With 1.8 mm ultra narrow bezel and stunning picture quality, you are sure to create the most memorable visual experience

Optimized for public viewing

• Full HD LED technology for brilliant images

• IPS wide view technology for image and color accuracy

• High brightness for clearer images

• Designed for 24/7 operation

Maximizing the impact of your message

• Immersive visual experience with Ultra Narrow Bezel

• Colour Calibration kit to ensure uniform colours

• Manage settings of multiple displays with CMND & Control

Innovative solutions for any signage application

• Optional OPS Insert to create an all-in-one solution

Care about you, your business and your audience

• SmartPower for energy saving

• Keep your content up and running with FailOver

Page 2

55BDL1007X/00

Video Wall Display

UltraNarrow

Bezel

FailOver

55" Direct LED Backlight, Full HD, 700cd/m²

Highlights

Full HD LED technology

White LED's are solid state devices which light up

to full, consistent brightness faster saving startup time. LED's are free from mercury content which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of LCD backlight, resulting in super high contrast ratio. It also gives superior color reproduction thanks to consistent brightness across the screen.

IPS Display Technology

Philips IPS displays uses an advanced te

chnology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in portrait mode. IPS displays gives you remarkably crisp images with vivid colors, especially suitable for professional video wall and menuboard applications which demand color accuracy and consistent brightness at all times.

High brightness

Enjoy a clearer image in areas with greater ambient

brightness thanks to the 700 nit panel. Your audience can enjoy better image quality in locations that are away from direct sunlight yet still brighter than average, optimizing the viewing experience.

Ultra Narrow Bezel

The next generation of video wall displays is designed with industry narrowest bezels and

advanced alignment solutions. Fully exploit your impactful signage content with ultra narrow bezel displays, and make sure your message does not get lost by thick bezels. With the ultra narrow bezels you can create seamless video wall configurations of virtually any size.

Advanced Colour Calibration

The Advanced Colour Calibration kit controls the luminance of the backlight, standardizes the gamma curve and calibrates the greyscale of your display network. Whether you have an impressive video wall, a catchy mosaic layout, a menu board installation or a control room each display can be adjusted to the same colour values. With this optional kit you ensure consistent colour performance over all displays in your network.

FailOver

Keeping your content up and running is critical for dem

anding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

OPS Insert

Turn your display into an all-in-one digital signage

solution and create a display network which is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry standard slot into which you can add an OPS-standardized media player. This cable free solution gives you the ability to install, use or maintain your hardware whenever you need.

Designed for 24/7 operation

Because business never sleeps, our signage dis

plays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-theclock reliability.

CMND & Control

With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.

Page 3

55BDL1007X/00

Video Wall Display

55" Direct LED Backlight, Full HD, 700cd/m²

Specifications

Picture/Display

• Diagonal screen size: 54.6 inch / 138.7 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 700 cd/m²

• Response time (typical): 8 ms

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.63 x 0.63 mm

• Display colors: 1.07 B

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

• Contrast ratio (typical): 1200:1

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1360 x 768 60 1366 x 768 60Hz 1440 x 900 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz

deo formats

• Vi

olution Refresh rate

Res 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz 3840 x 2160 30Hz

Connectivity

• Video input: Component (RCA), Composite

(RCA), DVI-D, HDMI (x2), VGA (Analog D-Sub), DisplayPort (1.2)

• Video output: DisplayPort, DVI-I, VGA (via DVI-I)

• Audio input: 3.5 mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA), External speake

• External control: IR (in/out) 3.5 mm jack, RJ45, RS232C (in/

• Other connections: OPS

nnector

r co

out) 2.5 mm jack

Convenience

• Signal Loop Through: RS232, VGA, DisplayPort, DVI, IR Loopthrough

• Ease of installation: Carrying Handles,

• Energy saving functions: Ambient light sensor, Smart Powe

• Network controllable: RS232, RJ45, Card OPS RS2

• Placement: Landscape (24/7), Portrait (24/7)

• Screen saving functions: Pixel Shift, Low Bright

• Tiled Matrix: Up to 10 x 10

• Control software: SICP / CMND&Control

• RJ45 hub: 2 ports

32, One Wire (HDMI-CEC)

Smart Insert

Dimensions

• Bezel thickness: 1.8 mm (A-A)

• Bezel width: 0.9mm (Even Bezel)

•Set dimensions (W x H x D):

x 682.2 x 98.5 mm

1211.4

• Set dimensions in inch (W x H x D):

9 x 26.86 x 3.88 inch

47.6

• Product weight: 24.35 kg

• VESA Mount: 400 x 400 mm

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Altitude: 0 ~ 3000 m

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

Power

• Consumption (On mode): 168W

• Standby power consumption: <0.5W

Sound

• Built-in speakers: 2 x 10W (RMS)

Accessories

• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, RS232 cable, Quick start guide, Edge alignment pins, Edge

lignment plates

• Optional accessories: Edge finishing kit, HDBaseT OPS Rec

iver (CRD25), Color calibration kit

Miscellaneous

• On-Screen Display Languages: Arabic, Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish

• Regulatory approvals: CE, UL/cUL, CB, GOST,

FCC, Class B

EPEAT

• Warranty: 3 year warranty

•

Issue date 2017-03-21

Version: 1.0.1

12 NC: 8670 001 41174 EAN: 87 12581 74191 4
